Honeywell X-618 Installation Manual
M_XXXXXX_EN_1.0
X-618 Public Address and Voice
Alarm System
Installation Manual
i
Copyright
© 2012 Honeywell International Inc. All rights reserved.
No part of this document may be reproduced in any form without the written permission of the
copyright owner.
Disclaimer
The contents of this document are subject to revision without notice due to continued progress in
methodology, design, and manufacturing. Honeywell shall have no liability for any error or damage
of any kind resulting from the use of this document.
Trademark List
All trademarks mentioned herein are the property of their respective owners. These are shown in
the document Trademark Information.
Safety Guidelines
Danger
This sign reminds users of “dangerous voltage” on the product.
Caution
This sign reminds users of important instructions attached to the product.
Safety guideline
In order to prevent electric shock, this equipment plug shall not be used
as conductor to extend power supply line.
Do not block the equipment’s ventilation opening or put other equipment
on it.
Safety guideline
Protect this equipment against rainwater or moisture so as to avoid fire
or electric shock.
Safety Precautions
Please carefully read and observe the following precautions before installing, operating or using
this product.
Electricity Utilization Safety
Local electrical safety regulations must be observed for product installation and operation.
The Company shall not be liable for fire or electric shock accidents caused by incorrect
installation and mistake.
Transportation Safety
The product shall be protected against impact, violent vibration or liquid erosion during
transportation, storage and installation.
Environmental Requirements
Do not install the product within the environment of extreme temperature or dust and
mechanical vibration.
This equipment shall be well ventilated and protected against dust, moisture, direct sunshine
and violent during the use. It shall be kept away from radiating objects or heat sources
and well ventilated. The optimum working environment temperature is 5-28ºC and relative
humidity <95%. If the equipment is in operation for a long time and ambient temperature is too
high, it is recommended that effective measures should be taken to reduce temperature.
Requirements on grid power supply voltage by the equipment: AC 220V (-15% to +10%) 50-
60Hz. In case of too high, too low voltage or that fluctuating greatly, it is recommended that AC
regulated power supply should be installed.
As the product is not waterproof, do not expose it to rainwater or liquid environment so as to
avoid damaging it.
Put the equipment on solid level plane or install it on a rack.
Do not put other articles on the equipment top.
Safe Use Precautions
The equipment shall be installed under the direction of professionals.
Please carefully check power supply lines for damage prior to use. The lines must be
connected to the equipment in strict accordance with identifications.
Power supply plugs and sockets shall match each other. Otherwise, suitable sockets must be
provided. Human damage to the sockets shall be prohibited.
Power supply for the equipment shall be provided with sufficient capacity and independent and
reliable grounding lines.
Please ensure the equipment power supply grounding lines interconnected and
connected with the ground. Otherwise, it will cause it abnormal, even damaged.
There are HV lines within it. When turn on the power, do not open the equipment cover without
permission so as to prevent electric shock.
Prior to the first energization to start equipment, please check its external wiring for
correctness so as to avoid damage.
During the energization, please do not touch wiring terminals identified with “lightning” at
random so as to avoid electric shock.
Please do not change equipment connection circuits at random during energization so as to
avoid damage.
In case of failure to the equipment, please ask professional repair personnel to repair it.
Otherwise, the Company shall neither dispose of any problems nor undertake relevant
responsibilities.
Label and User’s Manual
Please pay attention to information on the product label such as type and power supply.
Please carefully read the user’s manual and operate according to the instructions. The user’s
manual is for reference for operation of products of different types. Specific operations of
products of different types are not listed herein. In case of any problem, please contact the
Company.
Please maintain this Manual for future reference.
Table of Contents
Safety Guidelines ..................................................................................................................................ii
Safety Precautions............................................................................................................................ii
Electricity Utilization Safety.........................................................................................................ii
Transportation Safety .................................................................................................................ii
Environmental Requirements .....................................................................................................ii
Safe Use Precautions................................................................................................................ iii
Label and User’s Manual........................................................................................................... iii
Preface ...................................................................................................................................................1
Brief Introduction...............................................................................................................................1
Intended Audience............................................................................................................................1
Relevant Documents.........................................................................................................................1
Use Instructions ................................................................................................................................1
1 System Overview ............................................................................................................................3
2 Preparation for Installation ............................................................................................................4
Gathering Information .......................................................................................................................4
Preparing Tools.................................................................................................................................4
Preparing Auxiliary Materials............................................................................................................5
Preparing Cables and Auxiliary Equipment ......................................................................................5
Packing List Inspection .....................................................................................................................7
3 System Installation .........................................................................................................................7

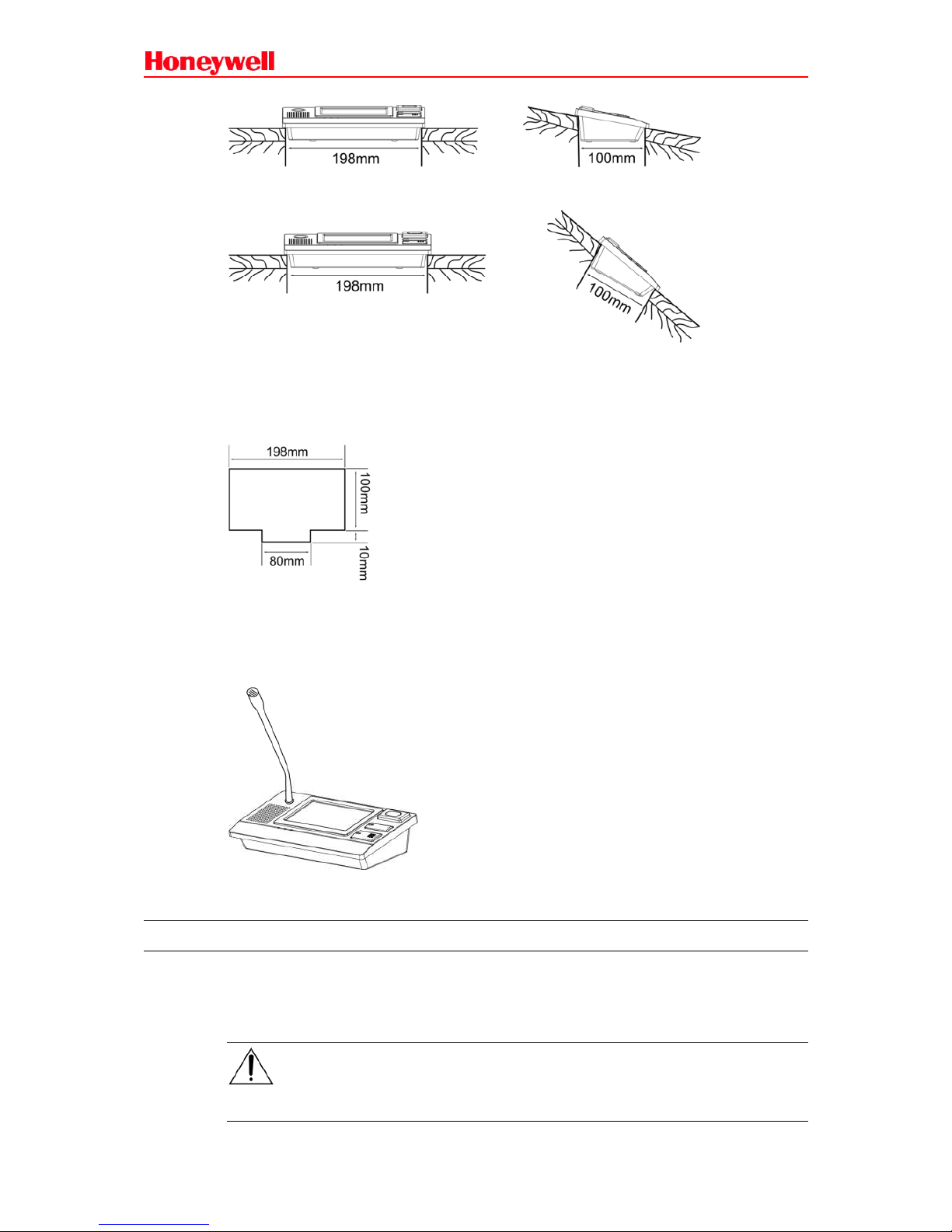

Installing the NPM on a Fixed Surface (Optional).............................................................................7

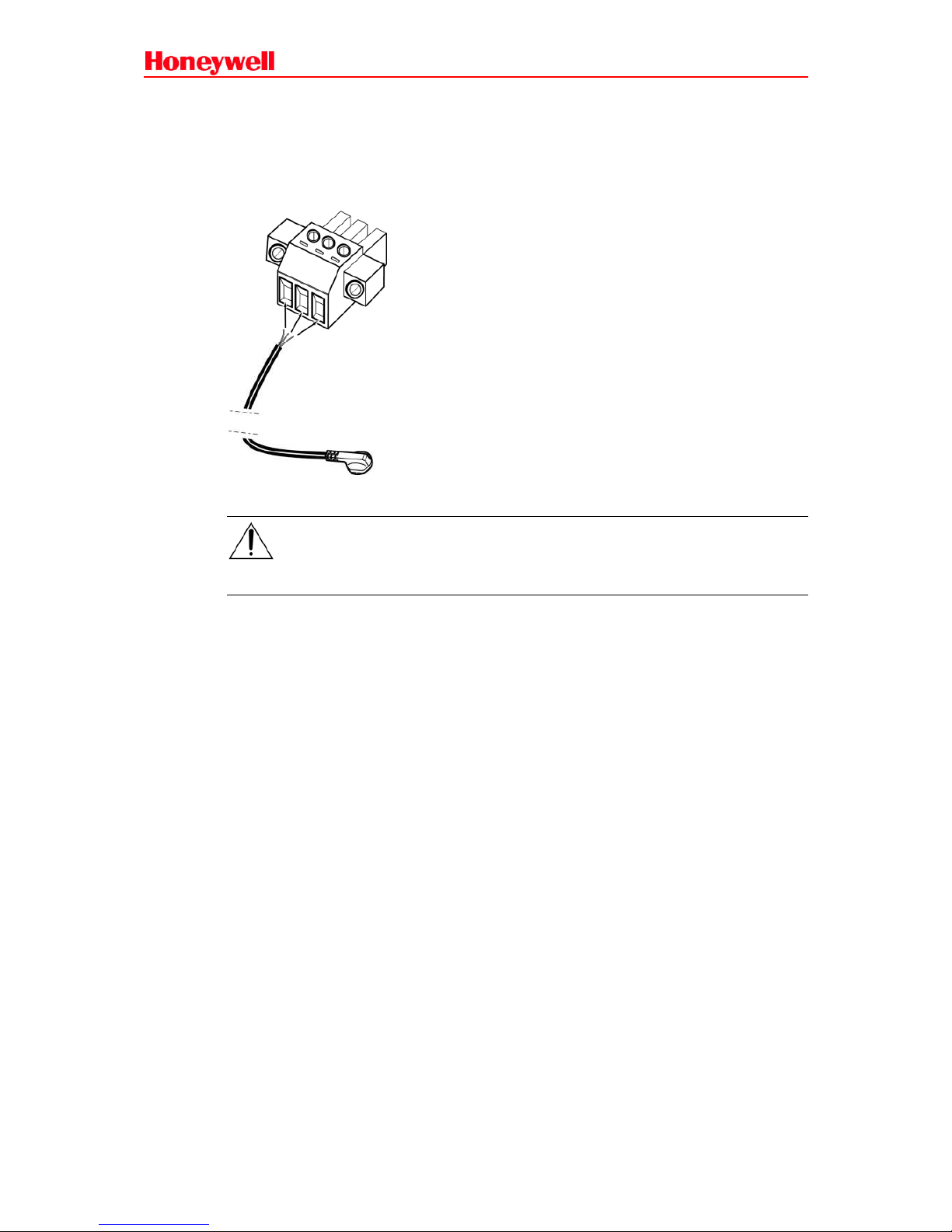

Connecting the Protective Grounding Cabinet Wires.......................................................................8

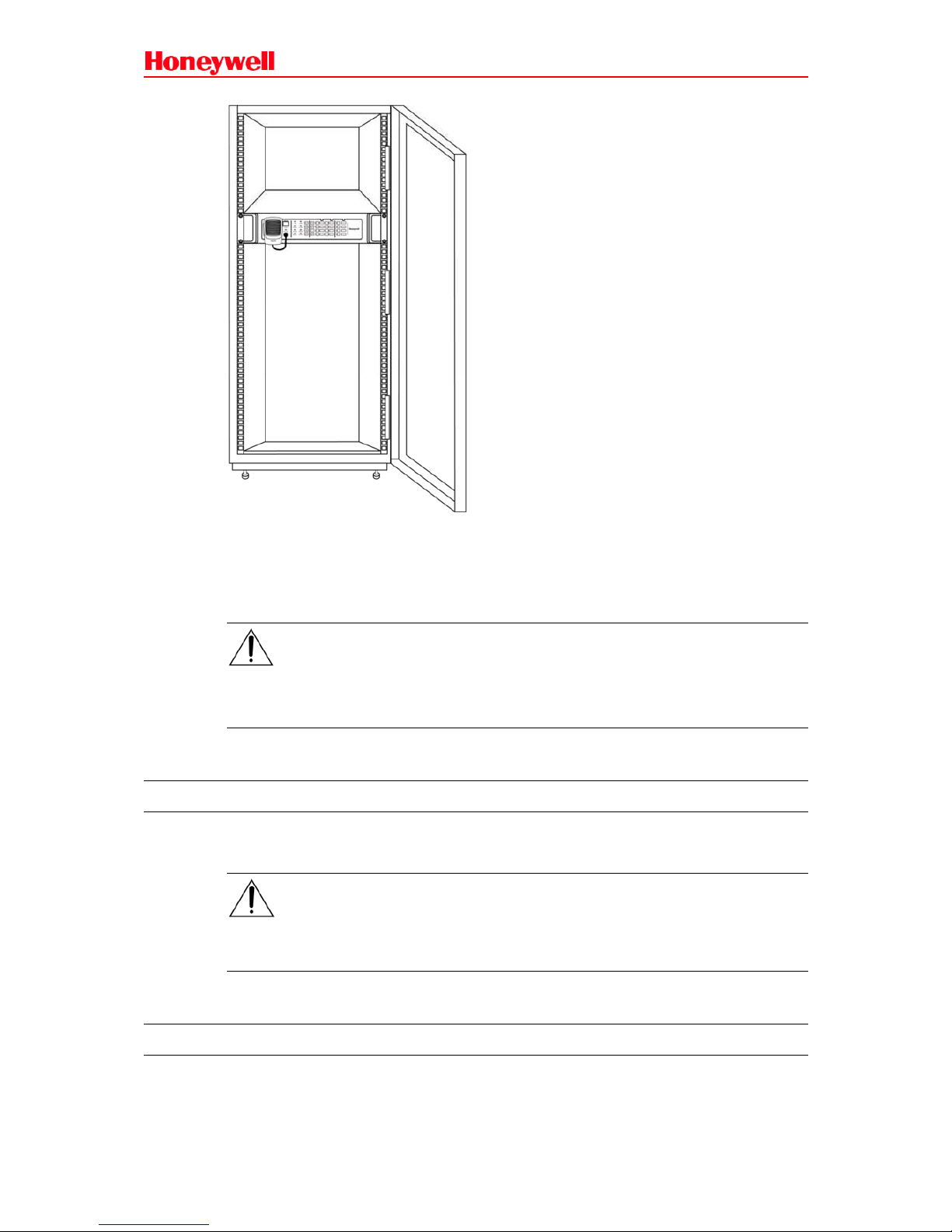

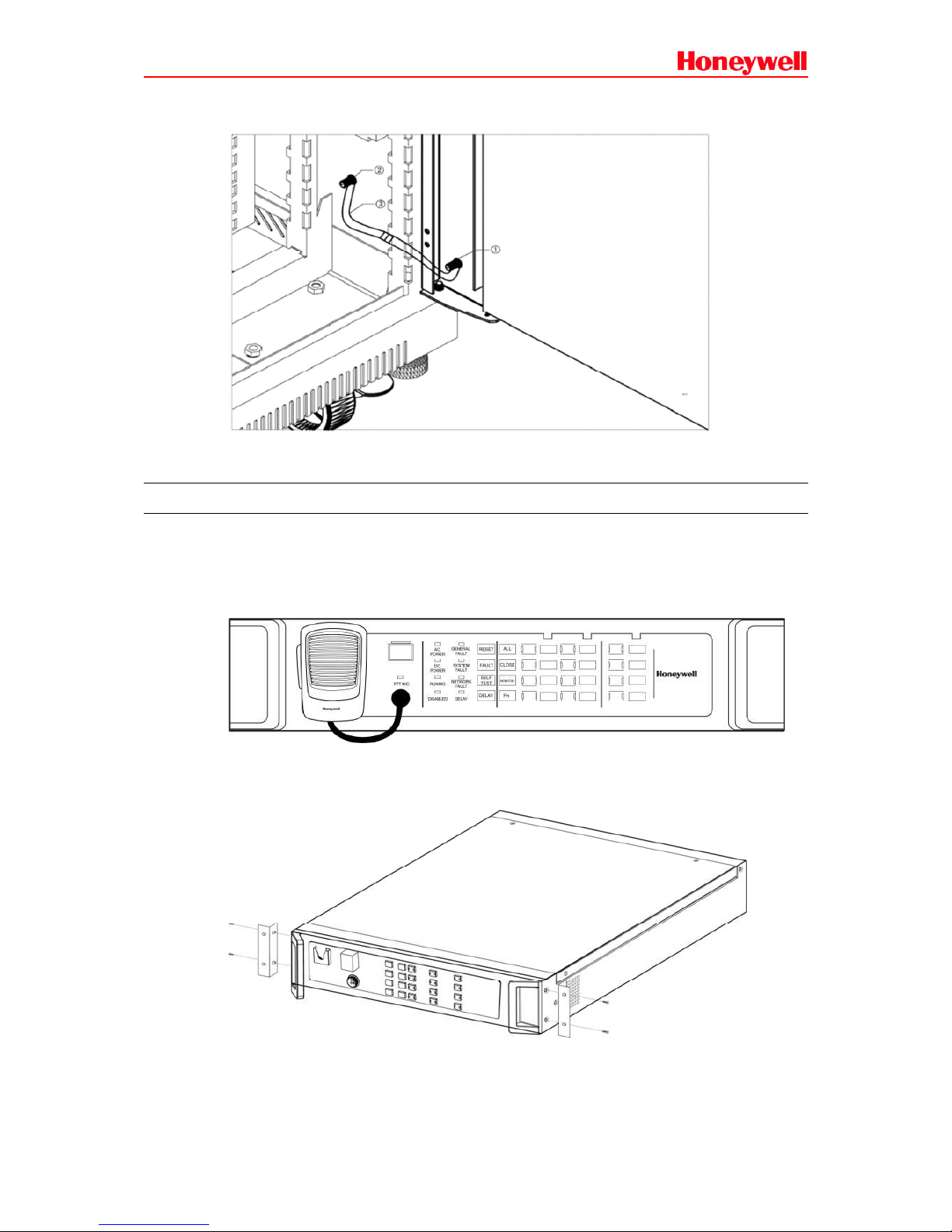

Installing the DCS and DA in the Appliance Cabinet........................................................................9
Connecting the Protective Grounding Appliance Wires..................................................................10
Connecting the X-618 System Components...................................................................................10

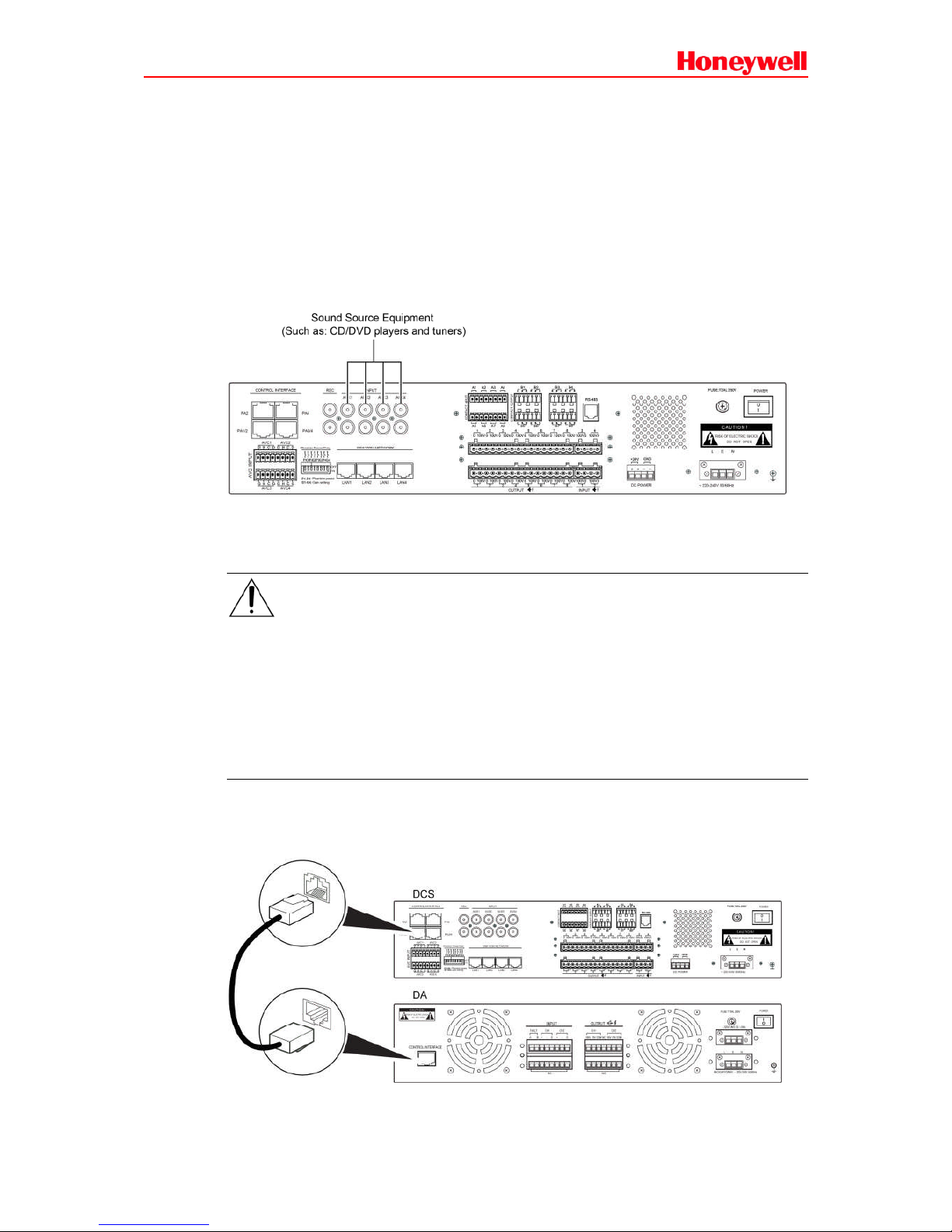

Connecting the Sound Source Equipment to the DCS.............................................................11

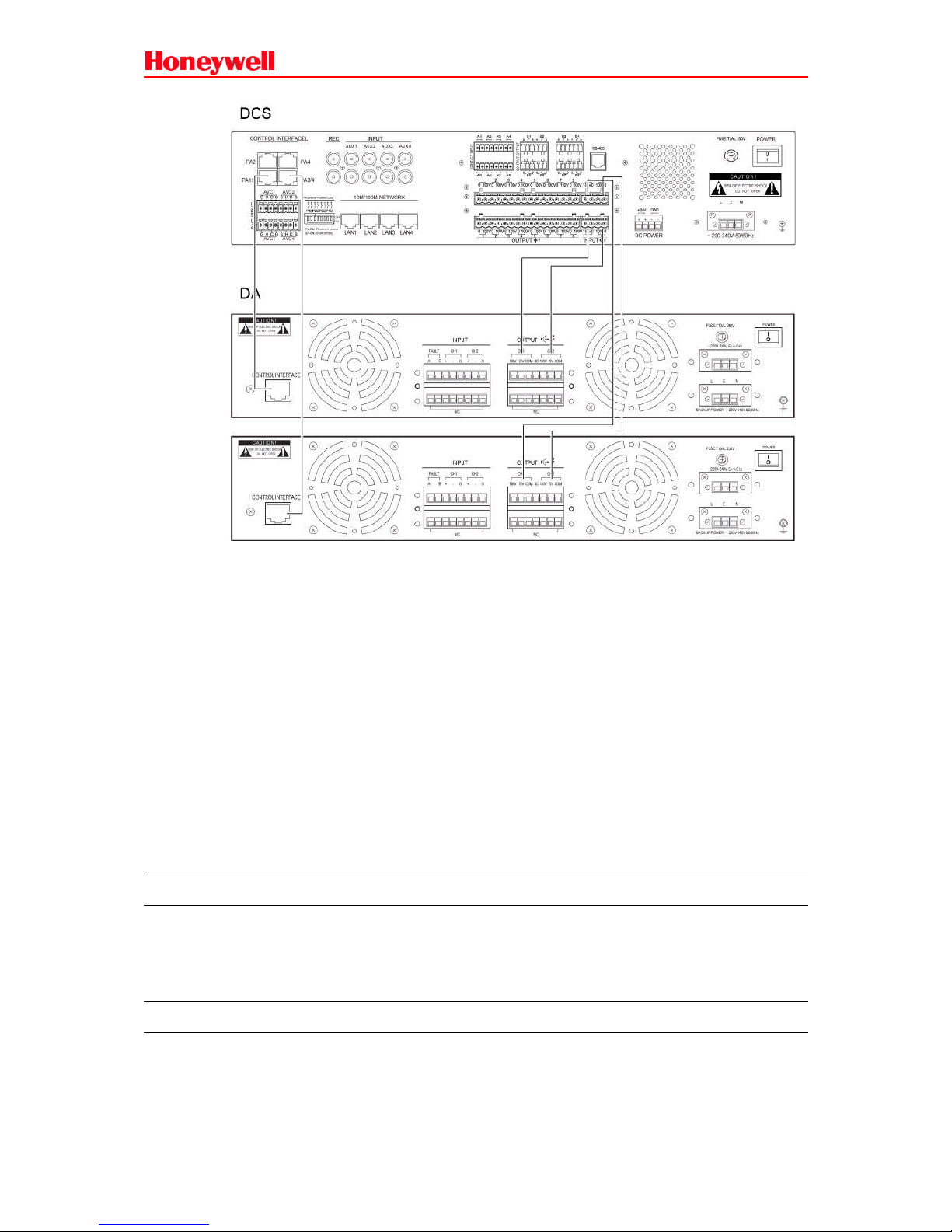

Connecting the DCS to the DA.................................................................................................11

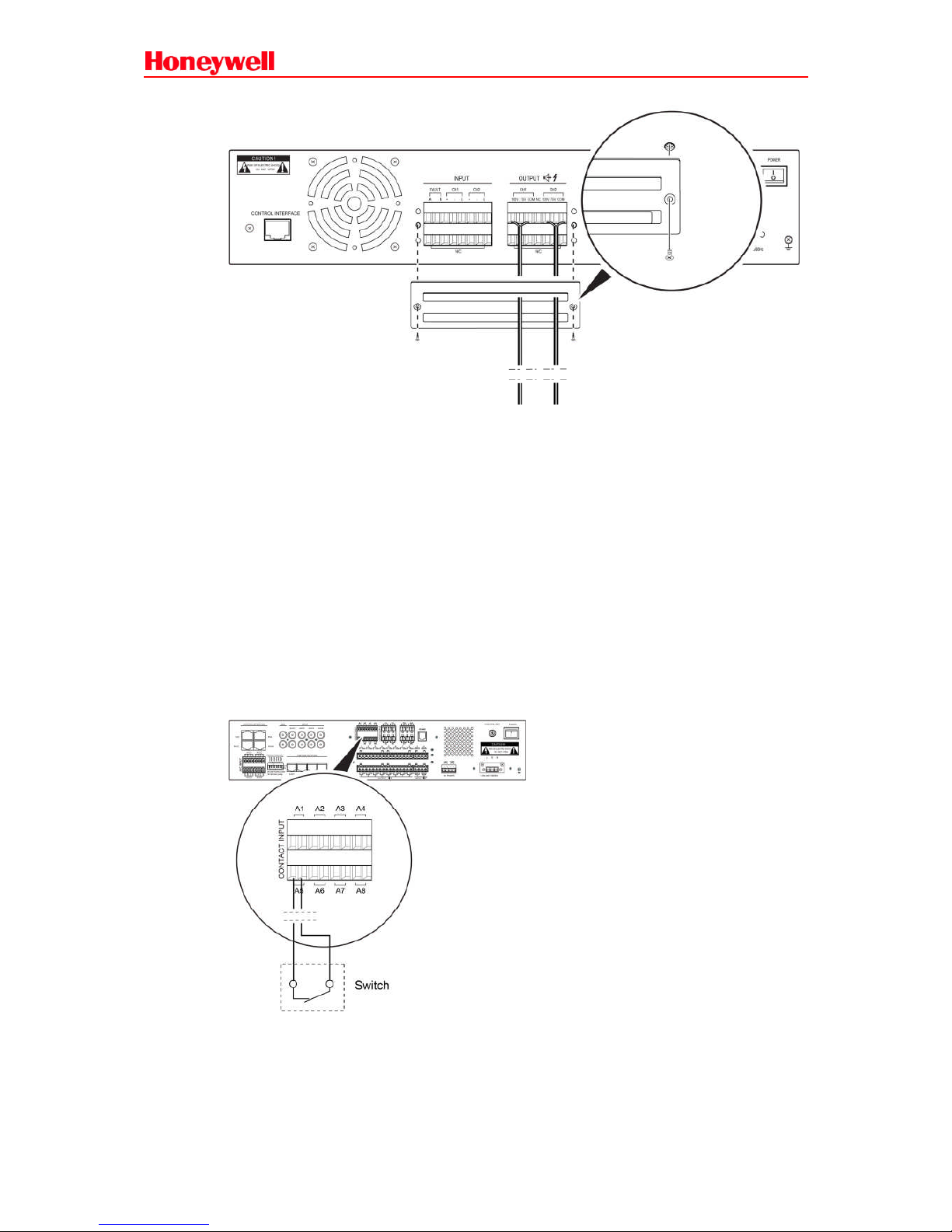

Connecting the Dry Contacts (Optional)...................................................................................14

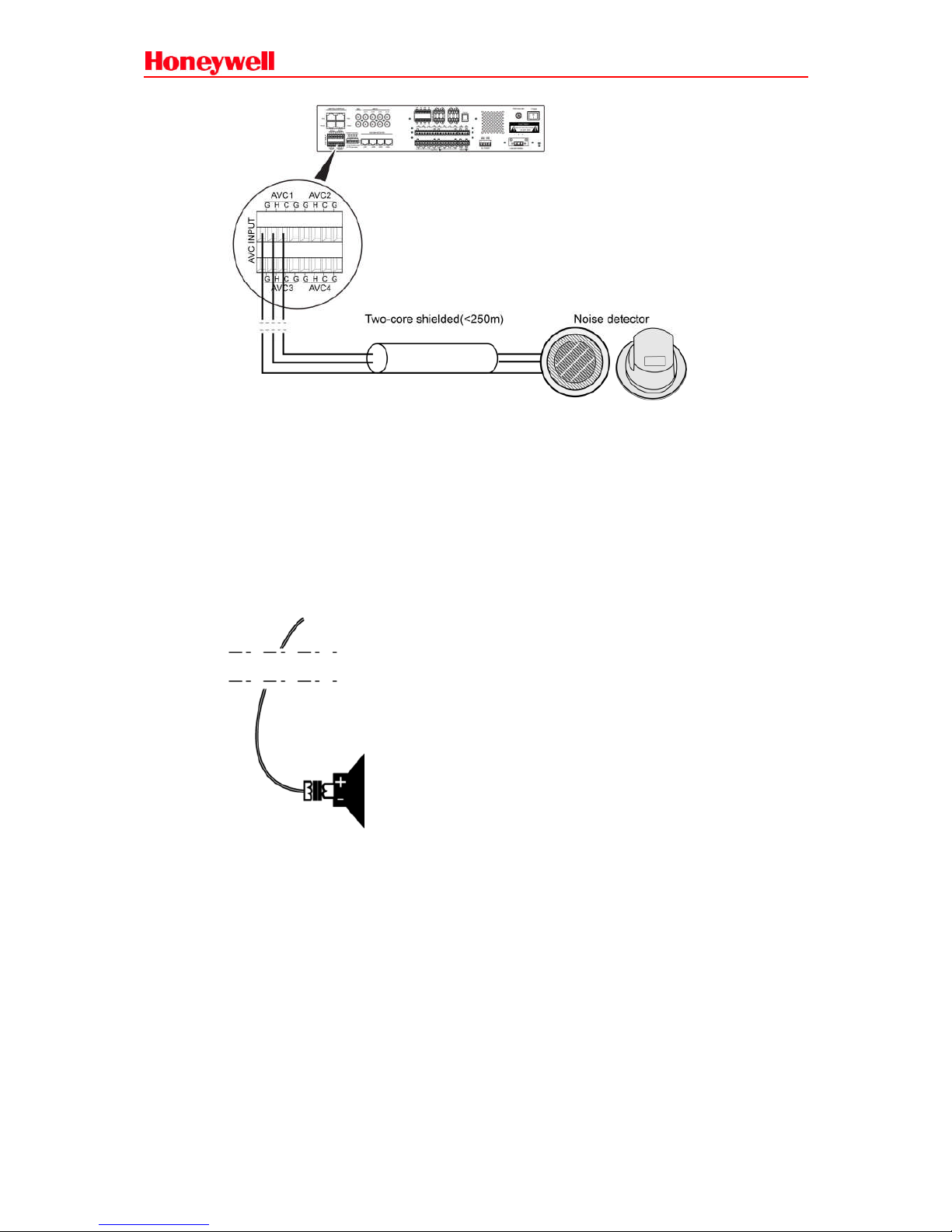

Connecting the Noise Detector (Optional)................................................................................15

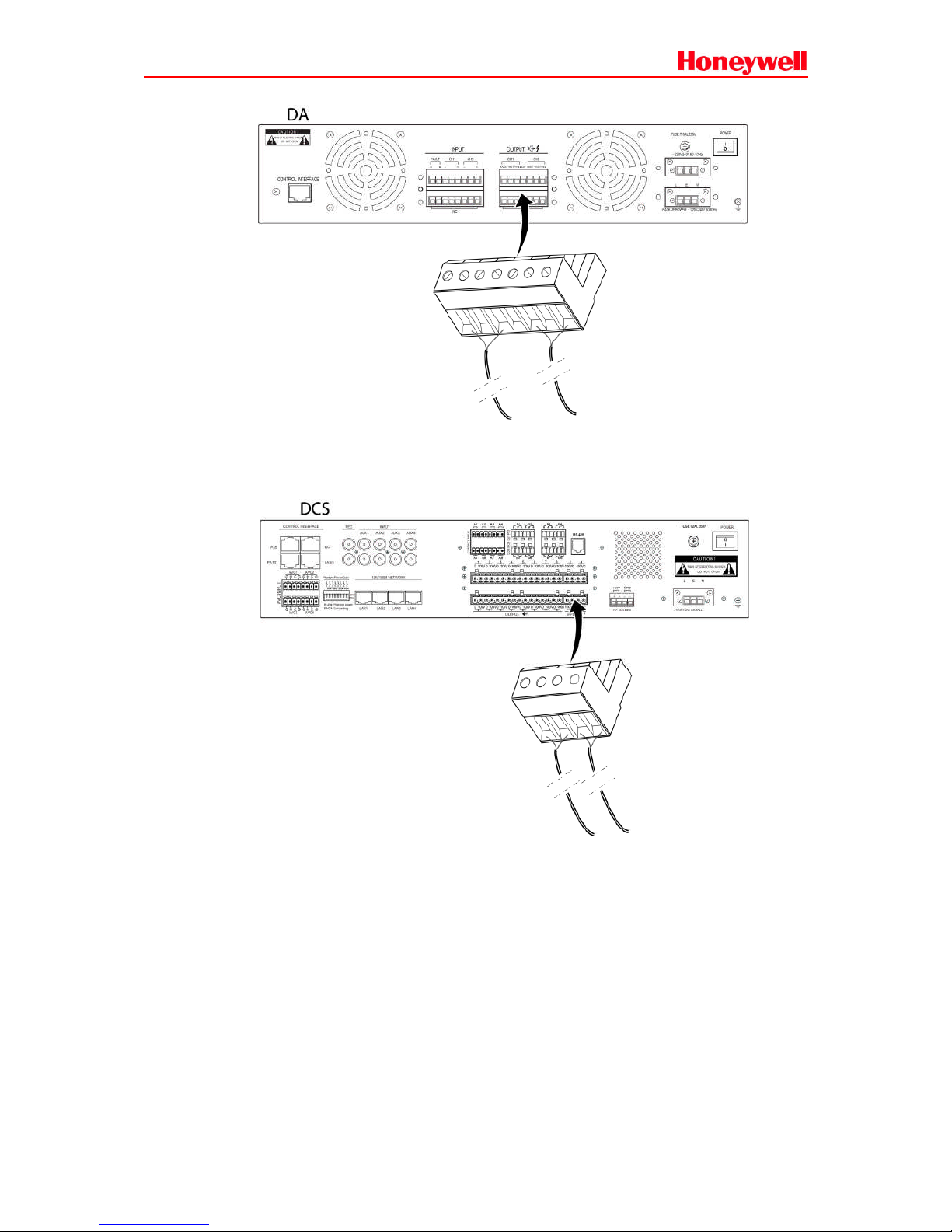

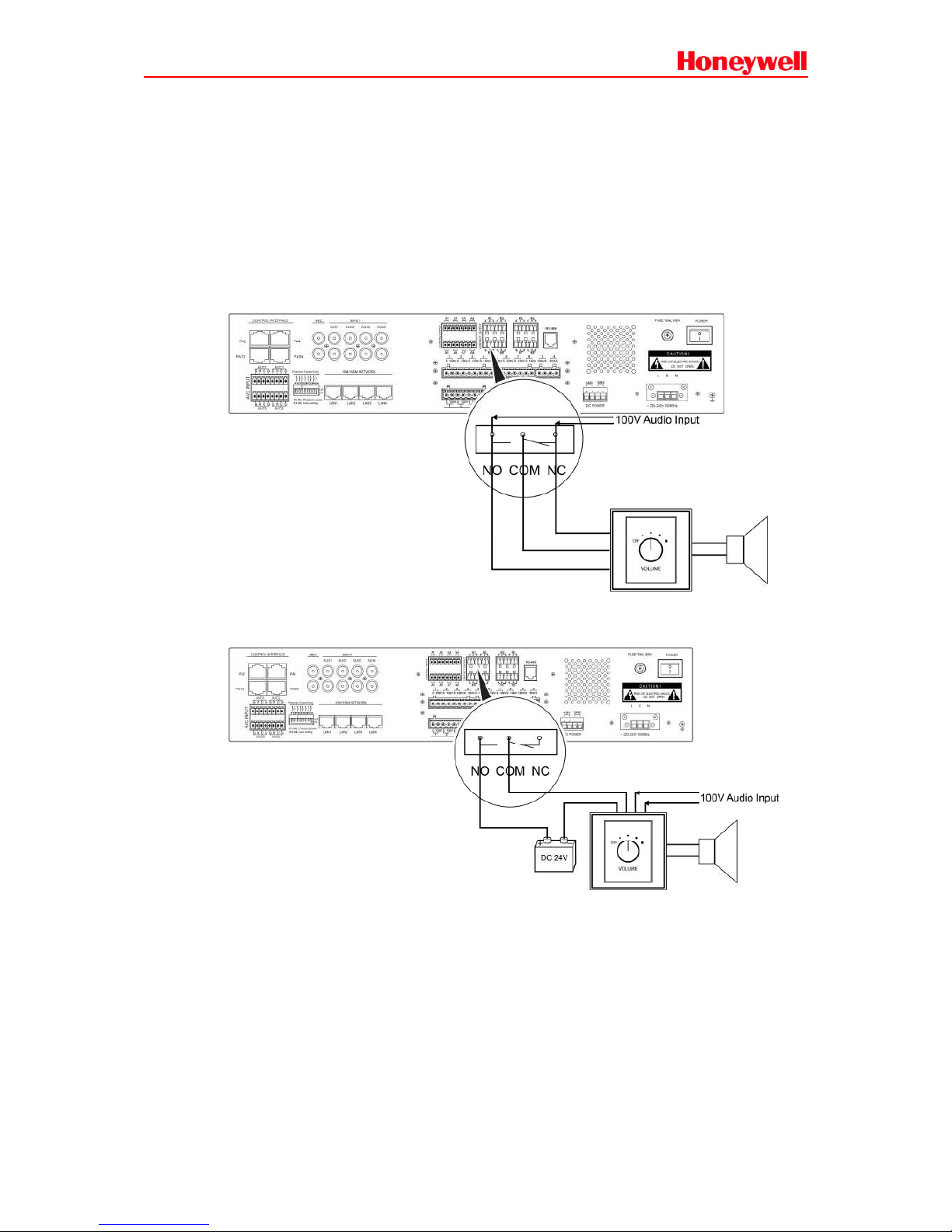

Connecting the Loudspeakers..................................................................................................16

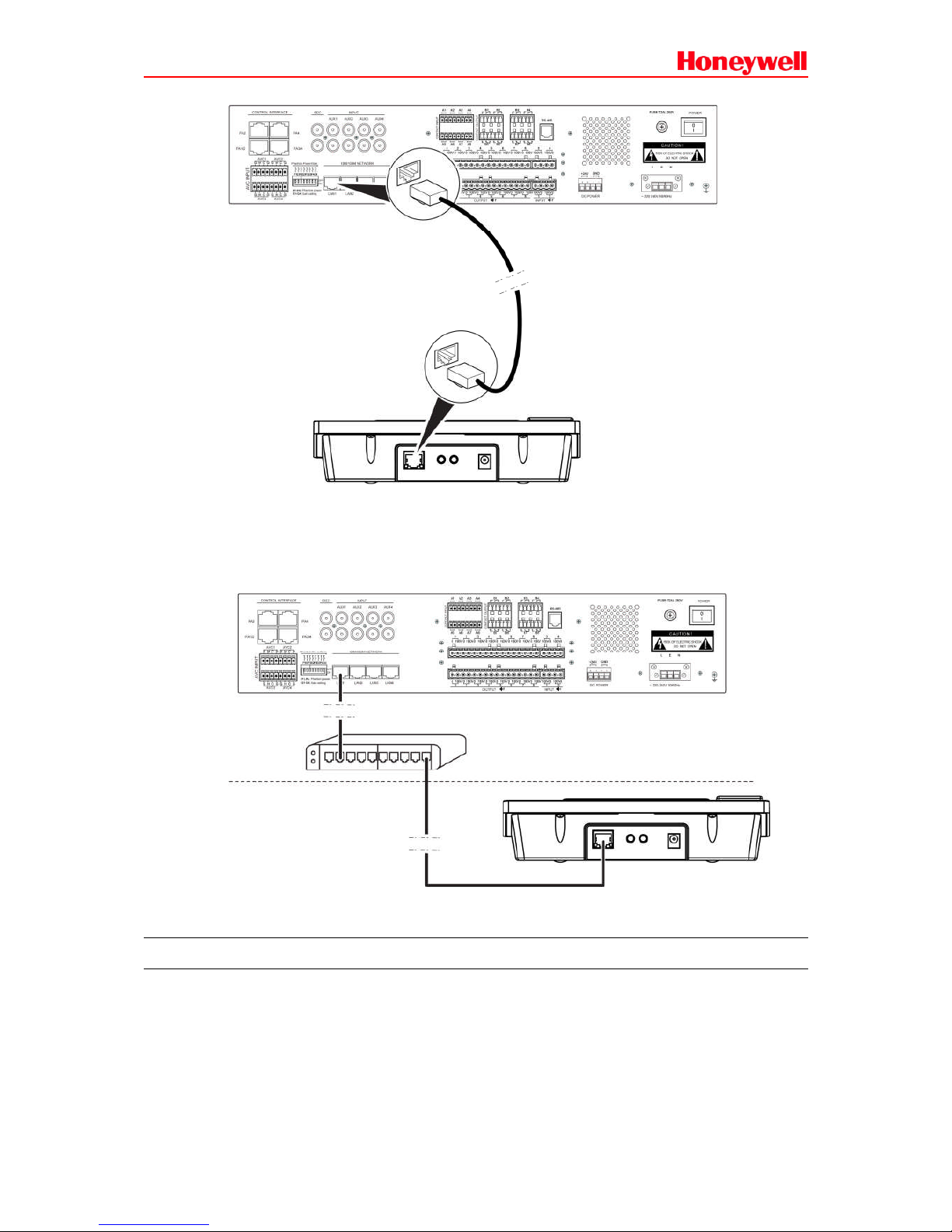

Connecting the DCS to the NPM..............................................................................................16
Connecting the Power Supply Cables ............................................................................................17
DCS Main and Standby Power Supply Cables.........................................................................18
DA Main and Standby Power Supply Cables ...........................................................................19

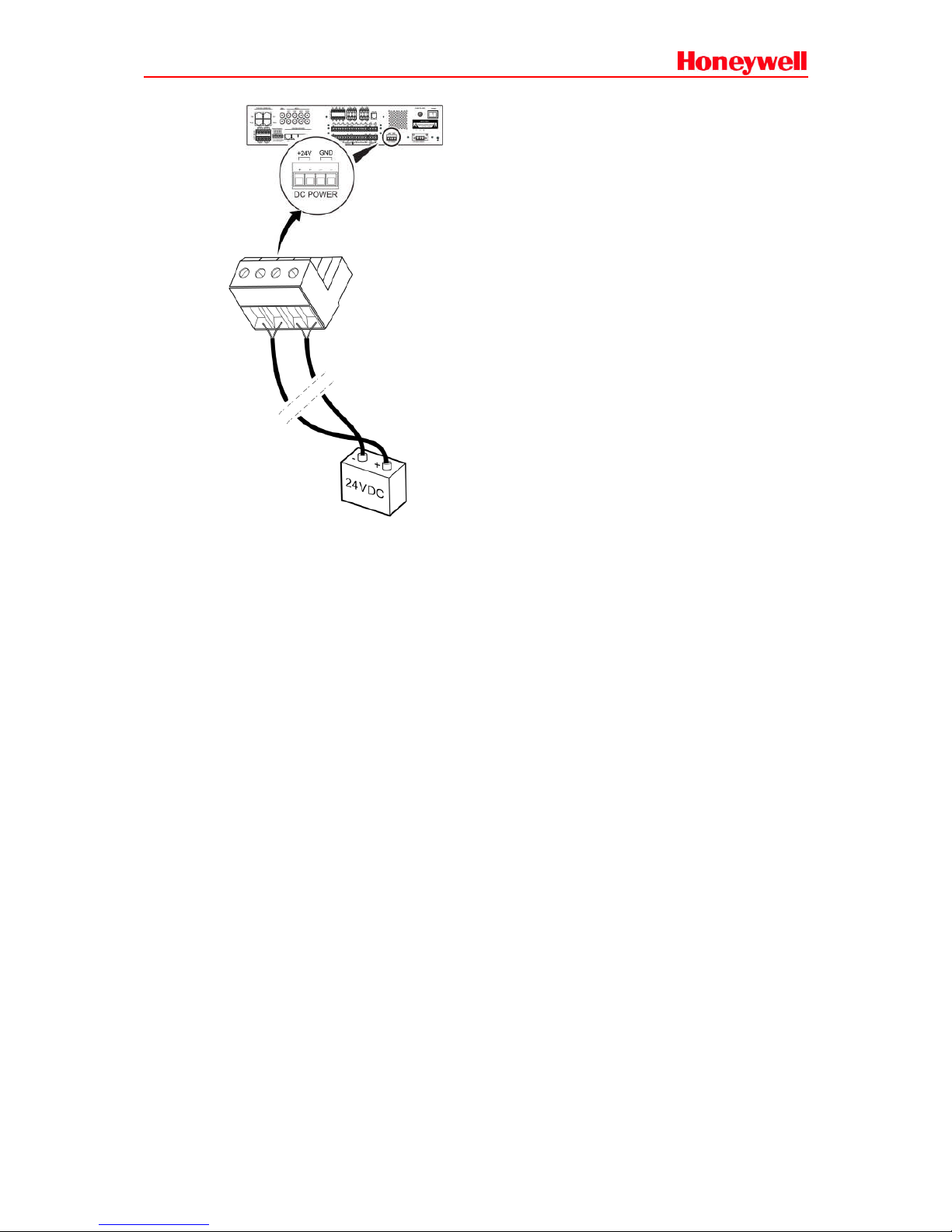

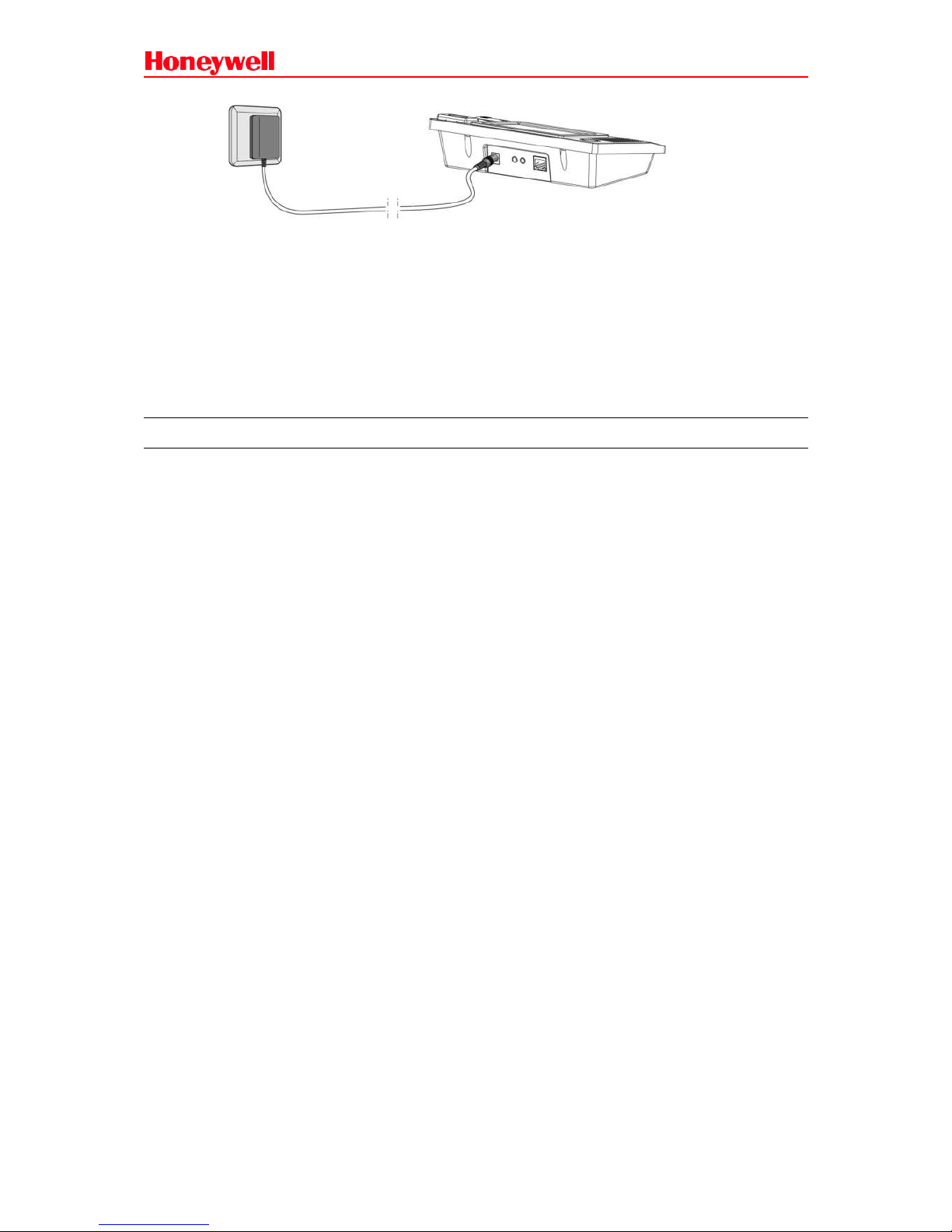

NPM Power Supply Cable ........................................................................................................19
4 Installation Inspection ..................................................................................................................20
Inspection........................................................................................................................................20
1
Preface
Thank you for purchasing the X-618 Public Address and Voice Alarm System. Please carefully
read this manual prior to system use so as to ensure correct use of the system.
Brief Introduction
This manual describes the appearance, installation, and wiring of the X-618 Public Address and
Voice Alarm System equipment. The manual includes the following chapters:
Chapter 1: System Overview
Describes the X-618 Public Address and Voice Alarm System structure and product assembly
Chapter 2: Preparation for Installation
Describes preparing to install the X-618 Public Address and Voice Alarm System
Chapter 3: System Installation
Describes installing the X-618 Public Address and Voice Alarm System along with related
precautions
Chapter 4: Installation Inspection
Describes inspecting the installation of the X-618 Public Address and Voice Alarm System and
system commissioning
Intended Audience
This manual is mainly for personnel who are to install, operate, and maintain the X-618
Broadcasting and Voice Alarm System.
Relevant Documents
The following documents can be used as a reference when reading this manual:
X-618 Public Address and Voice Alarm System Product Description
X-618 Public Address and Voice Alarm System Configuration Manual
X-618 Public Address and Voice Alarm System Operation Manual
Use Instructions
All content including figures in this manual are to be used only for reference.
The product may be subject to change from time to time without notice.
Users of this product are recommended to carefully read all warnings and precautions in this
manual.
Carefully read this manual before using the product and keep it as a reference for future use.
This manual has been reviewed with its accuracy is ensured. In case of any doubt or dispute
of the product description, the final interpretation given by the Life Safety A/V (Guangzhou)
Co., Ltd. shall prevail.
2
The Life Safety A/V (Guangzhou) Co., Ltd is not liable for any consequences caused by user
mistakes when using the product or user misunderstandings of the manual content.
3
1 System Overview
The X-618 Public Address and Voice Alarm System provides a complete multiple sound source
public audio management solution. Centralized network management is achieved through the
system software, and all system states are monitored. The X-618 Public Address and Voice Alarm
System is hereby referred to as the “X-618” throughout the remainder of this manual.
The X-618 includes the following product components:
X-DCS2000 Digital Integrated System Manager
The X-DCS2000 Digital Integrated System Manager is hereinafter referred to as the “DCS” or
“X-DCS2000”.
The DCS is X-618 control equipment designed for expanding the number of loudspeaker
zones, and can support multiple sound source files for broadcasting. The system
integrates with functions such as the sound source file storage system, the network audio
broadcasting system, the loudspeaker zone control system, and the system for monitoring and
diagnosing faults.
X-DA2250 High Efficiency Power Amplifier
The X-DA2250 High Efficiency Power Amplifier is hereinafter referred to as the “DA” or “XDA2250”.
In the X-618 system, the DA is used to amplify audio signal power and drive many
broadcasting loudspeakers.
X-NPMI Configurable Network Paging Console
The X-NPMI Programmable Network Paging Console is hereinafter referred to as the “NPM”
or “X-NPMI”.
The NPM is used to page zones and control broadcasts for the X-618 on an Ethernet network.
Figure 1 shows the schematic diagram of the X-618 system structure.
