Honeywell V5853, V5863 Catalog Page
Cartridge Globe Valves

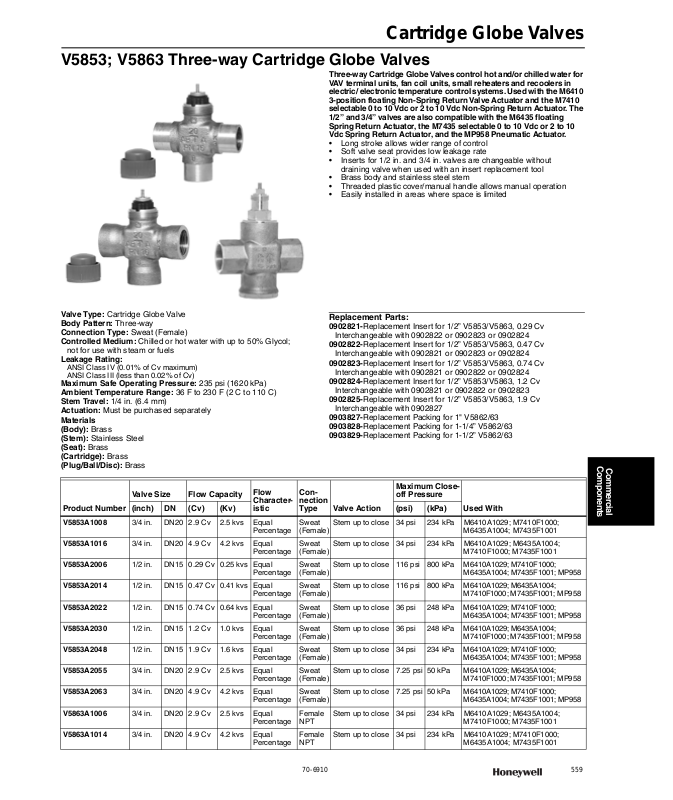

V5853; V5863 Three-way Cartridge Globe Valves
Valve Type: Cartridge Globe Valve
Body Pattern: Three-way Connection Type: Sweat (Female)
Controlled Medium: Chilled or hot water with up to 50% Glycol; not for use with steam or fuels
Leakage Rating:
ANSI Class IV (0.01% of Cv maximum)
ANSI Class III (less than 0.02% of Cv)
Maximum Safe Operating Pressure: 235 psi (1620 kPa) Ambient Temperature Range: 36 F to 230 F (2 C to 110 C)
Stem Travel: 1/4 in. (6.4 mm) Actuation: Must be purchased separately
Materials (Body): Brass
(Stem): Stainless Steel
(Seat): Brass (Cartridge): Brass (Plug/Ball/Disc): Brass
Three-way Cartridge Globe Valves control hot and/or chilled water for VAV terminal units, fan coil units, small reheaters and recoolers in electric/ electronic temperature control systems. Used with the M6410 3-position floating Non-Spring Return Valve Actuator and the M7410 selectable 0 to 10 Vdc or 2 to 10 Vdc Non-Spring Return Actuator. The 1/2” and 3/4” valves are also compatible with the M6435 floating Spring Return Actuator, the M7435 selectable 0 to 10 Vdc or 2 to 10 Vdc Spring Return Actuator, and the MP958 Pneumatic Actuator.
•Long stroke allows wider range of control
•Soft valve seat provides low leakage rate
•Inserts for 1/2 in. and 3/4 in. valves are changeable without draining valve when used with an insert replacement tool
•Brass body and stainless steel stem
•Threaded plastic cover/manual handle allows manual operation
•Easily installed in areas where space is limited
Replacement Parts:
0902821-Replacement Insert for 1/2” V5853/V5863, 0.29 Cv Interchangeable with 0902822 or 0902823 or 0902824
0902822-Replacement Insert for 1/2” V5853/V5863, 0.47 Cv Interchangeable with 0902821 or 0902823 or 0902824
0902823-Replacement Insert for 1/2” V5853/V5863, 0.74 Cv Interchangeable with 0902821 or 0902822 or 0902824
0902824-Replacement Insert for 1/2” V5853/V5863, 1.2 Cv Interchangeable with 0902821 or 0902822 or 0902823 0902825-Replacement Insert for 1/2” V5853/V5863, 1.9 Cv
Interchangeable with 0902827 0903827-Replacement Packing for 1" V5862/63 0903828-Replacement Packing for 1-1/4” V5862/63 0903829-Replacement Packing for 1-1/2” V5862/63
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Flow |
Con- |
|
Maximum Close- |
|
|
|
Valve Size |
Flow Capacity |
|
off Pressure |
|
|||||
|
|
|
|
|
Character- |
nection |
|
|
|
|
Product Number |
(inch) |
DN |
(Cv) |
(Kv) |
istic |
Type |
Valve Action |
(psi) |
(kPa) |
Used With |
|
|
|
|
|
|
|
|
|
|
|
V5853A1008 |
3/4 in. |
DN20 |
2.9 Cv |
2.5 kvs |
Equal |
Sweat |
Stem up to close |
34 psi |
234 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M6435A1004; M7435F1001 |
|
|
|
|
|
|
|
|
|
|
|
V5853A1016 |
3/4 in. |
DN20 |
4.9 Cv |
4.2 kvs |
Equal |
Sweat |
Stem up to close |
34 psi |
234 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M7410F1000; M7435F1001 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2006 |
1/2 in. |
DN15 |
0.29 Cv |
0.25 kvs |
Equal |
Sweat |
Stem up to close |
116 psi |
800 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2014 |
1/2 in. |
DN15 |
0.47 Cv |
0.41 kvs |
Equal |
Sweat |
Stem up to close |
116 psi |
800 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2022 |
1/2 in. |
DN15 |
0.74 Cv |
0.64 kvs |
Equal |
Sweat |
Stem up to close |
36 psi |
248 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2030 |
1/2 in. |
DN15 |
1.2 Cv |
1.0 kvs |
Equal |
Sweat |
Stem up to close |
36 psi |
248 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2048 |
1/2 in. |
DN15 |
1.9 Cv |
1.6 kvs |
Equal |
Sweat |
Stem up to close |
34 psi |
234 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2055 |
3/4 in. |
DN20 |
2.9 Cv |
2.5 kvs |
Equal |
Sweat |
Stem up to close |
7.25 psi |
50 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5853A2063 |
3/4 in. |
DN20 |
4.9 Cv |
4.2 kvs |
Equal |
Sweat |
Stem up to close |
7.25 psi |
50 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
(Female) |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A1006 |
3/4 in. |
DN20 |
2.9 Cv |
2.5 kvs |
Equal |
Female |
Stem up to close |
34 psi |
234 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M7410F1000; M7435F1001 |
|
|
|
|
|
|
|
|
|
|
|
V5863A1014 |
3/4 in. |
DN20 |
4.9 Cv |
4.2 kvs |
Equal |
Female |
Stem up to close |
34 psi |
234 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M6435A1004; M7435F1001 |
|
|
|
|
|
|
|
|
|
|
|
<![endif]>Commercial
<![if ! IE]><![endif]>Components
70-6910 |
|
|
|
559 |
|
|
Cartridge Globe Valves
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Flow |
Con- |
|
Maximum Close- |
|
|
|
Valve Size |
Flow Capacity |
|
off Pressure |
|
|||||
|
|
|
|
|
Character- |
nection |
|
|
|
|
Product Number |
(inch) |
DN |
(Cv) |
(Kv) |
istic |
Type |
Valve Action |
(psi) |
(kPa) |
Used With |
|
|
|
|
|
|
|
|
|
|
|
V5863A2004 |
1/2 in. |
DN15 |
0.29 Cv |
0.25 kvs |
Equal |
Female |
Stem up to close |
116 psi |
800 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A2012 |
1/2 in. |
DN15 |
0.47 Cv |
0.41 kvs |
Equal |
Female |
Stem up to close |
116 psi |
800 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A2020 |
1/2 in. |
DN15 |
0.74 Cv |
0.64 kvs |
Equal |
Female |
Stem up to close |
36 psi |
248 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A2038 |
1/2 in. |
DN15 |
1.2 Cv |
1.0 kvs |
Equal |
Female |
Stem up to close |
36 psi |
248 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A2046 |
1/2 in. |
DN15 |
1.9 Cv |
1.6 kvs |
Equal |
Female |
Stem up to close |
34 psi |
234 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A2053 |
3/4 in. |
DN20 |
2.9 Cv |
2.5 kvs |
Equal |
Female |
Stem up to close |
7.25 psi |
50 kPa |
M6410A1029; M7410F1000; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M6435A1004; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A2061 |
3/4 in. |
DN20 |
4.9 Cv |
4.2 kvs |
Equal |
Female |
Stem up to close |
7.25 psi |
50 kPa |
M6410A1029; M6435A1004; |
|
|
|
|
|
Percentage |
NPT |
|
|
|
M7410F1000; M7435F1001; MP958 |
|
|
|
|
|
|
|
|
|
|
|
V5863A3002 |
1 in. |
DN25 |
5.5 Cv |
4.8 kvs |
Linear |
Female |
Stem up to close |
232 psi |
1600 kPa |
M6410A3017; M7410F3006; |
|
|
|
|
|
|
NPT |
port A to AB |
|
|
M6435A3000; M7435F3007 |
|
|
|
|
|
|
|
|
|
|
|
V5863A3010 |
1 in. |
DN25 |
7.8 Cv |
6.7 kvs |
Linear |
Female |
Stem up to close |
232 psi |
1600 kPa |
M6410A3017; M7410F3006; |
|
|
|
|
|
|
NPT |
port A to AB |
|
|
M6435A3000; M7435F3007 |
|
|
|
|
|
|
|
|
|
|
|
V5863A3028 |
1 in. |
DN25 |
11.0 Cv |
9.5 kvs |
Linear |
Female |
Stem up to close |
232 psi |
1600 kPa |
M6410A3017; M7410F3006; |
|
|
|
|
|
|
NPT |
port A to AB |
|
|
M6435A3000; M7435F3007 |
|
|
|
|
|
|
|
|
|
|
|
V5863A3036 |
1 1/4 in. |
DN32 |
18 Cv |
15.6 kvs |
Linear |
Female |
Stem up to close |
174 psi |
1200 kPa |
M6410A3017; M7410F3006; |
|
|
|
|
|
|
NPT |
port A to AB |
|
|
M6435A3000; M7435F3007 |
|
|
|
|
|
|
|
|
|
|
|
V5863A3044 |
1 1/2 in. |
DN40 |
25 Cv |
21.6 kvs |
Linear |
Female |
Stem up to close |
145 psi |
1000 kPa |
M6410A3017; M7410F3006; |
|
|
|
|
|
|
NPT |
port A to AB |
|
|
M6435A3000; M7435F3007 |
|
|
|
|
|
|
|
|
|
|
|
Cartridge Globe Valve Accessories
|
|
|
Product Number |
Description |
Used With |
|
|
|
WV108B |
Brush Tool for Valve Cleaning 1/2” and 3/4” V5852/V5853/V5862/V5863 |
V5862; V5853; V5852; V5863 |
|
|
|
WV108M |
Insert Replacement Tool for 1/2” and 3/4” V5852/V5853/V5862/V5863 |
V5853; V5862; V5852; V5863 |
|
|
|
560 |
customer.honeywell.com |
