V5822A/5823A,C
SMALL LINEAR VALVES PN16 FOR MODULATING AND ON/OFF-CONTROL
V5822A |
V5823A |
V5823C
GENERAL
These small linear valves are used in combination with small electric linear valve actuators and thermoelectric actuators for the control of hot and/or chilled water for fan coil units and small reheaters/recoolers in electric/electronic temperature control systems.
SPECIFICATION DATA
FEATURES
•Small size allows installation where space is limited

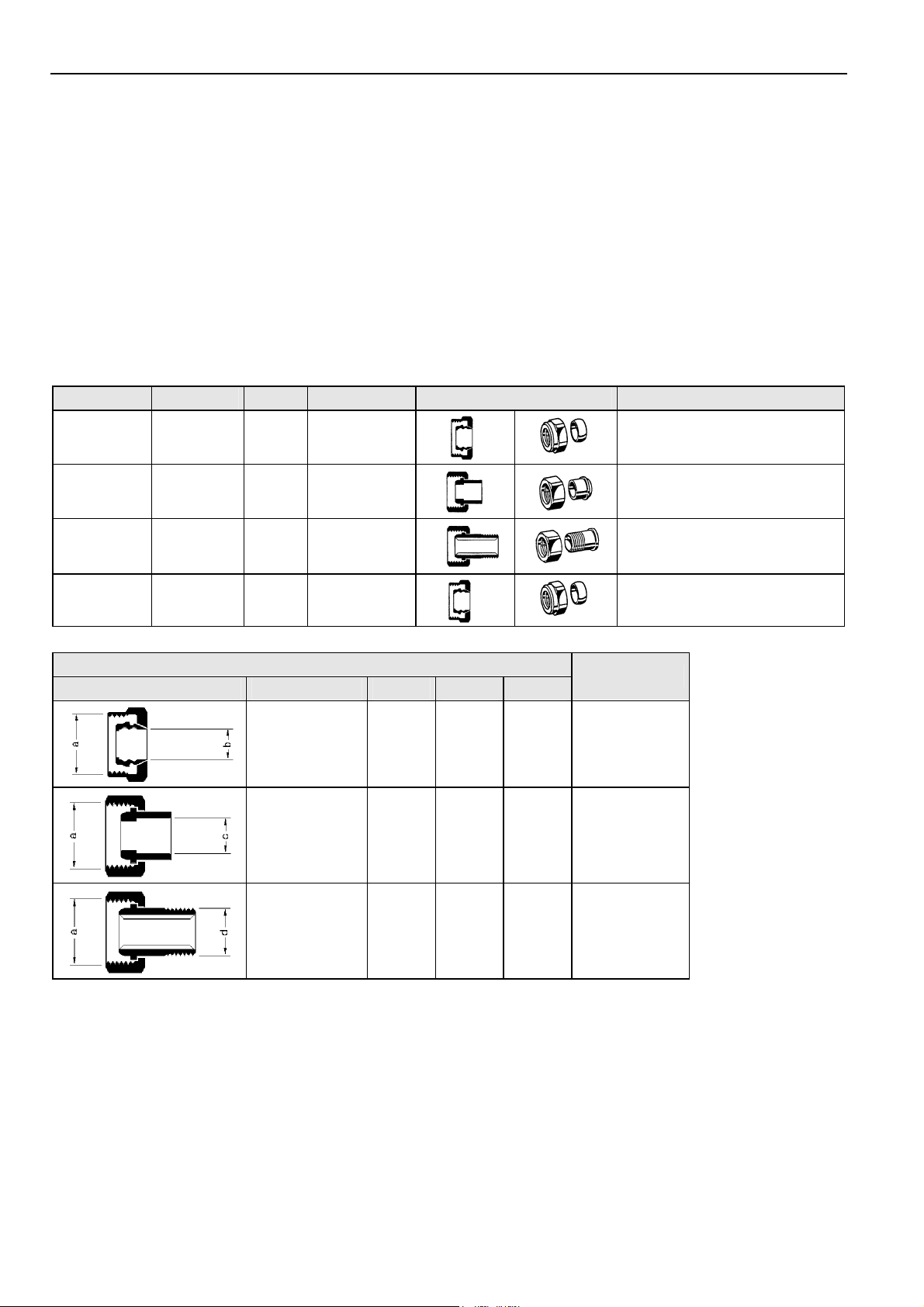

•Range of fittings available for different connections (compression, soldered, threaded)
•Long stroke results in a high-quality characteristic
•Soft seat provides low leakage rate and high rangeability
•Reduced kVS values in the bypass to facilitate hydronic balancing
•Adjustment cap for manual operation
•Valve inserts changeable without draining by using insert replacement tool WV 108
•Compatible with two-piece conex compression fittings
•Conical sealing connections
•Flat surfaces on body to fit installation tools
•40 mm distance between ports A/AB and the bypass (V5823C, only)
SPECIFICATIONS
Models |
Two-way V5822A |
|
Three-way V5823A |
|
Three-way with bypass V5823C |
Operation |
Two-way stem up to open, |
|
port A to B; Three-way stem up |
|
to close, port A to AB |
Nominal pressure rating |
PN16 |
Capacity index (kVS) |
see tables on page 2 and 3 |
Leakage rate |
≤0.02% of kVS |
Valve body |
|
Material |
Brass |
Size |
DN15 (1/2“), DN20 (3/4“) |
Trim |
|
Stem |
Stainless steel |
Plug |
Brass |
Suitable medium |
Water, with max. 50% glycol |
Controlled water |
|
temperature |
2...120 °C |
® U.S. Registered Trademark |
|
|
|
|
|
EN0B-0307GE51 R0209 |
|
|
|
||||
Copyright © 2009 Honeywell Inc. • All rights reserved |
|
|
|
|
|
|
|
|
|
|
|
|
|
V5822A/V5823A,C SMALL LINEAR VALVES PN16
Modulating valves |
|
Rangeability |
|
Two-way valves100:1 |
|
Three-way valves |
100:1 for controlled port |
Flow characteristic |
Equal percentage port A-AB, |
|
ngl=3.4, |
|
linear for bypass port B-AB |
Stroke |
6.5 mm |
On/Off valves |
|
Stroke |
2.5 mm |
Dimensions |
see Fig. 4 on page 5 |
FLOW CAPACITIES AND CLOSE OFF PRESSURE RATINGS
TWO-WAY VALVES
|
|
Valve |
Close-Off Pressure (kPa) with Actuators |
|||
DN |
kVS |
|
Order Number |
M6410C,L/M7410C,E |
M4450/M8450 |
Z100/M7410A |
|
|
|
|
(180 N) |
(90 N) |
(90 N) |
15 |
0.16 |
|
V5822A1006 |
1600 |
600 |
- |
15 |
0.25 |
|
V5822A1014 |
1600 |
600 |
- |
15 |
0.40 |
|
V5822A1022 |
1600 |
600 |
- |
15 |
0.63 |
|
V5822A1030 |
1600 |
600 |
- |
15 |
1.00 |
|
V5822A1048 |
1200 |
180 |
- |
15 |
1.60 |
|
V5822A1055 |
1200 |
180 |
- |
20 |
2.50 |
|
V5822A1063 |
400 |
50* |
- |
20 |
4.00 |
|
V5822A1071 |
400 |
50* |
- |
15 |
1.60 |
|
V5822A4000** |
1200 |
180 |
180 |
20 |
2.50 |
|
V5822A4018** |
400 |
50* |
50* |
*Up to 1000kPa system pressure. **In the case of on/off control, the stroke amounts to 2.5 mm.
THREE-WAY VALVES
|
|
Valve |
Close-Off Pressure (kPa) with Actuators |
|||
DN |
kVS |
|
Order Number |
M6410C,L/M7410C,E |
M4450/M8450 |
Z100/M7410A |
|
|
|
|
(180 N) |
(90 N) |
(90 N) |
15 |
0.25 |
|
V5823A2003 |
800 |
500 |
- |
15 |
0.40 |
|
V5823A2011 |
800 |
500 |
- |
15 |
0.63 |
|
V5823A2029 |
800 |
500 |
- |
15 |
1.00 |
|
V5823A2037 |
250 |
150 |
- |
15 |
1.60 |
|
V5823A2045 |
250 |
150 |
- |
20 |
2.50 |
|
V5823A2151 |
240 |
- |
- |
20 |
2.50 |
|
V5823A2052 |
100 |
50 |
- |
20 |
4.00 |
|
V5823A2169 |
240 |
- |
- |
20 |
4.00 |
|
V5823A2060 |
100 |
50 |
- |
15 |
1.60 |
|
V5823A4009* |
250 |
150 |
150 |
20 |
2.50 |
|
V5823A4017* |
100 |
50 |
50 |
*In the case of on/off control, the stroke amounts to 2.5 mm.
