1. Introduction
Configuration and status display
Heating mode
Temperature display
Output power display
Temperature
adjustment
button
Cooling mode
Override button
The TB6980/TB7980 digital thermostats provide proportional plus
integral individual space temperature control in zoned commercial
HVAC systems such as hydronic and pressure dependent VAV with
or without reheat. There are four different models:
• TB7980A (single output, modulating) • TB6980A (single output, floating)
• TB7980B (multiple output modulating) • TB6980B (multiple output, floating)
Depending on the models, the thermostat can have up to three outputs for the following applications:
Floating or Modulating damper/valve actuator control
Damper/valve actuator control with duct reheat and auxiliary
heat (B models only)
Hydronic systems (room control, perimeter heating and cool-
ing)
Accessories
R841 family of electromechanical relays
T7770A3002 remote room sensor
50014156-002 remote room sensor
32004800-001 bare thermistor
50014157-001 duct temperature sensor
TB6980/TB7980
Installation and User Guide
ZonePRO Thermostats
2. Installation
2.1 Mounting Instructions
1. Remove the thermostat from its base by unscrewing the captive screw and tilting the bottom of the thermostat up. The
screw cannot be completely removed.
2. Pass the wires through the center hole of the base and secure
the base to the wall or onto an electrical box.
3. Wire the thermostat. See section 2.2 for terminal designations
and section 3 for typical wiring diagrams.
4. Reinstall the thermostat onto its base and secure with the captive screw.
2.2 Terminal Designations
The designations of the terminals vary according to the particular
model of thermostat. Refer to the following table for the description
of each terminal.
TERMINAL DESCRIPTION
1224 VAC
COM
34AN1
COM
34OPEN
CLOSED
56T2/AN2
T2/COM
78T3
T3
910COM
SENSOR
911COM
C-Over
912COM
NSB
Note: To configure the terminals, see section 4.
Power supply
TB7980 models
Output 1
TB6980 models
Output 2 (TB6980B and TB7980B models)
Output 3 (TB6980B and TB7980B models)
External sensor input. (For applications requiring
an external sensor, see section 4.2.)
Mode Changeover input (N.O. contact). See section 5.5.2.
Night Setback activation input (N.O. contact).
See section 5.6.
TB6980/TB7980 1/6
3. Typical Applications
FIGURE 1: Damper control with electric reheat and auxiliary
baseboard heating.
FIGURE 3: Damper control with automatic changeover,
electric reheat and central cooling
FIGURE 5: Changeover and NSB inputs sharing the same
24-Vac transformer
FIGURE 6: Changeover and NSB inputs using different 24-Vac
transformers
FIGURE 4: Temperature control of fresh air supply
FIGURE 2: Damper control with electric reheat and auxiliary
hot-water heating
CAUTION
Do not connect
common to ground
CAUTION
Do not connect
common to ground
TB7980B
TB6980B
TB7980B
TB7980B
TB7980B
TB6980B
TB6980/TB7980 2/6
4. Configuration
4.1 Configuration Menus (See following pages for explanations)
NOTE: Factory settings are inside the shaded cells.
TB7980A model
Application
(section 4.2)
0 Internal sensor 0 Cool / 0-10V 1 2°F (1°C) 0 0%
1 Room 1 Heat / 0-10 V 2 4°F (2°C) 1 10%
2 Return
3 Supply 3 Heat / 2-10 V 4 8°F (4°C) 3 30%
4 Auto changeover 5 10°F (5°C) 4 40%
5 Limited cooling 6 12°F (6°C) 5 50%
Default mode &
Output 1 type
(section 4.3.1)
2 Cool / 2-10 V 3 6°F (3°C) 2 20%
NSB value
(section 5.6)
7 14°F (7°C)
8 16°F (8°C)
9 18°F (9°C)
Output 1
min. opening
(section 4.3.2)
Maximum
setpoint
(section 4.6)
Can be set
between 95°F
(35°C) and
’’minimum
setpoint + 1’’
Default value
is 95°F (35°C)
Minimum
setpoint
(section 4.6)
Can be set
between 50°F
(10°C) and
’’maximum
setpoint - 1’’
Default value
is 50°F (10°C)
1. Remove the thermostat from its base and
set the SW2 switch to MENU.
2. Reinstall the thermostat. The thermostat is
now in configuration mode. The first digit
flashes to indicate that the first item of the
menu can now be modified.
3. To modify the setting, use the up/down
arrows. Refer to the adjacent tables.
4. Press Override to save the new setting and
go to the next item.
5. Repeat steps 3 and 4 for remaining items.
6. When the configuration is done, set the
SW2 switch back to NORMAL.
TB6980A model
Output 1
min. opening
(section 4.3.2)
Output 3 type
(section 4.5)
Application
(section 4.2)
0 Internal sensor 0 Cool 1 2°F (1°C) 0 0% 080
1 Room 1 Heat 2 4°F (2°C) 1 10% 1 90
2 Return
3 Supply 4 8°F (4°C) 3 30% 3 110
4 Auto changeover 5 10°F (5°C) 4 40% 4 120
5 Limited cooling 6 12°F (6°C) 5 50% 5 130
Application
(section 4.2)
0 Internal sensor 0 Cool / 0-10V 0 Not used 0 Not used 0 100% 12°F (1°C) 0 0%
1 Room 1 Heat / 0-10 V 1 SSR 24 VAC 1 SSR 24 VAC 1 10% 2 4°F (2°C) 1 10%
2 Return
3 Supply 3 Heat / 2-10 V 3 N.O. Valve 3 N.O. Valve 3 30% 4 8°F (4°C) 3 30%
4 Auto changeover 4 Mech. relay 4 Mech. relay 4 40% 5 10°F (5°C) 4 40%
5 Limited cooling 5 SSR 3-32 V 5 Contact 5 50% 6 12°F (6°C) 5 50%
a. If Output 2 type is set to 0-4, set the SW6 switch to Triac. If the output type is set to 5-8, set the switch to Analog (see section 4.7).
Default mode
(section 4.3.1)
Default mode &
Output 1 type
(section 4.3.1)
2 Cool / 2-10 V 2 N.C. Valve 2 N.C. Valve 2 20% 3 6°F (3°C) 2 20%
NSB value
(section 5.6)
3 6°F (3°C) 2 20% 2 100
7 14°F (7°C) 6 140
8 16°F (8°C) 7 150
9 18°F (9°C) 8 160
Output 2 type
(section 4.4)
6 SCR 0-10 V 6 60% 7 14°F (7°C)
7 Act. 0-10 V 7 70% 8 16°F (8°C)
8 Act. / 2-10 V 8 80% 9 18°F (9°C)
a
Output 1
opening time
(section 4.3.3)
TB7980B model
Output 3
activation
(section 4.5)
9 90%
Maximum
setpoint
(section 4.6)
Can be set
between 95°F
(35°C) and
’’minimum
setpoint + 1’’
Default value
is 95°F (35°C)
NSB value
(section 5.6)
Minimum
setpoint
(section 4.6)
Can be set
between 50°F
(10°C) and
’’maximum
setpoint - 1’’
Default value
is 50°F (10°C)
(section 4.3.2)
Output 1
min. opening
NSB - Night setback (number of
degrees the thermostat will be set back
upon receiving a setback signal)
ABBREVIATIONS
SSR - Solid state relay (used with fast
cycling electric heaters, SSR's are a
quiet alternative to electromechanical
relays. They're typically included with
electric duct reheat equipment)
SCR - Silicon controlled rectifier (similar
to an SSR, SCR's are also quiet and
capable of switching very high current. If
used, they're usually included with the
equipment)
N.C. - Normally closed
N.O. - Normally open
Maximum
setpoint
(section 4.6)
Can be set
between 95°F
(35°C) and
’’minimum
setpoint + 1’’
Default value
is 95°F (35°C)
Minimum
setpoint
(section 4.6)
Can be set
between 50°F
(10°C) and
’’maximum
setpoint - 1’’
Default value
is 50°F (10°C)
TB6980B model
a
Application
(section 4.2)
0 Internal sensor 0 Cool 0 Not used 0 Not used 0 100% 12°F (1°C) 0 0% 080
1 Room 1 Heat 1 SSR 24 VAC 1 SSR 24 VAC 1 10% 2 4°F (2°C) 1 10% 1 90
2 Return 2 N.C. Valve 2 N.C. Valve 2 20%
3 Supply 3 N.O. Valve 3 N.O. Valve 3 30% 4 8°F (4°C) 3 30% 3 110
4 Auto changeover 4 Mech. relay 4 Mech. relay 4 40% 5 10°F (5°C) 4 40% 4 120
5 Limited cooling 5 SSR 3-32 V 5 Contact 5 50% 6 12°F (6°C) 5 50% 5 130
a. If Output 2 type is set to 0-4, set the SW6 switch to Triac. If the output type is set to 5-8, set the switch to Analog (see section 4.7).
Default mode
(section 4.3.1)
Output 2 type
(section 4.4)
6 SCR 0-10 V 6 60% 7 14°F (7°C) 6 140
7 Act. 0-10 V 7 70% 8 16°F (8°C) 7 150
8 Act. / 2-10 V 8 80% 9 18°F (9°C) 8 160
Output 3 type
(section 4.5)
Output 3
activation
(section 4.5)
9 90%
NSB value
(section 5.6)
3 6°F (3°C) 2 20% 2 100
Output 1
min. opening
(section 4.3.2)
Output 1
opening time
(section 4.3.3)
Maximum
setpoint
(section 4.6)
Can be set
between
95°F (35°C)
and
’’minimum
setpoint + 1’’
Default
value is 95°F
(35°C)
Minimum
setpoint
(section 4.6)
Can be set
between
50°F (10°C)
and
’’maximum
setpoint - 1’’
Default
value is 50°F
(10°C)
TB6980/TB7980 3/6
4.2 Application Types
The following table shows the different thermostat applications and
their corresponding settings in the configuration menu.
The following table shows the different default modes, the different
output types for Output 1, and their corresponding settings in the
configuration menu.
Menu setting Description
Internal
0
sensor
1Room
2 Air return
3 Air supply
Automatic
4
changeover
Limited
5
cooling
To control the ambient temperature using the internal
(built-in) sensor
To control the ambient temperature using the
50014156-002 temperature sensor (the internal sensor
is not used)
To control the temperature at the air return using the
50014157-001 temperature sensor (the internal sensor
is not used)
To control the temperature at the fresh air supply using
the 50014157-001 temperature sensor (the internal
sensor is not used)
To control the ambient temperature using the internal
sensor. The 50014157-001 temperature sensor is used
for automatic changeover. See section 5.5.1.
To use the outdoor air for cooling whenever possible.
The 50014157-001 temperature sensor is used to
measure the outdoor air temperature. The internal
temperature sensor measures the room temperature
which is then compared with the setpoint. If the room
temperature is lower than the setpoint, the air intake
damper remains closed. If the room temperature is
higher than the setpoint, the latter is then compared with
the outdoor temperature. If the fresh air temperature is
lower than the setpoint by more than 5°F(3°C), the
damper opens to allow cool air in.
Menu setting TB7980 models TB6980 models
0
1
2
3
Cool / 0-10 V analog
(max. of 10 min. refresh)
Heat / 0-10 V analog
(max. of 10 min. refresh)
Cool / 2-10 V analog
(max. of 10 min. refresh)
Heat / 2-10 V analog
(max. of 10 min. refresh)
Cool
(24 V tri-state floating)
Heat
(24 V tri-state floating)
4.3.2 Minimum Opening
The minimum damper opening can be set between 0 and 50 %.
Note: It is not recommended to set the minimum damper opening to
0 % (fully closed) when a duct heater is connected to Output 2 or 3.
4.3.3 Opening time (TB6980 models only)
The damper opening time can be set between 80 and 160 seconds.
4.4 Output 2 (models TB6980B and TB7980B)
Output 2 controls heating only, regardless of the thermostat’s mode.
When the thermostat is in heat mode, Output 2 is activated as soon
as Output 1 reaches its full capacity. When the thermostat is in cool
mode, Output 2 is activated when the measured temperature drops
below the setpoint.
4.3 Output 1
Output 1 is used to control a damper. It controls heating when the
thermostat is in heat mode or cooling when the thermostat is in cool
mode.
Set the following configuration parameters:
• Default mode
• Output type (TB7980 models only)
• Minimum opening
• Opening time (TB6980 models only)
4.3.1 Default Mode / Output Type
The default mode (heat/cool) is used for the following:
• The default mode is the thermostat’s mode at power-up.
• The default mode is the active mode when the N.O. changeover
contact is open (see section 5.5.2).
• When configured as a contact (see section 4.5), Output 3 controls
either heating or cooling depending on whether the default mode
is set to heat or cool respectively.
The following table shows the output types for Output 2 and their
corresponding settings in the configuration menu.
Menu setting Description
0 Not used
1 24 VAC pulsed (triac) / 1 sec. cycle
2
3
4
5 0-10 V pulsed / 1 sec. cycle
6
7 0-10 V analog / max. of 10 min. refresh (e.g., valve)
8 2-10 V analog / max. of 10 min. refresh (e.g., damper)
24 VAC pulsed (triac) / 10 min. cycle / direct action
(e.g., N.C. thermal valve)
24 VAC pulsed (triac) / 10 min. cycle / reverse action
(e.g., N.O. thermal valve)
24 VAC pulsed (triac) / 15 min. cycle (e.g., mechanical
relay such as R841)
0-10 V analog / 1 sec. refresh
(e.g., SCR controlled device such as a re-heater)
Note: If 0-4 is selected, set the SW6 switch to Triac. If 5-8 is
selected, set the switch to Analog (see section 4.7)
TB6980/TB7980 4/6

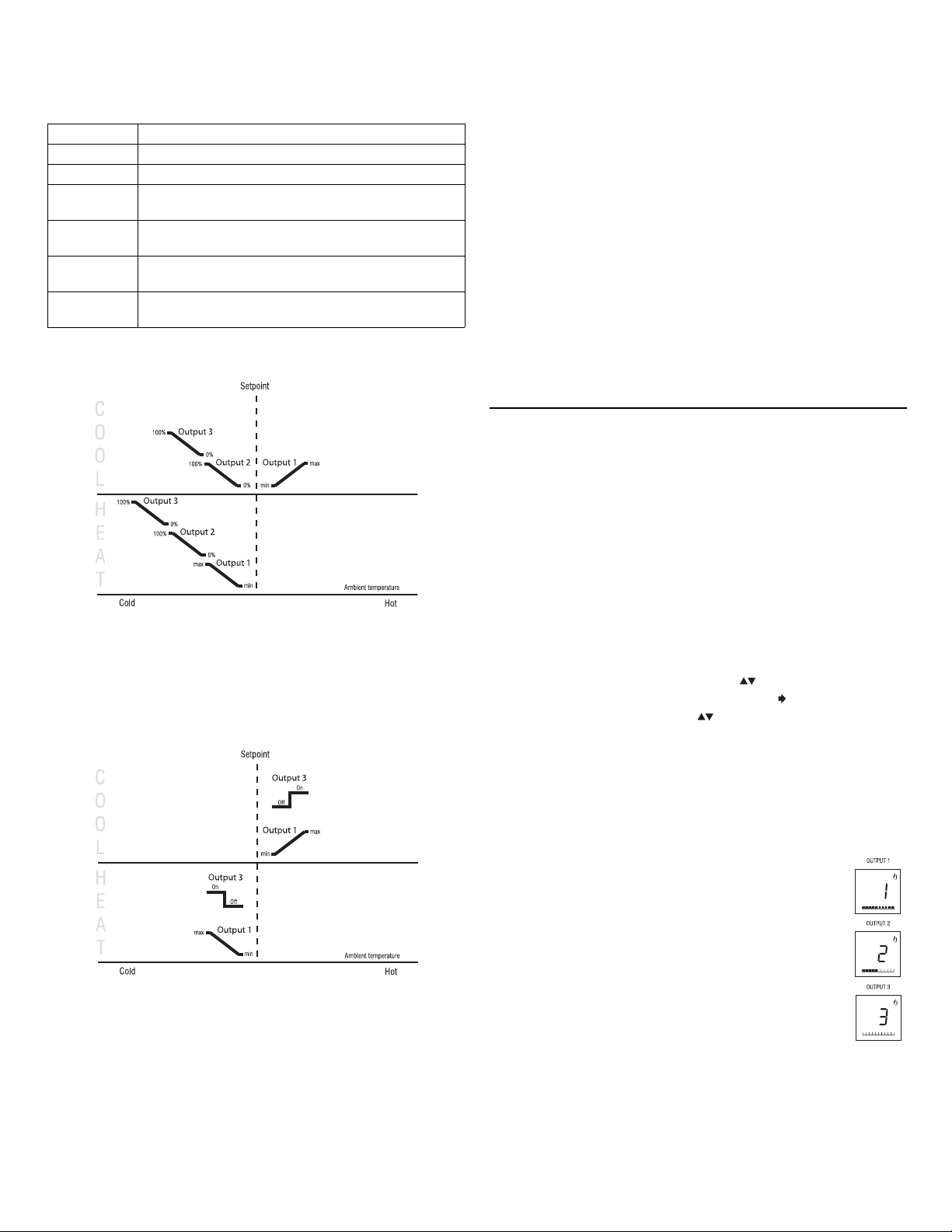

4.5 Output 3 (models TB6980B and TB7980B)
The following table shows the output types for Output 3 and their
corresponding settings in the configuration menu.
Menu setting Description
0 Not used
1 24 VAC pulsed (triac) / 1 sec. cycle
2
3
4
5
When any setting between 1 and 4 is selected, Output 3 controls
heating only, regardless of the thermostat’s mode.
24 VAC pulsed (triac) / 10 min. cycle / direct action
(e.g., N.C. thermal valve)
24 VAC pulsed (triac) / 10 min. cycle / reverse action
(e.g., N.O. thermal valve)
24 VAC pulsed (triac) / 15 min. cycle (e.g., mechanical
relay such as R841)
N.O. contact (The contact closes when Output 1 reaches
or exceeds set percentage. See section 4.1.)
4.7 DIP Switches
Three switches at the back of the control module are used to select
various options.
Temperature Display (SW1)
Selects the desired temperature display (°C or °F).
Access Mode (SW2)
Selects the operation mode (NORM) or the configuration mode
(MENU).
• Place the switch to MENU to access the configuration menu.
• Place the switch to NORM for normal display.
Output 2 Type (SW6)
Sets Output 2 type (Analog or Triac).
WARNING: Place the switch according to the type of device
(Analog or Triac) connected to Output 2. Failure to do so can
result in thermostat damage.
5.Operation
5.1 Power-Up
Upon power-up, the thermostat undergoes a series of test before
displaying the actual temperature.
Note: On the TB6980A and TB6980B models, at power-up, the
message OPEN appears at the top of the screen during the calibration of the damper opening. This can last up to 3 minutes.
When setting 5 is selected, Output 3 controls heating or cooling
depending on whether the default mode has been set to heat or
cool respectively (see section 4.3.1). For example, if the default
mode has been set to heat mode, the contact remains opened when
the thermostat is in cool mode. When the thermostat is in heat
mode, the contact closes when Output 1 reaches a percentage of its
capacity, set via the configuration menu.
4.6 Minimum and Maximum Setpoints
The minimum and maximum setpoints are factory-set at 50°F
(10°C) and 95°F (35°C). The maximum setpoint can be set between
95°F (35°C) and “minimum setpoint + 1”. The minimum setpoint can
be set between 50°F (10°C) and “maximum setpoint - 1”.
5.2 Backlight
To turn the backlight on, press any button. The display will illuminate
for 12 seconds.
5.3 Temperature Display and Setting
The thermostat usually displays the actual temperature. To view the
setpoint, press once on one of the buttons. The setpoint
appears for 5 seconds and is indicated by the display. During the
setpoint display, press one of the buttons to change it.
Note: The temperature setpoint is automatically increased or
decreased by 2°F (1°C) when the controller switches to heating
mode or to cooling mode respectively. For example, if the setpoint is
at 77°F (25°C) in heating mode, it will become 79°F (26°C) in cooling mode and will return to 77°F (25°C) when the controller is back
in heating mode.
5.4 Output Display
The bar graph represents the voltage for an analog output or the duty cycle for a triac output. The bar graph
usually shows Output 1 power (% of damper opening).
To view Output 2 or 3, press Override for 2 seconds to
enter the diagnostic mode. Press Override momentarily
to switch between the three output graphs. To exit the
diagnostic mode, press Override for 2 seconds or wait
for 1 minute for the mode to exit automatically.
5.5 Mode Changeover
The thermostat can switch between heat mode and cool mode
either via:
• the automatic changeover
• the changeover input
TB6980/TB7980 5/6
5.5.1 Automatic changeover
In automatic changeover, the thermostat detects when the system
switches between heat mode and cool mode by comparing the air
supply temperature with the ambient temperature. If the thermostat
is in heat mode, it switches to cool mode when the air supply is
cooler than ambient by 9°F (5°C) or more. If it is in cool mode, it
switches to heat mode when the air supply is warmer than ambient
by 9°F (5°C) or more.
Note: Neither the heat mode icon ( ) nor cool mode icon ( )
appears when the thermostat is placed in automatic changeover.
5.5.2 Changeover Input
The thermostat is in the default mode when the contact between terminals 9 and 11 is open and switches mode when the contact is
closed. The default mode is set via the configuration menu.
Humidity limits: 0 to 95% R.H., non-condensing
Dimensions: 2.7 x 4.6 x 1.0 in. (69 x 118 x 27 mm)
Accessories: - R841 electromechanical relay
- 50014157-001 air duct temperature sensor
- 50014156-002 remote room temperature sensor
Compatible Damper/Valve actuators: VC6930, VC6934, VC6936
VC7930, VC7934, VC7936
ML6984
ML7984
ML6410, ML7410
ML6161B2024, MN6105A1011
ML7161A2008, MN7505A2001
2
Wiring: 18 AWG (1 mm
Mounting
: - directly to drywall
- single-gang NEMA standard 2-in x 4-in electrical box
- double-gang NEMA standard electrical box with mounting plate
) wire
Note: The changeover contact state is ignored if the thermostat is
configured in automatic changeover or in limited cooling.
7. Warranty
5.6 Night Setback
The Night Setback (NSB) mode is activated when the
contact between terminals 9 and 12 is closed. When the
thermostat is in the NSB mode, indicated by the ECONO
display, the temperature is lowered or raised by the set
NSB value depending whether the thermostat is in heat
mode or cool mode respectively. The NSB value is set via the configuration menu.
Night Setback Override
To temporarily override the NSB mode, press the Override button. The NSB mode is lifted for the next 2 hours
or until the Override button is pressed again. During the
override, the normal setpoint is used and OVERRIDE is
displayed.
5.7 Error Codes
The following error codes can appear at the top of the display.
E1: The internal temperature sensor is defective
E2: The internal temperature sensor is shorted
E3: The external temperature sensor is defective or not connected
E4: The external temperature sensor is shorted
6. Technical Specifications
Power: 24 VAC
Current consumption: 25 mA
Output signals: Depends on output configurations
Output ratings:
- Triac output: 0.5 A maximum @ 24 VAC
- Analog output (SCR connection): 0 - 10 V, 10kΩ minimum
- Analog output (SSR connection): 0 - 10 V, 45 mA maximum
Setpoint range: 50°F to 95°F (10°C to 35°C)
Temperature display: 32°F to 140°F(0°C to 60°C)
Temperature display resolution: 1°F (0.5°C)
Mode hysteresis: 4°F (2°C)
Automatic changeover deadband: 9°F (5°C)
Duty cycle: Depends on output configurations
NSB offset: Programmable 2°F to 18°F (1°C to 9°C)
NSB override period: 2 hours
Memory protection: Configuration and setpoint
Temperature control: Proportional integral adaptive (P.I.A.)
Operating temperature: 32°F to 140°F (0°C to 60°C)
Storage temperature: -4°F to 122°F (-20°C to 50°C)
TB6980/TB7980 6/6
Printed in USA 07/2012
Honeywell warrants this product, excluding battery, to be free from defects in
the workmanship or materials, under normal use and service, for a period of
two (2) years from the date of purchase by the consumer. If at any time during the warranty period the product is determined to be defective or malfunctions, Honeywell shall repair or replace it (at Honeywell's option).
If the product is defective,
(i) return it, with a bill of sale or other dated proof of purchase, to the place
from which you purchased it, or
(ii) call Honeywell Customer Care at 1-800-468-1502. Customer Care will
make the determination whether the product should be returned to the
following address: Honeywell Return Goods, Dock 4 MN10-3860, 1885
Douglas Dr N, Golden Valley, MN 55422, or whether a replacement
product can be sent to you.
This warranty does not cover removal or reinstallation costs. This warranty
shall not apply if it is shown by Honeywell that the defect or malfunction was
caused by damage which occurred while the product was in the possession
of a consumer.
Honeywell's sole responsibility shall be to repair or replace the product
within the terms stated above. HONEYWELL SHALL NOT BE LIABLE FOR
ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL
OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR
IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT. Some states do
not allow the exclusion or limitation of incidental or consequential damages,
so this limitation may not apply to you.
THIS WARRANTY IS THE ONLY EXPRESS WARRANTY HONEYWELL
MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE
TWO-YEAR DURATION OF THIS WARRANTY. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation
may not apply to you.
This warranty gives you specific legal rights, and you may have other rights
which vary from state to state.
If you have any questions concerning this warranty, please write Honeywell
Customer Relations, 1985 Douglas Dr, Golden Valley, MN 55422 or call
1-800-468-1502.
8. Customer Assistance
If you have any questions regarding your thermostat, please go to
http://customer.honeywell.com, or call Honeywell technical hotline at 1-888-245-1051.
Loading...
