How-to-use this cross-reference
The pages in this guide contain Honeywell, OEM and competitive manufacturers
controls and the recommended Honeywell cross reference. To find your recommended
cross reference simply turn to the appropriate product section, locate your product
manufacturer and their part number and follow the row to the Honeywell part number.
The cross reference data in this guide is correct to the best of Honeywell's knowledge at
the time of publication. Always refer to installation instructions for application details and
to ensure correct product specifications prior to installation.
Table Of Contents
GAS CONTROLS
Gas Valves 4
™
SmartValve
System Controls 18
Universal
Product
Universal Pilot Burners 19
Thermocouples/Thermopiles 20
Ignition Modules 21
®
Glowfly
Universal Electronic Fan Timers 27
Silicon Carbide Igniters 28
Universal Integrated Furnace Control 32
Fan and Limit Controls 34
OIL/HYDRONIC CONTROLS
Oil Primaries 35
Aquastats
HEATING/COOLING DEVICES
Relays/Contactors/Transformers 37
Universal Hot Surface Igniter 26
®
36
3
Page 4
Gas Valves
Universal Gas Valves
Save time and money by stocking the Honeywell Universal gas valves, you'll complete more jobs and tie up less in inventory with the right selection of valves.
Manufacturer Part Number Honeywell Universal
A. O. Smith 93836-6 VS820M1309 Coleman/EV-CON 2004-331 VS820M1309
215-500 215-501
Gas Valves
Essex
Honeywell
215-502 215-504 215-505 215-507 SX242LS VR8345M4302
SX242LSO VR8345K4809
SX242LSP(DSI) VR8345M4302
SX242LSPO(DSI) VR8345M4302
SX242N VR8300M4406
SX242NS VR8345M4302
SX242NSO VR8345K4809
SX242NSOR VR8345K4809
SX242NSP(DSI) VR8345M4302
SX242NSPO(DSI) VR8345M4302
SX345LS VR8245M2530
SX345LSO VR8345K4809
SX345LSPO(DSI) VR8345K4809
SX345NS VR8245M2530
SX345NSO VR8345K4809
SX345NSP(DSI) VR8245M2530
SX345NSPO(DSI) VR8345K4809
VR8200A2116
VR8200A2322 VR8204A1201 VR8204A1219 VR8204A2001 VR8204A2175 VR8204A2225 VR8204A2803 VR8204H1006 VR8345K4809 VR8204H1055 VR8345K4809
VR8204M1075 VR8245M2530
VR8205A2008 VR8205A2016 VR8205A2024 VR8205A2065 VR8205A2081 VR8205A2131 VR8205A2263 VR8205A2800 VR8205H1003
VR8205H2605 VR8205H2605 VR8345K4809 VR8205H2621 VR8205K1157 VR8205K1173 VR8205K2247 VR8205K2593
VR8205K2619 VR8205M1080 VR8215S1503 VR8205M1106 VR8215S1503 VR8205M1106 VR8245M2530 VR8205M1122
VR8205M1148
VR8300M4406
VR8300M4406VR8200A2264
VR8245M2530
VR8215S1503
VR8215T1502VR8205H1011
VR8215T1502
VR8215S1503VR8205M1130
Manufacturer Part Number Honeywell Universal
VR8205M1155
VR8215S1503VR8205M1163 VR8205M2310 VR8205M2310 VR8245M2530 VR8205M2401 VR8215S1503 VR8205M2443 VR8245M2530 VR8205M2450 VR8245M2530 VR8205M2476 VR8215S1503 VR8205M2476 VR8245M2530 VR8205M2484 VR8205M2831 VR8205M2864
VR8215S1503
VR8345Q4563
VR8215S1503
VR8215S1503
VR8215T1502
VR8300M4406
VR8345M4302VR8305M4165
Honeywell
VR8205M2872 VR8205M2880 VR8205M5024 VR8205M5032 VR8205Q2381 VR8205Q2662 VR8205Q2746 VR8205Q2787
VR8205S2262 VR8205S2270 VR8205S2296 VR8205S2338 VR8205S2353 VR8205S2361 VR8205S2379 VR8205S2395 VR8205S2437 VR8205S2858 VR8205S2882 VR8205S5802 VR8205S5828 VR8205S5836 VR8205S5844 VR8205T5801 VR8215T1502 VR8215S1222 VR8215S1263 VR8215S5207 VR8215S5215 VR8215T1205 VR8215T1239 VR8215T5206 VR8215T5214 VR8300A3104 VR8300A3120 VR8300A3153 VR8300A3161 VR8300A3203 VR8300A3559 VR8300A3567 VR8300A3575 VR8300A4003 VR8300A4011 VR8300A4037 VR8300A4045 VR8300A4557
VR8300A4565 VR8304M4002 VR8345M4302 VR8304Q4453 VR8345Q4563
VR8305H4013 VR8345K4809
VR8305H4039 VR8345K4809 VR8305M4066
VR8305M4231 VR8305Q4146 VR8345Q4563
4
Gas Valves
Page 5
Gas Valves
Manufacturer Part Number Honeywell Universal
VR9205Q1006 VR9205Q1010
Honeywell
ITT General Controls
VR9205Q1028 VR9205Q1101 VR9205Q1127 VR9205Q1218
VS820A1005 VS820A1013 VS820A1039 VS820A1047 VS820A1120 VS820A1211 VS820A1278 VS820A1740 VS820A1807 VS820A1815 VS820A1872 VS820A1898 VS820A1906 VS820A1922 VS820A2003 VS820A2011 VS820A5204
B107AF01 VS820M1309 B107RF02 VS820M1309
B54 B57A000000000 B57AB00000000
B57-AB26
B57-AB69 B57ABA0000000 B57AF00000000
B57-AF59 B57AR00000000
B57RA68 B57-RB25 B57-RB68
B57RH161
B59A05 B59BK34 B59BK48
B59R02
B59R06
B59R08
B59T12
B60Y000000000
B60Y66
B62 B63 B64 B65
B67AA00000000
B67AA57
B67AB142 B67AF00000000 B67RA00000000
B67RA56
B67RB00000000
B67RB141 B67RF00000000
B67RF45
B69A01 B69A05 B69R02 B69R06
VR9205Q1507
VS820M1309
VR8300M4406
VS820M1309
Manufacturer Part Number Honeywell Universal
BX56
K47AB00000000
K47AB01 K47AB04 K47AF01
VR8300M4406
VS820M1309
VR8245M2530
VR8345M4302
VR8345K4809
VR8300M4406
VR8345M4302
VR8345M4302
ITT General Controls
Johnson Controls
K47AF07
K47RB00000000
K47RB02 K47RB03 K47RB04 K47RF08
L7AB000000000 VS820M1309
MR18A02
MR18R06 MR57AB22 MR57RB23
G53BBG G53BCG G53BDG G53BFG G53BKG G53CBG G53CCG G53CDG G53DBG G53DCG
G53DDG G60DCG-4 G60QAG-1
G60QHL-2 G60QUL-1
G65BBG
G65BBM
G65BFG
G65BKG G65BKM G65DBM
G91VGB-1 G92CGB-001 G92CGC-001
G92CGC002
G92GGC-002
G93AGB001
G93AGB-1
G93EAM-2 G93EGM-2
G96-HGE-5 VLV34A-XXXR VLV42A-601R VLV42A-602R VLV49A-600R VLV49A-601R VLV49A-602R VLV49A-603R VR8345K4809 VLV49A-604R VLV49A-605R VLV49A-606R
VLVL34A-XXXR VLVL49A-600R VLVL49A-601R VLVL49A-606R
Gas Valves
Gas Valves
5
Page 6
Gas Valves
Manufacturer Part Number Honeywell Universal
&700-502 VS820M1309
1000E
1000EM
1000EMR
Gas Valves
Robertshaw
1000ER
110ER
110ERSO
1200AE24
1200AER24
1200AMVR VS820M1309
1200BE
1200BEM
1200BEMR
1200BER
1200BER24
1200CE
1200CE24
1200CER24
1200E
1200ER VR8300M4406
1210AMVR VS820M1309
1300EMR
1300ER
2000-80E
2000-80EMR
2000-80ER 2000DERHC 2000IPERHC
2C-T75 VS820M1309
36E96-314 VR8345Q4563
700-052
7000BKERS7A
700-400 700-401 700-402 700-405 700-406 700-407 700-408 700-504 VS820M1309 700-506 VS820M1309
7100 DERLP S7C VR8345K4809
7100DERS7C VR8345K4809
720-050 VR8345M4302 720-051 VR8245M2530
720-051 (7200DER) VR8345M4302
720-054 VR8245M2530 720-070
720-070 (7200IPER-S7C)
720-071
720-071 (7200IPER-S7C)
720-072
720-072 (7200IPER-S7C
720-073
720-073 (7200IPER-LP-S7C)
720-079
720-079 (7200IPER)
720-080
720-080 (7200IPER-LP)
720-082 VR8345Q4563
720-082 (7200IPER2-4) VR8345Q4563
7200DER VR8345M4302
7200ER VR8300M4406
7200IPER VR8245M2530 7200IPER2-4 VR8345Q4563 7200IPER-LP VR8245M2530
7200IPER-LP-S7C VR8345K4809
VR8300M4406
VR8300M4406
VR8300M4406
VR8245M2530
VR8345K48097000BDERS7A
VR8300M4406
VR8345K4809
VR8245M2530
Manufacturer Part Number Honeywell Universal
7200IPER-S7C VR8345K4809
720-400
720-400 (7200ER)
720-401 720-402
Robertshaw
Thermac
White Rodgers
720-402 (7200ER)
720-403 720-404
720-404 (7200ER)
720-406
720-406 (7200ER)
722-051
722-051 (2000DERHC)
722-079
722-079 (2000IPERHC)
G92CG0001 G92CG0002
G92GG0002 VH1200-409 VH1200-411 VH1200-414 VH1200-416
VH700-414 VH700-415 VH700-417 VH700-418 VH700-421 VH700-422 VH700-423 VH700-424 VH700-501 VH700-502 VH700-503 VH700-504 VH700-505 VH700-506 VH700-514 VH710-101 VR8300M4406 VH710-501
VS1200-102
SLS526EDR VR8300M4406
SR110 VR8300M4406
36G22-207
36J22-214
150 VR8345M4302 2511 2516 2517 2519 2520 2557 2558 2571 2588 2614 2624 2630 2636 2640 3601 3602 3603 3604 3607 3631 3632 3633
VR8300M4406
VR8245M2530
VR8300M4406
VR8300M4406
VS820M1309
VS820M1309
VR8215S150336G22-214
VR8300M4406
6
Gas Valves
Page 7
Gas Valves
Manufacturer Part Number Honeywell Universal
3636 VR8300M4406 3637 VR8300M4406 7871 VR8345M4302
8092 VR8345K4809 12654 VR8345Q4563 12858 VR8345K4809 12908
VR8245M2530013010 16239 17583 VR8345M4302 17597 VR8245M2530 17624 VR8345Q4563 17625 VR8345Q4563 17629 VR8345K4809 21166 VR8345M4302 26236 VR8245M2530 30287 VR8245M2530 30455
VR8345Q456330767 36607 37941 VR8245M2530 37942 VR8245M2530
0050009
50009
0050010
White Rogers
50010
0050011 0050140
52129
056289
56289 67143 VR8345Q4563 82396 VR8300M4406
88400.051
88400.288 89397 89398
091193
91193
096300 VR8300M4406
96300 VR8300M4406
096309
96309
096311
96311
100099 VR8300M4406 100100 VR8300M4406 105782 VR8345Q4563 126508 VR8245M2530 128099
128928 130280 VR8345K4809 140026
157168 184032 VR8345Q4563 221525 VR8345M4302 341062 VR8345Q4563 341063 VR8345M4302 341073 VR8345Q4563 380603 VR8345M4302 380639 VR8345K4809 380659 VR8345Q4563 405705 VR8245M2530 592057 VR8345Q4563 624695 VR8345Q4563 900738 VS820M1309
VR8345M4302
VR8345M4302
VR8345M4302
VR8345M4302128927
VR8345M4302157167
Manufacturer Part Number Honeywell Universal
986926 VR8345Q4563 986930
1001349
VR8345M4302
VR8345M43021008961
VR8345Q45631070690
VR8345Q4563
VR8345M43021585980
VR8345M430210360950
VR8245M2530
VR8345Q4563240006526
VR8345M4302
White Rogers
1002701 1005570 1005571 1006221 VR8345Q4563 1006377 VR8345M4302 1008753 VR8345K4809 1008754 VR8345K4809 1008960
1012455 1057821
1071324 1149781 VR8300M4406 1149848 VR8345Q4563 08-5055 VR8345K4809 1160253 VR8300M4406 1162544 VR8245M2530 1177542 1179698 1180634 1180955 1585956 VR8300M4406 1585975
1585981 1585987 VR8345K4809 1585988 VR8345M4302 08-7126 VR8245M2530 6245350 VR8300M4406 6245370 VR8300M4406 6246000 VR8345Q4563 6246110 VR8345Q4563
6246450 VR8245M2530 10027236 VR8345Q4563 10060566
10446621 10602631 VR8345Q4563 13005075 VR8345M4302 13005223 VR8345M4302 13006223 20466803 44154501 44154502
071278501 VR8345M4302
90034000
300012109 1500989701 1500989801 1503029301 1503029401 1503032101 1503033001 1503072001 1503072101 1503072201 1503072301
02527720700
2527720700
02530836000 VR8300M4406
2541090000 VR8345Q4563
76E08 VR8300M4406
52530836000 VR8300M4406
Gas Valves
Gas Valves
7
Page 8
Gas Valves
Manufacturer Part Number Honeywell Universal
52530838000 VR8345M4302 52537064000
VR8300M440652537065000 52537066000 52537068000 VS820M1309
0002-42-013 VS820M1309 0002-42-016 VR8300M4406 0002-42-098 VR8245M2530 0002-42-100 VR8300M4406
0002-42-174 VR8345K4809 00-497271-00001 VS820M1309 00-497271-00002 VS820M1309 00-497271-00003 VR8345M4302 00-497271-00004 VR8345M4302
Gas Valves
White Rogers
00-497271-00005 VR8300M4406 00-497271-00006 VR8300M4406 00-497271-00007
VR8345M430200-497271-00008 00-851315-00001 01-1000V9-00126 VR8345M4302 01-1000V9-00181 VR8345M4302
0151F00000P VR8345Q4563
0151L00000 VR8345Q4563 025-20289-000 VR8345M4302 025-20289-700 VR8345M4302 025-23014-700 VR8300M4406 025-25437-000 025-25437-700 025-25463-000 025-26372-000 025-26372-700 025-26373-000 025-26373-700
025-27515 025-27515-000 025-27515-700 025-27660-000 025-27660-700 025-27769-000 025-27769-700 025-27918-000 VR8345Q4563 025-27918-700 VR8345Q4563 025-29017-000
025-30105-000 025-30164-000 025-30164-700 025-30167-700 025-30251-000 025-30251-700 025-30719-000 VR8345M4302 025-30719-700 VR8345M4302 025-30789-000 VR8345K4809 025-30836-700 VR8300M4406 025-30838-000 VR8345M4302 025-30838-700 VR8345M4302 025-30839-000 VR8345Q4563 025-30839-700 VR8345Q4563 025-30843-000 VR8245M2530 025-30888-000 025-30888-700 025-31969-000 025-31996-000 025-31996-700 025-32676-000 VR8345Q4563 025-32794-000 VR8345M4302 025-35316-000 VR8345K4809 025-35317-000 VR8345K4809
VR8345M4302
VR8345Q4563
VR8345M4302
VR8345M4302025-29017-700
VR8345K4809
VR8345K4809
Manufacturer Part Number Honeywell Universal
025-35394-000 VR8345Q4563 025-35395-000 VR8345Q4563 025-37426-000 VR8345K4809 025-38915-000 VR8345Q4563 025-38974-000 VR8345K4809 025-38979-000 VR8245M2530 025-90888-000 VR8345K4809
05-151101 VR8300M4406 05-151200 VS820M1309
1005570U VR8345M4302 1008753U VR8345K4809 1008960U VR8345M4302
10P5001 VR8300M4406 10P9001 VR8300M4406
110502-G1
VS820M1309110502-G2
110761-4
11J28-00381-002 VR8300M4406
11J28-00742 VR8345M4302 11J28-02454-001 VR8345Q4563 11J28-02454-003 VR8345Q4563 11J28-06892-001 VR8245M2530 11J28-06892-002 VR8245M2530 11J28-06893-001 VR8345M4302 11J28-06893-002 VR8345M4302 11J28-06894-001
White Rogers
11J28-06894-002 11J28-06895-001 11J28-06895-002
120-06622 VR8345M4302 120-06821 VR8345M4302 120-09318 VR8245M2530 120-09319 VR8245M2530
12191|004 VS820M1309
12L5701 VR8345Q4563
1300-5223 VR8245M2530
15659A VR8245M2530
1585981U VR8345M4302
182052-001 VR8345M4302
18654A VR8345Q4563
18655A VR8345Q4563 192454-000 192454-001 192454-002 192454-003 192966-000 192967-000 196632-000 197282-000 VR8345K4809 197282-001 VR8345K4809 197738-000 197738-001 197738-002 197738-003
1RC51 VR8300M4406 1RC52 VR8345Q4563 1RC53 VR8345Q4563 1YRN7 VR8345M4302 1YRN8 VR8345Q4563
2022-0192 VR8345M4302
20-5026 VR8245M2530 21J7601 VR8345M4302 21J7701 VR8345Q4563 21J8801 VR8345Q4563
2206-120 VR8245M2530
24-103 VR8345M4302
25C46 25G01
VR8345Q4563
VR8345M4302
VR8345M4302
VR8300M4406
8
Gas Valves
Page 9
Gas Valves
Manufacturer Part Number Honeywell Universal
25G12 25G53
VR8300M4406
VR8300M4406
VR8300M44063661-128
White Rogers
25G53A
25G61
25G64 25J5901 VR8345K4809 25K4401 VR8345K4809
26A02 VR8300M4406
2702-328 VR8245M2530
28G2601 VR8345Q4563 28G3001 VR8345Q4563 28G7901 VR8345M4302
2E401 VS820M1309
2E402 VR8300M4406
2E725 VR8300M4406
2E854 VS820M1309
3004-1301 VR8245M2530
31L3701 VR8345K4809
32D13-405 VR8345Q4563
3601-124 3601-128 3601-188 3601-208 3601-228 3601-248 3601-404 3601-424 3601-426 3601-428 3601-486 3601-488 3601-508 3601-528 3601-584 3601-588 3602-124 3602-128 3602-208 3602-224 3602-228 3602-584
3602A
3603-208 3603-228 3604-118 3604-228 3604-404 3604-408 3604-428 3604-484 3604-518 3604-528 3605-925 3606-128 3606-188 3606-228 3606-486 3606-488 3606-528
3633A
3634A
3641-228 3641-428 3644-118
3644U-228 VS820M1309
3646-428
3661-228
Manufacturer Part Number Honeywell Universal
3661-28 3661-428 3661-488 3661-506 3661-583 3661-584
White Rogers
3661-588 3661-628 3661-688
3661-82
3661-83
3661-86
3661A-628 3661A-688 3661U-228 3661U-288 3661U-528 3661U-588
3662-128 VR8300M4406 3662-404 3662-428 3662-488 3662-506 3662-584 3662-588
3662-83
3662-86
3666U-228 VS820M1309 3666U-288 VS820M1309 36C01-201 36C01-212 36C01-217 36C01-282 36C01-283 36C01-405 36C03-133 36C03-200 36C03-205 36C03-210 36C03-211 36C03-230 36C03-233 36C03-245 36C03-258 36C03-283 36C03-284 36C03-285 36C03-300 36C03-310 36C03-319 36C03-333 36C03-350 36C03-400 36C03-410 36C03-422 36C03-433 36C03-434 36C03-441 36C03-445 36C03-446 36C03-459 36C03-603 36C03-604
36C03-676 36C03A-100 36C03A-202 36C03A-300 36C03A-310
VR8300M4406
VS820M1309
VR8300M4406
VR8300M4406
Gas Valves
Gas Valves
9
Page 10
Gas Valves
Manufacturer Part Number Honeywell Universal
Gas Valves
White Rogers
36C03A-400
36C03A-410 36C03G-200 36C03G-300 36C03G-400
36C03U-100
36C03U-113
36C03U-115
36C03U-200
36C03U-210
36C03U-273
36C03U-282
36C03U-284
36C03U-285
36C03U-300
36C03U-310
36C03U-333
36C03U-350
36C03U-400
36C03U-401
36C03U-403
36C03U-410
36C03U-433
36C10-100 36C10-132 36C10-133 36C10-200 36C10-277 36C10-278 36C10-300
36C10-400 36C10U-100 VS820M1309 36C10U-200 VS820M1309 36C10U-211
36C13-219
36C13-221
36C13-306
36C13-307
36C13-350
36C13-409
36C13-411 36C13U-115 36C13U-116 36C13U-117 36C13U-350
36C68-101
36C68-200
36C68-202
36C68-205
36C68-208
36C68-209
36C68-212
36C68-214
36C68-215
36C68-217
36C68-218
36C68-219
36C68-221
36C68-222
36C68-231
36C68-232
36C68-233
36C68-239
36C68-243
36C68-245
36C68-261
36C68-262
36C68-263
VR8300M4406
VS820M1309
VS820M1309
VR8300M4406
VR8300M4406
VS820M1309
VR8345M4302
Manufacturer Part Number Honeywell Universal
36C68-264 36C68-266 36C68-300 36C68-301 36C68-302 36C68-303 36C68-304 36C68-305 36C68-306 36C68-307 36C68-309 36C68-310 36C68-312 36C68-313 36C68-314 36C68-315 36C68-325 36C68-326 36C68-327 36C68-330 36C68-334 36C68-340 36C68-400 36C68-401 36C68-402 36C68-403 36C68-404 36C68-405 36C68-408 36C68-409 36C68-414 36C68-415 36C68-417
White Rogers
36C68-418 36C68-419 36C68-420 36C68-421 36C68-422 36C68-423 36C68-424 36C68-426 36C68-434 36C68-441 36C68-442 36C68-448 36C68-452 36C68-457 36C68-464 36C68-472 36C68-473 36C68-477 36C68-478 36C68-479 36C68-480 36C68-482 36C68-483 36C68-484 36C68-502 36C68-518 36C68-559 36C68-602 36C68-606 36C68-607 36C68-725 36C68-808 36C68-809 36C68-811 36C68-812
VR8345M4302
10
Gas Valves
Page 11
Gas Valves
Manufacturer Part Number Honeywell Universal
36C68-813 36C68-814 36C68-815 36C68-816 36C68-817 36C68-818 36C68-819 36C68-820 36C68-821 36C68-822 36C68-876 36C68-877 36C68-878 36C68-879 36C68-904 36C68-908
White Rogers
36C68-916 36C68-917 36C68-918 36C68-919 36C68-922 36C68-923 36C68-926 36C68-941 36C68-942 36C68-948 36C68-952 36C68-966 36C68-970 36C68-976 36C68-977 36C68-979 36C68-985 36C76-234 36C76-235 36C76-314 36C76-406 36C76-407 36C76-411 36C76-412 36C76-413 36C76-420 36C76-424 36C76-425 36C76-426 36C76-427 36C76-428 36C76-435 36C76-436 36C76-442 36C76-445 36C76-448 36C76-449 36C76-450 36C76-452 36C76-455 36C76-458 36C76-459 36C76-460 36C76-461 36C76-462 36C76-463 36C76-464 36C76-467 36C76-468 36C76-469 36C76-470 36C76-471
VR8345M4302
VR8345Q4563
Manufacturer Part Number Honeywell Universal
36C76-472 36C76-473 36C76-477 36C76-478 36C76-479 36C76-480 36C76-482 36C76-483 36C76-484 36C76-485 36C76-486 36C76-487 36C76-534 36C76-535 36C76-907
White Rogers
36C76-913 36C76-927 36C76-935 36C76-936 36C76-942 36C76-958 36C76-961 36C76-969 36C76-970 36C76-971 36C76-972 36C76-977 36C76-978 36C76-982 36C76-983 36C76-984 36C76-985 36C78-206 VR8345M4302 36C78-300 VR8345M4302 36C81-410 VR8345K4809 36C81-451 VR8345K4809 36C90-213 36C90-215 36C90-406 36C90-407 36C90-408 36D13-208 VR8345Q4563 36D13-405 VR8345Q4563
36E01 253 36E01-103 36E01-105 36E01-106 36E01-201 36E01-204
36E01-206 36E01-210 36E01-211 36E01-221 36E01-222 36E01-223 36E01-225 36E01-226 36E01-227 36E01-233 36E01-234 36E01-235 36E01-236 36E01-237 36E01-238 36E01-240 36E01-241 36E01-242
VR8345Q4563
VR8345M4302
VR8345M4302
VR8245M253036E01-205
VR8345M4302
Gas Valves
Gas Valves
11
Page 12
Gas Valves
Manufacturer Part Number Honeywell Universal
36E01-243 36E01-244 36E01-245 36E01-247
Gas Valves
White Rogers
36E01-248 36E01-253 36E01-255 36E01-256 36E01-257 36E01-259 36E01-305 VR8245M2530 36E01-307 36E01-308 36E01-310 36E01-311 36E01-312 36E02-203
36E02-211 36E02-218 VR8345K4809 36E02-229 VR8345K4809 36E03-209 36E16-101 36E16-102 36E16-201 36E16-202 36E16-203 36E16-204 36E16-205 36E16-206 36E16-207 36E22-201 36E22-202 36E22-203 36E22-204 36E22-205 36E22-206 36E22-207 36E22-208 36E22-209 36E22-210 36E22-211 36E22-212 36E22-213 36E22-214 VR8245M2530 36E22-215 36E22-216 36E22-217 36E22-220 36E22-221 36E22-222 36E22-223 36E22-303 36E22-304 36E23-201
36E23-203 36E23-303 VR8345M4302 36E23-304 VR8345M4302 36E24-202 36E24-203 36E24-204 36E24-205 36E24-206 36E24-207 36E24-208 36E24-209 36E24-210
VR8345M4302
VR8345M4302
VR8345K480936E02-210
VR8245M2530
VR8345M4302
VR8345M4302
VR8345K480936E23-202
VR8345K4809
Manufacturer Part Number Honeywell Universal
36E24-211
White Rogers
36E24-212 36E24-214 36E24-218 36E29-101 36E29-201 36E29-202 36E29-203 36E30-201 36E31-201 VR8345K4809 36E32-101 36E32-102
36E36 304
36E36-1 36E36-105 36E36-106 36E36-108 VR8345M4302
36E36-2 VR8245M2530 36E36-201 VR8245M2530 36E36-210 VR8345M4302 36E36-212 36E36-216 36E36-220 36E36-224 36E36-227 36E36-228 36E36-230 36E36-232 36E36-235 36E36-237 36E36-238 36E36-239 36E36-240 36E36-241 36E36-242 36E36-243
36E36-244 36E36-245 36E36-246 36E36-247 36E36-248 36E36-249 36E36-250 36E36-251 36E36-252 36E36-253 36E36-254 36E36-255 36E36-256 36E36-257 36E36-258 36E36-261 36E36-263 36E36-265 36E36-266 36E36-267 36E36-268 36E36-272 36E36-273 36E36-274 36E36-277 36E36-278 36E36-279 36E36-280 36E36-281 36E36-282 36E36-284 VR8245M2530 36E36-285 VR8345M4302
VR8345K4809
VR8245M2530
VR8245M2530
VR8345M4302
12
Gas Valves
Page 13
Gas Valves
Manufacturer Part Number Honeywell Universal
36E36-286 36E36-287 36E36-288
White Rogers
36E36-289 36E36-290 36E36-291 36E36-292 36E36-293
36E36-3 VR8245M2530 36E36-303 VR8345M4302 36E36-304 VR8245M2530
36E36-304DSIHSI
36E36-304IP
36E36-305 36E36-307 36E36-309 36E36-313 36E36-315 36E36-317 36E36-318 36E36-319 36E36-320 36E36-321 36E36-322 36E36-323
36E36-4 VR8245M2530
36E36-5 VR8245M2530 36E37-202 VR8345K4809 36E37-203 VR8345K4809 36E37-213 VR8345M4302 36E37-214 36E37-215 36E37-216 36E37-217 36E37-219 36E52-204 36E52-205 36E52-206 36E52-207 36E52-208 36E52-209 36E52-212 36E52-214 36E52-215 36E54-201 36E54-205 36E54-206 36E54-207 36E54-208 36E54-209 36E54-210 36E54-211 36E54-212 36E54-213 36E54-214 36E54-215 36E54-238 36E54-239 36E54-246 36E54-250 36E54-252 36E92-201 VR8345K4809 36E93-304 VR8245M2530
36E96-1
36E96-2 36E96-201 36E96-205 36E96-206
VR8345M4302
VR8345M4302
VR8345M4302
VR8345K4809
VR8345Q4563
VR8345Q4563
Manufacturer Part Number Honeywell Universal
36E96-215 36E96-216 36E96-217 36E96-218 36E96-219 36E96-222 36E96-223 36E96-224 36E96-226 36E96-228 36E96-229 36E96-232 36E96-233 36E96-235 36E96-240
VR8345Q4563
VR8345K4809
VR8245M2530
VR8345K4809
VR8245M2530
White Rogers
36E96-244 36E96-245 36E96-247 36E96-249 36E96-254 36E96-255 36E96-256 36E96-258 36E96-259 36E96-260 36E96-261 36E96-301 36E96-302 36E96-303 36E96-304 36E96-305 36E97-201 36E97-203 36E97-204 36E97-205 36E97-206 36E98-201 36E98-202 36E98-203 36E98-204 36E98-205 36E98-206 36E98-207 36E98-208 36E98-209 36E98-210 36E98-301 36E98-304 36F22-202 36F22-203 36F22-209 36F22-210 36F22-213 36F22-215 36F22-216 36F23-202 36F24-205 36F24-206 36F24-207 36F24-209 36F24-210 36F24-211 36F52-204 36G22-202 36G22-203 36G22-204 36G22-205 36G22-206
Gas Valves
Gas Valves
13
Page 14
Gas Valves
Manufacturer Part Number Honeywell Universal
36G22-207 36G22-208 36G22-209 36G22-210 36G22-211 36G22-212 36G22-213 36G22-214 36G22-216 36G22-217 36G22-218
VR8245M2530
VR8345K4809
VR8345Q4563
VR8345M430236H22-400
Gas Valves
White Rogers
36G22-220 36G22-221 36G22-223 36G22-257 36G22-501 36G22-502 36G22-510
36G22-512 36G22Y-202 36G22Y-203 36G22Y-205 36G22Y-217
36G23-202
36G23-502
36G24-201
36G24-205
36G24-206
36G24-207
36G24-209
36G24-210
36G24-211
36G24-214
36G24-501
36G24-502
36G24-503
36G24-504
36G24-510
36G24-618
36G24-619 36G24Y-206
36G29-202 VR8245M2530
36G52-204 VR8345K4809 36G52Y-204 VR8345K4809
36G54 508B1
36G54-201
36G54-202
36G54-208
36G54-209
36G54-214
36G54-215
36G54-216
36G54-217
36G54-218
36G54-219
36G54-220
36G54-221
36G54-222
36G54-224
36G54-226
36G54-238
36G54-250
36G54-251
36G54-501
36G54-508
36H22-200
36H22-401
Manufacturer Part Number Honeywell Universal
36H22-402 36H22-404 36H22-406 36H22-407 36H22-408 36H22-409 36H22-410
VR8345M4302
VR8345M4302
VR8345K4809
VR8345Q4563
VR8245M2530
VR8345K4809
White Rogers
36H22-411 36H22-412 36H22-420 36H22-421 36H22-431 36H22-432 36H22-433 36H22-434 36H23-401 VR8345K4809 36H23-402 VR8345K4809 36H32-201 36H32-208 36H32-304 36H32-400 36H32-402 36H32-403 36H32-405 36H32-423 36H32-440 36H32-441 36H32-442 36H32-452 36H32-466 36H33-313 36H33-314 36H33-412 36H33-415 36H33-416 36H54-400 36H54-401 36H54-402 36H54-403 36H54-418 36H54-420 36H54-421 36H54-470 36H54-471 36H54-472 36H54-485 36H54-486 36H64-301 36H64-302 36H64-400 36H64-401 36H64-402 36H64-403 36H64-404 36H64-405 36H64-463 36J22-203 36J22-206 36J22-207 36J22-209 36J22-214 36J22-223 36J22-257 36J2-2257 36J24-205 36J24-214 36J24-510 36J24-614
14
Gas Valves
Page 15
Gas Valves
Manufacturer Part Number Honeywell Universal
36J24-618 VR8345K4809 36J54-201 36J54-202
VR8345Q4563
VR8345M4302
VR8345M4302
VR8345Q45635H0730180001
VR8345M4302
VR8345M43025H73601B0001
VR8345K480960-24290-01
VR8345Q456360-42228-01
White Rogers
36J54-209 36J54-214
37H7701
38593B001 VR8300M4406
39L9301 VR8345K4809
405705-002 VR8345Q4563
42-0290 VR8300M4406
43799-001 VR8345Q4563
43799-001/R VR8345Q4563
497271-5 VR8300M4406 497271-6 VR8300M4406
4DG52 VR8345K4809
4E950 VR8245M2530 511-044-327 511-044-328 511-044-353 511-044-354 511-044-355 511-044-367 511-044-373 511-044-381
51M4901 VR8345K4809 51P8901 VR8300M4406 51P9001 VR8300M4406
525-30843-000 VR8245M2530
58K7301 VR8345K4809 58K7401 VR8345K4809 58K7501 VR8245M2530
5H0730170001
5H0730180002 5H0732070002 5H0736010001 5H0736010002 5H0736840001 5H0755060001 5H0797510000 VR8245M2530 5H0798690000 VR8245M2530
5H3207B1 VR8345M4302
5H4052 B2 VR8300M4406
5H73017B0002 VR8345Q4563
5H73017B1 VR8345Q4563 5H73122B1 VR8300M4406 5H73122B2 VR8300M4406 5H73207B3
5H73684B0002
5H74052 B1 VR8300M4406 60-23490-01 VR8345K4809 60-23490-02 VR8345M4302 60-23490-04 VR8345Q4563 60-23490-05 VR8345Q4563 60-23490-06 VR8345M4302 60-24180-01
60-24290-02
60270-002 VR8300M4406
60-42227-01
60-42508-01
62246-002 VR8345M4302 62374-003 VR8345M4302 63878-001 VR8345K4809
63K8801 VR8345K4809
700-413 VR8345Q4563
Manufacturer Part Number Honeywell Universal
700-418 VR8345M4302
700-420 VR8345M4302 71492/004 VS820M1309 71515/004 VR8245M2530
73-56-1602-19 VR8345Q4563 73-56-1603-10 VR8345Q4563
7990-328P
VR8345M43027990-328P/21166
80505-14
88J 7601 VR8345Q4563
88J7601 VR8345Q4563
93J5101 VR8345K4809
94-506-4-250 VR8345M4302
94-506-4-50 VR8345M4302
95-506-5-250 VR8300M4406
96-506-4-30 VR8345M4302
ADC 128979 VR8245M2530
B12826-06 VR8345K4809 B12826-10 VR8345Q4563
B1282611 VR8345Q4563
B12826-14 VR8345M4302
B1282618
VR8345Q4563B1282620 B1282621 B1282626 VR8245M2530 B1282628 VR8245M2530 B12826-5 VR8300M4406
BPF00547-1 VR8345Q4563 C340995P01 VR8345Q4563 C341950P01 VR8245M2530 C342086P01 VR8345Q4563 C342087P01 VR8345Q4563
C42-00001-01 VR8345M4302
White Rogers
C6476904 VR8345M4302 C6476905 VR8345K4809
C6476907 VR8345M4302 C64769-07 VR8345M4302 C64769-08 VR8345K4809
C6476909 VR8345Q4563
C6476910
VR8245M2530C64769-10 C6476911 C64769-4 VR8345M4302
CNT03687 VR8345Q4563 D670786P01 VR8345Q4563 D673493P01 VR8245M2530 D674536P01 VR8245M2530 D674537P01 VR8345Q4563 D674539P01 VR8345K4809 D674540P01 VR8245M2530 D674541P01 VR8345Q4563 D674542P01 VR8345Q4563 EF 32CB 194 EF 32CB 195 EF 32CB 202 EF 32CB 210
EF 32CW 204 VR8345K4809
EF 32CW 031 VR8245M2530 EF 32CW 187 VR8345Q4563 EF 32CW 188 VR8345Q4563 EF 32CW 190 VR8345M4302 EF 32CW 191 VR8345K4809 EF 32CW 192 VR8345K4809 EF 32CW 193 VR8345Q4563 EF 32CW 194 VR8345Q4563 EF 32CW 197
EF 32CW 201
VR8345M4302
VR8345K4809EF 32CW 198
Gas Valves
Gas Valves
15
Page 16
Gas Valves
Manufacturer Part Number Honeywell Universal
EF 32CW 202 VR8245M2530 EF 32CW 203 EF 32CW 204 EF 32CW 206
VR8345K4809
VR8345Q4563
VR8245M2530EF32CW031
VR8345K4809
VR8345Q4563
Gas Valves
White Rogers
EF 32CW 207 EF 32CW 208 EF 32CW 210 EF 32CW 211
EF 33CB 262 EF 33CB 265 EF 33CB 269 EF 33CB 270 EF 33CB 271
EF 33CB 272 EF 33CW 182 EF 33CW 183 EF 33CW 186 EF 33CW 187 EF 33CW 188 EF 33CW 189 EF 33CW 201 VR8345Q4563 EF 33CW 271 VR8345Q4563
EF 32CB 195 VR8345M4302 EF 32CW 031 VR8245M2530 EF 32CW 187 VR8345Q4563 EF 32CW 262 VR8345Q4563
EF 32CW204 VR8345K4809
EF 33CB 273 VR8345Q4563
EF32CB195 VR8345M4302 EF32CB201
EF32CW035 EF32CW181 VR8345M4302 EF32CW187 VR8345Q4563 EF32CW188 VR8345Q4563
EF32CW189A VR8345M4302
EF32CW190 VR8345M4302 EF32CW193 VR8345Q4563 EF32CW194 VR8345Q4563 EF32CW197 EF32CW198 EF32CW200 EF32CW201 EF32CW202 EF32CW203 EF32CW204 EF32CW206 EF32CW207 EF32CW208 EF32CW210 EF32CW211 EF32CW262
EF33CB262 EF33CB265 EF33CB269 EF33CB270 EF33CB271 EF33CB272
EF33CB273 EF33CW182 EF33CW183 EF33CW187
EF33CW187A
EF33CW188 EF33CW189 EF33CW195 EF33CW196 EF33CW201
Manufacturer Part Number Honeywell Universal
White Rogers
EF33CW245 EF33CW271 EF34CW246 VR8345M4302
G-170 VR8245M2530
GA-00770-0 VR8245M2530
HQ1006377WR VR8345M4302
HQ1006WR VR8345Q4563 HQ1008961WR VR8345M4302 HQ1070690WR VR8345Q4563
J28-00381-002 VR8300M4406 J28-00382-001 VR8300M4406
J28-00742
M150 M413464 M413466
M413468 REV 03
M413468 Rev 3
M413470
M413470 REV 03
M414445 VR8245M2530 M414446 VR8245M2530
P321764/65 VR8300M4406 P321766/67 VR8245M2530
P41610 VR8345M4302 P87280 VR8345Q4563 P87310 VR8345M4302 R42350 VR8345M4302 R42360 VR8345Q4563 R42370 VR8245M2530
R42380 VR8345Q4563 SK50608 SK50609
SLS521DE SLS521DEB SLS521EDB SLS521EDR
SLS521EDRF
SLS525ED3 SLS525EDR
SLS526DE SLS526DEB SLS526EDB
SV-5-0 TP-840A VR8345Q4563 TP-841A VR8345Q4563 TS-MISC VS820M1309 TU15576 VR8345Q4563
TUT 261 TUX 352
TUX352 TUX435
V0059600
V0070800102
V11-NG VR8300M4406
V2016000|02
V9-126 VAL04375 VS820M1309 VAL04379 VR8245M2530 VAL04391 VAL04921 VAL04922 VAL04923 VAL04924 VAL04925 VS820M1309 VAL07416 VR8345K4809 VAL07731 VR8245M2530
VR8345Q4563
VR8345M4302
VR8300M4406
VR8345M4302
VR8345Q4563V00708
VR8345M4302V845A1109
VR8300M4406
16
Gas Valves
Page 17
Manufacturer Part Number Honeywell Universal
VAL07732 VR8345K4809 VAL07973 VR8245M2530 VAL08027
VR8345Q4563VAL08055 VAL08237 VAL08710 VR8245M2530 VAL08750 VR8345Q4563 VAL08897 VR8345Q4563
VAL2400 VR8345M4302 VAL2401 VR8345M4302 VAL2917 VR8345Q4563 VAL2918 VR8345Q4563
VG008.08 VR8345M4302 X13120419030 VR8345M4302 X13120516030
VR8345Q4563X13120645010 X13120650010 X13120654010 VR8345K4809 X13120655010 VR8245M2530 X13120657010 VR8245M2530 X13120660010 VR8345Q4563
White Rogers
X13120660020 VR8345Q4563 X13120668010 VR8345K4809 X13120669010 VR8245M2530 X13120672010 VR8245M2530 X13120673010 X13120674010 X13120676010 X13120680010 X13120682010 VR8345M4302 X13130431010 VR8300M4406 X13130431020 VR8300M4406 X13130431030 VS820M1309 X13130431040 VS820M1309 X13130431050 VR8300M4406 X13130431070 VR8300M4406 X13130441010 VR8245M2530 X15200067030 VR8345M4302 X15200711010 VR8345M4302 X15200719010 VR8345Q4563 X55010008370 VR8345M4302
X852801 VR8345M4302 X852901 VR8345K4809
VR8345Q4563
Gas Valves
Gas Valves
Gas Valves
17
Page 18
SmartValve
™
Manufacturer Part Number
Armstrong, Concord, AirEase
SmartValve
Burnham
Burnham, ICP, Heil, Tempstar, Arcoaire, Comfortmaker, KeepRite
ICP, Heil, Tempstar, Arcoaire, Comfortmaker, KeepRite
ICP, Heil, Tempstar, Arcoaire, Comfortmaker, KeepRite, Mestek, Slant/Fin
Laars, Utica, Armstrong, Concord, AireEase
Universal SmartValves
Honeywell SmartValves combine gas flow control and electronic ignition into a single unit providing smart, safe control in appliances.
Honeywell Universal
Replacement
SV9520H8026 SV9520H8034 SV9520H8042 SV9520H8067 SV9501P2020 SV9602P4832 SV9501P2046 SV9602P4832 SV9501P2087 SV9602P4824 SV9502P2119 SV9602P4832 SV9502P2127 SV9602P4824 SV9502P2135 SV9602P4832 SV9601P4149 SV9602P4832 SV9601P4164 SV9602P4832 SV9601P4172 SV9602P4824 SV9602P4113 SV9602P4832 SV9602P4121 SV9602P4824 SV9602P4139 SV9602P4832 SV9501P2004 SV9501P2053 SV9502P2101 SV9601P4107 SV9602P4105 SV9501M2031 SV9501M2049 SV9501M2056 SV9501M2064 SV9501M2080 SV9501M2239 SV9501M2700 SV9501M2718 SV9501M2726 SV9501M2734 SV9501M2742 SV9540Q2464 SV9541Q2561 SV9541Q3098 SV9541Q2561 SV9540M2229 SV9540M2245 SV9540M2260 SV9540M2278 SV9541M2094 SV9640M3126 SV9640M4116 SV9640M4124 SV9640M4132 SV9501H2409 SV9501H2417 SV9501H2425 SV9501H3415 SV9501H3423 SV9502H1706 SV9502H2704
SV9520H8513
SV9602P4816
SV9501M2528
SV9641M4510
SV9502H2522
Manufacturer Part Number
Modine
Roberts Gordon
Honeywell Universal
Replacement
SV9410M2902 SV9410M2910 SV9510M2347 SV9510M2354 SV9510M2362 SV9510M2388 SV9510M2412 SV9510M2420 SV9510H2228 SV9510K2133 SV9510K2141 SV9510K2158 SV9510K2166 SV9420M2323 SV9520M2536 SV9420M2331 SV9520M2536 SV9501M8103 SV9501M8129 SV9520M2403 SV9520M2536 SV9601M3003 SV9601M4571 SV9601M4167 SV9601M4571 SV9601M4225 SV9601M4571 SV9601P4115 SV9602P4840
SV9510M2511
SV9510K2539
18
SmartValve

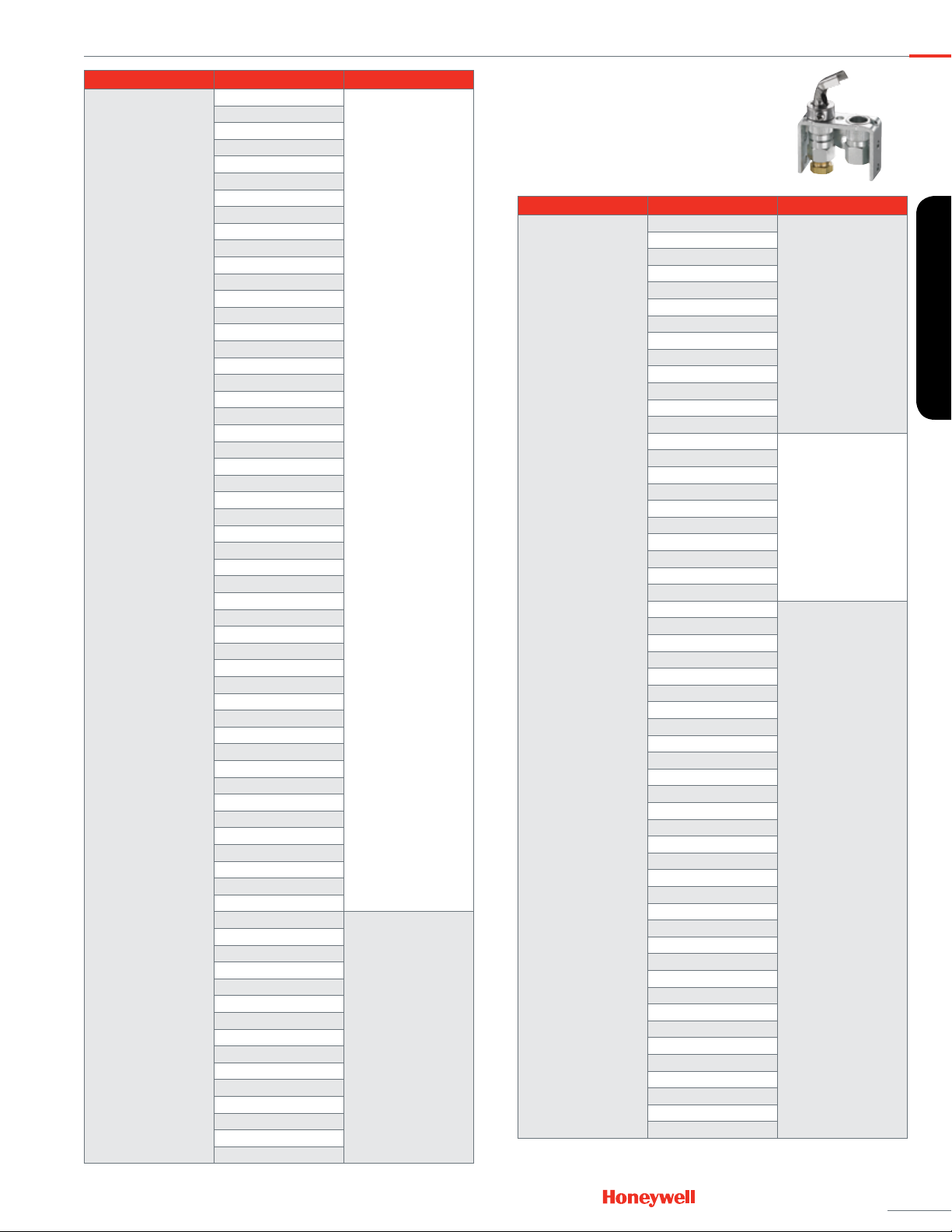

Page 19
Universal Pilot Burners
Manufacturer Part Number Honeywell Universal
Q314A3471 Q314A3513 Q314A3547 Q314A3679 Q314A3687 Q314A3703 Q314A3729 Q314A3737 Q314A3802 Q314A3828 Q314A4586 Q314A6094 Q314A6102 Q314A6557 Q314A6631 Q314A6862 Q314A6946 Q314A6953 Q314A6961 Q314A9015
Q314AFA Q314AFB Q314AFK
Q314AKA
Q314U1001
Q345U1005
Honeywell
Q314AKB
Q314ALA
Q314ALB Q314U1001 Q350A1065 Q350A1222 Q350A1271 Q350A1305 Q350A1321 Q350A1545 Q350A1644 Q350A1677 Q350A1859 Q350A1867 Q350A2097 Q350A2212 Q350A2287
Q350AFB
Q350AFK
Q350AKA Q350AKB Q350AKK
Q350ALA
Q350ALB
Q350ALK Q345A1008 Q345A1016 Q345A1024 Q345A1065 Q345A1107 Q345A1156 Q345A1305 Q345A1313 Q345A1321 Q345A1446 Q345A1701 Q345A1750 Q345A1818 Q345A2030 Q345A2055
Universal Pilot Burners
Save time, money, and space with Universal Pilot Burners. 4 Universal Pilots replace over 120 different models.
Manufacturer Part Number Honeywell Universal
Q345A2196 Q345A2360 Q345A2386 Q345A2402 Q345A2816 Q345A2824
Q345AFA Q345AFB Q345AFK
Q345AKB
Q345ALA
Q345ALB Q345U1005 Q348A1002 Q348A1010 Q348A1101 Q348A1226 Q348A1275 Q348A1333 Q348A1341
Q348AAA Q348AAB
Q348U1009
Q3451B1236 Q3451B1194
Q3451K2002 Q3451K2028
Honeywell
Q3451K2010 Q3451B1103 Q3451B1178 Q3451B1244 Q3451B1186 Q3451B2044 Q3451B2101 Q3451B3026 Q3451B2010 Q3451B2085 Q3451B1079 Q3451B1707 Q3451B1301 Q3451B2077 Q3451B1715 Q3451B3018 Q3451B3067 Q3451B3083 Q3451B1004 Q3451B1095 Q3451B2002 Q3451B2036 Q3451U1000
Q3451BK
Q3451BL Q3451BF Q3451BL Q3451KF
Universal Pilot Burners
Q345U1005
Q348U1009
Q3451U1000
Universal Pilot Burners
19
Page 20

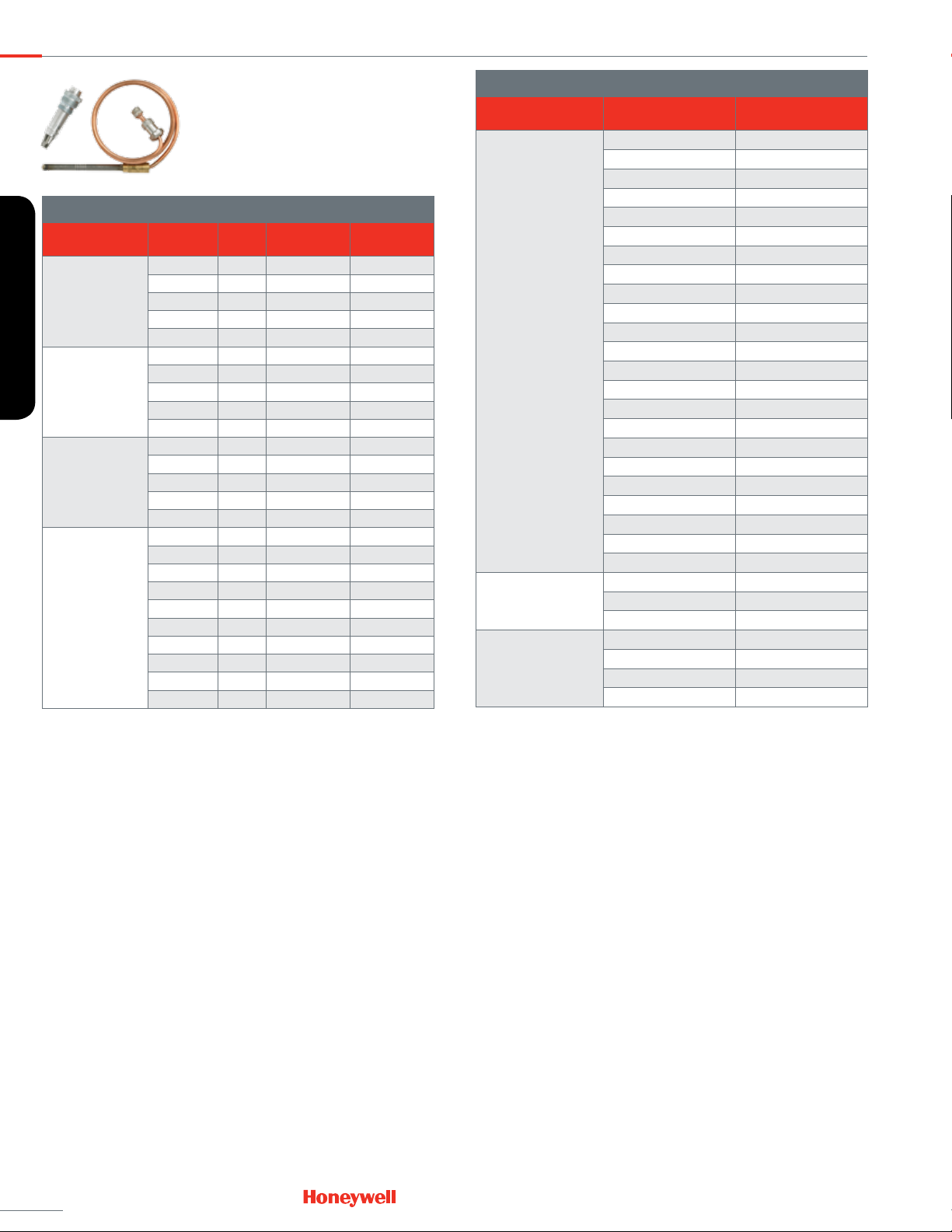

Thermocouples/Thermopiles
Thermocouples
Manufacturer Part Number Length
K16BT-18 18 Q340A1066 Q390A1095 K16BT-24 24 Q340A1074 Q390A1046
Husky
Thermocouples/Thermopiles
Johnson Controls
Robertshaw
White-Rodgers
K16BT-30 30 Q340A1082 Q390A1053 K16BT-36 36 Q340A1090 Q390A1061 K16BT-48 48 Q340A1108 Q390A1103
K19AT-18 18 Q340A1066 Q390A1095 K19AT-24 24 Q340A1074 Q390A1046 K19AT-30 30 Q340A1082 Q390A1053 K19AT-36 36 Q340A1090 Q390A1061 K19AT-48 48 Q340A1108 Q390A1103
1970-24 24 Q340A1074 Q390A1046 1980-24 24 Q340A1074 Q390A1046 1970-30 30 Q340A1082 Q390A1053 1970-36 36 Q340A1090 Q390A1061 1980-36 36 Q340A1090 Q390A1061
H06E-518 18 Q340A1066 Q390A1095
HO6E-18 18 Q340A1066 Q390A1095
H06E-524 24 Q340A1074 Q390A1046
HO6E-24 24 Q340A1074 Q390A1046
H06E-530 30 Q340A1082 Q390A1053
HO6E-30 30 Q340A1082 Q390A1053
H06E-536 36 Q340A1090 Q390A1061
HO6E-36 36 Q340A1090 Q390A1061
H06E-548 48 Q340A1108 Q390A1103
HO6E-48 48 Q340A1108 Q390A1103
Contractors depend on Honeywell for easy installation and reliable performance and we think about that trust in every component we make. Built for long service life, the Honeywell Q313U, Q340A, and Q390A will work for nearly all pilot generated millivolt applications.
Premium
Thermocouple
Utility
Thermocouple
Thermopiles
Manufacturer Part Number Honeywell Universal
Q313A1006 Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Q313U3000
Honeywell
White Rodgers
Robertshaw
Q313A1014
Q313A1022
Q313A1030 Q313U3000
Q313A1097 Q313U3000
Q313A1139
Q313A1147
Q313A1162
Q313A1170 Q313U3000
Q313A1188
Q313A1220
Q313A1238
Q313A1246 Q313U3000
Q313A1261
Q313A1279
Q313A1295 Q313U3000
Q313A1303 Q313U3000
Q313A1329
Q313A1345
Q313A1402 Q313U3000
Q313A1410
Q313A1428
Q313A1436
G01A-332
101934F32 Q313U3000
G01A-132
1950-532 Q313U3000
1950-518
1950-018 Q313U3000
1950-001
20
Thermocouples/Thermopiles
Page 21
Ignition Modules
S8610U3009
Manufacturer Part Number Honeywell Universal
Camstat IPI-24-00 Fenwal 05-203025-005 Fenwal 05-203026-005
S8600A1001 S8600B1009 S8600B1025 S8600B3005 S8600B3013 S8600C1015 S8600C3003 S8600F1000 S8600F1034 S8600F1042 S8600H1006 S8600H1014 S8600H1022 S8600H1048 S8600H1055 S8600H1063 S8600H1071 S8600H1089 S8600H1097 S8600H1105 S8600H3002 S8600H3010
S8600M1005 S8600M1013
Honeywell
S8600M1021 S8600M2003 S8600M3001 S8600M4009
S860C1000 S860D1009
S860D1017 S8610A1009 S8610B1007 S8610B1015 S8610B1023 S8610B3003 S8610C1005 S8610C1013 S8610C3001 S8610F1008 S8610F1016 S8610F1024 S8610F1032 S8610H1004 S8610H1012 S8610H1020 S8610H1038 S8610H1046 S8610H1053 S8610H1061 S8610H1079 S8610H1095 S8610H3000
S8610U3009
Universal Intermittent Pilot and Hot Surface Ignition
Honeywell's ignition controls replace a wide variety of OEM installed Honeywell and competitive products in the field. Reduce your inventory and complete more service jobs with Honeywell's Universal ignition controls.
S8610U3009
Manufacturer Part Number Honeywell Universal
S8610H3018
S8610H3026
S8610M1003
S8610M1011
S8610M1029
S8610M3009
S8610M3017
S8610U1003
S8610U1011
S8620C1003
S8620C1011
S8620H1002
S8620H1010
S8620H1028
S8660D1002
S8660D1010
S8660J1008
S8660J1016
S8660J1024
S8660K1006
S8660K1014
S8660K1022
S8670D1000
Honeywell
S8670D1018
S8670D1026
S8670D3006
S8670D3014
S8670E1007
S8670E3003
S8670J3002
S8670J3010
S8670K3000
S8680J1004
S86A1001
S86A1019
S86A1027
S86A1035
S86B1009
S86B1017
S86B1025
S86C1007
S86C1015
S86C1023
S86C1031
S86C1049
S86C1056
S86D1005
S86D1013
S8610U3009
Ignition Modules
Ignition Modules
21
Page 22
Ignition Modules
S8610U3009
Manufacturer Part Number Honeywell Universal
Ignition Modules
Honeywell
S86D1021
S86E1002
S86E1010
S86E1028
S86E1036
S86E1044
S86E1051
S86E1069
S86E1077
S86E1101
S86E1119
S86E1127
S86F1000
S86F1018
S86F1026
S86F1042
S86F1059
S86F1067
S86F1075
S86F1083
S86F1091
S86G1008
S86G1016
S86G1024
S86G1032
S86G1057
S86G1073
S86H1006
S86H1014
S86H1022
S86H1048
S86H1055
S86H1063
S86H1089
S86H1097
S86H1105
S86H1113
S86H1121
S86H1139
S86H1147
S90A1005
S90B1003
S90B1011
S8610U3009
S8610U3009
Manufacturer Part Number Honeywell Universal
HSC 1003-3
HSC 1003-300
G600AX-1
G600AX-2
G600AX-3
G600AY-1
G600LX-1
G600LX-2
G600LY-1
G600MX-1
G600NX-1
G600RX-1
G60AAA-1
G60AAG-1
G60AAG-2
G60AAG-3
G60AAG-4
G60AAG-5
G60AAG-6
G60AAG-7
G60CAA-1
G60CAA-3
G60CAG-1
G60CAG-2
S8610U3009
Johnson Controls
G60CAG-3
G60CAG-4
G60CAG-5
G60CAG-6
G60CAG-7
G60CAG-8
G60CAG-9
G60CBA-1
G60CBA-2
G60CBA-3
G60CBG-1
G60CBG-10
G60CBG-11
G60CBG-12
G60CBG-13
G60CBG-14
G60CBG-15
G60CBG-16
G60CBG-17
G60CBG-2
G60CBG-3
G60CBG-4
G60CBG-5
G60CBG-6
G60CBG-7
22
Ignition Modules
Page 23
Ignition Modules
S8610U3009
Manufacturer Part Number Honeywell Universal
G60CBG-8
G60CBG-9
G60CCA-1
G60CCG-1
G60CPG-1
G60DBG-1
G60DCG-1
G60DCG-2
G60DCG-3
G60DCG-4
G60PAG-1
G60PAG-2
G60PAG-3
G60PAG-4
G60PAG-5
G60PAG-6
G60PAJ-1
G60PAK-1
G60PAK-2
G60PFH-1
G60PFH-2
G60PFL-1
G60PFQ-1
Johnson Controls
G60PVL-1
G60QAG-1
G60QAG-2
G60QAG-3
G60QAG-4
G60QAK-1
G60QBG-1
G60QBG-2
G60QBG-3
G60QBG-4
G60QBG-5
G60QBG-6
G60QBG-7
G60QBG-8
G60QBG-9
G60QBH-1
G60QBK-1
G60QBK-2
G60QBK-3
G60QBL-1
G60QBL-2
G60QCG-1
G60QCJ-1
G60QCL-1
G60QDG-1
S8610U3009
S8610U3009
Manufacturer Part Number Honeywell Universal
G60QFL-1
G60QGH-1
G60QHL-1
G60QHL-2
G60QJL-1
G60QLG-1
G60QLK-1
G60QPL-1
G60QRH-1
G60QRH-2
G60QRH-3
G60QRL-1
G60QRL-2
G60QRL-3
G60QSL-1
G60QTH-1
G60QTL-1
G60RAG-1
G60RAK-1
G60RBG-1
G60RBG-2
G60RBG-3
G60RBK-1
G60RBK-2
Johnson Controls
G60RCG-1
G60RCG-2
G60RCJ-1
G60RDG-1
G60RDK-1
G60RGL-1
G60RHL-1
G60RHP-1
G60RPL-1
G60RSL-1
G60TTL-1
G60ZAG-1
G60ZAG-2
G65BBG-1
G65BBG-2
G65BBG-3
G65BBG-4
G65BBG-5
G65BBG-6
G65BBG-7
G65BBG-8
G65BBM-1
G65BBM-2
G65BBM-3
G65BBM-4
S8610U3009
Ignition Modules
Ignition Modules
23
Page 24
Ignition Modules
S8610U3009
Manufacturer Part Number Honeywell Universal
Ignition Modules
Johnson Controls
G65BCG-1
G65BCM-1
G65BFG-1
G65BFM
G65BKG-1
G65BKG-2
G65BKG-3
G65BKM-1
G65BKM-2
G65BKM-3
G65BLG-1
G65BLG-2
G65DBG
G65DBM-1
G65DBM-2
G65DBM-3
G65DCM-1
G65DFG
G65DFM-1
G65DKG
G65DKM
G65DKM-1
G65DLM-1
G65FBG
G65FFG
G65FKG
G66AG-1
G66AG-2
G66BG-1
G66MG-1
G66MG-2
G66NG-1
G670AW-1
G670AW-2
G670GA-1
G67AG-10
G67AG-11
G67AG-3
G67AG-4
G67AG-7
G67AG-8
G67AG-9
G67BG-2
G67BG-3
G67BG-4
G67BG-5
G67MG-1
G67MG-2
S8610U3009
S8610U3009
Manufacturer Part Number Honeywell Universal
G67MG-3
G67MG-4
G67NG-2
G67NG-4
G770LGA-1
G770LGA-2
G770LGC-1
G770LGC-2
G770LGC-3
G770LGC-4
G770LHA-1
G770LHA-2
G770LHC-1
G770MGA-1
G770MGA-2
G770MGA-3
G770MGC-1
G770MGC-2
G770MGC-3
G770MGC-4
G770MGC-5
G770MGC-6
G770MHA-1
G770MHA-2
Johnson Controls
G770MHC-1
G770NGA-1
G770NGC-4
G770NGC-5
G770NGC-6
G770NGC-7
G770NHA-1
G770NHC-1
G770RGA-1
G770RHA-1
G770RHA-2
G775RGA-1
G775RHA-1
G775RHA-2
G779
Y79ABC-1
Y79ABC-2
Y79ABC-3
Y79ABC-4
Y79ABC-5
Y79ABC-6
Y79ABC-7
Y79ABCD-2
Y79ABD-1
Y79BBA-1
Y79BBA-2
S8610U3009
24
Ignition Modules
Page 25
Ignition Modules
S8610U3009
Manufacturer Part Number Honeywell Universal
780-001
780-002
780-003
780-715
780-735
780-736
Robershaw
White-Rodgers
780-737
780-845
SP715
SP715A
SP735
SP735D
SP735L
USI715U
50D49-350
50D49-360
50D49-361
50D49-401
50D50-843
S8610U3009
S8610U3009
S8910U3000
Manufacturer Part Number Honeywell Universal
S89C1004
S89C1012
S89C1046
S89C1087
S89C1103
S89D1002
S89G1005
S89G1013
S89G1021
S89G1047
S89H1003
Honeywell
Robertshaw
White-Rodgers
S89H1011
S89H1029
S89J1008
S890C1007
S890D1006
S890G1003
S890G1011
S890G1029
S890G1037
S890H1002
S890H1010
S890H1028
HS780-17NL-104A
HS780-17NL-108A
HS780-17NL-304A
HS780-17NL-308A
HS780-17NR-104A
HS780-17NR-306A
HS780-17NR-308A
HS780-34NL-108A
HS780-34NL-304A
HS780-34NL-306A
HS780-34NL-308A
HS780-34NL-312A
HS780-34NR-104A
HS780-34NR-306A
HS780-34NR-308A
HS780-34NR-312A
HS780-34PL-308A
50E47-1 thru 50E47-79
50E47-101 thru 50E47-179
50E47-201 thru 50E47-279
50E47-301 thru 50E47-379
50F47-1 thru 50F47-79
50F47-101 thru 50F47-179
50F47-201 thru 50F47-279
50F47-301 thru 50F47-379
S8910U3000
Ignition Modules
Ignition Modules
25
Page 26

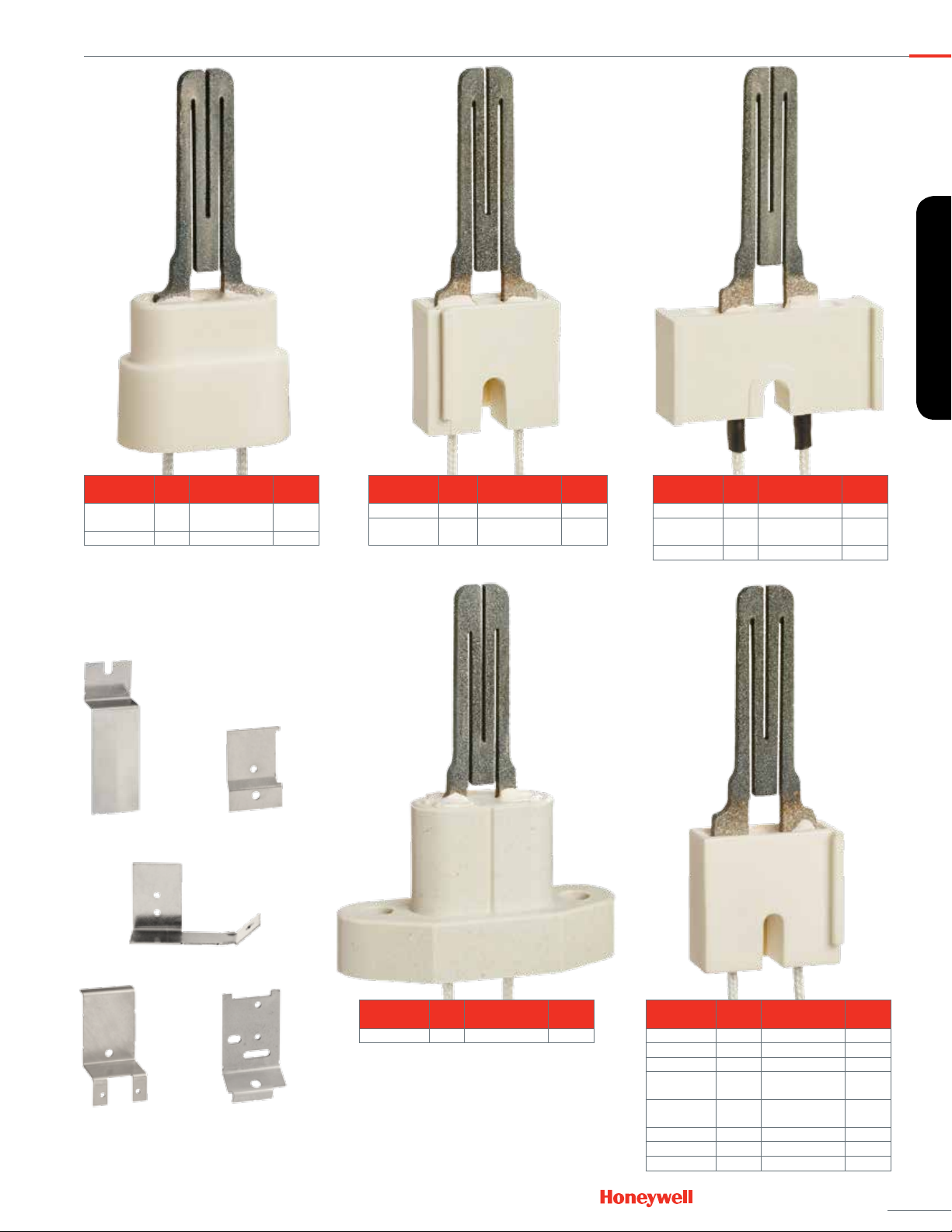

Glowfly® Universal Hot Surface Igniters
Silicon Nitride 120V Universal Hot Surface Igniter
With 6 customized brackets, next generation Silicon Nitride and one of a kind six-pack with visual cross­reference Glowfly ready for anything contractor.
Manufacturer Part Number
American Road Equipment 201W Arco Air 1096048 Arco Air 1380680 Armstrong Air 38322B001
LH33ZS001
LH33ZS001A
Carrier/Bryant/Payne
Hot Surface Igniters
Claire Bros C-238 Claire Bros C-242 Coleman 1474-051 Coleman 1474-052 Comfort Maker 1096048 Detroit Radient 201D DMO Industries 20834 Dornback Furnace 271W Ducane 20015201 Enerco Tech 10399 Evcon 1474-051 Evcon 1474-052 Evcon Coleman 025-32625-000 Goodman B1401009 Goodman B1401018 Goodman B1401018S HB Smith 50018 Heil 1096048 Hupp Industries 09050 Intercity 1009604 Intercity 1096048 Majestic 75-92-104 Majestic 75-92-105 Metzger 201N Metzger 201W Modine 5H76032A Mor-Flo 3200618 Nordyne 105141000 Nordyne 632-0770 Nordyne 632-0880
Norton/St Gobain
LH33ZS002
LH33ZS002A
LH33ZS003
LH33ZS003A
LH33ZS004
®
is the truck stock choice for the be
Honeywell
Unit Pack
Q3200U1004 Q3200U2002
201 271
201D
201K 201L
201N
201R 201W 271N
271NM
271P 271W
Honeywell
6 Pack
Manufacturer Part Number
Raypak 600915 Rheem 62-22441-01 Rheem 62-22441-01 Roberts Gordon 90434300 Roberts Gordon 90436600
41-402 41-403 41-404 41-405
Robertshaw
Snyder General 1380654 Snyder General 1380672 Snyder General 1380680 Superior Fireplace 94851 Tempstar 1096048
Trane
Viessman 9302-094 Wayne Home Equipment 62821-001 Wayne Home Equipment 62821-002 Weil Mclain 511-330-139 Weil Mclain 511-330-190 Weil Mclain 511-330-193 White LB 120-07549
White-Rodgers
Williamson 9050
York
41-407 41-408 41-409 41-410 41-412 41-418
340039P01 B138196P01 B144676P01 B144676P02 B340039P01
IGN23 IGN26 IGN30 IGN30 IGN34
767A-301 767A-303 767A-306 767A-311 767A-350 767A-353 767A-354 767A-357 767A-361 767A-364 767A-366 767A-370 767A-371 767A-372 767A-373 767A-376 767A-377 767A-382
025-27766-000 025-27774-000 025-29043-000 025-29050-000
Honeywell
Unit Pack
Q3200U1004 Q3200U2002
Honeywell
6 Pack
26
Glowfly® Universal Hot Surface Igniters
Page 27

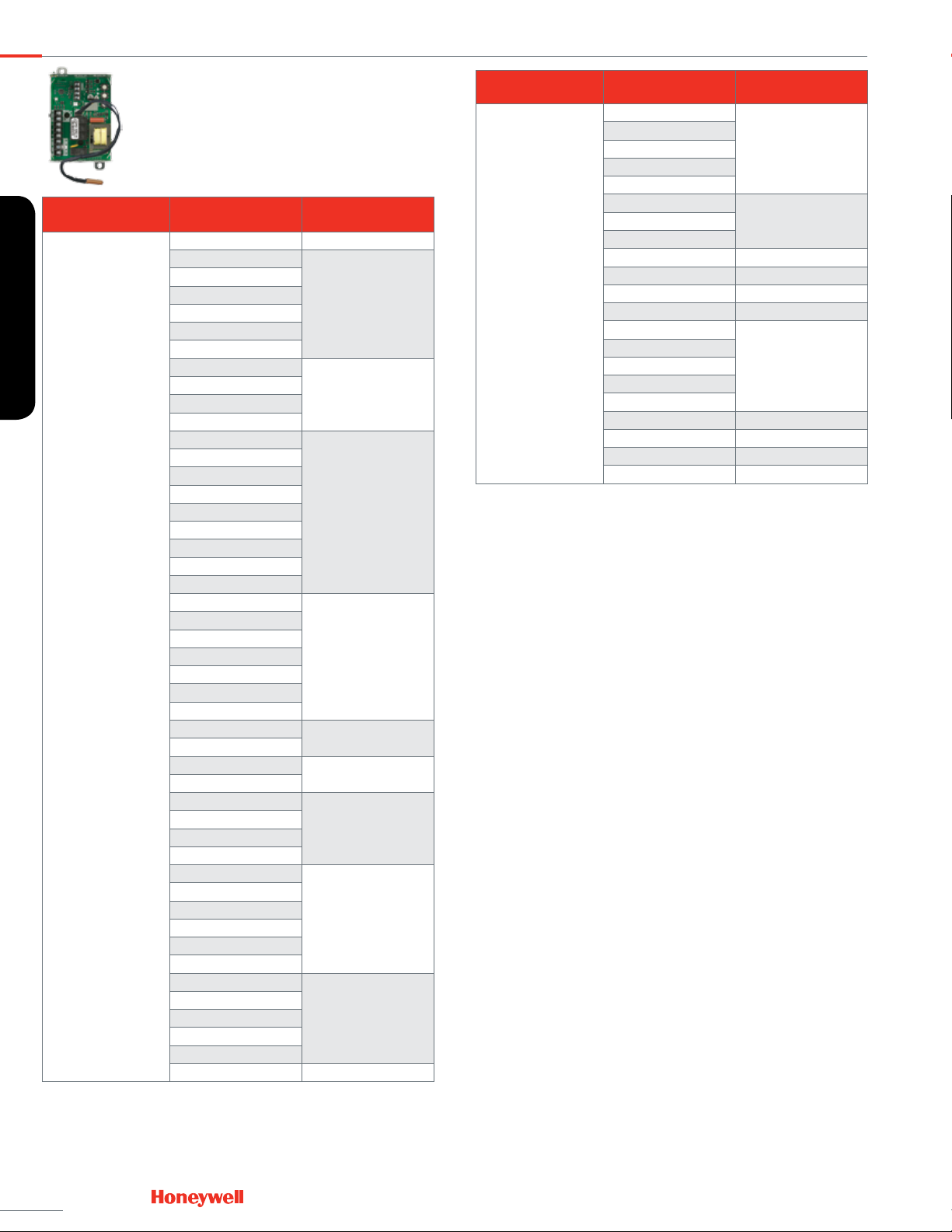

Universal Electronic Fan Timer
With a complete set of wiring harness, field-adjustable settings and extensive cross-reference the ST9120U is a must stock item for every service van.
Fan Timer
Manufacturer Part Number
ST9101A1006 Rheem
ST9101A1014 Rheem
ST9101A1022
ST9120A1006 Armstrong
ST9120A2004 Armstrong
ST9120B1005 Ducane
ST9120C1012 Snyder General
ST9120C1020 Nordyne
ST9120C2002 York
ST9120C2010 Ducane
ST9120C2028 Armstrong
ST9120C3000 ICP
ST9120C3018 Bard
ST9120C4008 ICP
ST9120C4016 ICP
ST9120C4040 ICP
ST9120C4057 ICP
ST9120C5005 ICP
ST9120C5013 ICP
ST9120D3009 Goodman
ST9120G2008 ICP
ST9120G2016 ICP
ST9120G2024 Skymark
ST9120G2032 Skymark
ST9120G4004 ICP
Honeywell
ST9120G4012 ICP
ST9120G4038
ST9120U1003
ST9141A1002
ST9141A1028
ST9141B1001
ST9150A1003
ST9150B2000
ST9150B2018 ICP
ST9150B2026 Ducane
ST9150B2034
ST9160A1002 Armstrong
ST9160B1001
ST9160B1019
ST9160B1027
ST9160B1035
ST9160B1043 ICP
ST9160B1050 ICP
ST9160B1068 Armstrong
ST9160B1076 Ducane
ST9160B1084 ICP
ST9160C1000
ST9160C1018
OEM Appliance
Manufacturer
Consolidated
Industries
Consolidated
Industries
Consolidated
Industries
Consolidated
Industries
Honeywell
Universal
Fan Timer
ST9120U1011
Fan Timer
27
Page 28
Silicon Carbide Igniters
Honeywell offers a full line of direct replacement, 120 V, silicon carbide igniters. They cover all the major configurations of element shapes, brackets, connectors, and lead wire lengths. Made in the USA and backed by a 2-year warranty.
Manufacturer
Amana
Silicon Carbide Igniters
American Appliance 271B Q4100C9050
American Road Equipment 201W Q4100C9046
American Standard IGN0030 Q4100C9056
American Water Heater
Arco Air
Armstrong 38322B001 Q4100C9046
Barnett Brass
Carrier/ Bryant/ Payne
Claire Brothers
Coleman
Comfort Maker 1096048 Q4100C9066
Comfort Zone 150114-04-01 Q4100C9050
Detroit Radiant 201D Q4100C9068
DMO Industries 20834 Q4100C9046
Dornback 271W Q4100C9046
Ducane 20015201 Q4100C9056
Part
Number
601 Q4100C9048
10041601 Q4100C9042
10755002 Q4100C9046
20165703 Q4100C9054
10735003A Q4100C9046
138196P01 Q4100C9056
201657-03 Q4100C9048
20165703S Q4100C9048
B1336102 Q4100C9042
B144676P01 Q4100C9058
B144676P02 Q4100C9052
B340039P01 Q4100C9054
D99182 Q4100C9042
D9918202A Q4100C9042
6901800 Q4100C9050
6903767 Q4100C9050
6903768 Q4100C9050
6905032 Q4100C9046
1096048 Q4100C9066
1380680 Q4100C9066
100-9980 Q4100C9046
661923 Q4100C9042
661925 Q4100C9050
661926 Q4100C9052
661927 Q4100C9056
661928 Q4100C9060
661929 Q4100C9054
LH33ZS001A Q4100C9056
LH33ZS002 Q4100C9056
LH33ZS003 Q4100C9056
LH33ZS004 Q4100C9056
C-238 Q4100C9046
C-242 Q4100C9046
1474-051 Q4100C9046
1474-052 Q4100C9046
Honeywell
Part Number
Manufacturer
Eaton
Enerco 10399 Q4100C9046
EZFLOW 62374 Q4100C9062
Frigidaire
Gemline
General Electric
Glow Core
Goodman
Grimsby Stove ZCO-350 Q4100C9046
GSW
HB Smith
Heatmaker
Heil-Quaker
Integra 3260618 Q4100C9046
Intercity
Janitrol Goodman
LB White 120-07549 Q4100C9046
Part
Number
F1-402 Q4100C9046
F1-403 Q4100C9046
F1-404 Q4100C9048
F1-407 Q4100C9052
FI-401 Q4100C9042
FI-405 Q4100C9068
FI-406 Q4100C9050
FI-408 Q4100C9054
FI-409 Q4100C9056
FI-410 Q4100C9058
FI-412 Q4100C9062
6320770 Q4100C9046
6320880 Q4100C9046
6323540 Q4100C9046
632-3540 Q4100C9046
RH622286893 Q4100C9046
IG-106 Q4100C9050
IG-107 Q4100C9062
WG37X11 Q4100C9056
WG37X34 Q4100C9056
1950001 Q4100C9050
FY 009 Q4100C9050
HSRK7 Q4100C9050
B11726-06 Q4100C9046
B1401009 Q4100C9062
B14010-15S Q4100C9066
71082 Q4100C9062
86483 Q4100C9062
9050 Q4100C9046
50018 Q4100C9068
101344 Q4100C9068
11148245 Q4100C9068
2400-048 Q4100C9042
2400-286 Q4100C9042
2400-359 Q4100C9042
3079-100 Q4100C9042
9330-102 Q4100C9042
1001344 Q4100C9068
1009604 Q4100C9062
1009648 Q4100C9062
1096048 Q4100C9066
1148145 Q4100C9068
10096047 Q4100C9062
1009604 Q4100C9062
1096048 Q4100C9066
0230K00001 Q4100C9048
B1401009 Q4100C9062
B1401015S Q4100C9066
B1401018 Q4100C9066
B140109S Q4100C9066
Honeywell
Part Number
28
Silicon Carbide Igniters
Page 29
Silicon Carbide Igniters
Manufacturer
Lennox
Lochinvar
Luxaire 25326250000 Q4100C9046
Maddox 201 Q4100C9056
Majestic
Metzger
Mor-Flo
Nordyne
Norton/ St. Gobain
Part
Number
36N77 Q4100C9056
36N7701 Q4100C9056
96P01 Q4100C9042
96P0101 Q4100C9042
98P77 Q4100C9068
98P78 Q4100C9054
LCVT27021G Q4100C9050
PLT2702 Q4100C9050
75-92-104 Q4100C9046
75-92-105 Q4100C9046
201N Q4100C9046
201W Q4100C9046
3200580 Q4100C9050
3200618 Q4100C9046
3210401 Q4100C9050
105141000 Q4100C9046
632-0770 Q4100C9046
632-0880 Q4100C9046
201 Q4100C9056
271 Q4100C9056
201A Q4100C9042
201B Q4100C9050
201D Q4100C9068
201J Q4100C9050
201K Q4100C9046
201L Q4100C9046
201M Q4100C9050
201N Q4100C9046
201P Q4100C9046
201R Q4100C9046
201R Q4100C9046
201W Q4100C9046
201Y Q4100C9050
271A Q4100C9042
271M Q4100C9048
271M Q4100C9050
271M Q4100C9056
271N Q4100C9046
271NM Q4100C9062
271NM Q4100C9066
271P Q4100C9068
271Q Q4100C9042
271W Q4100C9046
271Y Q4100C9050
MB258909 Q4100C9042
MB258910 Q4100C9056
MB258911 Q4100C9046
MB258912 Q4100C9048
MB457025 Q4100C9054
MB457025 Q4100C9066
MB457026 Q4100C9068
MB457027 Q4100C9050
MB457038 Q4100C9052
MB457551 Q4100C9058
Honeywell
Part Number
Manufacturer
Norton/ St. Gobain
Olsen 26789 Q4100C9046
Perfection Schwank 108803-G1 Q4100C9050
Raypak
Raytheion D9918202A Q4100C9042
Rheem
Roberts Gordon
Robertshaw
Ruud
Snyder General
Part
Number
MB457555 Q4100C9056
MB458902 Q4100C9062
MB478264 Q4100C9046
MB478265 Q4100C9048
MB478266 Q4100C9054
MB478267 Q4100C9068
MB478268 Q4100C9050
MB478270 Q4100C9058
MB478272 Q4100C9062
MB478601 Q4100C9050
50015 Q4100C9056
600915 Q4100C9056
904343000 Q4100C9056
62-22441-01 Q4100C9046
62-22441-01 Q4100C9054
62-22668-93 Q4100C9054
62-22868-02 Q4100C9046
62-22868-82 Q4100C9060
62-22868-82 Q4100C9060
62-22868-93 Q4100C9046
90436600 Q4100C9046
904343000 Q4100C9056
41-401 Q4100C9042
41-401N Q4100C9042
41-402 Q4100C9046
41-402N Q4100C9046
41-403 Q4100C9056
41-403N Q4100C9056
41-404 Q4100C9048
41-404N Q4100C9048
41-405 Q4100C9068
41-405N Q4100C9068
41-406 Q4100C9050
41-406N Q4100C9050
41-407 Q4100C9052
41-407N Q4100C9052
41-408 Q4100C9054
41-408N Q4100C9054
41-409 Q4100C9056
41-409N Q4100C9056
41-410 Q4100C9058
41-410N Q4100C9058
41-411 Q4100C9060
41-411N Q4100C9060
41-412 Q4100C9062
41-412N Q4100C9062
41-414 Q4100C9066
62-22868-02 Q4100C9046
62-22868-93 Q4100C9046
1380654 Q4100C9056
1380672 Q4100C9056
1380680 Q4100C9056
Honeywell
Part Number
Silicon Carbide Igniters
Silicon Carbide Igniters
29
Page 30
Silicon Carbide Igniters
Manufacturer
Starlite
Silicon Carbide Igniters
Supco
Superior Fireplace 94851 Q4100C9046
Temp Controls 9302-094 Q4100C9068
Tempstar 1096048 Q4100C9066
Trane
Uni-Line
Viessman 9302-094 Q4100C9068
Part
Number
11120-100-1401 Q4100C9042
11120-100-1402 Q4100C9046
11120-100-1403 Q4100C9056
11120-100-1405 Q4100C9048
11120-100-1406 Q4100C9050
11120-100-1407 Q4100C9052
11120-100-1408 Q4100C9054
11120-100-1409 Q4100C9056
SIG-106 Q4100C9050
SIG107 Q4100C9062
SIG-108 Q4100C9060
SIG-401 Q4100C9042
SIG-402 Q4100C9046
SIG-403 Q4100C9056
SIG-405 Q4100C9068
SIG-406 Q4100C9050
SIG-407 Q4100C9052
SIG-408 Q4100C9054
SIG-409 Q4100C9056
SIG-410 Q4100C9058
SIG-412 Q4100C9062
SIG-414 Q4100C9066
B138196P01 Q4100C9056
B144676P01 Q4100C9058
B144676P02 Q4100C9052
B340039P01 Q4100C9054
IGN00026 Q4100C9056
IGN00030 Q4100C9052
IGN00034 Q4100C9054
IGN00054 Q4100C9050
IGN-0034 Q4100C9054
IGN21 Q4100C9046
IGN23 Q4100C9046
IGN23 Q4100C9056
IGN26 Q4100C9056
IGN30 Q4100C9052
IGN34 Q4100C9054
ING00023 Q4100C9046
10530 Q4100C9062
63467 Q4100C9046
63468 Q4100C9056
63469 Q4100C9048
63470 Q4100C9068
63472 Q4100C9052
63473 Q4100C9054
63474 Q4100C9056
63475 Q4100C9058
63477 Q4100C9060
64346 Q4100C9066
66201310530 Q4100C9062
41-238 Q4100C9046
41-242 Q4100C9046
Part Number
Honeywell
Manufacturer
Wayne Home Equipment
Weil McLain
Whirlpool
White Rodgers
Williamson 950 Q4100C9046
York
Part
Number
62821-001 Q4100C9046
62821-002 Q4100C9046
79074 Q4100C9046
511-330-139 Q4100C9056
511-330-188 Q4100C9050
511-330-190 Q4100C9048
511-330-193 Q4100C9056
99794322 Q4100C9042
99794323 Q4100C9046
99794326 Q4100C9050
99794328 Q4100C9054
999794327 Q4100C9052
99796417 Q4100C9068
99911563 Q4100C9070
99911564 Q4100C9072
5E809 Q4100C9044
5E810 Q4100C9040
5E811 Q4100C9068
767-301 Q4100C9068
767-A303 Q4100C9040
767A-306 Q4100C9068
767A-309 Q4100C9070
767A-310 Q4100C9070
767A-311 Q4100C9072
767A-35 Q4100C9046
767A-350 Q4100C9068
767A-352 Q4100C9042
767A353 Q4100C9040
767A-354 Q4100C9068
767A-356 Q4100C9042
767A-356 Q4100C9044
767A-357 Q4100C9040
767A-361 Q4100C9068
767A-364 Q4100C9072
767A-365 Q4100C9070
767A-366 Q4100C9072
767A-369 Q4100C9042
767A-369 Q4100C9042
767A-370 Q4100C9056
767A-371 Q4100C9046
767A-372 Q4100C9054
767A-373 Q4100C9062
767A-374 Q4100C9050
767A-376 Q4100C9052
767A-377 Q4100C9058
767A-382 Q4100C9048
767A-383 Q4100C9060
767A-384 Q4100C9066
025-25435-000 Q4100C9070
025-27766-000 Q4100C9068
025-27774-000 Q4100C9068
025-29043-000 Q4100C9068
025-29050-000 Q4100C9068
025-32625-000 Q4100C9046
Honeywell
Part Number
30
Silicon Carbide Igniters
Page 31
Silicon Carbide Igniters
Silicon Carbide Igniters
Honeywell
Part Number
Q4100C9042 5.5"
Q4100C9044 6" Receptical No
Lead
Wire Connection Bracket
Molex Internally
Keyed
Bracket A Bracket C
Honeywell
Part Number
No
Q4100C9068 5.25" Receptical No
Q4100C9070 5.668"
Lead Wire Connection Bracket
Female Quick
Connect
No
Honeywell
Part Number
Q4100C9048 5.25" Receptical A
Q4100C9052 5"
Q4100C9056 5.25" Receptical No
Lead Wire Connection Bracket
Molex Front
Lock
No
Bracket B
Bracket D Bracket E
Honeywell
Part Number
Q4100C9050 11" Stripped Ends No
Lead Wire Connection Bracket
Honeywell
Part Number
Q4100C9040 5.25" Receptical No Q4100C9046 19.125" Stripped Ends No Q4100C9054 5.25" Molex Side Lock No
Q4100C9058 4.5"
Q4100C9060 5.25"
Q4100C9062 5.25" Receptical C Q4100C9066 5.25" Receptical C, D, E Q4100C9072 5.313" AMP Receptical No
Lead Wire Connection Bracket
Molex Front
Lock
Molex Front
Lock
No
B
Silicon Carbide Igniters
31
Page 32

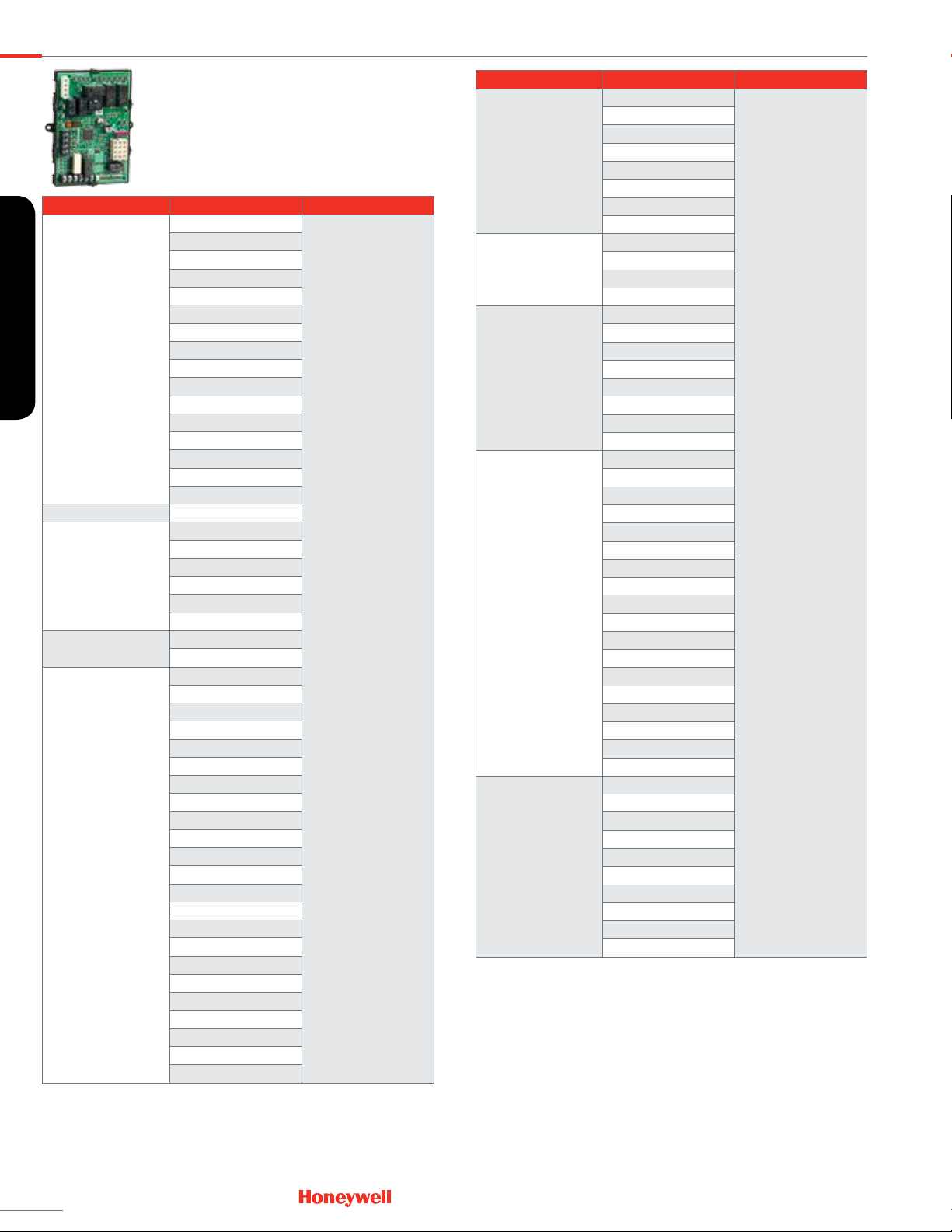

Integrated Furnace Controls
Single-Stage 120V Hot Surface Ignition
Honeywell's Universal Integrated control provides contractors with the application flexibility and ease of use they require to get the job done fast and right, the first time!
Manufacturer Part Number Honeywell Universal
Goodman/Amana
Integrated Furnace Controls
ICM ICM280
ICP
Lennox
Nordyne
1809913
B1809913 B18099-13 102077-02 102077-03
10207704
102077-04
10207706
102077-09
10207714 10207719
102077-19
10207701 10207702 10207703 10207710
1010806 1380686 1380698
1380699 1380-686 1380-699
X445901
1214201
624557
6245570 624557-0
624564
6245640
624591
624591A 624591-A 624591-B 624591-C 624591-D
624628
624628-0
6246310 624631-0
624631A 624631-A 624631-B
710128A
902378 902696 903106
CAR903106
S9200U1000
Manufacturer Part Number Honeywell Universal
X13120666010
10334901
350486
Other Manufacturers
Rheem/Robert Shaw
Texas Instruments
Trane
United Technologies
8068142 8068561
8068563 99958174 99958175
62-24268-01 62-24268-02 62-24268-03
695-200
6DT-1 6DT-2
61F3
41F-5
50T35730
50T35-730
50T35743
50T35-743
CNT1309
CNT1616
CNT1848
CNT1849
CNT2182
CNT2183
CNT2181
CNT2789 CNT03740
D330927P01 D330930P01 D330934P01 D340035P01 D340354P01 D340774P01 D340790P01 D341122P01 D341235P01
1012-925A 1012-925B 1012-925C 1012-955A
1012955A
1012-83-9651B
1012933D
1012-933D
1012-83-9336AHSC1
1012-83-9337A
S9200U1000
32
Integrated Furnace Controls
Page 33
Integrated Furnace Controls
Manufacturer Part Number Honeywell Universal
50A50-110 50A50-111 50A50-112 50A50-113 50A50-130 50A50-131 50A50-142 50A50-143 50A50-208 50A50-210 50A50-215 50A50-216 50A50-229 50A50-230 50A50-240 50A50-241 50A50-245 50A50-286 50A50-296 50A50-298 50A50-407 50A50-408 50A50-438 50A50-472 50A50-475
White Rodgers
50A55-143 50A55-245 50A55-250 50A55-285 50A55-286 50A55-288
50A55-288-05
50A55-843 - universal
50A50-571 50A50-473 50A50-474 50A50-405 50A50-406 50A50-471 50A55-438 50A50-205 50A50-206 50A50-207 50A50-285 50A55-120 50A55-571 50A55-474 50A50-288 50A50-295 50A50-209 50A55-241
S9200U1000
Manufacturer Part Number Honeywell Universal
3101250000
031-00662
031-00662000 031-00662-000 031-00662-700 031-01140-000 031-01140-001
31011140002 031-01140-002 031-01140-701 031-01140-702
031.01234.000 031-01234-700 031-01235-000 031-01235-700 031-01250-000 031-01250-700 031-01266-000 031-01266-700
031-01267-00 031-01267-000 031-01267-001
031-01267-001A
031-01284-000 031-01933-000
York
031-01972-000 031-01973-000 031-02166-000 031-09166-000 031-09167-000 331-01933-000 331-01972-200 331-09167-000
43101972100
431-01972-100
52537074000 52537077000
5253733900 CAR3310197220-0 CAR0310197300-0
CAR50A55843
G951ADB1401
G951ADB1401C
G951ADB-1401C
G951ADB1402 G951ADB-1402 G951AEB-1403 P03101267001
P031-01267-001
PTH031011400-00
031-00662
S9200U1000
Integrated Furnace Controls
Integrated Furnace Controls
33
Page 34

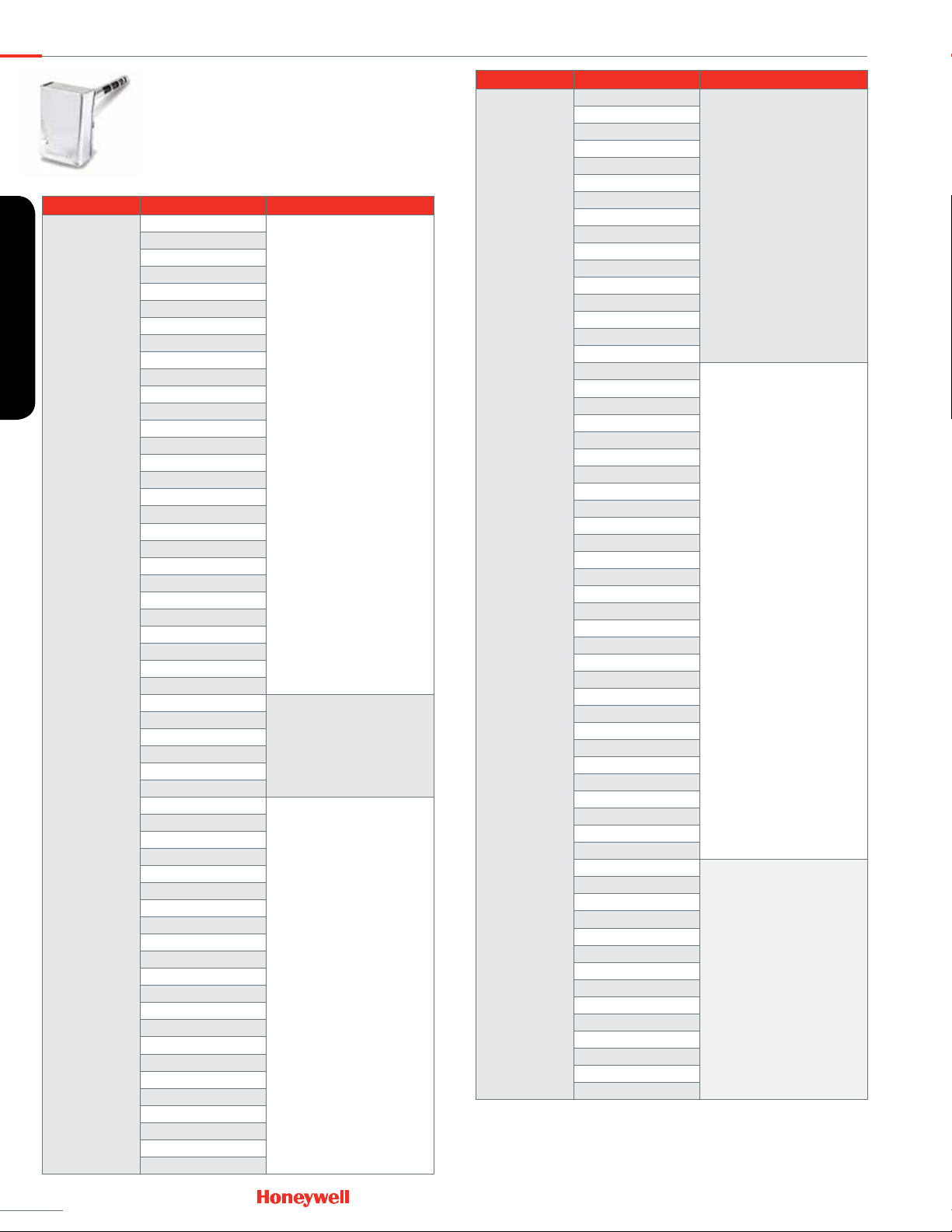

Fan and Limit Controls
Honeywell fan and limits combines high temperature limit with circulating blower control. As an industry standard for many years, these controls have a large and varied installed base. You’ll find Honeywell fan and limits on a wide range of furnace equipment.
Manufacturer Honeywell OEM Part Honeywell Cross-reference
L4064A1339 L4064A1503 L4064A1586 L4064A2402 L4064A2659 L4064A2980 L4064B1469 L4064B1683
Fan and Limit Controls
Honeywell
L4064B2228 L4064B2640 L4064B2657 L4064B2681 L4064B2889 L4064B2897 L4064B2947 L4064B3010 L4064B3143 L4064B3143 L4064B3374 L4064B3432 L4064B3440 L4064B3473 L4064B3598 L4064E1983 L4064E2437 L4064E2544 L4064L1046 L4064R1001 L4064E1835 L4064E2551 L4064L1145 L4064R1043 L4064R1050 L4064R1159 L4064A2774 L4064A1511 L4064A1347 L4064A1735 L4064A2030 L4064A2998 L4064A2279 L4064E2544 L4064E2452 L4064B3390 L4064B3481 L4064B3499 L4064B3085 L4064B3051 L4064B3572 L4064B2772 L4064B2962 L4064B2905 L4064B2608 L4064B1691 L4064B1618 L4064B3457
L4064B2228
L4064R1159
L4064B2236
Manufacturer Honeywell OEM Part Honeywell Cross-reference
L4064A2469 L4064B1691 L4064B2616 L4064B2806 L4064B2814 L4064B2830 L4064B3390
Honeywell
L4064B3481 L4064B3507 L4064N1017 L4064N1066 L4064N1082 L4064R1019 L4064R1118 L4064R1126 L4064R1142 L4064A1321 L4064A1453 L4064A2758 L4064A3012 L4064A3020 L4064A3038 L4064A3046 L4064B1451 L4064B1592 L4064B1717 L4064B1725 L4064B1931 L4064B2210 L4064B2723 L4064B2749 L4064B2848 L4064B2954 L4064B3036 L4064B3044 L4064B3077 L4064B3184 L4064B3465 L4064B3580 L4064E2056 L4064E2114 L4064E2130 L4064E2155 L4064K1014 L4064K1022 L4064A2972 L4064B2756 L4064J1008 L4064K1006 L4064L1129 L4064N1058 L4064N1074 L4064N1165 L4064N1199 L4064R1027 L4064R1035 L4064R1068 L4064R1134 L4064R1167
L4064R1142
L4064B2210
L4064R1134
34
Fan and Limit Controls
Page 35

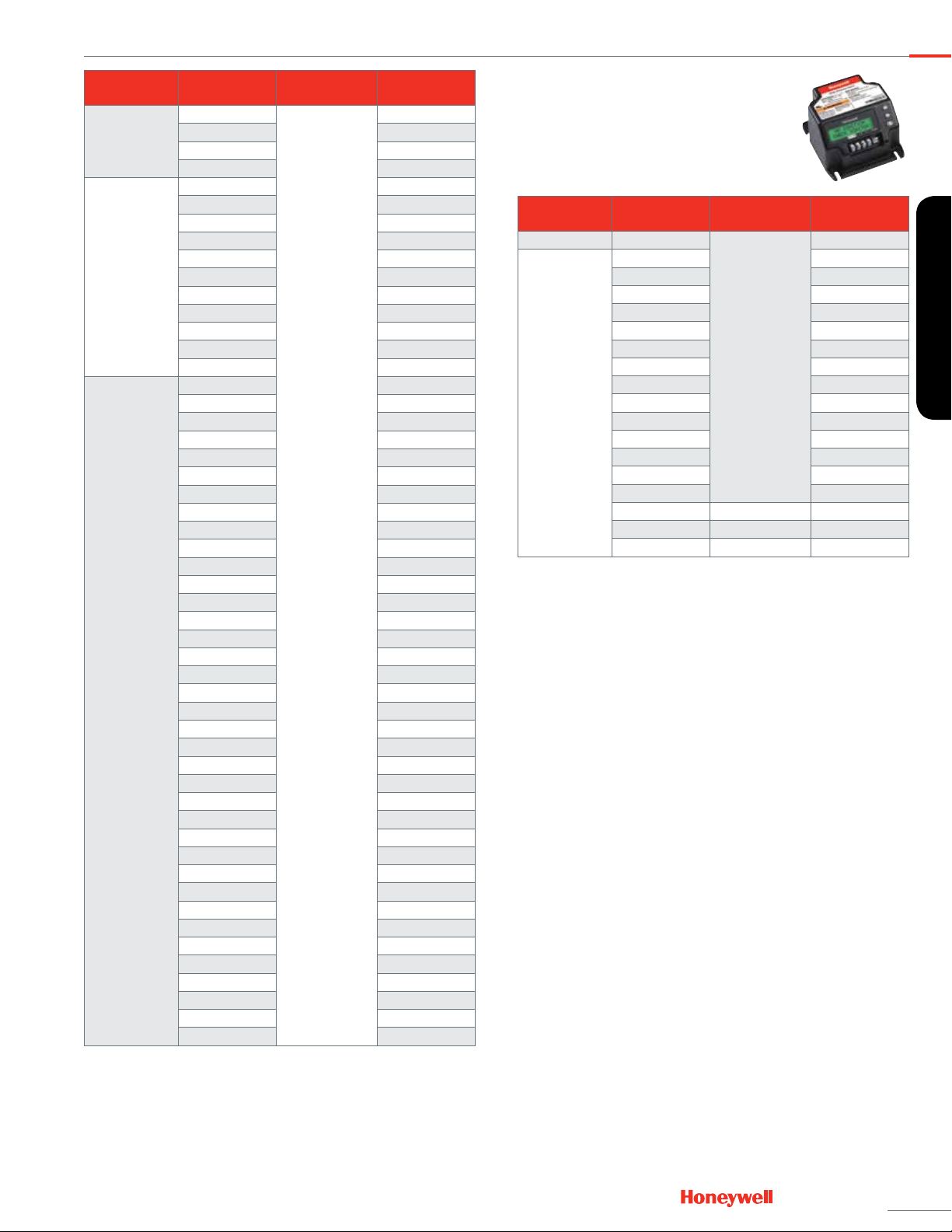

Oil Primaries
Manufacturer Part Number
7505P125M
Beckett
Carlin
Honeywell
7505A0000 7505B1500 R7284B1024 7505P1515 50200-02S
602000-02S 6020002S015120 6020002S030015 6020002S030030 6020002S030120 6020002S030300 6020002S030010
40200-02S 42230-02S
48245-S R7184U1004 R7184P1031 R7184P1049 R7184P1056 R7184P1064 R7184P1072 R7184A1026 R7184A1075 R7184A1000 R7184B1024 R7284B1024 R7184B1032 R7284B1024 R7184B1016 R7284B1024 R7184P1080 R7184P1098 R7184U1012 R7184A1018 R7184A1034 R7184U1020 R7184A1042
R8184G1294 R8184G1302 R8184G4066 R8184G4074 R8184G4033 R8184G4090 R8184G1427 R8184G4058 R8184G1393 R8184G1302 R8184G4074 R8184G4033 R8184G1286 R8184G1427 R8184G1458 R8184G4009 R8184G4025 R8184G4082
Honeywell
Universal
R7284U1004
Honeywell Direct
replacement
Universal Digital Electronic Oil Primary
With the most advanced features our new oil primary helps you optimize your service department by telling you what's wrong up front, so you'll spend less time diagnosing systems and more time keeping your customers comfortable and happy.
Manufacturer Part Number
Honeywell R8184G4108
669-640 669-670 669-440 669-445 669-470 669-540 668-601 668-670
White-Rodgers
668-501 668-401
668-0415
668-430 668-515 668-430 668-441 R8184M1002 668-451 R8184M1002 668-454 R8184M1002
Honeywell
Universal
R7284U1004
Honeywell Direct
replacement
Oil Primaries
Oil Primaries
35
Page 36
Aquastat
®
Honeywell Aquastats
A boiler industry standard, Honeywell Aquastats have a proven track record and a large installed base, keep your customers' heat on all winter with our Universal electronic Aquastats.
Manufacturer Honeywell OEM Part
L6081A1069 L6081A1010 L4081A1023 L4081A1148 L4081A1155
Aquastat
Honeywell
*All members of crossed family can be replaced.
L4081A1171 L4081A1189 L4081A1197 L8148E1158 L8148E1182 L8148E1216
L8148E1065 L8124A Family* L8124C* Family L8148A Family* L8148C Family* L7224A Family* L7224C Family* L7248A Family* L7248C Family* L8151C Family*
L8124A1015
L8124A1049
L8124A1106
L8124A1114
L8124A1130
L8124A1155
L8124A1015
L8124C1094
L8124C1102
L8124G1004
L8124G1012
L8124L1003
L8124L1029
L8124G1038
L8124G1046
L8148A1165
L8148A1157
L8148A1124
L8148A1090
L8148A1082
L8148A1009
L4080B
L4080D L4006A1058 L4006A1827 L4006A2015 L4006A2023 L4006A1132
Honeywell
Cross-reference
L6081A1036
L8148E1265
L7224U1002
L8124A1007
L8124C1003
L8124G1020
L8124L1011
L8148A1017
L4006A1017
Manufacturer Honeywell OEM Part
L4006E1091 L4006E1109 L4006E1117 L4006E1125 L4006E1133 L4008E1040
L4008E1321 L4008E1271 L4008E1305 L4008E1313 L4008E1305
Honeywell
L4006B1189 L4006B1155 L4008B1163 L4006B1155 L6006A1160 L6006A1269 L6006A1301 L6006A1327 L6006A1335 L4006A1004 L6006A1145 L6006C1034 L6006C1018 L6006C1059 L6006C1018 L6008A1010 L6008A1093
Honeywell
Cross-reference
L4006E1067
L4008E1156L4008E1248
L6006A1012
36
Aquastat
Page 37

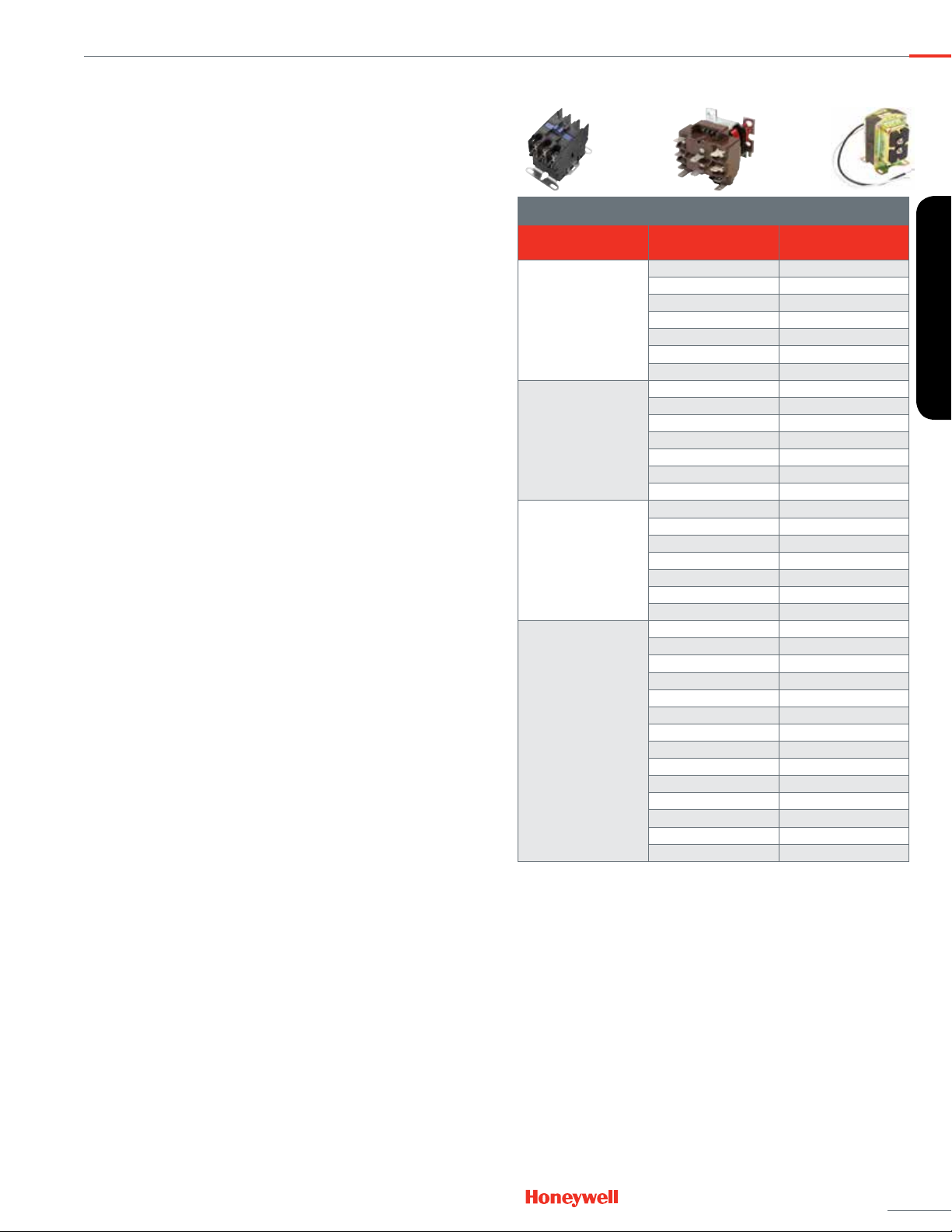

Heating and Cooling Components
Honeywell offers a full lineup of contactors, relays and transformers for all your residential HVAC applications.
Economy Contactors
Manufacturer Part Number
C25CNB130T DP1030A1001 C25BNB230T DP2030A1004 C25BNB230A DP2030B1003
Cutler hammer
Furnas
Honeywell
Mars
C25BNB230B DP2030C1002 C25BNB240T DP2040A1003 C25BNB240A DP2040B1002 C25BNB240B DP2040C1001
45EG10AJA DP1030A1001
45EG2OAJ DP2030A1004 45EG2OAF DP2030B1003 45EG2OAG DP2030C1002 45GG20AJ DP2040A1003 45GG20AF DP2040B1002
45GG20AG DP2040C1001 DP1030A1000 DP1030A1001 DP2030A1003 DP2030A1004 DP2030B1002 DP2030B1003 DP2030C1001 DP2030C1002 DP2040A1002 DP2040A1003 DP2040B1001 DP2040B1002 DP2040C1000 DP2040C1001
Heating and Cooling Components
Honeywell
Cross-reference
91320 DP1030A1001 61354 DP2030A1004 61346 DP2030B1003 61347 DP2030C1002 61355 DP2040A1003 61356 DP2040B1002 61357 DP2040C1001 17311 DP1030A1001 17321 DP2030A1004 17322 DP2030B1003 17323 DP2030C1002 17421 DP2040A1003 17422 DP2040B1002 17423 DP2040C1001
Heating and Cooling Components
37
Page 38
Heating and Cooling Components
PowerPro Contactors
Manufacturer Part Number
C25DND230B DP2030C5003
Heating and Cooling Components
Cutler hammer
Furnas
Honeywell
Cross-reference
C25DND230T DP2030A5005
C25DND230A DP2030B5004
C25DNF240T DP2040A5004
C25DNF240A DP2040B5003
C25DNF240B DP2040C5002
C25DND330T DP3030A5004
C25DND330A DP3030B5003
C25DND330B DP3030C5002
C25DNF340T DP3040A5003
C25DNF340A DP3040B5002
C25DNF340B DP3040C5001
C25DNJ350T DP3050A5002
C25DNJ350A DP3050B5001
C25DNJ350B DP3050C5010
C25FNF360T DP3060A5001
C25FNF360A DP3060B5010
C25FNF360B DP3060C5009
C25FNF375T DP3075A5017
C25FNF375A DP3075B5016
C25FNF375B DP3075C5015
C25GNF390A DP3090B5007
C25GNF390B DP3090C5006
C25ENF440T DP4040A5002
C25ENF440A DP4040B5001
C25ENF440B DP4040C5010
45DG10AJA DP1025A5006
45EG10AJA DP1030A5014
45GG10AJA DP1040A5005
45CG20AJ DP2020A5022
45CG20AF DP2020B5039
45EG2OAJ DP2030A5005
45EG2OAF DP2030B5004
45EG2OAG DP2030C5003
45GG20AJ DP2040A5004
45GG20AF DP2040B5003
45GG20AG DP2040C5002
42BF35AJ DP3030A5004
42BF35AF DP3030B5003
42BF35AG DP3030C5002
42CF35AJ DP3040A5003
42CF35AF DP3040B5002
42CF35AG DP3040C5001
42DF35AJ DP3050A5002
42DF35AF DP3050B5001
42DF35AG DP3050C5010
42EF35AJ DP3060A5001
42EF35AF DP3060B5010
42EF35AG DP3060C5009
PowerPro Contactors
Manufacturer Part Number
42FE35AJ DP3075A5017
42FE35AF DP3075B5016
42FE35AG DP3075C5015
Furnas
Honeywell
Mars
42GE35AF DP3090B5007
42GE35AG DP3090C5006
42CF25AJ DP4040A5002
42CF25AF DP4040B5001
42CF25AG DP4040C5010
DP1025A5005 DP1025A5006
DP1030A5013 DP1030A5014
DP1040A5004 DP1040A5005
DP2020A5021 DP2020A5022
DP2020B5038 DP2020B5039
DP2030A5004 DP2030A5005
DP2030A5012 DP2030A5013
DP2030B5003 DP2030B5004
DP2030B5011 DP2030B5012
DP2030C5002 DP2030C5003
DP2030C5010 DP2030C5011
DP2030D5001 DP2030D5002
DP2040A5003 DP2040A5004
DP2040B5002 DP2040B5003
DP2040C5001 DP2040C5002
DP3030A5003 DP3030A5004
DP3030B5002 DP3030B5003
DP3030C5001 DP3030C5002
DP3040A5002 DP3040A5003
DP3040B5001 DP3040B5002
DP3040C5000 DP3040C5001
DP3050A5001 DP3050A5002
DP3050B5000 DP3050B5001
DP3050C5009 DP3050C5010
DP3060A5000 DP3060A5001
DP3060B5009 DP3060B5010
DP3060C5008 DP3060C5009
DP3075A5016 DP3075A5017
DP3075B5015 DP3075B5016
DP3075C5014 DP3075C5015
DP3090B5006 DP3090B5007
DP3090C5005 DP3090C5006
DP4040A5001 DP4040A5002
DP4040B5000 DP4040B5001
DP4040C5009 DP4040C5010
DP3050B5002 DP3050A5002
61315 DP1025A5006
13101 DP1030A5014
61330 DP1040A5005
61310 DP2020A5022
61336 DP2020B5039
Honeywell
Cross-reference
38
Heating and Cooling Components
Page 39
Heating and Cooling Components
PowerPro Contactors
Manufacturer Part Number
61345 DP2030A5005
60510 DP2030A5013
61346 DP2030B5004
60031 DP2030B5012
61347 DP2030C5003
60512 DP2030C5011
60153 DP2030D5002
13107 DP2040A5004
13108 DP2040B5003
13109 DP2040C5002
61430 DP3030A5004
61431 DP3030B5003
61432 DP3030C5002
60530 DP3040A5003
61446 DP3040B5002
60532 DP3040C5001
61460 DP3050A5002
61461 DP3050B5001
60217 DP3050C5010
61470 DP3060A5001
61471 DP3060B5010
60227 DP3060C5009
60235 DP3075A5017
60237 DP3075B5016
Mars
60245 DP3075C5015
61491 DP3090B5007
60247 DP3090C5006
61450 DP4040A5002
61451 DP4040B5001
61452 DP4040C5010
61320 DP1030A5014
14122 DP2020B5039
13104 DP2030A5005
13105 DP2030B5004
13106 DP2030C5003
91323 DP2030C5011
91421 DP2040A5004
91422 DP2040B5003
91423 DP2040C5002
13113 DP3030A5004
13114 DP3030B5003
13115 DP3030C5002
60182 DP3040C5001
13619 DP3050A5002
60202 DP3050C5010
13625 DP3060A5001
60207 DP3060C5009
61475 DP3075A5017
61476 DP3075B5016
Honeywell
Cross-reference
PowerPro Contactors
Manufacturer Part Number
61477 DP3075C5015
61492 DP3090C5006
13016 DP4040A5002
61720 DP1030A5014
91321 DP2030A5005
60512 DP2030C5003
61355 DP2040A5004
61356 DP2040B5003
61357 DP2040C5002
60515 DP3030A5004
91332 DP3030B5003
91333 DP3030C5002
61445 DP3040A5003
61447 DP3040C5001
91531 DP3050A5002
61462 DP3050C5010
91631 DP3060A5001
61472 DP3060C5009
13240 DP3075A5017
13242 DP3075C5015
13262 DP3090C5006
Mars
60510 DP2030A5005
60032 DP2030C5003
61755 DP2040A5004
61756 DP2040B5003
61757 DP2040C5002
13007 DP3030A5004
60517 DP3030C5002
13013 DP3040A5003
13015 DP3040C5001
13621 DP3050C5010
13627 DP3060C5009
91731 DP3075A5017
91733 DP3075C5015
60525 DP2040A5004
60527 DP2040C5002
91331 DP3030A5004
13009 DP3030C5002
91431 DP3040A5003
91433 DP3040C5001
91533 DP3050C5010
91633 DP3060C5009
14423 DP2040C5002
Honeywell
Cross-reference
Heating and Cooling Components
Heating and Cooling Components
39
Page 40
Learn More
Call 1-800-468-1502
e-mail [email protected]
or visit forwardthinking.honeywell.com
Automation and Control Solutions
In the U.S.:
Honeywell
1985 Douglas Drive North
Golden Valley, MN 55422-3992
www.honeywell.com
67-7518 PR July 2015 © 2015 Honeywell International Inc.
YouTube: @honeywellcpro
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
