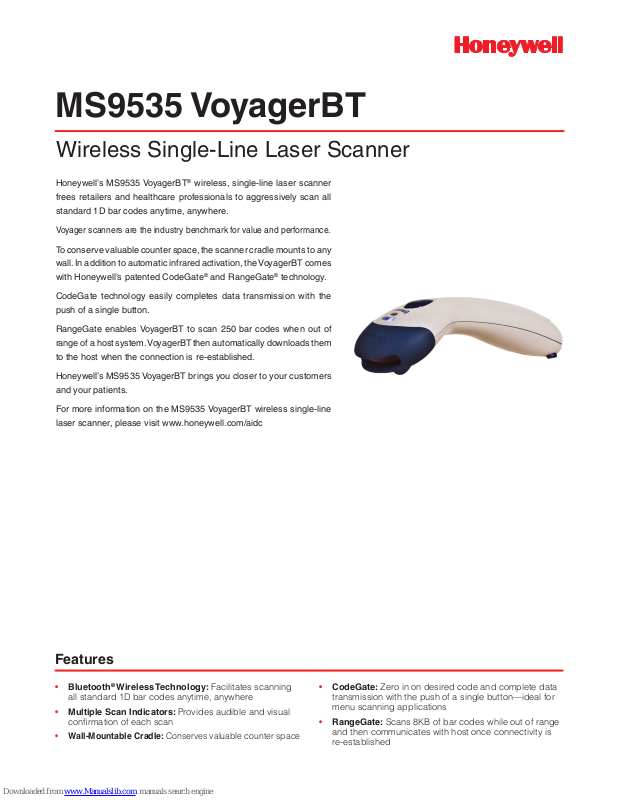

Honeywell MS9535 Technical Specifications

MS9535 VoyagerBT

Wireless Single-Line Laser Scanner

Honeywell’s MS9535 VoyagerBT® wireless, single-line laser scanner

frees retailers and healthcare professionals to aggressively scan all

standard 1D bar codes anytime, anywhere.

Voyager scanners are the industry benchmark for value and performance.

To conserve valuable counter space, the scanner cradle mounts to any

wall. In addition to automatic infrared activation, the VoyagerBT comes

with Honeywell’s patented CodeGate® and RangeGate® technology.

CodeGate technology easily completes data transmission with the

push of a single button.

RangeGate enables VoyagerBT to scan 250 bar codes when out of

range of a host system. VoyagerBT then automatically downloads them

to the host when the connection is re-established.

Honeywell’s MS9535 VoyagerBT brings you closer to your customers

and your patients.

For more information on the MS9535 VoyagerBT wireless single-line

laser scanner, please visit www.honeywell.com/aidc

Features

Bluetooth•

all standard 1D bar codes anytime, anywhere

Multiple Scan Indicators: • Provides audible and visual

confirmation of each scan

Wall-Mountable Cradle: • Conserves valuable counter space

®

Wireless Technology: Facilitates scanning

CodeGate: • Zero in on desired code and complete data

transmission with the push of a single button—ideal for
menu scanning applications

RangeGate: • Scans 8KB of bar codes while out of range

and then communicates with host once connectivity is
re-established

RoHS

2002/95/EC

MS9535 VoyagerBT Technical Specifications

Operational

Light Source

Visual Indicators

Host System Interfaces

Wireless

Radio/Range

Data Rate (Transmission Rate)

Battery

Number of Scans

Expected Hours of Operation

Expected Charge Time

Mechanical/Electrical

Dimensions (LxWxH)

Weight

Charging Power (typical)

Non-Charging Power (typical)

DC Transformers

Laser Class

EMC

Environmental

Operating Temperature

Storage Temperature

Humidity

Drop

Environmental Sealing

Light Levels

Scan Performance

Scan Pattern

Scan Speed

Scan Angle

Print Contrast

Pitch, Skew

Decode Capabilities

Warranty

Visible Laser Diode 650 nm ± 10 nm

Blue = ready to scan,

USB, RS232, Keyboard Wedge, IBM 46xx (RS485)

2.4 to 2.4835 GHz (ISM Band) Frequency-Hopping Bluetooth v1.2; Class 2: 10 m (33’) line of sight

1 Mbit/s (721 Kbit/s)

1100 mAh Li-ion

up to 12,000 scans per charge

8 hours

2.5 hours

Scanner Base

198 mm x 78 mm x 56 mm (7.8˝ x 3.1˝ x 2.2˝) 205 mm x 100 mm x 52 mm (8.1˝ x 3.9˝ x 2.0˝)

199 g (7.0 oz) 225 g (7.9 oz)

Internal Battery Class 2: 5.2 VDC @ 2 A

Class 1: IEC60825-1, EN60825-1

FCC Part 15, ICES-003, EN55022 Class B

0°C to 40°C (32°F to 104°F)

-40°C to 60°C (-40°F to 140°F)

5% to 95% relative humidity, non-condensing

Designed to withstand 1.5 m (5´) drops

Sealed to resist airborne particulate contaminants

4,842 Lux (450 foot-candles)

Single scan line

72 scan lines per second

Horizontal: 48°

35% minimum reflectance difference

68°, 52°

Reads standard 1D and GS1 DataBar symbologies. Visit www.honeywell.com/aidc/symbologies for details.

2 year factory warranty (note: 1 year warranty for battery)

White = good read; Steady Yellow = battery full; Flashing Yellow = battery charging

2.75 W (550 mA @ 5V)

650 mW (130 mA @ 5V)

For more information:

www.honeywell.com/aidc

Honeywell Security & Data Collection

Honeywell Scanning & Mobility

90 Coles Road

Blackwood, NJ 08012

856.228.8100

www.honeywell.com

Typical Performance*

Narrow Width Depth of Field

5.2 mil 0 mm - 51 mm (0˝ - 2.0˝)

7.5 mil 0mm - 127 mm (0˝ - 5.0˝)

10 mil 0 mm - 165 mm (0˝ - 6.5˝)

13 mil 0 mm - 203 mm (0˝ - 8.0˝)

21 mil 25 mm - 254 mm (1.0˝ - 10.0˝ )

*Resolution: 5 mil (0.127 mm)
*Performance may be impacted by bar code
quality and environmental conditions

MS9535-DS Rev A 01/09
© 2009 Honeywell International Inc.
