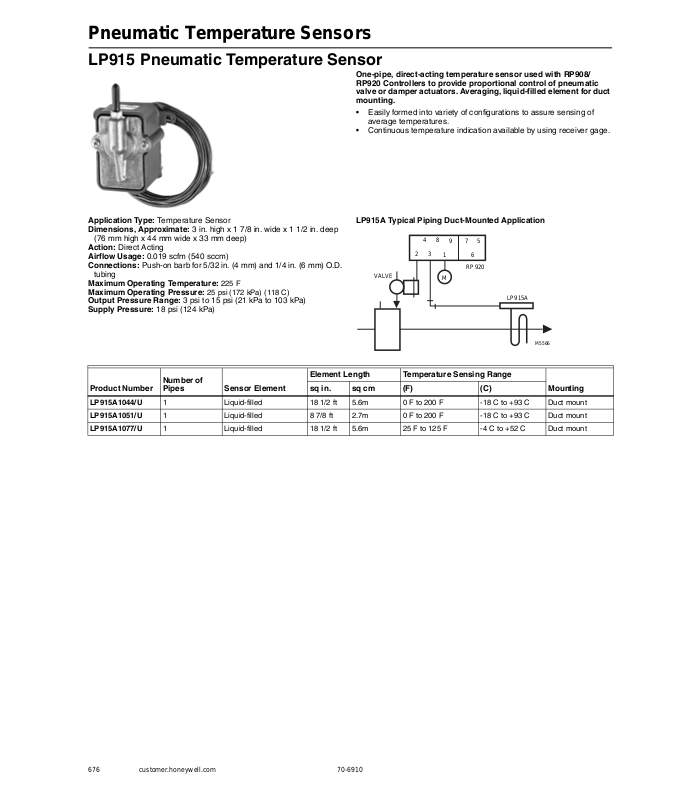

Honeywell LP915 Catalog Page
Pneumatic Temperature Sensors
LP915 Pneumatic Temperature Sensor
Application Type: Temperature Sensor
Dimensions, Approximate: 3 in. high x 1 7/8 in. wide x 1 1/2 in. deep (76 mm high x 44 mm wide x 33 mm deep)
Action: Direct Acting
Airflow Usage: 0.019 scfm (540 sccm)
Connections: Push-on barb for 5/32 in. (4 mm) and 1/4 in. (6 mm) O.D. tubing
Maximum Operating Temperature: 225 F
Maximum Operating Pressure: 25 psi (172 kPa) (118 C)
Output Pressure Range: 3 psi to 15 psi (21 kPa to 103 kPa)
Supply Pressure: 18 psi (124 kPa)
One-pipe, direct-acting temperature sensor used with RP908/ RP920 Controllers to provide proportional control of pneumatic valve or damper actuators. Averaging, liquid-filled element for duct mounting.
•Easily formed into variety of configurations to assure sensing of average temperatures.
•Continuous temperature indication available by using receiver gage.
LP915A Typical Piping Duct-Mounted Application
|
|
|
|
4 |
8 |
9 |
7 |
5 |
|
|
|
2 |
3 |
|
1 |
|
6 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RP920 |
|
VALVE |
|
|
|
|
|
M |
|
|
|
|
|
|
|
|
|
|
|
|
|
LP915A
M5566
|
|
|
|
|
|
|
|
|
Number of |
|
Element Length |
Temperature Sensing Range |
|
||
|
|
|
|
|
|
|
|
Product Number |
Pipes |
Sensor Element |
sq in. |
sq cm |
(F) |
(C) |
Mounting |
|
|
|
|
|
|
|
|
LP915A1044/U |
1 |
Liquid-filled |
18 1/2 ft |
5.6m |
0 F to 200 F |
-18 C to +93 C |
Duct mount |
|
|
|
|
|
|
|
|
LP915A1051/U |
1 |
Liquid-filled |
8 7/8 ft |
2.7m |
0 F to 200 F |
-18 C to +93 C |
Duct mount |
|
|
|
|
|
|
|
|
LP915A1077/U |
1 |
Liquid-filled |
18 1/2 ft |
5.6m |
25 F to 125 F |
-4 C to +52 C |
Duct mount |
|
|
|
|
|
|
|
|
676 |
customer.honeywell.com |
70-6910 |
