Honeywell LP-1200 Operating Manual

Colorimetric Gas Detection Tubes and Pump

On-the-spot, compound-specific
measurement of gases
and vapours

Colorimetric Gas Detection
Tubes and Pump

Key Features-Colorimetric Tubes

(See Colorimetric Tubes Part Numbers on next page)

• Wide assortment of tubes available to detect
over 300 gases and vapours

• Easy to use, even in multiple layers of gloves

• Easy-to-read with sharp, clear colour change

• No calibration or other maintenance required

Key Features-Hand Pump (H-LP-1200)

(Piston Hand Pump Kit Part Number: H-010-0001-000)

• Ergonomic, durable hand pump

• Solid metal construction with lifetime warranty

• Springless piston design accurately draws
50 or 100 cc volumes

Typical Applications

• Oil and gas

• Chemicals and petrochemicals

• Agriculture and pest control

• Food and beverage production

• Environmental protection

• Fire service

• HazMat response

• National security

Honeywell colorimetric gas detection tubes
enable quick, on-the-spot measurement of a
wide range of toxic and combustible gases
and vapours.

Honeywell tubes are easy to read, and
provide a sharp, clear colour change directly
corresponding to the concentration of gas
present. Honeywell tubes are compatible
with the Honeywell piston hand pump, a
reliable way to draw samples of an exact

volume required for the most accurate
measurements.

• Quick, accurate, low-cost measurements

• Easy to read, with sharp, clear colour change

• No calibration needed

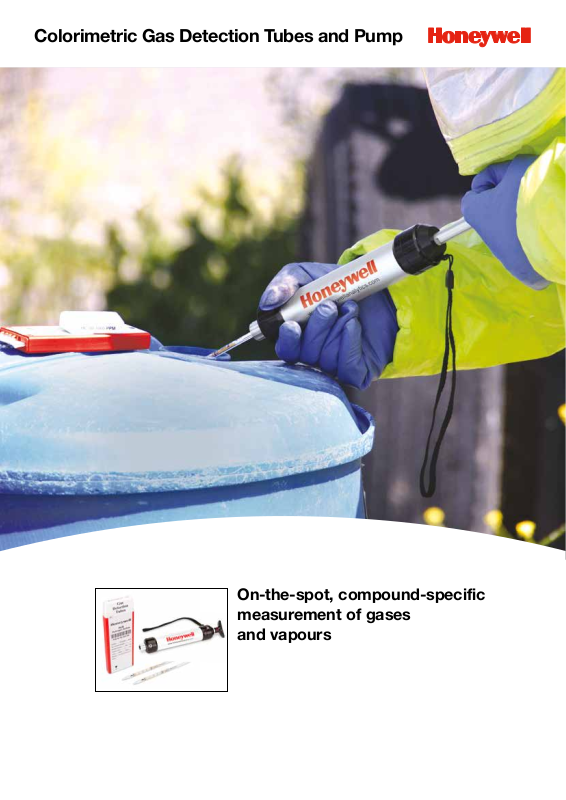

First responder uses Honeywell Colorimetric Tubes
and Hand Pump to measure VOC levels inside a barrel.

Colorimetric Gas Detection
Tubes and Pump

Specifications

Type Part Number Standard Range Extended Range

Acetone

Amines

Ammonia

Benzene

1,3-Butadiene

n-Butane

Carbon Dioxide

Carbon Monoxide

Chlorine

Chlorine Dioxide

Diesel & Jet Fuel

Ethanol

Formaldehyde

Petrol

Hydrocarbons

Hydrogen Chloride

Hydrogen Cyanide

Hydrogen Fluoride

H-10-111-40 0.1 to 2% 0.05 to 4%

H-10-132-10 0.5 to 10 ppmv 0.25 to 20 ppmv

H-10-100-05 1 to 30 ppmv 0.5 to 60 ppmv

H-10-100-10 5 to 100 ppmv 2.5 to 200 ppmv

H-10-100-12 10 to 260 ppmv 5 to 520 ppmv

H-10-100-15 25 to 500 ppmv 12 to 1000 ppmv

H-10-100-40 1 to 15% 0.5 to 30%

H-10-101-01* 0.5 to 10 ppmv

selective

H-10-101-10* 5 to 40 ppmv

selective

H-10-101-20 5 to 100 ppmv 2.5 to 200 ppmv

H-10-135-04 0.5 to 5 ppmv 0.25 to 10 ppmv

H-10-137-30 25 to 1400 ppmv 12.5 to 2800 ppmv

H-10-104-30 300 to 5000 ppmv 150 to 10,000 ppmv

H-10-104-40 0.05 to 1% 0.025 to 2%

H-10-104-45 0.25 to 3% 0.125 to 6%

H-10-104-50 1 to 20% 0.5 to 10%

H-10-104-60 5 to 40% 1.25 to 20%

H-10-102-18 5 to 100 ppmv

selective

H-10-102-20 5 to 100 ppmv 2.5 to 200 ppmv

H-10-102-30 20 to 500 ppmv 10 to 1000 ppmv

H-10-102-45 0.2 to 4% 0.1 to 8%

H-10-106-10 0.5 to 8 ppmv 0.25 to 16 ppmv

H-10-106-20 5 to 100 ppmv 2.5 to 200 ppmv

H-10-130-10 0.25 to 15 ppmv 0.05 to 30 ppmv

H-10-143-10 0.5 to 25 ppmv N/A

H-10-141-30 100 to 2000 ppmv 50 to 200 ppmv

H-10-121-05 0.1 to 5 ppmv 0.8 to 40 ppmv

H-10-138-30 30 to 1000 ppmv 15 to 2000 ppmv

H-10-110-30 50 to 1000 ppmv 25 to 2000 ppmv

H-10-108-09 1 to 20 ppmv 0.5 to 40 ppmv

H-10-108-10* 1 to 20 ppmv

w/ desiccant

H-10-108-22 20 to 500 ppmv 10 to 1000 ppmv

H-10-126-10 2.5 to 60 ppmv 1.25 to 120 ppmv

H-10-105-10 0.5 to 20 ppmv 0.25 to 40 ppmv

0.25 to 30 ppmv

2.5 to 200 ppmv

2.5 to 300 ppmv

0.5 to 40 ppmv

Type Part Number Standard Range Extended Range

Hydrogen Sulphide

MEK

Mercaptans

Methyl Bromide

Nitric Acid

Nitrogen Dioxide

Nitrogen Oxides

Ozone

Phenol

Phosphine

Sulphur Dioxide

Toluene

Trichloroethylene

Vinyl Chloride

Water Vapour

Xylenes

* Box contains 5 colorimetric tubes and 5 pre-tubes, for a total of 5 measurements.
Other boxes contain 10 colorimetric tubes.

H-10-103-04 0.2 to 3 ppmv 0.1 to 6 ppmv

H-10-103-05* 0.2 to 3 ppmv

w/ desiccant

H-10-103-06 1 to 7 ppmv 0.25 to 3.5 ppmv

H-10-103-10 2.5 to 60 ppmv 1.25 to 120 ppmv

H-10-103-12 0 to 150 ppmv 0 to 300 ppmv

H-10-103-15 10 to 120 ppmv 5 to 240 ppmv

H-10-103-18 25 to 250 ppmv 12.5 to 500 ppmv

H-10-103-20 50 to 800 ppmv 25 to 1600 ppmv

H-10-103-30 100 to 2000 ppmv 50 to 4000 ppmv

H-10-103-40 0.1 to 2% 0.05 to 4%

H-10-103-50 2 to 40% 0.5 to 20%

H-10-113-20 0.02 to 0.6 % 0.01 to 1.8 %

H-10-129-20 5 to 120 ppmv 2.5 to 240 ppmv

H-10-131-10* 1 to 18 ppmv 0.5 to 36 ppmv

H-10-131-30* 20 to 300 ppmv 10 to 600 ppmv

H-10-146-20 1 to 20 ppm 0.5 to 40 ppm

H-10-117-10 0.5 to 30 ppmv N/A

H-10-109-20* 1 to 50 ppmv 0.5 to 100 ppmv

H-10-133-03 0.05 to 0.6 ppmv 0.15 to 1.8 ppmv

H-10-139-05 1 to 25 ppmv 0.5 to 180 ppmv

H-10-116-10 5 to 50 ppmv 2.5 to 100 ppmv

H-10-116-20 25 to 500 ppmv 12.5 to 1000 ppmv

H-10-116-25 50 to 1000 ppmv 25 to 2000 ppmv

H-10-107-15 2 to 30 ppmv 1 to 60 ppmv

H-10-107-20 5 to 100 ppmv 2.5 to 200 ppmv

H-10-107-25 100 to 1800 ppmv 50 to 3600 ppmv

H-10-107-30 200 to 4000 ppmv 50 to 2000 ppmv

H-10-107-40 0.2 to 5 % 0.1 to 10 %

H-10-114-20 10 to 300 ppmv 5 to 600 ppmv

H-10-119-20* 5 to 100 ppmv 2.5 to 230 ppmv

H-10-128-10* 1 to 20 ppmv 0.5 to 40 ppmv

H-10-120-10 2 to 10 lbs/MMCF

(0.03 to 0.16 mg/L)

H-10-120-20 6 to 40 lbs/MMCF

(0.1 to 0.64 mg/L)

H-10-120-30 0.05 to 1 mg/L 0.025 to 2 mg/L

H-10-120-40 1 to 18 mg/L 0.5 to 32 mg/L

H-10-112-20 10 to 200 ppmv 5 to 400 ppmv

0.1 to 6 ppmv

1 to 20 lbs/MMCF

3 to 80 lbs/MMCF
