Honeywell • 2 Safety
1. Safety
This manual contains clearly marked cautions and warnings which are intended for your personal safety and to avoid any unintentional damage to the product or connected appliances.
PLEASE READ THE INFORMATION INCLUDED IN CAUTIONS AND WARNINGS CAREFULLY.
The cautions and warnings are marked as follows:
1.1 Danger
= DANGER! Dangerous voltage
= WARNING or CAUTION
= Caution! Hot surface
Table 1. Warning signs
The components of the power unit of drive are live when the AC drive is connected to mains potential. Coming into contact with this voltage is extremely dan-
gerous and may cause death or severe injury.
The motor terminals U, V, W and the brake resistor terminals are live when
drive is connected to mains, even if the motor is not running.
After disconnecting the AC drive from the mains, wait until the indicators on the
keypad go out (if no keypad is attached see the indicators on the cover). Wait 5
more minutes before doing any work on the connections of drive. Do not open the
cover before this time has expired. After expiration of this time, use a measuring
equipment to absolutely ensure that no
voltage is present.
Always ensure absence
of voltage before starting any electrical work!
The control I/O-terminals are isolated from the mains potential. However, the relay
outputs and other I/O-terminals may have a dangerous control voltage present
even when drive is disconnected from mains.
Before connecting the AC drive to mains make sure that the front and cable covers
of drive are closed.
During a ramp stop (see the Application Manual), the motor is still generating voltage to the drive. Therefore, do not touch the components of the AC drive before the
motor has completely stopped. Wait until the indicators on the keypad go out (if no
keypad is attached see the indicators on the cover). Wait additional 5 minutes before
starting any work on the drive.
Safety Honeywell • 3
1.2 Warnings
1.3 Earthing and earth fault protection
The drive must always be earthed with an earthing conductor connected to the earthing terminal marked with .
The earth leakage current of drive exceeds 3.5mA AC. According to EN61800-5-1, one or more
of the following conditions for the associated protective circuit shall be satisfied:
a) The protective conductor shall have a cross-sectional area of at least 10 mm
2
Cu or
16 mm
2
Al, through its total run.
b) Where the protective conductor has a cross-sectional area of less than 10 mm
2
Cu or
16 mm
2
Al, a second protective conductor of at least the same cross-sectional area
shall be provided up to a point where the protective conductor has a cross-sectional
area not less than 10 mm
2
Cu or 16 mm2 Al.
c) Automatic disconnection of the supply in case of loss of continuity of the protective con-
ductor.
Drive is meant for fixed installations only.
Do not perform any measurements when the AC drive is connected to the mains.
The earth leakage current of drives exceeds 3.5mA AC. According to standard
EN61800-5-1, a reinforced protective ground connection must be ensured. See
chapter 1.3.
If the AC drive is used as a part of a machine, the machine manufacturer is respon-
sible for providing the machine with a supply disconnecting device (EN 60204-1).
Only spare parts delivered by Honeywell can be used.
At power-up, power brake or fault reset the motor will start immediately if the start
signal is active, unless the pulse control for Start/Stop logic has been selected.
Furthermore, the I/O functionalities (including start inputs) may change if parameters,
applications or software are changed.Disconnect, therefore, the motor if an unexpected start can cause danger.
The motor starts automatically after automatic fault reset if the auto restart function
is activated. See the Application Manual for more detailed information.
Prior to measurements on the motor or the motor cable, disconnect the motor
cable from the AC drive.
Do not touch the components on the circuit boards. Static voltage discharge may
damage the components.
Check that the EMC level of the AC drive corresponds to the requirements of your
supply network.
CAUTION!
Honeywell • 4 Safety
The cross-sectional area of every protective earthing conductor which does not form part of the
supply cable or cable enclosure shall, in any case, be not less than:
- 2.5 mm
2
if mechanical protection is provided or
-4 mm
2
if mechanical protection is not provided.
The earth fault protection inside the AC drive protects only the drive itself against earth faults
in the motor or the motor cable. It is not intended for personal safety.
Due to the high capacitive currents present in the AC drive, fault current protective switches
may not function properly.
Do not perform any voltage withstand tests on any part of drive. There is a
certain procedure according to which the tests shall be performed. Ignoring this
procedure may result in damaged product.
LonWorks - general info Honeywell • 5
2. LonWorks - general info
Drive frequency converters can be connected to the LonWorks ® network using a fieldbus
board. The converter can then be controlled, monitored and programmed from the Host system.
LONWORKS technology has been developed by Echelon Corporation. LONWORKS network
is used in applications like industry and building automation, controlling household electronics,
medical instrumentation and many others. The target of the LONWORKS network is to provide
a common vendor independent communication network for intelligent devices.
In a LONWORKS network, no central control or master-slave architecture is needed. Nodes on
a network communicate with each other using LonTalk ® protocol. Interoperable nodes use
Standard Network Variable Types (SNVT) for communicating over the network. The definition
of an SNVT includes units, a range, and an increment. Honeywell option board uses only Standard Network Variable Types for the data types.
All network variables are either input (data is coming from the network to the device) or output
(data is sent to the network by the device) network variables. When network variables on different nodes on the network have been bound together by an installation tool, passing of data
is automatic between the right nodes. Only the same type of network variables can be bound
together, so it is very important to have compatible interfaces.
If you need further information related to LonWorks, please contact Fieldbus@Honeywell.com.
Honeywell • 6 LonWorks technical data
3. LonWorks technical data
3.1 General
3.2 Physical media and wiring
LONWORKS networks can be implemented on many different physical media. Drive OPT-C4
option board is equipped with an FT-X1 transceiver supporting the Free Topology transformer
coupled network, which allows the network wire to be connected as bus, star, loop or combination of these. This media reaches a communication speed of 78kBits/s. The FT-X1 transceiver is compatible with Echelon's LPT-10 Link Power Transceiver, and these transceivers can
communicate with each other on a single twisted pair cable.
Figure 1. Doubly terminated bus topology
The doubly terminated bus topology is recommended to be used. However, also singly termiated, star or loop topologies can be used with OPT-C4 option board.
Up to 64 FTT-10 transceiver nodes are allowed per network segment, the individual segments
can be connected together by a router. See Table 3 for possible cable types and cable lengths
for FTT-10. Even if unshielded cable types are possible to be used with this type of transceiver,
it is still highly recommended to use only shielded cables with frequency converters. Attention should be paid to proper grounding of the shield to ensure bus operation. Grounding of
the shield should be done at both ends of the cable.
Connections and
communications
Interface Pluggable connector (5 mm)
Channel type TP/FT-10
Transfer cable Shielded Twisted Pair
Baud rate 78 Kbit/s
Environment
Ambient operating temperature -10°C…50°C
Storing temperature -40°C…70°C
Humidity <95%, no condensation allowed
Altitude Max. 1000 m
Vibration 0.5 G at 9…200 Hz
Safety Fulfils EN50178 standard
Table 2.
Cable type
Max. doubly
terminated bus
length
Max. free topology
wire length
Max. node-to-node
distance
JY (St) Y 2x2x0.8 mm
LONAK 2x2x0,8 (shielded)
900 m 500 m 320 m
Table 3.
Termination Termin ation
LonWorks technical data Honeywell • 7
3.3 Profiles
LonMark Functional Profiles describe in detail the application layer interface, including the network variables, configuration properties, and default and power-up behaviors required on LonMark devices for specific, commonly used control functions.
3.3.1 Variable speed profile
Leading manufacturers of drive technology have jointly defined the LonMark profile. The profile
specifies how the drives are to be parameterized and how the setpoints and actual values are
to be transmitted. This enables drives from different vendors to be exchanged. The profile contains necessary specifications for speed control and positioning. It specifies the basic drive
functions while leaving sufficient freedom for application-specific expansions and further developments.
Honeywell • 8 Layout, connections and installation
4. Layout, connections and installation
Honeywell LonWorks Fieldbus Board is connected to the fieldbus through 3-pin pluggable bus
connector. The communication with the control board takes place through the standard drive
Interface Board Connector.
4.1 LonWorks OPT-C4 option board
Figure 2.
4.1.1 Connections
Signal Connector Description
A1 21 Data
A2 22 Data
Shield 23 Shield
Table 4.
21
22
23
H3
H2
H1
X5
Layout, connections and installation Honeywell • 9
4.1.2 LED indications
The three LED indications (see Figure 2) next to the connector show the present statuses of
the Neuron (green H3), the LonWorks board (yellow H2) and the Fieldbus Module (green H1).
From the user's viewpoint, the first two are the most significant.
Neuron status (H3) GREEN
Board status LED (H2) YELLOW
Bus status LED (H1) GREEN
LED is Meaning State code
OFF Configured 4
ON Applicationless and Unconfigured 3
Flashing Unconfigured 2
Table 5.
LED is Meaning
OFF Option board not activated
ON
Option board in initialisation state waiting for activation command from the frequency converter
Blinking fast
(once/1 s)
Option board is activated and in RUN state
Option board is ready for external communication
Blinking slow
(once/5 s)
Option board is activated and in FAULT state
Internal fault on option board
Table 6.
LED is Meaning
OFF
Fieldbus module is activated
Parameters received and module activated
Module is waiting for messages from the bus
ON
Fieldbus module is activated
Parameters received and module activated
Module is waiting for messages from the bus
Blinking very fast
for 5s (once/0.2 s)
Fieldbus module has received a wink request
Blinking fast
(once/1 s)
Module is activated and receiving messages from the bus
Blinking slow
(once/5 s)
Module is in FAULT state
No messages from Net within the watchdog time
Bus broken, cable loose
Table 7.
Honeywell • 10 Layout, connections and installation
4.2 Installation
1

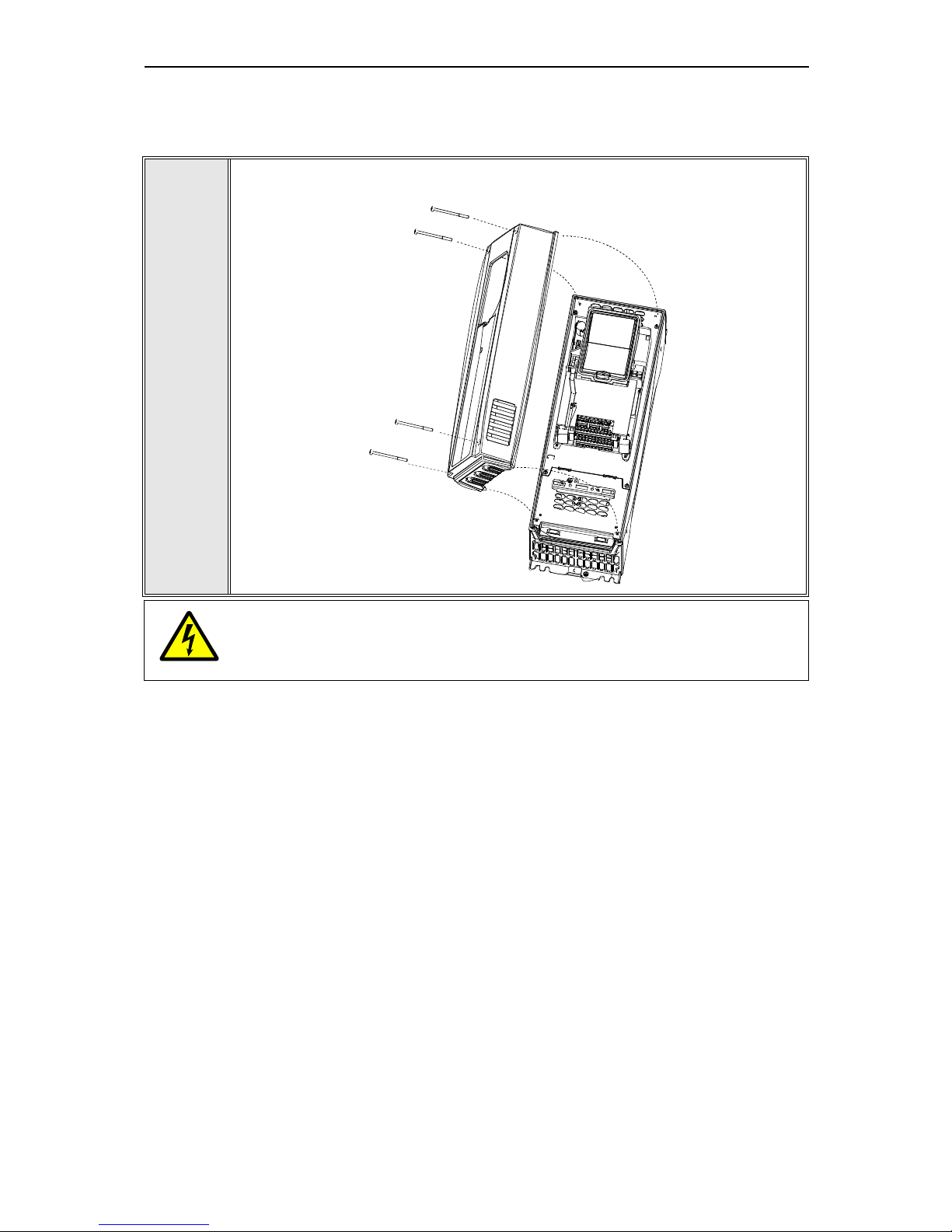

Open the cover of the AC drive.
The relay outputs and other I/O-terminals may have a dangerous control voltage
present even when drive is disconnected from mains.
DANGER
Layout, connections and installation Honeywell • 11
2
Make sure that the sticker on the connector of the board says “dv” (dual voltage).
This indicates that the board is compatible with drive. See below:
NOTE: Incompatible boards cannot be installed on drive. Compatible boards
have a slot coding that enable the placing of the board (see above).
3
Open the inner cover (1) to reveal the option board slots (D,E) and install the
fieldbus board (2) into slot D or E. Close the inner cover. See Figure below.
21
22
23
Slot coding
1
2
D
E
Honeywell • 12 Layout, connections and installation
4.3 Prepare for use through LonWorks
4
Strip about 15 mm of the fieldbus cable (see specification on page 6) and cut off
the grey cable shield. Remember to do this for both bus cables (except for the
last device).
Leave no more than 10 mm of the cable outside the terminal block and strip the
cables at about 5 mm to fit in the terminals. See picture below.
Also strip the cable now at such a distance from the terminal that you can fix it to
the frame with the grounding clamp. Strip the cable at a maximum length of 15
mm. Do not strip the aluminum cable shield!
5
Then connect the cable to its appropriate terminals on LonWorks Option Board
terminal block.
10
5
21 22 23
Fieldbus cable
Shield
Data 1
Data 2
Layout, connections and installation Honeywell • 13
6
Using the cable clamp included in the delivery of the drive, ground the shield of
the LonWorks cable to the frame of the AC drive.
7
If drive is the last device on the bus, the bus termination must be set. To
assure a proper data transmission, termination of the network segments is
required. Depending on the type of network, either one or two terminations are
necessary. Free topology network segment requires only one termination
whereas a doubly terminated bus topology requires two.
The jumper X5 on the Honeywell LonWorks board must be set accordingly.
• Use 94-ohm termination resistance when only one termination is needed
• 47-ohm termination resistance for two terminations
See also step 10 on page 14.
Cable clamp
21
22
23
H3
H2
H1
X5
47
94
no termination
X5
Honeywell • 14 Layout, connections and installation
8
Unless already done for the other control cables,
cut free the opening on the AC drive cover for
the fieldbus cable (protection class IP21).
NOTE: Cut the opening on the same side you
have installed the board in!
9
Remount the AC drive cover and run the cable
as shown in picture.
NOTE: When planning the cable runs, remember
to keep the distance between the fieldbus cable
and the motor cable at a minimum of 30 cm.
10
The bus termination must be set for the first and the last device of the fieldbus
line. See picture below. See also step 7 on page 13. We recommend that the first
device on the bus and, thus, terminated was the Master device.
Fieldbus
cable
Commissioning Honeywell • 15
5. Commissioning
Please read first the commissioning chapter in drive Installation manual (Download the latest
version of the manual on www.Honeywell.com).
5.1 I/O and Hardware menu (M5)
The I/O and Hardware menu makes it possible for the user
1. To see what expander boards are connected to the control board and
2. To reach and edit the parameters associated with the expander board.
3. Software information
The navigation path to the fieldbus parameters may differ from application to application. The
exemplary paths below apply to the drive.
1. Set fieldbus parameters (M5.x.3). See below.
2. Select ‘Fieldbus control’ as the Remote Control Place.
3. Choose source of reference.
5.2 LonWorks board parameters
Code Parameter Min Max Unit Default ID Description
M5.x.3.1 Service Pin 0 1 0
Broadcasts a service pin
message to the network
Navigate: Main Menu > I/O and Hardware (M5) > OPTC4 (M5.x) > parame-
ters (M.x.3) > Select parameter > Edit
Navigate: Main Menu > Quick Setup (M1) > Rem. Ctrl. Place (P1.15)
OR
Navigate: Main Menu > Parameters (M3) > Start/Stop Setup (M3.2) > Rem.
Ctrl. Place (P3.2.1)
Navigate: Main Menu > Parameters (M3) > References (M3.3)
Honeywell • 16 LonWorks interface
6. LonWorks interface
Features of the LonWorks interface:
• Direct control of drive (e.g. Run, Stop, Direction, Speed reference, Fault reset)
• Full access to all drive parameters
• Monitor drive status (e.g. Output frequency, Output current, Fault code)
6.1 XIF file
XIF file tells network-management tools how to communicate and recognize a device. It can be
downloaded from www.Honeywell.com, and it is also included with the shipped Support CD. It
contains Program ID, NVs, CPs, functional blocks, etc.
6.2 General
Figure 3. The node object diagram
Node Object:0
Mandatory
Network
Variables
nviRequest
SNV T_o bj_ requ est
nv1
nv oStat us
SNV T_o bj_s tatu s
nv2
LonWorks interface Honeywell • 17
Figure 4. The Variable Speed Motor Drive object diagram
Mandatory
Network
Va ri a ble s
nv iDrv Spee dStp t
SNV T_o bj_r equ est
nv1
nvo Dr vSpeed
SNVT_levPercent
nv4
Configuration properties
nc50 nciMaxSpeed
nc53 nciMinSpeed
nc48 nciRcvHrtBt
nc49 nciSndHrtBt
nc52 nciMinOutTm
nc158 nciNmlSpeed
nc158 nciNmlFreq
nc160 nciRampUpTm
nc161 nciRampDownTm
nc162 nciDrvSpeedScale
Variable Speed Motor drive:
6010
Optional
Network
Variables
Manufacturer
Defined
Network
Variables
nviDrvSpeedScale
SNVT_levPercent
nv2
nviRequest
SNV T_o bj_ requ est
nv1
nviRequest
SNV T_o bj_ requ est
nv1
nvi Reque st
SNVT _ob j_r eque st
nv1
nvo DrvSt atu s
SNVT_ sta te
nv2 7
nvoDrvStatus
SNVT_state
nv2 8
nvoActFault
S NVT_ cou nt
nv2 9
nv oPro cess Out1
SNV T_l ev_pe rc ent
nv30
nvoDigitalOut1
SNVT_switch
nv3 8
nv3 1
nv oPro cess Out2
SNVT_lev_percent
nv3 2
nvoProcessOut 3
S NVT_l ev_p erc ent
nv3 3
nvoProcessOut4
S NVT_ lev_p erc ent
nv3 4
nvoProcessOut 5
S NVT_l ev_p erc ent
nv3 5
nvoProcessOut 6
S NVT_l ev_p erc ent
nv36
nvoProcessOut7
SNVT_lev_percent
nv37
nvoProcessOut8
SNVT_lev_percent
nvoDigitalOut2
SNVT_switch
nv3 9
nvoDigitalOut3
SNVT_switch
nv40
nv oDigi ta lOut 4
SNV T_swi tch
nv41
nvoDigitalOut5
SNVT_switch
nv42
nv oDigi ta lOut 6
SNV T_swi tch
nv43
nvoDigitalOut7
SNVT_switch
nv44
nvo Digi talO ut8
SNVT_ swi tch
nv4 5
nv oPar Resp
SNVT_preset
nv46
nviRstFault
SNVT_switch
nv8
nviCrlCntr
SNVT_switch
nv9
nviProc essIN1
SNVT_lev_percent
nv1 0
nv11
nviProcessIN2
S NVT_ lev_p erc ent
nv12
nviProcessIN3
S NVT_ lev_p erc ent
nv13
nviProcessIN4
S NVT_ lev_p erc ent
nv1 4
nviProcessIN5
SNVT_lev_percent
nv1 5
nviProcessIN6
SNVT_lev_percent
nv16
nviProcessIN7
S NVT_l ev_p erc ent
nv17
nviProcessIN8
S NVT_l ev_p erc ent
nv18
nviDigitalIn1
SNVT_switch
nv19
nviDigitalIn2
SNVT_switch
nv20
nviDigitalI n3
SNVT_switch
nv21
nviDigitalIn4
SNVT_switch
nv22
nviDigitalIn5
SNVT_switch
nv23
nviDigitalIn6
SNVT_switch
nv2 4
nviDigitalIn7
SNV T_swi tch
nv25
nviDigitalIn8
SNVT_switch
nv26
nviParCmd
SNVT_reset
Honeywell • 18 LonWorks interface
6.3 Input Network Variables
nviRequest
This input network variable provides the mechanism to request a particular mode for the Node
object or the Variable Speed Motor Drive object within a node. Supported requests are
RQ_NORMAL, RQ_UPDATE_STATUS, RQ_CLEAR_STATUS, RQ_REPORT_MASK,
RQ_DISABLED, RQ_ENABLE and RQ_CLEAR_ALARM.
nviDrvSpeedStpt
This input network variable provides control and a low resolution speed setpoint.
nviDrvSpeedScale
This input network variable provides scaling for nviDrvSpeedStpt. Negative values indicate a
motor direction in reverse. For example, if the nviDrvSpeedStpt value is 50% and nviDrvSpeedScale -150%, then the actual speed setpoint is -75%, or 0.75 times the nominal speed in reverse direction. The valid range is -163,840% to 163,830. The value 0x7FFF (+163,835%) will
be handled as an invalid value. Default value is determined by nciDrvSpeedScale. This value
will be adopted at power-up and in case of not receiving an update within the specified Receive
Heartbeat time.
Function Variable Name SNVT Type Min. value
Max.
value
Node Object request nviRequest
SNVT_obj_request
Driver speed setpoint nviDrvSpeedStpt SNVT_switch n / a n / a
Driver set point speed
scaling
nviDrvSpeedScale SNVT_lev_percent -163.840% 163.830%
Reset fault nviRstFault SNVT_switch n / a n / a
Clear kWh trip or
Drive total running
hours trip counters
nviClrCntr SNVT_switch 1 2
Process In Data nviProcessIn1..8 SNVT_lev_percent 0 65535
Digital Inputs nviDigitalIn1..8 SNVT_switch 0 4
Parameter Set nviParCmd SNVT_preset n / a n / a
Table 8.
State Value Command
0
NA Stop
1
00%
1
1 to 200 0.5 to 100%
1
201 to 255 100.0%
0xFF
NA Auto
Table 9.
LonWorks interface Honeywell • 19
nviRstFault
This input network variable provides a fault reset. Setting value 1 for State and a non-zero value
for Value will reset an active fault in drive. Default value is 0; 0
nviClrCntr
This input network variable provides a mechanism to clear the kWh trip counter or the Drive
total running hours trip counter.
1 = MWh trip counter
2 = Operation day trip counter
nviProcessIn1..8
These input network variables are sent directly to the application (see more detailed explanation in chapter 6.5 Process data) The valid range is 0 to 65535 (-163,840 to 163,835).
nviDigitalIn1..8
These input network variables are sent directly to the application (see more detailed explanation in chapter 6.5 Process data) Default value is 0; 0.
State Value Command
0 any no action (0; 0)
1 0 no action (0; 1)
1 > 0 reset fault (200 ; 0)
-1(0xFF) any invalid (no action)
Table 10.
State Value Command
0 any off (0; 0)
1 0 off (0; 1)
1 > 0 on (200 ; 0)
-1(0xFF) any
invalid (no
action)
Table 11 .
Honeywell • 20 LonWorks interface
nviParCmd
This input network variable is used to read and write the parameters. The parameter addresses
are determined in the application. Every parameter and actual value has been given an ID number in the application. The ID numbering of the parameter as well as the parameter ranges and
steps can be found in the application manual in question. The parameter value must be given
without decimals. Find the ID numbers of each parameter/actual value in the application manual. The ID numbers are grouped as follows:
Examples
Data format in examples is:
- learn selector <byte(3) byte(2) byte(1) byte(0)> day hour minute second millisecond
x = meaningless
Example1
Write to parameter number 102 (Max frequency "HVAC Application par. ID102") value 4500
(45Hz).
Write command to nviParSet
- LN_LEARN_CURRENT 102 <x x 11 94> x x x x
If the write command is successful then nvoParOut value is
- LN_LEARN_CURRENT 102 <0 0 11 94> 0 0 0 0
If the write command fails then nvoParOut value is
- LN_NUL 102 <0 0 11 94> 0 0 0 0
Example2
Read parameter number 112 (Nominal speed of the motor "HVAC Application par. ID112") default value 1440 (1440 rpm).
Read command to nviParSet
- LN_RECALL 112 <x x x x> x x x x
If the read command is successful then nvoParOut value is
- LN_RECALL 112 <0 0 5 A0> 0 0 0 0
If the read command fails then nvoParOut value is
- LN_ LN_NUL 112 <0 0 0 0> 0 0 0 0
Parameter ID Group Description
0
Not used
1 … 98
Actual Values
37
Active Fault Code
100
Not used
101… 899 Parameter
900 … 999 Reserved
Reserved for LonWorks
board internal usage
1000 Not used
1001…1999 Parameter
Table 12.
LonWorks interface Honeywell • 21
6.4 Output network variables
NvoStatus
This output network variable reports the status for Node object or Variable Speed Motor Drive
object.
nvoDrvSpeed
This output network variable provides the speed of the drive as a percentage of the nominal
speed.
nvoDrvCurnt
This output network variable provides the drive output current in amperes.
Function Variable Name SNVT Type Min. Value Max. Value
Node Object status nvoStatus SNVT_obj_status
Drive speed feedback nvoDrvSpeed SNVT_lev_percent -163.840% +163.830%
Actual motor current nvoDrvCurnt SNVT_amp 0.0A 3276.7A
Actual drive power nvoDrvPwr SNVT_power_kilo 0,0 kW 6553,5 kW
Drive total running
hours
nvoDrvRunHours SNVT_time_hour 0 h 65535
Status word nvoDrvStatus SNVT_state n/a n/az
kWh trip counter nvoDrvEnrgy SNVT_elect_kwh 0kWh 65535kWh
Active fault code nvoActFault SNVT_count 0 41
Process Out nvoProcessOut1..8
SNVT_
lev_percent
0 65535
Digital Out nvoDigitalOut1..8 SNVT_switch 0 4
Parameter Out nvoParResp SNVT_preset
Table 13. Output network variables
Field Description
object_id ID of object within node
invalid_id
1 means requested ID is not
implemented in this node
invalid_request
1 means request for unimple-
mented function
disabled 1 means object disabled
electrical_fault 1 means drive is faulted
in_alarm 1 means drive is in alarm
report_mask 1 means status is an event mask
Table 14.
Honeywell • 22 LonWorks interface
nvoDrvPwr
This output network variable provides the drive output power in kW.
nvoDrvRunHours
This output network variable provides the drive resettable operation time counter for the motor
in running hours. The maximum value for used SNVT is 65535 h. On the frequency converter
the value can go much higher. If the counter exceeds the SNVT's maximum value, the network
variable stays at its maximum. In such cases the real value can be seen on drive operating keypad.
nvoDrvStatus
This output network variable provides the drive status.
nvoDrvEnrgy
This output network variable provides the drive resettable energy consumption counter. The
maximum value for used SNVT is 65535 kWh. On the frequency converter the value can go
much higher. If the counter exceeds the SNVT's maximum value, the network variable stays at
its maximum. In such cases the real value can be seen on drive operating keypad.
nvoActFault
This output network variable provides the drive active fault code. If the value is 0 the frequency
converter has no fault. See the fault code list in drive User's Manual for fault identification.
nvoProcessOut1..8
These output network variables are sent directly from the application (see more detailed explanation in chapter 6.5 Process data) The valid range is 0 to 65535 (-163,840 to 163,835)
nvoDigitalOut1..8
These output network variables are sent directly from the application (see more detailed explanation in chapter 6.5 Process data).
Bit
Description
Value = 0 Value = 1
0 Not Ready Ready
1 FC stopped Running
2 Clockwise Counterclockwise
3 No fault Fault active
4 No warning Warning active
5 Reference not Actual value Reference = Actual value
Table 15. Status word bit descriptions
state value command
0 0 off (0; 0)
1 200 (0xC8) on (200; 1)
-1 (0XfF) any invalid (NULL)
Table 16.
LonWorks interface Honeywell • 23
nvoParResp
Explained in chapter nviParSet.
6.5 Network configuration variables
nciMaxSpeed
This configuration property is used to define the maximum speed of a motor. The value is entered as a percentage of nominal speed in RPM, as defined by the Nominal Speed (nciNmlSpeed) configuration value. The value of the maximum speed must be validated against the
value of the minimum speed as follows:
-163.840 < minimum speed < maximum speed < 163.830
nciMinSpeed
This configuration property is used to define the minimum speed of the motor. The value is entered as a percentage of nominal speed in RPM, as defined by the Nominal Speed (nciNmlSpeed) configuration value. The value of the minimum speed must be validated against the
value of the maximum speed as follows:
-163.840 < minimum speed < maximum speed < 163.830
nciRcvHrtBt
This configuration property is used to control the maximum time that elapses after the last update of the network variables nviDrvSpeedStpt or nviDrvSpeedScale before the VSD object
starts to use the default values.
nciSndHrtBt
This configuration property defines the maximum period that expires before the network variables nvoDrvSpeed, nvoDrvCurnt and nvoDrvPwr are automatically updated.
nciMinOutTime
This configuration property defines the minimum period of automatic network variable tansmission.
Function Variable Name SNVT Type
Maximum motor speed nciMaxSpeed SCPTmaxSetpoint
Minimum motor speed nciMinSpeed SCPTminSetpoint
Receive heartbeat time nciRcvHrtBt SCPTmaxRcvTime
Send heartbeat time nciSndHrtBt SCPTmaxSndTime
Minimum output time nciMinOutTime SCPTminSndTime
Nominal motor speed in RPM nciNmlSpeed SCPTnomRPM
Nominal motor frequency nciNmlFreq SCPTnomFreq
Minimum ramp up time nciRampUpTm SCPTrampUpTm
Minimum ramp down time nciRampDownTm SCPTrampDownTm
Default value for nviDrvSpeedScale
nciRampDownTm SCPTdefScale
Table 17. Network configuration variables
Honeywell • 24 LonWorks interface
nciNmlSpeed
This configuration property is used to provide the nominal speed of the motor in RPM. This value is necessary to determine the minimum and maximum speeds for the motor, based on the
configuration properties nciMinSpeed, nciMaxSpeed (entered as a percentage of nominal
speed).
nciNmlFreq
This configuration property is used to provide the nominal frequency for the motor.
nciRampUpTm
Defines the acceleration time for drive. The valid range is 0.0 to 6,553.4 sec (0.1 sec).
nciRampDownTm
Defines the deceleration time for drive. The valid range is 0.0 to 6,553.4 sec (0.1 sec).
nciDrvSpeedScale
This configuration property is used as the default value for nviDrvSpeedScale. This value will
be adopted at power-up and in case no input variable within the specified Receive Heartbeat
time is received.
Fault tracing Honeywell • 25
7. Fault tracing
When an unusual operating condition is detected by the AC drive control diagnostics, the drive
initiates a notification visible, for example, on the keypad. The keypad will show the ordinal
number of the fault, the fault code and a short fault description.
The fault can be reset with the Reset button on the control keypad or via the I/O terminal. The
faults are stored in the Fault history menu which can be browsed. The different fault codes you
will find in the table below. This fault table presents only the faults related to the fieldbus in use.
The LonWorks option board status LEDs are described in more detail in Chapter 4.1.2
NOTE: When contacting distributor or factory because of a fault condition, always write down
all texts and codes on the keypad display and send a description of the problem together with
the Drive Info File to fieldbus@Honeywell.com.
7.1 Typical fault conditions
If you need to contact Honeywell service in problems related to LonWorks, please send a description of the problem together with the Drive Info File to fieldbus@Honeywell.com.
Fault condition Possible cause Remedy
Termination resistor
Missing or excessive termination resistor.
Install termination resistors at both ends of the
fieldbus line.
Cabling
• Supply or motor cables are
located too close to the fieldbus
cable
• Wrong type of fieldbus cable
• Too long cabling
Grounding Inadequate grounding.
Ensure grounding in all
points on the net
Connections
Faulty connections.
• Excessive stripping of cables
• Conductors in wrong terminals
• Too loose connections of conductors
Parameter
• Faulty address
• Overlapping slave addresses
• Wrong baud rate
• Wrong control place selected
Table 18. Typical fault conditions
Honeywell • 26 Quick Setup
8. Quick Setup
Frequency converter application
Choose Fieldbus (Bus/Comm) for the active control place (see Chapter 5.1).
Master software
1 = Write 100.0 1 to nviDrvSpeedStpt.
2 = Frequency converter status is RUN and output frequency is 1.00 * nviDrvSpeedScale.
3 = Write 0.0 0 to nviDrvSpeedStpt.
4 = Frequency converter status is STOP.
If nvoDrvStats bit 3 = 1 Status of frequency converter is FAULT.
Automation and Control Solutions
Honeywell GmbH
Böblinger Str. 17
71101 Schönaich, Germany
Telephone (49) 7031 637 01
Telefax (49) 7073 637 493
www.ecc.emea.honeywell.com
EN2B-0373GE51 R0911
September 2011
© 2011 Honeywell International Inc.
Find out more
For more information on Honeywell’s
variable frequency drives and other
Honeywell products, visit us online at
http://ecc.emea.honeywell.com
Loading...
