Honeywell IFP-300 Basic Operating Instructions Manual
Operation
Task to Per
form
Silence Alarms and
Press
SILENCE
then enter a code if prompted. Silence LED will light.
Reset Alarms
Press
RESET
then enter a code if prompted.
View Alarms,
For each type of condition press the Up or Down button associated for Alarms,
Press
ENTER
to access Main
Menu.
AHJ in your area.
Press
ENTER
to access Main
Menu.
TROUBLE

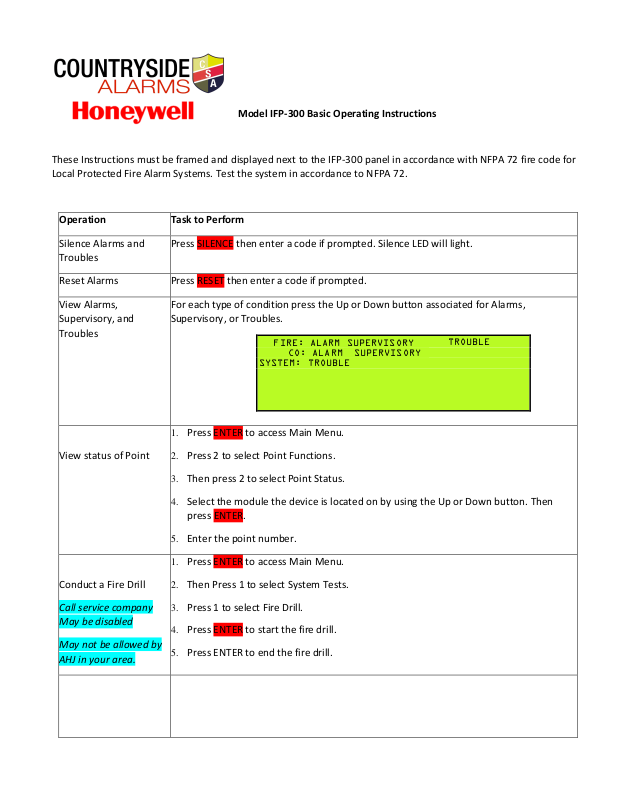

Model IFP-300 Basic Operating Instructions
These Instructions must be framed and displayed next to the IFP-300 panel in accordance with NFPA 72 fire code for
Local Protected Fire Alarm Systems. Test the system in accordance to NFPA 72.
Troubles
Supervisory, and
Troubles
View status of Point
Conduct a Fire Drill
Call service company
May be disabled
May not be allowed by
Supervisory, or Troubles.
FIRE: ALARM SUPERVISORY
CO: ALARM SUPERVISORY
SYSTEM: TROUBLE
1.
2.
Press 2 to select Point Functions.
3.
Then press 2 to select Point Status.
4.
Select the module the device is located on by using the Up or Down button. Then
press ENTER.
5.
Enter the point number.
1.
2.
Then Press 1 to select System Tests.
3.
Press 1 to select Fire Drill.
4.
Press ENTER to start the fire drill.
5.
Press ENTER to end the fire drill.
1.
Press
ENTER
to access Main
Menu.
Press
ENTER
to access Main
Menu.
Press
ENTER
to access Main
Menu.
From the Program Menu.
Check Detector
Sensitivity
Set Time and Date
Enable / Disable a Point
2.
Press 2 for Point Status.
3.
From the list that displays, select the SLC module where the point you want to view is
located.
4.
The fourth line of the display shows the sensitivity status. “NORMAL” means the
detector is in compliance with NFPA 72.
“CAL MAINT” means the detector is in compliance with NFPA 72 but maintenance should
be performed soon.
“CAL TRBLE” means the detector is not in compliance with NFPA 72.
1.
2.
Press 4 to select Set Time & Date. Enter a code if prompted
3.
Make changes in the fields on the screen as necessary.
4.
When the time and date are correct, press ENTER.
1.
2.
Press 2 to select Point Functions.
View Event History
For Service Call:
3.
Press 1 for Disable / Enable Pt
4.
Press 7 for Disable / Enable Pt.
5.
Use the Up or Down button to move through the list. Then press ENTER to select the
module where the point you want to disable/enable is located
6.
Enter the point or circuit number that you want to disable/enable.
7.
Press the right arrow key to toggle between NORMAL (enable) or DISABLE.
1.
2.
Press 3 to select Event History.
3.
Press the Up or Downbutton to view events in the history buffer.
(800) 639-2521
