Honeywell HBD95S Specifications

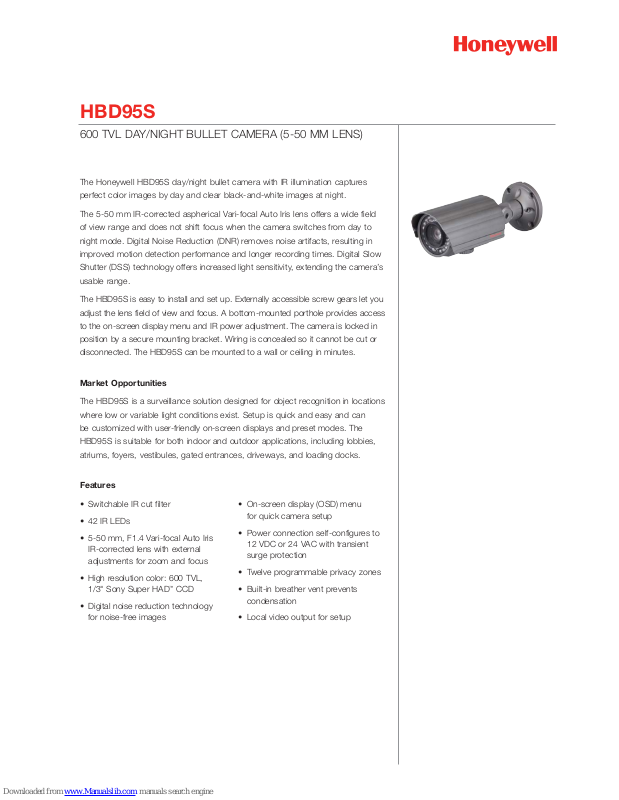

The Honeywell HBD95S day/night bullet camera with IR illumination captures
perfect color images by day and clear black-and-white images at night.
The 5-50 mm IR-corrected aspherical Vari-focal Auto Iris lens offers a wide field
of view range and does not shift focus when the camera switches from day to
night mode. Digital Noise Reduction (DNR) removes noise artifacts, resulting in
improved motion detection performance and longer recording times. Digital Slow
Shutter (DSS) technology offers increased light sensitivity, extending the camera’s
usable range.
The HBD95S is easy to install and set up. Externally accessible screw gears let you
adjust the lens field of view and focus. A bottom-mounted porthole provides access
to the on-screen display menu and IR power adjustment. The camera is locked in
position by a secure mounting bracket. Wiring is concealed so it cannot be cut or
disconnected. The HBD95S can be mounted to a wall or ceiling in minutes.
Market Opportunities
The HBD95S is a surveillance solution designed for object recognition in locations
where low or variable light conditions exist. Setup is quick and easy and can
be customized with user-friendly on-screen displays and preset modes. The
HBD95S is suitable for both indoor and outdoor applications, including lobbies,
atriums, foyers, vestibules, gated entrances, driveways, and loading docks.
Features
HBD95S
• Switchable IR cut filter
• 42 IR LEDs
• 5-50 mm, F1.4 Vari-focal Auto Iris
IR-corrected lens with external
adjustments for zoom and focus
• High resolution color: 600 TVL,
1/3" Sony Super HAD
™
CCD
• Digital noise reduction technology
for noise-free images
• On-screen display (OSD) menu
for quick camera setup
• Power connection self-configures to
12 VDC or 24 VAC with transient
surge protection
• Twelve programmable privacy zones
• Built-in breather vent prevents
condensation
• Local video output for setup
600 TVL DAY/NIGHT BULLET CAMERA (5-50 MM LENS)
HBD95S
HVS-HBD95S-01-ME(0312)DS-E
March 2012
© 2012 Honeywell International Inc.
SPECIFICATIONS
Ordering
HBD95S 1/3" CCD IR Bullet Camera, TDN, 600 TVL, 5-50 mm VFAI, 42 IR LEDs, 12 VDC/24 VAC, NTSC
HBD95SX 1/3" CCD IR Bullet Camera, TDN, 600 TVL, 5-50 mm VFAI, 42 IR LEDs, 12 VDC/24 VAC, PAL
Operational
Video Standard NTSC or PAL
Scanning System
525/60 lines (NTSC)
625/50 lines (PAL)
Image Sensor 1/3" Sony Super HAD™CCD II
Number of Pixels
(H x V)
HBD95S: 768 × 494 (NTSC)
HBD95SX: 752 × 582 (PAL)
Minimum Illumination IR LED on: 0 lux
Horizontal Resolution 600 TVL
Video Output 1.0 Vp-p, 75 ohms
Sync System
12 VDC: Internal
24 VAC: Internal or line lock
S/N Ratio 50 dB or more (AGC off)
Auto Gain Control Low/High/Off
ALC Adjusted (with direct drive Auto Iris lenses)
Automatic Electronic
Shutter
1/60-1/120,000 s (NTSC)
1/50-1/120,000 s (PAL)
Lens Type
(IR Corrected)
5-50 mm VFAI, F1.4, DC drive
Angle of View
Tele: 8.1° (D) × 6.5° (H) × 5° (V)
Wide: 65.3° (D) × 51.5° (H) × 38.5° (V)
Sync Internal
IR LEDs 850 nm, 42 LEDs
IR Illumination
Distance
125 ft (38.1 m) to 150 ft (45.7 m),
depending on scene reflectance, DSS on
DNR On/Off (Level adjustable)
BLC BLC/HLC/Off
Day/Night External/Color/BW/Auto
White Balance ATW/Outdoor/Indoor/Manual/AWC
Sens-Up Auto/Off (Selectable ×2 to ×512)
Motion Detection On/Off (8 programmable zones)
Privacy Masking On/Off (12 programmable zones)
SSDR (Dynamic
Range)
On/Off (Level adjustable)
Digital Zoom On/Off (×1 to ×16)
DIS On/Off
Sharpness On/Off (Level adjustable)
Flip/Mirror On/Off
Electrical
Input Voltage 12 VDC/24 VAC
Input Range 11-16 VDC, 17-28 VAC
Surge Suppression 1.5 kW transient
Power Consumption IR LED on: 630 mA, 9 W (max)
Mechanical
Dimensions See diagram
Weight 3.75 lb (1.7 kg)
Construction
Housing: Brushed and anodized
aluminum with sunshield
Finish: Brushed and anodized
aluminum
Connector
Main Video: BNC (coax)
Aux Video: 2-pin connector for
video test cable
Power Input: 2.1 mm power plug
Environmental
Temperature
Operating: -13°F to 122°F
(-25°C to 50°C)
Storage: -31°F to 140°F
(-35°C to 60°C)
Relative Humidity 0% to 95%, non-condensing
Rating IP66
Regulatory
Emissions
FCC: Part 15, Class A
CE: EN 55022
Immunity CE: EN 50130-4
Accessories
Transformers
HPT2440
24 VAC, 40 VA, Class 2 plug-in with
thermal cut-out
Power Supply
HPTV2404UL 24 VAC, 4 A, 4 output, fused, UL Listed
NOTE: Honeywell reserves the right, without notification, to make changes in product design or specifications.
3.86" (98 mm)
4.13" (105 mm)
9.8" (249 mm)
6.14" (156 mm)
3.9" (99 mm)
3.62" (92 mm)
For additional information,
please visit www.honeywell.com/security/me
