DSP COLOR CAMERA

GC-715N24 GC-715P24

* “

BMB

” is the Trade Mark of Honeywell, CCTV CoE.

MEMO

READ AND RETAIN THIS OPERATION MANUAL

Control Products Business Unit

18F, Kukje Center Building, 191, Hangangro-2ga, Yongsan-gu, Seoul 140-702, Korea Tel : 82-2-799-6109 Fax : 82-2-749-6119

E-mail : cctv@honeywell.com

http://www.honeywell.co.kr/cctv

Printed in Korea

G-110821

CAUTION

RISK OF ELECTRIC SHOCK

DO N OT O PEN

Explanation of Graphical Symbols.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance(Servicing) Instructions in the literature accompanying the appliance.

CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER(OR BACK).

NO USER SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PRERSONNEL

MEMO

CAUTIONS FOR SAFE OPERATION !

● Changes or modifications not approved

by manufacturer could void the user’s authority to operate the equipment.

● To prevent fire or shock hazard, do not

expose this camera to rain or moisture.

● To prevent electric shocks and other

hazards, do not use different from the specified power source.

● Do not install too hot or cold places,

recommended operation temperature is -10℃ ~ 50℃

● Do not expose lens directly to the sun.

CCD may be damaged.

● Do not place the camera to heavy

shocks or vibrations.

● Do not place or install the camera on

an unstable place, stand, tripod, bracket or table. That may cause serious injury to people or damage to appliance.

● Do not attempt to service or repair of

yourself. Please contact all servicing to qualified service personnel

● In case of installing too close to Monitor,

variation of monitor brightness cause any hunting of camera in low light mode.

Cautions for safe operation ------------------------------------- 1

About GC-715N/P24 ------------------------------------- 3

Name and function of each section ------------------------------------- 4

Installation ------------------------------------- 5

Adjustment and operation ------------------------------------- 8

Specifications ------------------------------------- 23

Accessory

● C mount adapter

● IRIS JACK for AUTO IRIS LENS

GC-715N/P24

Outlines

Honeywell’s GC-715N/P24 is a high sensitivity CCD color camera with high sensitivity

function of the field integration technique.

Features

☞ 1/3” IT Super HAD CCD ( NTSC: 410,000 / PAL: 470,000 ) ☞ Outstanding BLC implementation with Honeywell’s BMB(Black Mask BLC) function.

( 3 levels adjustable )

☞ CS/C lens mount. ☞ Excellent signal-to-noise ratio of more than 50dB. ☞ High Sensitivity : Minimum illumination of 0.001lx ( F1.2, 30IRE, SENS On X 128 ) ☞ 2-WAY Auto Iris : Video iris or DC iris lens can be used. ☞ External synchronization with LINE LOCK. ☞ Auto White Balance : Auto white balance realizes true color reproduction within various

light sources. ( 2,800 ºK~8,000 ºK )

☞ Control : Flickerless, Back light compensation , AGC , Manual shutter control,

Maximum Sensitivity select, Auto white Balance/ Indoor/Outdoor/Fluorescent light/ BMB Level

Name and function of each section

②

③

⑤

①

⑥⑦

148

④

⑧

① AUTO IRIS lens connector ② AUTO IRIS lens select switch ③ Sync. select switch ④ Video output connector ⑤ Power input connector ⑥ Power lamp ⑦ DC IRIS level adjustment

(when using DC IRIS lens)

⑧ V- PHASE adjustment

(when using LINE LOCK)

[unit : mm]

Installation

Mounting a Lens

1. Remove the protective cap in front of the camera.

2. Confirm the mount ring whether it is for C or CS. * Caution1

3. Attach the lens to the lens mount ring.

4. If the lens has an Auto Iris mechanism, connect the iris cable to the Lens connector (EE/VSD S/W must be set to VSD on the side of the camera) A. In the case of having no iris amplifier : Set the slide switch to DC (Down side) B. In the case of having iris amplifier : Set the slide switch VSD (Upper side) C. Set the S/W on the side of the camera to DC or VSD, too.

☞ If using lens that has iris amplifier, “LEVEL” and “ALC” volume of lens must be

adjust carefully. It may cause any hunting.

☞ When connecting Auto iris lens, be sure to use the connector to be recommended

by manufacturer. (E4-191, Chuo Musen, Japan)

* Caution 1 : This appliance is set to CS mount default.

If you want to use C mount lens, fix a C adapter ring additionally packed in the box.

When Auto-Iris Lens is used...

VSD LENS PIN CONFIGURATION

1. POWER(12V) 2. NO CONNECTION

3. VIDEO SIGNAL 4. GND

Set the select switch to VSD

③

①

④②

* For the best condition, read lens manual carefully . * After connecting Auto iris-lens you may need to set flange back focus.

DC IRIS LENS PIN CONFIGURATION

1. CONTROL- 2. CONTROL+

3. DRIVE+ 4. DRIVE-

Set the select switch to DC

③

①

④②

Connection of AC power supply

☞ Must be checked the power source from the external power supply before power on. ☞ Recommended power source capacity :

AC 24V, more than 500mA

Flange back focus adjustment

1. In case of fixed focus lens

a. Loosen the locking ring and set the focus ring of lens to infinity ( ∞ ). b. Tune the mount ring to get a clear picture( distance from camera to object is

more than 23m) and fasten the locking ring.

2. In case of zoom lens a. Loosen the locking ring and set the lens to the maximum telephoto position.

Then turn the focus ring to focus.

☞ in the case of Auto iris lens, shoot a comparatively dark object or reduce

the ambient light so that the Iris is fully open. b. Set the lens to its maximum wide angle position, and set the focus. c. Repeat step a and b, until the difference between focusing position a and b

is smallest.

D. When the best focusing point is found, fasten the locking ring.

Adjustment and operations

Configuration

“2”

“5”“6”

“3”

PUSH LOCK

“4”

“7”

UP DOWN

2 3

“1”

Fig 1. SIDE view

The function of each part

1. Button “1” & “2”

In line lock mode, zero crossing point can be adjusted by pressing these buttons. In MWB mode, manual white balance can be adjusted by pressing these buttons.

2. Button “3”

In One push lock mode, white balance can be aligned by pressing this button. When this button is released, white balance is locked.

“10” “11”

LENS VSDDCLL

INT

LEVEL V-PH

GND

AC24

“8”

Fig 2. REAR view

VIDEO

“9”

3. Connector “4” Used for EEPROM data setting in factory.

4. DIP switch “5” Shipment setting consists of “AGC High”, “AWC”, “SENS”.

①②③④⑤⑥⑦⑧⑨⑩⑪⑫

BLC

OFF

WB3

WB2

WB1

L1 L0

H1 H0

BMB

ME VSD VSD

AUTO AGC

LEE EE DC

BMB

SENS

Fig 3. Button detail

① “EE/ME” Mode ( Electronic Exposure / Manual Exposure )

If using electronic exposure or a lens with automatic iris, the “EE/ME” switch has to be set to “EE”. If using a manual lens, you can use the rotary switch to adjust the shutter speed of the camera manually.

Mode Remark715N24 715P24

0 default1/60 sec 1/50 sec 1 1/120 sec 1/100 sec 2 1/250 sec 3 4 5 6 7

1/500 sec 1/1,000 sec 1/2,000 sec 1/4,000 sec 1/5,000 sec

8 1/10,000 sec 9 1/100,000 sec

“6” switch

Fig 4. Shutter Speed

in ME mode

② “EE/VSD” Mode ( Lens type selection )

VSD(Auto)

③ “DC/VSD(AUTO)” Mode ( Auto Iris Lens type selection )

Auto Iris Lens are DC Type or VSD Type.

VSD

If using a manual lens, the “EE/VSD” switch has to be set to “EE”. If using a lens with automatic iris, the “EE/VSD” switch has to be set to “VSD”

◆ in case of using DC iris lens.

-. “EE/VSD” switch on side to “VSD”, “EE/VSD” switch on rear to “DC”.

-. Slowly turn “8” LEVEL on Rear until the monitor picture appears to be not too bright or too dark.

Auto

◆ in case of using AUTO iris lens

-. Set “EE/VSD” switch on Side to “VSD”.

-. Set “EE/VSD” switch on Rear to “VSD”.

④ “AGC” Mode ( Automatic Gain Control )

Select the AGC mode to high ( gain 32dB) or low ( gain 26dB ).

When this switch is to “high”, the maximum AGC is set to 32 dB, and sensitivity increases automatically when

AGC

⑤ “BMB/SENS” Mode

What is BMB?

-. BMB is the trade mark of Honeywell, that means BLACK MASK BLC. (

-. It is to improve the weak points of Electronic Iris & BLC.

-. Mask the excessive light by 3 making level and minimize the loss of outlines of Objects due to strong light.

illumination becomes dark . In AGC high mode , the integration time of the memory can be further decreased than AGC low mode ( 26dB) , and moving object is displayed more natural. But the noise of video signal is further increased .

)

BMB

◆ BMB(Black Mask BLC) Mode

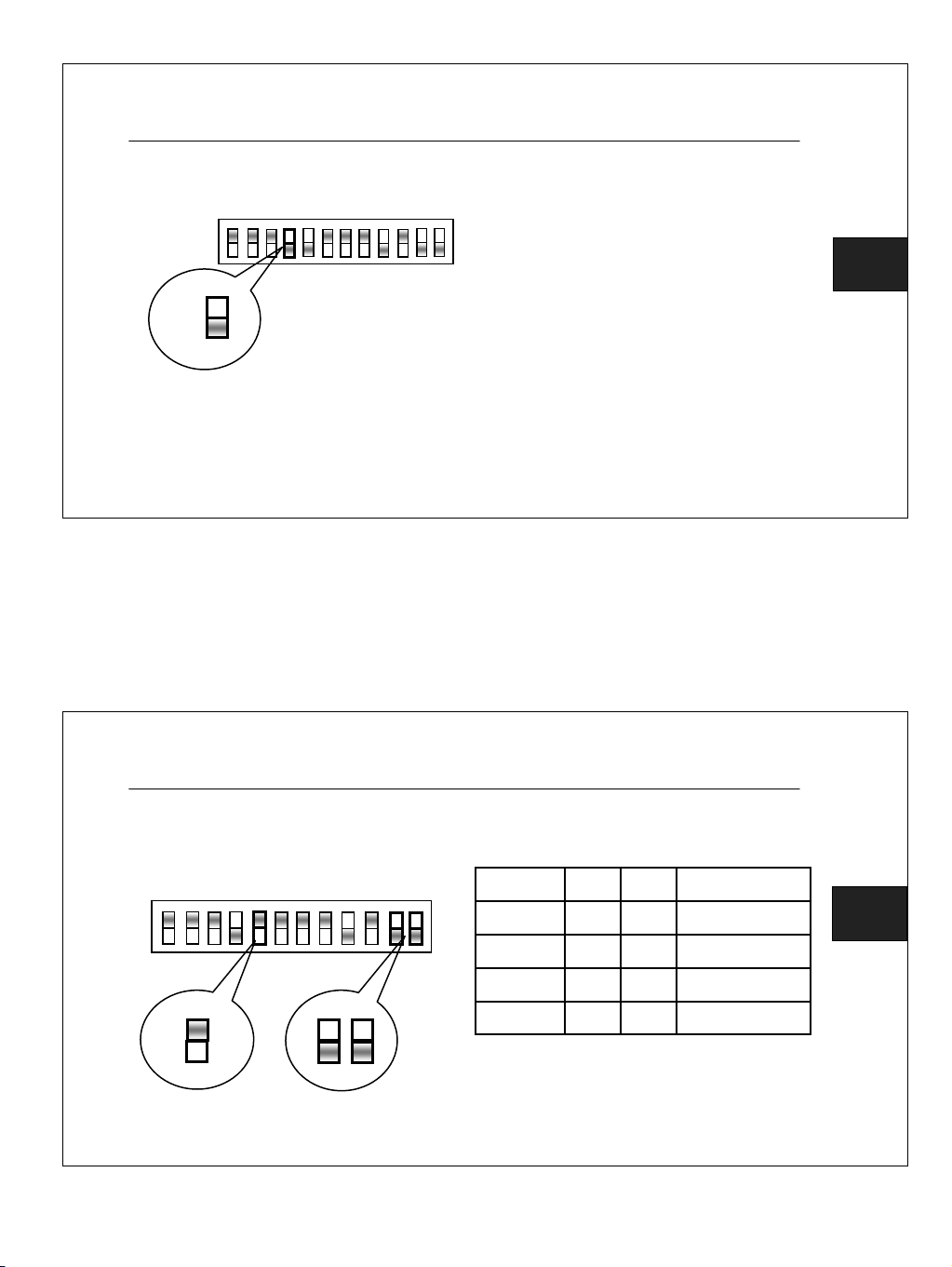

It can be adjustable to 3 levels according to surrounding condition.

( Factory default : 3Level )

BMB

SENS

L1 L0

H1 H0

< BMB level adjustment >

As higher BMB level, making level is darker. and around the masked area become lighter.

RemarkH0H1LEVEL

XXOFF

GRAYOX1

DARK GRAYXO2

BLACKOO3

☞ It is impossible to use BMB and SENS functions simultaneously !!!

To use BMB or SENS, select “BMB/SENS” switch one of two, To use neither BMB nor SENS, select “BMB” and level “H1,H0” to OFF. or select “SENS” and set the Rotary switch “7” to “0”.

◆ SENS( Sensitivity Up mode ) Mode

If the sensitivity ON mode is selected and in low light conditions, the camera sensitivity is increased by getting picture from the memory. Maximum sensitivity is selectable out of 9 steps . ( Refer to Fig5 )

BMB

SENS

“7” FIELD switch

Mode RemarkSetting Fields/sec

OFF 60

X2 301

X4 3 4 5 6 7 8 9 Default

X10 X16 X32 X64

X128

152 10

7.5 6

3.8

1.9

0.9

0.5

Fig 5. Maximum sensitivity setting table

☞ In the sensitivity ON mode , sensitivity is automatically controlled within maximum

sensitivity setting value.

! Cautions in SENS mode

1. In high sensitivity mode , moving object is displayed as if it is flowing, because the integration time of the CCD becomes long. Further, movement is unnatural due to intermittent read-out.

2. In high sensitivity mode, white blemishes may be remarkable.

3. In high sensitivity mode, noises as well as video information are increased. When an ambient temperature becomes high, noises are further increased. This is not due to failure.

4. In PAL version, flickers may be remarkable for some objects in high sensitivity mode, because the electronic sensitivity amplification is employed.

5. It doesn’t work in FL mode.

⑥ “FL” Mode ( Flickerless )

Use for removing the flicker of picture.

OFF

⑦ “BLC” Mode ( Backlight Compensation )

Too bright light or sunlight behind the object makes the object appear dark .

OFF

BLC

-. In case of NTSC(60Hz) :

Fix Shutter Speed to 1/100 sec

-. In case of PAL (50Hz) :

Fix Shutter Speed to 1/120 sec

-. In BLC ON state, you can distinguish the objects in front of the bright area without darkness.

-. Do not use the BLC function if using the Low-light mode with manual Iris Lens.

⑧⑨⑩“WB” Mode ( White Balance Mode )

WB Mode can be selected by WB1,WB2,WB3, UP,DOWN, PUSH LOCK switch.

OFF

UP DOWN

PUSH LOCK

Use in MWB mode

WB3 WB2 WB1 AWB Mode

OFF OFF OFF ATW Mode OFF ON OFF AWC Mode ( Default )

ON ON OFF One Push Lock ON OFF OFF MWB Mode

OFF OFF ON Indoor Fixed Mode ( 3200 ºK)

ON OFF ON Fluorescent Fixed Mode ( 4200 ºK)

OFF ON ON User Fixed Mode ( 4700 ºK)

ON ON ON Outdoor Fixed Mode ( 6300 ºK)

Fig 6. WB Mode Table

◆ “ATW” Mode

Auto Trace White Balance Mode. This mode is the feedback system that automatically aligns the white balance. ( Operating Range 2,800 ºK~ 8,000 ºK)

WB3 WB2 WB1

◆ “AWC” Mode

Auto White Balance Control Mode. This mode performs more faster action than ATW mode without operating range. AWC operation is also performed in one push lock mode. while the button “3” on the side view is pressed, AWC action started and then the button is released, WB operation is locked to fit the present shooting scene.

◆ One Push Lock Mode

In One push lock mode, white balance can be aligned by pressing “3” button. When this button is released, white balance is locked.

◆ “MWB” Mode

Manual White Balance Mode.

This mode is used for manual adjustment of white balance. This mode can be adjusted by pressing buttons.(Button“1”, “2” on SIDE VIEW)

6. “9” V-PHASE ( In the line lock mode, Adjustment V-Phase)

When you are using the line lock, the LL/INT switch has to be set to “LL” mode.

a. Line lock zero cross adjustment

; Zero cross point can be adjusted by pressing “1”(UP) and “2”(DOWN) buttons

of the camera

☞ Zero crossing point of shipment state can be initialized after pressing the UP

button (Button“1”) during about 10 seconds .

b. Line lock V-phase adjustment

; If more than two cameras are used in one switching system, phase difference in

AC power line can be occurred. It is needed to adjust this phase difference for each camera.

☞ If the cameras are connected to different AC lines, you can use the line lock

adjustment potentiometer of the camera (adjustment of V-PH)

SPECIFICATIONS

Imaging device 1/3” CCD(total 410,000pixels) 1/3” CCD (total 470,000pixels)

GC-715N24 GC-715P24

Effective pixel 768H * 494V(380,000pixels) 752H * 582V(440,000pixels) Scanning system 525 Lines 2:1 Interlace 625 Lines 2:1 Interlace Sync system Internal/ Line lock Internal/ Line lock Scanning frequency 15.734KHz(H), 59.94Hz(V) 15.625KHz(H), 50.0Hz(V) H Resolution 480 TV Lines 480 TV Lines Video out VBS 1.0Vp-p / BNC VBS 1.0Vp-p / BNC S/N Ratio more than 50dB more than 50dB Min. illumination less than 0.2lx(F1.2, 30IRE, AGC ON) less than 0.2lx(F1.2, 30IRE, AGC ON)

SENS ON 0.001lx ( X128 fields ) SENS ON 0.001lx ( X128 fields ) BLC BLC ON/OFF, BMB ON(3Steps)/OFF BLC ON/OFF, BMB ON(3Steps)/OFF White Balance AWB(2,800 ºK ~8,000 ºK) AWB(2,800 ºK ~8,000 ºK) Elec. Shutter 1/60s ~1/100,000s 1/50s ~1/100,000s AGC High / Low High / Low Lens Mount C/CS Mount C/CS Mount ALC EE, VSD, DC EE, VSD, DC Power Source AC24V±10%,500mA AC24V±10%,500mA Operating Temp. -10℃ ~ +50℃ -10℃ ~ +50℃ Storage Temp. -20℃ ~ +70℃ -20℃ ~ +70℃ Weight 436g 436g Dimensions 68(W) * 51(H) * 148(D) 68(W) * 51(H) * 148(D)
