F52F Return Grille
Electronic Air Cleaner
PRODUCT DATA
FEATURES
• F52F models are available with one electronic cell and
a rated capacity of 1000 cfm (1700 m
electronic cells and a rated capacity of 2000 cfm
(3400 m
• Electronic cell(s) can be washed in most automatic
dishwashers.
• Solid state power supply is energized by an airflow
switch; no interconnection to fan system is required.
• Solid state power supply is self-regulating and
maintains peak efficiency during a wide range of cell
dirt-loading conditions.
• Pressure drop is approximately equal to that of a
regular fiberglass filter.
• Neon light shows that the air cleaner is operating.
• Automatic interlock switch disconnects the power
when unit is opened.
• Optional W8600F Air Cleaner Monitor indicates air
cleaner performance, informs owner when cell
washing is due and indicates need for system check.
3
/hr).
3
/hr), or two
APPLICATION
The F52F Return Grille Electronic Air Cleaner is wall or
ceiling mounted in the main return air duct of a central forced
air heating, cooling, or ventilation system. It captures a
significant number of the airborne particles (0.5 microns and
larger) from the air circulated through the cell(s).
® U.S. Registered Trademark
Copyright © 1998 Honeywell Inc. • All Rights Reserved
Contents
Application......................................................................... 1
Features ............................................................................ 1
Specifications .................................................................... 2
Ordering Information ......................................................... 2
Planning the Installation .................................................... 4
Installation ......................................................................... 6
Checkout ........................................................................... 10
Service .............................................................................. 10
Electrical Troubleshooting ................................................. 12
Exploded View................................................................... 17
Parts List ........................................................................... 18
X-XX UL
68-0074-9
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
SPECIFICATIONS
IMPORTANT
Models:
Electrical Ratings:
Capacity, Efficiency, Pressure Drop:
See Fig. 1.
Temperature Ratings:
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed
specifications. Also, this product is tested and
calibrated under closely controlled conditions, and
some minor differences in performance can be
expected if those conditions are changed.
F52F Return Grille Electronic Air Cleaner (one-cell model
for up to 1000 cfm [1700 m
power supply with air cleaner monitor capability, one
electronic cell, prefilter, door/grille and airflow switch.
F52F Return Grille Electronic Air Cleaner (two-cell model
for up to 2000 cfm [3400 m
power supply with air cleaner monitor capability, two
electronic cells, prefilter, door/grille and airflow switch.
Maximum Current (A)
No. of
Cells
1 20 x 12.5 0.4 0.2 22
2 20 x 25 0.4 0.2 36
Operating Ambient: 40°F to 125°F (4°C to 52°C).
Temperature of Airflow Through Cell(s): 40°F to 125°F
System
Size (in.)
(4°C to 52°C).
120V,
60 Hz
3
/hr]). Includes solid state
3
/hr]). Includes solid state
220/240V,
50/60 Hz
Maximum
Power (W)
Maximum Cell Washing Temperature: 220°F (104°C).
Storage and Shipping (Entire Unit): minus 40°F to
plus 140°F (minus 40°C to plus 60°C).
Mounting:
Recesses into duct opening on wall or ceiling. On wall
installation, mount with hinge on bottom or either side (see
Review Installation Requirements section). Not intended for
floor installations.
Weight:
F52F Electronic Air
Cleaner
Shipped 39.2 17.8 58.8 26.7
Installed 29.4 13.4 45.3 20.6
Cell(s)—included in
above weights
Dimensions:
See Fig. 2 and 3.
Door/Grille Type:
Egg crate.
Cell Size:
12-1/2 x 20 in. (318 x 508 mm).
Underwriters Laboratories Inc. Listed:
File No. E30954, Guide No. AGGZ.
Canadian Standards Association Listed:
File No. LR19060-L.
Accessories and Replacement Parts:
See Fig. 23.
1-Cell 2-Cell
lb kg lb kg
9.5 4.3 9.5
ea
4.3
ea
ORDERING INFORMATION
When purchasing replacement and modernization products from your TRADELINE® wholesaler or distributor, refer to the
TRADELINE® Catalog or price sheets for complete ordering number, or specify:
1. Order number. 4. Type of door/grille—louvered or egg crate.
2. Voltage and frequency. 5. Accessories, if desired.
3. Dimensions: 20 x 25 or 20 x 12-1/2 in. 6. W8600F Air Cleaner Monitor, if desired.
(508 x 635 or 508 x 318 mm). Specify beige or white color.
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Home and Building Control Sales Office (check white pages of your phone directory).
2.Home and Building Control Customer Logistics
Honeywell Inc., 1885 Douglas Drive North
Minneapolis, Minnesota 55422-4386
In Canada—Honeywell Limited/Honeywell Limitée, 155 Gordon Baker Road, North York, Ontario M2H 2C9.
International Sales and Service Offices in all principal cities of the world. Manufacturing in Australia, Canada, Finland, France,
Germany, Japan, Mexico, Netherlands, Spain, Taiwan, United Kingdom, U.S.A.
68-0074—9
2
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
.25 (62)
900
.20 (50)
.15 (37)
.10 (25)
.05 (13)
0 (0)
1000
(1700)
3
PRESSURE DROP IN IN. WC (PA)
1
100
90
80
70
EFFICIENCY, PERCENT
60
50
500
400
(850)
(680)
F52F ONE CELL CAPACITY IN cfm (m /hr)
1 EFFICIENCY RATINGS BASED ON NATIONAL BUREAU OF STANDARDS DUST SPOT METHOD USING ATMOSPHERIC DUST
AND AMERICAN SOCIETY OF HEATING, REFRIGERATION, AND AIR-CONDITIONING ENGINEERS STANDARD 52.1-92.
600
(1020)
700
(1190)
800
(1360)
(1530)
1
100
90
80
70
EFFICIENCY, PERCENT
60
50
1000
1200
800
(1700)
(1360)
F52F TWO CELL CAPACITY IN cfm (m /hr)
(2040)
1400
(2350)
1600
(2720)
1800
(3060)
Fig. 1. Air cleaner efficiency and pressure drop at various airflow rates.
1-1/8 (29)
12-7/8
(327)
KNOCKOUT FOR 1/2 INCH
CONDUIT CONNECTOR
ON BOTTOM OF F52
1-3/8 (35)
7
(178)
.25 (62)
.20 (50)
.15 (37)
.10 (25)
.05 (13)
0 (0)
2000
(3400)
3
PRESSURE DROP IN IN. WC (PA)
M7824
15-3/4 (400)
11/16
(18)
1-1/4
(32)
28
(711)
3/16
(5)
(7)
1-3/16
(30)
3/4 (19)
3-11/16
(94)
11-3/16
(284)
17-7/8
(454)
26
(660)
1-1/8 (29)
KNOCKOUT FOR 1/2 INCH
CONDUIT CONNECTOR
ON BACK OF F52
M11983
Fig. 2. Approximate installation dimensions in in. (mm) of one-cell F52F Electronic Air Cleaner.
68-0074—93
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
23-1/8
(587)
29-1/16 (738)
17-5/16
(440)
31 (787)
11-1/2
(292)
5-5/8
(143)
3/16 (5)
(8)
13/16 (21)
11/16 (18)
24
(610)
2-1/2 (64)
1-1/2 (38)
1-1/4
10-3/4
(273)
3/16
(5)
(7)
A
(32)
7 (178)
4-1/16
(103)
8-1/16
(205)
13-5/8
(346)
22
(559)
1-1/2
(38)
3/4
(19)
KNOCKOUT FOR 1/2 INCH CONDUIT
CONNECTOR ON BACK OF F52
Fig. 3. Approximate installation dimensions in in. (mm) of two-cell F52F Electronic Air Cleaner.
PLANNING THE INSTALLATION
Application and Construction
The air cleaner should be installed in the occupied space
return duct opening leading to a central air handling system.
All of the air circulated by the system must pass through the
electronic air cleaner.
The front door of the electronic air cleaner is hinged to
provide access to the internal components. See Fig. 4.
The air cleaner has one or two electronic cell(s) that must be
installed with the ionizer section (side with fine wires) facing
the door.
17-11/16
(449)
3/4 (19)
7/8 (22)
3-3/8
(86)
KNOCKOUT FOR
1/2 INCH CONDUIT
CONNECTOR
M11984
The cell(s) is held in place by metal hooks and a
quarter-turn latch.
A spring contact provides the electrical connection between
the solid state power supply and the electronic cell(s). An
interlock switch interrupts the line voltage to the power supply
when the door is opened. A rocker-type ON-OFF switch
allows the air cleaner to be turned off manually. An indicator
light that is on shows that the air cleaner is energized and the
power supply is producing high voltage.
68-0074—9
4
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
M11985
METAL MESH
PREFILTER
INTERLOCK SWITCH
ONE-CELL MODEL
CELL HOOKS
ON-OFF
SWITCH
POWER SUPPLY
ENCLOSURE
ELECTRONIC
CELL
CELL
LATCH
ON-OFF
SWITCH
INTERLOCK
SWITCH
CELL
CONTACT
PLATE
HINGE
HINGE
TWO-CELL MODEL
POWER SUPPLY
ENCLOSURE
DOOR
CELL HOOKS
CELL LATCH
CELL CONTACT
PLATE
ELECTRONIC CELL
METAL MESH
PREFILTER
DOOR
M7820A
Fig. 4. Internal components of F52F Electronic Air Cleaner.
Review Installation Requirements
The air cleaner is installed in place of the main return grille
so all the air circulated by the system passes through the
air cleaner.
It can be installed in either a wall or ceiling, but not in the
floor. See Fig. 5 through 7 for typical installations.
AIRFLOW
UPFLOW
FURNACE
RETURN GRILLE
ELECTRONIC AIR
CLEANER
AIRFLOW
M7809
Fig. 5. Typical electronic air cleaner application
on platform-mounted upflow furnace.
(Dotted lines show optional ductwork.)
Fig. 6. Typical electronic air cleaner installation on
an upflow furnace.
68-0074—95
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
RETURN
GRILLE
ELECTRONIC
AIR CLEANER
COUNTERFLOW
FURNACE
Fig. 7. Typical electronic air cleaner application on counterflow (downflow) furnace.
(Dotted lines show optional ductwork.)
In a wall installation, mount the one-cell air cleaner with the
door hinge on the bottom so the air cleaner fits between the
two studs 16 in. (407 mm) on center. The two-cell air cleaner
fits between two studs 24 in. (610 mm) on center when
mounted with the hinge on either side
or
between three 16 in.
studs, with center stud removed, when mounted with hinge on
the bottom.
Do not install either unit with the hinge on the top because the
cell(s) will be awkward to remove.
Determine Duct Design Requirements
The return duct should end at, or slightly behind, the finished
wall surface. Do not use a standard register flange, or the
door may not fit tightly against the wall.
Transitions
Transitions are needed when the duct is a different size than
the air cleaner. Gradual transitions reduce air turbulence and
increase efficiency. The transition should be 20 degrees or
about 4 in. per running ft (100 mm per 300 linear mm) or less
on each side of a transition fitting.
INSTALLATION
When Installing this Product…
1. Read these instructions carefully. Failure to follow them
could damage the product or cause a hazardous
condition.
2. Check the ratings given in the instructions and on the
product to make sure the product is suitable for your
application.
3. Installer must be a trained, experienced service
technician.
4. After installation is complete, check out product
operation as provided in these instructions.
RETURN GRILLE
ELECTRONIC
AIR CLEANER
AIRFLOW
M7810
CAUTION
Electric Shock Hazard.
Can cause electrical shock or equipment damage.
Disconnect power before installing air cleaner.
Unpack the Air Cleaner
1. Check that all components are included. The unit
consists of:
• Door assembly in separate box.
• One metal mesh prefilter.
• One or two electronic cell(s).
• Literature package.
2. Lift out and set aside the door/grille assembly and the
prefilter. Turn the cell latch (Fig. 4) toward the air
cleaner cabinet and remove the electronic cell(s), lifting
from the side nearest the latch. Set aside.
3. Remove the four screws holding the wiring
compartment cover.
4. Remove the air cleaner cabinet from the carton.
Make Wall Opening
1. Size the wall opening to fit the air cleaner as closely as
possible with the air cleaner door hinge on either side
or bottom for the two-cell model, and on the bottom for
the one-cell model. See Table 1 for dimensions.
Table 1. Installation Dimensions.
Wall Stud Spacing Unit Dimensions
Model in. mm in. mm
1-cell 16 406 12-7/8 x
2-cell 24 or 32 610 or 813 29-1/16 x 22 738 x 559
25-15/16
327 x 659
68-0074—9
6
ONE-CELL MODEL
SECURE AIR CLEANER TO DUCT OPENING
WITH SCREWS (AT ARROWS).
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
TWO-CELL MODEL
SECURE AIR CLEANER TO DUCT OPENING
WITH SCREWS (AT ARROWS).
Fig. 8. Fasten air cleaner to duct with sheetmetal screws.
2. Frame the opening to provide adequate support for the
air cleaner. The air cleaner must fit snugly in the
opening; allow no more than 1/4 in. (6 mm) from the
opening to each side of the cabinet.
3. Cover the framing and any unused portion of the wall
opening with wallboard, plywood, or other material and
finish to match the wall.
Mount Air Cleaner
1. Fit the air cleaner enclosure into the prepared duct
opening so the flange on the air cleaner fits tightly
against the finished wall surface. The posts on the
flange should be on the side desired for the door hinge.
2. Tack the enclosure to the wall.
3. Fasten the air cleaner enclosure to the wall frame using
sheet metal screws. See Fig. 8. Overtightening the
screws can distort the enclosure and make it difficult to
secure the door with the door latches.
Wiring
CAUTION
Electric Shock Hazard.
Can cause personal injury.
• The line voltage power source must match the
voltage and frequency of the F52F.
• The air cleaner must be permanently connected to
the power source. Do not use an extension cord.
M7821A
1. Disconnect power before beginning wiring to avoid
electrical shock or equipment damage. All wir ing must
comply with applicable codes and ordinances. See Fig. 9.
2. Connect the white lead from the air cleaner to the
neutral side of the 120V supply. Use the solderless
connector supplied.
3. Connect the black lead from the air cleaner to the line
side of the 120V supply. Use the solderless connector
supplied.
4. Connect the air cleaner ground terminal to ground.
WIRING
COMPARTMENT
L1
(HOT)
L2
1
GREEN
1
120V, 60 HZ POWER SUPPLY. PROVIDE DISCONNECT MEANS
AND OVERLOAD PROTECTION AS REQUIRED.
WHITE
RETURN GRILLE
ELECTRONIC
AIR CLEANER
BLACK
M7808
Fig. 9. Typical connections for air cleaner.
The solid state airflow switch turns the air cleaner on and off
in response to airflow; the air cleaner need not be connected
to the system fan.
NOTE: If power to the F52 is switched by another means,
the airflow switch may be disabled by cutting the
airflow switch disable jumper. See Fig. 20.
68-0074—97
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
(2)
Install Optional W8600F Air Cleaner Monitor
If the W8600F Air Cleaner Monitor is part of the installation,
install the W8600F in the desired location and run 3-wire
thermostat wiring (up to 18 gauge), independent of any other
current-carrying wires, to the air cleaner power compartment
as follows.
W8600F Location
The styling of the W8600F is designed to blend with the
T8600 Thermostat family. A special mounting template is
included in the bag assembly for mounting ne xt to the T8600.
The W8600F monitor can, however, be mounted at any other
convenient location in the living area, or it can be mounted in
the furnace room. It shares no electrical connections with the
thermostat.
Make certain the location makes it convenient for the user to
observe the display of the device.
Mounting W8600F
The following mounting instructions assume that the W8600F
is mounted next to a T8600 Thermostat. If installing the
monitor at another location, modify the procedure to fit the
installation.
1. Hold the mounting template (included in the bag
assembly) next to the T8600 as shown in Fig. 10.
2. Mark the holes for the screw anchors and the
3-conductor thermostat cable.
3. Remove the template and drill the holes.
4. Remove the W8600F from the base.

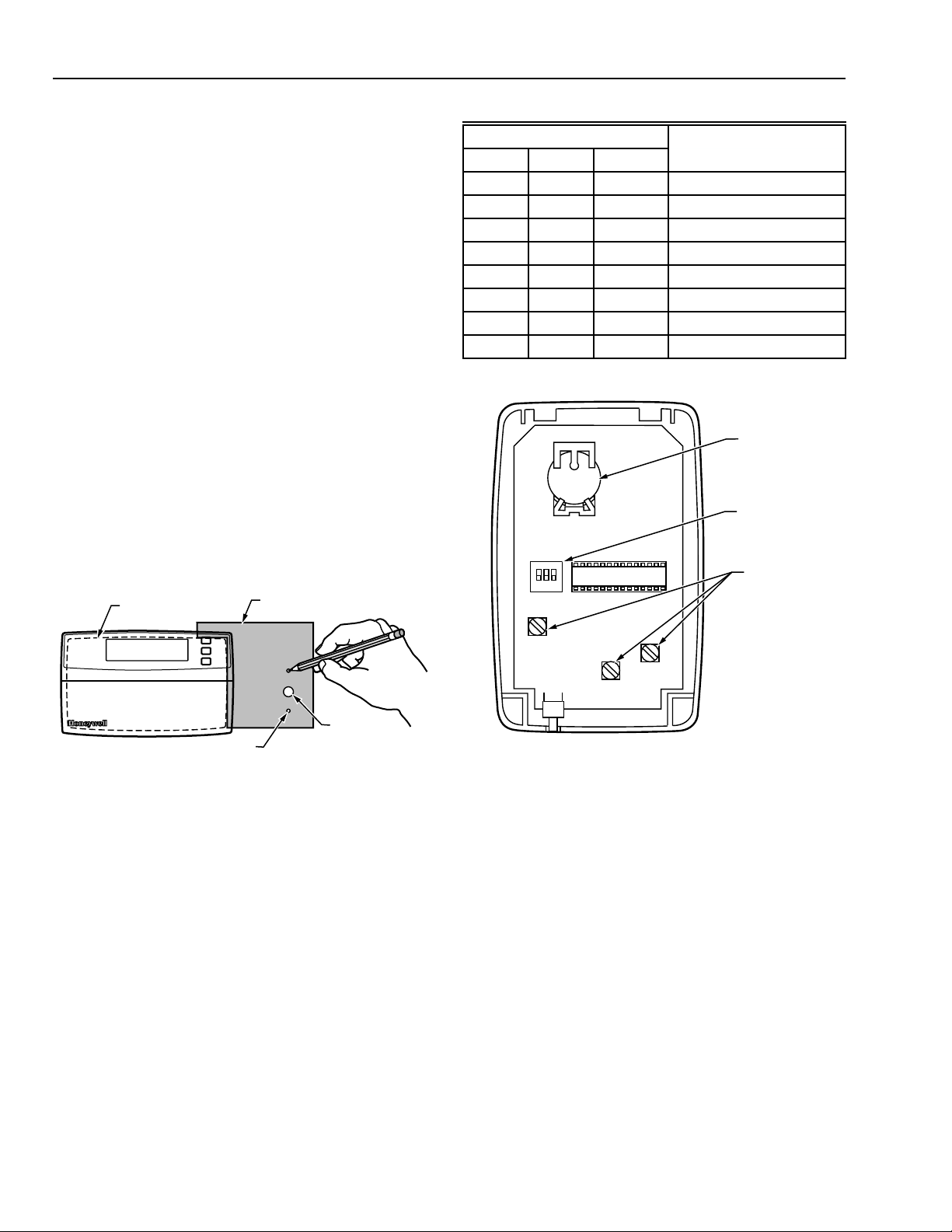

THERMOSTAT
WALLPLATE
MOUNTING
TEMPLATE
F1 F2 F3 Wash Frequency (Days)
Off Off Off 10
Off Off On 20
Off On Off 30
Of f On On 40
On Off Off 50
On O f f On 70
On On Of f 100
On On On 180
Table 2. Wash Frequency Options.
DIP Switch Settings
BACK OF W8600F
BATTERY
IN HOLDER
DIP SWITCHES
WIRING
TERMINALS (3)
WIRING HOLE
MOUNTING HOLES
M11971
Fig. 10. Positioning mounting template.
5. Position the W8600F base over the holes and install the
anchors and screws. Tighten the screws until the base
is mounted firmly on the wall.
Select Wash Frequency
Use the W8600F DIP switches to program the time between
SERVICE indications. Be sure to select the setting according
to the conditions of the home. Factors to consider include the
duty cycle of the EAC, the number of people and pets, and
activities such as woodworking and other crafts that are being
done in the home.
Refer to Table 2 to select the wash frequency. Set the
W8600F DIP switches to match the selection. See Fig. 11.
The time listed represents actual run time of the EAC, not
calendar days.
1
4
3
M11969
Fig. 11. Back of W8600F.
Wiring
1. Run a 3-conductor thermostat cable (up to
18 gauge) from the W8600F to the terminal strip on the
back of the F52 wiring compartment.
IMPORTANT
Connect cable to W8600F before attaching to the air
cleaner terminals to minimize the risk of damage
due to static electricity.
2. Connect the wires to terminals 1, 3 and 4 on the
W8600F. See Fig. 11.
3. Check that the battery is correctly installed in the
W8600F battery holder.
4. Snap the W8600F onto the base.
5. Turn off the power for the EAC.
6. Connect the three wires from the W8600F to the EAC
terminals 1, 3 and 4. See Fig. 12.
68-0074—9
8
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
ELECTRONIC
CELL
CELL CONTACT
PLATES
CELL HOOKS
CELL LATCH
M9677A
W8600F
1
1
ELECTRONIC AIR CLEANER
TERMINAL STRIP
ON POWER BOX
4
2
3
1
R
B
Y
1 CONNECT TO W8600F TERMINALS BEFORE CONNECTING TO
POWER BOX.
GREEN
G
RED
BLUE
4
3
THREE-WIRE
THERMOSTAT CABLE
M11974
Fig. 12. Wiring W8600F to Electronic Air Cleaner power
box terminal strip (two-cell model).
NOTE: Connect terminal 1 to 1, 3 to 3 and 4 to 4.
7. Turn on the EAC power.
8. Turn on the system fan.
9. Push the W8600F reset button. All four indicators on the
display will flash 5 times. The ON indicator will stay
active as long as the EAC is on. See Fig. 13.
Install Electronic Cell(s), Prefilter and
Door/Grille
1. Hold the cell(s) by the handle(s) and fit the end of the
cell(s) behind the metal hooks. See Fig. 15.
2. Swing the cell(s) into the frame and turn the cell latches
to lock the cell(s) in place. See Fig. 16.
INSTALL HANDLE ON END OF CELL
CLOSEST TO ACCESS DOOR.
ROTATE 90
DEGREES
FOLD TAB
TO LOCK
HANDLE
IN PLACE
M6047A
Fig. 14. Attach cell handle to end of cell.
3. Reinstall the prefilter by seating it into the rail. Rotate it
into the air cleaner, and seat it on the opposite side.
4. Assemble the door/grille to the cabinet as follows:
a. Align the door/grille with the frame. Fit the holes in
the door hinge over the mounting posts on the frame.
b. Start the hex nuts provided on the posts and tighten.
c. Close the door/grille and turn the thumb screws.
d. If alignment requires adjustment, loosen nuts, align
and retighten.
On
Battery
Service
Fault
Air Cleaner Monitor
M15586
Fig. 13. Complete T8600/W8600F Installation.
Attach Cell Handle(s)
The plastic handle(s) taped to the packing material must be
mounted on the electronic cell(s). The handle(s) can be
mounted on either end; choose the end most convenient for
inserting and removing the cell(s).
1. Hold the handle sideways and insert the solid tab on
the back of the handle into the rectangular slot in the
cell. Turn the handle 90 degrees clockwise to align the
divided tab with the square hole. See Fig. 14.
2. Insert the divided tab into the square hole.
3. Fold up the tab and insert it into the slot to lock the
handle in place. If necessary, press with a blunt
instrument such as the end of a pliers.
IMPORTANT
For proper air cleaner operation, make sure:
• The contacts on the cell(s) meet the spring
contacts on the frame.
• The arrow on the side of the cell points in the
direction of airflow (toward the wall or ceiling).
• The ionizer wires face toward the door/grille.
Fig. 15. Make sure hooks snap over edge of cell.
68-0074—99
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
CELL LATCH
Fig. 16. Turn cell latch to lock in place.
DOOR LATCH
RECEIVER (2)
M9676A
Painting Air Cleaner
The air cleaner door/grille is painted white and needs no
additional finishing. If another color is desired, remove the
door/grille from the air cleaner and make sure it is clean
before painting.
Replacing Door/Grille
The louvered and egg crate door/grilles are interchangeable
on the F52F (see Parts List on page 18 for part numbers). To
change from a louvered to an egg crate door/grille, turn the
quarter-turn fasteners to the open position. Open the door/
grille and remove the two hex nuts that fasten the door/grille
to the air cleaner cabinet. Install the two tinnerman clips that
are supplied with the egg crate door/grille on the door latch
receivers (Fig. 16). Mount the new door/grille on the air
cleaner cabinet with the two hex nuts previously removed.
Close the door/grille and turn the thumb screws to engage the
mating screws in the tinnerman clips.
come on, refer to Electrical Troubleshooting section. If a
W8600F is part of the installation, also check the wall panel,
and make sure the ON indicator is active. When the fan is
stopped, the indicator should go off.
SERVICE
CAUTION
Sharp Edges.
Can cause personal injury.
Handle the cell(s) carefully to avoid cuts from the
sharp metal edges.
Cleaning the Electronic Cell(s) and Prefilter
Clean the electronic cell(s) and prefilter regularly every one to
six months. Variables such as number of occupants, activities
and smoking determine how often cleaning is required. Use
the wash reminder schedule in the literature packet to help
establish and maintain a regular cleaning schedule.
If the air cleaner has the optional W8600F Air Cleaner
Monitor, the SERVICE is activated to indicate that a cell and
prefilter washing is due. The SERVICE indicator does not
come on when the prefilter gets clogged; clean the prefilter
every time the cell(s) are cleaned.
The cell(s) can be washed in most automatic dishwashers, by
soaking in a tub or at a do-it-yourself coin operated car wash.
The prefilter can be vacuumed, brushed, sprayed with a
garden hose. Do not wash the prefilter in the dishwasher or
car wash.
The heating or air conditioning system can be run while the
cell(s) is being washed. Simply turn off the air cleaner switch.
Automatic Dishwasher
CHECKOUT
Inspect the Installation Before Putting
Electronic Air Cleaner into Operation
Make sure:
• The wiring connections in the power box are properly
made with the proper connectors.
• The metal mesh prefilter is positioned properly.
• The airflow arrows on the cell(s) point away from the
door/grille.
• The electronic cell(s), prefilter and door/grille are clean
and dry.
• The contact is good between electronic cell and the power
supply contacts.
• The W8600F (if used) wiring connections are
properly made.
Check Air Cleaner Operation
With all components in place, turn on the air cleaner switch
and close the door/grille. Energize the system fan and check
that the neon light, visible through the air cleaner door/grille,
lights. This indicates that the air cleaner is energized and the
power supply is producing high voltage. If the light does not
CAUTION
Burn Hazard.
Can cause personal injury.
Allow the cell(s) to cool in the dishwasher at the end
of the wash cycle or wear protective gloves to avoid
burns. Hot water can accumulate in the tubes that
support the collector plates. Tip the cell(s) so these
tubes can drain.
IMPORTANT
• Check your dishwasher owner manual. Some
manufacturers do not recommend washing
electronic cells in their dishwashers.
• If the dishwasher has upper and lower arms,
position the cell(s) carefully to allow good water
circulation.
• Use care to avoid damaging or bending the cell
plates when placing them in the dishwasher. If
bent, arcing will result.
• Very dirty cells, especially from tobacco or
cooking smoke, can discolor the plastic parts and
lining of the dishwasher. The discoloration is not
harmful. To minimize it, wash the cells more
frequently or try a different brand of detergent.
• DO NOT ALLOW THE DISHWASHER TO RUN
THROUGH THE DRY CYCLE. This will bake on
any contaminants not removed during the wash
cycle and reduce air cleaner efficiency.
68-0074—9
10
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
1. Put the cell(s) on the lower rack of the dishwasher with
the airflow arrow pointing up. It may be necessary to
remove the upper rack. Do not block water flow to the
upper arm, if provided on the dishwasher.
HINT: Lay a few large water glasses between the
spikes
on the lower rack, and rest the cells on
them so the
aluminum collector blades.
2. Using the detergent that works best for normal
dishwashing, allow the dishwasher to run through the
complete wash and rinse cycle. Do not use the dry
cycle. To avoid burns, let the cell(s) cool completely
before removing, or wear protective gloves when
removing the cell(s). Remember that water may be
trapped in the tubes that support the collector plates.
Tip the cell(s) so these tubes can drain.
3. Wipe the ionizer wires and contact board on the end of
the cell with a clean cloth.
4. Inspect the dishwasher. You can rerun the wash and/or
rinse cycle with the dishwasher empty if you see dirt or
residue from washing the cell(s). If dirt or residue
seems excessive, wash the cell(s) more often or try a
different detergent.
5. Inspect the cell(s) for bent plates; bend back to normal
to prevent arcing.
spikes
do not damage the
Soaking
CAUTION
Hazardous Chemical.
Can cause personal injury.
Do not splash the detergent solution in eyes. Wear
rubber gloves to avoid prolonged detergent contact
with skin. Keep detergent and solution out of reach of
children.
NOTE: Always wash the cell(s) first, then the prefilter, to
keep heavy lint from getting caught in the cell(s).
Car Wash
Use the hand sprayer at a coin-operated car wash to wash
the cell(s). Hold the nozzle at least 2 ft (0.6m) away from the
unit to avoid damage from the high pressure stream of water.
Follow the same sequence of wash and rinse as recommended for cars. However, do not wax the cell(s). Rinse until
the water draining from the cell(s) no longer feels slippery.
Reinstalling Cell(s) and Prefilter
1. Inspect the cell(s) for broken ionizer wires and bent
collector plates. Repair as necessary.
2. Replace the cell(s) properly. The electrical contact
board must face the power supply contacts. The airflow
arrows on the cell(s) must point into the air duct. Secure
with the latch.
3. Reinstall the prefilter. Turn on the air cleaner.
4. Close the door/grille and fasten it with the two door
latches.
5. Turn on the system fan. If the cell(s) and prefilter are
wet, you may hear arcing (snapping). If the arcing is
annoying, simply turn off the air cleaner for two to three
hours, or until cells are dry.
Cleaning the Door/Grille
The door/grille may require washing periodically, though not
as frequently as the electronic cell(s) and prefilter. When it
appears dirty, it can be vacuumed using the brush attachment
on your vacuum cleaner, or disassembled and cleaned by
agitating in a solution of mild detergent in warm water.
Replacing Ionizer Wire
Broken or bent ionizer wires can cause a short to ground,
often resulting in visible arcing or sparking. On air cleaners
with a W8600F, any short in the ionizer or collector section
activates the FAULT indicator on the W8600F wall panel. Do
not use the cell until the pieces of broken wire are removed. It
can be used temporarily with one wire missing, but replace
the wire as soon as possible. See Parts List section for order
number.
1. Use a container that is large enough, such as a laundry
tub or trash container, to hold one or both cells. Sharp
corners on the cell(s) can scratch the surfaces.
2. Dissolve about 3/4 cup of automatic dishwashing
detergent per cell in enough hot water to cover the
cell(s). If the detergent does not dissolve readily, or
forms a scum on the water, try another brand or use
softened water.
3. After the detergent has completely dissolved, place the
cell(s) in the container to soak for 15 to 20 minutes.
Agitate up and down a few times, and then remove.
4. Next, wash the prefilter the same way. Empty and rinse
the wash container.
5. Rinse the cell(s) and prefilter with a hard spray of very
hot water; rinse the tub clean, then fill the tub with clean
hot water and soak for 5 to 15 minutes. Rinse until
water draining from the cell(s) and prefilter no longer
feels slippery.
6. Wipe the ionizer wires and contact board on the end of
the cell with a clean cloth.
Replacement wires are cut to length with eyelets on both
ends for easy installation. To install:
1. Hook the eyelet on one end of the wire over the spring
connector on one end of the cell. See Fig. 17. Be
careful to avoid damaging the spring connector or other
parts of the cell.
2. Hold the opposite eyelet with a needlenose pliers and
stretch the wire the length of the cell. Depress the
opposite spring connector and hook the eyelet over it.
68-0074—911
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
REPLACING AN IONIZER WIRE.
SPRING
CONNECTORS
PRESS
DOWN
IONIZER
WIRE
M1540B
IONIZER
WIRE
NEEDLENOSE
PLIERS
TWO EYELETS HOLD IONIZER WIRE TO CELL.
1
EYELETS
1
Fig. 17. Install new ionizer wire by hooking eyelets over
spring connectors.
Tools and Equipment
Troubleshooting the electronic air cleaner requires only a
couple of tools:
• Needlenose pliers (for stringing ionizer wires).
• Ohmmeter with 25 kVdc probe (Fluke model 80K -40 H.V.
or equivalent). See Fig. 21.
Troubleshooting Procedure
CAUTION
Electric Shock Hazard.
Can cause personal injury.
The Electronic Air Cleaner troubleshooting procedures,
Fig. 18 and 19, show how to quickly isolate a problem in the
air cleaner. Although a meter is needed for some steps, the
primary diagnostic tools are the neon light and the FAULT
indicator (on air cleaners with W8600F).
The solid state power supply assembly provided in this air
cleaner has no field-serviceable components. If
troubleshooting indicates a power supply assembly problem,
replace the entire power supply assembly. See Parts List
section for order number.
Neon Light
The neon light is visible through the door. It is powered by the
high voltage portion of the power supply. When on, it indicates
that the air cleaner is powered, the power supply is working
properly and air is flowing in the system. The neon light will
not be on if air is not flowing through the air cleaner.
FAULT Indicator (Air Cleaners with W8600F)
The FAULT indicator is on the W8600F. It activates to indicate
any of the following problems: excessive dirt loading, partial
shorting of the collector, continuous ionizer or collector arcing,
power supply failure, excessive ionizer current, or any
condition causing a major reduction in high voltage.
ELECTRICAL TROUBLESHOOTING
WARNING
Electric Shock Hazard.
Can cause personal injury or
equipment damage.
The following procedures expose hazardous live parts.
Disconnect power supply between checks and
proceed carefully.
IMPORTANT
68-0074—9
The following instructions are for use by qualified
personnel only.
12
MAKE SURE ELECTRONIC
CELLS ARE CLEAN, DRY
AND PROPERLY INSTALLED.
MAKE SURE PREFILTER IS
CLEAN, DRY AND
PROPERLY INSTALLED.
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
TURN ON ELECTRONIC AIR
CLEANER AND SYSTEM FAN.
CHECK NEON LIGHT.
ON
AIR CLEANER IS OK.
ELECTRONIC COMPONENTS ON POWER SUPPLY
1
BOARD ARE NOT FIELD REPLACEABLE.
OFF
CHECK CELLS FOR:
– BENT COLLECTOR PLATES
– BROKEN IONIZER WIRES
– DIRT ON INSULATORS
– DAMAGED IONIZER OR
COLLECTOR CONTACT
TABS
YES
REPAIR OR
REPLACE
CELLS
WITH OHMMETER, CHECK
FOR SHORT BETWEEN:
– CELL FRAME AND IONIZER
TERMINAL BOARD
– CELL FRAME AND
COLLECTOR TERMINAL
BOARD
REPLACE CELL.
NO
CELL
SHORTED
CELL OK.
INFINITE
RESISTANCE
WARNING!
THIS STEP EXPOSES
DANGEROUSLY HIGH VOLTAGE.
ONLY A QUALIFIED SERVICE
TECHNICIAN SHOULD
ATTEMPT THIS STEP.
REMOVE POWER SUPPLY
ENCLOSURE, ACTIVATE
INTERLOCK SWITCH.
CHECK FOR CORRECT INPUT
VOLTAGE ACROSS:
120V MODELS: P1 AND P2
TERMINALS ON POWER
SUPPLY.
220/240V MODELS:
QUICK CONNECT TERMINALS
ON POWER SUPPLY
TRANSFORMER.
FIX
WIRING
NO
SHORT AIRFLOW SWITCH DISABLE
JUMPER TO GROUND. POWER
SUPPLY FUNCTIONS NORMALLY.
REPLACE AIRFLOW SWITCH
YES
YES
REPLACE
POWER
SUPPLY
M7815B
Fig. 18. Electrical troubleshooting procedure for F52F Electronic Air Cleaners without a W8600F.
NO
1
68-0074—913
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
START
MAKE SURE ELECTRONIC
CELL(S) ARE CLEAN, DRY
AND PROPERLY INSTALLED.
MAKE SURE PREFILTER(S)
ARE IN CABINET SLOT
FARTHEST FROM FURNACE.
TURN ON ELECTRONIC AIR
CLEANER AND SYSTEM
FAN.
CHECK NEON LIGHT.
CORRECT
WIRING.
WIRING
NOT OK
CHECK WIRING BETWEEN
W8600F AND AIR CLEANER.
USE MAX NO. 18 3-WIRE
THERMOSTAT CABLE
CONNECTED 1(G) TO 1(G),
3(R) TO 3(R), AND 4(B)
TO 4(B).
WIRING OK
CHECK W8600F BATTERY
LESS THAN
3 Vdc
REPLACE W8600F
BATTERY
TYPE BR2082
CHECK W8600F PER
INSTRUCTIONS PACKED
WITH UNIT. OK?
NO
REPLACE W8600F
1
FOR POWER SUPPLY REPLACEMENT, SEE FORM 69-1136.
2
W8600F HAS A LCD DISPLAY WITH FOUR INDICATORS: ON,
BATTERY, SERVICE, FAULT.
3
W8600F OPERATION CAN BE CHECKED SEPARATELY.
SEE W8600F INSTRUCTIONS.
3 Vdc
OR MORE
PUSH TEST BUTTON AND
LISTEN FOR SNAPPING
SOUND.
OFF
CHECK ON INDICATOR
ON W8600F
OFF
DEPRESS AND HOLD DOWN
TEST BUTTON. FAULT
INDICATOR ON W8600F
SHOULD COME ON
ELECTRONIC AIR CLEANER
AND W8600F ARE OK.
YES
ON
ON
YES
ON
TO USE THIS CHART:
1.
FOLLOW THE STEPS IN ORDER; DO NOT SKIP AROUND.
2.
EACH TIME YOU ISOLATE AND FIX A PROBLEM, GO BACK TO START.
3.
REPEAT ALL THE STEPS UNTIL THE AIR CLEANER CHECKS OUT OK.
WARNING
THESE SERVICING INSTRUCTIONS ARE FOR USE BY QUALIFIED PERSONNEL
ONLY. TO REDUCE RISK OF ELECTRIC SHOCK, DO NOT PERFORM ANY
SERVICING OTHER THAN CONTAINED IN THE OPERATING INSTRUCTIONS
UNLESS YOU ARE QUALIFIED TO DO SO.
PUSH TEST BUTTON
OFF
AND LISTEN FOR
SNAPPING SOUND.
NO
NO
TURN OFF AIR CLEANER
AND REMOVE CELL(S)
ONLY (NOT PREFILTERS).
CLOSE ACCESS DOOR
AND TURN ON
2
2
AIR CLEANER.
CHECK NEON LIGHT.
ON
INSPECT CELL(S) FOR:
BENT COLLECTOR
•
PLATES
BROKEN IONIZER
•
WIRES
DIRT ON INSULATORS
•
DAMAGED IONIZER
•
OR COLLECTOR
CONTACT TABS
YES
REPAIR OR
REPLACE
CELL(S).
WITH OHMMETER,
CHECK FOR SHORT
BETWEEN:
••CELL FRAME AND
IONIZER SECTION
CELL FRAME AND
COLLECTOR SECTION
CELL
SHORTED
REPLACE
CELL.
CELL OK.
RISK OF ELECTRIC SHOCK
YES
REPLACE LIGHT ASSEMBLY.
OFF
NO
INFINITE
RESISTANCE
WARNING
THIS STEP EXPOSES
DANGEROUSLY HIGH
VOLTAGE. ONLY A
QUALIFIED SERVICE
TECHNICIAN SHOULD
ATTEMPT THIS STEP.
REMOVE POWER BOX COVER.
CHECK FOR CORRECT INPUT
VOLTAGE ACROSS:
120V MODELS: P1 AND P2
TERMINALS ON POWER
SUPPLY.
220/240V MODELS:
QUICK CONNECT TERMINALS
ON POWER SUPPLY
TRANSFORMER.
NO
FIX
WIRING.
SHORT AIRFLOW SWITCH
DISABLE JUMPER TO GROUND.
POWER SUPPLY FUNCTIONS
NORMALLY.
YES
REPLACE
AIRFLOW
SWITCH.
YES
NO
REPLACE
POWER
SUPPLY.
M11979
1
68-0074—9
Fig. 19. Electrical troubleshooting procedure for F52F Electronic Air Cleaners with a W8600F.
14
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
BLACK COLLECTOR
BLACK
TEST
BUTTON
CONTACT
BOARD
RED IONIZER
BLACK
5
BLACK
P3
P4
POWER
J4
SUPPLY
RED
2
4
B4
RED
R3
Y2
GREEN
G1
1 INTERLOCK SWITCH.
2 SHORTING BAR.
3 AIRFLOW SWITCH DISABLE JUMPER.
4 OPTIONAL W8600F AIR CLEANER MONITOR. DRIVER
BOARD AND CABLE PROVIDED WITH W8600F.
5 NEON LIGHT.
6
5
2
4
BLUE
J1
J2
J5
J3
J1
Fig. 20. Schematic for F52F with W8600F.
COLLECTOR
TERMINAL
IONIZER
TERMINAL
COLLECTOR
TERMINAL
P2
P1
BLACK
ORANGE
GRAY
VIOLET
BLACK
W4 W2 W1 W3
3
AIRFLOW SWITCH BOARD
Reducing Ozone Odor
BROWN
1
BLACK
BLACK
BLACK
WHITE
M11975
GREEN
CAUTION
Electric Shock Hazard.
Can cause personal injury.
Always disconnect power before working on power
supply.
M6155
Fig. 21. Use an ohmmeter to check electronic cell(s)
for short circuits.
IMPORTANT
Only a trained service technician should perform the
following procedure.
The electronic air cleaner generates a small amount of ozone
in normal operation. During the first week or two of operation,
the amount can be higher because of sharp edges on some
of the new high voltage metal parts. Normal use dulls these
edges in a short time.
The average person can detect the odor of ozone in
concentrations as low as 0.003 to 0.010 parts per million
(ppm). The electronic air cleaner contributes 0.005 to
0.010 ppm of ozone to the indoor air. The U.S. Food and Drug
Administration, and Health and Welfare Canada recommend
that indoor ozone concentration should not exceed 0.050
ppm. As a comparison, the
outdoor
ozone level in major cities
is sometimes as high as 0.100 ppm.
68-0074—915
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
However, if desired, the ozone generated by the air cleaner
can be reduced by moving J5 on the power supply. This
reduces ozone production about 20 to 25 percent and
reduces efficiency about 7 to 10 percent, depending on actual
airflow delivered by the furnace blower.
To Reduce Ozone Odor
1. Open the air cleaner door, turn off the power to the air
cleaner, and remove the cell(s).
2. Remove the power supply enclosure.
3. Find J5 and move it. See Fig. 22.
4. Replace the power supply enclosure.
5. Replace the cell(s), turn on the power, and close the air
cleaner door.
P3
P4
J4
J5
J3
J1
P2
P1
M10609
Fig. 22. Move J5 shorting bar to reduce ozone production
about 20 to 25 percent.
68-0074—9
16
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
EXPLODED VIEW
1
ONE-CELL MODEL
12
5
4
2
5
6
10
4
7
13
14
TWO-CELL MODEL
3
9
8
10
11
6
7
9
3
8
1
13
2
12
11
14
M11987
Fig. 23. F52F part numbers correspond with Parts List.
68-0074—917
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
PARTS LIST
Part Number
Item
Number
1 Prefilter 208536 208537 208536 208537
2 Door/Grille (Egg Crate) 32001438-004 32001438-005 32001438-004 32001438-005
3 Electronic Cell FC37A1171 FC37A1171 (2) FC37A1171 FC37A1171 (2)
4 Air Flow Switch 4074ETH 4074ETH 4074ETH 4074ETH
5 Power Supply Enclosure 208541 208542 208541 208542
6 Cell Contact Board 4074EHG 4074EHG (2) 4074EHG 4074EHG (2)
7 Cabinet Contact Board 190912A 190912A (2) 190912A 190912A (2)
8 On/Off Switch 203321 203321 203321 203321
9 Interlock Switch 208543 208543 208544 (2) 208544 (2)
10 Power Supply 208416AB 208416AA 208416W 208416Y
11 Hex Nut for Door Hinge 208545 (2) 208545 (3) 208545 (2) 208545 (3)
12 Metal Cell Hook 196123 (2) 196123 (4) 196123 (2) 196123 (4)
13 Neon Lamp Assembly 4074ETE 4074ETE 4074ETE 4074ETE
Description 1-Cell 2-Cell 1-Cell 2-Cell
120 Vac Model 220/240 Vac Model
Parts and Accessories Not Illustrated
Part Number
Description 120 Vac Model 220/240 Vac Model
Cell Handle 137266 137266
Ionizer Wires (Must be ordered in multiples of 5.) 136434AA (9/cell) 136434AA (9/cell)
Air Cleaner Monitors (beige color) W8600F1006 W8600F1006
Premier White® Air Cleaner Monitor W8600F1014 W8600F1014
68-0074—9
18
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
68-0074—919
F52F RETURN GRILLE ELECTRONIC AIR CLEANER
Home and Building Control
Honeywell Inc.
Honeywell Plaza
P.O. Box 524
Minneapolis MN 55408-0524
Honeywell Latin American Region
480 Sawgrass Corporate Parkway
Suite 200
Sunrise FL 33325
68-0074—9
68-0074—9 J.H. Rev. 5-98
Home and Building Control
Honeywell Limited-Honeywell Limitée
155 Gordon Baker Road
North York, Ontario
M2H 3N7
Honeywell Europe S.A.
3 Avenue du Bourget
1140 Brussels
Belgium
Printed in U.S.A. on recycled
paper containing at least 10%
post-consumer paper fibers.
20
Honeywell Asia Pacific Inc.
Room 3213-3225
Sun Hung Kai Centre
No. 30 Harbour Road
Wanchai
Hong Kong
www.honeywell.com
Loading...
