Honeywell Activ8 PIR, 8IR103 Installation Instructions Manual

PRODUCT DESCRIPTION

The Activ8 PIR detect

or uses a special

designed optical Lens with unique Quad

(Four element) PIR Sensor and new ASIC

based electronics optimized

to eliminate false

alarms, caused by small animals and Pets.

8IR103

PIR MOTION DETECTOR

With PET IMMUNITY up to 25Kg

INSTALLATION INSTRUCTIONS

English

P/N 7101507 REV. B A.Y.

The Activ8 PIR provides unprecedented
levels of immunity ag

ainst visible light.

The Detector offers an exceptional level of

detection capability and stability for every

security installation.

The Activ8 PIR is supplied with Wide Angle

lens.

The Activ8 PIR provides Pet immunity up
to 25Kg (55 lbs). For better immunity
avoid installation in areas where pets can
reach upwards.

Activ8 PIR FEATURES

DETECTION PATTERN

TYPICAL INSTALLATION

SELECT MOUNTING LOCATION

FEATURES

Choose a location most likely to intercept an
intruder. See detection pattern. The Quad high
quality sensor detects

motion crossing the beam;

it is less sensitive det

ecting motion towards the

detector.

Quad Linear Imaging Technology for
sharp analysis of body dimensions and
differentiation from background and
animals.
New ASIC based electronics.

The Activ8 PIR performs best when provided
with a constant and stable environment.

Immunity to animals up to 25kg (55 lbs).
18m Detection Range with Wide Angle
Lens.

AVOID THE FOLLOWING LOCATIONS

Temperature compensation.

Facing direct sunlight.

Compact Design for Residential
Installation.

Facing areas subject to rapid
temperature changes.

Variable pulse width adjustment.

Areas with air ducts

or substantial air

flows.

Sensitivity adjustment.

Environmental immunity.
Height installation calibration
free (1.8m – 2.4m).

LED Remote function.

REMOVAL OF FRONT COVER

MOUNTING THE DETECTOR

1. To remove the front cover, unscrew the holding
screw and gently raise the front cover.

KNOCKOUT HOLES

2. To remove the PC board, carefully unscrew the
holding screw located on the PC board.

3. Break out the des

ired holes for proper

installation.

4. The circular and rectangul

ar indentations at the

bottom base are the kno

ckout holes for wire

entry. You may also us

e mounting holes that
are not in use for running the wiring into the
detector.(For option with bracket - lead wire
through the bracket)

5. Mount the detec

tor base to the wall, corner or

ceiling. (For option with

bracket install bracket).

6. Reinstall the PC board by fully tightening the
holding screw. Connect wire

to terminal block.

7. Replace the cover by inserting it back in the
appropriate closing pins and screw in the holding
screw.

A. Wire access

holes

A

A

D

B. Use for flat

wall
mounting

A
B

C

C

B

C. Corner

mounting ­use all 4
holes. Sharp
left or right
angle
mounting ­use 2 holes
(top and
bottom)

C C

B

B

D. For bracket

mounting

Unscrew the holding

screw and open base

DETECTOR INSTALLATION

PCB LAYOUT

TERMINAL BLOCK CONNECTIONS

Terminals 4 & 5 - Marked RELAY

These are the output re

lay contacts of the

detector. Connect to a

normally closed zone in

the control panel.

Terminal 7 - Marked + (+12V)

Terminals 1 & 6 - Marked EOL

End of line

option.

Connect to a positive Vo

ltage output of 8.2 -

16Vdc source (usually

from the alarm control

unit)

Terminals 2 & 3 - Marked TAMPER

If a Tamper function is

required connect these
terminals to a 24-hour normally closed protective
zone in the control unit. If the front cover of the
detector is opened, an immediate alarm signal will
be sent to the control unit.

Terminal 8 - Marked - (GND)

Connect to the negative

Voltage output or ground

of the control panel.

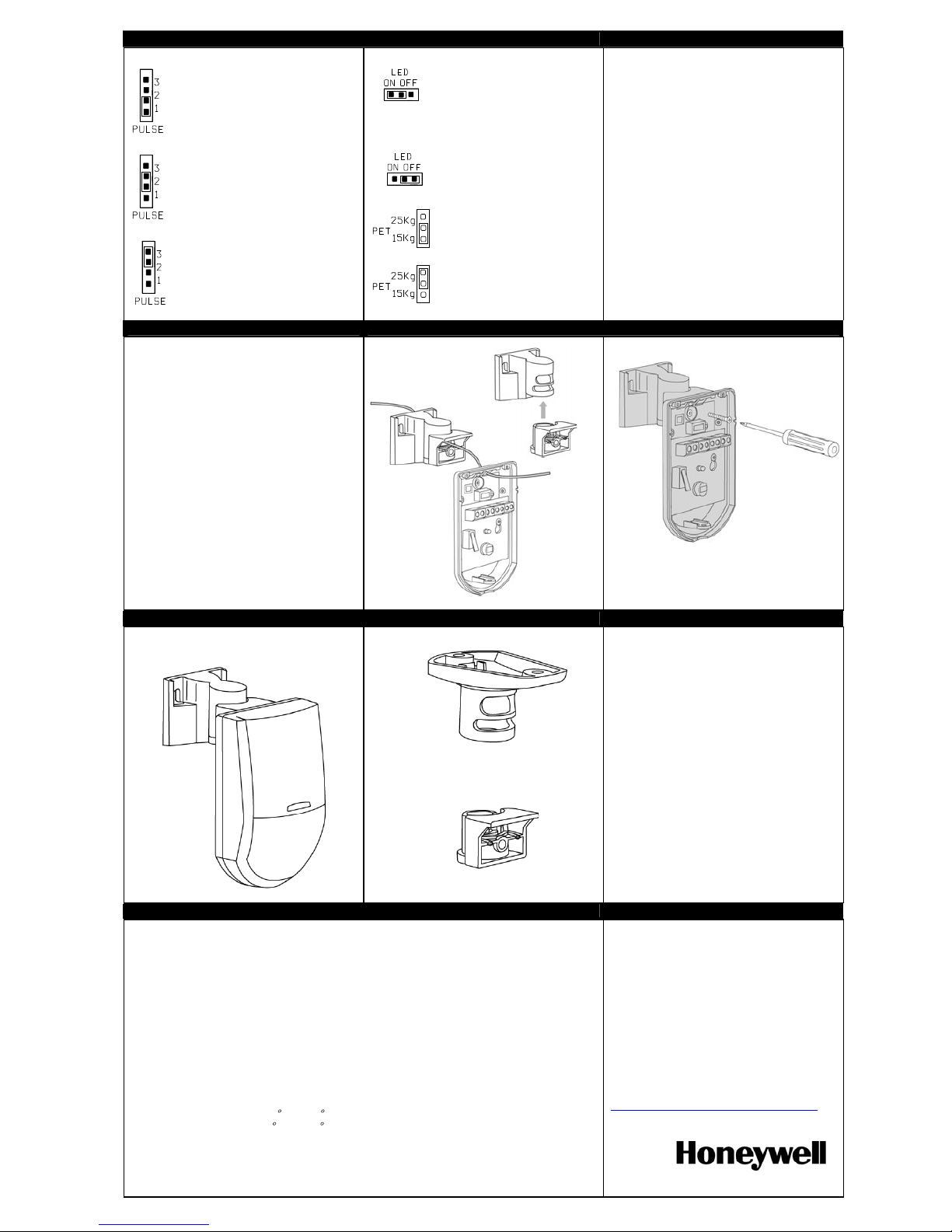

SETTING-UP THE DETECTOR

LED ENABLE JUMPER SETTING

PULSE WIDTH JUMPER SETTING

PIR SENSITIVITY ADJUSTMENT

PET IMMUNITY JUMPER SETTING

POTENTIOMETER

adjustment according to

protected area range.

Use the potentiometer to

adjust the detection
range between 68% and 100% (factory set to
84%). Rotate the potentiometer clockwise to
increase range, counter-c

lockwise to decrease

range.

WIRE SIZE REQUIREMENTS

Use #22 AWG (0.5 mm) or wires with a larger
diameter. Use the following table to determine
required wire gauge (diameter) and length of
wire between the detecto

r and the control panel.

Wire Length m 200 300 400 800
Wire Diameter mm .5 .75 1.0 1.5
Wire Length ft. 800 1200 2000 3400

Wire Gauge # 22 20 18 16

Very stable environment

LED ON

Jumper #1 = ON
Without PET

Moderate nuisance situation

LED OFF

Jumper #2 = ON
PET up to 15 kg (33.1 lb)

Immunity to an
animal up to 15 kg

Relatively high chance of false
alarms
Jumper #3 = ON

Immunity to an
animal up to 25 kg

PET up to 25 kg (55 lb)

TESTING

BRACKET INSTALLATION OPTION

TEST PROCEDURES

WAIT FOR ONE MINUTE OF WARM UP TIME
AFTER APPLYING 12 VDC POWER.
CONDUCT TESTING WITH THE PROTECTED
AREA CLEARED OF ALL PEOPLE.

Walk test

1. Remove front cover.
The pulse jumper must be in position 1. The
LED must be enabled.

2. Replace the front cover.

3. Start walking slowly

across the detection zone.

4. Observe that the detector

s LED lights

whenever motion is detected.

5. Allow 5 sec. between eac

h test for the detector

to stabilize.

6. After the walk test is

completed, the LED may

be disabled.

NOTE:
Walk tests should be conduc

ted, at least once a
year, to confirm proper operation and coverage of
the detector.

WALL AND CEILING INSTALLATION OPTIONS

REPLACING THE LENS

1. Remove the front cover.

2. Using a small flat screwdriver, press on left
and right snaps of the

lens and pull the lens

out from its place (front cover side).

3. Replace a new lens.

4. Push the lens to its place by pressing again
from outside of the front

cover until a click is

heard.

5. Replace front cover.

TECHNICAL SPECIFICATION

MODEL Activ8 PIR
Detection Method Quad (Four element) PIR
Power Input 7.8 to 16 VDC
Current Draw Standby: 8mA (±

5%)

Active: 10mA (±

5%)

Temperature

Honeywell Security & Communications
(UK64)Newhouse Industrial Estate

Compensation YES
Pulse Width Adjustable

Motherwell

Alarm Period 2 sec (±

0.5sec)

Lanarkshire

Alarm Output N.C

28VDC 0.1 A with 27Ohm series protection resistor

ML1 5SB

Tamper Switch

N.C 28VDC 0.1A with

Tel [phone]

10 Ohm series protection resistor - open when cover is

removed

Fax [phone]

Warm Up Period 60sec (± 5sec)

Tech Support: [phone]

LED Indicator LED is ON during alarm
Operating Temperature -20

C to +60

C

(-4

F to +140

F)
RFI Protection 30V/m 10 - 1000MHz
EMI Protection 50,000V

of electrical interference fr

om lightning or power through

Dimensions 90mm x 59mm x 37mm

(3.54 x 2.32 x 1.46 )

Weight

40gr (1.4oz)
