Honeywell 70ELGN, 70ELG0, 70EL00 User Guide

Download

Preliminary Draft 5/26/13, Not for Release

Dolphin™ 70e Black

with Windows® Embedded Handheld 6.5

User’s Guide

Preliminary Draft 5/26/13, Not for Release

Disclaimer

Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of HII.

HII shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of HII.

Web Address: www.honeywellaidc.com

Trademarks

Dolphin is a trademark or registered trademark of Hand Held Products, Inc. in the United States and/or other countries.

Microsoft, Windows, Windows Mobile, Windows Phone, Windows Embedded Handheld, Windows CE, Windows 98 Second Edition, Windows NT, Windows 2000, Windows ME, Windows XP, Windows 7, Windows Vista, ActiveSync, Outlook, and the Windows logo are trademarks or registered trademarks of Microsoft Corporation.

The Bluetooth trademarks are owned by Bluetooth SIG, Inc., U.S.A. and licensed to Honeywell. Other product names mentioned in this manual may be trademarks or registered trademarks of their

respective companies and are the property of their respective owners.

Patents

For patent information, please refer to www.honeywellaidc.com/patents.

Preliminary Draft 5/26/13, Not for Release

Table of Contents

Chapter 1 - Dolphin 70e Black Terminal Agency Information

Label Locations....................................................................................................................1-1

Model Number, Serial Number and IMEI Labels............................................................1-1

LED Safety...........................................................................................................................1-1

LED Safety Statement....................................................................................................1-1

UL and C-UL Statement.......................................................................................................1-2

Approvals by Country...........................................................................................................1-2

R&TTE Compliance Statement—802.11a/b/g/n, Bluetooth, and/or GSM............................1-2

FCC Requirements ..............................................................................................................1-3

Dolphin RF Terminal—802.11a/b/g/n, Bluetooth, and/or GSM ......................................1-3

Canadian Compliance..........................................................................................................1-3

Conformité à la règlementation canadienne ..................................................................1-4

RF Exposure Information (SAR) ..........................................................................................1-4

For European Community Users .........................................................................................1-5

Waste Electrical and Electronic Equipment Information ......................................................1-5

China RoHS .........................................................................................................................1-5

Pacemakers, Hearing Aids and Other Electrically Powered Devices ..................................1-6

Hearing Aid Compatibility (HAC)..........................................................................................1-6

Microwaves ..........................................................................................................................1-6

Chapter 2 - Getting Started

Out of the Box ......................................................................................................................2-1

Initial Setup for Dolphin 70e Black Terminals ......................................................................2-1

Using the USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT) ..........2-2

The Home Screen................................................................................................................2-4

Title Bar..........................................................................................................................2-4

Icons in the Title Bar ......................................................................................................2-5

Horizontal Scroll .............................................................................................................2-7

Tile Bar...........................................................................................................................2-7

Virtual Keyboard.............................................................................................................2-8

The Start Menu ....................................................................................................................2-9

Navigating the Start Menu..............................................................................................2-9

Pop-Up Menus .....................................................................................................................2-9

File Explorer.......................................................................................................................2-10

File Provisioning on the Dolphin 70e Black........................................................................2-11

Search................................................................................................................................2-11

Turning Power On/Off ........................................................................................................2-12

Suspend Mode .............................................................................................................2-12

Replacing the Main Battery................................................................................................2-12

Resetting the Terminal.......................................................................................................2-13

Chapter 3 - Hardware Overview

Standard Configurations for the Dolphin 70e Black .............................................................3-1

Peripherals for the Dolphin 70e Black..................................................................................3-2

Accessories for the Dolphin 70e Black ................................................................................3-3

iii

Preliminary Draft 5/26/13, Not for Release

Features of the Dolphin 70e Black ...................................................................................... 3-4

Front, Bottom, and Right Panels.................................................................................... 3-4

Feature Descriptions: Front, Bottom, and Right Panels ................................................3-5

Back, Top, and Left Panels............................................................................................ 3-7

Feature Descriptions: Back, Top, and Left Panels ........................................................3-8

The I/O Connector ............................................................................................................. 3-10

Batteries ............................................................................................................................ 3-10

Charging Options......................................................................................................... 3-11

Charging Time ............................................................................................................. 3-11

Important Charging Guidelines.................................................................................... 3-11

Battery Error Notification.............................................................................................. 3-12

Storing Batteries .......................................................................................................... 3-13

Guidelines for Battery Pack Use and Disposal............................................................ 3-13

Managing Battery Power .............................................................................................3-14

Checking Battery Power .............................................................................................. 3-14

System Resets .................................................................................................................. 3-15

Hardware Maintenance ..................................................................................................... 3-15

When needed, clean the image engine window and the touch screen with a clean, non-abra-

sive, lint-free cloth. The terminal can be cleaned with a damp cloth...................... 3-15

Installing a SIM Card and/or Memory Card ....................................................................... 3-15

Chapter 4 - Using the Scan Image Engine

Overview.............................................................................................................................. 4-1

LED Safety ..........................................................................................................................4-1

Image Engine Specifications ............................................................................................... 4-1

Field of View .................................................................................................................. 4-1

Depth of Field ................................................................................................................4-1

Supported Bar Code Symbologies ..................................................................................... 4-2

Decoding ............................................................................................................................. 4-3

Using the Scan Demo to Decode a Bar Code ............................................................... 4-3

The Aiming Beam .......................................................................................................... 4-3

Capturing Images Using the Imaging Demo........................................................................ 4-4

Taking an Image............................................................................................................ 4-5

Uploading Images.......................................................................................................... 4-5

Chapter 5 - Using the Color Camera

Overview.............................................................................................................................. 5-1

Taking a picture using the Camera Demo tool .................................................................... 5-1

Taking a picture using the Windows Embedded Handheld 6.5 Camera tool ...................... 5-4

Recording Video .................................................................................................................. 5-6

Uploading Pictures and Videos ........................................................................................... 5-6

Chapter 6 - System Settings

Overview.............................................................................................................................. 6-1

Clock & Alarms .................................................................................................................... 6-2

Lock ..................................................................................................................................... 6-3

Preliminary Draft 5/26/13, Not for Release

Personal Menu .................................................................................................................... 6-4

Buttons........................................................................................................................... 6-5

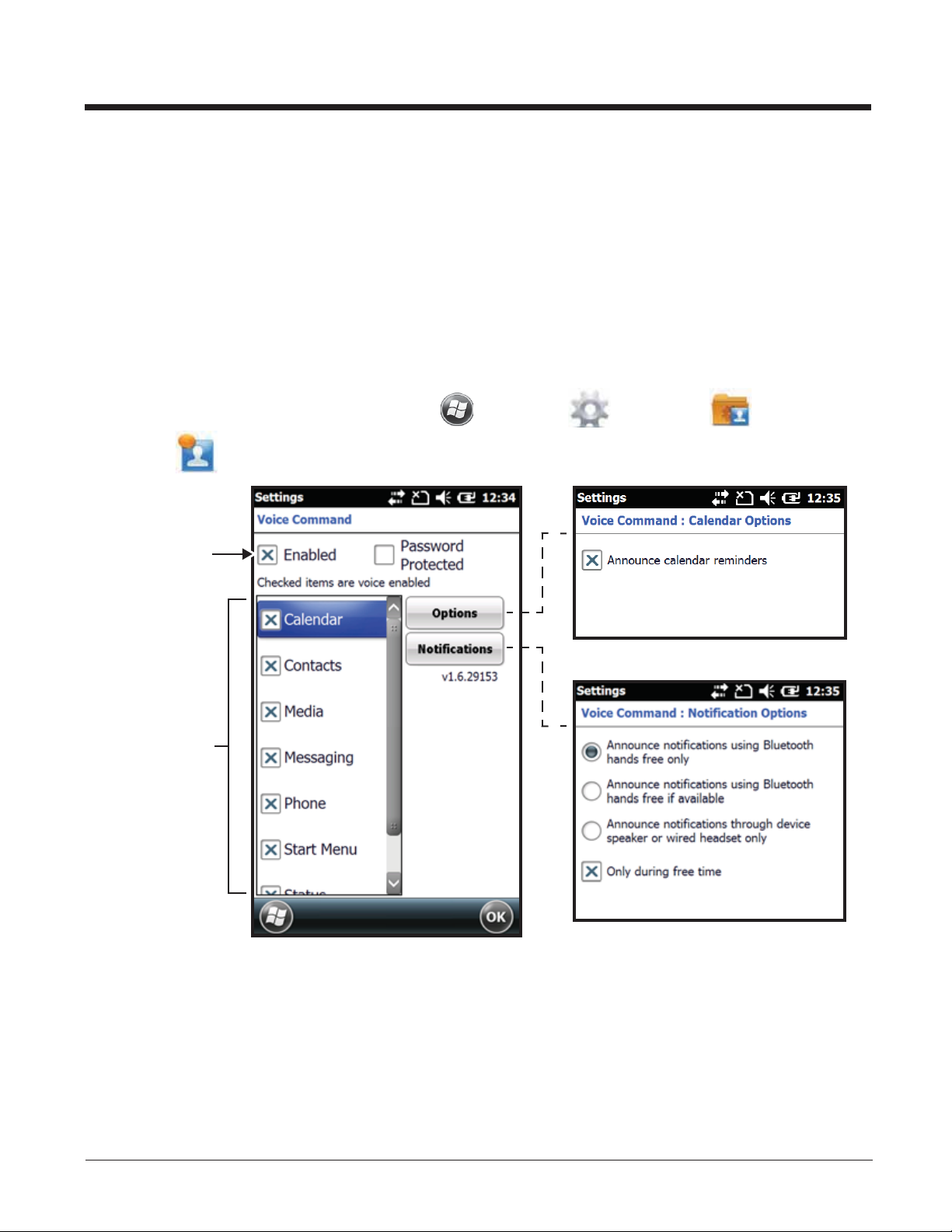

Voice Command ............................................................................................................ 6-8

System Menu....................................................................................................................... 6-9

About ...........................................................................................................................6-11

Audio Panel .................................................................................................................6-11

Backlight ...................................................................................................................... 6-12

Battery .........................................................................................................................6-14

Certificates................................................................................................................... 6-16

Encryption.................................................................................................................... 6-16

Error Reporting ............................................................................................................ 6-17

External GPS............................................................................................................... 6-17

HSM SystemInfo.......................................................................................................... 6-17

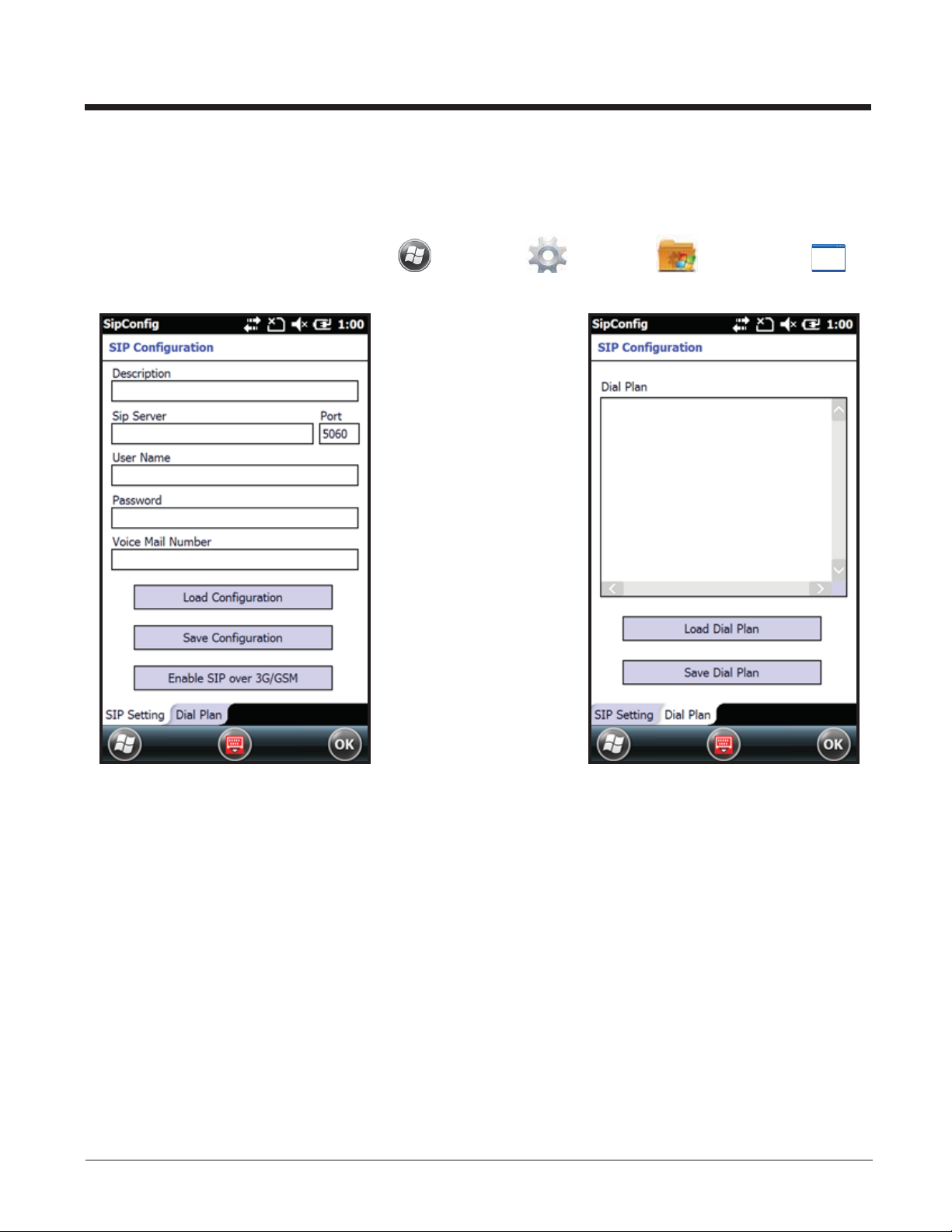

SIP Config.................................................................................................................... 6-18

Smart Sensor............................................................................................................... 6-19

Proximity Sensor Settings............................................................................................ 6-21

Managed Programs ..................................................................................................... 6-22

Memory........................................................................................................................ 6-22

Power...........................................................................................................................6-23

Regional Settings......................................................................................................... 6-24

Remove Programs....................................................................................................... 6-25

RIL ............................................................................................................................... 6-26

Screen .........................................................................................................................6-26

Task Manager.............................................................................................................. 6-27

Chapter 7 - Communication

Connections Menu............................................................................................................... 7-1

Connections Manager ......................................................................................................... 7-2

Dolphin Wireless Manager .................................................................................................. 7-5

Dolphin Wireless Manager Window............................................................................... 7-5

Enabling the Radios....................................................................................................... 7-6

Accessing Radio Configuration Utilities......................................................................... 7-7

USB to PC ........................................................................................................................... 7-8

Network Cards..................................................................................................................... 7-8

Connecting and Synchronizing the Terminal and Workstation............................................ 7-9

Installing Additional Software ............................................................................................ 7-11

Adding Programs Using ActiveSync or Windows Mobile Device Center..................... 7-11

Connecting the Terminal to a Wireless Network.......................................................... 7-12

Adding Programs Using the Internet............................................................................ 7-12

Software Upgrades............................................................................................................ 7-13

Dolphin 70e Black COM Port Assignment Table............................................................... 7-13

Preliminary Draft 5/26/13, Not for Release

Chapter 8 - Working with Wireless Wide Area Networking (WWAN)

Overview.............................................................................................................................. 8-1

Requirements ................................................................................................................8-1

Antenna Band................................................................................................................ 8-1

Signal Strength .............................................................................................................. 8-2

Voice and Data Communication .................................................................................... 8-2

Enabling the WWAN Radio ................................................................................................. 8-3

Voice Communication, Using the Dolphin as a Phone ........................................................ 8-4

Audio Modes.................................................................................................................. 8-4

Volume Control.............................................................................................................. 8-4

Accessing the Dialer Window ........................................................................................ 8-5

Dialing............................................................................................................................ 8-5

Sending Calls................................................................................................................. 8-5

Ending Calls................................................................................................................... 8-6

Accessing Voice Mail..................................................................................................... 8-6

View Options.................................................................................................................. 8-6

Phone Setup Options..................................................................................................... 8-6

Data Communication ........................................................................................................... 8-8

System Requirements ...................................................................................................8-8

Information Requirements .............................................................................................8-8

Establishing Data Communication................................................................................. 8-8

Manual Network Selection........................................................................................... 8-10

Data Communication GSM/CDMA .................................................................................... 8-11

Dolphin Connection Manager ...................................................................................... 8-11

Establishing Data Communication............................................................................... 8-14

Chapter 9 - Working with the Bluetooth Radio

Enabling the Bluetooth Radio .............................................................................................. 9-1

Pairing and Trusted Devices ............................................................................................... 9-2

Connecting to Other Bluetooth Devices .............................................................................. 9-2

Transferring Files using Beam File...................................................................................... 9-5

Making the Terminal Discoverable ...................................................................................... 9-6

Enabling the Terminal to Receive Incoming Beams............................................................ 9-6

Selecting COM Ports ........................................................................................................... 9-6

Chapter 10 - Working with GPS

Overview............................................................................................................................ 10-1

Assisted GPS Support....................................................................................................... 10-1

Powering the GPS Module ................................................................................................ 10-1

Communication Ports ........................................................................................................ 10-1

COM7 ..........................................................................................................................10-1

GPS Intermediate Driver.............................................................................................. 10-2

GPS Demo ........................................................................................................................ 10-2

Preliminary Draft 5/26/13, Not for Release

Chapter 11 - Dolphin 70e Black HomeBase Device (Model 70e-HB)

Overview............................................................................................................................ 11-1

Unpacking the HomeBase........................................................................................... 11-1

Charging Overview ...................................................................................................... 11-1

Communications.......................................................................................................... 11-1

Convenient Storage..................................................................................................... 11-2

Capacity....................................................................................................................... 11-2

Dimensions.................................................................................................................. 11-2

Weight..........................................................................................................................11-2

Parts and Functions........................................................................................................... 11-3

Front Panel ................................................................................................................. 11-3

Back Panel .................................................................................................................. 11-4

Bottom Panel ............................................................................................................... 11-5

Power ................................................................................................................................ 11-5

Connecting Power to the HomeBase........................................................................... 11-5

Charging the Main Battery................................................................................................. 11-6

To Power a Terminal and Charge its Main Battery...................................................... 11-6

Charging a Spare Battery in the Auxiliary Battery Well ...............................................11-6

Communication.................................................................................................................. 11-7

Requirements ..............................................................................................................11-7

Setting Up and Connecting the Dolphin Terminal to the HomeBase........................... 11-7

Mounting the HomeBase ................................................................................................... 11-7

Desk Mounting............................................................................................................. 11-7

Chapter 12 - Dolphin 70e Black Mobile Base Device (Model 70e-MB)

Overview............................................................................................................................ 12-1

Charging Overview ...................................................................................................... 12-1

Convenient Storage..................................................................................................... 12-1

Dimensions.................................................................................................................. 12-1

Weight..........................................................................................................................12-1

Mobile Base Components ................................................................................................ 12-2

Mounting the Mobile Base ................................................................................................. 12-3

Safety Precautions....................................................................................................... 12-3

Installation....................................................................................................................12-3

Charging the Main Battery................................................................................................. 12-4

To Power a Terminal and Charge its Main Battery...................................................... 12-5

Removing the Cable .................................................................................................... 12-5

Chapter 13 - Dolphin 70e Black ChargeBase Device (Model 70e-CB)

Overview............................................................................................................................ 13-1

Unpacking the ChargeBase......................................................................................... 13-1

Charging Overview ...................................................................................................... 13-1

Convenient Storage..................................................................................................... 13-1

Capacity....................................................................................................................... 13-1

Dimensions.................................................................................................................. 13-2

Weight..........................................................................................................................13-2

vii

Preliminary Draft 5/26/13, Not for Release

Parts and Functions........................................................................................................... 13-2

Front Panel .................................................................................................................. 13-2

Back Panel................................................................................................................... 13-3

Bottom Panel ............................................................................................................... 13-3

Power ................................................................................................................................ 13-3

Connecting Power to the ChargeBase .......................................................................13-4

Charging the Main Battery................................................................................................. 13-4

To Power a Terminal and Charge its Main Battery...................................................... 13-4

Mounting the ChargeBase................................................................................................. 13-5

Chapter 14 - Customer Support

Product Service and Repair............................................................................................... 14-1

Technical Assistance......................................................................................................... 14-1

Warranty Disclaimer: Proper Use of a Touch Screen Mobile Device ................................ 14-1

Limited Warranty ............................................................................................................... 14-1

How to Extend Your Warranty ..................................................................................... 14-3

viii

Preliminary Draft 5/26/13, Not for Release

Dolphin 70e Black Terminal Agency Information

Dolphin 70e Black mobile computers meet or exceed the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow. Read these guidelines carefully before using your Dolphin terminal.

This documentation is relevant for the following Dolphin models: 70eL00, 70eLGN, 70eLG0, 70eLW0 and 70eLWN.

CAUTION - Read the Guidelines for Battery Pack Use and Disposal on page 3-13 and all cautionary markings on the battery, charging peripheral, or device using the battery before attempting to install, use, or charge the battery. Risk of fire and burns if improperly handled. Do not open, crush, heat above 60°C

(140°F), or incinerate.

Label Locations

Back Panel of the terminal with the battery door and battery removed.

Compliance Labels and Marks

Model Number, Serial Number and IMEI Labels

The model (item) number, serial number, and international mobile equipment identity (IMEI) number for the terminal are located on labels affixed to the bottom of the battery well.

Warning! To prevent possible hearing damage, do not listen at high volume levels for long periods.

LED Safety

LED Safety Statement

LEDs have been tested and classified as “EXEMPT RISK GROUP” to the Standard: IEC 62471:2006.

Caution! Do not view directly with optical instruments.

1 - 1

Preliminary Draft 5/26/13, Not for Release

UL and C-UL Statement

UL and C-UL listed: UL60950-1 2nd Edition, and CSA C22.2 No. 60950-1-07 2nd Edition.

Underwriters Laboratories Inc. (UL) has not tested the performance or reliability of the global positioning system (GPS) hardware, GPS operating software or other GPS-related aspects of this product. UL has only tested for the explosion, fire, shock, and casualty hazards required by the applicable hazardous locations standards. UL certification does not cover the performance or reliability of the GPS hardware, GPS operating software, or other GPS-related aspects of this product. UL makes no representations, warranties, or certifications whatsoever regarding the performance or reliability of any GPS-related functions of this product.

Approvals by Country

Country EMC, Radio, & SAR Safety

U.S.A. FCC Part 15, Subpart B

Canada ICES-003 (Class B), RSS 132, RSS 133, RSS 210 CSA C22.2 No. 60950-1-07, 2nd Edition

European Community/CE

International IEC 60950-1 2nd Edition

FCC Part 15, Subpart C, 15.247 FCC Part 15, Subpart E FCC Part 22H, FCC Part 24E FCC SAR OET 65 Supplement C

EN 302 291-1&2: V1.1.1, EN 301 489-1: V1.9.2, EN 301 489-3: V1.4.1, EN 301 489-7: V1.3.1, EN 301 489-17: V2.2.1, EN 301 489-24: V1.5.1, EN 301 511: V9.0.2, EN 301 893: V1.6.1, EN 301 908-1&2: V5.2.1, EN 300 440-1: V1.6., EN 300 440-2: V1.4.1, EN 300 328: V1.7.1, EN 300 330-1: V1.7.1, EN 300 330-2: V1.5.1 EN 50360: 2001, EN 50360: 2001/AC:2006 EN 50364: 2010, EN 62209-1: 2010, IEC 62209-2: 2010

UL60950-1, 2nd Edition

EN 60950-1: 2006/A11:2009+A1:2010+A12:2011 EN 60825-1: 2007 (2nd Edition)

2006/95/EC - Low Voltage Directive

2011/65/EU-RoHS (recast)

IEC 60825-1 2nd Edition IEC 62471

R&TTE Compliance Statement—802.11a/b/g/n, Bluetooth, and/or GSM

Dolphin RF terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC).

This product is marked with according to article 12 of the R&TTE Directive. In addition, this product complies to 2006/95/EC Low Voltage Directive when supplied with the recommended power supply. Honeywell shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive.

The equipment is intended for use throughout the European Community; PAN European Frequency Range: 2.400–2.4835 GHz.

5Ghz band: UNII (Unlicensed National Information Infrastructure) or band1 (5.150 to 5.350 GHz) is restricted to indoor use only. Any other use will make the operation of the device illegal.

1 - 2

Preliminary Draft 5/26/13, Not for Release

High power radars are the primary users of 5250-5350 MHz and 5650-6850 MHZ bands. This may cause interference to Wireless Local Area Network devices.

European Contact:

Hand Held Products Europe B.V. Nijverheidsweg 9-13 5627 BT Eindhoven The Netherlands

FCC Requirements

Dolphin RF Terminal—802.11a/b/g/n, Bluetooth, and/or GSM

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. If necessary, the user should consult the dealer or an experienced radio/television technician for

additional suggestions. The user may find the following booklet helpful: “Something About Interference.” This is available at FCC local regional offices. Our company is not responsible for any radio or television interference caused by unauthorized modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by our company. The correction is the responsibility of the user. Use only shielded data cables with this system.

5Ghz band: UNII (Unlicensed National Information Infrastructure) or band1 (5.150 to 5.250 GHz) is restricted to indoor use only. Any other use will make the operation of the device illegal.

Caution! - Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

Canadian Compliance

This Class B digital apparatus complies with Canadian ICES-003 and RSS210. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

1 - 3

Preliminary Draft 5/26/13, Not for Release

5Ghz band: UNII (Unlicensed National Information Infrastructure) or band1 (5.150 to 5.250 GHz) is restricted to indoor use only. Any other use will make the operation of the device illegal.

For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines for use with the following body worn accessory: Holster-1. Use of other accessories may not ensure compliance with FCC RF exposure guidelines.

Caution! - Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the equipment.

Conformité à la règlementation canadienne

Cet appareil numérique de la Classe B est conforme à la norme NMB-003 et RSS210 du Canada. Son fonctionnement est assujetti aux conditions suivantes:

1. Cet appareil ne doit pas causer de brouillage préjudiciable.

2. Cet appareil doit pouvoir accepter tout brouillage reçu, y compris le brouillage pouvant causer un fonctionnement indésirable.

Bande 5 Ghz: UNII (Infrastructure Nationale d'Information Sans Permis) ou Bande1 (5.150 à 5.250 GHz) est limitée à l'usage intérieur seulement. Toute autre utilisation rendra l'opération de l'appareil illégal.

For body worn operation, ce téléphone a été testé et respecte les directives d'exposition RF de la FCC pour une utilisation avec l'accessoire body worn: Holster-1. L'utilisation de d'autres accessoires risque de ne pas assurer la conformité avec les directives d'exposition RF de la FCC.

Mise en garde! - Tout changement ou modification non expressément approuvées par le bénéficiaire de cet appareil peut annuler l'autorisation d'utiliser l'équipement.

RF Exposure Information (SAR)

This mobile phone meets the government's requirements for exposure to radio waves. This phone is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by the Federal Communications Commission of the U.S. Government.

The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/Kg and for Europe 2W/Kg. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the poser required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output.

The highest reported SAR values for head, body-worn accessory and simultaneous transmission use conditions are: 0.45 W/kg (1g), 0.96 W/kg (1g) and 1.33 W/kg (1g).

The highest reported CE SAR values for head, body-worn accessory and simultaneous transmission use conditions are: 0.59 W/kg (10g), 1.0 W/kg (10g), 1.15 W/kg (10g).

While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement.

The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of www.fcc.gov/oet/ea/fccid after searching on FCC ID: HD570eLGN, HD570eLG0 and HD570eL00.

1 - 4

Preliminary Draft 5/26/13, Not for Release

For European Community Users

Honeywell complies with Directive 2002/96/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 27 January 2003 on waste electrical and electronic equipment (WEEE).

Waste Electrical and Electronic Equipment Information

This product has required the extraction and use of natural resources for its production. It may contain hazardous substances that could impact health and the environment, if not properly disposed.

In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems for product disposal. Those systems will reuse or recycle most of the materials of the product you are disposing in a sound way.

The crossed out wheeled bin symbol informs you that the product should not be disposed of along with municipal waste and invites you to use the appropriate separate take-back systems for product disposal. If you need more information on the collection, reuse, and recycling systems, please contact your local or regional waste administration. You may also contact your supplier for more information on the environmental performances of this product.

China RoHS

᳝↦᳝ᆇ⠽䋼ৡ⿄ঞ৿䞣(Names and Content of Hazardous Substances or Elements)

䚼ӊৡ⿄Parts Name) ᳝↦᳝ᆇ⠽䋼៪ܗ㋴(Toxic and Hazardous Substances or Elements)

䪙 (Pb) ∲ (Hg) 䬝 (Cd)

៤ڣᓣᴵⷕ䯙䇏఼ (Imager)

ࠋ⬉䏃ᵓ(PCB)

Џᴎঞ෎ᑻ໪໇Housing)

䖲㒓Cables)

⎆᱊ᰒ⼎఼LCD)

⎆᱊ᰒ⼎఼Ḛᶊ(LCD Frame)

Ⳍᴎ῵㒘(Camera)

ᣝ䬂Key)

⬉∴Battery)

⬉⑤կᑨ఼ Power Ada pter)

o:㸼⼎䆹᳝↦᳝ᆇ⠽䋼೼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ৿䞣ഛ೼6-7ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟ(Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is below the limit requirement in China’s SJ/T11363-2006.) x: 㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ೼䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ৿䞣䍙ߎ SJ/T11363-2006 ޚ㾘ᅮⱘ䰤䞣㽕∖ (Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials for this part is above the limit requirement in China’s SJ/T11363-2006. )

oooooo

݁Ӌ䫀 (Cr

)

໮⒈㘨㣃 (PBB) ໮⒈Ѡ㣃䝮 (PBDE)

1 - 5

Preliminary Draft 5/26/13, Not for Release

Pacemakers, Hearing Aids and Other Electrically Powered Devices

Most manufacturers of medical devices adhere to the IEC 601-1-2 standard. This standard requires devices to operate properly in an EM Field with a strength of 3V/m over a frequency range of 26 to 1000MHz. The maximum allowable field strength emitted by the Dolphin terminal is 0.3V/m according to Subpart B of Part 1 of the FCC rules. Therefore, the RF from the Dolphin terminal has no effect on medical devices that meet the IEC specification.

Hearing Aid Compatibility (HAC)

Dolphin 70e Black models 70eLGN and 70eLG0 have been tested for hearing aid compatibility. These devices have an M4 and T4 rating. For additional HAC information, including the HAC rating for this product, please refer to www.honeywellaidc.com.

When some wireless devices are used near some hearing devices such as hearing aids and implants, users may detect a buzzing or humming noise. Some hearing devices are more immune than others to this interference noise. Wireless devices may also vary in the amount of interference they generate.

The ratings for compatibility of digital wireless devices with hearing aids are described in the American National Standards Institute (ANSI) C63.19 standard:

M-Rating: Phones rated M3 or M4 meet FCC requirements and are likely to generate less interference with hearing devices than phones that are not labeled. M4 is the superior/higher of the two ratings.

T-Rating: Phones rated T3 or T4 meet FCC requirements and are likely to be more usable with hearing devices' telecoil than unrated phones. T4 is the superior/higher of the two ratings.

The more immune the hearing aid device is, the less likely one is to experience interference noise from the wireless phone. Hearing aid devices may also be rated. Adding the ratings of the hearing aid and the phone would determine probable usability:

• Any combined rating equal to or greater than six offers the best use.

• Any combined rating equal to five is considered normal use.

The ratings are not guarantees. Results will vary depending on the user's hearing device and hearing loss. If your hearing device happens to be vulnerable to interference, you may not be able to use this device successfully. Trying out this device with your hearing device is the best way to evaluate it for your personal needs.

This device has been tested and rated for use with hearing aids for some of the wireless technologies that it utilizes. However, there may be some newer wireless technologies used in this phone that have not been tested yet for use with hearing aids. It is important to try the different features of this phone thoroughly and in different locations, using your hearing aid or cochlear implant, to determine if you hear any interfering noise. Consult your service provider or the manufacturer of this phone for information on hearing aid compatibility.

Microwaves

The radio in the Dolphin RF terminal operates on the same frequency band as a microwave oven. Therefore, if you use a microwave within range of the Dolphin RF terminal you may notice performance degradation in your wireless network. However, both your microwave and your wireless network will continue to function.

1 - 6

Preliminary Draft 5/26/13, Not for Release

Getting Started

Out of the Box

Verify that the carton contains the following items:

• Dolphin 70e Black mobile computer (terminal)

• 3.7V Li-ion rechargeable battery

• USB charge/communication cable

• Power adapter with regional plug adapters

• Quick start guide

• Compliance Regulatory Sheet

If you ordered accessories for your terminals, verify that they are also included with the order. Be sure to keep the original packaging in the event that the Dolphin terminal should need to be returned for service.

Note: Your Dolphin model may differ from the model illustrated in this guide; however, the features noted are

standard for all Dolphin 70e Black models with Windows® Embedded Handheld unless otherwise indicated.

Initial Setup for Dolphin 70e Black Terminals

Step 1. Install the Battery

Note: Before installing the main battery, read the Guidelines for Battery Pack Use and Disposal on page 3-13.

Dolphin 70e Black model terminals are designed for use with battery part numbers BAT-STANDARD-01 (Li-ion 3.7V, 6.179 watt hour) and BAT-EXTENDED-01 (Li-ion 3.7V, 12.358 watt hour) manufactured for Honeywell International Inc.

The terminal is shipped with the battery packaged separate from the unit. Perform the steps illustrated below to install the battery. For information on how to remove the battery, see Replacing the Main Battery on page 2-12.

Ensure all components are dry prior to placing the battery in the terminal. Mating wet components may cause damage not covered by the warranty.

2 - 1

Preliminary Draft 5/26/13, Not for Release

Step 2. Charge the Battery

The power source for the Dolphin terminal is the 3.7V Li-ion rechargeable battery located under the battery door on the back panel of the device. See Batteries on page 3-10 for additional information on battery storage, use, and disposal.

Important: Removing the battery from the terminal erases all non-persistent memory. Always power off the terminal before removing the battery. For information on how to remove the battery from the terminal, see Replacing the Main

Battery on page 2-12.

Before Initial Use

Dolphin terminals ship with the battery significantly discharged of power. After installing the battery in the terminal, charge the battery with a Dolphin 70e Black charging peripheral for a minimum of 4 hours for the standard battery pack or 6 hours for the extended battery pack.

Note: Inadequate source current may interfere with effective battery charging; see Important Charging

Guidelines on page 3-11 for additional information.

We recommend use of Honeywell peripherals, power cables, and power adapters. Use of any non-Honeywell peripherals, cables, or power adapters may cause damage not covered by the warranty.

Dolphin 70e Black model terminals are designed for use with the following charging devices and cables: 70e-HB, 70e-CB, 70e-MB, 70e-MC, and 70e-USB ADAPTERKIT. See pages 3-2 and 3-3 for additional information on Dolphin 70e Black peripherals and accessories.

Ensure all components are dry prior to mating terminals/batteries with peripheral devices. Mating wet components may cause damage not covered by the warranty.

Using the USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT)

Dolphin 70e Black terminals ship with a USB Charge/Communication Cable and a power adapter with regional plug adapters. The USB Charge/Communication cable provides two options for charging the terminal. Use the cable in conjunction with the provided power supply adapter and plug adapter to charge the terminal from a power outlet or connect the cable to a high-power USB port to charge from a host device.

Warning - The terminal shall only be connected to CTIA certified adapters, products that bear the USB-IF logo or products that have completed the USB-IF compliance program when using the micro USB port as a charging source.

2 - 2

USB Door

USB Port on Host Device

Micro USB Por t

USB Charge/

Communication Cable

Right Side Panel of Dolphin 70e Black

Preliminary Draft 5/26/13, Not for Release

Option 1: Charging from a power outlet

Use only a UL Listed power supply, which has been qualified by Honeywell with an output rated at 5VDC and 1A with the device.

Right Side Panel of Dolphin 70e Black

USB Door

Power Adapter

Plug Adapter

Micro USB Port

Option 2: Charging from a high power USB port on a host device (PC)

Charging the battery through a USB port takes more time than direct charging using the provided power supply. Inadequate source current may lengthen the charge time or prevent the battery from charging if the terminal is drawing more current than supplied by the USB port. See Important Charging

Guidelines on page 3-11 for additional information.

USB Charging/ Communication Cable

Tou c h > Settings > System > Power to view the battery charge status.

To access detailed information on the battery, touch > Settings > System > Battery.

2 - 3

Preliminary Draft 5/26/13, Not for Release

Step 3. Boot the Terminal and Access the Home Screen

The terminal begins booting as soon as power is applied. Do not press any keys or interrupt the boot process. When the boot process is complete, the Home screen appears depending on your Dolphin model.

Note: During the initial charging stage, the terminal display may dim to conserve battery power due to inactivity.

Touch the display to turn on the backlight.

The Home Screen

After the Dolphin terminal initializes, the Home screen appears.

Title Bar (page 2-5)

Touch a menu item to access additional screens.

Touch to access the Start menu.

Touch to access the Contacts screen.

Swipe up or down with your finger or stylus to scroll through the menu items.

Tile Bar (page 2-7)

Touch to access the Clock & Alarms settings screen.

2 - 4

Text here indicates the active program.

Icons here indicate the status of various system functions.

Preliminary Draft 5/26/13, Not for Release

Title Bar

The Title bar, located at the top of the screen, displays the active program, the status of various system functions, and the current time. Touching on the title bar provides access to the Horizontal Scroll. The scroll provides access to additional programs and application screens. For additional information, see

Horizontal Scroll on page 2-7.

Icons in the Title Bar

Indicator Meaning

Synchronizing data

The terminal could not synchronize data with the workstation via ActiveSync.

New e-mail

New text message

New voicemail

New instant message

Vibrate on

Ringer off

Speaker phone on

Voice call in progress

Calls are forwarded

Call on hold

Missed call

Data call in progress

A battery error has occurred. Replace the main battery with a Honeywell Li-ion battery pack.

Battery is has a full charge

2 - 5

Preliminary Draft 5/26/13, Not for Release

Icons in the Title Bar

Indicator Meaning

Battery has a high charge

Battery has a medium charge

Battery has a low charge

Battery has a very low charge and requires charging

Terminal is running on external power. If a battery pack is installed, the battery is charging in the background.

The terminal is not connected to external power. A battery is installed, but is defective; specifically, its charge level cannot be measured.

No SIM card is installed

Active network connection

No active network connection

GPRS available

GPRS connecting

GPRS in use

HSDPA available

HSDPA connecting

HSDPA in use

EDGE available

EDGE connecting

2 - 6

EDGE in use

UMTS available

UMTS connecting

UMTS in use

The icons change according to the open application.

The Tile Bar displays icons you use to open and close screens, menus, and features.

Touch to access the Start menu (page 2-9).

Preliminary Draft 5/26/13, Not for Release

Icons in the Title Bar

Indicator Meaning

Radio is off

The radio is not connected to a network.

The radio is connected. The bars indicate the signal strength.

No radio signal

The terminal is searching for a signal.

Wi-Fi is on, but device is not connected

Wi-Fi data call

Pending alarm

Bluetooth

Horizontal Scroll

The Horizontal Scroll, located at the top of most application windows, provides access to additional application screens. You can swipe left or right on the scroll or touch each label on the scroll, until you get to the desired screen. Touching a label to the left or right of the center item brings new labels into view.

Note: Touch the Title bar to access the horizontal scroll if it is not visible on the screen.

The content of the Horizontal scroll changes according to the open application.

Tile Bar

The Tile Bar is located at the bottom of an application window.

2 - 7

Preliminary Draft 5/26/13, Not for Release

Virtual Keyboard

The virtual keyboard appears when you open an application or select a field that requires text or numerical input. You can also touch the keyboard icon on the tile bar to toggle the keyboard on or off.

Touch the keyboard icon to toggle the virtual keyboard on or off.

When you touch an hold the keyboard icon, a pop-up menu allows you switch between the default

enhanced Honeywell virtual keyboard, which is fully customizable or the standard Windows Embedded Handheld virtual keyboard.

The Enhanced Honeywell Virtual Keyboard

During text input, you may need to switch between keyboard modes to access additional character sets (e.g., function keys, symbols, and numbers). Each keyboard mode, includes navigation keys, which allow you to quickly switch between modes. Touch the ABC key to switch to the Qwerty Mode, the 123 key to switch to the Numeric Mode, and the #@& key to switch to the Function & Symbols Mode.

Note: The content of the keyboard and the mode initially displayed may vary depending on the application in use

and the input field requirements.

Alternate Keys

Some keys include a second symbol in red. In order to use the alternate symbol, press and hold the key until the alternate symbol appears, then release the key to type the symbol.

Honeywell Virtual Keypad Creator

The default enhanced Honeywell virtual keyboard is fully customizable using the

Keypad Creator

allows you to personalize multiple keyboard features including key position, size, quantity, color, and the keyboard skin. In addition, you can make language changes, create alternate or function keys for special character sets, and add application launch keys to streamline common business tasks.

There are two software components required for customizing the enhanced Honeywell Virtual keyboard.

• The first is the

save, and download custom keyboard layouts to your Dolphin terminal.

• The second is the

which is located in the \IPSM\Honeywell\AutoInstall folder on your Dolphin terminal. This keyboard file is what displays on the terminal screen when the enhanced Honeywell virtual keyboard is selected as the default virtual keyboard.

The customization process is easy. Simply download and install the onto your PC, open and modify the provided standard template, then download the customized keyboard to your terminal via a USB connection and the built in software sync command. Touch OK on the terminal to verify you want the current customized keyboard.

software available for download at www.honeywellaidc.com. The user-friendly utility

Honeywell Virtual Keypad Creator

enhanced Honeywell virtual keyboard

, which resides on your PC and is used to design,

CAB file (i.e., HoneywellVK-Ver1.x.x.CAB),

Virtual Keypad Creator

enhanced Honeywell virtual keyboard

Honeywell Virtual

software

replaced with the new

2 - 8

Preliminary Draft 5/26/13, Not for Release

The Start Menu

To see the programs loaded on your terminal, touch to access the Start menu.

Navigating the Start Menu

• Swipe up or down with your finger or stylus to scroll through the menu icons.

• To open a program, touch once on the program icon.

• To reposition an icon on the Start menu, touch and hold the stylus on the icon, then drag the icon to

the desired position.

Pop-Up Menus

With pop-up menus, you can quickly choose an action for a selected item. To access a pop-up menu, touch and hold on the item name of the action you want to perform. When the menu appears, touch the action you want to perform.

Touch anywhere outside the menu to close the menu without performing an action.

2 - 9

File Explorer

Touch to return to the Start menu.

Touch to access additional Menu options.

Touch to move Up one level in the directory.

Touch to close File Explorer.

Touch on the name to open a file or folder.

Touch to toggle the virtual keyboard display on or off.

Touch and hold to access a pop-up menu of keyboard options.

You can use the File Explorer to find files and organize files into folders.

Touch > File Explorer .

Preliminary Draft 5/26/13, Not for Release

To move or copy files between folders using File Explorer:

1. Touch and hold on the item you want to move, then touch Cut or Copy on the popup menu.

2. Navigate to the folder you want to move or copy the file to, then touch and hold a blank area of the window.

3. Touch Paste on the pop-up menu.

Note: If there is no blank space available in the window, touch

menu using the down arrow, then touch

Edit > Paste

on the tile bar, navigate to the end of the

2 - 10

Preliminary Draft 5/26/13, Not for Release

File Provisioning on the Dolphin 70e Black

\IPSM\Honeywell

The IPSM folder is the only partition on the terminal that persists across a kernel upgrade (*.UPG file extension). During a kernel upgrade, files are automatically copied from the \IPSM\Honeywell folder and then installed in the \Honeywell (root file system) folder as part of the upgrade process.

\IPSM\Honeywell\AutoInstall

The files in the IPSM\Honeywell\AutoInstall folder are only installed when a factory reset or kernel upgrade occurs. Once the files are installed, they persist through hard and soft resets. If a file is added to the folder and a hard or soft reset is performed, it will have no effect. If a program is manually removed using the Remove Programs application (see page 6-25), then the program is not automatically re-installed on a hard or soft reset.

\Honeywell

The Honeywell partition or root file system partition is persistent over a hard reset, soft reset, and the removal of the battery pack or the removal of AC power. However, during a kernel upgrade the root file system is reformatted so all data in the folder is deleted and replaced by any files in the \IPSM\Honeywell folder as part of the upgrade process.

To prevent data loss, back up all user data to an SD card or external memory device before performing an upgrade.

\Honeywell\AutoInstall

If you run a CAB file from within the \Honeywell\AutoInstall (user store) folder, after the program has been installed, the CAB file will be deleted from the User Store. However, the program remains installed through all successive Hard and Soft resets.

If you want the program to be part of the Autoinstall that occurs after a factory reset or software upgrade, paste the program file(s) in both the \IPSM\Honeywell\Autoinstall folder and the \Honeywell\Autoinstall.

Contact a Honeywell technical support representative for information on how to perform a factory reset or for information on available software upgrades for your Dolphin terminal. For contact information, see

Technical Assistance on page 14-1.

To prevent data loss, back up all user data to an SD card or external memory device before performing an upgrade.

The Search feature helps you quickly locate information. Touch > Search Phone .

Enter the text you want to find, select a data type, and then touch Search. Select Larger than 64 KB in the Type drop-down field to quickly find information that is taking up storage space.

2 - 11

Preliminary Draft 5/26/13, Not for Release

Turning Power On/Off

To turn the terminal On, press the Power button .

To turn the terminal Off:

1. Press and hold the Power button for approximately 4 seconds until the options menu displays.

2. Touch Power off.

Note: You should always turn the terminal Off before removing the battery. For information on removing the battery,

see Replacing the Main Battery on page 2-12.

Suspend Mode

Suspend mode differs from Power off mode. Power off mode is the equivalent to having no battery or

external power source connected to the device. The terminal does not receive incoming calls when power is off since the device completely shuts down. In Suspend mode, the device enters a low power state to conserve battery power. The radio associated with the phone maintains enough power to wake the terminal for incoming phone calls.

Suspend mode automatically turns the touch screen off to save battery power when the terminal is inactive for a programmed period of time. The automatic timeout limits are adjustable from the Advance tab located under Settings > System > Power (see page 6-23).

Press and release the Power button to toggle the terminal in or out of Suspend mode.

Replacing the Main Battery

Note: Before replacing the main battery, read the Guidelines for Battery Pack Use and Disposal on page 3-13.

Ensure all components are dry prior to mating terminals/batteries with peripheral devices. Mating wet components may cause damage not covered by the warranty.

1. Power off the terminal, see Turning Power On/Off.

2. Remove the battery door, pull back the battery latch, then remove the battery.

2 - 12

Preliminary Draft 5/26/13, Not for Release

3. Pull the battery latch back and insert the new battery. Attach the battery door.

Note: Do not attempt to use the terminal without the battery door installed.

4. The terminal begins booting as soon as power is applied.

We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty.

Resetting the Terminal

There are three types of system resets: a Soft Reset, a Hard Reset, or a Factory Reset. The soft and hard resets preserve all data stored in the file system. Contact a Honeywell technical support representative for more information on how to perform a Factory Reset. For contact information, see Technical

Assistance on page 14-1.

A Soft Reset (Warm Boot) re-boots the device and preserves any objects created in RAM. You would perform a soft reset when: the terminal fails to respond, after installing some software applications, or after making changes to certain system settings, such as network cards.

A Hard Reset (Cold Boot) re-boots the terminal and closes any open applications running in RAM at the time of the reset.

To perform a Soft Reset or Hard Reset:

1. Press and hold the Power button until the options menu appears.

2. Touch Soft Reset or Hard Reset on the menu.

3. When the reset is complete, the Home screen displays.

Note: To perform a Hard Reset if the touch screen has stopped responding, press and hold the Power button

for approximately 8 seconds until the terminal starts to re-boot. When the reset is complete, the Home screen displays.

2 - 13

Preliminary Draft 5/26/13, Not for Release

2 - 14

Preliminary Draft 5/26/13, Not for Release

Hardware Overview

Standard Configurations for the Dolphin 70e Black

WLAN, WPAN & Camera

• Microsoft Windows Embedded Handheld

6.5 Professional

• TI OMAP3715 1.0GHz Processor

• 512MB RAM X 1GB Flash

• 3.7V Li-ion rechargeable standard or extended battery pack

• Dedicated imager capable of decoding standard 1D and 2D bar code symbologies

• 5.0 megapixel auto focus camera

• 802.11a/b/g/n and Bluetooth

WLAN, WPAN, WWAN, GPS & Camera

• Microsoft Windows Embedded Handheld

6.5 Professional

• TI OMAP3715 1.0GHz Processor

• 512MB RAM X 1GB Flash

• 3.7V Li-ion rechargeable standard or extended battery pack

• Dedicated imager capable of decoding standard 1D and 2D bar code symbologies

• 5.0 megapixel auto focus camera

• 802.11a/b/g/n and Bluetooth,

• Voice and Data, GSM/CDMA/GPS (US bands) - SW Definable Radio

WLAN, WPAN, WWAN, GPS & Camera

• Microsoft Windows Embedded Handheld

6.5 Professional

• TI OMAP3715 1.0GHz Processor

• 512MB RAM X 1GB Flash

• 3.7V Li-ion rechargeable standard or extended battery pack

• Dedicated imager capable of decoding standard 1D and 2D bar code symbologies

• 5.0 megapixel auto focus camera

• 802.11a/b/g/n and Bluetooth

• Voice and Data GSM/GPS (EU Bands)

WLAN, WPAN, WWAN, NFC, GPS & Camera

• Microsoft Windows Embedded Handheld

6.5 Professional

• TI OMAP3715 1.0GHz Processor

• 512MB RAM X 1GB Flash

• 3.7V Li-ion rechargeable standard or extended battery pack

• Dedicated imager capable of decoding standard 1D and 2D bar code symbologies

• 5.0 megapixel auto focus camera

• 802.11a/b/g/n and Bluetooth

• Voice and Data, GSM/CDMA/GPS (US bands) - SW Definable Radio

•NFC

WLAN, WPAN, WWAN, NFC, GPS & Camera

• Microsoft Windows Embedded Handheld

6.5 Professional

• TI OMAP3715 1.0GHz Processor

• 512MB RAM X 1GB Flash

• 3.7V Li-ion rechargeable standard or extended battery pack

• Dedicated imager capable of decoding standard 1D and 2D bar code symbologies

• 5.0 megapixel auto focus camera

• 802.11a/b/g/n, and Bluetooth

• Voice and Data, GSM/GPS (EU Bands)

•NFC

3 - 1

Preliminary Draft 5/26/13, Not for Release

Peripherals for the Dolphin 70e Black

Each of the following items is sold separately to enhance the capabilities of your Dolphin terminal.

Dolphin 70e Black HomeBase Device (Model 70e-HB)

The Dolphin 70e Black HomeBase device is a charging and communication cradle equipped with a USB host port that is Hi-Speed 2.0v compliant, which enables the terminal to interface with the majority of PCbased enterprise systems. This device also contains an auxiliary battery well that charges a spare Honeywell standard or extended battery pack.

For more information, see Dolphin 70e Black HomeBase Device (Model 70e-HB) on page 11-1.

Dolphin 70e Black Mobile Base Device (Model 70e-MB)

The Dolphin 70e Black Mobile Base is a charging cradle designed specifically for in-premise and intransit data collection applications. It features a flexible mounting bracket, an integrated speaker with volume control, and a cigarette lighter adapter to adapt it to your mobile environment.

For more information, see Dolphin 70e Black Mobile Base Device (Model 70e-MB) on page 12-1.

Dolphin 70e Black ChargeBase (Model 70e-CB)

The Dolphin 70e Black ChargeBase is a 4-slot charging cradle that holds, powers, and charges terminals.

For more information, see Dolphin 70e Black ChargeBase Device (Model 70e-CB) on page 13-1.

3 - 2

Preliminary Draft 5/26/13, Not for Release

Accessories for the Dolphin 70e Black

Each of the following items is sold separately to enhance your terminal’s capabilities.

Note: When using accessories where the terminal is worn on the body, the terminal’s touch panel must face away

from the body.

Dolphin 70e Black Mobile Charger (Model 70e-MC)

The Dolphin 70e Black Mobile Charger is a charging cable that connects the terminal directly to a 12 Volt DC power source, such as a cigarette lighter port inside a vehicle, eliminating the need for a cradle. Intelligent battery technology on-board the terminal ensures proper charging. The Dolphin 70e Black Mobile Charger is an ideal low-cost charging solution for in-transit mobile applications.

USB Charge/Communication Cable and Adapter Kit (Model 70e-USB ADAPTERKIT)

The Dolphin USB charge/communication cable adapter kit is an all-in-one solution for charging and communication. Use the 70e-USB cable in conjunction with provided power supply adapter and plug adapter to charge the terminal from a power outlet or connect the cable to a high-power USB port to charge from a host device. The 70e-USB cable also supports communication with a computer without the need for a cradle. See Connecting and Synchronizing the Terminal and Workstation on page 7-9.

Holster (Model HOLSTER-1)

The holster provides convenient storage for the Dolphin 70e Black terminal in mobile environments. The holster features an integrated belt clip and spare battery pouch.

Stylus Battery Door Kits

Stylus battery door kits contain a battery door with an integrated stylus slot, a stylus, and a stylus tether. The stylus features a special tip for added accuracy and ease when operating the touch panel. The battery door includes a slot to hold the stylus when not in use and the tether helps prevent accidental loss when the stylus is not stored in the stylus slot. A stylus tether is a coiled, elastic cord that secures the stylus to the terminal.

Note: When ordering a stylus battery door kit, specify the type of battery door required: standard for battery part

number BAT-STANDARD-01 or extended for battery part number BAT-EXTENDED-01 and the Dolphin terminal model number.

Battery

The rechargeable battery provides the main power for the terminal. For more information, see Batteries on page 3-10.

3 - 3

Preliminary Draft 5/26/13, Not for Release

Features of the Dolphin 70e Black

Note: Your Dolphin model may differ from the model illustrated; however, the features noted are standard for all

Dolphin 70e Black models with a Windows Embedded Handheld OS unless otherwise indicated.

Front, Bottom, and Right Panels

WAN Notification LED

Touch Panel Display

Scan Button

Home Button

Send Button

Front Speaker

General Notification LED

Right Scan/Image Button

Side Digital Microphone

USB Door/Micro USB Port

Back Button

End Button

Fastener for an Optional Stylus Tether

Important - Do not cover the side microphone with your hand when using the terminal for phone calls or audio recordings. Both the front and side microphones must be free from obstruction for the noise cancellation feature to function.

For a description of each callout, see page 3-5.

3 - 4

Front Digital Microphone

Bottom Speaker

Preliminary Draft 5/26/13, Not for Release

Feature Descriptions: Front, Bottom, and Right Panels

Back Button

By default, the Back button returns you to the previous screen. The back button is one of six programmable buttons on the Dolphin 70e Black. You can reassign the button to launch applications or execute commands. For additional information, see Changing Button

Assignments on page 6-5.

Bottom Speaker

The integrated bottom speaker sounds audio signals as you scan bar code labels and enter data. The integrated speaker also supports playback of wave and MP3 files, software mixer, and speaker phone for WWAN/GSM audio.

Digital Microphone

The integrated dual array digital microphones, located on the side and front of the terminal provide audio input for handset and speaker phone voice calls when a headset is not plugged into the Audio Jack, page 3-8. When a headset is plugged into the Audio Jack, the terminal defaults to the microphone on the headset.

The digital microphones provide echo and background noise cancellation for clear audio input. See Voice Communication, Using the Dolphin as a Phone on page 8-4.

End Button

By default, the End button disconnects a phone call or exits some applications if a phone call is not in progress. See Voice Communication, Using the Dolphin as a Phone on page 8-4. The End button is one of six programmable buttons on the Dolphin 70e Black. You can reassign the button to launch applications or execute commands. For additional information, see

Changing Button Assignments on page 6-5.

Front Speaker

The front speaker is the receiver for handset voice calls. See Voice Communication, Using the

Dolphin as a Phone on page 8-4.

Fastener for an Optional Stylus Tether

See Stylus Battery Door Kits on page 3-3.

General Notification LED

The light emitting diode (LED) located above and to the right of the LCD display flashes and illuminates during resets, scanning/imaging, and taking a picture. The LED indicates that an external power source is connected to the terminal. This LED can be programmed by various software applications.

Home Button

By default, the Home button returns you to the Home screen, see page 2-4. The Home button is one of six programmable buttons on the Dolphin 70e Black. You can reassign the button to launch applications or execute commands. For additional information, see Changing Button

Assignments on page 6-5.

3 - 5

Preliminary Draft 5/26/13, Not for Release

Right Scan/Image Button

By default, the right button triggers the scanner/imager. You can reassign the button to launch applications or execute commands. For additional information, see Changing Button

Assignments on page 6-5.

Scan Button

The Scan button is centrally located for easy access with the right or left hand. By default, the button activates the scanner/imager. You can reassign the button to launch applications or execute commands.

Send Button

Answers a phone call or initiates a phone call. See Voice Communication, Using the Dolphin

as a Phone on page 8-4.

Touch Panel Display

The color 4.3 inch (liquid crystal display (LCD) touch panel is covered with an industrial, protective lens for greater durability. The wide video graphic array (WVGA) display resolution is 800 X 480. The touch panel can be activated with a finger or with the optional stylus.

The touch panel backlight illuminates when the screen is touched. For more information, see

Backlight on page 6-12.

USB Door/Micro USB Port

The Micro USB port is located under the protective USB door on the right side of the terminal. To access the micro USB port, gently lift the top edge of the door closest to the digital microphone, and then twist 90° counterclockwise.

The micro USB port in conjunction with the USB Charge/Communication Cable (model 70eUSB) powers the terminal, charges the main battery, and facilitates communication. The micro USB port supports low, full, and high-speed USB v2.0 client communication with a maximum rate of 480 Mbps.

For additional information, see Using the USB Charge/Communication Cable (Model 70e-USB

ADAPTERKIT) on page 2-2 and Connecting and Synchronizing the Terminal and Workstation

on page 7-9.

WAN Notification LED

The light emitting diode (LED) located above and to the left of the LCD display flashes and illuminates for WAN notifications (e.g., a missed call, new voice mail, SMS message, or email). The notification LED flashes when the terminal is active or stays on steady when the terminal is in Suspend mode.

3 - 6

Preliminary Draft 5/26/13, Not for Release

Back, Top, and Left Panels

Audio Jack

Color Camera

Flashlight/

Camera Flash

Image Engine Window (LED Aimer Aperture)

Power Button

Left Scan/Image Button

Volume Control Button

I/O Connector

(see page 3-10)

Battery Door

(Standard Model Shown)

Battery Latch (battery and

battery door not shown)

SIM Card Retainer Flap

SIM Card Socket

Memory Card Retainer Flap

Memory Card Socket

Note: Your Dolphin model may differ from the model illustrated; however, the features noted are standard for all

Dolphin 70e Black with Windows Embedded Handheld models unless otherwise indicated.

For a description of each callout, see Feature Descriptions: Back, Top, and Left Panels on page 3-8.

3 - 7

Preliminary Draft 5/26/13, Not for Release

Feature Descriptions: Back, Top, and Left Panels

Audio Jack

The 3.5mm audio jack supports both speaker (stereo) and microphone (mono) headsets.

Battery

Dolphin 70e Black model terminals are designed for use with battery part numbers BAT-STANDARD-01 (Li-ion 3.7 V, 6.179 watt hour) and BAT-EXTENDED-01 (Li-ion 3.7 V,

12.358 watt hour) manufactured for Honeywell International Inc. For information on how to remove the battery, see Replacing the Main Battery on page 2-12.

Battery Door

The battery door protects the battery and any installed SIM and/or memory cards in the terminal’s battery well. When the battery door is installed properly, the terminal’s environmental rating is preserved. For information on how to remove the battery, see

Replacing the Main Battery on page 2-12.

Note: Do not use the terminal without the battery door installed.

Battery Latch

The Battery Latch secures the battery in the battery well. For information on how to remove the battery, see Replacing the Main Battery on page 2-12.

Color Camera

The 5.0-Megapixel Resolution auto-focus color camera provides easy picture and video capture. The camera lens and camera flash are located on the back panel of the terminal.

Flashlight/Camera Flash

The flashlight/camera flash is located on the back panel of the terminal.

When used as a Flashlight, touch When used as a Camera Flash with the terminal’s color camera, the flash is controlled by the camera application.

Image Engine Window

The image engine reads and decodes linear, stacked linear (e.g., PDF417), and 2D matrix bar code symbologies. The LED aperture for the imaging engine’s LED aimer is contained behind this window. For more details, see Using the Scan Image Engine on page 4-1.

Left Scan/Image Button

By default, the left button triggers the scanner/imager. You can reassign the button to launch applications or execute commands. For additional information, see Changing Button

Assignments on page 6-5.

> Flashlight to turn the flashlight On or Off.

Memory Card Socket

The memory card socket provides the user with the option to expand the terminal’s memory capacity using microSD or microSDHC memory interfaces. The expansion socket is located under the battery door and battery.

Note: Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or

microSDHC memory cards with Dolphin terminals for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options.

3 - 8

Preliminary Draft 5/26/13, Not for Release

When the battery door and battery pack are properly installed, the card is sealed against moisture and particle intrusion, read/write data is stored securely, and the terminal’s environmental rating is preserved; see Installing a SIM Card and/or Memory Card on page 3-

15.

Memory Card Retainer Flap

The memory card retainer flap locks the memory card in the socket; see Installing a SIM Card

and/or Memory Card on page 3-15.

Power Button

The Power button located on the top of the terminal initiates multiple functions depending on the length of time the button is pressed.

• A quick press of the button toggles Suspend Mode On or Off.

• Press and hold the button down for approximately 4 seconds to access the options menu for a Hard Reset, a Soft Reset, entering Suspend Mode, or to Power Off the terminal.

• Press and hold the button down for approximately 8 seconds to initiate a manual Hard Reset if the touch screen has stopped responding.

SIM Card Socket

The card socket for the Subscriber Identity Module (SIM) is located under the battery door and main battery. When the battery door and battery are properly installed, the card is sealed against moisture and particle intrusion, read/write data is stored securely, and the terminal’s environmental rating is preserved; see Installing a SIM Card and/or Memory Card on page 3-

15.

SIM Card Retainer Flap

The SIM card retainer flip locks the SIM card in the socket; see Installing a SIM Card and/or

Memory Card on page 3-15.

Volume Control Button

Press the top or bottom of the volume button to raise or lower the volume of the active speaker.

3 - 9

Pin 1

Pin 9

Terminal Back Panel

Preliminary Draft 5/26/13, Not for Release

The I/O Connector

The I/O connector powers the terminal, charges the main battery, and facilitates communication. Dolphin 70e Black peripherals are designed to work exclusively with this connector. The I/O connector supports low, full, and high speed USB v2.0 communication with a maximum rate of 480 Mbps.

Pin Signal Description

1 VDC_IN 5V DC input for charging and operation

2 VBUS_HOST 5V output for USB host and peripheral

3 USB_DM_HOST USB D- for the host port

4 USB_DP_HOST USB D+ for the host port

5 USBC_DET Multipurpose pin to allow for detection of an

6 GND Ground connection

7 USB_DN_DOCK USB D- for the client port

8 USB_DP_DOCK USB D+ for the client port

9 VBUS_DOCK 5V input for USB client (and charging)

Note: Signals referenced are for a DTE device.

power

unpowered SLED, determine SLED type, and to signal a HomeBase the docking of the terminal.

Batteries

The primary power source for the Dolphin terminal is the 3.7V Li-ion rechargeable battery located under the battery door on the back panel of the device. Honeywell recommends, you keep the battery in the terminal charged at all times to help prevent data loss. Letting the battery become fully discharged causes the terminal to lose all data in RAM.

Note: All data in RAM is cleared when the battery is removed. Always Power Off the terminal before removing the

battery to ensure any changes made are saved to the flash memory.

Dolphin 70e Black model terminals are designed for use with battery part numbers BAT-STANDARD-01 (Li-ion 3.7 V, 6.179 watt hour) and BAT-EXTENDED-01 (Li-ion 3.7 V, 12.358 watt hour) manufactured for Honeywell International Inc.

We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may result in damage not covered by the warranty.

3 - 10

Preliminary Draft 5/26/13, Not for Release

Charging Options

Dolphin terminals ship with the battery significantly discharged of power. The battery must be completely charged for a minimum of 4 hours for the standard battery and 6 hours for the extended battery before using a Dolphin terminal for the first time.

When the main battery is installed in the terminal, use one of the following:

• Dolphin 70e Black HomeBase Device (Model 70e-HB), see page 11-1

• Dolphin 70e Black Mobile Base Device (Model 70e-MB), see page 12-1

• Dolphin 70e Black ChargeBase Device (Model 70e-CB), see page 13-1

• Dolphin 70e Black USB Charge/Communication Cable (Model 70e-USB ADAPTERKIT), see page 2-2

When the main battery is not installed in the terminal:

• Place the battery pack in the Auxiliary Battery Well of the Dolphin 70e Black HomeBase Device (Model

70e-HB).

Charging Time

The standard battery pack requires 4 hours to charge completely. The extended battery pack requires 6 hours to charge completely.

Important Charging Guidelines

Source Current Specifications

Battery charging times can be significantly lengthened or charging may not occur if the terminal is drawing more currant than is supplied by the charging peripheral (e.g., HomeBase), USB wall charger, or USB Host (e.g., workstation PC).

• The maximum current supplied through a charging peripheral is 2.0A.

• The maximum current supplied by the USB wall charger is 900 mA.

• The maximum current supplied by a USB Host can vary from 100mA to 500mA. Do not attempt to charge the terminal from a 100 mA source. An active Dolphin terminal uses more current than supplied by a 100 mA source causing the terminal to continue to draw power from the battery.

Note: Placing the terminal in Suspend mode while charging reduces the current draw of the terminal and shortens

the charging time of the battery.

To verify your terminal is not drawing more current then supplied by the charging source:

1. Touch > Settings > System > Battery when the terminal is connected to a

charging source.

2. Check the Battery Current. If the current is positive, then charging current is going into the battery. If

the current is negative, the battery is discharging current and your terminal is drawing more current than the charging source.

Note: The charging current is always less than source current due to the terminal being in operation.

3 - 11

Preliminary Draft 5/26/13, Not for Release

Charging a Severely Low or Completely Discharged Battery

Battery Charge Status Symptom

Severely Low Pressing the Power button does not wake the terminal from Suspend mode. The general

notification LED may flash once when the Power button is pressed.

Completely Discharged Pressing the Power button does not wake the device and the general notification LED

remains off.

Use one of the following options to charge a severely low or completely discharged battery.

1. Insert the battery into the auxiliary battery well of the HomeBase. When the auxiliary battery LED on

the HomeBase turns green, the battery is fully charged.

2. Dock the terminal into the charging well of a peripheral (e.g., HomeBase, ChargeBase, or Mobile

Base). The terminal starts to boot as soon as power is supplied by the base.

Note: To prevent the possible loss of unsaved data, do not remove the terminal from the base until the battery

has sufficiently charged. Touch the Start > Settings > System > Battery to view detailed information on the status of the battery.

3. Charge the terminal from a wall power outlet using the USB Charge/Communication Cable and

power supply provided with your terminal. As the battery charges, the general notification LED cycles through green, red, amber and off. The LED continues to cycle until the battery reaches a safe charge threshold and the terminal begins to boot. The length of time before the battery reaches a safe charge threshold varies depending on the extent of the battery discharge.

Note: If the general notification LED does not start to cycle after approximately 5 seconds when power is

applied, press the Power button once.

4. Charge the terminal from a USB host device (PC) using the USB Charge/Communication Cable.

Note: Inadequate source current may interfere with effective battery charging; see Important Charging

Guidelines on page 3-11 for additional information.

As the battery charges, the general notification LED cycles through green, red, amber and off. The LED continues to cycle until the battery reaches a safe charge threshold and the terminal begins to boot. The length of time before the battery reaches a safe charge threshold varies depending on the extent of the initial battery discharge level and the current supplied by the USB charging source.

Note: If the general notification LED does not start to cycle after approximately 5 seconds when power is

applied, press the Power button once.

Battery Error Notification

If your terminal displays the following indicators, replace the battery with an authentic Honeywell Dolphin 70e Black standard or extended battery pack. For information on how to remove the battery from the terminal, see Replacing the Main Battery on page 2-12.

• An “Authentication Error” pop up window appears during startup.

• appears in the Title bar at the top of the touch screen.

• The General Notification LED illuminates red.

• A Notification appears on the Tile bar at the bottom of the touch screen.

3 - 12

Preliminary Draft 5/26/13, Not for Release

Storing Batteries

To maintain top performance from batteries, avoid storing batteries outside of the following temperature ranges:

• 14°F to 113°F (-10°C to +45°C) for short term storage of less than one month

• 32°F to 86°F (-0°C to +30°C) for long term storage

Do not store batteries in extremely high humidity. For prolonged storage, do not keep batteries stored in a charger that is connected to a power source.

Guidelines for Battery Pack Use and Disposal

The following are general guidelines for the safe use and disposal of batteries:

• Do not disassemble or open crush, bend or deform, puncture or shred.

• Do not modify or remanufacture, attempt to insert foreign objects into the battery, immerse or expose to water or other liquids, expose to fire, explosion or other hazard.

• Improper battery use may result in a fire, explosion or other hazard.

• We recommend use of Honeywell Li-ion battery packs. Use of any non-Honeywell battery may pose a personal hazard to the user.

• Only use the battery for the system for which it is specified. Do not use a battery in any other manner outside its intended use in Dolphin terminals and peripherals.

• Only use the battery with a charging system that has been qualified with the system per CTIA Certification Requirements for Battery System Compliance to IEEE 1725. Use of an unqualified battery or charger may present a risk of fire, explosion, leakage, or other hazard.

• Replace the battery only with another battery that has been qualified with the system per this standard, IEEE-Std-1725. Use of an unqualified battery may present a risk of fire, explosion, leakage or other hazard.

• Replace defective batteries immediately; using a defective battery could damage the Dolphin terminal.

• Never throw a used battery in the trash. Promptly dispose of used batteries in accordance with local regulations.

• Do not short-circuit a battery or throw it into a fire; it can explode and cause severe personal injury. Do not allow metallic conductive objects to contact battery terminals.

• If you observe that the Honeywell battery supplied is physically damaged, please send it to Honeywell International Inc. or an authorized service center for inspection, see Product Service

and Repair on page 14-1.

• Battery usage by children should be supervised.

• Avoid dropping the terminal or battery. If the terminal or battery is dropped, especially on a hard surface, and the user suspects damage, send it to a Honeywell International Inc. or an authorized service center for inspection.

• If you are not sure the battery or charger is working properly, send it to Honeywell International Inc. or an authorized service center for inspection, see Product Service and Repair on page 14-1.

• Excessive discharge can degrade battery performance. Recharge the battery when your terminal indicates low battery power.

• Although your battery can be recharged many times, the battery life is limited. Replace it after the battery is unable to hold an adequate charge.

• The Dolphin 70e Black should only be connected via its microUSB connector to CTIA certified adapters, products that bear the USB-IF logo or products that have completed, the USB-IF compliance program.

3 - 13

Preliminary Draft 5/26/13, Not for Release

Managing Battery Power

Letting the battery become fully discharged causes the terminal to lose all data in RAM. Honeywell recommends, you keep a charged battery in the terminal at all times to help prevent data loss. Removing the battery from the terminal erases all non-persistent memory.

Default Critical and Low Battery Points

When the terminal is running on battery power (as opposed to external power), warnings are displayed when the battery reaches critical and low battery points. The warning points are determined by the following registry entry:

[HKEY_LOCAL_MACHINE\ControlPanel\Power]

There are two DWORD values in this registry entry: MedState and LowState.

The default values for these entries are as follows:

MedState=25%

This sets the Low Battery point to 25%. When the battery hits the percentage charge specified here, the user is notified.

LowState=10%

This sets the Critical Battery point to 10%. When the battery hits the percentage charge specified here, the user is notified.

Note: Warnings do not appear when the terminal is on external power.

Setting Critical and Low Battery Points

Developers can reset the battery parameters in the registry from 0 (no warning) to 99 (would nearly always warn). You can review and set these battery points in the RegEdit Power Tool.

1. Touch > Power Tools > RegEdit.

2. Drill down to HKEY_LOCAL_MACHINE > ControlPanel > Power.

3. Touch the Value Name (i.e., MedState or LowState) to change the Value Data. You can reset the Value Data from 0 (no warning) to 99 (would nearly always warn).

4. Touch OK to save changes.

Checking Battery Power

1. Touch > Settings > System

2. Touch Power to view the power status of the main battery.

To uc h Battery

3 - 14

to view detailed information on the installed battery pack.

Preliminary Draft 5/26/13, Not for Release

For additional information on Advanced Power Settings, see page 6-23.

For additional information on the Battery Log Configuration, see page 6-14.

System Resets

See Resetting the Terminal on page 2-13.

Hardware Maintenance

When needed, clean the image engine window and the touch screen with a clean, non-abrasive, lint-free cloth. The terminal can be cleaned with a damp cloth.

Important - All battery and connector doors must be present, undamaged, and properly closed on the terminal to maintain an IP67 rating.

Installing a SIM Card and/or Memory Card

SIM Card

Short for Subscriber Information Module, a SIM card stores the subscriber's personal information, GSM/GPRS radio settings, security keys, contacts, etc. SIM cards can be installed in compatible mobile devices, enabling you to switch devices without losing personal and setup information.

Before installing the SIM card:

• The service provider must activate the SIM card.

• The terminal must be powered Off.

Note: If no SIM card is installed, you can still make emergency phone calls (e.g., 9-1-1).

Memory Card

You can expand the terminal’s memory capacity by installing a microSD or microSDHC memory card. Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC memory cards with Dolphin terminals for maximum performance and durability. Contact a Honeywell sales representative for additional information on qualified memory card options.

Note: Format the memory card before initial use.

Installation

1. Press and hold the Power button for approximately 4 seconds until the options menu displays.

2. Touch Power off.

3. Remove the battery door, pull the battery latch back, then remove the battery.

3 - 15

Preliminary Draft 5/26/13, Not for Release

4. Lift the card retention flap for the appropriate socket.

SIM Card Retainer Flap

Memory Card

Retainer Flap

5. Slide the SIM or memory card (contacts facing down) into the appropriate socket, then close the retainer flap.

SIM Card

Chamfered Corner of SIM Card

Memory Card

6. Pull the battery latch back and insert the battery, then attach the battery door. The terminal begins booting as soon as power is applied.

3 - 16

Preliminary Draft 5/26/13, Not for Release

Using the Scan Image Engine

Overview

The Dolphin 70e Black terminal houses a compact image engine that instantly reads popular 1D and 2D bar codes and supports omni-directional aiming and decoding for greater flexibility in real-world settings. The image engine can also capture black and white digital images, such as signatures and pictures of damaged inventory.

With the latest CMOS-based technology, the engine works like a digital camera and enables black and white digital image capture, signature capture, and reading of OCR characters.

LED Safety

See LED Safety on page 1-1.

Image Engine Specifications

Field of View

Horizontal Field Angle (°) 21.9+/-0.5 degree

Vertical Field Angle (°) 15.9+/-0.5 degree

Depth of Field

The depth of field measurements used the following parameters:

• Distances are measured from the front of the engine.

• +23°C (+73°F), 0 lux

• Photographic quality codes

Symbology Distance (in/cm)

Near

3 mil C39/128 - - -

5 mil C39/128 2.25 (5.7) 4.35 (11.049) 2.1 (5.3)

7.5 mil C39/128 1.25 (3.2) 6.87 (17.4) 5.62 (14.3)

10 mil C39/128 0.67 (1.7) 9.93 (25.2) 9.26 (23.5)

15 mil C39/128 1.01 (2.6) 15.16 (38.5) 14.15 (35.94)

20 mil C39/128 1.80 (4.57) 18.56 (47.14) 16.76 (42.57)

Distance (in/cm) Far

Delta (in/cm)

100% 13 mil UPC 1.57 (3.9) 12.18 (30.9) 10.61 (26.9)

5 mil PDF417 - - -

6.7 mil PDF417 1.53 (3.8) 4.63 (11.7) 3.1 (7.8)

10 mil PDF417 1.38 (3.5) 7.34 (18.6) 5.96 (15.1)

4 - 1

Preliminary Draft 5/26/13, Not for Release

5 mil microPDF - - -

5 mil DataMatrix - - -

10 mil DataMatrix 1.52 (3.8) 4.87 (12.3) 3.35 (8.5)

20 mil DataMatrix 1.07 (2.7) 9.66 (24.5) 8.59 (21.8)

10 mil QR 1.50 (3.8) 5.13 (13.0) 3.63 (9.2)

20 mil QR 2.48 (6.3) 9.66 (24.5) 7.18 (18.2)

32 mil Maxicode 1.56 (3.9) 13.19 (33.5) 11.63 (29.5)

Supported Bar Code Symbologies

Symbology Type Symbology Name

1D Symbologies Codabar

Codablock F Code 3 of 9 Code 11 Code 32 Pharmaceutical (PARAF) Code 93 Code 128 EAN with Add-On EAN with Extended Coupon Code EAN-8 EAN-13 GS1-128 GS1 Databar Interleaved 2 or 5

2D Symbologies Aztec

Codablock A Codablock F Data Matrix

Composite Codes UPC/EAN

UCC/EAN GS1 Databar

OCR MICR E 13-B

OCR-A OCR-B

ISBT 128 Matrix 2 of 5 MSI Plessey Straight 2 of 5 IATA Straight 2 of 5 Industrial Telepen Trioptic Code UPC with Add On UPC-A UPC-E

GS1 Databar MaxiCode Micro PDF PDF417 QR Code

Postal Codes Postnet and most international 4-state codes

Australian Post British Post

4 - 2

Canadian Post China Post

Preliminary Draft 5/26/13, Not for Release

Decoding

The terminal supports two types of image decoding for use in various bar code reading and imaging applications: full-area imaging and Advanced Linear Decoding (ALD).

Full-Area Imaging

Full-area imaging provides omni-directional reading of linear and non-linear 1D and 2D bar codes, OCR, signature capture, and picture taking. When reading all bar code types using full-area imaging, a positive read can be obtained from many positions; see The Aiming Beam on page 4-3. To achieve the best read, the aiming beam should be centered horizontally across the bar code.

ALD

ALD provides fast reading of linear and stacked linear bar codes. To achieve a positive read when reading linear 1D and PDF417 bar codes, the aiming beam should be centered horizontally across the bar code. When ALD is enabled, the reader does not read matrix or postal codes.

Using the Scan Demo to Decode a Bar Code

The aiming beam should be oriented in line with the bar code to achieve optimal decoding.

1. Touch > Demos > Scan Demo .

2. Point the Dolphin terminal at the bar code. Press and hold the Scan button.

Note: The left and right side buttons also trigger the scan/imager.

3. Center the aiming beam over the bar code; see The Aiming Beam on page 4-3.

Note: By default, the LED illumination and aiming beam options are enabled. For optimum performance, avoid

reflections by scanning the bar code at a slight angle.

4. When the bar code is successfully decoded, the terminal beeps and the bar code information appears on the touch screen.

The Aiming Beam

The aiming beam is smaller when the terminal is held closer to the code and larger when it is farther from the code. Symbologies with smaller bars or elements (mil size) should be read closer to the unit whereas symbologies with larger bars or elements (mil size) should be read farther from the unit.

4 - 3

Linear Bar Code

Scan Key

2D Matrix Symbol

Preliminary Draft 5/26/13, Not for Release

Capturing Images Using the Imaging Demo

The image-capture process is an intuitive, split-second operation for experienced users. By following the basic guidelines, new users can easily develop their own technique and, with practice, quickly learn to adapt it to different application environments.

Image Preview

When the imaging process is initiated, the touch screen displays a preview of the object. This is a live video image of what the imager is currently viewing. The live video image has a slightly degraded appearance compared to the captured image. This is normal.

Scan Key

On all Dolphin 70e Black terminals, the Scan button captures images.

File Formats

File formats supported for image storage include Bitmap (BMP), JPEG (JPG) and Portable Network Graphics (PNG). The default file format for images is a gray scale JPG.

Compression

Digital images have a maximum image size of 640 x 480 pixels and may have up to a 256 (8 bit) gray scale image definition.

The image quality and related file size are determined by the data compression method used by the software application used to take images. The average size of the image file is approximately 4–8K. However, the size of the image depends on the content of the image - the more complex the content, the larger the file size.

4 - 4

Preliminary Draft 5/26/13, Not for Release

Taking an Image

The following steps are basic guidelines for taking images:

1. Touch > Demos > Imaging Demo .

2. Point the Dolphin terminal at the object. To preview the image, press and hold the Scan button.

Note: The general notification LED above the touch screen illuminates red while the Scan button is pressed.

3. Adjust the terminal’s position until the object appears on the touch screen the way you want it to appear in the image.

4. Release the Scan button to capture the image.

5. Touch File on the Tile bar, then select Save or Save As.

Note: Unless otherwise specified, the image is saved to the \My Device\My Documents folder.

Enabling the Aimer

By default, the Aiming Beam (see page 4-3) is turned off in the Imaging Demo application. To enable the aiming beam for image capture:

1. Touch File at the bottom of the Imaging Demo screen.

2. Select S

Note: If an option is enabled, a check mark appears next to the name.

3. The aiming beam is now enabled for imaging.

etup from the menu, then touch Aimer.

Uploading Images

Image files can be uploaded to a host workstation using Microsoft ActiveSync or Windows Mobile Device Center and a Dolphin communication peripheral. For additional information see Connecting and

Synchronizing the Terminal and Workstation on page 7-9.

4 - 5

Preliminary Draft 5/26/13, Not for Release

4 - 6

Preliminary Draft 5/26/13, Not for Release

Using the Color Camera

Overview

Dolphin 70e Black terminals are equipped with 5.0-Megapixel auto focus cameras to provide easy integration of color picture and video capture into business applications. The camera lens and camera flash are located on the back panel of the terminal.

Taking a picture using the Camera Demo tool

1. Touch > Demos > Camera Demo .

2. Adjust the camera settings using the icon menu at the top of the display screen.

Color

Saturation Contrast Lamp

3. Point the terminal's camera lens at the object you want to capture.

4. Center the object you want to take a picture of on the live preview screen.

Brightness Pixels

Camera Lens

Flashlight/ Camera Flash

Zoom

Sharpness

5. Touch

Note: Touch the green arrow to review or edit your pictures.

To exit the picture review/edit screen, touch the green box .

on the touch screen.

5 - 1

Profile Tab

Preliminary Draft 5/26/13, Not for Release

Camera Options

The Camera Options menu provides access to create customized profiles, adjust audible feedback, modify file preferences, and set caption options. Touch Options > Camera to access the Camera Options menu.

The Camera Options screen contains five tabs: Profile, Display, Capture, Caption, and File.

Display Tab

The profile tab allows you to customize your camera settings, or chose from several predefined profiles designed to provide the best picture quality for common tasks.

5 - 2

Capture Tab Caption Tab

Capture Tab

Preliminary Draft 5/26/13, Not for Release

5 - 3

Preliminary Draft 5/26/13, Not for Release

Taking a picture using the Windows Embedded Handheld 6.5 Camera tool

1. Touch > Pictures & Videos > Camera

2. Point the terminal's camera lens at the object you want to capture.

Note: The camera lens is located on the back panel of the terminal.

3. Center the object you want to take a picture of on the live preview screen. Adjust the camera settings or let the camera auto-focus.

Note: Focus On is the default Focus mode. In this mode, the camera performs auto-focus while it is in preview

mode but not during picture capture.

4. Press the Scan button to capture the photo.

5. The touch screen displays the captured photo. Touch OK or Camera on the Tile Bar to return to the active viewfinder screen.

To uc h Menu on the Tile Bar at the bottom of the touch screen to adjust the camera settings, switch to video mode, and access additional camera options.

Item Descriptions

Video Activate Video Mode

Mode Set Mode (i.e., Normal, Burst, or Timer)

Resolution Set Picture Resolution (i.e., QVGA, VGA, SVGA, XGA, UXGA, QXGA, or MEGA5)

Zoom Set Zoom (i.e., x1, x2, or x3)

Flash Set Camera Flash On or Camera Flash Off

Focus Set Focus Off, Focus On (default), Focus on Trigger, or Fixed-Focus

Focus On (default setting): The camera auto-focuses while it is in preview mode. As you move the camera, the lens targets and auto-focuses on different objects. Once the picture is in focus in preview screen, the camera is ready for the picture to be taken. To reduce the capture time of the photo, the camera does not auto-focus during picture capture process.

Focus on Trigger: The camera auto-focuses while it is in preview mode and again during picture capture. The Focus on Trigger lengthens the capture time of the photo.

Brightness Set the brightness setting from +2.0 EV to -2.0 EV in .5 EV increments

Full Screen Switch to full screen mode

Options Set Camera Options, Video Options, Slide Show Options or General Options

5 - 4

General Tab Slide Show Tab

Camera Tab Video Tab

Preliminary Draft 5/26/13, Not for Release

Options

To uc h Menu > Options. The Options menu contains four screens:

5 - 5

Preliminary Draft 5/26/13, Not for Release

Recording Video

1. Touch > Pictures & Videos > Camera > Menu > Video

2. Point the terminal's camera lens at the object you want to capture.

3. Press the Scan button to start recording.

4. Touch Stop on the screen or press Scan button to stop recording.

Uploading Pictures and Videos

Picture and Video files can be uploaded to a host workstation using Microsoft ActiveSync or Windows Mobile Device Center and a Dolphin communication peripheral. For additional information see

Connecting and Synchronizing the Terminal and Workstation on page 7-9.

5 - 6

Preliminary Draft 5/26/13, Not for Release

System Settings

Overview

Customized settings are available on the System Settings menu. Touch > Settings and the settings screen opens.

Icon Description

Bluetooth Configure the Bluetooth radio. See Working with the Bluetooth Radio on page 9-1.

Home Customize the look and the information displayed on the Home screen.

Clock & Alarms

Lock Password protect the terminal to limit access. See Lock on page 6-3.

Sounds & Notifications

Set the system clock, date, time and schedule alarms. See Clock & Alarms on page

6-2.

Set the sound volume, enable or disable sounds for specific actions, set sound parameters for system notifications and enable or disable vibrator notification.

6 - 1

Preliminary Draft 5/26/13, Not for Release

Icon Description

Connections Establishes network connections settings. See Connections Menu on page 7-1.

Personal Customizes buttons, and set SIP options. See Personal Menu on page 6-4.

System Adjusts system settings. See System Menu on page 6-9.

Clock & Alarms

The Clock & Alarms settings can be accessed from the Home screen or the Settings menu.

1. On the Home screen, touch the line that displays the time and date or touch > Settings > Clock & Alarms.

2. The Time settings screen provides access to set the system clock (i.e., Time Zone, Date, and Time). All scheduled items run according to the settings on the screen. Touch the arrow to the right of the time zone to open the drop down menu. Select the appropriate time zone from the menu. Set the correct time and date in the remaining fields and touch OK to save.

6 - 2

Preliminary Draft 5/26/13, Not for Release

Lock

The Lock settings screen provides access to additional password security features that enable you to prevent an unauthorized person from unlocking the touch screen and accessing the terminal. Select from two password security options: a Strong Alphanumeric Password or a Simple PIN.

To add password protection:

1. Touch > Settings > Lock .

2. Check the box next to the phrase “Prompt if phone unused for”.

3. Select the length of inactive time you want the terminal to wait before implementing password security for terminal access.

4. Select Strong Alphanumeric Password or Simple Pin from the Password type drop-down menu.

5. Input the Password you want to use to unlock the terminal.

6. Input the password a second time to Confirm.

7. Touch OK on the tile bar.

8. Select Yes to save the password settings.

To remove password protection:

1. Touch > Settings > Lock .

2. Enter your password.

3. Uncheck the box next to the phrase “Prompt if phone unused for”.

4. Touch OK on the tile bar.

6 - 3

Preliminary Draft 5/26/13, Not for Release

Personal Menu

To access the Personal Menu, touch > Settings > Personal . The screen opens displaying the Personal Menu.

Icon Description

Buttons The Dolphin 70e Black has six programmable buttons (i.e., Right, Left, Home, Scan,

Back, and End). Touch the Buttons icon to program the buttons to perform specific tasks. See Buttons on page 6-5.

Owner Information

Phone The Phone icon is present on Dolphin models equipped with WWAN radio (GSM/

Voice Command

6 - 4

Enter your contact information (e.g., name, company, address, telephone number and E-mail address).

UMTS/GPRS/EDGE) capabilities. Touch this icon to set up user parameters. See

Phone Setup Options on page 8-6.

Touch the voice command icon to enable or disable voice command for specific applications, adjust how calendar and notification announcements are performed and set up voice activated password protection. See Voice Command on page 6-8.

Preliminary Draft 5/26/13, Not for Release

Buttons

The Dolphin 70e Black has six programmable buttons: Home, Scan, Back, End and the Right and Left side buttons. Use the Buttons setting to reassign the buttons to launch applications or execute commands.

Changing Button Assignments

1. Touch > Settings > Personal > Buttons .

Note: The buttons that appear on this window are the only buttons that can be programmed via the Buttons setting.

You cannot add buttons to this window.

2. To change button assignment, touch on the name of the button in the Button column, and then select a program or command in the Assign a program drop down list.

3. Touch OK to save.

4. Press the button to verify that the program is launched or action performed.

Available Applications

The Assign a program list contains the applications installed on the terminal. If there is a program installed that you would like to see in this list, paste a Shortcut to the program in the \\Windows\Start Menu\Programs folder. For instructions about creating shortcuts, see Using File Explorer on page 6-6.

6 - 5

Preliminary Draft 5/26/13, Not for Release

Additional Functions

The Assign a program list also contains the following commands:

Command Description

<BACK> Returns to the previous screen.

<Context Menu> Performs the same function as touch-and-hold to open the context menu for the control.

<END> Ends a phone call.

<Home> Returns to the Home screen.

<Input Panel> Opens the soft input panel.

<Left Softkey> Opens the menu or performs the action displayed on the left side of the Command bar.

<None> Nothing happens when the button is pressed.

<OK/Close> Performs the same function as touching OK on the screen.

<Right Softkey> Opens the menu or performs the action displayed on the right side of the Command bar.

<Rotate Screen> Changes the screen orientation from portrait to landscape.

<SCAN> Activates the scanner/imager.

<Scan1> Activates the scanner/imager.

<Scan2> Activates the scanner/imager.

<Scroll Down> Scrolls down in the open application.

<Scroll Left> Scrolls left in the open application.

<Scroll Right> Scrolls right in the open application.

<Scroll Up> Scrolls up in the open application.

<Start Menu> Opens the Start menu.

Using File Explorer

If you do not see the program listed under the Assign a Program list, you can either use File Explorer on the terminal or ActiveSync (see page 6-7) on the workstation to create a shortcut to the program and place the shortcut in the Start Menu folder.

Note: We recommend that you Copy and Paste Shortcut so that you do not alter your program configurations by

accident. Using Copy and Paste Shortcut (as opposed to Cut and Paste) ensures that the program files remain where they need to be for the system to find them to perform system functions.

1. Touch > File Explorer .

1. Touch the Program Files folder under My Device.

2. Touch and hold on the program, then touch Copy on the pop-up menu.

6 - 6

Preliminary Draft 5/26/13, Not for Release

3. Navigate back to the My Device root directory, then touch Windows > Start Menu.

Touch the arrow , then select My Device.

4. Touch and hold a blank area of the window, then touch Paste Shortcut on the pop-up menu.

Note: If there is no blank space available in the window, touch on

Menu > Edit > Paste Shortcut

5. Touch to verify that the program now appears on the Start menu.

Using ActiveSync on the Workstation

Here, you are performing the same basic process as on the terminal, except that you are using the Explore utility (Windows Explorer) to copy and paste the shortcut.

1. Connect the terminal to the workstation using a Dolphin 70e Black peripheral.

2. Open ActiveSync > Explore and navigate to the program.

3. Right-click on the program and select Create Shortcut.

4. Select the shortcut, right-click, and select Cut.

6 - 7

Enable or Disable Voice Command functionality.

Enable or Disable Voice Command for specific applications.

Preliminary Draft 5/26/13, Not for Release

5. Navigate to the Start Menu folder (Windows > Start Menu > Programs).

6. Right-click on an empty area and select Paste Shortcut.

7. On the terminal, touch the Start menu.

8. Verify that program appears.

Voice Command

The Voice Command screen provides access to enable or disable voice command for specific applications, adjust how calendar and notification announcements are performed and set up voice activated password protection.

To access the Voice Command settings, touch > Settings > Personal > Voice

Command .

6 - 8

Preliminary Draft 5/26/13, Not for Release

System Menu

The System menu enables you to verify and sometimes alter system parameters.

To access the System menu, go to > Settings > System . Touch the appropriate icon to open that system setting.

Icon See Page

About See About on page 6-11.

AudioPanel See Audio Panel on page 6-11.

Backlight See Backlight on page 6-12.

Battery See Battery on page 6-14.

Certificates See Certificates on page 6-16.

6 - 9

Preliminary Draft 5/26/13, Not for Release

Icon See Page

Encryption See Encryption on page 6-16.

Error Reporting

External GPS

HSM SystemInfo

Managed Programs

Memory See Memory on page 6-22.

Power See Power on page 6-23.

Regional Settings

See Error Reporting on page 6-17.

See External GPS on page 6-17.

See HSM SystemInfo on page 6-17.

See Managed Programs on page 6-22.

See Regional Settings on page 6-24.

Remove Programs

RIL See RIL on page 6-26.

Screen See Screen on page 6-26.

SIP Config See SIP Config on page 6-18.

Smart Sensors

Task Manager

See Remove Programs on page 6-25.

See Smart Sensor on page 6-19.

See Task Manager on page 6-27.

6 - 10

Preliminary Draft 5/26/13, Not for Release

About

The About system settings screen displays specific information about the terminal. Three information screens are available: Version, Device ID, and Copyrights.

To access the About system screen, touch > Settings > System . > About .

The Version Screen

Displays the information about the software, operating system, and processor.

The Device ID Screen

Displays the information the terminal uses to identify itself to other devices. It can be important to know this information if the Dolphin terminal is going to be part of a networked system of devices.

• Device name: Displays the system’s default name. This is the name used by ActiveSync.

• Description: Displays the description of the device ID.

The Copyrights Screen

Displays important copyright information.

Audio Panel

The Audio Panel settings allow you to specify the Preferred Media Audio Device used for media playback and audio recording. There are six device options: Auto, Handset, Speaker, Headset, Aux, or Bluetooth HS. The Mic Volume slider adjusts the audio input volume (gain) for the preferred device selected.

Note: Changes made to the Audio Panel only affect media playback

and recording. Phone audio settings are not affected.

To access the Audio Panel settings, touch

> Settings > System > Audio Panel .

Select Auto from the Preferred Media Audio Device list to set the terminal to automatically detect and use the system default device.

Note: If you select a preferred device that is not available, for

example, you select Headset but do not connect the headset to the terminal; the audio defaults to Auto until the preferred device becomes available.

To uc h Reset on the tile bar to discard changes and revert to the default Audio Panel settings or select OK to save changes.

6 - 11

Preliminary Draft 5/26/13, Not for Release

Backlight

The Backlight system setting enables you to customize backlight functionality for the display and keypad (i.e., Send, Home, Back and End buttons). The settings menu contains three tabs: Dim Backlight, Brightness and Keypad Backlight.

To access the Backlight settings, touch > Settings > System > Backlight .

Dim Backlight

The Dim Backlight settings determine if the backlight dims during periods of non-use and how many minutes you want to elapse before the backlight automatically dims when the terminal is running on battery power, external power or USB power.

• Battery Power: The terminal is being powered by the battery.

• External Power: The terminal is being powered by an external power source, e.g., HomeBase, ChargeBase or Mobile Base.

• USB Power: The terminal is being powered by a USB connection, e.g., the Charge/ Communication cable connected to a workstation (PC) or used in conjunction with the provided power supply (70e-USB ADAPTERKIT).

Check the box next to the option to enable automatic backlight dimming.

Touch the arrow, then select the time increment you want to elapse before the backlight automatically dims.

6 - 12

Preliminary Draft 5/26/13, Not for Release

Brightness

The Brightness tab determines the backlight intensity of the display when the terminal is in use. The settings customize how the terminal responds to the environmental lighting conditions in which the terminal is being used.

Check the "Auto adjust backlight" box to enable automatic adjustment of the backlight intensity depending on the operating environment. Once enabled, the terminal automatically adjusts the backlight intensity to low, medium or high depending on the detected operating environment.

• Low light environments (e.g., dark areas with a limited light source) trigger a low intensity backlight.

• Medium light environments (e.g., standard lighting in office buildings) trigger a medium intensity backlight.

• High light environments (e.g., outside environments with bright sunlight) trigger a high intensity backlight.

When the terminal is in a specific environment, you can manually adjust the brightness level for the environment by changing the Brightness level number from 1 to 8 or by dragging the slider left or right on the screen. The highest Brightness level is indicated with an 8.

Check the box to enable automatic adjustment of the backlight intensity for low, medium, and high light environments.

Touch and drag the slider to manually adjust the Brightness level setting of the current environment.

6 - 13

Preliminary Draft 5/26/13, Not for Release

Keypad Backlight

The Keypad Backlight tab setting determines when the keypad (i.e., Send, Home, Back and End buttons) backlight is activated. The backlight can be set to turn on with the display, to turn on in dark environments or to stay turned off.

Battery

The Battery system settings menu contains two tabs: Battery Status and Log Config. The Battery Status tab provides the status of the battery pack (e.g., Battery Time to Full or Battery Time to Empty,

Voltage, Current, Temperature, Chemistry, and Serial Number). The Log Config Tab allows you to configure the BatteryLogFile.

To access the Battery system settings, touch > Settings > System > Battery .

Battery Status

The Battery Status tab provides the following information on the battery.

Battery Life Percent

The Battery Life Percent indicates the percentage of charge remaining on the battery.

Battery Time to Full or Empty

When external power is supplied to the terminal, the estimated charging time remaining to achieve a full charge is listed. When power is supplied by the battery, the estimated time remaining on the battery charge is listed.

Note: Time estimates are based on the present voltage and current readings.

6 - 14

Battery Status Tab Log Config Tab

Preliminary Draft 5/26/13, Not for Release

Battery Voltage

The Battery Voltage status can range from approximately 3.2 V to 4.2 V.

Battery Current

The Battery Current reflects the charging current going into the battery when it is a positive and the discharge current when it is negative.

Note: The charging current is always less than current source due to device being in operation.

Battery Temperature

The Battery Temperature indicates the temperature status of the battery.

Battery Chemistry

The Battery Chemistry provides the battery type (e.g., LiIon).

Battery Serial Number

The Battery Serial Number displays the serial number of the authenticated Honeywell battery.

6 - 15

Preliminary Draft 5/26/13, Not for Release

Certificates

Certificates shows you the certificates that are recognized by the operating system. The Horizontal scroll bar at the top of the screen provides access to the three certificate screens: Intermediate, Personal, and Root.

Swipe left or right on the Horizontal scroll or touch the label (e.g., Root or Personal) to access the additional screens.

Encryption

Encryption gives you the option of encrypting files placed on storage cards so that those files cannot be read by any other device. Check the box to enable file encryption when saving to a storage card.

6 - 16

Access Screen Hardware Screen Programs Screen

Preliminary Draft 5/26/13, Not for Release

Error Reporting

Error Reporting gives you the option of enabling or disabling the error reporting function of Windows Embedded Handheld 6.5.

External GPS

External GPS determines which port a third-party GPS software application can use to access the GPS receiver.

Note: You need the installation parameters from the GPS manufacturer to configure the connection.

HSM SystemInfo

The HSM SysInfo screen provides important system information including firmware versions, DLL versions, system parameters, as well as network and radio information. HSM SysInfo screen contains six tabs: System, HW, SW, Radio, EXE and DLL.

To output the system information to a text file:

1. Touch > Settings > System > HSM SystemInfo .

2. Touch Save on the tile bar.

3. A text file containing the collected system information is created and saved to IPSM/SysInfo.txt.

To upload SysInfo.txt file to a Workstation via ActiveSync:

1. Connect the Dolphin terminal to the workstation using a Dolphin communication peripheral.

2. Open Windows Explorer on the workstation.

3. Navigate to the Mobile Device folder.

4. Double click My Windows Mobile-Based Device and navigate to the IPSM folder.

5. Copy the SysInfo.txt file to your workstation.

6 - 17

Preliminary Draft 5/26/13, Not for Release

SIP Config

The SIP Config settings screen enables you to configure Session Initiation Protocol (SIP) for Voice Over IP (VoIP) and Telephony communication.

To access the SIP Config screens, touch > Settings > System > SIP Config .

SIP Setting Tab Dial Plan Tab

6 - 18

Preliminary Draft 5/26/13, Not for Release

Smart Sensor

The Smart Sensor configuration utility enables you to configure the Dolphin’s integrated accelerometer, and motion settings.

Tou c h > Settings > System > Smart Sensor .

Touch to customize how the terminal responds to motion and object orientation for ease of operation and advanced power management.

Touch to customize how the terminal responds to objects detected close to the touch

Touch to calibrate the integrated accelerometer sensor used for motion detection.

screen display.

Motion Settings

Motion Settings enable you to customize how the terminal responds to motion and object orientation for ease of operation and advanced power management. The Motion Settings menu contains three tabs:

Display, Power, Management, and Event Tracker.

Display

The Display tab provides access to enable or disable Auto Display Orientation. When enabled, the Dolphin's display automatically switches between portrait and landscape depending on how you hold the terminal.

Power Management

The Power Management tab provides access to customize how the terminal responds to object orien- tation and motion to reserve power and reduce time between charge cycles.

• Face Down: Save power by turning off the display and/or suspending the device when the terminal is placed face down.

6 - 19

Preliminary Draft 5/26/13, Not for Release

• Motion Detection: Modify the Motion Detection settings to wake the terminal from suspend mode or prevent the terminal from entering suspend mode when motion is detected.

Event Track

The Event Track tab displays an event log summary of detected free fall events exceeding 2 ft. over 500ms. The summary includes the time, date, and duration of the most recent 50 events. Several options are provided for audible notification of free fall events.

6 - 20

Preliminary Draft 5/26/13, Not for Release

Proximity Sensor Settings

The integrated proximity sensor detects when an object is in close proximity to the entire touch panel display (e.g., a person's face, carrying holster, or tabletop). By default, the proximity sensor automatically turns the display and touch panel off when you hold the terminal near your ear during a phone call. The display and touch panel turn back on when the sensor detects the removal of the object.

To enable this feature at all times, not just during phone calls, check the Enable Proximity Sensor box.

Accelerometer Calibration

To uc h Start to calibrate the integrated accelerometer sensor used for motion detection. When calibration is complete, the “Accelerometer Calibration Finished!” message window appears.

6 - 21

Preliminary Draft 5/26/13, Not for Release

Managed Programs

The Managed Programs screen lists the installation history of programs on the terminal that are managed by and enrolled to an enterprise domain. Managed Programs is the client-side that works with the server product System Center Mobile Device Manager (MDM). MDM consists of MDM Gateway Server and one or more computers that run MDM Device Management Server; MDM Enrollment Server; and Microsoft SQL Server® 2005 databases.

It lets system administrators:

• provide an authenticated connection to Line of Business (LOB) applications, managed Group Policy, and application packages.

• use Group Policy and software packages to manage the enrolled Windows phones (enforce policy, wipe devices, etc.).

• manage the requests for and retrieving of certificates for devices and for creating the Active Directory® Domain Service objects that represent these devices. By using these objects, you can manage the devices as if they were members of a domain.

Memory

The Memory applet shows the capacity and usage of the Storage and Program portions of the Flash file system. The Storage portion includes the IPSM folder, which can be detailed under the Storage Card tab. When the Program portion becomes too full, you can use the Task Manager to remove any unnecessary tasks.

Main Screen

The Main screen displays the usage statistics of the flash memory.

6 - 22

Preliminary Draft 5/26/13, Not for Release

Storage Card Screen

The Storage Card screen displays the current capacity and usage statistics of the selected memory type: IPSM, RAMDISK or Storage Card. Select the memory type from the drop-down list. RAMDISK is selected by default.

• IPSM (Internal Persistent Storage Manager) Data or programs stored in the IPSM are not affected when the operating system is upgraded. Autoinstall programs, for example, are stored in \\IPSM\Honeywell\Autoinstall so that they are always installed after an operating system upgrade or factory reset. Contact a Honeywell technical support representative for more information on how to perform a factory reset. For contact information, see Technical Assistance on page 14-1.

• RAMDISK, is a virtual disk that resides in RAM, volatile memory. The virtual disk provides faster access speed than the ISPM or other system folders. RAMDISK is volatile and is cleared when a reset (i.e., soft, hard or factory) is performed or power is lost.

• Storage Card You can install one memory card in Dolphin terminals (see Installing a SIM Card and/or Memory

Card on page 3-15). If a storage card is installed in the terminal, you can select it in the drop-

down list and see capacity and usage statistics for the card.

Power

Power system settings contains two tabs: Battery and Advanced

Tou c h > Settings > System > Power

6 - 23

Preliminary Draft 5/26/13, Not for Release

Battery Tab

The battery tab displays the power level status of the battery. For detailed information on the main battery, see Battery on page 6-14.

Advanced Tab

The Advanced tab settings determine power time-outs when running on battery power, external power, or USB power. To reserve power and extend time between charging cycles, configure the terminal to automatically enter Suspend Mode (see page 2-12) after a specific number of minutes of inactivity.

On battery power: The terminal is being powered by the battery.

On external Power: The terminal is being powered by an external power source, e.g., HomeBase,

ChargeBase or Mobile Base.

On USB Power: The terminal is being powered by a USB connection, e.g., the Charge/Communication cable connected to a workstation (PC) or used in conjunction with the provided power supply (70e-USB ADAPTERKIT).

Note: The On USB power time-out setting does not auto-spend the terminal if an ActiveSync connection between

the terminal and workstation is active. Disable ActiveSync on the workstation in order for the device to autosuspend while connected to the workstation.

Check the box next to the option to enable power time-outs.

Touch the arrow, then select from the drop-down list, the number of minutes of inactivity you want to pass before the terminal enters Suspend Mode.

Regional Settings

Regional Settings enables you to customize the appearance and formatting to your geographic region. Specifically, you can customize numbers (i.e., number of decimal places allowed), currency (i.e.,using the $ or € symbol), time, and date. These specifications apply to all screens, including the Home screen. The Region screen displays an overview of the region selected in the drop-down list at the top.

6 - 24

Preliminary Draft 5/26/13, Not for Release

The terminal is loaded with a number of pre-programmed regional settings. Select one from the list and the results appear on the screen. To see specific settings or to change a specific setting, touch on one of the items on the horizontal scroll bar (i.e., Region, Number, Date), make the change, and touch OK to save.

Remove Programs

Remove Programs enables you to remove programs installed on the terminal. Any program (usually CAB or DLL files) stored in the \\IPSM\Honeywell\Autoinstall folder re-installs after a software upgrade or a factory reset. If a program is manually removed using the Remove Programs application, the program does not re-install on a hard or soft reset.

Note: A program (file) does not automatically install if it is added to the \\IPSM\Honeywell\Autoinstall folder and a

hard or soft reset is performed. For information on program installation, see Installing Additional Software on page 7-11.

For information about the system resets, see Resetting the Terminal on page 2-13. See Honeywell support for more information on how to perform a factory reset.

1. Touch > Settings > System > Remove Programs .

2. Select the program you want to remove on the list, and then touch Remove.

3. Touch Yes. Wait while the program is removed.

4. Verify that the program no longer appears in the list.

6 - 25

Preliminary Draft 5/26/13, Not for Release

RIL

The RIL Information screen displays useful statistics for the GSM/CDMA WAN Voice module and enables you to turn HAC Audio Mode on or off. When HAC Audio mode is enabled, a magnetic/voice coil activates in the terminal earpiece/receiver speaker allowing the terminal to interface with a hearingaid. To verify whether or not the WAN radio is enabled, check the Dolphin Wireless Manager (see page 8-6).

HAC Audio Mode

To enable the terminal for use with a hearing-aid:

1. Touch > Settings > System > RIL .

2. Check the box next to Use HAC Audio Mode.

3. Touch OK.

Screen

The Screen system setting contains two screens: Clear Type, and Text Size.

Tou c h > Settings > System > Screen .

ClearType Screen

The display supports ClearType font rendering, which is a Microsoft technology that dramatically increases the readability of text on LCD displays.

To enable ClearType font rendering, select Enable ClearType and touch OK.

Note: For more information about ClearType font rendering, visit: www.microsoft.com/typography/

WhatIsClearType.mspx.

6 - 26

Preliminary Draft 5/26/13, Not for Release

Text Size Screen

The Text Size screen enables you to perform font scaling within certain views of the: Home screen (only on non-phone devices), Contacts, Calendar, Messaging, and Tasks. Font scaling means that you can increase or decrease the point size of the font on application windows.

To change the text size, move the slider toward Smallest or Largest. The Example text changes to reflect the font change.

To uc h OK to save the new text size.

Task Manager

The Task Manager provides information about applications and processes running on your mobile computer. You can use the Task Manager to monitor the memory and CPU usage of specific applications and processes. Check the Task Manager when you are receiving out of memory errors or when the mobile computer is running slowly.

Tou c h > Settings > System > Task Manager .

6 - 27

Preliminary Draft 5/26/13, Not for Release

Applications

To view the status of the programs running on your mobile computer, touch the Menu button at the bottom of the screen, then touch View > Applications.

From the application list, you can:

• Touch and hold on an application, then touch Switch To on the pop-up menu.

• Touch and hold on an application, then touch End Task or End All Tasks on the pop-up menu.

Note: Anytime you stop a running program, it frees up memory. To free up memory, return to the running program,

save your data, and close the application.

6 - 28

Preliminary Draft 5/26/13, Not for Release

Processes

To view information about the processes running on the mobile computer, touch the Menu button at the bottom of the screen, then touch View > Processes.

6 - 29

Preliminary Draft 5/26/13, Not for Release

6 - 30

Preliminary Draft 5/26/13, Not for Release

Communication

Connections Menu

The Connections system setting provides access to the terminal’s various wireless communication options.

Icon Description

Beam Enable the terminal to receive incoming beams from devices using Bluetooth

Connections Open Microsoft’s connections manager. See Connections Manager on page 7-2.

Dolphin Wireless Manager

Domain Enroll

wireless technology. See Working with the Bluetooth Radio on page 9-1.

Manage the wireless radios installed in the terminal. See Dolphin Wireless

Manager on page 7-5.

Note: The Dolphin Wireless Manager icon may not appear on the Connections

menu on terminals running Microsoft Windows Embedded Handheld 6.5 Classic. For information on how to access the Dolphin Wireless Manager, see page 7-5.

Open the Enrollment screen for connecting your phone with company resources.

Note: System administrator password is required for domain enrollment.

7 - 1

Preliminary Draft 5/26/13, Not for Release

Icon Description

USB to PC Enable advanced wired USB to PC communication via sync software. See

Connecting and Synchronizing the Terminal and Workstation on page 7-9.

Network Cards

Manage Network card settings, search and add wireless networks, and modify advanced Wi-Fi settings (e.g., network notifications and connection time-outs).

Connections Manager

Microsoft’s Connections Manager sets up multiple network connections to Internet Service Providers (ISPs) via an external modem.

Do NOT enter connection parameters in the Connections Manager if:

• you are using one of the on-board wireless radios to connect to a network. The Dolphin terminal uses the settings from each radio’s configuration utility to connect. The connections manager is used primarily to setup WAN modem dial up connections.

• you are using Wireless Zero Configuration (WZC). By default, WZC is disabled on Dolphin terminals.

To Access the Connections Manager

Tou c h > Settings > Connections > Connections .

7 - 2

Preliminary Draft 5/26/13, Not for Release

Tasks

The Tasks screen enables you to initially configure, and then manage network settings when using a modem. Select an item in this list and then complete the setup screens that follow with the appropriate information for your network.

My ISP

The links under the Service Provider (ISP). To complete the setup screens, obtain the following information from your ISP:

• ISP dial-up access telephone number

• User name

• Password

• TCP/IP settings

My ISP

heading enable you to add and manage modem connections to an Internet

My Work Network

The links under

• Modem

• Virtual Private Network (VPN)

• Proxy server connection

Note: If you are connected to your ISP or private network during synchronization, the terminal should download the

proper proxy settings during synchronization with the workstation. If these settings are not on your workstation or need to be changed, ask your ISP or network administrator for the proxy sever name, server type, port, type of Socks protocol used, and your user name and password.

To complete the setup screens, obtain the network parameters from your system administrator.

My Work Network

enable you to establish the following connection types:

7 - 3

Preliminary Draft 5/26/13, Not for Release

Modify an Existing Connection

The Manage existing connections link appears on the Connections screen under the after at least one network connection has been established. Touch Manage Existing Connections, then follow the setup screens to modify an existing connection.

My ISP

heading

Advanced

The Advanced screen enables you to select the default network, dialing rules, and IP address exceptions for modem connections.

Note: You should not need to change Advanced settings because most ISPs now use DHCP addresses.

7 - 4

Preliminary Draft 5/26/13, Not for Release

Dolphin Wireless Manager

The Dolphin Wireless Manager provides a centralized interface that enables and disables all the onboard radios. Each radio has its own configuration program. The Dolphin Wireless Manager also provides shortcuts to the configuration utilities for each radio.

To open the Dolphin Wireless Manager do one of the following:

1. Touch once on the Title bar to access the Horizontal Scroll bar, then touch .

2. Select, Dolphin Wireless Manager.

1. Touch > Settings > Connections > Dolphin Wireless Manager .

Dolphin Wireless Manager Window

The state of the radio is shown in the upper right corner of the radio box.

If applicable, information about the radio displays when the radio is activated.

7 - 5

Preliminary Draft 5/26/13, Not for Release

Enabling the Radios

1. Open the Dolphin Wireless Manager (see page 7-5).

2. Touch anywhere inside the rectangle of the radio you want to enable.

3. The radio begins activating.

4. When the radio is activated (i.e., transmitting a signal), the Off button changes to ON.

Note: If applicable, information about the radio appears in the rectangle.

7 - 6

Preliminary Draft 5/26/13, Not for Release

Accessing Radio Configuration Utilities

Each radio has its own configuration utility that you can access by touching Menu on the tile bar.

Radio Type Menu Option

802.11a/b/g/n Touch WLAN Settings and the Honeywell WLAN Security Supplicant opens.

The

Honeywell WLAN Security Supplicant User’s Guide

download from at www.honeywellaidc.com.

Bluetooth Touch Bluetooth Settings and the Bluetooth Settings screen opens.

For details, see Working with the Bluetooth Radio on page 9-1.

GSM/HSDPA/UMTS/ GPRS/EDGE/CDMA

To uc h Phone Settings and the Phone opens. For details, see Working with Wireless Wide Area Networking (WWAN) on page 8-1.

is available for

7 - 7

Preliminary Draft 5/26/13, Not for Release

USB to PC

Enable advanced network functionality under the USB to PC connection settings if you are having trouble connecting and synchronizing your terminal with a workstation PC using a wired USB connection and ActiveSync or Windows Device Mobile Center. The advanced network functionality can also be enable to improve transfer speeds when synchronizing large groups of data or copying large files between the terminal and workstation. See Connecting and Synchronizing the Terminal and Workstation on page 7-9.

1. Touch > Settings > Connections > USB to PC .

2. Check the box next to “Enable advanced network functionality”.

3. Touch OK, then attempt to sync the terminal and workstation PC.

Network Cards

The Network Adapters screen provides access to set and configure the type of Network Adapter used by the Network card in the terminal. You can modify the adapter settings (e.g., Name Servers or IP address) by touching on the adapter type or highlighting the adapter and touching Edit at the bottom of the screen.

Tou c h > Settings > Connections > Network Cards to access the Network Adapters screen.

7 - 8

Preliminary Draft 5/26/13, Not for Release

Connecting and Synchronizing the Terminal and Workstation

To synchronize data between the terminal and the workstation, ActiveSync (version 4.5 or higher) or Windows Mobile Device Center (WMDC) must be installed and configured for the appropriate communication type on the host workstation (Windows-based PC) and the Dolphin terminal. Dolphin terminals ship with ActiveSync already installed. Therefore, if ActiveSync or WMDC is already installed on the host workstation, you just need to connect the Dolphin terminal to the host workstation (via Dolphin peripheral) to initiate communication.

If ActiveSync (4.5 or higher) or WMDC is not installed on the host workstation, you can download and install the most current version of the software from the Microsoft Web site (

http://go.microsoft.com/fwlink/?LinkId=147001).

Note: ActiveSync on your Dolphin terminal works with WMDC on host workstations running Windows Vista or

Windows 7 and with ActiveSync on host workstations running Windows XP. For detailed information on ActiveSync and WMDC visit the Microsoft Windows Phone Web site.

When communicating via ActiveSync or WMDC, your terminal is designed to be connected to the host workstation with a communication peripheral sold/manufactured by Honeywell, such as the charge/ communication cable. Use of any peripheral not sold/manufactured by Honeywell may cause damage not covered by the warranty.

Capabilities

• Back up and restore your device data.

• Copy (rather than synchronize) files between your device and workstation.

• Control when synchronization occurs by selecting a synchronization mode. For example, you can synchronize continually while connected to your workstation or only when you choose the synchronize command.

• Select which information types are synchronized, controlling how much data is synchronized. For example, you can choose how many weeks of past appointments you want synchronized.

Communication Types

The Dolphin 70e Black terminal supports Hi-Speed USB communication (USB 2.0) via ActiveSync through the The I/O Connector (see page 3-10) on the back panel of the terminal and the microUSB port (see page 3-6) on the right side panel of the terminal. The maximum data transfer rate is 480 Mbps. A USB cable and/or a Honeywell hardware peripheral (e.g., HomeBase) allow the terminal to communicate with a workstation or to be networked through a USB hub. The Dolphin terminal defaults to USB communication out of the box.

Hardware Requirements for Setup

• HomeBase, power supply (shipped with HomeBase) and a USB cable if one is not supplied with your Dolphin communication peripheral

• The USB charge/communication cable (70e-USB) provided with your Dolphin terminal.

Software Requirements for Communication

• ActiveSync (v4.5 or higher) or Windows Mobile Device Center installed and configured on the host workstation (PC), see Setting Up the Host Workstation on page 7-10.

Note: ActiveSync or Windows Mobile Device Center must be setup on your workstation before you initiate

synchronization from the terminal for the first time.

7 - 9

Preliminary Draft 5/26/13, Not for Release

• Windows 98 Second Edition, Windows Me, Windows 2000, Windows NT (4.0 SP6 or higher), Windows XP, Windows Vista, and Windows 7 operating systems.

Setting Up the Host Workstation

To synchronize data between the terminal and the workstation, ActiveSync (v4.5 or higher) or Windows Mobile Device Center must be configured for same communication type on both the host workstation and the Dolphin terminal.

ActiveSync

Verify that ActiveSync is configured to use the appropriate communication type.

1. In the ActiveSync window on your workstation, select File > Connection Settings.

2. Check the box next to “Allow USB connections”.

Connecting the Dolphin Terminal to the Host Workstation

After setting up both the workstation and the terminal:

1. Connect the Dolphin terminal to the workstation using a Dolphin communication peripheral.

2. ActiveSync or Windows Mobile Device Center should open and connect automatically to the Dolphin

terminal.

Synchronizing with the Host Workstation

After setup, synchronization begins automatically whenever the terminal’s mechanical connector connects to a Dolphin peripheral that is connected to a host workstation with ActiveSync or Windows Mobile Device Center installed. For additional information visit the Microsoft Phone Web site (http://go.microsoft.com/fwlink/?LinkId=147001).

Note: if you are having trouble connecting and synchronizing your terminal with a workstation PC using a wired USB

connection and ActiveSync or Windows Device Mobile Center, try enabling the advanced network

functionality setting from the USB to PC connections screen.

Exploring the Terminal from the Workstation

ActiveSync

1. Open the main ActiveSync window (on the desktop).

2. Click Explore. This opens the Mobile Device folder for the terminal in Windows Explorer.

3. The Dolphin terminal is now treated as a mass storage device, and transferring files is as simple as

dragging and dropping or copying and pasting.

Windows Mobile Device Center

1. Open Windows Mobile Device Center (on the desktop).

2. Click File Management. This opens the Mobile Device folder for the terminal.

3. The Dolphin terminal is now treated as a mass storage device, and transferring files is as simple as

dragging and dropping or copying and pasting.

7 - 10

Preliminary Draft 5/26/13, Not for Release

Installing Additional Software

Dolphin terminals ship with the operating system, radio drivers, and custom Honeywell software already installed. These are the default programs that install when your terminal first boots up. You can install additional software programs to the terminal provided that the following parameters are met:

• The software program was created for a Windows Embedded Handheld 6.5 device.

• The terminal has enough memory to store and run the program.

• The program has an EXE, CAB, or DLL extension.

When selecting programs, verify that the program and version of the program are designed for the Windows Embedded Handheld 6.5 and the terminal’s processor. You can verify your processor by

touching > Settings > System > About. Make a note of the information in the Processor field on the Version screen.

To install additional software, you can use the communication options described in this chapter.

• Adding Programs Using ActiveSync or Windows Mobile Device Center, see page 7-11.

• Adding Programs Using the Internet, see page 7-12.

Adding Programs Using ActiveSync or Windows Mobile Device Center

Generally, software for Windows Embedded Handheld devices must be installed to the host workstation first, then transferred to the Dolphin terminal.

Note: An active Microsoft ActiveSync or Windows Mobile Device Center connection between a host workstation and

the Dolphin terminal is required to add programs. For additional information, see Connecting and

Synchronizing the Terminal and Workstation on page 7-9.

1. Download the program to the workstation from either the Internet or the install CD. You may see a

single *.exe or setup.exe file, a *.cab file, or a *.dll file.

Note: There may be several versions of files for different device types and processors. Select the file that

matches the terminal’s processor.

2. Read any installation instructions, Read Me files, or documentation that comes with the program.

Many programs provide special installation instructions.

3. Connect the terminal to the workstation via a Dolphin communication peripheral.

If the File is an Installer (*.exe or *.setup.exe)

An installer program is one that installs on the workstation and the terminal simultaneously; one process installs to both devices.

1. On the workstation, double-click the *.exe or setup.exe file. The installation wizard begins.

2. Follow the directions on the workstation screen. The installation process includes transferring the

software to the Dolphin terminal.

If the File is Not an Installer

Some programs cannot be installed on PCs because they are designed exclusively for Windows Embedded Handheld devices. In these cases, the appropriate files must be stored on the host workstation and transferred to the terminal via ActiveSync Explore or Windows Device Mobile File Management.

Note: You know that the program is not an installer because an error message stating that the program is valid but

designed for a different type of computer appears when you try to install the program on the workstation.

7 - 11

Preliminary Draft 5/26/13, Not for Release

1. If you cannot find any installation instructions for the program in the Read Me file or documentation

provided with the software, do one of the following:

a. Open ActiveSync and click Explore, or

b. Open Windows Mobile Device Center and click File Management

2. On the workstation, navigate to the folder containing the program file(s).

3. Copy and paste the file(s) into the Program Files folder on the Dolphin terminal.

Note: If you want the program to be part of the Autoinstall that occurs after a factory reset or software upgrade,

paste the program file(s) in both the

\Honeywell\Autoinstall

\IPSM\Honeywell\Autoinstall

4. On the terminal from the Start screen, touch File Explorer, navigate to the folder where the

program is located.

5. Touch on the program file to start the installation.

folder and the

Note: If you copied the file to the

to install the program. For more information, see Hardware Maintenance on page 3-15.

\Honeywell\Autoinstall

folder, you can perform a Soft Reset

Connecting the Terminal to a Wireless Network

You connect the terminal to a wireless network through the on-board radio (802.11a/b/g/n, Bluetooth, and/or GSM/CDMA). Each radio has its own configuration utility and requires specific information about the wireless network to connect. Successful connection depends on your network infrastructure about which you will need specific information from your network administrator.

WLAN (802.11a/b/g/n)

The Dolphin 70e Black has a 2.4 GHz 802.11b/g/n - 5.0 GHz 802.11a/n WLAN (Wireless Local Area Network) radio. The radio is interoperable with other 802.11a/b/g/n, Wi-Fi compliant products including access points (APs), workstations via PC card adapters, and other wireless portable devices. By default, the 802.11a/b/g/n radio is enabled after each factory reset. The next step is to configure the connection parameters of the radio to connect to a wireless network.

WLAN Radio

The WLAN radio is configured in the Honeywell WLAN Security Supplicant, which you access by touching the WLAN SWC icon on the Start menu. For complete configuration instructions, download the

Honeywell Secure Wireless Client (SWC) User’s Guide

guide appears on the Dolphin 70e Black product page.

from www.honeywellaidc.com. A link to this

Adding Programs Using the Internet

When you have established a network connection, you can access the Internet and download additional software programs.

Note: When selecting programs, verify that the program and version of the program are designed for Windows

Embedded Handheld and the terminal’s processor. You can verify your processor by touching

> Settings > System > About > Version

1. Open Internet Explorer and navigate to the program’s location. You may see a single *.exe or

setup.exe file, or several versions of files for different device types and processors.

7 - 12

. Make a note of the information in the Processor field.

Preliminary Draft 5/26/13, Not for Release

2. Select the program version that matches your Dolphin terminal and processor.

3. Read any installation instructions, Read Me files, or documentation that comes with the program.

Many programs provide special installation instructions.

4. Download the program to the terminal directly from the Internet. You would normally store the

program in the \Program Files folder unless another location is required by the program.

5. On the terminal, touch the installer file: e.g., *.exe or setup.exe file.

6. The installation wizard for the program begins.

7. Follow the directions on the screen to complete the installation.

Software Upgrades

Contact a Honeywell technical support representative for information on available software upgrades for your Dolphin terminal, see Customer Support on page 14-1. or go to www.honeywellaidc.com.

To prevent data loss, back up all user data to a microSD card or external memory device before performing an upgrade.

Note: An active Microsoft ActiveSync or Windows Mobile Device Center connection between a host workstation and

the Dolphin terminal may be required for some types of software upgrades. For additional information, see

Connecting and Synchronizing the Terminal and Workstation on page 7-9.

For information on File Provisioning on the Dolphin 70e Black, see page 2-11.

Dolphin 70e Black COM Port Assignment Table

COM Port Description

COM0 Bluetooth Serial Port Service

COM1 USB Host - Dock - Switched

COM2 Bluetooth

COM3 Unused

COM4 Bluetooth Serial Port Service

COM5 Unused

COM6 Unused

COM7 GPS: COM Port for the GPS receiver

COM8 USB Serial: Virtual USB Serial port for ActiveSync

COM9 Bluetooth BTHATCI server

7 - 13

Preliminary Draft 5/26/13, Not for Release

7 - 14
