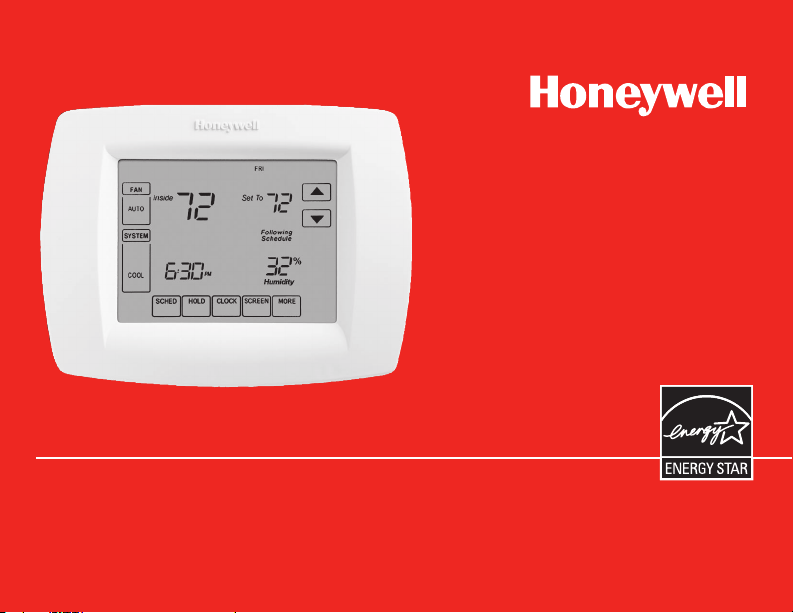

Honeywell 69-1815EFS-04 User Manual

VisionPRO® IAQ

69-1815EFS-04

Total Home Comfort System

Operating Manual Mode d’emploi Manual de Uso

BE CAREFUL! Never use sharp instruments, such as a pencil or pen, to press touchscreen keys. To prevent damage to the thermostat, always press keys with your fingertip.

This thermostat contains a Lithium battery which may contain Perchlorate material. Perchlorate Material—special handling may apply, See www.dtsc.ca.gov/hazardouswaste/perchlorate.

Need Help?

For assistance with this product please visit http://yourhome.honeywell.com

or call Honeywell Customer Care toll-free at 1-800-468-1502

Read and save these instructions.

US Patent No. 6,208,263; 6,373,376; 6,448,901; 6,595,430; 7,012,927; 7,044,397; D509151 and other patents pending.

® U.S. Registered Trademark.

Table of contents

VisionPRO® IAQ

About your new thermostat

Programming at a glance ..................... 2

Quick reference to controls .................. 3

Quick reference to status display ........ 4

Appendices

Advanced functions ............................ 20

In case of difficulty .............................. 27

Limited warranty .................................. 29

Programming & Operation

Clock setting.......................................... 5

Fan setting ............................................. 6

System setting ....................................... 7

Energy Star settings .............................. 8

Using program schedules ..................... 9

Program schedule overrides .............. 10

Vacation hold ....................................... 12

Special features ................................... 13

Screen lock .......................................... 14

Screen cleaning ................................... 15

Optional remote sensors .................... 16

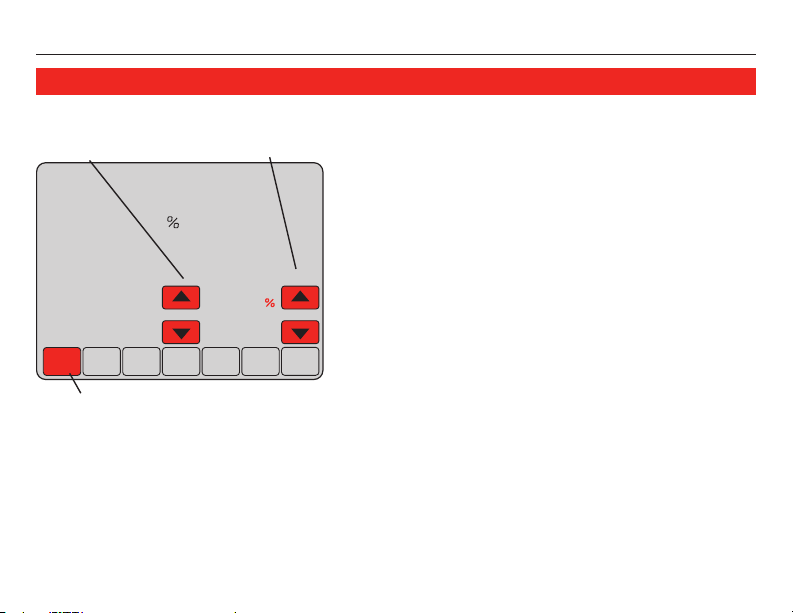

Humidity control .................................. 17

Ventilation control................................ 19

1 69-1815EFS—04

This thermostat is ready to go!

Your new thermostat is preprogrammed and ready to go. See page 2 to check settings.

CAUTION: EQUIPMENT DAMAGE HAZARD. To prevent possible

compressor damage, do not operate cooling system when outdoor

temperature is below 50˚F (10˚C).

Operating Manual

About your new thermostat

Your new thermostat is pre-programmed and ready to go. Just set the time and day. Then check the settings below and change if needed:

1. Set clock ........................................................................................................See page 5

2. Select fan setting: Preset to Auto ..............................................................See page 6

3. Select system setting: Preset to Heat ......................................................See page 7

4. Program schedules: Preset to energy-saving levels

while you’re at work or asleep (assumes you wake at 6 am, leave at 8 am, return at 6 pm

and go to bed at 10 pm) ........................................................................ See pages 8-11

5. Set humification, dehumidification

& ventilation controls, if applicable ............................................... See pages 17-19

ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time,

and manually adjust the temperature (see pages 10-11).

69-1815EFS—04 2

SCHED HOLD CLOCK SCREEN MORE

MON

TUE WED THU FRI SAT SUN

FAN

AUTO

SYSTEM

HEAT

Following Schedule

Inside

Set To

OK TO PICK MULTIPLE DAYS

6:01

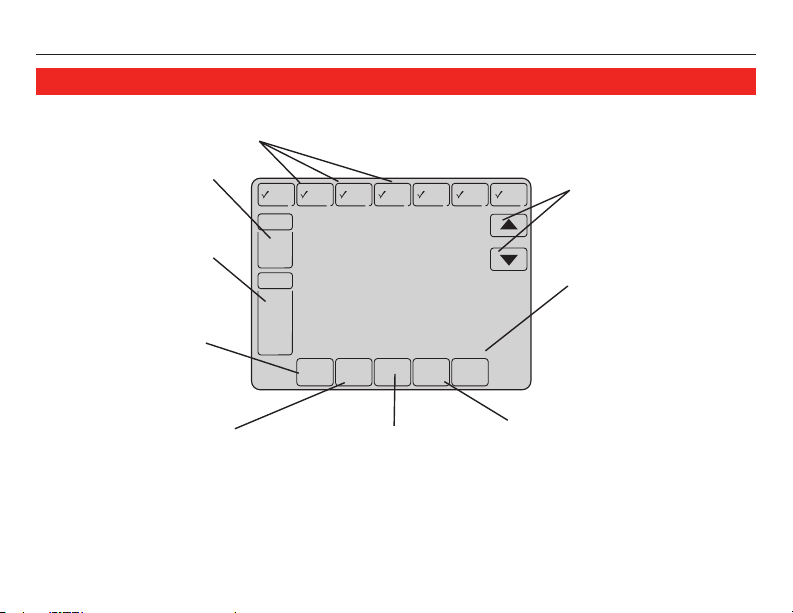

Quick reference to controls

Press day(s) to set program schedule (see page 9)

VisionPRO® IAQ

Press to select fan

operation (see page 6)

Press to adjust temperature settings

(see pages 9-11)

Press to select system

type (see page 7)

Press for more options

Press to set program

schedule (see page 9)

Press to override program schedule

(see pages 10-11)

3 69-1815EFS—04

Press to set clock

(see page 5)

Press to lock keypad for 30 seconds to clean screen

(see page 14)

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

FAN

AUTO

SYSTEM

HEAT

Following Schedule

Inside

Set To

Recovery

Humidity

6:01

Quick reference to status display

Current inside temperature Current day of week Temperature setting

Program schedule on

Fan setting

System setting

Current time

Other display messages:

• Cool On: Cooling system is activated

• Heat On: Heating system is activated

• Aux Heat On: Auxiliary heating system is activated

• Wait: Compressor protection activated (see page 13)

• Screen Locked: See page 26 to unlock

69-1815EFS—04 4

(does not display when off)

Adaptive Intelligent Recovery in effect

(see page 13)

Inside humidity (If

an outdoor sensor is installed, the outdoor temperature is shown instead of the humidity level. Press MO RE to dis-

play the humidity level.)

SCHED HOLD CLOCK SCREEN MORE

WED

FAN

AUTO

Inside

Set To

6:01

DONE CANCEL

WED

FAN

AUTO

Inside

Set To

6:02

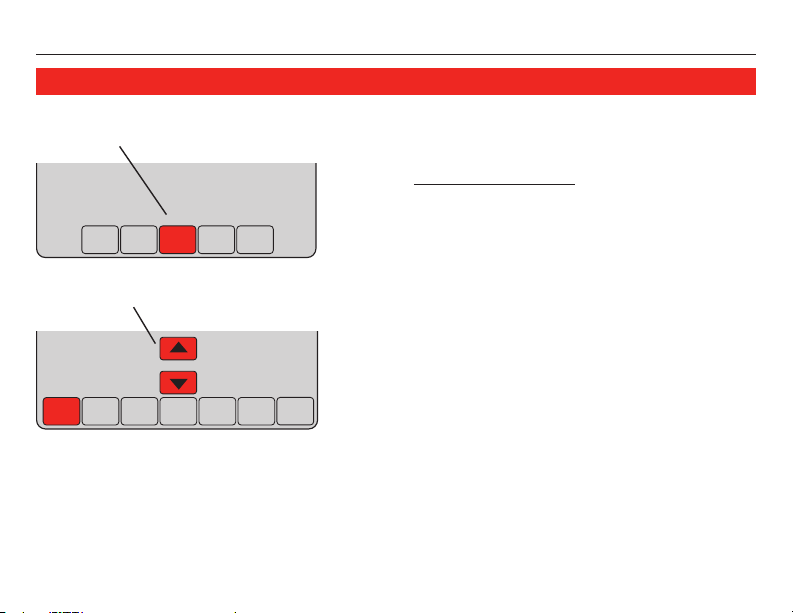

Clock setting

VisionPRO® IAQ

Press CLOCK

Adjust time, then press DONE

5 69-1815EFS—04

To set the current time display, press CLOCK, then press s or t to adjust the time. Press and hold s or t to advance the time more quickly.

Press DONE to save & exit (or press CANCEL to

exit without changing the time).

Note: The real-time clock should never require adjustment since it automatically updates for daylight savings time, and stores all date/time information.

Note: To change the current week day display, see page 21.

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

SYSTEM

HEAT

Following Schedule

Inside

Set To

6:01

FAN

AUTO

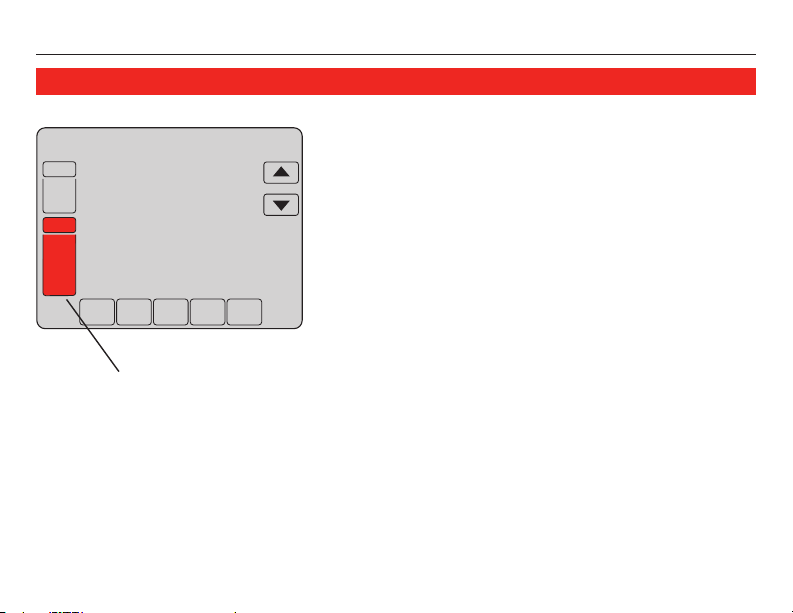

Fan setting

Press FAN

Note: If a fan schedule is programmed,

“Auto” will run the fan schedule.

69-1815EFS—04 6

Press FAN to select fan operation, then press DONE:

• On: Fan is always on.

• Auto: Fan runs only when the heating or cooling system is on.

• Circ: Fan runs randomly, about 35% of the time, not counting any run time with the heating or cooling system.

You can press FAN to override the fan settings you’ve programmed for different time periods (see page 9). If you select On or Circ, the setting you select will remain active until you press FAN again to select Auto, and return

to the fan schedule (see page 28 for more information).

VisionPRO® IAQ

SCHED HOLD CLOCK SCREEN MORE

WED

Following Schedule

Inside

Set To

6:01

FAN

AUTO

SYSTEM

HEAT

System setting

Press the SYSTEM button to select, then press DONE:

• Heat: Thermostat controls only the heating system.

• Cool: Thermostat controls only the cooling system.

• Off: Heating and cooling systems are off.

• Auto: Thermostat automatically selects heating or cooling depending on the indoor temperature.

Press SYSTEM

7 69-1815EFS—04

• Em Heat (only for heat pumps with auxiliary heat): Thermostat controls

Auxiliary Heat. Compressor is not used.

Operating Manual

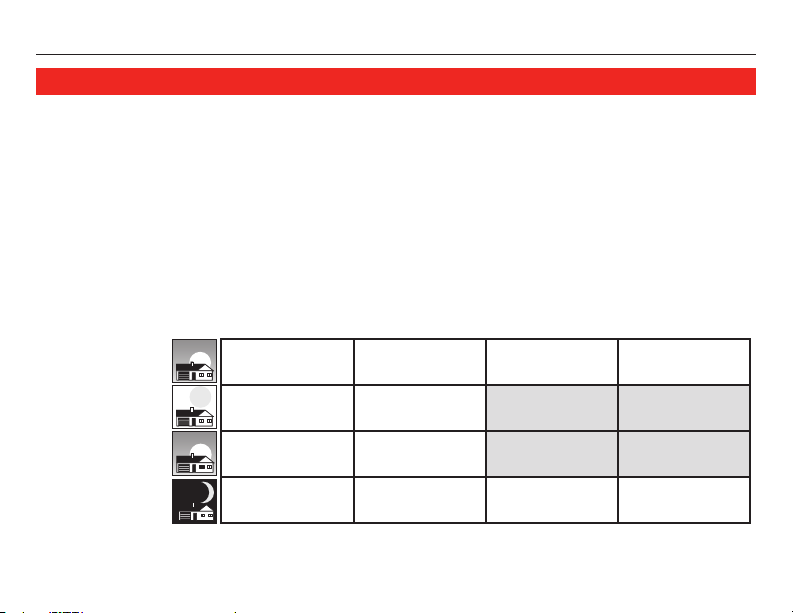

EnergyStar® settings for maximum cost savings

It’s easy to program your system for maximum energy savings. You can program four time periods each day, with different settings for each day.

This thermostat is pre-set to use EnergyStar® program settings. We recommend these settings, since they can reduce your heating/cooling expenses by as much as 33%.

(See next page to adjust times and temperatures of each time period.)

Cool (Mon-Fri)Heat (Mon-Fri) Heat (Sat-Sun) Cool (Sat-Sun)

Wake

(6:00 am)

Leave

(8:00 am)

Return

(6:00 pm)

Sleep

(10:00 pm)

69-1815EFS—04 8

70 62 70 62

78 85

[Or cancel period]

70 62

° °

[Or cancel period]

78 85

° °

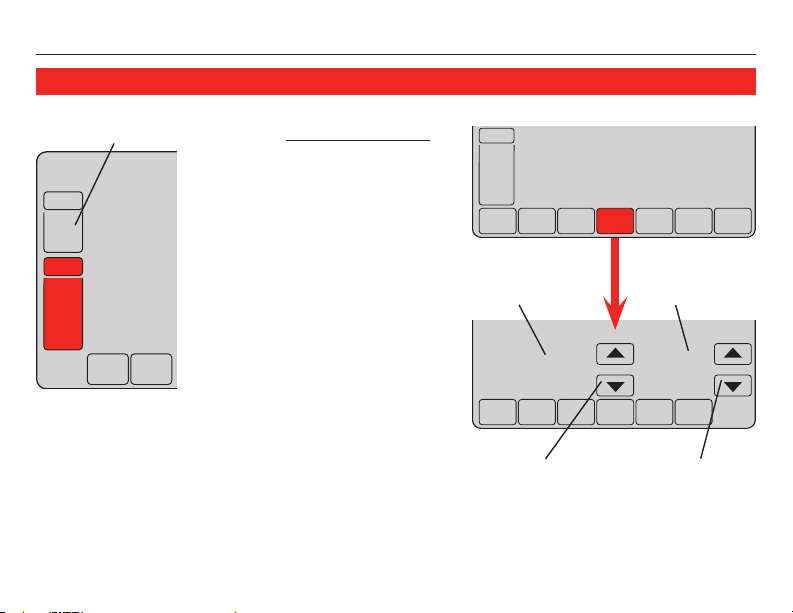

To adjust program schedules

SCHED HOLD CLOCK SCREEN MORE

WED

Following Schedule

Inside

Set To

6:00

FAN

AUTO

DONE WAKE LEAVE RETURN SLEEPEDIT CANCEL

WED

Following Schedule

Inside

Set To

6:00

FAN

AUTO

DONE WAKE LEAVE RETURN SLEEP CANCEL

MON

TUE WED THU FRI SAT SUN

CANCEL PERIOD

HEAT

COOL

OK TO PICK MULTIPLE DAYS

6:00

FAN

AUTO

VisionPRO® IAQ

Press SCHED

1. Press SCHED, then EDIT.

2. Press day buttons (MON-SUN) to select day(s).

Press EDIT

3. Press s or t to set your Wake time for

selected day(s).

4. Press s or t to set Heat and Cool temperature for this time period.

Select day(s) Set heat/cool levels

5. Press other time periods (LEAVE, RETURN, SLEEP) to set time and temperatures for

each.

6. Press DONE to save & exit (or press CANCEL

to exit without saving changes).

Set time for program period to start

9 69-1815EFS—04

Note: You can press CANCEL PERIOD to eliminate any unwanted time period.

Note: Press FAN to customize fan settings for any

time period (see page 6).

Operating Manual

Heat On

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

HEAT

COOL

Inside

Hold Temperature

Until

Set To

8:00

FAN

AUTO

SYSTEM

HEAT

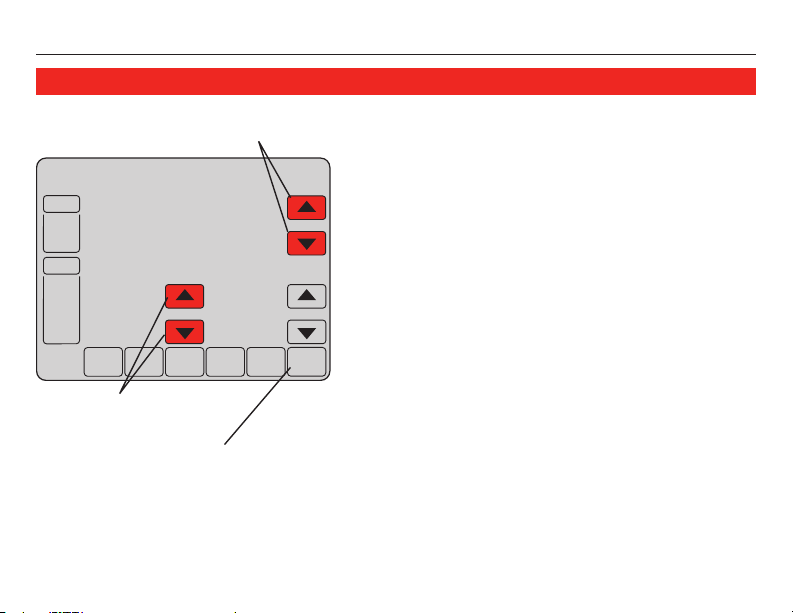

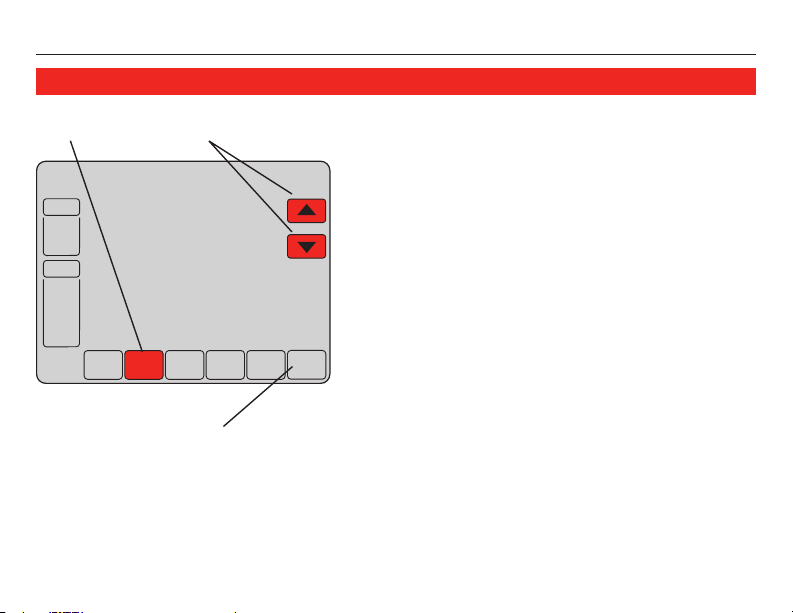

Program schedule override (temporary)

Adjust temperature

Press to set timer

69-1815EFS—04 10

Press CANCEL (or SCHED) to resume program schedule

Press s or t to immediately adjust the temperature. This will temporarily override the temperature setting for the current time period.

The new temperature will be maintained only until the time you set. When the timer expires, the program schedule will resume and set the temperature to the level you’ve programmed for the current time period.

To cancel the temporary setting at any time, press CANCEL (or SCHED). The program schedule will resume.

Program schedule override (permanent)

Heat On

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

Inside

Set To

Permanent

Hold

8:00

FAN

AUTO

SYSTEM

HEAT

VisionPRO® IAQ

Press HOLD Adjust temperature

Press HOLD to permanently adjust the temperature. This will turn off the program schedule.

Whatever temperature you set will be maintained 24 hours a day until you manually change it or press CANCEL (or SCHED) to cancel “Hold” and resume the program schedule.

11 69-1815EFS—04

Press CANCEL (or SCHED) to resume program schedule

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

Inside

Hold Temperature

Until

Set To

6:00

FAN

AUTO

SYSTEM

HEAT

SCHED HOLD CLOCK SCREEN MORE

CANCEL

WED

Inside

DAYS

Hold Temperature

Until

Set To

FAN

AUTO

SYSTEM

HEAT

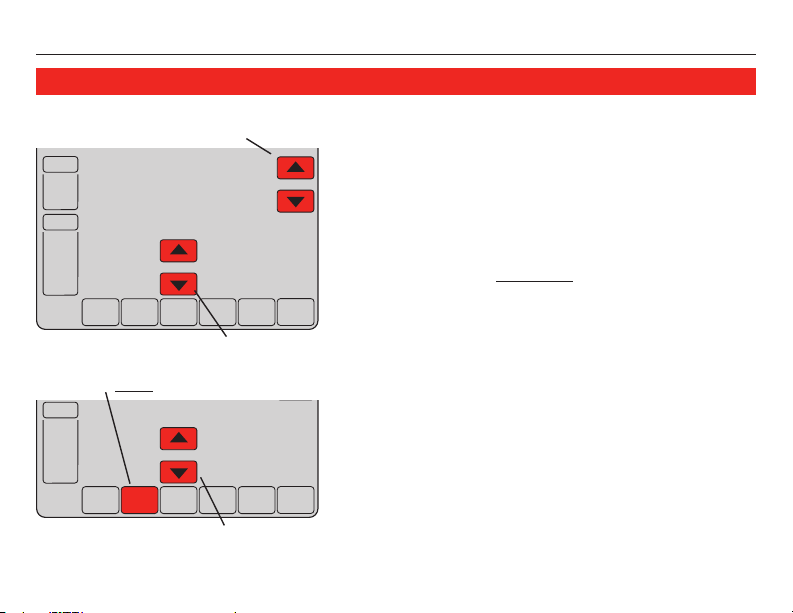

Vacation hold

1 Set temperature

2 Press to set time for

3 Press HOLD twice

4 Press to select number of days

69-1815EFS—04 12

schedule to resume

This feature can suspend the program schedule for extended periods of time.

Press s or t to set the temperature you want, then press s or t to set the time of day you want the schedule to resume when you return. Press HOLD twice, then press s or t to select the number of days.

Whatever temperature you set will be maintained 24 hours a day for the number of days you select. After this number of days have elapsed, the previously programmed schedule will resume at the time you set.

If you return earlier than expected, press

CANCEL (or SCHED) to cancel “Hold” and resume

the program schedule.

VisionPRO® IAQ

Special features

Auto Changeover: When set to Auto, the thermostat automatically selects heating or

cooling depending on the indoor temperature. Adaptive Intelligent Recovery: This feature allows the thermostat to “learn” how

long the furnace and air conditioner take to reach programmed temperature settings, so the temperature is reached at the time you set.

Compressor Protection: This feature forces the compressor to wait a few minutes before restarting, to prevent equipment damage. During the wait time, the message “Wait” is displayed on screen.

Flashing message: Reminder to replace filter or UV lamp. After replacement, press RESET to reactivate the alert timer.

Southern Away Dehumidification: Your system may be programmed to control humidity while your house is vacant during the humid season. Before you leave the house, press the HOLD button three times to activate this feature. This will control temperature and humidity to help protect your house and possessions while you are

away. (If this feature does not work, contact your installer.)

13 69-1815EFS—04

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

Following

Schedule

Inside

Set To

SCREEN LOCKED

6:00

FAN

AUTO

SYSTEM

HEAT

Screen lock

See advanced function 0670 (page 26) for screen lock options

69-1815EFS—04 14

To prevent tampering, the screen can be partially or fully locked.

When partially locked, the screen displays SCREEN LOCKED for several seconds if a locked key is pressed.

When the screen is fully locked, no keys function. To lock or unlock the screen, see advanced function 0670 on page 26.

Screen cleaning

SCHED HOLD CLOCK SCREEN MORE

WED

Following Schedule

Inside

Set To

SCREEN LOCKED

6:00

FAN

AUTO

SCHED HOLD CLOCK SCREEN MORE

OK TO CLEAN SCREEN

VisionPRO® IAQ

Press SCREEN

Press SCREEN to lock the screen for cleaning. The screen will remain locked for 30 seconds so you can clean the screen without changing any settings.

After 30 seconds, press DONE to resume normal operation, or press SCREEN again if you require

Screen lock timer (30 seconds)

15 69-1815EFS—04

more time for cleaning.

Note: Do not spray any liquid directly on the thermostat. Spray liquids onto a cloth, then use the damp cloth to clean the screen. Use water or household glass cleaner. Avoid abrasive cleansers.

Operating Manual

SCHED HOLD CLOCK SCREEN MORE

WED

Following Schedule

Inside

Outside

Set To

6:01

FAN

AUTO

SYSTEM

HEAT

Optional remote sensors

Inside Outside temperature temperature

69-1815EFS—04 16

If an outdoor sensor is installed, the current outdoor temperature is displayed.

If an indoor remote sensor is installed, the display shows the indoor temperature at the location of the sensor.

If more than one indoor sensor is installed, the display shows an average of temperature readings from all sensors or an average between

the thermostat and the sensor(s).

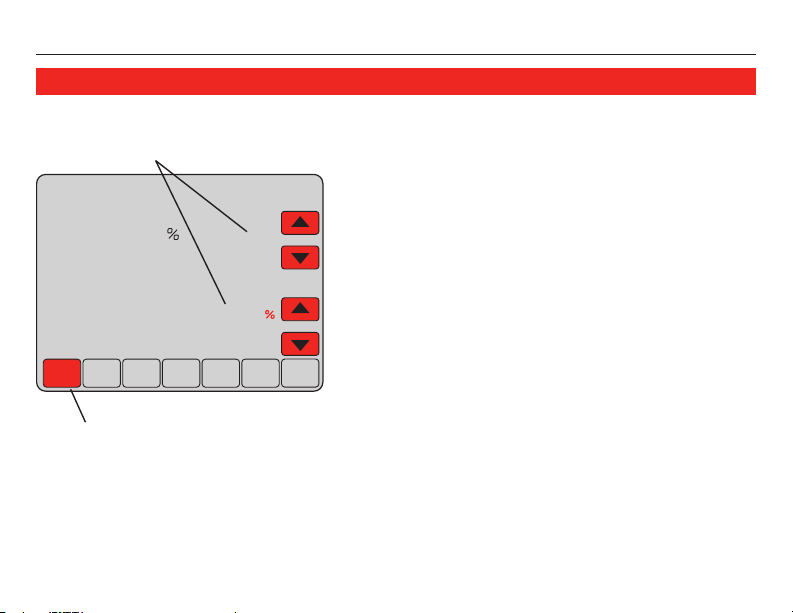

Humidification control

DONE CANCEL

DEHUMIDIFIER

Inside

FROST

VisionPRO® IAQ

Set Frost Control & humidity level

Press to save & exit

Press MORE until the humidifier screen is displayed, then press s or t to set the humidity and Frost Control level.

When using Frost Protection, if frost/condensation appears on windows, lower the frost setting. Wait at least 1 day before adjusting the frost level again. Once frost no longer appears, the thermostat will control humidity to the maximum level without frosting or fogging windows and without further adjustment.

Press DONE to save and exit, or press CANCEL to exit without saving changes.

Note: If you do not have an outdoor temperature sensor, the Frost Control level will not be displayed.

17 69-1815EFS—04

Operating Manual

DONE CANCEL

DEHUMIDIFIER

Inside

AUTO

Dehumidification control

Press to select Auto or Off

Press to save & exit

Note: Auto/Off only present when using a whole house

dehumidifier (not present when dehumidifying with A/C).

69-1815EFS—04 18

Press to set desired humidity

Press MORE until the dehumidifier screen is displayed, then press s or t to set the desired

humidity level and operation (Auto or Off).

If installed to control a dehumidifier, the thermostat can activate it as needed to reduce humidity.

If you don’t have a dehumidifier, the thermostat activates the air conditioner to reduce humidity

(may cool as much as 3°F lower than your temperature setting).

Press DONE to save and exit, or press CANCEL to exit without saving changes.

Ventilation control

DONE CANCEL

VENT

Minutes

AUTO

VisionPRO® IAQ

Press to set ventilation timer

Press to save & exit

19 69-1815EFS—04

You can ventilate your home at any time: Press MORE until the ventilation screen is dis-

played, then press s or t to set the ventilation timer. You can set the timer to ventilate from 20 to 180 minutes, in 20-minute increments. To turn off the ventilator, select 0.

Press DONE to save and exit, or press CANCEL to exit without saving changes.

If programmed for auto-ventilation by the installer, the thermostat will ventilate your home as needed.

Auto/Off will turn off/on the automatic ventilation only. Ventilation can still be requested by using the timer when set to Off.

Operating Manual

SCHED HOLD SCREEN MORE

TUE

Following Schedule

Inside

Outside

Set To

6:01

FAN

AUTO

SYSTEM

HEAT

DONE

TUE

Inside

Set To

0120

FAN

AUTO

DONE CANCEL

TUE

Inside

Set To

6:01

FAN

AUTO

SYSTEM

HEAT

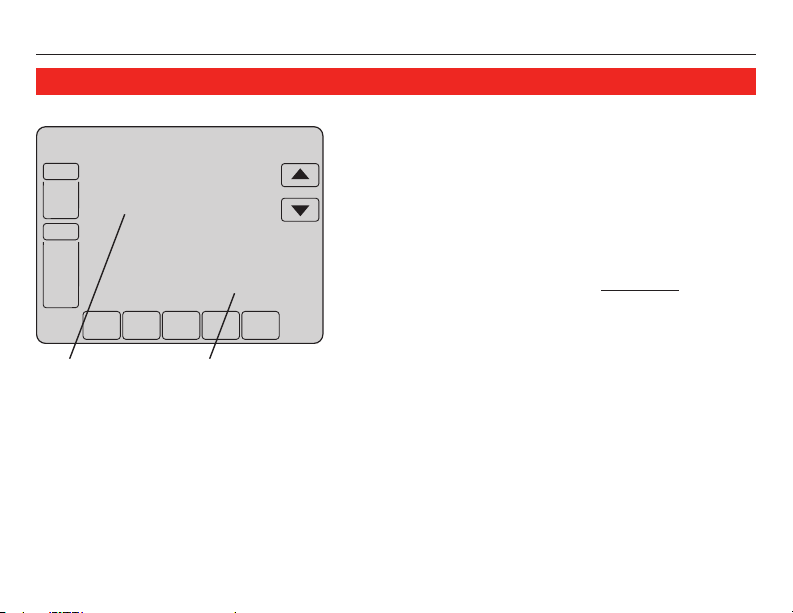

Advanced functions

1 Press SYSTEM.

2 Press and hold

blank center key until the display changes.

3 Change settings as

required (see pages 21-26).

69-1815EFS—04 20

4 Press DONE to exit &

save changes.

Function Setting

Press s/t to select function

Press s/t to change setting

VisionPRO® IAQ

Advanced functions

Year setting (first two digits)

Function

0120

Options: 20 = Year 20xx

Year setting (second two digits)

Function

0130

Options: 01 - 99 (i.e., 2001 - 2099)

Month setting

Function

0140

Options: 01 - 12 (i.e., January - December)

Date setting

Function

0150

Options: 01 - 31

21 69-1815EFS—04

Press s/t to change the first two digits of the year:

21 = Year 21xx

Press s/t to change the last two digits of the year:

Press s/t to change the current month:

Press s/t to change the current date:

Operating Manual

Advanced functions

Program schedule on/off

Function

0160

Options: 0 Program schedule is off. Thermostat is non-programmable.

Restore Energy Star® schedule

Function

0165

Options: 0 No change

Backlight

Function

0280

Options: 0 Light on for approx. 45 seconds after keypress

69-1815EFS—04 22

Press s/t to turn the program schedule on or off:

4 Program schedule is on (7-day programmable).

Press s/t to restore default Energy Star settings:

1 Restore factory default Energy Star settings

Press s/t to select how the screen is lighted:

1 Light always on low intensity, full bright after keypress

VisionPRO® IAQ

Advanced functions

Temperature format (°F/°C)

Function

0320

Options: 0 Fahrenheit

Daylight savings time on/off

Function

0330

Options: 0 Off: No adjustment for daylight savings time

Ventilation control

Function

0400

Options: 0 No ventilation

23 69-1815EFS—04

Press s/t to set the temperature display format:

1 Celsius

The thermostat is pre-programmed to automatically adjust to daylight savings time. Press s/t to select an option:

1 On: Auto-change to daylight savings time (through 2006, and for areas that do

not use the new 2007 DST calendar)

2 On: Auto-change to daylight savings time (2007 and beyond, for areas that use

the new 2007 DST calendar)

Press s/t to set ventilation control:

1 Ventilation allowed at any time 2 Ventilation allowed at any time except during Sleep period

Operating Manual

Advanced functions

Furnace filter change reminder

Function

0500

Options: 0 Off

69-1815EFS—04 24

This feature displays an alert to remind you to change the furnace filter. Press s/t to set the desired reminder interval:

1 10-day run time 2 30-day run time

3 60-day run time 4 90-day run time 5 120-day run time 6 180-day run time 7 270-day run time 8 365-day run time 9 30 calender days 10 60 calender days 11 90 calender days 12 120 calender days 13 180 calender days 14 365 calender days E Auto Alert (requires optional equipment)

Note: Press RESET to cancel the alert

VisionPRO® IAQ

Advanced functions

Humidifier pad change reminder

Function

0510

Options: 0 Off (no reminder to change humidifier pad)

UV lamp change reminder

Function

0520

Options: 0 Off (no reminder to change UV lamp)

Adaptive Intelligent Recovery

Function

0530

Options: 0 Off

25 69-1815EFS—04

This feature displays an alert to remind you to change the humidifier pad. Press s/t to set the desired interval:

1 30-day run time, 90 calendar days ** 2 60-day run time, 180 calendar days ** 3 90-day run time, 365 calendar days ** **interval depends on humidifier E Auto Alert (requires optional equipment)

This feature displays an alert to remind you to change the ultraviolet lamp. Press s/t to set the desired interval:

1 Reminder after 1 year 2 Reminder after 2 years E Auto Alert (requires optional equipment)

Press s/t to turn this feature on or off (see page 13):

1 On

Note: Press RESET

to cancel the alert

Note: Press RESET to cancel the alert

Operating Manual

Advanced functions

Program schedule periods

Function

0540

Options: 2 Two program periods (Wake, Sleep)

Clock format

Function

0640

Options: 12 12-hour clock (i.e., “3:30 pm”)

Screen lock

Function

0670

Options: 0 Screen is unlocked (fully functional)

69-1815EFS—04 26

Press s/t to set the number of program periods:

4 Four program periods (Wake, Leave, Return, Sleep)

Press s/t to set the clock display format:

24 24-hour clock (i.e., “15:30”)

Press s/t to choose a screen lock setting (see page 14):

1 All functions locked except temperature controls and CANCEL key 2 Screen is fully locked

VisionPRO® IAQ

In case of difficulty

If you have difficulty with your thermostat, please try the following suggestions. Most problems can be corrected quickly and easily.

Display is blank • Check circuit breaker and reset if necessary.

• Make sure power switch at heating & cooling system is on.

• Make sure furnace door is closed securely.

No response to key presses (or temperature will not change)

Backlight is dim • A dim display is normal. See Advanced function 0280 on page 22 for

• Check to make sure the thermostat is not locked (see page 26).

Make sure heating and cooling temperatures are set to acceptable ranges:

• Heat: 40° to 90°F (4.5° to 32°C)

• Cool: 50° to 99°F (10° to 37°C)

backlight options.

“Err” appears on screen

27 69-1815EFS—04

• Contact your contractor. Your equipment may need service or repair.

+ 67 hidden pages
