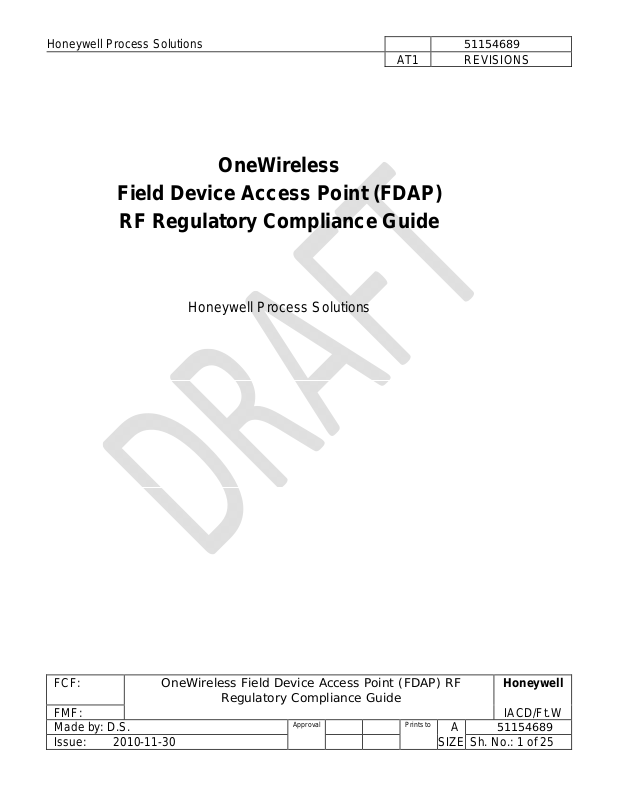

Honeywell Process Solutions
AT1 REVISIONS
51154689
OneWireless
Field Device Access Point (FDAP)
RF Regulatory Compliance Guide
Honeywell Process Solutions
FCF:
FMF: IACD/Ft.W
Made by: D.S.
Issue: 2010-11-30 SIZE Sh. No.: 1 of 25
OneWireless Field Device Access Point (FDAP) RF
Regulatory Compliance Guide
Approval
Prints to
A
51154689
Honeywell
Honeywell Process Solutions
51154689
AT1 REVISIONS
Revision Record
Revision
Date
Purpose/Distribution
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 2 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
TABLE OF CONTENTS
1 DESIGNATION, SCOPE AND PREFACE ........................................................................................... 6
1.1 DESIGNATION ..................................................................................................................................... 6
1.1.1 Model Numbers and Revisions : .................................................................................................. 6
1.2 SCOPE ............................................................................................................................................... 6
1.3 PREFACE ........................................................................................................................................... 6
1.4 ABBREVIATIONS & DEFINITIONS ........................................................................................................... 7
2 FEDERAL COMMUNICATION COMMISSION (FCC) ........................................................................ 8
2.1 FCC COMPLIANCE STATEMENTS ......................................................................................................... 8
3 INDUSTRY CANADA (IC) .................................................................................................................... 8
3.1 IC COMPLIANCE STATEMENTS ............................................................................................................. 8
4 RF SAFETY STATEMENT: ................................................................................................................. 9
5 FCC AND INDUSTRY CANADA (IC) IDENTIFICATION NUMBERS: .............................................. 10
5.1 FCC IDENTIFICATION NUMBERS: ....................................................................................................... 10
5.2 INDUSTRY CANADA IDENTIFICATION NUMBERS: .................................................................................. 10
6 INTENDED COUNTRY USAGE ........................................................................................................ 11
6.1 NORTH AMERICA ......................................................................................................................... 11
6.2 AUSTRALIA AND NEW ZEALAND ................................................................................................ 11
6.3 EUROPEAN UNION ....................................................................................................................... 11
7 MULTINODE GENERAL DESCRIPTION .......................................................................................... 12
7.1 INTENDED USE ................................................................................................................................. 12
7.2 FDAP DEVICE DIAGRAMS ................................................................................................................. 12
8 PRODUCT SPECIFICATIONS ........................................................................................................... 13
8.1 DIRECT SEQUENCE SPREAD SPECTRUM (DSSS) RADIO, 2.4GHZ ...................................................... 13
8.2 FDAP USER ENVIRONMENT .............................................................................................................. 14
8.3 FDAP POWER SPECIFICATIONS ........................................................................................................ 14
8.4 ANTENNA CABLES............................................................................................................................. 15
9 ANTENNA LIGHTNING ARRESTORS ............................................................................................. 15
9.1 FOR USE WITH INTEGRAL OR REMOTE ANTENNA(S) ............................................................................ 15
9.2 FOR USE WITH REMOTE ANTENNA(S) ................................................................................................. 15
10 APPROVED ANTENNA TYPES/GAINS ........................................................................................... 16
11 EQUIVALENT ISOTROPICALLY RADIATED POWER (EIRP) ........................................................ 17
12 EIRP LIMITS, DSSS 2.4GHZ RADIO ................................................................................................ 18
12.1 FCC, IC, ACMA .............................................................................................................................. 18
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 3 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
12.2 ETSI ................................................................................................................................................ 19
13 SETTING POWER AND COUNTRY CODE: DSSS RADIO ............................................................. 20
14 RF SAFETY, MAXIMUM PERMISSIBLE EXPOSURE (MPE) STATEMENT ................................... 21
15 AGENCY COMPLIANCE ............................................................................................................. ...... 22
15.1 RADIO AND EMC CERTIFICATIONS ..................................................................................................... 22
15.1.1 Federal Communication Commission (FCC)......................................................................... 22
15.1.2 Industry Canada (IC) ............................................................................................................. 22
15.1.3 European Telecommunications Standards Institue (ETSI) ................................................... 22
15.1.4 Australian communications and media authority (ACMA) ..................................................... 22
15.2 PRODUCT SAFETY AGENCY CERTIFICATIONS ..................................................................................... 23
15.2.1 Canadian Standards Association (CSA) ............................................................................... 23
15.2.2 Factory Mutual (FM) .............................................................................................................. 24
15.2.3 European ATEX Certification (ATEX) .................................................................................... 25
15.3 EUROPEAN UNION CERTIFICATION (CE-MARK) ................................................................................... 25
16 REFERENCE DOCUMENTS ........................................................................................................... .. 25
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 4 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
LIST OF FIGURES
Figure 1 –Diagram of Multinode Unit showing various external attributes _____________________________ 12
Figure 2 – Dimension of the Multinode Device ___________________________ Error! Bookmark not defined.
L
IST OF TABLES
Table 1 – Assembly Number and Revision ............................................................................................................. 6
Table 2 –Table of Abbreviations and Definitions .................................................................................................... 7
Table 3 – Specifications of DSSS Radio in FDAP Device. ................................................................................... 13
Table 4 – Specifications User Environment FDAP Device. .................................................................................. 14
Table 5 – Power Specifications FDAP Device. ..................................................................................................... 14
Table 6 - Antenna Cable Specifications for Multinode Device. ............................................................................. 15
Table 7 – Lightning Arrestor Specifications for Integral Antenna(s) ..................................................................... 15
Table 8 – Lightning Arrestor Specifications for Remote Antenna(s) ..................................................................... 15
Table 9 – Approved Antenna Types and Gains .................................................................................................... 16
Table 10 – EIRP Limits, DSSS 2.4GHz Radio ...................................................................................................... 18
Table 11 – EIRP Limits, DSSS 2.4GHz Radio ...................................................................................................... 19
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 5 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
1 DESIGNATION, SCOPE AND PREFACE
1.1 Designation
HONEYWELL ONEWIRELESS FIELD DEVICE ACCESS POINT (FDAP).
1.1.1 Model Numbers and Revisions :
This document is valid for the following assembly number:
Model
Number
Assembly # Rev. Description
FDAP1 51198665-100 A
Field Device Access Point with Class 1 Div 1
certification (24VDC power input)
Field Device Access Point with Class 1 Div 2
FDAP2 51198665-200 A
certification (i.e. 24VDC and 120/230V AC power
input)
Table 1 – Assembly Number and Revision
1.2 Scope
This document outlines professional installation requirements for the Honeywell Field Device
Access Point (FDAP) for the Honeywell OneWireless Network. Professional installation is
required to comply with certification agency and legal requirements. This document must be
adhered to for all installations of the Honeywell OneWireless FDAP device.
1.3 Preface
This manual covers professional installation of the optional external antennas for use with the
Honeywell OneWireless FDAP device. Since this device requires manual power limit settings
for use with the higher gain antennas, it is classified by the FCC as a professional install
device. To be in compliance with FCC requirements, the radio must be installed with one of
several approved antenna types listed in this document.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 6 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
1.4 Abbreviations & Definitions
The term Honeywell Multinode Device (or simply Multinode) will be used to describe the
composite unit which includes the Honeywell DSSS or FHSS Radio Board, 3eTI Mesh Board,
Power Supply board, and all subassemblies housed inside the Multinode enclosure.
ACMA
ATEX
AWG
Co-located
COTS
CSA
DFS
DSSS
EMC
ETSI
EU
FCC
FHSS
FM
IC
IEEE
IR
IrDA
LED
MPE
MTBF
NEMA
PCB
PCI
RAM
RJ-45
RPN
SQA
Wi-Fi
WNSIA
Australian Communications and Media Authority
Potentially Explosive Atmospheres Directive
American Wire Gauge
Two or more radios transmitting simultaneously and with less than
20cm of separation distance.
Commercial Off-The-Shelf
Canadian Standards Association
Dynamic Frequency Selection
Direct Sequence Spread Spectrum
Electromagnetic Compatibility
European Telecommunications Standards Institute
European Union
Federal Communications Committee
Frequency-Hopping Spread Spectrum
Factory Mutual
Industry Canada
Institute of Electrical and Electronics Engineers
Infrared
Infrared Data Association
Light Emitting Diode
Maximum Permissible Exposure
Mean Time Between Failures
National Electrical Manufacturers Association
Printed Circuit Board
Peripheral Components Interconnect
Random Access Memory
Registered Jack-45
Reverse Polarity N-type
Supplier Quality Assurance
Wireless Local Area Network based on IEEE 802.11 Specifications
Wireless Network for Secure Industrial Application
Table 2 –Table of Abbreviations and Definitions
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 7 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
2 FEDERAL COMMUNICATION COMMISSION (FCC)
2.1 FCC Compliance Statements
¾ This device complies with Part 15 of FCC Rules and Regulations. Operation is
subject to the following two conditions: (1) This device may not cause harmful
interference and (2) this device must accept any interference received, including
interference that may cause undesired operation.
¾ This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radiofrequency
energy and, if not installed and used in accordance with these instructions, may
cause harmful interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case the user will
be required to correct the interference at his own expense.
¾ Intentional or unintentional changes or modifications must not be made to the
Multinode unless under the express consent of the party responsible for
compliance. Any such modifications could void the user’s authority to operate the
equipment and will void the manufacturer’s warranty.
3 INDUSTRY CANADA (IC)
3.1 IC Compliance Statements
¾ To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropic radiated power (EIRP) is not
more than that permitted for successful communication.
¾ Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including
interference that may cause undesired operation of the device.
¾ This Class A digital apparatus complies with Canadian ICES-003.
¾ French: Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 8 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
4 RF Safety Statement:
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following
antenna installation and device operating configurations must be satisfied. .
¾ When using integral or remote antenna(s) the FDAP unit must be fixed and
mounted on outdoor permanent structures and the antennas must not be colocated with any other antenna or transmitter device and have a separation
distance of at least 20cm from all persons.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 9 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
5 FCC and Industry Canada (IC) Identification Numbers:
5.1 FCC Identification Numbers:
• Honeywell FDAP DSSS Radio
o Limited Modular Approval
o Federal Communication Commission Identification: S57 – 51306533
5.2 Industry Canada Identification Numbers:
• Honeywell FDAP DSSS Radio
o Limited Modular Approval
o Industry Canada Identification: 573I - 51306533
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 10 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
6 INTENDED COUNTRY USAGE
6.1 NORTH AMERICA
Country ISO 3166 2 letter code
UNIIITED STATES US
CANADA CA
6.2 AUSTRALIA AND NEW ZEALAND
Country ISO 3166 2 letter code
AUSTRALIA AU
NEW ZEALAND NZ
6.3 EUROPEAN UNION
Country
ISO 3166
2 letter code
Country
ISO 3166
2 letter code
Austria AT Latvia LV
Belgium BE Liechtenstein LI
Bulgaria BG Lithuania LT
Cyprus CY Malta MT
Czech Republic CZ Netherlands NL
Denmark DK Norway NO
Estonia EE Poland PL
Finland FI Portugal PT
France FR Romania RO
Germany DE Slovakia SK
Greece GR Slovenia SI
Hungary HU Spain ES
Iceland IS Sweden SE
Ireland IE Switzerland CH
Italy IT United Kingdom BG
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 11 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
7 MULTINODE GENERAL DESCRIPTION
7.1 Intended Use
The Field Device Access Point (FDAP) is a key component of the Honeywell OneWireless
system, a secure wireless network for industrial applications. It is a ruggedized industrial radio
intended for use in hazardous locations to provide wireless connectivity for wireless sensor
networks. As a wireless router, the FDAP provides connectivity between the wired DCS network
and wireless field devices. The FDAP radio uses IEEE 802.15.4 Direct Sequence Spread
Spectrum (DSSS) technology and is compliant with ISA 100.11a open-standard wireless
networking technology. The FDAP is designed to be a standalone, pole or wall mounted unit. It is
intrinsically-safe device and suitable for use in Class I, Division 1 and Zone 1 hazardous
locations.
7.2 FDAP Device Diagrams
Figure 1 shows the unit-level drawing of the FDAP Device. All cables exit the unit via a 1/2”
conduit hub. The conduit hub allows end user to land conduit on the FDAP Device. Figure 1
shows the FDAP and all of external interfaces.
Figure 1 –Diagram of FDAP Unit showing various external attributes
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 12 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
8 PRODUCT SPECIFICATIONS
8.1 Direct Sequence Spread Spectrum (DSSS) Radio, 2.4GHz
Warning! The FDAP unit must be Professionally Installed in accordance with the
requirements specified in this document. See Section 12, for professional installation
maximum power setting requirements. Only the specified power settings, antenna types and
gains and cable lengths (attenuation) as outlined in this document are valid for FDAP
installations.
Item Specification
Wireless Standard
Data Rates and Modulation Data Rate: 250kbps
Frequency Band 2,405 – 2,475MHz
Transmit Power
Receive Sensitivity
(typical)
Direct Sequence Spread Spectrum 2.4GHz
Modulation: OQPSK – DSSS
Maximum: 18dBm
(Maximum transmit power will vary by channel and individual country
regulations.
-97dBm
Table 3 – Specifications of DSSS Radio in FDAP Device.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 13 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
8.2 FDAP User Environment
Item Specification
Operating Temperature: -40 OC to +75 OC
Storage Temperature: -40 OC to +75 OC
Operating Humidity: 0 to 100% RH
Table 4 – Specifications User Environment FDAP Device.
8.3 FDAP Power Specifications
Item Specification
DC Operating Voltage:
AC Operating Voltage:
Power Consumption
(typical):
24VDC, +10%/-15%
85 – 264VAC, 50/60Hz
2W
Table 5 – Power Specifications FDAP Device.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 14 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
8.4 Antenna Cables
Cable
Application
DSSS, FHSS,
802.11
DSSS, FHSS,
802.11
DSSS, FHSS,
802.11
Honeywell
Part #
Cable
Type
50018278-001 400
Series
50018278-003 400
Series
50018278-010 400
Series
Connector
Type
Frequency
(GHz)
Length
(m)
Loss
NM – NM 2.4/5.8 1 1.0 / 2.0
NM – NM 2.4/5.8 3 1.5 / 2.5
NM – NM 2.4/5.8 10 2.5 / 3.5
Table 6 - Antenna Cable Specifications for Multinode Device.
9 Antenna Lightning Arrestors
9.1 For use with Integral or Remote Antenna(s)
Application Honeywell
Part Number
DSSS, FHSS,
51202359-200 50 ohm NM - NF 0 – 6 0.4 (max)
Specification Connector
Type
Frequency
(GHz)
Attenuation
(dB)
802.11
(dB)
Table 7 – Lightning Arrestor Specifications for Integral Antenna(s)
9.2 For use with Remote Antenna(s)
Application Honeywell
Part Number
DSSS, FHSS,
50018279-090 50 ohm NF to NF 0 – 3 0.4 (max)
Specification Connector
Type
Frequency
(GHz)
Attenuation
(dB)
802.11
NOTE: Depending on application needs, the “integral” arrestors may be used for remote antennas.
Table 8 – Lightning Arrestor Specifications for Remote Antenna(s)
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 15 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
10 Approved Antenna Types/Gains
This radio transmitter (FCC ID: S57 – 51306533, IC: 573I - 51306533) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Peak
Gain
(dBi)
Antenna
Type
Antenna
Application Manufacturer
Manufacturer
Part Number
Honeywell
Part Number (GHz)
Beam
Width
Freq.
Omni
(integral)
Omni
(integral)
Omni
(integral)
Omni
(integral)
Omni
(remote)
Sector
(remote)
Patch-
RHC
(remote)
Patch-LHC
(remote)
Point to
Multi-Point PacWireless
Point to
Multi-Point SMARTANT
Point to
Multi-Point SMARTANT HON04-052160 51506534-100 Omni 5 2.4
Point to
Multi-Point
Point to
Multi-Point L-com HGV-2409U 50018414-001 Omni 8 2.4
Point to
Multi-Point L-com HG2414SP-120 NA 120° 14 2.4
Point to
Multi-Point L-com HG2409PCR-NF NA 65° 8 2.4
Point to
Multi-Point L-com HG2409PCL-NF NA 65° 8 2.4
HUBER +
SUHNER 1324.17.0047 NA Omni 6 2.4
OD24M-5
SAA04-051000
51506534-101 Omni 5 2.4
51506534-101 Omni 5 2.4
FCF:
Table 9 –
OneWireless Field Device Access Point (FDAP) RF
Approved Antenna Types and Gains
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 16 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
11 Equivalent Isotropically Radiated Power (EIRP)
In radio communication systems, Equivalent isotropically radiated power (EIRP), or
alternatively, Effective isotropic radiated power is the amount of power that would have to be
emitted by an isotropic antenna (that evenly distributes power in all directions and is a
theoretical construct) to produce the peak power density observed in the direction of
maximum antenna gain. EIRP can take into account the losses in transmission line and
connectors and includes the gain of the antenna. The EIRP is often stated in terms of
decibels over a reference power level, that would be the power emitted by an isotropic
radiator with an equivalent signal strength. The EIRP allows making comparisons between
different emitters regardless of type, size or form. From the EIRP, and with knowledge of a
real antenna's gain, it is possible to calculate real power and field strength values.
EIRP(dBm) = (Radio Power (dBm)) – (Cable Loss (dB)) + (Antenna Gain(dBi))
Antenna gain is expressed relative to a (theoretical) isotropic reference antenna (dBi).
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 17 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
12 EIRP LIMITS, DSSS 2.4GHz RADIO
12.1 FCC, IC, ACMA
This radio transmitter (FCC ID: S57 – 51306533, IC: 573I - 51306533) has been approved by Industry Canada
to operate with the antenna types listed below with the maximum permissible gain and required antenna
impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than
the maximum gain indicated for that type, are strictly prohibited for use with this device.
Antenna
Type
Omni
Omni
Patch
Sector
Radio Usage /
Application
Point to
MultiPoint
Point to
MultiPoint
Point to
MultiPoint
Point to
MultiPoint
Integral 2.4 6 0 0
Remote 2.4 8 1 1.0
Remote 2.4 8 1 1.0
Remote 2.4 14 1 1.0
Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output Power
(dBm)
Max.
EIRP
(dBm)
18 24
18 25
18 25
18 31
Agency/
Country
FCC, IC, ACMA
FCC, IC, ACMA
FCC, IC, ACMA
FCC, IC, ACMA
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
5. Industry Canada Compliance Statement: This device has been designed to operate with the antenna
types listed in this document, and having a maximum gain of 14dBi. Antenna types not included in this
list or having a gain greater than 14dBi are strictly prohibited for use with this device. The required
antenna impedance is 50 ohms.
Table 10 – EIRP Limits, DSSS 2.4GHz Radio
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 18 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
12.2 ETSI
Antenna
Type
Omni
Omni
Omni
Patch
Sector
Radio Usage /
Application
Point to
MultiPoint
Point to
MultiPoint
Point to
MultiPoint
Point to
MultiPoint
Point to
MultiPoint
Integral 2.4 5 0 0
Integral 2.4 6 0 0
Remote 2.4 8 10 2.5
Remote 2.4 8 10 2.5
Remote 2.4 14 10 2.5
Freq.
(GHz)
Max.
Ant.
Gain
(dBi)
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output Power
(dBm)
Max.
EIRP
(dBm)
3.7 8.7
3.2 9.2
3.7 9.2
3.7 9.2
-2.8 8.7
Agency/
Country
ETSI5
ETSI5
ETSI5
ETSI5
ETSI5
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country
compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
5.
France restricts outdoor use to 10mW (10dBm) EIRP in the frequency range of 2,454-2,483.5 MHz.
Installations in France must limit EIRP to 10dBm, for operating modes utilizing frequencies in the range
of 2,454 – 2,483.5MHz.
Table 11 – EIRP Limits, DSSS 2.4GHz Radio
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 19 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
13 Setting Power and Country Code: DSSS Radio
TBD
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 20 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
14 RF Safety, Maximum Permissible Exposure (MPE) statement
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following
antenna installation and device operating configurations must be satisfied. .
¾ When using integral or remote antenna(s) the FDAP unit must be fixed and mounted on
outdoor permanent structures and the antennas must not be co-located with any other
antenna or transmitter device and have a separation distance of at least 20cm from all
persons.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 21 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
15 AGENCY COMPLIANCE
15.1 Radio and EMC Certifications
15.1.1 Federal Communication Commission (FCC)
¾ Specification: FCC Part 15.247 Subpart B for unintentional radiators
¾ Specification: FCC Part 15.247 Subpart C for intentional radiators
15.1.2 Industry Canada (IC)
¾ Method: RSS-210, Issue 7
¾ RSS-Gen, Issue 2
¾ ICES-003, Issue 4
15.1.3 European Telecommunications Standards Institue (ETSI)
¾ Emissions Specification and Method: EN 300 328 V1.7.1
¾ Immunity Specification: EN 301 489-17 V2.1.1
¾ Immunity Method: EN 301 489-1 V1.8.1
¾ Product Standard: IEC61326-1 (1st Edition, 2005, Industrial Locations)
15.1.4 Australian communications and media authority (ACMA)
¾ Specification: AS/NZS 4268
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 22 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
15.2 Product Safety Agency Certifications
15.2.1 Canadian Standards Association (CSA)
CSA electrical equipment requirements for use within Division 2 and Zone 2 hazardous
locations.
IEC61010-1 (2nd Edition, 2001-02), "Safety Requirements for Electrical Equipment for
Measurement, Control and Laboratory Use, part 1: General Requirements
Canadian Standards Association Standard C22.2 No. 213-M1987, "Non-Incendive Electrical
Equipment for Use in Class I, Division 2 Hazardous Locations"
Canadian Standards Association Standard E60079-0:02, “Electrical Apparatus for explosive
gas atmospheres – General Requirements”
Canadian Standards Association Standard E60079-15:02, “Electrical Apparatus for explosive
gas atmospheres – Type of Protection “n””
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 23 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
15.2.2 Factory Mutual (FM)
FM electrical equipment requirements for use within Division 2 and Zone 2 hazardous
locations.
Factory Mutual Approval Standard Class No. 3600, "Electrical Equipment for Use in
Hazardous (Classified) Locations - General Requirements
Factory Mutual Approval Standard Class No. 3810, "Electrical and Electronic Test,
Measuring, and Process Control Equipment
Factory Mutual Approval Standard Class No. 3611, "Electrical Equipment for Use in Class I,
Division 2, Class II, Division 2 and Class III, Division 1 and 2 Hazardous (Classified)
Locations
ANSI/ISA 12.00.01-2002, “Electrical Apparatus for Use in Class I, Zones 0, 1 & 2 Hazardous
(Classified) Locations: General Requirements”
ANSI/ISA 12.12.02-2003, “Electrical Apparatus for explosive gas atmospheres – Type of
Protection “n””
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 24 of 25
Honeywell Process Solutions
51154689
AT1 REVISIONS
15.2.3 European ATEX Certification (ATEX)
The completely assembled Multinode will conform to European electrical equipment
requirements for use within Zone 2 Hazardous Locations.
IEC 60079-0:2004-01, “Electrical Apparatus for explosive gas atmospheres – General
Requirements
IEC 60079-15:2005-03, “Electrical Apparatus for explosive gas atmospheres – Type of
Protection “n”
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
15.3 European Union Certification (CE-mark)
• Compliance with:
o R&TTE Directive 1999/5/EC
o EMC Directive 2004/108/EC
o LVD Directive 73/23/EEC
o ATEX Directive 94/9/EC
16 Reference Documents
1 OneWireless Field Device Access Point User's Guide
2 Field Device Access Point Specification Release 200 EP03-640-200, August 2010
3
4
5
6
7
8
FCF:
OneWireless Field Device Access Point (FDAP) RF
Honeywell
Regulatory Compliance Guide
FMF: IACD/Ft.W
Made by: D.S.
Approval
Prints to
51154689
A
Issue: 2010-11-30 SIZE Sh. No.: 25 of 25
Loading...
