Honeywell Proprietary and Confidential REVISIONS
AT8
51121312

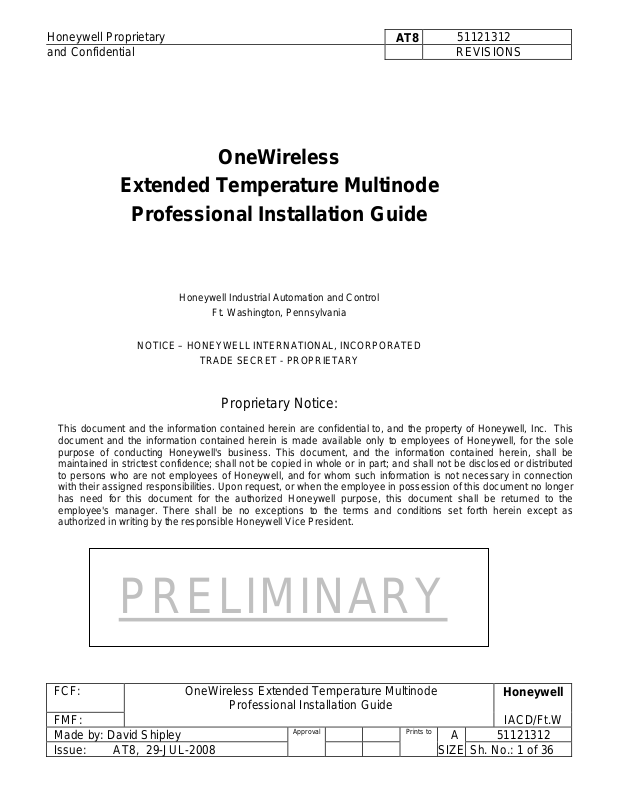

OneWireless
Extended Temperature Multinode
Professional Installation Guide
Honeywell Industrial Automation and Control
Ft. Washington, Pennsylvania
NOTICE – HONEYWELL INTERNATIONAL, INCORPORATED
TRADE SECRET - PROPRIETARY
Proprietary Notice:
This document and the information contained herein are confidential to, and the property of Honeywell, Inc. This document and the information contained herein is made available only to employees of Honeywell, for the sole purpose of conducting Honeywell's business. This document, and the information contained herein, shall be maintained in strictest confidence; shall not be copied in whole or in part; and shall not be disclosed or distributed to persons who are not employees of Honeywell, and for whom such information is not necessary in connection with their assigned responsibilities. Upon request, or when the employee in possession of this document no longer has need for this document for the authorized Honeywell purpose, this document shall be returned to the employee's manager. There shall be no exceptions to the terms and conditions set forth herein except as authorized in writing by the responsible Honeywell Vice President.
PRELIMINARY
FCF: OneWireless Extended Temperature Multinode
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 1 of 36
Approval
Prints to
A 51121312
Honeywell
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
APPROVAL SIGNATURES
_________________________________________________________________
Soroush Amidi, Product Marketing Date
_________________________________________________________________
William Osei-Bonsu, Hardware Engineering Date
_________________________________________________________________
David Shipley, Agency Compliance Date
Revision Record
Revision
AT6 03-JUL-2008 Draft for Peer Review and signature sign off
Date
Purpose/Distribution
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 2 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
TABLE OF CONTENTS
1 DESIGNATION, SCOPE AND PREFACE...........................................................................................6
1.1 DESIGNATION.....................................................................................................................................6
1.1.1 Model Numbers and Revisions :..................................................................................................6
1.2 SCOPE...............................................................................................................................................6
1.3 PREFACE ...........................................................................................................................................6
1.4 ABBREVIATIONS & DEFINITIONS...........................................................................................................7
2 FEDERAL COMMUNICATION COMMISSION (FCC) ........................................................................8
2.1 FCC COMPLIANCE STATEMENTS.........................................................................................................8
3 INDUSTRY CANADA (IC)....................................................................................................................8
3.1 IC COMPLIANCE STATEMENTS.............................................................................................................8
4 RF SAFETY STATEMENT: .................................................................................................................9
5 FCC AND INDUSTRY CANADA (IC) IDENTIFICATION NUMBERS:..............................................10
5.1 FCC IDENTIFICATION NUMBERS:.......................................................................................................10
5.2 INDUSTRY CANADA IDENTIFICATION NUMBERS: ..................................................................................10
6 INTENDED COUNTRY USAGE ........................................................................................................11
6.1 NORTH AMERICA.........................................................................................................................11
6.2 AUSTRALIA AND NEW ZEALAND................................................................................................11
6.3 EUROPEAN UNION.......................................................................................................................11
7 MULTINODE GENERAL DESCRIPTION..........................................................................................12
7.1 INTENDED USE .................................................................................................................................12
7.2 MULTINODE DEVICE DIAGRAMS.........................................................................................................12
8 PRODUCT SPECIFICATIONS...........................................................................................................13
8.1 FREQUENCY HOPPING SPREAD SPECTRUM (DSSS) RADIO, 2.4GHZ..................................................13
8.2 FREQUENCY HOPPING SPREAD SPECTRUM (FHSS) RADIO, 2.4GHZ..................................................14
8.3 IEEE 802.11A/B/G (WI-FI) RADIOS..................................................................................................15
8.4 MULTINODE USER ENVIRONMENT......................................................................................................16
8.5 MULTINODE POWER SPECIFICATIONS ................................................................................................16
8.6 WEIGHT ...........................................................................................................................................16
8.7 DIMENSIONS.....................................................................................................................................17
9 CABLES.............................................................................................................................................18
9.1 EXTERNAL INTERFACE CABLES..........................................................................................................18
9.2 ANTENNA CABLES.............................................................................................................................19
10 ANTENNA LIGHTNING ARRESTORS .............................................................................................19
10.1 FOR USE WITH INTEGRAL OR REMOTE ANTENNA(S) ............................................................................19
10.2 FOR USE WITH REMOTE ANTENNA(S).................................................................................................19
11 APPROVED ANTENNA TYPES/GAINS ...........................................................................................20
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 3 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
11.1 DSSS, FHSS 2.4GHZ RADIO: .........................................................................................................20
11.2 802.11A/B/G ACCESS POINT AND BRIDGE (MESH) RADIO ...................................................................21
12 EQUIVALENT ISOTROPICALLY RADIATED POWER (EIRP)........................................................22
13 EIRP LIMITS, DSSS 2.4GHZ RADIO ................................................................................................23
14 EIRP LIMITS, FHSS 2.4GHZ RADIO.................................................................................................24
15 EIRP LIMITS, 802.11A (5.8GHZ) ACCESS POINT AND BRIDGE RADIO......................................25
16 EIRP LIMITS, 802.11A (5.4GHZ) ACCESS POINT AND BRIDGE RADIO......................................26
17 EIRP LIMITS, 802.11B/G (2.4GHZ) ACCESS POINT AND BRIDGE RADIO..................................27
18 SETTING POWER AND COUNTRY CODE: DSSS-FH RADIO .......................................................28
19 SETTING POWER & COUNTRY CODE: 802.11 ACCESS POINT & BRIDGE RADIO ..................29
19.1 POWER SETTING REFERENCE TABLE, 802.11 ACCESS POINT & BRIDGE RADIO:.................................31
20 RF SAFETY, MAXIMUM PERMISSIBLE EXPOSURE (MPE) STATEMENT...................................32
21 AGENCY COMPLIANCE...................................................................................................................33
21.1 RADIO AND EMC CERTIFICATIONS ....................................................................................................33
21.1.1 Federal Communication Commission (FCC).........................................................................33
21.1.2 Industry Canada (IC).............................................................................................................33
21.1.3 European Telecommunications Standards Institue (ETSI)...................................................33
21.1.4 Australian communications and media authority (ACMA).....................................................33
21.2 PRODUCT SAFETY AGENCY CERTIFICATIONS .....................................................................................34
21.2.1 Canadian Standards Association (CSA)...............................................................................34
21.2.2 Factory Mutual (FM)..............................................................................................................35
21.2.3 European ATEX Certification (ATEX)....................................................................................36
21.3 EUROPEAN UNION CERTIFICATION (CE-MARK)...................................................................................36
22 REFERENCE DOCUMENTS.............................................................................................................36
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 4 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
LIST OF FIGURES

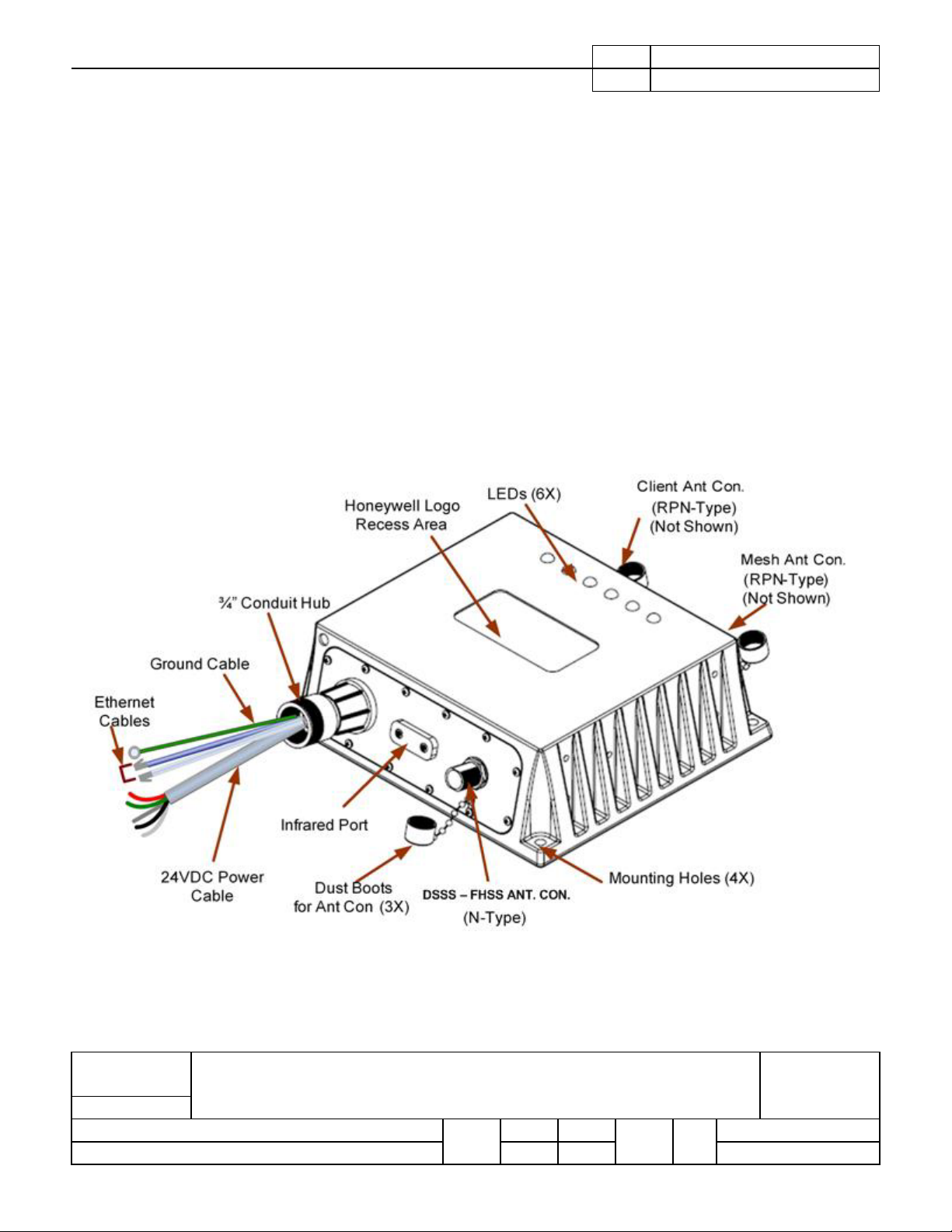

Figure 1 –Diagram of Multinode Unit showing various external attributes ____________________________12 Figure 2 – Dimension of the Multinode Device_________________________________________________17
L
IST OF TABLES
Table 1 – Assembly Number and Revision...........................................................................................................6
Table 2 –Table of Abbreviations and Definitions ..................................................................................................7
Table 3 – Specifications of DSSS Radio in Multinode Device............................................................................13
Table 4 – Specifications of FHSS Radio in Multinode Device............................................................................14
Table 5 – IEEE 802.11a/b/g Wi-Fi Radio Specifications.....................................................................................15
Table 6 – Specifications User Environment Multinode Device...........................................................................16
Table 7 – Power Specifications Multinode Device..............................................................................................16
Table 8 – External Cable Specification for Multinode Device.............................................................................18
Table 9 - Antenna Cable Specifications for Multinode Device............................................................................19
Table 10 – Lightning Arrestor Specifications for Integral Antenna(s) .................................................................19
Table 11 – Lightning Arrestor Specifications for Remote Antenna(s).................................................................19
Table 12 – Approved Antenna Types/Gains, DSSS, FHSS Radio.....................................................................20
Table 13 – Approved Antenna Types/Gains, 802.11a/b/g Radios .....................................................................21
Table 14 – EIRP Limits, DSSS 2.4GHz Radio....................................................................................................23
Table 15 - EIRP Limits, FHSS 2.4GHz Radio.....................................................................................................24
Table 16 – EIRP Limits, 802.11a (5.8GHz) Radios ............................................................................................25
Table 17 – EIRP Limits, 802.11a (5.4GHz) Radios ............................................................................................26
Table 18 – EIRP Limits, 802.11b/g (2.4GHz) Radios .........................................................................................27
Table 19: 802.11 Radio Power Setting Reference..............................................................................................31
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 5 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
1 DESIGNATION, SCOPE AND PREFACE
1.1 Designation
HONEYWELL ONEWIRELESS MULTINODE DEVICE.
1.1.1 Model Numbers and Revisions :
This document is valid for the following Multinode assembly number:
MULTINODE EXTENDED TEMPERATURE
Model
Number
Hardware Assembly
# / Revision
Description
WNMF 51153884-200 / C
WNMS 51153884-201 / C
Multinode Extended Temperature – 802.11a/b/g and
2.4GHz FHSS Radios Multinode Extended Temperature – 802.11a/b/g and
2.4GHz DSSS Radios
Table 1 – Assembly Number and Revision
1.2 Scope
This document outlines professional installation requirements for the Honeywell Multinode Device for the Honeywell OneWireless Network. Professional installation is required to comply with certification agency and legal requirements. This document must be adhered to for all installations of the Honeywell OneWireless Multinode device.
1.3 Preface
This manual covers professional installation of the optional external antennas for use with the Honeywell OneWireless Multinode device. Since this device requires manual power limit settings for use with the higher gain antennas, it is classified by the FCC as a professional install device. To be in compliance with FCC requirements, the radio must be installed with one of several approved antenna types listed in this document. The Honeywell OneWireless Multinode device works in conjunction with Honeywell XYR5000 and XYR6000 wireless sensors and Wi-Fi access point devices. See the Reference Documents section, for general information on overall system implementation, configuration, and management of the multimode.
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 6 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
1.4 Abbreviations & Definitions
The term Honeywell Multinode Device (or simply Multinode) will be used to describe the composite unit which includes the Honeywell DSSS or FHSS Radio Board, 3eTI Mesh Board, Power Supply board, and all subassemblies housed inside the Multinode enclosure.
ACMA ATEX AWG Co-located
COTS CSA DFS DSSS EMC ETSI EU FCC FHSS FM IC IEEE IR IrDA LED MPE MTBF NEMA PCB PCI RAM RJ-45 RPN SQA Wi-Fi
WNSIA
Australian Communications and Media Authority Potentially Explosive Atmospheres Directive American Wire Gauge Two or more radios transmitting simultaneously and with less than
20cm of separation distance. Commercial Off-The-Shelf
Canadian Standards Association Dynamic Frequency Selection Direct Sequence Spread Spectrum Electromagnetic Compatibility European Telecommunications Standards Institute European Union Federal Communications Committee Frequency-Hopping Spread Spectrum Factory Mutual Industry Canada Institute of Electrical and Electronics Engineers Infrared Infrared Data Association Light Emitting Diode Maximum Permissible Exposure Mean Time Between Failures National Electrical Manufacturers Association Printed Circuit Board Peripheral Components Interconnect Random Access Memory Registered Jack-45 Reverse Polarity N-type Supplier Quality Assurance Wireless Local Area Network based on IEEE 802.11 Specifications
Wireless Network for Secure Industrial Application
Table 2 –Table of Abbreviations and Definitions
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 7 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
2 FEDERAL COMMUNICATION COMMISSION (FCC)
2.1 FCC Compliance Statements
This device complies with Part 15 of FCC Rules and Regulations. Operation is
subject to the following two conditions: (1) This device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radiofrequency energy and, if not installed and used in accordance with these instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
Intentional or unintentional changes or modifications must not be made to the
Multinode unless under the express consent of the party responsible for compliance. Any such modifications could void the user’s authority to operate the equipment and will void the manufacturer’s warranty.
3 INDUSTRY CANADA (IC)
3.1 IC Compliance Statements
To reduce potential radio interference to other users, the antenna type and its gain
should be so chosen that the equivalent isotropic radiated power (EIRP) is not more than that permitted for successful communication.
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This Class A digital apparatus complies with Canadian ICES-003. French: Cet appareil numérique de la classe A est conforme à la norme NMB-003
du Canada.
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 8 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
4 RF Safety Statement:
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following antenna installation and device operating configurations must be satisfied.
Remote Point-to-Multi-Point antenna(s) for this unit must be fixed and mounted
on outdoor permanent structures with a separation distance between the antenna(s) of greater than 20cm and a separation distance of at least 20cm from
all persons.
Remote Fixed Point–to-Point antenna(s) for this unit must be fixed and mounted
on outdoor permanent structures with a separation distance between the antenna(s) of greater than 20cm and a separation distance of at least
100cm from
all persons.
Furthermore, when using integral antenna(s) the Multinode unit must not be co-
located with any other antenna or transmitter device and have a separation distance of at least 20cm from all persons.
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 9 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
5 FCC and Industry Canada (IC) Identification Numbers:
5.1 FCC Identification Numbers:
• Honeywell Multinode DSSS Radio
o Limited Modular Approval o Federal Communication Commission Identification: S57 - 51306343
• Honeywell Multinode FHSS Radio
o Limited Modular Approval o Federal Communication Commission Identification: S57 - WNMNFHSS
• Honeywell Extended Temperature Multinode 802.11a/b/g Radio
o Limited Modular Approval o Federal Communication Commission Identification: S57 - DCMA-82
5.2 Industry Canada Identification Numbers:
• Honeywell Multinode DSSS Radio
o Limited Modular Approval o Industry Canada Identification: 573I - 51306343
• Honeywell Multinode FHSS Radio
o Limited Modular Approval o Industry Canada Identification: 573I - WNMNFHSS
• Honeywell Extended Temperature Multinode 802.11a/b/g Radio
o Limited Modular Approval o Industry Canada Identification: 573I - DCMA82
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 10 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
6 INTENDED COUNTRY USAGE
6.1 NORTH AMERICA
Country ISO 3166 2 letter code
UNIIITED STATES US
CANADA CA
6.2 AUSTRALIA AND NEW ZEALAND
Country ISO 3166 2 letter code
AUSTRALIA AU
NEW ZEALAND NZ
6.3 EUROPEAN UNION
Country
ISO 3166
2 letter code
Country
ISO 3166
2 letter code
Austria AT Latvia LV Belgium BE Liechtenstein LI Bulgaria BG Lithuania LT
Cyprus CY Malta MT
Czech Republic CZ Netherlands NL
Denmark DK Norway NO
Estonia EE Poland PL Finland FI Portugal PT
France FR Romania RO
Germany DE Slovakia SK
Greece GR Slovenia SI
Hungary HU Spain ES
Iceland IS Sweden SE
Ireland IE Switzerland CH
Italy IT United Kingdom BG
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 11 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
7 MULTINODE GENERAL DESCRIPTION
7.1 Intended Use
The Multinode unit is a key component of the Honeywell Wireless Network for Secure Industrial Application (WNSIA). It provides wireless mesh connectivity for wireless sensor
networks and wireless worker appliances. The Multinode uses powerful radios to communicate with gateway devices connected to a wired DCS network, and a low-powered radio to communicate with wireless sensors. The Multinode unit consists of two types of radios: a sensor radio for communication with XYR 6000 transmitters and IEEE 802.11a/b/g radios for mesh (bridge) network and communication with mobile access point (client) devices.
7.2 Multinode Device Diagrams
Figure 1 shows the unit-level drawing of the Multinode Device. All cables exit the unit via a ¾”
conduit hub. The conduit hub allows end user to land conduit on the Multinode Device.
1
shows the Multinode and all of external interfaces.
Figure
Figure 1 –Diagram of Multinode Unit showing various external attributes
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 12 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
8 PRODUCT SPECIFICATIONS
8.1 Direct Sequence Spread Spectrum (DSSS) Radio, 2.4GHz Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. See Section 10, for professional installation maximum power setting requirements. Only the specified power settings, antenna types and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode installations.
Item Specification
Wireless Standard Data Rates and Modulation Data Rate: 250kbps
Frequency Band 2,405 – 2,475MHz Transmit Power
Receive Sensitivity (typical)
Direct Sequence Spread Spectrum 2.4GHz
Modulation: OQPSK – DSSS
Maximum: 19dBm (Maximum transmit power will vary by channel and individual country
regulations.
-95dBm
Table 3 – Specifications of DSSS Radio in Multinode Device.
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 13 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
8.2 Frequency Hopping Spread Spectrum (FHSS) Radio, 2.4GHz Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. See Section 10, for professional installation maximum power setting requirements. Only the specified power settings, antenna types and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode installations.
Item Specification
Wireless Standard Data Rates and Modulation Data Rate: 250kbps
Frequency Band 2,402 – 2,482MHz Transmit Power
Receive Sensitivity (typical)
Frequency Hopping Spread Spectrum (FHSS), 2.4GHz
Modulation: Gaussian Frequency Shift Keying (GFSK)
Maximum: 19dBm (Maximum transmit power will vary by channel and individual country
regulations.
-98dBm
Table 4 – Specifications of FHSS Radio in Multinode Device.
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 14 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
8.3 IEEE 802.11a/b/G (Wi-Fi) Radios
The Multinode has two IEEE 802.11 radios for implementing client (access point) and mesh (bridge) networks. Warning! The Multinode unit must be Professionally Installed in accordance with the requirements specified in this document. See Section 11, for professional installation maximum power setting requirements. Only the specified power settings, antenna types and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode installations.
Item Specification
Wireless Standards Data Rates • 802.11a: 54, 48, 36, 18, 12, 9, 6 Mbps
Modulation Technique 802.11 a/b/g: DSSS (DBPSK, DQPSK, CCK), OFDM (BPSK,QPSK, 16-QAM, 64-QAM) Frequency Bands and
Operating Channels
Output Power (maximum)
Receive sensitivity (typical)
IEEE 802.11a/b/g
• 802.11b: 11, 5.5, 2, 1 Mbps
• 802.11g: 54, 48, 36, 18, 12, 9, 6 Mbps
United States and Canada (FCC and IC):
• 802.11b/g: 2,412 – 2,462MHz, Channels 1 – 11
• 802.11a: 5,745 – 5,825, Channels 149,153,157,161,165
Europe (ETSI):
• 802.11b/g: 2,412 – 2,472MHz, Channels 1 – 13
• 802.11a: 5,500 – 5,700, Channels
100,104,108,112,116,120,124,128,132,136,140
Australia (ACMA):
• 802.11b/g: 2,412 – 2,472MHz, Channels 1 – 13
• 802.11a: 5,745 – 5,825, Channels 149,153,157,161,165
802.11a:
+22.5dBm at 6, 9, 12, 18Mbps +21.5dBm at 36Mbps +19dBm at 48Mbps +18dBm at 54Mbps
802.11a:
-91dB@6Mbps, -90dB@9Mbps, -90@12Mbps, -88dB@18Mbps,
-85dB@24Mbps, -82dB@36Mbps, -76dB@48Mbps, -72dB@54Mbps
802.11b:
-97dB@1Mbps, -93dB@2Mbps, -92dB@5.5Mbps, -88dB@11Mbps
802.11g:
-91dB@6Mbps, -90dB@9Mbps, -89@12Mbps, -87dB@18Mbps,
-84dB@24Mbps, -80dB@36Mbps, -76dB@48Mbps, -74dB@54Mbps
802.11b:
+24.5dBm at 1,2,
5.5, and 11Mbps
802.11g:
+24.5dBm at 6, 9, 12, 18Mbps +23.5dBm at 36Mbps +22dBm at 48Mbps +21dBm at 54Mbps
Table 5 – IEEE 802.11a/b/g Wi-Fi Radio Specifications.
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 15 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
8.4 Multinode User Environment
Item Specification
Operating Temperature: -40 OC to +75 OC Storage Temperature: -40 OC to +75 OC Operating Humidity: 0 to 100% RH
Table 6 – Specifications User Environment Multinode Device.
8.5 Multinode Power Specifications
Item Specification
Operating Voltage: 20.4Vdc to 26.4Vdc Power Consumption (typical):
25W
Table 7 – Power Specifications Multinode Device.
8.6 Weight
The weight of the complete Multinode units shall be 7.0 lb. (3.2 kg) maximum. This weight does not include the integral antennas or other external accessories. .
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 16 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
8.7 Dimensions
Figure 2 – Dimension of the Multinode Device
FCF: OneWireless Extended Temperature Multinode
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8, 29-JUL-2008 SIZE Sh. No.: 17 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
9 Cables
9.1 External Interface Cables Cable Type Specification Qty Comments/Specification
External Ethernet
CAT5E
Stranded Core
2 Routed through conduit hub.
Termination = RJ-45 Modular Plug Finished Length = 24 inches
24VDC Power Multi-
conductor,
AWG
1 Finished Length = 24 inches
Routed through conduit hub Conductor Color: Red & Green = 24VDC White & Black = Common Drain wire = Chassis potential
Ground Conductor
AWG10 1 Routed through conduit hub
Color = Green or Green with yellow stripes. Finished length = 24 inches
Note:
• Finished length is measured from conduit hub to outside tip of cable.
• Ground conductor must be attached to product safety protective earth and building steel ground.
• All external wiring must be routed through metal conduit.
Table 8 – External Cable Specification for Multinode Device.
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 18 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
9.2 Antenna Cables Cable
Application
DSSS, FHSS,
802.11
DSSS, FHSS,
802.11
DSSS, FHSS,
802.11
Honeywell
Part #
Cable
Type
50018278-001 400
Series
50018278-003 400
Series
50018278-010 400
Series
Connector
Type
Frequency
(GHz)
Length
(m)
NM – NM 2.4/5.8 1 1.0 / 2.0 NM – NM 2.4/5.8 3 1.5 / 2.5 NM – NM 2.4/5.8 10 2.5 / 3.5
Table 9 - Antenna Cable Specifications for Multinode Device.
10 Antenna Lightning Arrestors
10.1 For use with Integral or Remote Antenna(s)
Application Honeywell
Part Number
DSSS, FHSS,
51202359-200 50 ohm NM - NF 0 – 6 0.4 (max)
Specification Connector
Type
Frequency
(GHz)
Attenuation
(dB)
802.11
Loss
(dB)
Table 10 – Lightning Arrestor Specifications for Integral Antenna(s)
10.2 For use with Remote Antenna(s)
Application Honeywell
Part Number
DSSS, FHSS,
50018279-090 50 ohm NF to NF 0 – 3 0.4 (max)
Specification Connector
Type
Frequency
(GHz)
Attenuation
802.11
NOTE: Depending on application needs, the “integral” arrestors may be used for remote antennas.
Table 11 – Lightning Arrestor Specifications for Remote Antenna(s)
(dB)
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 19 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
11 Approved Antenna Types/Gains
11.1 DSSS, FHSS 2.4GHz Radio:
Antenna
Type
Omni
(integral)
Omni
(integral)
Omni
(integral)
Omni
(remote)
Sector
(remote)
Antenna
Application
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Manufacturer
PacWireless SMARTANT
SMARTANT HYPERLINK HGV-2409U HYPERLINK
Manufacturer
Part Number
OD24M-5
SAA04­051000
HON04-
052160
HG2414SP-
120
Honeywell
Part
Number
51506534-
101
51506534-
101
51506534-
100
50018414-
001
NA 120° 14 2.4
Beam Width
Omni 5 2.4 Omni 5 2.4 Omni 5 2.4 Omni 8 2.4
Peak Gain (dBi)
Freq.
(GHz)
Compliance
FCC, IC,
ETSI, ACMA
FCC, IC,
ETSI, ACMA
FCC, IC,
ETSI, ACMA
FCC, IC,
ETSI, ACMA
FCC, IC,
ETSI, ACMA
Table 12 – Approved Antenna Types/Gains, DSSS, FHSS Radio
Agency
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 20 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
11.2 802.11a/b/g Access point and Bridge (Mesh) Radio
Antenna
Type
Omni
(integral)
Omni
(integral)
Omni
(remote)
Omni
(remote)
Omni
(remote)
Sector
(remote)
Sector
(remote)
Sector
(remote)
YAGI
(remote)
DISH
(remote)
DISH
(remote)
Antenna
Application
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Point to Multi-
Point
Fixed Point to
Point
Fixed Point to
Point
Manufacturer
Air802
SMARTANT SAA05-220920
HYPERLINK HGV-2409U HYPERLINK HG5412U NA Omni 12 HYPERLINK HG5812U-PRO NA Omni 12 HYPERLINK HG2414SP-120 NA 120° 14 HYPERLINK HG5417P-090 NA 90° 17 HYPERLINK HG5817P-090 NA 90° 17
TELEX 5816AB NA 19° 16.5 HYPERLINK HG5423D NA 9° 23 HYPERLINK HG5824D NA 9° 24
Manufacturer
Part Number
ANOM245XM
Honeywell
Part
Number
51506534
-200
51506534
-200
50018414-
001
Beam
Width
Omni
Omni
Omni 8
Peak Gain (dBi)
3.5
5.3
4.0
7.0
Freq
(GHz)
2.4
802.11b/g
5.4
802.11a
5.8
802.11a
2.4
802.11b/g
5.4
802.11a
5.8
802.11a
2.4
802.11b/g
5.4
802.11a
5.8
802.11a
2.4
802.11b/g
5.4
802.11a
5.8
802.11a
5.8
802.11a
5.4
802.11a
5.8
802.11a
Agency
Compliance
FCC, IC,
ETSI, ACMA
FCC, IC,
FCC, IC,
ETSI, ACMA
FCC, IC, FCC, IC,
ETSI, ACMA
FCC, IC, FCC, IC,
ETSI, ACMA
FCC, IC, FCC, IC,
FCC, IC,
ETSI
ACMA
ETSI
ACMA
ETSI
ACMA
ETSI
ACMA ACMA
ETSI
ACMA
Table 13 – Approved Antenna Types/Gains, 802.11a/b/g Radios
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 21 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
12 Equivalent Isotropically Radiated Power (EIRP)
In radio communication systems, Equivalent isotropically radiated power (EIRP), or alternatively, Effective isotropic radiated power is the amount of power that would have to be emitted by an isotropic antenna (that evenly distributes power in all directions and is a theoretical construct) to produce the peak power density observed in the direction of maximum antenna gain. EIRP can take into account the losses in transmission line and connectors and includes the gain of the antenna. The EIRP is often stated in terms of decibels over a reference power level, that would be the power emitted by an isotropic radiator with an equivalent signal strength. The EIRP allows making comparisons between different emitters regardless of type, size or form. From the EIRP, and with knowledge of a real antenna's gain, it is possible to calculate real power and field strength values.
EIRP(dBm) = (Radio Power (dBm)) – (Cable Loss (dB)) + (Antenna Gain(dBi))
Antenna gain is expressed relative to a (theoretical) isotropic reference antenna (dBi).
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 22 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
13 EIRP LIMITS, DSSS 2.4GHz RADIO
Antenna
Type
Omni
Omni
Sector
Radio Usage /
Application
Point to
Multi-
Point
Point to
Multi-
Point
Point to
Multi-
Point
Integral 2.4 5 0 0
Remote 2.4 8 1 1.0
Remote 2.4 14 1 1.0
Freq.
(GHz)
Max.
Ant. Gain (dBi)
Min. Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output
Power (dBm)
Max. EIRP
(dBm)
20 25
6 11
19 26
5 12
15 28
0 13
Agency/ Country
FCC, IC
ETSI 5, ACMA
FCC, IC
ETSI 5, ACMA
FCC, IC
ETSI 5, ACMA
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
5.
France restricts outdoor use to 10mW (10dBm) EIRP in the frequency range of 2,454-2,483.5 MHz.
Installations in France must limit EIRP to 10dBm, for operating modes utilizing frequencies in the range of 2,454 – 2,483.5MHz.
6. Industry Canada Compliance Statement: This device has been designed to operate with the antenna types listed in this document, and having a maximum gain of 14dBi. Antenna types not included in this list or having a gain greater than 14dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
Table 14 – EIRP Limits, DSSS 2.4GHz Radio
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 23 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
14 EIRP LIMITS, FHSS 2.4GHz RADIO
Antenna
Type
Omni
Omni
Sector
Radio Usage /
Application
Point to
Multi-
Point
Point to
Multi-
Point
Point to
Multi-
Point
Integral 2.4 5 0 0
Remote 2.4 8 1 1.0
Remote 2.4 14 1 1.0
Freq.
(GHz)
Max.
Ant. Gain (dBi)
Min. Cable
Length
(m)
Min.
Cable
Loss
(dB)
Max. Radio
Output
Power (dBm)
Max. EIRP
(dBm)
19 24 14 19 17 24 12 19 12 25
6 19
Agency/ Country
FCC, IC
ETSI 5, ACMA
FCC, IC
ETSI 5, ACMA
FCC, IC
ETSI 5, ACMA
Notes:
7. The values in the above table have been determined through agency certification testing.
8. Maximum transmit power will vary by channel, data rate, and individual country regulations.
9. The following shall apply for antenna type, frequency range, application/usage and agency/country compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
10. Beam width, for sector and dish antenna, may range between 0 – 180degress.
11.
France restricts outdoor use to 10mW (10dBm) EIRP in the frequency range of 2,454-2,483.5 MHz.
Installations in France must limit EIRP to 10dBm, for operating modes utilizing frequencies in the range of 2,454 – 2,483.5MHz.
12. Industry Canada Compliance Statement: This device has been designed to operate with the antenna types listed in this document, and having a maximum gain of 14dBi. Antenna types not included in this list or having a gain greater than 14dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
Table 15 - EIRP Limits, FHSS 2.4GHz Radio
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 24 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
15 EIRP LIMITS, 802.11a (5.8GHz) Access Point and Bridge Radio
Max.
Radio
Output
Power (dBm)
Max. EIRP
(dBm)
Pro­Install Power
Setting
26 33 10 23 30 -5 24 34 -3 20 30 -11 19 34 -15 15 30 -22 19 34 -15
15.5 30 -22 27 49 40
8 30 -37
Agency/ Country
FCC, IC
FCC, IC
FCC, IC
FCC, IC
FCC, IC
Ant.
Type
Omni
Omni
Sector
Yagi
Dish
Radio Usage /
Application
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Fixed
Pt. to Pt.
Integral
Remote
Remote
Remote
Remote
Freq.
(GHz)
5.8
802.11a
5.8
802.11a
5.8
802.11a
5.8
802.11a
5.8
802.11a
Max.
Ant.
Gain
(dBi)
7.0 0 0
12 1 2
17 1 2
16.5 1 2
24 1 2
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
ACMA
ACMA
ACMA
ACMA
ACMA
5. Industry Canada Compliance Statement: This device has been designed to operate with the antenna types listed in this document, and having a maximum gain of 24dBi. Antenna types not included in this list or having a gain greater than 24dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
Table 16 – EIRP Limits, 802.11a (5.8GHz) Radios
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 25 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
16 EIRP LIMITS, 802.11a (5.4GHz) Access Point and Bridge Radio
Max.
Radio
Output
Power (dBm)
Max. EIRP
(dBm)
Pro­Install Power
Setting
21 28 -14
18 28 -10
13 28 -22
7 26 -33
Agency/ Country
Ant.
Type
Omni
Omni
Sector
Dish
Radio Usage /
Application
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Fixed
Pt. to Pt.
Integral
Remote
Remote
Remote
Freq.
(GHz)
5.4
802.11a
5.4
802.11a
5.4
802.11a
5.4
802.11a
Max.
Ant.
Gain
(dBi)
7.0 0 0
12 1 2
17 1 2
23
Min.
Cable
Length
(m)
6
10
Min.
Cable
Loss
(dB)
3.8
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
ETSI
ETSI
ETSI
ETSI
5. Industry Canada Compliance Statement: This device has been designed to operate with the antenna types listed in this document, and having a maximum gain of 23dBi. Antenna types not included in this list or having a gain greater than 23dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
6. A 10 meter cable must be used with the 23dBi Dish antenna, in order to comply with ETSI Transmit Power Control (TPC) requirements.
Table 17 – EIRP Limits, 802.11a (5.4GHz) Radios
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 26 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
17 EIRP LIMITS, 802.11b/g (2.4GHz) Access Point and Bridge Radio
Max.
Radio
Output
Power (dBm)
Max. EIRP
(dBm)
Pro­Install Power
Setting
22 26 -8 13 17 -15 21 28 -10 11 18 -22 20 33 -12
5 18 -27
ETSI 5, ACMA
ETSI 5, ACMA
ETSI 5, ACMA
Ant.
Type
Omni
Omni
Sector
Radio Usage /
Application
Point to
Multi-Point
Point to
Multi-Point
Point to
Multi-Point
Integral
Remote
Remote
Freq.
(GHz)
2.4
802.11b/g
2.4
802.11b/g
2.4
802.11b/g
Max.
Ant.
Gain
(dBi)
4.0 0 0
8 1 1
14 1 1
Min.
Cable
Length
(m)
Min.
Cable
Loss
(dB)
Notes:
1. The values in the above table have been determined through agency certification testing.
2. Maximum transmit power will vary by channel, data rate, and individual country regulations.
3. The following shall apply for antenna type, frequency range, application/usage and agency/country compliance:
• Antenna gains above the maximum values shown shall not be used.
• Cable length/loss below the minimum values shown shall not be used.
• Maximum overall radio output power shown shall not be exceeded.
• Maximum EIRP values shown above shall not be exceeded.
4. Beam width, for sector and dish antenna, may range between 0 – 180degress.
France restricts outdoor use to 10mW (10dBm) EIRP in the frequency range of 2,454-2,483.5 MHz.
5. Installations in France must limit EIRP to 10dBm, for operating modes utilizing frequencies in the range of 2,454 – 2,483.5MHz.
Agency/ Country
FCC, IC
FCC, IC
FCC, IC
6. Industry Canada Compliance Statement: This device has been designed to operate with the antenna types listed in this document, and having a maximum gain of 14dBi. Antenna types not included in this list or having a gain greater than 14dBi are strictly prohibited for use with this device. The required antenna impedance is 50 ohms.
Table 18 – EIRP Limits, 802.11b/g (2.4GHz) Radios
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 27 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
18 Setting Power and Country Code: DSSS-FH Radio Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. Only the specified power settings, antenna types and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode installations.
Set the radio power level using the Authentication Device application. Due to regulations, this command is only available if professional installer options have explicitly been enabled on your PDA. If you have not enabled professional installer options and would like to do so, please contact Honeywell Design Engineering or Technical Assistance Center. A separate application, AuthDev Power Settings, is required to enable the "Write TX Power Level" option.
Perform the following procedure to read and change the radio power level on your multinode or wireless device:
• Open the Authentication Device application on your Windows Mobile PDA.
• From the main menu, choose the Advanced Options menu to open the Advanced
Options form.
• From the Advanced Options form, choose "Read TX Power Level" from the command
drop down box.
• Aim the Authentication Device at your node and press the Transmit Command button
to read the data from the node. The TX Power reading will be presented on your screen.
• If you have enabled professional installer options within the Authentication Device,
choose the "Write TX Power Level" from the command drop down box.
• Choose a new power level. Aim the Authentication Device at your node and press the
Transmit Command button to write the data to the node.
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 28 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
19 Setting Power & Country Code: 802.11 Access Point & Bridge Radio Warning! The Multinode unit must be Professionally Installed in accordance with the
requirements specified in this document. Only the specified power settings, antenna types and gains and cable lengths (attenuation) as outlined in this document are valid for Multinode installations.
Programming the Country Code
A hidden page on the Multinode Configuration Tool has been designed for professional installers to change country code and radio output power settings. A valid authorization code has to be entered for the any information to be modified. This authorization code is hard-
coded in the firmware and shall be kept as a SECRET at all times.
To access the hidden page, type the following URL in your browser: https://192.168.254.128/cgi-bin/sgateway?PG=911
Change 192.168.254.128 to the IP address of your unit, and make sure you login as: Login: CryptoOfficer, Password: CryptoFIPS
You should see something like this:
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 29 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
The authorization code is: “Raptor2007!” without the quote (YOU MUST KEEP THIS AS A SECRET)
Change the following options based on values you determined in Section 11:
Country Code Adjustment to Max TX power of Access Point Radio (increase or decrease) Adjustment to Max TX power of Bridge Radio (increase or decrease)
After applying the changes, you will be notified to reboot the unit for any changes to take effect.
Note that the adjustment of radio Max TX power has limits. It will level off on both the low end and high end. This feature is provided for professional installers to adjust the card output power to match the specific selection of antenna and keep the total output power under the regulatory threshold.
The setting here are saved in non-volatile memory inside the unit. Restoring the unit to factory default settings does not change these values.
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 30 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
19.1 Power Setting Reference Table, 802.11 Access Point & Bridge Radio:
Multinode Bridge and Access Point Radio Ports
WIRELESS MODE 802.11a 802.11a 802.11b/g mixed 802.11b/g mixed
CHANNEL 120 (5.6GHz) 157 (5.785GHz) 7 (2.442GHz) 6 (2.437GHz)
TX PWR MODE FIXED, 8 FIXED, 8 FIXED, 8 FIXED, 8
Data Rate
Professional Installer
TX Power Setting
40 30 20 10
0
-10
-20
-30
-40
MEASURED
OUTPUT POWER
(dBm)
25 25 24 24 22 18 14
8 4
MEASURED
OUTPUT POWER
(dBm)
27 26 26 27 26 26 27 26 26 26 25 26 24 21 25 21 15 21 16 10 15 12 5 10
7 0 5
MEASURED
OUTPUT POWER
(dBm)
MEASURED
OUTPUT POWER
(dBm)
Table 19: 802.11 Radio Power Setting Reference
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 31 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
20 RF Safety, Maximum Permissible Exposure (MPE) statement
To comply with FCC’s and Industry Canada’s RF exposure requirements, the following antenna installation and device operating configurations must be satisfied.
Remote
Point-to-Multi-Point antenna(s) for this unit must be fixed and mounted on
outdoor permanent structures with a separation distance between the antenna(s) of greater than 20cm and a separation distance of at least
20cm from all persons.
Remote Fixed Point–to-Point antenna(s) for this unit must be fixed and mounted on
outdoor permanent structures with a separation distance between the antenna(s) of greater than 20cm and a separation distance of at least 100cm from all persons.
Furthermore, when using integral antenna(s) the Multinode unit must not be co-located
with any other antenna or transmitter device and have a separation distance of at least 20cm from all persons.
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 32 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
21 AGENCY COMPLIANCE
21.1 Radio and EMC Certifications
21.1.1 Federal Communication Commission (FCC)
Specification: FCC Part 15.247 Subpart B for unintentional radiators Specification: FCC Part 15.247 Subpart C for intentional radiators
21.1.2 Industry Canada (IC)
Method: RSS-210, Issue 7 RSS-Gen, Issue 2 ICES-003, Issue 4
21.1.3 European Telecommunications Standards Institue (ETSI)
Emissions Specification and Method: EN 300 328 V1.7.1 Emissions Spec and Method: EN 301 893 V1.4.1 Immunity Specification: EN 301 489-17 V1.2.1 Immunity Method: EN 301 489-1 V1.6.1 Product Standard: IEC61326-1 (1st Edition, 2005, Industrial Locations)
21.1.4 Australian communications and media authority (ACMA)
Specification: AS NZS 4771-2000
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 33 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
21.2 Product Safety Agency Certifications
21.2.1 Canadian Standards Association (CSA)
CSA electrical equipment requirements for use within Division 2 and Zone 2 hazardous locations.
IEC61010-1 (2nd Edition, 2001-02), "Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use, part 1: General Requirements
Canadian Standards Association Standard C22.2 No. 213-M1987, "Non-Incendive Electrical Equipment for Use in Class I, Division 2 Hazardous Locations"
Canadian Standards Association Standard E60079-0:02, “Electrical Apparatus for explosive gas atmospheres – General Requirements”
Canadian Standards Association Standard E60079-15:02, “Electrical Apparatus for explosive gas atmospheres – Type of Protection “n””
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 34 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
21.2.2 Factory Mutual (FM)
FM electrical equipment requirements for use within Division 2 and Zone 2 hazardous locations.
Factory Mutual Approval Standard Class No. 3600, "Electrical Equipment for Use in Hazardous (Classified) Locations - General Requirements
Factory Mutual Approval Standard Class No. 3810, "Electrical and Electronic Test, Measuring, and Process Control Equipment
Factory Mutual Approval Standard Class No. 3611, "Electrical Equipment for Use in Class I, Division 2, Class II, Division 2 and Class III, Division 1 and 2 Hazardous (Classified) Locations
ANSI/ISA 12.00.01-2002, “Electrical Apparatus for Use in Class I, Zones 0, 1 & 2 Hazardous (Classified) Locations: General Requirements”
ANSI/ISA 12.12.02-2003, “Electrical Apparatus for explosive gas atmospheres – Type of Protection “n””
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 35 of 36
Honeywell Proprietary
AT8
51121312
and Confidential REVISIONS
21.2.3 European ATEX Certification (ATEX)
The completely assembled Multinode will conform to European electrical equipment requirements for use within Zone 2 Hazardous Locations.
IEC 60079-0:2004-01, “Electrical Apparatus for explosive gas atmospheres – General Requirements
IEC 60079-15:2005-03, “Electrical Apparatus for explosive gas atmospheres – Type of Protection “n”
• Temperature code: T4 (135°C) based on the maximum specified ambient of 60°C.
21.3 European Union Certification (CE-mark)
• Compliance with:
o R&TTE Directive 1999/5/EC o EMC Directive 2004/108/EC o LVD Directive 73/23/EEC o ATEX Directive 94/9/EC
22 Reference Documents
1
Getting Started with Honeywell OneWireless
2
Honeywell OneWireless Planning Guide
3
Honeywell OneWireless Multinode User’s Guide
4
Radio Antenna: A Primer White Paper
5
Honeywell OneWireless System Administration Guide
6
Honeywell OneWireless Field Network Dictionary
7
OneWireless Builder Parameter Reference
8
OneWireless Builder User’s Guide
FCF: OneWireless Multinode Agency Compliance
Honeywell
Professional Installation Guide FMF: IACD/Ft.W Made by: David Shipley
Approval
Prints to
A 51121312
Issue: AT8 29-JUL-2008 SIZE Sh. No.: 36 of 36
