Honeywell 46-00288, 46-00289 User Manual

QuantumT™ Flex Stand Installation Guide

For kits 46-00288 and 46-00289

Components Required for Flex Stand Installation

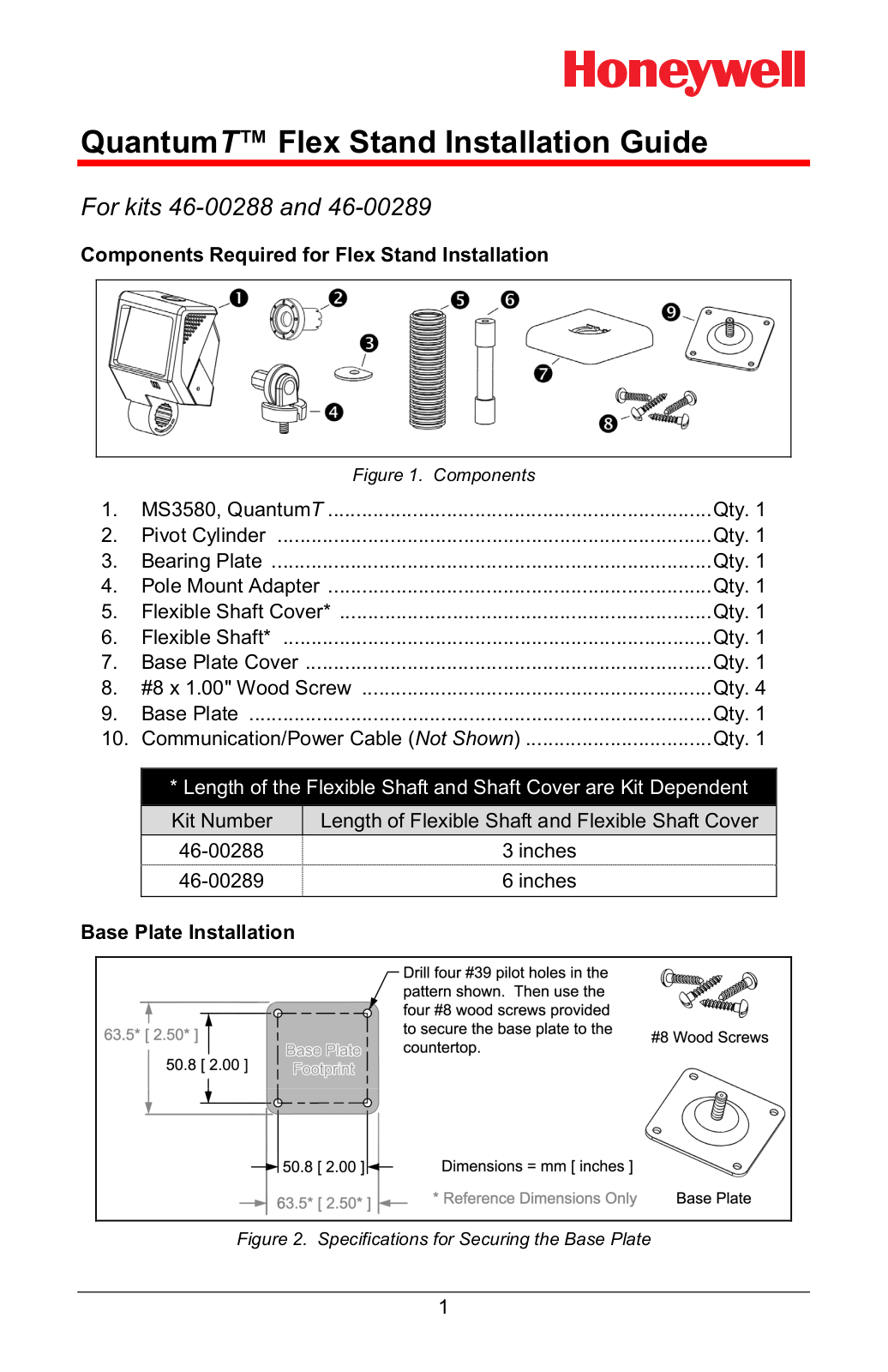

Figure 1. Components
2. Pivot Cylinder ............................................................................. Qty. 1
3. Bearing Plate .............................................................................. Qty. 1
4. Pole Mount Adapter .................................................................... Qty. 1
5. Flexible Shaft Cover* .................................................................. Qty. 1
6. Flexible Shaft* ............................................................................ Qty. 1
7. Base Plate Cover ........................................................................ Qty. 1
8. #8 x 1.00" Wood Screw .............................................................. Qty. 4
9. Base Plate .................................................................................. Qty. 1
10. Communication/Power Cable (Not Shown) ................................. Qty. 1
* Length of the Flexible Shaft and Shaft Cover are Kit Dependent
Kit Number Length of Flexible Shaft and Flexible Shaft Cover
46-00288 3 inches
46-00289 6 inches

Base Plate Installation

Figure 2. Specifications for Securing the Base Plate
1
For kits 46-00288 and 46-00289

Flex Stand Assembly

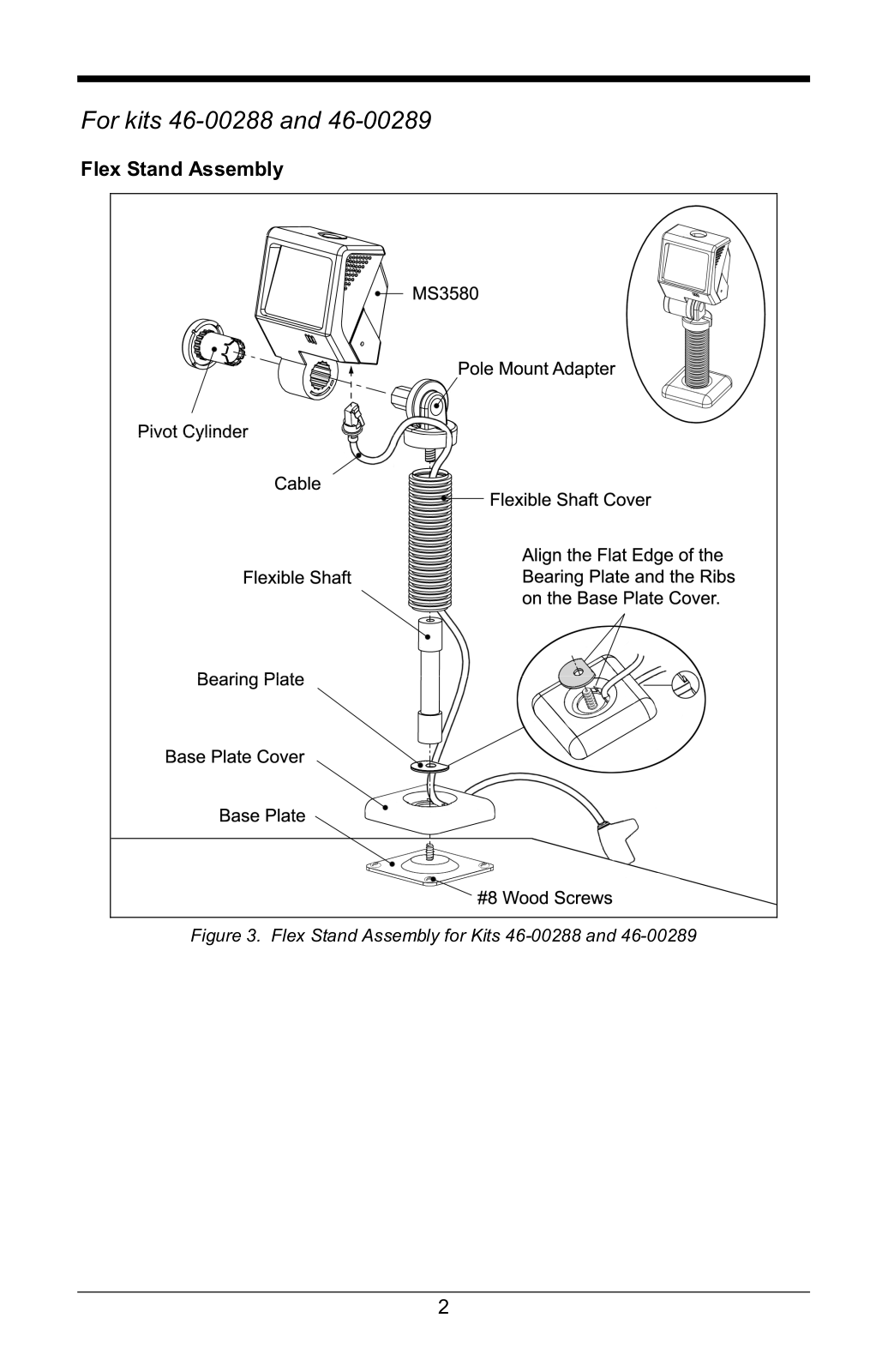

Figure 3. Flex Stand Assembly for Kits 46-00288 and 46-00289
2
