Honeywell 20150XNPS User Manual

Honeywell INNCOM PC50X DALI Module

INSTALLATION INSTRUCTIONS

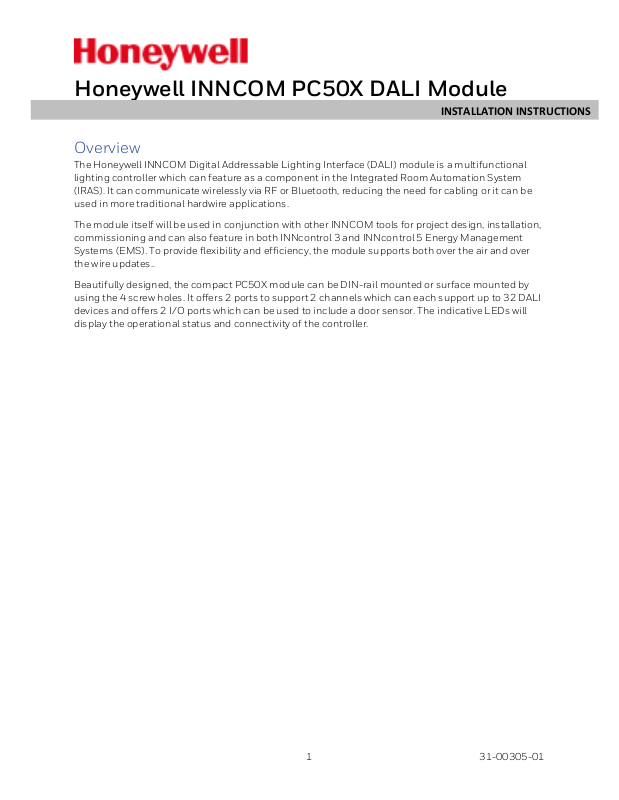

Overview

The Honeywell INNCOM Digital Addressable Lighting Interface (DALI) module is a multifunctional lighting controller which can feature as a component in the Integrated Room Automation System (IRAS). It can communicate wirelessly via RF or Bluetooth, reducing the need for cabling or it can be used in more traditional hardwire applications.

The module itself will be used in conjunction with other INNCOM tools for project design, installation, commissioning and can also feature in both INNcontrol 3 and INNcontrol 5 Energy Management Systems (EMS). To provide flexibility and efficiency, the module supports both over the air and over the wire updates..

Beautifully designed, the compact PC50X module can be DIN-rail mounted or surface mounted by using the 4 screw holes. It offers 2 ports to support 2 channels which can each support up to 32 DALI devices and offers 2 I/O ports which can be used to include a door sensor. The indicative LEDs will display the operational status and connectivity of the controller.

1	31-00305-01

DALI-INSTALLATION INSTRUCTIONS

Before Installation

WARNING! Install all equipment in accordance with the National Electric Code and in a manner acceptable to the local authority having jurisdiction. Read these carefully before installing equipment. Failure to follow all instructions may result in equipment damage or a hazardous condition.

WARNING! This controller and its components may be susceptible to electrostatic discharge (ESD). Use appropriate ESD grounding techniques while handling the product. When possible, always handle the product by its non-electrical components.

Installation

The Dali module can be mounted in two ways

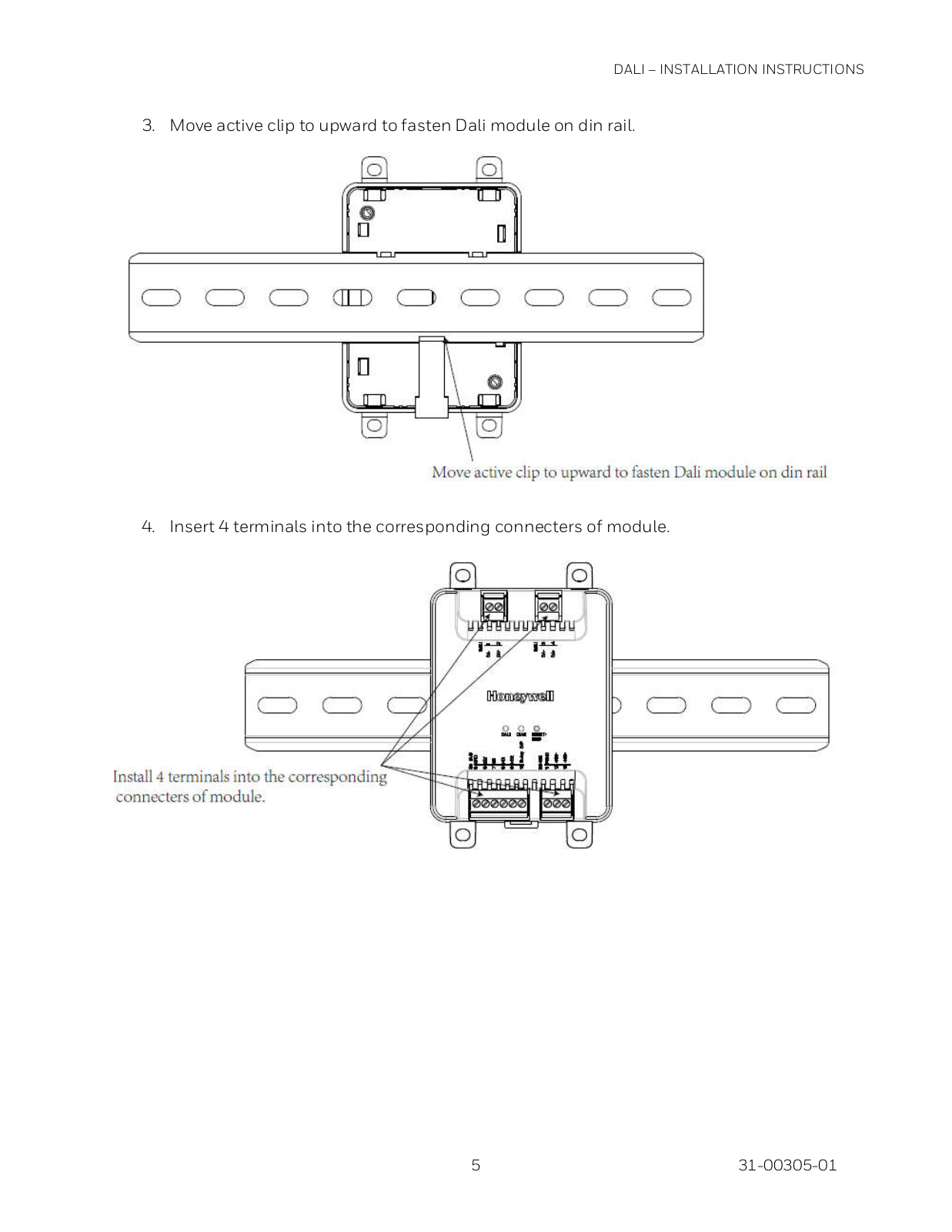

DIN rail mounting

Wall mounting

Dimensional View

3	31-00305-01
