Honda VFR 400R Service Manual
Specifications and Main Features
- Type: VFR400R
- Part Number: MR8B3-E1
- Sizes: All given in millimeters (mm)
- Power Unit Section: Includes descriptions of engine group parts
- Bracket Section: Includes descriptions of frame group parts

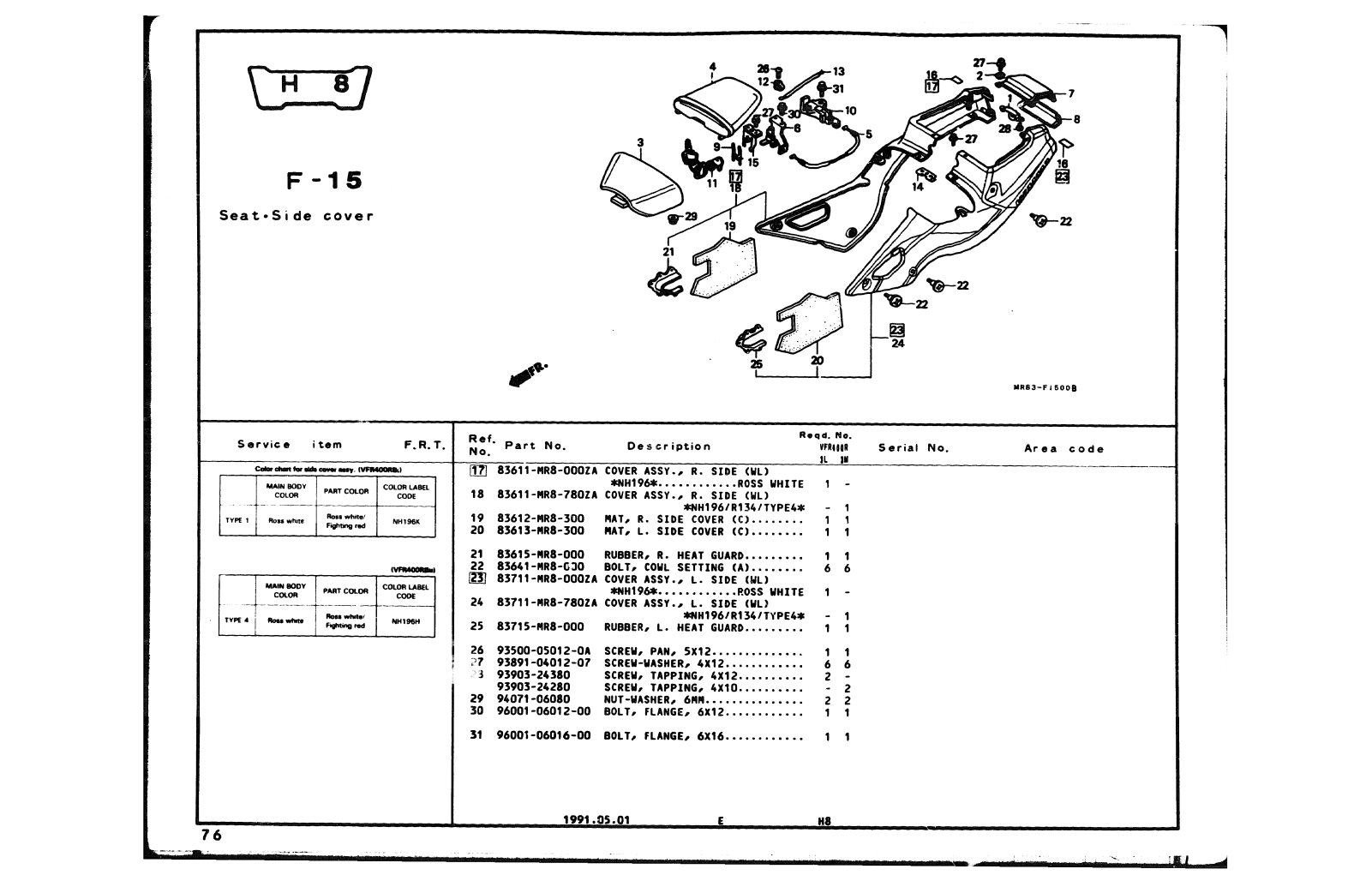

- Color Codes: Several codes that denote the color of parts (for example, NH1 - Black, NH196 - Ross White)
- Parts Index: Order parts catalogs more comprehensive than most general catalogs.
- Flat Rate Time (F.R.T.): Maximum time required for labor on any part interchange
- Assembly Instructions: Instructions on how to assemble some components.
- Abbreviations List: Explanation of abbreviations used in parts catalog.
- Replacement Parts Order: Data necessary for ordering replacement parts.

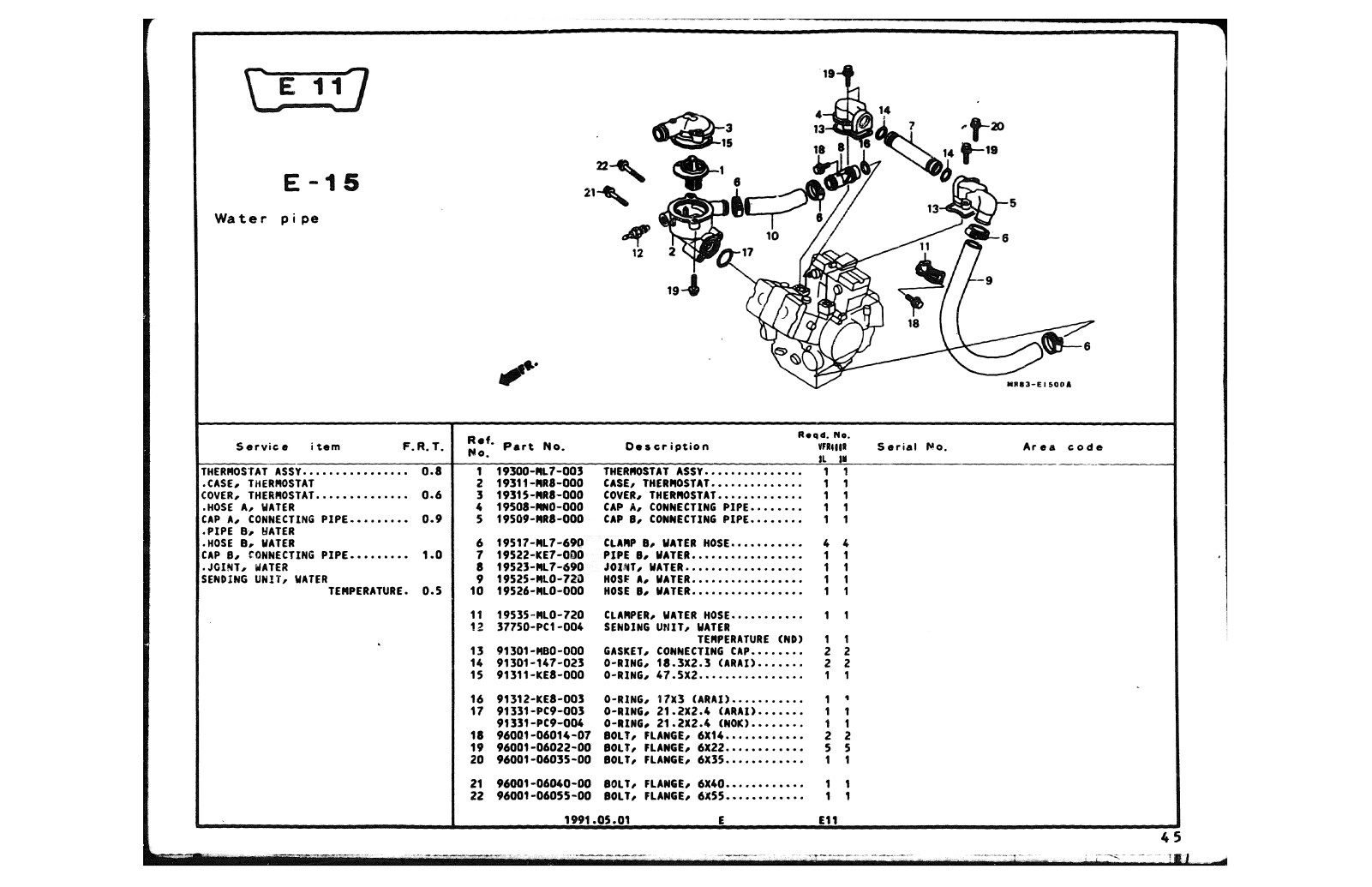

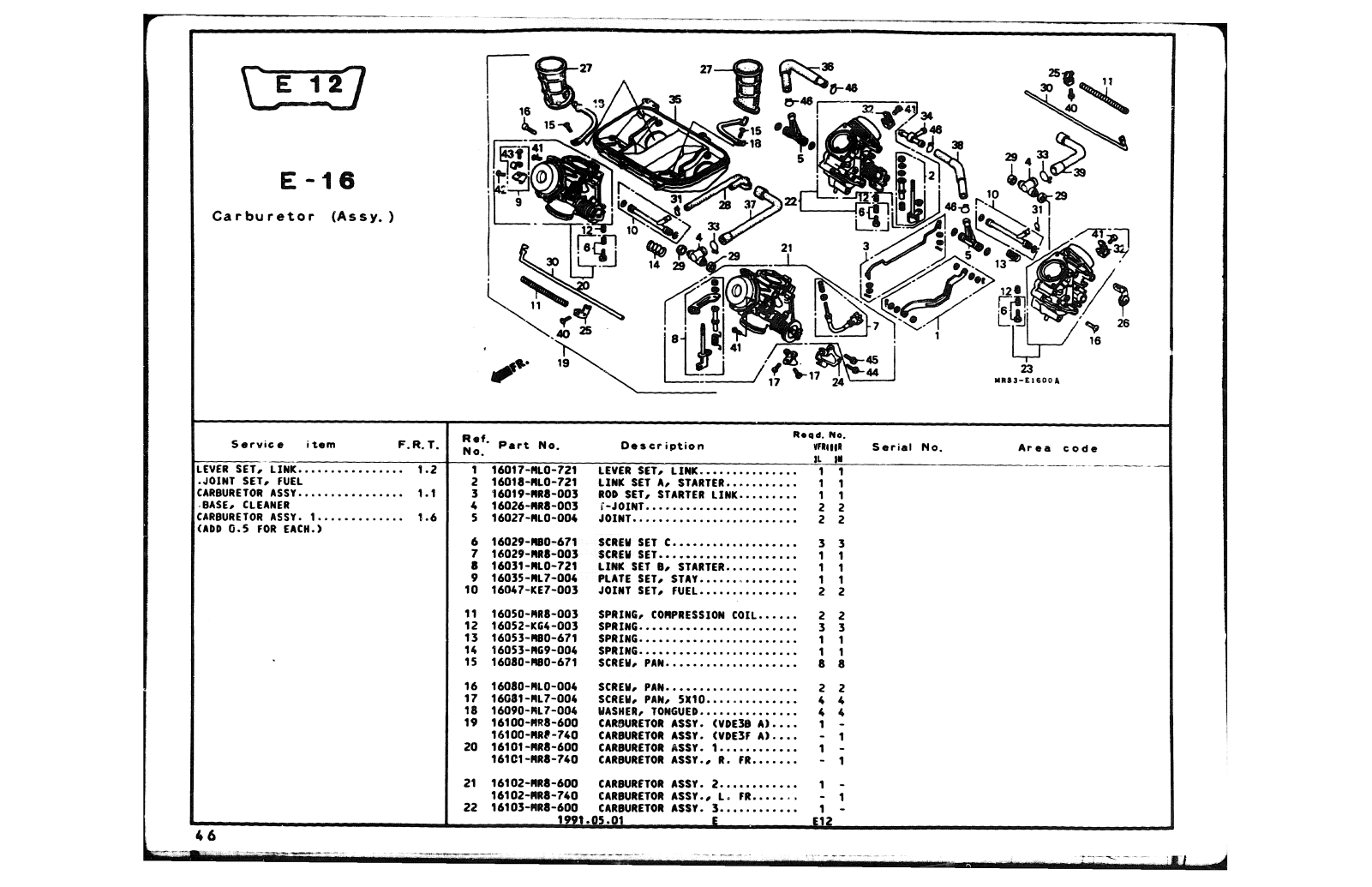

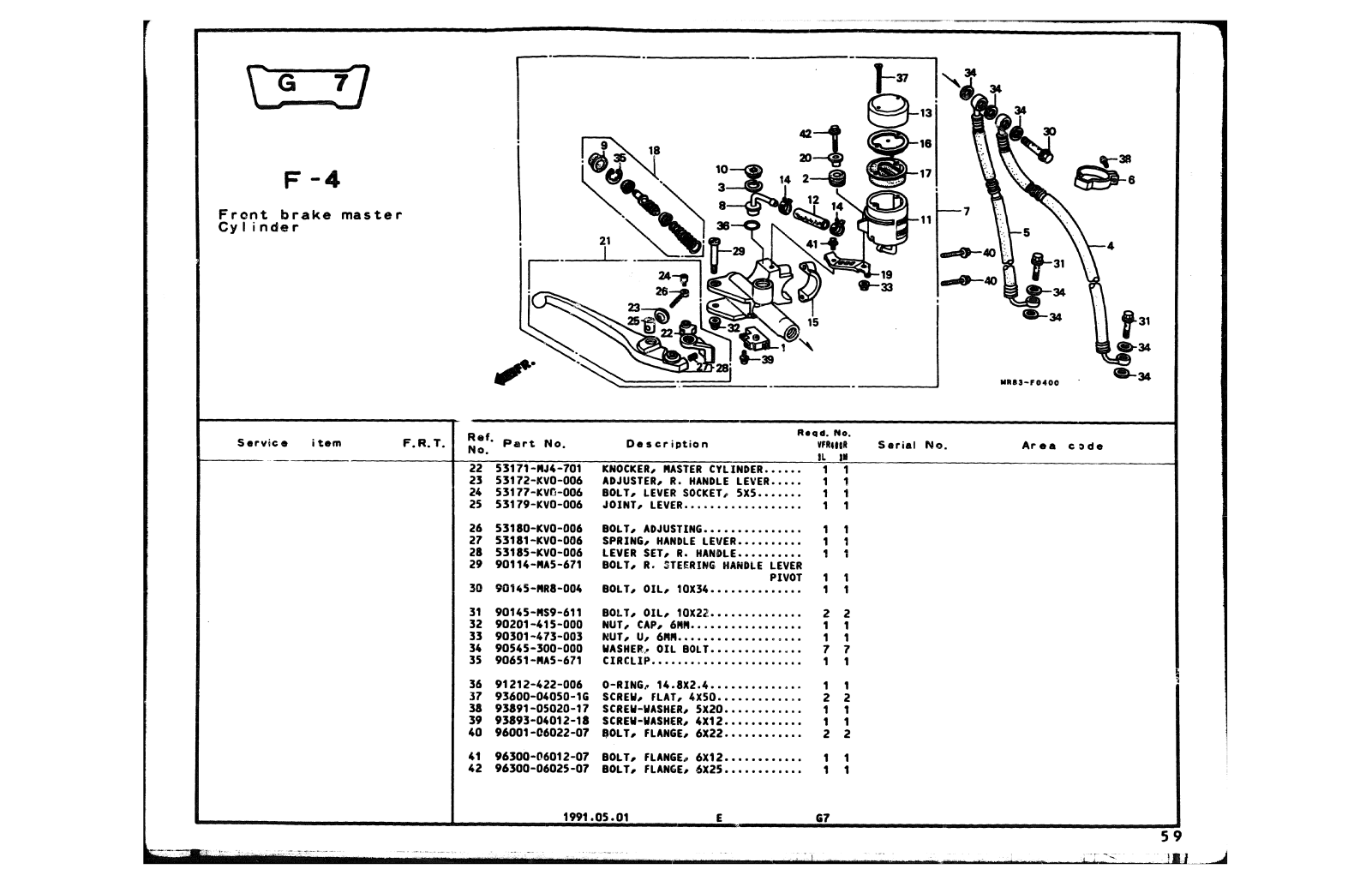

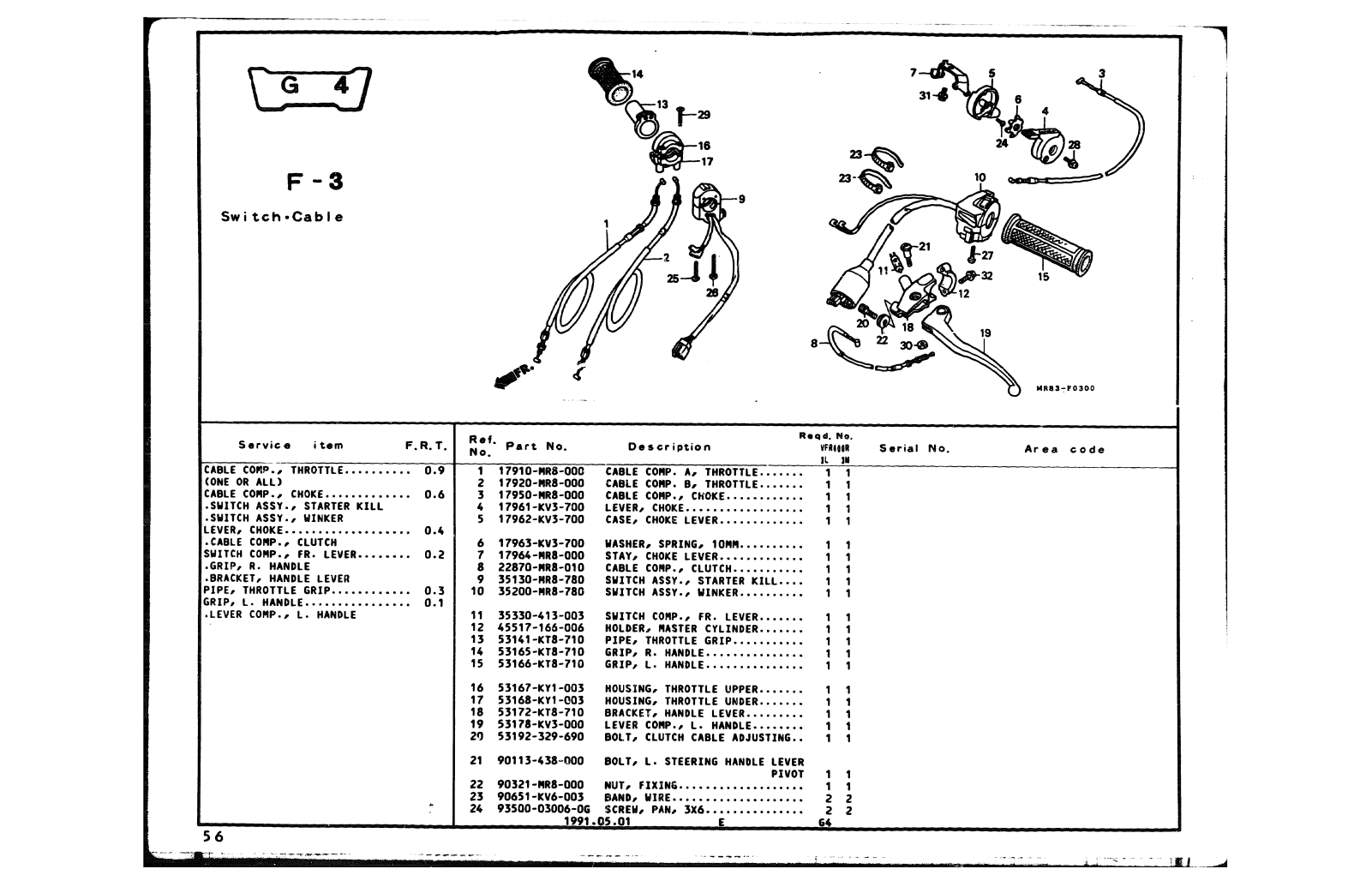

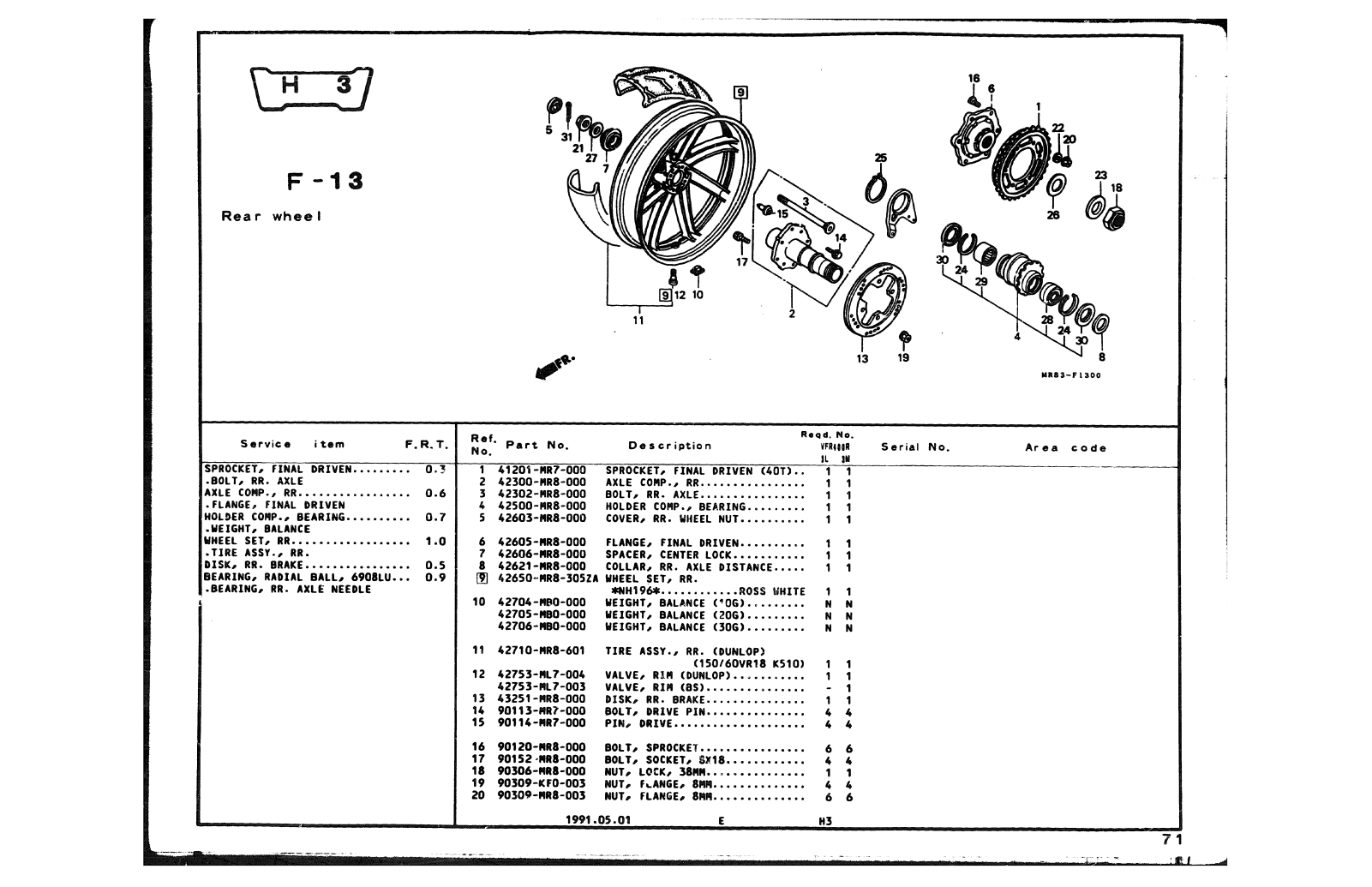

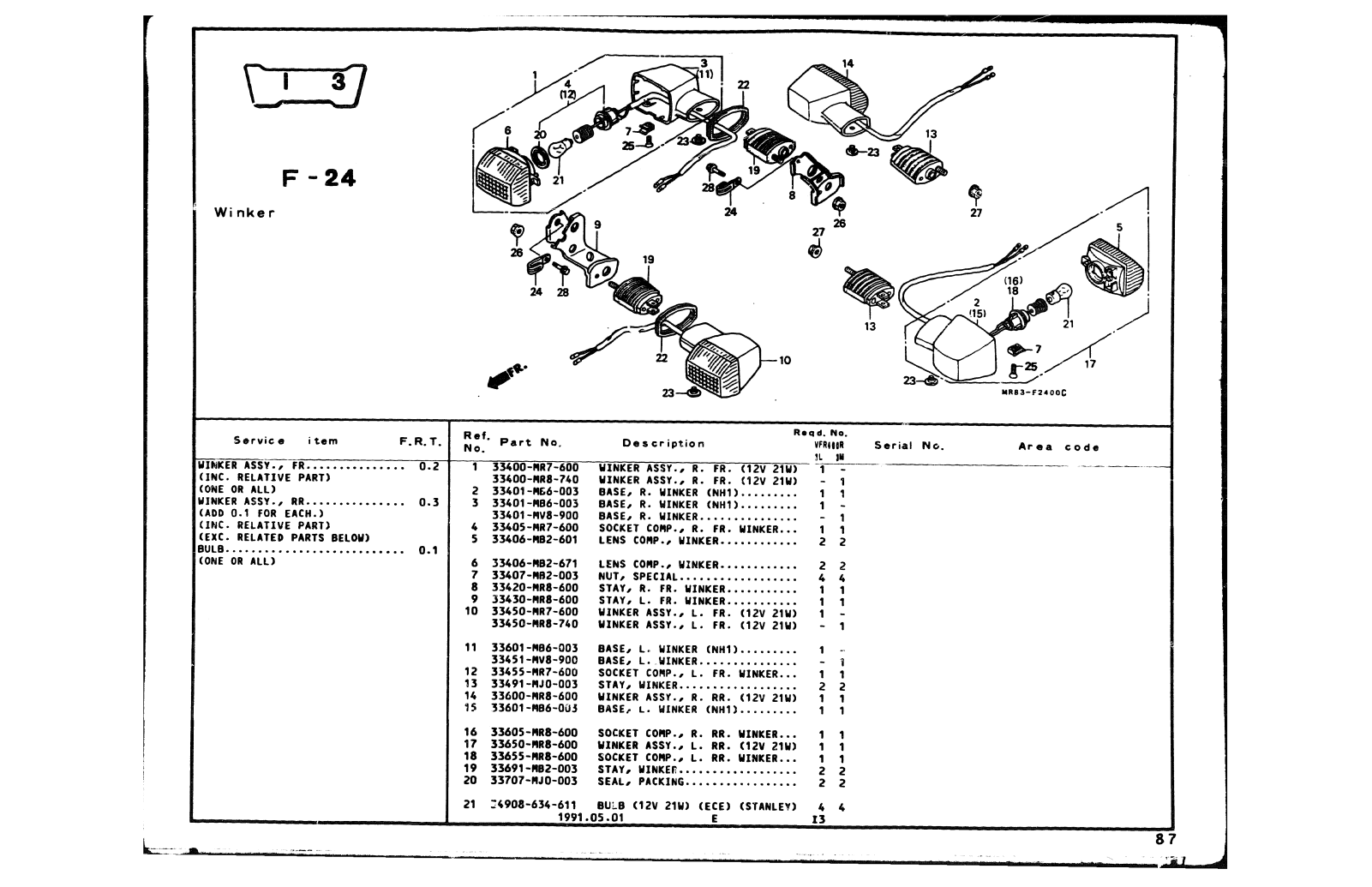

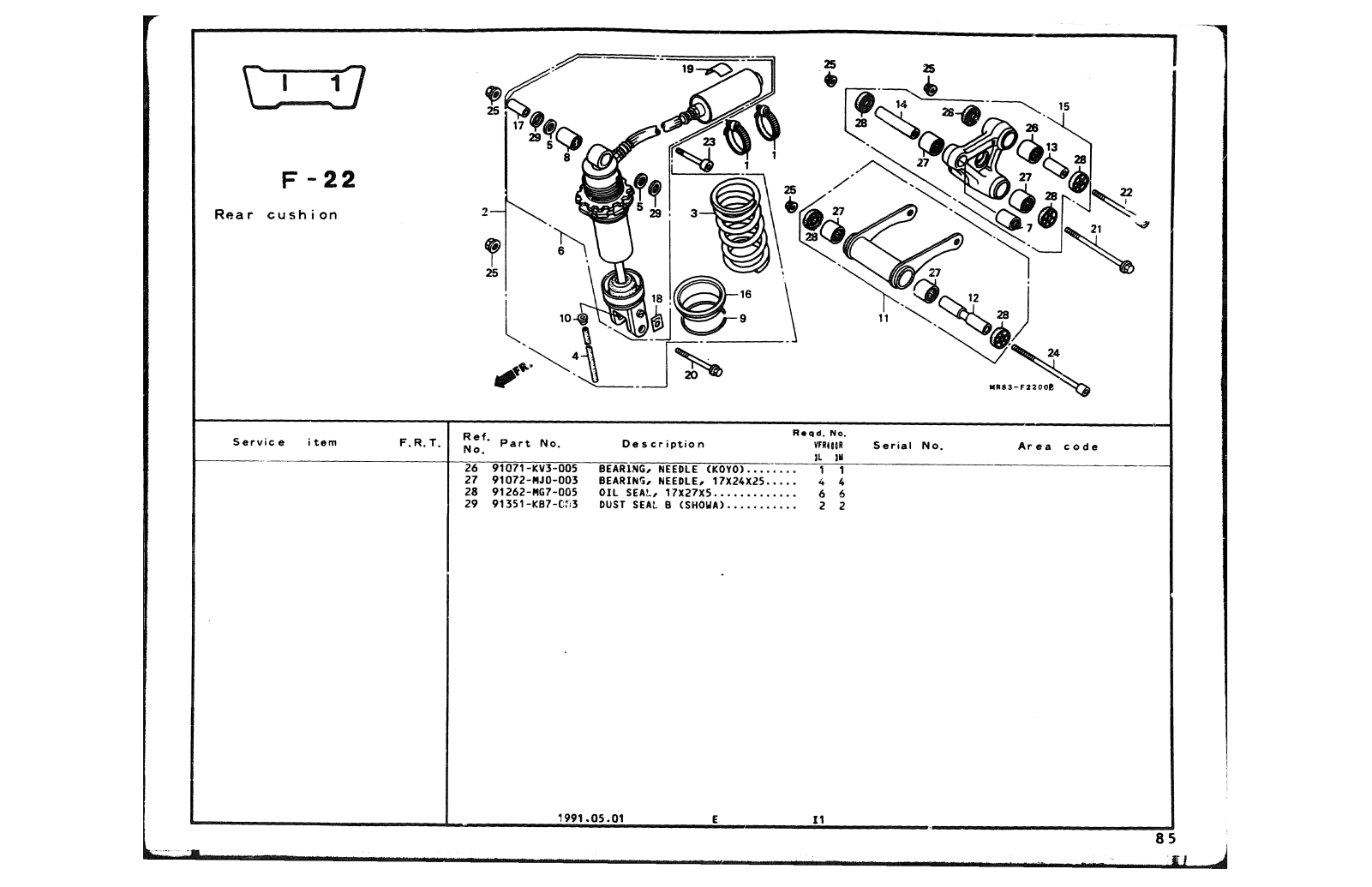

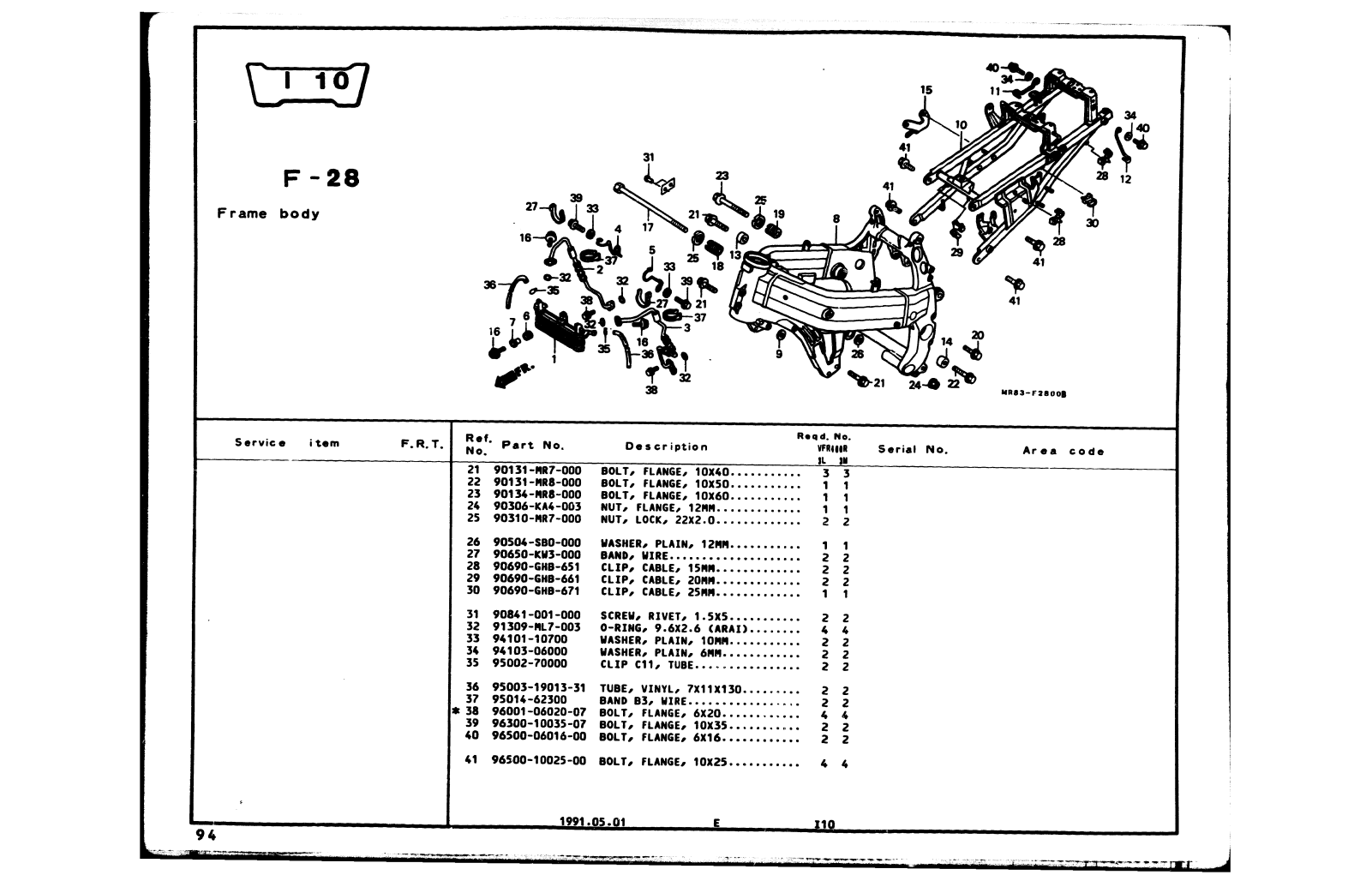

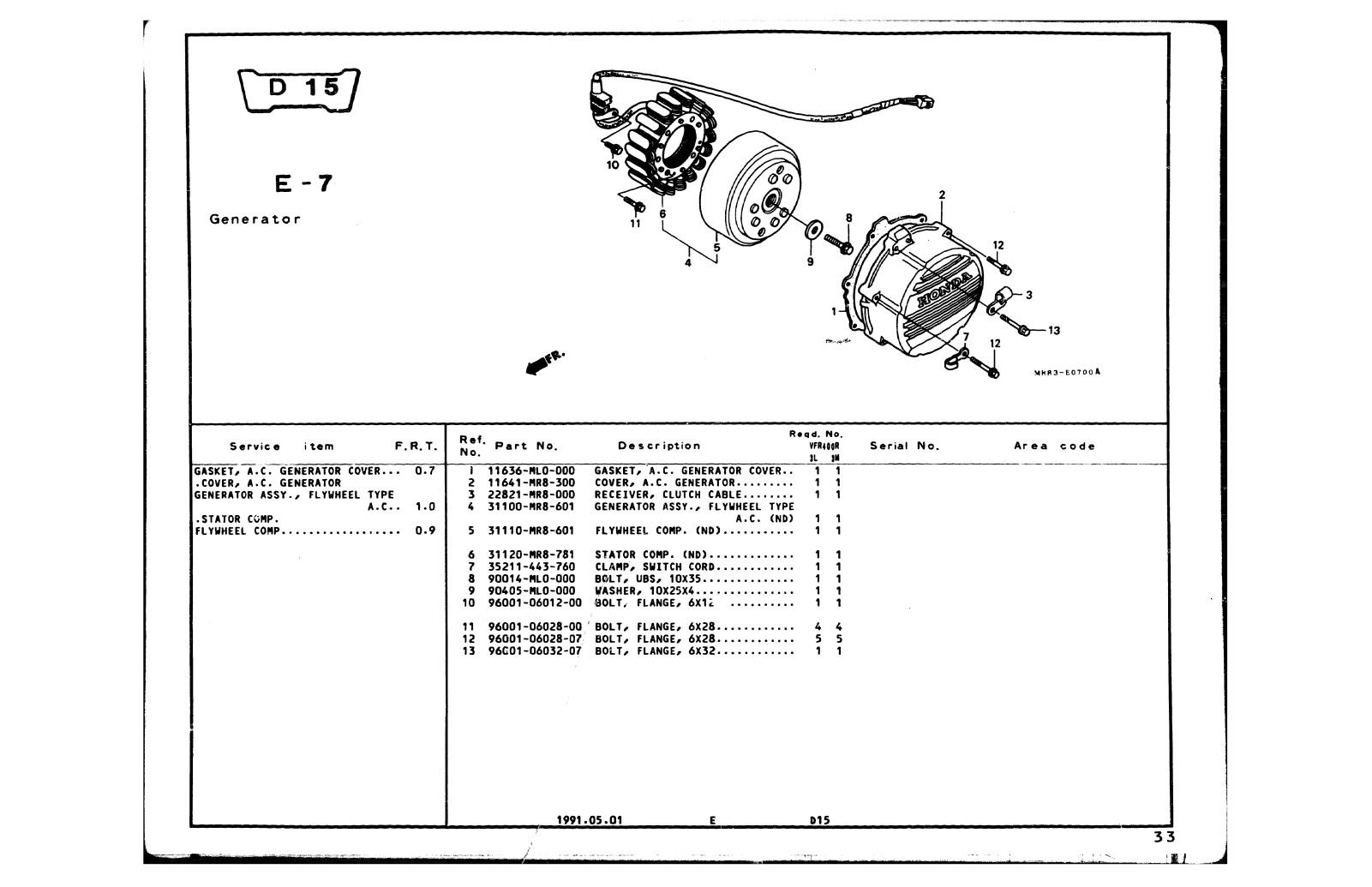

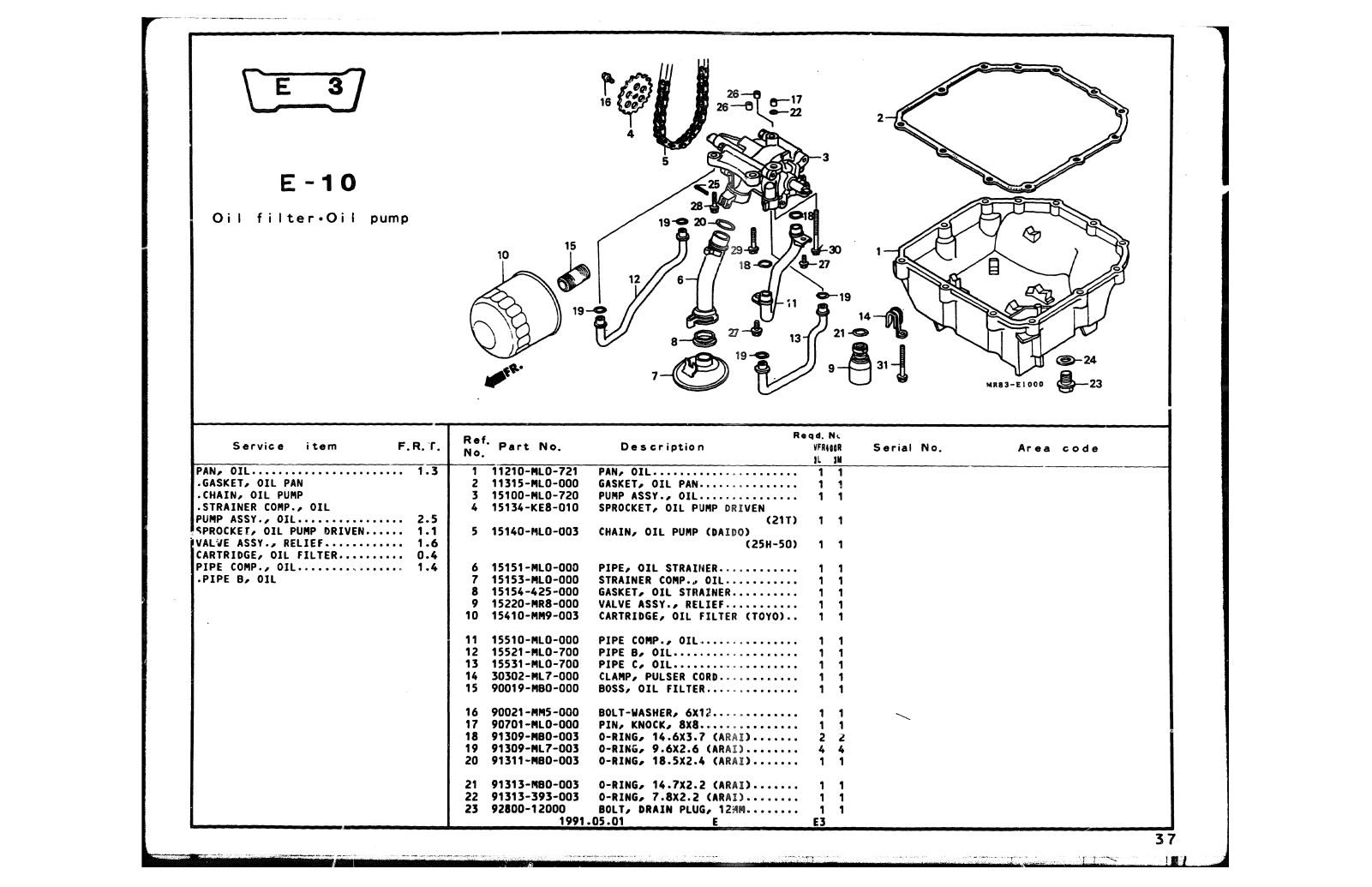

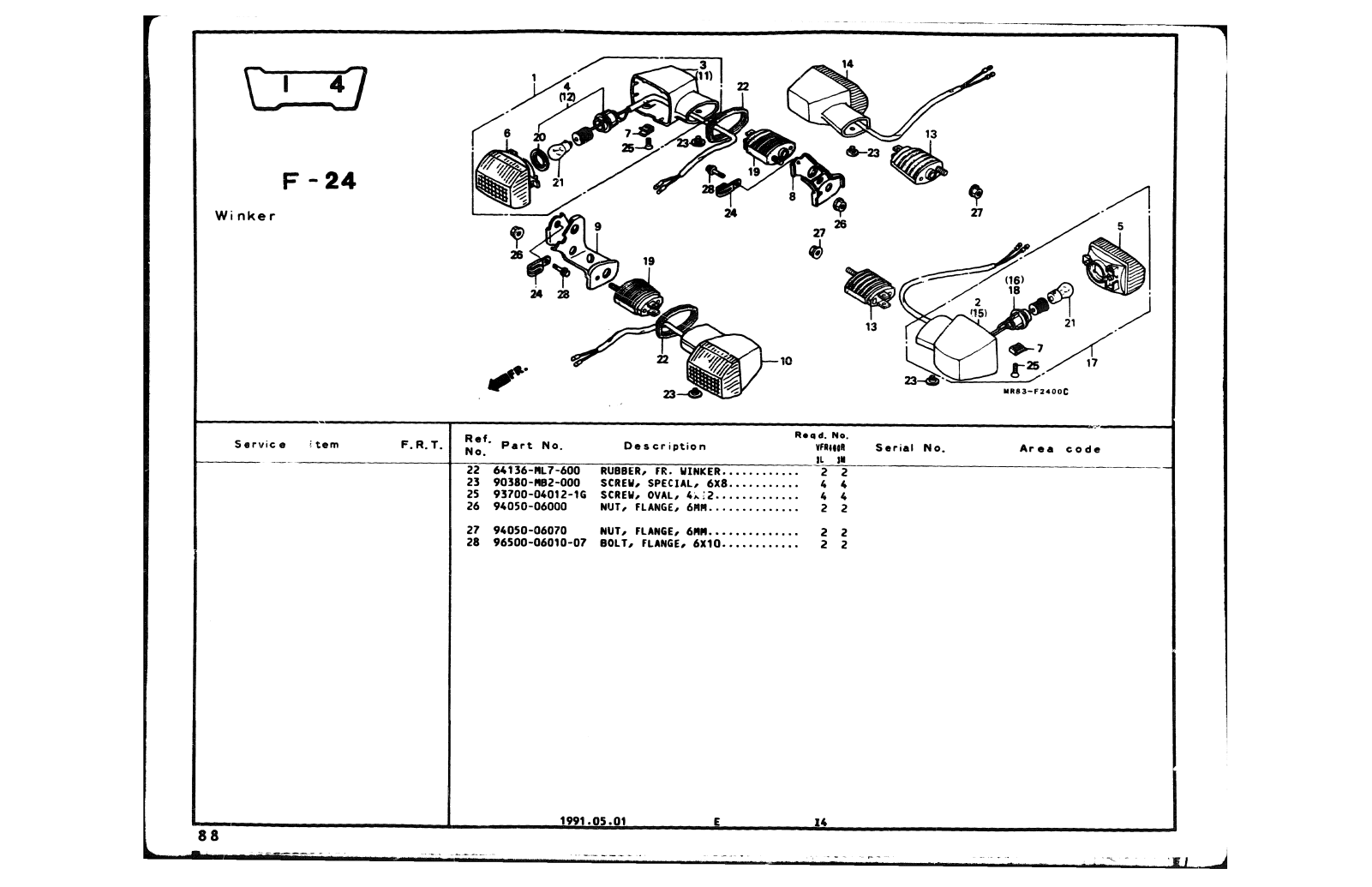

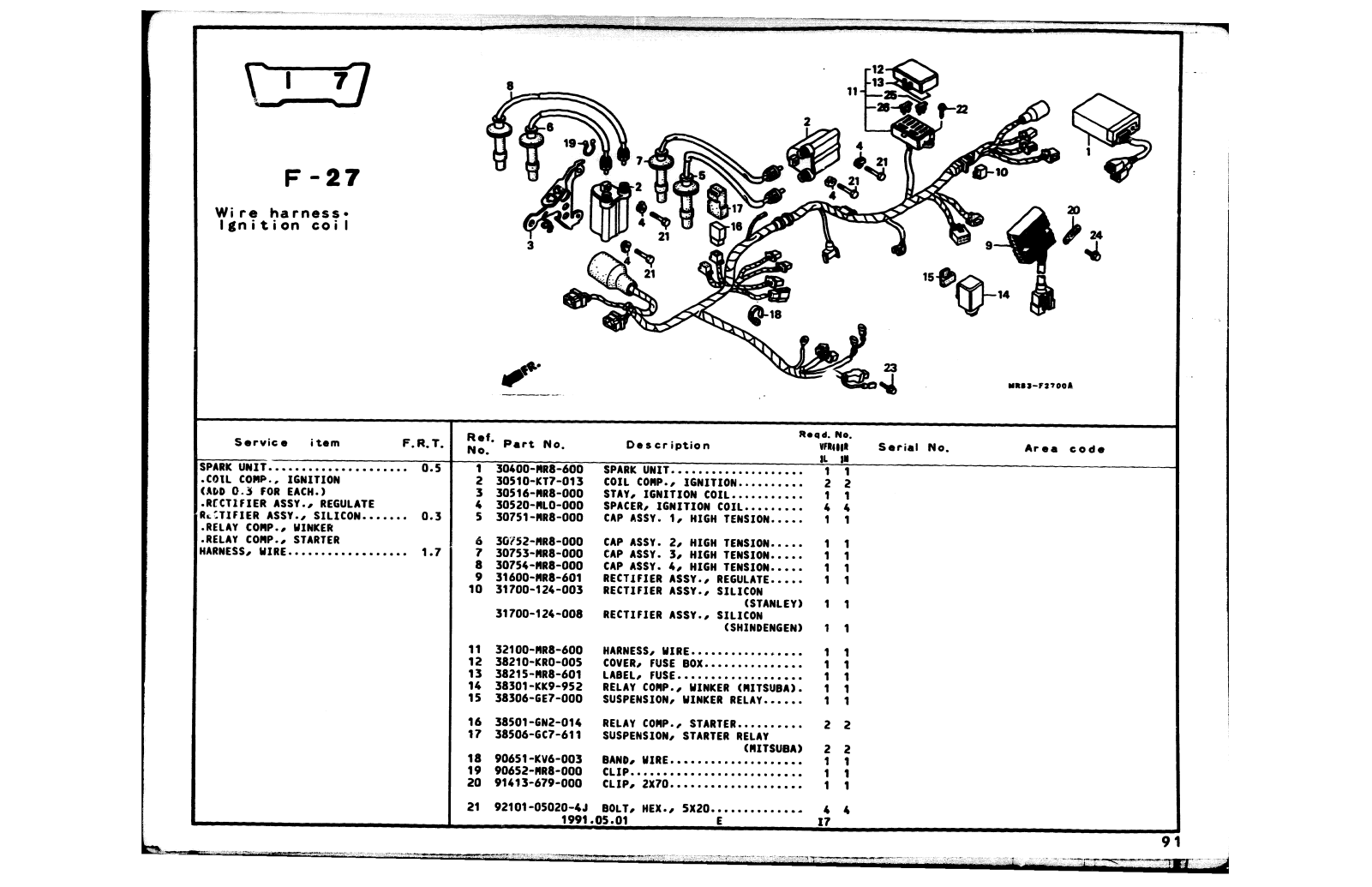

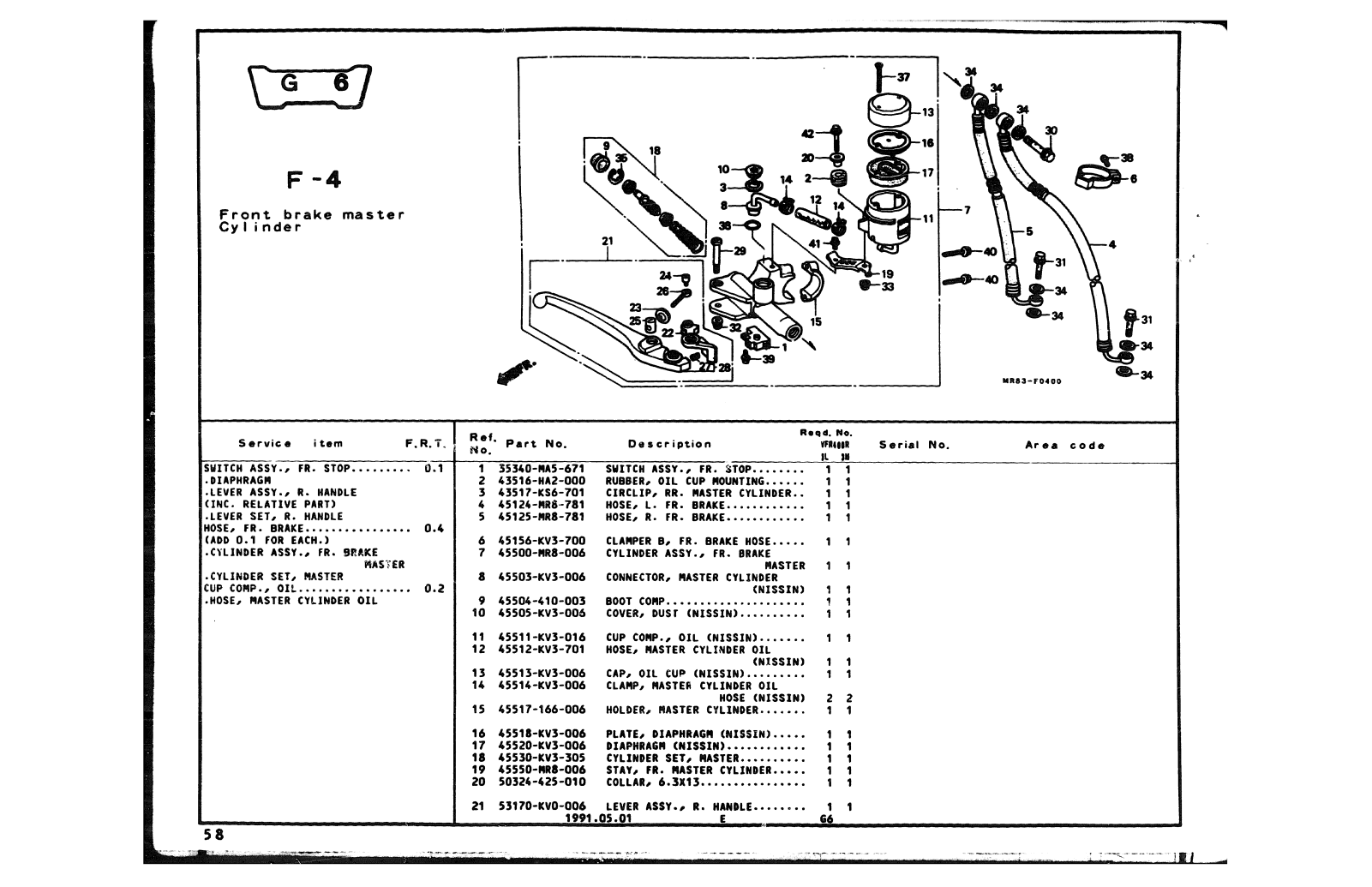

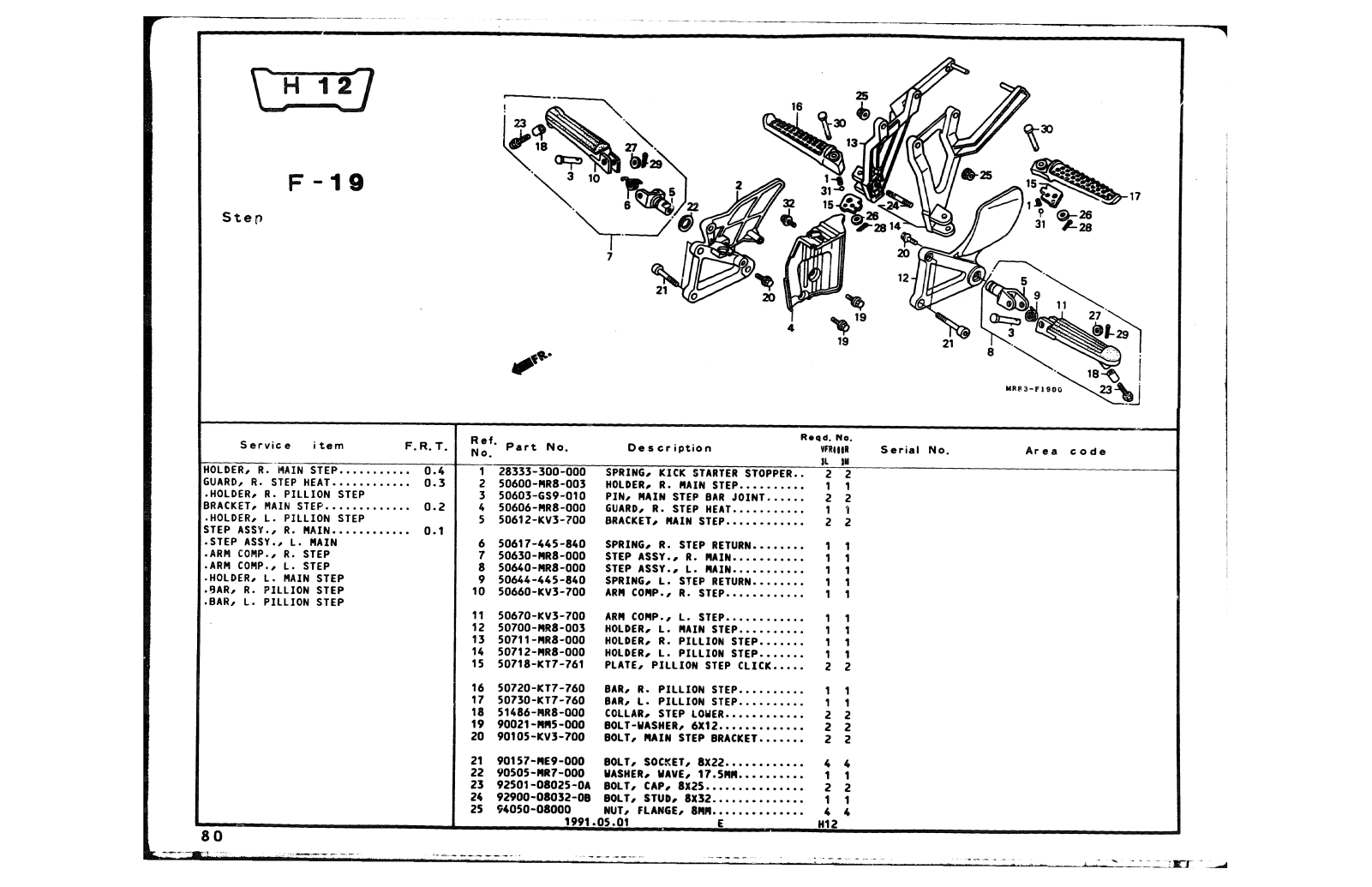

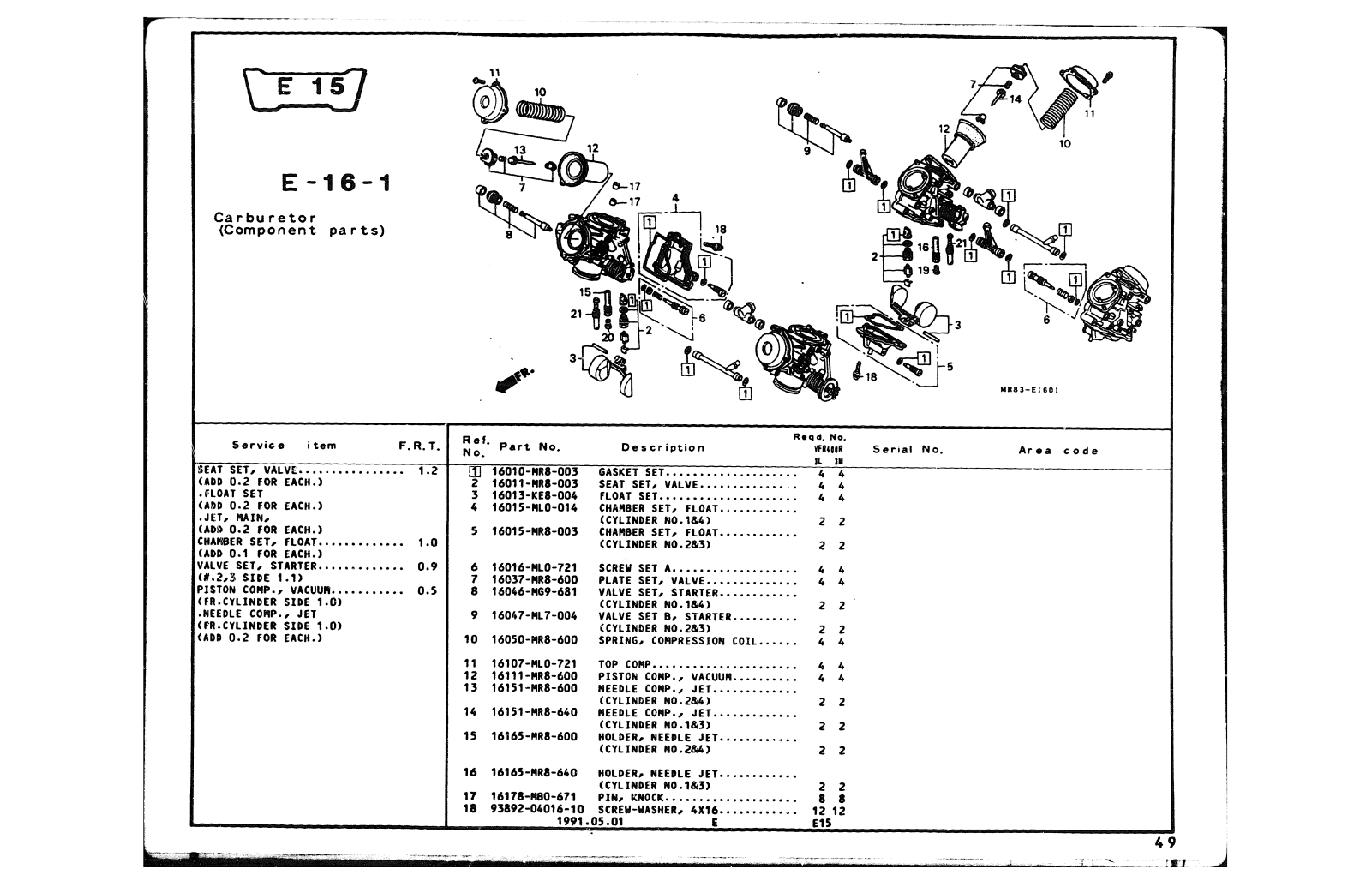

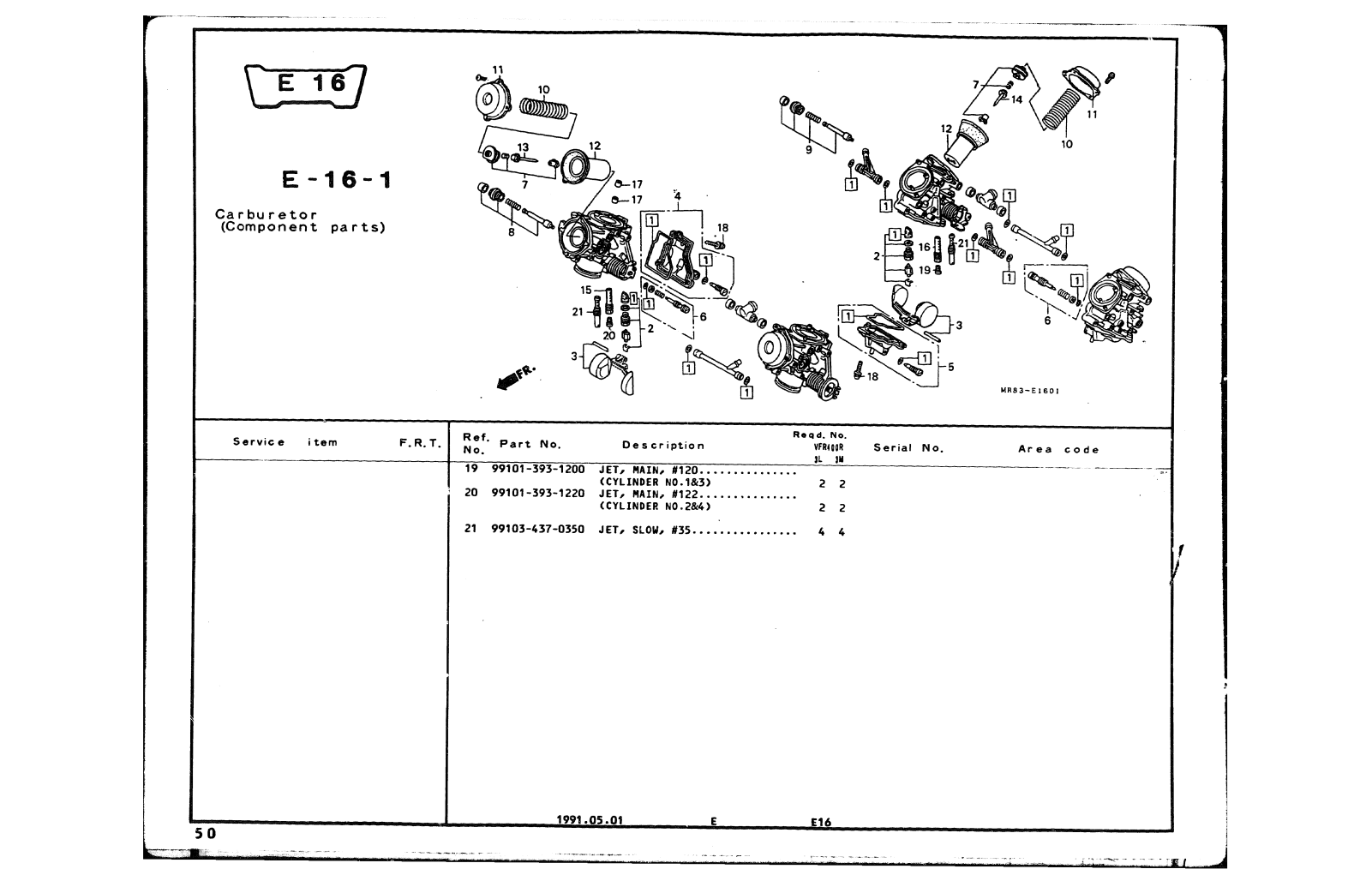

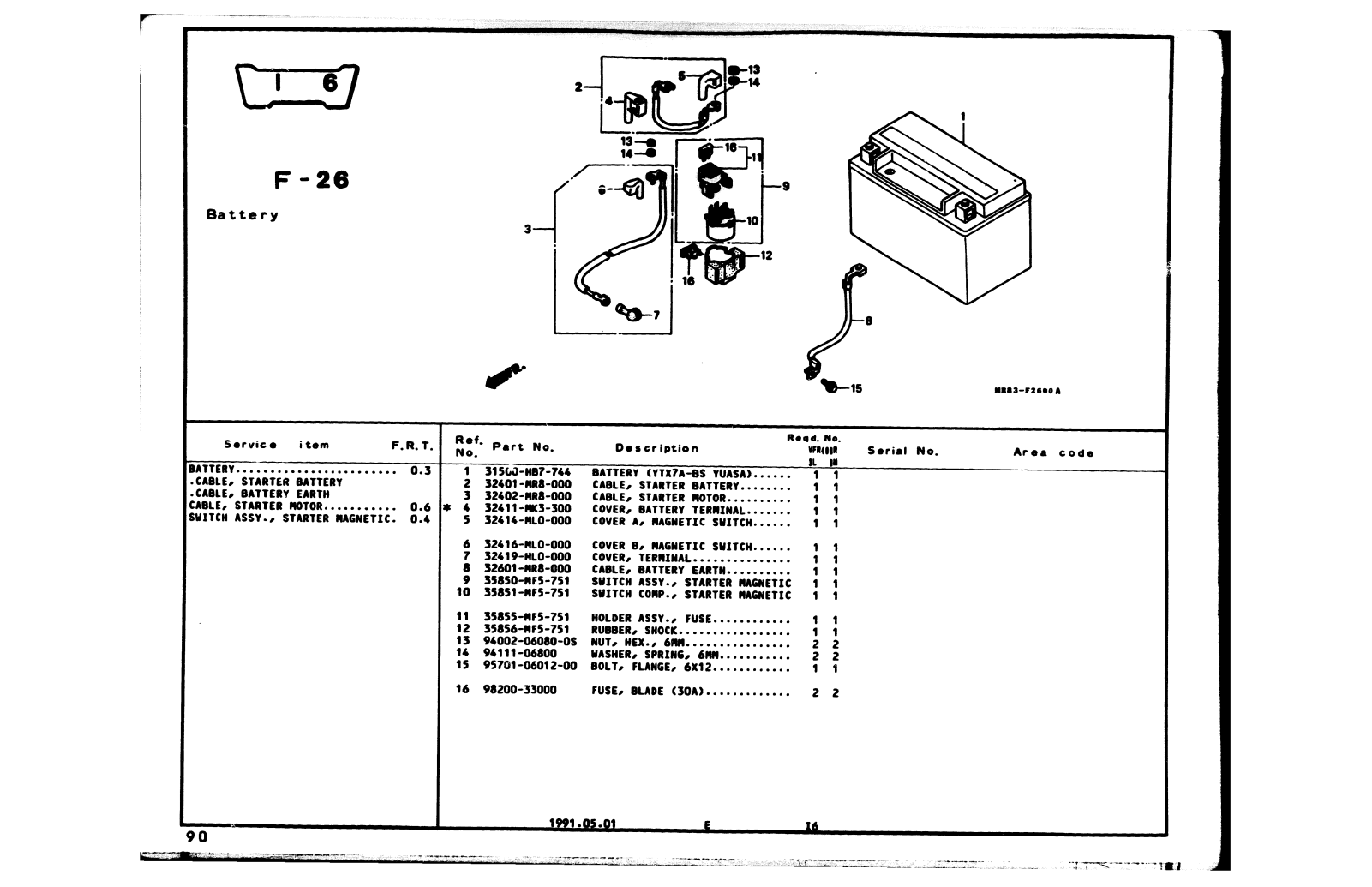

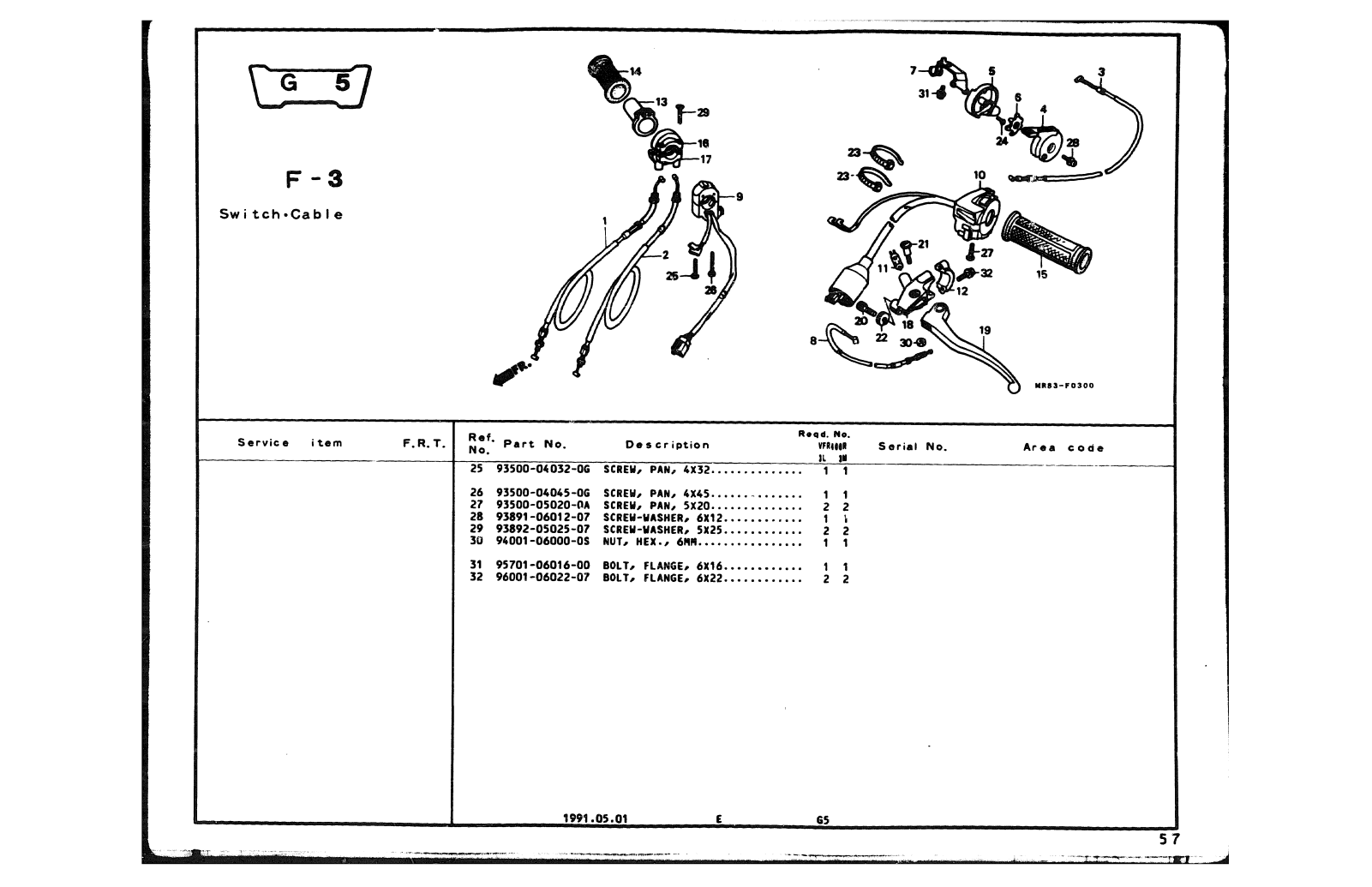

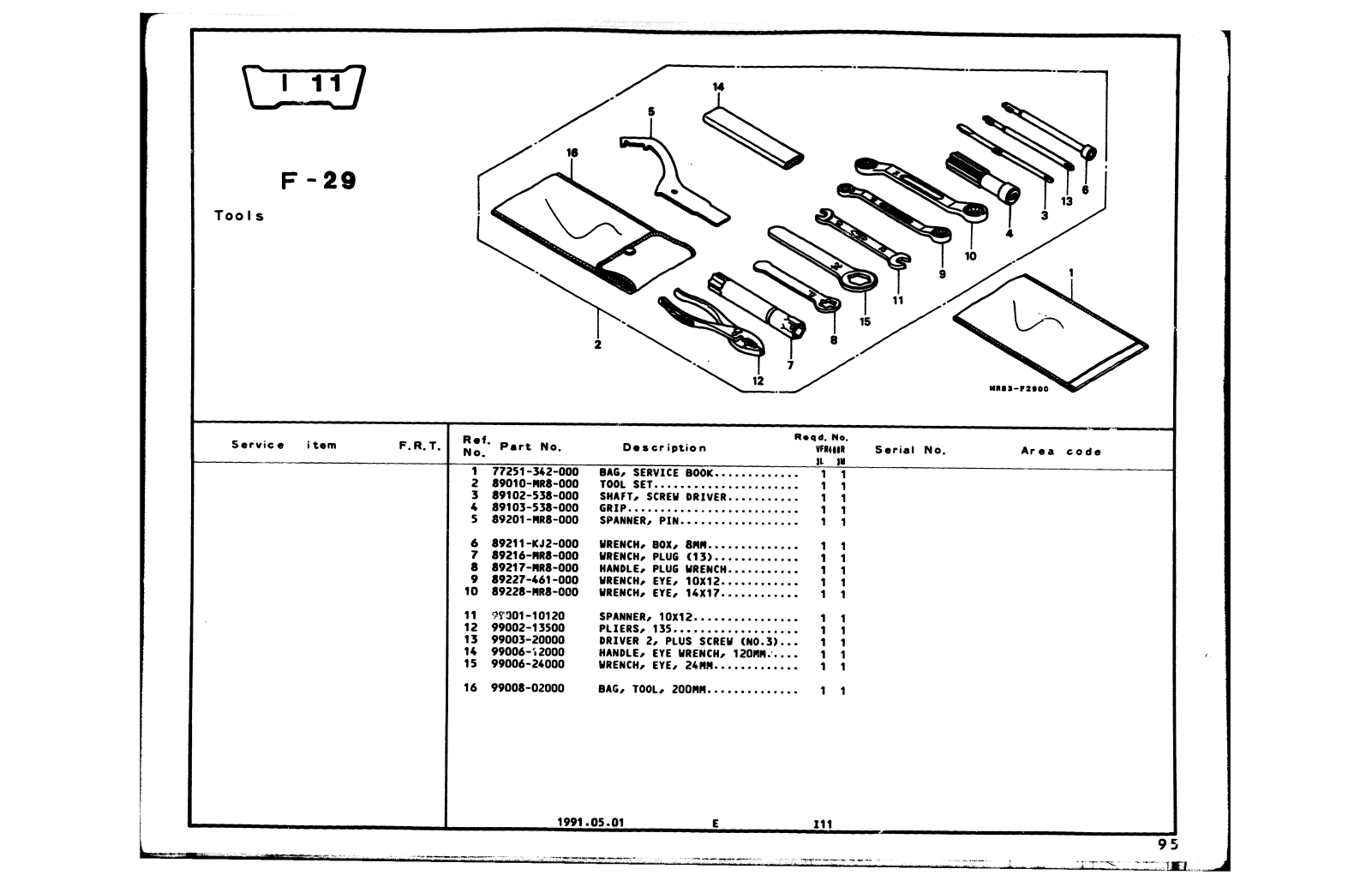

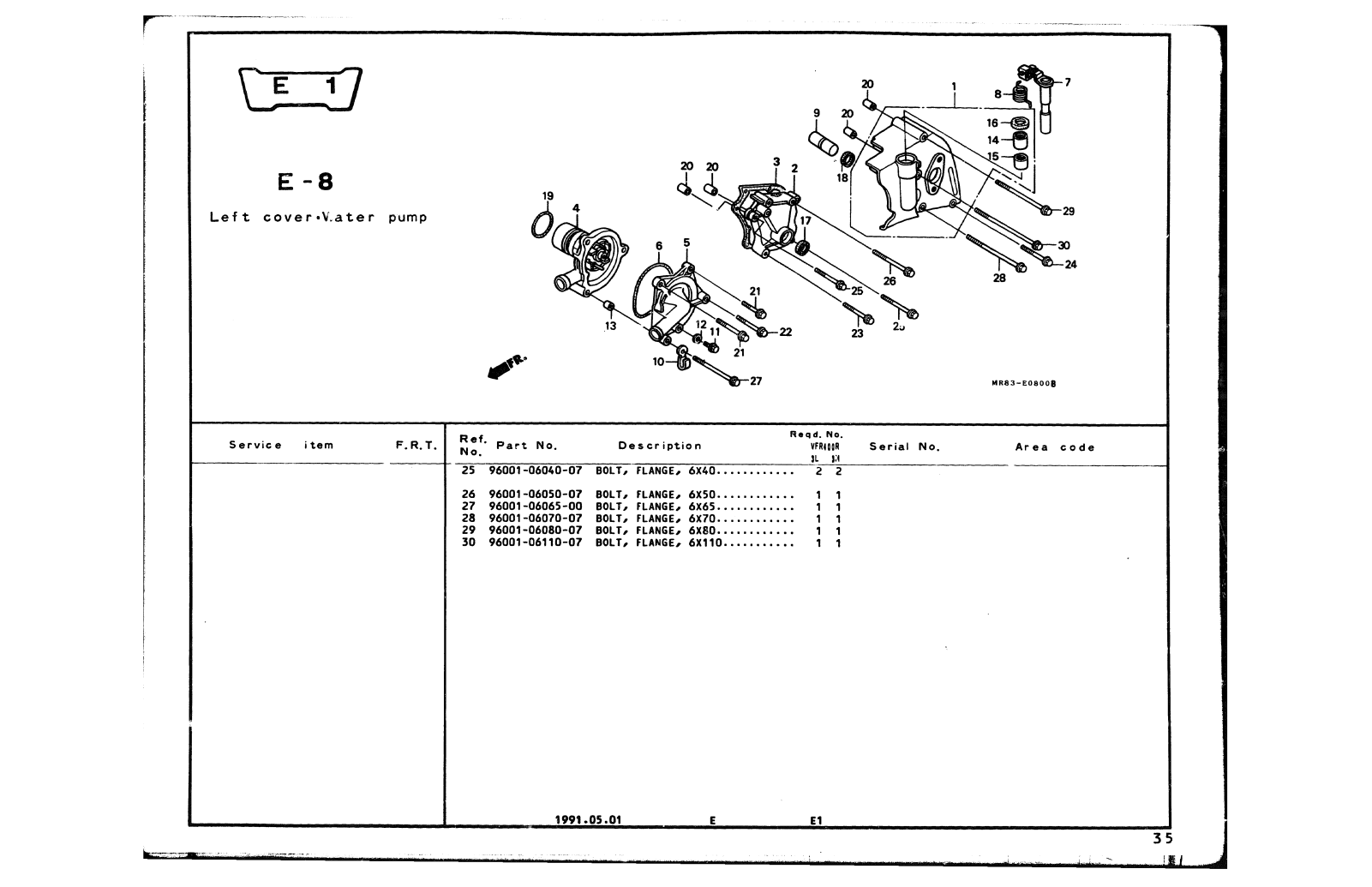

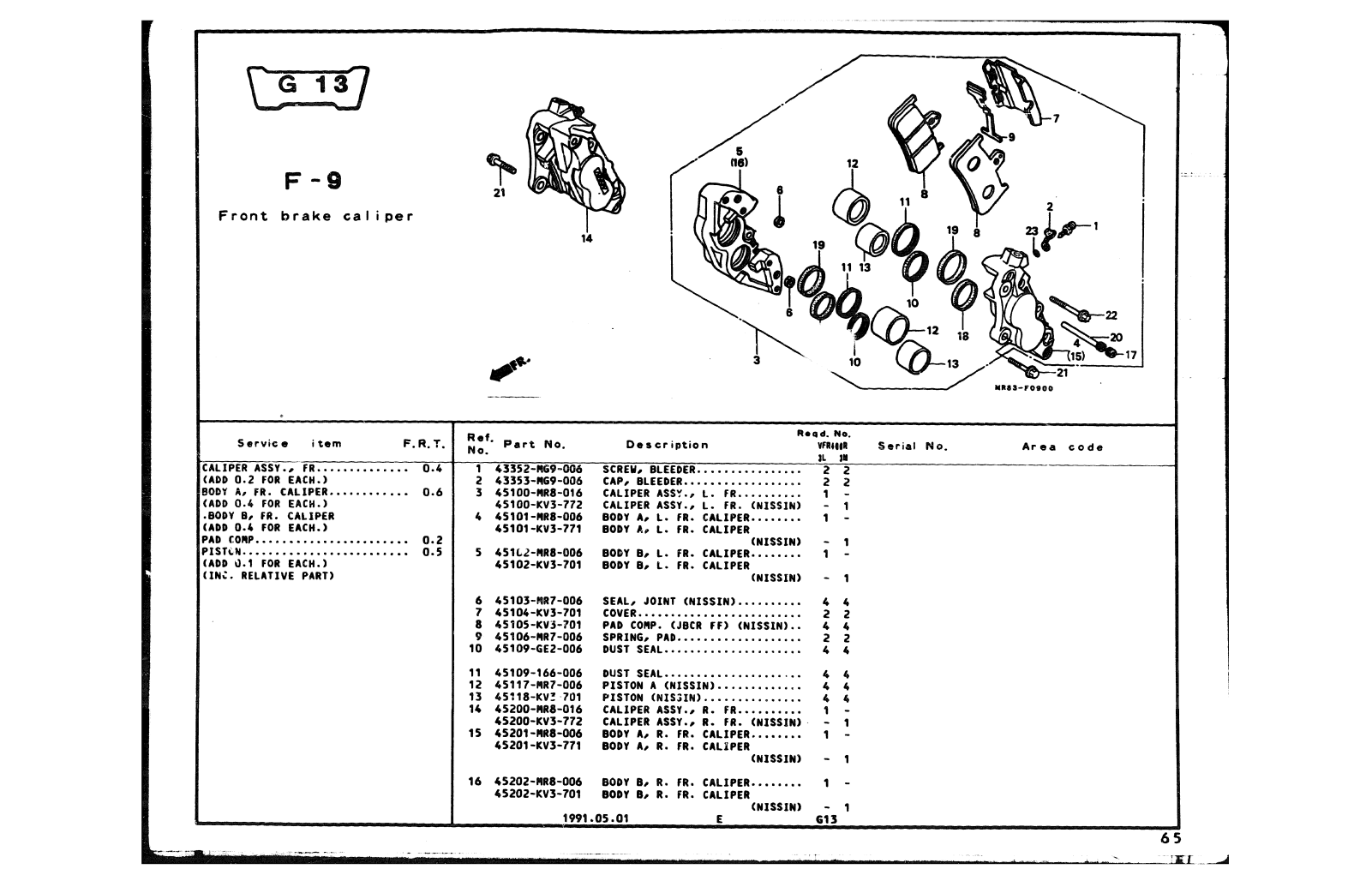

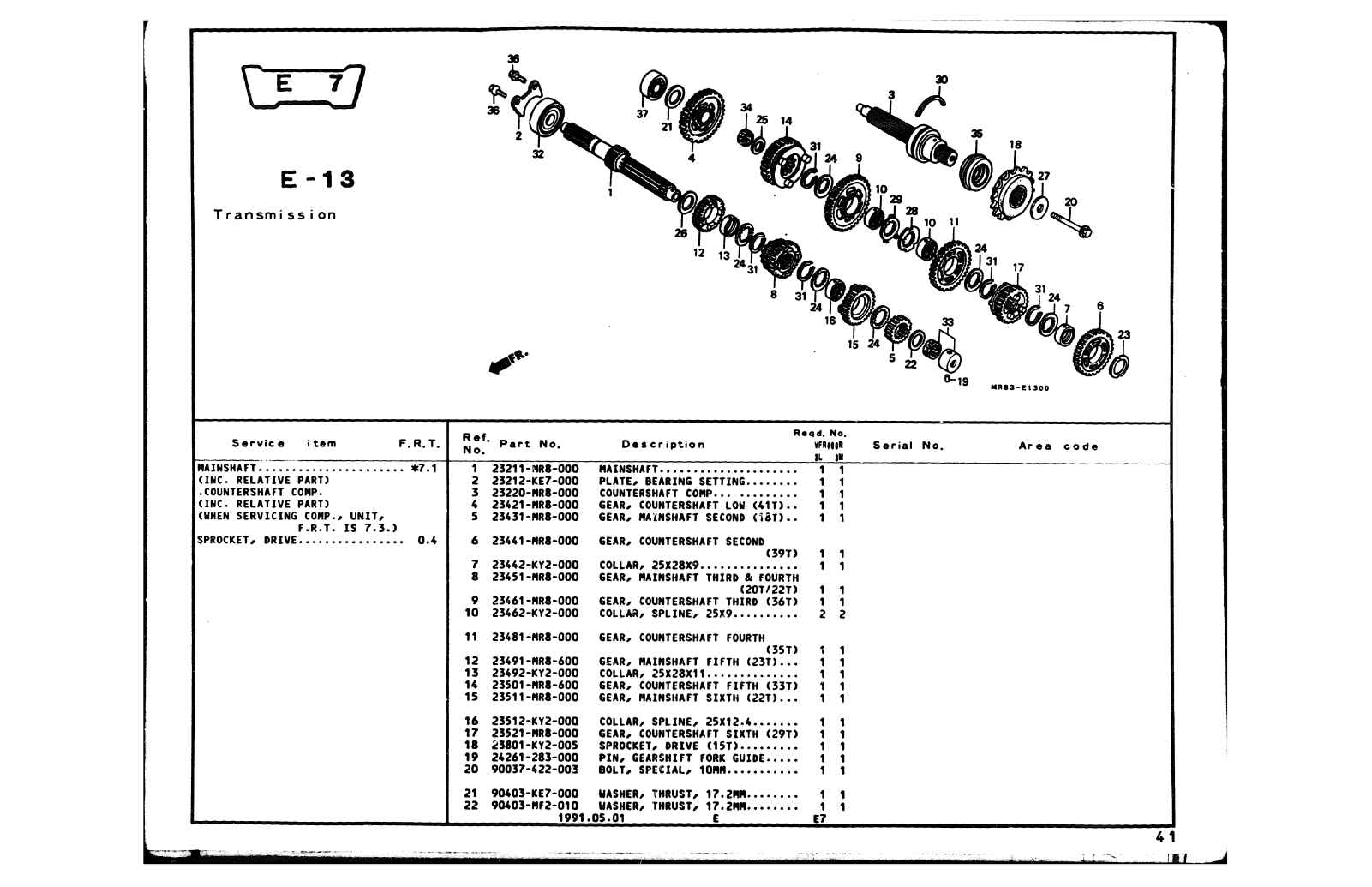

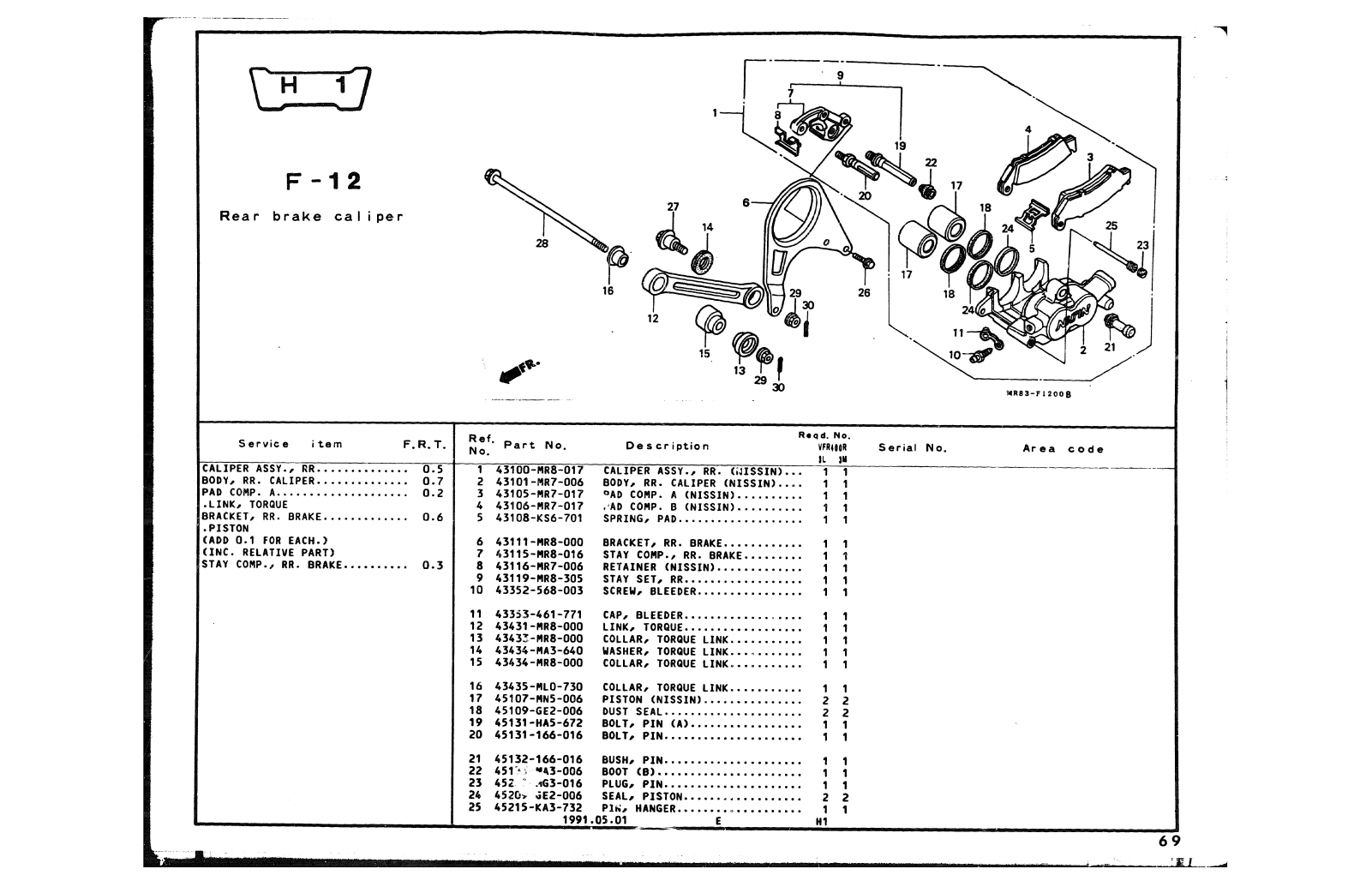

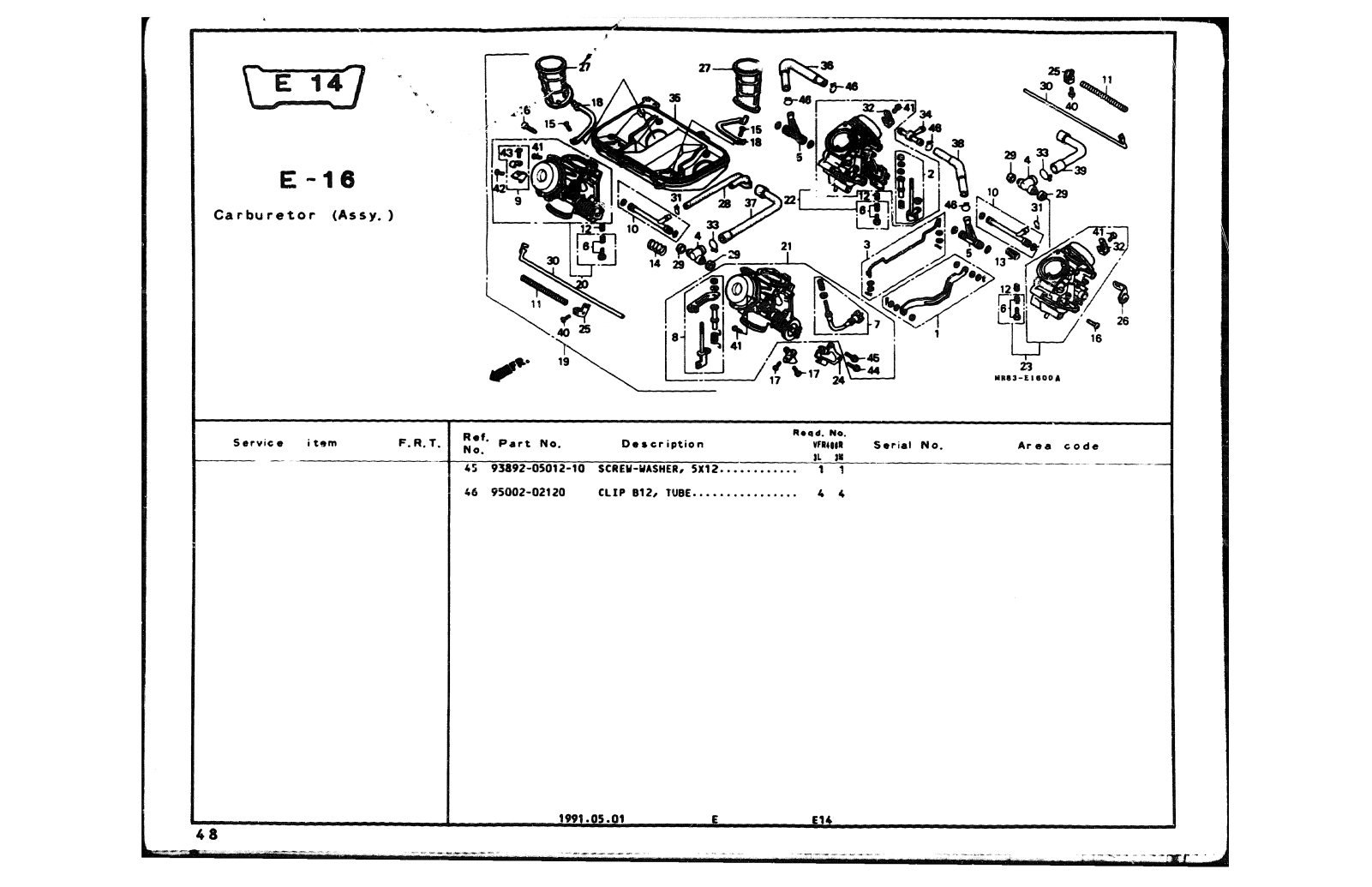

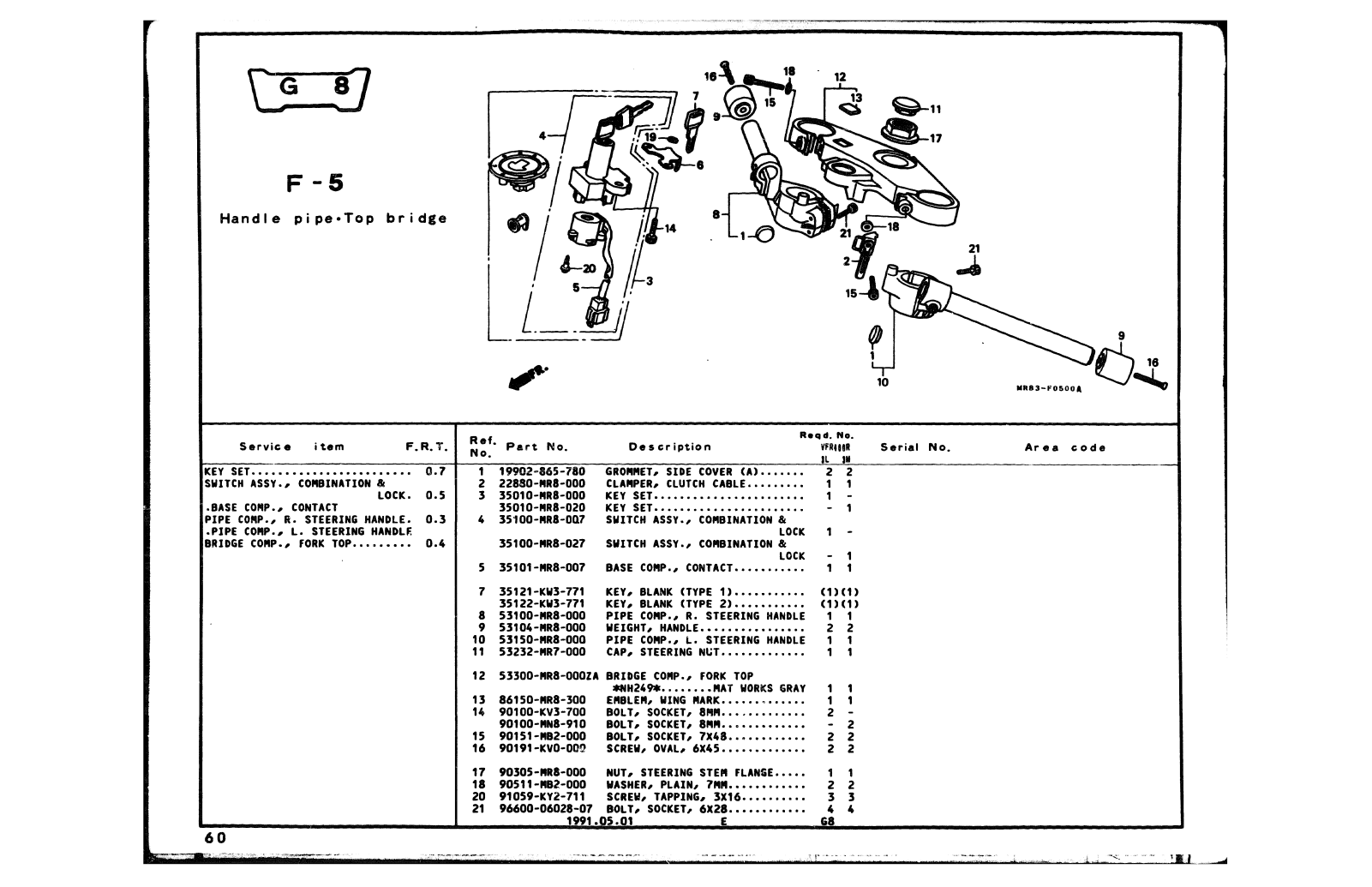

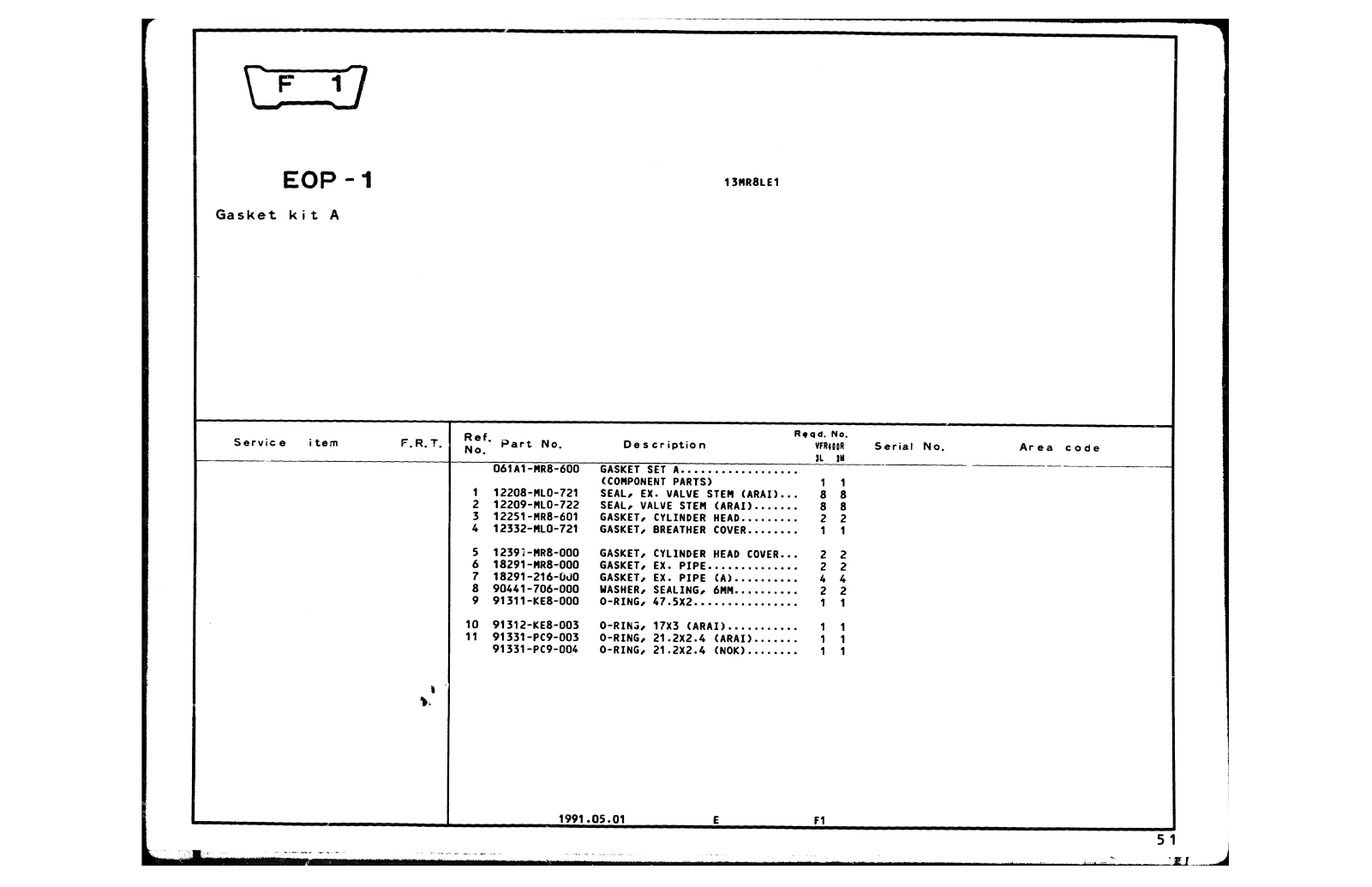

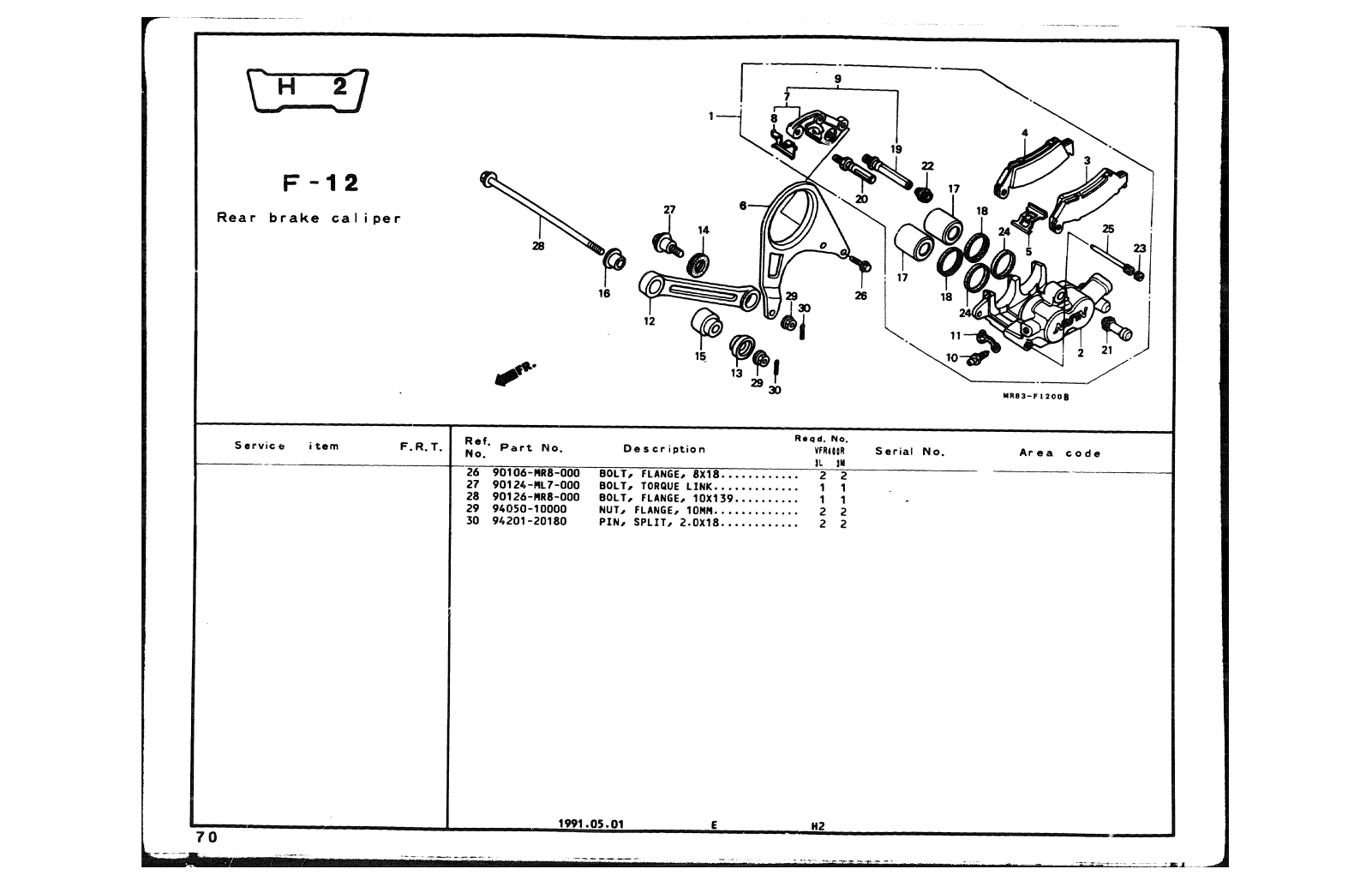

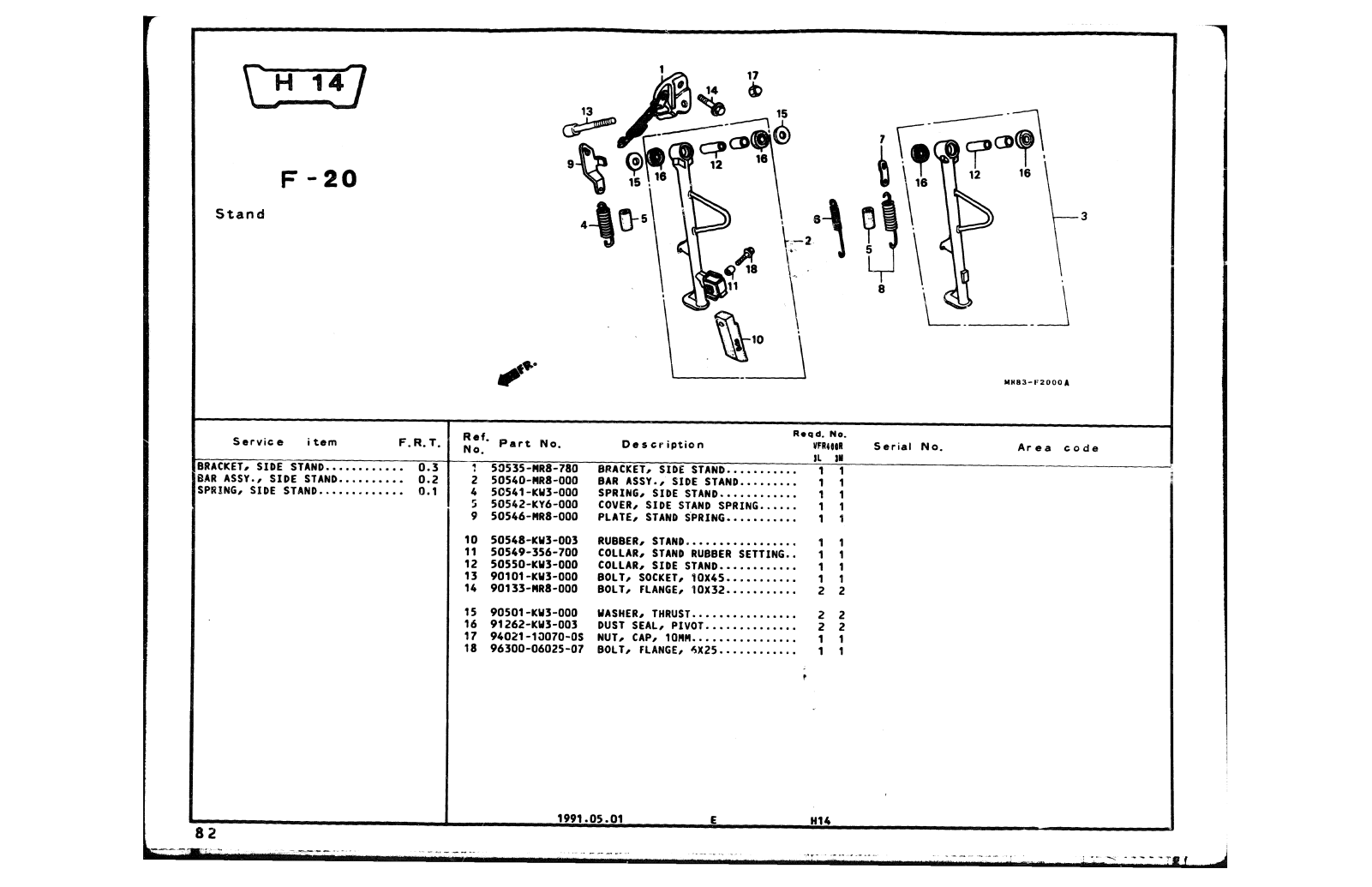

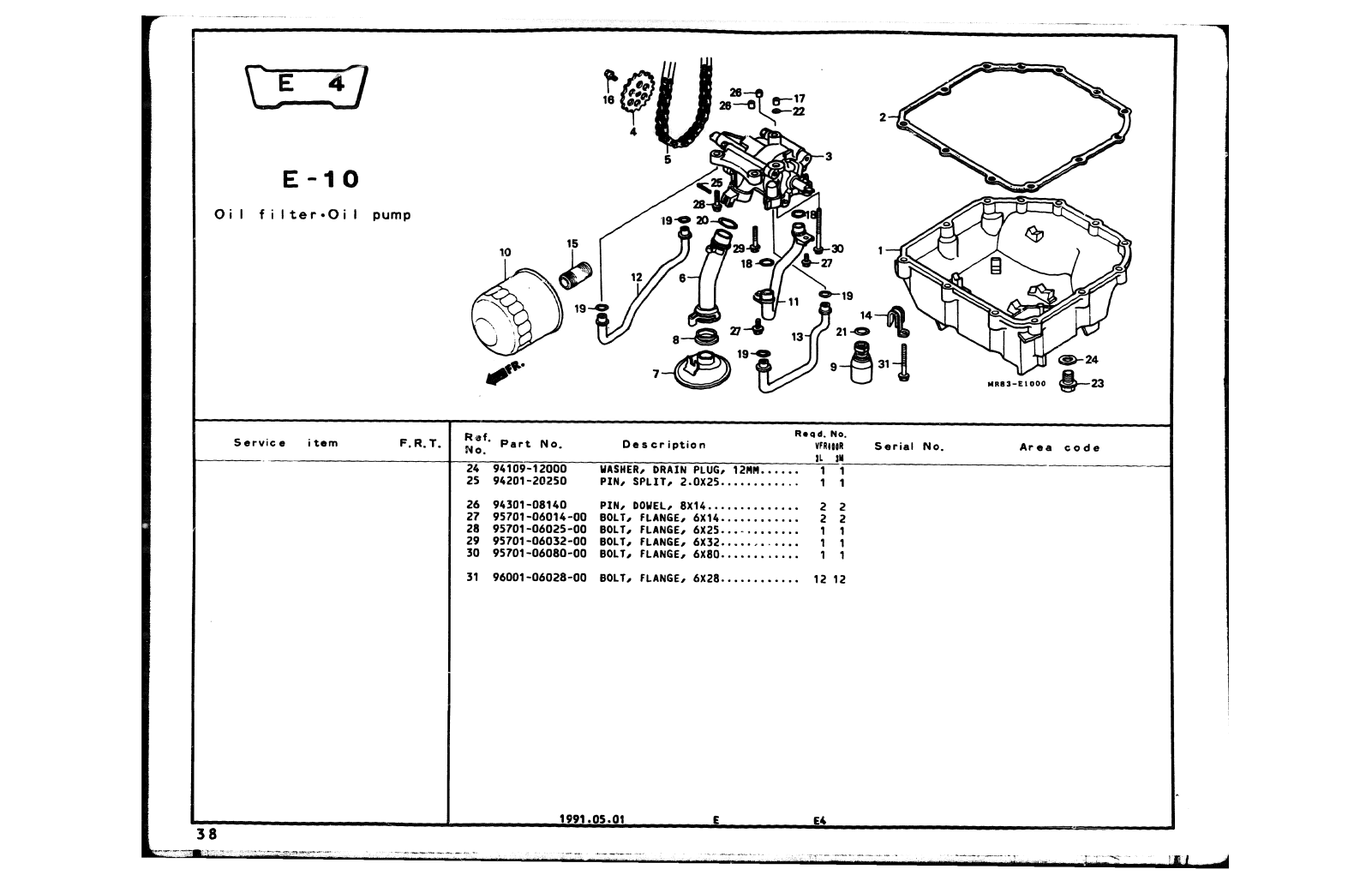

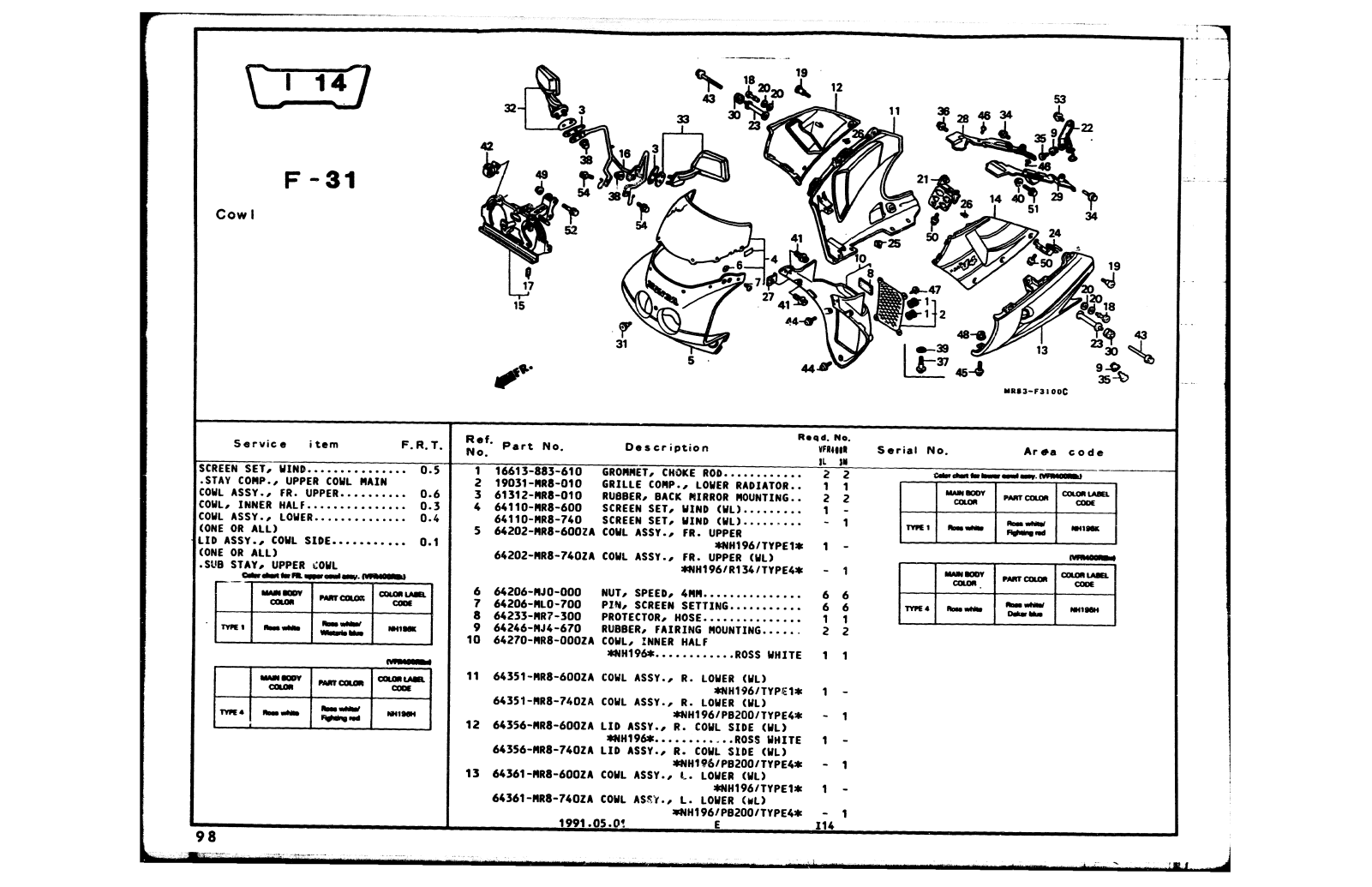

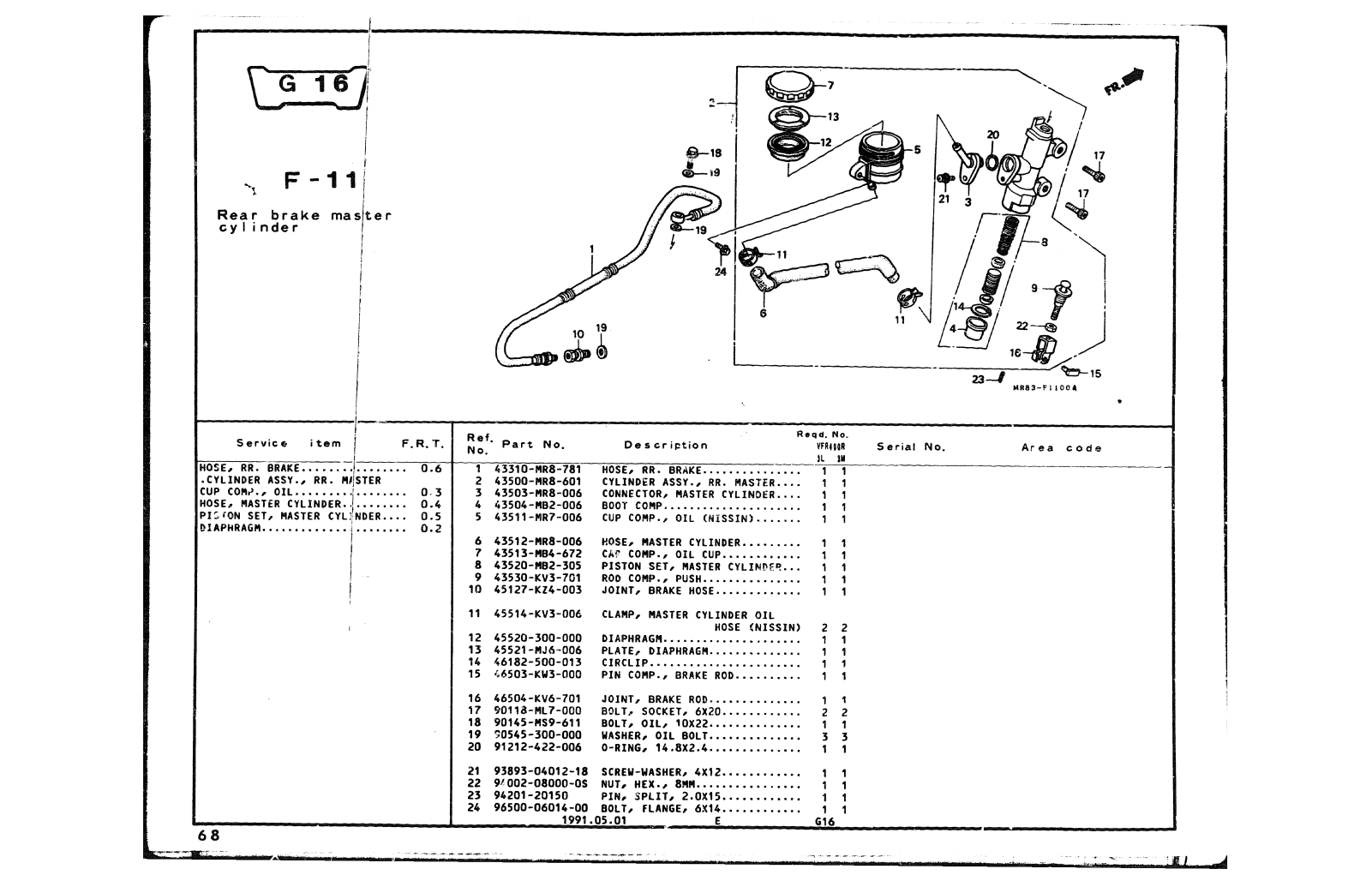

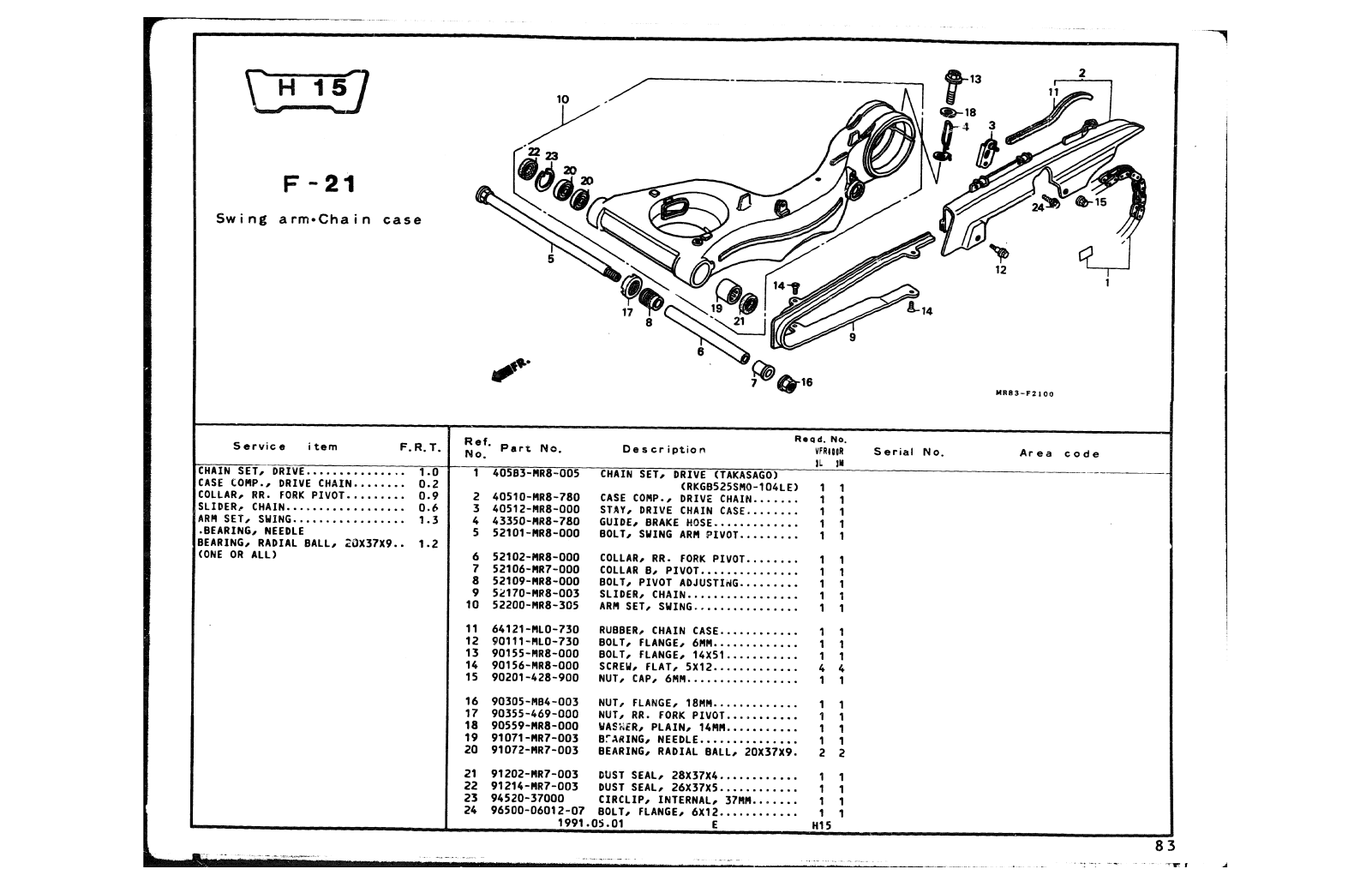

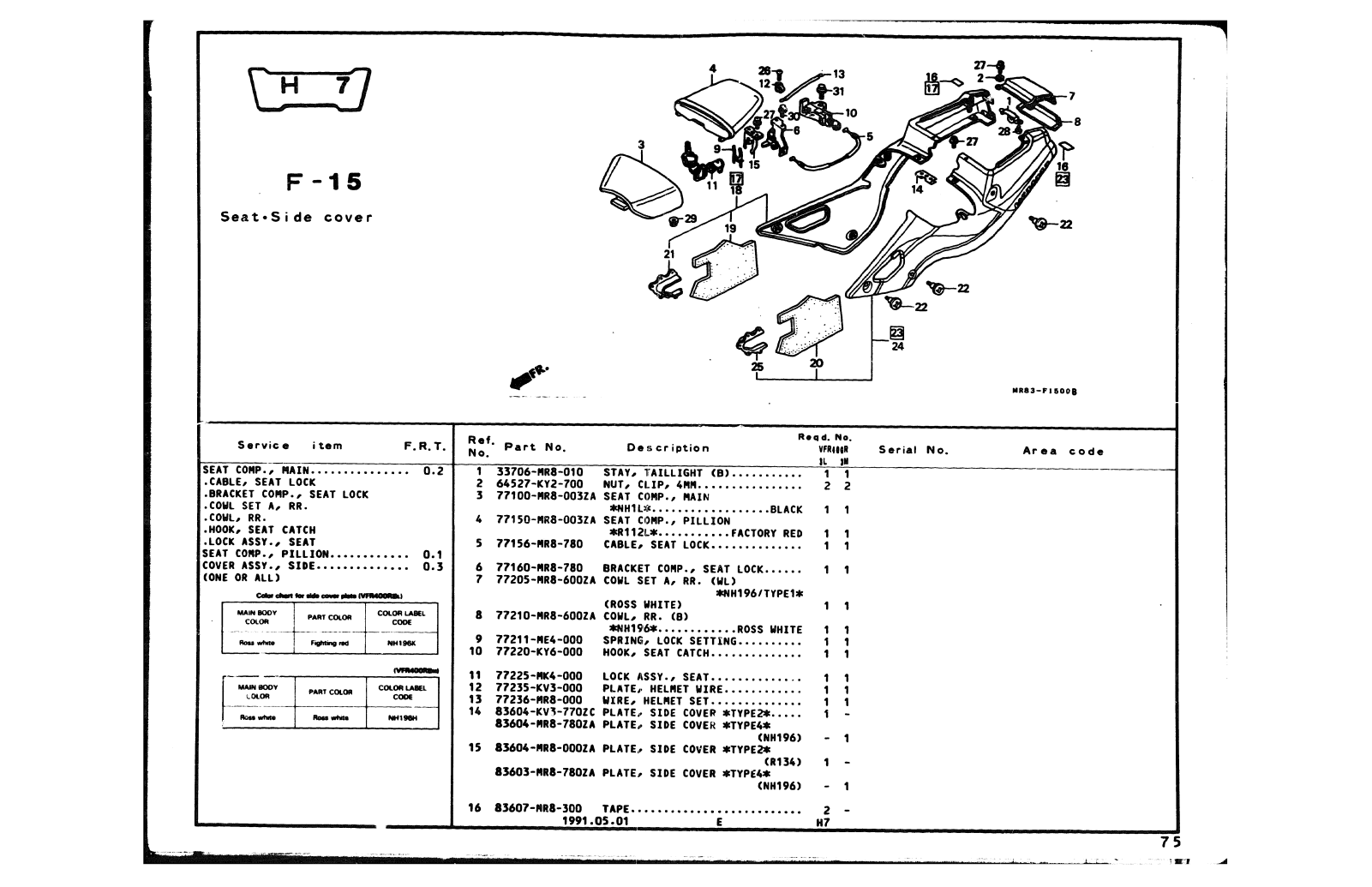

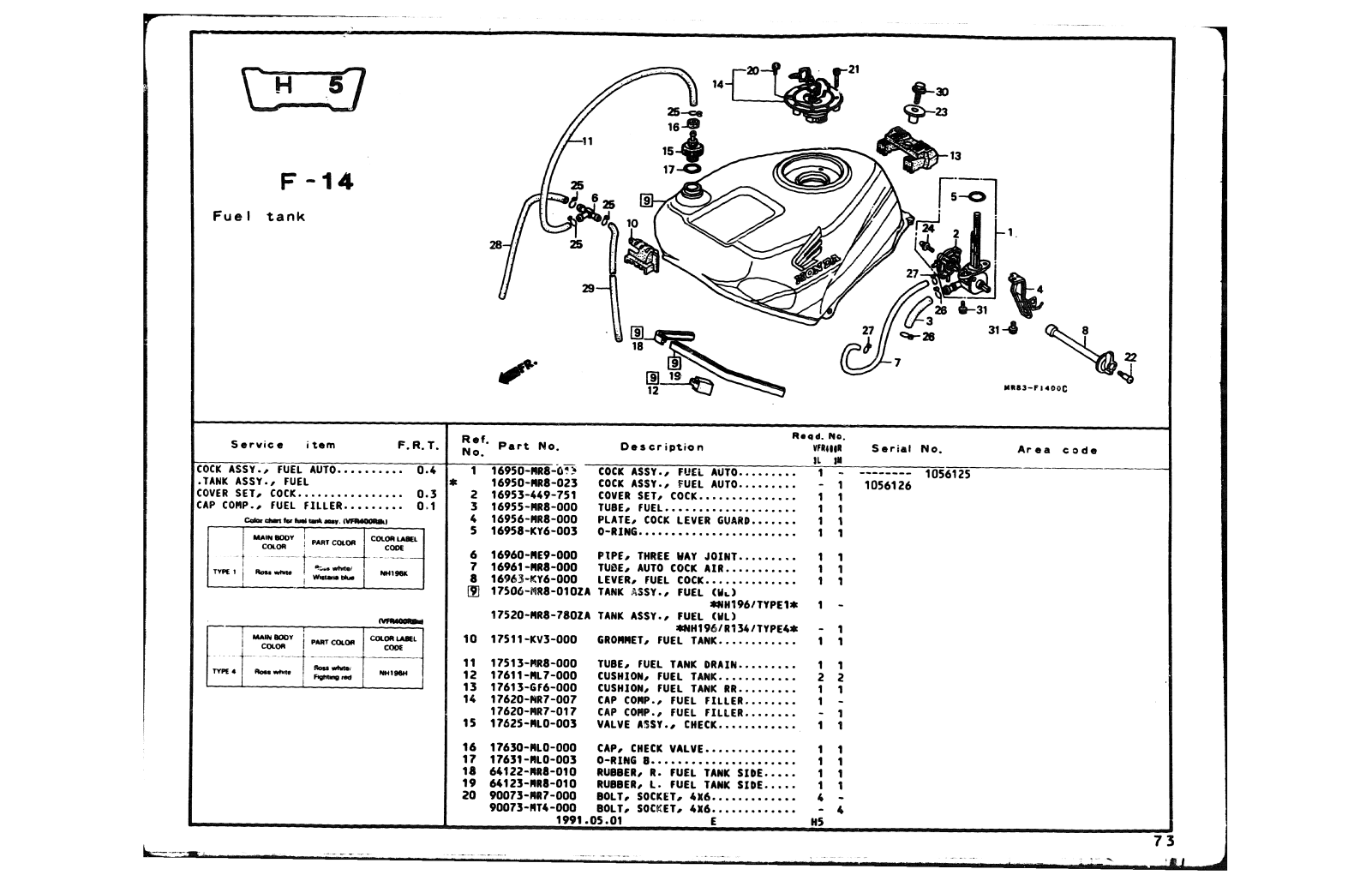

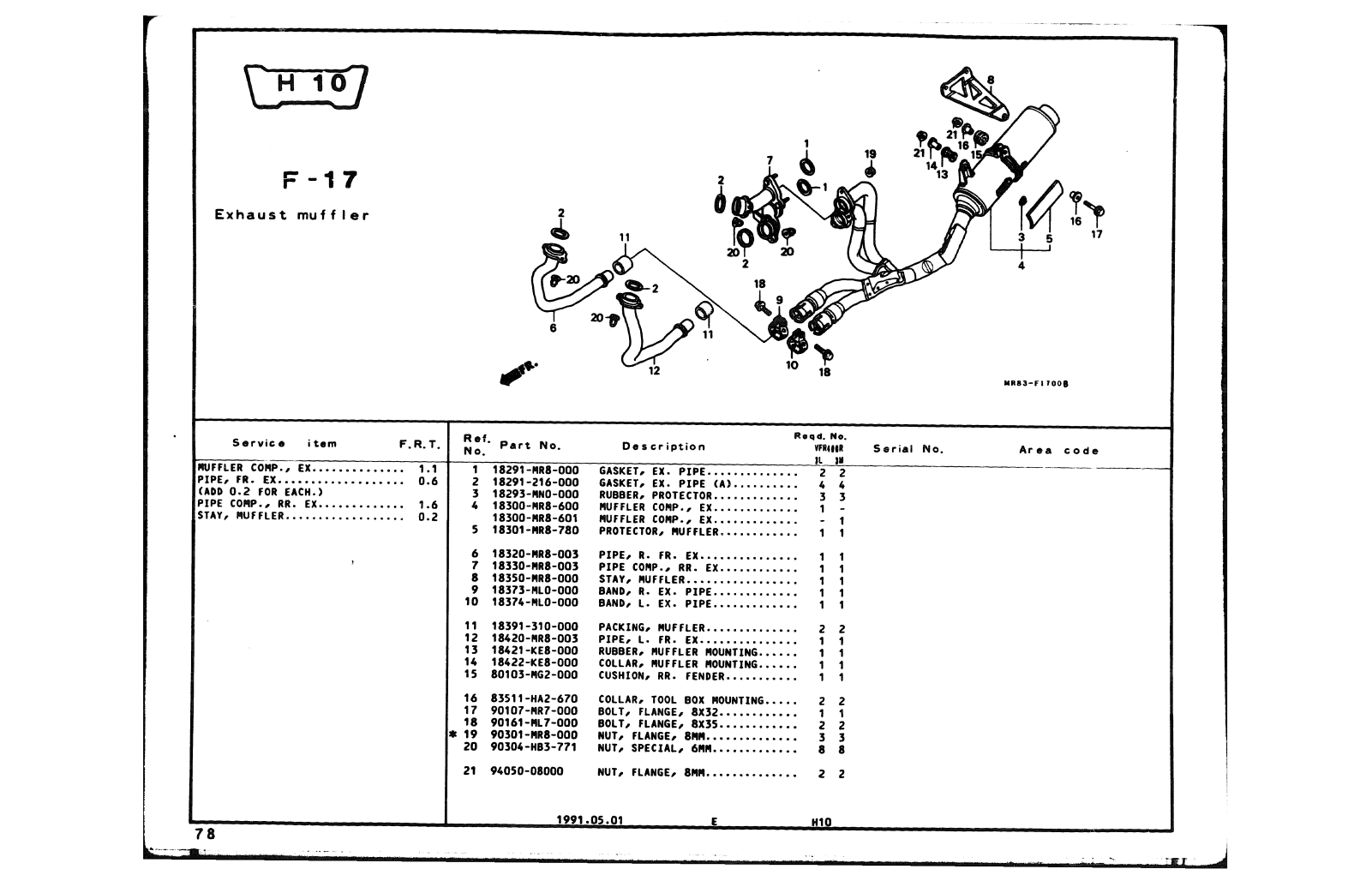

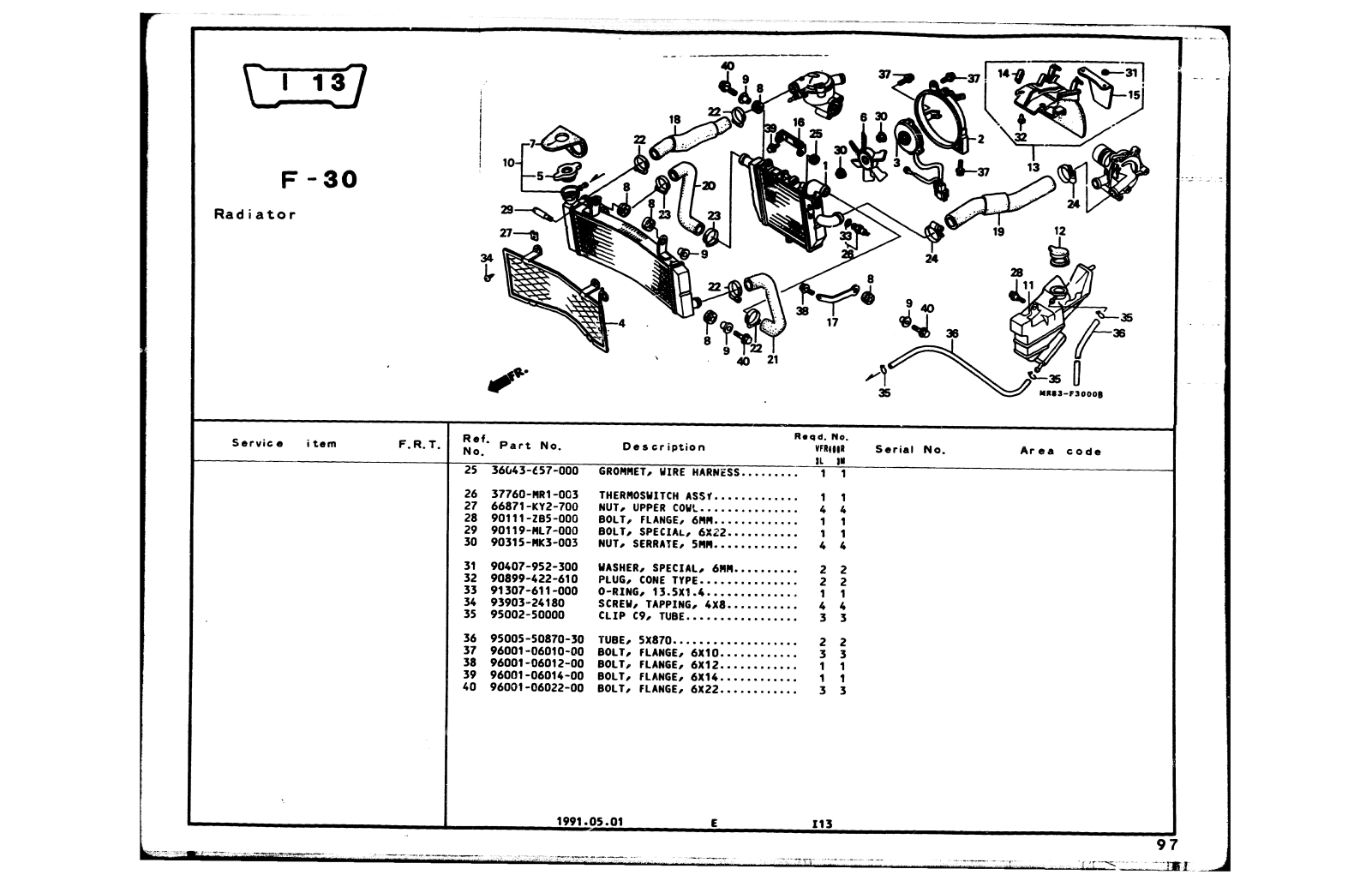

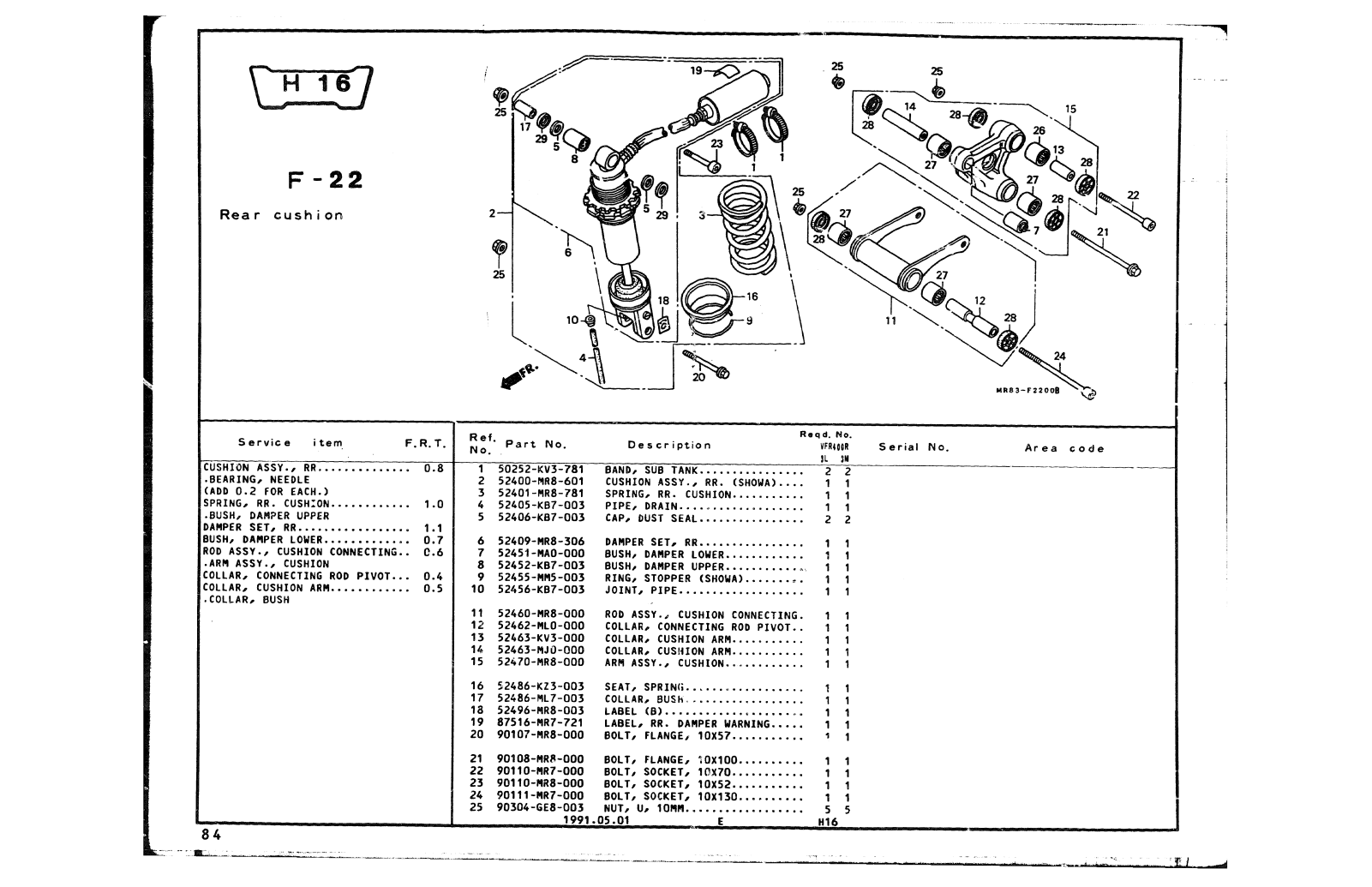

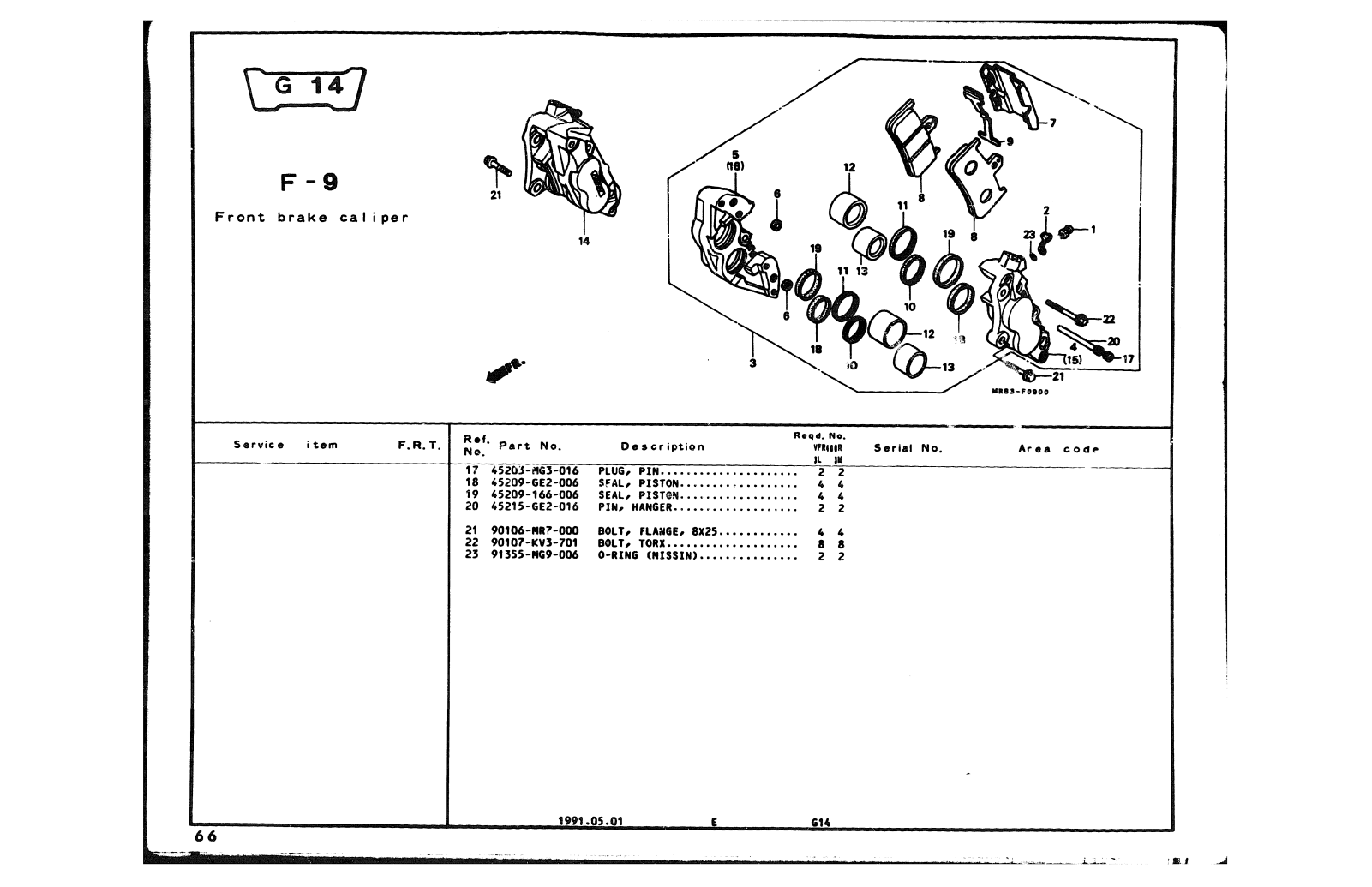

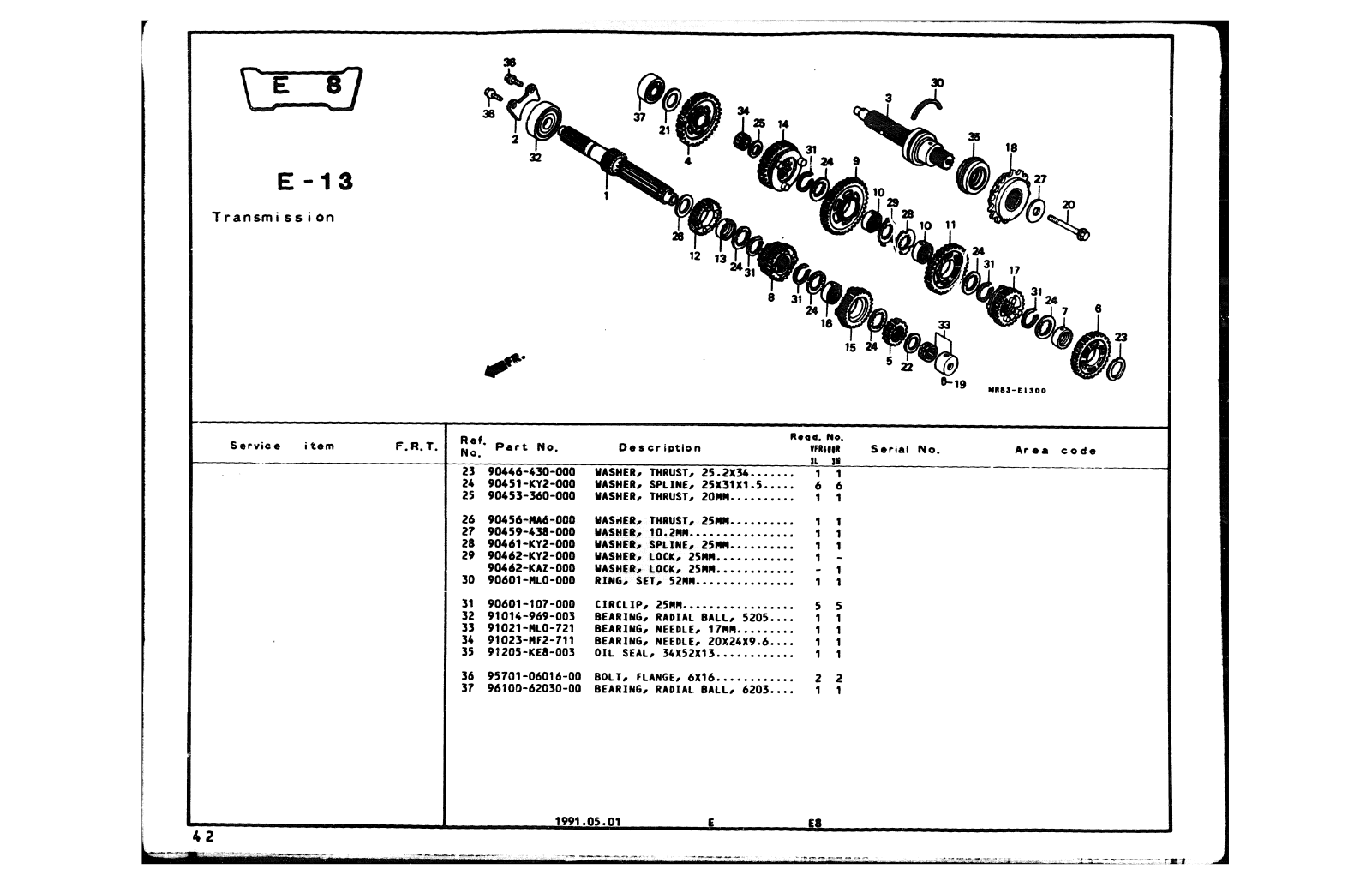

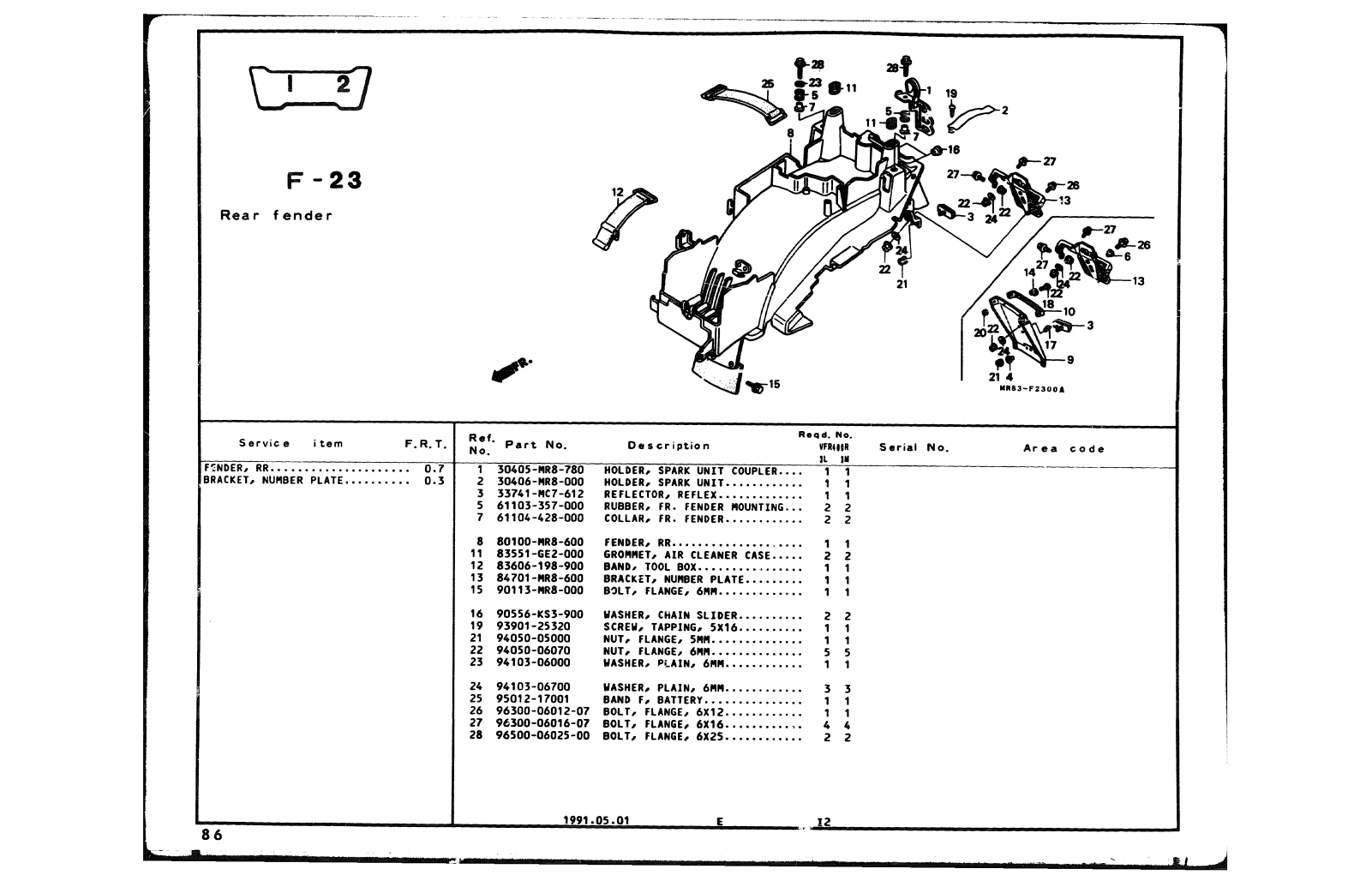

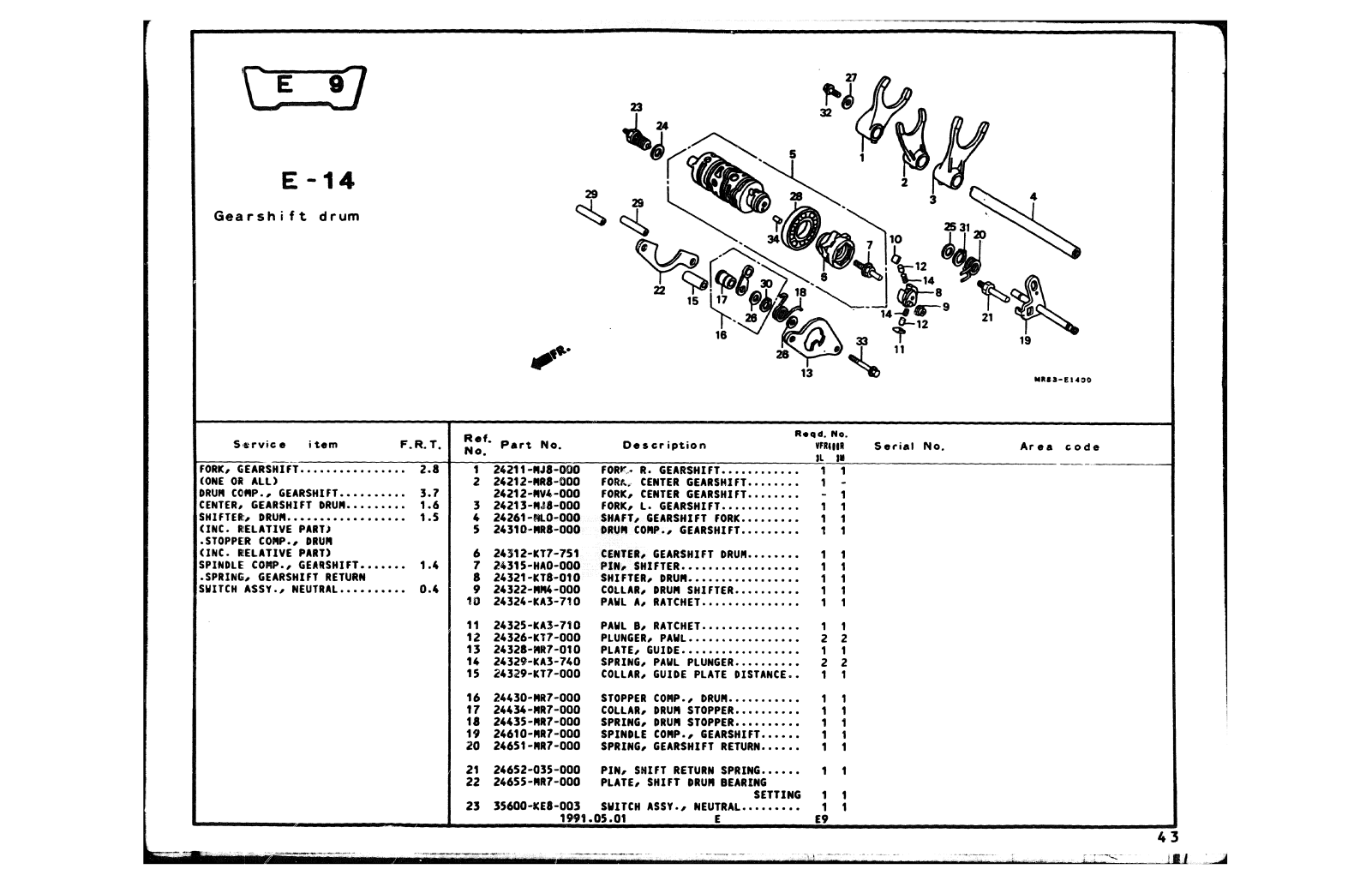

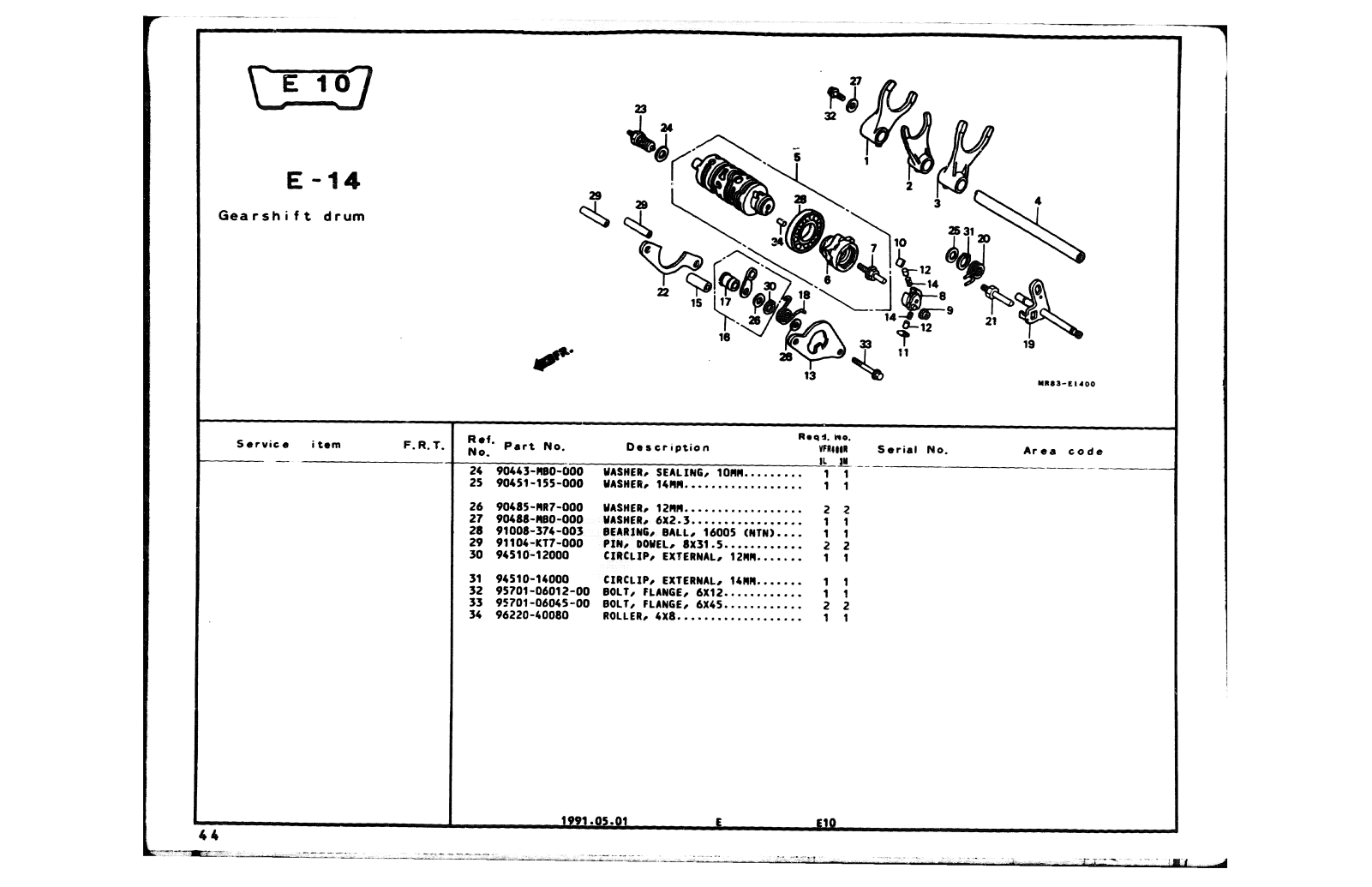

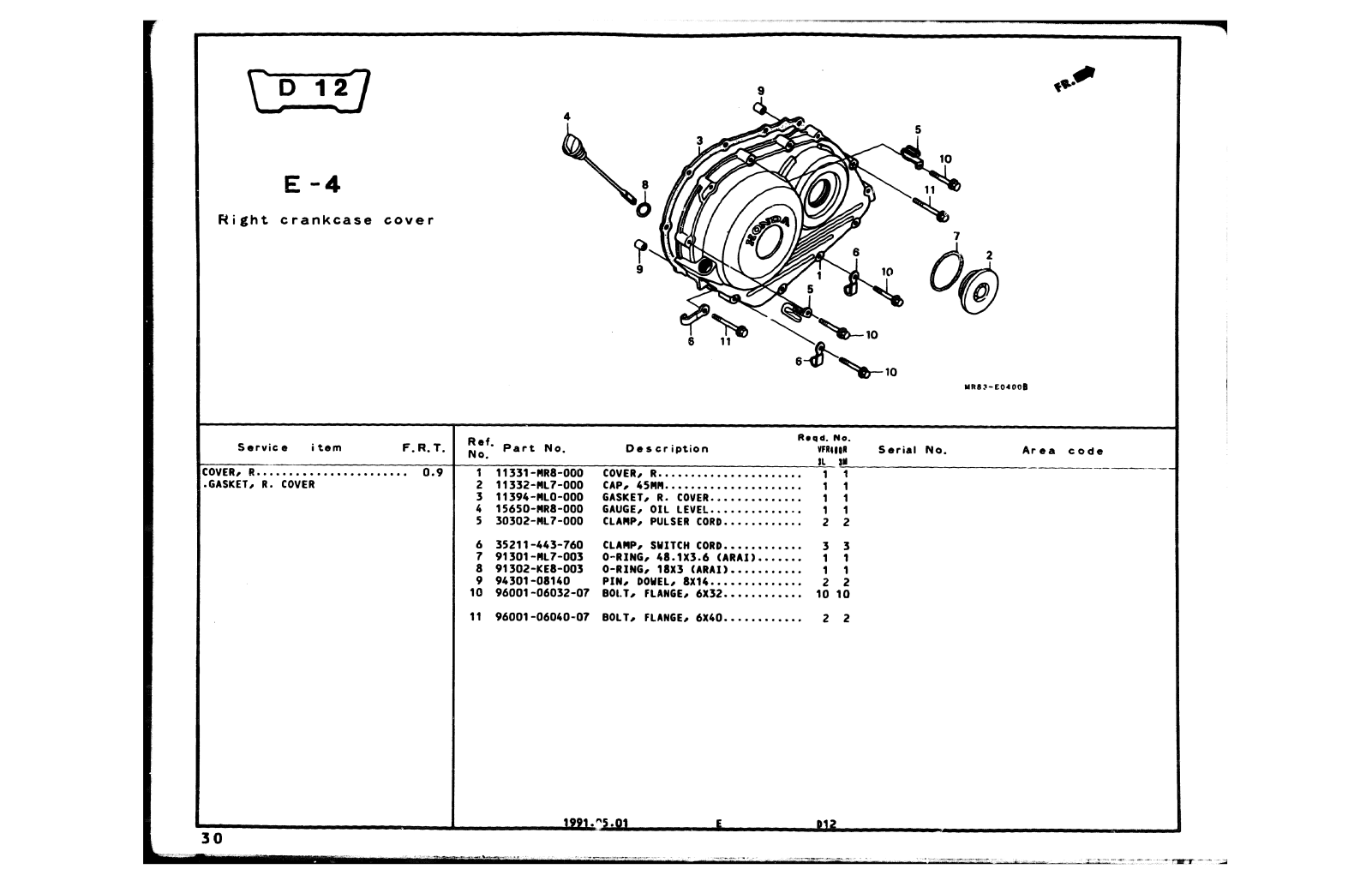

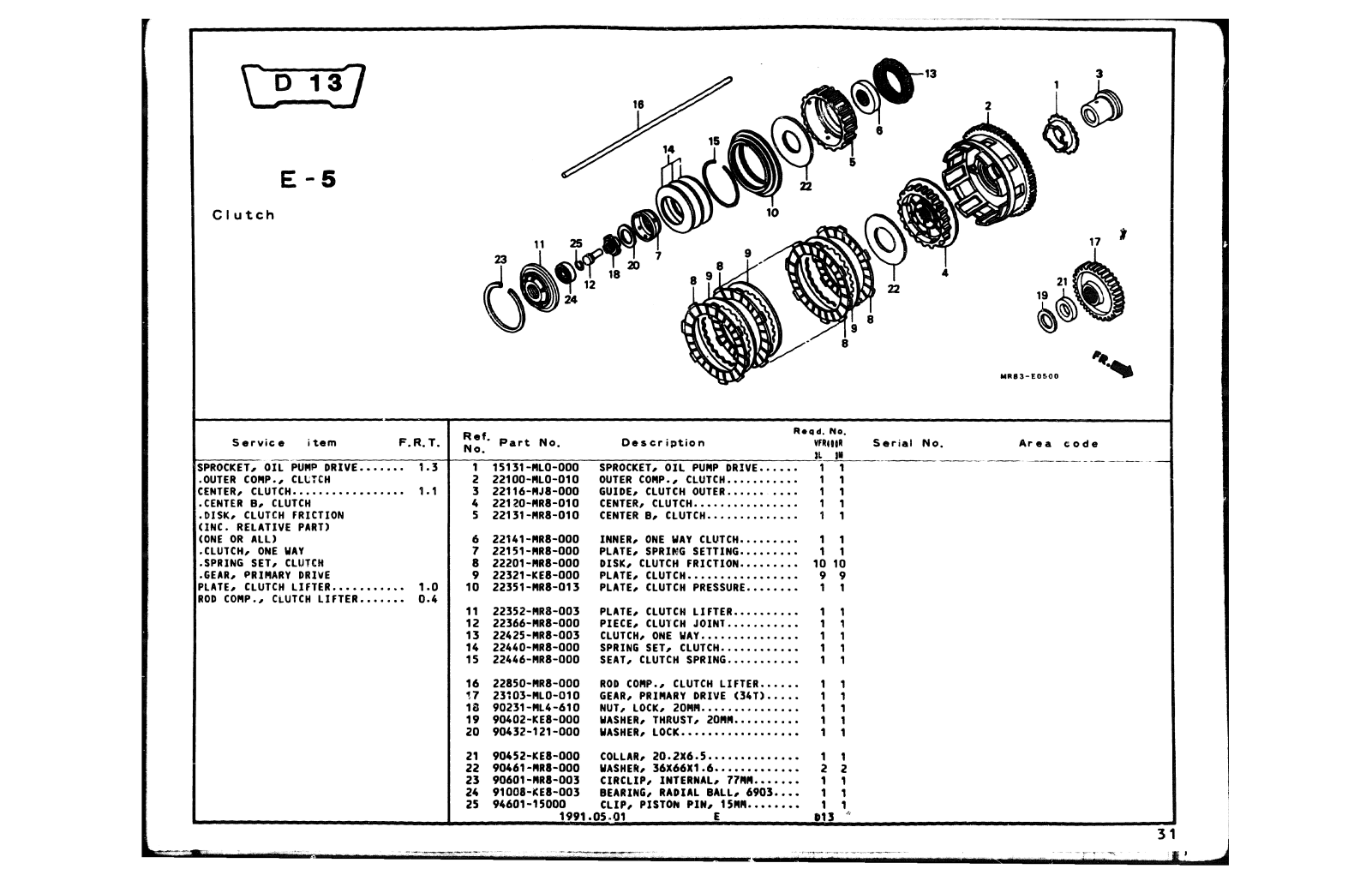

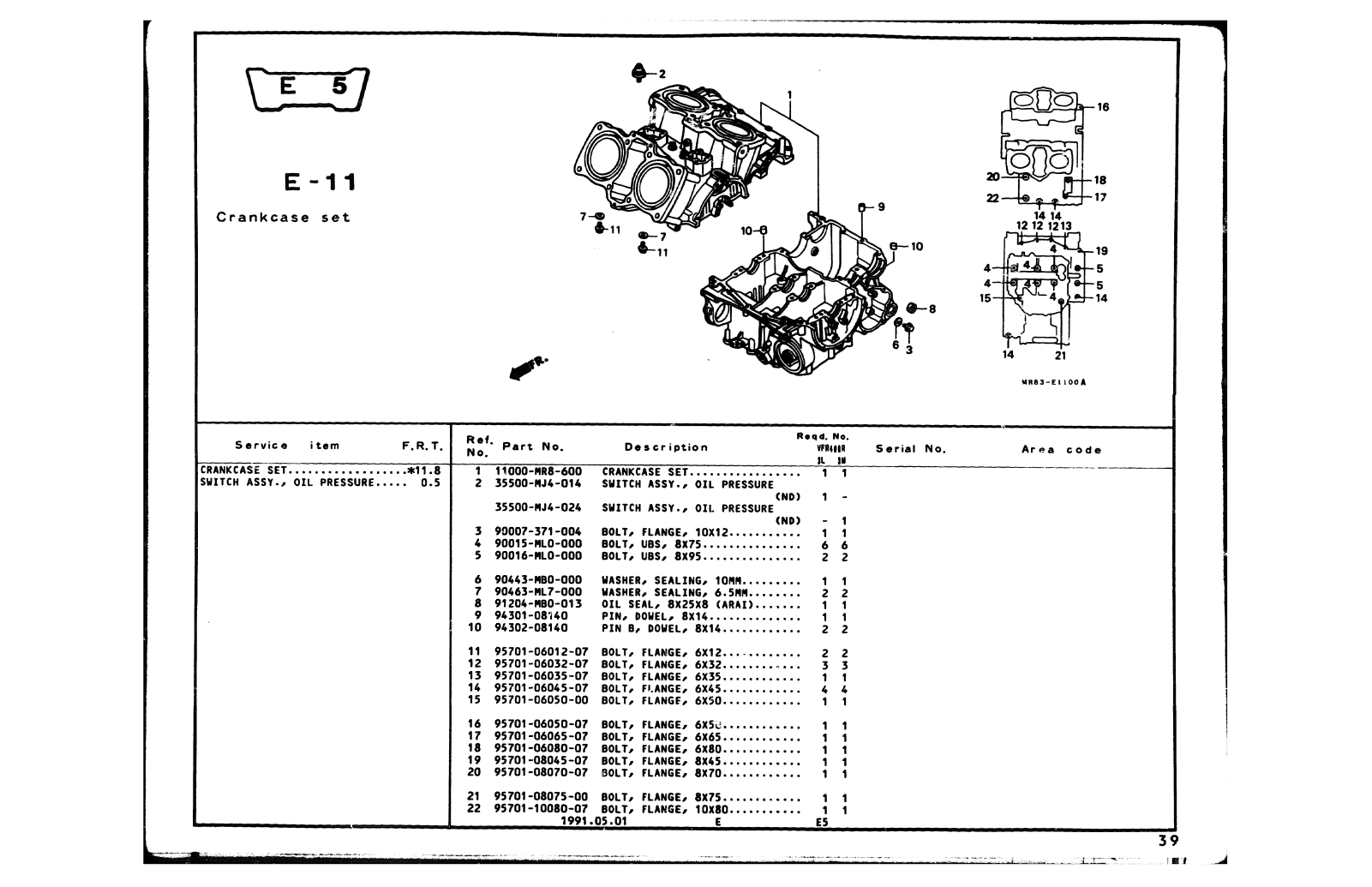

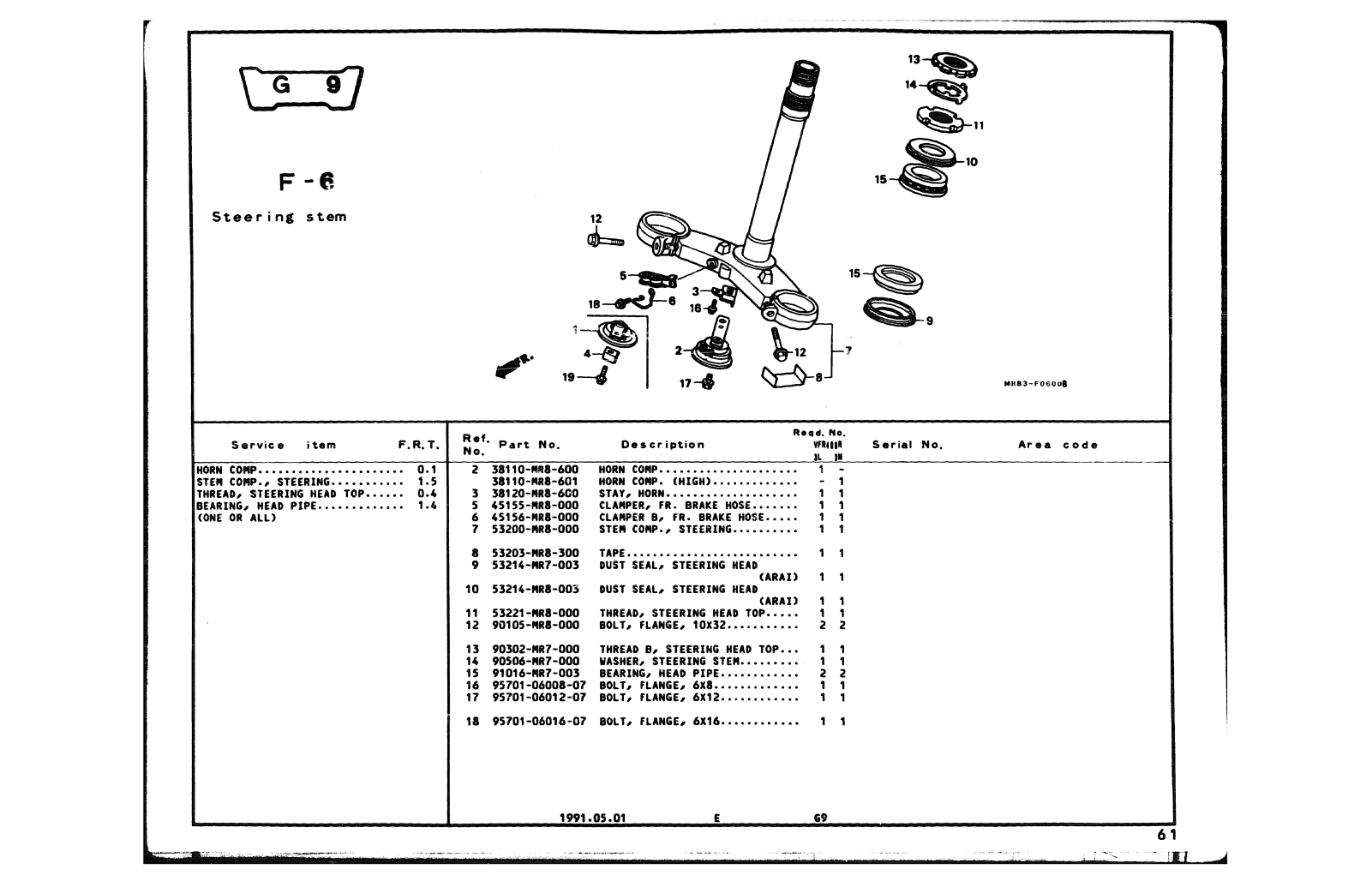

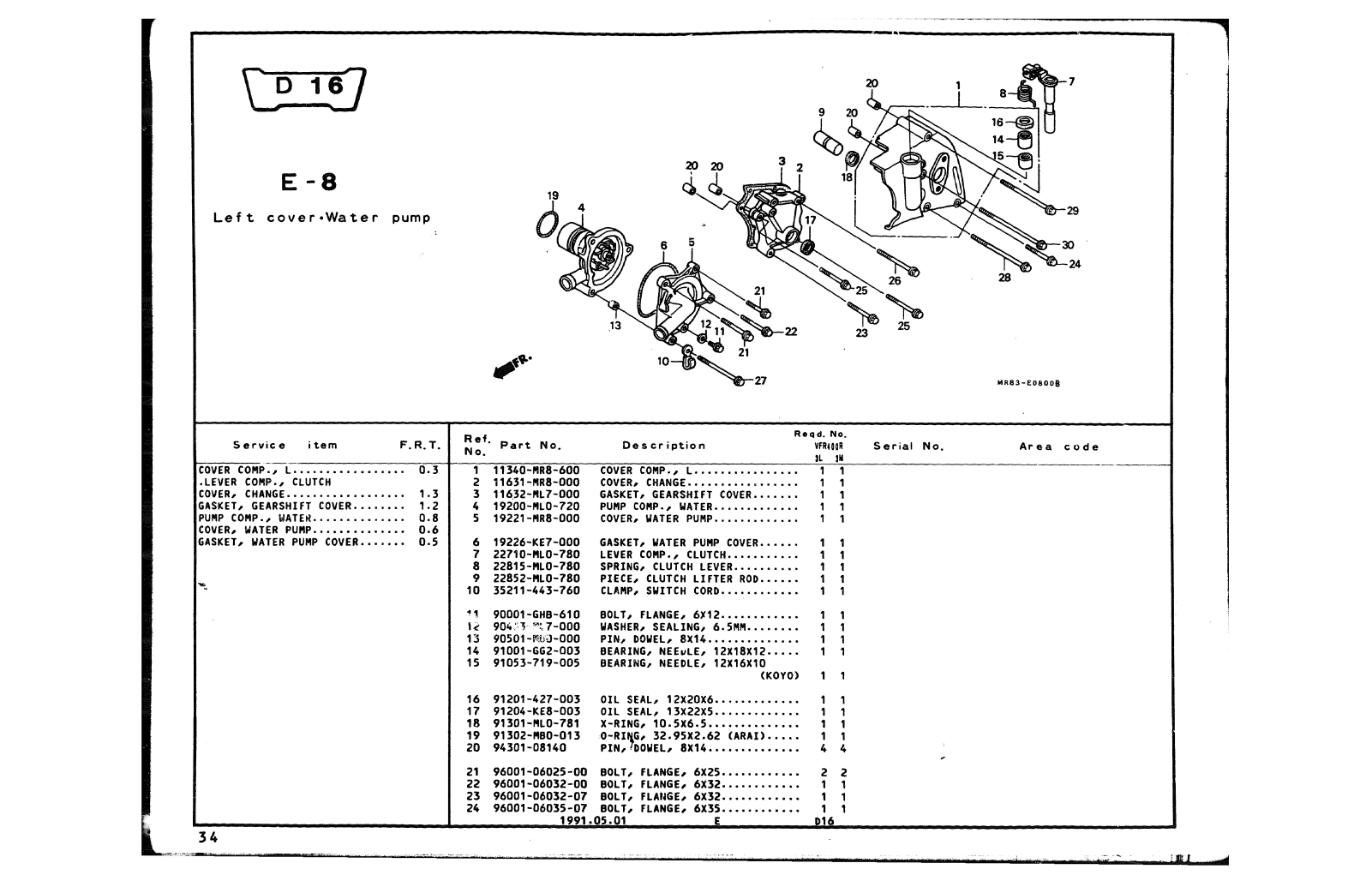

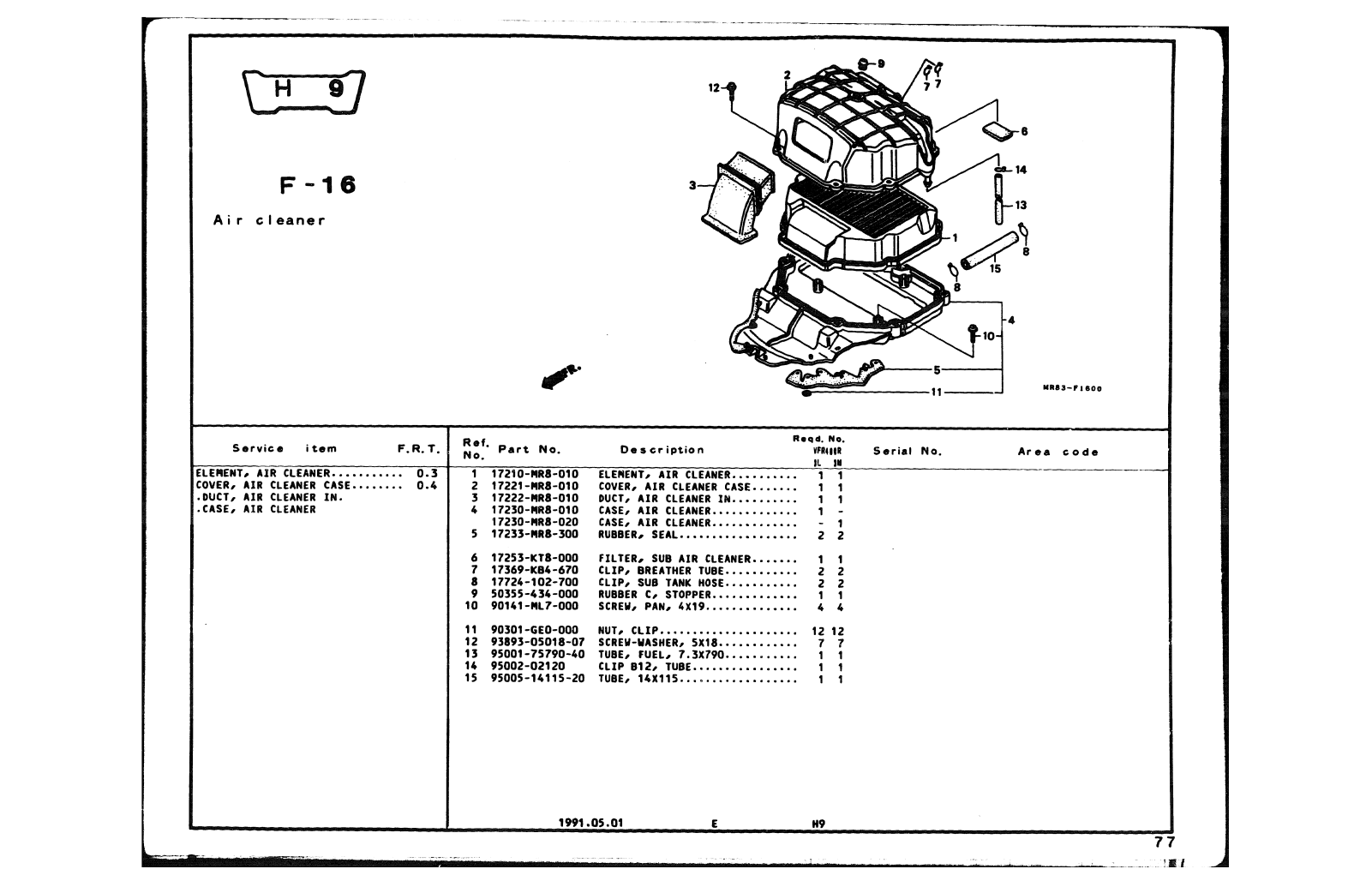

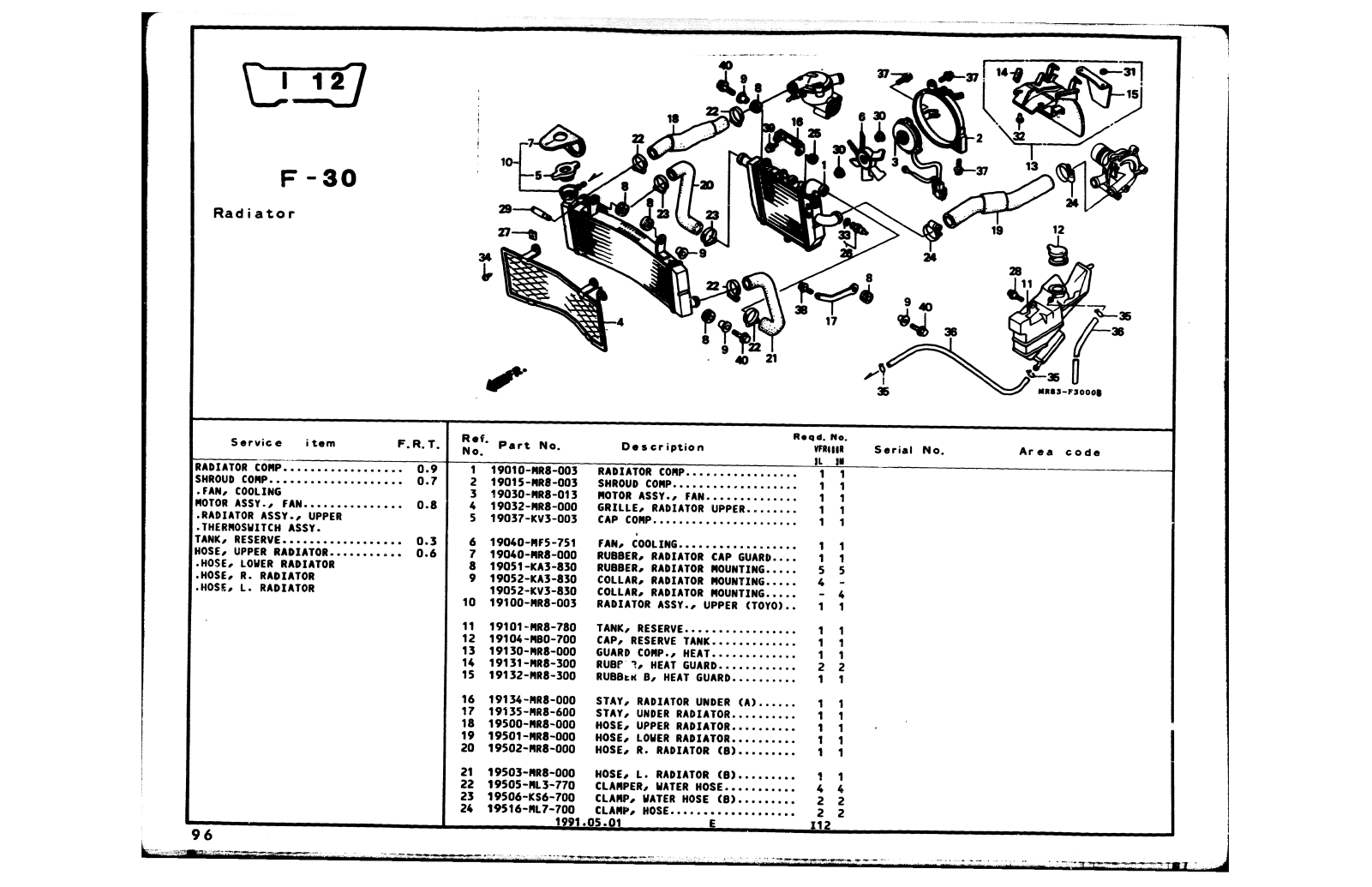

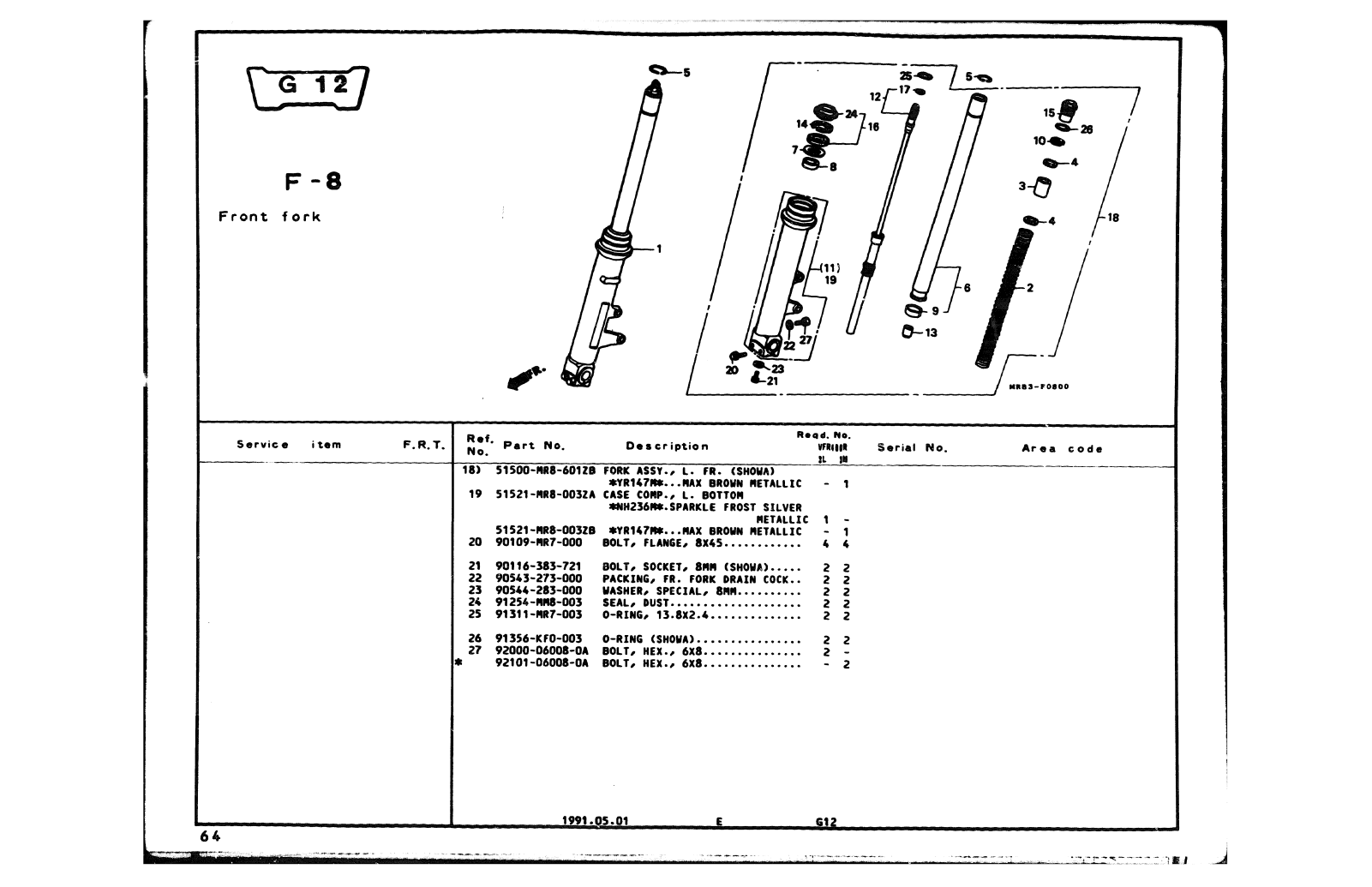

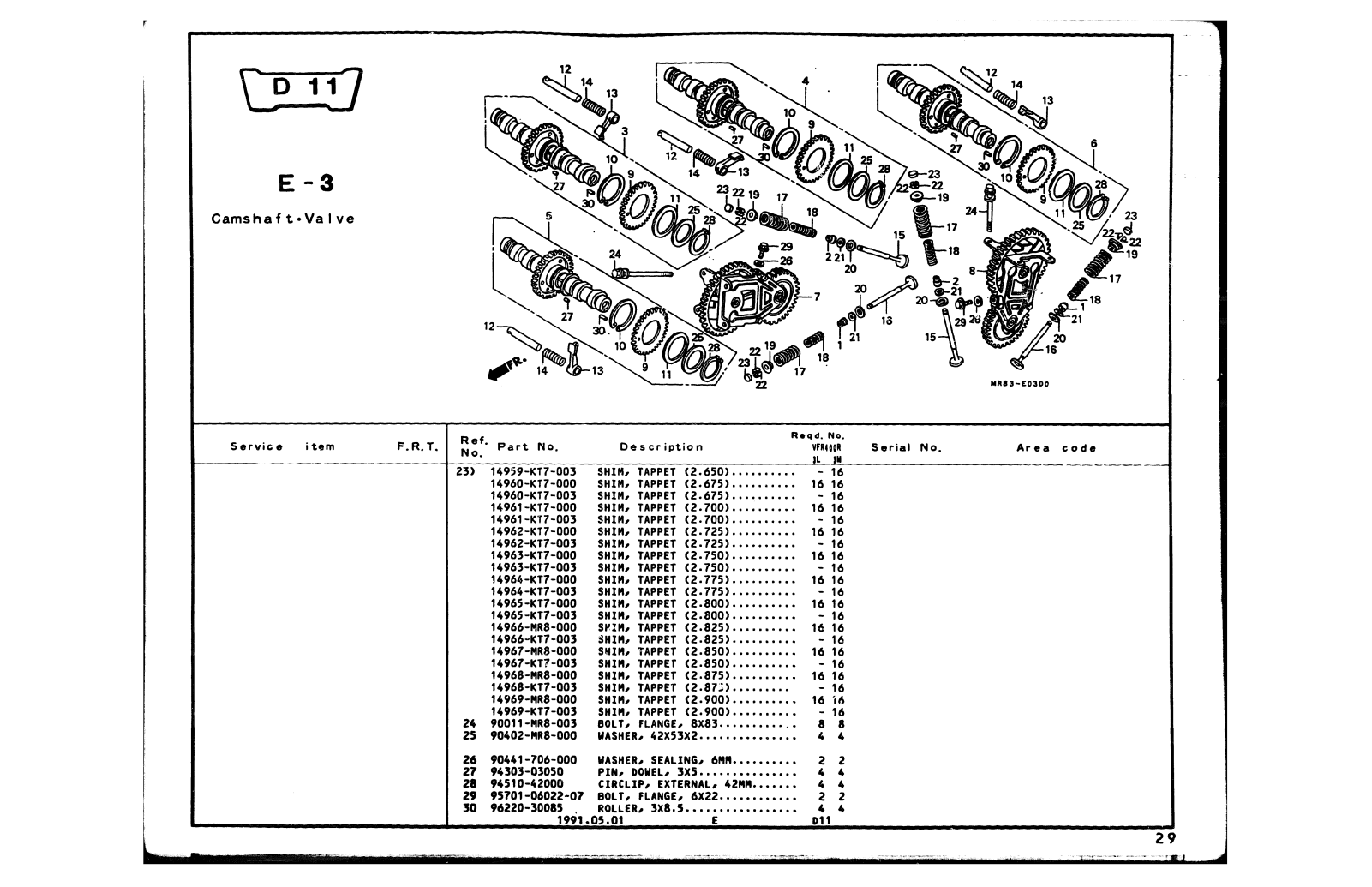

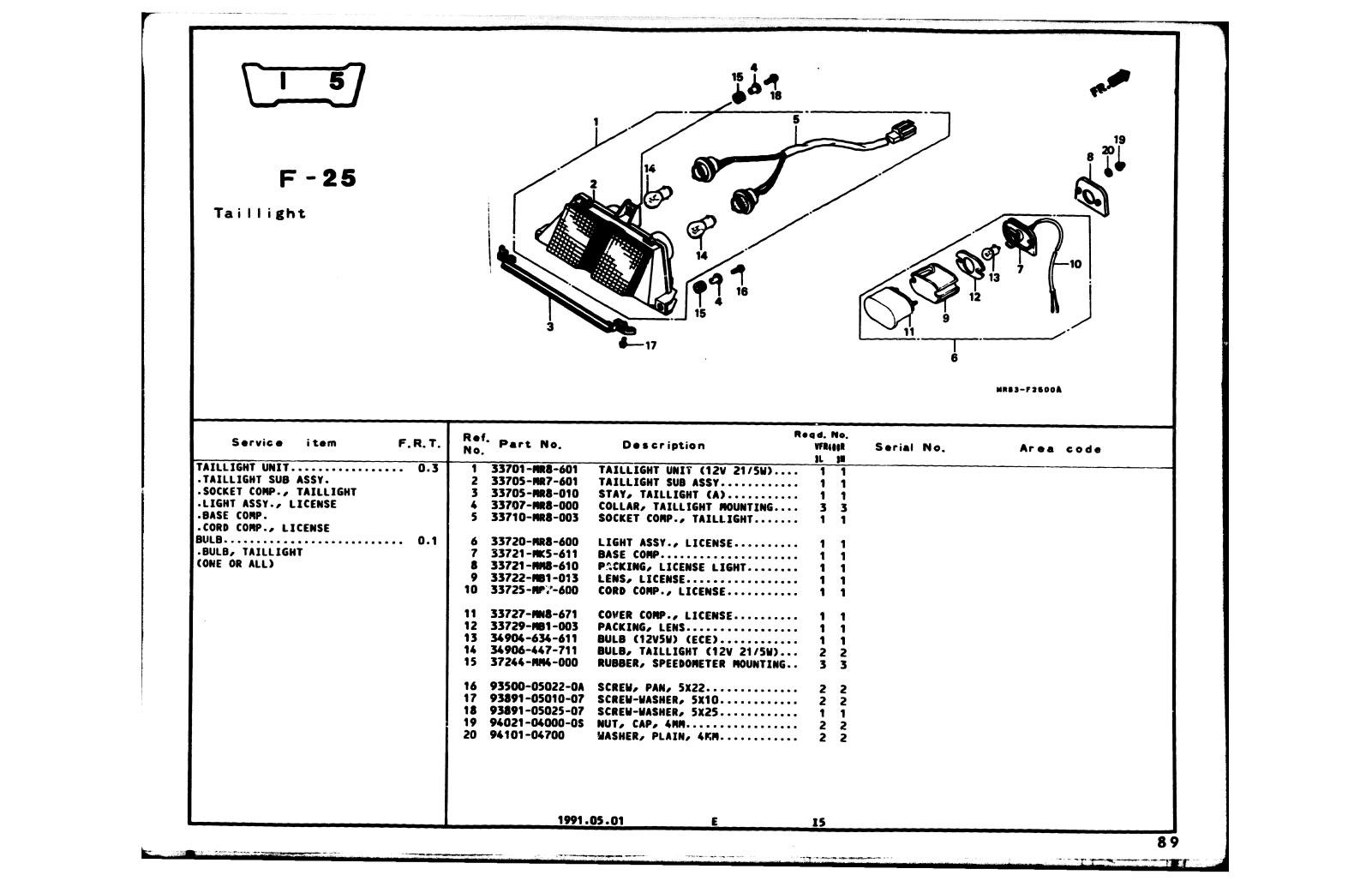

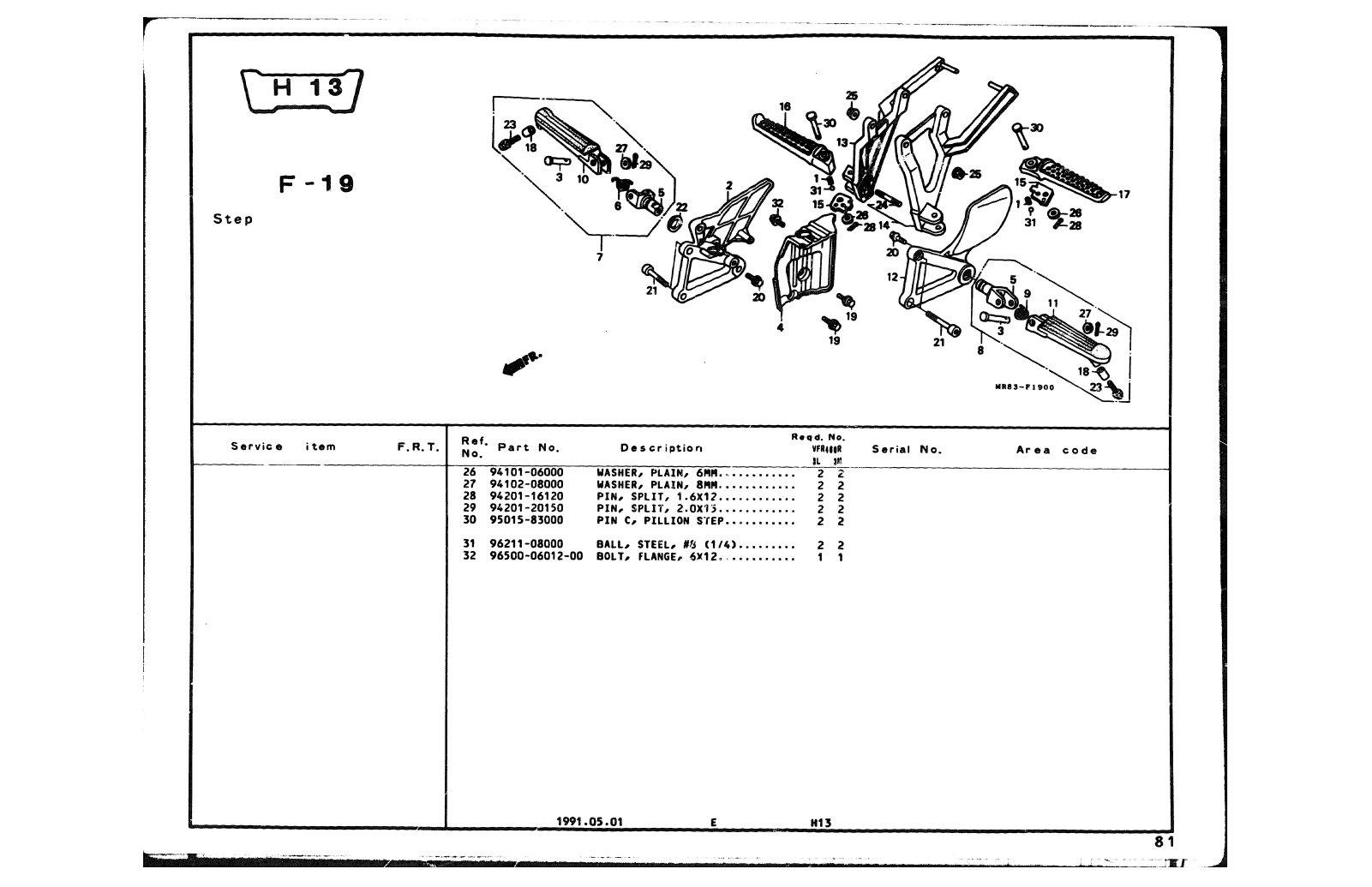

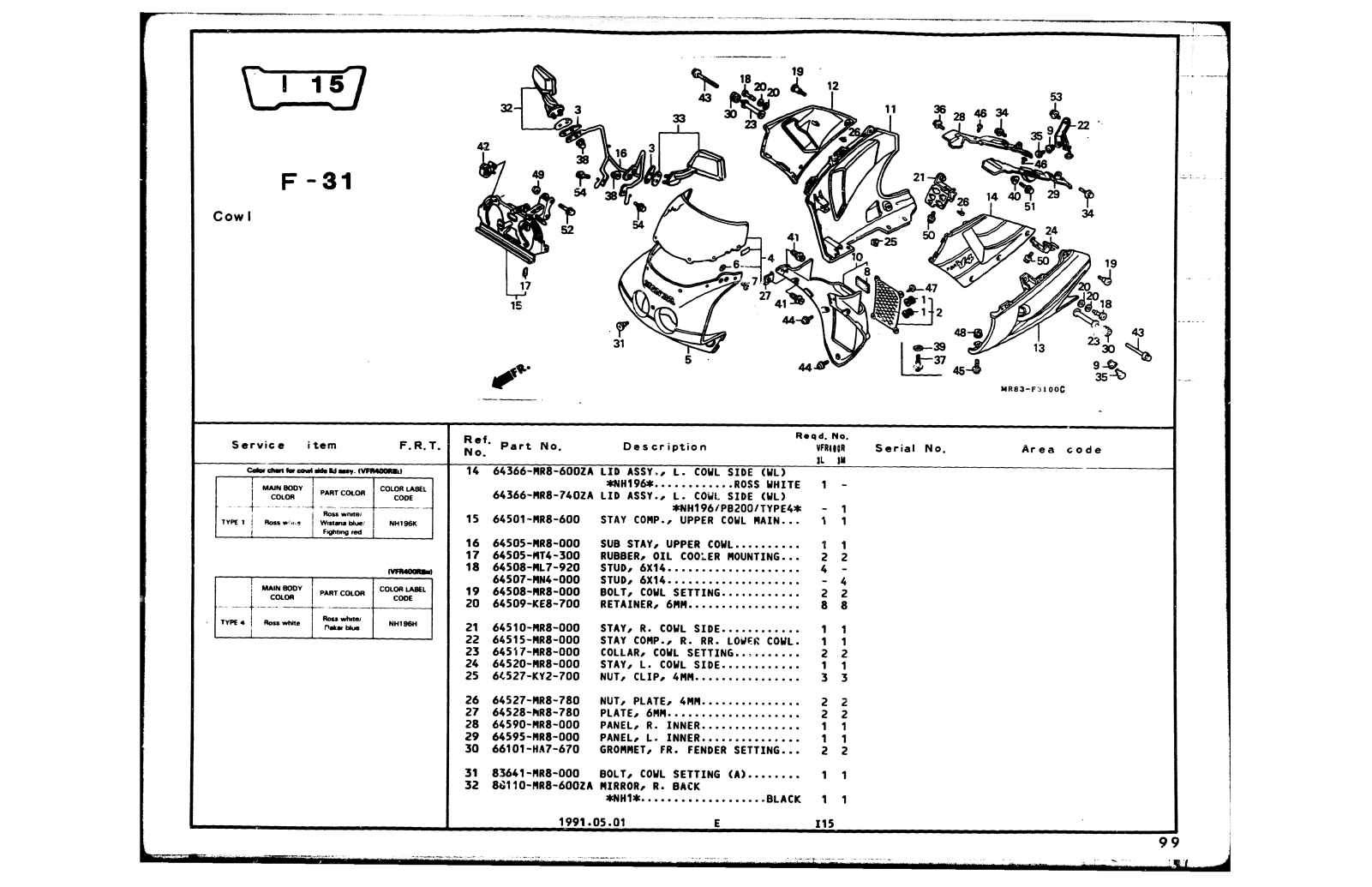

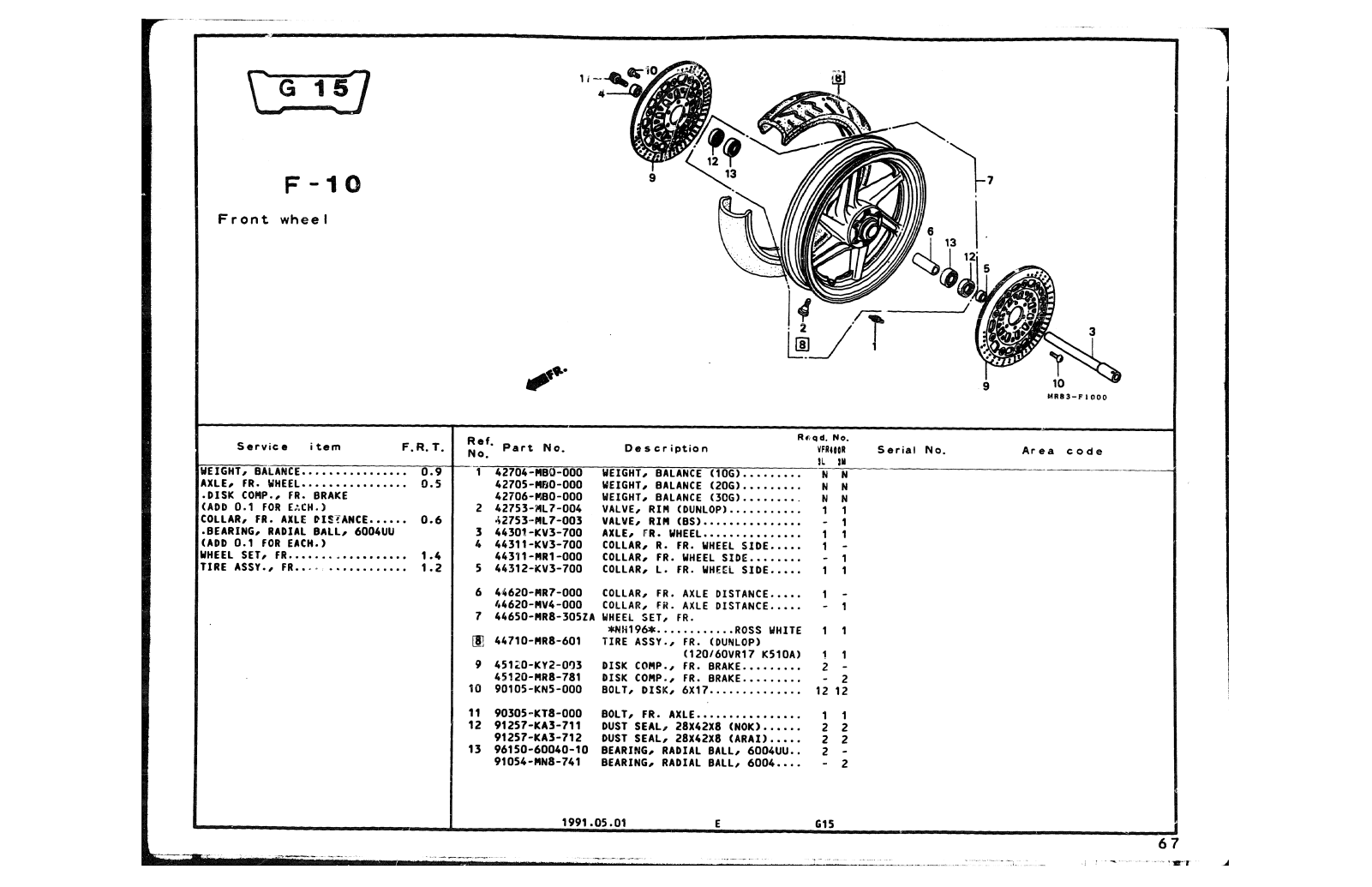

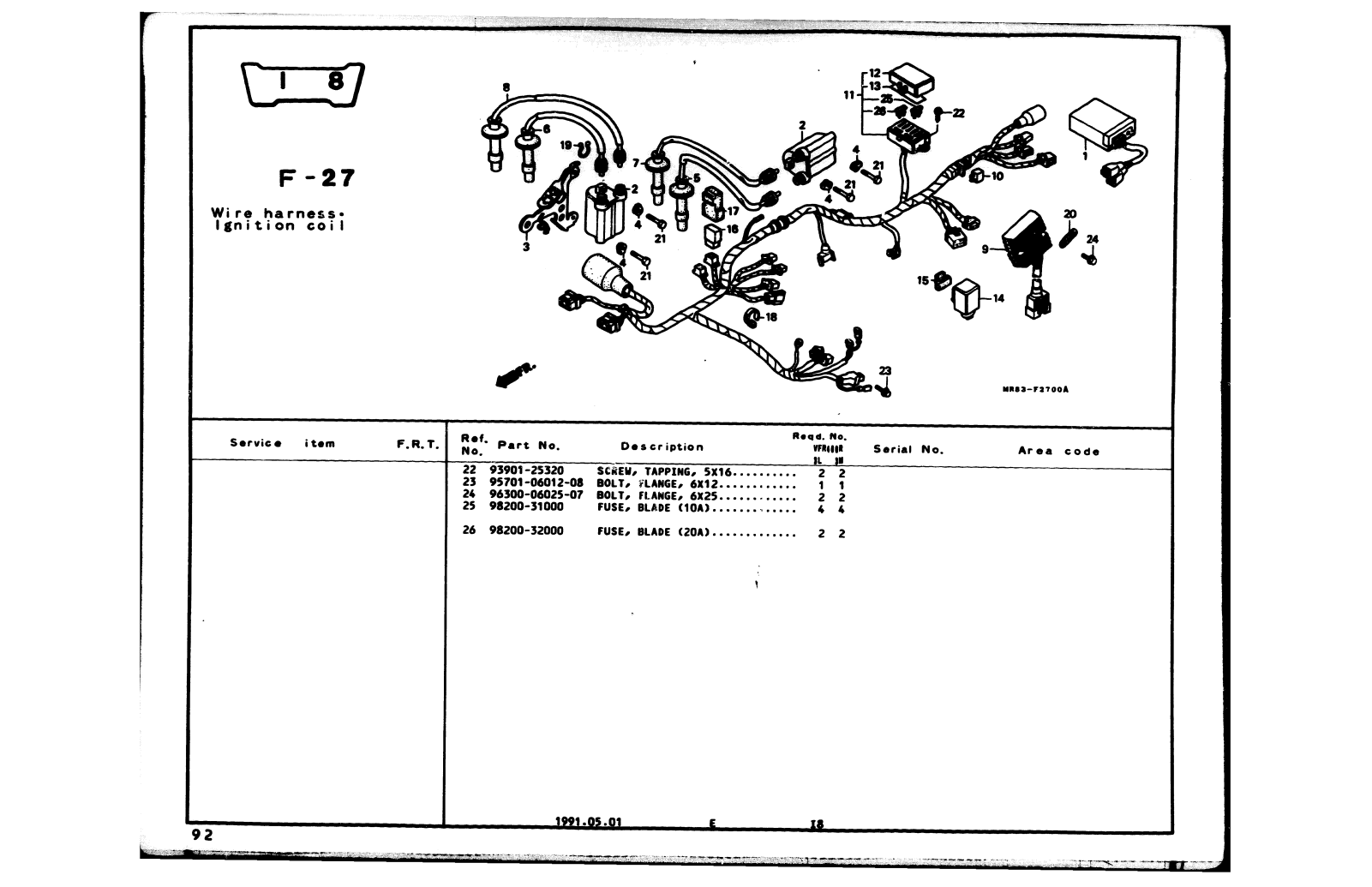

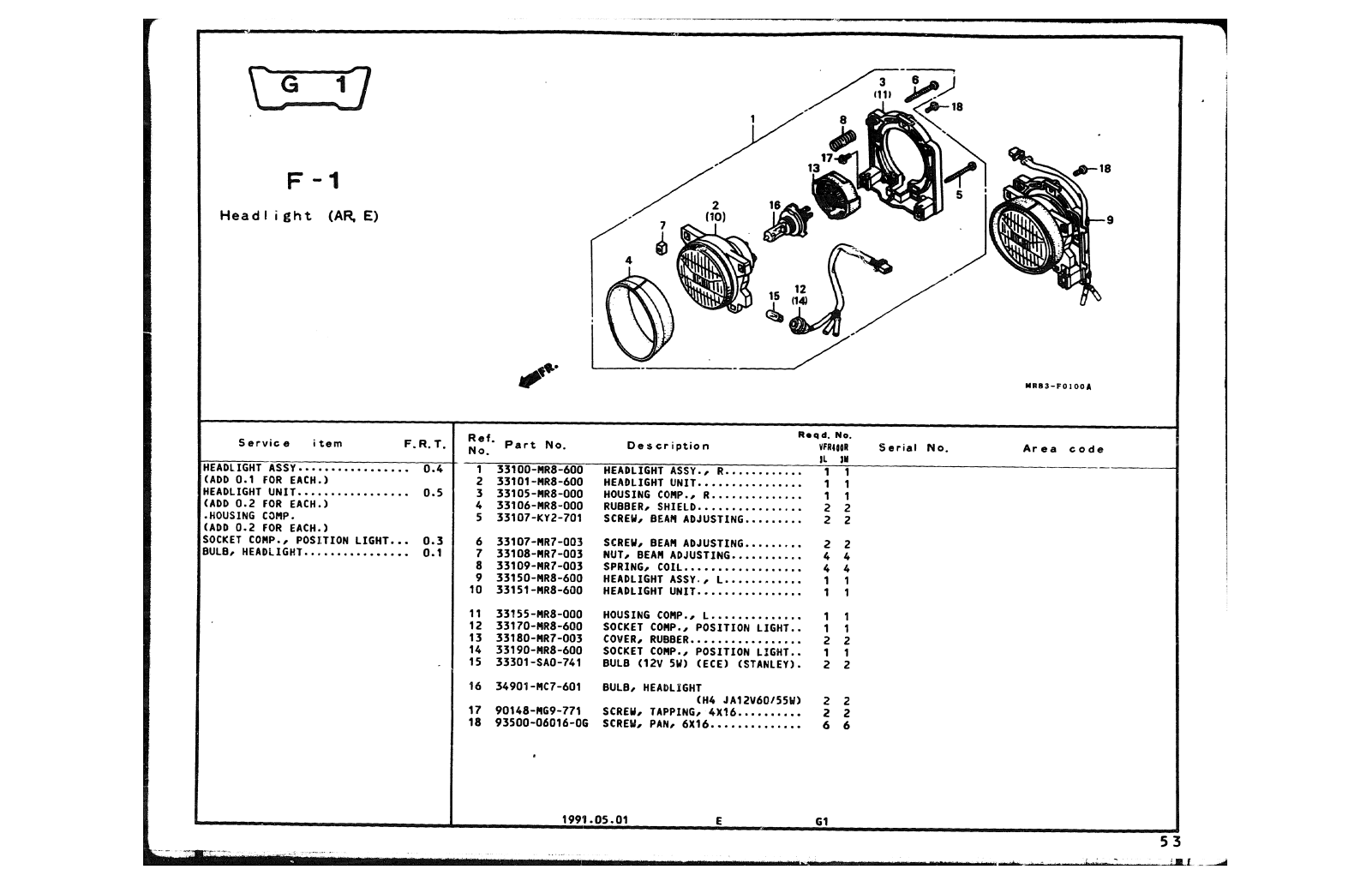

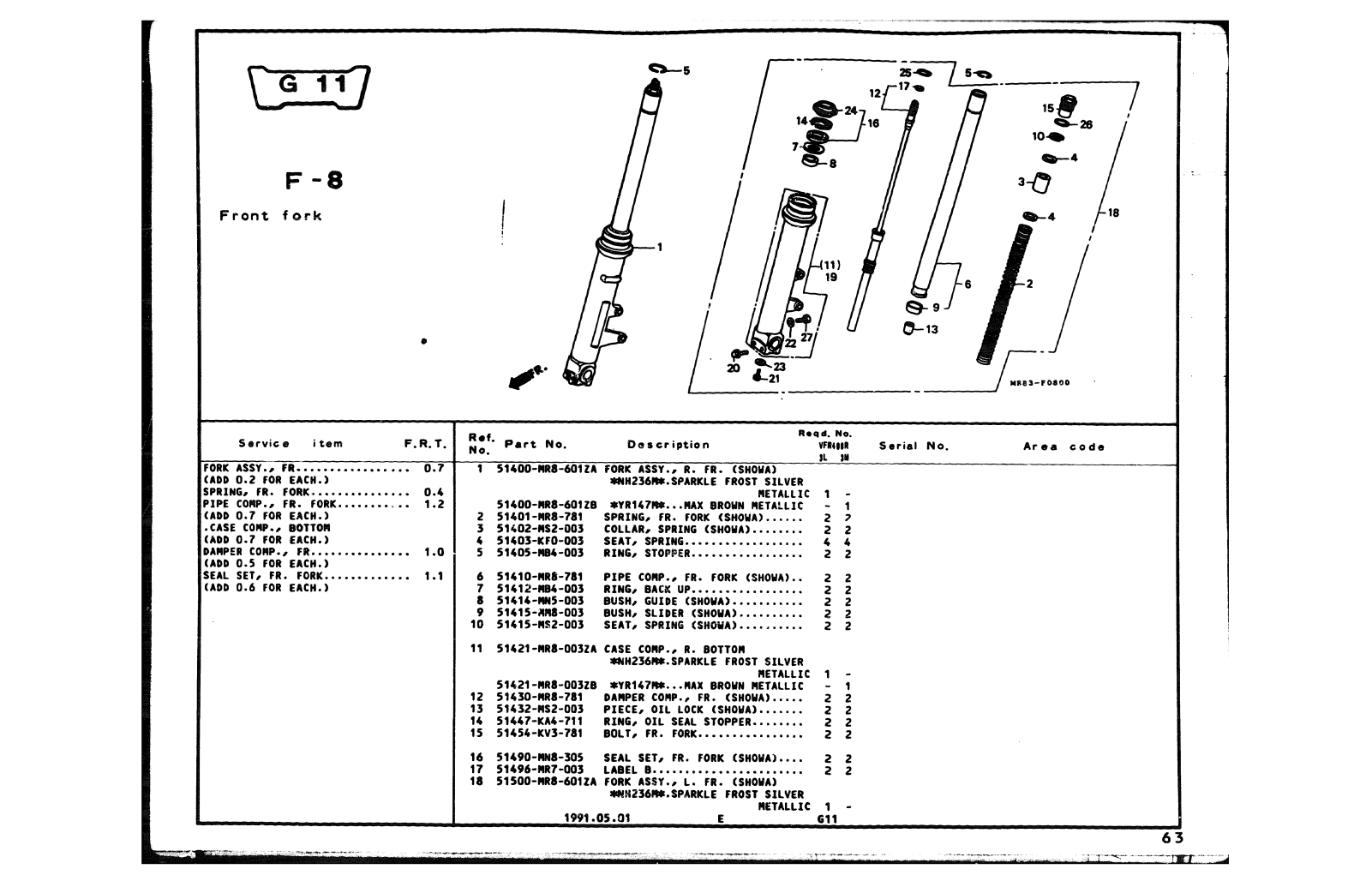

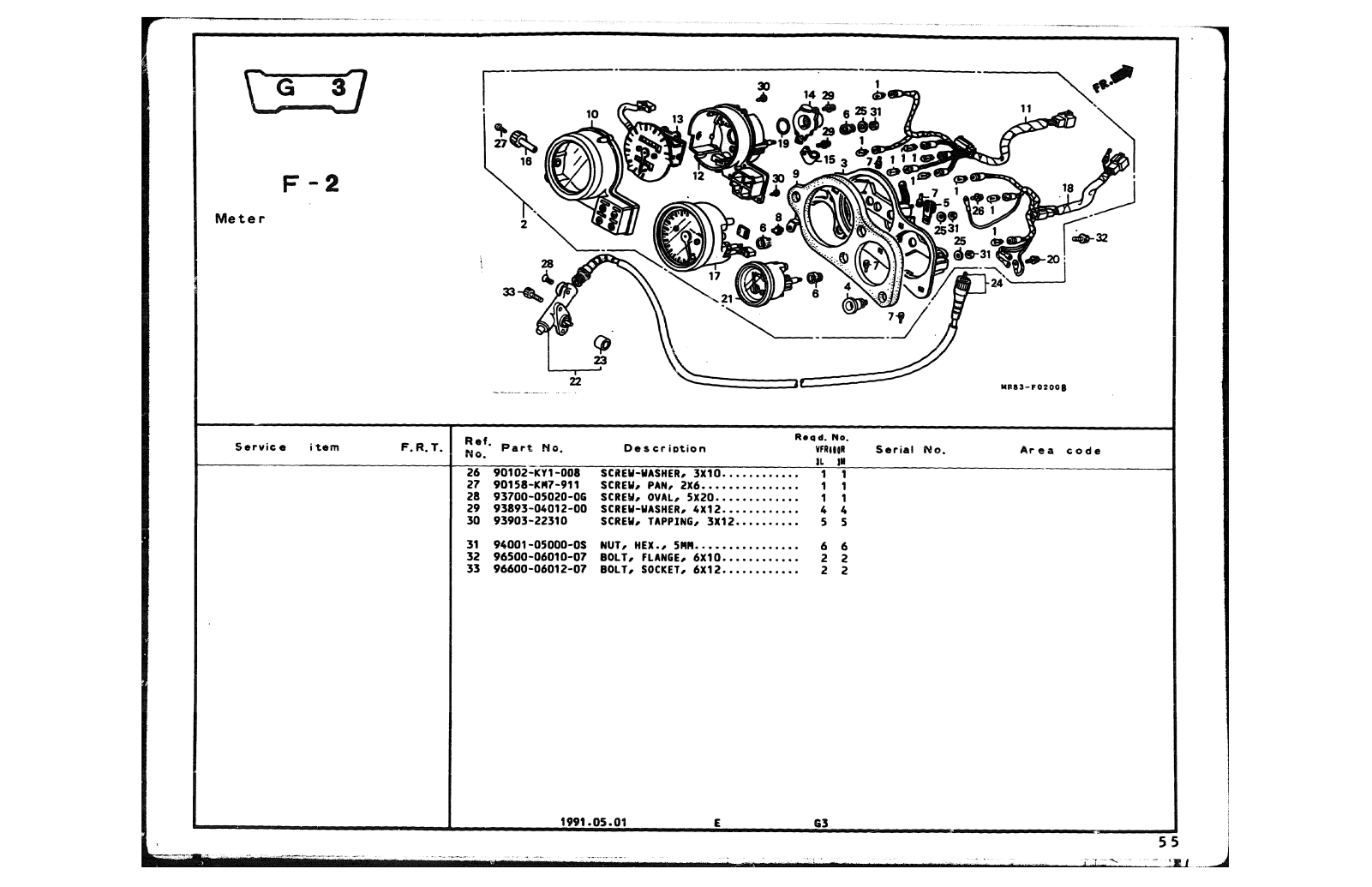

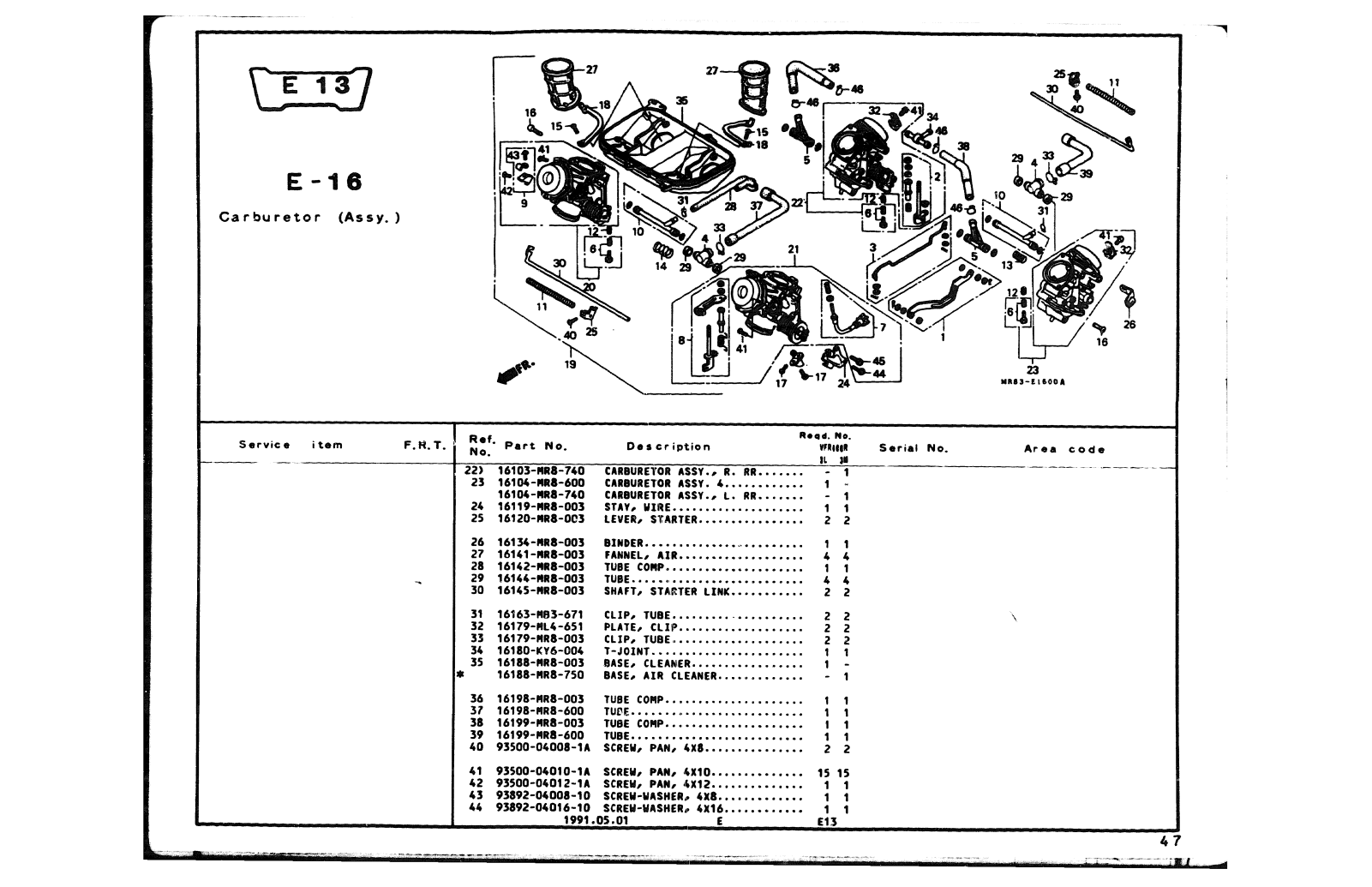

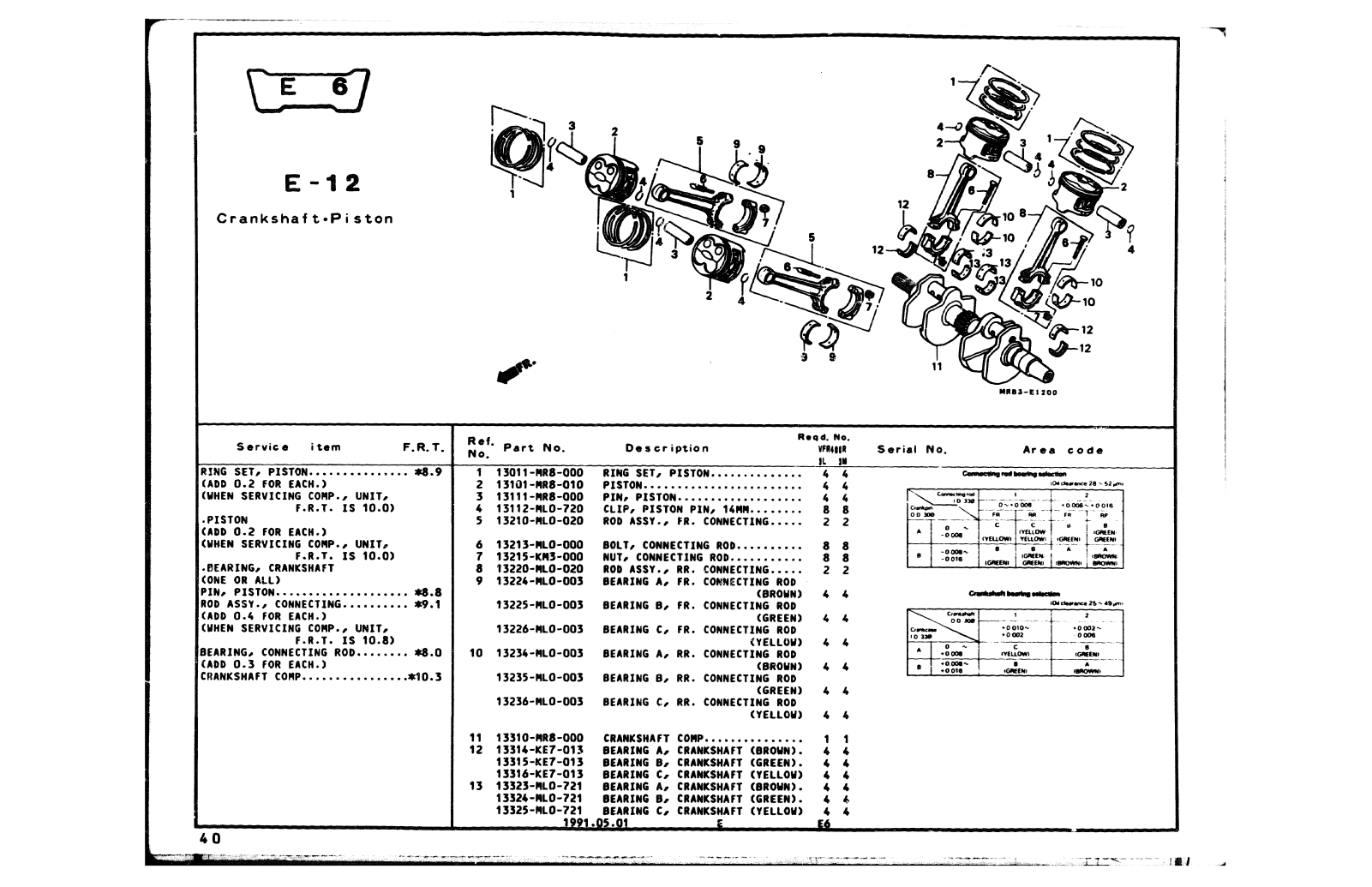

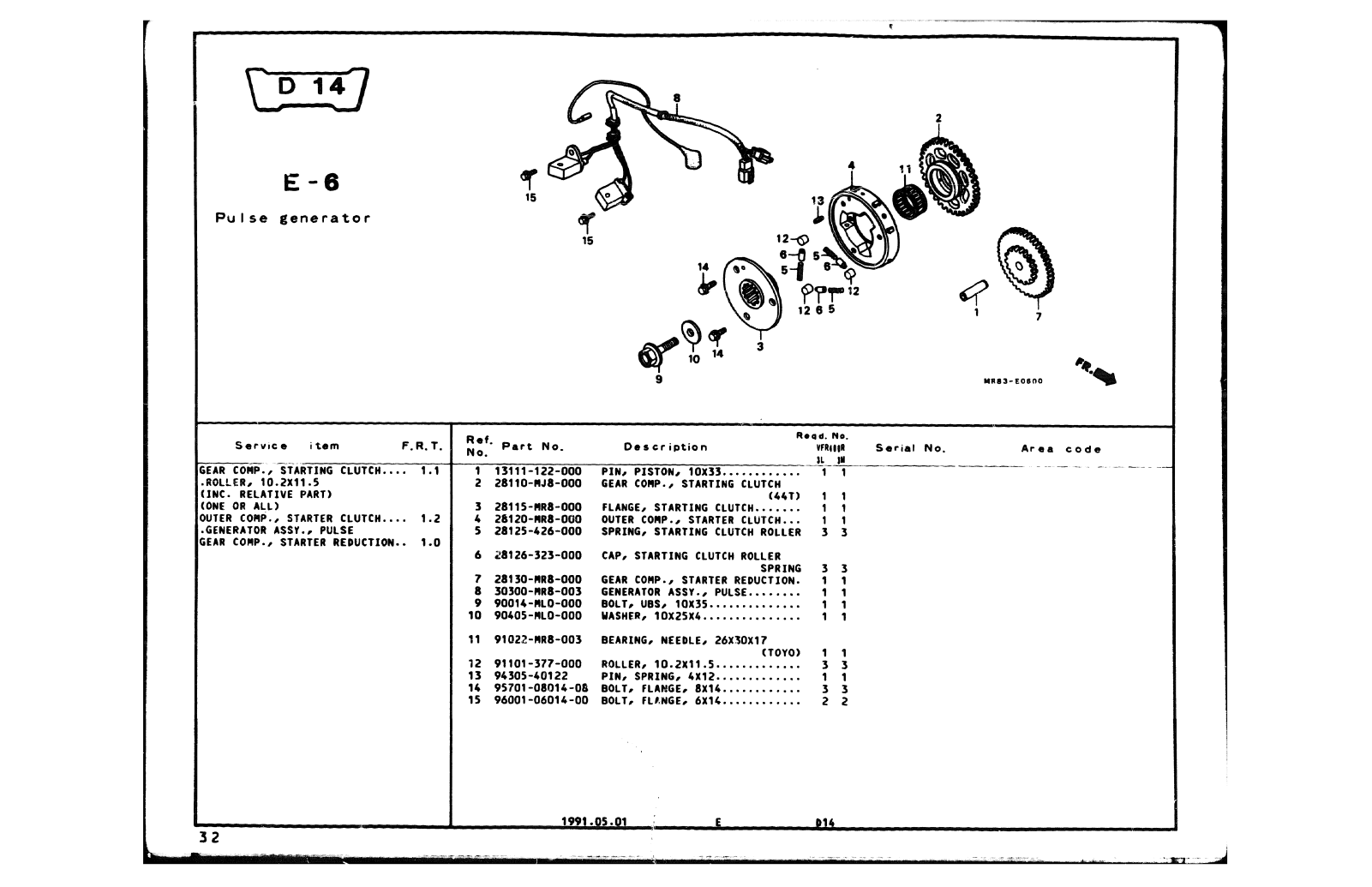

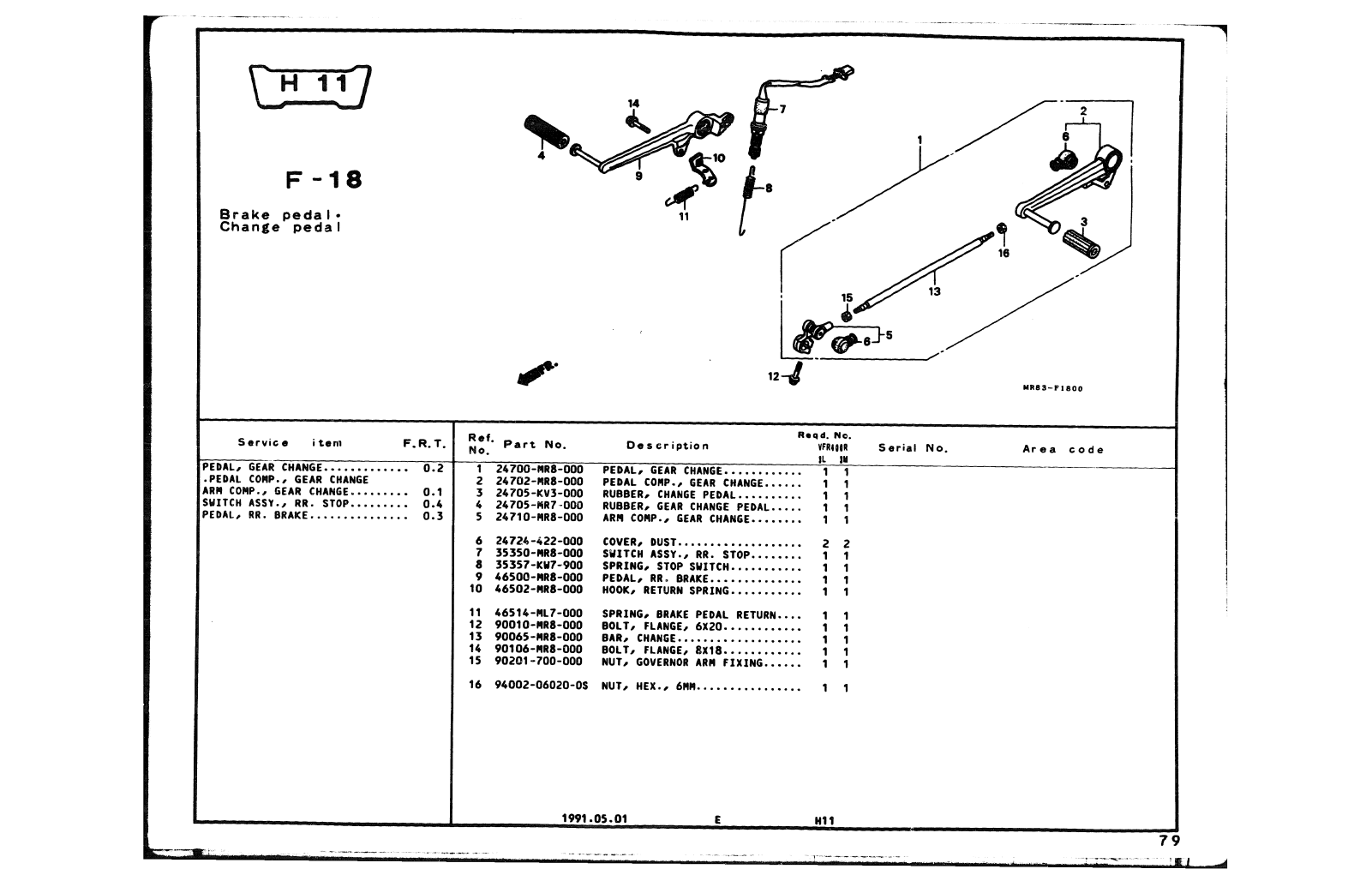

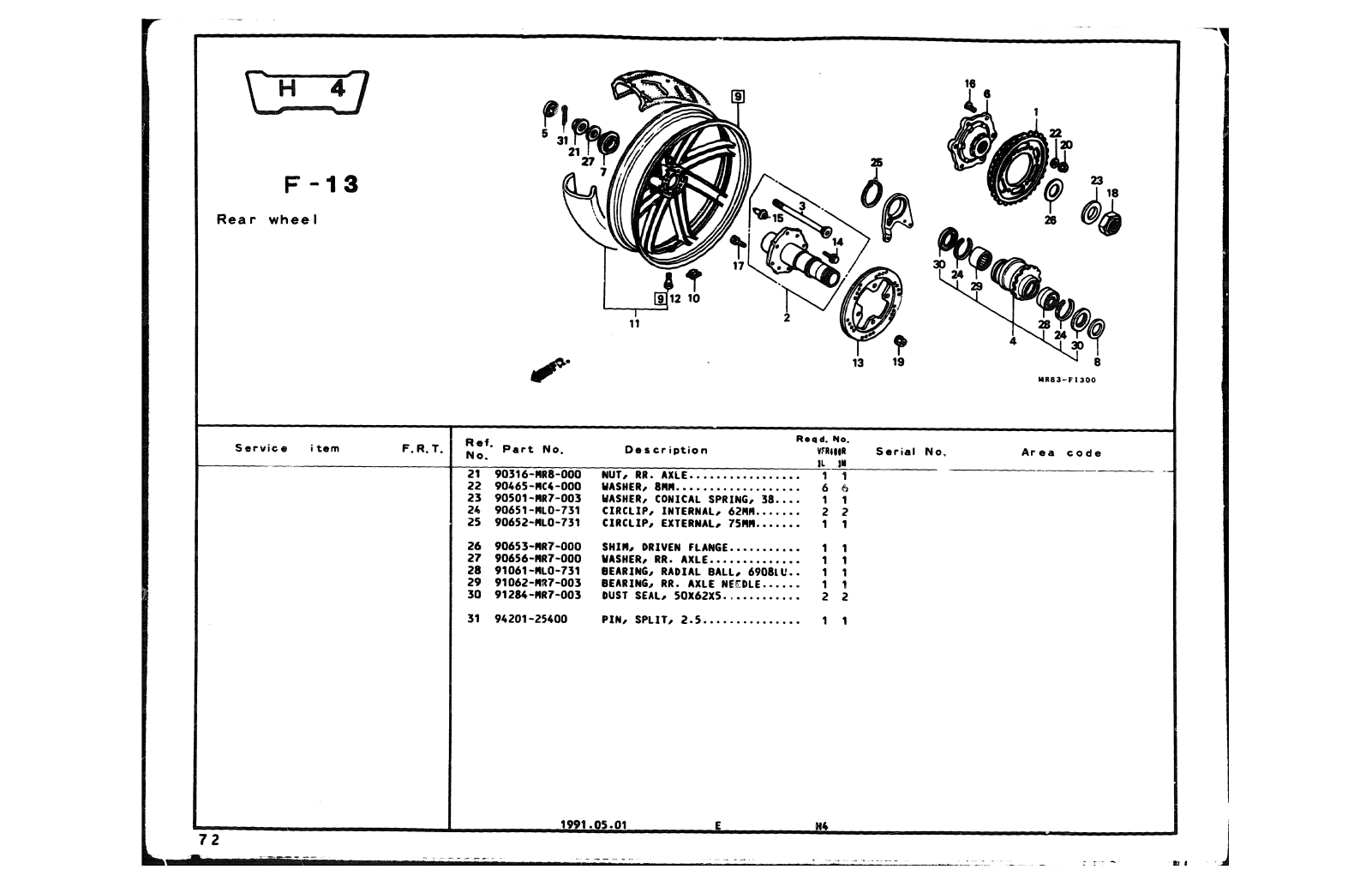

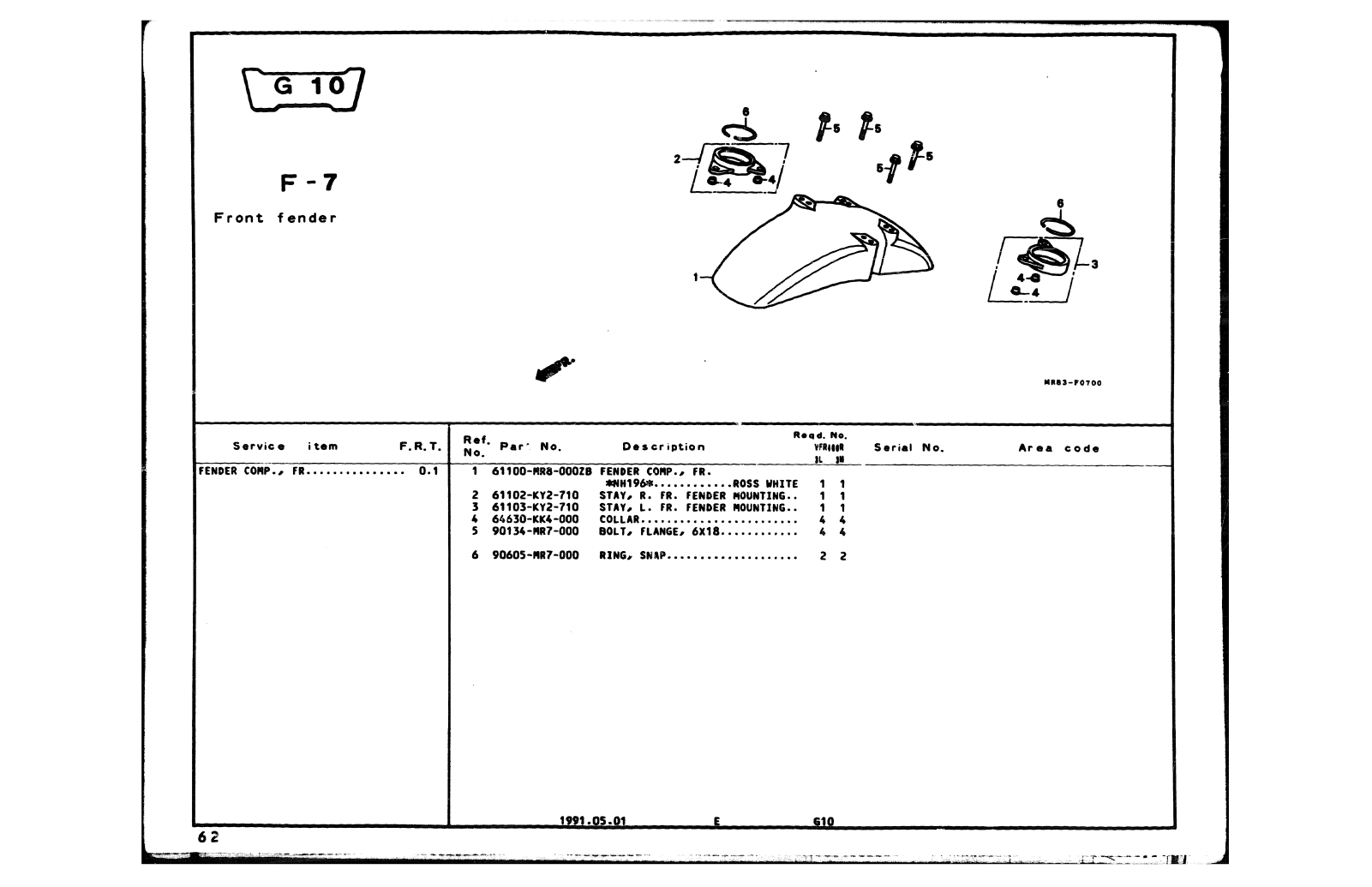

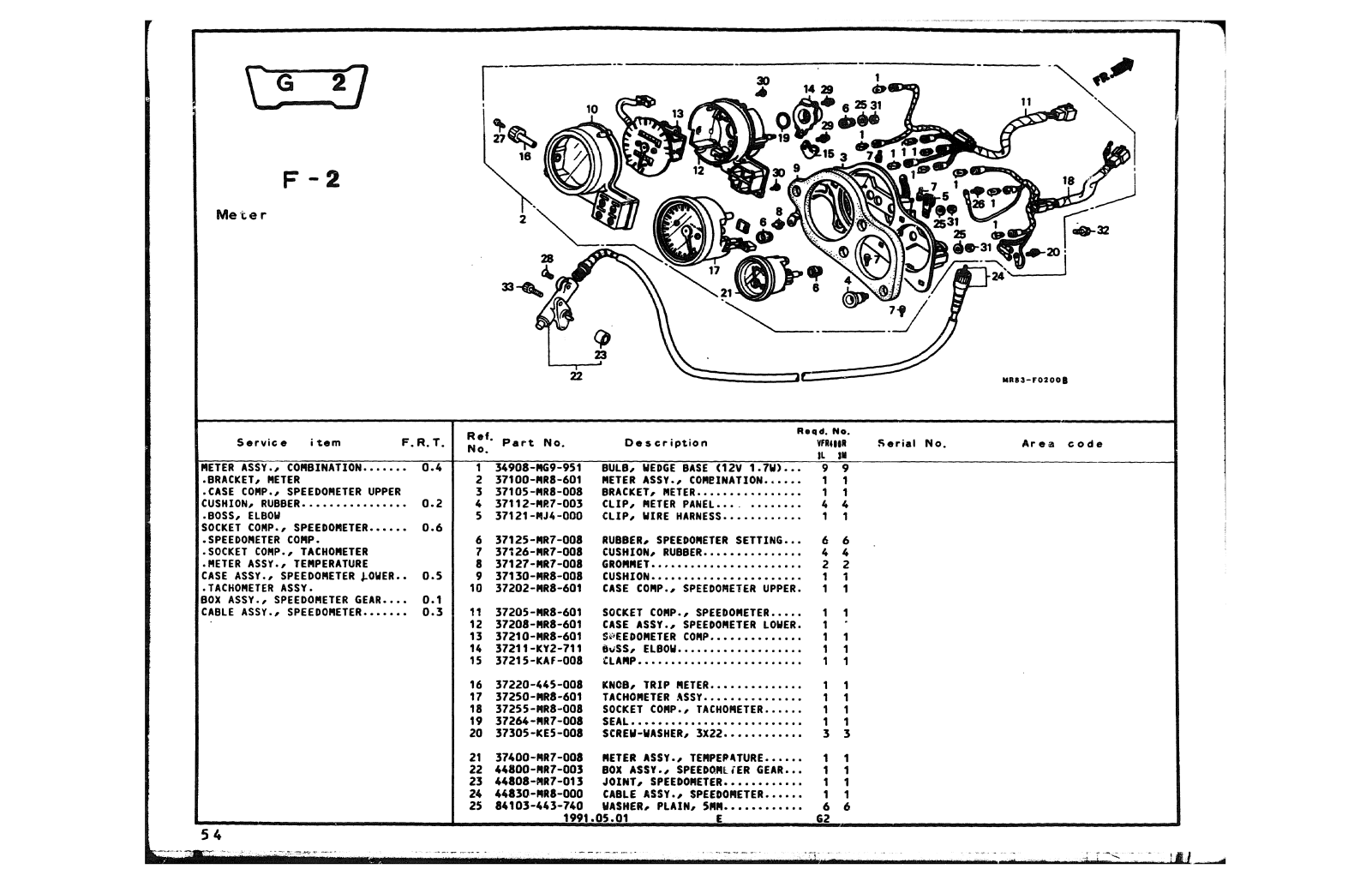

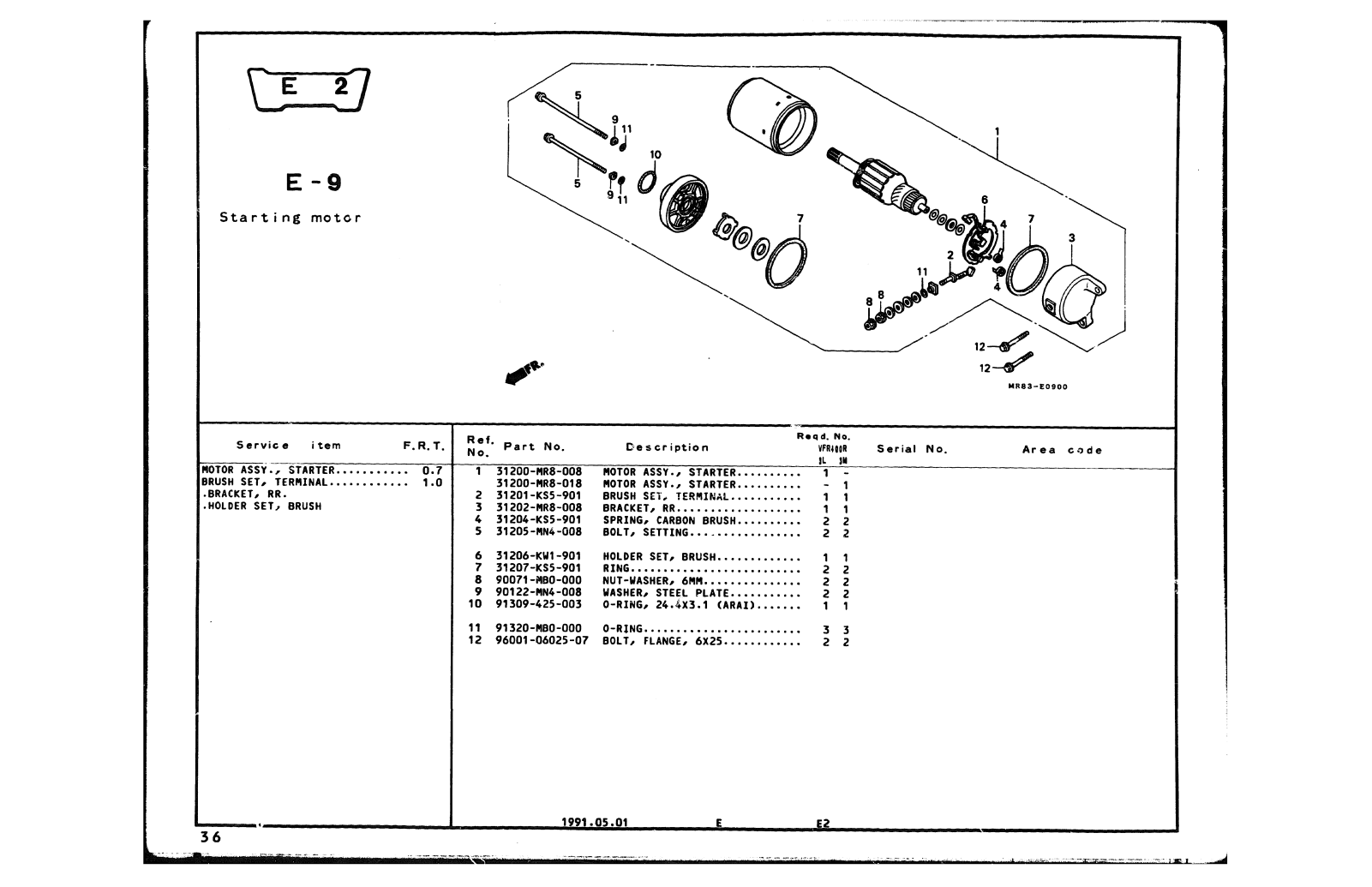

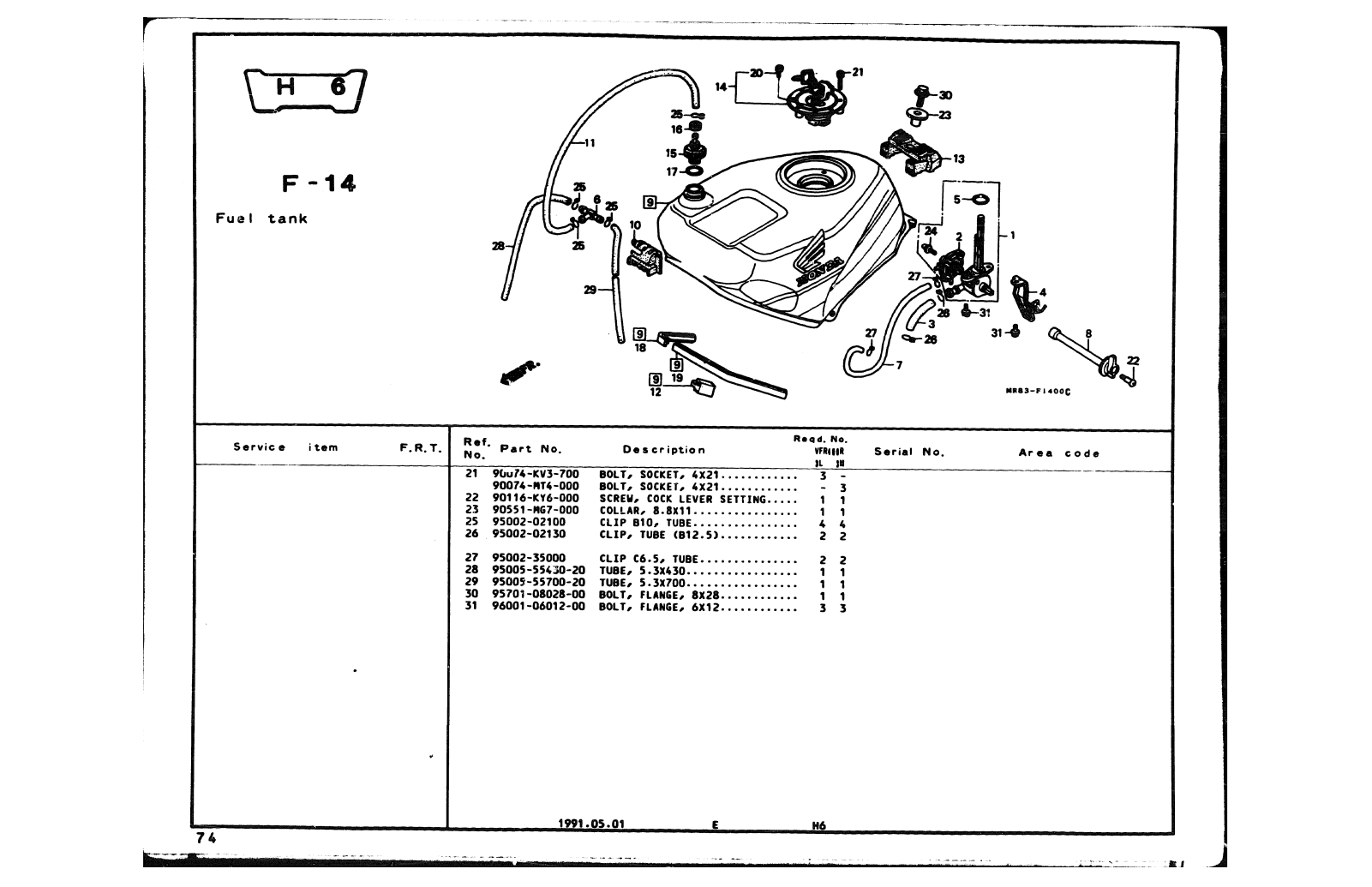

- Illustrated Diagrams: Block assembly parts may be easily identified from the exploded diagrams.
Frequently Asked Questions
- Q: What is a model of device?
A: The model is VFR400R.
- Q: What is the way to order parts of the device?
A: Orders for replacement parts must be based upon the catalogue number and number stamped against that part.
- Q: Where will I get the color code of the device?
A: The color codes are listed in the parts catalogue, NH1 for Black, NH196 Ross White.
- Q: What are the size specifications provided for the parts?
A: Except for some components such as tires, every other parameter is expressed in millimeters.
- Q: What considerations are made when determining a Flat Rate Time (F.R.T.) to be Charged?
A: The flat rates provide G.O.L.D. users with a standard reference time per service offered and for servicing, it is rounded to one tenth of an hour.
