HONDA Odyssey 2011 User Manual

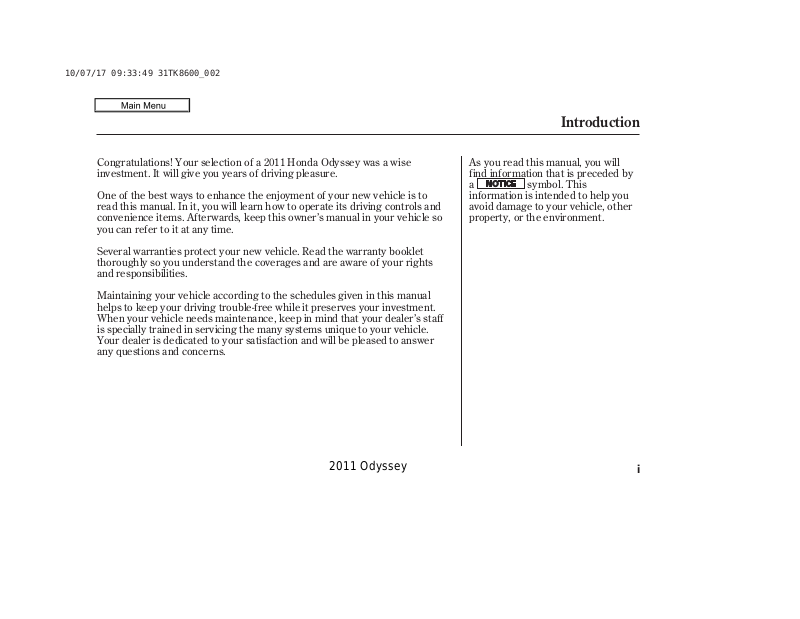

Introduction
2011 Odyssey
Congratulations! Your selection of a 2011 Honda Odyssey was a wise investment. It will give you years of driving pleasure.
One of the best ways to enhance the enjoyment of your new vehicle is to read this manual. In it, you will learn how to operate its driving controls and convenience items. Afterwards, keep this owner’s manual in your vehicle so youcanrefertoitatanytime.
Several warranties protect your new vehicle. Read the warranty booklet thoroughly so you understand the coverages and are aware of your rights and responsibilities.
Maintaining your vehicle according to the schedules given in this manual helps to keep your driving trouble-free while it preserves your investment. When your vehicle needs maintenance, keep in mind that your dealer’s staff is specially trained in servicing the many systems unique to your vehicle. Your dealer is dedicated to your satisfaction and will be pleased to answer any questions and concerns.
As you read this manual, you will find information that is preceded by a symbol. This information is intended to help you avoid damage to your vehicle, other property, or the environment.
i
Introduction
2011 Odyssey
California Proposition 65 Warning
WARNING:
defects or other reproductive harm.
Event Data Recorders
This vehicle is equipped wit h one or more devices commonly referred to as ev ent dat a recorders. T hese devices record front seat belt use, f ront passenger seat occupancy, airbag deployment data, and the f ailure of any airbag system component.
except as legally required or with the permission of the vehicle owner.
Service Diagnostic Recorders This vehicle is equipped with service-related devices that record information about powertrain performance. The data can be used to verify emissions law requirements and/or help technicians diagnose and solve service problems. It may also be combined with data from other sources for research purposes, but it remains confidential.
California Perchlorate Contamination Prevention Act The airbags, seat belt tensioners, and CR type batteries in this vehicle may contain perchlorate materials special handling may apply. See
ii
This product contains or emits chemicals known to the State of California to cause cancer and birth
This data belongs to the vehicle owner and may not be accessed by anyone else
www.dtsc.ca.gov/hazardouswaste/perchlorate/
AFewWordsAboutSafety
2011 Odyssey
Your safety, and the safety of others, is very important. And operating this vehicle safely is an important responsibility.
To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. This information alerts you to potential hazards that could hurt you or others.
Of course, it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle. You must use your own good judgement.
You will find this important safety information in a variety of forms, including:
Safety Labels Safety Messages
three signal words: , , or . These signal words mean:
Safety Headings
Safety Precautions.
Safety Section Instructions
This entire book is filled with important safety information please read it carefully.
on the vehicle.
preceded by a safety alert symbol and one of
DANGER WARNING CAUTION
You WILL be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be KILLED or SERIOUSLY HURT if you don’t follow instructions.
You CAN be HURT if you don’t follow instructions.
such as Important Safety Reminders or Important
such as Driver and Passenger Saf et y.
how to use this vehicle correctly and saf ely.
iii
Owner's Identification Form
2011 Odyssey
00X31-TK8-6001 © Amerian Honda Motor Co., Inc. - All Rights Reserved
Contents
(climate control, audio, steering wheel, rear entertainment, security, cruise control, and HomeLink
(fuel, vehicle break-in, and cargo loading)
(engine and transmission operation)
(minder, fluid checking, minor services, and vehicle storage)
(vehicle specifications, tires, and emissions controls)
................................................................................................................................................Index .I
Service Inf ormation Summary
(main controls)
(seat belts, SRS, and child protection)
...............................................................................................Your Vehicle at a Glance .3
............................................................Driver and Passenger Saf ety .5
(indicators, gauges, dashboard, and steering column)
.......................................................................Before Driving .539
.........................................................................................Driving .557
.................................................Maintenance .597
(flat tire, jump starting, overheating, and fuses)
(warranty and contact information)
(how to order)
..................................................................................Authorized Manuals (U.S. only) .707
(fluid capacities and tire pressures)
..........................................Instruments and Controls .61
)
..Features .217
........................................Taking Care of the Unexpected .653
..............................................Technical Information .685
..................Warranty and Customer Relations (U.S. and Canada only) . 703
1
Overview of Contents
2011 Odyssey
Contents
A convenient reference to the sections in this manual.
Your Vehicle at a Glance
A quick reference to the main controls in your vehicle.
Driver and Passenger Saf ety
Important information about the proper use and care of your vehicle’s seat belts, an overview of the supplemental restraint system, and valuable inf ormation on how to protect children with child restraints.
Instruments and Controls
Explains the purpose of each instrument panel indicator and gauge, and how to use the controls on the dashboard and steering column.
Features
How to operate the heating and cooling system/climate control system, the audio system, rear
entertainment and other
convenience features.
Before Driving
What gasoline to use, how to break­in your new vehicle, and how to load luggage and other cargo.
Driving
The proper way to start the engine, shift the transmission, and park; plus what you need to know if you’re planning to tow a trailer.
Maintenance
The Maintenance Minder shows you when you need to take your vehicle to the dealer for maintenance service. There is also a list of things to check and instructions on how to check them.
Taking Care of the Unexpected
This section covers several problems motorists sometimes experience, and details how to handle t hem.
TM
Technical Information
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada only)
A summary of the warranties covering your new vehicle, and how to contact us for any reason. Refer to your warranty manual for detailed information.
Authorized Manuals (U.S. only)
How to order manuals a nd other technical literature.
Index
Service Inf ormation Summary
A summary of the inf ormation you need when you pull up to the fuel pump.
2
Your Vehicle at a Glance
2011 Odyssey
DRIVER’S FRONT AIRBAG (P.9, 26)
BSI ALERT INDICATOR (P.582)
DRIVING POSITION MEMORY SYSTEM
(P.190)
MIRROR CONTROLS (P.198)
POWER DOOR LOCK MASTER SWITCH (P.155)
POWER WINDOW SWITCHES (P.192)
FUEL FILL DOOR RELEASE HANDLE (P.541)
HOOD RELEASE HANDLE (P.544)
: If equipped
INSTRUMENT PANEL INDICATORS GAUGES
(P.63)
SWITCH
(P.77)
PARKING BRAKE PEDAL
MOONROOF
(P.195)
HOMELINK BUTTONS
(P.483)
MIRROR CONTROL AUTO BUTTON (P.197)
HEATING AND COOLING SYSTEM CLIMATE CONTROL SYSTEM (P.225)
PASSENGER’S FRONT AIRBAG (P.9, 26)
BSI ALERT INDICATOR (P.582)
AUTOMATIC TRANSMISSION (P.561)
USB ADAPTER CABLE (P.288, 298, 385, 395)
ACCESSORY POWER SOCKETS
(P.199) (P.211)
(P.218)
Your Vehicle at a Glance
3
Your Vehicle at a Glance
2011 Odyssey
HEADLIGHT/TURN SIGNAL/ FOG LIGHTS
2
(P.136)
VEHICLE STABILITY ASSIST (VSA) OFF SWITCH (P.571)
BLIND SPOT INFORMATION SYSTEM (BSI) OFF SWITCH
2
(P.585)
POWER SLIDING DOOR SWITCH
2
(P.169)
POWER TAILGATE SWITCH
2
(P.163)
PARKING SENSOR SYSTEM SWITCH
2
(P.486)
VOICE CONTROL BUTTONS (P.496, 517)
**To use the horn, press the center pad of the steering wheel.1:
2 : If equipped
REMOTE AUDIO CONTROLS
2
STEERING WHEEL ADJUSTMENTS (P.143)
2
BLUETOOTH HANDSFREELINK BUTTONS
2
(P.496, 517)
CRUISE CONTROL BUTTONS (P.480)(P.411)
1
HORN
WINDSHIELD WIPERS/WASHERS (P.135)
SEAT HEATER SWITCHES
MULTI-INFORMATION BUTTONS
2
(P.83)
2
(P.189)
PASSENGER AIRBAG OFF INDICATOR (P.33)
HAZARD WARNING BUTTON (P.142)
AUDIO SYSTEM(P.234) REAR ENTERTAINMENT SYSTEM
2
(P.414, 442)
AUXILIARY INPUT JACK (P.412)
COOL BOX SWITCH
2
(P.209)
4
Driver and Passenger Saf ety
2011 Odyssey
This section gives you important information about how to protect yourself and your passengers. It shows you how to use seat belts. It explains how your airbags work. And it tells you how to properly restrain infants and children in your vehicle.
.........Important Safety Precautions . 6
.......Your Vehicle’s Safety Features . 7
.......................................Seat Belts . 8
...........................................Airbags . 9
.........Protecting Adults and Teens . 11
.....1. Close and Lock the Doors . 11
...........2. Adjust the Front Seats . 12
............3. Adjust the Seat-Backs . 13
...4. Adjust the Head Restraints . 14
5. Fasten and Position the Seat
.....................................Belts . 15
6. Maintain a Proper Sitting
................................Position . 17
.....Advice for Pregnant Women . 18
...Additional Safety Precautions . 18
Additional Information About Your
.................................Seat Belts . 20
..Seat Belt System Components . 20
......................Lap/Shoulder Belt . 21
Automatic Seat Belt
.............................Tensionners . 22
...............Seat Belt Maintenance . 23
Additional Information About Your
.....................................Airbags . 24
......Airbag System Components . 24
How Your F ront Airbags
.........................................Work . 26
...How Your Side Airbags Work . 30
How Your Side Curtain Airbags
.........................................Work . 31
..How the SRS Indicator Works . 32
How the Side Airbag Off
......................Indicator Works . 33
How the Passenger Airbag
...............Off Indicator Works . 33
.............................Airbag Service . 34
...Additional Safety Precautions . 35
Protecting Children General
All Children Must Be
................................Guidelines . 36
...............................Restrained . 36
All Children Should Sit in a Back
...........................................Seat . 37
The Passenger’s Front Airbag
If You Must Drive with
.....................Several Children . 39
If a Child Requires Close
..................................Attention . 39
Protecting Infants and Small
...................................Children . 41
.......................Protecting Infants . 41
.....................Selecting a Child Seat . 44
....................Installing a Child Seat . 45
...............................With LA T CH . 46
ith a Lap/Shoulder Belt . 50
..............................With a Tether . 52
...........Protecting Larger Children . 54
...............Checking Seat Belt Fit . 54
..................Using a Booster Seat . 55
When Can a Larger Child Sit in
.........................................Front . 56
.............Carbon Monoxide Hazard . 58

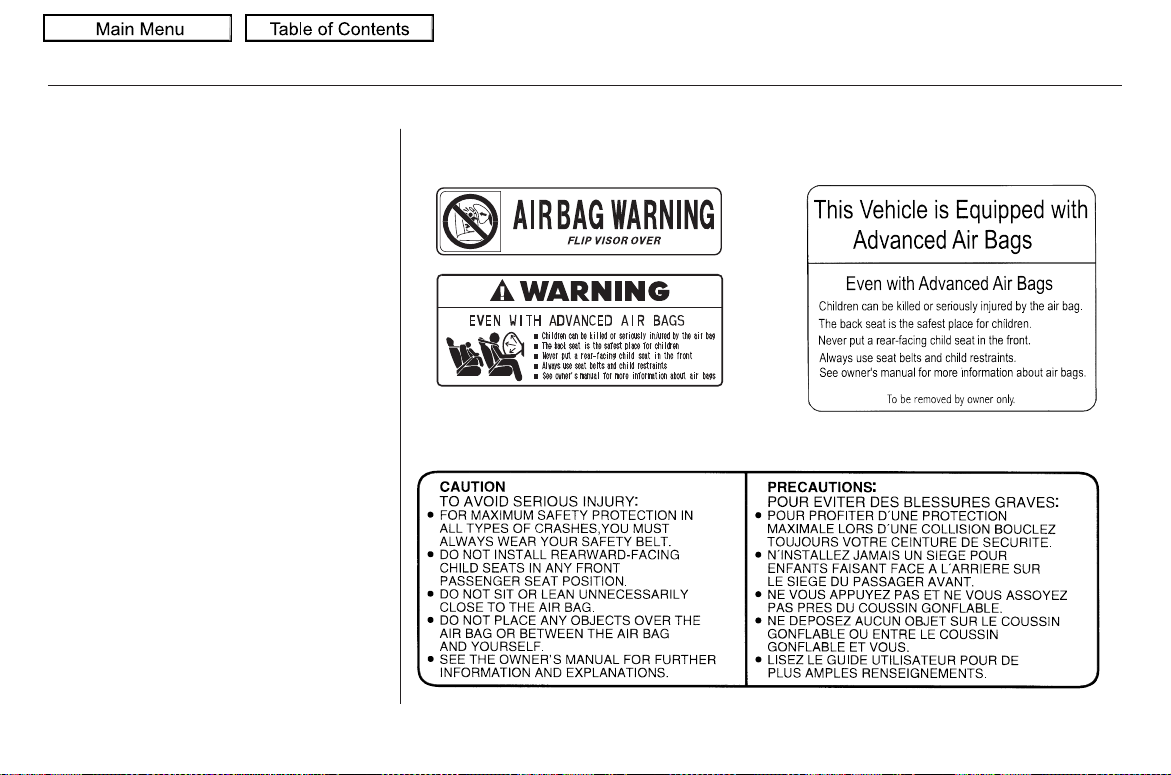

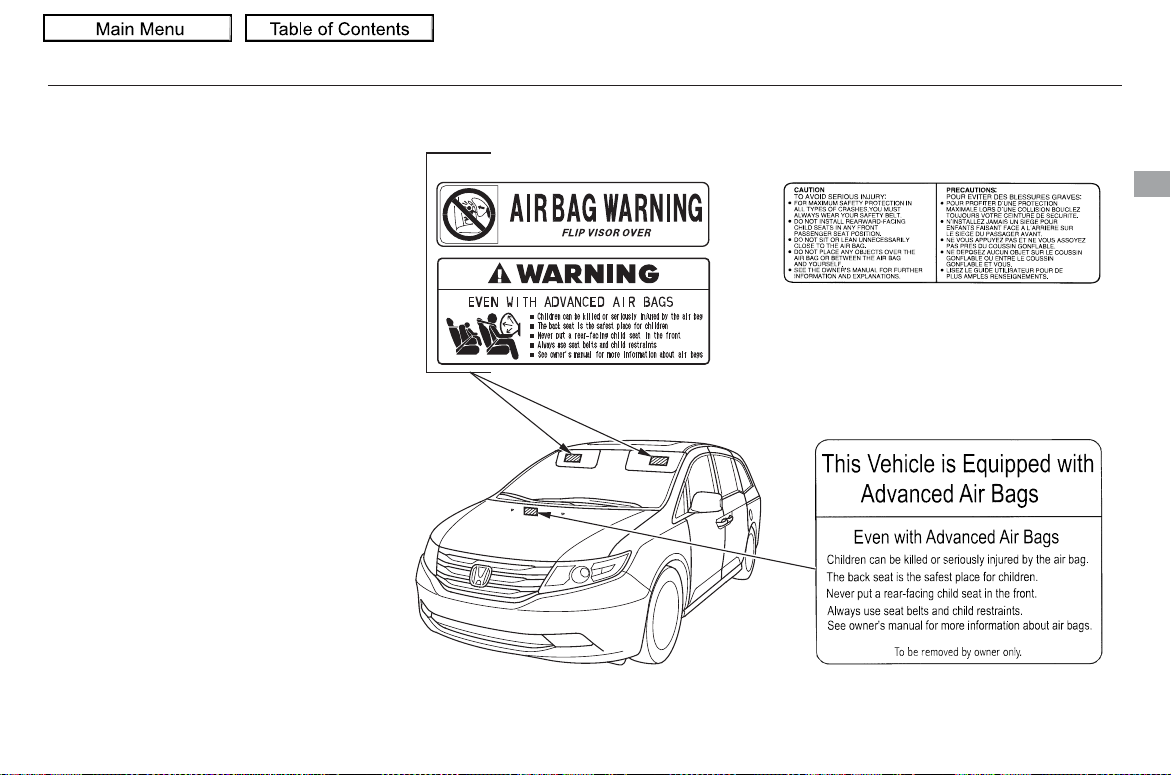

...................................Safety Labels . 59
.........Can Pose Serious Risks . 37
...Additional Safety Precautions . 39

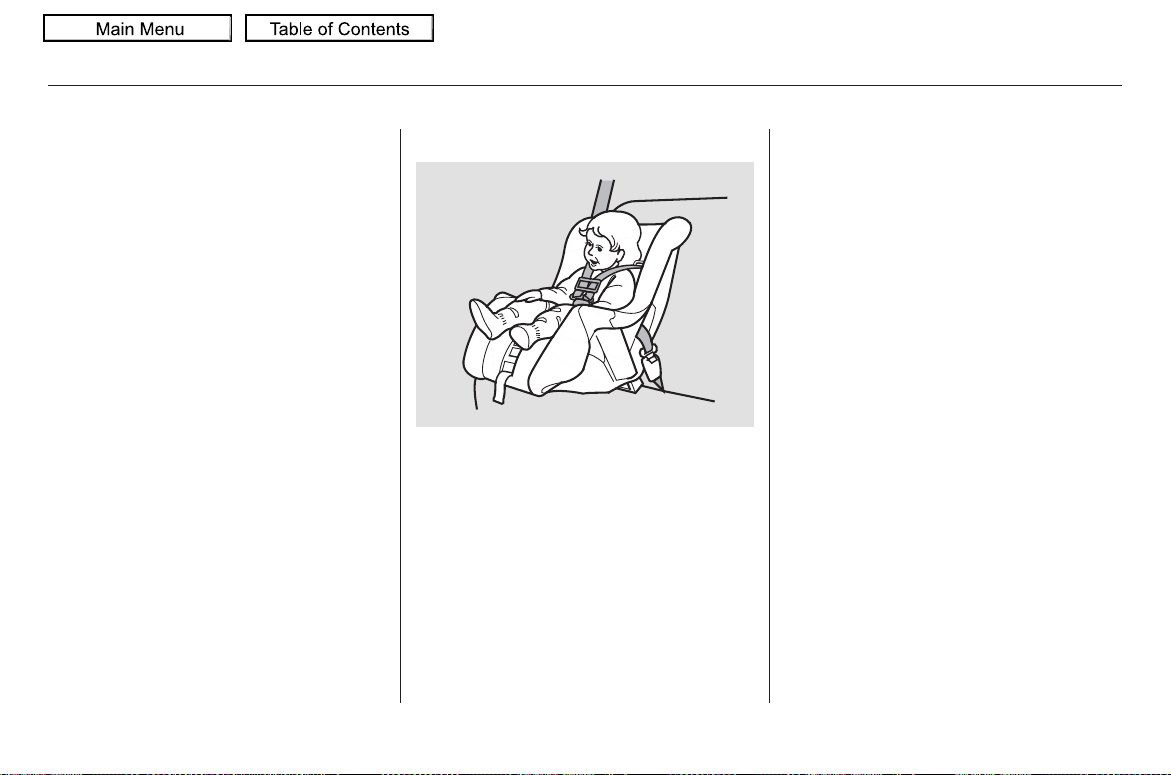

.........Protecting Small Children . 42
.........W
...Additional Safety Precautions . 57
Driver and Passenger Safety
5
Important Safety Precaut ions
2011 Odyssey
You’ll find many safety recommendations throughout this section, and throughout this manual. Therecommendationsonthispage are the ones we consider to be the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all types of collisions. Airbags are designed to supplement seat belts, not replace them. So even though your vehicle is equipped with airbags, make sure you and your passengers always wear your seat belts, and wear them properly (see page ).
Restrain All Children
Children age 12 and under should ride properly restrained in a back seat, not the front seat. Infants and smallchildrenshouldberestrained in a child seat. Larger children should use a booster seat and a lap/ shoulder belt until they can use the belt properly without a booster seat
(see pages ).
36 57
15
Be Aware of Airbag Hazards
While airbags can save lives, they can cause serious or fatal injuries to occupants who sit too close to them, or are not properly restrained. Infants, young children, and short adults are at the greatest risk. Be sure to follow all instructions and warnings in this manual.
Don’t Drink and Drive
Alcohol and driving don’t mix. Even one drink can reduce your ability to respond to changing conditions, and your reaction time gets worse with every additional drink. So don’t drink and drive, and don’t let your friends drink a nd drive, either.
Pay Appropriate Attention to the Task of Driving Saf ely
Engaging in mobile phone conversation or other activities that keep you from paying close attention
to the road, other vehicles and pedestrians could lead to a crash. Remember, situations can change quickly, and only you can decide when it is safe to divert attention away f rom driving.
Control Your Speed
Excessive speed is a major factor in crash injuries and deaths. Generally, the higher the speed, the greater the risk, but serious injuries can also occur at lower speeds. Never drive faster than is safe for current conditions, regardless of the maximum speed posted.
Keep Your Vehicle in Safe Condition
Having a tire blowout or a mechanical f ailure can be extremely hazardous. To reduce the possibility of such problems, check your tire pressures and condition frequently, and perform all regularly scheduled maintenance (see page ).
599
6
Your Vehicle’s Safety Features
2011 Odyssey
(8)
(10)
(7)
(6)
(9)
(5) (7)
(1)
(2)(2)
(12) (3)
(9)
(4)
(6)
(8)
(10)
(11)
(1) Safety Cage (2) Crush Zones (3) Seats and Seat-Backs (4) Head Restraints (5) Collapsible Steering Column (6) Seat Belts (7) Front Airbags (8) Side Airbags (9) Side Curtain Airbags (10) Door Locks (11) Front Seat Belt Tensioners (12) Occupant Position Detection
System (OPDS) Sensor
Your vehicle is equipped with many features that work together to protect you and your passengers during a crash.
Some features do not require any action on your part. These include a strong steel framework that forms a safety cage around the passenger compartment, front and rear crush zones, a collapsible steering column, and tensioners that tighten the front seat belts in a crash.
However, you and your passengers can’t take full advantage of these features unless you remain sitting in the correct position and
your seat belts
features can contribute to injuries if they are not used properly.
The following pages explain how you cantakeanactiveroleinprotecting yourself and your passengers.
. In fact, some safety
always wear
Driver and Passenger Safety
7
Your Vehicle’s Safety Features
2011 Odyssey
Seat Belts
Your vehicle is equipped with seat belts in all seating positions.
Your seat belt system also includes an indicator on the instrument panel and a beeper to remind you and your passengers to fasten your seat belts.
Why Wear Seat Belts
Seat belts are the single most effectivesafetydeviceforadultsand larger children. (Infants and smaller children must be properly restrained in child seats.)
Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.
In addition, most states and all Canadian provinces and territories require you to wear seat belts.
Not wearing a seat belt properly increases the chance of serious injury or death in a crash, even though your vehicle has airbags.
Be sure you and your passengers always wear seat belts and wear them properly.
When properly worn, seat belts:
Keep you connected to the vehicle so you can take advantage of the vehicle’s built-in safety features.
Help protect you in almost every type of crash, including:
frontal impacts
side impacts
rear impacts
rollovers
Help keep you from being thrown against the inside of the vehicle and against other occupants.
Keep you from being thrown out of the vehicle.
Help keep you in a good position should the airbags ever deploy. A good position reduces the risk of injury from an inflating airbag and allows you to get the best advantage from the airbag.
Of course, seat belts cannot completely protect you in every crash.Butinmostcases,seatbelts can reduce your risk of serious injury.
What you should do:
your seat belt, and make sure you wear it properly.
Always wear
8
Airbags
2011 Odyssey
Your Vehicle’s Safety Features
Driver and Passenger Safety
Your vehicle has a supplemental restraint system (SRS) with front airbags to help protect the heads and chests of the driver and a front seat passenger during a moderate to severe frontal collision (see page
for more information on how
26
your front airbags work).
Your vehicle also has side airbags to help protect the upper torso of the driver or a front seat passenger during a moderate to severe side impact (see page for more information on how your side airbags work).
30
In addition, your vehicle has side curtain airbags to help protect the heads of the driver, front passenger, and passengers in the outer rear seating positions during a moderate to severe side impact or rollover (see page for more information on how
31
your side curtain airbags work).
CONTINUED
9
Your Vehicle’s Safety Features
2011 Odyssey
The most important things you need to know about your airbags are:
Airbags do not replace seat belts.
They are designed to supplement the seat belts.
Airbags of f er no protection in rear collisions, or minor f rontal or side collisions.
Airbags can pose serious hazards.
To do their job, airbags must inflate with tremendous force. So while airbags help save lives, they can cause minor injuries or more serious or even fatal injuries if occupants are not properly restrained or sitting properly.
What you should do:
your seat belt properly, and sit upright and as far back from the steering wheel as possible while allowing full control of the vehicle. A front passenger should move their seat as far back from t he dashboard as possible.
Always wear
The rest of this section gives more detailed information about how you can maximize your saf ety.
Remember, however, that no safety system can prevent all injuries or deaths that can occur in a severe crash, even when seat belts are properly worn and the airbags deploy.
10
Protecting Adults and Teens
2011 Odyssey
Introduction Close and Lock the Doors1.
The following pages provide instructions on how to properly protect the driver, adult passengers, and teenage children who are large enough and mature enough to drive or ride in the front.
See pages for important guidelines on how to properly protect infants, small children, and larger children who ride in your vehicle.
36 57
After everyone has entered the vehicle, be sure the doors and the tailgate are closed and locked.
when any door or the tailgate is not tightly closed.
On Touring models
Driver and Passenger Safety
Your vehicle has a door and tailgate open indicator on the instrument panel to indicate
The door and tailgate open indicator appears on the multi-information display to indicate when a specific door or the tailgate is not tightly closed.
CONTINUED
11
Protecting Adults and Teens
2011 Odyssey
When one or more doors are open, the ‘‘DOOR OPEN’’ message will come on.
When the tailgate is not tightly closed, the ‘‘TAILGATE OPEN’’ message will come on.
When both tailgate and one or more doors are not tightly closed, the ‘‘DOOR & TAILGATE OPEN’’ message will come on.
Locking the doors and the tailgate reduces the chance of someone being thrown out of the vehicle during a crash, and it helps prevent passengers from accidentally opening a door or the tailgate and falling out.
Locking the doors and the tailgate also helps prevent an outsider from unexpectedly opening a door or the tailgate when you come to a stop.
See page for how to lock the doors and the t ailgate, and page
75
open indicator works.
Except Touring models
This vehicle has auto door locking/ unlocking features. See page for how to set them.
On Touring models
This vehicle has auto door locking/ unlocking features. See pages
155
for how the door and tailgate
156
and for how to set them.
122120
Adjust the Front Seats2.
Adjust the driver’s seat as far to the rear as possible while allowing you to maintain f ull control of the vehicle. Have a front passenger adjust their seat as far to the rear as possible.
12
Protecting Adults and Teens
2011 Odyssey
If you sit too close to the steering wheel or dashboard, you can be seriously injured by an inflating front airbag, or by striking the steering wheel or dashboard.
The National Highway Traffic Safety Administration and Transport Canada recommend that drivers allow at least 10 inches (25 cm) between the center of the steering wheel and the chest. In addition to adjusting the seat, you can adjust the steering wheel up and down, and in and out (see page ).
If you cannot get far enough away from the steering wheel and still reach the controls, we recommend that you investigate whether some type of adaptive equipment may help.
143
Sitting too close to a front airbag can result in serious injury or death if the front airbags inflate.
Always sit as far back from the front airbags as possible.
After you adjust a manual seat, rock it back and forth to make sure the seat is locked in position.
See page for how to adjust a front seat (power adjustment) and page for a manual adjustment.
175
176
Adjust the Seat-Backs3.
Driver and Passenger Safety
Adjust the driver’s seat-back to a comfortable, upright position, leaving ample space between your chest and the airbag cover in the center of the steering wheel.
Passengers with adjustable seat­backs should also adjust their seat­back to a comfortable, upright position.
CONTINUED
13
Protecting Adults and Teens
2011 Odyssey
Adjust the Head Restraints4.
Reclining the seat-back too far can result in serious injury or death in a crash.
Adjust the seat-back to an upright position, and sit well back in the seat.
Reclining a seat-back so that the shoulder part of the belt no longer rests against the occupant’s chest reduces the protective capability of the belt. It also increases the chance of sliding under the belt in a crash and being seriously injured. The farther a seat-back is reclined, t he greater the risk of injury.
See pages and for how to adjust the seat-backs.
14
175 177
the center of the back of your head rests against the center of the restraint.
Have passengers adjust their head restraints properly as well. Taller persons should adjust their restraint as high as possible.
Improperly positioning head restraints reduces their effectiveness and you can be seriously injured in a crash.
Make sure head restraints are in place and positioned properly before driving.
Properly adjusted head restraints will help protect occupants from whiplash and other crash injuries.Adjust the driver’s head rest raint so
See page for how to adjust the head restraints and how the driver’s and front passenger’s active head restraints work.
179
Fasten and Position the Seat
2011 Odyssey
5. Belts
Insert the latch plate into the buckle, then tug on the belt to make sure the belt is securely latched. Check that the belt is not twisted, because a twisted belt can cause serious injuries in a crash.
Protecting Adults and Teens
This spreads t he forces of a crash over the strongest bones in your upper body.
The center seating position of the third row has a detachable seat belt that can be unlatched and retracted into the ceiling to allow the seat to be folded down or for the belt to be stored out of reach of a child. See pages and f or how to unlatch and relatch the seat belt.
188187
Driver and Passenger Safety
Position the lap part of the belt as low as possible across your hips, then pull up on the shoulder part of the belt so the lap part fits snugly. This lets your strong pelvic bones take the force of a crash and reduces the chance of internal injuries.
If necessary, pull up on the belt again to remove any slack, then check that the belt rests across the center of your chest and over your shoulder.
On all models except LX
The multi-functional center seat that canbeinstalledinthecenterseating position of the second row also has a detachable seat belt.
CONTINUED
15
Protecting Adults and Teens
2011 Odyssey
Improperly positioning the seat belts can cause serious injury or death in a crash.
Make sure all seat belts are properly positioned before driving.
If the seat belt t ouches or crosses your neck, or if it crosses your arm instead of your shoulder, you need to adjust the seat belt anchor height.
RELEASE BUTTONS
The front seats and second row seats have adjustable seat belt anchors. T o adjust the height of an anchor, squeeze the two release buttons, and slide the anchor up or down as needed (it has four positions).
Never place the shoulder portion of a lap/shoulder belt under your arm or behind your back.
This could cause
very serious injuries in a crash.
If a seat belt does not seem to work properly, it may not protect the occupant in a crash.
No one should sit in a seat with an inoperative seat belt.
Using a seat belt that is not working properly can result in serious injury or death. Have your dealer check the belt as soon as possible.
See page for additional
20
information about your seat belts and how to take care of them.
16
Protecting Adults and Teens
2011 Odyssey
Maintain a Proper Sitting
6. Position
After all occupants have adjusted their seats and head restraints, and put on their seat belts, it is very important that they continue to sit upright, well back in their seats, with their feet on the floor, until the vehicle is safely parked and the engine is off.
Sitting improperly can increase the chance of injury during a crash. For example, if an occupant slouches, lies down, turns sideways, sits forward, leans forward or sideways, or puts one or both f eet up, the chance of injury during a crash is greatly increased.
In addition, an occupant who is out of position in the front seat can be seriously or fatally injured in a crash by st riking interior parts of the vehicle or being struck by an inflating front airbag.
Sitting improperly or out of position can result in serious injury or death in a crash.
Always sit upright, well back in the seat, with your feet on the floor.
Driver and Passenger Safety
17
Protecting Adults and Teens
2011 Odyssey
Advice f or Pregnant Women Additional Safety Precautions
If you are pregnant, the best way to protect yourself and your unborn child when driving or riding in a vehicle is t o always wear a seat belt, and keep the lap part of the belt as low as possible across the hips.
When driving, remember to sit upright and adjust the seat as far back as possible while allowing full control of the vehicle. When riding as a front passenger, adjust the seat as far back as possible.
This will reduce the risk of injuries to both you and your unborn child that can be caused by a crash or an inflating front airbag.
Each time you have a checkup, ask your doctor if it’s okay for you to drive.
Never let passengers ride in the cargo area or on top of a f olded­down back seat.
could be very seriously injured in a crash.
Passengers should not stand up or change seats w hile the v ehicle is moving.
wearing a seat belt during a crash or emergency stop can be thrown against the inside of the vehicle, against other occupants, or out of the vehicle.
Two people should never use the same seat belt.
could be very seriously injured in a crash.
A passenger who is not
If they do, they
If they do, they
18
Protecting Adults and Teens
2011 Odyssey
Do not put any accessories on seat belts.
Devices intended to improve occupant comfort or reposition the shoulder part of a seat belt can reduce the protective capability of thebeltandincreasethechanceof serious injury in a crash.
Do not place hard or sharp objects between yourself and a f ront airbag.
Carrying hard or sharp objects on your lap, or driving with a pipe or other sharp object in your mouth, can result in injuries if your front airbag inflates.
Keep your hands and arms away from the airbag covers.
If your hands or arms are close to an airbag cover, they could be injured if the airbag inflates.
Do not attach or place objects on the f ront airbag covers.
Objects on the covers marked ‘‘SRS AIRBAG’’ could interf ere with the proper operation of the airbags or be propelled inside the vehicle and hurt someone if the airbags inflate.
Do not attach hard objects on or near a door.
If a side airbag or a side curtain airbag inflates, a cup holder or other hard object attached on or near the door could be propelled inside the vehicle and hurt someone.
Do not cover or replace f ront seat­back covers without consulting your dealer.
Improperly replacing or covering front seat-back covers can prevent your side airbags from inflating during a side impact.
Driver and Passenger Safety
19
Additional Information About Your Seat Belts
2011 Odyssey
Seat Belt System Components
Your seat belt system includes lap/ shoulder belts in all seating positions. The front seat belts are also equipped with automatic seat belt tensioners.
The seat belt system
includes an indicator on the instrument panel and a beeper to remind you and your passengers to fasten your seat belts.
This system monitors the front seat belts. If you turn the ignition switch to the ON (II) position before your seat belt is fastened, the beeper will sound and the indicator will flash. If your seat belt is not fastened before the beeper stops, the indicator will stop flashing but remain on.
If a front passenger does not fasten their seat belt, the indicator will come on about 6 seconds af ter the ignition switch is turned to the ON (II) position.
If either the driver or a f r ont passenger does not fasten their seat belt while driving, the beeper will sound and the indicator will flash again at regular intervals.
On Touring models
You will also see a ‘‘FASTEN SEAT BELT’’ or ‘‘FASTEN PASSENGER SEAT BELT’’ message on the multi­information display (see page ).
When no one is sitting in the front passenger’s seat, or a child or small adult is riding there, the indicator should not come on and the beeper should not sound.
90
20
Additional Information About Your Seat Belts
2011 Odyssey
If the indicator comes on or the beeper sounds when the driver’s seat belt is latched and there is no front seat passenger and no items on the front seat, something may be interfering with the monitoring system. Look for and remove:
Any items under the front passenger’s seat.
Any object(s) hanging on the seat or in the seat-back pocket.
Any objects, such as a folded-down second row seat, that is touching the rear of the seat-back.
If no obstructions are found, have your vehicle checked by a dealer.
Lap/Shoulder Belt
The lap/shoulder belt goes over your shoulder, across your chest, and across your hips.
To fasten the belt, insert the latch plate into the buckle, then tug on the belt to make sure the buckle is latched (see page for how to properly position the belt).
To unlock the belt, press the red PRESSbuttononthebuckle.Guide the belt across your body so that it retracts completely. After exiting the vehicle, be sure the belt is out of the way and will not get closed in the door.
15
All seat belts have an emergency locking retractor. In normal driving, the retractor lets you move freely in your seat while it keeps some tension on the belt. During a collision or sudden stop, the retractor automatically locks the belt to help restrain your body.
The seat belts in all positions except the driver’s have a lockable retractor that must be activated to secure a child seat (see page ).
50
CONTINUED
Driver and Passenger Safety
21
Additional Information About Your Seat Belts
2011 Odyssey
If the shoulder part of the belt is pulled all the way out, the lockable retractor will activate. The belt will retract, but it will not allow the passenger to move f reely.
To deactivate the lockable retractor, unlatch the buckle and let the seat belt fully retract. To refasten the seat belt, pull it out only as f ar as needed.
Allowing a child to play with a seat belt or wrap one around their neck can result in serious injury or death.
Instruct children not to play with any seat belt and make sure any unused seat belt a child can reach is buckled, fully retracted, and locked.
The lap/shoulder belt in the center seating positions on the second (except LX models) and third row seats are equipped with a detachable seat belt that has t wo parts: a small latch plate and an anchor buckle.
The detachable seat belt should normally be latched whenever the seat-backs are in an upright position. For more information about the detachable seat belt, see page .187
Automatic Seat Belt Tensioners
For added protection, the front seat belts are equipped with automatic seat belt tensioners. When activated, the tensioners immediately tighten the belts to help hold the driver and a front passenger in position.
22
Additional Information About Your Seat Belts
2011 Odyssey
The tensioners can be activated during a collision in which the front airbags . In this case, the airbags would not be needed, but the additional restraint could be helpful.
If the tensioner is activated, the SRS indicator comes on and the tensioner must be replaced.
do not deploy
Seat Belt Maintenance
For safety, you should check the condition of your seat belts regularly.
Pull each belt out fully, and look for frays, cuts, burns, and wear. Check that the latches work smoothly and the belts retract easily. If a belt does not retract easily, cleaning the belt may correct the problem (see page
). Any belt that is not in good
636
condition or working properly will not provide good protection and should be replaced as soon as possible.
Honda provides a limited warranty on seat belts. See your
Warranty Information
details.
Honda
booklet for
If a seat belt is worn during a crash, it must be replaced by the dealer. A belt that has been worn during a crash may not provide the same level of protection in a subsequent crash.
The dealer should also inspect the anchors for damage and replace them if needed. If the automatic seat belt tensioners activate during a crash, they must be replaced.
Not checking or maintaining seat belts can result in serious injury or death if the seat belts do not work properly when needed.
Check your seat belts regularly and have any problem corrected as soon as possible.
Driver and Passenger Safety
23
Additional Information About Your Airbags
2011 Odyssey
Airbag System Components
(1) Driver’s Front Airbag (2) Passenger’s Front Airbag (3) Control Unit/Rollover Sensor (4) Front Seat Belt Tensioners (5) Side Airbags (6) Side Curtain Airbags (7) Driver’s Seat Position Sensor (8) Front Passenger’s Weight Sensors (9) Front Impact Sensors (10) Passenger Airbag Off Indicator (11) Side Impact Sensors (12) Occupant Position Detection System
(OPDS) Sensors
(13) Front Passenger’s Weight Sensors Control Unit/
OPDS Sensors Control Unit (14) Rear Safing Sensor (15) Supplemental Restraint System (SRS) Indicator
24
(15)
(1)
(3)
(5)
(4)
(7)
(9)
(11)
(4)
(10)
(11)
(2)
(13)(8)
(12)
(5)
(4)
(6)
(11)
(14)
Additional Information About Your Airbags
2011 Odyssey
Your airbag system includes:
Two SRS (supplemental restraint system) front airbags. The driver’s airbag is stored in the center of the steering wheel; the front passenger’sairbagisstoredinthe dashboard. Both are marked ‘‘SRS AIRBAG’’ (see page ).
Two side airbags, one for the driver and one for a front passenger. The airbags are stored in the outer edges of the seat­backs. Both are marked ‘‘SIDE AIRBAG’’ (see page ).
26
30
Two side curtain airbags, one for each side of the vehicle. The airbags are stored in the ceiling, above the side windows. The front and rear pillars are marked ‘‘SIDE CURTAIN AIRBAG’’ (see page
Automatic f ront seat belt tensioners (see page ).
Sensors that can detect a moderate to severe front impact, side impact, or if your vehicle is about to rollover.
Sensors that can detect whether a child is in the passenger’s side airbag path and signal the control unit to turn the airbag off (see
31
page ).
22
31
Sensors that can detect whether the driver’s seat belt and the front passenger’s seat belt are latched or unlatched (see page ).
).
A driver’s seat position sensor that monitors the distance of the seat from the front airbag. If t he seat is too far f orward, the airbag will inflate with less force (see page
Weight sensors that monitor the weight on the front passenger’s seat. If the weight is about 65 lbs (29 kg) or less (the weight of an infant or small child), the passenger’s f ront airbag will be turned off (see page ).
20
29
CONTINUED
29
Driver and Passenger Safety
).
25
Additional Information About Your Airbags
2011 Odyssey
A rollover sensor that can detect if your vehicle is about to roll over and signal the control unit to deploy both side curtain airbags (see page ).
A sophisticated electronic system that continually monitors and records information about the sensors, the control unit, the airbag activators, the seat belt tensioners, and driver and front passenger seat belt use when the ignition switch is in the ON (II) position.
An indicator on the instrument panel that alerts you to a possible problem with your airbag system components (see page ).3232
An indicator on the instrument panel that alerts you that the passenger’s side airbag has been turned off (see page ).
An indicator on the dashboard that alerts you that the passenger’s front airbag has been turned off (see page ).
Emergency backup power in case your vehicle’s electrical system is disconnected in a crash.
33
33
How Your Front Airbags Work
If you ever have a moderate to severe frontal collision, sensors will detect the vehicle’s rapid deceleration.
If the rate of deceleration is high enough, the control unit will inflate the driver’s and front passenger’s airbags, at the time and with the force needed.
26
Additional Information About Your Airbags
2011 Odyssey
During a frontal crash, your seat belt restrains your lower body and torso, and the airbag helps protect your head and chest.
Although both airbags normally inflate within a split second of each other, it is possible f or only one airbag to deploy.
This can happen if the severity of a collision is at the margin, or threshold, that determines whether or not the airbags will deploy. In such cases, the seat belt will provide sufficient protection, and the supplemental protection offered by the airbag would be minimal.
Only the driver’s airbag can deploy if there is no passenger in the front seat, or if the advanced airbag system has turned the passenger’s airbag of f (see page ).
33
After inflating, the front airbags will immediately deflate, so they won’t interfere with the driver’s visibility, or the ability to steer or operate other controls.
The total time for inflation and deflation is one-tenth of a second, so fast that most occupants are not aware that the airbags deployed until they see them lying in their laps.
After a crash, you may see what looks like smoke. This is actually powder from the airbag’s surface. Although the powder is not harmful, people with respiratory problems mayexperiencesometemporary discomfort. If this occurs, get out of the vehicle as soon as it is safe to do so.
CONTINUED
Driver and Passenger Safety
27
Loading...
+ 692 hidden pages
