OWNER’S MANUAL
AFRICA TWIN
This manual should be considered a permanent part of the vehicle
and should remain with the vehicle when it is resold.
This publication includes the latest production information available
before printing. Honda Motor Co., Ltd. reserves the right to make
changes at any time without notice and without incurring any
obligation.
No part of this publication may be reproduced without written
permission.
The vehicle pictured in this owner’s manual may not match your
actual vehicle.
© 2019 Honda Motor Co., Ltd.
Welcome
Congratulations on your purchase of a new
Honda vehicle. Your selection of a Honda
makes you part of a worldwide family of
satisfied customers who appreciate Honda's
reputation for building quality into every
product.
To ensure your safety and riding pleasure:
● Read this owner's manual carefully.
● Follow all recommendations and
procedures contained in this manual.
● Pay close attention to safety messages
contained in this manual and on the
vehicle.
● The following codes in this manual
indicate each country.
● The illustrations here in are based on the
CRF1100D4 II ED type.
Country Codes
Code Country
CRF1100A
European direct sales,
ED, II ED
France, South Africa,
Turkey
CRF1100A2
European direct sales,
ED, II ED
France, South Africa,
Turkey
CRF1100A4
European direct sales,
ED, II ED
France, South Africa,
Turkey
CRF1100D
European direct sales,
ED, II ED
France, South Africa,
Turkey
CRF1100D2
European direct sales,
ED, II ED
France, South Africa,
Turkey
CRF1100D4
European direct sales,
ED, II ED
France, South Africa,
Turkey
*The specifications may vary with each locale.
A Few Words About Safety
Your safety, and the safety of others, is very
important. Operating this vehicle safely is an
important responsibility.
To help you make informed decisions about
safety, we have provided operating
procedures and other information on safety
labels and in this manual. This information
alerts you to potential hazards that could
hurt you or others.
Of course, it is not practical or possible to
warn you about all hazards associated with
operating or maintaining a vehicle. You must
use your own good judgement.
You will find important safety information in a
variety of forms, including:
● Safety labels on the vehicle
●
Safety Messages preceded by a safety alert
symbol and one of three signal words:
DANGER, WARNING, or CAUTION.
These signal words mean:
3DANGER
You WILL be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3WARNING
You CAN be KILLED or SERIOUSLY
HURT if you don’t follow instructions.
3CAUTION
You CAN be HURT if you don’t follow
instructions.
Other important information is
provided under the following titles:
NOTICE
Information to help you avoid
damage to your vehicle, other
property, or the environment.
Contents
Vehicle Safety P. 2
Operation Guide P. 20
Maintenance P. 232
Troubleshooting P. 298
Information P. 339
Specifications P. 359
Index P. 365
Vehicle Safety
This section contains important information for safe riding of your vehicle.
Please read this section carefully.
Safety Guidelines................................................. P. 3
Image Labels......................................................... P. 7
Safety Precautions............................................. P. 12
Riding Precautions ............................................ P. 13
Accessories & Modifications........................... P. 17
Off-Road Safety ................................................. P. 18
Loading ................................................................ P. 19
Safety Guidelines
Safety Guidelines
Follow these guidelines to enhance your safety:
● Perform all routine and regular inspections
specified in this manual.
● Stop the engine and keep sparks and flame
away before filling the fuel tank.
● Do not run the engine in enclosed or partly
enclosed areas. Carbon monoxide in
exhaust gases is toxic and can kill you.
Always Wear a Helmet
It's a proven fact: helmets and protective
apparel significantly reduce the number and
severity of head and other injuries. So always
wear an approved helmet and protective
apparel. 2 P. 12
Before Riding
Make sure that you are physically fit, mentally
focused and free of alcohol and drugs. Check
that you and your passenger are both wearing
an approved helmet and protective apparel.
Instruct your passenger on holding onto the
grab rail or your waist, leaning with you in turns,
and keeping their feet on the footpegs, even
when the vehicle is stopped.
Take Time to Learn & Practice
Even if you have ridden other vehicles, practice
riding in a safe area to become familiar with
how this vehicle works and handles, and to
become accustomed to the vehicle's size and
weight.
Ride Defensively
Always pay attention to other vehicles around
you, and do not assume that other drivers see
you. Be prepared to stop quickly or perform an
evasive maneuver.
Continued
Vehicle Safety
3
Safety Guidelines
Make Yourself Easy to See
Vehicle Safety
Make yourself more visible, especially at night,
by wearing bright reflective clothing, positioning
yourself so other drivers can see you, signaling
before turning or changing lanes, and using
your horn when necessary.
Be Alert for Off-road Hazards
The terrain can be present a variety of
challenges when you ride off-road.
Continually “read” the terrain for unexpected
turns, drop-offs, rocks, ruts and other hazards.
Always keep your speed low enough to allow
time to see and react to hazards.
Ride within Your Limits
Never ride beyond your personal abilities or
faster than conditions warrant. Fatigue and
inattention can impair your ability to use good
judgement and ride safely.
4
Don't Drink and Ride
Alcohol and riding don't mix. Even one alcoholic
drink can reduce your ability to respond to
changing conditions, and your reaction time
gets worse with every additional drink. Don't
drink and ride, and don't let your friends drink
and ride either.
Keep Your Honda in Safe Condition
It's important to keep your vehicle properly
maintained and in safe riding condition.
Having a breakdown can be difficult, especially
if you are stranded off-road far from your base.
Inspect your vehicle before every ride and
perform all recommended maintenance. Never
exceed load limits (2 P. 19), and do not modify
your vehicle or install accessories that would
make your vehicle unsafe (2 P. 17).
Safety Guidelines
If You are Involved in a Crash
Personal safety is your first priority. If you or
anyone else has been injured, take time to
assess the severity of the injuries and whether it
is safe to continue riding. Call for emergency
assistance if needed. Also follow applicable laws
and regulations if another person or vehicle is
involved in the crash.
If you decide to continue riding, first turn the
ignition switch to the (Off) position, and
evaluate the condition of your vehicle. Inspect
for fluid leaks, check the tightness of critical nuts
and bolts, and check the handlebar, control
levers, brakes, and wheels. Ride slowly and
cautiously.
Your vehicle may have suffered damage that is
not immediately apparent. Have your vehicle
thoroughly checked at a qualified service facility
as soon as possible.
Lithium-Ion (Li-Ion) Battery
If you smell an unusual odor coming from the
lithium-ion (li-ion) battery, park your vehicle in a
safe place outside and away from flammable
objects, then turn the ignition switch to the
(Off) position. Have your vehicle inspected by
your dealer immediately.
Continued
Vehicle Safety
5
Safety Guidelines
Carbon Monoxide Hazard
Vehicle Safety
Exhaust contains poisonous carbon monoxide, a
colourless, odorless gas. Breathing carbon
monoxide can cause loss of consciousness and
may lead to death.
If you run the engine in confined or even partly
enclosed area, the air you breathe could
contain a dangerous amount of carbon
monoxide.
Never run your vehicle inside a garage or other
enclosure.
6
3WARNING
Running the engine of your vehicle
while in an enclosed or even partially
enclosed area can cause a rapid buildup of toxic carbon monoxide gas.
Breathing this colourless, odorless gas
can quickly cause unconsciousness and
lead to death.
Only run your vehicle's engine when it
is located in a well ventilated area
outdoors.
Image Labels
Image Labels
The following pages describe the label
meanings. Some labels warn you of
potential hazards that could cause serious
injury. Others provide important safety
information. Read this information carefully
and don't remove the labels.
If a label comes off or becomes hard to
read, contact your dealer for a replacement.
There is a specific symbol on each label.
The meanings of each symbol and label are
as follows.
Read instructions contained in Owner's
Manual carefully.
Read instructions contained in Shop Manual
carefully. In the interest of safety, take the
vehicle to be serviced only by your dealer.
DANGER (with RED background)
You WILL be KILLED or SERIOUSLY HURT if
you don't follow instructions.
WARNING (with ORANGE background)
You CAN be KILLED or SERIOUSLY HURT if
you don't follow instructions.
CAUTION (with YELLOW background)
You CAN be HURT if you don't follow
instructions.
Continued
Vehicle Safety
7
Image Labels
Vehicle Safety
8
BATTERY LABEL
DANGER
Do not dismantle, modify or solder the main unit and battery terminals.
•
Doing so may cause leakage, heat generation, explosion, fire or loss of
vision due to leaked electrolyte.
If electrolyte gets into one's eye, immediately wash the eye with plenty
of water, and receive treatment from an eye specialist
(ophthalmologist) as soon as possible.
• Keep this product away from fires and high temperature heat sources.
Do not bring or cause fires (matches, lighters, cigarettes, sparks at
terminals or from welding machines or grinders) close to the battery.
Doing so may cause heat generation, explosion or fire.
• Carefully read this manual.
If this product is handled incorrectly, it may lead to damage to the
vehicle, heat generation, explosion, fire, loss of vision or burns.
RADIATOR CAP LABEL
DANGER
NEVER OPEN WHEN HOT.
Hot coolant will scald you.
Relief pressure valve begins to open at 1.1 kgf/cm2.
Image Labels
CRF1100A/D
CRF1100A2/A4/D2/D4
ACCESSORIES AND LOADING WARNING LABEL
WARNING
ACCESSORIES AND LOADING
• The safety stability and handling of this vehicle may be affected
by the addition of accessories and luggage.
• Read carefully the instructions contained in user's manual and
installation guide before installing any accessory.
CRF1100A/D
•
The total weight of accessories and luggage added to rider's and
passenger's weight should not exceed 220 kg (485 lb), which is
the maximum weight capacity.
CRF1100A2/A4/D2/D4
The total weight of accessories and luggage added to rider's and
passenger's weight should not exceed 218 kg (481 lb), which is
the maximum weight capacity.
•
The luggage weight must not exceed 29 kg (64 lb) under any
circumstances.
•
The fitting of large fork-mounted or large handlebar mounted
fairing is not recommended.
Continued
Vehicle Safety
9
Image Labels
Vehicle Safety
10

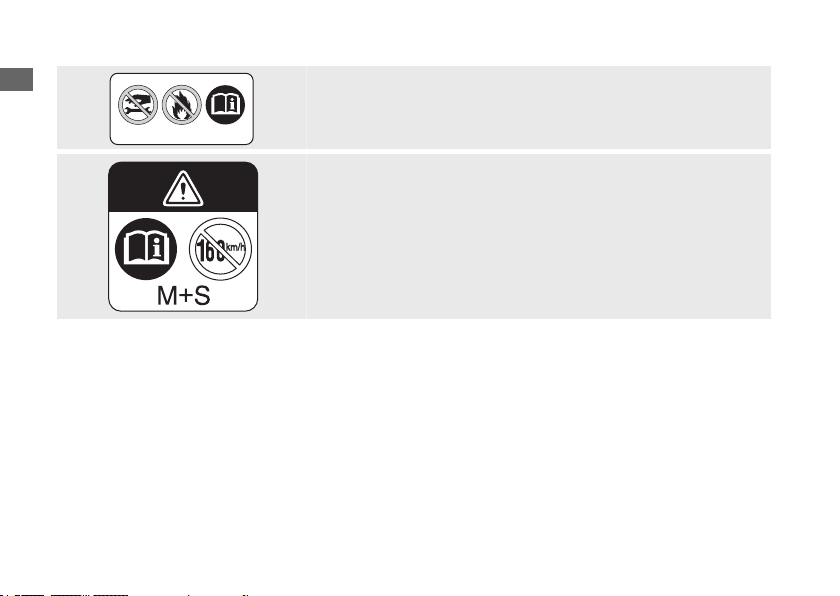

REAR CUSHION LABEL
GAS FILLED
Do not open. Do not heat.
TYRE LABEL
WARNING
If M+S tyres are installed, keep maximum speed to less than
160 km/h (99 mph).
Image Labels

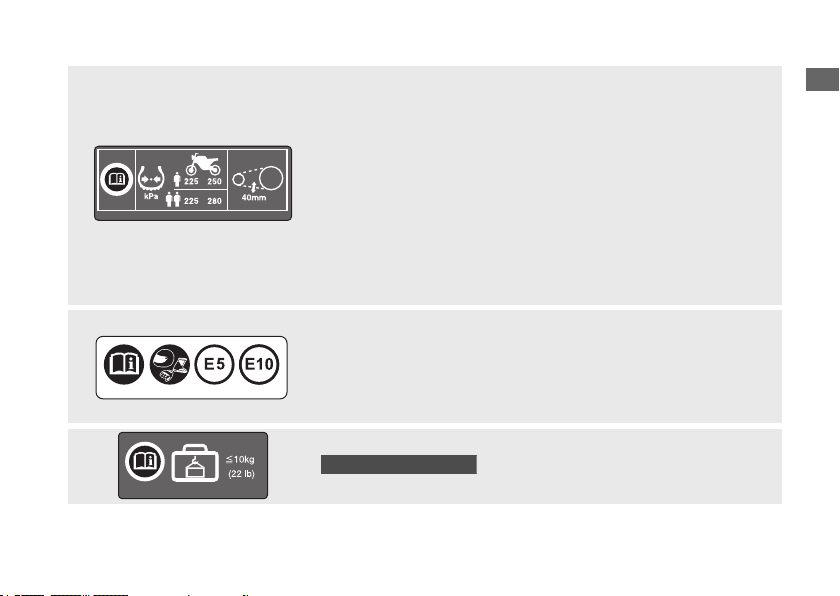

TYRE INFORMATION & DRIVE CHAIN LABEL
Cold tyre pressure:
[Driver only]
Front 225 kPa (2.25 kgf/cm2, 33 psi)
Rear 250 kPa (2.50 kgf/cm2, 36 psi)
[Driver and passenger]
Front 225 kPa (2.25 kgf/cm2, 33 psi)
Rear 280 kPa (2.80 kgf/cm2, 41 psi)
Keep chain adjusted and lubricated.
Freeplay 35 - 45 mm (1.4 - 1.8 in)
SAFETY REMINDER LABEL
For your protection, always wear helmet, protective apparel.
FUEL LABEL
Unleaded petrol only
ETHANOL up to 10 % by volume
REAR CARRIER LABEL
CRF1100A2/A4/D2/D4
Do not exceed 10 kg (22 lb).
Vehicle Safety
11
Safety Precautions
Safety Precautions
Vehicle Safety
● Ride cautiously and keep your hands on the
handlebar and feet on the footpegs.
● Keep passenger's hands onto the grab rail
or your waist, passenger's feet on the
footpegs while riding.
● Always consider the safety of your
passenger, as well as other drivers and
riders.
Protective Apparel
Make sure that you and any passenger are
wearing an approved helmet, eye protection,
and high-visibility protective clothing. Ride
defensively in response to weather and road
conditions.
Helmet
#
Safety-standard certified, high-visibility, correct
size for your head
●
Must fit comfortably but securely, with the
chin strap fastened.
12
● Face shield with unobstructed field of vision
or other approved eye protection
3WARNING
Not wearing a helmet increases the
chance of serious injury or death in a
crash.
Make sure that you and any passenger
always wear an approved helmet and
protective apparel.
Gloves
#
Full-finger leather gloves with high abrasion
resistance
Boots or Riding Shoes
#
Sturdy boots with non-slip soles and ankle
protection
Jacket and Trousers
#
Protective, highly visible, long-sleeved jacket
and durable trousers for riding (or a protective
suit)
Additional Off-road Gear
#
On-road apparel may also be suitable for casual
off-road riding. But if you plan on any serious
off-road riding you will need more serious offroad gear. In addition to your helmet and eye
protection, we recommend off-road motorcycle
boots and gloves, riding pants with knee and
hip pads, a jersey with elbow pads, and a chest/
shoulder protector.
Riding Precautions
Riding Precautions
Running-in Period
During the first 500 km (300 miles) of running,
follow these guidelines to ensure your vehicle's
future reliability and performance.
● Avoid full-throttle starts and rapid
acceleration.
● Avoid hard braking and rapid down-shifts.
● Ride conservatively.
Brakes
Observe the following guidelines:
●
Avoid excessively hard braking and
downshifting.
u Sudden braking can reduce the vehicle's
stability.
u Where possible, reduce speed before
turning; otherwise you risk sliding out.
Vehicle Safety
Continued
13
Riding Precautions
● Exercise caution on low traction surfaces.
Vehicle Safety
u The tyres slip more easily on such
surfaces and braking distances are
longer.
● Avoid continuous braking.
u Repeated braking, such as when
descending long, steep slopes can
seriously overheat the brakes, reducing
their effectiveness. Use engine braking
with intermittent use of the brakes to
reduce speed.
● For full braking effectiveness, operate both
the front and rear brakes together.
Anti-lock Brake System (ABS)
#
This model is equipped with an Anti-lock Brake
System (ABS) designed to help prevent the
brakes from locking up during hard braking.
The ABS functions with information provided by
the IMU (Inertia Measurement Unit).
● ABS does not reduce braking distance. In
certain circumstances, ABS may result in a
longer stopping distance.
14
● ABS does not function at speeds below 10
km/h (6 mph).
● The brake lever and pedal may recoil slightly
when applying the brakes. This is normal.
●
Always use the recommended front/rear
tyres and sprockets to ensure correct ABS
operation.
Engine Braking
#
Engine braking helps slow your vehicle down
when you release the throttle. For further
slowing action, downshift to a lower gear. Use
engine braking with intermittent use of the
brakes to reduce speed when descending long,
steep slopes.
Wet or Rainy Conditions
#
Road surfaces are slippery when wet, and wet
brakes further reduce braking efficiency.
Exercise extra caution when braking in wet
conditions.
If the brakes get wet, apply the brakes while
riding at low speed to help them dry.
Parking
● Park on a firm, level surface.
● If you must park on a slight incline or loose
surface, park so that the vehicle cannot
move or fall over.
● Make sure that high-temperature parts
cannot come into contact with flammable
materials.
● Do not touch the engine, muffler, brakes
and other high-temperature parts until they
cool down.
● To reduce the likelihood of theft, always lock
the handlebar and remove the key when
leaving the vehicle unattended.
Use of an anti-theft device is also
recommended.
Parking with the Side Stand
#
1.
Stop the engine.
2.
Push the side stand down.
3.
Slowly lean the vehicle to the left until its
weight rests on the side stand.
Riding Precautions
4.
Turn the handlebar fully to the left.
u Turning the handlebar to the right
reduces stability and may cause the
vehicle to fall.
5.
Turn the ignition switch to the (Lock)
position and remove the key. 2 P. 121
Refuelling and Fuel Guidelines
Follow these guidelines to protect the engine,
fuel system and catalytic converter:
● Use only unleaded petrol.
● Use recommended octane number. Using
lower octane petrol will result in decreased
engine performance.
● Do not use fuels containing a high
concentration of alcohol. 2 P. 353
● Do not use stale or contaminated petrol or
an oil/petrol mixture.
● Avoid getting dirt or water in the fuel tank.
Vehicle Safety
Continued
15
Riding Precautions
Honda selectable torque control
Vehicle Safety
When the Honda selectable torque control
(Torque Control) detects rear wheel spin during
acceleration, the system will limit the amount of
torque applied to the rear wheel based on the
Torque Control level selected.
Additionally, the system ease the rapid motion
during the wheelie when accelerating based on
the Torque Control level selected.
Torque Control will allow some wheel spin
during acceleration at the lower Torque Control
levels settings. Select a level that is appropriate
for your skill and riding conditions.
Torque Control does not work during
deceleration and will not prevent the rear wheel
from skidding due to engine braking. Do not
close the throttle suddenly, especially when
riding on slippery surfaces.
16
Torque Control may not compensate for rough
road conditions or rapid throttle operation.
Always consider road and weather conditions,
as well as your skills and condition, when
applying throttle.
If your vehicle gets stuck in mud, snow or sand,
it may be easier to free it by turning off the
Torque Control temporarily.
Temporarily turning off Torque Control also
may help you maintain control and balance
when riding on off-road terrain.
Always use the recommended tyres and
sprockets to ensure correct Torque Control
operation.
Accessories & Modifications
Accessories &
Modifications
We strongly advise that you do not add any
accessories that were not specifically designed
for your vehicle by Honda or make
modifications to your vehicle from its original
design. Doing so can make it unsafe.
Modifying your vehicle may also void your
warranty and make your vehicle illegal to
operate on public roads. Before deciding to
install accessories on your vehicle be certain the
modification is safe and legal.
3WARNING
Improper accessories or modifications
can cause a crash in which you can be
seriously hurt or killed.
Follow all instructions in this owner's
manual regarding accessories and
modifications.
Do not pull a trailer with, or attach a sidecar to,
your vehicle. Your vehicle was not designed for
these attachments, and their use can seriously
impair your vehicle's handling.
Vehicle Safety
17
Off-Road Safety
Off-Road Safety
Vehicle Safety
Learn to ride in an uncongested off-road area
free of obstacles before venturing onto
unfamiliar terrain.
● Always obey local off-road riding laws and
regulations.
● Obtain permission to ride on private
property. Avoid posted areas and obey “NO
Trespassing” signs.
● Ride with a friend on another vehicle so that
you can assist each other in case of trouble.
● Familiarity with your vehicle is critically
important should a problem occur far from
help.
18
● Never ride beyond your ability and
experience or faster than conditions warrant.
● If you are not familiar with the terrain, ride
cautiously. Hidden rocks, holes, or ravines
could spell disaster.
● A muffler is required in most off-road areas.
Don't modify your exhaust system.
Remember that excessive noise bothers
everyone and creates a bad image for
motorcycling.
Loading
Loading
● Carrying extra weight affects your vehicle's
handling, braking and stability.
Always ride at a safe speed for the load you
are carrying.
● Avoid carrying an excessive load and keep
within specified load limits.
Maximum weight capacity / Maximum
luggage weight 2 P. 359
● Tie all luggage securely, evenly balanced
and close to the centre of the vehicle.
● Do not place objects near the lights or the
muffler.
Also follow these guidelines when you ride offroad on rough terrain:
● Do not carry a passenger.
● Keep cargo small and light weight.
Make sure it cannot easily be caught on
brush or other objects, and that it does not
interfere with your ability to shift position to
maintain balance and stability.
3WARNING
Overloading or improper loading can
cause a crash and you can be seriously
hurt or killed.
Follow all load limits and other loading
guidelines in this manual.
Vehicle Safety
19
Parts Location
Operation Guide
Fuse puller, Hex wrench,
Standard/Phillips screwdriver,
Screwdriver handle
(P.230
)
Document bag (P.229)
Throttle grip (P.282)
Battery box cover (P.251)
Rear suspension compression
damping adjuster
(P.294
)
CRF1100A/A2/D/D2
20
Data link
connector
Clutch oil filter
(P.264
)
CRF1100D/D2/D4
Front suspension compression
damping adjusters
(P.288
)
CRF1100A/A2/D/D2
Rear brake fluid reservoir (P.268)
Front brake fluid reservoir (P.268)
Main fuse & ABS main fuse (P.336)
Crankcase breather (P.283)
Engine oil filter (P.262)
FI fuse & Main 2 fuse
(P.337
)
CRF1100A/A2/A4
FI fuse & Main 2 & DCT main fuse
CRF1100D/D2/D4
(P.338
)
Rear brake pedal
Coolant reserve tank (P.266)
Operation Guide
Continued
21
Parts Location (Continued)
Clutch lever
CRF1100A/A2/A4
(P.279)
Operation Guide
22
Parking brake lever
(P.270
)
CRF1100D/D2/D4
Windscreen lock lever
CRF1100A2/A4/D2/D4
(P.296
)
USB socket (P.226)
Accessory socket
(P.225
)
CRF1100A2/A4/D2/D4
Rear suspension spring preload
adjuster
CRF1100A/A2/D/D2
(P.290
Crankcase breathers (P.283)
Rear suspension rebound damping
adjuster
CRF1100A/A2/D/D2
(P.293
Side stand (P.272)
Skid plate (P.257)
)
)
Front suspension spring preload/
rebound damping adjusters
CRF1100A/A2/D/D2
(P.286) (P.287
Fuel fill cap (P.224)
Front brake lever (P.285)
Front seat (P.253)
Fuse box & ABS FSR fuse (P.335)
Rear seat (P.255)
Battery (P.250)
Tool kit/Tool box (P.230) (P.259)
Engine oil fill cap (P.260)
Shift lever
CRF1100A/A2/A4
(P.208
)
Drive chain (P.273)
Engine oil drain bolts (P.262)
Engine oil dipstick (P.260)
)
Operation Guide
23
Instruments
Operation Guide
Speedometer
AT indicator
CRF1100D/D2/D4
Comes on when the AT MODE. (P.211
Display Check
When the ignition switch is turned to the (On) position, all the mode and digital
segments will show. If any part of these displays does not come on when it should, have
your dealer check for problems.
24
Odometer [TOTAL]
Total distance ridden. When
“
dealer check for problems.
)
” is displayed, have your
Gear position indicator
CRF1100A/A2/A4
The gear position is shown in the gear position indicator.
u “-” appears when the transmission is not shifted properly.
CRF1100D/D2/D4
The gear position is shown in the gear position indicator when the MT MODE is selected.
The indicator may flash if:
u The front wheel leaves the ground.
u You turn the wheel while the vehicle is upright on the stand.
This is normal. To operate the system again, turn the ignition switch to the (Off)
position, and then to the
(On) position again.
D is shown in the gear position indicator when the D mode is selected in the AT MODE.
S is shown in the gear position indicator when the S mode is selected in the AT MODE.
If the “-” indicator is blinking in the gear position window while riding: (P.305)
S mode level indicator (P.211)
CRF1100D/D2/D4
Operation Guide
Continued
25
Instruments (Continued)
Multi-information display
Your vehicle is equipped with a multi-
Operation Guide
information display that presents various
functions and settings.
The multi-information display is a screen. You
can operate by touching the screen.
● Certain manual functions and settings are
disabled or inoperable while the vehicle is
in motion. You cannot select a greyed-out
menu until the vehicle is stopped.
26

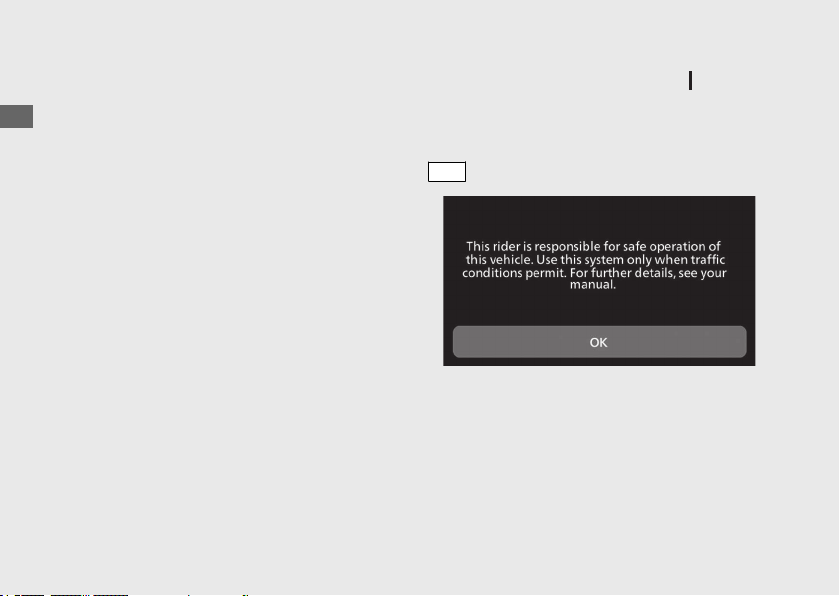

When the ignition switch is turned (On), the
Notice message appears on the screen for a
few seconds.
Read the Notice message, and then press the
ENT
switch or touch [OK] on the screen.

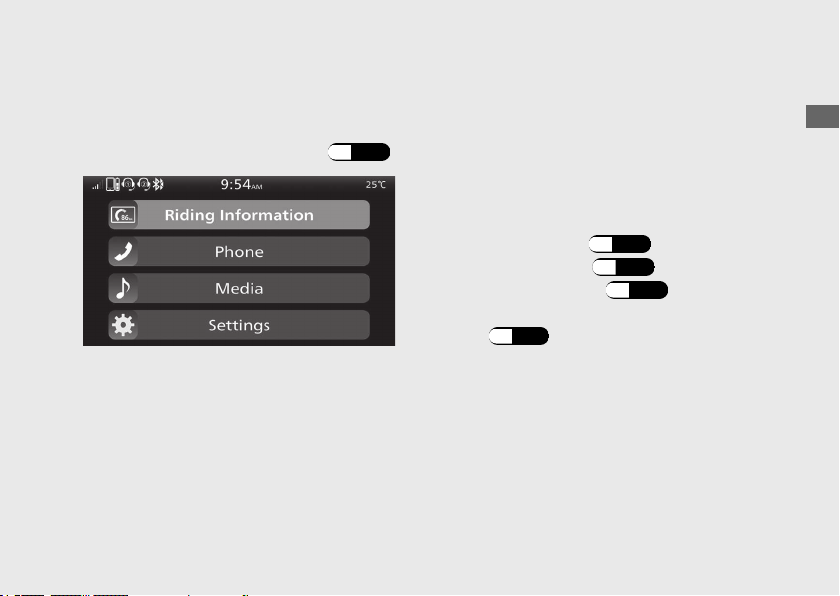

Home Screen
#
From this screen, you can go to various
functions and setup options.
To return to the Home screen: (P.38)
Riding Information
#
You can go back to the riding information.
Riding information has 3 displays, Gold
image display, Silver image display and
Bronze image display.
These displays are switched according to
riding mode.
Gold image display
Silver image display (P.32)
Bronze image display (P.35)
To change the display setting on each riding
mode (P.81)
Phone
#
You can make calls using a Bluetooth®
connected Bluetooth® audio devices.
Media
#
You can play music from Bluetooth® devices.
Settings
#
You can select various settings.
(P.28)
Operation Guide
Continued
27
Instruments (Continued)

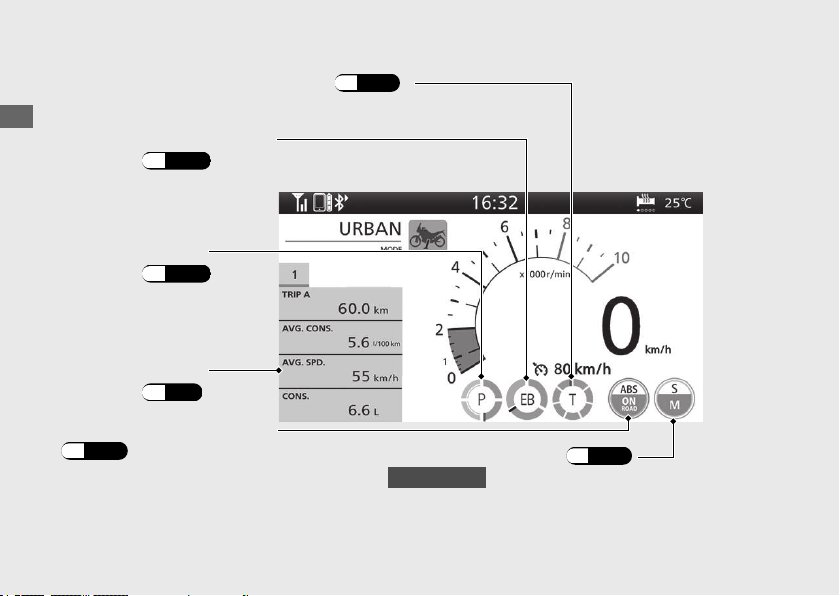

Riding Information
#
Gold image display
Operation Guide
Clock (12-hour or 24-hour display)
To set the clock:
Riding mode display
)
(P.142
Side stand indicator
)
(P.66
Sub-information
indicator
(P.41
Cruise Control Set Speed
The speed set for cruise
control is displayed.
Cruise Control:
28
(P.90
)
(P.215)
Air temperature gauge
)
(P.66
)
Speedometer
Tachometer
NOTICE
Do not operate the engine in the Tachometer red zone.
Excessive engine speed can adversely affect engine life.
Tachometer red zone
Fuel gauge
(excessive engine rpm range)
Remaining fuel when only E (1st) segment starts flashing:
Approximately 3.6 L (0.95 US gal, 0.79 Imp gal) (
Approximately 3.9 L (1.03 US gal, 0.86 Imp gal) (
CRF1100A/D
CRF1100A2/A4/D2/D4
)
If the fuel gauge indicator flashes: (P.306)
NOTICE
You should refuel when the reading approaches the E (1st) segment.
Running out of fuel can cause the engine to misfire, damaging the
catalytic converter.
Coolant temperature gauge
When the coolant is over specified temperature, all segments turn
red and the H (6th) segment flashes and high coolant temperature
indicator lamps.
(P.300)
If the coolant temperature gauge indicator flashes: (P.307)
Operation Guide
)
Continued
29
Instruments (Continued)
Torque Control level [T] indicator (P.133)
When the indicator flashes, have your dealer check for problems.
Operation Guide
[EB] [Engine Brake] level
indicator (P.142
When the indicator flashes,
have your dealer check for
problems.
[P] [Power] level indicator
)
(P.142
When the indicator flashes,
have your dealer check for
problems.
)
G switch [G] indicator (P.126)
CRF1100D/D2/D4
When the indicator flashes, have your dealer check for problems.
ABS mode [ABS] indicator (P.142)
When the indicator flashes, have your dealer check for problems.
[S] [Overall] indicator (P.142)
CRF1100A4/D4
When the indicator flashes, have your dealer check for problems.
30
Handle grip heater status icon
CRF1100A2/A4/D2/D4
The handle grip heater status icon will appear while the handle grip heater is on. (P.132)
If the handle grip heater status icon flashes: (P.307)
Gear position indicator
CRF1100A/A2/A4
The gear position is shown in the gear position indicator.
u “-” appears when the transmission is not shifted properly.
CRF1100D/D2/D4
The gear position is shown in the gear position indicator.
The indicator may flash if:
u The front wheel leaves the ground.
u You turn the wheel while the vehicle is upright on the stand.
This is normal. To operate the system again, turn the ignition switch to the (Off)
position, and then to the
(On) position again.
D is shown in the gear position indicator when the D mode is selected in the AT MODE.
S is shown in the gear position indicator when the S mode is selected in the AT MODE.
S mode level indicator (P.211)
If the “-” indicator is blinking in the gear position window while riding: (P.305)
Operation Guide
Continued
31
Instruments (Continued)
Silver image display
Side stand indicator
Operation Guide
)
(P.66
Riding mode display
)
(P.142
NOTICE
You should refuel when
the reading approaches
the E (1st) segment.
Running out of fuel can
cause the engine to
misfire, damaging the
catalytic converter.
Fuel gauge
Remaining fuel when only E (1st) segment starts flashing:
Approximately 3.6 L (0.95 US gal, 0.79 Imp gal) (
Approximately 3.9 L (1.03 US gal, 0.86 Imp gal) (
If the fuel gauge indicator flashes: (P.306)
32
Clock (12-hour or 24-hour display)
To set the clock:
)
(P.90
CRF1100A/D
CRF1100A2/A4/D2/D4
)
)
Handle grip heater status icon
CRF1100A2/A4/D2/D4
The handle grip heater status icon will appear while the handle grip heater is on.
(P.132)
If the handle grip heater status icon flashes: (P.307)
Air temperature gauge (P.66)
Tachometer
NOTICE
Do not operate the engine in the Tachometer red zone.
Excessive engine speed can adversely affect engine life.
Tachometer red zone
(excessive engine rpm range)
Speedometer
Cruise Control Set Speed
The speed set for cruise control is displayed.
Cruise Control:
(P.215
)
Operation Guide
Continued
33
Instruments (Continued)
Torque Control level [T] indicator (P.133)
When the indicator flashes, have your dealer check for problems.
Operation Guide
[EB] [Engine Brake] level
indicator (P.142)
When the indicator flashes,
have your dealer check for
problems.
[P] [Power] level
indicator (P.142)
When the indicator flashes,
have your dealer check for
problems.
Sub-information
indicator
ABS mode [ABS] indicator
)
(P.142
When the indicator flashes, have your
dealer check for problems.
34
(P.41
)
[S] [Overall] indicator (P.142)
CRF1100A4/D4
When the indicator flashes, have your dealer
check for problems.
Bronze image display
Clock (12-hour or 24-hour display)
To set the clock:
(P.90
)
Riding mode display
)
(P.142
Side stand indicator
)
(P.66
Cruise Control Set Speed
The speed set for cruise
control is displayed.
Cruise Control:
(P.215)
Continued
Operation Guide
35
Instruments (Continued)
Handle grip heater
status icon
Operation Guide
CRF1100A2/A4/D2/D4
The handle grip heater
status icon will appear while
the handle grip heater is on.
(P.132)
If the handle grip heater
status icon flashes:
(P.307)
[P] [Power] level indicator (P.142)
When the indicator flashes, have your dealer check for problems.
Torque Control level [T] indicator (P.133)
When the indicator flashes, have your dealer check for problems.
[S] [Overall] indicator (P.142)
CRF1100A4/D4
When the indicator flashes, have your dealer check for problems.
36
Air temperature gauge (P.66)
Tachometer
NOTICE
Do not operate the engine in the Tachometer red zone.
Excessive engine speed can adversely affect engine life.
Tachometer red zone
(excessive engine rpm range)
Fuel gauge
Remaining fuel when only E (1st) segment starts flashing:
Approximately 3.6 L (0.95 US gal, 0.79 Imp gal) (
Approximately 3.9 L (1.03 US gal, 0.86 Imp gal) (
CRF1100A/D
CRF1100A2/A4/D2/D4
If the fuel gauge indicator flashes: (P.306)
NOTICE
You should refuel when the reading approaches the E (1st) segment.
Running out of fuel can cause the engine to misfire, damaging the
catalytic converter.
Operation Guide
)
)
Continued
37
Instruments (Continued)
Basic Operations
#
You can operate and set the various
Operation Guide
functions of your vehicle using the switches
on the left handlebar and function switch
on the right handlebar or touch screen.
However, you cannot operate some functions
while the vehicle is in motion.

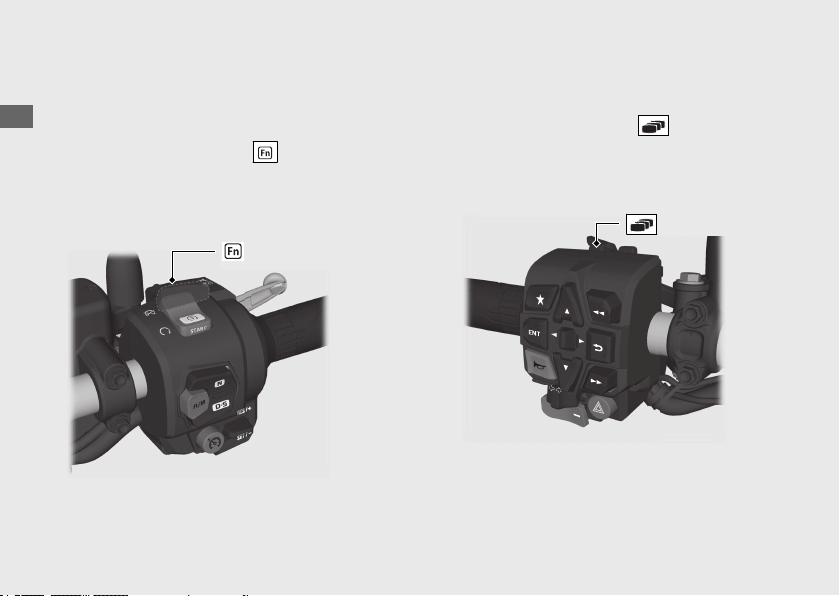

Function switch
38

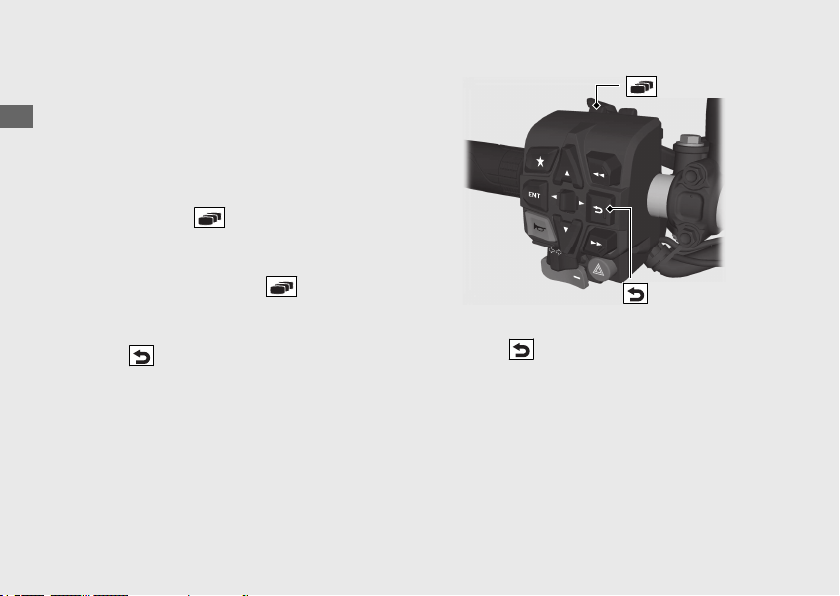

To Return to the Home Screen
To return to the Home screen:
Pull backward and hold the page switch
on the left handlebar or touch the clock area
of the multi-information display with your
vehicle stopped.
Page switch

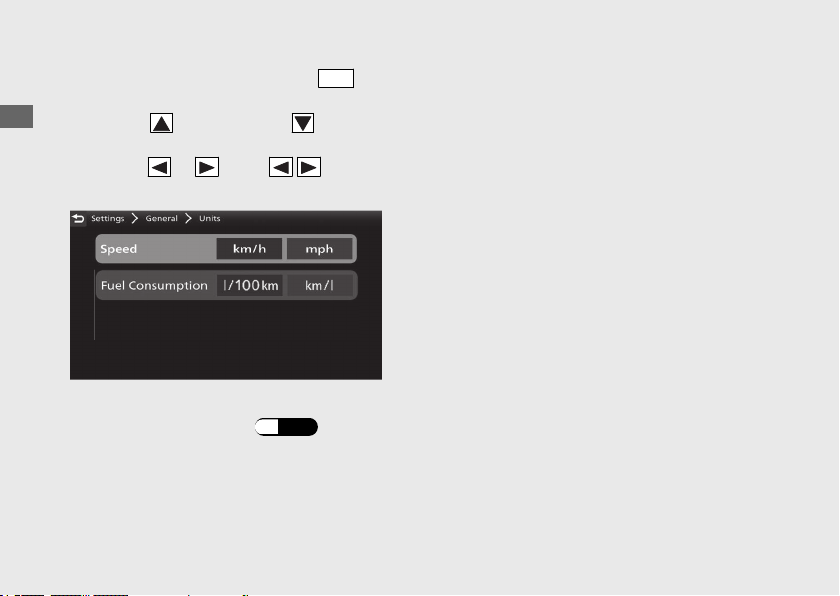

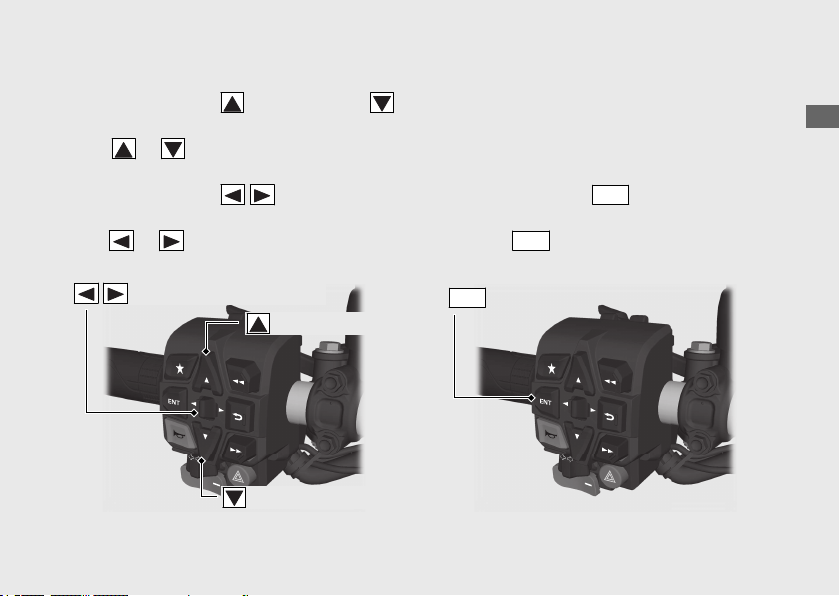

To Select a Desired Setting Menu
To operate with the sel up switch or
sel down switch on the left handlebar:
Press
or to select the available
choices.
To operate with the sel left/right
switch on the left handlebar:
Push or to select the available
choices.
Sel left/right switch
Sel up switch
Sel down switch
To operate with the touch screen:
Touch the menu to be selected on the touch
screen.
To Set Your Selection
To operate with the
ENT
switch on the left
handlebar:
Press the
ENT
switch on the left handlebar
to set your selection.
ENT
switch
Operation Guide
Continued
39
Instruments (Continued)
To operate with the touch screen:
Touch the menu to be selected on the touch
screen.
Operation Guide
To Exit the Setting Menu
To return to the riding information:
Pull backward the
left handlebar.
To return to the Home screen:
Pull backward and hold the
on the left handlebar.
To return the previous screen:
Press the
back switch on the left
handlebar.
40
page switch on the
page switch
Page switch
Back switch
To operate with the touch screen:
Touch the to be selected on the touch
screen.
Also, the setting mode ends when your
vehicle speed reaches approximately 6 km/h
(4 mph).
Page 1:
#
Page 1 shows the following items: Tripmeter
A [TRIP A] and three items related to
Tripmeter A [TRIP A] and Tripmeter B [TRIP
B]. (P.86)
• Tripmeter A average fuel mileage [AVG.
CONS.] display
(P.46)
• Tripmeter A average speed [AVG. SPD.]
display (P.52)
• Tripmeter A current fuel mileage [CONS.]
display (P.48)
•
Tripmeter A elapsed [ELAPSED] display
(P.49)
Operation Guide
Continued
41
Instruments (Continued)

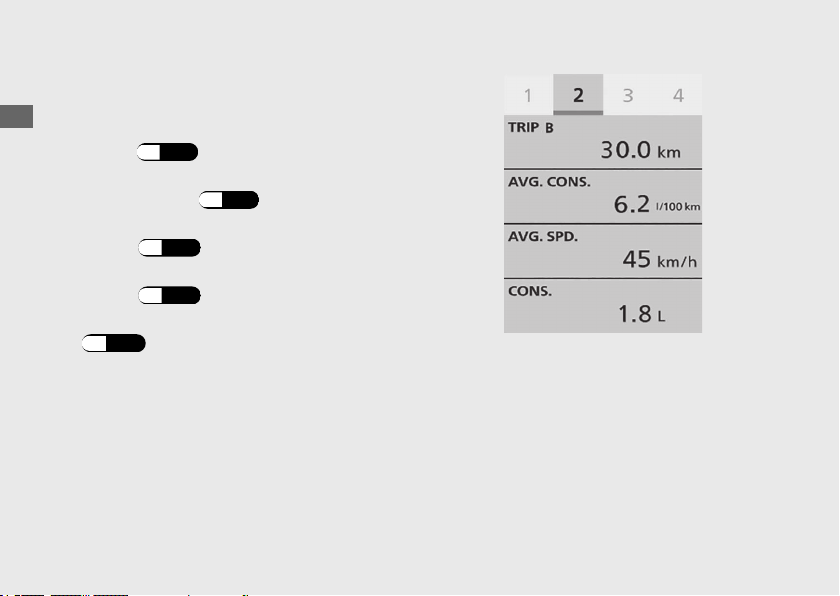

Page 2:
#
Page 2 shows the following items: Tripmeter B
Operation Guide
[TRIP B] and three items related to Tripmeter
B [TRIP B]. (P.86)
• Tripmeter B average fuel mileage [AVG.
CONS.] display (P.51
Tripmeter B average speed [AVG. SPD.]
•
display
(P.52)
Tripmeter B current fuel mileage [CONS.]
•
display
(P.53)
• Tripmeter B elapsed [ELAPSED] display
(P.54)
42
)

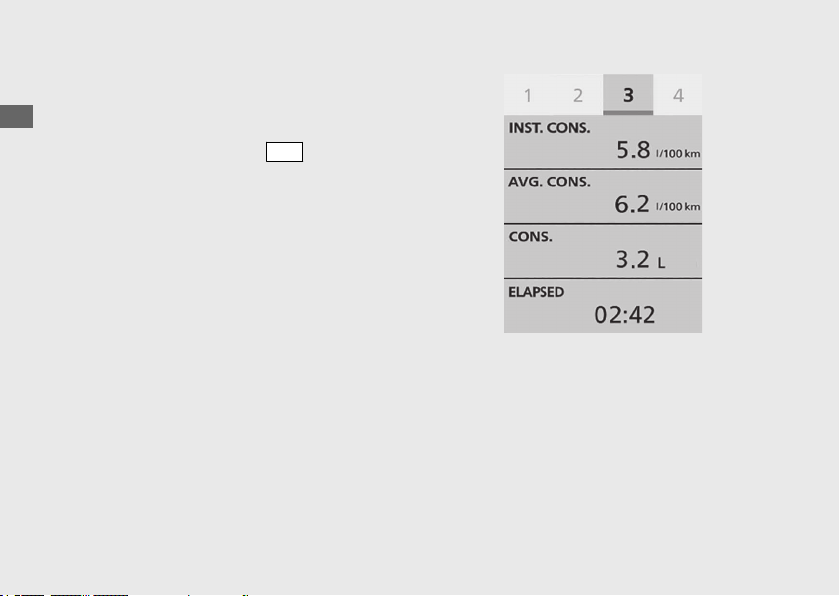

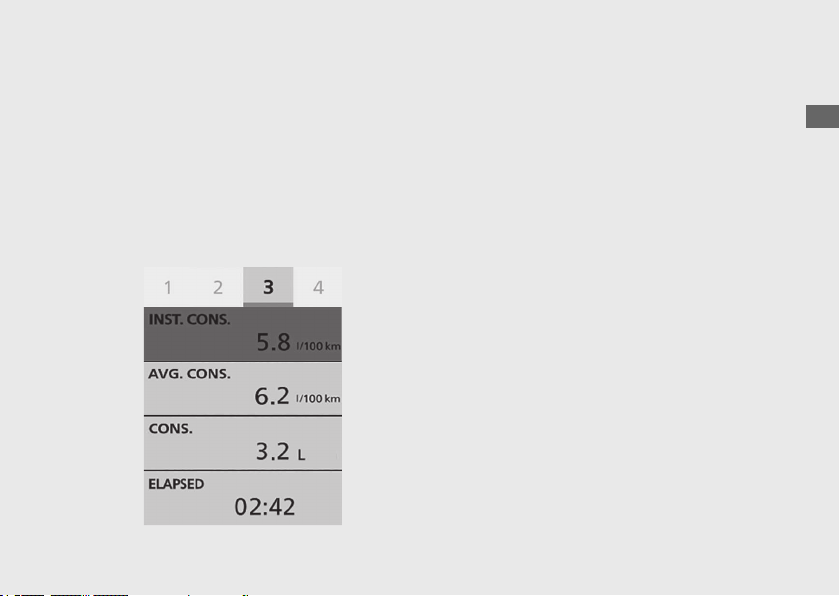

Page 3:
#
Page 3 shows four items selected from the
following items. (P.86)
• Current fuel mileage [INST. CONS.]
display (P.55)
•
Available driving distance [RANGE] display
(P.56
)
• Battery voltage [VOLTAGE] display
(P.57)
Date [DATE] display (P.57)
•
Average fuel mileage [AVG. CONS.]
•
display (P.58
)
• Fuel consumption [CONS.] display
(P.59
)
• Elapsed time [ELAPSED] display (P.59
• Subtraction trip [-TRIP] display (P.60)
Operation Guide
)
Continued
43
Instruments (Continued)

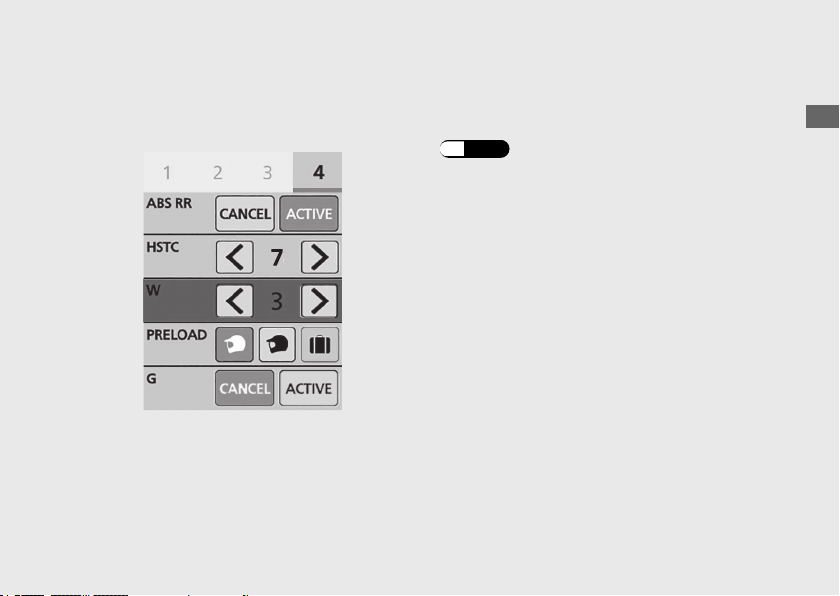

Page 4:
#
Page 4 shows the setting values of the
Operation Guide
following items.
• ABS function on the rear wheel [ABS RR]
display (P.61)
•
Honda Selectable Torque Control level
[HSTC] display (P.62
• Wheelie Control level [W] display
(P.63)
CRF1100A4/D4
•
Rear suspension preload level [PRELOAD]
display (P.64)
CRF1100D/D2/D4
•
G switch [G] display (P.65
44
)
)
To Switch the Page of Display
#
a
Select the gold image display. (P.81)
b
Push the or of the sel left/
right switch until the desired page is
displayed.
You can also perform the above settings by
using the touch screen.
To Switch the Page 1 or Fuel Gauge
#
a
Select the silver image display. (P.81)
b
Push the or of the sel left/
right switch to switch the page or fuel
gauge.

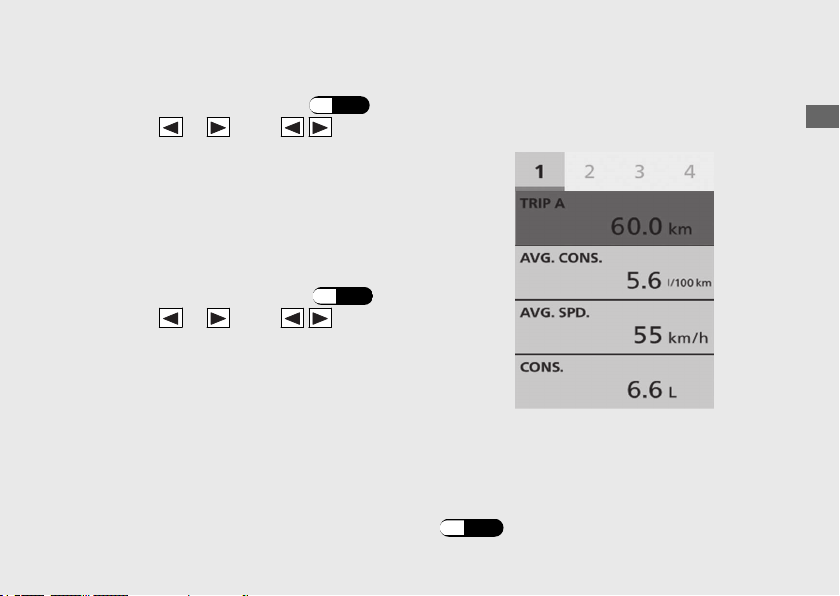

Tripmeter A [TRIP A]
#
Distance ridden since the tripmeter A was
reset.
When “---.-” flashes, have your dealer check
for problems.
To reset the tripmeter A [TRIP A]:
(P.68)
Operation Guide
Continued
45
Instruments (Continued)
Tripmeter A Average Fuel Mileage
#
[AVG. CONS.]
Operation Guide
Displays the average fuel mileage since the
tripmeter A was reset.
The average fuel mileage will be calculated
based on the value displayed on the selected
tripmeter A. Also, the average fuel mileage
for tripmeter A will be displayed when the
odometer is selected.
Display range: 0.0 to 299.9 l/100 km (km/l,
mpg or mile/L)
● Initial display: “---.-” is displayed.
● More than 299.9 l/100 km (km/l, mpg or
mile/L): “299.9” is displayed.
● When the tripmeter A is reset: “---.-” is
displayed.
46
When “---.-” flashes, have your dealer check
for problems.
To reset the tripmeter A average fuel
mileage [AVG. CONS.]: (P.68)

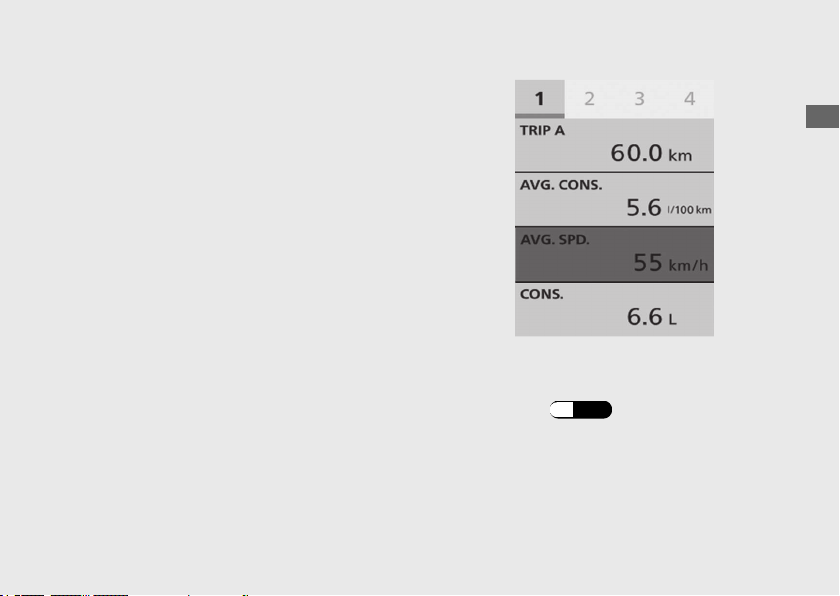

Tripmeter A Average Speed [AVG.
#
SPD.]
Displays the average speed since the
tripmeter A was reset.
The average speed will be calculated based
on the value displayed on the selected
tripmeter A.
Also, the average speed for tripmeter A will
be displayed when the odometer is selected.
● Initial display: “0” is displayed.
Display range: 0 to 299 km/h or 0 to 186 mph
Operation Guide
To reset the tripmeter A average speed
[AVG. SPD.]: (P.68)
Continued
47
Instruments (Continued)
Tripmeter A Fuel Consumption
#
[CONS.]
Operation Guide
Displays the tripmeter A fuel consumption
since the tripmeter A was reset.
Display range: 0.0 to 300.0 L (gal)
● Above 300.0 L (gal): “300.0” is displayed.
● When the tripmeter A fuel consumption is
reset: “---.-” is displayed.
48
To reset the tripmeter A fuel
consumption [CONS.]: (P.68)
Tripmeter A Elapsed [ELAPSED]
#
Displays the tripmeter A elapsed since the
tripmeter A was reset.
Display range: 00:00 to 99:59 (hours:minutes)
● The display locks at “99:59” when the
read-out exceeds 99:59.
When “00:00” flashes, have your dealer check
for problems.
To reset the tripmeter A elapsed
[ELAPSED]:
(P.68
)
Operation Guide
Continued
49
Instruments (Continued)
Tripmeter B [TRIP B]
#
Distance ridden since the tripmeter B was
Operation Guide
reset.
50
When “---.-” flashes, have your dealer check
for problems.
To reset the tripmeter B [TRIP B]:
)
(P.69
Tripmeter B Average Fuel Mileage
#
[AVG. CONS.]
Displays the average fuel mileage since the
tripmeter B was reset.
The average fuel mileage will be calculated
based on the value displayed on the selected
tripmeter B. Also, the average fuel mileage
for tripmeter B will be displayed when the
odometer is selected.
Display range: 0.0 to 299.9 l/100 km (km/l,
mpg or mile/L)
● Initial display: “---.-” is displayed.
● More than 299.9 l/100 km (km/l, mpg or
mile/L): “299.9” is displayed.
● When the tripmeter B is reset: “---.-” is
displayed.
Operation Guide
When “---.-” flashes, have your dealer check
for problems.
To reset the tripmeter B average fuel
mileage [AVG. CONS.]: (P.69)
Continued
51
Instruments (Continued)
Tripmeter B Average Speed [AVG.
#
SPD.]
Operation Guide
Displays the average speed since the
tripmeter B was reset.
The average speed will be calculated based
on the value displayed on the selected
tripmeter B.
Also, the average speed for tripmeter B will
be displayed when the odometer is selected.
● Initial display: “0” is displayed.
Display range: 0 to 299 km/h or 0 to 186 mph
52
To reset the tripmeter B average speed
[AVG. SPD.]: (P.69)
Tripmeter B Fuel Consumption
#
[CONS.]
Displays the tripmeter B fuel consumption
since the tripmeter B was reset.
Display range: 0.0 to 300.0 L (gal)
● Above 300.0 L (gal): “300.0” is displayed.
● When the tripmeter B fuel consumption is
reset: “---.-” is displayed.
To reset the tripmeter B fuel
consumption [CONS.]: (P.69)
Operation Guide
Continued
53
Instruments (Continued)

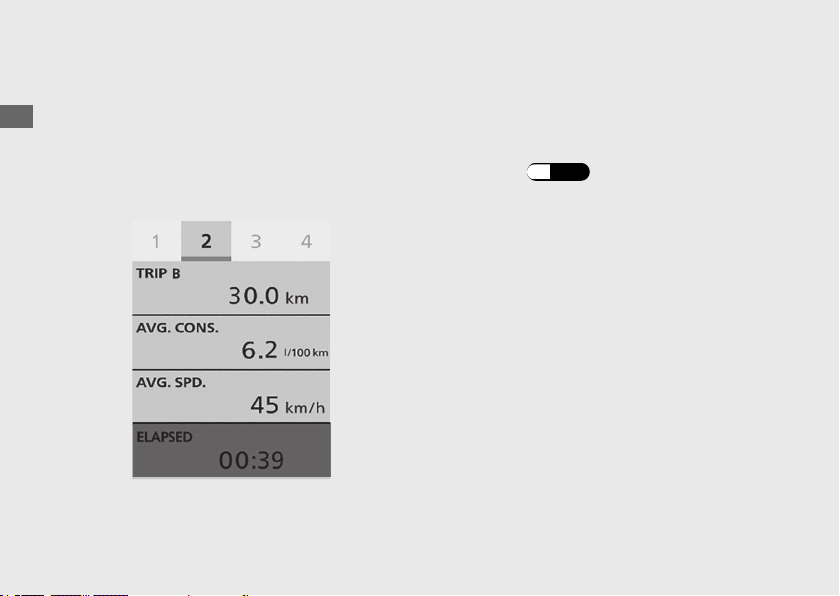

Tripmeter B Elapsed [ELAPSED]
#
Displays the tripmeter B elapsed since the
Operation Guide
tripmeter B was reset.
Display range: 00:00 to 99:59 (hours:minutes)
● The display locks at “99:59” when the
read-out exceeds 99:59.
54
When “00:00” flashes, have your dealer check
for problems.
To reset the tripmeter B elapsed
[ELAPSED]:
(P.69
)
Current Fuel Mileage [INST. CONS.]
#
Displays the current instant fuel mileage
Display range: 0.0 to 299.9 l/100 km (km/l,
mpg or mile/L)
● When your speed is less than 3 km/h (1
mph): “--.-” is displayed.
● Above 299.9 l/100 km (km/l, mpg or
mile/L):“299.9” is displayed.
When “---.-” flashes, have your dealer check
for problems.
Operation Guide
Continued
55
Instruments (Continued)
Available Driving Distance [RANGE]
#
Displays the estimated distance you can
Operation Guide
travel on the remaining fuel.
Display range: 999 to 0 km (999 to 0 mile)
● Above 999 km (mile): “999” is displayed.
● Initial display: “0” is displayed.
● When the available driving distance is
below 5 km (3 mile) or the amount of
remaining fuel is below 1.0 L (0.2 gal),
“---” is displayed.
56
Battery Voltage [VOLTAGE]
#
Displays the current battery voltage.
Display range: 7.5 to 18.5 V
When “---.-” flashes, have your dealer check
for problems.
Date [DATE]
#
Displays today's date.
To set the current date: (P.90)
Operation Guide
Continued
57
Instruments (Continued)

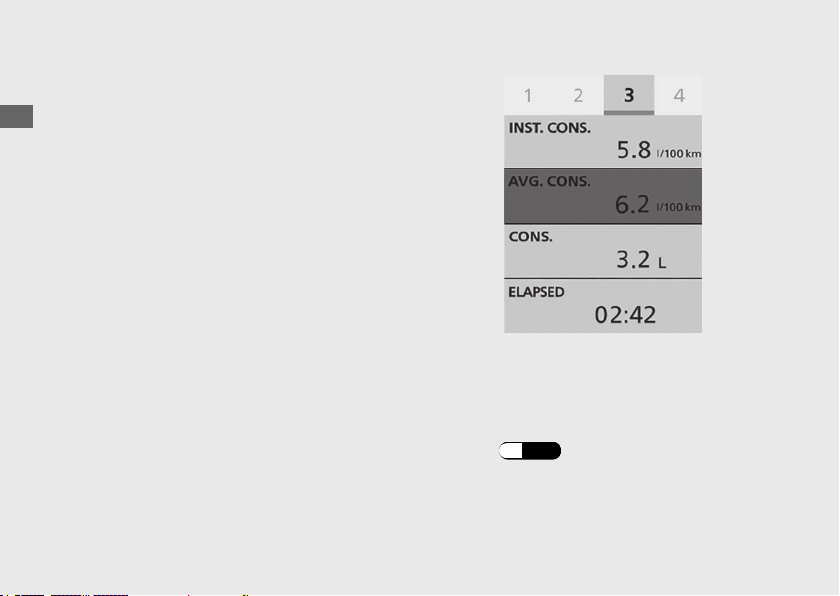

Average Fuel Mileage [AVG. CONS.]
#
Displays the average fuel mileage since the
Operation Guide
engine was started.
Display range: 0.1 to 299.9 l/100 km (km/l,
mpg or mile/L)
● Initial display: “---.-” is displayed.
● More than 299.9 l/100 km (km/l, mpg or
mile/L): “299.9” is displayed.
● When the average fuel mileage [AVG.
CONS.] is reset: “---.-” is displayed.
58
When “---.-” flashes, have your dealer check
for problems.
To reset the average fuel mileage [AVG.
CONS.]: (P.70)
Fuel Consumption [CONS.]
#
Displays the fuel consumption since the
engine was started.
Display range: 0.0 to 300.0 L or 0.0 to 300.0
gal
● Above 300.0 L (gal): “300.0” is displayed.
● When the engine is starts: “---.-” is
displayed.
Elapsed Time [ELAPSED]
#
Displays operating time since the engine was
started.
Display range: 00:00 to 99:59 (hours:minutes)
● The display locks at “99:59” when the
read-out exceeds 99:59.
When “00:00” flashes, have your dealer check
for problems.
Continued
Operation Guide
59
Instruments (Continued)

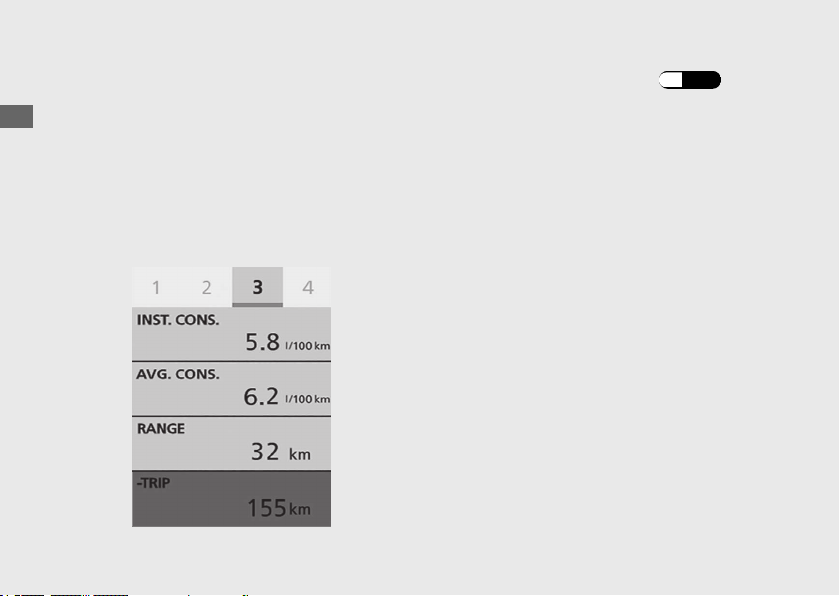

Subtraction Trip [-TRIP]
#
Distance travelled is subtracted from a preset
Operation Guide
figure, since the subtraction trip was set up.
Display range: 1,607.3 to -1,609.0 km or 999.0
to -1,000.0 mile
The display locks at “-1609.0” km (“-1000.0”
mile) when the read-out exceeds -1609.0 km
(-1000.0 mile).
60
To set the subtraction trip: (P.78)
Default: 000
ABS Function on the Rear Wheel [ABS
#
RR]
Displays the selected status of the ABS
function on the rear wheel [ABS RR].
Available settings: [ACTIVE]/[CANCEL]
Default: [ACTIVE]
To select the ABS function on the rear
wheel [ABS RR]:
(P.122
)
Operation Guide
Continued
61
Instruments (Continued)
Honda Selectable Torque Control Level
#
[HSTC]
Operation Guide
Display the selected value of the Honda
Selectable Torque Control level [HSTC].
62
Setting range: Level 1 to 7 or 0 (Off)
To select the Honda Selectable Torque
Control level [HSTC]: (P.133)
Wheelie Control Level [W]
#
Display the selected value of the wheelie
control level [W].
Setting range: Level 1 to 3 or 0 (Off)
To select the wheelie control level [W]:
(P.138)
Operation Guide
Continued
63
Instruments (Continued)
Rear Suspension Preload Mode
#
[PRELOAD]
Operation Guide
CRF1100A4/D4
Displays the selected status of the rear
suspension preload mode [PRELOAD].
64
Status icon Riding condition
Rider only
(Minimum preload)
Rider and luggage
Rider and
passenger
Rider, passenger
and luggage
(Maximum preload)
Default: Rider only
To select the rear suspension preload
mode [PRELOAD]: (P.291
)
G Switch [G]
#
CRF1100D/D2/D4
Displays the selected status of the G switch
[G].
Available settings: [ACTIVE]/[CANCEL]
Default:
• [TOUR MODE]: [CANCEL]
• [URBAN MODE]: [CANCEL]
• [GRAVEL MODE]: [CANCEL]
• [OFF ROAD MODE]: [ACTIVE]
• [USER 1 MODE]: [CANCEL]
• [USER 2 MODE]: [CANCEL]
Operation Guide
To select the G switch [G]:
(P.126)
Continued
65
Instruments (Continued)
Side Stand Indicator
#
The side stand indicator comes on when the
Operation Guide
side stand is put down. It goes off when the
side stand is raised.
Side stand indicator
66
Air temperature gauge
#
Displays the ambient temperature.
Air temperature
gauge
Display range: -10 ºC to 50 ºC
● Below -11ºC: “---” is displayed
● Above 50ºC: 50ºC flashes
Road heat and exhaust from another vehicle
can affect the temperature reading when
your vehicle speed is less than 30 km/h (19
mph). It may take several minutes for the
display to be updated after the temperature
reading has stabilized.
Cruise Control Set Speed
#
The speed set for cruise control is displayed.
Cruise control set speed
To set the cruise control set speed:
(P.217)
Operation Guide
Continued
67
Instruments (Continued)
To Reset the Tripmeter A [TRIP A],
#
Tripmeter A Average Fuel Mileage
[AVG. CONS.], Tripmeter A Average
Operation Guide
Speed [AVG. SPD.], Tripmeter A Fuel
Consumption [CONS.] and Tripmeter A
Elapsed [ELAPSED]
To reset the tripmeter A [TRIP A], tripmeter A
average fuel mileage [AVG. CONS.],
tripmeter A average speed [AVG. SPD.],
tripmeter A fuel consumption [CONS.] and
tripmeter A elapsed [ELAPSED], press and
hold the
displayed or touch and hold the page 1 area.
68
ENT
switch while page 1 is
To Reset the Tripmeter B [TRIP B],
#
Tripmeter B Average Fuel Mileage
[AVG. CONS.], Tripmeter B Average
Speed [AVG. SPD.], Tripmeter B Fuel
Consumption [CONS.] and Tripmeter B
Elapsed [ELAPSED]
To reset the tripmeter B [TRIP B], tripmeter B
average fuel mileage [AVG. CONS.],
tripmeter B average speed [AVG. SPD.],
tripmeter B fuel consumption [CONS.] and
tripmeter B elapsed [ELAPSED], press and
hold the
ENT
switch while page 2 is
displayed or touch and hold the page 2 area.
Operation Guide
Continued
69
Instruments (Continued)
To Reset the Average Fuel Mileage
#
[AVG. CONS.]
Operation Guide
To reset the average fuel mileage [AVG.
CONS.], press and hold the
page 3 is displayed or touch and hold the
page 3 area.
70
ENT
switch while
Setting mode
To Shift to the Menu of the Multi-
#
Information Display
Pull backward and hold the
page switch or touch the clock
area of the multi-information
display.
Select [Riding Information], and then
press the
[Riding Information] of the multiinformation display.
Pull backward the page switch.
Press the sel up switch.
Press the sel down switch.
ENT
switch or touch the
Riding information
Operation Guide
Home screen
Riding Information
Phone (P.27)
Media (P.27)
Settings
Continued
71
Instruments (Continued)
Press the
Operation Guide
Press the back switch or touch the of the multi-information display.
Press the sel up switch.
Press the sel down switch.
ENT
switch.
72
Settings
Function
(P.76
User Modes
)
-Trip
Auto Cancel Turn Signal
HISS indicator
Settings
Display
(P.81
Display Mode
)
Operation Guide
Brightness
Background
Favourite Information
Favourite Switch
Continued
73
Instruments (Continued)
Operation Guide
74
Settings
General
(P.90
Date and Time
)
Units
Volume
Language
Restore Default Settings
Settings
Service
(P.107
Bluetooth
(P.158
Maintenance
)
Operation Guide
DTC
Initialise
)
Service mode
Connected
Services
(P.195)
Regulatory
(P.107
Equipment
System Information
)
Continued
75
Instruments (Continued)
Function
#
Following items can be changed sequentially.
Operation Guide
• User Modes (this page)
• -Trip (P.78)
• Auto Cancel Turn Signal (P.79)
HISS indicator (P.80
•
76
)

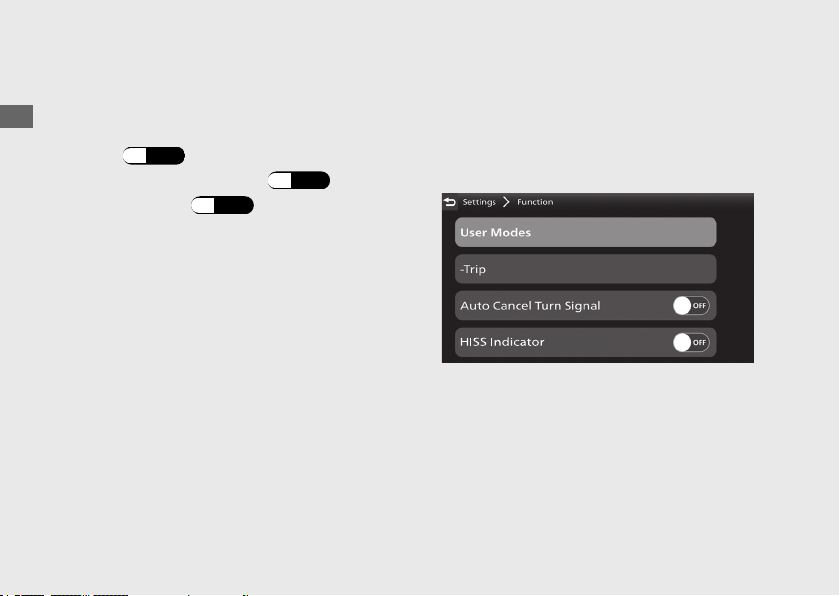

User Modes
You can change the [Power], [Engine Brake],
[Overall], [Front], [Rear], [ABS], [Preload]
values in [USER 1 MODE] and [USER 2
MODE].
a
Select [User Modes], and then press the
ENT
switch.
b
Select [User 1] or [User 2] using the sel
up or sel down switch, and then press
ENT
the
c
Press the sel up switch or sel down
switch.
switch to select a setting menu.
d
Push the or of the sel left/
right switch until the desired value is
displayed.
Push and hold the or of the
u
sel left/right switch to advance the
figure fast.
e
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Available settings: (P.146)
Default: (P.144)
Continued
Operation Guide
77
Instruments (Continued)
-Trip
You can also adjust value of the subtraction
trip [-TRIP].
Operation Guide
a
Select [-Trip], and then press the
switch.
b
Select the digits using the or of the
sel left/right switch.
c
To increase value: Press the sel up
switch, until the desired value is displayed.
To decrease value: Press the sel down
switch, until the desired value is displayed.
78
ENT
u Press and hold the sel up switch or
sel down switch to advance the
figure fast.
d
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Setting range: 000 to 999
Default: 000
Auto Cancel Turn Signal
You can enable/disable turn signal automatic
cancellation.
a
Select [Auto Cancel Turn Signal], and then
press the
ENT
switch to [ON] (enable) or
[OFF] (disable) the function.
b
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Available settings: [ON]/[OFF]
Default: [ON]
Operation Guide
Continued
79
Instruments (Continued)

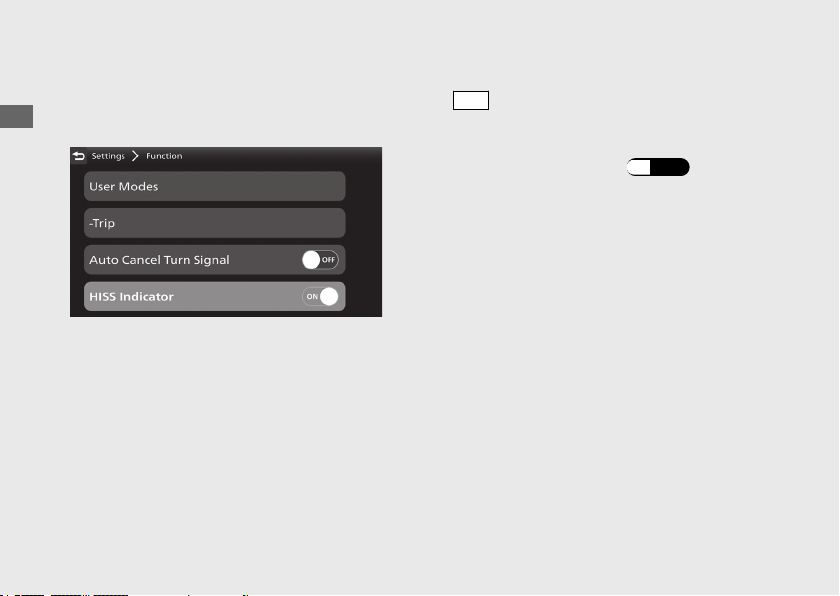

HISS Indicator
You can select the blink or off the HISS
indicator.
Operation Guide
80
a
Select [HISS Indicator], and then press the
ENT
switch to select [ON] (blink) or [OFF]
(off) the function.
b
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Available settings: [ON]/[OFF]
Default: [ON]
Display
#
Following items can be changed sequentially.
• Display Mode (this page)
• Brightness (P.83)
• Background (P.84)
Favourite Information (P.86
•
• Favourite Switch (P.88)
)
Display Mode
You can select the riding information image.
Operation Guide
Continued
81
Instruments (Continued)
a
Select [Display Mode], and then press the
ENT
switch.
b
Operation Guide
Press the sel up switch or sel down
switch to select a setting menu.
c
Push the or of the sel left/
right switch to select your desired display.
d
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
82
Available settings: Gold image/Silver
image/Bronze image
Default:
[TOUR MODE]: Gold image
•
[URBAN MODE]: Silver image
•
• [GRAVEL MODE]: Silver image
• [OFF ROAD MODE]: Bronze image
• [USER 1 MODE]: Silver image
• [USER 2 MODE]: Bronze image
Brightness
You can select the backlight brightness.
The display can become dark when the
display is very hot. If it does not restore the
original brightness, contact your dealer.
a
Select [Brightness], and then press the
switch.
b
Select [Auto], and then press the
ENT
switch to [ON] (auto) or [OFF] (manual) the
function.
ENT
Operation Guide
Automatic Brightness Control:
(P.345)
Continued
83
Instruments (Continued)
c
If you select to [OFF] (manual) push the
or of the sel left/right switch to
Operation Guide
select your preferred level.
u Push and hold the or of the
sel left/right switch to advance the
figure fast.
d
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Setting range: Level 1 to 8 or [Auto]
Default: [Auto]
84

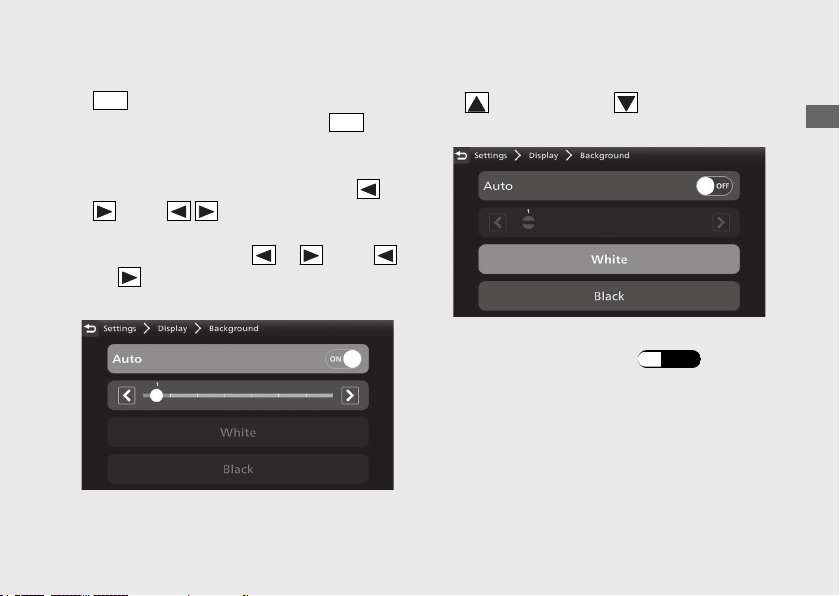

Background
You can select the background.
Automatic Background Control:
(P.345
)
a
Select [Background], and then press the
ENT
switch.
b
Select [Auto], and then press the
ENT
switch to [ON] (auto) or [OFF] (manual) the
function.
c
If you select to [ON] (auto), push the or
of the sel left/right switch to
select your preferred level.
u
Push and hold the or of the
sel left/right switch to advance the
figure fast.
If you select to [OFF] (manual), press the
sel up switch or sel down switch to
select the [White] or [Black].
d
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Setting range: Auto Level 1 to 7, White or
Black
Default: Auto 1
Operation Guide
Continued
85
Instruments (Continued)
Favourite Information
You can select the following:
● Page 1
Operation Guide
Tripmeter A average fuel mileage
•
[AVG. CONS.]
•
Tripmeter A average speed [AVG.
SPD.]
• Tripmeter A current fuel mileage
[CONS.]
• Tripmeter A elapsed [ELAPSED]
Tripmeter B [TRIP B]
•
●
Page 2
• Tripmeter B average fuel mileage
[AVG. CONS.]
• Tripmeter B average speed [AVG.
SPD.]
• Tripmeter B current fuel mileage
[CONS.]
• Tripmeter B elapsed [ELAPSED] display
86
● Page 3
• Current fuel mileage [INST. CONS.]
• Available driving distance [RANGE]
• Battery voltage [VOLTAGE]
Date [DATE]
•
• Average fuel mileage [AVG. CONS.]
• Fuel consumption [CONS.]
• Elapsed time [ELAPSED]
• Subtraction trip [-TRIP]
a
Select [Favourite Information], and then
press the
b
Push the or of the sel left/
ENT
switch.
right switch until the desired page is
displayed.
c
Press / to select the available
choices, and then press the
ENT
switch.
d
Press / to select the available
choices, and then press the
e
Return to the riding information, previous
screen or Home screen. (P.40
ENT
switch.
)
You can also perform the above settings by
using the touch screen.
Operation Guide
Continued
87
Instruments (Continued)
Default:
• Page 1
Operation Guide
• Tripmeter A average fuel mileage
[AVG. CONS.]
• Tripmeter A average speed [AVG.
SPD.]
• Tripmeter A current fuel mileage
[CONS.]
• Page 2
• Tripmeter B average fuel mileage
[AVG. CONS.]
Tripmeter B average speed [AVG.
•
SPD.]
• Tripmeter B current fuel mileage
[CONS.]
• Page 3
• Current fuel mileage [INST. CONS.]
• Available driving distance [RANGE]
•
Battery voltage [VOLTAGE]
• Date [DATE]
88
Favourite Switch
a
Select [Favourite Switch], and then press the
ENT
switch.
b
Press the sel up switch or sel down
switch to select your desired mode.
c
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Available settings: [HSTC]/
[Wheelie Control]/[Riding Mode]/
[G Switch]
CRF1100D/D2/D4
Default: [HSTC]
Operation Guide
Continued
89
Instruments (Continued)
General
#
Following items can be changed sequentially.
Operation Guide
• Date and Time (this page)
• Units (P.93)
• Volume (P.95)
Language (P.97
•
90
)
Date and Time
The multi-information display receives signals
from GPS satellites and updates the date and
time automatically.
You can also adjust the date and time
manually.
To [ON] (auto) or [OFF] (manual) adjust time
automatically function:
a
Select [Date and Time], and then press the
ENT
switch.
b
Select [Adjust Time Automatically], and then
press the
ENT
switch to [ON] (auto) or
[OFF] (manual) the function.
When GPS cannot be located. Read the
notice message, and then press the
ENT
switch.
c
Return to the riding information, previous
screen or Home screen. (P.40
)
You can also perform the above settings by
using the touch screen.
Operation Guide
Continued
91
Instruments (Continued)
To adjust the clock manually:
a
Select [Date and Time], and then press the
ENT
Operation Guide
92
switch.
b
Select [Adjust Time Automatically], and then
press the
ENT
switch to [OFF] (manual) the
function.
c
Press / on the sel left/right
switch to select a day, month, year, hour,
minute or time format section.
● To advance the day, month, year, hour
or minute: Press the
and then press the
sel up switch,
ENT
switch until
the desired value is displayed.
To delay the day, month, year, hour or
minute: Press the sel down switch,
and then press the
ENT
switch until
the desired value is displayed.
u Press and hold the
ENT
switch to
advance the figure fast.
● To select the time format: Press the
sel up switch or sel down
switch, and then press the
ENT
until the desired time format is
displayed.
Press and hold the
u
ENT
switch to
advance the figure fast.
switch
d
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
Available settings: [ON] (auto)/[OFF]
(manual)
Default: [ON] (auto)
Units
You can change the following units.
● [Speed]: [km/h] or [mph]
● [Fuel Consumption]: [l/100 km] or [km/l]
If the [mph] for speed is selected, the fuel
mileage shown by [mpg] or [mile/L].
Operation Guide
Continued
93
Instruments (Continued)
a
Select [Units], and then press the
switch.
b
Operation Guide
Press the sel up switch or sel down
switch to select a setting menu.
c
Push the or of the sel left/
right switch to select your desired unit.
d
Return to the riding information, previous
screen or Home screen. (P.40)
You can also perform the above settings by
using the touch screen.
94
ENT
Available settings:
● [Speed]: [km/h]/[mph]
● [Fuel Consumption]: [l/100 km]/[km/l]/
[mpg]/[mil/L]
Default:
● [Speed]: [km/h]
● [Fuel Consumption]: [l/100 km]
