ACCESSORY SOCKET
LIGHT BAR
LIGHT BAR
ACCESSORY SOCKET
• The maximum power rating of connected
accessories is 24W (12V, 2A).
• Use accessories with the engine running to avoid
discharging the battery.
• Do not use a cigarette lighter, as this can cause a
malfunction.
• Cover the socket with the cap when the
accessory socket is not used to prevent entry of
foreign objects.
• Carefully secure any connected devices, as
vibrations may cause them to shift unexpectedly.
• Make sure that the device cable connected to the
accessory socket does not disturb the steering
operation or riding. Make sure the cable is not
pinched during steering operation.
• Use a 7.5A fuse for replacement of the fuse in the
accessory harness. Do not use any other fuse for
replacement.
<INS IDE OF THE LEFT MIDDLE COWL>
FUSE
• Do not attempt to move the motorcycle by
holding front light bar and as it may damage the
motorcycle or light bar.
• When this accessory becomes dirty, rinse it
thoroughly with cool water to remove loose dirt,
then wipe with a clean cloth or sponge.
Do not use a brush to clean this accessory as it
may scratch the surface.
• Never use organic solvents such as gasoline,
thinner and benzine to clean this accessory. Also
do not use acid or alkaline cleaners to clean this
accessory.
Wipe up spilled brake or battery fluid at once as
they may damage the surface.
CENTERSTAND
CENTER
STAND
TALL WINDSCREEN
TAL L
WINDSCREEN
CRF1000L/LD
Genuine Accessory User’s Guide
• Before starting your motorcycle, check that the
sidestand and the centerstand are fully retracted.
• Always choose flat ground when setting the
centerstand.
• Always use the parking brake when parking the
CRF1000LD and using the centerstand.
HOW TO USE THE CENTERSTAND
1. Park safely on level ground and stop the engine.
2. Setting the center stand.
• Stand on the left side of the motorcycle
and lower the centerstand with your right
foot. Hold the left handgrip with your left
hand and the rear carrier with your right
hand. Press down on the tip of the stand
with your right foot and, simultaneously,
pull up and back on the rear carrier.
• Reduce speed when riding in strong wind.
• Replace this accessory with a new one if it is
damaged or discolored excessively.
• When this accessory becomes dirty, rinse it
thoroughly with cool water to remove loose dirt,
then wipe with a clean cloth or sponge.
Do not use a brush to clean this accessory as it
may scratch the surface.
• Never use organic solvents such as gasoline,
thinner and benzine to clean this accessory. Also
do not use acid or alkaline cleaners to clean this
accessory.
Wipe up spilled brake or battery fluid at once as
they may damage the surface.
• If the motorcycle is left covered for an extended
period of time, park in the shade. Parking a
covered motorcycle in direct sunlight can cause
the windscreen to deform due to heat buildup
under the cover.
• Handle this accessory with care.
It can be damaged when it is bent excessively or
is subject to strong shock or impact.
• Bear in mind that strong wind can cause the
motorcycle to topple over. Select a firm, level
surface when you park the motorcycle.
© 2017 Honda Mot or Co., Ltd. 879OM-MJ P-A601
1 of 6
HEATED GRIPS
HEATED GRIP
HEATER LEVEL
HEATER SWITCH
INDICATOR
HEATED GRIP
STATUS ICON
• Wear gloves to protect your hands from the
heated grips.
• Do not use the heated grips with the engine at
idle for a long time. It may result in a low (or dead)
battery.
• Adjust the temperature by repeatedly pressing
the switch.
The temperature can be set to five levels.
• The heated grips maintain the selected level
when the ignition switch is turned off.
• The heater level is not changed if the ignition
switch is turned to the OFF position within 5
seconds of changing the heater level.
• Do not leave the heated grips in the high position
for a long time on a warm day.
CRF1000L/LD
Genuine Accessory User’s Guide
LEVEL 5
Highest
temperature
LEVEL 4
LEVEL 3
OFF
LEVEL 2
INDICATOR
• Displayed when the heated grips are on.
• The selected heater level is indicated by the
number of times the indicator blinks when
the heater is turned on and the heater level is
changed. For example, If you select heater level 5,
the indicator blinks 5 times and repeats it 7 times.
HEATER LEVEL
• The selected heater level is indicated for a few
seconds when the heater switch is operated.
HE AT E D GRIP S TAT U S ICON
• Displayed when the heated grips are on.
• If the heated grip system has an error, the grip
heater status icon will blink. If the “E1”, “E2” or
“E3” blinking does not go off, see a Honda dealer
as soon as possible.
LEVEL 1
Lowest
temperature
Press the heater switch.
Press and hold the
heater switch.
HOW TO USE THE HEATED GRIPS
1. Start the engine.
2. Press the heater switch. The heated grips are
on.
3. Select the heater level by pressing the heater
switch.
• The clock on the display automatically
switches to indicate the heater level. The
indicator will return to the ordinary mode
after blinking for about 5 seconds.
4. To turn off the heater, press the heater switch
until the status icon on the display disappears.
• To turn off, press and hold the heater
switch.
2 of 6
BACKREST
TOP CASE
• The weight of the cargo must not exceed the
following maximum weight capacity:
13.2 lb (6.0 kg)
• The mounting and loading of a top case on a
motorcycle, particularly when placed above the
original center of gravity, can negatively affect
handling and stability. When adding and using the
top case, do not exceed allowable cargo weight
recommendations and proceed carefully until
you understand the effect on your motorcycle’s
handling and stability.
• Be sure that the top case is installed securely
before riding.
• Before riding, confirm the lid is closed.
• The top case is not perfectly watertight, and
water may enter when washing the motorcycle,
when it rains, etc.
• To prevent burns, allow the engine, exhaust
system, radiator, etc., to cool before installing and
removing the accessory.
• Do not store valuables or fragile articles in the top
case.
• Don’t place a heavy object on the opened lid or
apply excessive force to the top of the opened lid.
• Open and close the lid gently.
• If the top case gets dirty, lightly brush and clean
it with a sponge or a shop towel moistened with
a neutral detergent, remove the detergent with
clean water, and then wipe it dry with a clean
sponge or shop towel.
• Never use organic solvents such as gasoline,
thinner and benzine to clean this accessory. Also
do not use acid or alkaline cleaners to clean this
accessory.
Wipe up spilled brake or battery fluid at once as
they may damage the surface.
TOP CASE
TOP CASE
CRF1000L/LD
Genuine Accessory User’s Guide

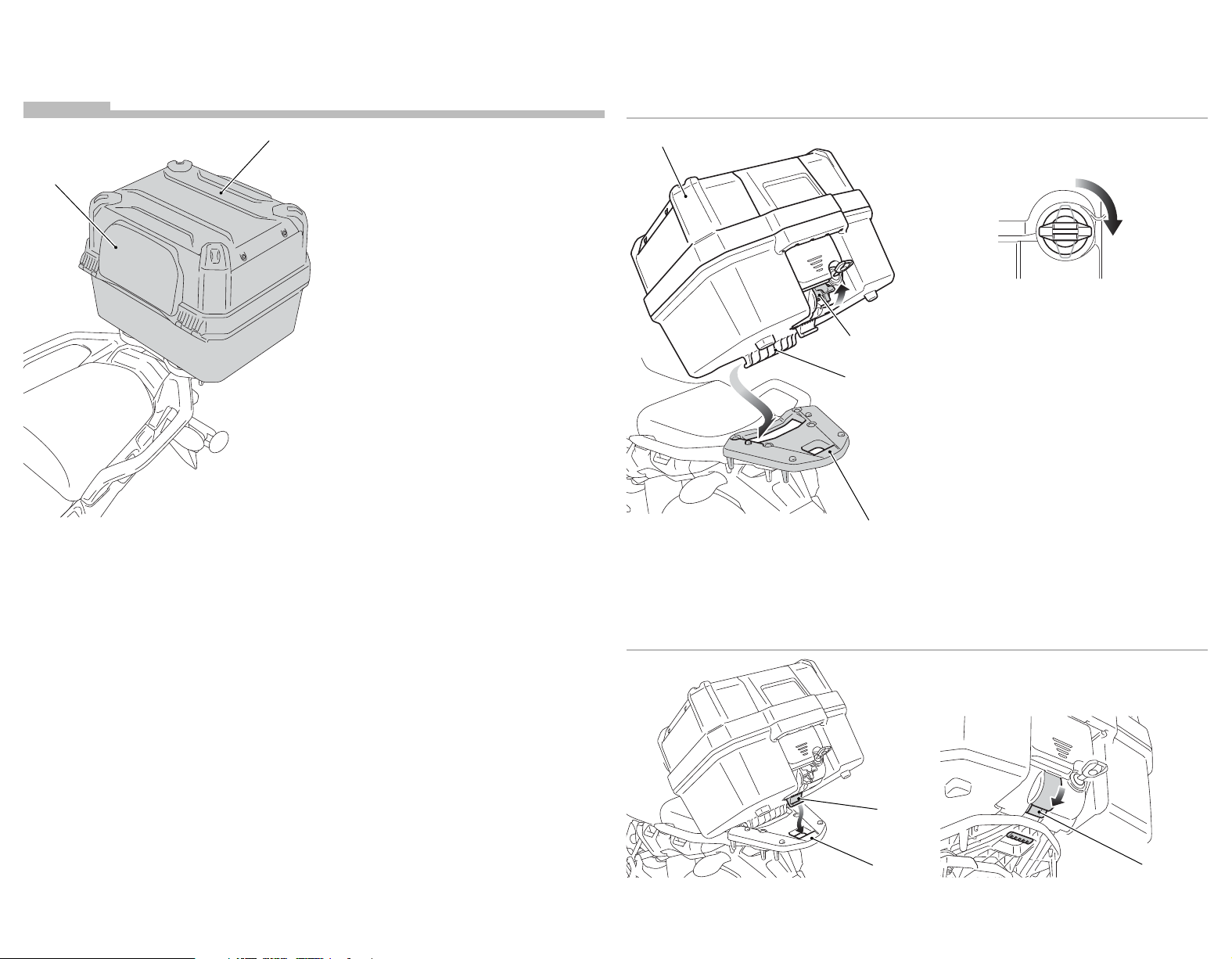

HOW TO INSTALL THE TOP CASE
1. Release the lock by turning the key clockwise.
2. Install the retaining tab of the top case into the
carrier base.
LEVER
RETAINING
TAB
CARRIER BASE
• Install the top case with this lever raised.
3. Position the hook with the hole of the carrier
base as shown.
4. Secure the hook by pressing the lever down.
HOOK
LEVERCARRIER BASE
3 of 6
CRF1000L/LD
Genuine Accessory User’s Guide
5. Lock the top case by turning the key
TOP CASE
LEVER
counterclockwise as shown.
6. Remove the key, check that the lever will not lift
and the top case is installed securely.
• The top case can come off while riding
unless it is mounted securely.
3. Raise the upper part of hinge, move the hinge
down as shown and open the lid.
LID
HINGE
HOW TO REMOVE THE TOP CASE
1. Remove the top case in the reverse order of
installation.
HOW TO OPEN THE TOP CASE
TOP CASE
HINGE
1. Release the lock by turning the key clockwise.
2. Pull the hinge up.
HOW TO CLOSE THE TOP CASE
LID
1. Confirm that the key position is as shown.
2. Close the lid.
3. Holding the upper part of the hinge, push the
hinge down.
4. Lock the top case by turning the key
counterclockwise as shown.
HINGE
5. Remove the key.
• Make sure the lid is locked down securely.
4 of 6
PANNIERS
PAN NI ER
• The weight of the cargo must not exceed the
following maximum weight capacity:
Each pannier 11.0 lb (5.0 kg)
• Load weight equally on both sides to minimize
imbalance. The mounting and loading of
panniers, particularly when placed above the
original center of gravity, can negatively affect
handling and stability. When adding and using
panniers, do not exceed allowable cargo weight
recommendations and proceed carefully until
you understand the effect on your motorcycle’s
handling and stability.
• Do not store valuables or fragile articles in the
panniers.
• Be sure that the panniers are installed securely
before riding.
• Before riding, confirm the lids are closed.
• To prevent burns, allow the engine, exhaust
system, radiator, etc., to cool before installing and
removing this accessory.
• The pannier can become hot while the engine is
running and after it has been stopped (after riding
etc.).
Especially the lower part of the pannier on the
right side, close to the muffler, and thus may
become very hot. For that reason it should not be
touched for some time.
• The panniers are not perfectly watertight, and
water may enter when washing the motorcycle or
when it rains.
• Always install panniers on both the left and the
right side.
• Don’t place a heavy object on the opened lid or
apply an excessive force to the top of opened lid.
• Open and close the lid gently.
• If the pannier gets dir ty, lightly brush and clean
it with a sponge or a shop towel moistened with
a neutral detergent, remove the detergent with
clean water, and then wipe them dry with a clean
sponge or shop towel.
• Never use organic solvents such as gasoline,
thinner and benzine to clean this accessory. Also
do not use acid or alkaline cleaners to clean this
accessory.
Wipe up spilled brake or battery fluid at once as
they may damage the surface.
HOLE
LEVER
RUBBER
CRF1000L/LD
Genuine Accessory User’s Guide
LEVER
PAN NI ER
LEVER
HOW TO INSTALL THE PANNIERS
1. Release the lock by turning the key clockwise.
2. Install the pannier.
• Install the pannier with this lever raised.
• First engage at the rubber and then install
at the two holes.
3. Lower the lever as shown.
4. Lock the pannier by turning the key counter-
clockwise as shown.
5. Remove the key. Be sure that the lever cannot
be released and the pannier is installed
securely.
• The pannier can come off while riding
unless it is mounted securely.
5 of 6
CRF1000L/LD
Genuine Accessory User’s Guide
HOW TO REMOVE THE PANNIERS
1. Remove the panniers in the reverse order of
installation.
HOW TO CLOSE THE PANNIERS
1. Close the panniers in reverse order of opening.
HOW TO OPEN THE PANNIERS
LATCH
1. Release the lock by turning the key clockwise.
2. Open the latch.
INNER BAG
HOW TO INSTALL THE INNER BAG
1. Install the separately sold inner bag.
3. Open the lid.
LID
6 of 6
Loading...
