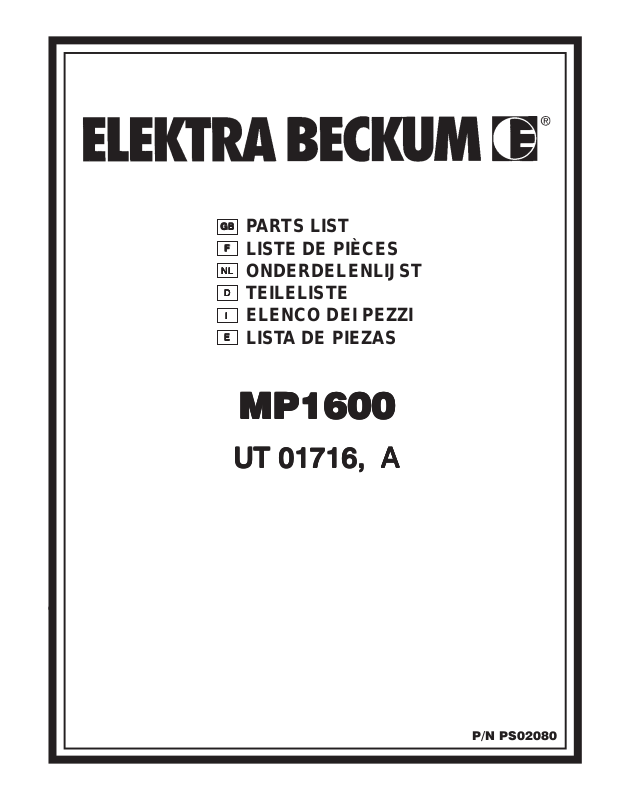

PARTS LIST
FF
F
FF
LISTE DE PIÈCES
NLNL
NL
NLNL
ONDERDELENLIJST
DD
D
DD
TEILELISTE
II
I
II
ELENCO DEI PEZZI
EE
E
EE
LISTA DE PIEZAS
MP1600MP1600
MP1600
MP1600MP1600
UT 01716, AUT 01716, A
UT 01716, A
UT 01716, AUT 01716, A
e
P/N PS02080
STARTER
4
3
5
7
1
2
6
No. Part No. Description Qty.
1 A 01237 22 ENGINE HOUSING 1
2 02264 GRIP-Starter 1
3 82541 SCREW-Thread Form. (#10 X 1/2") 1
4 98791 BRACKET-Retaining 1
5 97899 02 ROPE-Starter 1
6 98770 A PULLEY-Starter 1
7 A 98773 A SPRING & CONTAINER 1
Item In/Lbs Nm Required
T orque Specs
No Loctite
3 30-40 ............. 3.4-4.5
© 1999, JDCP, Inc.
2
04/12/99
ENGINE INTERNAL
1
4
6
12
5
3
2
11
7
10
13
8
9
No.No.
P P
P
P P
art No.art No.
art No.
art No.art No.
No.
No.No.
1 •UP00739 SHORT BLOCK 1
2 •UP 00016 PISTON & ROD 1
3 PS 01359 RING-Piston 1
4 •UP 07145 CYLINDER KIT 1
5 04388 B GASKET-Cylinder 1
6 06900 A GASKET-Heat Dam 1
7 08661 GASKET-Crankcase Cover 1
8 88084 1 SCREW, SEMS (12-24 x .750) 3
9 69250 KEY-Woodruff 1
10 88081 1 SCREW, SEMS (10-24 x .910) 4
11 • A 00858 CRANKCASE COVER 1
7 08661 GASKET-Crankcase Cover 1
12 82541 SCREW-Plastite (#10 X 1/2") 2
13 98792 BUMPER, Rubber 3
Description QtyDescription Qty
Description Qty
Description QtyDescription Qty
Item In/Lbs Nm Required
T orque Specs
No Loctite
8 55-65 ............. 6.2-7.3
10 25-30 ............. 2.8-3.4
12 30-40 ............. 3.4-4.5
04/12/99
3
IGNITION
3
1
2
4
5
6
7
No. Part No. Description Qty.
1 • A 04446 IGNITION KIT 1
2 A 33055 TERMINAL-Hi Tension 1
3 79252 SPARK PLUG (RDJ-7Y) 1
4 82540 SCREW-Thread Form. (8-32 X 1") 2
5 A 04158 S ROTOR & STARTER PAWL KIT 1
6 PS 84065 WASHER-Flat 1
7 02041 EXTENSION-Shaft 1
4
Item In/Lbs Nm Required
T orque Specs
No Loctite
3 120-180 ......... 13.6-20.3
4 30-40 ............. 3.4-4.5
7 100-150 ......... 11.3-16.9 ...........Red 262
4/12/99
MUFFLER & AIR FILTER
2
1
4
3
5
No. Part No. Description Qty.
1 • A 07316 MUFFLER-Complete 1
2 88060 SCREW-Sems Hex Hd. (10-24 X 2 1/2") 2
3 06613 GASKET-Muffler 1
4 • A 04707 A AIR FILTER BOX 1
5 00331 DECAL-Choke 1
6 98760 FILTER-Air 1
7 81208 NUT-Locking Hex (10-24) 2
7
6
T orque Specs
Item In/Lbs Nm Required
No Loctite
2 40-50 ............. 4.5-5.6
04/12/99
5
CARBURETOR & FUEL TANK
6
5
4
3
7
Beginning with Serial Number #HA1040001
2
1
18
16
14
21
20
17
19
No. Part No. Description Qty.
1 • A 04331 A CARBURETOR (Walbro) 1
2 98766 A GASKET-Carburetor 1
3 09322 1 SCREW, SEMS (10-24 x 1.100) 2
4 98768 A HEAT DAM 1
5 04474 SCREW- Hex Hd. (10-24 X 2 1/2") 2
6 98765 B GASKET-Heat Dam 1
7 • A 04447 D FUEL TANK 1
8 49422 FILTER-Fuel 1
9 01439 32 TUBING-Rubber 2
10 A 00982 B FUEL CAP 1
11 98792 BUMPER-Rubber 3
12 94772 32 TUBING-Rubber 1
13 98268 CLAMP-Wire 1
7 •UP 00136 FUEL T ANK ASSY. 1
14 49422 FIL TER-Fuel 1
15 01439 18 TUBING-Rubber 1
16 01439 10 TUBING-Rubber 1
17 94772 13 TUBING-Rubber 1
18 UP 00106 FUEL CAP 1
19 98792 BUMPER-Rubber 3
20 02067 FITTING-Inline 1
21 98268 CLAMP-Wire 1
6
12
9
13
10
7
15
11
8
T orque Specs
Item In/Lbs Nm Required
No Loctite
3 40-50 ............. 4.5-5.6 ...............Red 262
5 30-40 ............. 3.4-4.5
04/12/99
PUMP
21
17
2
5
19
6
7
4
11
8
12
15
14
16
18
24
25
10
13
2
6
9
23
4
22
23
3
20
2
1
No. Part No. Description Qty.
1 02713 STRAINER (1") 1
2 49956 CLAMP 2
3 48461-01 HOSE (1") 1
4 A 02919 BARBED COUPLING 2
5 02728 ADAPTOR-Garden Hose 1
6 02988 GASKET 1
7 02924 CAP w/O-RING 1
8 • A 03055 PUMP BODY & DECALS 1
9 02715 DECAL-Operation 1
10 02714 DECAL-Warning 1
11 02926 IMPELLER 1
12 02931 SHIM-(.030") (Impeller) A/R
13 02932 SHIM-(.015") (Impeller) A/R
14 02933 SHIM-(.030") (Seal) A/R
15 02927 SEAL 1
16 82571 SCREW-Pan Hd. (10-24 X 1") 4
17 02732 ADAPTER (Engine to Pump) 1
18 02930 NUT (M5) 3
19 02928 O-RING 1
20 02925 CAP w/O-RING 1
04/12/99
No. Part No. Description Qty.
21 02730 HANDLE-Engine Mtg. 1
22 02731-A BASE PLATE 1
23 82563 SCREW-Thread Form. (10-14 X 3/4") 3
24 02929 WASHER-Flat (M5) 3
25 82549 SCREW-Thread Form. (10-24 X 1") 4
T orque Specs
Item In/Lbs Nm Required
No Loctite
11 Hand Tight
16 15-20 ............. 1.7-2.3
23 30-40 ............. 3.4-4.5
25 30-35 ............. 3.4-4.0 ...............Red 262
7
04/12/99
