GPSmile6
2
NAV Slim
Portable Automobile Navigation System
Product User Manual
Version: 1.0
September 2008
Registered info
HOLUX and GPSmile are trademarks of HOLUX Technology, Inc.
All other trademarks belong to registered companies.
Note
The contents of this manual will be modified without further notice.
The operation temperature for the product is between 0℃~40℃.
Operating or recharging in an environment with a temperature over 45
℃ might cause the system to malfunction. However, this should be
considered a normal phenomenon. Please do not operate under
extreme temperatures.
i
Safety Precautions
• Use the power adapter included with the package. Using other power
adapters than the one provided will result to malfunction and could
prove to be dangerous.
• The device should only be used with the supplied batteries.
• About the power adapter:
1. Do not use the power adapter in a wet environment. When hands
and feet are wet, do not touch the power adapter.
2. While using the power adaptor, ensure that the area is well
ventilated. Do not let paper or other material cover the power
adaptor, as this will interfere with cooling. Do not use the power
adaptor whilst it is in a bag.
3. Do not attempt to repair the device. If device is damaged or is in a
wet environment, replace the device immediately.
4. It is not recommended to charge from a PC because the PC power
voltage is not enough to supply the device.
• About the battery
1. Use only the original factory approved charger.
2. A Lithium battery is built into the device. To prevent fire or skin
burns, do not disassemble, pierce, impact, or expose the battery to
fire. The battery will crack, explode, or release dangerous
chemicals if placed in a fire.
• Important instructions
1. Note: Replacing with an incorrect battery may result in an explosion.
When disposing of the battery, follow the instructions. The
replacement battery must be a factory approved original.
2. Regulations must be observed when recycling or disposing of
batteries.
3. The battery should only be used in this device.
GPSmile62
ii
iii
GPSmile6
2
Warranty Statement
• This warranty applies to parts and services of GPSmile 62 that are
manufactured and sold through Holux Technology Inc. The local area
covered is Taiwan; the warranty length is one year from date of
purchase (starting from the date on the sales receipt). Under normal
user operation, Holux Technology provides free repair services.
After repair, the replaced parts are the properties of Holux
Technology Inc.
• Holux Technology is not responsible for providing repairs or
replacements of any software; Holux Technology does not provide any
warranty service for third party software/hardware.
• Important instructions
Note: This warranty does not cover damage or malfunction from the
below causes: unauthorized disassembly/modification of unit, abuse or
incorrect usage, accidental and other unpreventable causes, operation
under variables mentioned that are different from those in this product
user manual, using parts not made or sold by Holux Technology, or
repairs done by anyone other than Holux Technology and authorized
retail/service providers.
Expendable parts are not covered in the warranty.
Holux Technology is not responsible for any program, data, or
portable storage media damages or loss. Please contact your local
Holux Technology authorized service provider to learn more about
geographical limitations, proof of purchase requests, response time
agreements, and other specific maintenance service requests.
Technical Support
• If there are any questions regarding the use of this product, please
log on to the website www.holux.com and see the FAQ.
• If answers cannot be found on the website, please send us an e-mail
at info@holux.com, stating your query and location.
Maintenance Service
HOLUX Technology, Inc.
+886-3-6687000
Web Site: www.holux.com
E-mail: info@holux.com
or
Contact your nearest dealer, for further support.
HOLUX Technology, Inc.
www.holux.com
GPSmile62
iv
Table of Contents
Warranty Statement ............................................................. iii
Technical Support................................................................ iv
Maintenance Service............................................................ iv
Preface ................................................................................... 1
Symbols ................................................................................. 1
Important Notice ................................................................... 1
Other Functions .................................................................... 2
First time use......................................................................... 3
Copyright ........................................................................... 3
Important Notice ................................................................ 3
Package Contents................................................................. 4
Basic Operation .................................................................... 5
Introduction ....................................................................... 5
Getting Started ...................................................................... 8
Micro SD memory card installation.................................. 8
Charging........................................................................... 10
Using Home / Travel adapter: ..................................... 10
Using the In-Vehicle Bracket .......................................... 13
Operating Methods ............................................................. 17
Startup.............................................................................. 17
Shutdown ......................................................................... 17
Using Functions.................................................................. 18
Function Menu Image Browsing Function ................... 19

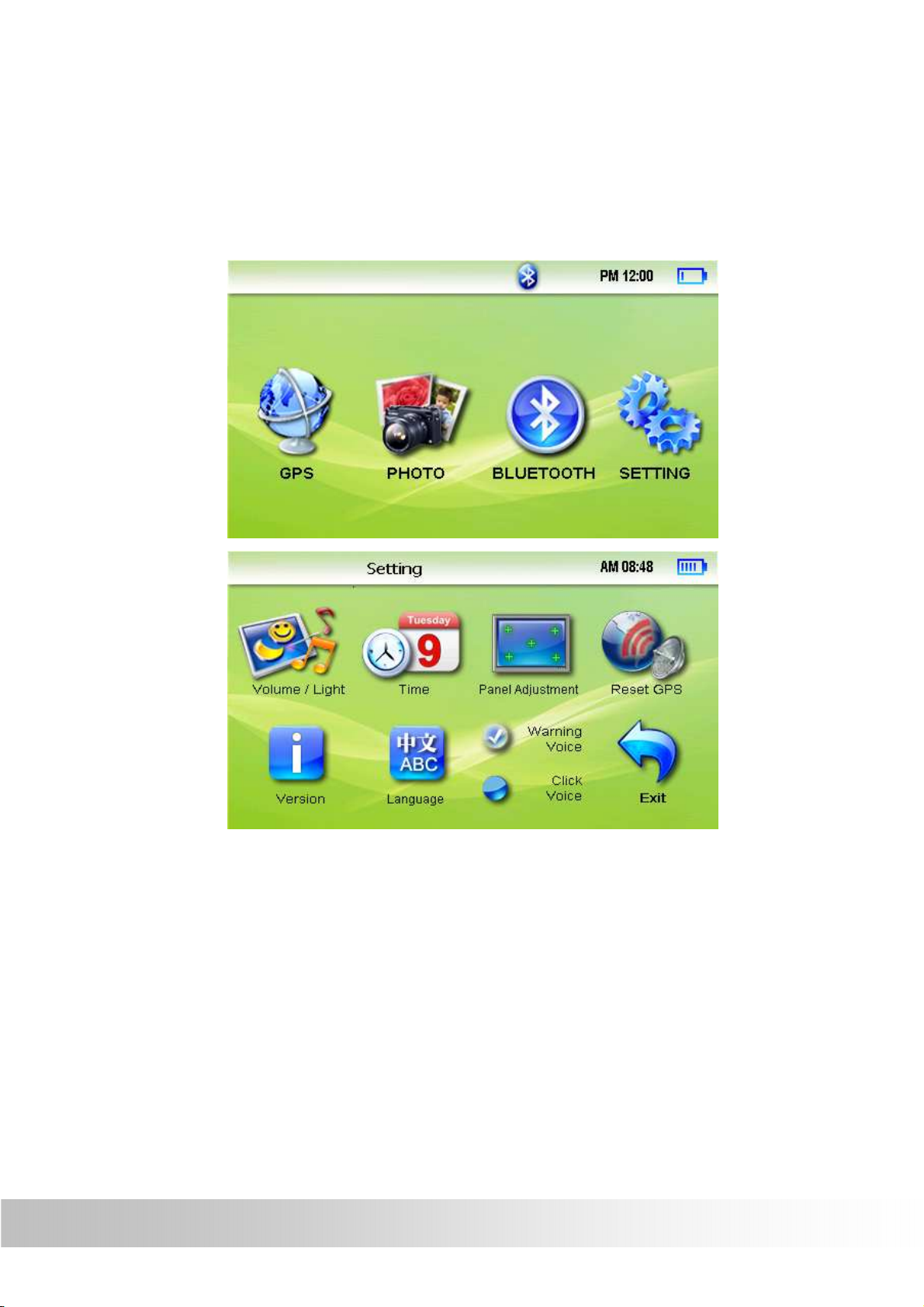

Setting .............................................................................. 21
Volume & Light ............................................................ 21
GPSmile62

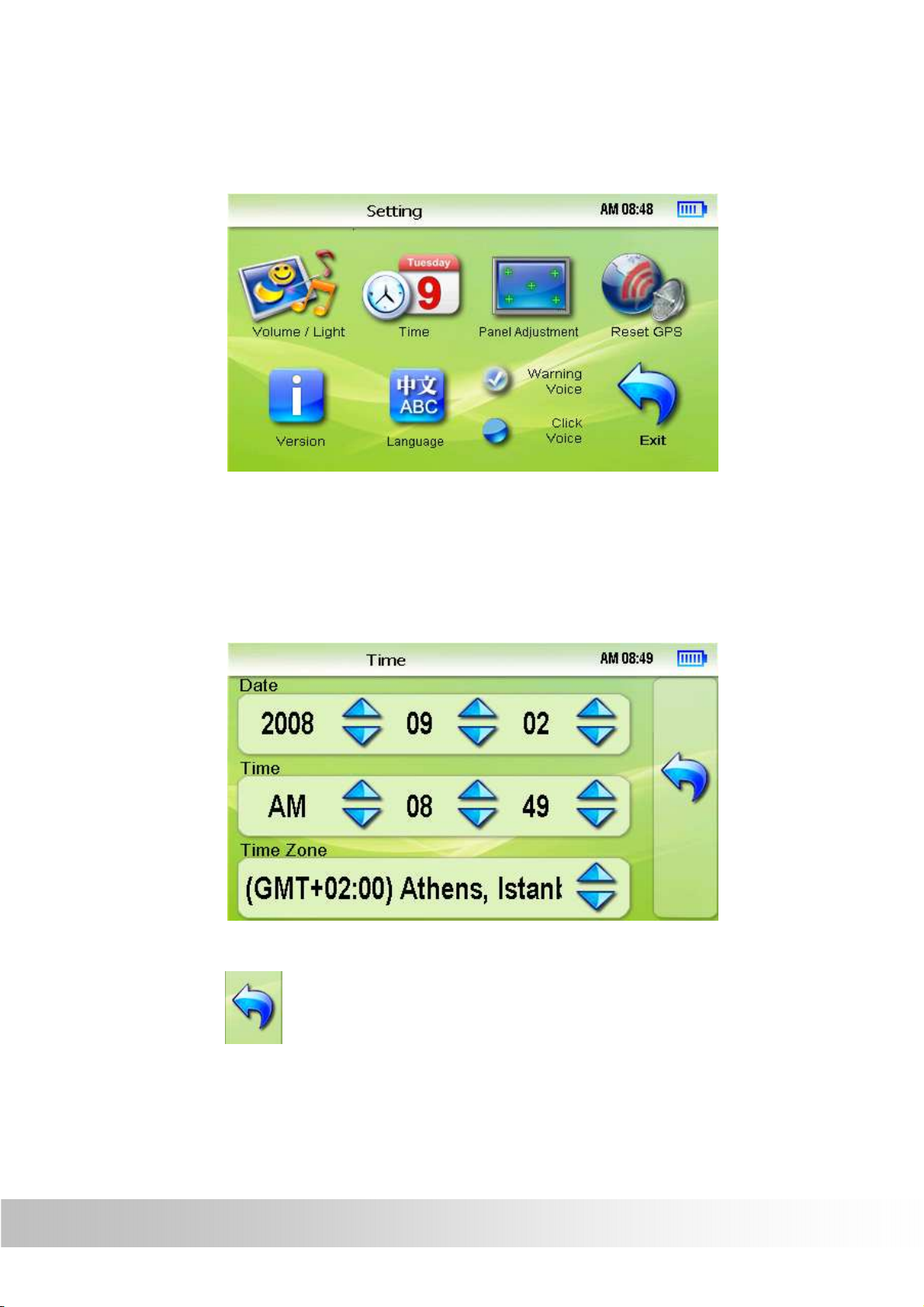

Time .............................................................................. 23
Panel Adjustment ........................................................ 24
Reset GPS .................................................................... 26
Version.......................................................................... 28
Language...................................................................... 29
Startup Message .......................................................... 29
Hot Key ......................................................................... 30
Bluetooth (Optional function) ............................................ 31
Make a call ....................................................................... 31
Phonebook....................................................................... 33
Call History ...................................................................... 35
Device List ....................................................................... 36
Device Manager ............................................................... 37
Settings......................................................................... 37
Search Device .............................................................. 38
Disconnect ................................................................... 41
Information ................................................................... 41
Troubleshooting.................................................................. 42
System reset .................................................................... 42
Normal Care and Maintenance ....................................... 43
Storage ............................................................................. 44
Appendix.............................................................................. 45
Specifications .................................................................. 45
Federal regulations............................................................. 47
GPSmile62
Preface
We appreciate your purchase of the GPSmile 62.
Please read all instructions thoroughly for a full understanding of the
products’ features.
Symbols
For fast reference of the data you wish to find, this manual uses the
following symbols.
This icon means you should take note of the message and read
during use.
This icon means warning and you should take care not to damage
the unit.
This icon means useful tips for extra information while using.
Important Notice
• This system only provides a navigational reference. Do not use this
system for any directional, distance, and geographic precise
measurements.
• The first GPS positioning should be performed at a single set point in
a wide-open area without building shelters. The length of time it takes
to position will depend on the satellite signal strength, and cloud
levels. It will possibly taking up to 10 minutes.
• GPS (Global Positioning System) is the satellite system used by the
United States of America Department of Defense. All maintenance
and operations are also managed by the United States of America
Department of Defense. Should the system be modified and adjusted,
the precision and operation of the GPS related systems might be
affected.
• Any wireless communication products (mobile phone, radio, speed
detection unit etc) might affect the GPS signal and result in a poor
signal.
• For safety reasons, do not operate this system while driving a vehicle.
1
GPSmile62
• Do not leave this unit under your front windshield after you leave the
Do not block
Do not secure in
front of airbag
vehicle. Exposure to high temperatures might be dangerous and
cause the battery to overheat, resulting in malfunction of the device.
• Window tinting might interfere with the reception of satellite signals.
We recommend that you install a vehicle antenna to strengthen and
stabilize the signal.
• The planned navigational route is for reference only; changes in
roadside conditions (one way streets, no right turns) may happen so
please respond according to the situation and decide whether or not
to follow the planned course.
• When placing this system in the vehicle, please secure it on the car
with brackets to ensure safety. The recommended installation
location is illustrated below.
X
X
driver’s view
X
Do not place on
unstable dashboard
X
Do not secure in
front of airbag
• Differences between manufactured and shipped versions may be
present; this software may be updated frequently. If the descriptions
in this manual are different from your software version, please follow
the software version currently on hand.
Other Functions
• Image display: displays photographs or image files
GPSmile62
2
First time use
Copyright
Without the written consent of HOLUX Technology, Inc, this manual,
including the product and the software, may not be duplicated, transmitted,
recorded or saved on storage devices. Furthermore, it shall not be
translated under any circumstances into any other languages.
Copyright ©2008 HOLUX Technology, Inc. All rights reserved.
Important Notice
Please thoroughly read this manual of operating instructions and
explanations. Only use original factory approved batteries and accessories
to prevent unexpected damage. If the correct procedures were not followed
for operation or incompatible accessories were connected, this is a
violation of the warrantee agreement and will automatically void the
warrantee. This may also cause personal safety issues.
3
GPSmile62
Package Contents
Your product should include the following accessories:
NAV-62 Unit In-vehicle Bracket fixing
Home / Travel Adapter
Car Adapter
(Optional)
Micro SD Card
(Optional)
GPSmile62
CD-ROM
Quick Guide
4
Basic Operation
5
” TFT
External Antenna port
Introduction
Front View
LCD with
touch
screen
Rear View
5
GPSmile62
Left Side
USB port
Micro SD card
Power button
Earphone port
Battery
Right Side
GPSmile62
6
Top View
Hot key
Bottom View
7
GPSmile62
Getting Started
If you are a first-time system user, the following explanations will help you
quickly understand the system operations, and experience the system’s
powerful and convenient functions.
Micro SD memory card installation
This unit is equipped with a Micro SD memory card slot. You can purchase
Micro SD Cards to expand the memory capacity.
To insert the memory card:
With the metal contacts of the memory card facing back, insert the card into
the slot on the right side of the unit.
To remove the memory card:
1. Gently press the top of the memory card, and the card will eject
automatically.
2. Then, pull to remove the memory card.
The included memory card contains the digital map files that are
required for the GPS navigational data. Please do not delete.
When removing the memory card, please make sure the card is not
reading data, or it will cause a system crash.
GPSmile62
8
Do not set the Micro SD memory card as write protected, or the
system will not operate properly.
When operating, accidental removal of the memory card will
result in showing an error message. Please reinsert the
memory card and the system may need to be reset before
further use.
9
GPSmile62
Charging
Using Home / Travel adapter:
Before using the device for the first time, we strongly suggest you use a
fully charged battery.
1. Insert the USB connector into the unit.
2. Plug the adapter into a power outlet.
Please do not use USB cable to connect with PC/Laptop when
battery low or without battery, it will be causing device can not
boot.
GPSmile62
10
Using the car charger:
Optional
While using the device in a vehicle, use the included car charger for long
periods of usage.
1. Plug the small plug into the power jack on the rear 1-1 side of the
device bracket is optional.
2. Insert the other end into the cigarette lighter.
*1-1 Optional in basic version.
1-1
11
GPSmile62
This device uses a built-in rechargeable battery. Please note the
following:
• Please do not charge in a hot environment, such as on a balcony
or an area exposed to direct sunlight.
• Do not wait until the battery is depleted to recharge.
• When the unit is not in use for a long time, please remove the
battery pack from the device.
• When charging a completely depleted battery, wait at least one
minute before starting up the system. This will prevent excessive
battery discharge.
GPSmile62
12
Using the In-Vehicle Bracket
The included in-vehicle bracket set can be securely suctioned on the front
windshield, or secured on top of the glove compartment using the adhesive
plate. This device will effectively secure the GPS unit in the vehicle. Follow
the procedures below to secure the bracket:
1. Follow the arrows and secure the unit into the in-vehicle bracket
fitting holes.
2. Gently push the unit until the unit is tightly fixed with the bracket.
13
GPSmile62
Note: Please note the directions of the arrows. When secured, the
assembly should be tight. If these directions are not followed, a loose fit will
result, and components must be reassembled.
3. Suction the vehicle bracket securely to the windshield, ensuring its
base is resting firmly on the dashboard . Bend the bracket support
to a proper angle (＆).
GPSmile62
14
4. The in-vehicle bracket assembly is complete.
5. To remove the GPS unit, press the release button and unscrew .
15
GPSmile62
When using the in-vehicle secure bracket, do not install it in a
location that will block the view of the driver
Recommended installation requirements:
The bracket base should rest securely on the dashboard to prevent
excessive shock.
GPSmile62
16
Operating Methods
Power button
Startup
For first time use, please press and hold the power button for about 0.5
second to turn on the power.
Shutdown
While power is on, press the power button to turn the power off.
17
GPSmile62
Using Functions
During the first startup, the screen will show the main screen consisting of
three functions: navigation, photo and settings. Directly select an icon on
the screen to use the function.
GPS Loads the navigation program and navigation
screen
Note: If a Micro SD card with navigator software is
inserted, the system will automatically enter GPS
function after startup.
PHOTO Plays images
SETTING System setup
GPSmile62
18
Function Menu
Next
Previous
Slide show
Delete
Exit
Photo title
Help
Image Browsing Function
1. The system has an Image Browsing function that is capable of
displaying images/photographs stored on Micro SD memory cards.
All the files need to be stored under the Image directory, and the file
format needs to be “*.jpg”.
2. Insert the Micro SD memory card with stored image files into the
Micro SD memory card slot on the unit.
3. Turn the power on, and select the [PHOTO] icon to start image
browsing function.
4. The Image Browsing Window.
19
GPSmile62
Next
Rotate
Zoom in
Previous
Exit
Delete
Information
Viewing
Slide show
Size
Zoom out
GPSmile62
20
Setting
Volume & Light
1. After starting up the system, select the [SETTING] icon to enter.
21
GPSmile62
2. Select [Volume & Light ] from the main screen to access the
settings screen.
a. Control the volume directly with the “speaker” icon. There are nine levels
of volume.
Select the “MUTING” icon to mute the Volume.
b. Control the LCD Brightness with “light bulb” icon. There are nine levels of
brightness.
GPSmile62
22
Time
1. Select [Time] from the main screen to access the Time settings screen.
2. Access the Date pull down menu and choose the correct value.
3. Access the Time pull down menu and choose the correct value.
4. Access the Time Zone pull down menu and choose the correct value.
5.Select to return to main menu screen.
23
GPSmile62
Panel Adjustment
Control the unit through the finger or stylus by touching/writing on the screen.
If the system cannot correctly identify your input, please run through the
screen calibration procedure.
1. From the settings window, select [Panel Adjustment] to start the
screen calibration procedure.
GPSmile62
24
2. Use the finger/stylus and touch the cross at the center of the screen
once.
3. Touch the cross in the second position once.
4. Touch the cross in the third position once.
5. Continue the calibration by touching the cross.
6. The setting page will return when adjustment is finished.
25
GPSmile62
Reset GPS
1. Select [Reset GPS] from the main screen to access the GPS settings
screen.
2. Select the “YES” icon to start the GPS reset procedure.
3. Select the “NO” icon to return to the main “Setting” screen.
GPSmile62
26
4. The following information is for "GPS reset fail!"
5. The following information is for "GPS reset OK!"
27
GPSmile62
Version
1. Select [Version] from the main screen to access the Version screen.
2. The screen display will show the version information.
GPSmile62
28
Language
Select [Language] from the main screen to access the Language screen.
Select the language what you want under the screen.
Startup Message
1. Warning Voice: Under the settings window, check the Warning Voice
to
/ (check / uncheck) if you would like the startup message is to
be broadcast.
2. Click Voice: Under the setting windows, check the click voice to /
(check/uncheck) to enable / disable the click voice.
29
GPSmile62
Hot Key
Hot key
Press the [Hot key] to enter the “Volume” and ”LCD Brightness” screen.
GPSmile62
30
Bluetooth (Optional function)
Make a call
1. Turn the power on and select "Bluetooth" in the main menu. The
GPS will display "Bluetooth HF Phone" Menu.
31
GPSmile62
2. Select ‘“Dialer” and the system will display the calling function menu.
a. Use "Phonebook" to enter its menu.
b. Use "Call History" to enter "Call History" menu.
Dial
Phone
book
Numbers
Call
History
3. Use "Numbers" to enter the desired telephone number and
press "Dial" to dial.
GPSmile62
32
Phonebook
Dial
1. Select "Phonebook" on the main menu to enter the "Phonebook"
menu.
Previous
Download
Phonebook
Delete
Phonebook
Next
2. Use "Download Phonebook" to download the Phonebook in the
Bluetooth device.
3. The information below is used in "Downloading Phonebook”.
33
GPSmile62
4. The information below is used for "The remote device does not support
Phonebook Download".
5. Use up/down arrows to select the number to dial and then press “Dial”
.
6. Use "Delete all contacts" to delete all Phonebooks.
7. Select Start deleting.
GPSmile62
34
Call History
Answered Calls
Select "Call History" from the main menu, and enter the "Call History"
menu.
Previous
Next
a. Use up/down arrows to view Call History.
Dial content
Dialed Number
b. Use "Content" to view conversation content.
c. Use "Dialed Number " to view dial record.
d. Use "Answered Calls" to view callers.
e. Select the desired number and press “Dial” .
35
GPSmile62
Device List
From main menu, select "Device List" and enter "Device List" menu.
Previous
Next
a. Use up/down arrow to see Device List(s).
Connect
Device
Delete
Device
b. Select desired device and press "Connect Device" to connect to
device.
c. Select the device to be deleted and press "Delete Device" to delete
device.
GPSmile62
36
Device Manager
Disconnect
From the main menu, select "Device Manager" to enter "Device
Manager".
Previous
Next
Set
Search Device
Information
Settings
1. Select "Settings" to enter "Settings" menu.
37
GPSmile62
2. Touch the name of the device and enter "Set Device Name" menu.
Alphabet/
Number
Switch
3. Use "Alphabet / Number Switch" to change to English
characters or numbers.
4. Use "keypad" to enter the name for the new device and select to
start using new name.
Search Device
1. Use "Search Device" to search for Blue tooth device and enter Device
found menu.
GPSmile62
38
2. Use "Search Device" to find Bluetooth device again.
Previous
Next
Connect
Search Device
3. Use up/down arrows to select the device you desire to Connect and press
"Connect" to connect.
4. The information below is used during "Connection Established ".
39
GPSmile62
5. The information below is used during "Pairing Fail".
GPSmile62
40
Disconnect
Select the device to be disconnected, and then press "Disconnect" to
disconnect connected Bluetooth device.
Disconnect
Information
Use "Information" to display version information.
41
GPSmile62
Troubleshooting
System reset
It will only be required to reboot the system under extremely few
circumstances. Reset your system if the following situations occur:
1. You experience heavy lag while refreshing a screen or operations,
which results in an inoperable system.
2. Cannot turn off the system with the power button.
3. No response from a selection made on the screen.
Follow below processes to reset the system:
• Remove the battery cover and then take out the battery pack.
• Insert the battery pack to the system and insert the battery cover.
• The system will immediately reset.
• You will now see the main screen and the system is ready for use.
GPSmile62
42
Normal Care and Maintenance
To ensure the unit’s normal operation and extended life span, please note the
following while using and storing:
Keep dry
This product is not waterproof. If it comes into contact with water or is
submerged into water, it will seriously damage the components and result in
irreversible damages.
Do not drop the unit
A serious damage may be caused if it is violently impacted or shocked.
Avoid sudden temperature changes
Condensation may occur when entering a warm room on a cold day. To
prevent condensation from damaging the unit, please place it into an airtight
plastic bag before exposing it to sudden temperature changes.
Keep away from strong magnetic fields
When using or storing, please keep away from strong
electromagnetic/radioactive or magnetic field equipment.
Operating temperature
The products operating temperature is between 0°C ~ 40°C. Please do not
operate it under extreme temperatures.
Avoid exposure to sunlight
Please avoid long periods of sunlight or exposure to high temperatures.
43
GPSmile62
Cleaning the screen
Use a soft clean cloth to wipe the screen. Do not use ordinary tissue to wipe
the screen.
Do not disassemble
Please do not disassemble the product. This may void the warranty and
damage the unit.
Storage
For storage, keep the unit in a dry box.
Please do not keep the product in the following environments:
1. Unventilated and humid locations.
2. In a car window that is exposed to excessive amounts of sunlight.
3. In an environment where humidity is over 90%.
GPSmile62
44
Appendix
Specifications
Integrated GPS
Receiver
Acquisition Time
Accuracy
GPS antenna Built-in patch antenna
Handheld Software
(Pre-loaded)
Processor Samsung S3C2443 400 MHz.
32 parallel channels
◇ Reacquisition : 0.1 sec.
◇ Hot start : 1 sec.
◇ Warm start : 33 sec.
◇ Cold start : 36 sec.
◇ Position: 10 m. for 90%
◇ Velocity: 0.1 m/s
◇ Companion CD:
Adobe Acrobat Reader® for Pocket PC - PDF file
viewer
◇ GPSmile 62 Handheld Manual
Operating System Microsoft Windows CE. Net 5.0 Core Version
◇ 64 MB Flash
Memory
Weight <190 g
Size 135 (W) x 89 (H) x 12 ~ 14.5 (D) mm
Car Holder / Charger
Battery
Extension Slot Micro SD
Display
◇ 64 MB Mobile SDRAM
◇ Input voltage: 10~30V, 1.3A max.
◇ Output voltage: 5.4V/1.2A
◇ Removable Rechargeable 1050 mAh Li-Ion
Battery
◇ 5” ( 16:9 ) TFT LCD with touch screen
◇ 480 x 272 pixels
◇ 16 M colors
Audio
◇ Built-in speaker.
45
GPSmile62
Temperature
Humidity
◇ Software volume control.
◇ 3.5mm headphone jack
◇ Operation: -10°C ~ 60°C
◇ Storage: -20°C ~ 70°C
◇ Operation: 0%~90%
◇ Storage: 0%~90%
◇ USB 2.0
USB
◇ mini USB Connector for USB client & DC
power in
Backlight Adjustment Software Backlight Adjustment Control
Software
Bluetooth
(Optional Function)
◇ Photo
◇Support PBAP (Phonebook)
◇Support HFP (Hands-Free)
TMC
TMC Traffic Receiver
(Optional Function)
Flash Memory
Built-in 2G Flash
(Optional Function)
High Speed Processor
Samsung S3C2443 533 MHz.
(Optional Function)
GPSmile62
46
Federal regulations
This equipment is in compliance with the essential requirements and other
relevant provisions of directive 1999/5/EC.
47
GPSmile62
Loading...
