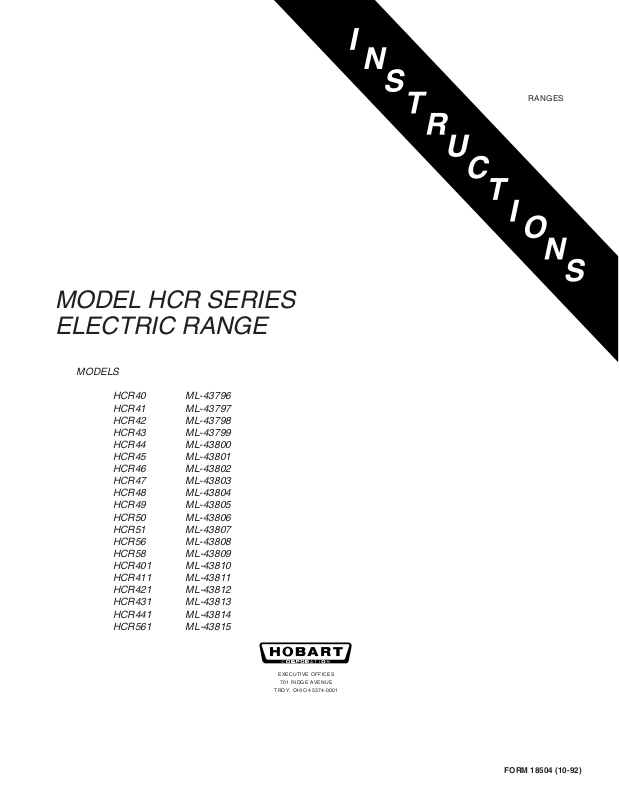

MODEL HCR SERIES ELECTRIC RANGE
MODELS
RANGES
HCR40 ML-43796 HCR41 ML-43797 HCR42 ML-43798 HCR43 ML-43799 HCR44 ML-43800 HCR45 ML-43801 HCR46 ML-43802 HCR47 ML-43803 HCR48 ML-43804 HCR49 ML-43805 HCR50 ML-43806 HCR51 ML-43807 HCR56 ML-43808 HCR58 ML-43809 HCR401 ML-43810 HCR411 ML-43811 HCR421 ML-43812 HCR431 ML-43813 HCR441 ML-43814 HCR561 ML-43815
EXECUTIVE OFFICES
701 RIDGE AVENUE
TROY, OHIO 45374-0001
FORM 18504 (10-92)
HCR RANGE MODELS
HCR40 HCR46 HCR401
HCR41 HCR47 HCR411
HCR42 HCR48 HCR421
HCR43 HCR49 HCR431
HCR50
HCR56 HCR561
HCR58 HCR441
HCR44
HCR40
HCR46
© HOBART CORPORATION, 1992
HCR51
HCR45
PL - 50911
– 2 –
TABLE OF CONTENTS
PAGE
GENERAL ........................................................................................................................................................... 4
INSTALLATION................................................................................................................................................... 5
UNPACKING .............................................................................................................................................. 5
LOCATION.................................................................................................................................................. 6
LEVELING .................................................................................................................................................. 5
BATTERIED RANGES ............................................................................................................................... 5
ELECTRICAL CONNECTIONS ................................................................................................................. 5
OPERATION ....................................................................................................................................................... 7
BEFORE FIRST USE................................................................................................................................. 7
TOP SURFACE ELEMENTS AND CONTROLS ...................................................................................... 7
OVEN CONTROLS .................................................................................................................................... 8
USING THE RANGE TOP ......................................................................................................................... 9
USING THE OVEN..................................................................................................................................... 9
OPERATING HINTS ................................................................................................................................10
COOKING TIPS........................................................................................................................................ 10
CLEANING................................................................................................................................................ 11
TROUBLESHOOTING ...................................................................................................................................... 12
– 3 –
Installation, Operation and Care of
MODEL HCR SERIES
ELECTRIC RANGE
SAVE THESE INSTRUCTIONS

GENERAL

The various Hobart Model HCR Series Ranges are equipped as follows:
MODEL EQUIPPED WITH
RANGE WITH STANDARD OVEN
HCR40 (3) 12" x 24" hot tops, 5 KW each HCR41 (2) 12" x 24" hot tops and (2) 91/2" diameter round French hot plates (or high speed elements) HCR42 36" wide griddle top HCR43 (6) 91/2" diameter round French hot plates (or high speed elements) HCR56 (2) 12" x 24" hot tops and (2) 91/2" diameter round high speed elements HCR58 24" griddle top and (2) 91/2" diameter round French hot plates (or high speed elements)
EXPANDO UNITS
HCR44 Full body expando unit with (1) 12" x 24" hot top HCR45 Full body expando unit with (2) 9 HCR50 Modular (table) unit with (1) 12" x 24" hot top HCR51 Modular (table) unit with (2) 9
MODULAR (TABLE) RANGES
HCR46 (3) 12" x 24" hot tops, 5 KW each HCR47 (2) 12" x 24" hot tops and (2) 91/2" diameter round French hot plates (or high speed elements) HCR48 36" wide griddle top HCR49 (6) 91/2" diameter round French hot plates (or high speed elements)
RANGE WITH CONVECTION OVEN
HCR401 (3) 12" x 24" hot tops, 5 KW each HCR411 (2) 12" x 24" hot tops and (2) 91/2" diameter round French hot plates (or high speed elements) HCR421 36" wide griddle top HCR431 (6) 91/2" diameter round French hot plates (or high speed elements) HCR441 24" griddle and (2) 91/2" diameter round French hot plates (or high speed elements) HCR561 (2) 12" x 24" hot tops and (2) 91/2" diameter round high speed elements
Hot tops are provided with clean-out grooves at left and right edges of range tops. Hot tops are not recommended for griddle work.
1/
2
" diameter round French hot plates (or high speed elements)
1/
2
" diameter round French hot plates (or high speed elements)
Optional high speed round tubular surface units are available in place of round French hot plates for use with 208 or 240 volt ranges only. High speed round tubular surface units are not recommended for stock pot work.
– 4 –
