Hobart HFB6 PARTS LIST

CATALOG OF

REPLACEMENT

PARTS

FLASHBAKE OVENS

MODELS

ML-126878 HFB6 W/POWER CORD
ML-126880 HFB6 W/O POWER CORD

A product of HOBART CORPORATION 701 S. RIDGE AVENUE TROY, OHIO 45374-0001

FORM 34617 Rev. A (April 2002)

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

5

1

6

2

3

12

4

13

7

8

9

11

10

PL-53608

F-34617 Rev. A (April 2002)

CAVITY AND COVERS

- 2 -

© HOBART CORPORATION

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

CAVITY AND COVERS

ILLUS. PART NO. NAME OF PART AM T.
PL-53608

1 00-423970-00001 Panel – Top Cover ...................................................................................................................... 1

2 00-425213-00003 Thermostat (160 Deg. F.) ........................................................................................................... 1

3 00-423994-00001 Grommet – Top Plate .................................................................................................................. 1

4 00-423957-00001 Panel – Side ................................................................................................................................ 2

5 00-427652-000G1 Kit – Lamp Shield Service .......................................................................................................... 1

6 00-423963-00001 Plate – Top ..................................................................................................................................1

7 00-423953-00001 Cavity – Rear .............................................................................................................................. 1

8 00-423965-00001 Cavity – Right ............................................................................................................................. 1

9 00-423954-00001 Cavity – Top ................................................................................................................................1

10 00-423923-000G1 Lower Shield Assy. .................................................................................................................... 1

11 00-423973-000G1 Pulley – Plate Assy. ....................................................................................................................1

12 00-423922-00001 Grill 16 In. (SST) ......................................................................................................................... 1

13 00-423964-00001 Cavity – Left ............................................................................................................................... 1

00-424064-00001 Pan – Flashware 12 In. ..............................................................................................................1

00-424065-00001 Pan – Blackbuster 6 In. .............................................................................................................. 1

00-424065-00002 Pan – Blackbuster 7 In. .............................................................................................................. 1

00-424065-00003 Pan – Blackbuster 10 In. ............................................................................................................ 1

00-424065-00004 Pan – Blackbuster 12 In. ............................................................................................................ 1

00-424065-00005 Pan – Blackbuster 14 In. ............................................................................................................ 1

00-424065-00006 Pan – Blackbuster 16 In. ............................................................................................................ 1

00-424066-00001 Pan – Silverstone 12 In. ............................................................................................................. 1

00-424057-00001 Scraper ...................................................................................................................................... 1

- 3 -

F-34617 Rev. A (April 2002)

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

4

1-2-3

SEE PAGE 6
FOR PARTS

5-6-7

8

PL-56367

FRONT DOOR ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-56367

1 00-423967-000G1 Door Weldment ...........................................................................................................................1

2 00-423920-00002 Gasket (191/4 In. Lg.) .................................................................................................................. 2

3 00-423920-00003 Gasket (9 In. Lg.) ....................................................................................................................... 2

4 00-423977-000G1 Bezel Assy. (Incls. Inner & Outer Glass) ................................................................................... 1

5 00-424044-00001 Handle Assy. .............................................................................................................................. 1

6 SC-040-15 Cap Screw 5/16-18 x 11/4 Soc. Hex Hd. ....................................................................................... 2

7 00-424051-00001 Clip – Tinnerman (Type 5) .......................................................................................................... 2

8 00-423969-00001 Panel – Front .............................................................................................................................. 1

00-423976-000G1 Front Door Assy. (Incls. Items 1 thru 7) .....................................................................................1

F-34617 Rev. A (April 2002)

- 4 -

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

10

2-3-4

1

5-6-7

8

9

PL-53609

SOCKET BRACKET ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-53609

1 00-423913-00001 Plate – Door Lock ....................................................................................................................... 1

*2 00-854438-00002 Switch – Micro Glass (Mfg. After October 2001) ..................................................................... 1

*3 00-854449-00001 Kit – Field Replacement “Glass” Switch (Mfg. Before October 2001) ..................................... 1

4 SC-018-69 Mach. Screw 4-40 x 3/4 Phil. Pan Hd. .........................................................................................2

5 00-423927-00002 Bracket – Socket (Top & Bottom) ............................................................................................... 1

6 00-423928-00002 Reflector ..................................................................................................................................... 1

7 00-424042-00001 Lamp (QH2000 W.) ..................................................................................................................... 7

8 00-424043-00001 Socket – Lamp ........................................................................................................................... 14

9 00-423927-00001 Bracket – Socket (Top & Bottom) ............................................................................................... 1

10 00-423958-00002 Support – Left Wall .................................................................................................................... 1

*If Existing Switch is Black or Blue, Use Item 3. If Existing Switch is Brown, Use Item 2.

- 5 -

F-34617 Rev. A (April 2002)

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

1

2

3

6-7

4-5

BACK VIEW

PL-53610

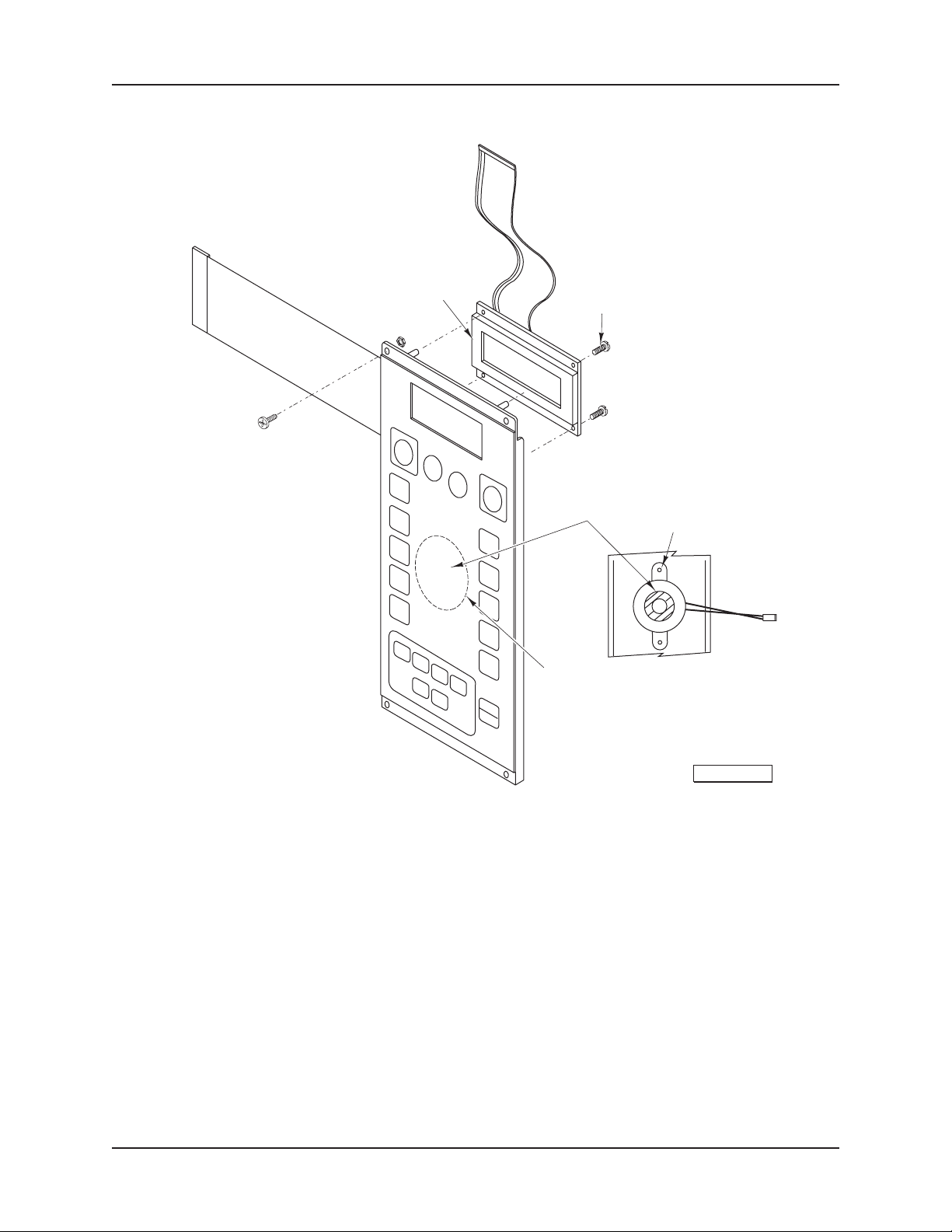

MEMBRANE SWITCH ASSEMBLY

ILLUS. PART NO. NAME OF PART AMT.
PL-53610

1 00-423896-00001 LCD Display 4 x 20 ..................................................................................................................... 1

2 00-424084-00001 Mach. Screw 4-40 x 3/8 Pan Hd. Nylon ...................................................................................... 4

3 00-423888-000G1 Electronic Beeper Assy. .............................................................................................................1

4 SC-018-55 Mach. Screw 4-40 x 1/2 Phil. Pan Hd. .........................................................................................2

5 WL-003-03 Lockwasher #4 Medium ............................................................................................................. 2

6 00-427069-00001 Switch – Membrane (Hobart) .................................................................................................... 1

7 00-423912-00001 Plate – Membrane Switch .......................................................................................................... 1

F-34617 Rev. A (April 2002)

00-427115-000G2 Plate – Membrane Switch (Hobart) (Incls. Items 1 thru 6) ........................................................ 1

- 6 -

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

2

3

4

5

6

7

1

PL-53611

FRONT EDGE OF PULLEY PLATE

FRONT EDGE OF PULLEY PLATE

10

SCREW MUST FACE FRONT
EDGE OF PULLEY PLATE

11

8

9

PULLEY PLATE ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-53611

1 00-423882-00001 Support – Roller.......................................................................................................................... 2

2 00-423966-00001 Plate – Pulley .............................................................................................................................. 1

3 00-423886-000G1 Roller – Long (Incls. 5 mm Bearing) ........................................................................................... 3

4 00-423883-00001 Support – Roller (Short) .............................................................................................................1

5 00-424029-00001 Washer – Flat (Brass) ............................................................................................................... 4

6 00-424035-00001 Shoulder Screw 8-32 x 3/4 (SST)............................................................................................... 4

7 00-423884-000G1 Roller – Horizontal (Incls. 5 mm Bearing) ................................................................................... 1

8 00-424029-00001 Washer – Flat (Brass) ............................................................................................................... 1

9 SC-114-27 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. .........................................................................................1

10 00-423885-00001 Support – Roller (Horizontal) ..................................................................................................... 1

11 SC-124-05 Mach. Screw 8-32 x 3/8 Phil. Flat Hd. ......................................................................................... 9

- 7 -

F-34617 Rev. A (April 2002)

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

12-13

11

1

10

2

9

3

4-5

6

7

8

PL-56324

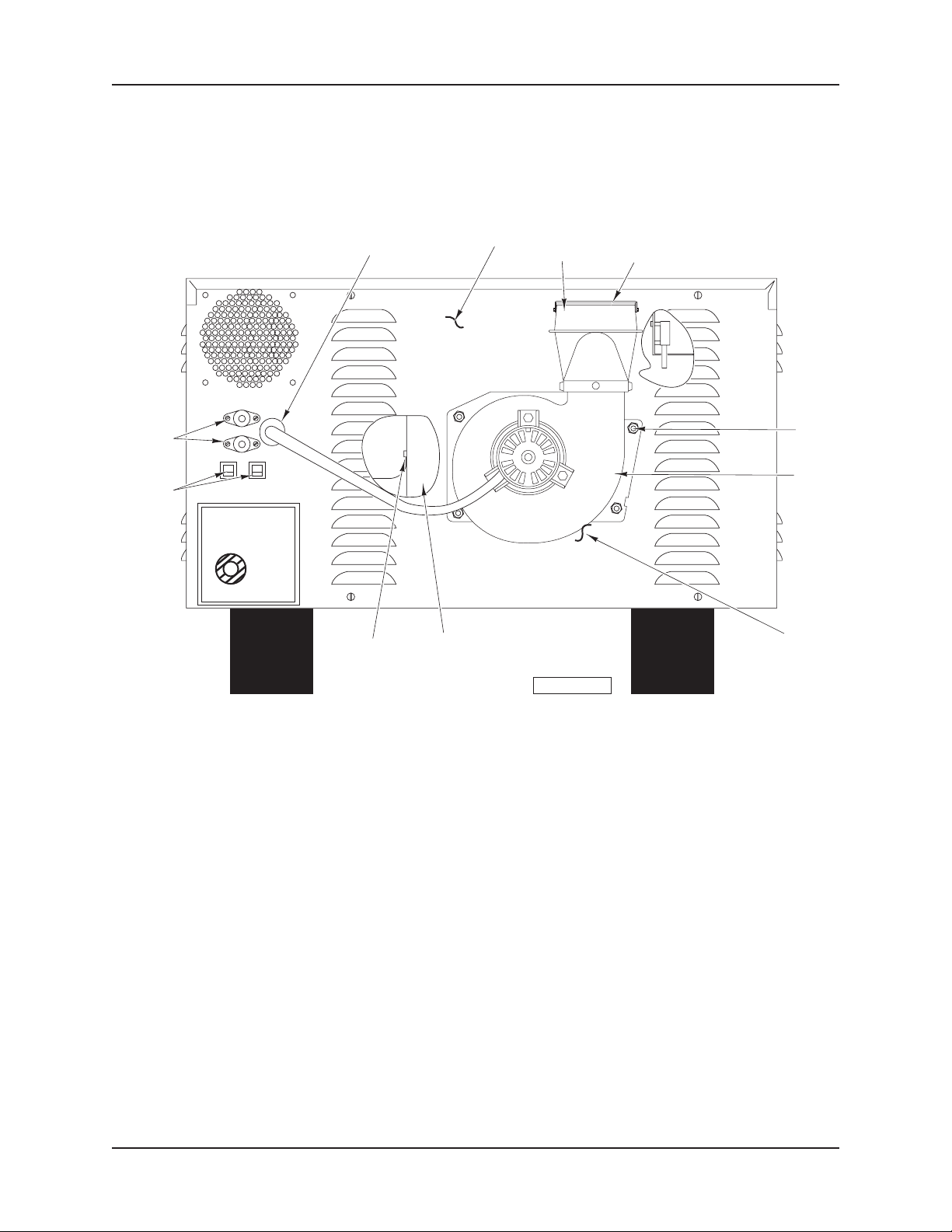

REAR PANEL ASSEMBLY

ILLUS. PART NO. NAME OF PART AM T.
PL-56324

1 00-423992-00001 Strain – Relief 5/8 (Use W/Item 2) ................................................................................................ 1

*2 00-854448-00001 Panel – Rear ............................................................................................................................... 1

*3 00-425198-00002 Vent Adapter .............................................................................................................................. 1

*4 00-423784-00001 Guard – Blower Exhaust ........................................................................................................... 1

5 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ........................................................ 5

6 NS-046-52 Nut – 1/4-20 Hex KEPS ................................................................................................................ 4

*7 00-425198-00001 Blower (208/230 V.) .................................................................................................................. 1

*8 00-425205-00001 Gasket – Blower (Between Blower and Rear Panel) ............................................................... 1

*9 00-424019-000G2 Exhaust – Duct Assy. W/Gasket................................................................................................ 1

10 00-423892-00001 Thermistor (100K) NTC .............................................................................................................. 2

11 00-423987-00001 Breaker – Circuit (CB1 & CB2) ...................................................................................................2

12 00-344138-00004 Fuse Holder (20 Amp.) (600 V.) ................................................................................................. 2

13 00-423986-00001 Fuse (KTK-R-3) .......................................................................................................................... 2

*Must Order Items 2 thru 9 When Replacing Any of These Components on Units Built Prior to
Serial No. 271117881 (March 2002) and All Plant 48 Units.

F-34617 Rev. A (April 2002)

- 8 -

MEMBRANE
SWITCH
CONNECTOR

USER
MEMORY
CHIP

19

DISPLAY
CONNECTOR

20

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

1

2

3

4

5

6

7

8-9-10

18

13 THRU 17

REAR THERMISTOR
CONNECTOR

12

FRONT THERMISTOR
CONNECTOR

GREEN GROUND
WIRE

11

PL-56318

ELECTRONICS ASSEMBLY

(RH VIEW)

ILLUS. PART NO. NAME OF PART AM T.
PL-56318

1 00-423910-00001 PCB – Main (5K) ......................................................................................................................... 1

2 00-423895-00001 Ribbon Cable Assy. (5K) ............................................................................................................1

3 00-427101-00001 Harness – Lamp .........................................................................................................................1

4 00-423908-00001 Board – Relay (5K) (1 Ph.) ........................................................................................................ 1

5 00-424403-00001 Board – Photo Detector .............................................................................................................. 2

6 00-424036-00001 Fan (106 CFM) (230 V.) ............................................................................................................. 1

7 00-423925-000G1 Wire Assy. (1 Phase) .................................................................................................................1

8 00-424009-00001 J-Box & Cover Assy. (ML-126880) ............................................................................................ 1

9 00-424009-00002 J-Box & Cover Assy. (ML-126880) ............................................................................................ 1

10 SA-021-42 Mach. Screw 8-32 x 1/2 Phil. Pan Hd. .........................................................................................2

11 00-423893-00001 Foot – Molded ............................................................................................................................. 4

12 00-423904-00001 Transformer 5K .......................................................................................................................... 1

13 00-423984-00001 Motor – DC 5K ............................................................................................................................ 1

14 00-423955-00001 Bracket – Motor ..........................................................................................................................1

15 00-423880-00001 Shaft – Drive Pulley .................................................................................................................... 1

16 00-423879-00001 Block – Drive Pulley ....................................................................................................................1

17 SD-036-03 Self-Tapping Screw 8-18 x 3/8 Hex Washer Hd., Type AB ........................................................ 4

18 00-423974-000G3 PCB Wall Assy. (Incls. Items 1, 2, 3, 7, 14, 15, & 20) ................................................................1

19 00-423901-00001 Harness – Sensors (5K) ..........................................................................................................AR

20 00-424050-00011 IC – Prog. (FBO6 to Rev.) (30 Amp.) ..........................................................................................1

00-423038-000G1 Cord – Power ............................................................................................................................. 1

00-850192-00002 Connector – Strain Relief ........................................................................................................... 1

- 9 -

F-34617 Rev. A (April 2002)

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

1

2-3-4

5 THRU 8

OVEN FRONT

9

11

12

10

PL-56326

ELECTRICAL & DOOR HINGE ASSEMBLY

(LEFT SIDE)

ILLUS. PART NO. NAME OF PART A MT.
PL-56326

1 00-423988-00001 Solenoid (DC) ............................................................................................................................. 1

*2 00-854438-00001 Switch – Micro (Mfg. After October 2001) ................................................................................ 1

*3 00-854440-00001 Kit – Field Replacement, Door Switch (Mfg. Before October 2001) .........................................1

4 SC-018-69 Mach. Screw 4-40 x 3/4 Phil. Pan Head ...................................................................................... 2

5 00-423915-00001 Hinge – Right .............................................................................................................................. 1

6 00-423914-00001 Hinge – Left ................................................................................................................................ 1

7 00-423878-00001 Spacer – Hinge (Inner) ...............................................................................................................2

8 00-423881-00001 Spacer – Hinge (Outer) .............................................................................................................. 2

9 00-424024-00001 Bumper – Door Stop (Rubber) ................................................................................................... 2

10 SC-124-13 Mach. Screw 6-32 x 1/4 Phil. Flat Hd. ......................................................................................... 4

11 00-424039-00001 Spring – Door ..............................................................................................................................2

12 00-424007-00001 Spring – Lock Plate .....................................................................................................................2

*If Existing Switch is Black or Blue, Use Item 3. If Existing Switch is Brown, Use Item 2.

F-34617 Rev. A (April 2002)

- 10 -

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

1

2

POWER LEAD L1

3

POWER LEAD L2

4

5

6

PL-53613

SINGLE PHASE RELAY BOARD

ILLUS. PART NO. NAME OF PART AM T.
PL-53613

1 SC-114-03 Mach. Screw 10-32 x 1/2 Hex Washer Hd. ................................................................................ 2

2 00-424047-00001 Washer – Copper #10 ................................................................................................................ 4

3 00-423908-00001 Board – Relay (5K) (1 Ph.) ........................................................................................................ 1

4 WS-029-45 Washer ....................................................................................................................................... 2

5 00-424083-00001 Washer – Belville #10 ................................................................................................................ 2

6 NS-009-30 Mach. Nut 10-32 Hex ................................................................................................................. 2

- 11 -

F-34617 Rev. A (April 2002)

HFB6 FLASHBAKE OVEN REPLACEMENT PARTS

CUSTOMER PROVIDED
CONDUIT OR OPTIONAL
OVEN POWER CORD

FLEXIBLE METAL
DUCT

DEDICATED CIRCUIT
CUSTOMER PROVIDED
ELECTRICAL JUNCTION
BOX OR RECEPTACLE

PL-52678

FORM 34617 Rev. A APRIL 2002 PRINTED IN U.S.A.
