HEC20D SERIES HALF-SIZE
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
ELECTRIC CONVECTION OVEN
STANDARD FEATURES
■ Stainless Steel Front, Sides, Top and Back
■ Stainless Steel Door Seal and Door Liner
■ Porcelain Enamel on Steel Oven Interior
■ Full Height Door Opens 180° to the Left
■ Fully Electronic Controls with Digital Time and
Temperature Readouts
■ Cool Down Switch for Rapid Cool Down
■ Door Interlock Switch to Prevent Blower and
Heater from Operating when Door is Opened
■ Door has Large Pane Window and Cool-to-the-
Touch Handle
■ Permanently Lubricated Fan Motor Eliminates
Routine Motor Maintenance
■ Five Oven Racks with Nine Rack Positions
Maximizes Output for Limited Space
■ High Density Insulation in Oven Walls and Doors
MODELS
❑ HEC201D – Single Section on 4" Legs
❑ HEC202D – Two Sections on 165⁄8" Legs
❑ HEC203D – Single Section on Open Stand with
6" Legs
HEC20D SERIES HALF-SIZE ELECTRIC CONVECTION OVEN
ACCESSORIES
❑ Set of Four 4" Adjustable Stainless Steel Legs
❑ Set of Four 165⁄8" Adjustable Stainless Steel Legs
and Stack Set
❑ 28" Stand with 9-Rack Storage Capacity
❑ Four 6" Adjustable Stainless Steel Legs for
28" Stand
❑ Set of Four Casters for Stand
❑ Extra Oven Rack
Specifications, Details and Dimensions on Inside and Back.
OPTIONS
❑ Stainless Steel Oven Interior
F-8133 – HEC20D Series Half-Size Electric Convection Oven Page 1 of 4
HEC20D SERIES HALF-SIZE
ELECTRIC CONVECTION OVEN
Front View
HEC201
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Front View
Oven with Stand
HEC203
Page 2 of 4 F-8133 – HEC20D Series Half-Size Electric Convection Oven
Front View
HEC202 Ovens with
165⁄8" Legs
HEC20D SERIES HALF-SIZE
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
ELECTRIC CONVECTION OVEN

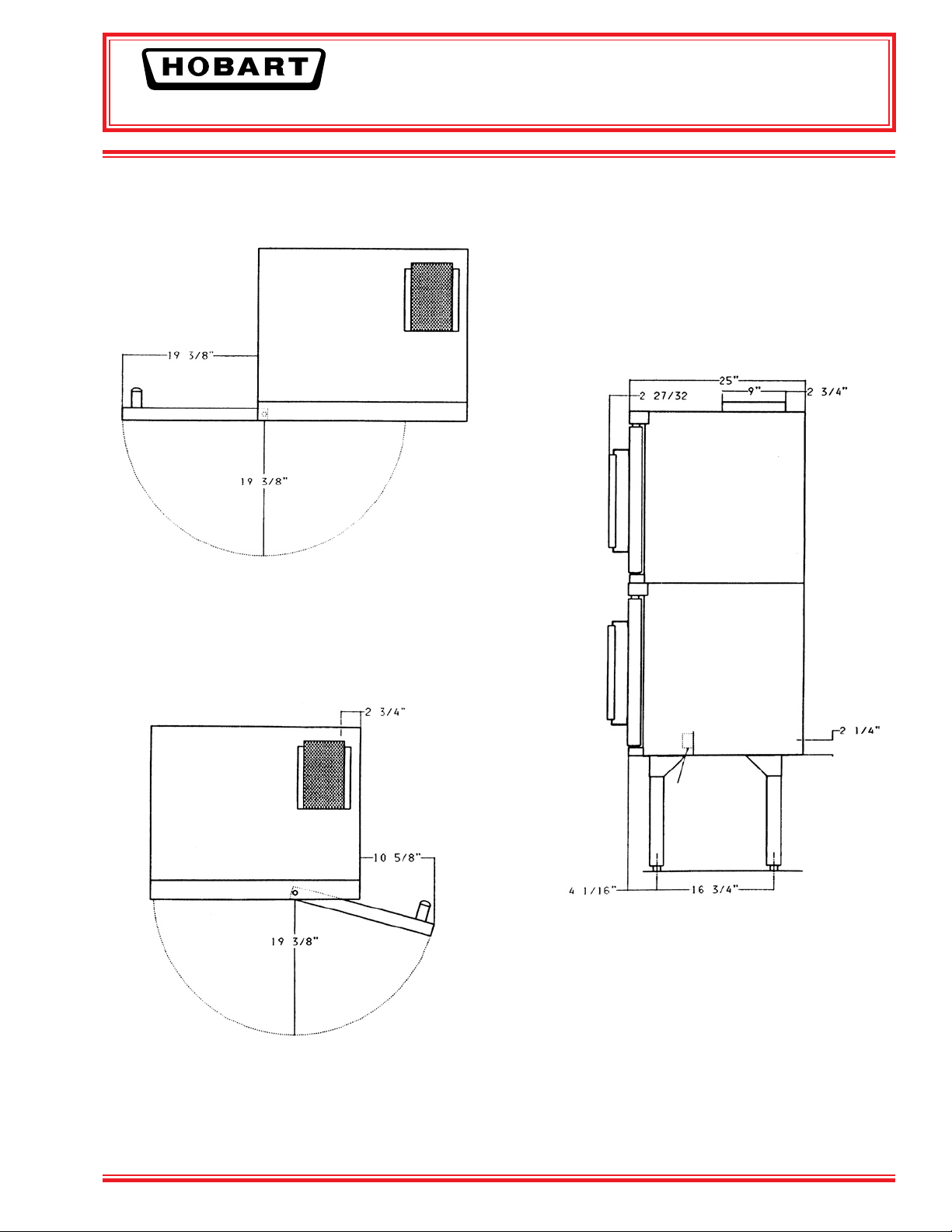

Top View
Door Opening to Left
Side View
Top View
Door Opening to Right
F-8133 – HEC20D Series Half-Size Electric Convection Oven Page 3 of 4
Printed On Recycled Paper
HEC20D SERIES HALF-SIZE
ELECTRIC CONVECTION OVEN
SPECIFICATIONS
CONSTRUCTION: Outer shell is reinforced sheet steel
furnished with stainless steel front, sides, top and back.
Insulation is provided on top, rear, both sides, bottom and
door. Standard oven cavity is porcelain enamel on steel.
Full-height door opens 180° to the left. Door has large-pane
window and cool-to-the-touch handle. Durable mechanical
door latch. Permanent sanitary door seal. Racks have posi-
tive stop.
CONTROLS: Electronic controls with easy to read time
and temperature screens are located on oven’s right front
panel. Temperatures are controlled accurately to ±7°F. Cook
temperatures are adjustable from “Off” to 150°F - 500°F.
(The hold temperature of the “Cook and Hold” feature is
adjustable from 150° to 200°F.) Timer sets cook time from
one minute to eight hours. Time is displayed in hours and
minutes and counts down during the cook cycle. The Pulse
Fan Delay feature is adjustable from “Off” or zero minutes
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
to fifteen minutes. At the end of the Pulse cycle, the oven
reverts to standard operation for the remainder of the cook
cycle. A power switch energizes the heating elements
and the blower. A separate switch controls the two cavity
lights. Automatic interlock switch shuts off blower motor
and burner when the doors are opened. Cool down switch
allows blower motor to operate with doors open and with
-
out energizing the heating system.
ELECTRICAL: 1⁄3 H.P., 1725-1140 RPM sealed, permanently
lubricated ball bearing 2-speed blower motor. Enclosed
tubular heating elements located at oven cavity’s right side
encircle blower. Rated power input is 5.5KW per section.
Wiring and connections are located behind and below the
control panel and are accessible from the front. Connec
-
tions are tension-free and corrosion-resistant. Units are
wired for 1 or 3-phase power supply. (See electrical data
block for phase loading.)
WEIGHTS: (Approximate)
MODELNETSHIPPING
HEC201D245 lbs.285 lbs.
HEC202D533 lbs.588 lbs.
HEC203D386 lbs.421 lbs.
OVERALL
EXTERNAL DIMENSIONS
MODEL
HEC201D
HEC203D6554
MODEL
HEC201D5.52.503.0231012209112623
HEC202D11.05.006.04620244018225246
HEC203D5.52.503.0231012209112623
WDHWDH
IN.IN.IN.IN.IN.IN.IN.IN.
29
3025
208, 240V
TOTAL
KW
3-PHASE LOADING
KW PER PHASE208V240V
L1-L2L2-L3L1-L3L1L2L3L1L2L3
COMPARTMENTS
INTERNAL DIMENSIONS
151⁄42120
RACK DATA (pan capacities shown for single rack)
NO.
STD.
RACKS
5
STD. RACK
SPACING
19⁄16
NOMINAL AMPS PER LINE WIRE
3 PHASE1 PHASE
NO.
OPTIONAL
RACKS
RACK
SIZE
4
143⁄8
x
207⁄8
8" OD
PIE
TINS
311HEC202D663⁄4108
208V240V
#200
PANS
12 X 20
PANS
As continued product improvement is a policy of Hobart, specifications are subject to change without notice.
Page 4 of 4 F-8133 – HEC20D Series Half-Size Electric Convection Oven
