Hobart CLPS76eR User Manual
Item # _____________________________________
Quantity ___________________________________
C.S.I. Section 11400
CLPS76eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
STANDARD FEATURES
■ Energy recovery
■ 22 inch power scrapper with 2 HP motor
■ 245 racks per hour
■ Opti-RinSe™ system
■ 30 KW electric booster heater
■ Rapid return conveyor drive mechanism
■ Insulated hinged double doors with door
interlock switches
■ Door seal system
■ Pressure regulating valves
■ 19.5 inch chamber height opening
■ Top mounted micro-processer control module
■ Energy saver mode
■ Dirty water indicator
■ Low temperature alert
■ Conveyor dwell
■ Delime notication
■ Service diagnostics
■ NAFEM Data Protocol compliant
■ Computational uid dynamic designed self-
aligning wash manifolds
■ Stainless steel debossed anti-clogging wash
arms
■ Removable integrated pump intake screen
■ Stainless steel self-draining pumps and impellers
■ Single, sloping scrap screen and deep basket
■ Stainless panels enclose perimeter and bottom
■ Door actuated drain closure
■ Single point electrical connection (does not
include the booster heater)
■ Vent fan control
DISHWASHER
MODEL
❑ CLPS76eR – Dishwasher
OPTIONS AT EXTRA COST
❑ Single point electrical connection, to include
electric booster – three phase only
❑ Higher than standard chamber
ACCESSORIES
❑ Stainless steel vent hoods (load end only)
❑ Canopy exhaust power vent kit
❑ Direct drive unloader
❑ Side loader
❑ Blower-dryer
❑ Drain water tempering kit
Specications, Details and Dimensions on Inside and Back.
CLPS76eR DISHWASHER
DIRECTION OF OPERATION
❑ Right to Left
❑ Left to Right
VOLTAG E
❑ 208/60/3 ❑ 240/60/3 ❑ 380/60/3
❑ 480/60/3 ❑ 600/60/3
F40299 – CLPS76eR Dishwasher Page 1 of 12
Shown with optional vent hood at load
CLPS76eR
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
THE CLeR WAREWASHER IS STANDARD WITH THESE EFFICIENT FEATURES . . .
Inside and out the CLeR warewashers by Hobart are packed with standard components and design innovations
that make them the biggest value in the dishwasher industry.
The Energy Recovery
System captures
escaping heat and
steam from the
exhaust air and uses
a heat exchanger to
recycle it into energy.
This free energy is
used to preheat the
incoming water supply
before it enters the
booster heater. The
ground temperature
water passes through
The insulated hinged inspection doors provide easy
access in the chamber. Exterior wash pipes and
reduced interior bafes reduce clean-up time.
The Rapid Return drive allows for a wide separation
between the wash and the rinse zone.
a heat exchanger
positioned directly in
line with the machine’s
unload exhaust system
to capture the energy
from the exhaust air and ware leaving the machine to
elevate the temperature of the water to 110° before it
enters the booster heater.
The Hobart exclusive microprocessor control module
offers a choice of many features, such as an exclusive
Energy Saver Mode, Low Temperature Alerts, and
Dirty Water Indicator. It also displays pertinent
machine status and has a Delime Notication. The
controls have built-in Service Diagnostics and are
NAFEM Data Protocol Compliant.
Wash Manifolds. Computational Fluid Dynamic
designed wash manifolds are self-aligning and come
with Hobart’s signature debossed anti-clogging
nozzles for superior result.
Opti-RinSe™. Hobart’s exclusive Opti-RinSe™
signicantly reduces operating cost by reducing rinse
water and the energy required to heat the water.
The unique spray pattern uses large droplets to more
efciently sanitize the ware.
Built-in Pressureless Stainless Steel Booster Heater.
Interwired and interplumbed. Saves on installation and
saves oor space. Simplies operation with just one
switch to power dishmachine and booster.
Page 2 of 12 F40299 – CLPS76eR Dishwasher
CLPS76eR
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
OTHER STANDARD FEATURES . . .
• Thermal Layer Curtains help keep the heat inside
the machine.
• Ball Detent Clutch Conveyor Drive for maximum
protection against conveyor jams
• Integrated Removable Pump Intake Screen to
offer the ultimate guard of keeping debris from
entering the pump.
• Hinged Door Seals and stainless steel labyrinth
seal for drip-free operation
• Door Actuated Drain Closure. Closing the door
automatically actuates drain closure, eliminates
extra manual steps, ensures that closure is in the
correct position.
Machine Ratings (Mechanical)
Racks per hour (193⁄4" x 193⁄4") 245
Conveyor Speed - feet per minute 6.8 max.
Dishes per Hour (Average 25 per rack) 6,100
Glasses per Hour (Average 45 per rack) 10,980
Floor Space – Table to Table (Inches) 76
Overall Dimensions – H x W x D (Inches) 799⁄16 x 891⁄2 x 311⁄4
Motor H.P. Power Scrapper 2
Conveyor Drive H.P.
Number of Tanks 2
Tank Capacity – Gallons Power Scrapper 23
AVAILABLE OPTIONS AND ACCESSORIES . . .
Flexibility is synonymous with Hobart CLeR dishwash ers. If your operation demands a dishwasher
with a vent hood, an extended hood . . . a power
scrapper, just specify the combination of options that
suit your needs.
Side Loader. Save up to 20 square feet in the
dishroom layout with an optional CLeR Side Loader.
Racks are indexed 90° into the dishwasher automatically – a feature that cuts space and reduces labor
dramatically. Your dishroom team will appreciate this
feature.
Pump Capacity –
Gallons per Minute - Weir Test 165
Heating Equipment –
(For keeping power wash hot)
Gas Burners (with Natural Gas) 78,000 BTU per hr.
Electric Heating Unit – Size Used 15 KW
Booster Heater / Final Rinse 30 KW
Rinse – Minutes operated during hour of
maximum operation 60
Final Rinse Flow – Gals. per min.
At 20 PSI Flow Pressure 2.3
Final Rinse Flow – Gals. per hr. – MAXIMUM
At 15 PSI Flow Pressure 119
At 20 PSI Flow Pressure 138
Rinse 20 PSI Flow Pressure
Gal./Rack
Steam Consumption –
Pounds per hr. - MAXIMUM
Approx. 30 lbs. per hr. = 1 boiler H.P. (BHP)
Dishwasher, based on 20 PSI steam and
on customer supplying final rinse water
at 180°F maximum 65
Steam Booster, if used on 20 PSI steam 20 PSI water flowing - 130°F entering
water raised to 180°F min. 60
Exhaust Requirements –
Cubic Feet per minute
OTHER AVAILABLE ACCESSORIES . . .
Blower-dryer, direct drive unloader.
Peak Rate of Drain Flow – Gallons per minute.
(Initial rate with full tank) 38
Shipping Weight Crated – Approximate lbs. 943
DISHWASHER
CLPS76eR
Wash 2
1
⁄6
Wash 23
Hot Water Sanitizing
.56 - 180°F
Entrance End 200
Discharge End 175
F40299 – CLPS76eR Dishwasher Page 3 of 12

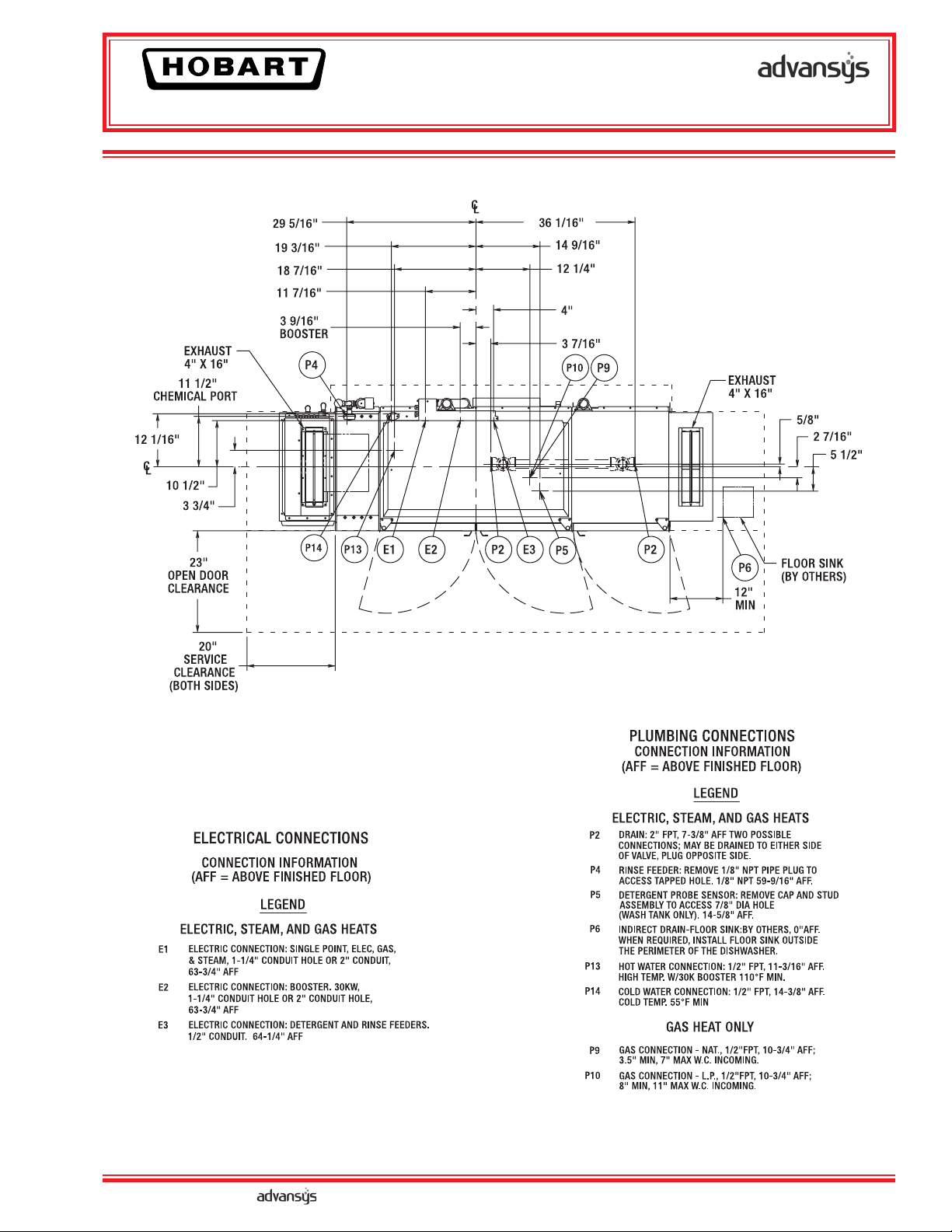

CLPS76eR
DISHWASHER
701 S Ridge Avenue, Troy, OH 45374
1-888-4HOBART • www.hobartcorp.com
Page 4 of 12 F40299 – CLPS76eR Dishwasher
