MODEL A200 SERIES MIXER REPLACEMENT PARTS
1 THRU 4
PL-55803
ON
OFF
65
2
7 8 9-10 11
6
5
4
3
7
8
9
1
0
11
13
14
15
SWITCH AND TIMER UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55803
1 00-294650-004-1 Timer Assy. (115 V., 60 Hz.) ...................................................................................................... 1
2 00-294650-004-2 Timer Assy. (200/300 V., 60 Hz.) ............................................................................................... 1
3 00-294650-004-3 Timer Assy. (115 V., 50 Hz.) ...................................................................................................... 1
4 00-294650-004-4 Timer Assy. (220 V., 50 Hz.) ......................................................................................................1
5 00-291746 Insulator – Switch ...................................................................................................................... 1
6 00-875567 Switch Assy............................................................................................................................... 1
7 00-873115-00001 Switch Plate & Pin Assy. ............................................................................................................1
8 SC-013-07 Mach. Screw 5-40 x 1/4 Flat Hd. ................................................................................................. 2
9 00-123109 Screw 6-32 x 3/8 Serrated Hd. (Painted and Deluxe) ................................................................ 2
10 SC-128-68 Mach. Screw 6-32 x 3/8 Tx. Button Hd. (SST) (ML-134091) ..................................................... 2
11 00-291748 Knob – Timer .............................................................................................................................. 1
F-34656 Rev. B (April 2005)
- 2 -
© HOBART
1-2
MODEL A200 SERIES MIXER REPLACEMENT PARTS
3
CORRECTIONAL COVER
(ML-134091 ONLY)
ILLUS. PART NO. NAME OF PART AM T.
PL-55796
1 00-875153 Cover .......................................................................................................................................... 1
2 SC-128-66 Mach. Screw 8-32 x 1/2 Tx. Button Hd. (SST) ........................................................................... 3
3 00-438151 Hasp – Plate ............................................................................................................................... 1
PL-55796
- 3 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
1-2
9
10
11
8
12
13-14
15
16
3
7
4
6
5
PL-55793
BOWL GUARD UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55793
1 SC-066-13 Mach. Screw 8-32 x 1/4 Phil. Truss Hd. (Painted and Deluxe) .................................................. 3
2 SC-128-73 Mach. Screw 8-32 x 1/4 Tx. Button Hd. (SST) (ML-134091) .....................................................3
3 00-438533 Guard & Drip Cup Assy. ............................................................................................................. 1
4 00-438523 Wire Cage Weldment ..................................................................................................................1
5 SC-122-44 Mach. Screw Special 8-32 x 3/8 Truss Hd. ................................................................................ 2
6 00-438530 Stop – Cage ................................................................................................................................1
7 00-438527-00001 Shoe – Front ............................................................................................................................... 1
8 00-438526 Key – Shoe .................................................................................................................................1
9 SC-122-82 Mach. Screw 4-40 x 7/16 Oval Hd., Special ................................................................................1
10 00-438527-00003 Shoe – Adjustable ......................................................................................................................1
11 SC-122-44 Mach. Screw – Special 8-32 x 3/8 Truss Hd. .............................................................................2
12 00-438539 Bumper – Cage ........................................................................................................................... 1
13 00-438525 Retainer – Magnet ...................................................................................................................... 1
14 SC-122-83 Mach. Screw 6-32 x 3/8 Truss Hd., Special ............................................................................... 2
15 00-438527-00002 Shoe – Fixed .............................................................................................................................. 1
16 SC-122-44 Mach. Screw – Special 8-32 x 3/8 Truss Hd. .............................................................................2
F-34656 Rev. B (April 2005)
- 4 -
2 THRU 5
MODEL A200 SERIES MIXER REPLACEMENT PARTS
19
20
21
1
PL-55801
22
23
9 THRU 18
34
8
7
6
33
32
31
24
25
26-27
28
29
30
PLANETARY AND ATTACHMENT HUB UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55801
1 00-114824-00001 Plug – Attachment Hub ...............................................................................................................1
2 00-435047-00004 Hub – Attachment (Painted) .......................................................................................................1
3 00-435047-00007 Hub – Attachment (Deluxe)........................................................................................................ 1
4 00-435047-00004 Hub – Attachment (ML-134091)................................................................................................. 1
5 OR-001-03 Quad Ring ................................................................................................................................... 1
6 SC-119-07 Mach. Screw 12-24 x 3/4 Flat Hd. (Painted) ............................................................................... 4
7 WL-019-79 Lockwasher ...............................................................................................................................4
8 00-108197-00001 Thumb Screw............................................................................................................................. 1
9 00-012746-00019 Washer – Thrust (0.115 In. Thk.) ............................................................................................. AR
10 00-012746-00005 Washer – Thrust (0.080 In. Thk.) ............................................................................................. AR
11 00-012746-00006 Washer – Thrust (0.106 In. Thk.)............................................................................................. AR
12 00-012746-00007 Washer – Thrust (0.092 In. Thk.) ............................................................................................. AR
13 00-012746-00008 Washer – Thrust (0.086 In. Thk.) ............................................................................................. AR
14 00-012746-00009 Washer – Thrust (0.098 In. Thk.) ............................................................................................. AR
15 00-012746-00010 Washer – Thrust (0.112 In. Thk.) ............................................................................................. AR
16 00-012746-00012 Washer – Thrust (0.119 In. Thk.) ............................................................................................. AR
17 00-012746-00013 Washer – Thrust (0.121 In. Thk.) ............................................................................................. AR
18 00-012746-00016 Washer – Thrust (0.129 In. Thk.) ............................................................................................. AR
19 00-435065-00002 Bevel Drive Gear & Seal Assy. .................................................................................................. 1
20 RR-004-18 Retaining Ring .............................................................................................................................1
21 00-012430-00055 Key 3/16 x 3/16 x 1 ..........................................................................................................................1
22 00-015217 Pinion – Beater (19T) .................................................................................................................1
23 BB-018-17 Ball Bearing ................................................................................................................................ 1
24 00-007094 Spring.......................................................................................................................................... 2
25 BA-002-09 Ball 1/4 Dia. ................................................................................................................................... 2
26 00-023166-00013 Planetary (Painted) .....................................................................................................................1
27 00-023166-00006 Planetary (Deluxe) ..................................................................................................................... 1
28 BB-005-34 Ball Bearing ................................................................................................................................ 1
29 00-023482 Seal – Oil (1 In. I.D.) ....................................................................................................................1
30 00-113936 Agitator Shaft Assy. (Incls. Item 31) ..........................................................................................1
31 00-065062-00001 Pin ...............................................................................................................................................1
32 SC-040-09 Cap Screw 1/4-20 x 11/4 Fil. Hd. .................................................................................................. 6
33 WL-003-35 Lockwasher 1/4 Helical ...............................................................................................................6
34 00-438524-00002 Internal Gear (63T) (Incls. Items 24 & 25) ................................................................................. 1
00-102778-00001 Planetary Assy. (Painted) (Incls. Items 20 thru 23, 26, 28, 29, & 30) .......................................1
- 5 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
2
1
3
4
5
6-7
8
PL-55802
9-10
11
F-34656 Rev. B (April 2005)

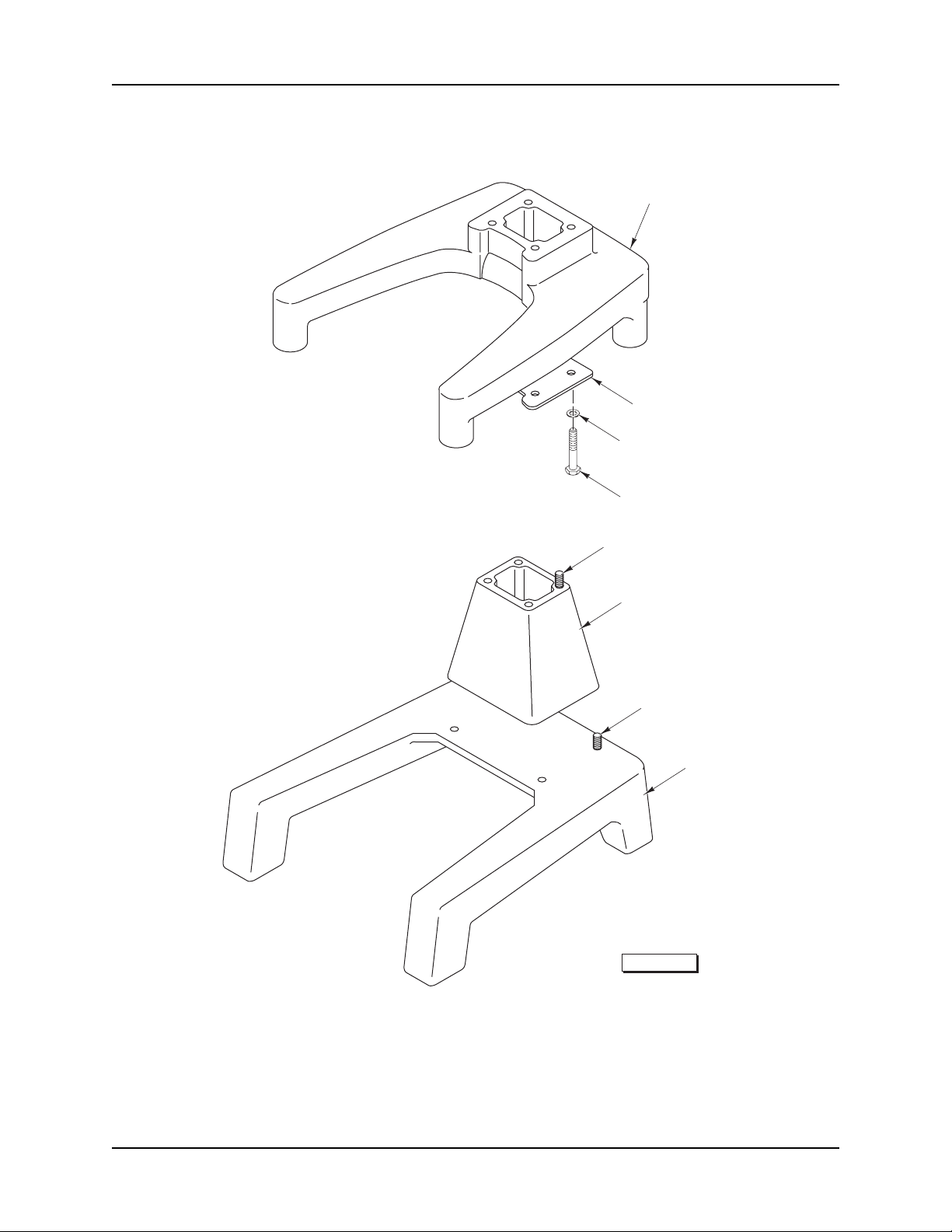

BASE UNIT
- 6 -
MODEL A200 SERIES MIXER REPLACEMENT PARTS
BASE UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55802
1 00-873229-00003 Base (Painted) (Bench) ............................................................................................................. 1
2 00-873229-00002 Base (Deluxe) ............................................................................................................................ 1
3 00-108159 Screen – Air ............................................................................................................................... 1
4 WS-018-19 Washer (Bench) (Painted and Deluxe) .....................................................................................4
5 SC-097-53 Cap Screw 3/8-16 x 21/4 Hex Hd. (Bench) (Painted and Deluxe) ...............................................4
6 WS-018-19 Washer (Floor) ........................................................................................................................... 4
7 SC-062-27 Cap Screw 3/8-16 x 13/4 Hex Hd. (Floor) ....................................................................................4
8 00-074998-00004 Block – Riser (Painted) (Floor) ...................................................................................................1
9 WS-018-19 Washer (Floor) ........................................................................................................................... 4
10 SC-118-10 Cap Screw 3/8-16 x 1 Hex Hd. (Floor) ....................................................................................... 4
11 00-875590-00003 Base (Painted) (Floor) ................................................................................................................1
- 7 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
54
55
56-57
53
48-49
47
5
4
1
2
7-8-9
6
3
10-11-12
14-15
16-17
18
32
33
34
35
36
27
13
19
20
25
26
21
23
22
24
52
50
51
F-34656 Rev. B (April 2005)
46
42
37 THRU 41
43
44
45
PEDESTAL AND BOWL UNIT
- 8 -
28
29
30
31
PL-55800
MODEL A200 SERIES MIXER REPLACEMENT PARTS
PEDESTAL AND BOWL UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55800
1 SC-060-40 Mach. Screw 4-40 x
5
/8 Rd. Hd. ................................................................................................. 2
2 00-087711-00248 Switch – Bowl Height ................................................................................................................ 1
3 00-439892 Insulator – Switch ...................................................................................................................... 1
4 00-275683 Bowl Assy. (20 Qt.) (SST) ......................................................................................................... 1
5 00-295644 Bowl Assy. (12 Qt.) (SST) ......................................................................................................... 1
6 00-270776 Dowel .........................................................................................................................................2
7 WL-006-22 Lockwasher
8 SC-041-13 Cap Screw
9 SC-120-38 Cap Screw 5/16-18 x 1 Hex Hd. (Deluxe) ................................................................................... 2
10 WL-006-22 Lockwasher
11 SC-011-95 Mach. Screw
12 SC-123-34 Mach. Screw
5
/16 Light ................................................................................................................. 2
5
/16-18 x 1 Hex Hd. (SST) (Painted) ........................................................................2
5
/16 Light ................................................................................................................. 2
5
/16-18 x 1 Fil. Hd. (Painted) ................................................................................. 2
5
/16-18 x 1 Slotted Fil. Hd. (Deluxe) ...................................................................... 2
13 00-873232-00001 Shim (Deluxe) ........................................................................................................................... AR
14 00-438543-00002 Pedestal (Painted) ......................................................................................................................1
15 00-438543-00004 Pedestal (Deluxe) .......................................................................................................................1
16 00-070641-00011 Thumb Screw 8-32 Special (Painted and Deluxe) .................................................................... 2
17 SC-128-73 Mach. Screw 8-32 x 1/4 Tx. Button Hd. (SST) (ML-134091) ..................................................... 2
18 00-078506 Shield – Upper Splash ................................................................................................................1
19 PC-003-55 Cotter Pin
1
/8 x 3/4 ......................................................................................................................... 1
20 PS-004-15 Spiral Pin 1/4 Dia. x 11/8 Lg............................................................................................................ 1
21 00-114430-00002 Arm – Bowl Lift .......................................................................................................................... 1
22 WS-009-11 Washer (STL) ........................................................................................................................... AR
23 WS-009-13 Washer (Fiber) ......................................................................................................................... AR
24 00-438528 Lift Handle Assy. ........................................................................................................................1
25 00-015215 Rod – Bowl Lift ...........................................................................................................................1
26 WS-006-46 Washer .......................................................................................................................................2
27 PC-003-55 Cotter Pin 1/8 x 3/4 ......................................................................................................................... 1
28 00-012745 Washer – Special .......................................................................................................................1
29 00-012782 Spring.......................................................................................................................................... 1
30 WS-006-26 Washer .......................................................................................................................................1
31 NS-036-15 Stop Nut 3/8-24 Hex Special ........................................................................................................ 1
*32 00-479510 Bushing – Bowl Lift ....................................................................................................................2
33 SC-022-20 Mach. Screw 10-24 x 5/8 Flat Hd. (Painted) ............................................................................... 6
34 SC-014-55 Mach. Screw 10-24 x 5/8 Slotted Flat Hd. (Deluxe) ................................................................... 6
35 00-111213-00006 Gib – Bowl Support (Painted) ....................................................................................................2
36 00-111213-00005 Gib – Bowl Support (Deluxe) .....................................................................................................2
37 00-113016-00001 Shim – Bowl Support (0.003 In. Thk.) ...................................................................................... AR
38 00-113016-00004 Shim – Bowl Support (0.009 In. Thk.) ...................................................................................... AR
39 00-113016-00005 Shim – Bowl Support (0.015 In. Thk.) ...................................................................................... AR
40 00-113016-00006 Shim – Bowl Support (0.005 In. Thk.) ...................................................................................... AR
41 00-113016-00007 Shim – Bowl Support (0.0075 In. Thk.) .................................................................................... AR
42 00-121625 Set Screw – Special ..................................................................................................................1
43 SC-060-56 Mach. Screw 10-32 x 5/16 Rd. Hd. (Painted and Deluxe) ...........................................................2
44 SC-128-81 Mach. Screw 10-32 x 1/2 Tx. Button Hd. (SST) (ML-134091) .................................................. 2
45 00-078505 Shield – Lower Splash ...............................................................................................................1
46 00-478582 Pin – Bowl Locating ................................................................................................................... 2
47 00-084854-00001 Bushing – Bowl Retainer ........................................................................................................... 1
48 00-084853-00003 Bowl Support Assy. (Incls. Item 42) (Painted) .......................................................................... 1
49 00-084853-00005 Bowl Support Assy. (Incls. Item 42) (Deluxe) ........................................................................... 1
50 00-291444-00001 Clamp – Bowl (LH) .....................................................................................................................1
51 00-291444-00002 Clamp – Bowl (RH Shown) ........................................................................................................1
52 00-291263 Washer – Belleville .....................................................................................................................6
53 00-274614 Screw – Pivot ............................................................................................................................. 2
54 00-087711-252-1 Switch – Reed ............................................................................................................................ 1
55 00-875859 Washer – Friction .......................................................................................................................1
56 00-438079 Splash Cover & Bowl Extension (20 Qt.) .................................................................................. 1
57 00-438078 Splash Cover & Bowl Extension (12 Qt.) .................................................................................. 1
* Used On Starting Serial Number #31-1253-999 On ML-104858 and
Serial Number 31-1310-934 On All Other Series A200 Mixers.
- 9 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
2-3
1
4-5-6
63
62
61
60
59
58
57
56
55
54
53
51
52
50
46 THRU 49
45
42
43
44
7
41
40
8
9-10
11
39
38
12
14-15
13
36
37
31
3435
33
32
29
30
28
16
17
24
PL-55799
18-19
20-21
22
23
25-26-27
F-34656 Rev. B (April 2005)
TRANSMISSION CASE AND SHIFTER UNIT
- 10 -
MODEL A200 SERIES MIXER REPLACEMENT PARTS
TRANSMISSION CASE AND SHIFTER UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55799
1 00-018231-00003 Cover – Transmission Case (Painted) .......................................................................................1
2 SC-016-17 Mach. Screw 12-24 x 11/4 Oval Hd. (Painted and Deluxe) ........................................................2
3 SC-015-57 Mach. Screw 12-24 x 1
4 SC-128-82 Mach. Screw
1
/4-20 x 3/4 Tx. Flat Hd. (SST) (ML-134091) .........................................................1
5 NS-009-36 Mach. Nut 12-24 Hex ................................................................................................................. 1
6 00-875751 Adapter (ML-134091) ................................................................................................................ 1
7 SC-018-01 Mach. Screw 10-24 x 3/8 Pan Hd. .............................................................................................. 4
8 00-012708 Retainer – Twin Bearing............................................................................................................. 1
9 00-020394-00001 Cap – Bearing Retainer .............................................................................................................. 1
10 00-875752 Cap – Bearing Retainer (ML-134091) ........................................................................................1
11 00-020395 Retainer – Bearing ..................................................................................................................... 1
12 00-011800-00062 Dowel .........................................................................................................................................2
13 00-012735 Rod – Shifter Guide ....................................................................................................................1
14 00-873802-00005 Cover – Back (Painted) .............................................................................................................. 1
15 00-873802-00006 Cover – Back (Deluxe) ............................................................................................................... 1
16 00-438131-00057 Plate – Warning .......................................................................................................................... 1
17 WL-003-28 Lockwasher #12 Light ............................................................................................................... 4
18 SC-127-85 Mach. Screw 12-24 x 21/2 Pan Hd. (Painted and Deluxe) ........................................................4
19 00-479486 End Cap Screw (ML-134091) ....................................................................................................4
20 SC-009-49 Mach. Screw 6-32 x 3/8 Rd. Hd. (Painted and Deluxe) .............................................................. 2
21 SC-128-68 Mach. Screw 6-32 x 3/8 Tx. Button Hd. (SST) (ML-134091) .....................................................2
22 00-115231-00002 Cover – Conduit .......................................................................................................................... 1
23 00-118363 Logo – Hobart............................................................................................................................. 2
24 FE-022-84 Strain Relief 1/2 NPT ..................................................................................................................... 1
25 00-117542-00081 Cord & Plug Assy. (3 Cnd., Under 150 V.) .................................................................................1
26 00-117542-00082 Cord & Plug Assy. (3 Cnd., 200-250 V.) .................................................................................... 1
27 00-117542-00080 Cord Assy. (I.E.C.) ......................................................................................................................1
28 00-077401 Knob – Shifter Handle ................................................................................................................ 1
29 00-875241 Handle – Shifter (Incls. Item 28) ................................................................................................. 1
30 00-479471 Handle – Shifter (ML-134091) ................................................................................................... 1
31 SC-015-34 Mach. Screw 10-24 x 1/2 (Painted and Deluxe) .........................................................................4
32 SC-128-75 Mach. Screw 10-24 x 5/8 Tx. Flat Hd. (SST) (ML-134091) ........................................................4
33 00-290115-00001 Plate – Shifter Index ................................................................................................................... 1
34 00-023946 Gasket – Shifter Index Plate ...................................................................................................... 1
35 PS-003-08 Spiral Pin 1/8 Dia. x 3/4 Lg. .............................................................................................................1
36 BA-002-09 Ball 1/4 Dia. ................................................................................................................................... 2
37 00-111170 Spring – Detent ........................................................................................................................... 2
38 NS-013-22 Nut 3/8-16 Hex .............................................................................................................................1
39 WL-004-06 Lockwasher 3/8 Medium .............................................................................................................. 1
40 00-013160 Yoke – Shifter............................................................................................................................. 1
41 00-873504 Cam – Gear Shifter .................................................................................................................... 1
42 00-012733 Plunger – Shifter Yoke ...............................................................................................................2
43 00-012734 Spring – Shifter Yoke .................................................................................................................2
44 00-012732 Retainer – Shifter Yoke Spring ...................................................................................................2
45 00-875567 Switch Assy. (NVR) ...................................................................................................................1
46 00-123109 Screw 6-32 x 3/8 Serrated Hd. ................................................................................................... 2
47 SC-027-28 Mach. Screw 8-32 x 1/4 Rd. Hd. (Ground Screw) .....................................................................1
48 WL-011-01 Lockwasher #8 Internal Shakeproof (Ground Screw) (1 Ph.)................................................. 2
49 NS-010-11 Mach. Nut 8-32 Hex (Ground Screw) (1 Ph.) ...........................................................................1
50 00-873115-00002 Switch Plate & Pin Assy. ............................................................................................................1
51 00-873140-00001 Case – Transmission (Incls. Items 12 & 53) (Painted) .............................................................. 1
52 00-873140-00002 Case – Transmission (Incls. Items 12 & 53) (Deluxe) ............................................................... 1
53 00-123674 Label – Warning ......................................................................................................................... 1
54 00-011800-00116 Dowel ......................................................................................................................................... 1
55 WL-003-28 Lockwasher #12 Light ............................................................................................................... 4
56 SC-119-07 Mach. Screw 12-24 x 3/4 Hex Hd. .............................................................................................. 4
57 00-067750 Transmission Shaft Support & Screw Assy. (Incls. Items 57 & 58) ......................................... 1
58 NS-009-36 Mach. Nut 12-24 Hex .................................................................................................................1
59 SC-008-56 Mach. Screw 12-24 x 1/2 Rd. Hd. ............................................................................................... 1
60 00-064871 Plug – Friction ............................................................................................................................. 2
61 WL-003-28 Lockwasher #12 Light ............................................................................................................... 3
62 SC-008-48 Mach. Screw 12-24 x 1/2 Rd. Hd. ............................................................................................... 3
63 WL-003-22 Lockwasher #10 Light ............................................................................................................... 4
00-875249 Shifter Assy. (Incls. Items 29, 33, 35, 36, 37, & 41) ..................................................................1
00-479470 Shifter Assy. (ML-134091) (Incls. Items 30, 33, 35, 36, 37, & 41)
1
/2 Oval Hd. (Painted and Deluxe) (ML-134091).................................. 1
- 11 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
2
3-4
1
5
6
7
8
17
9
10
11
12
PL-55560
14
13
15
16
18-19-20
21-22
MOTOR PARTS
F-34656 Rev. B (April 2005)
- 12 -
MODEL A200 SERIES MIXER REPLACEMENT PARTS
MOTOR PARTS
ILLUS. PART NO. NAME OF PART AM T.
PL-55560
1 NS-032-23 Lock Nut ..................................................................................................................................... 1
2 00-012430-00004 Key 1/8 x 1/8 x 1/4 ........................................................................................................................... 1
3 00-291221 Gear – Worm (60 Cycle) ............................................................................................................1
4 00-070407 Gear – Worm (50 Cycle) ............................................................................................................1
5 00-012754 Washer .......................................................................................................................................1
6 00-012757 Spring – Shock Absorber ...........................................................................................................1
7 00-873057 Deflector – Grease ....................................................................................................................1
8 SD-015-38 Self-Tapping Screw 6-32 x 3/8 Phil. Pan Hd., Type TT ...............................................................2
9 00-271612-00002 Switch – Electronic Start (50/60 Hz.) ........................................................................................1
10 00-873203-00002 Block – Terminal..........................................................................................................................1
11 SD-015-38 Self-Tapping Screw 6-32 x 3/8 Phil. Pan Hd., Type TT ...............................................................1
12 00-873125 Bracket – Component Mounting ................................................................................................. 1
13 SD-015-39 Self-Tapping Screw 8-32 x 1/4 Phil. Pan Hd., Type TT ...............................................................2
14 WL-008-07 Lockwasher #8 Internal Shakeproof .........................................................................................2
15 00-087714-042-1 Relay (2 Pole) (115 V.) ............................................................................................................... 1
16 00-087714-042-3 Relay (2 Pole) (240 V.) ...............................................................................................................1
17 SD-015-38 Self-Tapping Screw 6-32 x 3/8 Phil. Pan Hd., Type TT ...............................................................2
18 00-873061-00001 Motor Assy. (115 V., 60 Hz., 1 Ph.)............................................................................................ 1
19 00-873061-00002 Motor Assy. (220 V., 60 Hz., 1 Ph.) ...........................................................................................1
20 00-873061-00003 Motor Assy. (115 V., 50 Hz., 1 Ph.)............................................................................................ 1
21 00-113703 Cable Tie ..................................................................................................................................... 2
22 00-070487-00025 Capacitor – Motor Start .............................................................................................................. 1
- 13 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
1
2
3
6
5
4
7
32
45
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25-26
27
8
9
33
34
35
36
37
38
39
40
41
42
43
44
46
47
48
49
50
51
52-53
54
55
56
28
29
30
31
F-34656 Rev. B (April 2005)
PL-55483
TRANSMISSION GEAR UNIT
- 14 -
MODEL A200 SERIES MIXER REPLACEMENT PARTS
TRANSMISSION GEAR UNIT
ILLUS. PART NO. NAME OF PART AM T.
PL-55483
1 NS-032-29 Stop Nut
1
/2-20 Flexloc ................................................................................................................ 1
2 WS-008-13 Washer – Retaining ....................................................................................................................1
3 BB-020-18 Ball Bearing ................................................................................................................................ 1
4 WS-010-18 Washer – Bearing Shim (0.002 In. Thk.) .................................................................................. AR
5 WS-010-19 Washer – Bearing Shim (0.003 In. Thk.) .................................................................................. AR
6 WS-010-20 Washer – Bearing Shim (0.010 In. Thk.) .................................................................................. AR
7 00-107145 Spacer – Planetary Shaft ...........................................................................................................1
8 00-124730 Sleeve – Roller Clutch Drive ......................................................................................................1
9 00-109070-00002 Key ............................................................................................................................................. 1
10 00-124729 Clutch – Roller ...........................................................................................................................10
11 00-124732 Spring – Roller ........................................................................................................................... 10
12 00-124752 Gear – Slow Speed (46T) .......................................................................................................... 1
13 00-124733-00002 Gear – Bevel (46T) .................................................................................................................... 1
14 00-124744 Gear – Clutch (29T) ................................................................................................................... 1
15 00-012695 Bearing – Clutch Gear ................................................................................................................1
16 00-012430-00059 Key – Clutch Sleeve ...................................................................................................................2
17 00-070035-00001 Sleeve – Clutch .......................................................................................................................... 1
18 00-012695 Bearing – Clutch Gear ................................................................................................................1
19 00-124743 Gear – Lower Clutch (38T) ....................................................................................................... 1
20 00-012723 Spacer – Lower ......................................................................................................................... 1
21 BB-020-06 Ball Bearing ................................................................................................................................ 1
22 00-012430-00017 Key ............................................................................................................................................. 1
23 00-067500-00075 O-Ring .........................................................................................................................................1
24 00-124734 Shaft – Planetary ....................................................................................................................... 1
25 00-437342 Spacer – Bearing (O-Ring) ........................................................................................................ 1
26 00-067500-00078 O-Ring .........................................................................................................................................1
27 00-114695 Seal – Oil ....................................................................................................................................1
28 00-124946 Washer – Fiber ........................................................................................................................... 1
29 WS-030-83 Washer – Retaining (STL) ......................................................................................................... 1
30 00-010928-00002 Nut – Special............................................................................................................................... 1
31 00-024715-00003 Acorn Nut 1/2-20.......................................................................................................................... 1
32 00-012710 Nut – Retaining ...........................................................................................................................2
33 WS-006-36 Washer – Retaining ....................................................................................................................1
34 BB-005-02 Ball Bearing ................................................................................................................................ 1
35 00-012744 Spacer – Upper .......................................................................................................................... 1
36 00-291236 Shaft – Transmission (15T) ....................................................................................................... 1
37 00-124736 Gear (32T) .................................................................................................................................. 1
38 00-435297 Key .............................................................................................................................................1
39 00-012697 Spacer – Lower ......................................................................................................................... 1
40 00-435297 Key .............................................................................................................................................1
41 00-124760 Gear (23T) .................................................................................................................................. 1
42 RR-004-19 Retaining Ring .............................................................................................................................1
43 BB-005-01 Ball Bearing ................................................................................................................................ 1
44 SL-002-08 Spring – Loading ........................................................................................................................1
45 00-012710 Nut – Retaining ...........................................................................................................................2
46 WS-006-36 Washer – Retaining ....................................................................................................................1
47 BB-005-02 Ball Bearing ................................................................................................................................ 1
48 00-124745 Washer .......................................................................................................................................1
49 00-124765-00001 Spacer – Gear ............................................................................................................................1
50 00-124748 Gear (15T) .................................................................................................................................. 1
51 00-012430-00004 Key ............................................................................................................................................. 1
52 00-124751-00003 Worm Wheel & Bushing Assy. (60 Hz.) ..................................................................................... 1
53 00-124749-00002 Worm Wheel & Bushing Assy. (50 Hz.) ..................................................................................... 1
54 00-291128 Shaft – Worm Wheel .................................................................................................................. 1
55 BB-005-01 Ball Bearing ................................................................................................................................ 1
56 SL-002-08 Spring – Loading ........................................................................................................................1
00-292799-00002 Center Shaft Assy. (Incls. Items 7, 8, 9, 12 thru 20, & 24) ....................................................... 1
00-292800 Transmission Shaft Assy. (Incls. Items 35 thru 42) ..................................................................1
00-292798-00001 Worm Wheel Shaft Assy. (60 Hz.) (Incls. Items 48 thru 52 & 54) ............................................ 1
00-292798-00002 Worm Wheel Shaft Assy. (50 Hz.) (Incls. Items 48 thru 51, 53, & 54) .....................................1
- 15 -
F-34656 Rev. B (April 2005)
MODEL A200 SERIES MIXER REPLACEMENT PARTS
1-2 3
7

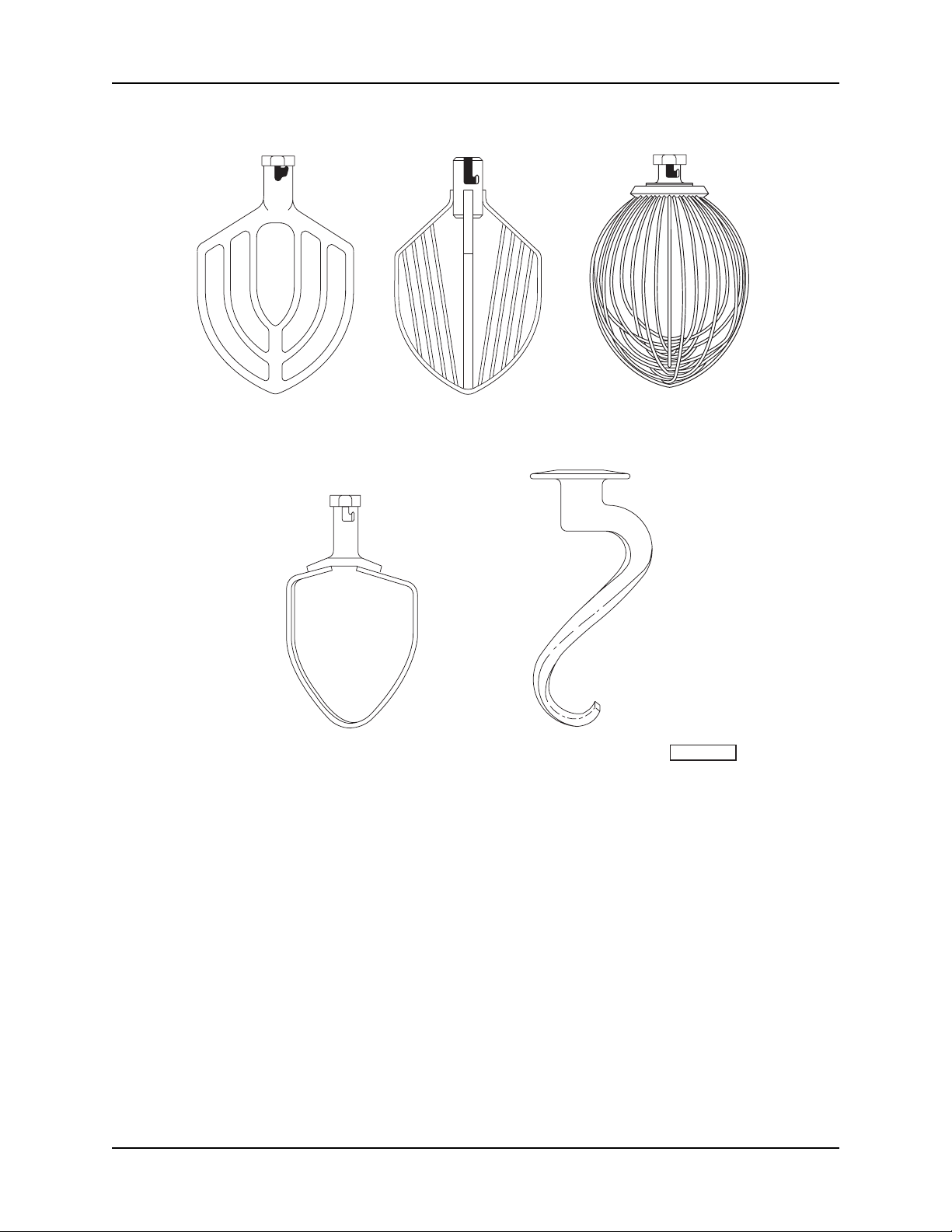

AGITATORS
5-6
4
PL-55897
ILLUS. PART NO. NAME OF PART AM T.
PL-55897
1 00-275459 “B” Flat Beater (Packaged) ........................................................................................................ 1
2 00-275559 “B” Flat Beater (SST) (Packaged) .............................................................................................. 1
3 00-295165 “C” Wing Whip (Packaged) ........................................................................................................ 1
4 00-275897 “D” Wire Whip (SST) (Packaged) ............................................................................................... 1
5 00-477521 “ED” Dough Arm (Packaged) ...................................................................................................... 1
6 00-295119 “E” Dough Arm (Packaged) ........................................................................................................1
7 00-295036 “P” Pastry Knife (Packaged) ......................................................................................................1
FORM 34656 Rev. B APRIL 2005 PRINTED IN U.S.A.
Loading...
