HITACHI TX43D51VC0CAA Specification

FOR MESSRS:

CUSTOMER’S ACCEPTANCE SPECIFICATIONS

TX43D51VC0CAA

DATE : May 31st,2012

Contents

No. ITEM SHEET No. PAGE

1 COVER 7B64PS 2701-TX43D51VC0CAA-1 1-1/1
2 RECORD OF REVISION 7B64PS 2702-TX43D51VC0CAA-1 2-1/1
3 GENERAL DATA 7B64PS 2703-TX43D51VC0CAA-1 3-1/2~2/2
4 ABSOLUTE MAXIMUM RATINGS 7B64PS 2704-TX43D51VC0CAA-1 4-1/1
5 ELECTRICAL CHARACTERISTICS 7B64PS 2705-TX43D51VC0CAA-1 5-1/2~2/2
6 OPTICAL CHARACTERISTICS 7B64PS 2706-TX43D51VC0CAA-1 6-1/2~2/2
7 BLOCK DIAGRAM 7B64PS 2707-TX43D51VC0CAA-1 7-1/1
8 INTERFACE PIN ASSIGNMENT 7B64PS 2708-TX43D51VC0CAA-1 8-1/5~5/5

9 TIMING CHART 7B64PS 2709-TX43D51VC0CAA-1 9-1/4~4/4
10 OUTLINE DIMENSIONS 7B64PS 2710-TX43D51VC0CAA-1 10-1/2~2/2

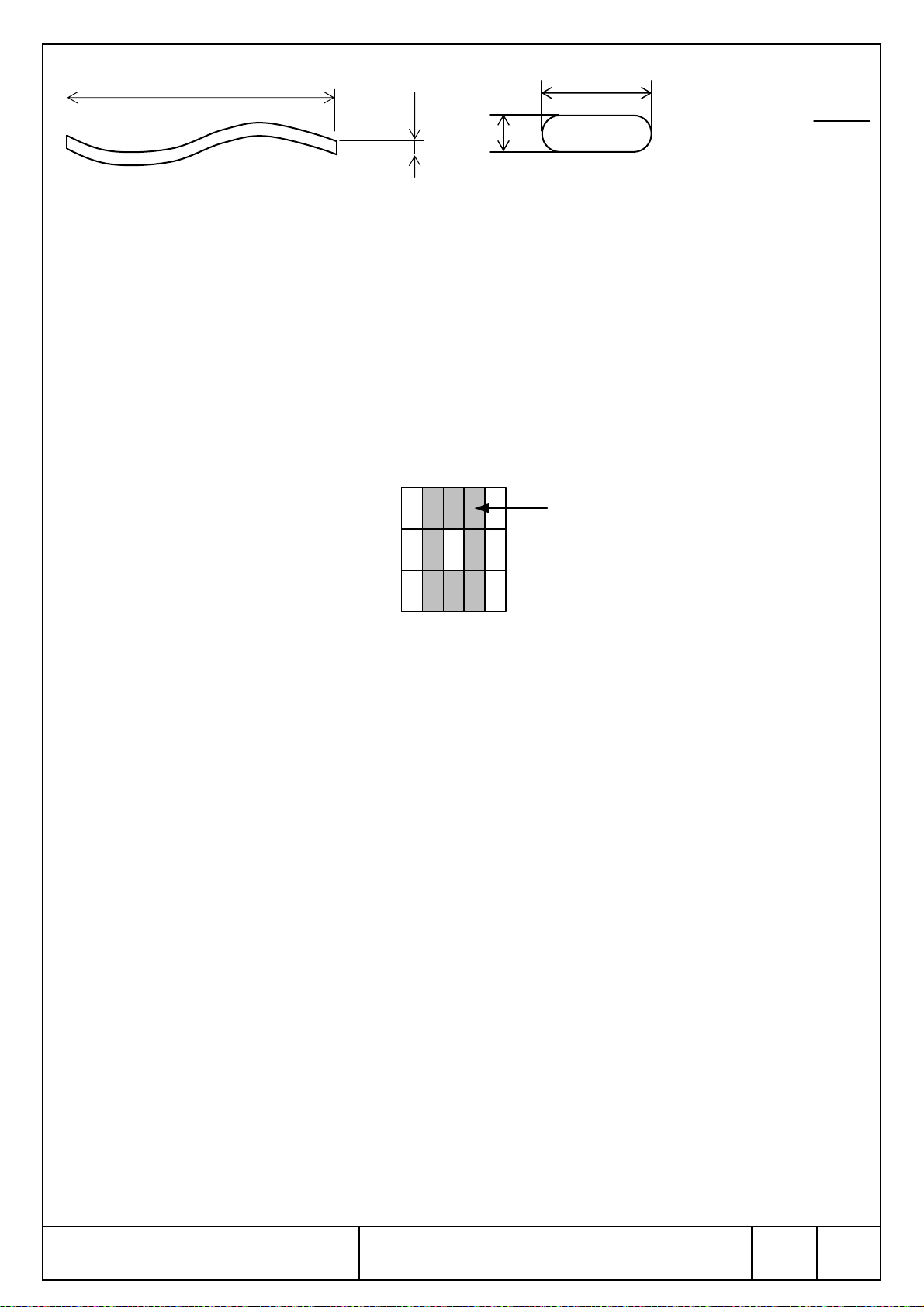

11 APPEARANCE STANDARD 7B64PS 2711-TX43D51VC0CAA-1 11-1/3~3/3
12 PRECAUTIONS 7B64PS 2712-TX43D51VC0CAA-1 12-1/2~2/2
13 DESIGNATION OF LOT MARK 7B64PS 2713-TX43D51VC0CAA-1 13-1/1

ACCEPTED BY: PROPOSED BY:

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2701-TX43D51VC0CAA-1

PAGE

1-1/1

2. RECORD OF REVISION

DATE SHEET No. SUMMARY

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2702-TX43D51VC0CAA-1

PAGE

2-1/1

3. GENERAL DATA

3.1 DISPLAY FEATURES

This module is a 17” SXGA amorphous silicon TFT. The pixel format is vertical stripe and sub pixels are
arranged as R (red), G (green), B (blue) sequentially. This display is RoHS compliant, TCP (Tape
Carrier Package) technology and LED backlight are applied on this display.

Part Name TX43D51VC0CAA

Module Dimensions 368.0(W) mm x 306.0(H) mm x 19.9 (D) mm typ.

LCD Active Area 337.92(W) mm x 270.336(H) mm

Pixel Pitch 0.264(W) mm x 0.264 (H) mm

Resolution 1280 x 3(RGB)(W) x 1024(H) dots

Color Pixel Arrangement R, G, B Vertical stripe

LCD Type Transmissive Mode; Normally Black Mode

Display Type Active Matrix

Number of Colors 16.7M Colors

Backlight Edge Light Type with White LED

Weight 1600 typ. (g)

Interface 2-channel LVDS (LVDS:Low Voltage Differential Signaling)

Power Supply Voltage 5V for LCD; 12V for Backlight

Viewing Direction

Super Wide Version (In-Plane Switching)

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2703-TX43D51VC0CAA-1

PAGE 3-1/2

3.2 APPLICATION AND OTHERS

(1) This LCD module was designed and manufactured to be used in an air-conditioned room away from

direct sunlight.

(2) This LCD module cannot be applied to an instrument which requires extremely high reliability and

safety from its functions and precision. These instruments include medical equipment which affects
life- and/or wealth-support apparatus.

(3) Any problems caused by a use with deviation from the conditions mentioned in this specification are

not included in the warranty.

(4) Maintenance

This LCD module and the aforementioned data may be changed without notice. When you demand
maintenance parts, please inquire about the changes in advance.

(5) Repair

We will replace or repair all defective modules if the relevant defect is caused by KOE. However, we
will not take any responsibilities for defective modules after the expiration of warranty period. Also, if
you access the modules for repairs, we will not warrant them either even if it is within the warranty
period.

(6) Items in this specification may be changed for improvement without prior notice. Please consult our

sales division before engineering an instrument with this LCD module.

(7) When a question arises concerning the specification, please contact our sales division.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2703-TX43D51VC0CAA-1

PAGE

3-2/2

4. ABSOLUTE MAXIMUM RATINGS

Item Symbol Min. Max. Unit Remarks

Supply Voltage VDD 0 6 V -

Input Voltage of Logic VI -0.3 3.4 V Note 1

Operating Temperature Top 0 50

Storage Temperature Tst -20 60

Backlight Input Voltage VLED 0 (18) V -

Note 1: It is applied to except LVDS signal.

Note 2: Temperature and Humidity should be applied to the center glass surface of TFT module,

to the system installed with a module. The temperature at the center of rear surface should be
less than 60°C on the condition of operating.

Function of module is guaranteed in above operating temperature range, but optical

characteristics is specified for only 25°C operating condition.



Note 2

C



Note 2

C

not

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2704-TX43D51VC0CAA-1

PAGE 4-1/1

H

K

5. ELECTRICAL CHARACTERISTICS

5.1 LCD CHARACTERISTICS

Item

Power Supply Voltage

Input Voltage of Logic

Power Supply Current IDD - 610 750 mA Note 2

Vsync Frequency

Hsync Frequency

CLK Frequency

Symbol

Min. Typ. Max. Unit Remarks

VDD

VI

f

- 60 76 Hz -

v

f

- 64 66 KHz -

f

40 54 67.5 MHz -

CL

4.5 5 5.5 V -

-0.3 - 3.4



a

V Note 1

Note 1: It is applied to except LVDS signal.

Note 2: DC current at fv=60.0Hz, fCLK=54MHz and VDD=5.0V

DC Ampere Meter

TFT Mo d ul e

V

DD

V

SS

0VVSS ,25  CT

Note 3: Current capacity of power supply for VDD should be larger than 5A, so that the fuse can be

opened at the trouble of power supply.

Note 4: The picture on maximum current is white picture.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2705-TX43D51VC0CAA-1

PAGE 5-1/2

5.2 BACKLIGHT CHARACTERISTICS

Item

Input Voltage Vin 10.8 12.0 13.2 V -

Input Current Iin - (1.2) 1.44 A -

ON/OFF
Control Voltage

Brightness Control Voltage Vbc 1.0 - 3.6 V Note 1,2

PWM dimming signal

Input Voltage

PWM Frequency PWMf 140 150 160 Hz -

ON

OFF 0 - 0.5 V B/L=OFF

Symbol

ON/OFF

PWM

Min. Typ. Max. Unit Remarks

2.5 - 5.0 V B/L=ON

High 2.9 - 5.0 V Note 3

Low 0 - 0.8 V -

a

Note 1: VIN=12.0V, VBC=3.3V or PWMf=150Hz and display pattern is a full White (Gray scale = 255

level).

Note 2: A protection fuse (3.0A) is built into this module. Current capacity of the power supply for Vin

should be greater than 8.0A, so that the fuse can 'blow' if there is a problem with the power
supply.

Note 3: Brightness Control (Reference value)



CT

25 

Vbc(Typ.) Brightness

1.0V 20%

1.3V

1.5V

1.8V

2.0V

2.3V

2.5V

2.8V

Above3.0V

30%

40%

50%

60%

70%

80%

90%

100%

Note 4: Brightness Control (Reference value)

PWM(Typ.) Brightness

5% 5%

10% 10%

20% 20%

30% 30%

40% 40%

50% 50%

60% 60%

70% 70%

80% 80%

90% 90%

100% 100%

Note 5: 9mA inrush current flow for 40 μs when duty turned on (Switched from low to high).

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2705-TX43D51VC0CAA-1

PAGE 5-2/2

6. OPTICAL CHARACTERISTICS

The optical characteristics are measured based on the conditions as below:

- Supplying the signals and voltages defined in the section of electrical characteristics.

- The backlight unit needs to be turned on for 30 minutes.



- The ambient temperature is 25

- In the dark room around 500~1000 lx, the equipment has been set for the measurements as shown in
Fig 6.1.

Item Symbol Condition Min. Typ. Max. Unit Remarks

Brightness of White Bwh

Brightness Uniformity Buni 75 - - % Note 3

Contrast Ratio CR 600 1000 - - Note 4

Response Time

Red

Rise ton - 10 18

,VDD=5.0V,fv=60Hz.

C

280 350 -



0 





cd/m

ms Note 5

Fall tof - 12 20

X

0.621 0.651 0.681

Y 0.296 0.326 0.356

va

2

Note 1,2

VfCT

12VDD Hz, 60 ,25 

Green

X 0.284 0.314 0.344

Color

Chromaticity

Y 0.581 0.611 0.641



0 



X 0.119 0.149 0.179

- Note 6

Blue

Y 0.024 0.054 0.084

X 0.269 0.299 0.329

White

Y 0.285 0.315 0.345



85 



,90 ,0



270 ,018



0 



- 72 - % -

10 - - - -

Contrast Ratio at 85° CR 85°

NTSC Ratio







Note 1: The brightness is measured from the panel center point, P5 in Fig. 6.2, for the typical value.

Note 2: Brightness of white is measured by LCM is light up after 30 minutes .

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2706-TX43D51VC0CAA-1

PAGE 6-1/2

Note 3: The brightness uniformity is calculated by the equation as below:

100%

uniformity Brightness 

Brightness Min.

Brightness Max.

, which is based on the brightness values of the 9 points measured by CS-1000A as shown in Fig. 6.2.

123

90%



1

10%

789

10%

：measuring points

Fig. 6.1 Fig. 6.2

6 54

50%

50%

90%

Note 4: The Contrast Ratio is measured from the center point of the panel, P5, and defined as the

following equation:

CR 

Whiteof Brightness

Black of Brightness

Note 5: The definition of response time is shown in Fig. 6.3. The rising time is the period from 10%

brightness to 90% brightness when the data is from black to white. Oppositely, Falling time is
the period from 90% brightness rising to 10% brightness.

Fig 6.3

Note 6: The color chromaticity is measured from the center point of the panel, P5, as shown in Fig. 6.2.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2706-TX43D51VC0CAA-1

PAGE 6-2/2

7. BLOCK DIAGRAM

7.1 TFT Module

LVDS (ODD data)

Timing signals
Display data
Control s ignals

LVD S (EVEN d ata)

Display data

DC power supply

CN1

Rece iver

ODD
pixel

EVEN

pixel

Rece iver

Tim ing

Converter

DC/DC

Converter

Gate

Driver

G1

G2

G1024

D1

D2

TFT-LC D

D3840

7.2 Back light unit

DC power supply

ON/OFF Control

Brightness Control

CN2

Drain Driver

LED (Series)

LED (Series)

LED (Series)

LED driver

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2707-TX43D51VC0CAA-1

PAGE 7-1/1

p

8. INTERFACE PIN ASSIGNMENT

8.1 TFT-LCD MODULE

The display interface connector (CN1) is MDF76GW-30S-1H(55):

(Matching connector: JAE FI-X30H or FI-X30M)

Pin No. Symbol

1 RAIN0-

2 RAIN0+

3 RAIN1-

4 RAIN1+

5 RAIN2-

6 RAIN2+

7 VSS GND (0V)

8 RACLKIN-

9 RACLKIN+

10 RAIN3-

11 RAIN3+

12 RBIN0-

13 RBIN0+

14 VSS GND (0V)

15 RBIN1-

16 RBIN1+

17 VSS GND (0V)

18 RBIN2-

19 RBIN2+

20 RBCLKIN-

21 RBCLKIN+

22 RBIN3-

23 RBIN3+

24 VSS GND (0V)

25 NC

26 DE

27 NC No Connection

28 VDD

29 VDD

30 VDD

ODD pixel data

ODD pixel data 2)

ODD pixel data 2)

ODD pixel clock

ODD pixel data

EVEN pixel data

EVEN pixel data

EVEN pixel data

EVEN pixel clock

EVEN pixel data

No Connection 3)

No Connection 3)

Power Supply (+5.0V)

Function Note

2)

1)

2)

2)

2)

2)

1)

2)

1)

2)

2)

2)

1)

3)

4)

Notes 1) All Vss pins should be grounded.

2) RnINm+ and RnINm– (n=A,B m=0,1,2,3) should be wired by twist-pairs

or side-by-side FPC patterns, respectively.

3) Please keep open.

4) All VDD pins should be connected to +5.0 V (typ.).

5) Pin assignment is as follows.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

1pin

7B64PS 2708-TX43D51VC0CAA-1

(Fiure f rom to p-wiew)

30

in

PAGE 8-1/5

8.2 BACK-LIGHT UNIT

CN2 : TARNG YU Enterprise: TU2001WNR-12S

(Matching connector : JST PHR-12 or TARNG YU Enterprise TU2001HNO-12)

Pin No. Symbol Description Note

1 VIN

2 VIN

3 VIN

4 VIN

5 ON/OFF High : Backlight ON, Low : Backlight OFF 4)

Power Supply (typ. 12.0V) 1)

6 VSS

7 VSS

8 VBC Brightness Control Signal 5),6)

9 PWM PWM Dimming Signal 3),6)

10 NC NC

11 VSS

12 VSS

GND (0V) 2)

GND (0V) 2)

Notes

1) VIN pins should be connected to +12.0V (Typ.).

2) VSS pins should be grounded. The metal bezel is internally connected to GND.

3) High level:2.5~5.0V, Low level:0~0.9V

4) High level:2.5~5.0V, Low level:0~0.5V

5) Input Voltage : 1.0 ~ 3.6V DC(Recommend this Pin function just for testing only)

6) These signals can’t input at the same time.(Please to be set open that do not use of pin)

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2708-TX43D51VC0CAA-1

PAGE 8-2/5

8.3 BLOCK DIAGRAM OF INTERFACE

RA0~ RA7

GA0~GA7

BA0~BA7

(Reserved)

(Reserved)

DTMG

Host
Graphics
Controller

System (PC) side TFT module side

TAIN

1)

TFT

Parallel-to-LVDS

PLL

ODD pixel ODD pixel

CN1

RAIN 0+

RAIN 0-

RAIN 1+

RAIN 1-

RAIN 2+

RAIN 2-

RAIN 3+

RAIN 3-

RCLKAIN+

RCLKAIN-

CN2

LVDS

RAOUT

Parallel

LVDS-to-TTL

PLL

LVDS

RA0~ RA7

GA0~GA7

BA0~BA7

DTMG

TBIN

RB0~ RB7

GB0~GB7

BB0~BB7

1)

(Reserved)

(Reserved)

(Reserved)

RA0~7, RB0~7：R data

GA0~7, GB0~7：G data

BA0~7, RB0~7：B data

DTMG

：Display timing data

RBIN 0+

RBIN 0-

RBIN 1+

RBIN 1-

TFT

Parallel-to-LVDS

PLL

EVEN pixel EVEN pixel

RBIN 2+

RBIN 2-

RBIN 3+

RBIN 3-

RCLKBIN+

RCLKBIN-

Receiver: Equivalent of THC63LVDF84B by THine

LVDS-to-TTL

PLL

Parallel

RBOUT

RB0~ RB7

GB0~GB7

BB0~BB7

(Reserved)

(Reserved)

(Reserved)

LCD Panel
Controller

Notes 1) RSVD (reserved) pins on a transmitter should be connected with Vss.

2) The system must have a LVDS transmitter to drive a module.

Moreover, each channel must have a DTMG signal.

3) The impedance of LVDS cable should be 50 ohms per a signal line or about 100 ohms per

a twist-pair line when it is used differentially.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2708-TX43D51VC0CAA-1

PAGE 8-3/5

8.4 LVDS INTERFACE

8bit Digital

RAC LK IN + /-

RAi n 3 +/-

No use

Rx1 Rx0Rx6 Rx5 Rx4 Rx3 Rx2

BO6BO 7

GO6GO7

RO6RO7

ODD Data

[7:0 ]

EVEN Data

[7:0]

RAi n 2 +/-

RAi n 1 +/-

RAi n 0 +/-

RBC LK IN + /-

RBi n 3 +/-

RBi n 2 +/-

RBi n 1 +/-

RBi n 0 +/-

(HS)(VS)DTMG

BO0BE1

GE0

No use

BE0BE1

GE0

BE6BE7

(HS)(VS)DTMG

8 bi t x 3 LV DS I n terface For m at

BE2BE3BE4BE5

GO1GO2GO3GO4GO5

RO0RO1RO2RO3RO4RO5

Rx1 Rx0Rx6 Rx5 Rx4 Rx3 Rx2

GE6GE7

RE6RE7

BO2BO 3BO 4BO 5

GE1GE2GE3GE4GE5

RE0RE1RE2RE3RE4RE5

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2708-TX43D51VC0CAA-1

PAGE 8-4/5

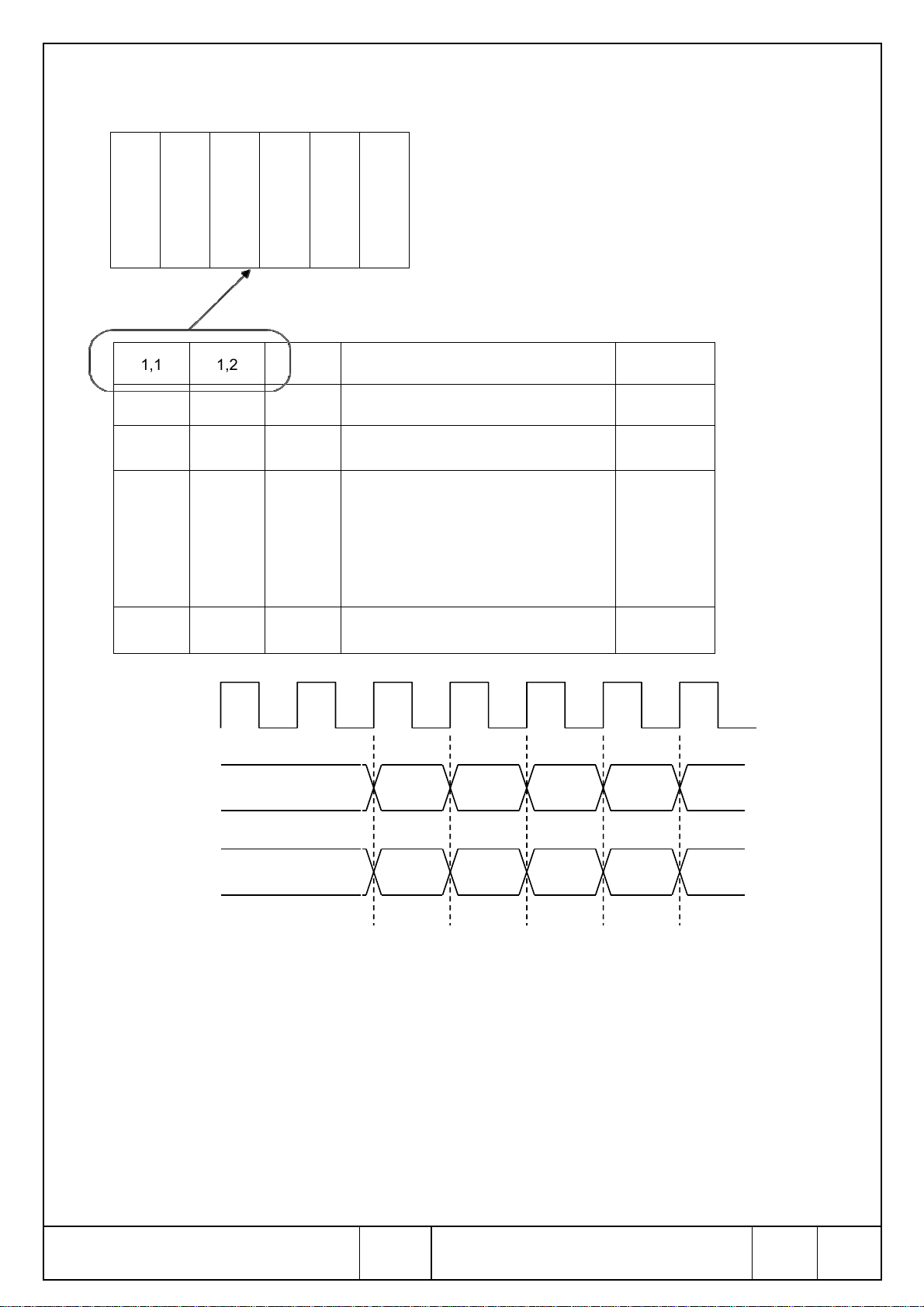

8.5 CORRESPONDENCE BETWEEN INPUT DATA AND DISPLAY IMAGE

(1,1)

RA

GA

1,1 1,2 1,3 ……………………………… 1,1280

2,1 2,2 2,3 ……………………………… 2,1280

3,1 3,2 3,3 ……………………………… 3,1280

…………………

BA

…………………

RB

…………………

(1,2)

GB

BB

ODD pixel： RA0~RA7：R data

GA0~GA7：G data

BA0~BA7：B data

EVEN pixel：RB0~RB7：R data

GB0~GB7：G data

BB0~BB7：B data

…………………

1024,1 1024,2 1024,3 ……………………………… 1024,1280

DCLK

RA0~ RA7
GA0~GA7

1, 31, 1INVALID 1, 5 1, 7

BA0~BA7

RB0~ RB7
GB0~GB7

1, 41, 2INVALID 1, 6 1, 8

BB0~BB7

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2708-TX43D51VC0CAA-1

PAGE 8-5/5

9. TIMING CHART

9.1 TIMING DIAGRAMS OF INTERFACE SIGNAL

T

V

DTMG

DTMG

D

CLK

T

VD

T

H

T

HD

T

VB

Tc

DATA
SIGNALS

T

CH

D

CLK

T

DS

DISPLAY
DATA

T

ES

DTMG

KAOHSIUNG OPTO-ELECTRONICS INC.

T

C

SHEET

NO.

T

CH

0.5Vcc

T

DH

0.5Vcc

0.5Vcc

7B64PS 2709-TX43D51VC0CAA-1

PAGE

9-1/4

9.2 TIMING PARAMETERS

Signal Item Symbol Min. Typ. Max. Unit Note

Frequency 1/T

DCLK

Data

Data Enable Setup Time tES 4 - - nsec

Frame Frequency Cycle tV

Vertical Active

Display Term

One Line

Scanning Time

Horizontal Active

Display Term

High Time tCH 4 - - nsec

Low Time tCL 4 - - nsec

Setup Time t

Hold Time tDH 4 - - nsec

Display Period t

Vertical Blank

Period

Cycle t

Display Period t

40 - 67.5 MHz

C

4 - - nsec

DS

-

13.1 16.7 (17.5) msec

1,027 1,066 (1,270) lines -

1,024 1,024 1,024 lines -

VD

t

3 - - lines -

VB

812 - (1,080) clocks -

H

640 640 640 clocks -

HD

Dimensions in parentheses are reference value.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2709-TX43D51VC0CAA-1

PAGE

9-2/4

9.3 TIMING BETWEEN INTERFACE SIGNALS AND POWER SUPPLY

Power supply voltage VDD

Input signals VI

Back-light VIN

0V

0V

0V

0.1V

TPR

0.9V

DD

DD

TDR

10.4V

TBR

Min. 1ms

valid

ON

Min. 1ms

TDF

TBF

9.7V

Min. 10ms

TIN

Back-light

Analog dimming signal VBC or

PWM dimming signal PWM 2)

0V

Min. 1ms Min. 1msMin. 20ms

Back-light ON/OFF

0V

Notes 1) Timing of power supply voltage and input signals should be used under the following

specifications.

1ms

40ms

20ms

≦

≦

≦

TPR

TDR

TDF

TIN

TBR

TBF

≦

≦

≦

≧

≧

≧

10ms

50ms

50ms

1s

500ms

100ms

2) These signals can't input at the same time.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2709-TX43D51VC0CAA-1

PAGE 9-3/4

9.4 DATA INPUT for DISPLAY COLOR

Input deta R data G data B data

RA7 RA6 RA5 RA4 GA0 BA7GA2RA1 RA0 GA7RA2 GA6 GA5 GA4 GA1

Color MSB LSB MSB LSB MSB LSB

0000 0
1111 11000
0000 001
0000 000000000

1
1111
0000 0
0000 01
0000 100

…

…

…

…

Basic
Color

Red

Black

Red (255)

Green (255)

Blue (255)

Cyan

Magenta

Yellow

White

Black
Red (1)
Red (2)

……

RA3

RB2 RB1 RB0 GB7RB7 RB6 RB5 RB4 GB1

RB3 BB0BB5 BB4 BB3 BB2GB0 BB7 BB6GB6 GB5 GB4 GB3 GB2 BB1

0

0

1

1

0

0
0

1
11111
1 111 11111111

…

…

…

…

0

…
…

…
………

…
…

111 111

…

…
…

GA3

0 0000000

1

0

0

1

1

0

0
1

111111111

00
00 00000
00 0000

…
…

…

…
…

…

0000000000000

…

…

…

…

BA6 BA5 BA4 BA1 BA0

00000 000000 000

00
1111 1111
110000 0000 11 11111111 11
111
00 0 00001111 111

00

…
…

…

00 0000

01

…
…

BA3 BA2

0

0

000

0

0

111110000 001111 111

0000
00000000

0

…
…

…

……

…

0

……

…
…

0

0
000000 00

…
…

11 10 000

1
0
0

…

…

…

…

0

…

…
…

…

0

…

……

…

0
0
0
0

0

…

…

…

…

0

Green

Blue

Red (254)
Red (255)

Black

Green (1)
Green (2)

…… ……

Green (254)
Green (255)

Black

Blue (1)
Blue (2)

Blue (254)
Blue (255)

11
1111 11000
0000 00
0000 00000
0000

…
…

00
0000 0
0000 00000
0000 0

…
…

00000
0000 000 10

Notes 1) Definition of gray scale: Color (n)

n indicates gray scale level. Higher n means brighter level.

2) Data signals: 1: High, 0: Low

11
1

0
0

0
0
0
0

0
…

…

0
0

00000 10

…

…
…

…

…

…
…

…

0 000000

000

…

…

………

…

00

…
…

…

…

00 000

…

…
…

…

00
0000000
0000
0000 10

…

………

1111 00000111

0000 00

0000 00

…
…

…

…

…

…

…

00 101100 0 1 11

00000 00

00

000000

…

…
…

…

…

…

…

01111 1000 000000

…

…
…

…

000 00

0000 001111 111 0

000 00

010

…

…

…

…

00

0
0

…

…

…

…

000000 00000

…

…
…

…

0

00

0

0

0

0

0

0

0

0

…
…

……

0

0
0

0

0

0

0

0

0

…

…

…

…

1

1
1

0
0

0

0

00

00

…

…
…

…

01

100000 00

…

…
…

…

0

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2709-TX43D51VC0CAA-1

PAGE

9-4/4

10. OUTLINE DIMENSIONS

10.1 FRONT VIEW

Note1) Dimension in parentheses are refer ence value.

Tolerance not specified is +/- 1.0m m.
Maximum torque for M3 screw: 0.588N-m.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

No.

Unit:mm
Scale:NT

7B64PS 2710-TX43D51VC0CAA-1

PAGE

10-1/2

10.2 FRAR VIEW

Note 1) Dimension in parentheses are refer ence value.

2) Tolerance not specified is +/- 1. 0mm.

3) The Position of the LED bar fixation screws.

KAOHSIUNG OPTO-ELECTRONICS INC.

LABEL

SHEET

No.

7B64PS 2710-TX43D51VC0CAA-1

Unit:mm
Scale:NT

PAGE

10-2/2

11. APPEARANCE STANDARD

11.1 CONDITIONS FOR COSMETIC INSPECTION

(1) Viewing zone

a) The figure shows the correspondence

between eyes (of inspector) and

TFT-LCD module.

θ ＜ 45°
θ ＜ 5°

b) Inspection should be executed only from

front side and only A-zone.

Cosmetic of B-zone and C-zone are ignore.

(refer to 9.2 DEFINITION OF ZONE)

(2) Environmental

: when non-operating inspection

: when operating inspection

Inspection view

about
300mm

TFT- LCD module

Light

0

a) Temperature ： 25°C

b) Ambient light ： about 700 lx and non-directive when operating inspection.

：about 1000 lx and non-directive when non-operating inspection.

c) Back-light ：when non-operating inspection, back-light should be off.

11.2 DEFINITION OF ZONE

A-zone

B-zone

A-zone ： Display area (pixel area).
B-zone ： Area between A-zone and C-zone.
C-zone ： Metal bezel area.

(Include I/F connector)

KAOHSIUNG OPTO-ELECTRONICS INC.

C-zone

SHEET

NO.

7B64PS 2711-TX43D51VC0CAA-1

PAGE 11-1/3

11.3 LCD APPEARANCE SPECIFICATION

The specification as below is defined as the amount of unexpected phenomenon or material in different
zones of LCD panel. The definitions of length, width and average diameter using in the table are shown
in Fig. 11.3 and Fig. 11.4.

Item Criteria Applied zone

Length (mm) Width (mm) Maximum number Minimum space

Ignored W≦0.02 Ignored -

L≦40 W≦0.04 10 -

Scratches

Dent Serious one is not allowed A

Wrinkles in polarizer Serious one is not allowed A

Bubbles on polarizer

1) Stains

2) Foreign Materials

3) Dark Spot

Dot-Defect

(Note 1)

L≦20 W≦0.08 10 -

Round (Dot Shape)

Average diameter (mm) Maximum number Minimum space

D≦0.2 Ignore ­D≦0.6 10 -

Average diameter (mm) Maximum number

D≦0.3 Ignored

0.3＜D≦0.5 10

0.5＜D≦1.0 5

1.0＜D none
Filamentous (Line shape)

Length (mm) Width (mm) Maximum number

- W≦0.02 Ignored
L≦4.0 W≦0.04 8
L≦2.0 W≦0.08 8

- W＞0.08 Dot Shape

Round (Dot shape)

Average diameter (mm) Maximum number -

D≦0.22 Ignored -

D≦0.5 8 ­D＞0.5 None -

Those wiped out easily are acceptable

Type Maximum number

1 dot 5

Bright dot-defect

Dark dot-defect

In total 13

2 adjacent dot 2

3 adjacent dot or above Not allowed

In total 5

1 dot 8

2 adjacent dot 4

3 adjacent dot or above Not allowed

In total 8

A,B

A

A,B

A,B

A

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2711-TX43D51VC0CAA-1

PAGE

11-2/3

Length

Fig 11.3

Note 1: The definitions of dot defect are as below:

- The defect area of the dot must be bigger than half of a dot.

- For bright dot-defect, showing black pattern, the dot’s brightness must be over 30% brighter

than others.

- For dark dot-defect, showing white pattern, the dot’s brightness must be under 70% darker

than others.

- The definition of 1-dot-defect is the defect-dot, which is isolated and no adjacent defect-dot.

- The definition of adjacent dot is shown as Fig. 11.5.

a

Width

b

Average diameter =

a+b

2

Fig 11.4

- The Density of dot defect is defined in the area within diameter

The dots colored gray are

adjacent to defect-dot A.

A

Fig 11.5

Fig. 12.5

 =20mm.

Note 2: Polarizer area inside of B-Zone is not applied.

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2711-TX43D51VC0CAA-1

PAGE

11-3/3

12. PRECAUTIONS

12.1 PRECAUTIONS of ESD

1) Before handling the display, please ensure your body has been connected to ground to avoid any
damages by ESD. Also, do not touch display’s interface directly when assembling.

2) Please remove the protection film very slowly before turning on the display to avoid generating ESD.

12.2 PRECAUTIONS of HANDLING

1) In order to keep the appearance of display in good condition, please do not rub any surfaces of the
displays by sharp tools harder than 3H, especially touch panel, metal frame and polarizer.

2) Please do not pile the displays in order to avoid any scars leaving on the display. In order to avoid
any injuries, please pay more attention for the edges of glasses and metal frame, and wear finger
cots to protect yourself and the display before working on it.

3) Touching the display area or the terminal pins with bare hand is prohibited. This is because it will
stain the display area and cause poor insulation between terminal pins, and might affect display’s
electrical characteristics furthermore.

4) Do not use any harmful chemicals such as acetone, toluene, and isopropyl alcohol to clean display’s
surfaces.

5) Please use soft cloth or absorbent cotton with ethanol to clean the display by gently wiping.
Moreover, when wiping the display, please wipe it by horizontal or vertical direction instead of
circling to prevent leaving scars on the display’s surface, especially polarizer.

6) Please wipe any unknown liquids immediately such as saliva, water or dew on the display to avoid
color fading or any permanently damages.

4

10 x 1,96

7) Maximum pressure to the surface of the display must be less than
adding pressure is less than 1

2

cm

, the maximum pressure must be less than 1.96N.

Pa. If the area of

12.3 PRECAUTIONS OF OPERATING

1) Please input signals and voltages to the displays according to the values defined in the section of
electrical characteristics to obtain the best performance. Any voltages over than absolute maximum
rating will cause permanent damages to this display. Also, any timing of the signals out of this
specification would cause unexpected performance.

2) When the display is operating at significant low temperature, the response time will be slower than it

at 25
However, these are temperature-related phenomenon of LCD and it will not cause permanent
damages to the display when used within the operating temperature.



C

. In high temperature, the color will be slightly dark and blue compared to original pattern.

3) The use of screen saver or sleep mode is recommended when static images are likely for long
periods of time. This is to avoid the possibility of image sticking.

4) Spike noise can cause malfunction of the circuit. The recommended limitation of spike noise is no



bigger than

KAOHSIUNG OPTO-ELECTRONICS INC.

100 mV.

SHEET

NO.

7B64PS 2712-TX43D51VC0CAA-1

PAGE

12-1/2

12.4 PRECAUTIONS of STORAGE

If the displays are going to be stored for years, please be aware the following notices.

1) Please store the displays in a dark room to avoid any damages from sunlight and other sources of
UV light.

2) The recommended long term storage temperature is between 10



C

avoid causing bubbles between polarizer and LCD glasses, and polarizer peeling from LCD glasses.

3) It would be better to keep the displays in the container, which is shipped from KOE, and do not
unpack it.

4) Please do not stick any labels on the display surface for a long time, especially on the polarizer.

~35



and 55%~75% humidity to

C

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2712-TX43D51VC0CAA-1

PAGE

12-2/2

13. DESIGNATION OF LOT MARK

1) The lot mark is showing in Fig.13.3. First 4 digits are used to represent production lot, T represented
made in Taiwan, and the last 5 digits are the serial number.

2) The tables as below are showing what the first 4 digits of lot mark are shorted for.

8 0 3 5 T 0 2 0 3 0

Serial number

T : Made in Taiwan

Week

Month

Year

Year Mark

2012 2

2013 3

2014 4

2015 5

2016 6

Month Mark Month Mark

1 01 7 07

2 02 8 08

3 03 9 09

4 04 10 10

5 05 11 11

6 06 12 12

Week (Days) Mark

1~7 1

8~14 2

15~21 3

22~28 4

29~31 5

3) Except letters I and O, revision number will be shown on lot mark and following letters A to Z.

4) The location of the lot mark is on the back of the display shown in Fig. 13.3.

TX43D51VC0CAA

REV: A

2042T (5D) 123456

KOE MADE IN TAIWAN

Fig 13.3

KAOHSIUNG OPTO-ELECTRONICS INC.

SHEET

NO.

7B64PS 2713-TX43D51VC0CAA-1

PAGE 13-1/1
