Projector

CP-X2530WN/CP-X3030WN CP-WX3030WN

User's Manual (detailed) Operating Guide

Thank you for purchasing this projector.

WARNING

product. Be sure to read Safety Guide ﬁrst. After reading them, store them in a safe place for future reference.

►Before using this product, please read all manuals for this

About this manual

Various symbols are used in this manual. The meanings of these symbols are described below.

WARNING

CAUTION

NOTICE This entry notices of fear of causing trouble.

NOTE

• The illustrations in this manual are for illustrative purposes. They may differ slightly from your projector.

• The manufacturer assumes no responsibility for any errors that may appear in this manual.

• The reproduction, transfer or copy of all or any part of this document is not permitted without express written consent.

Trademark acknowledgment

• Mac® is a registered trademark of Apple Inc.

• Windows in the U.S. and/or other countries.

• VESA and DDC are trademarks of the Video Electronics Standard Association.

•

HDMI, the HDMI logo, and High-Deﬁnition Multimedia Interface are trademarks or registered

trademarks of HDMI Licensing LLC in the United States and other countries.

• Blu-ray DiscTM and Blu-rayTM are trademarks of Blu-ray Disc Association.

All other trademarks are the properties of their respective owners.

• The information in this manual is subject to change without notice.

This symbol indicates information that, if ignored, could possibly result in personal injury or even death due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical damage due to incorrect handling.

Please refer to the pages written following this symbol.



, DirectDraw® and Direct3D® are registered trademarks of Microsoft Corporation

Contents



Introduction ...............3

Features ...................... 3

Checking the contents of package

... 3

Part names ....................4

Setting up . ................7

Arrangement ...................7

Connecting with your devices Connecting to a power supply

Fastening the adapter cover ......

.....10

.....16

Using the security bar and slot ....17

Remote control ............18

Installing the batteries ...........18

About the remote control signal . . . 19 Changing the frequency of remote

control signal ..................19

Using as a simple PC mouse & keyboard

. . 20

Power on/off . .............21

Turning on the power ...........21

Turning off the power ...........22

Operating . ...............23

Adjusting the volume ............23

Temporarily muting the sound .....23

Selecting an input signal .........24

Searching an input signal ........25

Selecting an aspect ratio .........26

Adjusting the projector's elevator . . 27

Adjusting the zoom and focus .....27

Using the automatic adjustment feature

... 28

Adjusting the position ........... 28

Correcting the keystone distortions

.. 29

Using the magnify feature ........30

Temporarily freezing the screen . . . 31 Temporarily blanking the screen . . 31

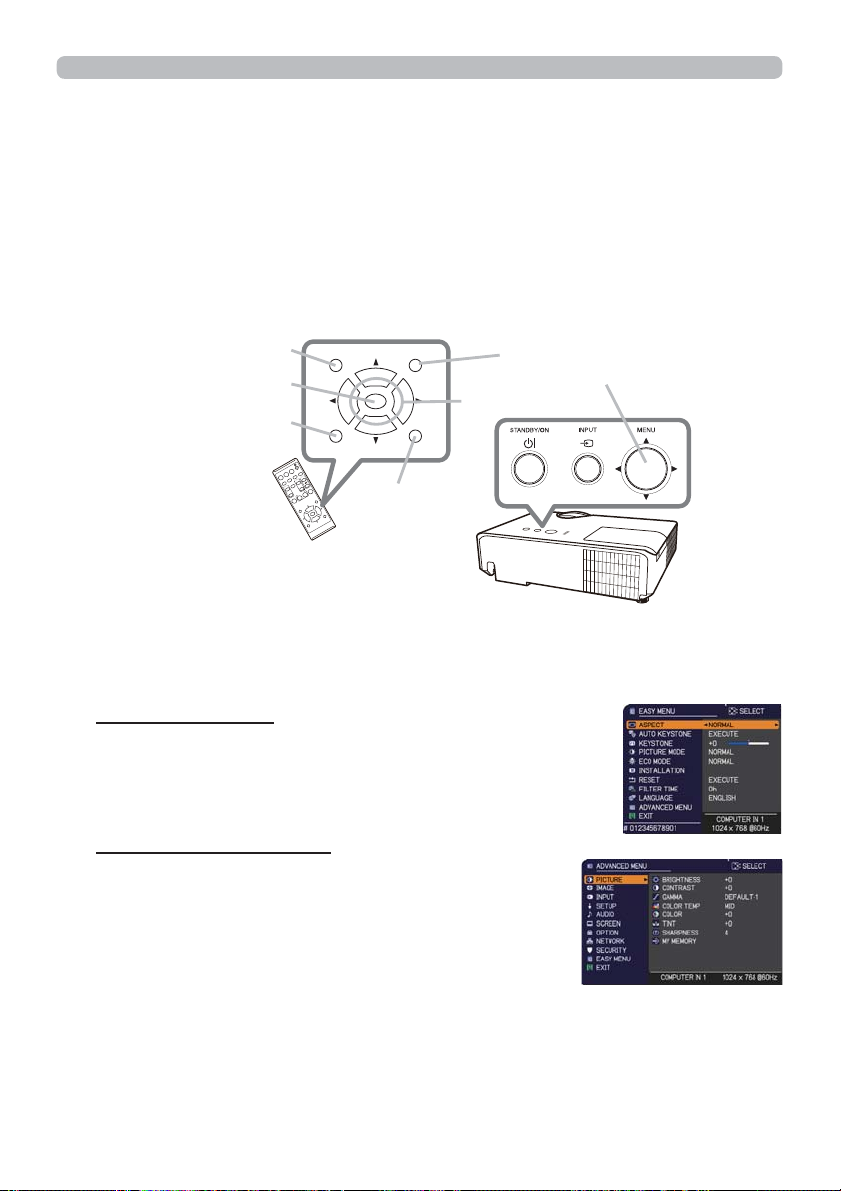

Using the menu function ........32

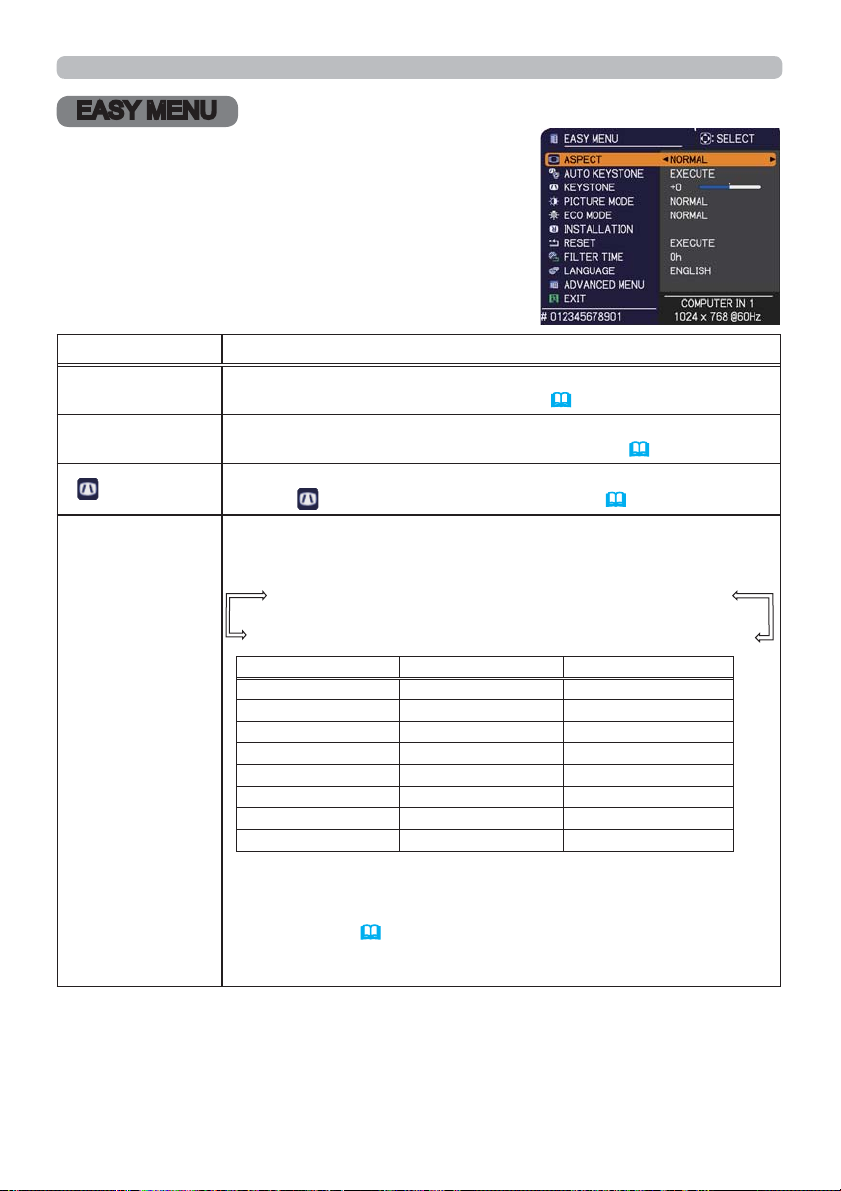

EASY MENU. . . . . . . . . . . . . . . 34

Aspect, Auto keystone, K Picture mode, Reset, Filter time, Language, Advanced menu, Exit

Eco mode, Installation,

eystone

PICTURE menu . ...........36

Brightness, Contrast, Gamma, Color temp, Color, Tint, Sharpness, Active iris, My memory

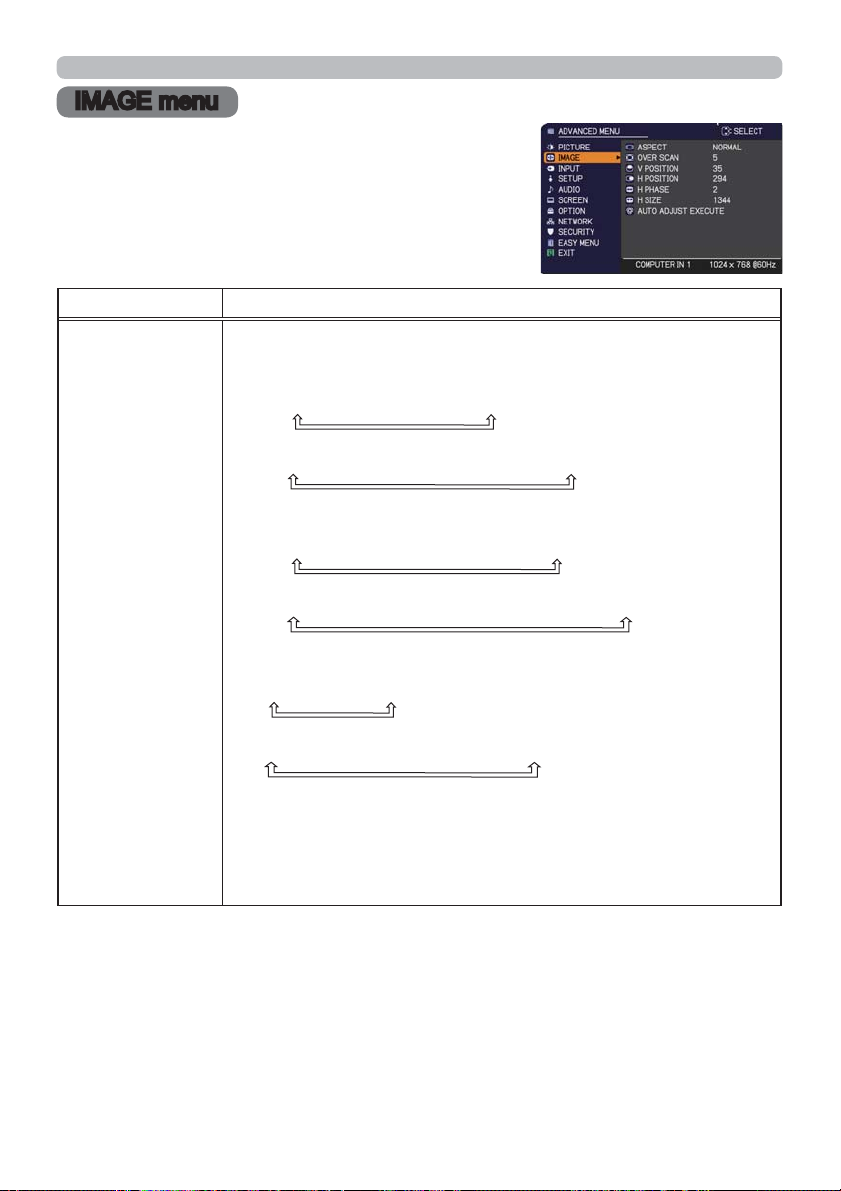

IMAGE menu . .............39

Aspect, Over scan, V position, H position, H phase, H size, Auto adjust execute

INPUT menu . .............42

Progressive, Video nr, Color space, Video format, Hdmi format, Hdmi range, Computer in, Frame lock, Resolution

SETUP menu ..............46

Auto keystone, Eco mode, Monitor out

eystone, Auto eco mode,

Installation, Standby mode,

AUDIO menu . .............49

Volume, Speaker, Audio source, Mic level, Mic volume

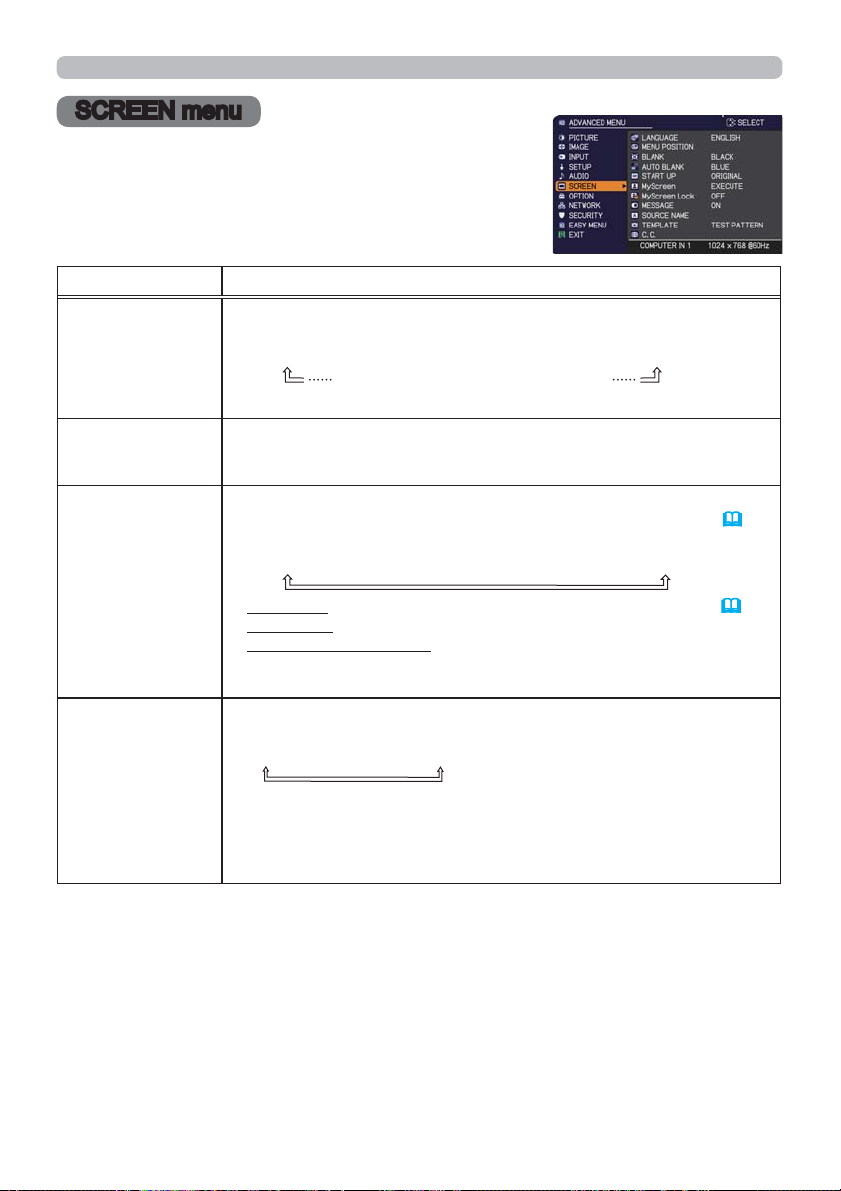

SCREEN menu .............50

Language, Menu position, Blank, Auto Blank, Start up,

yScreen Lock

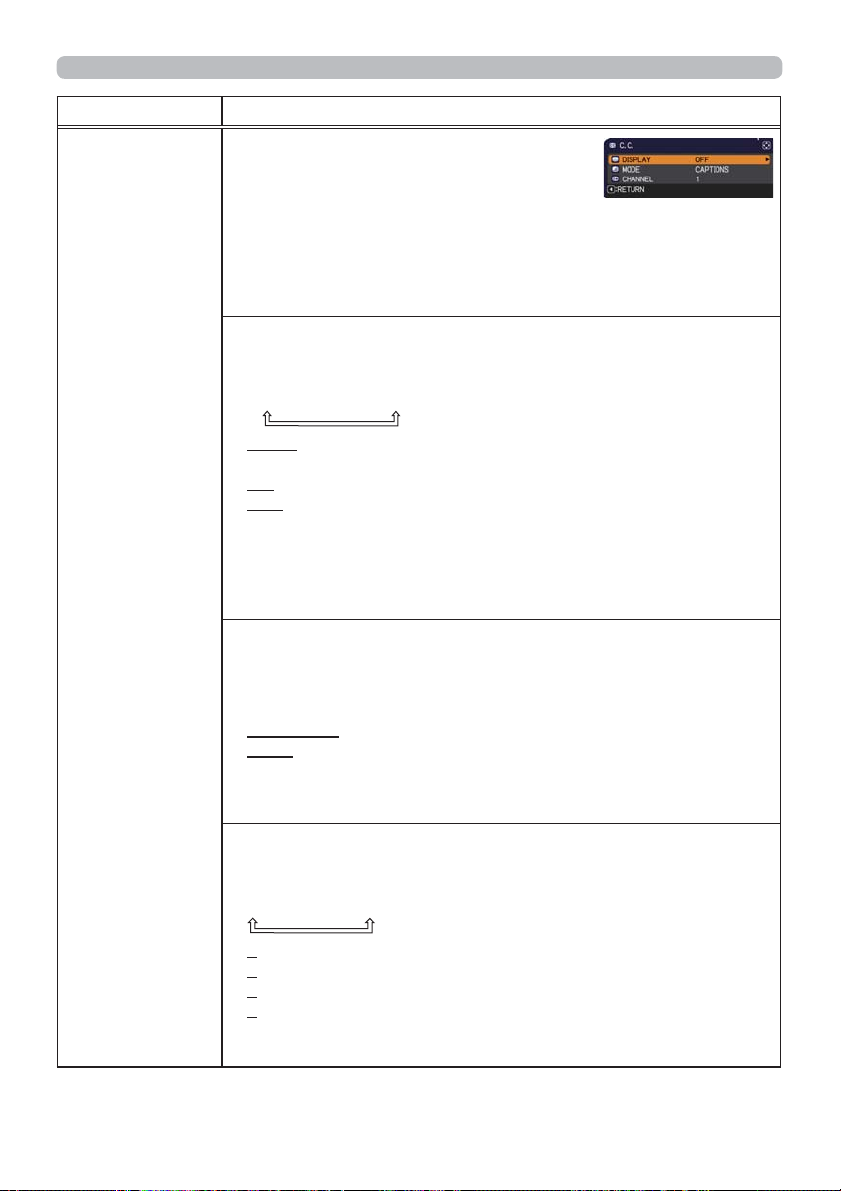

Template, C.c.

, Message, Source name,

yScreen

OPTION menu . ............56

Auto search, Auto keystone, Direct power on, Auto power off, Usb type b, Lamp time, Filter time, My button, My source, Service

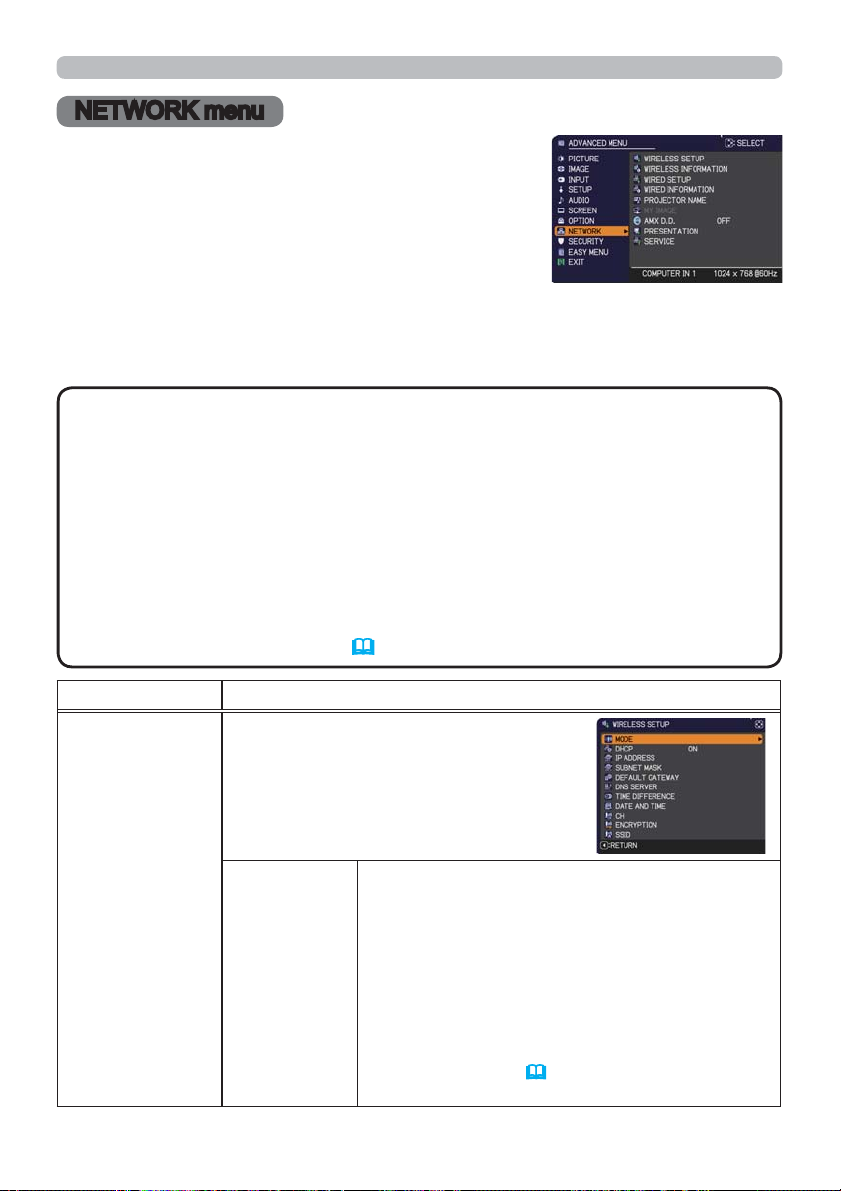

NETWORK menu . ..........68

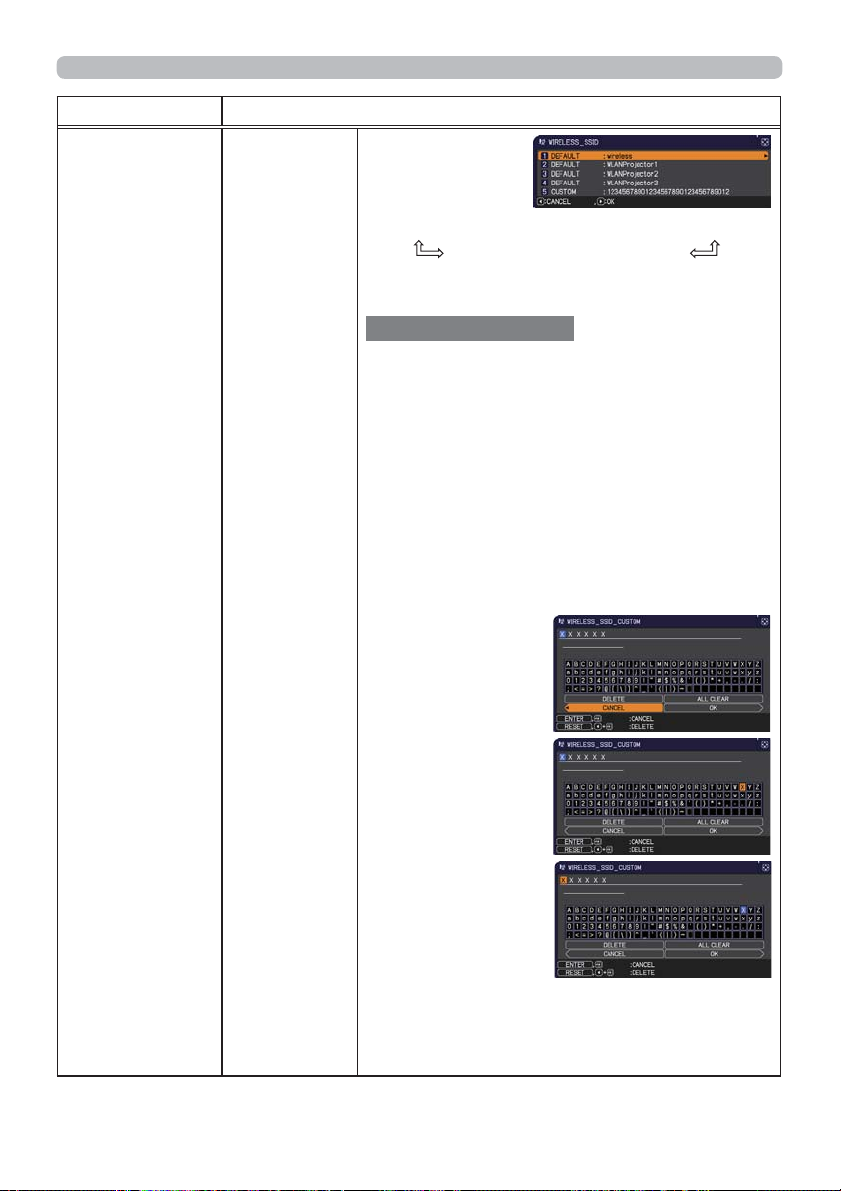

Wireless setup, Wireless information, Wired setup, Wired information, Projector name, My image, Amx d.d., Presentation, Service

SECURITY menu ...........79

Security password change,

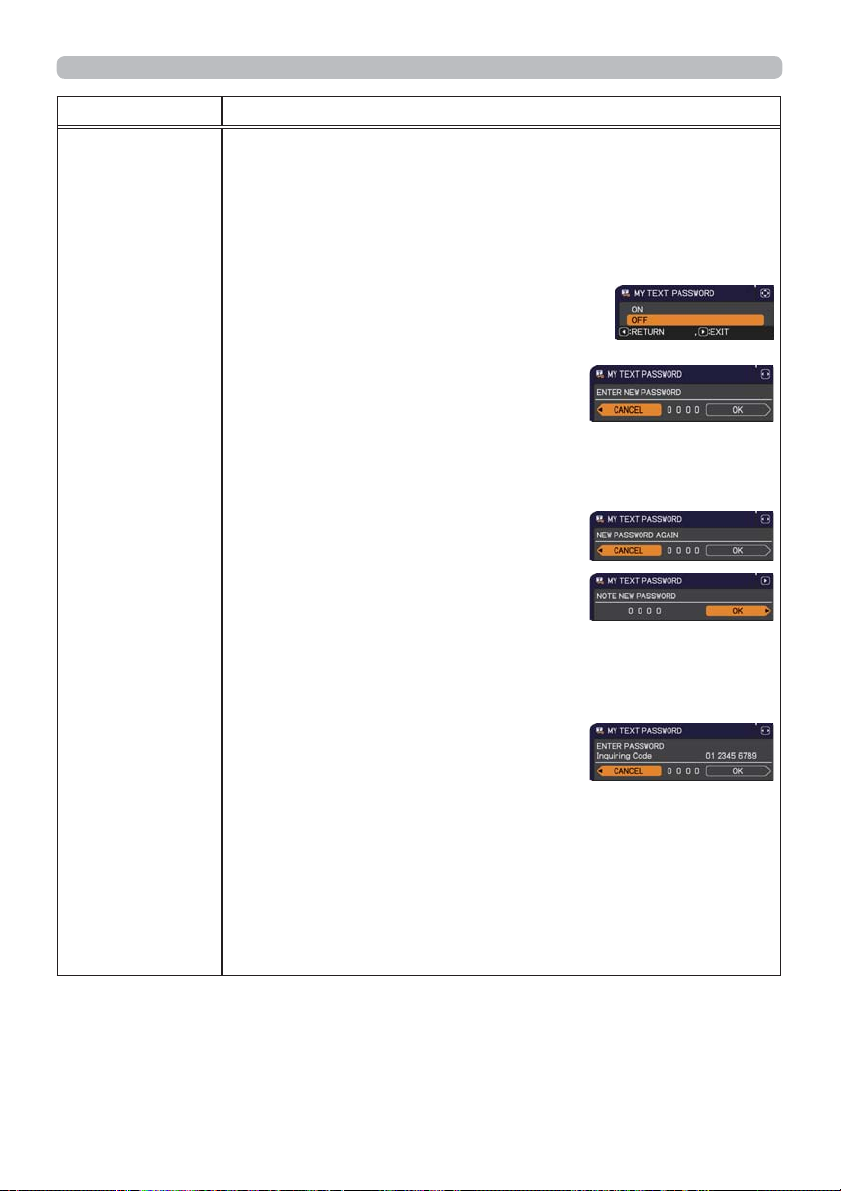

Transition detector, My text password, My text display, My text writing, Cloning lock

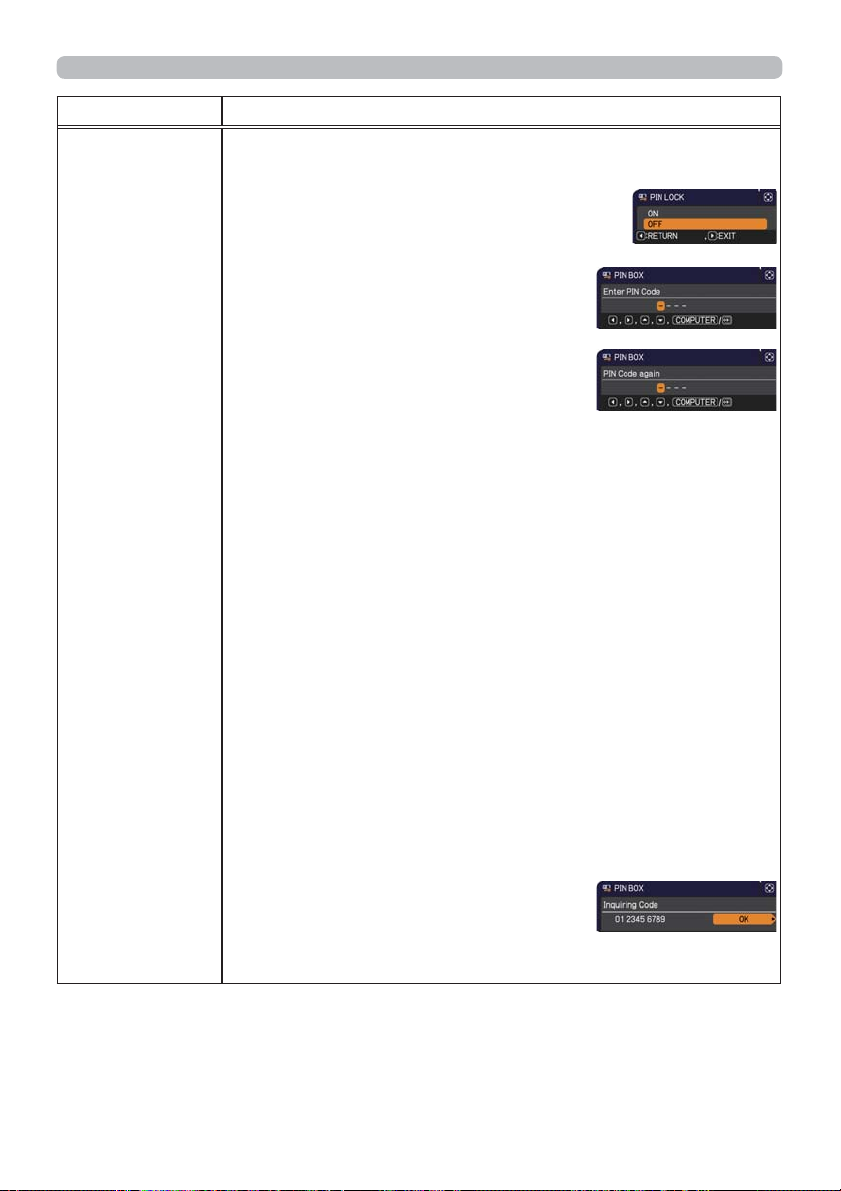

password, Pin lock,

yScreen

Presentation tools . ........85

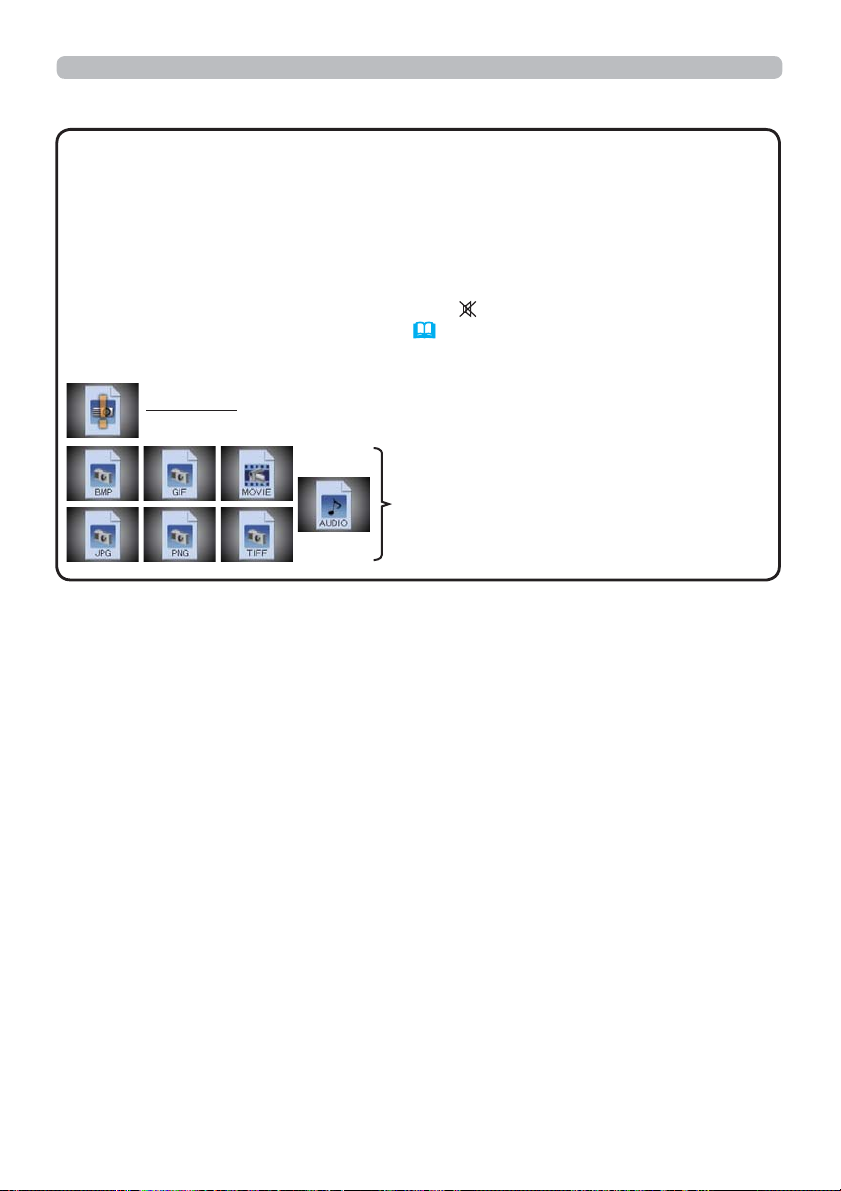

PC-LESS Presentation

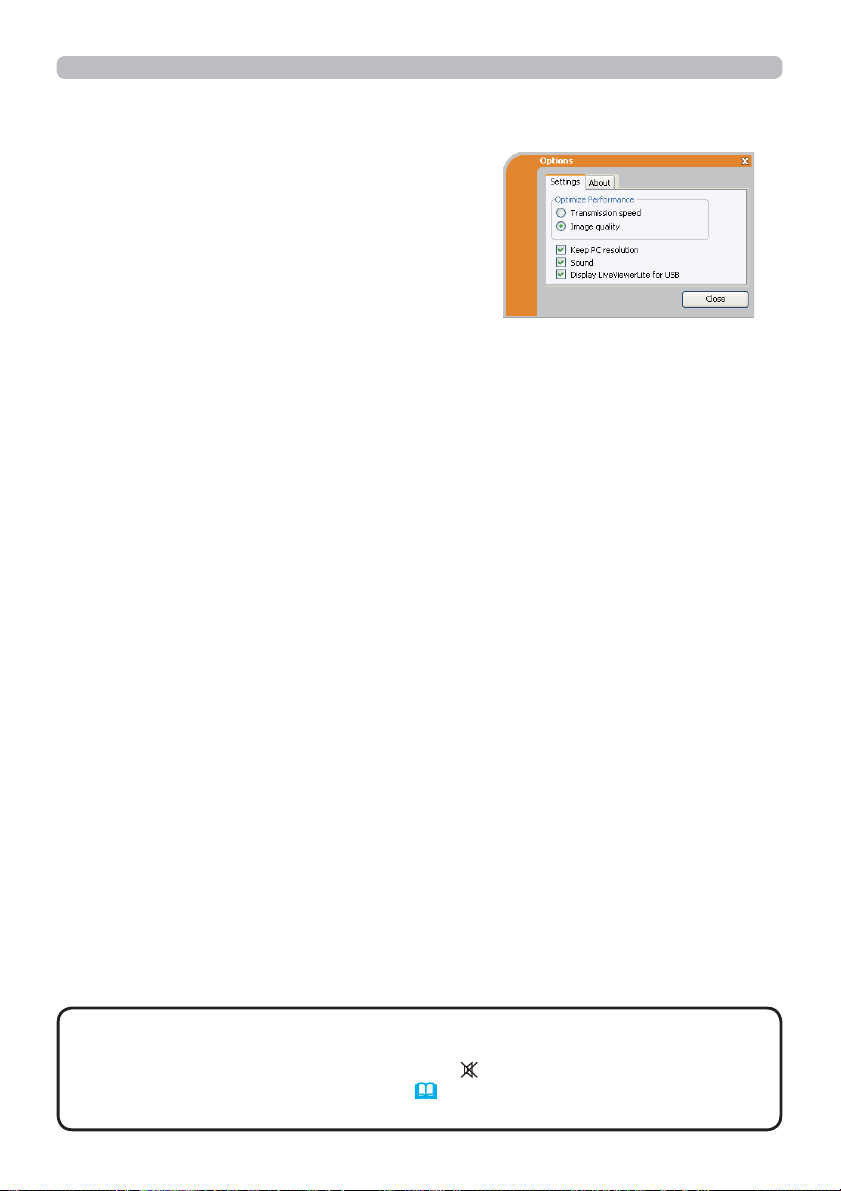

USB Display USB Display

(Windows computer)

(Mac computer)

...........85

......

........

Maintenance .............103

Replacing the lamp ............103

Cleaning and replacing the air ﬁlter . 105

Other care ...................107

Troubleshooting . .........108

Related messages ............108

Regarding the indicator lamps . . . 110

Resetting all settings ........... 113

Phenomena that may be easy to be mistaken for machine defects

.. 113

Speciﬁcations . . ..........118



95 99

Introduction

Features

The projector provides you with the broad use by the following features.  This projector has a variety of I/O ports that supposedly cover for any

business scene. The HDMI port can support various image equipment which have digital interface to get clearer pictures on a screen.

 If you insert a USB storage device, such as a USB memory, into the USB

TYPE A port and select the port as the input source, you can view images

stored in the device.

 This projector can be controlled and monitored via LAN connection.

Furthermore, you can use the designated USB wireless adapter (optional) to establish wireless LAN connection.

 The built-in 16W speaker can deliver sufﬁcient sound volume in a large space

like a classroom without external speakers.

Checking the contents of package

Please see the Contents of package section in the User’s Manual (concise) which is a book. Your projector should come with the items shown there. Require of your dealer immediately if any items are missing.

WARNING

not to put in the mouth. If swallowed, consult a physician immediately for emergency treatment.

NOTE

to use the original packing materials when moving the projector. Use special caution for the lens.

• The projector may make a rattling sound when tilted, moved or shaken, since a ﬂap to control the air ﬂow inside of the projector has moved. Be aware that this is not a failure or malfunction.

• Keep the original packing materials, for future reshipment. Be sure

►Keep small parts away from children and pets. Take care

Introduction

Part names

(1) Lamp cover (103)

The lamp unit is inside. (2) Speaker ( (3) Filter cover (

The air ﬁlter and intake vent are inside. (4) Elevator feet (x2) ( (5) Elevator button ( (6) Remote sensor ( (7) Lens ( (8) Lens cover (9) Intake vents (10) Control panel ( (11) FOCUS ring ( (12) ZOOM ring ( (13) AC (AC inlet) ( (14) Exhaust vent (15) Rear panel (

23, 49)

105)

27) 27) 19)

107)

5)

27)

16)

5)

(10)

(13)

(8)

(4)(5)

(15) (9)

(12)

(11)

(2)

(3) (9)

(6)

(7)

(1)

(14)

(4)

WARNING

►Do not open or remove any portion of the product, unless the manuals direct it. ►Do not subject the projector to unstable conditions. ►Do not apply a shock or pressure to this product. ►Do not look into the lens and the openings on the projector while the lamp is on.

CAUTION

►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot. ►Do not attach anything onto the lens because it could damage the lens, such as melting the lens. ►Do not attach anything onto the lens except the lens cover of this projector because it could damage the lens, such as melting the lens.

(continued on next page)

Part names (continued)

Control panel

(1) STANDBY/ON button ( (2) INPUT button ( (3) MENU button ( (4) LAMP indicator ( (5) TEMP indicator ( (6) POWER indicator (

24) 32)

110) 110)

110)

21)

Introduction

(4)(5)

(1) (3)(2) (6)

Rear panel (

10 ~ 15)

(1) LAN port (2) USB TYPE A port(x2) (3) USB TYPE B port (4) HDMI port (5) MIC port (

15) (6) AUDIO IN1 port (7) AUDIO IN2 port (8) AUDIO IN3 (R,L) ports (9) AUDIO OUT (R,L) ports (10) COMPUTER IN1 port

(1)

(11) COMPUTER IN2 port (12) MONITOR OUT port (13) CONTROL port (14) VIDEO port (15) S-VIDEO port (16) Security slot ( (17) Security bar (

(14)

(10) (15)

(4)(3)(2)

17)

(11)

(17)

(continued on next page)

(6) (7)

(8) (5) (16)(9)

(13)(12)

Introduction

Part names (continued)

Remote control

(1) VIDEO button ( (2) COMPUTER button ( (3) SEARCH button ( (4) STANDBY/ON button ( (5) ASPECT button ( (6) AUTO button ( (7) BLANK button ( (8) MAGNIFY - ON button ( (9) MAGNIFY - OFF button (

24)

25)

21)

26)

28)

31)

30)

(10) MY SOURCE/DOC.CAMERA button

(

25, 60)

(11) VOLUME - button ( (12) PAGE UP button ( (13) PAGE DOWN button ( (14) VOLUME + button ( (15) MUTE button ( (16) FREEZE button ( (17) MY BUTTON - 1 button ( (18) MY BUTTON - 2 button ( (19) KEYSTONE button ( (20) POSITION button ( (21) MENU button ( (22) ▲/▼/◄/► cursor buttons ( (23) ENTER button ( (24) ESC button ( (25) RESET button ( (26) Battery cover (

23)

20)

23)

31)

59, 60) 59, 60)

29)

28, 32)

32)

18)

(2) (1) (6) (5) (16) (8)

OFF

(9) (19) (17) (20) (22)

(24)

the remote control

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

KEYSTONE

POSITION

ESC



MY BUTTON

ENTER

㧗

DOWN

࡯

MUTE



RESET

Back of

(10) (4) (3) (7) (12) (14) (11) (13) (15) (18) (21) (23) (25)

(26)

Setting up

Install the projector according to the environment and manner the projector will be used in.

For the case of installation in a special state such as ceiling mount, the speciﬁed mounting accessories ( service may be required. Before installing the projector, consult your dealer about your installation.

Speciﬁcations in the User’s Manual (concise)) and

Arrangement

Refer to tables T-1 or T-2 and ﬁgures F-1 and F-2 at the end of User’s Manual (concise) to determine the screen size and projection distance. The values shown in the table are calculated for a full size screen.

a Screen size (diagonal) b Projection distance (±10%, from the projector’s end) c1 , c2 Screen height (±10%)

• If the projector is used at an altitude of about 1600 m (5250 feet) or higher,

set ALTITUDE of the SERVICE item in the OPTION menu to HIGH ( Otherwise, set it to NORMAL. If the projector is used with a wrong setting, it may cause damage to the projector itself or the parts inside.

NOTE

suspended from the ceiling or other location due to the ﬂexibility of the plastic projector body. If readjustment is necessary, consult with your dealer or service personnel.

(continued on next page)

• The screen position may shift after installation if the projector is

60).

Setting up

Arrangement (continued)

WARNING

►Install the projector where you can access the power

outlet easily. If an abnormality should occur, unplug the projector urgently.

Otherwise it could cause a ﬁre or electric shock. ►Do not subject the projector to unstable conditions. If the projector falls or topples over, it could result in injury or damage to the projector and the surrounding things. Using a damaged projector could result in a ﬁre and an electric shock.

• Do not place the projector in unstable places, such as an inclined surface, places subject to vibration, on top of a wobbly table or cart, or a surface that is smaller than the projector.

• Do not put the projector on its side, front or rear position.

• Do not attach nor place anything on the projector unless otherwise speciﬁed in the manual.

• Do not use any mounting accessories except the accessories speciﬁed by the manufacturer. Read and keep the manuals of the accessories used.

• For special installation such as ceiling mounting, be sure to consult your dealer

beforehand.

Do not install the projector near thermally conductive or ﬂammable

► things. Such things when heated by the projector could result in a ﬁre and burns.

• Do not place the projector on a metal stand.

►Do not place the projector where any oils, such as cooking or machine oil, are used. Oil may harm the product, resulting in malfunction, or falling from the mounted position. ►Do not place the projector in a place where it may get wet. Getting the projector wet or inserting liquid into the projector could cause a ﬁre and an electric shock, and damage the projector.

• Do not place the projector near water, such as in a bathroom, kitchen, or poolside.

• Do not place the projector outdoors or by the window.

• Do not place anything containing liquid near the projector.

(continued on next page)

Arrangement (continued)

Setting up

CAUTION

►Place the projector in a cool place with sufﬁcient

ventilation. The projector may shutdown automatically or may malfunction if its

internal temperature is too high. Using a damaged projector could result in a ﬁre and an electric shock.

• Do not place the projector in direct sunlight or near hot objects such as heaters.

• Do not place the projector where the air from an air conditioner or similar unit will blow on it directly.

• Keep a space of 30 cm or more between a side of the projector and other objects such as walls.

• Do not place the projector on carpet, cushions or bedding.

• Do not stop up, block nor cover the projector's vent holes. Do not place anything around the projector that could be sucked in or stuck to the projector's intake vents.

• Do not place the projector at places that are exposed to magnetic ﬁelds, doing so can cause the cooling fans inside the projector to malfunction.

►Avoid placing the projector in smoky, humid or dusty place. Placing the projector in such places could cause a ﬁre, an electric shock and malfunction of the projector.

• Do not place the projector near humidiﬁers. Especially for an ultrasonic humidiﬁer, chlorine and minerals contained in tap water are atomized and could be deposited in the projector causing image degradation or other problems.

NOTICE

• Do not place the projector in a smoking area, kitchen, passageway

or by the window.

• Position the projector to prevent light from directly hitting the projector's remote

sensor.

• Do not place the product in a place where radio interference may be caused.

• Check and correct the setting for ALTITUDE of SERVICE in the OPTION menu

according to the usage environment (

60). If the projector is used with a wrong

setting, it may cause damage to the projector itself or the parts inside.

• Keep heat-sensitive things away from the projector. Otherwise, they may be

damaged by the heat from the projector.

Setting up

Connecting with your devices

Before connecting the projector to a device, consult the manual of the device to conﬁrm that the device is suitable for connecting with this projector and prepare the required accessories, such as a cable in accord with the signal of the device. Consult your dealer when the required accessory did not come with the product or the accessory is damaged. After making sure that the projector and the devices are turned off, perform the connection, according to the following instructions. Refer to the ﬁgures in subsequent pages. Before connecting the projector to a network system, be sure to read Network Guide too.

WARNING

►Use only the appropriate accessories. Otherwise it could

cause a ﬁre or damage the projector and devices.

• Use only the accessories speciﬁed or recommended by the projector’s manufacturer. It may be regulated under some standard.

• Neither disassemble nor modify the projector and the accessories.

• Do not use the damaged accessory. Be careful not to damage the accessories. Route a cable so that it is neither stepped on nor pinched out.

CAUTION

►For a cable with a core at only one end, connect the end

with the core to the projector. That may be required by EMI regulations.

NOTE

• Do not turn on or off the projector while connected to a device in operation, unless that is directed in the manual of the device. Otherwise it may cause malfunction in the device or projector.

• The function of some input ports can be selected according to your usage requirements. Check the reference page indicated beside each port in the following illustration.

• Be careful not to mistakenly connect a connector to a wrong port. Otherwise it may cause malfunction in the device or projector.

- When connecting a connector to a port, make sure that the shape of the

connector ﬁts the port.

- Tighten the screws to connect a connector equipped with screws to a port.

- Use the cables with straight plugs, not L-shaped ones, as the input ports of

the projector are recessed.

(continued on next page)

Setting up

Connecting with your devices (continued)

About Plug-and-Play capability

• Plug-and-Play is a system composed of a computer, its operating system

and peripheral equipment (i.e. display devices). This projector is VESA DDC 2B compatible. Plug-and-Play can be used by connecting this projector to a computer that is VESA DDC (display data channel) compatible.

Take advantage of this feature by connecting a computer cable to the

COMPUTER IN1 port (DDC 2B compatible). Plug-and-Play may not work properly if any other type of connection is attempted.

Please use the standard drivers in your computer as this projector is a Plug-

and-Play monitor.

(continued on next page)

Setting up

Connecting with your devices (continued)

Computer

NOTE

• Before connecting the projector to a computer, consult the computer’s manual and check the compatibility of the signal level, the synchronization methods and the display resolution output to the projector.

- Some signal may need an adapter to input this projector.

- Some computers have multiple screen display modes that may include some

signals which are not supported by this projector.

- Although the projector can display signals with resolution up to UXGA

(1600x1200), the signal will be converted to the projector’s panel resolution before being displayed. The best display performance will be achieved if the resolutions of the input signal and the projector panel are identical.

• If you connect this projector and a notebook computer, you need output the display to an external monitor, or output simultaneously to the internal display and an external monitor. Consult the computer's manual for the setting.

• Depending on the input signal, the automatic adjustment function of this projector may take some time and not function correctly.

- Note that a composite sync signal or sync-on-green signal may confuse the

automatic adjustment function of this projector (

28).

- If the automatic adjustment function does not work correctly, you may not see

the dialog to set the display resolution. In such a case, use an external display device. You may be able to see the dialog and set an appropriate display resolution.

(continued on next page)

Connecting with your devices (continued)

Setting up

USB

wireless

adapter

(optional)

USB

storage

device

CAUTION

Computer

Access

point

► Before connecting the projector to a network system be sure

External device

to obtain the consent of the administrator of the network. ►Do not connect the LAN port to any network that might have the excessive voltage. ►The designated USB wireless adapter that is sold as an option is required to use the wireless network function of this projector. ►Before removing the USB storage device from the port of the projector, be sure to use the REMOVE USB function on the thumbnail screen to secure your data (

88). ►Do not use any extension cable or device when connecting the adapter to the projector. Before you insert or pull out the USB wireless adapter from the projector, turn off the power of the projector and pull out the power cord’s plug from the outlet. Do not touch the USB wireless adapter while the projector is receiving AC power. ►To connect both the LAN cable and USB device to the projector, use a LAN cable that is ﬂ at on the side where the plug’s wire is visible. Otherwise, both of them cannot be connected correctly, or the wire may break (malfunction).

NOTE

• If an oversized USB storage device blocks the LAN port, use a USB

extension cable to connect the USB storage device.

(continued on next page)

Setting up

Connecting with your devices (continued)

VCR/DVD/Blu-ray DiscTM player

NOTE

• The HDMI port of this model is compatible with HDCP (High-band- width Digital Content Protection) and therefore capable of displaying a video signal from HDCP compatible DVD players or the like.

- The HDMI supports the following signals.

Video signal : 480i@60, 480p@60, 576i@50, 576p@50, 720p@50/60,

1080i@50/60, 1080p@50/60

Audio signal : Format Linear PCM

Sampling frequency 48kHz / 44.1kHz / 32kHz

- This projector can be connected with another equipment that has HDMI

connector, but with some equipment the projector may not work properly, something like no video.

- Be sure to use an HDMI

- Use a Category 2-certiﬁ ed HDMI

cable that has the HDMITM logo.

cable to input 1080p@50/60 signal to the

projector.

- When the projector is connected with a device having DVI connector, use a

DVI to HDMI

cable to connect with the HDMI input.

(continued on next page)

Connecting with your devices (continued)

Monitor

㻾㻳㻮㻌㻵㻺

Speakers

(with an ampliﬁ er)

Setting up

Mic

NOTE

• If a loud feedback noise is produced from the speaker, move the microphone away from the speaker.

Microphone function

•

You can connect a dynamic microphone to the MIC port with a 3.5 mm mini-plug. In that case, the built-in speaker outputs the sound from the microphone, even while the sound from the projector is output. You can input line level signal to the MIC port from equipment such as wireless microphone. Select HIGH in the MIC LEVEL item of the AUDIO menu when you input line level audio signal to the MIC port. In the normal mode, the volume of the microphone can be adjusted separately from the volume of the projector using the menu (

49). In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector (

23). Even when the sound of projector is set to mute mode by the AUDIO SOURCE function (

49), the volume of the microphone is adjustable. In both modes (standby or normal), the MUTE button on the remote control works on the sounds of the microphone and the projector (

23).

• This projector doesn't support plug-in power for the microphone.

Setting up

Connecting to a power supply

Put the connector of the power cord into the

AC (AC inlet) of the projector. Firmly plug the power cord’s plug into the

outlet. In a couple of seconds after the power supply connection, the POWER indicator will light up in steady orange.

Please remember that when the DIRECT POWER ON function activated ( power supply make the projector turn on.

56), the connection of the

Power cord

WARNING

incorrect or faulty connections may result in ﬁre and/or electrical shock.

• Do not touch the power cord with a wet hand.

• Only use the power cord that came with the projector. If it is damaged, consult your dealer to get a new one. Never modify the power cord.

• Only plug the power cord into an outlet whose voltage is matched to the power cord. The power outlet should be close to the projector and easily accessible. Remove the power cord for complete separation.

• Do not distribute the power supply to multiple devices. Doing so may overload the outlet and connectors, loosen the connection, or result in ﬁre, electric shock or other accidents.

• Connect the ground terminal for the AC inlet of this unit to the ground terminal of the building using an appropriate power cord (bundled).

NOTICE

phase voltage of 220 to 240 V.

►Please use extra caution when connecting the power cord, as

►This product is also designed for IT power systems with a phase-to-

Fastening the adapter cover

Use the supplied adapter cover to prevent the USB wireless adapter from coming off easily.

Loosen the screw (marked with

triangle) on the bottom left of the

USB TYPE A port.

Insert the tab of the cover into the

hole at the upper right of the USB TYPE A port in the direction of the arrow.

Align the screw holes on the

projector and the cover. Then insert the screw removed from the projector into the hole and tighten the screw.

Setting up

Ta b

WARNING

to put in the mouth.

Using the security bar and slot

A commercially available anti-theft chain or wire can be attached to the security bar on the projector. Refer to the ﬁ gure to choose an anti-theft chain or wire. Also this product has the security slot for the Kensington lock. For details, see the manual of the security tool.

WARNING

from falling down, since it is not designed for it.

CAUTION

It may become too hot.

NOTE

measures. It is intended to be used as supplemental theft prevention measure.

• The security bar and slot is not comprehensive theft prevention

►Keep small parts away from children and pets. Take care not

Security slot

12.2mm

18.6mm

18.0mm

Anti-theft

chain or wire

►Do not use the security bar and slot to prevent the projector

►Do not place anti-theft chain or wire near the exhaust vents.

security bar

Remote control

Installing the batteries

Please insert the batteries into the remote control before using it. If the remote control starts to malfunction, try to replace the batteries. If you will not use the remote control for long period, remove the batteries from the remote control and store them in a safe place.

Holding the hook part of the battery

cover, remove it. Align and insert the two AA batteries

(HITACHI MAXELL ENERGY, Part No.LR6 or R6P)

to their plus and minus terminals as indicated in the remote control. Replace the battery cover in the direction of the arrow and snap it back into place.

according

213

WARNING

directed. Improper use may result in battery explosion, cracking or leakage, which could result in ﬁre, injury and/or pollution of the surrounding environment.

• Be sure to use only the batteries speciﬁed. Do not use batteries of different types at the same time. Do not mix a new battery with used one.

•

Make sure the plus and minus terminals are correctly aligned when loading a battery.

• Keep a battery away from children and pets.

• Do not recharge, short circuit, solder or disassemble a battery.

•

Do not place a battery in a ﬁre or water. Keep batteries in a dark, cool and dry place.

•

If you observe battery leakage, wipe out the leakage and then replace a battery.

If the leakage adheres to your body or clothes, rinse well with water immediately.

• Obey the local laws on disposing the battery.

►Always handle the batteries with care and use them only as

Remote control

About the remote control signal

The remote control works with the projector’s remote sensor. This projector has a remote sensor on the front. The sensor senses the signal within the following range when the sensor is active:

60 degrees (30 degrees to the left and right of the sensor) within 3 meters about.

•

NOTE

The remote control signal reﬂ ected in the screen or the like may be available.

(approx.)

If it is difﬁ cult to send the signal to the sensor directly, attempt to make the signal reﬂ ect.

• The remote control uses infrared light to send signals to the projector (Class 1 LED), so be sure to use the remote control in an area free from obstacles that could block the remote control’s signal to the projector.

•

The remote control may not work correctly if strong light (such as direct sun light) or light from an extremely close range (such as from an inverter ﬂ uorescent lamp) shines on the remote sensor of the projector. Adjust the position of projector avoiding those lights.

Changing the frequency of remote control signal

The accessory remote control has the two choices on signal frequency Mode 1:NORMAL and Mode 2:HIGH. If the remote control does not function properly, attempt to change the signal frequency. In order to set the Mode, please keep pressing the combination of two buttons listed below simultaneously for about 3 seconds.

(1) Set to Mode 1:NORMAL... VOLUME - and RESET buttons (2) Set to Mode 2:HIGH... MAGNIFY OFF and ESC buttons

Please remember that the REMOTE FREQ. in the SERVICE item of

(62)

the OPTION menu

of the projector to be controlled should be

set to the same mode as the remote control.

(2)

OFF

VIDEO

ASPECT

MAGNIFY

KEYSTONE

POSITION

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

BLANK

FREEZE

PAGE

VOLUME

㧗

DOWN

࡯

MY BUTTON

MUTE





ENTER

ESC

RESET

(1)

Remote control

Using as a simple PC mouse & keyboard

The accessory remote control works as a simple mouse and keyboard of the computer, when the projector’s USB TYPE B port and the computer’s type A USB port are connected and MOUSE is selected for the USB TYPE B item in the OPTION menu (

(1) PAGE UP key: Press PAGE UP button. (2) PAGE DOWN key: Press PAGE DOWN button. (3) Mouse left button: Press ENTER button. (4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►. (5) ESC key: Press ESC button. (6) Mouse right button: Press RESET button.

NOTICE

►Improper use of the simple mouse & keyboard function could damage your equipment. While using this function, please connect this product only to a computer. Be sure to check your computer’s manuals before connecting this product to the computer.

57).

USB TYPE B port

(3)

(5)

ASPECT

MAGNIFY

OFF

KEYSTONE

POSITION

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

AUTO

FREEZE

MY BUTTON



ESC

(1)

BLANK

PAGE

VOLUME

㧗

DOWN

࡯

(2)

MUTE



(4)

ENTER

RESET

(6)

NOTE

When the simple mouse & keyboard function of this product does not work

correctly, please check the following.

• When a USB cable connects this projector with a computer having a built-in pointing device (e.g. track ball) like a laptop computer, open BIOS setup menu, then select the external mouse and disable the built-in pointing device, because the built-in pointing device may have priority to this function.

Windows XP SP3 or higher is required for this function. And also this function may not work

• depending on the computer’s conﬁ gurations and mouse drivers. This function can work with the computer which can operate general USB mouse or keyboard.

• You cannot do things like press two buttons at once (for instance, pressing two buttons at the same time to move the mouse pointer diagonally).

This function is activated only when the projector is working properly. This function is not

• available in any of the following cases:

- While the lamp is warming up. (The POWER indicator blinks in green.)

- When either USB TYPE A or USB TYPE B port is selected.

- While displaying BLANK

, TEMPLATE

(54)

or MY IMAGE

(76)

screen.

(50)

- When any menu is displayed on the screen. While using the cursor buttons to operate the sound or screen functions such as adjusting the

sound volume, correcting the keystone, correcting the picture position and magnifying the screen.

Power on/off

STANDBY/ON button

Turning on the power

Make sure that the power cord is ﬁrmly and

correctly connected to the projector and the outlet.

Make sure that the POWER indicator is

steady orange ( lens cover.

Press STANDBY/ON button on the

projector or the remote control. The projection lamp will light up and POWER indicator will begin blinking in green. When the power is completely on, the indicator will stop blinking and light in steady green (

110).

To display the picture, select an input signal according to the section Selecting an input signal (

The INITIAL SETTING Menu will be displayed by factory default upon startup. Once the INITIAL SETTING Menu is set, it will not appear until FACTORY RESET (

67) is executed. If you wish to change the settings, refer to the LANGUAGE

(

50) and ALTITUDE (60) menu.

(1) LANGUAGE: Use the ▲/▼/◄/►

buttons to select the desired language and press the ENTER button of the remote control or the INPUT button of the projector to execute.

110). Then remove the

VIDEO

24).

POWER indicator

CE/

ERA

MY SOUR

DOC.CAM

COMPUT

BLA

㧗

VOLUME

AUTO

PAGE

ASPECT

࡯

FREEZE

MAGNIFY

DOWN

MUTE



BUTTON

OFF



KEYSTON

POSITION

ENTER

SET RE

ESC

(2) ALTITUDE: Use the ▲/▼ buttons to

select NORMAL for altitude below 1600 m (5250 feet), otherwise select HIGH and press the ENTER button of the remote control or the INPUT button of the projector to execute.

Power on/off

Turning off the power

Press the STANDBY/ON button on the projector or the remote control.

The message “Power off?” will appear on the screen for about 5 seconds.

Press the STANDBY/ON button again while the message appears.

The projector lamp will go off, and the POWER indicator will begin blinking in orange. Then POWER indicator will stop blinking and light in steady orange when the lamp cooling is complete (

Attach the lens cover, after the POWER indicator turns in steady orange.

Do not turn the projector on for about 10 minutes or more after turning it off. Also, do not turn the projector off shortly after turning it on. Such operations might cause the lamp to malfunction or shorten the lifetime of some parts including the lamp.

110).

WARNING

Do not look into the lens of the projector or look inside of the projector through any of the projector’s openings. ►Do not touch around the lamp cover and the exhaust vents during use or just after use, since it is too hot.

NOTE

prior to the connected devices.

• This projector has the function that can make the projector automatically turn

on/off. Please refer to the DIRECT POWER ON ( OFF (

• Turn the power on/off in right order. Please power on the projector

57) items of the OPTION menu.

►A strong light is emitted when the projector’s power is on.

56) and AUTO POWER

Operating

Adjusting the volume

Use the VOLUME +/VOLUME - buttons to adjust the volume.

A dialog will appear on the screen to aid you in adjusting the volume. If you do not do anything, the dialog will automatically disappear after ten seconds.

● When

is selected for current picture input port, the volume

VOLUME +/- button

VIDEO

ASPECT

MAGNIFY

OFF

KEYSTONE

adjustment is disabled. Please see AUDIO SOURCE item of AUDIO menu (

49).

● Even if the projector is in the standby mode, the volume is adjustable when

both of the following conditions are true:

- An option other than item of the AUDIO menu (

NORMAL is selected in the STANDBY MODE item of the SETUP menu

is selected for STANDBY in the AUDIO SOURCE

49).

● In the standby mode, the volume of the microphone is adjustable with the VOLUME +/- buttons on the remote control, in synchronization with the volume of the projector.

Temporarily muting the sound

Press MUTE button on the remote control.

A dialog will appear on the screen indicating that you have muted the sound. To restore the sound, press the MUTE, VOLUME + or

VOLUME - button. Even if you do not do anything, the dialog

MUTE button

VIDEO

ASPECT

MAGNIFY

OFF

KEYSTONE

will automatically disappear after ten seconds.

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

FREEZE

PAGE

DOWN

MY BUTTON





(48).

MY SOURCE/

COMPUTER

DOC.CAMERA

AUTO

FREEZE

PAGE

DOWN

MY BUTTON





BLANK

VOLUME

MUTE

VOLUME

MUTE

㧗

࡯

㧗

࡯

● When is selected for current picture input port, the sound is always muted. Please see AUDIO SOURCE item of AUDIO menu (

49).

● C.C. (Closed Caption) is automatically activated when sound is muted and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

55).

Operating

Selecting an input signal

Press INPUT button on the projector.

Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

HDMI

● While ON is selected for AUTO SEARCH item in OPTION menu (56), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

● It may take several seconds to project the images from the USB TYPE B port.

Press COMPUTER button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

COMPUTER IN1  COMPUTER IN2  LAN USB TYPE B

●

While ON is selected for AUTO SEARCH item in OPTION menu, the



USB TYPE A

projector will keep checking every port sequentially till an input signal is detected (

56). If COMPUTER button is pressed when VIDEO, S-VIDEO or HDMI port is

selected, the projector will check COMPUTER IN1 port ﬁ rst.

●

It may take several seconds to project the images from the USB TYPE B port.

Press VIDEO button on the remote control.

Each time you press the button, the projector switches its input port from the current port as below.

HDMI  S-VIDEO  VIDEO

● While ON is selected for AUTO SEARCH item in OPTION menu, the projector will keep checking every port sequentially till an input signal is detected (

56). If VIDEO button is pressed when COMPUTER IN1, COMPUTER IN2, LAN, USB TYPE A or USB TYPE B port is selected, the projector will check HDMI port ﬁ rst.

INPUT

button

COMPUTER button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

OFF

MY BUTTON

VIDEO button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

OFF

MY BUTTON

MY SOURCE/ DOC.CAMERA

PAGE

DOWN

MY SOURCE/ DOC.CAMERA

PAGE

DOWN

BLANK

VOLUME

㧗

࡯

㧗

࡯

Selecting an input signal(continued)

Operating

Press the MY SOURCE / DOC. CAMERA button on

the remote control. The input signal will be changed into the signal you set as MY SOURCE (

60).

● This function also can use for document camera. Select the input port that connected the document camera.

MY SOURCE / DOC. CAMERA button

VIDEO

COMPUTER

ASPECT

FREEZE

MAGNIFY

OFF

Searching an input signal

Press SEARCH button on the remote control.

The projector will start to check its input ports as below in order to ﬁ nd any input signals. When input signal is detected, the projector will stop searching and display the image. If no signal is found, the projector will return to the state selected before the operation.

COMPUTER IN1  COMPUTER IN2  LAN

VIDEO USB TYPE A

S-VIDEO USB TYPE B

HDMI

● While ON is selected for AUTO SEARCH item in OPTION menu (56), the projector will keep checking the ports in above order repeatedly till an input signal is detected.

●

It may take several seconds to project the images from the USB TYPE B port.

SEARCH button

VIDEO

COMPUTER

ASPECT

AUTO

FREEZE

MAGNIFY

OFF

MY BUTTON

KEYSTONE



AUTO

MY BUTTON

MY SOURCE/ DOC.CAMERA

MY SOURCE/

DOC.CAMERA

PAGE

DOWN

BLANK

PAGE

VOLUME

㧗

DOWN

࡯

BLANK

VOLUME

㧗

࡯

MUTE



Operating

Selecting an aspect ratio

Press ASPECT button on the remote control.

Each time you press the button, the projector switches the mode for aspect ratio in turn.

 For a computer signal

CP-X2530WN/CP-X3030WN: NORMAL  4:3  16:9  16:10

CP-WX3030WN: NORMAL  4:3  16:9  16:10  NATIVE

 For an HDMITM signal

CP-X2530WN/CP-X3030WN: NORMAL  4:3  16:9  16:10  14:9

CP-WX3030WN: NORMAL  4:3  16:9  16:10  14:9  NATIVE

 For a video signal, s-video signal or component video signal

CP-X2530WN/CP-X3030WN: 4:3  16:9  14:9

CP-WX3030WN: 4:3  16:9  16:10  14:9  NATIVE

ASPECT button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

BLANK

FREEZE

MAGNIFY

PAGE

VOLUME

OFF

KEYSTONE



MY BUTTON

㧗

DOWN

࡯

MUTE



 For an input signal from the LAN, USB TYPE A or USB TYPE B port, or

if there is no signal

CP-X2530WN/CP-X3030WN: 4:3 (ﬁ xed) CP-WX3030WN: 16:10 (ﬁ xed)

● ASPECT button does not work when no proper signal is inputted.

● NORMAL mode keeps the original aspect ratio setting.

● The display will be dark for a split second while switching the Aspect, but this is not a malfunction.

Operating

Adjusting the projector’s elevator

<Front Foot> Using the Front elevator foot can tilt the projector in order to project at a suitable angle to the screen, elevating the front side of the projector within 12 degrees.

The elevator foot is adjustable while pushing the elevator button.

Holding the projector, push the elevator

button to loose the elevator foot. Release the elevator button in order to

lock the elevator foot. If necessary, the elevator foot can be manually

twisted to make more precise adjustments. Hold the projector when twisting the foot.

►

CAUTION

elevator button without holding the projector, since the projector may drop down. ►Do not tilt the projector other than elevating its front within 12 degrees using the elevator foot. A tilt of the projector exceeding the restriction could cause malfunction or shortening the lifetime of consumables, or the projector itself.

<Rear Foot> When the place to put the projector is slightly uneven to the left or right, use the Rear elevator foot to place the projector horizontally.

Rear elevator foot at the time of shipment, and the projector is ready for use. If necessary, detach the spacer, and the elevator foot can be manually twisted to make more precise adjustments.

Do not handle the

Rear foot

Elevator button

12°

Front foot

A spacer is installed on the

WARNING

to let them swallow the spacer. If swallowed consult a physician immediately for emergency treatment.

NOTE

with a spacer. the projector.

•

►Keep the spacer away from children and pets. Be careful not

After the foot is adjusted, it is possible to return it to the state of the shipment

It is recommended to keep the spacer and reuse it when relocating

Adjusting the zoom and focus

Use the ZOOM ring to adjust the screen size.

Use the FOCUS ring to focus the picture.

ZOOM ring

FOCUS ring

Operating

Using the automatic adjustment feature

Press AUTO button on the remote control.

Pressing this button performs the following.

 For a computer signal

The vertical position, the horizontal position and the horizontal phase will be automatically adjusted. Make sure that the application window is set to its maximum size prior to attempting to use this feature. A dark picture may still be incorrectly adjusted. Use a bright picture when adjusting.

 For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for

43).

the VIDEO FORMAT item in the INPUT menu (

The vertical position and

horizontal position will be automatically set to the default.

 For a component video signal

The vertical position and horizontal position will be automatically set to the default. The horizontal phase will be automatically adjusted.

● The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

● When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

● When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.

The items adjusted by this function may vary when the FINE or DISABLE is selected

● for the AUTO ADJUST item of the SERVICE item in the OPTION menu (

AUTO button

VIDEO

COMPUTER

ASPECT

FREEZE

MAGNIFY

OFF

KEYSTONE

61).

AUTO



MY BUTTON

MY SOURCE/ DOC.CAMERA

PAGE

DOWN

BLANK

VOLUME

㧗

࡯

MUTE



Adjusting the position

Press POSITION button on the remote control when no menu is

indicated. The “POSITION” indication will appear on the screen.

Use the ▲/▼/◄/► cursor buttons to adjust the picture position.

When you want to reset the operation, press RESET button on the remote control during the operation. To complete this operation, press POSITION button again. Even if you do not do anything, the dialog will automatically disappear after a few seconds.

When this function is performed on a video signal or an s-video signal, some image

● such as an extra-line may appear at outside of the picture.

● When this function is performed on a video signal or s-video signal, the range of this adjustment depends on OVER SCAN in IMAGE menu (

40) setting. It is not

possible to adjust when OVER SCAN is set to 10.

● If POSITION button is pressed when a menu is indicated on screen, the displayed picture does not move its position but the menu does.

● This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

POSITION

ENTER

ESC

POSITION button

RESET

Operating

Correcting the keystone distortions

Press KEYSTONE button on the remote

control. A dialog will appear on the screen to aid you in correcting the distortion.

Use the ▲/▼ cursor buttons to select AUTO or MANUAL

operation, and press the ► button to perform the following.

KEYSTONE button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

FREEZE

MAGNIFY

PAGE

OFF

MY BUTTON

KEYSTONE



(1) AUTO executes automatic vertical keystone correction. (2) MANUAL displays a dialog for keystone correction.

Use the ◄/► buttons for adjustment.

To close the dialog and complete this operation, press KEYSTONE button again. Even if you do not do anything, the dialog will automatically disappear after ten seconds.

● The menu or dialog will automatically disappear after several seconds of inactivity. Pressing the KEYSTONE button again ﬁ nishes the operation and closes the menu or dialog.

● The adjustable range of this function will vary among inputs. For some input, this function may not work well.

● When REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION item in the SETUP menu, the automatic vertical keystone correction function may not work correctly if the projector screen is slanted or tilted downwards.

● When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

● When the projector is placed on the level (about ±4°), the automatic keystone distortion correction may not work.

● When the projector is inclined to near ±30 degree or over, this function may not work well.

● This function will be unavailable when the TRANSITION DETECTOR is on (

82).

● The display will be dark for a split second while switching the KEYSTONE, but this is not a malfunction.

BLANK

VOLUME

㧗

DOWN

࡯

MUTE



Operating

Using the magnify feature

Press the MAGNIFY ON button on the remote control.

The picture will be magniﬁ ed, and the MAGNIFY dialog will appear on the screen. When the MAGNIFY ON button is pressed for the ﬁ rst time after the projector is turned on, the picture will be zoomed by 1.5 times. On the dialog, triangle marks to show

MAGNIFY ON/OFF button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

FREEZE

MAGNIFY

PAGE

OFF

MY BUTTON

KEYSTONE



each direction will be displayed. The display magniﬁ cation of the projector switches in order with every press

of the MAGNIFY ON button.

 For computer signals or HDMI

(RGB) signals

1.5 times  2 times  3 times  4 times  1 time

 For video signals, s-video signals, component video signals or

HDMI

(Component) signals

1.5 times  2 times  1 time

While the triangles are displayed on the dialog, use the ▲/▼/◄/► cursor

buttons to shift the magnifying area.

Press the MAGNIFY OFF button on the remote control to exit magniﬁ cation.

● The MAGNIFY dialog will automatically disappear in several seconds with no operation. The dialog will appear again if the MAGNIFY ON button is pressed when the dialog has automatically disappeared.

● The magniﬁ cation is automatically disabled when the displaying signal or its display condition is changed.

● While the magniﬁ cation is active, the keystone distortion condition may vary. It will be restored when the magniﬁ cation is disabled.

● Some horizontal stripes might be visible on the image while magniﬁ cation is active.

● This function is not available in the following cases:

- A sync signal in the range not supported is input.

- There is no input signal.

BLANK

VOLUME

㧗

DOWN

࡯

MUTE



Operating

Temporarily freezing the screen

Press the FREEZE button on the remote control.

The “FREEZE” indication will appear on the screen (however, the indication will not appear when the OFF is selected for the MESSAGE item in the SCREEN menu ( projector will go into the FREEZE mode, which the picture is frozen.

52)), and the

FREEZE button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

FREEZE

MAGNIFY

PAGE

OFF

MY BUTTON

KEYSTONE



To exit the FREEZE mode and restore the screen to normal, press the FREEZE button again.

● The projector automatically exits from the FREEZE mode when some control buttons are pressed.

● If the projector continues projecting a still image for a long time, the LCD panel might possibly be burned in. Do not leave the projector in the FREEZE mode for too long.

● Images might appear degraded when this function is operated, but it is not a malfunction.

Temporarily blanking the screen

Press BLANK button on the remote control.

The BLANK screen will be displayed instead of the screen of input signal. Please refer to BLANK item in SCREEN menu (

50). To exit from the BLANK screen and return to the input signal screen, press BLANK button again.

BLANK button

MY SOURCE/

VIDEO

COMPUTER

DOC.CAMERA

ASPECT

AUTO

FREEZE

MAGNIFY

PAGE

OFF

MY BUTTON

KEYSTONE



BLANK

VOLUME

㧗

DOWN

࡯

MUTE



BLANK

VOLUME

㧗

DOWN

࡯

MUTE



● The projector automatically exits from the

BLANK

mode when

some control buttons are pressed.

CAUTION

►If you wish to have a blank screen while the projector's lamp is on, use the BLANK function above. Taking any other action may cause the damage on the projector.

•

NOTE

The sound is not connected with the BLANK screen function. If necessary, set the volume or mute ﬁrst. To display the BLANK screen and mute the sound at one time, use AV MUTE function

(60).

Operating

Using the menu function

This projector has the following menus: PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK, SECURITY and EASY MENU. EASY MENU consists of functions often used, and the other menus are classiﬁed into each purpose and brought together as the ADVANCED MENU. Each of these menus is operated using the same methods. While the projector is displaying any menu, the MENU button on the projector works as the cursor buttons. The basic operations of these menus are as follows.

POSITION button

POSITION

ENTER button

ESC button

To start the MENU, press the MENU button. The MENU you last used (EASY

or ADVANCED) will appear. EASY MENU has priority to appear just after

ESC

ERA

MY SOURC R

DOC.CAM

COMPUTE

BLA

VIDEO

SEAR

㧗

VOLU

AUTO

PAGE

ASPE

࡯

FREEZ

MAGNIFY

DOWN

MUTE



OFF

MY BUTTON



ENU

KEYSTONE

POSITION

ENTER

RESET

ESC

ENTER

RESET

RESET button

MENU button

(Cursor buttons)

Cursor buttons

powered on.

In the EASY MENU

(1) Use the ▲/▼ cursor buttons to select an item to

operate. If you want to change it to the ADVANCED MENU, select the ADVANCED MENU.

(2) Use the ◄/► cursor buttons to operate the item.

In the ADVANCED MENU

(1) Use the ▲/▼ cursor buttons to select a menu.

If you want to change it to the EASY MENU, select the EASY MENU. The items in the menu appear on the right side.

(2) Press the ► cursor button or ENTER button to

move the cursor to the right side. Then use the ▲/▼ cursor buttons to select an item to operate and press the ► cursor button or ENTER button to progress. The operation menu or dialog of the selected item will appear.

(3) Use the buttons as instructed in the OSD to operate the item.

(continued on next page)

Operating

Using the menu function (continued)

To close the MENU, press the MENU button again or select EXIT and press

the ◄ cursor button or ENTER button. Even if you do not do anything, the dialog will automatically disappear after about 30 seconds.

●

If you want to move the menu position, use the cursor buttons after pressing

the POSITION button.

● Some functions cannot be performed when a certain input port is selected, or when a certain input signal is displayed.

● When you want to reset the operation, press RESET button on the remote control during the operation. Note that some items (ex. LANGUAGE, VOLUME) cannot be reset.

● In the ADVANCED MENU, when you want to return to the previous display, press the ◄ cursor button or ESC button on the remote control.

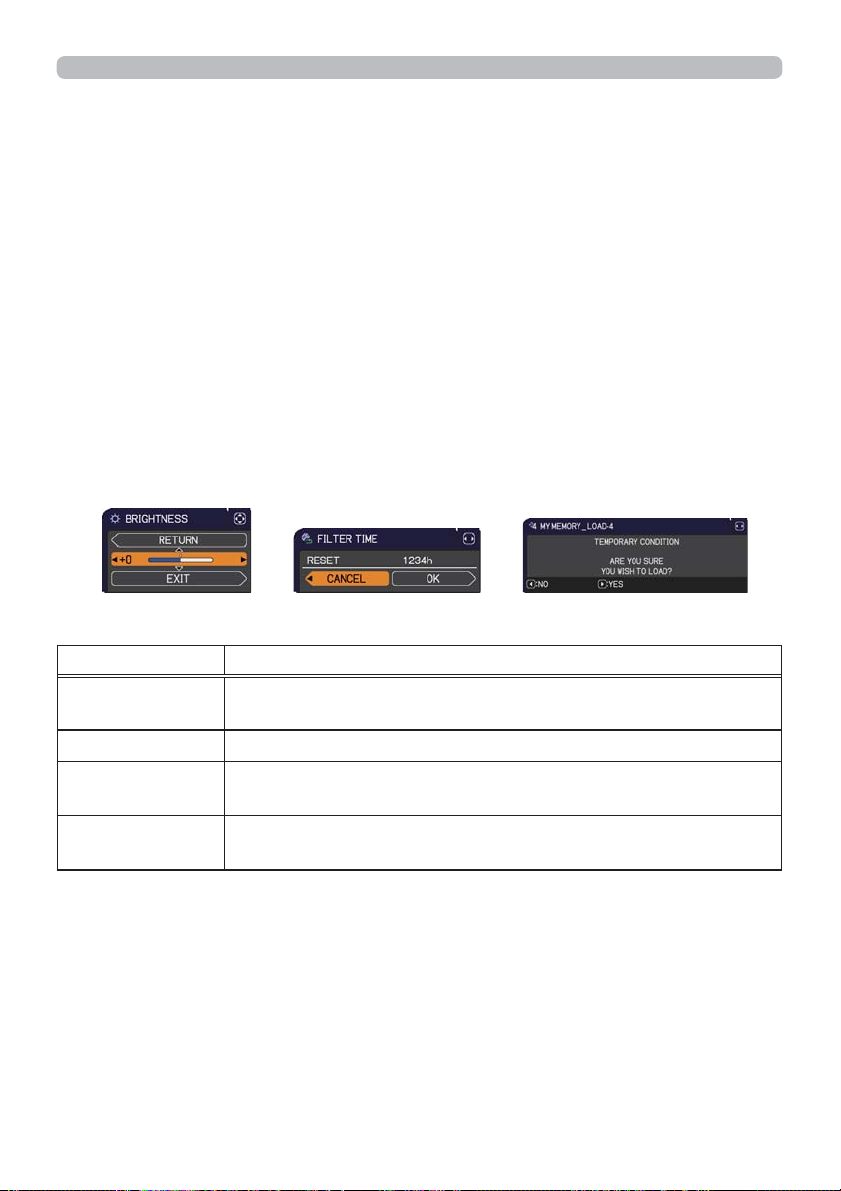

Indication in OSD (On Screen Display)

The meanings of the general words on the OSD are as follows.

Indication Meaning

EXIT

RETURN Selecting this word returns the menu to the previous menu.

CANCEL or NO

OK or YES

Selecting this word ﬁnishes the OSD menu. It's the same as pressing the MENU button.

Selecting this word cancels the operation in the present menu and returns to the previous menu.

Selecting this word executes the prepared function or shifts the menu to the next menu.

EASY MENU

From the EASY MENU, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons. Then perform it according to the following table.

Item Description

ASPECT

AUTO KEYSTONE

KEYSTONE

PICTURE MODE

Using the ◄/► buttons switches the mode for aspect ratio. See the ASPECT item in IMAGE menu (

Using the ► button executes the auto keystone function. See the AUTO KEYSTONE item in SETUP menu (46).

Using the ◄/► buttons corrects the vertical keystone distortion. See the

KEYSTONE item in SETUP menu (46).

Using the ◄/► buttons switches the picture mode. The picture modes are combinations of GAMMA and COLOR TEMP settings. Choose a suitable mode according to the projected source.

NORMAL  CINEMA  DYNAMIC  BOARD(BLACK)

PHOTO DAYTIME  WHITEBOARD  BOARD(GREEN)

GAMMA COLOR TEMP NORMAL 1 DEFAULT 2 MID CINEMA 2 DEFAULT 3 LOW DYNAMIC 3 DEFAULT 1 HIGH BOARD(BLACK) 4 DEFAULT 4 Hi-BRIGHT-1 BOARD(GREEN) 4 DEFAULT 5 Hi-BRIGHT-2 WHITEBOARD 5 DEFAULT 2 MID DAYTIME 6 DEFAULT 6 Hi-BRIGHT-3 PHOTO 7 DEFAULT 7 Hi-BRIGHT-4

• When the combination of GAMMA and COLOR TEMP differs from pre-assigned modes above, the display on the menu for the PICTURE MODE is “CUSTOM”. Please refer to the GAMMA and COLOR TEMP (

36, 37) items in PICTURE menu.



• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.



39).

(continued on next page)

Item Description

ECO MODE

INSTALLATION

Using the ◄/► buttons switches the ECO MODE. See the ECO MODE item in SETUP menu (

Pressing the ► button displays the INSTALLATION dialog. See the

INSTALLATION

item in SETUP menu (47).

Performing this item resets all of the EASY MENU items except the

RESET

FILTER TIME and LANGUAGE. A dialog is displayed for conﬁrmation. Selecting the OK using the ► button performs resetting.

The usage time of the air ﬁlter is shown in the menu. Performing this item resets the ﬁlter time which counts usage time

FILTER TIME

of the air ﬁlter. A dialog is displayed for conﬁrmation. Selecting the OK using the ► button performs resetting. See the FILTER TIME item in OPTION menu (

LANGUAGE

Using the ◄/► buttons changes the display language. See the LANGUAGE item in SCREEN menu (

Press the ► or ENTER button to use the menu of PICTURE,

ADVANCED MENU

IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK or SECURITY.

EXIT Press the ◄ or ENTER button to ﬁnish the OSD menu.



47).



EASY MENU

58).

50).

PICTURE menu

From the PICTURE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

◄/►

BRIGHTNESS

CONTRAST

GAMMA

Using the

Dark  Light

Using the

Weak  Strong

Using the ▲/▼ buttons switches the gamma mode.

To adjust CUSTOM

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the mode. This function is useful when you want to change the brightness of particular tones.

Choose an item using the ◄/► buttons, and adjust the level using the ▲/▼ buttons.

You can display a test pattern for checking the effect of your adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

No pattern  Gray scale of 9 steps Ramp  Gray scale of 15 steps

The eight equalizing bars correspond to eight tone levels of the test pattern (Gray scale of 9 steps) except the darkest in the left end. If you want to adjust the 2nd tone from left end on the test pattern, use the equalizing adjustment bar “1”. The darkest tone at the left end of the test pattern cannot be controlled with any of equalizing adjustment bar.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

buttons adjusts the brightness.

◄/►

buttons adjusts the contrast.

(continued on next page)

Item Description

Using the ▲/▼ buttons switches the color temperature mode.

Selecting a mode whose name includes CUSTOM and then pressing the ► button or the ENTER button displays a dialog to aid you in adjusting the OFFSET and GAIN of the selected mode.

OFFSET adjustments change the color intensity on the whole tones of the test pattern.

GAIN adjustments mainly affect color intensity on the brighter tones

COLOR TEMP

of the test pattern. Choose an item using the ◄/► buttons, and adjust the level using

the ▲/▼ buttons. You can display a test pattern for checking the effect of your

adjustment by pressing the ENTER button. Each time you press the ENTER button, the pattern changes as below.

• Lines or other noise might appear on the screen when this function is operated, but it is not a malfunction.

Using the ◄/► buttons adjusts the strength of whole color.

• This item can be selected only for a video, s-video and component

COLOR

video signal.

• (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

Using the ◄/► buttons adjusts the tint.

• This item can be selected only for a video, s-video and component

TINT

video signal.

• (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

(continued on next page)

PICTURE menu

To adjust CUSTOM

No pattern  Gray scale of 9 steps

Ramp  Gray scale of 15 steps

Weak  Strong

For an HDMITM signal, this item can also be selected if either (1) or (2) applies.

projector recognizes that it receives video signals.

Reddish  Greenish

For an HDMITM signal, this item can also be selected if either (1) or (2) applies.

projector recognizes that it receives video signals.

PICTURE menu

Item Description

Using the ◄/► buttons adjusts the sharpness.

SHARPNESS

Weak  Strong

• There may be some noise and/or the screen may ﬂicker for a moment when an adjustment is made. This is not a malfunction.

Using the ▲/▼ cursor buttons changes the active iris control mode.

PRESENTATION  THEATER  OFF

PRESENTATION : The active iris displays the best presentation

ACTIVE IRIS

THEATER : The active iris displays the best theater image for

image for both bright and dark scenes.

both bright and dark scenes.

OFF : The active iris is always open.

• The screen may ﬂicker when the PRESENTATION or THEATER modes are selected. If this occurs select OFF.

This projector has 4 memories for adjustment data (for all the items of the PICTURE menu). Selecting a function using the ▲/▼ buttons and pressing the ► or ENTER button performs each function.

SAVE-1  SAVE-2  SAVE-3  SAVE-4 LOAD-4 LOAD-3  LOAD-2  LOAD-1

SAVE-1, SAVE-2, SAVE-3, SAVE-4 Performing a SAVE function saves the current adjustment data into the memory linked in the number included in the function’s name.

• Remember that the current data being stored of a memory will be lost by saving new data into the memory.

MY MEMORY

LOAD-1, LOAD-2, LOAD-3, LOAD-4 Performing a LOAD function loads the data from the memory linked in the number included in the function’s name, and adjusts the picture automatically depending on the data.

• The LOAD functions whose linked memory has no data are skipped.

• Remember that the current adjusted condition will be lost by loading data. If you want to keep the current adjustment, please save it before performing a LOAD function.

• There may be some noise and the screen may ﬂicker for a moment when loading data. This is not malfunction.

• You can perform the LOAD function using MY BUTTON. Please see MY BUTTON item in OPTION menu (

59, 60).



IMAGE menu

From the IMAGE menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the mode for aspect ratio.

For a computer signal

CP-X2530WN/CP-X3030WN: NORMAL  4:3  16:9  16:10



CP-WX3030WN: NORMAL  4:3  16:9  16:10  NATIVE



For an HDMITM signal

CP-X2530WN/CP-X3030WN: NORMAL  4:3  16:9  16:10  14:9



CP-WX3030WN:

ASPECT

NORMAL  4:3  16:9  16:10  14:9  NATIVE



For a video signal, s-video signal or component video signal

CP-X2530WN/CP-X3030WN: 4:3  16:9  14:9

CP-WX3030WN: 4:3  16:9  16:10  14:9  NATIVE

For an input signal from the LAN, USB TYPE A or USB TYPE B port, or if there is no signal

CP-X2530WN/CP-X3030WN: 4:3 (ﬁxed) CP-WX3030WN: 16:10 (ﬁxed)

• The NORMAL mode keeps the original aspect ratio of the signal.

IMAGE menu

(continued on next page)

IMAGE menu

Item Description

Using the ◄/► buttons adjusts the over-scan ratio.

• This item can be selected only for a video, s-video and component video signal.

OVER SCAN

• For an HDMI (2) applies. (1) HDMI FORMAT item in the INPUT menu is set to VIDEO. (2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the

Using the ◄/► buttons adjusts the vertical position.

• Over-adjusting the vertical position may cause noise to appear on the screen. If this occurs, please reset the vertical position to the default setting. Pressing the RESET button when the V POSITION

V POSITION

is selected will reset the V POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN ( setting. It is not possible to adjust when OVER SCAN is set to 10.

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port. Using the ◄/► buttons adjusts the horizontal position.

• the screen. If this occurs, please reset the horizontal position to the default setting. Pressing the RESET button when the H POSITION is

H POSITION

selected will reset the H POSITION to the default setting.

• When this function is performed on a video signal or an s-video signal, the range of this adjustment depends on OVER SCAN ( setting. It is not possible to adjust when OVER SCAN is set to 10.

• USB TYPE B or HDMI por

(continued on next page)

Small (It magniﬁes picture)  Large (It reduces picture)

signal, this item can also be selected if either (1) or

projector recognizes that it receives video signals.

Down  Up

40)



Right  Left

Over-adjusting the horizontal position may cause noise to appear on

40)



This function is unavailable for a signal from the LAN, USB TYPE A,

Item Description

H PHASE

H SIZE

AUTO ADJUST

EXECUTE

Using the

• This item can be selected only for a computer signal or a component video signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

Using the ◄/► buttons adjusts the horizontal size.

• This item can be selected only for a computer signal. This function is unavailable for a signal from the LAN, USB TYPE A, USB TYPE B or HDMI port.

• When this adjustment is excessive, the picture may not be displayed correctly. In such a case, please reset the adjustment by pressing the RESET button on the remote control during this operation.

• Images might appear degraded when this function is operated, but it is not a malfunction.

Selecting this item performs the automatic adjustment feature.

For a computer signal

For a video signal and s-video signal

The video format best suited for the respective input signal will be selected automatically. This function is available only when the AUTO is selected for the VIDEO FORMAT item in the INPUT menu (

automatically set to the default.

For a component video signal

The vertical position and horizontal position will be automatically

◄/►

buttons adjusts the horizontal phase to eliminate ﬂicker.

Right  Left

Small  Large

43).



The vertical position and horizontal position will be

set to the default. The horizontal phase will be automatically adjusted.

• The automatic adjustment operation requires approx. 10 seconds. Also please note that it may not function correctly with some input.

• When this function is performed for a video signal, a certain extra such as a line may appear outside a picture.

• When this function is performed for a computer signal, a black frame may be displayed on the edge of the screen, depending on the computer model.

• The items adjusted by this function may vary when the FINE or DISABLE is selected for the AUTO ADJUST item of the SERVICE item in the OPTION menu (



IMAGE menu

61).

INPUT menu

From the INPUT menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons switches the progress mode.

TV  FILM  OFF

•

This function works only for a video signal, s-video signal, component

PROGRESSIVE

VIDEO NR

COLOR SPACE

video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI signal (of 480i@60 or 576i@50 or 1080i@50/60)

• When TV or FILM is selected, the screen image will be sharp. FILM adapts to the 2-3 Pull-Down conversion system. But these may cause a certain defect (for example, jagged line) of the picture for a quick moving object. In such a case, please select OFF, even though the screen image may lose sharpness.

Using the ▲/▼ buttons switches the noise reduction mode.

HIGH  MID  LOW

• This function works only for a video signal, s-video signal, component video signal (of 480i@60 or 576i@50 or 1080i@50/60) and an HDMI™ signal (of 480i@60 or 576i@50 or 1080i@50/60).

Using the ▲/▼ buttons switches the mode for color space.

AUTO  RGB  SMPTE240  REC709  REC601

• This item can be selected only for a computer signal, component video signal(except for signals from the LAN, USB TYPE A and USB TYPE B ports) or an HDMI™ signal.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well at some signals. In such a case, it might be good to select a suitable mode except AUTO.

(continued on next page)

Item Description

The video format for S-VIDEO port and VIDEO port can be set. (1) Use the ▲/▼ buttons to

select the input port.

(2) Using the ◄/► buttons

switches the mode for video format.

VIDEO FORMAT

AUTO  NTSC  PAL  SECAM N-PAL  M-PAL  NTSC4.43

• This item is performed only for a video signal from the VIDEO port or the S-VIDEO port.

• The AUTO mode automatically selects the optimum mode.

• The AUTO operation may not work well for some signals. If the picture becomes unstable (e.g. an irregular picture, lack of color), please select the mode according to the input signal.

Using the ▲/▼ cursor buttons switches the video format for an input from the HDMI port.

AUTO  VIDEO  COMPUTER

Feature

HDMI FORMAT

AUTO automatically sets the optimum mode. VIDEO sets the suitable mode for DVD signals. COMPUTER sets the suitable mode for computer signals.

• When the COMPUTER is selected, or when the AUTO is selected and the projector recognizes that it receives computer signals, the functions COLOR (PICTURE menu), TINT (PICTURE menu) and OVER SCAN (IMAGE menu) are unavailable.

Using the ▲/▼ cursor buttons changes the digital range for input from the HDMI port.

AUTO  NORMAL  ENHANCED

INPUT menu

HDMI RANGE

AUTO automatically sets the optimum mode. NORMAL s ENHANCED

• If the contrast of the screen image is too strong or too weak, try ﬁnding a more suitable mode.

(continued on next page)

Feature

ets the suitable mode for DVD signals. (16-

235)

sets the suitable mode for computer signals. (0-255)

INPUT menu

Item Description

The computer input signal type for COMPUTER IN1 and IN2 ports can be set.

(1)

Use the ▲/▼ buttons to select the COMPUTER IN port to be set.

(2) Use the ◄/► buttons to select

the computer input signal type.

COMPUTER IN

AUTO  SYNC ON G OFF

• Selecting the AUTO mode allows you to input a sync on G signal or component video signal from the port (



12).

• In the AUTO mode, the picture may be distorted with certain input signals. In such a case, remove the signal connector so that no signal is received and select the SYNC ON G OFF, and then reconnect the signal.

Set the frame lock function on/off for each port. (1) Use the ▲/▼ buttons to select

the input ports.

(2) Use the ◄/► buttons to turn the

FRAME LOCK

frame lock function on/off .

ON  OFF

• This item can be performed only on a signal with a vertical frequency of 49 to 51Hz, 59 to 61 Hz.

• When ON is selected, moving pictures are displayed more smoothly.

(continued on next page)

Item Description

The resolution for the COMPUTER IN1 and COMPUTER IN2 input signals can be set on this projector.

(1) In the INPUT menu select the RESOLUTION using the ▲/▼

buttons and press the ► button. The RESOLUTION menu will be displayed.

(2) In the RESOLUTION menu select the

resolution you wish to display using the ▲/▼ buttons. Selecting AUTO will set a resolution appropriate to the input signal.

(3) Pressing the ► or ENTER button when

selecting a STANDARD resolution will automatically adjust the horizontal and vertical positions, clock phase and horizontal size.

The INPUT_INFORMATION dialog will be displayed.

(4) To set a custom resolution use the ▲/▼ buttons to select

RESOLUTION

the CUSTOM and the RESOLUTION_CUSTOM box will be displayed.

Set the horizontal (HORZ) and vertical (VERT) resolutions using the ▲/▼/◄/► buttons. This function may not support all resolutions.

(5) Move the cursor to OK on screen and press the ► or ENTER

button. The message "ARE YOU SURE YOU WISH TO CHANGE RESOLUTION?" appears. To save the setting, press the ► button. The horizontal and vertical positions, clock phase and horizontal size will be automatically adjusted.

The INPUT_INFORMATION dialog will be displayed.

(6) To revert back to the previous resolution without saving changes,

move the cursor to CANCEL on screen and press the ◄ or ENTER button. The screen will then return to the RESOLUTION menu displaying the previous resolution.

• For some pictures, this function may not work well.

INPUT menu

STANDARD

↓

CUSTOM

↓

SETUP menu

From the SETUP menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Selecting this item performs the Automatic keystone distortion correction. Projector automatically corrects vertical keystone distortion due to the (forward/backward) setup angle by itself. This function will be executed only once when selected in the menu. When the slant of the projector is changed, execute this function again.

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

• When REAR / CEILING or FRONT / CEILING is selected for the INSTALLATION item in the SETUP menu, this function may not

AUTO KEYSTONE

KEYSTONE

work correctly if the projector screen is slanted or tilted downwards.

• When the zoom adjustment is set to the TELE (telephoto focus), this function may be excessive. This function should be used when the zoom adjustment is set to the full WIDE (wide-angle focus) whenever possible.

• When the projector is placed on the level (about ±4°), this function may not work.

• When the projector is inclined to near ±30 degree or over, this function may not work well.

•

This function will be unavailable when the TRANSITION DETECTOR

is on

(

82) .



Using the ◄/► buttons corrects the vertical keystone distortion.

Shrink the bottom of the image  Shrink the top of the image

• The adjustable range of this function will vary among inputs. For some input, this function may not work well.

•

This function will be unavailable when the TRANSITION DETECTOR

is on

(82).

(continued on next page)

Item Description

Using the ▲/▼ buttons turns on/off the AUTO ECO MODE.

ON  OFF

AUTO ECO MODE

• When ON is selected, the projector will always be set to Eco mode at start-up regardless of the ECO MODE ( OSD message “AUTO ECO MODE” will be displayed for a while when the projector starts with this function activated.

Using the ▲/▼ buttons switches the ECO MODE.

NORMAL  ECO  INTELLIGENT ECO SAVER

• When the ECO is selected, acoustic noise and screen brightness are reduced.

• When INTELLIGENT ECO is selected, the brightness of the lamp changes according to the level of the input signal. The lamp becomes brighter when the input signal level is high and darker

ECO MODE

when the level is low. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When SAVER is selected, you can select the time within 1 to 30 min. for SAVER MODE using the ► button. If the image signal level doesn’t change more than the period set, the lamp brightness is reduced and electric power consumption decreased. If the image signal level changes or any buttons are operated, the lamp will brighten again. If dark images are projected continuously, the brightness of the lamp may increase to maintain its performance.

• When AUTO ECO MODE ( will always be set to Eco mode at start-up regardless this setting.

Pressing the ►button displays the dialog for changing the INSTALLATION setting.

SETUP menu

below) setting. An



above) is set to ON, the projector



INSTALLATION

Use the ▲/▼ buttons to select the desired setting on the INSTALLATION dialog. If TRANSITION DETECTOR is ON and the INSTALLATION status is changed, the TRANSITION DETECTOR ON alarm ( displayed when the projector is restarted.

(continued on next page)

82) will be



SETUP menu

Item Description

Using ▲/▼ buttons switches the standby mode setting between NORMAL and SAVING.

NORMAL  SAVING

When SAVING is selected, the power consumption in the standby mode is lowered with some functional restriction as below:

• When SAVING is selected, the RS-232C communication control except to turn the projector on and the network function are disabled while the projector is in the standby mode. If the COMMUNICATION TYPE in the COMMUNICATION menu is set to NETWORK

STANDBY MODE

BRIDGE, all of the RS-232C commands are disabled (

• When SAVING is selected, STANDBY setting of AUDIO SOURCE (

49) is invalid, no signal is output from AUDIO OUT port and no



sound from a built-in speaker.

• When SAVING is selected, STANDBY setting of MONITOR OUT is invalid, and no signal is output from MONITOR OUT port in the standby mode.

• The USB connection is disabled while the projector is in standby mode if the STANDBY MODE item in the SETUP menu of the projector is set to SAVING.

• When SAVING is selected, CLONING load function is invalid while in STANDBY MODE.

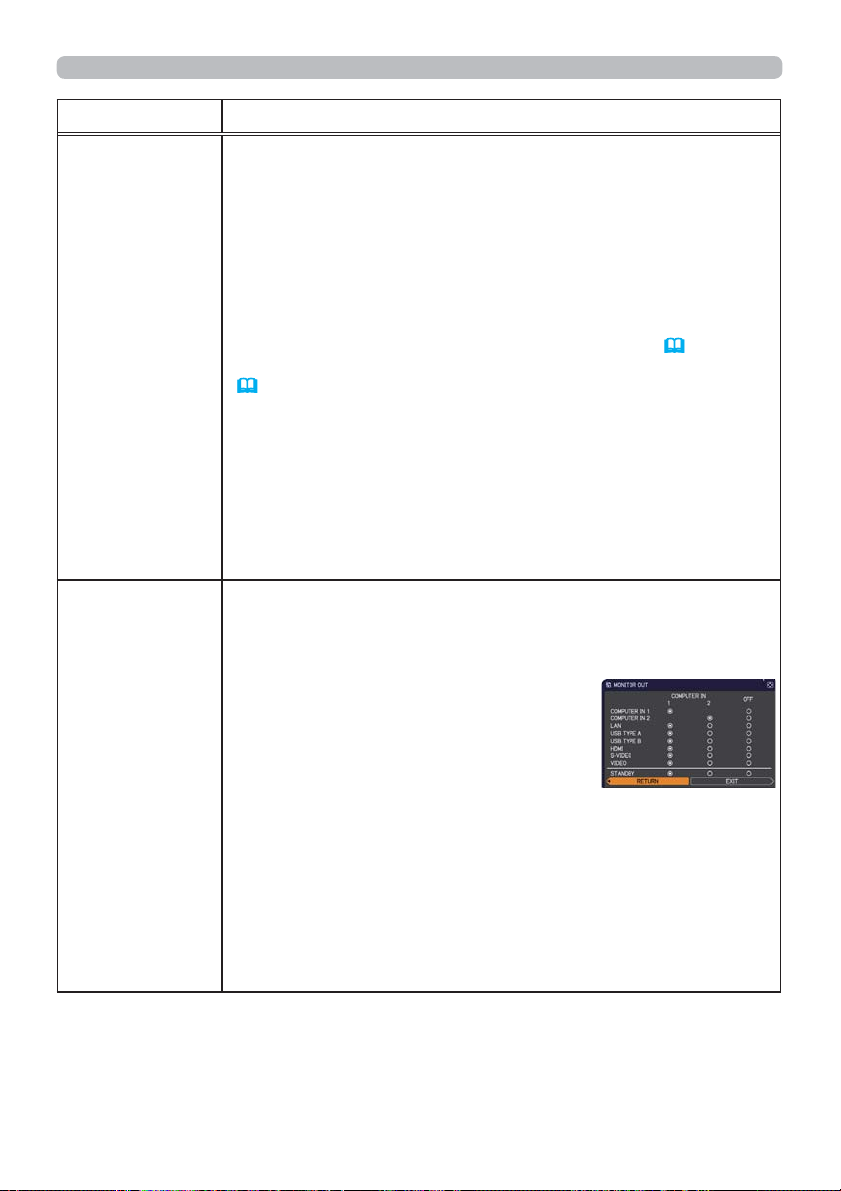

While the image signal from the input port chosen in step (1) is projected, the image signal from the input port selected in step (2) is output to MONITOR OUT port.

(1) Choose a picture input port using ▲/▼ buttons.

Choose STANDBY to select the picture output in the standby mode.

(2) Select one of the COMPUTER IN ports

using ◄/► buttons. Select OFF to disable the MONITOR OUT

MONITOR OUT

port for the input port or standby mode chosen in the step (1).

• You cannot select COMPUTER IN2 for COMPUTER IN1, and vice versa.

• If you have changed the setting of STANDBY, it applies only to the current standby mode, NORMAL or SAVING, selected under STANDBY MODE, without changing the setting of the other mode. The factory settings are as follows:

- COMPUTER IN1 for the NORMAL mode of STANDBY MODE

- OFF for the SAVING mode of STANDBY MODE



63).

AUDIO menu

From the AUDIO menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or the ENTER button to execute the item. Then perform it according to the following table.

Item Description

VOLUME Using the ◄/► buttons adjusts the volume. Low  High

Using the ▲/▼ buttons turns on/off the built-in speaker.

SPEAKER

AUDIO SOURCE

MIC LEVEL

MIC VOLUME

ON  OFF

When OFF is selected, the built-in speaker does not work. While the image signal from the input port chosen in step (1) is

projected, the audio signal from the input port selected in step (2) is output to both the AUDIO OUT port and built-in speaker of this projector. However, the built-in speaker does not work when SPEAKER is set to OFF.

(1) Choose a picture input port using the

▲/▼ buttons.

Choose STANDBY to select the sound output in the standby mode.

(2) Select an audio input port or the mute

icon using the ◄/► buttons. The icons indicate the following;

No.1: AUDIO IN1 port No.2: AUDIO IN2 port No.3: AUDIO IN3 port No.4: LAN port No.5: USB TYPE A port No.6: USB TYPE B port No.7: HDMI port

• Audio input from port nos the picture input ports.

• Even if the projector is in the standby mode, cooling fans may work and make noises when the built-in speaker is in operation.

C.C. (Closed Caption) is automatically activated when is selected

• and an input signal containing C.C. is received. This function is available only when the signal is NTSC for VIDEO or S-VIDEO, or 480i@60 for COMPUTER IN1 or COMPUTER IN2, and when AUTO is selected for DISPLAY in the C.C. menu under the SCREEN menu (

Using the ▲/▼ buttons switches the input level to match that of the microphone connected to the MIC port. HIGH: for a microphone with an ampliﬁer. LOW: for a microphone without an ampliﬁer.

Using the ◄/► buttons adjusts the volume of the microphone connected to the MIC port.

: mutes the sound

4 to 7 can only be selected by each of



AUDIO menu

55).



HIGH  LOW

Low  High

SCREEN menu

From the SCREEN menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item. Then perform it according to the following table.

Item Description

Using the ▲/▼/◄/► buttons switches the OSD (On Screen Display) language.

LANGUAGE

MENU POSITION

BLANK

AUTO BLANK

(continued on next page)

ENGLISH  FRANÇAIS  DEUTSCH  ESPAÑOL

(shown in the LANGUAGE dialog)

Press the ENTER or INPUT button to save the language setting. Using the ▲/▼/◄/► buttons adjusts the menu position.

To quit the operation, press the MENU button on the remote control or keep no operation for about 10 seconds.

Using the ▲/▼ buttons switches the mode for the blank screen. The blank screen is a screen for the temporarily blanking feature ( It is displayed by pressing the BLANK button on the remote control.

MyScreen  ORIGINAL  BLUE  WHITE  BLACK

MyScreen : ORIGINAL : Screen preset as the standard screen. BLUE, WHITE, BLACK : Plain screens in each color.

•

To avoid remaining as an afterimage, the MyScreen or ORIGINAL

screen will change to the AUTO BLANK screen after several minutes. Using the ▲/▼ buttons switches the mode for the AUTO BLANK

screen.

BLUE  WHITE  BLACK

•

To avoid remaining as an afterimage, displayed image will change to the designated blank color screen by AUTO BLANK after several minutes at the following conditions.

When MyScreen or ORIGINAL is displayed as BLANK screen.

- When start-up screen is displayed.

Screen can be registered by the MyScreen item (



31).

51).

Item Description

Using the ▲/▼ buttons switches the mode for the start-up screen. The start-up screen is a screen displayed when no signal or an unsuitable signal is detected.

MyScreen  ORIGINAL  OFF

START UP

MyScreen :

Screen can be registered by the MyScreen item

(

below



). ORIGINAL : Screen preset as the standard screen. OFF : Plain black screen.

• To avoid remaining as an afterimage, the START UP screen will change to the AUTO BLANK screen after several minutes.

• When the ON is selected to the MyScreen PASSWORD item in the SECURITY menu (

80), the START UP is fixed to MyScreen.



This item allows you to capture an image for use as a MyScreen image which can be used as the BLANK screen and START UP screen. Display the image you want to capture before executing the following procedure.

Selecting this item displays a dialog titled “MyScreen”. It will ask you if you start capturing an image from the current screen. Please wait for the target image to be displayed, and press the ENTER or INPUT button to start registration.

To restore the screen and return to the previous dialog, press the RESET

MyScreen

button on the remote control. Registration may take several minutes. When the registration is completed, the registered screen and the following message is displayed for several seconds:

“MyScreen registration is ﬁnished.”

If the registration failed, the following message is displayed:

“A capturing error has occurred. Please try again.”

• This function cannot be selected when the ON is selected to the MyScreen Lock item (



52).

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

•

This function is unavailable for a signal from the LAN, USB TYPE A,

USB TYPE B or HDMI port.

SCREEN menu

80).



(continued on next page)

SCREEN menu

Item Description

Using the ▲/▼ buttons turns on/off the MyScreen lock function.

ON  OFF

MyScreen Lock

When the ON is selected, the item MyScreen is locked. Use this function for protecting the current MyScreen.

• This function cannot be selected when the ON is selected to the MyScreen PASSWORD item in SECURITY menu (

Using the ▲/▼ buttons turns on/off the message function.

ON  OFF

When the ON is selected, the following message function works.

“AUTO IN PROGRESS” while automatically adjusting “NO INPUT IS DETECTED” “SYNC IS OUT OF RANGE” “INVALID SCAN FREQ.” “NOT AVAILABLE.” “Searching….” while searching for the input

MESSAGE

“Detecting….” while an input signal is detected “AUTO ECO MODE” while starting up with AUTO ECO MODE The indication of the input signal displayed by changing The indication of the aspect ratio displayed by changing The indication of the PICTURE MODE displayed by changing The indication of the MY MEMORY displayed by changing The indication of “FREEZE” and “II” while freezing the screen by pressing the FREEZE button. The indication of the TEMPLATE displayed by changing. The indication of the ECO MODE displayed by changing.

• When the OFF is selected, please remember if the picture is frozen. Do not mistake freezing for a malfunction (



80).

31).

(continued on next page)

Item Description

Each input port for this projector can have a name applied to it. (1) Use the ▲/▼ buttons on the SCREEN menu to select SOURCE

NAME and press the ► or ENTER button. The SOURCE NAME menu will be displayed.

(2) Use the ▲/▼ buttons on the SOURCE

NAME menu to select the port to be named and press the ► button. The SOURCE NAME dialog will be displayed. Right side of the menu is blank until a name is speciﬁed.

(3) Select an icon you would like to assign to

the port in the SOURCE NAME dialog.

SOURCE NAME

The name assigned to the port will also be automatically switched according to your icon selection. Press the ENTER or INPUT button to determine your icon selection.

(4) Select a number you would like to assign

to the port along with the icon. You can select the number either from blank (no number assigned), 1, 2, 3, or 4. Then press the ENTER or INPUT button.

(5) If you would like to modify the name assigned

to the port, select CUSTOM NAME and press the ENTER or INPUT button.

SCREEN menu

(continued on next page)

SCREEN menu

Item Description

(6) The current name will be displayed on

the ﬁrst line. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The name can be a maximum

SOURCE NAME

(continued)

of 16 characters.

(7) To change an already inserted character,

press the ▲ button to move the cursor to the ﬁrst line, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (6) above.

(8) To ﬁnish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

Using the ▲/▼ cursor buttons switches the mode for the template screen. Press the ► cursor (or the ENTER) button to display the selected template, and press the ◄ cursor button to close the displayed screen. The last selected template is displayed when the MY BUTTON allocated to the TEMPLATE function is pressed (

TEMPLATE

TEST PATTERN  DOT-LINE1  DOT-LINE2  DOT-LINE3



MAP2  MAP1  CIRCLE2  CIRCLE1  DOT-LINE4



You can turn a map upside down and scroll it horizontally when MAP1 or MAP2 is selected. To invert or scroll the map, display the guidance by pressing the RESET button on the remote three seconds or more when MAP1 or MAP2 appears.



60).



(continued on next page)

Item Description

The C.C. is the function that displays a transcript or dialog of the audio portion of a video, ﬁles or other presentation or other relevant sounds. It is required to have NTSC format video or 480i@60 format component video source supporting C.C. feature to utilize this function. It may not work properly, depending on equipment or signal source. In this case, please turn off the Closed Caption.

DISPLAY

Select Closed Caption DISPLAY setting from following options using ▲/▼ buttons.

AUTO  ON  OFF

AUTO : Closed Caption automatically displays when the volume

is muted. ON : Closed Caption is on. OFF : Closed Caption is off.

• The caption is not displayed when the OSD menu is active.

• The Closed Caption is the function to display the dialogue, narration, and / or sound effects of a television program or other

C.C.

(Closed Caption)

video sources. The Closed Caption availability is depending upon broadcaster and/or content.

MODE

Select Closed Caption MODE setting from following options using ▲/▼ buttons.

CAPTIONS  TEXT CAPTIONS : Display Closed Caption.

TEXT : Display Text data, which is for additional information such

as news reports or a TV program guide. The information covers the entire screen. Not all of the C.C. program has Text information.

CHANNEL

Select Closed Caption CHANNEL from following options using ▲/▼ buttons.

1  2  3  4

SCREEN menu

1: Channel 1, primary channel / language 2: Channel 2 3: Channel 3 4: Channel 4

The channel data may vary, depending on the content. Some channel might be used for secondary language or empty.

OPTION menu

From the OPTION menu, items shown in the table below can be performed. Select an item using the ▲/▼ cursor buttons, and press the ► cursor button or ENTER button to execute the item, except for the items LAMP TIME and FILTER TIME. Then perform it according to the following table.

Item Description

Using the ▲/▼ buttons turns on/off the automatic signal search function.

ON  OFF

When the ON is selected, detecting no signal automatically cycles

AUTO SEARCH

AUTO

KEYSTONE

DIRECT POWER

through input ports in the following order. The search is started from the current port. Then when an input is found, the projector will stop searching and display the image.

COMPUTER IN1  COMPUTER IN2  LAN  USB TYPE A

VIDEO  S-VIDEO  HDMI USB TYPE B

• It may take several seconds to project the images from the USB TYPE B port.

Using the ▲/▼ buttons turns on/off the automatic keystone function.

ON  OFF ON : Automatic keystone distortion correction will be executed

whenever changing the slant of the projector.

OFF : This function is disabled. Please execute the AUTO

KEYSTONE (EXECUTE) in the SETUP menu for automatic keystone distortion correction.

• When the projector is suspended from the ceiling this feature will not function properly so select the OFF.

•

This function will be unavailable when the TRANSITION DETECTOR

is on

(82)

Using the ▲/▼ buttons turns on/off the DIRECT POWER ON function.

ON  OFF

When set to the ON, the lamp in projector will be automatically turned on without the usual procedure ( supplied with the power after the power was cut while the lamp was on.

• This function does not work as long as the power has been supplied to the projector while the lamp is off.

•

After turning the lamp on by the DIRECT if neither input nor operation is detected for about 30 minutes, the projector is turned off, even though the AUTO (

57) is disabled.



21), only when the projector is



POWER

ON function,

OFF function

(continued on next page)

Item Description

Using the ▲/▼ buttons adjusts the time to count down to automatically turn the projector off.

Long (max. 99 minutes)  Short (min. 0 minute = DISABLE)

OPTION menu

AUTO POWER

OFF

When the time is set to 0, the projector is not turned off automatically. When the time is set to 1 to 99, and when the passed time with no-signal or an unsuitable signal reaches at the set time, the projector lamp will be turned off. If one of the projector's buttons or the remote control buttons is pressed or one of the commands (except get commands) is transmitted to the CONTROL port during the corresponding time, the projector will not be turned off. Please refer to the section Turning off the power

Using the ▲/▼ buttons selects the function of USB TYPE B port. To use this function, you need to connect the USB TYPE B port of the projector and the type A USB port of a computer.

MOUSE : The accessory remote control works as the simple mouse

USB DISPLAY : The port works as an input port that receives image

USB TYPE B

• It may take several seconds to project the images from the USB TYPE B port.

• In the following cases, a message to notify you that USB TYPE B port is not available for picture input appears:

- This setting is switched to MOUSE while a picture input from the

USB TYPE B port is projected.

- The USB TYPE B port is selected as the picture input source while

this setting is set to MOUSE.

(continued on next page)

MOUSE  USB DISPLAY

and keyboard of the computer.

signals from the computer (



(22).

95, 99).

OPTION menu

Item Description

The lamp time is the usage time of the lamp, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog.

LAMP TIME

To reset the lamp time, select the OK using the ► button.

• Please reset the lamp time only when you have replaced the lamp, for a suitable indication about the lamp.

• (



The ﬁlter time is the usage time of the air ﬁlter, counted after the last resetting. It is shown in the OPTION menu. Pressing the RESET button on the remote control or the ► button of the projector displays a dialog.

FILTER TIME

To reset the ﬁlter time, select the OK using the ► button.

• the air ﬁlter, for a suitable indication about the air ﬁlter.

• For the air ﬁlter cleaning, see the section Cleaning and replacing the air ﬁlter (

(continued on next page)

CANCEL

For the lamp replacement, see the section Replacing the lamp



103).

CANCEL



Please reset the ﬁlter time only when you have cleaned or replaced

105).



Item Description

This item is to assign one of the following functions to MY BUTTON 1/2 on the remote control (



6).

(1) Use the ▲/▼ buttons on the MY BUTTON menu to select a MY

BUTTON - (1/2) and press the ► or ENTER button to display the MY BUTTON setup dialog.

(2) Then using the ▲/▼/◄/► buttons sets one of the following

functions to the chosen button. Press the ENTER or INPUT button to save the setting.

• COMPUTER IN1: Selects the input from COMPUTER IN1 port.

• COMPUTER IN2: Selects the input from COMPUTER IN2 port.

• LAN: Selects input from LAN port.

• USB TYPE A: Selects input from USB TYPE A port.

• USB TYPE B: Selects input from USB TYPE B port.

• HDMI: Selects input from HDMI port.

• S-VIDEO: Selects the input from S-VIDEO port.

• VIDEO: Selects the input from VIDEO port.

•

SLIDESHOW: Selects the input from USB TYPE A, and starts a Slideshow.

• MY IMAGE: Displays the MY IMAGE menu (

MY BUTTON

• MESSENGER: (Messenger Function in the Network Guide).

Turns the messenger text displayed on the screen on/off

When there is no transferred text data to display, the message ”NO MESSENGER DATA" appears.

• INFORMATION: Displays SYSTEM_INFORMATION, INPUT_INFORMATION ( (

72), WIRED INFORMATION (



67), WIRELESS INFORMATION



• AUTO KEYSTONE : Performs automatic keystone distortion correction (



46).

• MY MEMORY: Loads one of adjustment data stored ( When more than one data are saved, the adjustment changes every time the MY BUTTON is pressed.

When no data is saved in memory, the dialog "No saved data" appears. When the current adjustment is not saved to memory, the dialog as shown in the right appears. If you want to keep the current adjustment, please press the ► button to exit. Otherwise loading a data will overwrite the current adjusted condition.

(continued on next page)

74) or nothing.



76).

OPTION menu

38).



(continued on next page)

OPTION menu

Item Description

• ACTIVE IRIS: Changes the active iris mode.

• PICTURE MODE: Changes the PICTURE MODE (

•

FILTER RESET: Displays the ﬁlter time reset conﬁrmation dialogue

• TEMPLATE: Makes the template pattern selected to the

MY BUTTON

(continued)

TEMPLATE item (

• AV MUTE: Turns the picture and audio on/off.

54) appear or disappear.



• RESOLUTION: Turns on/off the RESOLUTION dialog (

• MIC VOLUME: Turns on/off the MIC VOLUME dialog (

• ECO MODE: Changes the ECO MODE (

•

SAVER MODE:

Changes the SAVER MODE

Using ▲/▼ buttons selects the picture input port to be selected with pressing the MY SOURCE/DOC.CAMERA button on the remote control.

MY SOURCE

You can use this function not only for document cameras but also computers and other equipment.

VIDEO  COMPUTER IN1  COMPUTER IN2  LAN S-VIDEO  HDMI  USB TYPE B

Selecting this item displays the SERVICE menu. Select an item using the ▲/▼ buttons, and press the ► button or the ENTER button on the remote control to execute the item.

SERVICE

ALTITUDE

Using the ▲/▼ buttons switches the rotation speed of the cooling fans. The HIGH is the mode for use at highlands etc. If the projector is used

at an altitude of about 1600 m (5250 feet) or higher, select HIGH. Otherwise, select NORMAL. HIGH is selected.

HIGH  NORMAL

34).

47).



(



USB TYPE A







47 ECO MODE).



(

45).

49).



58).

Note that the projector is noisier when the

(continued on next page)

Item Description

AUTO ADJUST

Using the ▲/▼ buttons to select one of the mode. When the DISABLE is selected, the automatic adjustment feature is disabled.

FINE  FAST  DISABLE

FINE: Finer tuning including H.SIZE adjustment. FAST: Faster tuning, setting H.SIZE to prearranged data for the

input signal.

Depending on conditions, such as input image, signal cable to the

•

projector, environment around the projector, etc., the automatic adjustment may not work correctly. In such a case, please choose DISABLE to disable the automatic adjustment, and make adjustment manually.

GHOST

Adjust the settings using the ▲/▼ buttons to eliminate ghosting.

FILTER MESSAGE

Use the ▲/▼ button to set the timer for notifying by the message when to replace the ﬁlter unit

100h  ·········  5000h  OFF

After choosing an item except OFF, the message “REMINDER ***

SERVICE

(continued)

HRS PASSED ....” will appear after the timer reaches the interval

time set by this feature (



109). When the OFF is chosen, the message will not appear. Utilize this feature to keep the air ﬁlter clean, setting the suitable time according to your environment of this projector.

• Please take care of the ﬁlter unit periodically, even if there is no message. If the air ﬁlter becomes to be blocked by dust or other matter, the internal temperature will rise, which could cause malfunction, or reduce the lifetime of the projector.

• Please be careful with the operating environment of the projector and the condition of the ﬁlter unit.

KEY LOCK

(1) Use the ▲/▼ buttons to choose the operations control.

CONTROL PANEL  REMOTE CONTROL

Use the ◄/► buttons to select ON or OFF.

(2)

ON  OFF

Selecting ON in Step 2 locks the buttons except STANDBY/ON on the operations control selected in Step 1. Selecting OFF releases the locked buttons on the operations control selected in Step 1.

• Please use this function to prevent tampering or accidental operation.

OPTION menu

(continued on next page)

OPTION menu

Item Description

REMOTE FREQ.

(1) Use the ▲/▼ button to change the projector's remote sensor

frequency setting (



19).

1:NORMAL  2:HIGH

(2) Use the ◄/► button to change the

projector's remote sensor on or off.

ON  OFF

The factory default setting is for both 1:NORMAL and 2:HIGH to be on. If the remote control does not function correctly, disable either of them. It's not possible to disable both options at the same time.

Selecting this item displays COMMUNICATION menu. In this menu, you can conﬁgure the serial

SERVICE

(continued)

communication settings of the projector using the

CONTROL port.

COMMUNICATION

(continued on next page)

• Select an item using the cursor buttons ▲/▼. Then pressing the ► button opens the submenu for the setting item you selected. Or, pressing the ◄ button instead of the ► button makes the menu back to the previous one without changing the setup. Each submenu can be operated as described above.

• When COMMUNICATION TYPE (

63) is set to



OFF, the other items in COMMUNICATION menu are invalid.

• For the function of serial communication, refer to the Network Guide.

Item Description

COMMUNICATION TYPE

Select the communication type for transmission via the CONTROL port. NETWORK BRIDGE: Select this type, if it is

required to control an external device as a network terminal, via this projector from the computer. The CONTROL port doesn't accept RS-232C commands (Network Bridge Function in the Network Guide)

OFF: Select this mode to receive RS-232C

commands using the CONTROL port.

• OFF is selected as the default setting.

• When you select the NETWORK BRIDGE, check the item, TRANSMISSION METHOD (

SERIAL SETTINGS

Select the serial communication condition for the

CONTROL port.

BAUD RATE

4800bps  9600bps  19200bps  38400bps

SERVICE

(continued)

COMMUNICATION

(continued)

PARITY

NONE  ODD  EVEN

• The BAUD RATE is ﬁxed to 19200bps and PARITY is ﬁxed NONE when the COMMUNICATION TYPE is set to OFF (

TRANSMISSION METHOD

Select the transmission method for communication by the NETWORK BRIDGE from the CONTROL port.

HALF-DUPLEX  FULL-DUPLEX

HALF-DUPLEX: This method lets the projector

make two way communication, but only one direction, either transmitting or receiving data, is allowed at a time.

FULL-DUPLEX: This method lets the projector

make two way communication, transmitting and receiving data at the same time.

• HALF-DUPLEX is selected as the default setting.

• If you select HALF-DUPLEX, check the setting of the item RESPONSE LIMIT TIME (

OPTION menu

below)



above).



64).



(continued on next page)

OPTION menu

Item Description

RESPONSE LIMIT TIME

Select the time period to wait for receiving response data from other device communicating by the NETWORK BRIDGE and the HALF-DUPLEX through the CONTROL port.

OFF  1s  2s  3s

OFF: Select this mode if it is not required to check

the responses from the device that the projector

COMMUNICATION

(continued)

sends data to. In this mode, the projector can send out data from the computer continuously.

1s /2s /3s: Select the time period to keep the

projector waiting for response from the device that the projector sends data to. While waiting the response, the projector does not send out any

SERVICE

(continued)

data from the CONTROL port.

• This menu is available only when the NETWORK BRIDGE is selected for the COMMUNICATION TYPE and the HALF-DUPLEX is selected for the TRANSMISSION METHOD (

• OFF is selected as the default setting. The setttings of the projector can be coppied via USB

memory.

Saves each settings of the projector to USB

SAVE:

memory.

LOAD:

CLONING

After saving/loading, you can remove the USB storage device.

63).



Loads each settings of the projector from USB memory. Message will be displayed after loading, and power will turn off after ﬁve min. or by pressing ► button. (A message is displayed for a few seconds if loading fails.)

(continued on next page)

Item Description

The following items are exempted. OPTION: LAMP TIME, FILTER TIME,

SERVICE(GHOST)

NETWORK: WIRELESS AND WIRED SETUP

(IP ADDRESS, SUBNET MASK, DEFAULT GATEWAY, DATE AND TIME), MY IMAGE, PRESENTATION

SECURITY: MY TEXT DISPLAY

• Operation is not available if SECURITY_ CLONNING LOCK is turned ON.

• The Screen_MyScreen can only be loaded.

CLONING load function on STANDBY MODE

• While the projector is in STANDBY MODE, push the INPUT button of control panel together with ► button, and then press ▲ button to start operating the CLONING load function.

• During loading process, the three indicators of control panel (POWER (orange), TEMP, LAMP)

SERVICE

(continued)

CLONING

(continued)

will remain on.

• After the loading process, the three indicators (POWER (orange), TEMP, LAMP) will turn off. Then, you can remove the USB storage device.

• If the loading fails, the three indicators (POWER (orange), TEMP, LAMP) will blink at the same time.

• CLONING is invalid with the following conditions.

- CLONING LOCK is turned ON.

With this condition, the three indicators (POWER (orange), TEMP, LAMP) will blink at approximately three seconds intervals.

- If the STANDBY MODE is set to SAVING.

- If there is no USB memory inserted into USB TYPE A port.

- If PIN LOCK or lock of TRANSITION DETECTOR is not being released.

- If a system error occurs.

• Please operate one of the following after loading.

- Press INPUT button and panel at the same time.

- Wait at least ﬁve min. after loading.

- Restart the projector after re-plugging the AC cable.

OPTION menu

◄

button of the control

(continued on next page)

OPTION menu

Item Description

Load MyScreen data

• Please save the image data as "pj_logo.bmp" or "pj_logo.gif" into USB memory.

• Please note that the only compatible formats are as follows.

-File format

Windows BMP bit/pixel: 4/8/16/24/32bit Compression format : Without compression/RLE GIF

-Image size: more than 36x36, less than 1280x800

• If two kinds of ﬁle format are saved, "pj_logo. bmp" will be registered into MyScreen data.

• If MyScreen LOCK or MyScreen PASSWORD is turned ON, the data of MyScreen cannot be loaded.

Setting the data

• Operating the SAVE function under CLONING will name the ﬁle as "pj_data.bin" into the USB memory. Please do not attempt to change the ﬁle

SERVICE

(continued)

CLONING

(continued)

name or the folder structure.

• If a ﬁle with the same name already exists, it will be overwritten by operating the SAVE function.

(continued on next page)

Loading function

• Please note that saved data from other model cannot be loaded.

• Please note that, if any of the following functions: MyScreen PASSWORD, PIN LOCK, TRANSITION DETECTOR, MY TEXT PASSWORD under SECURITY menu or MyScreen Lock under SCREEN menu is ON, the respective saved data cannot be loaded.

•

Please note that the saved settings of KEYSTONE (SETUP menu) and AUTO KEYSTONE (OPTION menu) cannot be loaded when TRANSITION DETECTOR (SECURITY menu) is ON.

• Please note that the saved data of START UP and MyScreen Lock under SCREEN menu cannot be loaded if MyScreen PASSWORD under SECURITY menu is ON.

• Please note that the saved data of MY TEXT WRITING cannot be loaded if MY TEXT PASSWORD under SECURITY menu is ON.

Item Description

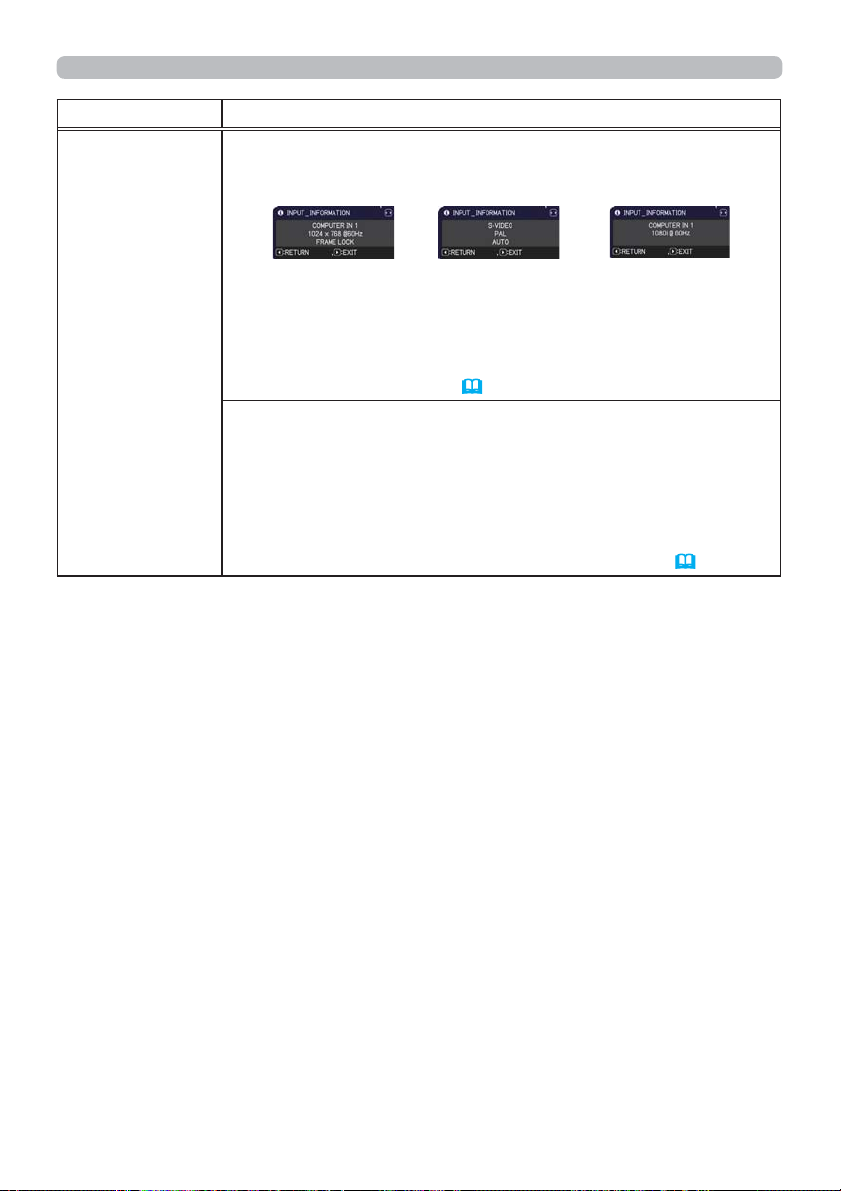

INFORMATION

Selecting this item displays a dialog titled “INPUT_INFORMATION”. It shows the information about the current input.

• The “FRAME LOCK” message on the dialog means the frame lock function is working.

• This item can't be selected for no signal and sync out.

SERVICE

(continued)

• When the MY TEXT DISPLAY is set to ON, the MY TEXT is displayed together with the input information in the INPUT_INFORMATION box (



FACTORY RESET

Selecting OK using the ► button performs this function. By this function, all the items in all of menus will collectively return to the initial setting. Note that the items LAMP TIME, FILTER TIME, LANGUAGE, FILTER MESSAGE, NETWORK and SECURITY settings are not reset.

CANCEL  OK

Be sure to set ALTITUDE after resetting all the settings (

84).

OPTION menu

60).



NETWORK menu

Remember that incorrect network settings on this projector may cause trouble on the network. Be sure to consult with your network administrator before connecting to an existing access point on your network. Select “NETWORK” from the main menu to access the following functions. Select an item using the ▲/▼ cursor buttons on the projector or remote control, and press the ► cursor button on the projector or remote control, or ENTER button on the remote control to execute the item. Then perform it according to the following table. See the Network Guide for details of NETWORK operation.

NOTE

• To use the wireless network function of this projector, the designated USB wireless adapter that is sold as an option is required. Do not use

any extension cable or device when connecting the adapter to the projector.

•

The projector does not allow both wireless and wired LAN to be connected to

the same network.

• Do not set the same network address for both wireless and wired LAN.

• If you are not utilizing SNTP (Date/Time Settings in the Network Guide), then you must set the DATE AND TIME during the initial installation.

• The network communication control is disabled while the projector is in standby mode if the STANDBY MODE item of SETUP menu is set to SAVING. Please connect the network communication to the projector after setting the STANDBY MODE to NORMAL (

Item Description

Selecting this item displays the WIRELESS SETUP menu for the wireless LAN. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

WIRELESS

SETUP

MODE

(continued on next page) 68

48).

Use the ▲/▼ buttons to select the mode of the network communication system. Select according to the settings of your computer.

AD HOC  INFRASTRUCTURE

To save the setting, press the ► button.

• When ADHOC is selected, IEEE802.11 n cannot be used.

• If ADHOC is set to MODE while one of WPAPSK or WPA2-PSK is selected in ENCRYPTION, the ENCRYPTION ( automatically.

70) setting switches to OFF



Item Description

Use the ▲/▼ buttons to turn DHCP on/off.

ON  OFF

Select OFF when the network does not have DHCP

DHCP

(Dynamic Host

Conﬁguration

Protocol)

enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set to OFF.

IP ADDRESS

• The IP ADDRESS is the number that identiﬁes this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited. Use the ▲/▼/◄/► buttons to enter the same

WIRELESS

SETUP

(continued)

SUBNET

MASK

SUBNET MASK used by your computer. This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited. Use the ▲/▼/◄/► buttons to enter the DEFAULT

GATEWAY (a node on a computer network that

DEFAULT

GATEWAY

serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.

Use the ▲/▼/◄/► buttons to input the DNS

DNS SERVER

server address. The DNS server is a system to control domain names and IP addresses on the Network.

Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT

TIME

DIFFERENCE

manager. Use the ► button to return to the menu after setting the TIME DIFFERENCE.

• When this item is set, the same item in the WIRED SETUP menu is overwritten with the same setting (



74).

NETWORK menu

(continued on next page)

NETWORK menu

Item Description

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the WIRED SETUP menu is overwritten with the same

DATE AND

TIME

setting (

• The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in



the Network Guide)

• This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING ( turned off.

Use the ▲/▼ buttons to select the channel of the wireless LAN to be used while MODE ( to ADHOC. Select according to the settings of your computer. The channels 1 to 11 are available. To save the setting, press the ► button.

WIRELESS

SETUP

(continued)

• The available channels would be various depending on a country. In addition, wireless network card might be required due to the standard.

• This item can only be selected when MODE is set to ADHOC. When MODE is set to INFRASTRUCTURE, the channel is automatically selected.

Use the ▲/▼ buttons to select the encryption method to be used.

WPA2-PSK(AES)  WPA2-PSK(TKIP)   OFF WPA-PSK(AES)  

ENCRYPTION

WEP 64bitWEP 128bitWPA-PSK(TKIP)

To save the setting, press the ► button.

• When MODE ( WPA-PSK and WPA2-PSK cannot be selected.

• If IEEE802.11 n is used while MODE is set to INFRASTRUCTURE, TKIP and WEP are disabled.

• If OFF or AES is not selected, communication will switch automatically to IEEE802.11 b/g.

74).

48), or when the AC power is



68) is set to ADHOC, either



68) is set

(continued on next page)

Item Description

Use the ▲/▼ buttons to select the SSID to display the SSID menu.

#1 DEFAULT  #2 DEFAULT  #3 DEFAULT

#5 CUSTOM  #4 DEFAULT

Select one of the DEFAULT (#1~#4) and press ► or ENTER button.

To adjust CUSTOM

Press the ► or ENTER button when the # 5 CUSTOM is selected. The SSID #5 CUSTOM menu will be appeared.

The current SSID will be displayed on the

(1)

ﬁrst line. If not yet written, the line will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT

WIRELESS

SETUP

(continued)

SSID

button, 1 character or all characters will be erased. The SSID can be input up to 32 characters.

(2)

To change an already inserted character, press the ▲/▼ button to move the cursor to one of the ﬁrst 2 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (1) above.

(3)

To ﬁnish entering text, move the cursor to the OK on screen and press the ►, ENTER or INPUT button. To revert to the previous name without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

NETWORK menu

(continued on next page)

NETWORK menu

Item Description

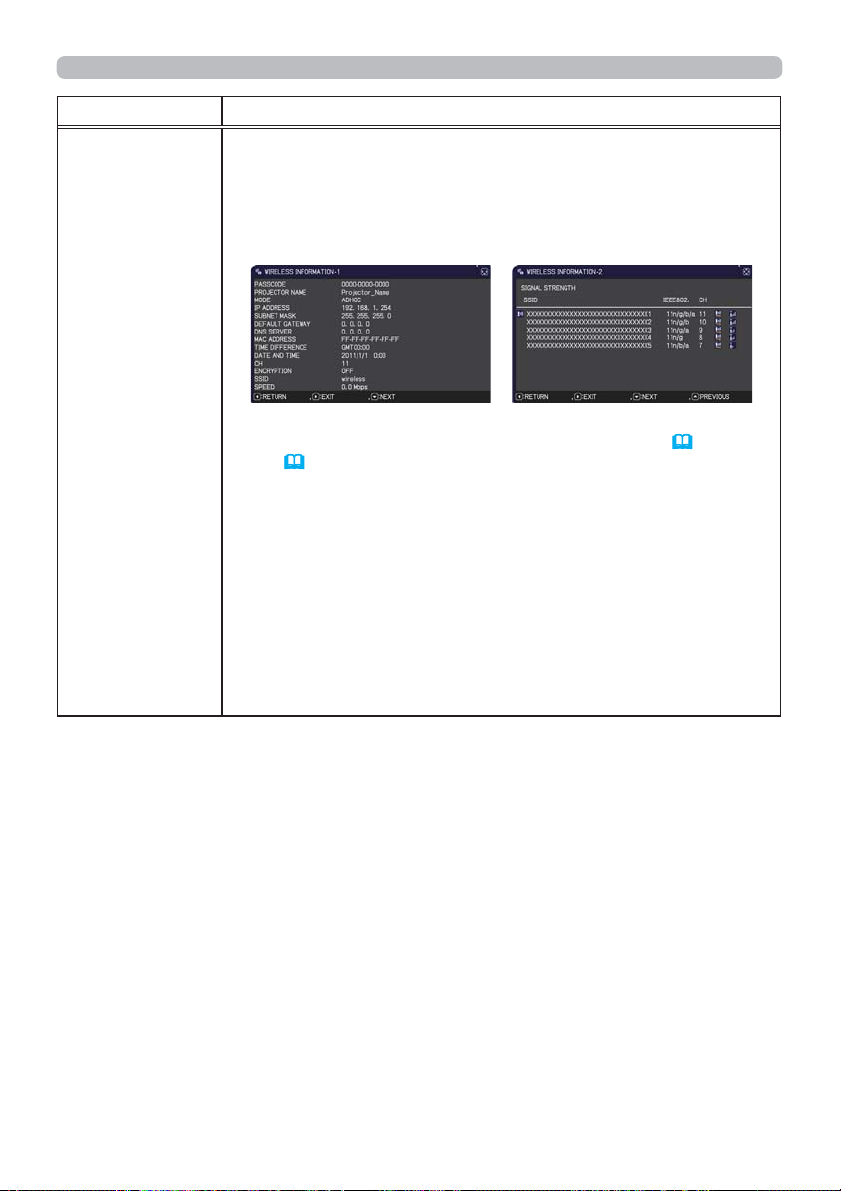

"Selecting this item displays the WIRELESS_INFORMATION dialog for viewing the wireless LAN settings." Use the ▲/▼ buttons to switch the page. The ﬁrst page shows the wireless LAN settings. The second and subsequent pages display the signal information of wireless LAN connection devices.

WIRELESS

INFORMATION

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Nothing (blank) is shown in the PROJECTOR NAME ( SSID ( characters of the PROJECTOR NAME.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” in the following condition. (1) The USB wireless adapter is not inserted into the projector. (2) DHCP is ON and the projector does not get address from DHCP server.

• Nothing (blank) is shown in the CH and SPEED ﬁelds if the USB wireless adapter is not inserted.

• The actual performance and setting will be shown in the CH ﬁeld, instead of the setting value in the WIRELESS SETUP menu.

• An icon is displayed to the left of the SSID of the device connected to the projector.

(continued on next page)

71) field until you setup those items. Only the first 16



75) and

Item Description

Selecting this item displays the WIRED SETUP menu for the wired LAN. Use the ▲/▼ buttons to select an item, and the ► or ENTER button on the remote control to perform the item.

Use the ▲/▼ buttons to turn DHCP on/off.

ON  OFF

Select OFF when the network does not have

DHCP

(Dynamic Host

Conﬁguration

Protocol)

DHCP enabled. To save the setting, press the ► button.

• When the “DHCP” setting changes to “ON”, it takes a little time to obtain IP address from DHCP server.

• Auto IP function will be assigned an IP address if the projector could not obtain an IP address from server even if DHCP is “ON”.

Use the ▲/▼/◄/► buttons to enter the IP ADDRESS. This function can only be used when DHCP is set

WIRED SETUP

IP ADDRESS

to OFF.

• The IP ADDRESS is the number that identiﬁes this projector on the network. You cannot have two devices with the same IP ADDRESS on the same network.

• The IP ADDRESS “0.0.0.0” is prohibited. Use the ▲/▼/◄/► buttons to enter the same

SUBNET

MASK

SUBNET MASK used by your computer. This function can only be used when DHCP is set to OFF.

• The SUBNET MASK “0.0.0.0” is prohibited. Use the ▲/▼/◄/► buttons to enter the DEFAULT

GATEWAY (a node on a computer network that

DEFAULT

GATEWAY

serves as an access point to another network) address. This function can only be used when DHCP is set to OFF.

Use the ▲/▼/◄/► buttons to input the DNS

DNS SERVER

server address. The DNS server is a system to control domain names and IP addresses on the Network.

NETWORK menu

(continued on next page)

NETWORK menu

Item Description

Use the ▲/▼ buttons to enter the TIME DIFFERENCE. Set the same TIME DIFFERENCE as the one set on your computer. If unsure, consult your IT

TIME

DIFFERENCE

manager. Use the ► button to return to the menu after setting the TIME DIFFERENCE.

• When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (

WIRED SETUP

(continued)

Use the ▲/▼/◄/► buttons to enter the Year (last two digits), Month, Date, Hour and Minute.

• When this item is set, the same item in the WIRELESS SETUP menu is overwritten with the same setting (

DATE AND

TIME

• The projector will override this setting and retrieve DATE AND TIME information from the Time server when SNTP is enabled. (Date/Time Settings in the Network Guide)

• This setting will be reset if the projector is turned off while STANDBY MODE in the SETUP menu is set to SAVING ( turned off.

Selecting this item displays the WIRED INFORMATION dialog for viewing the wired LAN settings.

69).



70).



48), or when the AC power is



WIRED

INFORMATION

• For details of PASSCODE, refer to the manual for “LiveViewer”.

• Only the first 16 characters of the PROJECTOR NAME are displayed.

• IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY indicate “0.0.0.0” when DHCP is ON and the projector has not gotten address from DHCP server.

(continued on next page)

Item Description

(1) Use the ▲/▼ buttons on the

NETWORK menu to select the PROJECTOR NAME and press the ► button. The PROJECTOR NAME dialog will be displayed.

(2) The current PROJECTOR NAME will be displayed on the ﬁrst 3

lines. Particular projector name is pre-assigned by default.

Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and push the ENTER or INPUT button, 1 character or all characters will be erased.The PROJECTOR NAME can be input up to 64

PROJECTOR

NAME

characters.

(3) To change an already inserted

character, press the ▲/▼ button to move the cursor to one of the ﬁrst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed. After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To ﬁnish entering text, move the cursor to the OK on screen and

press the ►, ENTER or INPUT button. To revert to the previous PROJECTOR NAME without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

NETWORK menu

(continued on next page)

NETWORK menu

Item Description

Selecting this item displays the MY IMAGE menu.

Use the application to transfer the image data. It can be downloaded from the Hitachi web site.

Use the ▲/▼ buttons to select an item which is a still image by the MY IMAGE (My Image Function in the Network Guide) and the ► or ENTER button to display the image.

• The item without image stored cannot be selected.

• The image names are each displayed in 16 characters or less.

MY IMAGE

To switch the image displayed

Use the ▲/▼ buttons.

To return to the menu

Press the ◄ button on the remote control.

To erase the image displayed and its source ﬁle in the projector.

(1) Press the RESET button on the remote

control while displaying an image to display the MY IMAGE DELETE menu.

(2) Press the ► button to perform to erase.

To stop erasing, press the ◄ button.

Use the ▲/▼ buttons to turn the AMX Device Discovery on/off.

AMX D.D.

(AMX Device

Discovery)

ON  OFF

When ON is selected, the projector can be detected by controllers of AMX connected to the same network. For the details of AMX Device Discovery, visit the AMX web site.

URL: http://www.amx.com/

(continued on next page)

Item Description

Selecting this item displays the PRESENTATION menu. Use ▲/▼ buttons to select one of the following items, then press ► or ENTER button to use the function.

• To use Network Presentation, an exclusive application, "LiveViewer" is required. It can be installed from the bundled application CD. You can also download the latest version and relevant information from the Hitachi website (http://www.hitachi-america.us/projectors or http:// www.hitachidigitalmedia.com).For details of Network Presentation and instructions to install the "LiveViewer", refer to the manual for "LiveViewer".

If you set a computer to the Presenter mode while its image is projected, the projector is occupied by the computer and access from any other computer is blocked.

QUIT

PRESENTER

MODE

Use this function to quit the Presenter mode and allow other computers to access the projector. Select this item to display a dialog. Press ► button to choose OK in the dialog. The Presenter mode is cancelled and a message is displayed indicating the result.

PRESENTATION

• To make Presenter mode setting, use “LiveViewer”. For details,

If you set one or more computers to the Multi PC mode on “LiveViewer” and send their images to the projector, you can select the display mode on the projector from two options below.

- Single PC mode: displays the image of the selected computer on full screen.

- Multi PC mode: displays the images sent from up to four computers on screen that is divided into quarter sections.

MULTI PC

MODE

Select this item to display a dialog. Use the dialog to change the display mode as explained below.

• To change from Multi PC mode to Single PC mode,

select one of computers in the dialog using the ▲/▼/◄/► buttons and press the ENTER or INPUT button. Press the ► button to choose OK, and then press ENTER or INPUT again. The image for the selected computer is displayed on full screen.

(continued on next page)

NETWORK menu

refer to the manual for "LiveViewer".

(continued on next page)

SECURITY menuNETWORK menu

Item Description

• To change from Single PC mode to Multi PC mode,

press ► button to choose OK in the dialog and press the ENTER or INPUT button. The display mode is changed.

For details on how to switch the

•

display mode to Multi PC mode on your computer, refer to the

MULTI PC

MODE

(continued)

PRESENTATION

(continued)

manual for

• The Presenter mode setting of the selected

computer becomes valid when the display mode is changed to Single PC mode. Also, the Presenter mode setting becomes invalid when the display mode is changed to Multi PC mode, regardless the setting on the computers. For details,

Selecting this item displays the user name. This function helps you identify from which computer the

DISPLAY

USER NAME

current image is sent.

• You can set user names for each computer on

“LiveViewer”. For details, “LiveViewer”.

Executing this item restarts and initializes the network functions. Choose the NETWORK RESTART EXECUTE using the button ►.

“LiveViewer”

refer to the manual for “LiveViewer”.

refer to the manual for

Then use the button ► to execute.

SERVICE

Network will be once cut off when choose restart. If DHCP is selected on, IP address may be changed. After selecting NETWORK RESTART EXECUTE, NETWORK menu may not be controlled approx. 30 seconds.

SECURITY menu

This projector is equipped with security functions. From the SECURITY menu, items shown in the table below can be performed. To use SECURITY menu: User registration is required before using the security functions.

Enter to the SECURITY menu

1. Press the ► button. The ENTER PASSWORD box will be displayed.

2. Use the ▲/▼/◄/► buttons to enter the registered password. The factory default password is as follows.

CP-X2530WN, CP-X3030WN : 8112

CP-WX3030WN : 2510 This password can be changed the right side of the ENTER PASSWORD box and press the ► button to display the SECURITY menu.

• It is strongly recommended the factory default password to be changed as soon as possible.

• If an incorrect password is input, the ENTER PASSWORD box will be displayed again. If incorrect password is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect password is input.

3. Items shown in the table below can be performed.

(below)

If you have forgotten your password

(1) While the ENTER PASSWORD box is displayed, press and hold the

RESET button on the remote control for about 3 seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector.

(2) The 10 digit Inquiring Code will be displayed. Contact your dealer

with the 10 digit Inquiring Code. Your password will be sent after your user registration information is conﬁrmed.

• If there is no key input for about 55 seconds while the Inquiring Code is displayed, the menu will close. If necessary, repeat the process from (1).

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu

to select SECURITY PASSWORD CHANGE and press the ► button to display the ENTER

NEW PASSWORD box. (2) Use the ▲/▼/◄/► buttons to enter the new password. (3) Move the cursor to the right side of the ENTER

SECURITY

PASSWORD

CHANGE

NEW PASSWORD box and press the ► button

to display the NEW PASSWORD AGAIN box,

enter the same password again.

Move the cursor to the right side of the NEW

(4)

PASSWORD AGAIN box and press the ►

button and the NOTE NEW PASSWORD box

will be displayed for about 30 seconds, please

make note of the password during this time.

Pressing the ENTER button on the remote control or ► button on the projector will close the NOTE NEW PASSWORD box.

• Please do not forget your password.

. Move the cursor to

(continued on next page)

SECURITY menu

Item Description

The MyScreen PASSWORD function can be used to prohibit access to the MyScreen function and prevent the currently registered MyScreen image from being overwritten.

1 Turning on the MyScreen PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

1-2 Use the ▲/▼ buttons on the MyScreen

1-3 Use the ▲/▼/◄/► buttons to enter the

1-4 Move the cursor to the right side of the

MyScreen

PASSWORD

(continued on next page)

When a password is set for MyScreen:

•

unavailable). Turning the MyScreen PASSWORD off will allow normal operation of these functions.

•

2 Turning off the MyScreen PASSWORD

2-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

2-2

If an incorrect PASSWORD is input, the menu will close. If necessary, repeat the process from 2-1.

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MyScreen PASSWORD on/off

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

select MyScreen PASSWORD and press the ► button to display the MyScreen PASSWORD on/ off menu.

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same PASSWORD again.

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during this time.

Pressing the ENTER button on the remote control or ► button on the projector will return to MyScreen PASSWORD on/off menu.

The MyScreen registration function (and menu) will be unavailable. The MyScreen Lock menu will be unavailable. The START UP setting will be locked on MyScreen (and the menu will be

Please do not forget your MyScreen PASSWORD.

menu.

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the MyScreen PASSWORD on/off menu.

menu.

Inquiring Code will be displayed inside the box.

be sent after your user registration information is conﬁrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

Item Description

PIN LOCK is a function which prevents the projector from being used unless a registered Code is input.

1 Turning on the PIN LOCK

1-1 Use the ▲/▼ buttons on the SECURITY menu

1-2 Use the ▲/▼ buttons on the PIN LOCK on/

1-3 Input a 4 part PIN code using the ▲/▼/◄/►,

Afterwards, anytime the projector is restarted after AC power is turned off the Enter PIN Code box will be displayed. Enter the registered PIN code. The projector can be used after entering the registered PIN code. If an incorrect PIN code is input, the Enter PIN code box will be displayed again.

PIN LOCK

If an incorrect PIN code is input 3 times, the projector will turn off. Afterwards the projector will turn off every time an incorrect PIN code is input. The projector will also turn off if there is no key input for about 5 minutes while the Enter PIN code box is displayed. This function will activate only when the projector is started after AC power is turned off.

•

2 Turning off the PIN LOCK

2-1 Follow the procedure in 1-1 to display the PIN LOCK on/off menu. 2-2 Use the ▲/▼ buttons to select OFF and the Enter PIN Code box will be

If an incorrect PIN code is input 3 times, the projector will turn off.

3 If you have forgotten your PIN code

3-1 While the Enter PIN code box is displayed, press and hold the RESET

3-2 Contact your dealer with the 10 digit Inquiring Code. Your PIN code will

(continued on next page)

SECURITY menu

to select PIN LOCK and press the ► button or the ENTER button to display the PIN LOCK on/off menu.

off menu to select ON and the Enter PIN Code box will be displayed.

COMPUTER or INPUT button. The PIN Code again box will appear. Reenter the same PIN code. This will complete the PIN code registration.

If there is no key input for about 55 seconds

•

while the Enter PIN Code box or the PIN Code again box is displayed, the menu will close. If necessary, repeat the process from 1-1.

Please do not forget your PIN code.

displayed. Enter the registered PIN code to turn the PIN LOCK function off.

button for three seconds or press and hold the INPUT button for 3 seconds while pressing the ► button on the projector. The 10 digit Inquiring Code will be displayed.

If there is no key input for about 5 minutes

•

while the Inquiring Code is displayed, the projector will turn off.

be sent after your user registration information is conﬁrmed.

SECURITY menu

Item Description

TRANSITION

DETECTOR

(continued on next page)

If this function is set to ON and the vertical angle of the projector or the INSTALLATION setting is different from the previous recorded setting, the TRANSITION DETECTOR ON alarm will be displayed and the input signal will not be displayed.

• To display the signal again, set this function OFF.

• After about 5 minutes of displaying the TRANSITION DETECTOR ON alarm, the lamp will turn off.

• Keystone adjustment feature has been prohibited as long as the TRANSITION DETECTOR function is on.

1 Turning on the TRANSITION DETECTOR

1-1 Use the ▲/▼ buttons on the SECURITY menu to

select TRANSITION DETECTOR and press the ► or the ENTER button to display the TRANSITION DETECTOR on/off menu.

Use the ▲/▼ buttons on the TRANSITION

1-2

DETECTOR on/off menu to select ON. Selecting ON will save the setting of the current angle and the INSTALLATION setting. The ENTER NEW PASSWORD box (small) will be displayed.

1-3 Use the ▲/▼/◄/► buttons to enter a

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, enter the same password again.

1-4 Move the cursor to the right side of the

NEW PASSWORD AGAIN box and press the ► button to display the NOTE NEW PASSWORD box for about 30 seconds, please make note of the password during this time.

Pressing the ENTER button on the remote control or the ► button on the projector will return to the TRANSITION DETECTOR on/off menu.

• Please do not forget your TRANSITION DETECTOR password.

• This function will activate only when the projector is started after turning off the AC power.

• This feature may not function properly if the projector is not in a stable position when ON is selected.

ENTER NEW PASSWORD

box (small)

2 Turning off the TRANSITION DETECTOR

2-1

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

2-2

Select OFF to display the ENTER PASSWORD box (large). Enter the registered password and the screen will return to the TRANSITION DETECTOR on/off menu.

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1.

ENTER PASSWORD box

(large)

3 If you have forgotten your password

3-1

Follow the procedure in 1-1 to display the TRANSITION DETECTOR on/off menu.

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

Inquiring Code will be displayed inside the box.

3-3 Contact your dealer with the 10 digit Inquiring Code. Your password will

be sent after your user registration information is conﬁrmed.

Item Description

The MY TEXT PASSWORD function can prevent the MY TEXT from being overwritten. When the password is set for the MY TEXT;

• The MY TEXT DISPLAY menu will be unavailable, which can prohibit changing the DISPLAY setting.

• The MY TEXT WRITING menu will be unavailable, which can prevent the MY TEXT from being overwritten.

1 Turning on the MY TEXT PASSWORD

1-1 Use the ▲/▼ buttons on the SECURITY menu to

1-2 Use the ▲/▼ buttons on the MY TEXT

1-3 Use the ▲/▼/◄/► buttons to enter the

MY TEXT

1-4 Move the cursor to the right side of the NEW

PASSWORD

Pressing the ENTER button on the remote control or ► button on the projector will return to the MY TEXT PASSWORD on/off menu.

2 Turning off the MY TEXT PASSWORD

2-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

2-2 Select OFF to display the ENTER

If an incorrect password is input, the menu will close. If necessary, repeat the process from 2-1

3 If you have forgotten your password

3-1 Follow the procedure in 1-1 to display the MY TEXT PASSWORD on/off

3-2 Select OFF to display the ENTER PASSWORD box (large). The 10 digit

3-3 Contact your dealer with the 10 digit inquiring code. Your password will

(continued on next page)

SECURITY menu

select the MY TEXT PASSWORD and press the ► button to display the MY TEXT PASSWORD on/off menu.

PASSWORD on/off menu to select ON. The ENTER NEW PASSWORD box (small) will be displayed.

password. Move the cursor to the right side of the ENTER NEW PASSWORD box (small) and press the ► button to display the NEW PASSWORD AGAIN box, and then enter the same password again.

PASSWORD AGAIN box and press ► button to display the NOTE NEW PASSWORD box for about 30 seconds, then please make note of the password during this time.

menu.

PASSWORD box (large). Enter the registered password and the screen will return to the MY TEXT PASSWORD on/off menu.

menu.

inquiring code will be displayed inside the box.

be sent after your user registration information is conﬁrmed.

ENTER NEW PASSWORD

box (small)

ENTER PASSWORD box

(large)

SECURITY menu

Item Description

(1) Use the ▲/▼ buttons on the SECURITY menu to

select the MY TEXT DISPLAY and press the ► or ENTER button to display the MY TEXT DISPLAY on/off menu.

(2) Use the ▲/▼ buttons on the MY TEXT DISPLAY on/off menu to select

MY TEXT DISPLAY

MY TEXT WRITING

CLONING LOCK

on or off.

ON  OFF

When it is set ON, the MY TEXT will be displayed on the START UP screen and the INPUT_ INFORMATION when the INFORMATION on the SERVICE menu is chosen.

• This function is available only when the MY TEXT PASSWORD function is set to the OFF.

(1) Use the ▲/▼ buttons on the

SECURITY menu to select the MY TEXT WRITING and press the ► button. The MY TEXT WRITING dialog will be displayed.

(2) The current MY TEXT will be displayed

on the ﬁrst 3 lines. If not yet written, the lines will be blank. Use the ▲/▼/◄/► buttons and the ENTER or INPUT button to select and enter characters. To erase 1 character at one time, press the RESET button or press the ◄ and INPUT button at the same time. Also if you move the cursor to DELETE or ALL CLEAR on screen and press the ENTER or INPUT button, 1 character or all characters will be erased. The MY TEXT can be input up to 24 characters on each line.

To change an already inserted

(3)

character, press the ▲/▼ button to move the cursor to one of the ﬁrst 3 lines, and use the ◄/► buttons to move the cursor on the character to be changed.

After pressing the ENTER or INPUT button, the character is selected. Then, follow the same procedure as described at the item (2) above.

(4) To ﬁnish entering text, move the cursor to the OK on screen and press

the ►, ENTER or INPUT button. To revert to the previous MY TEXT without saving changes, move the cursor to the CANCEL on screen and press the ◄, ENTER or INPUT button.

The MY TEXT WRITING function is available only when the MY TEXT

•

PASSWORD function is set to OFF. The CLONING operation under OPTION _SERVICE menu is not available if

ON is selected.

Presentation tools

The projector has the following convenient tools that enable on-screen presentations easily and quickly:

- PC-LESS Presentation ( Drawing function

Drawing function enables you to draw on the projector’s screen with USB

below)

mouse or tablets connected to the USB TYPE A ports. For details, refer to the manual for peripheral equipment.

- USB Display (

95)

PC-LESS Presentation

The PC-LESS Presentation reads image and audio data from the storage media inserted into the USB TYPE A port and displays the image in the following modes. The PC-LESS Presentation can be started by selecting the USB TYPE A port as the input source. This feature allows you to make your presentations without using your computer.

- Thumbnail mode (86)

- Full Screen mode (

- Slideshow mode (

[Supported storage media]

• USB memory (USB memory type, USB hard disk and USB card reader type)

90)

92)

NOTE

• USB readers (adapters) that have more than one USB slot may not

work (if the adapter is acknowledged as multiple devices connected).

• USB devices with security software may not work.

• Be careful when inserting or removing a USB device. (

13, 88)

[Supported format]

• FAT12, FAT16 and FAT32

• NTFS is not supported.NOTE

Presentation tools

PC-LESS Presentation (continued)

[Supported ﬁle format and its extension]

• JPEG (.jpeg, .jpg) * Progressive is not supported.

• Bitmap (.bmp) *

16bit mode and compressed bitmap is not supported.

• PNG (.png) * Interlace PNG is not supported.

• GIF (.gif)

• Movie (.avi, .mov) *

Supported video format: Motion-JPEG

Supported audio format:

WAV (Linear PCM, Stereo 16bit),

IMA-ADPCM

NOTE

• Files with a resolution larger than the following are not supported.

CP-X2530WN, CP-X3030WN: 1024 x 768 (Still)， 768 x 576 (Movie) CP-WX3030WN: 1280 x 800 (Still)， 768 x 576 (Movie) (* Some computers may not support 1280 x 800.)

• Files with a resolution smaller than 36 x 36 are not supported.

• Files with a resolution smaller than 100 x 100 may not be displayed.

• Movie images with a frame rate higher than 15 fps cannot be displayed.

• Movie images with a bit rate higher than 20 Mbps cannot be displayed.

• Some supported ﬁles may not be displayed.

• Only a frame appears when the content of image data cannot be displayed in the Thumbnail mode.

• Even with the ﬁle format and audio format combinations described above, playback of some ﬁles may fail.

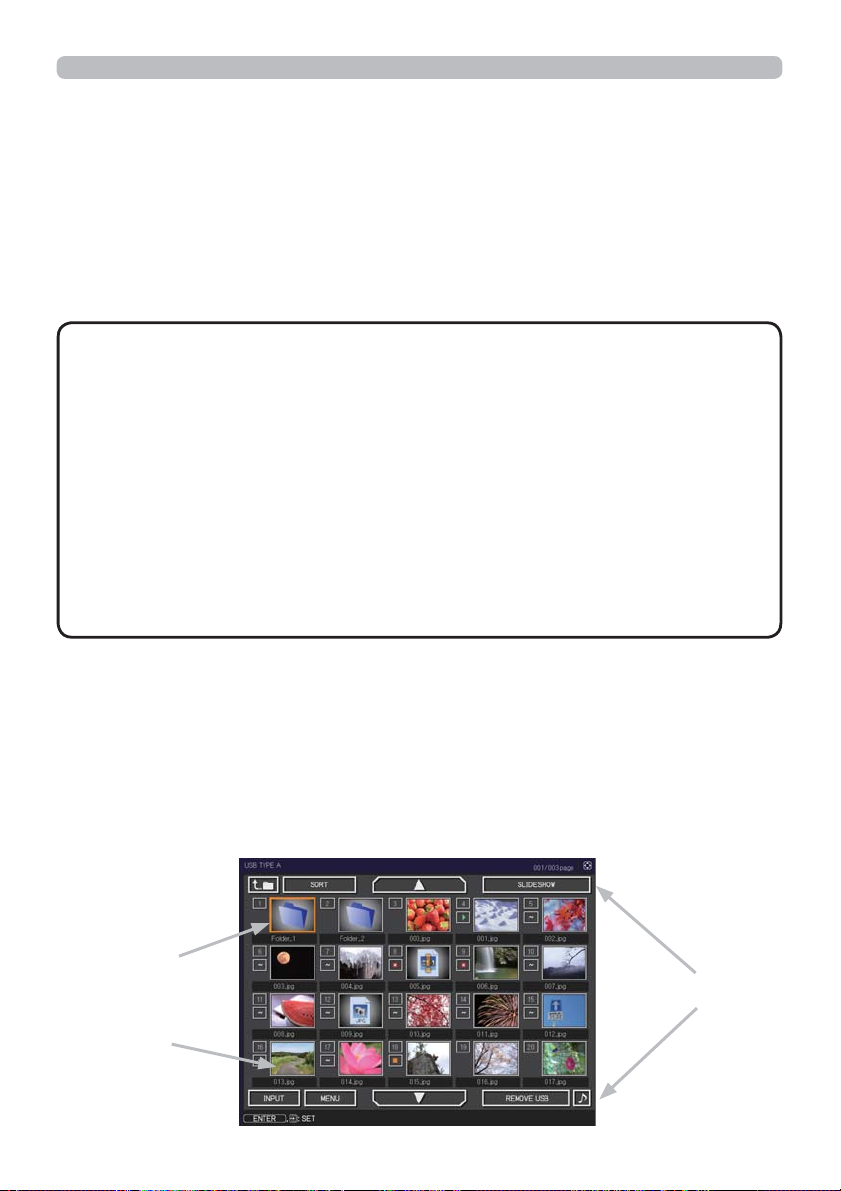

Thumbnail mode

The Thumbnail mode displays the images stored in a USB storage device on the Thumbnail screen. Maximum 20 images are displayed in a screen. If you wish, you can jump into the Full Screen mode or Slideshow mode, after you select some images in the Thumbnail mode. The Thumbnail mode will be started as the primary function of the PC-LESS Presentation after selecting the USB TYPE A port as the input source.

Selected image

Thumbnail images

Thumbnail menu

Presentation tools

PC-LESS Presentation (continued)

Operating by buttons or keys

You can control the images on the Thumbnail screen with the remote control, control panel or Web Remote Control. The following functions can be supported while the Thumbnail is displayed.

Button operation

The remote control

▲/▼/◄/► ▲/▼/◄/► [▲]/[▼]/[◄]/[►] Move cursor

PAGE UP PAGE DOWN

ENTER INPUT [ENTER]

Control panel

Web Remote Control

[PAGE UP] [PAGE DOWN]

Switches pages

• Displays the selected image on the Full Screen mode when a cursor is on a thumbnail image.

• Displays the SETUP menu (

below) for the selected image



when a cursor is on a thumbnail image number.

Functions

The SETUP menu for the selected image

Item Functions

SETUP

RETURN Press the ► cursor button or ENTER to return to the Thumbnail screen.

START

STOP

SKIP

RO TATE

Use the ◄/► cursor buttons to switch each setting or use the ► cursor button to execute the functions as follows.

Switch to ON to set the selected image as the ﬁrst image in the Slideshow. This setting information will be saved in the “playlist.txt” ﬁle (

94).

Switch to ON to set the selected image as the last image in the Slideshow. This setting information will be saved in the “playlist.txt” ﬁle (

94).

Switch to ON to skip the selected image in the Slideshow. This setting information will be saved in the “playlist.txt” ﬁle (

Press the ► cursor or ENTER button to rotate the selected still image 90 degrees clockwise. This setting information will be saved in the “playlist.txt” ﬁle (

94).

Presentation tools

PC-LESS Presentation (continued)

Operating by the menu on the Thumbnail screen

You can also control the images by using the menu on the Thumbnail screen.

Item Functions

Moves to an upper folder.

SORT Allows you to sort ﬁles and folders as following.

RETURN

NAME UP Sorts in ascending order by ﬁle name. NAME DOWN Sorts in descending order by ﬁle name. DATE UP Sorts in ascending order by ﬁle date.

DATE DOWN Sorts in descending order.by ﬁle date.

▲/▼ Go to previous / next page.

SLIDESHOW Conﬁgures and starts the Slideshow (

RETURN

PLAY Press the ► cursor button or ENTER to start the Slideshow.

START Sets the beginning number of the Slideshow.

STOP Sets the end number of the Slideshow.

INTERVAL

PLAY MODE Selects the Slideshow mode. INPUT Switches the input port. MENU Displays the menu.

REMOVE USB

Press the ► cursor button or ENTER to return to the Thumbnail screen.

92).



Press the ► cursor button or ENTER to return to the Thumbnail screen.

Sets the interval time for displaying still images during the Slideshow.

Be sure to use this function before removing USB storage device from the projector. After that, the projector will not recognize a USB storage device until you insert it again into the USB TYPE A input port.

Turns the sound on/off for ﬁles that contain audio data.

Presentation tools

PC-LESS Presentation (continued)

•

NOTE

These operations are not accessible while the projector OSD is displayed.

• The Thumbnail mode is able to display up to 20 ﬁles in one page.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

• The image quality may deteriorate when playing back audio data included in a movie. If you want to give priority to the image quality, turn off the sound by setting ♪ to off.

• If one of the AUDIO IN ports is selected or AUDIO SOURCE of the AUDIO menu

(49), ♪ cannot be operated.

is selected for USB TYPE A in

• Some error icons will be displayed in the Thumbnail.

This ﬁle seems to be broken or not supported format.

A ﬁle that cannot be displayed on the thumbnail screen is indicated by a ﬁle format icon.

Presentation tools

PC-LESS Presentation (continued)

Full Screen Mode

The Full Screen mode shows a full display image. To display in Full Screen mode, select an image in the Thumbnail screen. Then press the ENTER button on the remote control, the INPUT button on the Web Remote Control.

Operations for still images

The following operations are enabled in the Full Screen mode while a still image is displayed.

Button operation

The remote control

▼ ► or

PAGE DOWN

▲ ◄ or

PAGE UP

ENTER INPUT [ENTER] Displays Thumbnail.

Control panel

▼ or ►

▲ or ◄

Web Remote Control

[▼] [►]

[PAGE DOWN] [▲]

[◄]

[PAGE UP]

control panel or click [ENTER] on the

Full screen display

Functions

Shows the next ﬁle.

Shows the previous ﬁle.

Presentation tools

PC-LESS Presentation (continued)

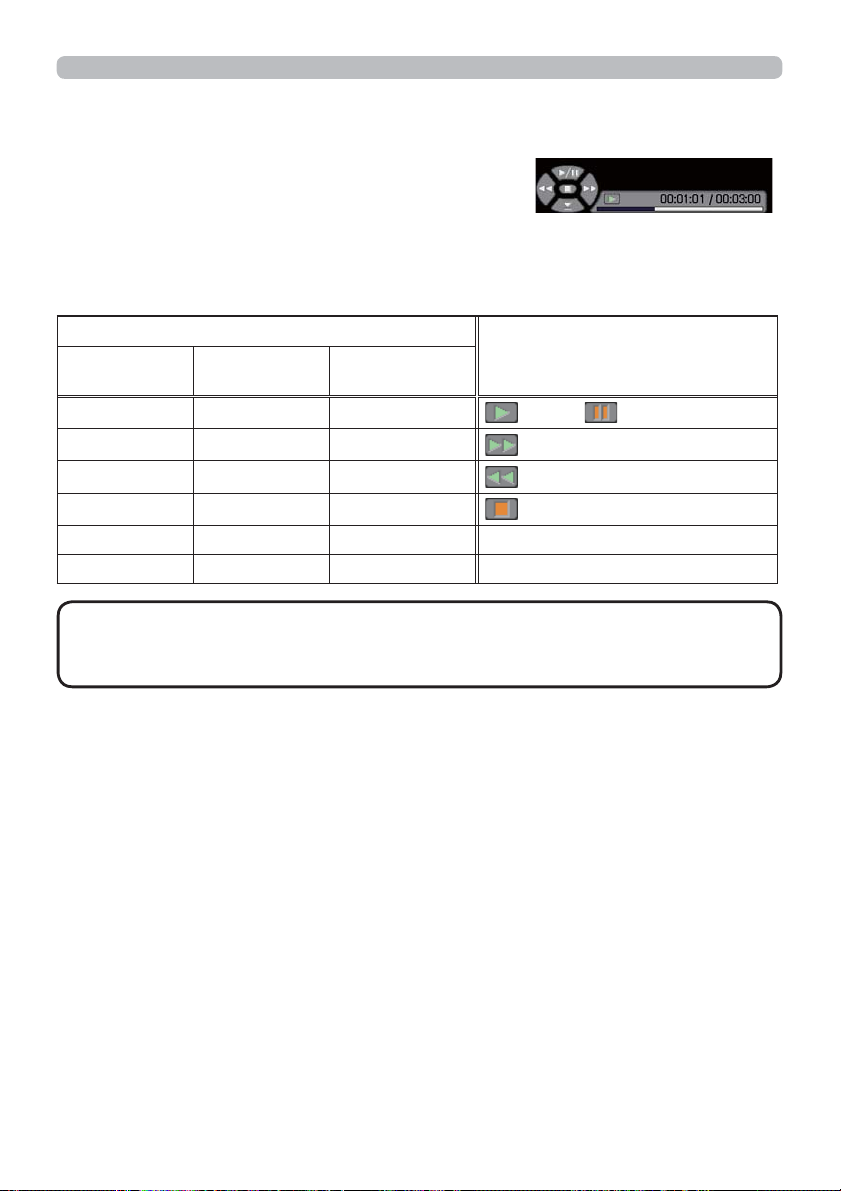

Operations for movie

A remote control icon and a progress bar are displayed when one of the cursor buttons, ENTER button or INPUT button on the remote control, control panel or Web Remote Control is pressed or clicked while a movie is playing in the Full Screen mode. The following operations are enabled while the remote control icon and progress bar are displayed.

Button operation

The remote control

▲ ▲ [▲]

► ► [►]

◄ ◄ [◄]

ENTER INPUT [ENTER] (Stop), Displays Thumbnail. PAGE DOWN –[PAGE DOWN] PAGE UP –[PAGE UP]

NOTE

•

Control panel

These operations are not accessible while the projector OSD is displayed.

Web Remote Control

(Play) /

(FF) Fast-forward

(REW) Fast-rewind

Shows the next ﬁle. Shows the previous ﬁle.

Functions

(Pause) toggle

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

Presentation tools

PC-LESS Presentation (continued)

Slideshow mode

The Slideshow mode displays images in full screen and switches the images at intervals set in INTERVAL on the Thumbnail screen menu (

You can start this function from the Slideshow menu. To display the Slideshow menu, select the SLIDESHOW button in the Thumbnail mode and press the

ENTER button on the remote control, INPUT button on the control panel, or click [ENTER] on the Web Remote Control.

While the Slideshow is displayed, the following button operations are enabled when still images are displayed, and the same button operations in the Full Screen mode are enabled when movies are displayed.

88).

Button operation

The remote control

ENTER INPUT [ENTER] Displays thumbnail

NOTE

• These operations are not accessible while the projector OSD is

Control panel

Web Remote Control

Functions

displayed.

• It is not possible to change the input port by using the INPUT button when the Thumbnail screen, Slideshow, or Full Screen is displayed.

•

When the Slideshow mode is set to ONE TIME and the last ﬁle is a still image, the last slide of the presentation will remain displayed until the ENTER button on the remote control or Web Remote Control, or the INPUT button on the control panel is pressed.

PC-LESS Presentation (continued)

You can play the Slideshow at your desired conﬁguration. Conﬁgure the Slideshow items in the Thumbnail.

1) RETURN :

Returns to the thumbnail mode.

2) PLAY : Play the Slideshow.

3) START :

Set the beginning number of the

Slideshow.

4) STOP : Set the end number of the Slideshow.

5) INTERVAL : Sets the interval time for displaying still images during the Slideshow. It is not recommend to set the interval time very short something like several seconds, because it may take more than several seconds to read and display an image ﬁle if it is stored in very deep layer directory or if so many ﬁles are stored in the same directory.

6) PLAY MODE : Select the Slideshow mode. ONE TIME : Play the Slideshow one time. ENDLESS : Play the Slideshow endless.

Presentation tools

NOTE

• The settings of the Slideshow are saved to the “playlist.txt” ﬁle that is stored in the storage media. If the ﬁle is not existed, it is generated automatically.

• The settings for the START, STOP, INTERVAL, and PLAY MODE are saved to the Playlist.

• If the storage media is under the write protection or the

“playlist.txt” is the

read only type ﬁle, it is impossible to change the settings of the Slideshow.

Presentation tools

PC-LESS Presentation (continued)

Playlist

The Playlist is a DOS format text ﬁle, which decides the order of displayed still image ﬁles in the Thumbnail or Slideshow. The playlist ﬁle name is “playlist.txt” and it can be edited on a computer. It is created in the folder that contains the selected image ﬁles when the PC-LESS Presentation is started or the Slideshow is conﬁgured.

[Example of “playlist.txt” ﬁles] START setting : STOP setting : INTERVAL setting : PLAY MODE setting : img001.jpg: : : : img002.jpg:600: : : img003.jpg:700:rot1: : img004.jpg: : :SKIP: img005.jpg:1000:rot2:SKIP:

The “playlist.txt” ﬁle contains the following information. Each piece of information requires to be separated by “:”, and “:” at the end of each line. 1st line: START, STOP, INTERVAL and PLAY MODE settings (93). 2nd line and after: ﬁle name, interval time, rotation setting and skip setting.

interval time: rotation setting

skip setting: “SKIP” means that the image will not be displayed in the

It can be set from 0 to 999900 (ms) with an increment of 100 (ms).

: “rot1” means a rotation at 90 degrees clockwise; “rot2” and

“rot3” increase another 90 degrees in order.

Slideshow.

•

NOTE

The maximum length in a line on the "playlist.txt" ﬁle is 255 characters

including linefeed. If any line exceeds the limit, the "playlist.txt" ﬁle becomes invalid.

•

Up to 999 ﬁles can be registered to the Playlist. However, if some folders exist in the same directory the limit number is decreased by the number of folders. Any ﬁles over the limit will not be shown in the Slideshow.

•

If the storage device is protected or does not have sufﬁcient space, the “playlist.txt” ﬁle cannot be created.

• For the Slideshow settings, refer to the section Slideshow mode (92).

Presentation tools

USB Display(Windows computer)

The projector can display images transferred from a computer via an USB cable (12).

Hardware and software requirement for computer

• OS: One of the following. Windows Windows Vista Windows Enterprise

• CPU: Pentium 4 (2.8 GHz or higher)

• Graphic card: 16 bit, XGA or higher

• Memory: 512 MB or higher

• Hard disk space: 30 MB or higher

• USB Port

• USB cable : 1 piece

Starting USB Display

Select the USB DISPLAY for the USB TYPE B item in the OPTION menu. When you connect your computer to the USB TYPE B port on the projector using a USB cable, the projector will be recognized as a CD-ROM drive on your computer. Then, the software in the projector, “LiveViewerLiteForUSB.exe”, will run automatically and the application, “LiveViewer Lite for USB”, will be ready on your computer for the USB Display. The application, “LiveViewer Lite for USB”, will close automatically when the USB cable is unplugged. However, it may remain displayed at times.

XP Home Edition /Professional Edition

Home Basic /Home Premium /Business /Ultimate /Enterprise

7 Starter /Home Basic /Home Premium /Professional / Ultimate /

NOTE

• If the software does not start automatically (this is typically because CD-ROM autorun is disabled on your OS), follow the instructions below. (1) Click on the [Start] button on the toolbar and select the “Run” (2) Enter F:\LiveViewerLiteForUSB.exe and then press the [OK]

If your CD-ROM drive is not drive F on your computer, you will need to replace F with the correct drive letter assigned to your CD-ROM drive.

• CD-ROM autorun is disabled while the screen saver is running.

• The image transmission from the computer is suspended while the passwordprotected screen saver is running. To resume the transmission, exit the screen saver.

•

If "Waiting for connection." remains displayed while the USB cable is connected,

remove the USB cable and reconnect after a while.

• Check our web site for the latest version of the software and its manual. (

User's Manual (concise))

Follow the instructions that can be obtained at the site for updating.

(continued on next page)

Presentation tools

USB Display(Windows computer) (continued)

This application will appear in the Windows notiﬁcation area once it starts. You can quit the application from your computer by selecting “Quit” on the menu.

NOTE

• The “LiveViewer” (refer to the Network Guide) and this application cannot

be used at the same time. If you connect your computer to the projector by using a USB cable while the “LiveViewer” is running, the following message will be displayed.

• Depending on the software installed on your computer, images on your computer cannot be transferred using “LiveViewer Lite for USB”.

• If any application software having the ﬁrewall function is installed into your computer, make the ﬁrwall function invalid with following the user's manual.

• Some security software may block image transmission. Please change the security software setting to allow the use of "LiveViewer Lite for USB".

• When the audio input from USB TYPE B is selected, if the sound level is still low even after raising the volume level in the projector to the maximum, check whether your computer outputs audio and raise the volume level accordingly.

• If the computer in use is equipped with HDMI port, the audio setting will be changed and sound interruption or noise may occur when the HDMI cable is connected or disconnected during USB Display. Restart USB Display for this case.

• Image distortion or sound interruption may occur when

“LiveViewer” is

connected to LAN (wireless or wired) during USB Display. The above decline in performance is noticeable especially when multiple computers are connected to

“LiveViewer”.

Presentation tools

USB Display(Windows computer) (continued)

Right-Click menu

The menu shown in the right will be displayed when you right-click the application icon in the Windows notiﬁcation area.

Display : The Floating menu is displayed, and the icon disappears from the

Windows notiﬁcation area.

Quit : The application is closed, and the icon disappears from the Windows

notiﬁcation area.

NOTE

• If you wish to restart the application, you need to unplug the USB

cable and plug it again.

Floating menu

If you select “Display” on the Right-Click menu, the Floating menu shown in the right will appear on your computer screen.

q Start capture button

The transmission to the projector is started and the images will be displayed.

w Stop button

The image transmission is stopped.

e Hold button

The image on the projector’s screen is temporally frozen. The last image before the button is clicked is remained on the screen. You can revise the image data on your computer without showing it on the projector's screen.

r Option button

The Options window is displayed.

t Minimize button

The Floating menu is c

losed, and the icon reappears in the Windows notiﬁcation

area.

NOTE

• If you click the Start capture button and/or Stop button repeatedly,

images may not be displayed on the screen.

qwe rt

Presentation tools

USB Display(Windows computer) (continued)

Options window

If you select the Option button on the Floating menu, the Options window is displayed.

Optimize Performance

The “LiveViewer Lite for USB” captures screenshots in JPEG data and sends them to the projector. The “LiveViewer Lite for USB” has two options that have different compression rate of JPEG data.

Transmission speed

Speed takes priority over Image quality. It makes JPEG compression rate higher. The screen on the projector is rewritten quicker because the transferred data is smaller, but the image quality is worse.

Image quality

Image quality takes priority over Speed. It makes JPEG compression rate lower. The screen on the projector is rewritten slower because the transferred data is larger, but the image quality is better.

Keep PC resolution

If you remove the check mark from the [Keep PC resolution] box, the screen resolution of

may be faster.

CP-X2530WN/CP-X3030WN: 1024 x 768 (XGA) CP-WX3030WN: 1280 x 800 (WXGA) If your computer does not support the display resolution speciﬁed above, a smaller resolution that is the largest among the resolutions that are supported by the computer will be selected.

Sound

Turns the sound on/off. The image quality may deteriorate when you play back audio data transferred together with the image data. To give priority to the image quality, turn off the sound by selecting the checkbox.

Display LiveViewer Lite for USB

If you want to display the "LiveViewer Lite for USB" application window on the screen, please check the box.

About

The version information of the “LiveViewer Lite for USB”.

your computer will be switched as follows, and the display speed

NOTE

• When the resolution is changed, the arrangement of icons on

computer desktop screen may be changed.

• If one of the AUDIO IN ports is selected or is selected for USB TYPE B in

AUDIO SOURCE of the AUDIO menu

(49), audio sound operation in the

Options window will be disabled.

Presentation tools

USB Display(Mac computer)

The projector can display images transferred from a computer via an USB cable (12).

Hardware and software requirement for computer

• OS: Mac OSX 10.5(Intel) Mac OSX 10.6(Intel) Mac OSX 10.7(Intel) This application is not compatible with Power PC.

• Graphic card: 16 bit, XGA or higher

• Memory: 512 MB or higher

• Hard disk space: 30 MB or higher

Starting USB Display

Select the USB DISPLAY for the USB TYPE B item in the OPTION menu. When you connect your computer to the USB TYPE B port on the projector using a USB cable, the projector will be recognized as a CD-ROM drive on your computer. Double click the CD-ROM, then double click "LiveViewerLiteForUSB_MacOS.app.". The application, “LiveViewer Lite for USB”, will close automatically when the USB cable is unplugged. However, it may remain displayed at times.

NOTE

• The image transmission from the computer is suspended while the password-protected screen saver is running. To resume the transmission, exit the screen saver.

•

If "Waiting for connection." remains displayed while the USB cable is connected,

remove the USB cable and reconnect after a while.

• Check our web site for the latest version of the software and its manual. (

User's Manual (concise))

Follow the instructions that can be obtained at the site for updating.

(continued on next page)

Presentation tools

USB Display(Mac computer) (continued)

NOTE

• The “LiveViewer” (refer to the Network Guide) and this application cannot be used

at the same time. If you connect your computer to the projector by using a USB cable while the “LiveViewer” is running, the following message will be displayed.

• Depending on the software installed on your computer, images on your computer cannot be transferred using “LiveViewer Lite for USB”.

• If any application software having the ﬁrewall function is installed into your computer, make the ﬁrwall function invalid with following the user's manual.

• Some security software may block image transmission. Please change the security software setting to allow the use of "LiveViewer Lite for USB".

• Image distortion or sound interruption may occur when

“LiveViewer” is

connected to LAN (wireless or wired) during USB Display. The above decline in performance is noticeable especially when multiple computers are connected to

“LiveViewer”.

100

Hitachi CP-WX3030WN, CP-X3030WN, CP-X2530WN User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
