PDP TV Service Manual

Plasma Display

Television

Service Manual

Chassis: MST9

Product Type: PDP32v69

PDP32V69P

PDP3208 PDP3209

Ver 1.0

Hisense Electric Co.，Ltd. Apr. 2008

Hisense confidential

PDP TV Service Manual

Contents

CONTENTS...............................................................................................................................2

SERVICE MANUAL.................................................................................................................2

1.PRODUCT SAFETY SERVICING GUIDELINES...........................................................................3

1.1. Precautions and notices................................................................................................ 3

1.2.Product Safety notice .................................................................................................... 3

2、PRODUCT FUCTION SPECIFICATIONS .................................................................................. 5

2.1 Product Function........................................................................................................... 5

2.2. specifications................................................................................................................6

3、PDP PANEL SPEC ................................................................................................................7

3.1 General description: ......................................................................................................7

3.2. Panel block diagram.....................................................................................................8

3.3.Power (PSU) description...............................................................................................9

3.4.Power block diagram..................................................................................................... 9

4. CHASSIS LA YOUT AND OVERALL WIRING DIAGRAMS........................................................10

4.1 Chassis Layout ............................................................................................................10

4.2 Overall Wiring Diagrams ............................................................................................ 11

4.3 Signal processing diagram .......................................................................................... 12

5. FACTORY/SERVICE OSD MENU.......................................................................................... 13

5.1 To enter the Factory OSD Menu .................................................................................13

5.2 Factory OSD Menu .....................................................................................................13

6. SOFTWARE UPGRADING .....................................................................................................17

6.1 Get ready for upgrading ..............................................................................................17

6.2 Upgrading with the ISP_TOOL4.0.9 ..........................................................................26

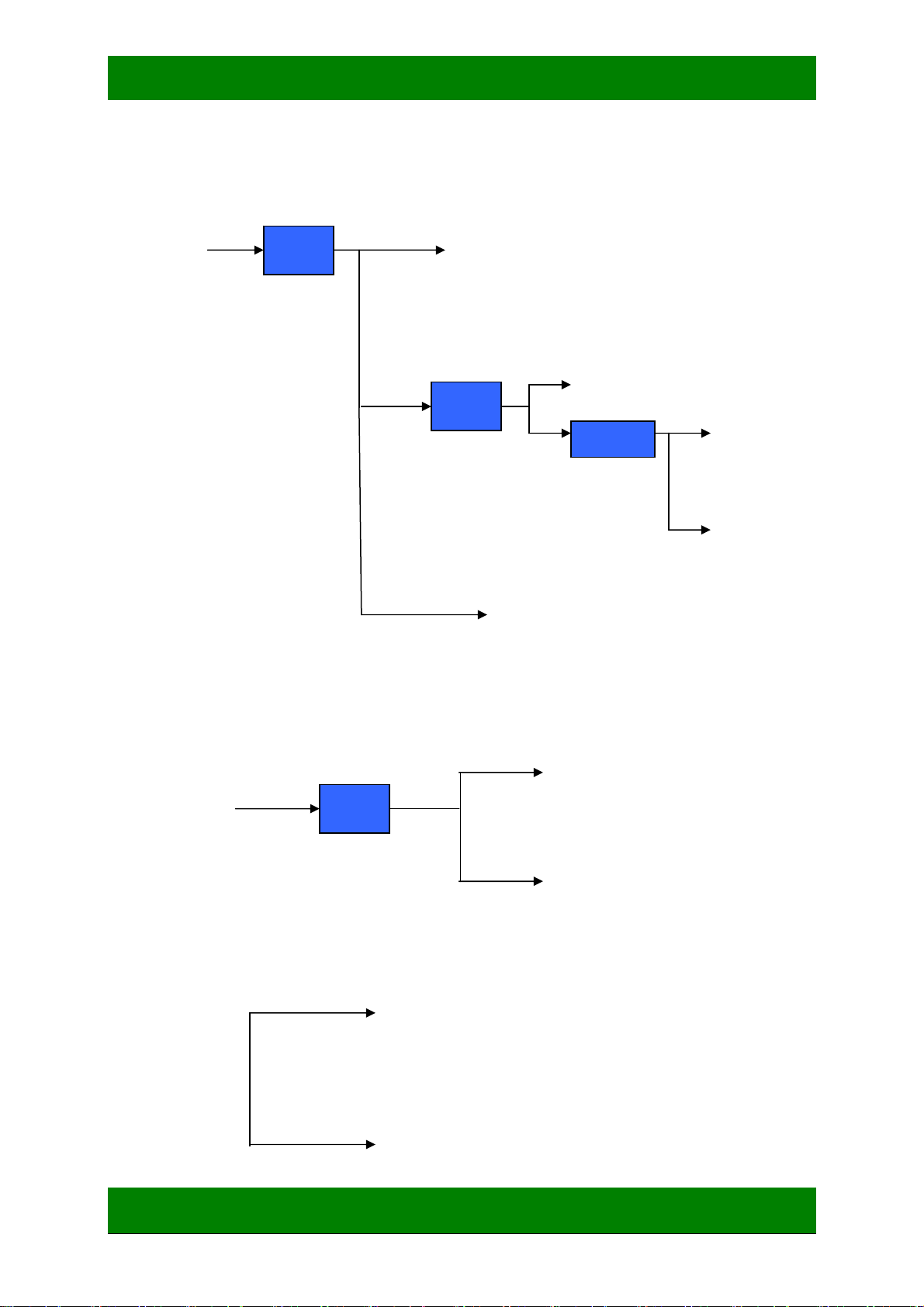

7. TROUBLESHOOTING ...........................................................................................................31

7.1. No picture...................................................................................................................31

7.2. Abnormal display .......................................................................................................31

7.3. Enlarged display......................................................................................................... 31

7.4.No sound ..................................................................................................................... 32

7.5. panel problems ...........................................................................................................32

7.6 Problem solutions:.......................................................................................................33

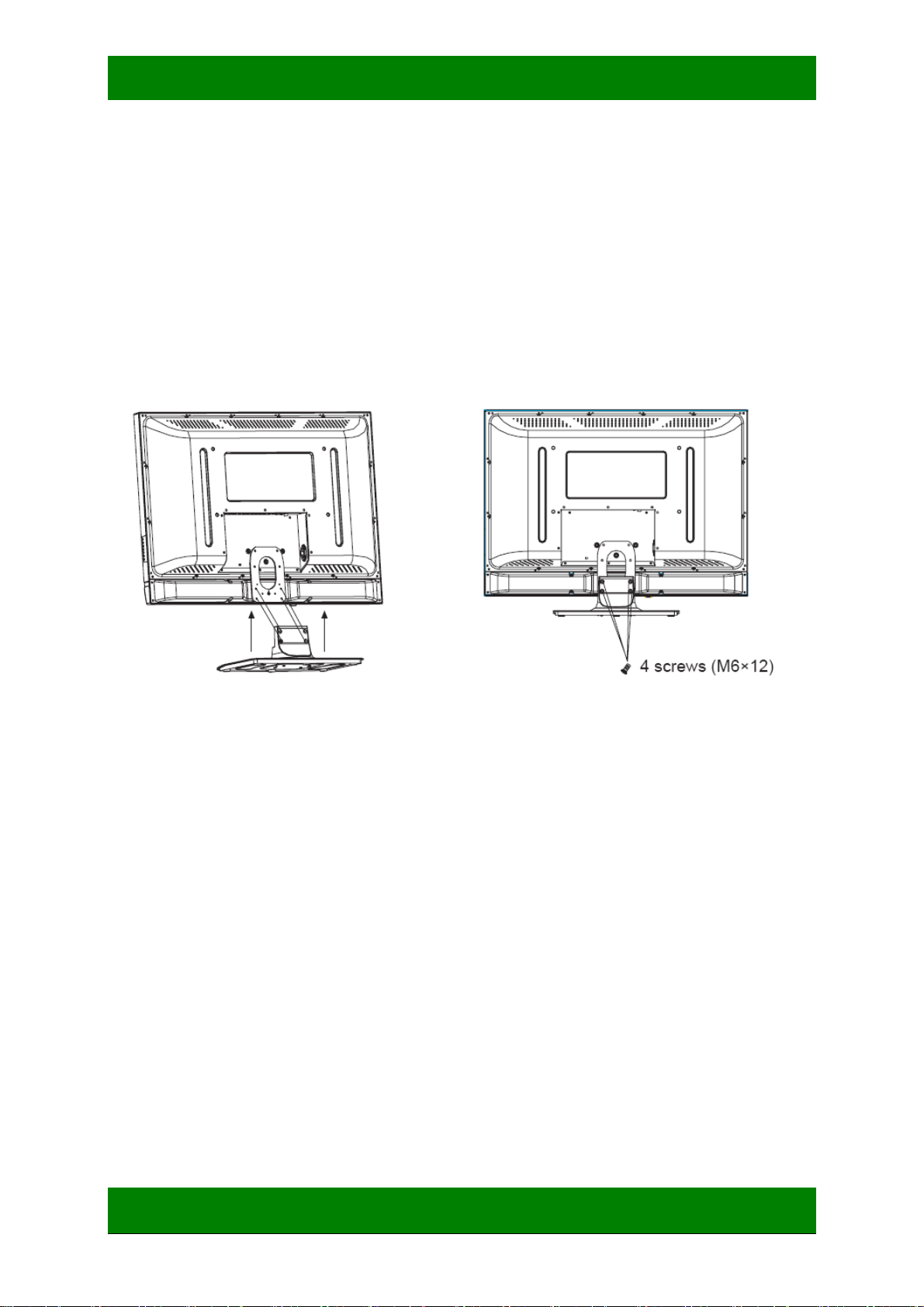

8.STAND INSTALLING ............................................................................................................. 34

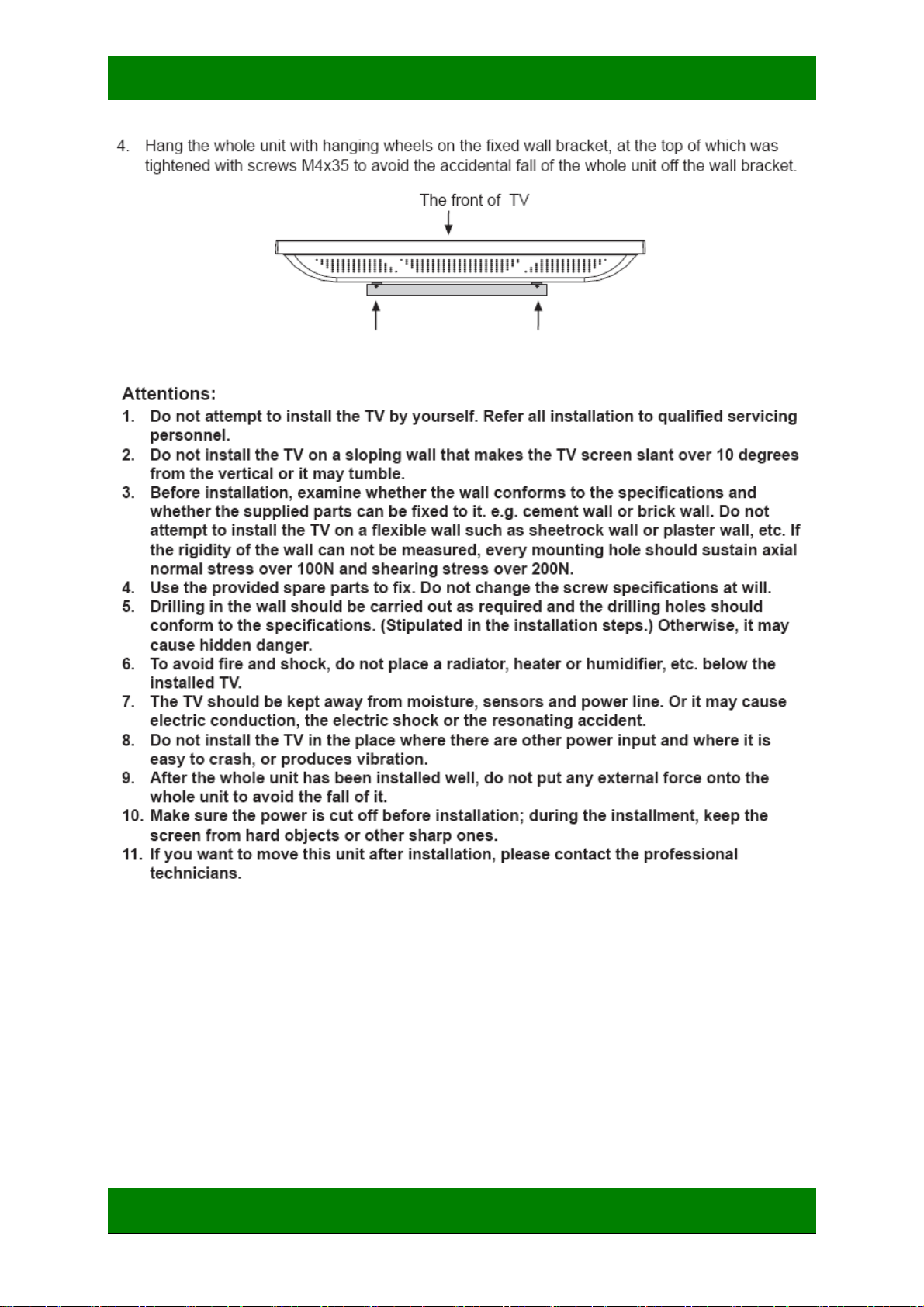

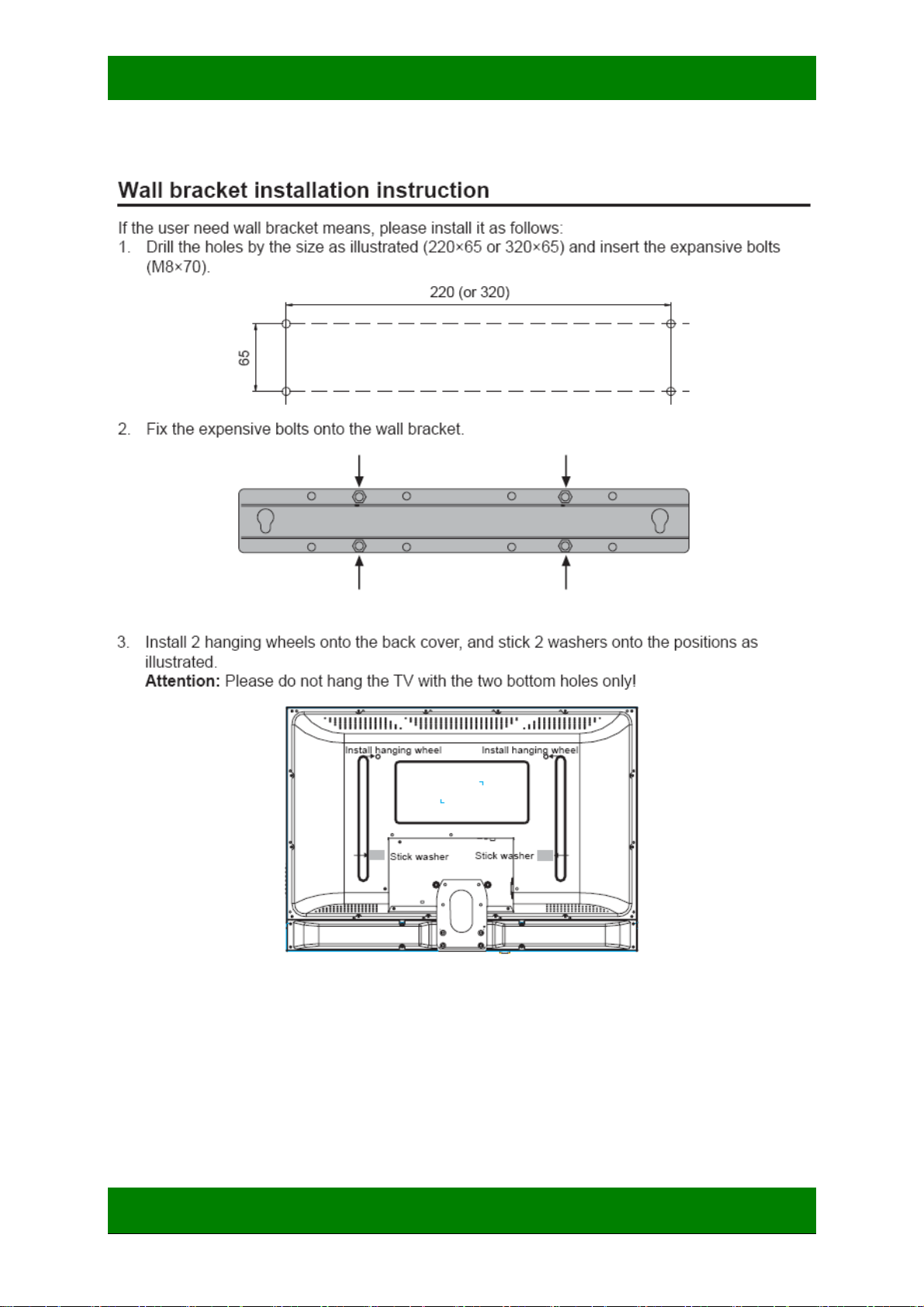

PDP WALL-MOUNTING BRACKET INSTALLATION GUIDE..................................................... 35

10.

EXPLODE VIEW AND BOM............................................................................................... 37

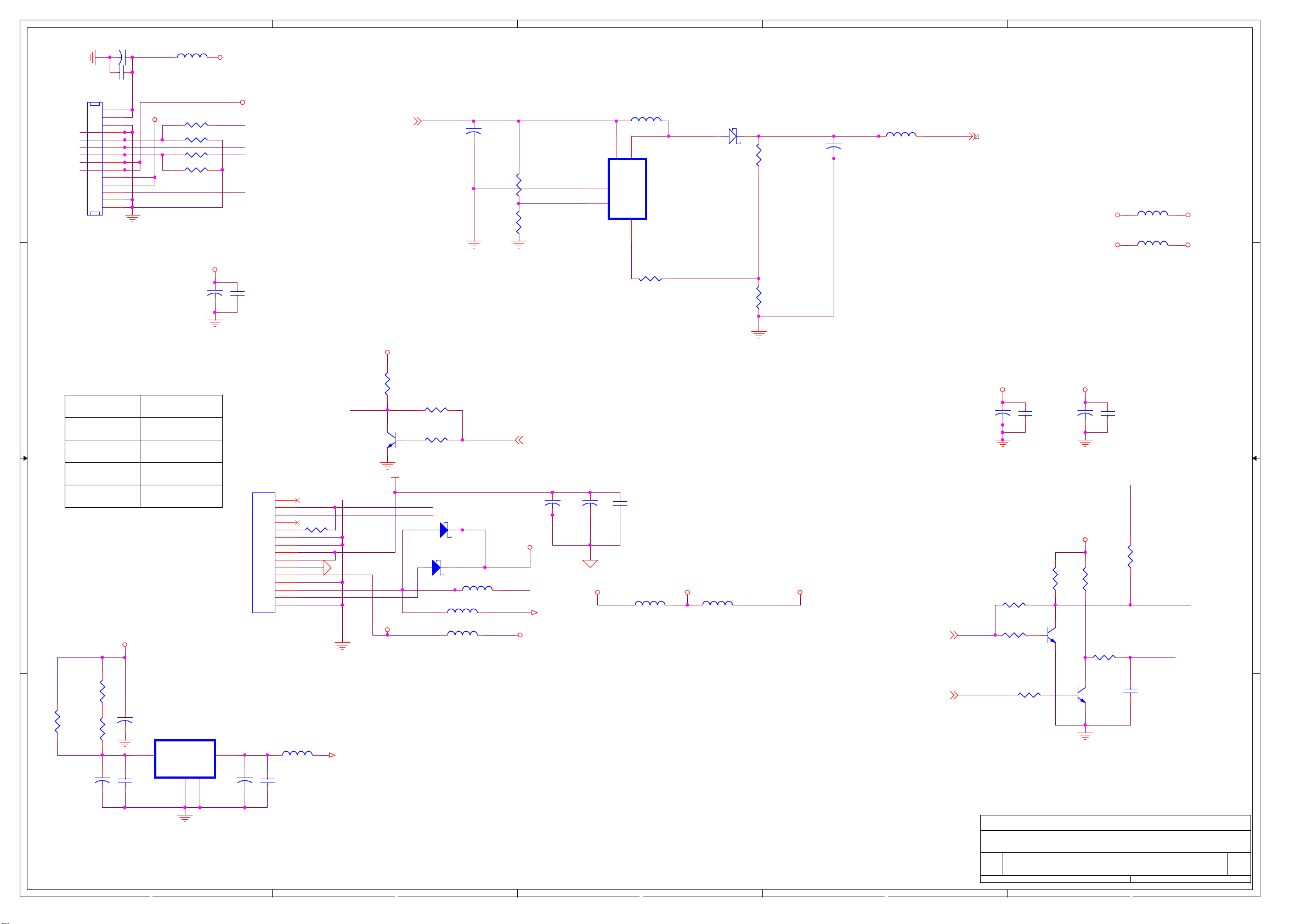

11 SCHEMATIC CIRCUIT DIAGRAM.......................................................................................... 37

Service Manual

Hisense confidential

PDP TV Service Manual

1.Product Safety Servicing Guidelines

1.1. Precautions and notices

BEFORE SERVICING THE CHASSIS, READ THE “SAFETY PRECAUTION” ON THIS MANUAL. WHEN REPLACEMENT PARTS ARE REQUIRED, BE SURE TO USE REPLACEMENT PARTS SPECIFIED BY THE MANUFACTURER.

WARNING:

Service should not be attempted by anyone unfamiliar with the necessary precaution on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as: non-metallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

2. When replacing parts or circuit boards, disconnect the power cord.

3. When replacing a high wattage resistor (oxide metal film resistor) on the circuit board, keep the resistor 10mm (1/2in) away from circuit board.

4. Connection wires must be kept away from components with high voltage or high temperature.

5. If any fuse in this TV receiver is blown, replace it with the FUSE specified in the chassis parts list.

1.2.Product Safety notice

Many electrical and mechanical parts in the chassis have special safety-related characteristics.

These characteristics are often passed unnoticed by a visual inspection. Replacement parts, which have these special safety characteristic are identified in this manual and its supplement electrical components having such features are shaded on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts, which do not have the same characteristic as specified in the parts list may create shock, fire or other hazards.

NOTES：

Screen Image retention Do not display a still image (such as on a video game or when hooking up a PC to this PDP) on plasma monitor panel for a long time as it can cause screen image retention. This image retention is also known as “screen burn”. To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image. A still image displayed too long may cause permanent damage to the PDP Panel Watching the PDP TV in 4:3 format or other non full screen format s for a long period of time may leave traces of borders displayed on the left, right and centre of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause similar effect to the screen. Damages caused by the above effect

Hisense confidential

PDP TV Service Manual

are not covered by the Warranty. Afterimage on the Screen Displaying still images from Video games and PC for longer than a certain period of time may produce partial afterimages. To prevent this effect, reduce the brightness and contrast when displaying still images for a long time. Height The PDP can normally operate only under 2000m in height. It might abnormally function at a place over 2000m in height and do not install and operate there.

Avoid operating the TV at temperatures below 5(41°F) Warranty Wa rranty does not cover any damage caused by image retention; Burn-in is

not covered by the warranty.

Hisense confidential

PDP TV Service Manual

2、Product Fuction Specifications

2.1 Product Function

Hisense confidential

PDP TV Service Manual

·High end flat display

·HDMI input

·High definition compatible

·Wide Screen display optimized for cinema viewing

·Multimedia display :TV/PC

·High clear picture

·Audio equalizer

·Color enhancer ,contrast enhancer

2.2. Specifications

PDP panel Plasma panel 32'' Native Screen Resolution 852 x 480 Television system SECAM/PAL Sound system BG / DK / I/L/L’ Channel coverage VHF-L: E2-S8

VHF-H: S9-S37 UHF: S38-E69

PC mode (DB15) 60Hz

640 x 480, 800 x 600, 1024 x 768

YPBPR mode 50Hz

576 i/p, 720p, 1080i

60Hz

480i /P，720p, 1080i

HDMI mode RGB 640 x 480, 800 x 600, 1024 x 768

YPBPR 50Hz

576p, 720p, 1080i

YPBPR 60Hz

480p; 720p, 1080i Static contrast ratio 50 : 1 Brightness 500 cd/m² Viewing angle 140° (H/V) Power source

Power consumption 190W Audio output 2 x 5 watts Audio filter Equalizer 5 x bands Connection interface

Dimensions 838mmX647mmX240mm (LXWXH)

AC 100V-240V，50/60Hz

RF Input: RF Antenna x 1 Video Input: YUV x 1 ,S-Video x 1,AV x 2 Graphic Input: Audio Input: YUV/ PC analog x 1 ,S-Video /AV1 x 1, AV2

Audio Output: Video Output: Other:

(including stand)

PC analog (DB15) x 1,HDMI x 1 (HDCP)

x 1 audio output x 1 headphone x 1 (Jack 3,5mm) video output x 1

Hisense confidential

PDP TV Service Manual

3、PDP panel spec

3.1 General description:

Hisense confidential

PDP TV Service Manual

3.2. Panel block diagram

Hisense confidential

PDP TV Service Manual

3.3.Power (PSU) description

Standard Voltage Range

AC 100V ∼ 240V

A vail able Voltage Range Frequency Range

3.4.Power block diagram

AC 90V ∼ 265V 50Hz ∼ 60Hz(± 5Hz)

Hisense confidential

PDP TV Service Manual

4. Chassis Layout and Overall Wiring Diagrams

4.1 Chassis Layout

(3)

(1)

(2)

(1) (2)

(4)

Description

Main Board 117040 RSAG2.908.1099-3 RSAG7.820.1234

PDP module 1047782 PDP32F1 Outsourcing

Part No

Type/Model PCB

(3)

(4)

Keypad Board 113649 RSAG2.908.1118 RSAG7.820.1141

IR&Led Board 115365 RSAG2.908.1244 RSAG7.820.1349

Hisense confidential

PDP TV Service Manual

4.2 Overall Wiring Diagrams

PDP

Module

P812

(5) (6)

P811

CN17

CN2

(3)

3 Pin

xpk03

CN88

5pin

XPR01

CN8

(4)

(2)

Speakers

P814

15Pin

SC101

3pin

(1)

Key BD

No DESCRIPTION SPECIPICATION NOTE

Main Power VH-3Y-600\ROH Power Inlet-->Power BD SC101

Audio output (L/R) TJC3H-4Y-650-900\ROH Main BD CN8<-->Speaker L/R

Buttons TJC10T-3Y-700-P\ROH Main BD CN2<--> Keypad BD XPK03

LED & IR TJC10T-5Y-600\ROH Main BD CN88<--> LED&IR BD XPR01

LVDS signal FF-HX19-11\ROH Main BD CN17<-->Panel

Power and communication between

Main BD and power BD

IR&Led BD

TJC3T-15Y-300\ROH Power BD P814<-->Main BD J1

Hisense confidential

PDP TV Service Manual

4.3 Signal processing diagram

The signal board is composed by the main board .The main chip for video decoder is

MST9E19A produced by MSTAR co., ltd.

RF TDQ-6FT/ W126H

HDMI signal

PC signal

YPBPR signal

1 S_video 2 AV in

3 sound input

remote

picture/sound output

Sound amp MP7722

earphone

SAW HS9457 HS6274

Earphone amp LM833

IF TDA 9886

MST 9E19 A

LG PDP32F1 Plasma display

FLASH

Hisense confidential

PDP TV Service Manual

5. Factory/Service OSD Menu

5.1 To enter the Factory OSD Menu

a. With factory RC (remote control)

1. Press “M” button and enter factory mode.

2. Press “Menu” button and enter factory OSD menu.

3. Press “CH+”/“CH-” button select the function menu, press “VOL+”/“VOL-” enter the selected function menu. Press “VOL+”/“VOL-” button adjust values in the menu.

4. Press “M” button exit factory mode in the factory OSD menu. When TV outgoing factory,user can not enter factory OSD menu with Factory Remote

b. With user’s RC

1. Power TV On

2. Press Menu button and call up User OSD Menu

3. Select Sound-> Balance

4. When Balance value is “0”,Enter 0->5->3 ->2 in sequence.

Note: If necessary, re-do number keys.

5. Factory OSD appears.

6. Press the standby button then AC turn off and restart the TV, which can exit factory OSD menu.

5.2 Factory OSD Menu

The Factory OSD Menu comprises Factory Menu and Design Menu .

5.2.1、Factory Menu

Factory Menu White Balance

Auto Calibration LOGO OSD Language Country Option Factory Init Test Pattern Version:

White Balance

R DRV 13 G DRV 7 B DRV 16 R CUT 116 G CUT 120 B CUT 118 BRIGHT_H 80 CONTRAST _H 80 BRIGHT_L 40 CONTRAST_L 40

Hisense confidential

PDP TV Service Manual

Auto Calibration

Auto Color Color Temp. Standard RED COLOR 116 GREEN COLOR 120 BLUE COLOR 118

Option

SOURCE TV BRIGHT 0 10 BRIGHT 50 110 BRIGHT 100 132 CONTRAST 0 60 CONTRAST 50 125 CONTRAST 100 170 TOFAC M HDMI Cable Standard PIXSHIFTNUMBER 1 PIXSHIFTTIME 30

LOGO

NULL HISENSE WELCOME

Factory Init

QingDao HuangDao Guiyang Hungary France Austria CLEAR PROTECTLY CLEAR UNPROTECTLY

Hisense confidential

PDP TV Service Manual

Test Pattern BLUE

5.2.2、Design Menu

Design Menu

Picture Mode Sound Mode Sound Settings Power Save PIP Option EMI MOVESHARPNESS LipSync

Version

Version: Panel Type: LG PDP32F1 (852*480) FLASH : EN25F80

Hisense confidential

PDP TV Service Manual

Picture Mode

Standard Brightness 50

Contrast 50 Colour 45

Bright Brightness 60

Contrast 60 Colour 55

Soft Brightness 45

Contrast 45 Colour 45

Sound Settings

VOLUME 0 128 VOLUME 1 79 VOLUME 20 28 VOLUME 40 24 VOLUME 100 10 TVPRE SCALER 2 VOLUME SCALER 0

Sound Mode

Standard 120Hz 11 500Hz 11

1.5KHz 12 5KHz 14 10KHz 14 Music 120Hz 13 500Hz 11

1.5KHz 12 5KHz 14 10KHz 20 Speech 120Hz 6 500Hz 9

1.5KHz 14 5KHz 14 10KHz 14

NOTE: We advise service hadn’t better amend factory data, because it is better settings data.

Please do not tell user the purpose password.

Hisense confidential

PDP TV Service Manual

6. Software Upgrading

The software is upgraded by a burning tool- ISP_TOOL4.0.9, which can burn the

program file *.bin to the main board of the unit

6.1 Get ready for upgrading

6.1.1 Install the ISP_TOOL4.0.9-------only for the first time update.

1、 Port Setting：

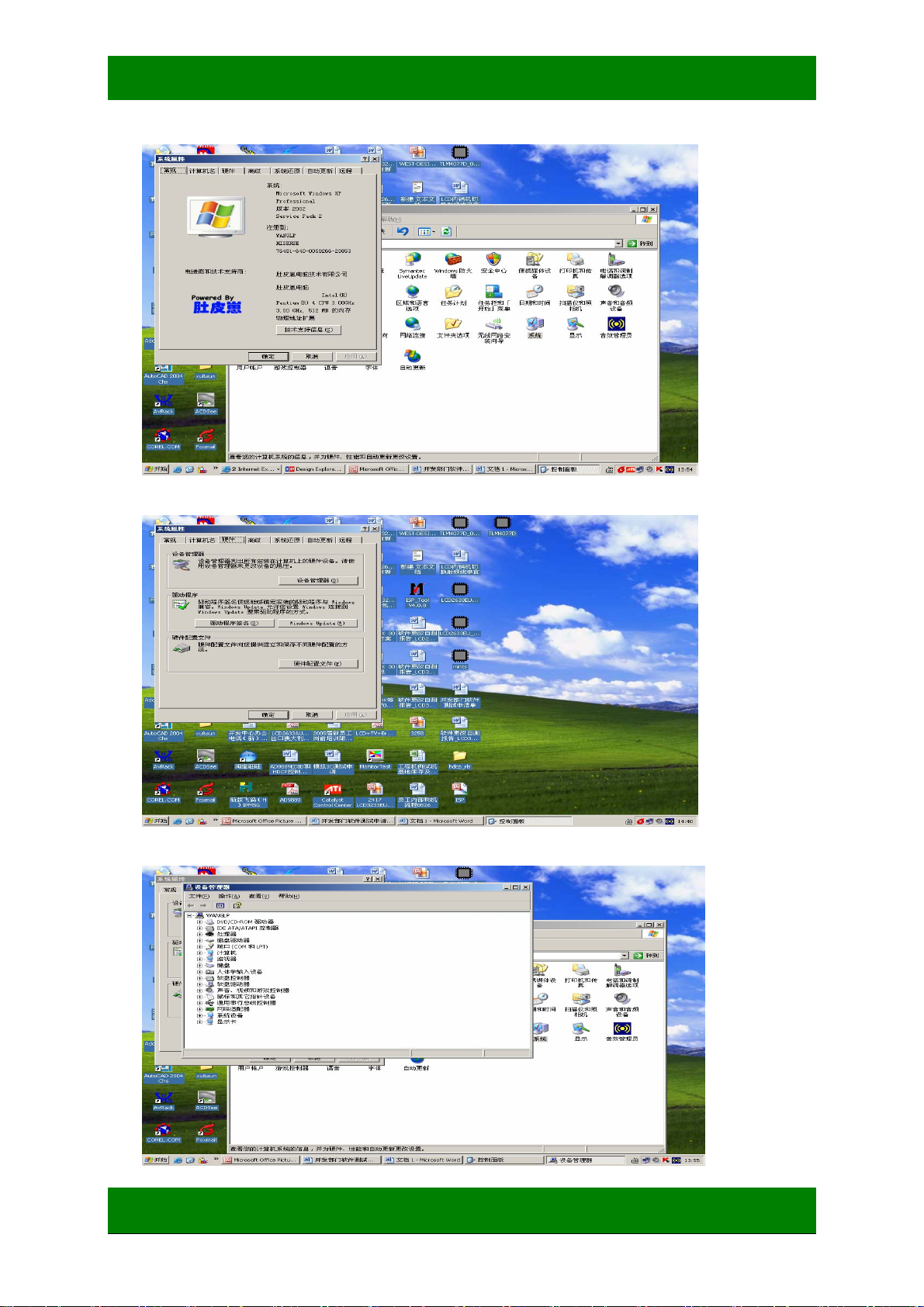

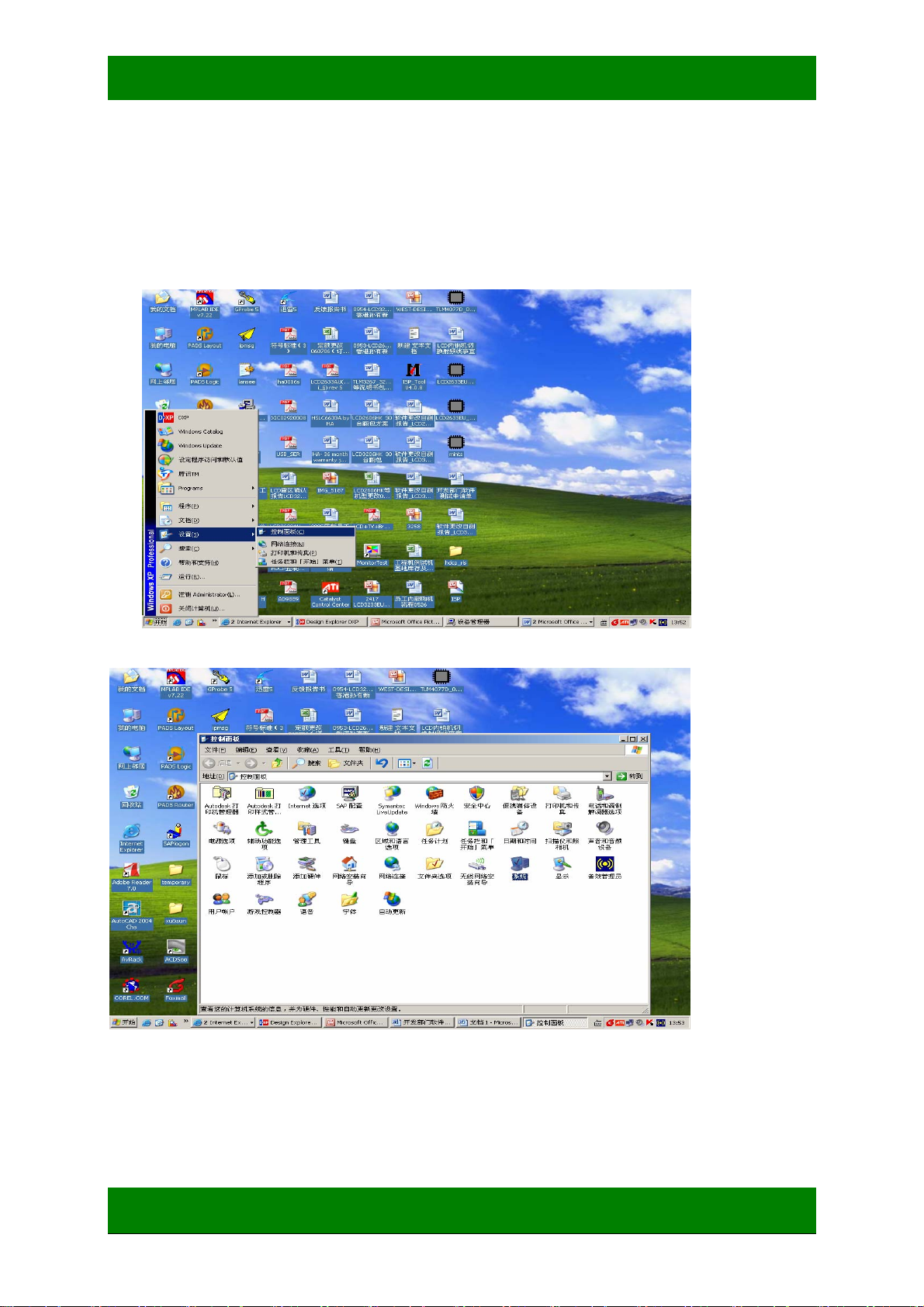

Choose “system”option from the “control panel”

Click the “system” icon as the following

Hisense confidential

PDP TV Service Manual

Choose the “hardware” option from the dialog window

Click“device management” icon as the following

Hisense confidential

PDP TV Service Manual

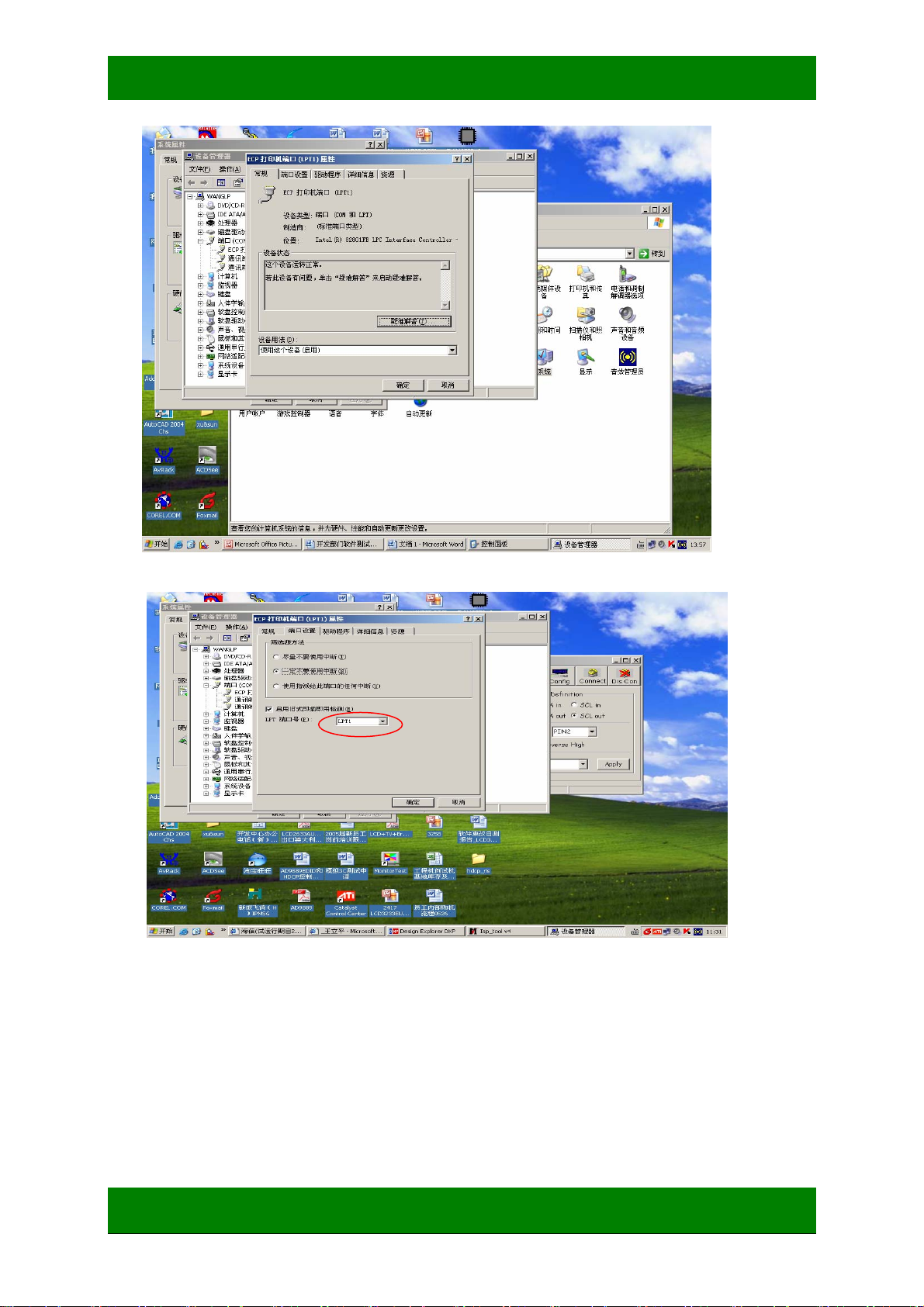

Choose the port (COM and LPT1)

Choose the ECP print port (LPT1）

Click the port of print （LPT1）as the following

Hisense confidential

PDP TV Service Manual

Choose “port setting”option as the following

2、 Find the folder where the ISP_TOOL4.0.9 lies in.

Hisense confidential

PDP TV Service Manual

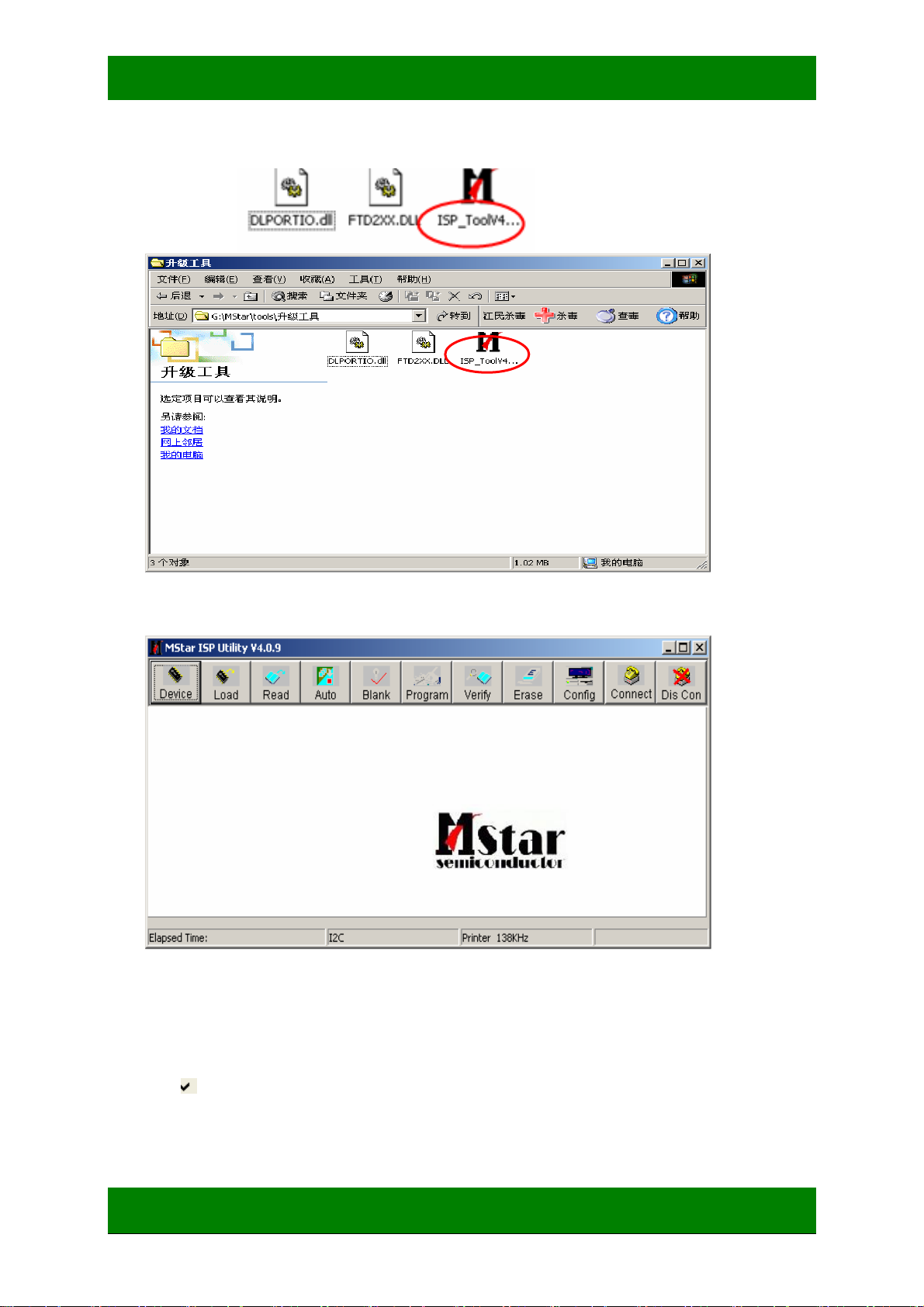

There are three folders/files in this folder together.

DLPORTIO.dll and FTD2XX.DLL must be in the same folder

Double click the ISP_TOOL4.0.9 icon, and then a dialog window will show as below.

Click the Config button. And then a dialog window will show as below.

“Port T ype” setting is LPT1 “Base Addr ”setting is 0x378

Draw on the front of “pin 1 switch UART/I2c” Speed setting is 99 As following

Hisense confidential

PDP TV Service Manual

Choose“SDA in”and setting “PIN” is “PIN10”。 Notes: Do not draw on the front of “Reverse High”。 As following

Choose “SCL in”and setting “PIN” is “PIN11”。 Notes: Do not draw on the front of “Reverse High”。 As following

Hisense confidential

PDP TV Service Manual

Choose “SDA out”and setting “PIN” is “PIN4” Notes: Draw on the front of “Reverse High”。

As following。

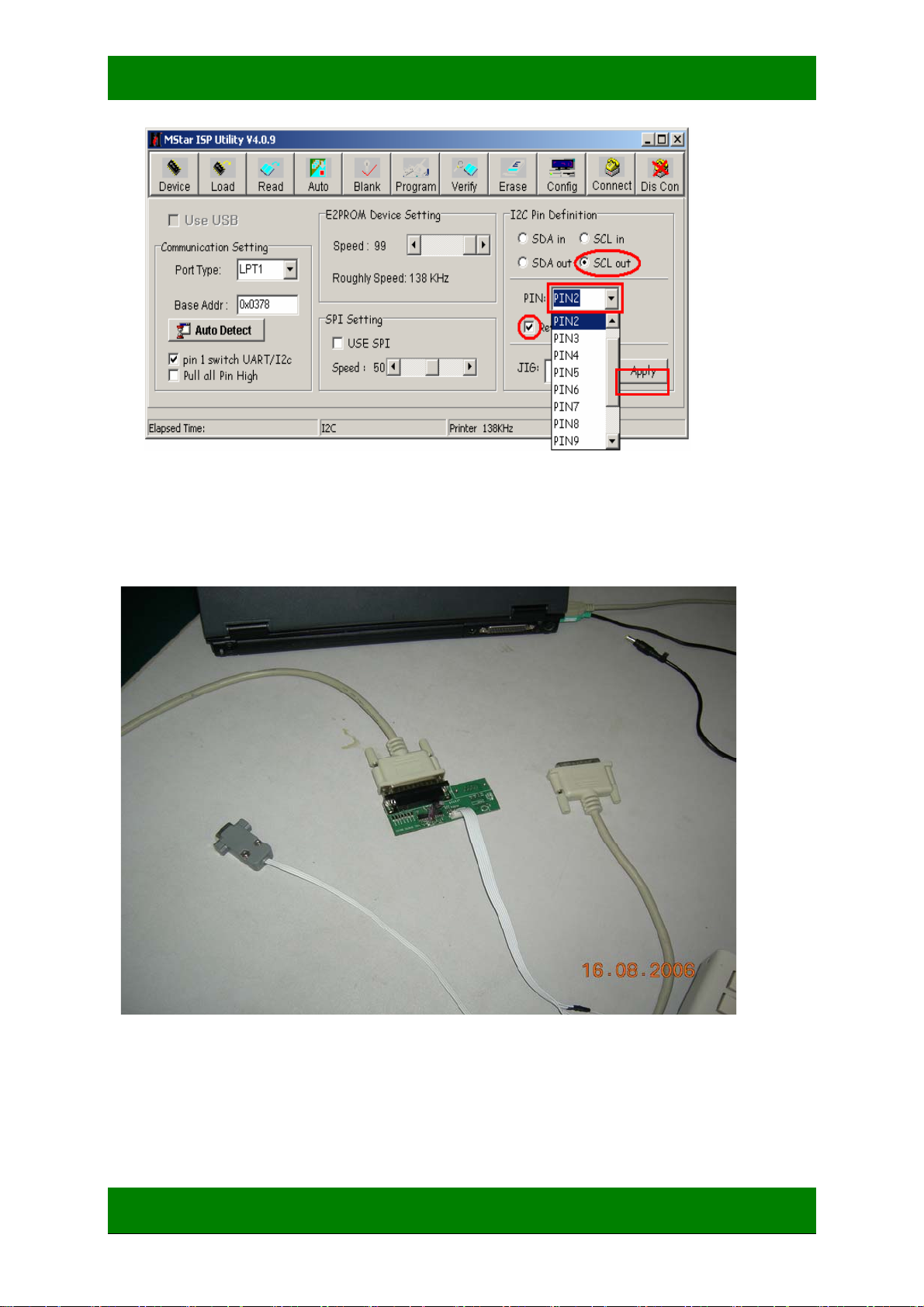

Choose “SCL out”and setting “PIN” is “PIN2” Notes: Draw on the front of “Reverse High” As following

Hisense confidential

PDP TV Service Manual

After having finished all above, clicking the “Apply ”button to complete the configuration。

6.1.2 Hardware connecting

You can update the software through a special tool (as following)

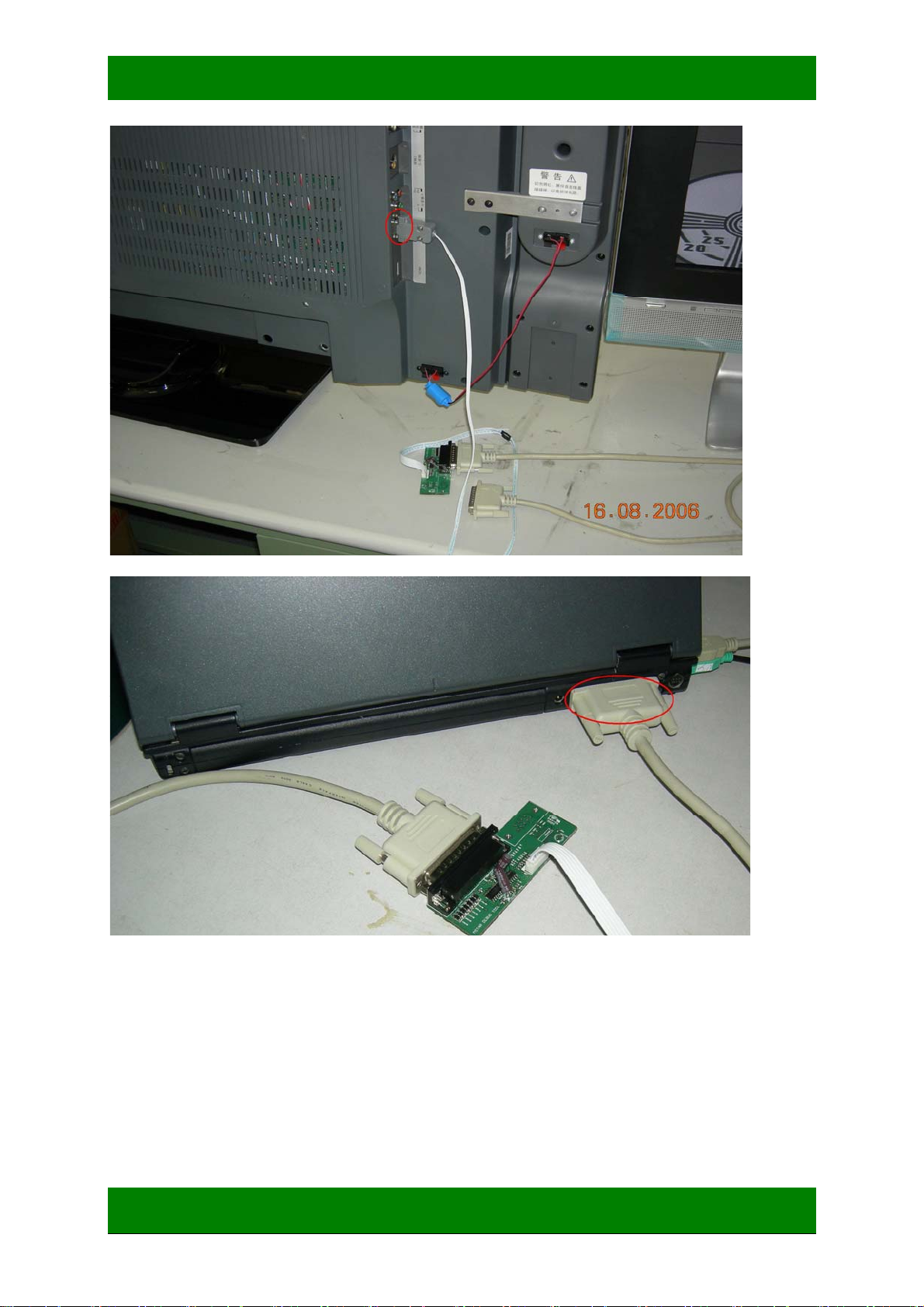

Connect the Debug board to the TV use VGA interface, the other parallel port to the computer, just as the following。

Hisense confidential

PDP TV Service Manual

Hisense confidential

PDP TV Service Manual

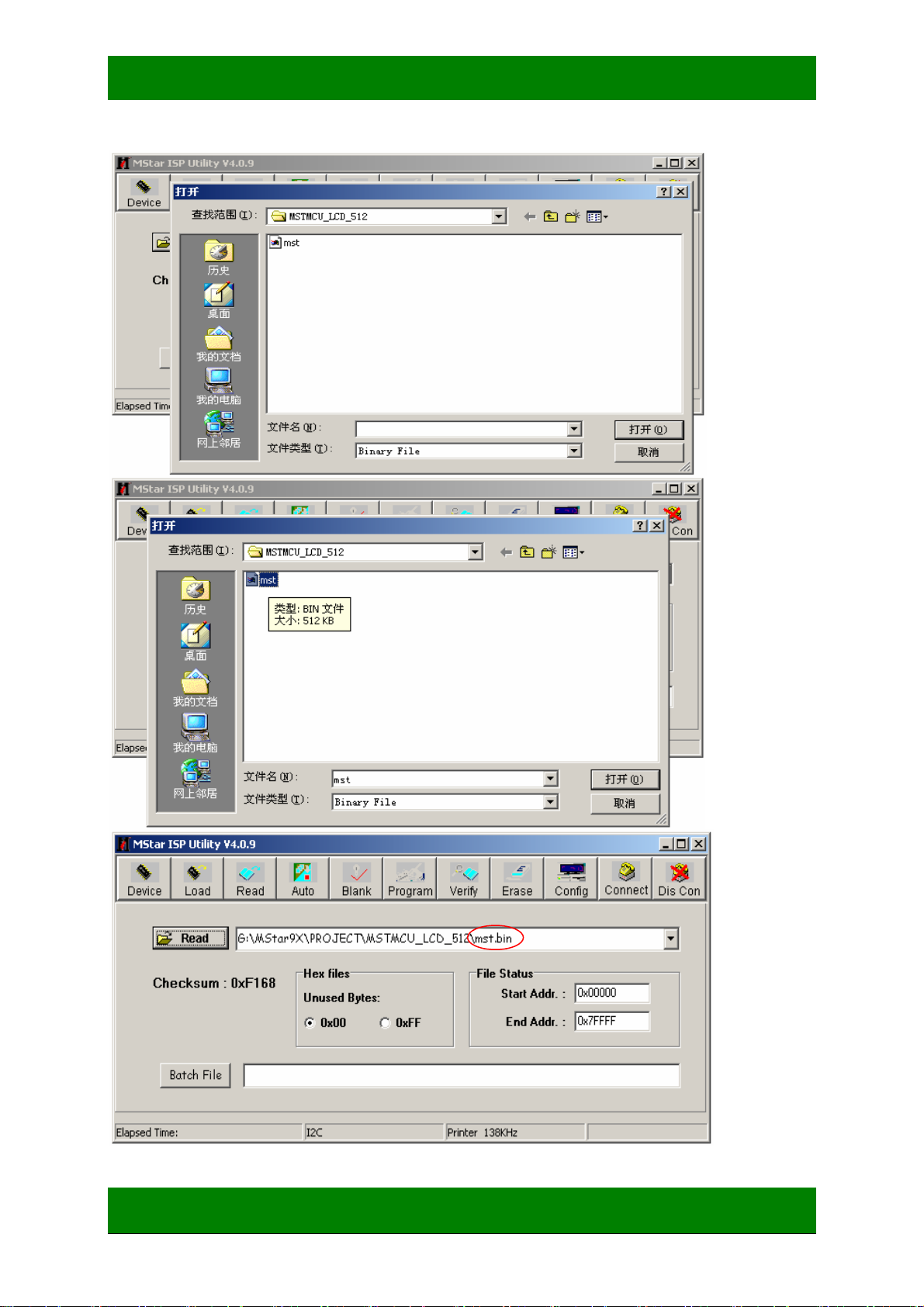

6.2 Upgrading with the ISP_TOOL4.0.9

6.2.1 Double click the ISP_TOOL4.0.9 icon and a dialog window will show as following。

Click the“Read ”button。

Hisense confidential

PDP TV Service Manual

Choose the update file from the folder。

Hisense confidential

PDP TV Service Manual

The update file has been chosen successfully。 Click the“Auto”button and choose parameters as following。

Click the“Run”button

Click the“connect”button,then show a dialog box as following。

Hisense confidential

PDP TV Service Manual

If show above then click the“Run”button again and again，till show the following dialog window。

The above appears on the screen-the word “program ok”shows in the information

Hisense confidential

PDP TV Service Manual

displaying window,indicating upgrading is over。

6.2.2 After the update is over. Must Confirm the software Version in the Version Menu. If the update is successful, enter Factory Init Menu and select “Clear Unprotectly” a. Press VOL+ button to clear the EEPROM data. b. When the “Clear Unprotectly ” button becomes white, turn off the power. c. Restart the TV.

Hisense confidential

PDP TV Service Manual

7. Troubleshooting

7.1. No picture

o picture

P.LED

OFF

blue

red

Check power connections

o problem

OSD ?

L.Led?

flickering

Press [power] on the remote to quit stand-by mode

off

Check LVDS connection

Check module driver Board connections

7.2. Abnormal display

Abnormal display

OSD?

Check main board connections or change main board

Check LVDS connection or module connections

7.3. Enlarged display

Enlarged display

Press [zoom]on the remote control to check whether it is in zoom mode

The TV system has wrongly identified 625-lines system as 525-lines system. Change to another source (such as video, pc) and change back to TV to correct it

Hisense confidential

PDP TV Service Manual

gram

7.4.No sound

o sound

Check audio board connections o change audio board

TV audio?

Check TV channel input part circuit diagram

7.5. panel problems

Black bars on panel Red (green/blue) line on panel Red (green/blue) stripe on panel Big noise from panel

Note:

p.LED?

Power indicator at the centre of the front panel. Normal state : blue; remote command state: blue flickering.

L.LED?

LVDS indicator on the logic processing board. Normal state: yellow flickering.

OSD?

Press [MENU] to display menu on the screen.

Check TV channel input part circuit dia

Press mute button

Replace the plasma display module with spare parts

o proble

Check other channel?

Hisense confidential

PDP TV Service Manual

7.6 Problem solutions:

1. Adjusting sharpness can improve picture definition.

2. Adjusting bright can improve picture administrative levels, it can display black background something.

3. If VGA or YPBPR color isn’t natural. You can optimize VGA.

4. PDP power is very large system. As you power off power. Power component must discharge period of time. Power can work steadily. If you power off and power on TV continuously. Then power work unsteadily. Then PDP TV will display deviant picture.

5. TV, AV and S.video are the same white balance setting. VGA is a set white balance setting. HDTV is a set white balance setting.

6. Picture mode does be divided four modes. such as standard, brightness, soft and custom. If you adjust factory data, they will increase the same data.

7. If TV don’t work normally, it will take place follow some phenomena. No. Trouble Measure 1 Turn on the TV, The LED is red, no display

on screen

2 Turn on the TV, The LED is blue, but no

picture or/and no sound 3 In TV state, can not to tuning You should to replace the main board. 4 No teletext You should to replace the main board. 5 No sound You should to replace the main board. 6 can not to updating software You should to replace the main board 7 No reaction with PC You should change the main board

8. If the picture color is not correct in the scart1 RGB source, but the scart1 CVBS is normal .you can check the fast blank signal is whether high. If it is low, please check the circuit.

9.If the picture is not normal 16:9 mode or 4:3 mode when the signal equipment send 16:9 mode or 4:3 mode, please check the aspect mode whether is in “normal” mode.

Replace the main board or updating the software. You should to replace the main board.

Hisense confidential

PDP TV Service Manual

8.Stand installing

Assemble instruction

Mount Installation Mount Preparation Should you choose on-the-table watching mode, please install the base following the below steps:

1. Spread cloth (or other soft materials) on one smooth surface which can support enough pressure, to avoid damaging TV screen.

2. Lay this unit stably with screen downside.

3. Take out the base and assemble it with four screws (M6×12) as illustrated. NOTE: Failure to do so may result in breaking, denting and scratching the plasma display.

Hisense confidential

PDP TV Service Manual

9 PDP Wall-mounting Bracket Installation Guide

Hisense confidential

PDP TV Service Manual

Hisense confidential

PDP TV Service Manual

10. Explode View and BOM 11 Schematic circuit diagram

Hisense confidential

ＲＳＡＧ２．０２５．１０４５　ＢＺ

８３９

９３．９

６３１．８

５７５

２４１．８

３９

ｆｒｏｎｔ　ｃｏｖｅｒ１

３８

ｂｒａｃｋｅｔ

３７

ｂｒａｃｋｅｔ

３６

ｓｃｒｅｗ

３５

ｓｃｒｅｗ

３４

ｋｅｙ

３３

ｋｅｙ　ｂｏａｒｄ

３２

ｏｒｎａｍｅｎｔ

３１

ｂｒａｃｋｅｔ

３０

ｐａｎｅｌ

２９

ｌｅｎｓ　ｌｅｄ

２８

Ｌｅｄ＆ＩＲ　Ｂｏａｒｄ

２７

ｓｃｒｅｗ

２６

ｓｃｕｔｃｈｅｏｎ

２５

ｂｒａｃｋｅｔ　ｕｎｉｔ

２４

ｂｒａｃｋｅｔ　ｕｎｉｔ

ＲＳＡＧ８．０７４．５２８

　２　　ＲＳＡＧ８．０３８．１３１９

１ＲＳＡＧ８．０３８．１１５１

６ＳＪ２８３６－８７　Ｍ３Ｘ８闀閿岄摱鐧＼ＲＯＨ＼ＳＴＤ

２ＳＪ２８２５－８７　ＳＴ３Ｘ１２Ｃ榛戣壊＼ＲＯＨ＼ＳＴＤ

１ＲＳＡＧ８．３３５．０７４＼Ｂ２

１ＲＳＡＧ２．９０８．１１１８＼ＲＯＨ

１ＲＳＡＧ８．６４７．２７５＼鐢甸晙

１ＲＳＡＧ８．０３８．１３１８　

１ＲＳＡＧ８．０８１．３６８＼Ｂ２＼Ｚ０　

１ＲＳＡＧ８．６４０．０５９＼ＲＯＨ　

１ＲＳＡＧ２．９０８．１２４４

４ＳＪ２８２４－８７　ＳＴ３Ｘ１０Ｃ闀閿岄摱鐧＼ＲＯＨ

１ＲＳＡＧ８．８０４．３１０９　

１ＲＳＡＧ６．１５０．３３７　

１ＲＳＡＧ６．１５０．３３８　

３９

３８

３７

２３

Ｐｏｗｅｒ　ｓｗｉｔｃｈ

２２

ｓｃｕｔｃｈｅｏｎ

２１

ｓｃｒｅｗ

１

２

３

４

５

６

７

８

９１０

２０

ｓｐｅａｋｅｒ

１９

ｓｃｒｅｗ

１８

ｓｃｒｅｗ

１７

ｓｃｒｅｗ

１６

ｓｃｒｅｗ

１５

ｓｏｕｎｄ＿ｂａｃｋ

１４

ｓｃｒｅｗ

１３

ｂｒａｃｋｅｔ

１２

ｓｃｒｅｗ

１１

ｐｅｄｅｓｔａｌ

１０

ｓｃｒｅｗ

９

ｂａｃｋ　　ｃｏｖｅｒ

１ＰＳ８－１２－Ｄ－０４７Ｂ／ＢＢ＼ＲＯＨ　

１ＲＳＡＧ８．８０４．３７１＼ＲＯＨ　

２ＧＢ／Ｔ８１９．１－２０００　Ｍ３Ｘ８榛＼ＲＯＨ＼ＳＴＤ　

２ＹＤＴ４１５Ｅ－１０Ｗ４Ｒ－Ｆ　

４ＳＪ２８３８－８７　ＳＴ４Ｘ１６Ｃ．ＩＩ闀閿岄摱鐧＼ＲＯＨ＼ＳＴ　

２４ＳＪ２８２４－８７　ＳＴ４Ｘ１６Ｃ榛戣壊＼ＳＴＤ　

２５ＧＢ／Ｔ８１８－２０００　Ｍ４Ｘ８（榛＼ＲＯＨ＼ＳＴＤ　　

８ＧＢ８１８／２０００－Ｔ　Ｍ５Ｘ１２榛＼ＳＴＤ

１ＲＳＡＧ７．０１３．１０３＼Ｚ０

１ＳＪ２８２４－８７　ＳＴ４Ｘ２０Ｃ榛戣壊＼ＳＴＤ　

１ＲＳＡＧ８．０３８．１３２８＼ｈｐ榛

４ＧＢ／Ｔ　８１８－２０００　Ｍ６Ｘ１２榛戣壊＼ＲＯＨ＼ＳＴＤ

１ＲＳＡＧ８．０７１．０５４

４ＳＪ２８３６－８７　Ｍ６Ｘ１２．ＩＩＩ＼榛戣壊

１ＲＳＡＧ８．０７４．５２９　＼ｈｐ榛

濯掍綋缂栧彿

鏃у簳鍥炬诲彿

搴曞浘鎬诲彿

鏃ユ湡绛惧悕

（１）

鏍煎紡

３６

３５

３３３４

３２

３１

３０

２８２９

２７

２６

２２

８

ｂｒａｃｋｅｔ

７

ｂｒａｃｋｅｔ

６

Ｍａｉｎ　Ｂｏａｒｄ

５

ＰＤＰ　ｍｏｄｕｌｅ

４

ｂｒａｃｋｅｔ　ｕｎｉｔ

３

ｓｃｒｅｗ

２

ｂｒａｃｋｅｔ

１

ｂｒａｃｋｅｔ

搴忓彿

鍚　绉

１ＲＳＡＧ８．０３８．１３１６

１ＲＳＡＧ８．０３８．１１３２

ＲＳＡＧ２．９０８．１０９９－３

１

ＰＤＰ３２Ｆ１３

１

ＲＳＡＧ６．１５０．３３６

２

ＳＪ２８２４－８７　ＳＴ４Ｘ１２Ｆ榛戣壊

２０

ＲＳＡＧ８．０３８．１３１７

１

ＲＳＡＧ８．０３８．１３２７

２

鏁伴噺浠　　　鍙

澶　　娉

ＲＳＡＧ２．０２５．１０４５　ＢＺ

鏁伴噺

鏇存敼鏍囪

璁璁

２０２１２４２５２３

１９

１８

１７

１６

１５

１４

１２１３

１１

瀹鏍 宸鑹

鏍囧噯鍖 鎵鍑

骞呴潰：　Ａ２

鏇存敼鍗曞彿

绛惧悕

鏃ユ湡

ＰＤＰ３２Ｖ６９　鐖嗙偢鍥

闃舵鏍囪

璐閲

姣渚

１：５

绗　　　椤

１

鍏　　　椤

１

闈掑矝娴蜂俊鐢靛櫒鑲′唤鏈夐檺鍏徃

鍒跺浘：

BL-ON/OFF

D D

BL-ADJUST BL-ON/OFF

STANDBY

C C

STANDBY

POWER-ON/OFFPOWER-ON/OFF

B B

BL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL-ON/OFFBL

ON-PBACK

BL-ADJUSTBL-ADJUSTBL-ADJUSTBL-ADJUST

ADJ-PWM3

A A

Hisense PDP32XX Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
