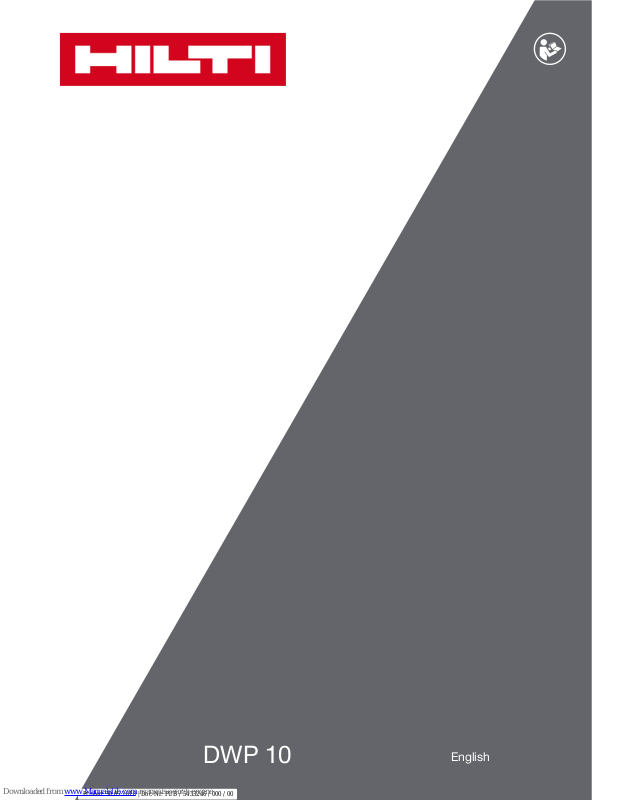

Hilti DWP 10 User Manual
DWP 10
English
Printed: 30.05.2018 | Doc-Nr: PUB / 5433246 / 000 / 00
Printed: 30.05.2018 | Doc-Nr: PUB / 5433246 / 000 / 00
English 1
1 Information about the documentation
1.1 About this documentation
• Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free
handling and use of the product.
• Observe the safety instructions and warnings in this documentation and on the product.
• Always keep the operating instructions with the product and make sure that the operating instructions
are with the product when it is given to other persons.
1.2 Symbols
Symbols in this documentation
Read the operating instructions before use.
Instructions for use and other useful information
Dealing with recyclable materials
Symbols on the product
Read the operating instructions
Maximum operating pressure
Filling quantity
CE test number
1.3 Product information
products are designed for professional users and only trained, authorized personnel are
permitted to operate, service and maintain the products. This personnel must be specifically informed about
the possible hazards. The product and its ancillary equipment can present hazards if used incorrectly by
untrained personnel or if used not in accordance with the intended use.
The type designation and serial number are printed on the rating plate.
▶ Write down the serial number in the table below. You will be required to state the product details when
contacting Hilti Service or your local Hilti organization to inquire about the product.
Product information
Water supply unit DWP 10
Generation: 01
Serial number:
2 Safety
2.1 Safety instructions
▶ Never tamper with or modify the product in any way.
▶ Never tamper with or modify the safety valve in any way.
▶ Children and minors may not use this product.
▶ Never fill hydrogen peroxide or other oxygen emitting media.
◁ On contact with materials of the water pressure tank, explosive pressure increases are possible.
▶ Check to ensure that the water supply unit does not exceed the maximum operating temperature.
◁ If it exceeds the maximum operating temperature, explosive pressure increases are possible.
▶ Watch the pressure gage at all times during pumping in order not to exceed the max. operating pressure.
▶ Empty the tank daily after use.
◁ Never leave residues in the tank.
Printed: 30.05.2018 | Doc-Nr: PUB / 5433246 / 000 / 00
2 English
▶ Store the product in a dry place where it cannot be accessed by children or unauthorized persons.
3 Description
3.1 Product overview
@
Tank
;
Filling quantity display
=
Locating pin
%
Pressure gage
&
Safety valve
(
Pump
)
Hose plug-in nipple with ball valve
+
Hose
§
Hose plug-in nipple
/
Drain opening
3.2 Intended use
The product described here is a water pressure tank for distributing coolants and flushing liquids on drilling
rigs, concrete saws or angle grinders. Water is generally used for this purpose.
3.3 Possible misuse
This product is not suitable for:
• Flammable liquids
• Hydrogen peroxide and similar oxygen emitting media
• Caustic substances (certain disinfectants and impregnating agents, acids, alkaline solutions)
• Liquids containing ammonia
Printed: 30.05.2018 | Doc-Nr: PUB / 5433246 / 000 / 00
