Hikvision DS-KD3002-VM Quick Start Guide

Video Intercom Door Station
(D Series)
Quick Start Guide
Video Intercom Door Station·Quick Start Guide
ii
Quick Start Guide
© 2018 Hangzhou Hikvision Digital Technology Co., Ltd.
This quick start guide is intended for users of the models below:
Series
Model
Door Station (D Series)
DS-KD8102-V
DS-KD8002-VM
DS-KD3002-VM
It includes instructions on how to use the Product. The software embodied in the Product is governed by the user license agreement covering that Product.
About this Manual
This Manual is subject to domestic and international copyright protection. Hangzhou
Hikvision Digital Technology Co., Ltd. (“Hikvision”) reserves all rights to this manual. This
manual cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision.
Trademarks
and other Hikvision marks are the property of Hikvision and are registered trademarks or the subject of applications for the same by Hikvision and/or its affiliates. Other trademarks mentioned in this manual are the properties of their respective owners. No right of license is given to use such trademarks without express permission.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THIS MANUAL. HIKVISION DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OF THE MANUAL, OR THE CORRECTNESS, ACCURACY, OR RELIABILITY OF INFORMATION CONTAINED HEREIN. YOUR USE OF THIS MANUAL AND ANY RELIANCE ON THIS MANUAL SHALL BE WHOLLY AT YOUR OWN RISK AND RESPONSIBILITY.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, SECURITY BREACHES, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF OR RELIANCE ON THIS MANUAL, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Video Intercom Door Station·Quick Start Guide
iii
SOME JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY OR CERTAIN DAMAGES, SO SOME OR ALL OF THE ABOVE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO YOU.
Support
Should you have any questions, please do not hesitate to contact your local dealer.
Video Intercom Door Station·Quick Start Guide
iv
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected. Consult the dealer or an experienced radio/TV technician for help.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see:
www.recyclethis.info
Video Intercom Door Station·Quick Start Guide
v
2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
Video Intercom Door Station·Quick Start Guide
vi
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into Warnings and Cautions:
Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.
Warnings
The working temperature of the device is from -40º C to 60º C. All the electronic operation should be strictly compliance with the electrical safety
regulations, fire prevention regulations and other related regulations in your local region.
Please use the power adapter, which is provided by normal company. The power
consumption cannot be less than the required value.
Do not connect several devices to one power adapter as adapter overload may cause
over-heat or fire hazard.
Please make sure that the power has been disconnected before you wire, install or
dismantle the device.
When the product is installed on wall or ceiling, the device shall be firmly fixed. If smoke, odors or noise rise from the device, turn off the power at once and unplug
the power cable, and then please contact the service center.
If the product does not work properly, please contact your dealer or the nearest
service center. Never attempt to disassemble the device yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)
The power supply must conform to LPS. The recommended adaptor models and
manufacturers are shown as below. Use the attached adaptor, and do not change the adaptor randomly.
Model
Manufacturer
Standard
DSA-12PFG-12 FCH 120100
Dee Van Electronics Co., Ltd.
GB
DSA-12PFG-12 FEU 120100
Dee Van Electronics Co., Ltd.
EN
DSA-12PFT-12FUS120100
Dee Van Electronics Co., Ltd.
ANSI
Warnings Follow these safeguards to prevent serious injury or death.
Cautions Follow these precautions to prevent potential injury or material damage.
Video Intercom Door Station·Quick Start Guide
vii
Model
Manufacturer
Standard
DSA-12PFG-12 FUK 120100
Dee Van Electronics Co., Ltd.
BSW
DSA-12PFG-12 FAU 120100
Dee Van Electronics Co., Ltd.
AS
Cautions
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnetism radiation. Avoid the equipment installation on vibrations surface or places subject to shock (ignorance can cause equipment damage).
Do not place the device in extremely hot (refer to the specification of the device for
the detailed operating temperature), cold, dusty or damp locations, and do not expose it to high electromagnetic radiation.
The device cover for indoor use shall be kept from rain and moisture. Exposing the equipment to direct sun light, low ventilation or heat source such as
heater or radiator is forbidden (ignorance can cause fire danger).
Do not aim the device at the sun or extra bright places. A blooming or smear may
occur otherwise (which is not a malfunction however), and affecting the endurance of sensor at the same time.
Please use the provided glove when open up the device cover, avoid direct contact
with the device cover, because the acidic sweat of the fingers may erode the surface coating of the device cover.
Please use a soft and dry cloth when clean inside and outside surfaces of the device
cover, do not use alkaline detergents.
Please keep all wrappers after unpack them for future use. In case of any failure
occurred, you need to return the device to the factory with the original wrapper. Transportation without the original wrapper may result in damage on the device and lead to additional costs.
Improper use or replacement of the battery may result in hazard of explosion.
Replace with the same or equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.
Video Intercom Door Station·Quick Start Guide
viii
Table of Contents
1 Appearance .................................................................................................. 1
1.1 Appearance of DS-KD8102-V ................................................................................... 1
1.2 Appearance of DS-KD8002-VM ................................................................................ 2
1.3 Appearance of DS-KD3002-VM ................................................................................ 3
2 Terminal and Wiring ..................................................................................... 5
2.1 Terminal Description ................................................................................................ 5
2.1.1 Terminals and Interfaces of DS-KD8102-V/ DS-KD8002-VM .............................. 5
2.1.2 Terminals and Interfaces of DS-KD3002-VM ..................................................... 7
2.2 Wiring Description ................................................................................................... 9
2.2.1 Door Lock Wiring .............................................................................................. 9
2.2.2 Door Magnetic Wiring ....................................................................................... 9
2.2.3 Exit Button Wiring ........................................................................................... 11
2.2.4 External Card Reader Wiring ........................................................................... 12
2.2.5 External Elevator Controller Wiring ................................................................ 14
2.2.6 Alarm Device Input Wiring .............................................................................. 15
2.2.7 Alarm Device Output Wiring ........................................................................... 16
3 Installation ................................................................................................. 17
3.1 Installation of DS-KD8102-V....................................................................................17
3.1.1 Gang Box for DS-KD8102-V ..............................................................................17
3.1.2 Wall Mounting with Gang Box of DS-KD8102-V .............................................. 18
3.2 Installation of DS-KD8002-VM ............................................................................... 20
3.2.1 Gang Box for DS-KD8002-VM .......................................................................... 20
3.2.2 Wall Mounting with Gang Box of DS-KD8002-VM ........................................... 20
3.3 Installation of DS-KD3002-VM ............................................................................... 23
3.3.1 Gang Box for DS-KD3002-VM .......................................................................... 23
3.3.2 Wall Mounting with Gang Box of DS-KD3002-VM ........................................... 23
4 Local Operation .......................................................................................... 26
4.1 Keys Description .................................................................................................... 26
4.2 Activate Device ...................................................................................................... 26
4.3 Edit Network Parameters ....................................................................................... 28
4.4 Change Password ................................................................................................... 29
4.5 Call Resident .......................................................................................................... 31
4.6 Unlock Door ........................................................................................................... 32
Appendix ...................................................................................................... 34
Installation Notice ....................................................................................................... 34
Wiring Cables .............................................................................................................. 34
Video Intercom Door Station·Quick Start Guide
1

1 Appearance

1.1 Appearance of DS-KD8102-V

Figure 1-1 Front View
Figure 1-2 Side View
Table 1-1 Descriptions of Keys
No.
Description
1
Low Illumination Supplement Light
2
Built-in Camera
3
LCD Display Screen
4
Keypad
5
Call Button
6
Call Center Key
7
Microphone
8
Card Induction Area
Video Intercom Door Station·Quick Start Guide
2
9
IR Emission
10
IR Receiver
11
Loudspeaker
12
TAMPER

1.2 Appearance of DS-KD8002-VM

10
Figure 1-3 Front View
Figure 1-4 Side View
Table 1-2 Descriptions of Keys
No.
Description
1
Low Illumination Supplement Light
2
Built-in Camera
3
LCD Display Screen
4
Card Induction Area
5
Loudspeaker
6
Keypad
Video Intercom Door Station·Quick Start Guide
3
7
Call Button
8
Microphone
9
Call Center Key
10
TAMPER

1.3 Appearance of DS-KD3002-VM

Figure 1-5 Front View
Figure 1-6 Rear View
Table 1-3 Descriptions Keys
No.
Description
1
Low Illumination Supplement Light
2
Built-in Camera
3
Loudspeaker
Video Intercom Door Station·Quick Start Guide
4
No.
Description
4
LCD Display Screen
5
Card Induction Area
6
Keypad
7
Call Button
8
Call Center Key
9
Microphone
10
TAMPER
Video Intercom Door Station·Quick Start Guide
5

2 Terminal and Wiring

2.1 Terminal Description

2.1.1 Terminals and Interfaces of DS-KD8102-V/ DS-KD8002-VM

Figure 2-1 Terminals and Interfaces of DS-KD8102-V/DS-KD8002-VM
Table 2-1 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
USB 1 USB
USB Interface
LAN
2
LAN1
Network Interface
3
LAN2
Analog Interface
Power
Supply
4
DC 12V
DC 12V Power Supply Input
READER
A1
12V
Power Supply Output
A2
GND
Grounding
A3
W1
Data Input Interface Wiegand Card Reader:
Data1
A4
W0
Data Input Interface Wiegand Card Reader:
Data0
Video Intercom Door Station·Quick Start Guide
6
Name
No.
Interface
Description
A5
BZ
Card Reader Buzzer Output
A6
ERR
Card Reader Indicator Output (Invalid Card
Output)
A7
OK
Card Reader Indicator Output (Valid Card
Output)
A8
TAMP
Tamper-proof Input of Wiegand Card Reader
ALARM
OUT
B1
AO2-
Alarm Relay Output 2
B2
AO2+
B3
AO1-
Alarm Relay Output 1
B4
AO1+
ALARM IN
B5
AI4
Alarm Input 4
B6
AI3
Alarm Input 3
B7
AI2
Alarm Input 2
B8
AI1
Alarm Input 1
DOOR
C1
12V
Power Supply Output
C2
GND
Grounding
C3
NC2
Door Lock Relay Output (NC)
C4
COM2
Grounding Signal
C5
NO2
Door Lock Relay Output (NO)
C6
NC1
Door Lock Relay Output (NC)
C7
COM1
Grounding Signal
C8
NO1
Door Lock Relay Output (NO)
RS485
D1
GND
RS-485 Communication Interfaces
D2
485-
D3
485+
SENSOR
D4
GND
Grounding Signal
D5
S4
Door Magnetic Detection Input 4/Exit Button
D6
S3
Door Magnetic Detection Input 3/Exit Button
D7
S2
Door Magnetic Detection Input 2/Exit Button
D8
S1
Door Magnetic Detection Input 1/Exit Button
Video Intercom Door Station·Quick Start Guide
7

2.1.2 Terminals and Interfaces of DS-KD3002-VM

Figure 2-2 Terminals and Interfaces of DS-KD3002-VM
Table 2-2 Descriptions of Terminals and Interfaces
Name
No.
Interface
Description
USB 1 USB
USB Interface
LAN
2
LAN1
Network Interface
3
LAN2
Analog Interface
Power
Supply
4
DC 12V
DC 12V Power Supply Input
READER
A1
12V
Power Supply Output
A2
GND
Grounding
A3
W1
Data Input Interface Wiegand Card Reader:
Data1
A4
W0
Data Input Interface Wiegand Card Reader:
Data0
A5
BZ
Card Reader Buzzer Output
A6
ERR
Card Reader Indicator Output (Invalid Card
Output)
A7
OK
Card Reader Indicator Output (Valid Card
Output)
A8
TAMP
Tamper-proof Input of Wiegand Card Reader
ALARM
B1
AO2-
Alarm Relay Output 2
Video Intercom Door Station·Quick Start Guide
8
Name
No.
Interface
Description
OUT
B2
AO2+
B3
AO1-
Alarm Relay Output 1
B4
AO1+
DEBUG
B5
GND
Grounding
B6
RX
Serial Port Debugging/Receive data
B7
TX
Serial Port Debugging/Send data
B8
3.3V
Serial Port Debugging/Power Supply
DOOR
C1
12V
Power Supply Output
C2
GND
Grounding
C3
NC2
Door Lock Relay Output (NC)
C4
COM2
Grounding Signal
C5
NO2
Door Lock Relay Output (NO)
C6
NC1
Door Lock Relay Output (NC)
C7
COM1
Grounding Signal
C8
NO1
Door Lock Relay Output (NO)
RS485
D1
GND
RS-485 Communication Interfaces
D2
485-
D3
485+
ALARM IN
D4
GND
Grounding Signal
D5
AI4
Alarm Input 4
D6
AI3
Alarm Input 3
D7
AI2
Alarm Input 2
D8
AI1
Alarm Input 1
Video Intercom Door Station·Quick Start Guide
9

2.2 Wiring Description

2.2.1 Door Lock Wiring

Figure 2-3 Door Lock Wiring
Terminal NC1/COM1 is set as default for accessing magnetic lock/electric bolt;
terminal NO1/COM1 is set as default for accessing electric strike.
To connect electric lock in terminal NO2/COM2/NC2, it is required to set the output of
terminal NO2/COM2/NC2 to be electric lock with Batch Configuration Tool or iVMS-4200.

2.2.2 Door Magnetic Wiring

Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM
For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of door magnetic wiring.
Video Intercom Door Station·Quick Start Guide
10
Figure 2-4 Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM (1)
To connect the door magnetic, it is required to set the output of terminal AI2 to be door magnetic with Batch Configuration Tool or iVMS-4200.
Figure 2-5 Door Magnetic Wiring for DS-KD8102-V/DS-KD8002-VM (2)
Terminal S2 is set as default for connecting door magnetic.
Video Intercom Door Station·Quick Start Guide
11
Door Magnetic Wiring for DS-KD3002-VM
Figure 2-6 Door Magnetic Wiring for DS-KD3002-VM
To connect the door magnetic, it is required to set the output of terminal AI2 to be door magnetic with Batch Configuration Tool or iVMS-4200.

2.2.3 Exit Button Wiring

Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM
For DS-KD8102-V/DS-KD8002-VM, there are two optional ways of exit button wiring.
Figure 2-7 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (1)
To connect the exit button, it is required to set the output of terminal AI1 to be exit button with Batch Configuration Tool or iVMS-4200.
Video Intercom Door Station·Quick Start Guide
12
Figure 2-8 Exit Button Wiring for DS-KD8102-V/DS-KD8002-VM (2)
Exit Button Wiring for DS-KD3002-VM
Figure 2-9 Exit Button Wiring for DS-KD3002-VM
Terminal S1 is set as default for connecting exit button.

2.2.4 External Card Reader Wiring

Please set the DIP switch first before connecting the card reader.
Video Intercom Door Station·Quick Start Guide
13
If the DIP switch should be configured when the card reader is power-on, please
reboot the card reader after configuring the DIP switch.
The DIP switch description is shown in the following table:
No.
Description
How to Configure
1-4
Set the RS-485 address
ON: 1 OFF: 0
6
Select Wiegand protocol or RS-485 protocol
ON: Wiegand OFF: RS-485
7
Set the Wiegand protocol (It is invalid when setting OFF in 6.)
ON: Wiegand 26 OFF: Wiegand 34
RS-485 Card Reader Wiring
Figure 2-10 RS-485 Card Reader Wiring
Video Intercom Door Station·Quick Start Guide
14
Wiegand Card Reader Wiring
Figure 2-11 External Card Reader Wiring

2.2.5 External Elevator Controller Wiring

You can connect the door station to the elevator controller via RS-485 interface. There are 4 groups of RS-485 interfaces on the elevator controller: group A, group B,
Group C, and Group D. Group C is used to connect to the door station.
Figure 2-12 External Elevator Controller Wiring
Video Intercom Door Station·Quick Start Guide
15

2.2.6 Alarm Device Input Wiring

Alarm Device Input Wiring for DS-KD8102-V/DS-KD8002-VM
Figure 2-13 Alarm Device Input Wiring for DS-KD8102-V/DS-KD8002-VM
Alarm Device Input Wiring for DS-KD3002-VM
Figure 2-14 Alarm Device Input Wiring for DS-KD3002-VM
Video Intercom Door Station·Quick Start Guide
16

2.2.7 Alarm Device Output Wiring

Alarm Device Output Wiring for DS-KD8102-V
Figure 2-15 Alarm Device Output Wiring for DS-KD8102-V/DS-KD8002-VM
Alarm Device Output Wiring for DS-KD3002-VM
Figure 2-16 Alarm Device Output Wiring for DS-KD3002-VM
Video Intercom Door Station·Quick Start Guide
17

3 Installation

Before you start:
Make sure the device in the package is in good condition and all the assembly parts
are included.
The power supply the door station supports is 12 VDC. Please make sure your power
supply matches your door station.
Make sure all the related equipment is power-off during the installation. Check the product specification for the installation environment.

3.1 Installation of DS-KD8102-V

To install the door station onto the wall, you are required to use a matched gang box.

3.1.1 Gang Box for DS-KD8102-V

123
47.5
404
Figure 3-1 Front and Side View
123
Figure 3-2 Overhead (Plan) View
Video Intercom Door Station·Quick Start Guide
18
The dimension of gang box for model DS-KD8102-V door station is: 404 (length)×123
(width)×47.5 (depth) mm.
The dimensions above are for reference only. The actual size can be slightly different
from the theoretical dimension.

3.1.2 Wall Mounting with Gang Box of DS-KD8102-V

Steps:
1. Chisel a hole in the wall for inserting the gang box. The size of the hole should be
larger than that of the gang box. The suggested size of hole is 404.5 (length) × 123.5 (width) ×48 (depth) mm.
2. Insert the gang box into the hole and fix it with 4 PA4 screws. Make sure the edges of
the gang box align to the wall.
Figure 3-3 Insert the Gang Box into the Wall
3. Route the cables of the door station through the cable hole.
4. Put the door station into the gang box and hook the lock catches on the rear panel
onto the hook A and B of the gang box.
Video Intercom Door Station·Quick Start Guide
19
Figure 3-4 Install the Door Station
5. Pull the door station downward and then push it towards the inside to make sure it
fits the hole.
6. Tighten the screws of the door station with the Allen wrench.
Figure 3-5 Tighten the Screws of Device
Video Intercom Door Station·Quick Start Guide
20

3.2 Installation of DS-KD8002-VM

3.2.1 Gang Box for DS-KD8002-VM

407.5
135
Figure 3-6 Front View
9
9
7.6
Figure 3-7 Overhead (Plan) View
The dimension of gang box for model DS-KD8002-VM door station is: 407.5 mm × 135
mm × 55 mm.
The dimensions above are for reference only. The actual size can be slightly larger
than the theoretical dimension.

3.2.2 Wall Mounting with Gang Box of DS-KD8002-VM

1. Chisel a hole in the wall for inserting the gang box. The size of the hole should be
larger than that of the gang box. The suggested size of hole is 136 (length) × 408.5 (width) × 55.5 (depth) mm.
Video Intercom Door Station·Quick Start Guide
21
135.5
384
408
8.75 118 8.75
55
Figure 3-8 Dimensions of the Hole
2. Insert the gang box into the hole and fix it with 4 PA4 screws.
Figure 3-9 Insert the Gang Box into the Wall
3. Make sure the edges of the gang box align to the wall and the hook A and hook B of
the gang box hook onto the wall.
4. Route the cables of the door station through the cable hole.
5. Insert the door station into the gang box and then move the door station downward
to hook the lock catches on the rear panel onto the hook C of the gang box.
6. Fix the door station with 2 PM3 screws.
Video Intercom Door Station·Quick Start Guide
22
Figure 3-10 Install the Door Station
7. After fixing the door station onto the gang box, secure it by inserting the plate and
insert 2 POM2 screws.
Figure 3-11 Secure the Door Station
Video Intercom Door Station·Quick Start Guide
23

3.3 Installation of DS-KD3002-VM

3.3.1 Gang Box for DS-KD3002-VM

Figure 3-12 Front and Side View
The dimension of gang box for model DS-KD3002-VM door station is: 343(length)×
113(width)×55(depth) mm.
The dimensions above are for reference only. The actual size can be slightly different
from the theoretical dimension.

3.3.2 Wall Mounting with Gang Box of DS-KD3002-VM

Steps:
1. Chisel a hole in the wall for inserting the gang box. The size of the hole should be
larger than that of the gang box. The suggested size of hole is 343.5 (length) × 113.5 (width) × 55.5 (depth) mm.
2. Insert the gang box into the hole and fix it with 4 PA4 screws.
Video Intercom Door Station·Quick Start Guide
24
Screw
Screw
Figure 3-13 Insert the Gang Box into the Wall
3. Make sure the edges of the gang box align to the wall.
4. Route the cables of the door station through the cable hole.
5. Put the door station into the gang box.
Figure 3-14 Install the Door Station
6. Fix the door station to the gang box with 4 crews.
Video Intercom Door Station·Quick Start Guide
25
Figure 3-15 Tighten the Screws of Device
Video Intercom Door Station·Quick Start Guide
26

4 Local Operation

4.1 Keys Description

Key descriptions of door stations are illustrated in Table 4-1.
Table 4-1 Key Descriptions
Key
Description
Numeric Key 2
Numeric Key 4
Numeric Key 6
Numeric Key 8
#
Call Key (When calling residents or center)
Confirm
*
Return
Delete

4.2 Activate Device

You cannot use the door station until you activate it.
Steps:
1. Power on the door station to enter the activation interface automatically.
Figure 4-1 Activate the Device (Option 1)
2. Press the # key.
Video Intercom Door Station·Quick Start Guide
27
Figure 4-2 Set Password
3. Enter a new password, and confirm the password.
The character description for each numeric key is shown in Table 4-2.
Table 4-2 Character Description
Key
Description
Key
Description
1
1,.?!*#-
6
6mnoMNO
2
2abcABC
7
7pqrsPQRS
3
3defDEF
8
8tuvTUV
4
4ghiGHI
9
9wxyzWXYZ
5
5jklJKL 0 0
When entering the password, taking the numeric key 2 as example, press the numeric key 2 once, the text field shows "2", and press it again, the text field shows "a", and press it again, the text field shows "b", and so on.
STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong
password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to
increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
4. Press the # key to complete the activation.
Video Intercom Door Station·Quick Start Guide
28

4.3 Edit Network Parameters

Purpose:
Network connection is mandatory for the use of door station.
Steps:
1. Go to the configuration mode.
1) Hold down the * key and the # key for 2s to enter the admin password interface.
2) Enter the admin password, and press the # key.

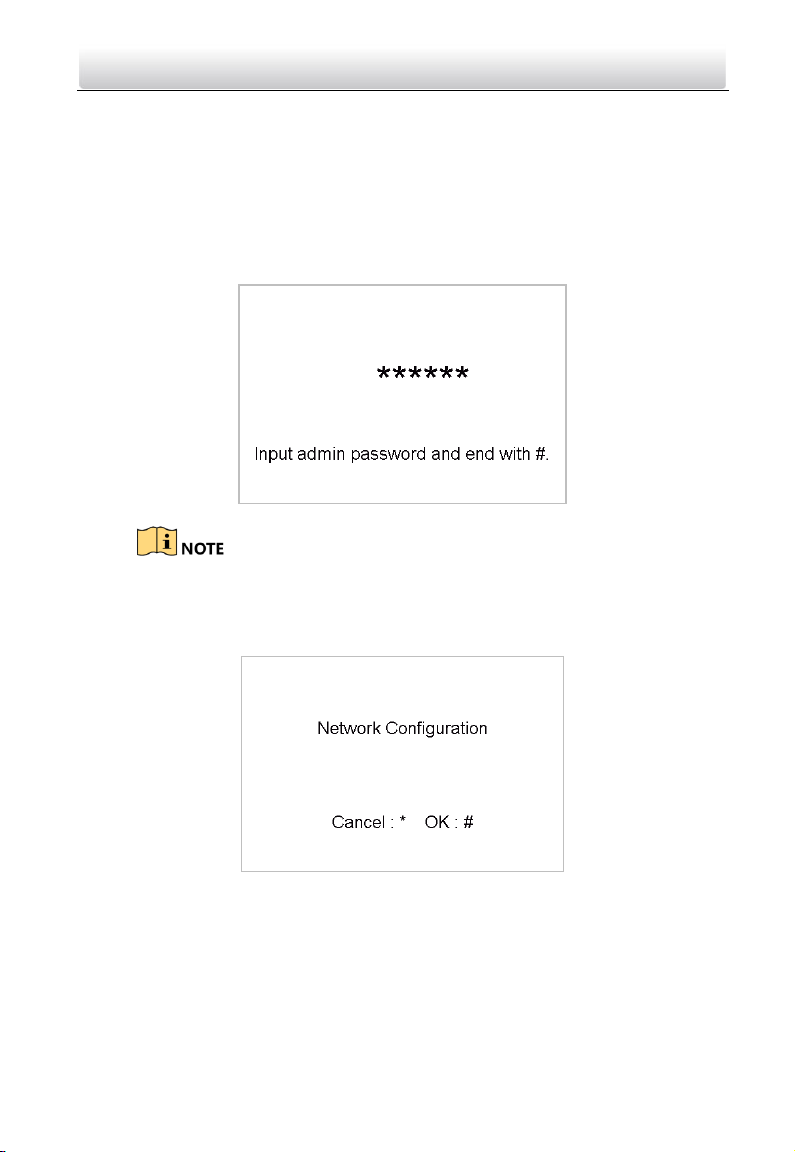

Figure 4-3 Admin Password Interface
The default admin password is 888999.
2. Enter the network parameters settings interface.
1) Press the numeric keys 4 and 6 to switch to the network configuration interface.
Figure 4-4 Network Configuration Interface
2) Press the # key to enter the network parameters settings interface.
With the private SIP protocol, you should set IP address, sub mask, gateway, SIP IP, master IP, and center IP for the door station.
Video Intercom Door Station·Quick Start Guide
29
Figure 4-5 Network Parameters Settings Interface (private SIP)
With the standard SIP protocol, you should set IP address, sub mask, gateway, and center IP.
Figure 4-6 Network Parameters Settings Interface (standard SIP)
3. Edit network parameters.
1) Move the cursor to parameters to be configured.
2) Press the # key to enter or exit the editing mode.
4. Press the * key to exit the network configuration interface.

4.4 Change Password

Purpose:
2 kinds of password are available when using the door station: configuration password (admin password) and card activation password.
Configuration Password: It is necessary when you want to configure parameters of the door station, such as IP parameters, door station No., system type, and so on.
Card Activation Password: It is necessary when you want to issue cards via password.
Video Intercom Door Station·Quick Start Guide
30
The default configuration password is 888999. We recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.
Steps:
1. Go to the configuration mode.
1) Hold down the * key and the # key for 2s to enter the admin password interface.
2) Enter the admin password, and press the # key.
Figure 4-7 Admin Password Interface
The default admin password is 888999.
2. Press the numeric keys 4 and 6 to switch to the password settings interface.
Figure 4-8 Password Settings Interface

Change Configuration Password

Steps:
1. On the password settings interface, press the numeric key 1 to enter the configuration
password changing interface.
Video Intercom Door Station·Quick Start Guide
31
Figure 4-9 Configuration Password Changing Interface
2. Enter the old password, and the new password, and confirm the new one.
1) Move the cursor to parameters to be configured.
2) Press the # key to enter or exit the editing mode.
3. Press the * key to exit the password settings interface.

Change Card Activation Password

Steps:
1. On the password settings interface, press the numeric key 2 to enter the card
activation password changing interface.
Figure 4-10 Card Activation Password Changing Interface
2. Enter the old password, and the new password, and confirm the new one.
3) Move the cursor to parameters to be configured.
4) Press the # key to enter or exit the editing mode.
3. Press the * key to exit the password settings interface.

4.5 Call Resident

You can call residents via the door station no matter the door station is in the network intercom system or the analog intercom system.
The door station can work as main/sub door station, and outer door station, which correspond to different calling resident modes respectively.
Video Intercom Door Station·Quick Start Guide
32

Work as Main/Sub Door Station

Steps:
1. Enter the calling No.
With the private SIP protocol, the calling No. should be the room No. of the indoor station.
With the standard SIP protocol, the calling No. should be the VoIP phone No. of the indoor station. And you must make sure that the indoor station supports the standard SIP protocol.
2. Press the # key or the key to start calling the resident.

Work as Outer Door Station

Steps:
1. Enter the calling No.
With the private SIP protocol, the calling No. should be the community No. and the # key, the Building No. and the # key, the Unit No. and the # key, and the Room No. and the # key.
With the standard SIP protocol, the calling No. should be the VoIP phone No. of the indoor station. And you must make sure that the indoor station supports the standard SIP protocol.
2. Press the key to start calling the resident.

4.6 Unlock Door

Before you start:
Make sure your door station works as the main/sub door station.
Purpose:
2 ways are available to unlock the door: unlocking door via password, and unlocking door via card.

Unlock Door by Password

Unlocking the door by inputting the password is only available in the network intercom system.
Steps:
1. Enter the # key and the Room No.
2. Enter the password and the # key.
The password varies according to different rooms.
Video Intercom Door Station·Quick Start Guide
33
The default unlocking password is 123456.

Unlock Door by Card

Before you start:
Make sure the card has been issued. You can issue the card via the door station, or via iVMS-4200 client software. Please refer to User Manual for detail steps.
Unlocking the door by swiping the card is available both in the network intercom system and the analog intercom system.
Steps:
Swipe the card on the card induction area to unlock the door.
The main card does not support unlocking the door.
Video Intercom Door Station·Quick Start Guide
34

Appendix

Installation Notice

While installing the indoor station, make sure that the distance between any two
devices is far enough to avoid the howling and echo. The distance between two devices
is recommended to be longer than 10 meters.
Here devices refer to indoor station, outdoor station and master station.

Wiring Cables

Cable
Specification
Power Cord of Door Station
RVV 2*1.0
Network Cable of Door Station
UTP-five Categories
Door Lock Wiring (With Door Magnetic)
RVV 4*1.0
Door Lock Wiring (Without Door Magnetic)
RVV 2*1.0
Exit Button Wiring
RVV 2*0.5
External Card Reader Wiring
RVVP 4*0.75
Video Intercom Door Station·Quick Start Guide
35
UD09725B
Loading...
