Hikvision DS-7104NI-SL-W-1TB, DS-7104NI-SL-W-2TB, DS-7104NI-SL-W-4TB, DS-7104NI-SL-W User Manual

Download

Network Video Recorder

User Manual

UD.6L0202D1289A01

User Manual of Network Video Recorder

Hikvision® Network Digital Video Recorder User Manual

This manual, as well as the software described in it, is furnished under license and may be used or copied only in accordance with the terms of such license. The content of this manual is furnished for informational use only, is subject to change without notice, and should not be construed as a commitment by Hikvision Digital Technology Co., Ltd. (Hikvision). Hikvision assumes no responsibility or liability for any errors or inaccuracies that may appear in the book.

Except as permitted by such license, no part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, recording, or otherwise, without the prior written permission of Hikvision.

HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, REGARDING THE HIKVISION SOFTWARE. HIKVISION DOES NOT WARRANT, GUARANTEE, OR MAKE ANY REPRESENTATIONS REGARDING THE USE OR THE RESULTS OF THE USE OF THE HIKVISION SOFTWARE IN TERMS OF ITS CORRECTNESS, ACCURACY, RELIABILITY, CURRENTNESS, OR OTHERWISE. THE ENTIRE RISK AS TO THE RESULTS AND PERFORMANCE OF THE HIKVISION SOFTWARE IS ASSUMED BY YOU. THE EXCLUSION OF IMPLIED WARRANTIES IS NOT PERMITTED BY SOME STATES. THE ABOVE EXCLUSION MAY NOT APPLY TO YOU.

IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES (INCLUDING DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, LOSS OF BUSINESS INFORMATION, AND THE LIKE) ARISING OUT OF THE USE OR INABILITY TO USE THE HIKVISION SOFTWARE EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. BECAUSE SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES, THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

User Manual of Network Video Recorder

Regulatory information FCC information

FCC compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant

to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC, the EMC Directive 2004/108/EC.

2002/96/EC (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see:

www.recyclethis.info.

User Manual of Network Video Recorder

Preventive and Cautionary Tips

Before connecting and operating your device, please be advised of the following tips:

• Ensure unit is installed in a well-ventilated, dust-free environment.

• Unit is designed for indoor use only.

• Keep all liquids away from the device.

• Ensure environmental conditions meet factory specifications.

• Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it

may cause damage to the sensitive electronics within the unit.

• Use the device in conjunction with an UPS if possible.

• Power down the unit before connecting and disconnecting accessories and peripherals.

• A factory recommended HDD should be used for this device.

• Improper use or replacement of the battery may result in hazard of explosion. Replace with the same or

equivalent type only. Dispose of used batteries according to the instructions provided by the battery manufacturer.

User Manual of Network Video Recorder

Series

Model

Type

7100NI-SL

DS-7104NI-SL DS-7108NI-SL

Network Video Recorder 7100NI-SL/W

DS-7104NI-SL/W

Network Video Recorder

7100NI-SN

DS-7104NI-SN DS-7108NI-SN DS-7116NI-SN

Network Video Recorder

7100NI-SN/N

DS-7104NI-SN/N DS-7108NI-SN/N DS-7116NI-SN/N

Network Video Recorder

7100NI-SN/P

DS-7104NI-SN/P DS-7108NI-SN/P DS-7116NI-SN/P

Network Video Recorder

7600NI-SN

DS-7604NI-SN DS-7608NI-SN DS-7616NI-SN

Network Video Recorder

7600NI-SN/N

DS-7604NI-SN/N DS-7608NI-SN/N DS-7616NI-SN/N

Network Video Recorder

7600NI-SN/P

DS-7604NI-SN/P DS-7608NI-SN/P DS-7616NI-SN/P

Network Video Recorder

Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. The figures in the manual are for reference only.

This manual is applicable to the models listed in the following table.

User Manual of Network Video Recorder

Product Key Features

General

 Connectable to network cameras, network dome and encoders.  Connectable to the third-party network cameras like AXIS, Brickcom, Bosch, PANASONIC,

SAMSUNG and SANYO, and network cameras that adopt ONVIF or PSIA protocol.

 PAL/NTSC adaptive video inputs.  Each channel supports dual-stream.  Up to 16 network cameras can be connected.  Independent configuration for each channel, including resolution, frame rate, bit rate, image quality,

etc.

 The quality of the input and output record is configurable.

Local Monitoring

 Simultaneous HDMI and VGA outputs.  HDMI output and VGA output at up to 1920×1080 resolution.  Multiple screen display in live view is supported, and the display sequence of channels is adjustable.  Live view screen can be switched in group, and manual switch and auto-switch live view are also

provided, and the interval of auto-switch can be adjusted.

 Quick setting menu is provided for live view.  Motion detection, tamper-proof, video exception alert and video loss alert functions.  Privacy mask.  Multiple PTZ protocols supported; PTZ preset, patrol and pattern.  Zooming in by clicking the mouse and PTZ tracing by dragging mouse.

HDD Management

 Up to 2 SATA hard disk can be connected, with a maximum of 4TB storage capacity.  Support S.M.A.R.T. and bad sector detection.  HDD quota management; different capacity can be assigned to different channel.

Recording and Playback

 Holiday recording schedule configuration.  Continuous and event video recording parameters.  Multiple recording types: manual, normal, alarm, motion, motion | alarm, motion & alarm.  8 recording time periods with separated recording types.  Pre-record and post-record for alarm, motion detection for recording, and pre-record time for

schedule and manual recording.

 Searching record files by events (alarm input/motion detection).  Tag adding for record files, searching and playing back by tags.  Locking and unlocking record files.  Searching and playing back record files by channel number, recording type, start time, end time, etc.  Zooming in when playback.  Reverse playback of multi-channel.  Supports pause, play reverse, fast forward, slow forward, skip forward, and skip backward when

playback, and locating by dragging the mouse.

 Up to 8-ch synchronous playback at 720P real time.

User Manual of Network Video Recorder

Backup

 Export video data by USB or SATA device.  Export video clips when playback.  Management and maintenance of backup devices.

Alarm and Exception

 Configurable arming time of alarm input/output.  Alarm for video loss, motion detection, tampering, abnormal signal, video input/output standard

mismatch, illegal login, network disconnected, IP confliction, abnormal record, HDD error, and HDD full, etc.

 Alarm triggers full screen monitoring, audio alarm, notifying surveillance center, sending email and

alarm output.

 Automatic restore when system is abnormal.

Other Local Functions

 Operable by mouse and remote control.  Three-level user management; admin user is allowed to create many operating accounts and define

their operating permission, which includes the limit to access any channel.

 Operation, alarm, exceptions and log recording and searching.  Manually triggering and clearing alarms.  Import and export of device configuration information.

Network Functions

 1 self-adaptive 10M/100M/1000M network interface for DS-7116NI-SN, DS-7116NI-SN/N,

DS-7116NI-SN/P, DS-7616NI-SN, DS-7616NI-SN/N and DS-7616NI-SN/P, and 1 self-adaptive 10M/100M network interface for other models.

 Up to 8 independent PoE network interfaces are provided for DS-7600NI-SN/P and

DS-7100NI-SN/P series.

 Up to 8 independent built-in switch network interfaces are provided for DS-7600NI-SN/N and

DS-7100NI-SN/N series.

 IPv6 is supported.  TCP/IP protocol, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, NFS, and iSCSI are supported.  TCP, UDP and RTP for unicast.  Auto/Manual port mapping by UPnPTM.  Remote reverse playback via RTSP.  Support accessing by the platform via ONVIF.  Remote search, playback, download, locking and unlocking of the record files, and support

downloading files broken transfer resume.

 Remote parameters setup; remote import/export of device parameters.  Remote viewing of the device status, system logs and alarm status.  Remote locking and unlocking of mouse.  Remote HDD initializing and program upgrading.  Remote system restart and shutdown.  Alarm and exception information can be sent to the remote host.  Remotely start/stop recording.  Remotely start/stop alarm output.  Remote PTZ control.  Two-way audio and voice broadcasting.  Embedded WEB server.

User Manual of Network Video Recorder

Development Scalability:

 SDK for Windows and Linux system.  Source code of application software for demo.  Development support and training for application system.

User Manual of Network Video Recorder

TABLE OF CONTENTS

Product Key Features .............................................................................................................................. 6

Chapter 1 Introduction .............................................................................................................................. 12

1.1 Front Panel .................................................................................................................................... 13

1.2 IR Remote Control Operations ...................................................................................................... 15

1.3 USB Mouse Operation .................................................................................................................. 18

1.4 Input Method Description .............................................................................................................. 19

1.5 Rear Panel ..................................................................................................................................... 20

Chapter 2 Getting Started ......................................................................................................................... 24

2.1 Starting Up and Shutting Down the NVR ...................................................................................... 25

2.2 Using the Wizard for Basic Configuration..................................................................................... 27

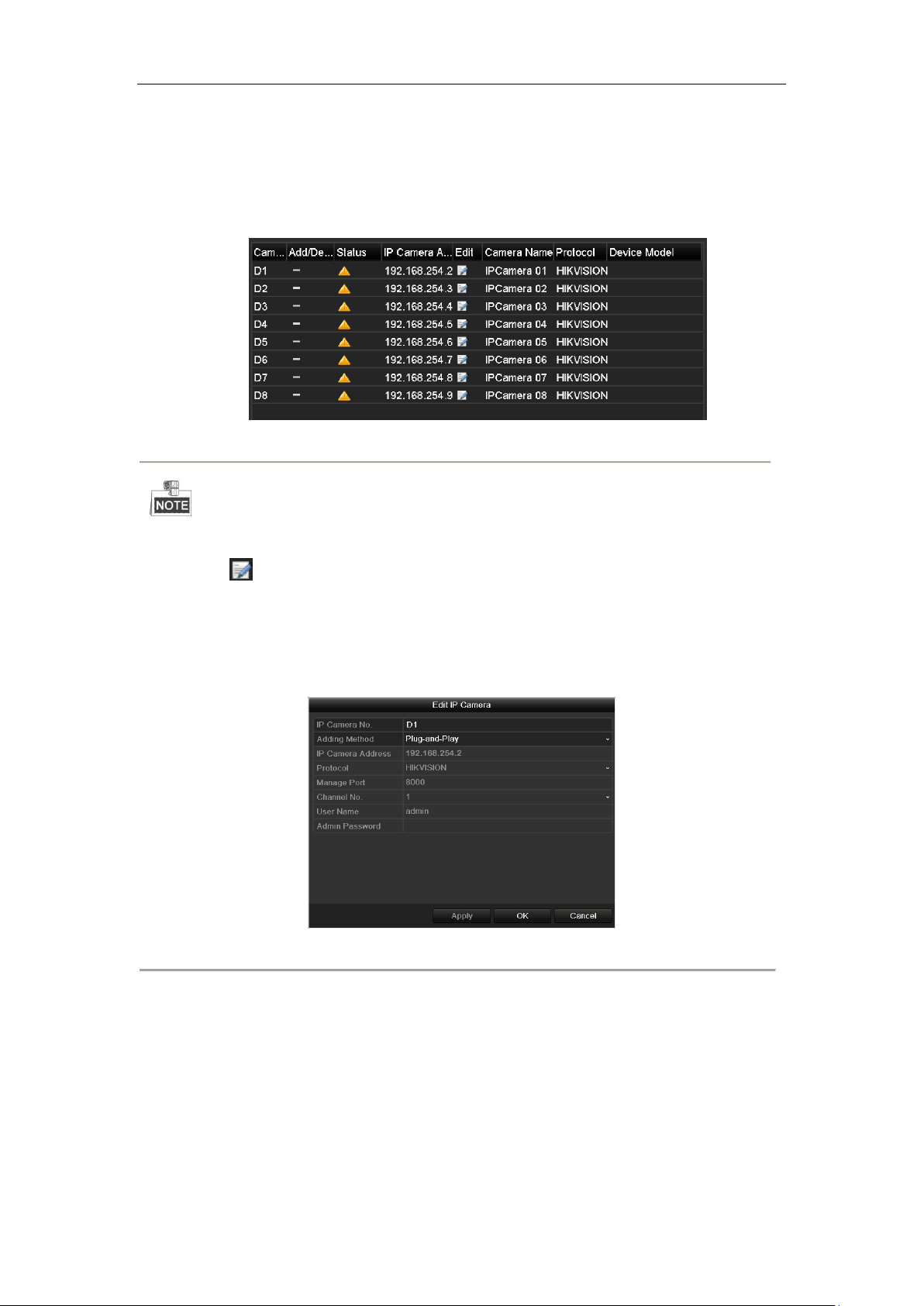

2.3 Adding and Editing the IP Cameras ............................................................................................... 32

2.3.1 Adding the Online IP Cameras............................................................................................. 32

2.3.2 Editing the Connected IP cameras and Configuring Customized Protocols ......................... 35

2.3.3 Editing IP Cameras Connected to the PoE Interfaces .......................................................... 38

2.3.4 Editing IP Cameras Connected to the Built-in Switch Network Interfaces .......................... 39

Chapter 3 Live View .................................................................................................................................. 42

3.1 Introduction of Live View ............................................................................................................. 43

3.2 Operations in Live View Mode ...................................................................................................... 44

3.2.1 Using the Mouse in Live View ............................................................................................. 44

3.2.2 Quick Setting Toolbar in Live View Mode .......................................................................... 45

3.3 Adjusting Live View Settings ........................................................................................................ 47

3.4 User Logout ................................................................................................................................... 49

Chapter 4 PTZ Controls ............................................................................................................................ 50

4.1 Setting PTZ Presets, Patrols & Patterns......................................................................................... 51

4.1.1 Customizing Presets ............................................................................................................. 51

4.1.2 Calling Presets ..................................................................................................................... 51

4.1.3 Customizing Patrols ............................................................................................................. 53

4.1.4 Calling Patrols ..................................................................................................................... 54

4.1.5 Customizing Patterns ........................................................................................................... 55

4.1.6 Calling Patterns .................................................................................................................... 56

4.2 PTZ Control Toolbar ..................................................................................................................... 57

Chapter 5 Record Settings ......................................................................................................................... 58

5.1 Configuring Recording Parameters ............................................................................................... 59

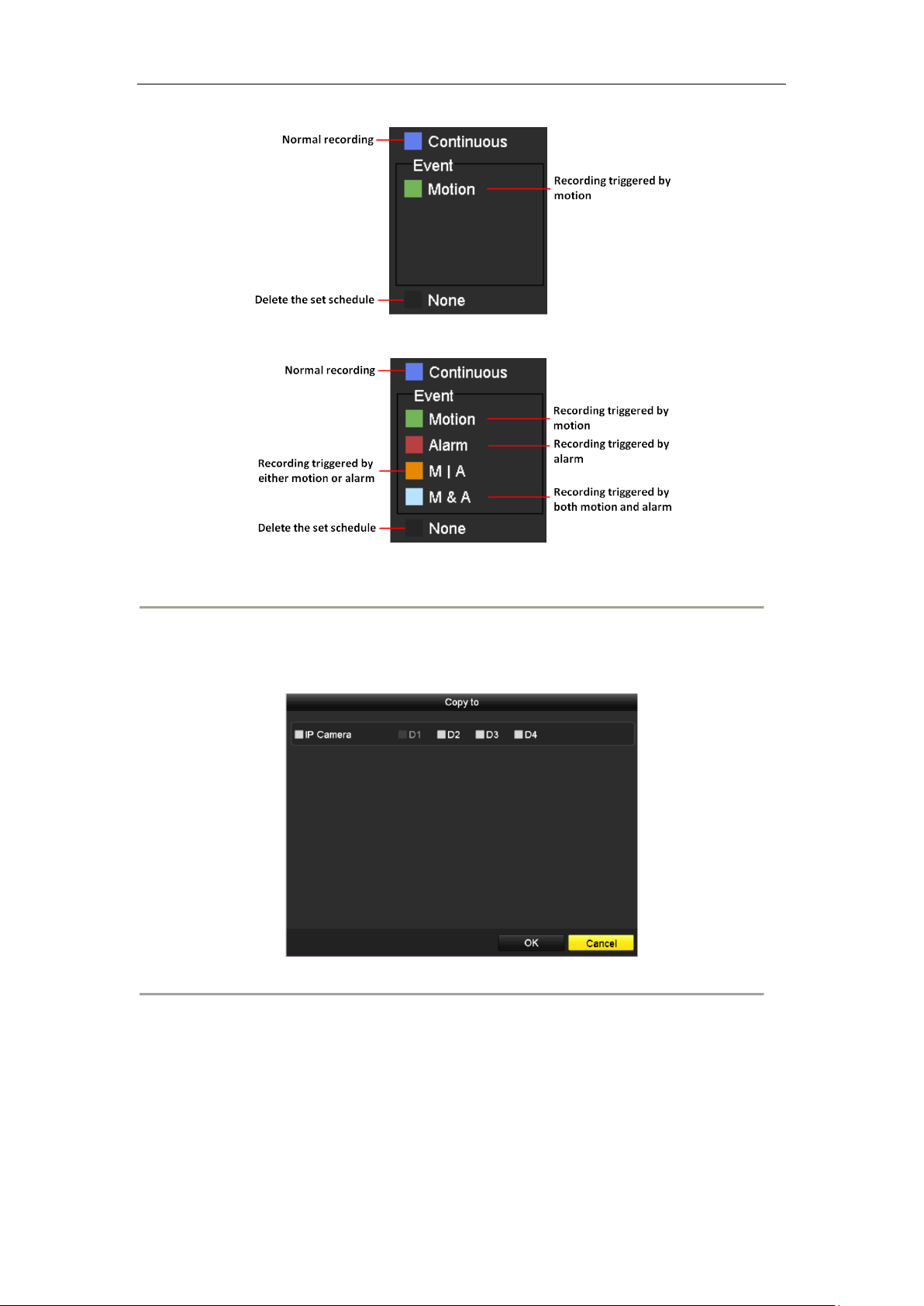

5.2 Configuring Record Schedule ....................................................................................................... 61

5.3 Configuring Motion Detection Record .......................................................................................... 64

5.4 Configuring Alarm Triggered Record ............................................................................................ 66

5.5 Manual Record .............................................................................................................................. 68

5.6 Configuring Holiday Record ......................................................................................................... 69

5.7 Files Protection .............................................................................................................................. 71

Chapter 6 Playback .................................................................................................................................... 73

6.1 Playing Back Record Files ............................................................................................................ 74

User Manual of Network Video Recorder

6.1.1 Playing Back by Channel ................................ ................................................................ ..... 74

6.1.2 Playing Back by Time .......................................................................................................... 76

6.1.3 Playing Back by Event Search ............................................................................................. 78

6.1.4 Playing Back by Tag ............................................................................................................ 80

6.1.5 Playing Back by System Logs ............................................................................................. 82

6.1.6 Playing Back External File .................................................................................................. 84

6.2 Auxiliary Functions of Playback ................................................................................................... 85

6.2.1 Playing Back Frame by Frame ................................ ............................................................. 85

6.2.2 Digital Zoom ........................................................................................................................ 85

6.2.3 Reverse Playback of Multi-channel ..................................................................................... 85

Chapter 7 Backup ...................................................................................................................................... 87

7.1 Backing up Record Files ............................................................................................................... 88

7.1.1 Quick Export ........................................................................................................................ 88

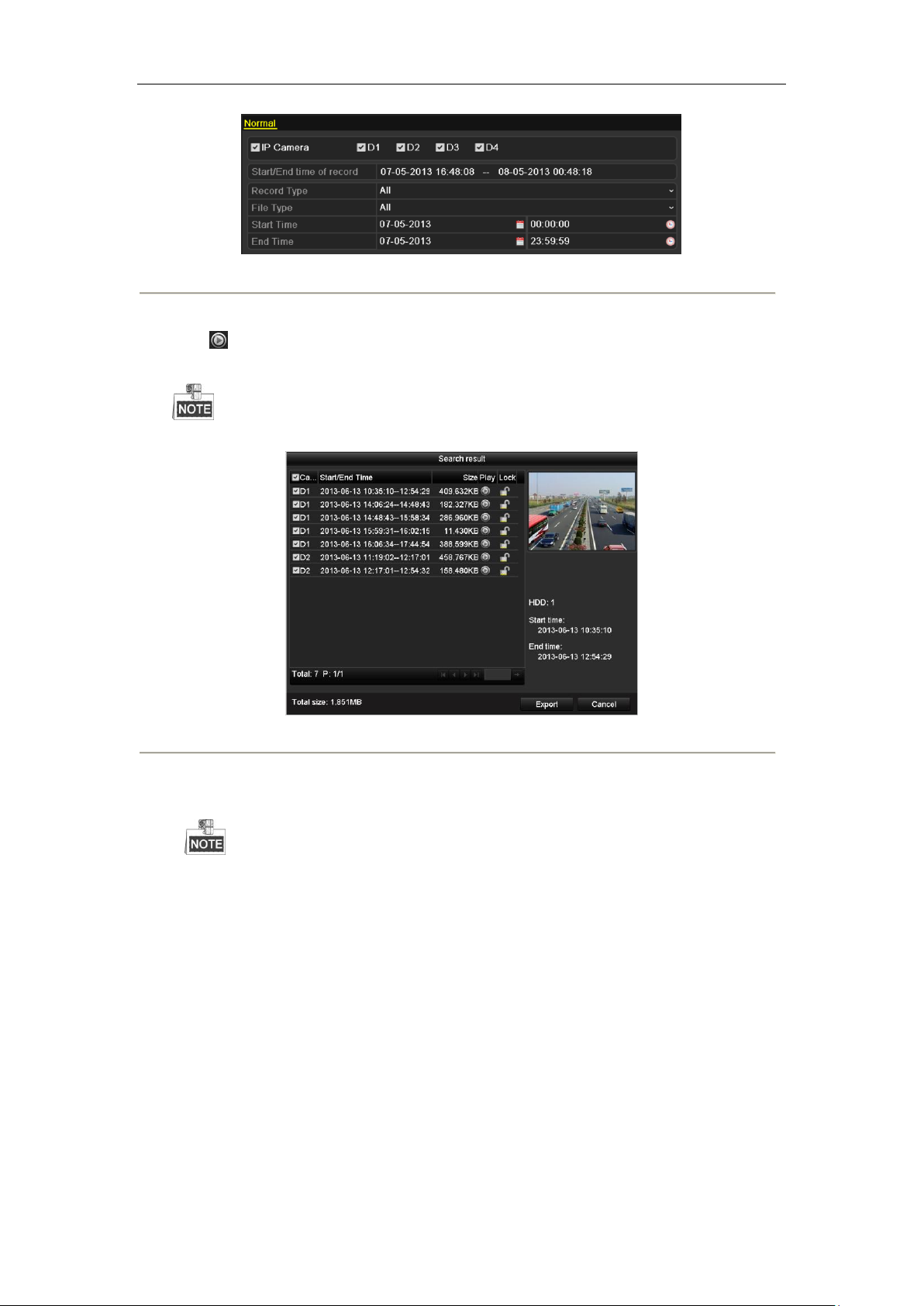

7.1.2 Backing up by Normal Video Search ................................................................................... 89

7.1.3 Backing up by Event Search ................................................................................................ 94

7.1.4 Backing up Video Clips ....................................................................................................... 96

7.2 Managing Backup Devices ............................................................................................................ 98

Chapter 8 Alarm Settings ........................................................................................................................ 102

8.1 Setting Motion Detection Alarm .................................................................................................. 103

8.2 Setting Sensor Alarms ................................................................................................................. 105

8.3 Detecting Video Loss Alarm ........................................................................................................ 108

8.4 Detecting Video Tampering Alarm .............................................................................................. 110

8.5 Handling Exceptions Alarm ......................................................................................................... 112

8.6 Setting Alarm Response Actions ................................................................................................. 113

8.7 Triggering or Clearing Alarm Output Manually .................................................................... 115

Chapter 9 Network Settings .................................................................................................................... 116

9.1 Configuring General Settings ...................................................................................................... 117

9.2 Configuring Advanced Settings ................................................................................................... 119

9.2.1 Configuring PPPoE Settings .............................................................................................. 119

9.2.2 Configuring WIFI .............................................................................................................. 119

9.2.3 Configuring DDNS ............................................................................................................ 121

9.2.4 Configuring NTP Server .................................................................................................... 124

9.2.5 Configuring Remote Alarm Host ....................................................................................... 125

9.2.6 Configuring Multicast ........................................................................................................ 126

9.2.7 Configuring RTSP .............................................................................................................. 126

9.2.8 Configuring Server and HTTP Ports .................................................................................. 127

9.2.9 Configuring Email ............................................................................................................. 127

9.2.10 Configuring UPnP™ .......................................................................................................... 128

9.2.11 Configuring High-speed Download ................................................................................... 130

9.3 Checking Network Traffic ........................................................................................................... 132

9.4 Configuring Network Detection .................................................................................................. 133

9.4.1 Testing Network Delay and Packet Loss ............................................................................ 133

9.4.2 Exporting Network Packet ................................................................................................. 133

9.4.3 Checking the Network Status ............................................................................................. 134

User Manual of Network Video Recorder

9.4.4 Checking Network Statistics .............................................................................................. 135

Chapter 10 HDD Management ................................................................................................................. 137

10.1 Initializing HDDs ........................................................................................................................ 138

10.2 Checking HDD Status ................................................................................................................. 140

10.3 HDD Detection ............................................................................................................................ 142

10.4 Configuring HDD Error Alarms .................................................................................................. 144

Chapter 11 Camera Settings ..................................................................................................................... 145

11.1 Configuring OSD Settings ........................................................................................................... 146

11.2 Configuring Privacy Mask........................................................................................................... 147

11.3 Configuring Image Parameters .................................................................................................... 148

Chapter 12 NVR Management and Maintenance ................................................................................... 149

12.1 Viewing System Information ....................................................................................................... 150

12.1.1 Viewing Device Information .............................................................................................. 150

12.1.2 Viewing Camera Information ............................................................................................. 150

12.1.3 Viewing Record Information ............................................................................................. 150

12.1.4 Viewing Alarm Information ............................................................................................... 151

12.1.5 Viewing Network Information ........................................................................................... 151

12.1.6 Viewing HDD Information ................................................................................................ 152

12.2 Searching & Export Log Files ..................................................................................................... 153

12.3 Importing/Exporting Configuration Files .................................................................................... 156

12.4 Upgrading System ....................................................................................................................... 157

12.4.1 Upgrading by Local Backup Device .................................................................................. 157

12.4.2 Upgrading by FTP ............................................................................................................. 157

12.5 Restoring Default Settings ........................................................................................................... 159

Chapter 13 Others ...................................................................................................................................... 160

13.1 Configuring General Settings ...................................................................................................... 161

13.2 Configuring DST Settings ........................................................................................................... 162

13.3 Configuring More Settings for Device Parameters ...................................................................... 163

13.4 Managing User Accounts............................................................................................................. 164

13.4.1 Adding a User .................................................................................................................... 164

13.4.2 Deleting a User .................................................................................................................. 166

13.4.3 Editing a User .................................................................................................................... 167

Appendix ....................................................................................................................................................... 168

Glossary ................................................................................................................................................. 169

Troubleshooting ..................................................................................................................................... 170

List of Compatible IP Cameras .............................................................................................................. 176

List of Hikvision IP Cameras ......................................................................................................... 176

List of Third-party IP Cameras ....................................................................................................... 179

User Manual of Network Video Recorder

Chapter 1 Introduction

User Manual of Network Video Recorder

No.

Icon

Description

1 Indicator turns red when DVR is powered up.

2 Indicator lights in red when data is being read from or written to HDD.

Indicator blinks blue when network connection is functioning properly.

No.

Name

Description

Status

Power

Power indicator turns yellow when system is running.

1.1 Front Panel

Figure 1. 1 Front Panel of DS-7100NI Series

This panel is applicable to the DS-7100NI-SL, DS-7100NI-SL/W, DS-7100NI-SN, DS-7100NI-SN/N and DS-7100NI-SN/P series NVR.

Table 1. 1 Description of Front Panel

Figure 1. 2 Front Panel of DS-7600NI Series

This panel is applicable to the DS-7600NI-SN, DS-7600NI-SN/N and DS-7600NI-SN/P series NVR.

Table 1. 2 Description of Front Panel

User Manual of Network Video Recorder

No.

Name

Description

Indicator

Status

Status indicator blinks red when data is being read from or written to HDD.

Tx/Rx

TX/RX indictor blinks yellow when network connection is functioning properly.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

User Manual of Network Video Recorder

No.

Name

Description

POWER

Power on/off the device.

DEV

Enables/Disables Remote Control.

Alphanumeric Buttons

Switch to the corresponding channel in Live view or PTZ Control mode.

Input numbers and characters in Edit mode.

Switch between different channels in the Playback mode.

EDIT Button

Edit text fields. When editing text fields, it will also function as a Backspace button to delete the character in front of the cursor.

On checkbox fields, pressing the button will check the checkbox.

In PTZ Control mode, the button adjusts the iris of the camera.

1.2 IR Remote Control Operations

The NVR may also be controlled with the included IR remote control (not supported with theDS-7100NI series NVR), shown in Figure 1. 3.

Batteries (2×AAA) must be installed before operation.

Figure 1. 3 Remote Control

Table 1. 3 Description of the Soft Keyboard Icons

User Manual of Network Video Recorder

No.

Name

Description

In Playback mode, it can be used to generate video clips for backup.

Enter/exit the folder of USB device.

A Button

Adjust focus in the PTZ Control menu.

It is also used to switch between input methods (upper and lowercase alphabet, symbols and numeric input).

REC Button

Enter the Manual Record setting menu.

In PTZ control settings, press the button and then you can call a PTZ preset by pressing Numeric button.

It is also used to turn audio on/off in the Playback mode.

PLAY Button

The button is used to enter the All-day Playback mode.

It is also used to auto scan in the PTZ Control menu.

INFO Button

Reserved.

VOIP Button

Switch between main and spot output.

In PTZ Control mode, it can be used to zoom out the image.

MENU Button

Press the button will help you return to the Main menu (after successful login).

Press and hold the button for 5 seconds will turn off audible key beep.

In PTZ Control mode, the MENU button will start wiper (if applicable).

In Playback mode, it is used to show/hide the control interface.

PREV Button

Switch between single screen and multi-screen mode.

In PTZ Control mode, it is used to adjust the focus in conjunction with the A/FOCUS+ button.

DIRECTION Button

Navigate between different fields and items in menus.

In the Playback mode, the Up and Down button is used to speed up and slow down recorded video. The Left and Right button will select the next and previous record files.

In Live View mode, these buttons can be used to cycle through channels.

In PTZ control mode, it can control the movement of the PTZ camera.

ENTER Button

Confirm selection in any of the menu modes.

It can also be used to tick checkbox fields.

In Playback mode, it can be used to play or pause the video.

In single-frame Playback mode, pressing the button will advance the video by a single frame.

PTZ Button

In Auto-switch mode, it can be used to stop /start auto switch.

ESC Button

Back to the previous menu.

Press for Arming/disarming the device in Live View mode.

RESERVED

Reserved for future usage.

F1 Button

Select all items on the list when used in a list field.

In PTZ Control mode, it will turn on/off PTZ light (if applicable).

In Playback mode, it is used to switch between play and reverse play.

PTZ Control Buttons

Buttons to adjust the iris, focus and zoom of a PTZ camera.

User Manual of Network Video Recorder

No.

Name

Description

F2 Button

Cycle through tab pages.

In synchronous playback mode, it is used to switch between channels.

Troubleshooting Remote Control:

Make sure you have installed batteries properly in the remote control. And you have to aim the remote control at the IR receiver in the front panel.

If there is no response after you press any button on the remote, follow the procedure below to troubleshoot.

Steps:

1. Go to Menu > Settings > General > More Settings by operating the front control panel or the mouse.

2. Check and remember NVR ID#. The default ID# is 255. This ID# is valid for all the IR remote controls.

3. Press the DEV button on the remote control.

4. Enter the NVR ID# you set in step 2.

5. Press the ENTER button on the remote.

If the Status indicator on the front panel turns blue, the remote control is operating properly. If the Status indicator does not turn blue and there is still no response from the remote, please check the following:

• Batteries are installed correctly and the polarities of the batteries are not reversed.

• Batteries are fresh and not out of charge.

• IR receiver is not obstructed.

If the remote still cannot function properly, please change a remote and try again, or contact the device provider.

User Manual of Network Video Recorder

Name

Action

Description

Left-Click

Single-Click

Live view: Select channel and show the quick set menu. Menu: Select and enter.

Double-Click

Live view: Switch between single-screen and multi-screen.

Click and Drag

PTZ control: pan, tilt and zoom. Tamper-proof, privacy mask and motion detection: Select target area. Digital zoom-in: Drag and select target area. Live view: Drag channel/time bar.

Right-Click

Single-Click

Live view: Show menu. Menu: Exit current menu to upper level menu.

Scroll-Wheel

Scrolling up

Live view: Previous screen. Menu: Previous item.

Scrolling down

Live view: Next screen. Menu: Next item.

1.3 USB Mouse Operation

A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this NVR. To use a USB mouse:

1. Plug USB mouse into one of the USB interfaces on the front panel of the NVR.

2. The mouse should automatically be detected. If in a rare case that the mouse is not detected, the possible

reason may be that the two devices are not compatible, please refer to the recommended the device list from your provider.

The operation of the mouse:

Table 1. 4 Description of the Mouse Control

User Manual of Network Video Recorder

Icons

Description

Icons

Description

English

Capital English

Numbers

Symbols

Lowercase/Uppercase

Backspace

Space

Enter

Exit

1.4 Input Method Description

Figure 1. 4 Soft Keyboard

Description of the buttons on the soft keyboard:

Table 1. 5 Description of the Soft Keyboard Icons

User Manual of Network Video Recorder

No.

Item

Description

Power Supply

12VDC power supply.

Audio In

RCA connector for two-way audio input.

HDMI Interface

HDMI video output connector.

Network Interface

Connector for LAN (Local Area Network).

Audio Out

RCA connector for audio output.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Ground

Ground (needs to be connected when NVR starts up).

Antenna Interface (for DS-7100NI-SL/W series NVR only)

Needs to be connected with antenna if you want to configure and get connection via WLAN.

1.5 Rear Panel

Figure 1. 5 DS-7100NI-SL and DS-7100NI-SN

Figure 1. 6 DS-7100NI-SL/W

Table 1. 6 Description of Rear Panel

Figure 1. 7 DS-7104NI-SN/N

User Manual of Network Video Recorder

No.

Item

Description

Power Supply

12VDC power supply.

Audio In

RCA connector for two-way audio input.

HDMI Interface

HDMI video output connector.

Network Interface

Connector for LAN (Local Area Network).

Audio Out

RCA connector for audio output.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Ground

Ground (needs to be connected when NVR starts up).

Network Interfaces with switch function

Network interface for the cameras.

No.

Item

Description

Power Supply

48VDC power supply.

Audio In

RCA connector for two-way audio input.

HDMI Interface

HDMI video output connector.

Network Interface

Connector for LAN (Local Area Network).

Audio Out

RCA connector for audio output.

Figure 1. 8 DS-7108 & 7116NI-SN/N

Table 1. 7 Description of Rear Panel

Figure 1. 9 DS-7104NI-SN/P

Figure 1. 10 DS-7108 & 7116NI-SN/P

Table 1. 8 Description of Rear Panel

User Manual of Network Video Recorder

No.

Item

Description

VGA Output

DB9 connector for VGA output. Display local video output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Ground

Ground (needs to be connected when NVR starts up).

Network Interfaces with PoE function

Network interface for the cameras and to provide power over Ethernet.

No.

Item

Description

Power Supply

12VDC power supply.

Audio In

RCA connector for two-way audio input.

HDMI Interface

HDMI video output connector.

Network Interface

Connector for LAN (Local Area Network).

Audio Out

RCA connector for audio output.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Ground

Ground (needs to be connected when NVR starts up).

Power Switch

Switch for turning on/off the device.

Network Interfaces with switch function (for DS-7600NI-SN/N)

Network interface for the cameras.

Figure 1. 11 DS-7600NI-SN

Figure 1. 12 DS-7604NI-SN/N

Figure 1. 13 DS-7608 & 7616NI-SN/N

Table 1. 9 Description of Rear Panel

User Manual of Network Video Recorder

No.

Item

Description

Power Supply

48VDC power supply for DS-7604NI-SN/P, and 100~240VAC power supply for DS-7608 & 7616NI-SN/P

Audio In

RCA connector for two-way audio input.

HDMI Interface

HDMI video output connector.

Network Interface

Connector for LAN (Local Area Network).

Audio Out

RCA connector for audio output.

VGA Output

DB9 connector for VGA output. Display local video output and menu.

USB Interface

Universal Serial Bus (USB) ports for additional devices such as USB mouse and USB Hard Disk Drive (HDD).

Ground

Ground (needs to be connected when NVR starts up).

Power Switch

Switch for turning on/off the device.

Network Interfaces with PoE function

Network interface for the cameras and to provide power over Ethernet.

Figure 1. 14 DS-7604NI-SN/P

Figure 1. 15 DS-7608 & 7616NI-SN/P

Table 1. 10 Description of Rear Panel

User Manual of Network Video Recorder

Chapter 2 Getting Started

User Manual of Network Video Recorder

2.1 Starting Up and Shutting Down the NVR

Purpose:

Proper startup and shutdown procedures are crucial to expanding the life of the NVR.

Before you start:

Check that the voltage of the extra power supply is the same with the NVR’s requirement, and the ground connection is working properly.

Starting up the NVR:

Steps:

1. Check the power supply is plugged into an electrical outlet. It is HIGHLY recommended that an

Uninterruptible Power Supply (UPS) be used in conjunction with the device.

2. After startup, the Power LED indicator blinks red. A splash screen with the status of the HDD appears on the

monitor.

Shutting down the NVR

Steps:

1. Enter the Shutdown menu.

Menu > Shutdown

Figure 2. 1 Shutdown Menu

2. Click the Shutdown button.

3. Click the Yes button.

4. Unplug the power supply (for DS-7100NI series NVR) or turn off the power switch (for DS-7600NI series

NVR) on the rear panel when the shutdown attention pops up.

Figure 2. 2 Shutdown Attention

Rebooting the NVR

In the Shutdown menu, you can also reboot the NVR.

Steps:

User Manual of Network Video Recorder

1. Enter the Shutdown menu by clicking Menu > Shutdown.

2. Click the Logout button to lock the NVR or the Reboot button to reboot the NVR.

User Manual of Network Video Recorder

2.2 Using the Wizard for Basic Configuration

By default, the Setup Wizard starts once the NVR has loaded, as shown in Figure below.

Figure 2. 3 Start Wizard Interface

Operating the Setup Wizard:

1. The Setup Wizard can walk you through some important settings of the NVR. If you don’t want to use the

Setup Wizard at that moment, click the Exit button. You can also choose to use the Setup Wizard next time by leaving the “Start wizard when the device starts?” checkbox checked.

2. Click Next button on the Wizard window to enter the Login window, as shown in Figure 2. 4.

Figure 2. 4 Login Window

3. Enter the admin password. By default, the password is 12345.

4. To change the admin password, check the New Admin Password checkbox. Enter the new password and

confirm the password in the given fields.

5. Click the Next button to enter the date and time settings window, as shown in Figure 2. 5.

User Manual of Network Video Recorder

Figure 2. 5 Date and Time Settings

6. After the time settings, click Next button which takes you to the Network Setup Wizard window, as shown

in Figure 2. 6.

DS-7100NI-SL, DS-7100NI-SN and DS-7600NI-SN

DS-7100NI-SL/W

User Manual of Network Video Recorder

DS-7100NI-SN/P, DS-7100NI-SN/N, DS-7600NI-SN/P and DS-7600NI-SN/N

Figure 2. 6 Network Configuration

The DS-7100NI-SL/W series NVR supports LAN and WLAN connections. Both the parameters can be

configured saparately by selecting the NIC type in the Select NIC drop-down list.

7. For DS-7100NI-SL/W series NVR only, clicking the Next button will guide you to the WIFI parameters

configuration.

Figure 2. 7 WIFI Configuration

For detailed description of each parameter, please refer to the Chapter 9.2.2 Configuring WIFI.

8. Click Next button takes you to the HDD Management window, shown in Figure 2. 8.

User Manual of Network Video Recorder

Figure 2. 8 HDD Management

9. To initialize the HDD, click the Init button. Initialization removes all the data saved in the HDD.

10. Click Next button to enter the Adding IP Camera interface.

11. Click Search to find online IP Camera. Select the IP camera to be added, and click the Add button.

Figure 2. 9 Search for IP Cameras

12. Click Next button. Configure the recording for the searched IP Cameras.

Figure 2. 10 Record Settings

13. Click Copy to copy the settings to other channels, as shown in Figure 2. 11.

User Manual of Network Video Recorder

Figure 2. 11 Copy Record Settings

14. Click OK to complete the startup Setup Wizard.

User Manual of Network Video Recorder

2.3 Adding and Editing the IP Cameras

2.3.1 Adding the Online IP Cameras

Purpose:

The main function of the NVR is to connect the network cameras and record the video got from it. So before you can get a live view or record of the video, you should add the network cameras to the connection list of the device.

Before you start:

Ensure the network connection is valid and correct. For detailed checking and configuring of the network, please see Chapter Checking Network Traffic and Chapter Configuring Network Detection.

 OPTION 1:

Steps:

1. Right-click the mouse when you in the live view mode to show the right-click menu.

2. Select Add IP Camera in the pop-up menu and select Auto or Manual on your demand.

Figure 2. 12 Right-click Menu of Adding IP camera

• Auto

The device will add the detected IP cameras or encoders automatically by the default user name and password of administrator.

Figure 2. 13 Auto Adding IP camera Interface

User Manual of Network Video Recorder

Icon

Explanation

Icon

Explanation

Edit basic parameters of the camera

Add the detected IP camera.

The camera is connected; you can click the icon to get the live view of the camera.

The camera is disconnected; you can click the icon to get the exception information of camera.

The camera is connected.

Advanced settings of the camera.

Delete the IP camera

If the user name and password is changed, the auto adding of IP camera will fail, you may add it manually.

• Manual

1) To add the online cameras in same network segment i. The detected online camera will be listed in the camera list, as shown in the figure below.

Figure 2. 14 Manual Adding IP Camera Interface

 The added IP cameras are marked in the white color, while the ones have not been added are

marked in yellow.

 For the DS-7100NI-SL/W series NVR, the wirelessly detected or added IP cameras will be

displayed in the list as well. For the details of configuring WLAN and WIFI, please refer to Chapter 9.1 Configuring General Settings and 9.2.2 Configuring WIFI.

ii. Click the button to add the camera.

Table 2. 1 Explanation of the icons:

2) To add other IP cameras: i. Click the Custom Add button to pop up the Add IP Camera (Custom) interface.

User Manual of Network Video Recorder

Figure 2. 15 Custom Adding IP Camera Interface

ii. You can edit the IP address, protocol, management port, and other information of the IP camera to be

added.

iii. Click Add to add the camera.

 OPTION 2:

Steps:

1. Enter the Camera Management interface.

Menu> Camera> Camera

Figure 2. 16 Main Menu

2. Click the button to add the camera.

3. Repeat the step 2) of manual adding of IP camera to add other IP cameras.

User Manual of Network Video Recorder

Figure 2. 17 IP Camera Management Interface

4. (For the encoders with multiple channels only) check the checkbox of Channel No. in the pop-up window, as

shown in the following figure, and click OK to finish adding.

Figure 2. 18 Selecting Multiple Channels

2.3.2 Editing the Connected IP cameras and Configuring

Customized Protocols

 Editing the Connected IP Camera

Purpose:

After the adding of the IP cameras, the basic information of the camera lists in the page, you can configure the setting of the IP cameras.

Steps:

1. Click the icon to edit the parameters; you can edit the IP address, protocol and other parameters.

User Manual of Network Video Recorder

Figure 2. 19 Edit the Parameters

2. Click lick OK to save the settings and exit the editing interface.

To edit advanced parameters:

Steps:

1. Drag the horizontal scroll bar to the right side and click the icon.

Figure 2. 20 Network Configuration of the Camera

2. You can edit the network information and the password of the camera.

Figure 2. 21 Password Configuration of the Camera

User Manual of Network Video Recorder

3. Click Apply to save the settings and click OK to exit the interface.

 Configuring the customized protocols

Purpose:

To connect the network cameras which are not configured with the standard protocols, you can configure the customized protocols for them.

Steps:

1. Click the Protocol button in the custom adding IP camera interface to enter the protocol management

interface.

Figure 2. 22 Protocol Management Interface

There are 16 customized protocols provided in the system, you can edit the protocol name; and choose whether to enable the sub-stream.

2. Choose the protocol type of transmission and choose the transfer protocols.

The protocol type and the transfer protocols must be supported by the connected network camera. After adding the customized protocols, you can see the protocol name is listed in the dropdown list, please refer to Figure 2. 23.

Figure 2. 23 Protocol Setting

3. Choose the protocols you just added to validate the connection of the network camera.

User Manual of Network Video Recorder

2.3.3 Editing IP Cameras Connected to the PoE Interfaces

This chapter is only applicable to the DS-7600NI-SN/P and DS-7100NI-SN/P series NVR.

The PoE interfaces enables the NVR system to pass electrical power safely, along with data, on Ethernet cabling to the connected network cameras. The DS-7600NI-SN/P and DS-7100NI-SN/P series NVR provide up to 8 PoE interfaces which can connect to 8 network cameras directly; and if you disable the PoE interface, you can also connect to the online network cameras. And the PoE interface supports the Plug-and-Play function.

Example:

As for 7604NI-SN/P NVR, when you want to connect 1 online camera and connect 3 network cameras via PoE interfaces, you must disable 1 PoE interface in the Edit IP camera panel.

To add cameras for NVR supporting PoE function:

Before you start:

Connect the network cameras via the PoE interfaces.

Steps:

1. Enter the Camera Management interface.

Menu> Camera> Camera You can see the connected cameras are listed.

Figure 2. 24 Camera List

The cameras connecting to the PoE interface cannot be deleted in this menu.

2. Click the button, and select the Adding Method in the drop-down list.

• Plug-and-Play: It means that the camera is connected to the PoE interface, so in this case, the

parameters of the camera can’t be edited. The IP address of the camera can only be edited in the Network Configuration interface, see Chapter 9.1 Configuring General Settings for detailed information.

User Manual of Network Video Recorder

Figure 2. 25 Edit IP Camera Interface - Plug-and-Play

• Manual: You can disable the PoE interface by selecting the manual while the current channel can be

used as a normal channel and the parameters can also be edited.

Figure 2. 26 Edit IP Camera Interface - Manual

3. Click the Apply button to finish adding.

2.3.4 Editing IP Cameras Connected to the Built-in Switch

Network Interfaces

This chapter is only applicable to the DS-7600NI-SN/N and DS-7100NI-SN/N series NVR.

For DS-7600NI-SN/N and DS-7100NI-SN/N series NVR, the extra network interfaces provide a built-in switch with plug-and-play function.

Example:

As for DS-7608NI-SN/N NVR, when you want to connect 2 online cameras and connect 6 network cameras via built-in switch interfaces, you must disable 2 built-in switch interfaces in the Edit IP camera panel.

To add cameras for NVR via built-in switch interfaces:

Before you start:

User Manual of Network Video Recorder

Connect the network cameras via the built-in switch interfaces.

Steps:

1. Enter the Camera Management interface.

Menu> Camera> Camera You can see the connected cameras are listed.

Figure 2. 27 Camera List

The cameras connecting to the built-in switch interface cannot be deleted in this menu.

2. Click the button, and select the Adding Method in the drop-down list.

• Plug-and-Play: It means that the camera is connected to the built-in switch interface, so in this case,

the parameters of the camera can’t be edited. The IP address of the camera can only be edited in the

Network Configuration interface, see Chapter 9.1 Configuring General Settings for detailed

information.

Figure 2. 28 Edit IP Camera Interface - Plug-and-Play

• Manual: You can disable the built-in switch interface by selecting the manual while the current

channel can be used as a normal channel and the parameters can also be edited.

User Manual of Network Video Recorder

Figure 2. 29 Edit IP Camera Interface - Manual

3. Click the Apply button to finish adding.

User Manual of Network Video Recorder

Chapter 3 Live View

User Manual of Network Video Recorder

Icons

Description

Alarm (video loss, tampering, motion detection or sensor alarm)

Record (manual record, continuous record, motion detection or alarm triggered record)

Alarm & Record

3.1 Introduction of Live View

Live view shows you the video image getting from each camera in real time. The NVR automatically enters Live View mode when powered on.

Live View Icons

In the live view mode, there are icons at the right top of the screen for each channel, showing the status of the record and alarm in the channel, so that you can know whether the channel is recorded, or whether there are alarms occur as soon as possible.

Table 3. 1 Description of Live View Icons

User Manual of Network Video Recorder

Name

Description

Enter the main menu of the system by right clicking the mouse.

Single Screen

Switch to the single full screen by choosing channel number from the dropdown list.

Multi-screen

Adjust the screen layout by choosing from the dropdown list.

Previous Screen

Switch to the previous screen.

Next Screen

Switch to the next screen.

Start/Stop Auto-switch

Enable/disable the auto-switch of the screens.

Start Recording

Start continuous recording or motion detection recording of all channels.

Add IP Camera

Add IP camera, manual mode and auto mode are selectable.

Playback

Enter the playback interface and start playing back the video of the selected channel immediately.

Output Mode

Four modes of output supported, including Standard, Bright, Gentle and Vivid.

3.2 Operations in Live View Mode

In live view mode, there are many functions provided. The functions are listed below.

• Single Screen: showing only one screen on the monitor.

• Multi-screen: showing multiple screens on the monitor simultaneously.

• Auto-switch: the screen is auto switched to the next one. And you must set the dwell time for each screen on

the configuration menu before enabling the auto-switch. Menu>Configuration>Live View>General.

• Start Recording: continuous record and motion detection record are supported.

• Add IP Camera: the shortcut to add IP camera, manual and auto are selectable.

• Output Mode: select the output mode to Standard, Bright, Gentle or Vivid.

• Playback: playback the recorded videos for current day.

3.2.1 Using the Mouse in Live View

Table 3. 2 Mouse Operation in Live View

The dwell time of the live view configuration must be set before using Start Auto-switch.

User Manual of Network Video Recorder

Icons

Description

Icons

Description

Icons

Description

Enable/Disable

Manual Record

Instant Playback

Mute/Audio on

PTZ Control

Digital Zoom

Image Settings

Live View

Strategy

Figure 3. 1 Right-click Menu

3.2.2 Quick Setting Toolbar in Live View Mode

On the screen of each channel, there is a quick setting toolbar which shows when you single click the mouse in the corresponding screen.

Figure 3. 2 Quick Setting Toolbar

Table 3. 3 Description of Quick Setting Toolbar Icons

Instant Playback only shows the record in last five minutes. If no record is found, it means there is no record

during the last five minutes.

Digital Zoom can zoom in the selected area to the full screen. You can click and draw to select the area to

zoom in, as shown in Figure 3. 3.

User Manual of Network Video Recorder

Figure 3. 3 Digital Zoom

Image Settings icon can be selected to enter the Image Settings menu.

You can set the image parameters like brightness, contrast, saturation and hue.

Figure 3. 4 Image Settings- Customize

Live View Strategy can be selected to set strategy, including Real-time, Balanced, Fluency.

Figure 3. 5 Live View Strategy

User Manual of Network Video Recorder

3.3 Adjusting Live View Settings

Purpose:

Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc.

Steps:

1. Enter the Live View Settings interface.

Menu> Configuration> Live View

Figure 3. 6 Live View-General

The settings available in this menu include:

• Video Output Interface: Designates the output to configure the settings for. Only VGA/HDMI is

selectable by default.

• Live View Mode: Designates the display mode to be used for Live View.

• Dwell Time: The time in seconds to dwell between switching of channels when enabling auto-switch in

Live View.

• Enable Audio Output: Enables/disables audio output for the selected video output.

• Event Output: Designates the output to show event video.

• Full Screen Monitoring Dwell Time: The time in seconds to show alarm event screen.

2. Setting Cameras Order

Figure 3. 7 Live View- Camera Order

To set the camera order:

1) Select a View mode in .

2) Select the small window, and double-click on the channel number to display the channel on the

User Manual of Network Video Recorder

window.

You can click button to start live view for all the channels and click to stop all the live view.

3) Click the Apply button to save the setting.

User Manual of Network Video Recorder

3.4 User Logout

Purpose:

After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter user name and password tog in again.

Steps:

1. Enter the Shutdown menu.

Menu>Shutdown

2. Click Logout.

After you have logged out the system, menu operation on the screen is invalid. It is required to input a

user name and password to unlock the system.

Figure 3. 8 Shutdown

User Manual of Network Video Recorder

Chapter 4 PTZ Controls

User Manual of Network Video Recorder

4.1 Setting PTZ Presets, Patrols & Patterns

Before you start:

Please make sure that the presets, patrols and patterns should be supported by PTZ protocols.

4.1.1 Customizing Presets

Purpose:

Follow the steps to set the Preset location which you want the PTZ camera to point to when an event takes place.

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ

Figure 4. 1 PTZ- More Settings

2. Use the directional button to wheel the camera to the location where you want to set preset.

3. Click the round icon before Save Preset.

4. Click the preset number to save the preset.

Repeat the steps 2-4 to save more presets. If the number of the presets you want to save is greater than 17, click […] and choose the available numbers.

Figure 4. 2 More Presets

4.1.2 Calling Presets

Purpose:

User Manual of Network Video Recorder

This feature enables the camera to point to a specified position such as a window when an event takes place.

Call preset in the PTZ setting interface:

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ

2. Check the round icon of Call Preset.

Figure 4. 3 PTZ- Call Preset

3. Choose the preset number.

Call preset in live view mode:

Steps:

1. Press the PTZ button on the front panel or click the PTZ Control icon in the quick setting bar to enter

the PTZ setting menu in live view mode.

Figure 4. 4 PTZ Toolbar

2. Choose Camera in the list on the menu.

3. Double click the preset in the Preset list to call it.

User Manual of Network Video Recorder

4.1.3 Customizing Patrols

Purpose:

Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps above in Customizing Presets.

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ

2. Select patrol number in the drop-down list of patrol.

3. Select the under Patrol option box to add key points for the patrol.

Figure 4. 5 PTZ- Add Key Point

4. Configure key point parameters, such as the key point No., duration of staying for one key point and speed of

patrol. The key point is corresponding to the preset. The Key Point No. determines the order at which the PTZ will follow while cycling through the patrol. The Duration refers to the time span to stay at the corresponding key point. The Speed defines the speed at which the PTZ will move from one key point to the next.

Figure 4. 6 Key Point Configuration

5. Click OK to save the key point to the patrol.

Repeat the above steps to add more key points. Click the icon to delete the corresponding key point, and click the trash icon to.delete all the key

points.

User Manual of Network Video Recorder

Select a key point, then click or button to adjust the order of the key points.

Figure 4. 7 Key Points Deletion

4.1.4 Calling Patrols

Purpose:

Calling a patrol makes the PTZ to move according the predefined patrol path. Calling patrol in the PTZ setting interface: Steps:

1. In the PTZ setting interface.

Menu> Camera> PTZ> More Settings

2. Select the patrol number, and then click to call the patrol.

3. Click to stop it.

Calling patrol in live view mode: Steps:

1. Press PTZ control on the front panel or on the remote, or click PTZ Control icon on the quick setting

toolbar, to show the PTZ control toolbar.

2. Choose Patrol on the control bar.

3. Double click the patrol or select the patrol and click to call it.

User Manual of Network Video Recorder

Figure 4. 8 PTZ Toolbar- Patrol

4.1.5 Customizing Patterns

Purpose:

Patterns can be set by recording the movement of the PTZ. You can call the pattern to make the PTZ movement according to the predefined path.

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ>More Settings

2. Choose pattern number in the option box.

Figure 4. 9 PTZ- Pattern

3. Click and use your mouse to drag the image or click the eight directional buttons in the control box

under the image to move the PTZ camera. The movement of the PTZ is recorded as the pattern.

4. Click to save the pattern.

User Manual of Network Video Recorder

4.1.6 Calling Patterns

Purpose:

Follow the procedure to move the PTZ camera according to the predefined patterns.

Calling pattern in the PTZ setting interface

Steps:

1. Enter the PTZ Control interface.

Menu>Camera>PTZ>More Settings

2. Select the pattern number.

3. Click , then the PTZ moves according to the pattern. Click to stop it.

Call pattern in live view mode

Steps:

1. In the live view mode, press PTZ control on the front panel or on the remote control, or click PTZ Control

icon on the quick setting toolbar.

2. And then choose Pattern on the control bar.

3. Double click the pattern or select the pattern and click to call it.

Figure 4. 10 PTZ Toolbar- Pattern

User Manual of Network Video Recorder

Icon

Description

Icon

Description

Icon

Description

Direction button and

the auto-cycle button

Zoom+, Focus+,

Iris+

Zoom-, Focus-, Iris-

The speed of the

PTZ movement

Light on/off

Wiper on/off

3D-Zoom


Centralization

Preset

Patrol

Pattern

Previous item

Next item

Start pattern/patrol

Stop the patrol or

pattern movement

Minimize

windows

Exit

4.2 PTZ Control Toolbar

In the Live View mode, you can press the PTZ Control button on the front panel or on the remote control, or choose the PTZ Control icon to enter the PTZ toolbar.

Figure 4. 11 PTZ Toolbar

Table 4. 1 Description of the PTZ toolbar icons

User Manual of Network Video Recorder

Chapter 5 Record Settings

User Manual of Network Video Recorder

5.1 Configuring Recording Parameters

Purpose:

By configuring the recording parameters you can define the parameters which affect the image quality, such as the transmission stream type, the resolution and so on. Before you start: Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu>HDD>General)

Figure 5. 1 HDD- General

Steps:

1. Enter the Record settings interface to configure the recording parameters:

Menu>Record> Parameters

Figure 5. 2 Recording Parameters

2. Parameters Setting for Recording

1) Select Record tab page to configure. You can configure the stream type, the resolution, and other

parameters on your demand.

• Pre-record: The time you set to record before the scheduled time or event. For example, when an

alarm triggered the recording at 10:00, if you set the pre-record time as 5 seconds, the camera records it at 9:59:55.

• Post-record: The time you set to record after the event or the scheduled time. For example, when

an alarm triggered the recording ends at 11:00, if you set the post-record time as 5 seconds, it records till 11:00:05.

• Expired Time: The expired time is the longest time for a record file to be kept in the HDD, if the

deadline is reached, the file will be deleted. You can set the expired time to 0, and then the file will not be deleted. The actual keeping time for the file should be determined by the capacity of the HDD.

• Record Audio: Check the checkbox to enable or disable audio recording.

User Manual of Network Video Recorder

2) Click Apply to save the settings.

The parameters of Main Stream (Event) are read-only.

3. Parameters Settings for Sub-stream

1) Enter the Sub-stream tab page.

Figure 5. 3 Sub-stream Parameters

2) Configure the parameters of the camera.

3) Click Apply to save the settings.

User Manual of Network Video Recorder

5.2 Configuring Record Schedule

Purpose:

Set the record schedule, and then the camera automatically starts/stops recording according to the configured schedule.

Steps:

1. Enter the Record Schedule interface.

Menu>Record>Schedule

2. Configure Record Schedule

1) Select Record Schedule.

Figure 5. 4 Record Schedule

2) Choose the camera you want to configure.

3) Select the check box after the Enable Schedule item.

4) Click Edit button or click on the color icon under the edit button and draw the schedule line on the

panel.

Edit the schedule:

I. In the message box, you can choose the day to which you want to set schedule.

Figure 5. 5 Recording Schedule Interface

You can click the button to set the accurate time of the schedule.

II. To schedule an all-day recording, check the checkbox after the All Day item.

User Manual of Network Video Recorder

Figure 5. 6 Edit Schedule

III. To arrange other schedule, leave the All Day checkbox blank and set the Start/End time.

Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each other.

Repeat the above edit schedule steps to schedule recording for other days in the week. If the schedule can also be applied to other days, click Copy.

Figure 5. 7 Copy Schedule to Other Days

IV. Click OK to save setting and back to upper level menu.

V. Click Apply in the Record Schedule interface to save the settings.

Draw the schedule:

1) Click on the color icons, you can choose the schedule type as continuous or event.

Figure 5. 8 Draw the Schedule

Descriptions of the color icons are shown in the figure below.

User Manual of Network Video Recorder

DS-7100NI-SL and DS-7100NI-SL/W

Other models

Figure 5. 9 Descriptions of the color icons

2) Click the Apply button to validate the settings.

3) (Optional) If the settings can also be used to other channels, click Copy, and then choose the

channel to which you want to copy.

Figure 5. 10 Copy Schedule to Other Channels

User Manual of Network Video Recorder

5.3 Configuring Motion Detection Record

Purpose:

Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the NVR can analyze it and do many actions to handle it. Enabling motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center and so on. In this chapter, you can follow the steps to schedule a record which triggered by the detected motion.

Steps:

1. Enter the Motion Detection interface.

Menu>Camera>Motion

Figure 5. 11 Motion Detection

2. Configure Motion Detection:

1) Choose camera you want to configure.

2) Check the checkbox after Enable Motion Detection.

3) Drag and draw the area for motion detection by mouse. If you want to set the motion detection for all

the area shot by the camera, click Full Screen. To clear the motion detection area, click Clear.

Figure 5. 12 Motion Detection- Mask

4) Click Setting, and the message box for channel information pop up.

User Manual of Network Video Recorder

Figure 5. 13 Motion Detection Setting

5) Select the channels which you want the motion detection event to trigger recording.

6) Click Apply to save the settings.

7) Click OK to back to the upper level menu.

8) Exit the Motion Detection menu.

3. Edit the Motion Detection Record Schedule. For the detailed information of schedule configuration, see

Chapter Configuring Record Schedule.

User Manual of Network Video Recorder

5.4 Configuring Alarm Triggered Record

This section is not supported by DS-7100N-SL and DS-7100NI-SL/W. For other models, the alarm input and output are not provided by default. But when the connected IP camera has alarm input and output, the alarm related record and playback are supported.

Purpose:

Follow the procedure to configure alarm triggered recording.

Steps:

1. Enter the Alarm setting interface.

Menu> Configuration> Alarm

Figure 5. 14 Alarm Settings

2. Click the Alarm Input tab.

Figure 5. 15 Alarm Settings- Alarm Input

1) Select Alarm Input number and configure alarm parameters.

2) Choose N.O (normally open) or N.C (normally closed) for alarm type.

3) Check the checkbox of Enable.

4) Click Settings.

User Manual of Network Video Recorder

Figure 5. 16 Alarm Settings

5) Choose the alarm triggered recording channel.

6) Check the checkbox to select channel.

7) Click Apply to save settings.

8) Click OK to back to the upper level menu.

Repeat the above steps to configure other alarm input parameters. If the settings can also be applied to other alarm inputs, click Copy and choose the alarm input number.

Figure 5. 17 Copy Alarm Input

3. Edit the Alarm triggered record in the Record Schedule setting interface. For the detailed information of

schedule configuration, see Chapter Configuring Record Schedule.

User Manual of Network Video Recorder

5.5 Manual Record

Purpose:

Follow the steps to set parameters for the manual record. The manual recording is prior to the scheduled recording.

Steps:

1. Enter the Manual settings interface.

Menu> Manual Or press the REC button on the remote control.

Figure 5. 18 Manual Record

2. Enabling Manual Record

1) Select Record on the left bar.

2) Click the status button before camera number to change to .

3. Disable manual record.

Click the status button to change to .

Green icon means that the channel is configured the record schedule. After rebooting all the

manual records enabled are canceled.

User Manual of Network Video Recorder

5.6 Configuring Holiday Record

Purpose:

Follow the steps to configure the record schedule on holiday for that year. You may want to have different plan for recording on holiday.

Steps:

1. Enter the Record setting interface.

Menu>Record> Holiday

Figure 5. 19 Holiday Settings

2. Enable Edit Holiday schedule.

1) Click to enter the Edit interface.

Figure 5. 20 Edit Holiday Settings

2) Check the checkbox after Enable Holiday.

User Manual of Network Video Recorder

3) Select Mode from the dropdown list.

There are three different modes for the date format to configure holiday schedule.

4) Set the start and end date.

5) Click Apply to save settings.

6) Click OK to exit the Edit interface.

3. Enter Record Schedule settings interface to edit the holiday recording schedule. See Chapter 5.2 Configuring

Record Schedule.

User Manual of Network Video Recorder

5.7 Files Protection

Purpose:

You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten.

Steps:

1. Enter Export setting interface.

Menu> Export

Figure 5. 21 Playback

2. Select the channels you want to investigate by checking the checkbox to .

3. Configure the record type, file type start/end time.

4. Click Search to show the results.

Figure 5. 22 Playback- Search Result

5. Protect the record files.

1) Find the record files you want to protect, and then click the icon which will turn to , indicating

that the file is locked.

The record files of which the recording is still not completed cannot be locked.

2) Click to change it to to unlock the file and the file is not protected.

User Manual of Network Video Recorder

Figure 5. 23 Unlocking Attention

User Manual of Network Video Recorder

Chapter 6 Playback

User Manual of Network Video Recorder

6.1 Playing Back Record Files

6.1.1 Playing Back by Channel

Purpose:

Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported.

Instant playback by channel

Steps:

Choose a channel in live view mode using the mouse and click the button in the quick setting toolbar.

In the instant playback mode, only record files recorded during the last five minutes on this channel will be played back.

Figure 6. 1 Instant Playback Interface

Playback by channel

1. Enter the Playback interface.

Right click a channel in live view mode and select Playback from the menu, as shown in Figure 6. 2.

User Manual of Network Video Recorder

Figure 6. 2 Right-click Menu under Live View

Under multi-screen live view mode, the recorded files of the top-left channel will be played back.

Pressing numerical buttons will switch playback to the corresponding channels during playback process.

2. Playback management.

The toolbar in the bottom part of Playback interface can be used to control playing progress, as shown in Figure 6. 3.

Figure 6. 3 Playback Interface

Click the channel(s) to execute simultaneous playback of multiple channels.

Figure 6. 4 Toolbar of Playback

User Manual of Network Video Recorder

Button

Operation

Button

Operation

Button

Operation

Button

Operation

Audio on/

Mute

Start/Stop

clipping

30s forward

30s reverse

Add default

tag

Add

customized tag

Tag

management

Speed down

Pause reverse

play/

Reverse play/

Single-frame

reverse play

Pause play/

Play/

Single-frame

play

Scaling

up/down the

time line

Speed up

Previous day

Next day

Full Screen

Exit Stop

Digital Zoom

Video type

Process bar

The indicates the start/end time of the record.

Table 6. 1 Detailed Explanation of Playback Toolbar

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate special frames.

6.1.2 Playing Back by Time

Purpose:

Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch are supported.

Steps:

1. Enter playback interface.

Menu>Playback

2. Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.

Figure 6. 5 Playback Calendar

If there are record files for that camera in that day, in the calendar, the icon for that day is displayed as . Otherwise it is displayed as

User Manual of Network Video Recorder

Button

Operation

Button

Operation

Button

Operation

Button

Operation

Audio on/

Mute

Start/Stop

clipping

30s forward

30s reverse

Add default

tag

Add

customized tag

Tag

management

Speed down

Pause reverse

play/

Reverse play/

Single-frame

reverse play

Pause play/

Play/

Single-frame

play

Scaling

up/down the

time line

Speed up

Previous day

Next day

Full Screen

Exit

Stop

Digital Zoom

Video type

Process bar

In the Playback interface: The toolbar in the bottom part of Playback interface can be used to control playing process, as shown in Figure 6.

Figure 6. 6 Interface of Playback by Time

Figure 6. 7 Toolbar of Playback by Time

The indicates the start/end time of the record.

Table 6. 2 Detailed Explanation of Playback-by-time Interface

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate special frames.

User Manual of Network Video Recorder

6.1.3 Playing Back by Event Search

Purpose:

Play back record files on one or several channels searched out by restricting event type (e.g. motion detection).

Steps:

1. Enter the Playback interface.

Menu>Playback

2. Select the Event in the drop-down list on the top-left side.

3. Select Alarm Input (not supported by DS-7100NI-SL and DS-7100NI-SL/W) or Motion as the event type,

and edit the Start time and End time.

Figure 6. 8 Motion Search Interface

4. Click Search button to get the search result information. You may refer to the right-side bar for the result.

Figure 6. 9 Search Result Bar

User Manual of Network Video Recorder

Button

Operation

Button

Operation

Button

Operation

Button

Operation

Audio on/

Mute

Start/Stop

clipping

30s forward

30s reverse

Add default

tag

Add

customized tag

Tag

management

Speed down

Pause reverse

play/

Reverse play/

Single-frame

reverse play

Pause play/

Play/

Single-frame

play

Scaling

up/down the

time line

Speed up

Previous day

Next day

Full Screen

Exit

Stop

Digital Zoom

Process bar

Video type

5. Click button to play back the file.

You can click the Back button to back to the search interface.

 Pre-play and post-play can be configured.  If the event is set to trigger the recording of multiple channels, clicking the will pop up the Synch

Playback interface. You can select the channels to play back synchronously.

Playback interface The toolbar in the bottom part of Playback interface can be used to control playing process.

Figure 6. 10 Interface of Playback by Event

Figure 6. 11 Toolbar of Playback by Event

Table 6. 3 Detailed Explanation of Playback-by-event Toolbar

User Manual of Network Video Recorder

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate special frames.

6.1.4 Playing Back by Tag

Purpose:

Video tag allows you to record related information like people and location of a certain time point during playback. You are also allowed to use video tag(s) to search for record files and position time point.

Before playing back by tag:

1. Enter Playback interface.

Menu>Playback

2. Search and play back the record file(s). Refer to Chapter 6.1.1 for the detailed information about searching

and playback of the record files.

Figure 6. 12 Interface of Playback by Time

Click button to add default tag. Click button to add customized tag and input tag name.

Max. 64 tags can be added to a single video file.

3. Tag management.

Click button to check, edit and delete tag(s).

User Manual of Network Video Recorder

Figure 6. 13 Tag Management Interface

Steps:

1. Select the Tag from the drop-down list in the Playback interface.

2. Choose channels, edit start time and end time, and then click Search to enter Search Result interface.

You can enter keyword in the textbox to search the tag on your command.

Figure 6. 14 Video Search by Tag

3. Click button to play back the file.

You can click the Back button to back to the search interface.

Pre-play and post-play can be configured.

User Manual of Network Video Recorder

Button

Operation

Button

Operation

Button

Operation

Button

Operation

Audio on/

Mute

Start/Stop

clipping

30s forward

30s reverse

Add default

tag

Add

customized tag

Tag

management

Speed down

Pause reverse

play/

Reverse play/

Single-frame

reverse play

Pause play/

Play/

Single-frame

play

Scaling

up/down the

time line

Speed up

Previous day

Next day

Full Screen

Exit Stop

Digital Zoom

Process bar

Video type

Figure 6. 15 Interface of Playback by Tag

Figure 6. 16 Toolbar of Playback by Tag

Table 6. 4 Detailed Explanation of Playback-by-tag Toolbar

Playback progress bar: use the mouse to click any point of the progress bar or drag the progress bar to locate special frames.

6.1.5 Playing Back by System Logs

Purpose:

Play back record file(s) associated with channels after searching system logs.

User Manual of Network Video Recorder

Steps:

1. Enter Log Information interface.

Menu>Maintenance>Log Information

2. Click Log Search tab to enter Playback by System Logs.

Set search time and type and click Search button.

Figure 6. 17 System Log Search Interface

3. Choose a log with record file and click button to enter Playback interface.

If there is no record file at the time point of the log, the message box “No result found” will pop up.

Figure 6. 18 Result of System Log Search

4. Playback interface.

The toolbar in the bottom part of Playback interface can be used to control playing process.

User Manual of Network Video Recorder

Figure 6. 19 Interface of Playback by Log

6.1.6 Playing Back External File

Purpose:

Perform the following steps to look up and play back files in the external devices.

Steps:

1. Enter Tag Search interface.

Menu>Playback

2. Select the External File in the drop-down list on the top-left side.

The files are listed in the right-side list. You can click the button to refresh the file list.

3. Select and click the button to play back it.

Figure 6. 20 Interface of External File Playback

User Manual of Network Video Recorder

6.2 Auxiliary Functions of Playback

6.2.1 Playing Back Frame by Frame

Purpose:

Play video files frame by frame, in case of checking image details of the video when abnormal events happen.

Steps:

Go to Playback interface. If you choose playback of the record file: click button until the speed changes to Single frame and one click on the playback screen represents playback of one frame. If you choose adverse playback of the record file: click button until the speed changes to Single frame and

one click on the playback screen represents adverse playback of one frame. It is also feasible to use button in toolbar.

6.2.2 Digital Zoom

Steps:

1. Click the button on the playback control bar to enter Digital Zoom interface.

2. Use the mouse to draw a red rectangle and the image within it will be enlarged up to 16 times.

Figure 6. 21 Draw Area for Digital Zoom

3. Right-click the image to exit the digital zoom interface.

6.2.3 Reverse Playback of Multi-channel

Purpose:

You can play back record files of multi-channel reversely. Up to 8-ch (with 4CIF resolution) simultaneous adverse

User Manual of Network Video Recorder

playback is supported; up to 4-ch (with 720P resolution) simultaneous adverse playback is supported, up to 2-ch (with 1080P resolution) and up to 1-ch (with 5MP resolution) reverse playback is supported.

Steps:

1. Enter Playback interface.

Menu>Playback

2. Check more than one checkboxes to select multiple channels and click to select a date on the calendar.

Figure 6. 22 4-ch Synchronous Playback Interface

3. Click to play back the record files reversely.

User Manual of Network Video Recorder

Chapter 7 Backup

User Manual of Network Video Recorder

7.1 Backing up Record Files

7.1.1 Quick Export

Purpose:

Export record files to backup device(s) quickly.

Steps:

1. Enter Video Export interface.

Menu>Export>Normal Choose the channel(s) you want to back up and click Quick Export button.

 The time duration of record files on a specified channel cannot exceed one day. Otherwise, the

message box “Max. 24 hours are allowed for quick export.” will pop up.

 The number of channels for synchronous export cannot exceed 4. Otherwise, the message box “Max. 4

channels are allowed for synchronous quick export.” will pop up.

Figure 7. 1 Quick Export Interface

1. Click the Export button to start exporting.

Here we use USB Flash Drive and please refer to the next section Normal Backup for more backup

devices supported by the device.

Figure 7. 2 Quick Export using USB1-1

Stay in the Exporting interface until all record files are exported.

User Manual of Network Video Recorder

Figure 7. 3 Export Finished

2. Check backup result.

Choose the record file in Export interface and click button to check it.

The Player player.exe will be exported automatically during record file export.

Figure 7. 4 Checkup of Quick Export Result Using USB1-1

7.1.2 Backing up by Normal Video Search

Purpose:

The record files can be backup to various devices, such as USB devices (USB flash drives, USB HDDs, USB writer), and SATA writer.

Backup using USB flash drives and USB HDDs

Steps:

1. Enter Export interface.

Menu>Export>Normal

2. Set search condition and click Search button to enter the search result interface.

User Manual of Network Video Recorder

Figure 7. 5 Normal Video Search for Backup

3. Select record files you want to back up.

Click to play the record file if you want to check it. Check the checkbox before the record files you want to back up.

The size of the currently selected files is displayed in the lower-left corner of the window.

Figure 7. 6 Result of Normal Video Search for Backup

4. Export.

Click Export button and start backup.

If the inserted USB device is not recognized:

• Click the Refresh button.

• Reconnect device.

• Check for compatibility from vendor.

You can also format USB flash drives or USB HDDs via the device.

User Manual of Network Video Recorder

Figure 7. 7 Export by Normal Video Search using USB Flash Drive

Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.

Figure 7. 8 Export Finished

5. Check backup result.

Choose the record file in Export interface and click button to check it.

The Player player.exe will be exported automatically during record file export.

Figure 7. 9 Checkup of Export Result using USB Flash Drive

User Manual of Network Video Recorder

Backup using USB writer and SATA writer

Steps:

1. Enter Export interface.

Menu>Export>Normal

2. Set search condition and click Search button to enter the search result interface.

Figure 7. 10 Normal Video Search for Backup

3. Select record files you want to back up.

Click button to play the record file if you want to check it. Check the checkbox before the record files you want to back up.

The size of the currently selected files is displayed in the lower-left corner of the window.

Figure 7. 11 Result of Normal Video Search for Backup

4. Export.

Click Export button and start backup.

If the inserted USB writer or SATA writer is not recognized:

• Click the Refresh button.

• Reconnect device.

• Check for compatibility from vendor.

User Manual of Network Video Recorder

Figure 7. 12 Export by Normal Video Search using USB Writer

Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.

Figure 7. 13 Export Finished

5. Check backup result.

Choose the record file in Export interface and click button to check it.

The Player player.exe will be exported automatically during record file export.

Figure 7. 14 Checkup of Export Result using USB Writer

User Manual of Network Video Recorder

7.1.3 Backing up by Event Search

Purpose:

Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), or SATA writer. Quick Backup and Normal Backup are supported.

Steps:

1. Enter Export interface.

Menu>Export>Event

1) Set the searching time period.

Event types contain Alarm Input and Motion, here we take the backing up by motion as an example.

1) Click Search button to enter the Search Result interface.

Figure 7. 15 Event Search for Backup

2. Select record files to export.

1) Select a motion event in the list and click Quick Export button to enter Export interface immediately.

2) Clicking Details button will take you to the interface with detailed information of all channels triggered

by the selected motion event.

3) Clicking Quick Export button will export record files of all channels triggered by the selected motion

event.

Figure 7. 16 Result of Event Search

4) Click Details button to view detailed information of the record file, e.g. start time, end time, file size, etc.

User Manual of Network Video Recorder

Figure 7. 17 Event Details Interface

3. Export.

Click the Export button and start back up.

If the inserted USB device is not recognized:

• Click the Refresh button.

• Reconnect device.

• Check for compatibility from vendor.

You can also format USB flash drive or USB HDDs via the device.

Figure 7. 18 Export by Event Using USB Flash Drive

Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.

Figure 7. 19 Export Finished

User Manual of Network Video Recorder

4. Check backup result.

The Player player.exe will be exported automatically during record file export.

Figure 7. 20 Checkup of Event Export Result Using USB Flash Drive

7.1.4 Backing up Video Clips

Purpose:

You may also select video clips to export directly during Playback, using USB devices (USB flash drives, USB HDDs, USB writer) or SATA writer.

Steps:

1. Enter Playback interface.

Please refer to Chapter 6.1 Playing Back Record Files.

2. During playback, use buttons and in the playback toolbar to start or stop clipping record file(s).

3. Quit Playback interface after finishing clipping and you will then be prompted to save the clips.

A maximum of 30 clips can be selected for each channel.

User Manual of Network Video Recorder

Figure 7. 21 Interface of Playback by Time

4. Click Yes to save video clips and enter Export interface, or click No to quit and do not save video clips.

Figure 7. 22 Attention to Video Clip Saving

5. Export.

Click Export button and start backup.

If the inserted USB device is not recognized:

• Click the Refresh button.

• Reconnect device.

• Check for compatibility from vendor.

You can also format USB flash drive or USB HDDs via the device.

Figure 7. 23 Export Video Clips Using USB Flash Drive

User Manual of Network Video Recorder

Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”.

Figure 7. 24 Export Finished

6. Check backup result.

The Player player.exe will be exported automatically during record file export.

Figure 7. 25 Checkup of Video Clips Export Result Using USB Flash Drive

7.2 Managing Backup Devices

Management of USB flash drives and USB HDDs.

Steps:

1. Enter Search Result interface of record files.

Menu>Export>Normal Set search condition and click Search button to enter Search Result interface.

At least one channel shall be selected.

User Manual of Network Video Recorder

Figure 7. 26 Normal Video Search for Backup

2. Select record files you want to back up.

Click Export button to enter Export interface.

At least one record file shall be selected.

Figure 7. 27 Result of Normal Video Search for Backup

3. Backup device management.

Click New Folder button if you want to create a new folder in the backup device. Select a record file or folder in the backup device and click button if you want to delete it.

Select a record file in the backup device and click button to play it. Click Format button to format the backup device.

If the inserted USB device is not recognized:

• Click the Refresh button.

• Reconnect device.

• Check for compatibility from vendor.

User Manual of Network Video Recorder

Figure 7. 28 USB Flash Drive Management

Management of USB writers or DVD-R/W

Steps:

1. Enter Search Result interface of record files.

Menu>Export>Normal Set search condition and click Search button to enter Search Result interface.

At least one channel shall be selected.

Figure 7. 29 Normal Video Search for Backup

2. Select record files you want to back up.

Click Export button to enter Export interface.

At least one record file shall be selected.

100

Hikvision DS-7104NI-SL-W-1TB, DS-7104NI-SL-W-2TB, DS-7104NI-SL-W-4TB, DS-7104NI-SL-W User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product Key Features

Chapter 1 Introduction

1.1 Front Panel

1.2 IR Remote Control Operations

1.3 USB Mouse Operation

1.4 Input Method Description

1.5 Rear Panel

Chapter 2 Getting Started

2.1 Starting Up and Shutting Down the NVR

2.2 Using the Wizard for Basic Configuration

2.3 Adding and Editing the IP Cameras

2.3.1 Adding the Online IP Cameras

2.3.3 Editing IP Cameras Connected to the PoE Interfaces

Chapter 3 Live View

3.1 Introduction of Live View

3.2 Operations in Live View Mode

3.2.1 Using the Mouse in Live View

3.2.2 Quick Setting Toolbar in Live View Mode

3.3 Adjusting Live View Settings

3.4 User Logout

Chapter 4 PTZ Controls

4.1 Setting PTZ Presets, Patrols & Patterns

4.1.1 Customizing Presets

4.1.2 Calling Presets

4.1.3 Customizing Patrols

4.1.4 Calling Patrols

4.1.5 Customizing Patterns

4.1.6 Calling Patterns

4.2 PTZ Control Toolbar

Chapter 5 Record Settings

5.1 Configuring Recording Parameters

5.2 Configuring Record Schedule

5.3 Configuring Motion Detection Record

5.4 Configuring Alarm Triggered Record

5.5 Manual Record

5.6 Configuring Holiday Record

5.7 Files Protection

Chapter 6 Playback

6.1 Playing Back Record Files

6.1.1 Playing Back by Channel

6.1.2 Playing Back by Time

6.1.3 Playing Back by Event Search

6.1.4 Playing Back by Tag

6.1.5 Playing Back by System Logs

6.1.6 Playing Back External File

6.2 Auxiliary Functions of Playback

6.2.1 Playing Back Frame by Frame

6.2.2 Digital Zoom

6.2.3 Reverse Playback of Multi-channel

Chapter 7 Backup

7.1 Backing up Record Files

7.1.1 Quick Export

7.1.2 Backing up by Normal Video Search

7.1.3 Backing up by Event Search

7.1.4 Backing up Video Clips

7.2 Managing Backup Devices
