Hikvision DS-2TD2636B-15-P User Manual

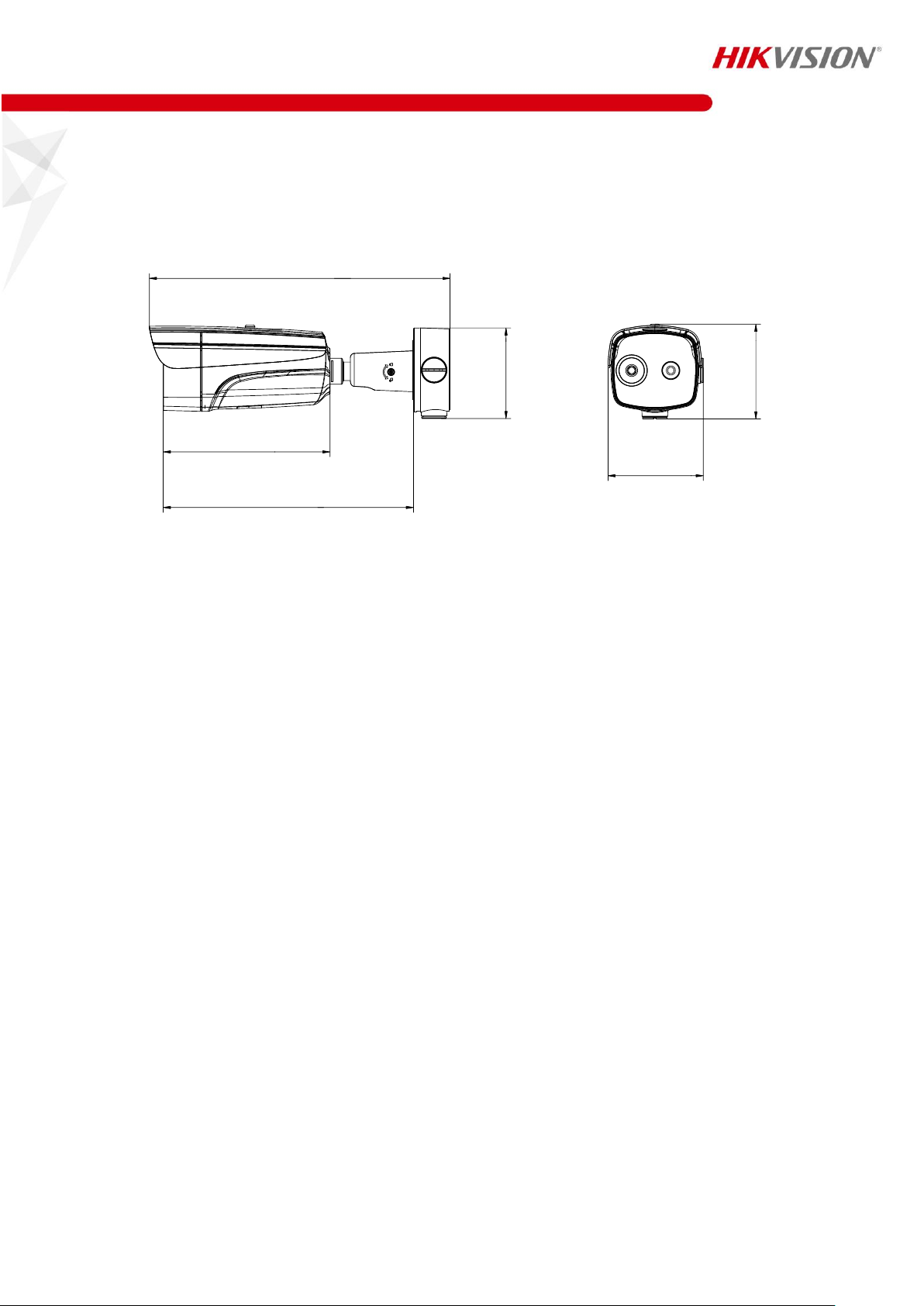

DS-2TD2636B-15/P

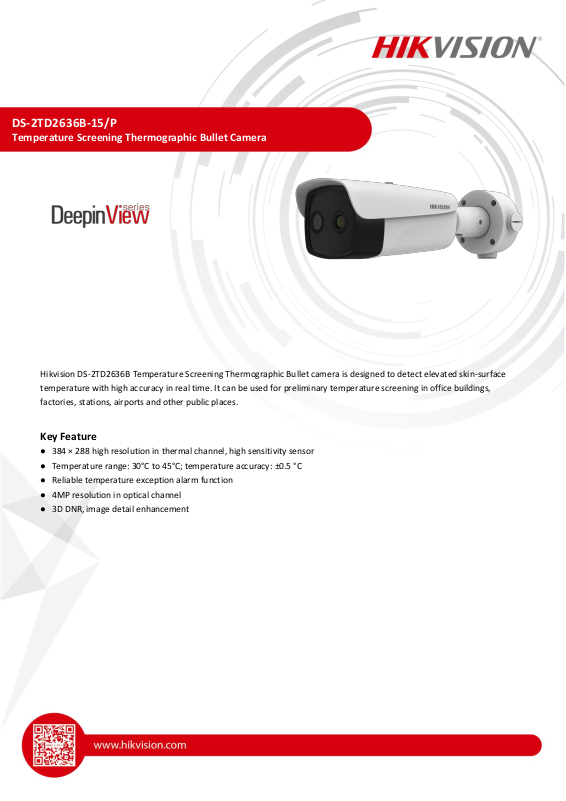

Temperature Screening Thermographic Bullet Camera

Hikvision DS-2TD2636B Temperature Screening Thermographic Bullet camera is designed to detect elevated skin-surface
temperature with high accuracy in real time. It can be used for preliminary temperature screening in office buildings,
factories, stations, airports and other public places.

Key Feature

● 384 × 288 high resolution in thermal channel, high sensitivity sensor

● Temperature range: 30°C to 45°C; temperature accuracy: ±0.5 °C

● Reliable temperature exception alarm function

● 4MP resolution in optical channel

● 3D DNR, image detail enhancement

Specification

Thermal Module

Image Sensor

Vanadium Oxide Uncooled Focal Plane Arrays

Max. Resolution

384 × 288

Pixel Interval

17μm

Response Waveband

8 μm to 14 μm

NETD (Noise Equivalent
Temperature Difference)

≤ 40 mk (@25 °C,F# = 1.0)
Lens (Focal Length)

15 mm

IFOV

1.13 mrad

Field of View

24.5° × 18.5° (H × V)

Min. Focusing Distance

2.5 m

Aperture

F 1.0

Optical Module

Max. Image Resolution

2688 × 1520

Image Sensor

1/2.7" Progressive Scan CMOS

Min. Illumination

Color: 0.0089 Lux @(F1.6, AGC ON), B/W: 0.0018 Lux @(F1.6, AGC ON)

Shutter Speed

1 s to 1/100,000 s

Lens (Focal Length)

6 mm

Field of View

51.7° × 28° (H × V)

WDR

120 dB

Day & Night

IR cut filter with auto switch

Image Function

Bi-spectrum Image Fusion

Display the details of optical channel on thermal channel

Picture in Picture

Display partial image of thermal channel on the full screen of optical channel

Smart Function

Temperature Measurement

3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1
line).

Temperature Range

30 °C to + 45 °C

Temperature Accuracy

± 0.5 °C

Infrared

IR Distance

Up to 50 m

IR Intensity and Angle

Automatically adjusted

Network

Main Stream

Optical: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)

Sub-stream

Optical: 50 Hz: 25 fps (704 × 576, 352 × 288, 176 × 144)

60 Hz: 30 fps (704 × 480, 352 × 240, 176 × 120)

Thermal: 25 fps (704 × 576, 352 × 288, 320 × 240)
