Network Camera User Manual

Thermal Network Bullet Camera

User Manual

UD05094B

Thermal Network Bullet Camera User Manual

User Manual

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be "Hikvision"). This user manual (hereinafter referred to be "the Manual") cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Thermal Network Bullet Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/). Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision's trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED "AS IS", WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,

Thermal Network Bullet Camera User Manual

FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

FCC compliance: This equipment has been tested and found to comply with the

limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance

Thermal Network Bullet Camera User Manual

with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive

2004/108/EC, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose

of it at designated collection points. For more information see: www.recyclethis.info.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery

information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info. Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Thermal Network Bullet Camera User Manual

Warnings Follow these safeguards to

prevent serious injury or death.

Cautions Follow these precautions to

prevent potential injury or material damage.

Safety Instruction

These instructions are intended to ensure that the user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and ‘Cautions’:

Warnings: Serious injury or death may be caused if any of these warnings are

neglected.

Cautions: Injury or equipment damage may be caused if any of these cautions are

neglected.

Warnings:

 Please adopt the power adapter which can meet the safety extra low voltage

(SELV) standard. And source with 12 VDC or 24 VAC (depending on models) according to the IEC60950-1 and Limited Power Source standard.

 To reduce the risk of fire or electrical shock, do not expose this product to rain or

moisture.

 This installation should be made by a qualified service person and should conform

to all the local codes.

 Please install blackouts equipment into the power supply circuit for convenient

supply interruption.

 Please make sure that the ceiling can support more than 50(N) Newton gravities if

the camera is fixed to the ceiling.

 If the product does not work properly, please contact your dealer or the nearest

service center. Never attempt to disassemble the camera yourself. (We shall not

Thermal Network Bullet Camera User Manual

assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions:

 Make sure the power supply voltage is correct before using the camera.  Do not drop the camera or subject it to physical shock.  Do not touch sensor modules with fingers. If cleaning is necessary, use a clean

cloth with a bit of ethanol and wipe it gently. If the camera will not be used for an extended period of time, put on the lens cap to protect the sensor from dirt.

 Do not aim the camera lens at the strong light such as sun or incandescent lamp.

The strong light can cause fatal damage to the camera.

 The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser beam.

 Do not place the camera in extremely hot, cold temperatures (the operating

temperature should be between -30°C to +60°C, or -40°C to +60°C if the camera model has an "H" in its suffix), dusty or damp environment, and do not expose it to high electromagnetic radiation.

 To avoid heat accumulation, ensure there is good ventilation to the device.  Keep the camera away from water and any liquids.  While shipping, pack the camera in its original, or equivalent, packing materials.

Or packing the same texture.

 Improper use or replacement of the battery may result in hazard of explosion.

Please use the manufacturer recommended battery type.

Notes:

For the camera supports IR, you are required to pay attention to the following precautions to prevent IR reflection:  Dust or grease on the dome cover will cause IR reflection. Please do not remove

the dome cover film until the installation is finished. If there is dust or grease on

Thermal Network Bullet Camera User Manual

the dome cover, clean the dome cover with clean soft cloth and isopropyl alcohol.

 Make certain the installation location does not have reflective surfaces of objects

too close to the camera. The IR light from the camera may reflect back into the lens causing reflection.

 The foam ring around the lens must be seated flush against the inner surface of

the bubble to isolate the lens from the IR LEDS. Fasten the dome cover to camera body so that the foam ring and the dome cover are attached seamlessly.

Thermal Network Bullet Camera User Manual

Table of Contents

Chapter 1 System Requirement ........................................................................... 1

Chapter 2 Network Connection ........................................................................... 2

2.1 Setting the Network Camera over the LAN ........................................................ 2

2.1.1 Wiring over the LAN ......................................................................................................... 2

2.1.2 Activating the Camera ...................................................................................................... 3

2.2 Setting the Network Camera over the WAN ...................................................... 9

2.2.1 Static IP Connection .......................................................................................................... 9

2.2.2 Dynamic IP Connection ................................................................................................... 10

Chapter 3 Access to the Network Camera........................................................... 13

3.1 Accessing by Web Browsers ............................................................................ 13

3.2 Accessing by Client Software .......................................................................... 14

Chapter 4 Live View .......................................................................................... 16

4.1 Live View Page ............................................................................................... 16

4.2 Starting Live View .......................................................................................... 17

4.3 Recording and Capturing Pictures Manually .................................................... 18

4.4 Operating PTZ Control .................................................................................... 18

4.4.1 PTZ Control Panel ............................................................................................................ 18

4.4.2 Setting/Calling a Preset ................................................................................................... 20

4.4.3 Setting/Calling a Patrol ................................................................................................... 21

Chapter 5 Network Camera Configuration ........................................................ 22

5.1 Configuring Local Parameters ......................................................................... 22

5.2 Configure System Settings .............................................................................. 24

5.2.1 Configuring Basic Information ........................................................................................ 24

5.2.2 Configuring Time Settings ............................................................................................... 25

5.2.3 Configuring RS485 Settings ............................................................................................. 27

5.2.4 Configuring DST Settings ................................................................................................. 28

5.2.5 Viewing License .............................................................................................................. 29

5.3 Maintenance ................................................................................................. 29

5.3.1 Upgrade & Maintenance ................................................................................................. 29

5.3.2 Log .................................................................................................................................. 31

5.3.3 System Service ................................................................................................................ 32

5.3.4 VCA Resource Type ......................................................................................................... 33

5.4 Security Settings ............................................................................................ 34

5.4.1 Authentication ................................................................................................................ 34

5.4.2 IP Address Filter .............................................................................................................. 34

5.4.3 Security Service............................................................................................................... 36

Thermal Network Bullet Camera User Manual

5.5 User Management ......................................................................................... 37

5.5.1 User Management .......................................................................................................... 37

5.5.2 Online Users .................................................................................................................... 40

Chapter 6 Network Settings ............................................................................... 41

6.1 Configuring Basic Settings .............................................................................. 41

6.1.1 Configuring TCP/IP Settings ............................................................................................ 41

6.1.2 Configuring DDNS Settings .............................................................................................. 43

6.1.3 Configuring PPPoE Settings ............................................................................................. 45

6.1.4 Configuring Port Settings ................................................................................................ 45

6.1.5 Configure NAT (Network Address Translation) Settings .................................................. 46

6.2 Configure Advanced Settings .......................................................................... 47

6.2.1 Configuring SNMP Settings ............................................................................................. 47

6.2.2 Configuring FTP Settings ................................................................................................. 50

6.2.3 Configuring Email Settings .............................................................................................. 52

6.2.4 Configuring HTTPS Settings ............................................................................................. 54

6.2.5 Configuring QoS Settings ................................................................................................ 56

6.2.6 Configuring 802.1X Settings ............................................................................................ 57

Chapter 7 Video/Audio Settings ......................................................................... 59

7.1 Configuring Video Settings ............................................................................. 59

7.2 Configuring Audio Settings ............................................................................. 62

7.3 Configuring ROI Encoding ............................................................................... 63

Chapter 8 Image Settings .................................................................................. 66

8.1 Configuring Display Settings ........................................................................... 66

8.2 Configuring OSD Settings ................................................................................ 68

8.3 Configuring Privacy Mask ............................................................................... 69

8.4 Configuring Picture Overlay ............................................................................ 70

8.5 Configuring DPC (Defective Pixel Correction) ................................................... 71

8.6 Configuring VCA Rule Display ......................................................................... 72

Chapter 9 Event Settings ................................................................................... 74

9.1 Basic Events ................................................................................................... 74

9.1.1 Configuring Motion Detection ........................................................................................ 74

9.1.2 Configuring Video Tampering Alarm .............................................................................. 80

9.1.3 Configuring Alarm Input ................................................................................................. 82

9.1.4 Configuring Alarm Output .............................................................................................. 83

9.1.5 Handling Exception ......................................................................................................... 84

9.2 Smart Events .................................................................................................. 84

9.2.1 Configuring Audio Exception Detection .......................................................................... 84

9.2.2 Configuring Scene Change Detection ............................................................................. 86

Thermal Network Bullet Camera User Manual

9.2.3 Configuring Dynamic Fire Source Detection ................................................................... 87

9.2.4 Configuring Fire Source Detection Shield ....................................................................... 88

9.3 VCA Configuration .......................................................................................... 90

9.3.1 Configuring Overlay & Capture ....................................................................................... 90

9.3.2 Configuring Camera Calibration ...................................................................................... 91

9.3.3 Configuring Shield Region ............................................................................................... 92

9.3.4 Configuring Rule ............................................................................................................. 93

9.3.5 Advanced Configuration ................................................................................................. 95

9.4 Temperature Measurement ............................................................................ 97

9.4.1 Basic Settings .................................................................................................................. 97

9.4.2 Advanced Settings ........................................................................................................... 99

9.4.3 Linkage Method ............................................................................................................ 105

Chapter 10 Storage Settings ........................................................................... 106

10.1 Configuring Record Schedule ........................................................................ 106

10.2 Configure Capture Schedule ......................................................................... 109

10.3 Configuring Net HDD .................................................................................... 111

10.4 Memory Card Detection ............................................................................... 113

10.5 Configuring Lite Storage ............................................................................... 115

Chapter 11 Playback...................................................................................... 117

Chapter 12 Picture ........................................................................................ 119

Appendix ........................................................................................................... 120

Appendix 1 SADP Software Introduction ............................................................... 120

Appendix 2 Port Mapping ...................................................................................... 123

Network Camera User Manual

Chapter 1 System Requirement

Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above

version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version.

Network Camera User Manual

Chapter 2 Network Connection

Note:

 You shall acknowledge that the use of the product with Internet access might be

under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, please contact with your dealer or the nearest service center.

 To ensure the network security of the network camera, we recommend you to

have the network camera assessed and maintained termly. You can contact us if you need such service.

Before you start:

 If you want to set the network camera via a LAN (Local Area Network), please

refer to 2.1.

 If you want to set the network camera via a WAN (Wide Area Network), please

refer to 2.2.

2.1 Setting the Network Camera over the LAN

Purpose:

To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the SADP or iVMS-4200 software to search and change the IP of the network camera.

Note: For the detailed introduction of SADP, please refer to Appendix 1.

2.1.1 Wiring over the LAN

The following figures show the two ways of cable connection of a network camera and a computer:

Purpose:

 To test the network camera, you can directly connect the network camera to the

computer with a network cable as shown in Figure 2-1.

Thermal Network Bullet Camera User Manual

Network Cable

Network Camera

Computer

Network Cable

Network Camera Computer

 Refer to Figure 2-2 to set network camera over the LAN via a switch or a router.

Figure 2-1 Connecting Directly

Figure 2-2 Connecting via a Switch or a Router

2.1.2 Activating the Camera

You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via SADP, and Activation via Client Software are all supported.

 Activation via Web Browser

Steps:

1. Power on the camera, and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter the activation interface.

Notes:

 The default IP address of the camera is 192.168.1.64.  The computer and the camera should belong to the same subnet.  For the camera enables the DHCP by default, you need to use the SADP software

to search the IP address.

Thermal Network Bullet Camera User Manual

Figure 2-3 Activation via Web Browser

3. Create a password and input the password into the password field.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Confirm the password.

5. Click OK to save the password and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the camera, and resetting the password. Get the SADP software from the supplied disk or the official website, and install the SADP according to the prompts. Follow the steps to activate the camera. Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select the inactive device.

Thermal Network Bullet Camera User Manual

Select inactive device.

Input and confirm

password.

Figure 2-4 SADP Interface

Note:

The SADP software supports activating the camera in batch. Refer to the user manual of SADP software for details.

3. Create a password and input the password in the password field, and confirm the

password.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Note:

You can enable the Hik-Connect service for the device during activation.

4. Click Activate to start activation. You can check whether the activation is completed on the popup window. If activation

failed, please make sure that the password meets the requirement and try again.

5. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

Thermal Network Bullet Camera User Manual

Figure 2-5 Modify the IP Address

6. Input the admin password and click Modify to activate your IP address

modification. The batch IP address modification is supported by the SADP. Refer to the user manual of SADP for details.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in

the figure below.

Thermal Network Bullet Camera User Manual

Figure 2-6 Control Panel

2. Click the Device Management icon to enter the Device Management interface, as

shown in the figure below.

Figure 2-7 Device Management Interface

Thermal Network Bullet Camera User Manual

3. Check the device status from the device list, and select an inactive device.

4. Click the Activate button to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the

password.

STRONG PASSWORD RECOMMENDED–We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. We recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

Figure 2-8 Activation Interface (Client Software)

6. Click OK button to start activation.

7. Click the Modify Netinfo button to pop up the Network Parameter Modification

interface, as shown in the figure below.

Thermal Network Bullet Camera User Manual

Figure 2-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the checkbox of Enable DHCP.

9. Input the password to activate your IP address modification.

2.2 Setting the Network Camera over the WAN

Purpose:

This section explains how to connect the network camera to the WAN with a static IP or a dynamic IP.

2.2.1 Static IP Connection

Before you start:

Please apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the network camera via a router or connect it to the WAN directly.

 Connecting the network camera via a router

Steps:

1. Connect the network camera to the router.

Thermal Network Bullet Camera User Manual

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to 2.1.2for

detailed IP address configuration of the network camera.

3. Save the static IP in the router.

4. Set port mapping, e.g., 80, 8000, and 554 ports. The steps for port mapping vary

according to the different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Visit the network camera through a web browser or the client software over the

internet.

Figure 2-10 Accessing the Camera through Router with Static IP

 Connecting the network camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to 2.1.2 for detailed IP address configuration of the network camera.

Figure 2-11 Accessing the Camera with Static IP Directly

2.2.2 Dynamic IP Connection

Before you start:

Please apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the network camera to a modem or a router.

 Connecting the network camera via a router

Steps:

Thermal Network Bullet Camera User Manual

1. Connect the network camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer

to Section 2.1.2 for detailed IP address configuration of the network camera.

3. In the router, set the PPPoE user name, password and confirm the password.

4. Set port mapping. E.g. 80, 8000, and 554 ports. The steps for port mapping vary

depending on different routers. Please call the router manufacturer for assistance with port mapping.

Note: Refer to Appendix 2 for detailed information about port mapping.

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the camera via the applied domain name.

 Connecting the network camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the network camera. Refer to Section 6.1.3 Configuring PPPoE Settings for detailed configuration.

Figure 2-12 Accessing the Camera with Dynamic IP

Note: The obtained IP address is dynamically assigned via PPPoE, so the IP address

always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Please follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.  Normal Domain Name Resolution

Thermal Network Bullet Camera User Manual

Figure 2-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the network

camera. Refer to Section 6.1.2 Configuring DDNS Settings for detailed configuration.

3. Visit the camera via the applied domain name.

 Private Domain Name Resolution

Figure 2-14 Private Domain Name Resolution

Steps:

1. Install and run the IP Server software in a computer with a static IP.

2. Access the network camera through the LAN with a web browser or the client

software.

3. Enable DDNS and select IP Server as the protocol type. Refer to Section 6.1.2

Configuring DDNS Settings for detailed configuration.

Network Camera User Manual

Chapter 3 Access to the Network

Camera

3.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

2. In the browser address bar, input the IP address of the network camera, and press

the Enter key to enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP address to the same subnet with your computer.

3. Input the user name and password and click Login.

The admin user should configure the device accounts and user/operator permissions

properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Figure 3-1 Login Interface

4. Click Login.

5. Install the plug-in before viewing the live video and operating the camera. Follow

the installation prompts to install the plug-in.

Thermal Network Bullet Camera User Manual

Figure 3-2 Download and Install Plug-in

Note: You may have to close the web browser to finish the installation of the

plug-in.

6. Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4

to login.

Note: For detailed instructions of further configuration, please refer to the user

manual of network camera.

3.2 Accessing by Client Software

The product CD contains the iVMS-4200 client software. You can view the live video and manage the camera with the software. Follow the installation prompts to install the software. The control panel and live view interface of iVMS-4200 client software are shown as below.

Thermal Network Bullet Camera User Manual

Figure 3-3 iVMS-4200 Control Panel

Figure 3-4 iVMS-4200 Main View

Thermal Network Bullet Camera User Manual

Toolbar

Live View

Window

Menu Bar

PTZ Control

Panel

Preset/Patrol

Settings

Chapter 4 Live View

4.1 Live View Page

Purpose:

The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

Descriptions of the live view page:

Figure 4-1 Live View Page

Menu Bar: Click each tab to enter Live View, Playback, Picture, and Configuration page respectively.

Live View Window: Display the live video. Toolbar:

Toolbar allows you to adjust the live view window size, the stream type, and the plug-ins. It also allows you to process the operations on the live view page, e.g., start/stop live view, capture, record, audio on/off, two-way audio, start/stop digital zoom, etc.

Thermal Network Bullet Camera User Manual

Icon

Description

Start/Stop live view.

The window size is 4:3.

The window size is 16:9.

The original widow size.

Self-adaptive window size.

Live view with the main stream.

Live view with the sub stream.

Live view with the third stream.

Click to select the third-party plug-in.

Manually capture the picture.

Manually start/stop recording.

Audio on and adjust volume /Mute.

Turn on/off microphone.

Start/stop digital zoom function.

For IE (Internet Explorer) users, plug-ins as webcomponents and quick time are selectable. And for Non-IE users, webcomponents, quick time, VLC or MJPEG is selectable if they are supported by the web browser.

PTZ Control:

Perform panning, tilting and zooming actions of the camera. Control the light and the wiper (only available for cameras supporting PTZ function).

Preset/Patrol Settings: Set/call/delete the presets or patrols for PTZ cameras.

4.2 Starting Live View

In the live view window as shown in Figure 4-2, click on the toolbar to start the live view of the camera.

Figure 4-2 Live View Toolbar

Table 4-1 Descriptions of the Toolbar

Note: The icons vary according to the different camera models.

Thermal Network Bullet Camera User Manual

4.3 Recording and Capturing Pictures Manually

In the live view interface, click on the toolbar to capture the live pictures or click

to record the live view. The saving paths of the captured pictures and clips can be

set on the Configuration > Local page. To configure remote scheduled recording, please refer to Section 10.1.

Note: The captured image will be saved as JPEG file or BMP file in your computer.

4.4 Operating PTZ Control

Note: Certain models do not support the PTZ control. This section only applies to the

camera that supports PTZ control.

Purpose:

In the live view interface, you can use the PTZ control buttons to realize pan/tilt/zoom control of the camera.

Note: To realize PTZ control, the camera connected to the network must support the

PTZ function or have a pan/tilt unit installed to the camera. Please properly set the PTZ parameters on RS485 settings page referring to Section 5.2.3.

4.4.1 PTZ Control Panel

On the live view page, click next to the right side of the live view window to show

the PTZ control panel and click to hide it. Click the direction buttons to control the pan/tilt movements.

Thermal Network Bullet Camera User Manual

Icon

Description

Zoom in/out

Focus near/far

Iris +/-

PTZ speed adjustment

Light on/off

Wiper on/off

Auxiliary focus

Initialize lens

Adjust speed of pan/tilt movements

Start Manual Tracking

Start 3D Zoom

Enable De-icing Heater

Preset

Figure 4-3 PTZ Control Panel

Click the zoom/focus/iris buttons to realize lens control.

Notes:

 There are eight direction arrows ( , , , , , , , ) in the control

panel. Click the arrows to realize adjustment in the relative positions.

 For the cameras which support lens movements only, the direction buttons are

invalid.

Table 4-2 Descriptions of PTZ Control Panel

Thermal Network Bullet Camera User Manual

Patrol

4.4.2 Setting/Calling a Preset

 Setting a Preset:

1. In the PTZ control panel, select a preset number from the preset list.

Figure 4-4 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

• Pan the camera to the right or left.

• Tilt the camera up or down.

• Zoom in or out.

• Refocus the lens.

3. Click to finish the setting of the current preset.

4. You can click to delete the preset.

 Calling a Preset:

This feature enables the camera to point to a specified preset scene manually or when an event takes place. For the defined preset, you can call it at any time to the desired preset scene. In the PTZ control panel, select a defined preset from the list and click to call the preset. Or you can place the mouse on the presets interface, and call the preset by typing the preset No. to call the corresponding presets.

Thermal Network Bullet Camera User Manual

Figure 4-5 Calling a Preset

4.4.3 Setting/Calling a Patrol

Note:

No less than 2 presets have to be configured before you set a patrol.

Steps:

1. Click to enter the patrol configuration interface.

2. Select a path No., and click to add the configured presets.

3. Select the preset, and input the patrol duration and patrol speed.

4. Click OK to save the first preset.

5. Follow the steps above to add the other presets.

Figure 4-6 Add Patrol Path

6. Click OK to save a patrol.

7. Click to start the patrol, and click to stop it.

8. (Optional) Click to delete a patrol.

Network Camera User Manual

Chapter 5 Network Camera

Configuration

5.1 Configuring Local Parameters

Purpose:

The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.

Steps:

1. Enter the Local Configuration interface: Configuration > Local.

Figure 5-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type and live view performance.

 Protocol Type: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected. UDP: Provides real-time audio and video streams.

Thermal Network Bullet Camera User Manual

HTTP: Allows the same quality as of TCP without setting specific ports for streaming under some network environments. MULTICAST: It’s recommended to select MCAST type when using the Multicast function. For detailed information about Multicast, refer to Section6.1.1.

 Play Performance: Set the play performance to Shortest Delay or Auto.  Rules: It refers to the rules on your local browser, select enable or disable to

display or not display the colored marks when the motion detection, face detection, or intrusion detection is triggered. E.g., enabled as the rules are, and the face detection is enabled as well, when a face is detected, it will be marked with a green rectangle on the live view.

 Image Format: Choose the image format for picture capture.

 Record File Settings: Set the saving path of the recorded video files. Valid for the

record files you recorded with the web browser.

 Record File Size: Select the packed size of the manually recorded and

downloaded video files to 256M, 512M or 1G. After the selection, the maximum record file size is the value you selected.

 Save record files to: Set the saving path for the manually recorded video files.  Save downloaded files to: Set the saving path for the downloaded video files

in playback mode.

 Picture and Clip Settings: Set the saving paths of the captured pictures and

clipped video files. Valid for the pictures you capture with the web browser.  Save snapshots in live view to: Set the saving path of the manually captured

pictures in live view mode.

 Save snapshots when playback to: Set the saving path of the captured

pictures in playback mode.

 Save clips to: Set the saving path of the clipped video files in playback mode.

Note: You can click Browse to change the directory for saving the clips and pictures,

and click Open to open the set folder of clips and picture saving.

3. Click Save to save the settings.

Thermal Network Bullet Camera User Manual

5.2 Configure System Settings

Purpose:

Follow the instructions below to configure the system settings, include System Settings, Maintenance, Security, and User Management, etc.

5.2.1 Configuring Basic Information

Enter the Device Information interface: Configuration > System > System Settings > Basic Information.

In the Basic Information interface, you can edit the Device Name and Device No.. Other information of the network camera, such as Model, Serial No., Firmware Version, Encoding Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future.

Figure 5-2 Basic Information

Thermal Network Bullet Camera User Manual

Online Upgrade

For some camera models, when memory card is mounted, you can click the Update button that appears on the right of Firmware Version text field to see if there is a new version available. If a new version is available, the version number will be displayed in the New Version text field below, and you can click the Upgrade button to upgrade the firmware for the camera.

Figure 5-3 Online Upgrade

Note: When the camera is upgrading, don't power off the camera. During upgrading,

the camera may not be accessible. You need to wait 1 or 2 minutes before the upgrade finishes.

5.2.2 Configuring Time Settings

Purpose:

You can follow the instructions in this section to configure the time synchronization and DST settings.

Steps:

1. Enter the Time Settings interface, Configuration > System> System Settings >

Time Settings.

Thermal Network Bullet Camera User Manual

Figure 5-4 Time Settings

2. Select the Time Zone of your location from the drop-down menu.

3. Configure the NTP settings.

(1) Click to enable the NTP function. (2) Configure the following settings:

Server Address: IP address of NTP server. NTP Port: Port of NTP server.

Interval: The time interval between the two synchronizing actions with NTP

server.

(3) (Optional) You can click the Test button to test the time synchronization

function via NTP server.

Figure 5-5 Time Sync by NTP Server

Thermal Network Bullet Camera User Manual

Note: If the camera is connected to a public network, you should use a NTP server

that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44). If the camera is set in a customized network, NTP software can be used to establish a NTP server for time synchronization.

 Configure the manual time synchronization.

(1) Check the Manual Time Sync. item to enable the manual time

synchronization function.

(2) Click the icon to select the date, time from the pop-up calendar. (3) (Optional) You can check Sync. with computer time item to synchronize the

time of the device with that of the local PC.

Figure 5-6 Time Sync Manually

 Click Save to save the settings.

5.2.3 Configuring RS485 Settings

Purpose:

The RS485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit.

Steps:

1. Enter RS-485 Port Setting interface: Configuration > System > System

Settings > RS485.

Thermal Network Bullet Camera User Manual

Figure 5-7 RS-485 Settings

2. Set the RS485 parameters and click Save to save the settings.

By default, the Baud Rate is set as 9600 bps, the Data Bit is 8, the stop bit is 1 and the Parity and Flow Control is None.

Note: The Baud Rate, PTZ Protocol and PTZ Address parameters should be exactly

the same as the PTZ camera parameters.

5.2.4 Configuring DST Settings

Purpose:

Daylight Saving Time (DST) is a way of making better use of the natural daylight by setting your clock forward one hour during the summer months, and back again in the fall. Configure the DST according to your actual demand.

Steps:

1. Enter the DST configuration interface.

Configuration > System > System Settings > DST

Thermal Network Bullet Camera User Manual

Figure 5-8 DST Settings

2. Select the start time and the end time.

3. Select the DST Bias.

4. Click Save to activate the settings.

5.2.5 Viewing License

Purpose:

You can view the open source software licenses that are applied to the IP camera.

Steps:

1. Enter About Device interface: Configuration > System > System Settings >

About Device.

2. Click View Licenses.

Figure 5-9 About Device Interface

5.3 Maintenance

5.3.1 Upgrade & Maintenance

Purpose:

The upgrade & maintenance interface allows you to process the operations, including

Thermal Network Bullet Camera User Manual

reboot, partly restore, restore to default, export/import the configuration files, and upgrade the device. Enter the Maintenance interface: Configuration > System > Maintenance > Upgrade & Maintenance.

 Reboot: Restart the device.  Restore: Reset all the parameters, except the IP parameters and user information,

to the default settings.

 Default: Restore all the parameters to the factory default.

Note: After restoring the default settings, the IP address is also restored to the default

IP address, please be careful for this action.  Export/Import Config. File: Configuration file is used for the batch

configuration of the camera, which can simplify the configuration steps when there are a lot of cameras needing configuring.

Steps:

1. Click Device Parameters to export the current configuration file, and save it

to certain place.

2. Click Browse to select the saved configuration file and then click Import to

start importing configuration file.

Note: You need to reboot the camera after importing configuration file.

 Upgrade: Upgrade the device to a certain version.

Steps:

1. Select firmware or firmware directory to locate the upgrade file.

Firmware: Locate the exact path of the upgrade file. Firmware Directory: Only the directory the upgrade file belongs to is required.

2. Click Browse to select the local upgrade file and then click Upgrade to start

remote upgrade.

Note: The upgrading process will take 1 to 10 minutes. Please don't disconnect

power of the camera during the process, and the camera reboots automatically

Thermal Network Bullet Camera User Manual

after upgrade.

5.3.2 Log

Purpose:

The operation, alarm, exception and information of the camera can be stored in log files. You can also export the log files on your demand.

Before you start:

Please configure network storage for the camera or insert a SD card in the camera.

Steps:

1. Enter log searching interface: Configuration > System > Maintenance > Log.

Figure 5-10 Log Searching Interface

2. Set the log search conditions to specify the search, including the Major Type,

Minor Type, Start Time and End Time.

3. Click Search to search log files. The matched log files will be displayed on the

log list interface.

Thermal Network Bullet Camera User Manual

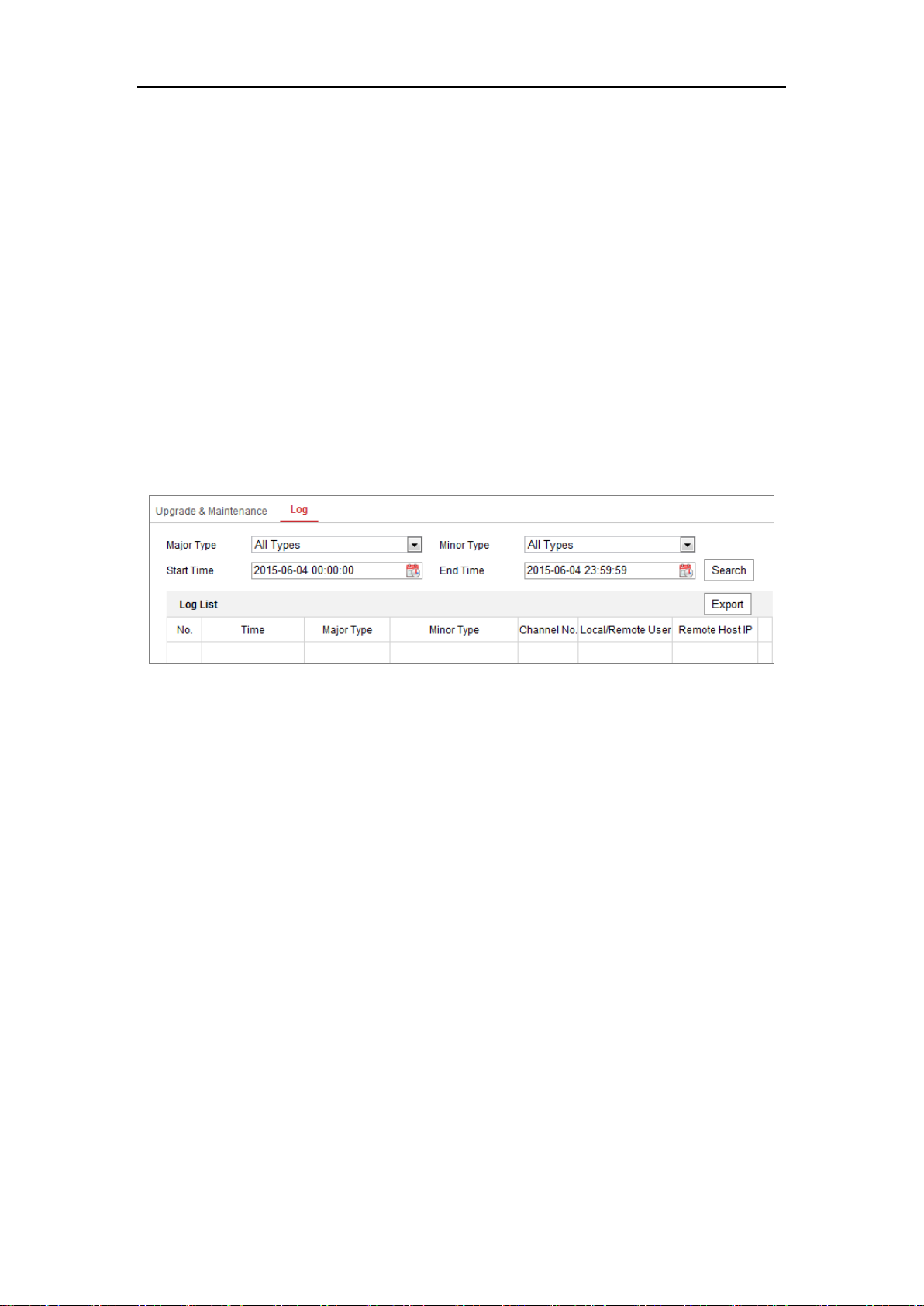

Figure 5-11 Log Searching

4. To export the log files, click Export to save the log files.

5.3.3 System Service

Purpose:

System service settings refer to the hardware service the camera supports. Supported functions vary according to the different cameras. For the cameras support Automatic De-Icing, IR LED, Supplement Light, ABF (Auto Back Focus), Auto Defog, or Status LED, you can select to enable or disable the corresponding service according to the actual demands. Automatic De-Icing: You can check the checkbox to enable Automatic De-Icing function of the device. The de-icing heater is only supported under POE+, 24VAC, or 12VDC power supply.

ABF: When ABF function is enabled, you can click on PTZ control panel to realize auxiliary focus.

Supplement Light: For some models, you can check the checkbox of Enable Supplement Light to reboot the system and enable the supplement light.

Thermal Network Bullet Camera User Manual

Figure 5-12 Enable Supplement Light

5.3.4 VCA Resource Type

Purpose:

VCA resource offers you options to enable certain VCA functions according to actual need when several VCA functions are available. It helps allocate more resources to the wanted functions.

Steps:

1. Enter VCA Resource Type interface: Configuration > System > Maintenance >

VCA Resource Type.

Figure 5-13 VCA Resource Type

2. Check the checkbox to enable the desired VCA resource type.

3. Click Save. A reboot is required after setting the VCA Resource.

Notes:

• VCA Resource function varies according to different camera models.

Thermal Network Bullet Camera User Manual

• The function may not be supported by some camera models.

5.4 Security Settings

Configure the parameters, including Authentication, Anonymous Visit, IP Address Filter, and Security Service from security interface.

5.4.1 Authentication

Purpose:

You can specifically secure the stream data of live view.

Steps:

1. Enter the Authentication interface: Configuration > System > Security >

Authentication.

Figure 5-14 RTSP Authentication

2. Select the RTSP Authentication type basic or disable in the drop-down list to

enable or disable the RTSP authentication.

Note: If you disable the RTSP authentication, anyone can access the video stream by

the RTSP protocol via the IP address.

3. Click Save to save the settings.

5.4.2 IP Address Filter

Purpose:

This function makes it possible for access control.

Steps:

Thermal Network Bullet Camera User Manual

1. Enter the IP Address Filter interface: Configuration > System > Security > IP

Address Filter

Figure 5-15 IP Address Filter Interface

2. Check the checkbox of Enable IP Address Filter.

3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed

are selectable.

4. Set the IP Address Filter list.

 Add an IP Address

Steps:

(1) Click the Add to add an IP. (2) Input the IP Adreess.

(3) Click the OK to finish adding.

 Modify an IP Address

Steps:

Figure 5-16 Add an IP

(1) Left-click an IP address from filter list and click Modify. (2) Modify the IP address in the text filed.

Thermal Network Bullet Camera User Manual

Figure 5-17 Modify an IP

(3) Click the OK to finish modifying.

 Delete an IP Address or IP Addresses.

Select the IP address(es) and click Delete.

5. Click Save to save the settings.

5.4.3 Security Service

To enable the remote login, and improve the data communication security, the camera provides the security service for better user experience.

Steps:

1. Enter the security service configuration interface: Configuration > System >

Security > Security Service.

Figure 5-18 Security Service

2. Check the checkbox of Enable SSH to enable the data communication security,

and uncheck the checkbox to disable the SSH.

3. Check the checkbox of Enable Illegal Login Lock, and then the IP address will

be locked if the admin user performs 7 failed user name/password attempts (5 times for the operator/user).

Thermal Network Bullet Camera User Manual

Note: If the IP address is locked, you can try to login the device after 30 minutes.

5.5 User Management

5.5.1 User Management

Purpose:

The admin user can add, delete or modify user accounts, and grant them different permissions. We highly recommend you manage the user accounts and permissions properly.

Steps:

1. Enter the User Management interface: Configuration >System >User

Management

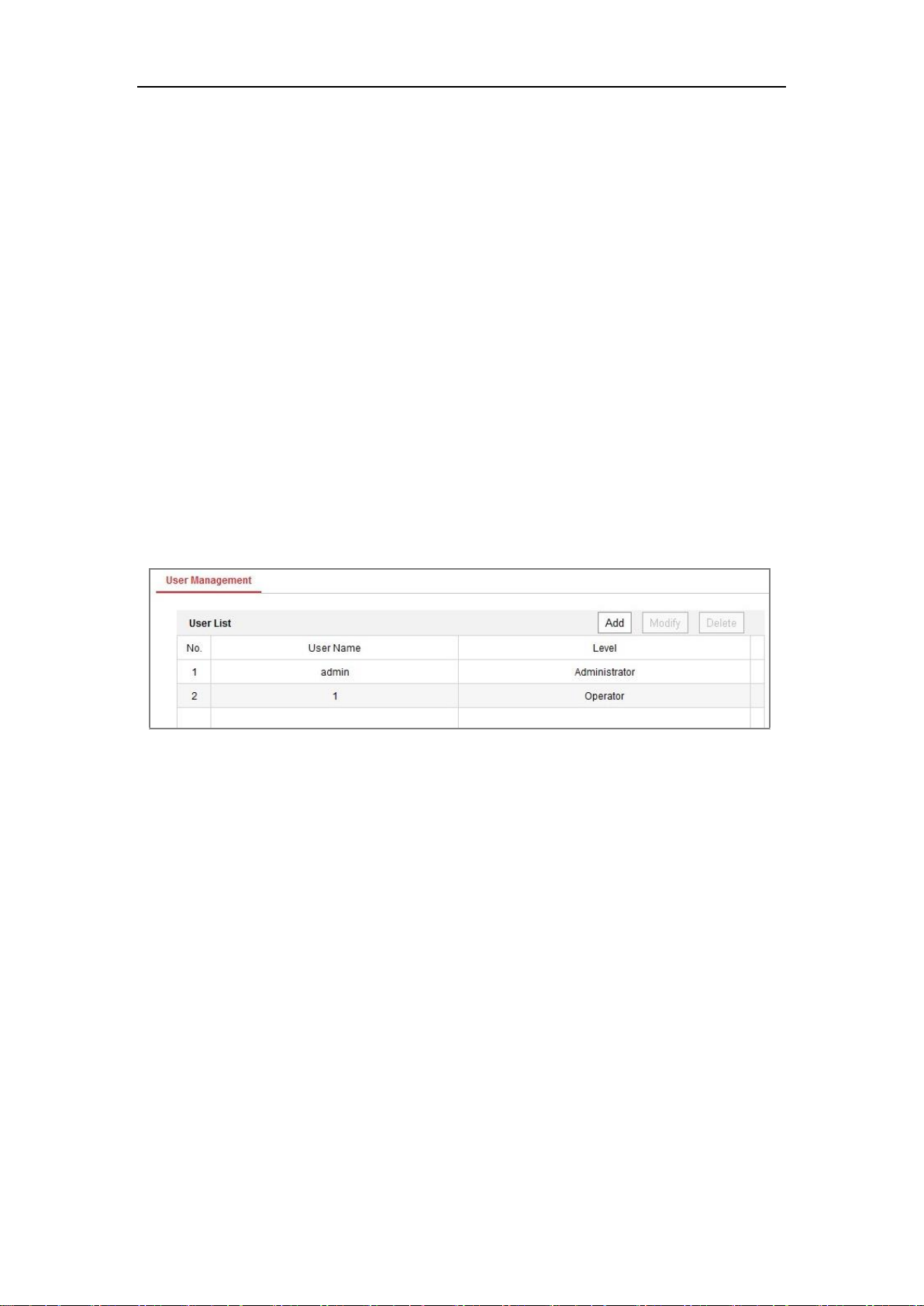

Figure 5-19 User Management Interface

 Adding a User

The admin user has all permissions by default and can create/modify/delete other accounts. The admin user cannot be deleted and you can only change the admin password.

Steps:

1. Click Add to add a user.

2. Input the User Name, select Level and input Password.

Notes:

● Up to 31 user accounts can be created.

● Users of different levels own different default permissions. Operator and user

are selectable.

Thermal Network Bullet Camera User Manual

● STRONG PASSWORD RECOMMENDED–We highly recommend you

create a strong password of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

3. You can check or uncheck the permissions for the new user.

4. Click OK to finish the user addition.

Figure 5-20 Add a User

 Modifying a User

Steps:

1. Left-click to select the user from the list and click Modify.

2. Modify the User Name, Level and Password.

Thermal Network Bullet Camera User Manual

3. STRONG PASSWORD RECOMMENDED–We highly recommend you

4. You can check or uncheck the permissions.

5. Click OK to finish the user modification.

Figure 5-21 Modify a User

 Deleting a User

Steps:

1. Click to select the user you want to delete and click Delete.

2. Click OK on the pop-up dialogue box to confirm the deletion.

Thermal Network Bullet Camera User Manual

5.5.2 Online Users

Purpose:

You can see the current users who are visiting the device through this interface. User information, such as user name, level, IP address, and operation time, is displayed in the User List. Click Refresh to refresh the list.

Figure 5-22 View the Online Users

Network Camera User Manual

Chapter 6 Network Settings

Purpose:

Follow the instructions in this chapter to configure the basic settings and advanced settings.

6.1 Configuring Basic Settings

Purpose:

You can configure the parameters, including TCP/IP, DDNS, PPPoE, Port, and NAT, etc., by following the instructions in this section.

6.1.1 Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the camera over network. The camera supports both the IPv4 and IPv6. Both versions can be configured simultaneously without conflicting to each other, and at least one IP version should be configured.

Steps:

1. Enter TCP/IP Settings interface: Configuration > Network > Basic Settings > TCP/IP

Thermal Network Bullet Camera User Manual

Figure 6-1 TCP/IP Settings

2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6

Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address.

3. (Optional) Check the checkbox of Enable Multicast Discovery, and then the

online network camera can be automatically detected by client software via private multicast protocol in the LAN.

4. Configure the DNS server. Input the preferred DNS server, and alternate DNS

server.

5. Click Save to save the above settings.

Notes:

 The valid value range of MTU is 1280 ~ 1500.  The Multicast sends a stream to the multicast group address and allows multiple

clients to acquire the stream at the same time by requesting a copy from the

Thermal Network Bullet Camera User Manual

multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.

 A reboot is required for the settings to take effect.

6.1.2 Configuring DDNS Settings

Purpose:

If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the camera.

Steps:

1. Enter the DDNS Settings interface: Configuration > Network > Basic

Settings > DDNS.

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

 DynDNS:

Steps:

(1) Enter Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, enter the domain name obtained from the DynDNS

website.

(3) Enter the User Name and Password registered on the DynDNS website. (4) Click Save to save the settings.

 NO-IP:

Steps:

Thermal Network Bullet Camera User Manual

Figure 6-2 DynDNS Settings

(1) Choose the DDNS Type as NO-IP.

Figure 6-3 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the User Name and Password. (5) Click Save and then you can view the camera with the domain name.

Note: Reboot the device to make the settings take effect.

Thermal Network Bullet Camera User Manual

6.1.3 Configuring PPPoE Settings

Steps:

1. Enter the PPPoE Settings interface: Configuration > Network > Basic

Settings > PPPoE

Figure 6-4 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Enter User Name, Password, and Confirm password for PPPoE access.

Note: The User Name and Password should be assigned by your ISP.

 For your privacy and to better protect your system against security risks, we

strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Click Save to save and exit the interface.

Note: A reboot is required for the settings to take effect.

6.1.4 Configuring Port Settings

Purpose:

Thermal Network Bullet Camera User Manual

You can set the port No. of the camera, e.g., HTTP port, RTSP port and HTTPS port.

Steps:

1. Enter the Port Settings interface, Configuration > Network > Basic Settings >

Port

Figure 6-5 Port Settings

2. Set the HTTP port, RTSP port, HTTPS port and server port of the camera.

HTTP Port: The default port number is 80, and it can be changed to any port No. which is not occupied. RTSP Port: The default port number is 554 and it can be changed to any port No. ranges from 1 to 65535. HTTPS Port: The default port number is 443, and it can be changed to any port No. which is not occupied. Server Port: The default server port number is 8000, and it can be changed to any port No. ranges from 2000 to 65535.

3. Click Save to save the settings.

Note: A reboot is required for the settings to take effect.

6.1.5 Configure NAT (Network Address Translation) Settings

Purpose:

NAT interface allows you to configure the UPnP™ parameters. Universal Plug and Play (UPnP™) is a networking architecture that provides

compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the

Thermal Network Bullet Camera User Manual

implementation of networks in the home and corporate environments.

With the function enabled, you don’t need to configure the port mapping for each port,

and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the NAT settings interface. Configuration > Network > Basic Settings >

NAT.

2. Check the checkbox to enable the UPnP™ function.

3. Choose a nickname for the camera, or you can use the default name.

4. Select the port mapping mode. Manual and Auto are selectable. And for manual

port mapping, you can customize the value of the external port.

5. Click Save to save the settings.

Figure 6-6 UPnP Settings

6.2 Configure Advanced Settings

Purpose:

You can configure the parameters, including SNMP, FTP, Email, HTTPS, QoS,

802.1x, etc., by following the instructions in this section.

6.2.1 Configuring SNMP Settings

Purpose:

You can set the SNMP function to get camera status, parameters and alarm related

Thermal Network Bullet Camera User Manual

information, and manage the camera remotely when it is connected to the network.

Before you start:

Before setting the SNMP, please download the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

Note: The SNMP version you select should be the same as that of the SNMP software.

And you also need to use the different version according to the security level you required. SNMP v1 provides no security and SNMP v2 requires password for access. And SNMP v3 provides encryption and if you use the third version, HTTPS protocol must be enabled.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

Steps:

1. Enter the SNMP Settings interface: Configuration > Network > Advanced Settings > SNMP.

Thermal Network Bullet Camera User Manual

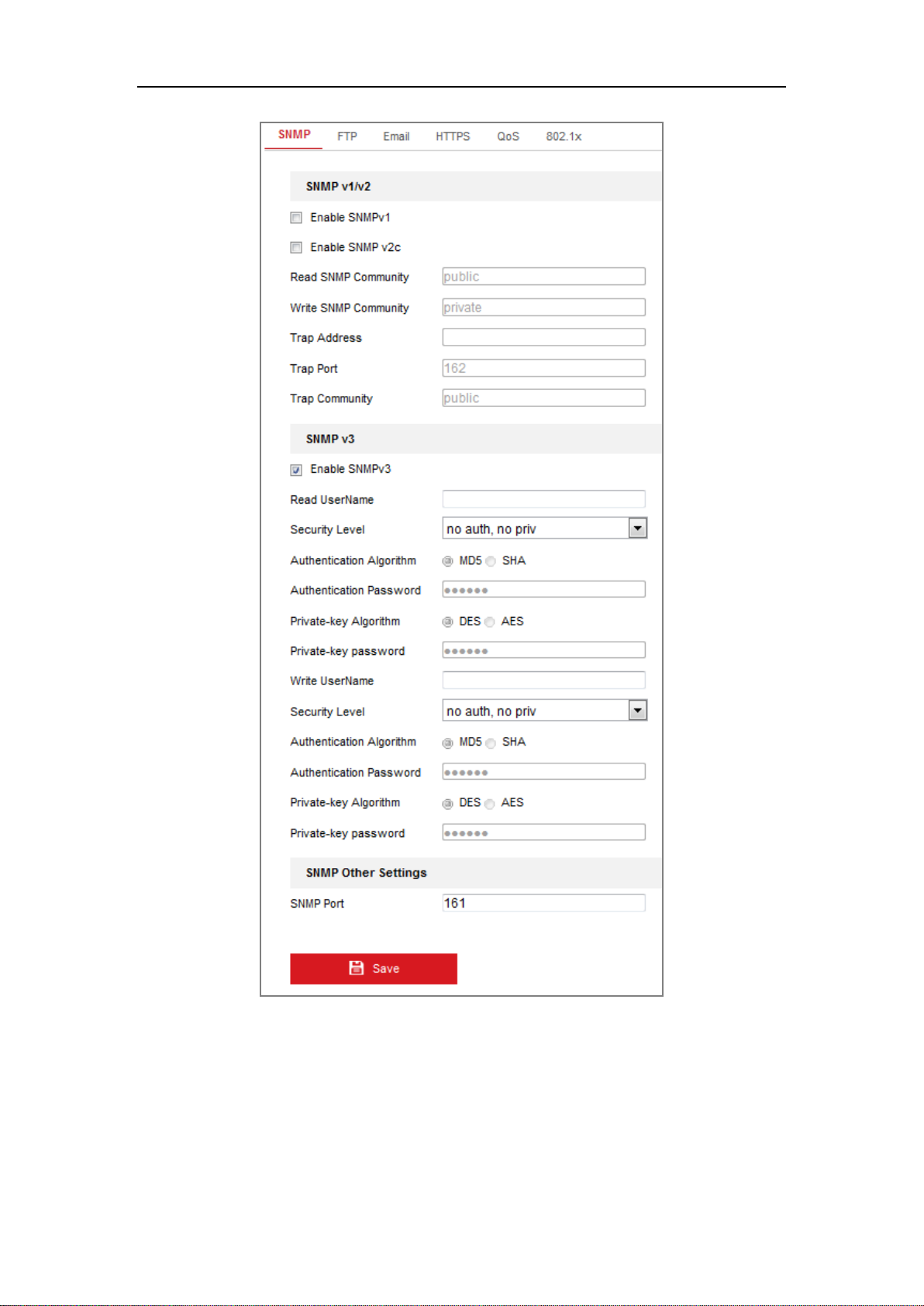

Figure 6-7 SNMP Settings

2. Check the checkbox of Enable SNMPv1, Enable SNMP v2c, Enable SNMPv3 to enable the feature correspondingly.

3. Configure the SNMP settings.

Note: The settings of the SNMP software should be the same as the settings you

Thermal Network Bullet Camera User Manual

configure here.

4. Click Save to save and finish the settings.

Notes:

• A reboot is required for the settings to take effect.

• To lower the risk of information leakage, you are suggested to enable SNMP v3

instead of SNMP v1 or v2.

6.2.2 Configuring FTP Settings

Purpose:

You can configure the FTP server related information to enable the uploading of the captured pictures to the FTP server. The captured pictures can be triggered by events or a timing snapshot task. Steps:

1. Enter the FTP Settings interface: Configuration > Network > Advanced

Settings > FTP.

Figure 6-8 FTP Settings

2. Input the FTP address and port.

3. Configure the FTP settings; and the user name and password are required for the

Thermal Network Bullet Camera User Manual

FTP server login.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

4. Set the directory structure and picture filing interval.

Directory: In the Directory Structure field, you can select the root directory, parent directory and child directory. When the parent directory is selected, you have the option to use the Device Name, Device Number or Device IP for the name of the directory; and when the Child Directory is selected, you can use the Camera Name or Camera No. as the name of the directory. Picture Filing Interval: For better picture management, you can set the picture filing interval from 1 day to 30 days. Pictures captured in the same time interval will be saved in one folder named after the beginning date and ending date of the time interval.

Picture Name: Set the naming rule for captured picture files. You can choose Default in the drop-down list to use the default rule, that is,

IP address_channel number_capture time_event type.jpg

(e.g., 10.11.37.189_01_20150917094425492_FACE_DETECTION.jpg).

Or you can customize it by adding a Custom Prefix to the default naming rule.

5. Check the Upload Picture checkbox to enable the function.

Upload Picture: To enable uploading the captured picture to the FTP server. Anonymous Access to the FTP Server (in which case the user name and

password won’t be required.): Check the Anonymous checkbox to enable the

Thermal Network Bullet Camera User Manual

anonymous access to the FTP server.

Note: The anonymous access function must be supported by the FTP server.

6. Click Save to save the settings.

6.2.3 Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.

Before you start:

Please configure the DNS Server settings under Configuration > Network > Basic Settings > TCP/IP before using the Email function.

Steps:

1. Enter the TCP/IP Settings (Configuration > Network > Basic Settings >

TCP/IP) to set the IPv4 Address, IPv4 Subnet Mask, IPv4 Default Gateway and

the Preferred DNS Server.

Note: Please refer to Section 6.1.1for detailed information.

2. Enter the Email Settings interface: Configuration > Network >Advanced

Settings > Email.

3. Configure the following settings:

Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: IP address or host name (e.g., smtp.263xmail.com) of the SMTP Server. SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25 (not secured). And the SSL SMTP port is 465. Email Encryption: None, SSL, and TLS are selectable. When you select SSL or TLS and disable STARTTLS, e-mails will be sent after encrypted by SSL or TLS. The SMTP port should be set as 465 for this encryption method. When you select

Thermal Network Bullet Camera User Manual

SSL or TLS and enable STARTTLS, emails will be sent after encrypted by STARTTLS, and the SMTP port should be set as 25.

Note: If you want to use STARTTLS, make sure that the protocol is supported by

your e-mail server. If you check the Enable STARTTLS checkbox when the protocol is not supported by your e-mail sever, your e-mail will not be encrypted. Attached Image: Check the checkbox of Attached Image if you want to send emails with attached alarm images. Interval: The interval refers to the time between two actions of sending attached pictures. Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and input the login user name and password.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

The Receiver table: Select the receiver to which the email is sent. Up to 3 receivers can be configured. Receiver: The name of the user to be notified. Receiver’s Address: The email address of user to be notified.

Thermal Network Bullet Camera User Manual

Figure 6-9 Email Settings

4. Click Save to save the settings.

6.2.4 Configuring HTTPS Settings

Purpose:

HTTPS provides authentication of the web site and its associated web server, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https. E.g., If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inputting https://192.168.1.64:443 via the web browser.

Steps:

1. Enter the HTTPS settings interface. Configuration > Network > Advanced

Settings > HTTPS.

2. Check the checkbox of Enable to enable the function.

Thermal Network Bullet Camera User Manual

Figure 6-10 HTTPS Configuration Interface

3. Create the self-signed certificate or authorized certificate.

 Create the self-signed certificate

(1) Select Create Self-signed Certificate as the Installation Method. (2) Click Create button to enter the creation interface.

Figure 6-11 Create Self-signed Certificate (3) Enter the country, host name/IP, validity and other information. (4) Click OK to save the settings.

Note: If you already had a certificate installed, the Create Self-signed

Certificate is grayed out.

 Create the authorized certificate

(1) Select Create the certificate request first and continue the installation as

the Installation Method.

(2) Click Create button to create the certificate request. Fill in the required

information in the popup window.

Thermal Network Bullet Camera User Manual

(3) Download the certificate request and submit it to the trusted certificate

authority for signature.

(4) After receiving the signed valid certificate, import the certificate to the

device.

4. There will be the certificate information after your successfully creating and

installing the certificate.

Figure 6-12 Installed Certificate

5. Click the Save button to save the settings.

6.2.5 Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

Steps:

1. Enter the QoS Settings interface: Configuration > Network > Advanced

Settings > QoS

Figure 6-13 QoS Settings

Thermal Network Bullet Camera User Manual

2. Configure the QoS settings, including Video/Audio DSCP, Event/Alarm DSCP

and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger the DSCP value is, the higher the priority is.

Note: DSCP refers to the Differentiated Service Code Point; and the DSCP value

is used in the IP header to indicate the priority of the data.

3. Click Save to save the settings.

Note: A reboot is required for the settings to take effect.

6.2.6 Configuring 802.1X Settings

Purpose:

The IEEE 802.1X standard is supported by the network cameras, and when the feature is enabled, the camera data is secured and user authentication is needed when connecting the camera to the network protected by the IEEE 802.1X.

Before you start:

The authentication server must be configured. Please apply and register a user name and password for 802.1X in the server.

 For your privacy and to better protect your system against security risks, we

 Proper configuration of all passwords and other security settings is the

responsibility of the installer and/or end-user.

Steps:

1. Enter the 802.1X Settings interface, Configuration > Network > Advanced

Settings > 802.1X

Thermal Network Bullet Camera User Manual

Figure 6-14 802.1X Settings

2. Check the Enable IEEE 802.1X checkbox to enable the feature.

3. Configure the 802.1X settings, including Protocol, EAPOL version, User Name,

Password and Confirm.

Note: The EAPOL version must be identical with that of the router or the switch.

4. Enter the user name and password to access the server.

5. Click Save to finish the settings.

Note: A reboot is required for the settings to take effect.

Network Camera User Manual

Chapter 7 Video/Audio Settings

Purpose:

Follow the instructions below to configure the video setting, audio settings, ROI, and Display info. on Stream.

7.1 Configuring Video Settings

Steps:

1. Enter the Video Settings interface, Configuration > Video/Audio > Video

Figure 7-1 Video Settings

2. Select the Stream Type of the camera to main stream (normal), sub-stream or

third stream.

Notes:

• For some models, to enable the third stream, go to System > Maintenance >

System Service> Software and check the checkbox of Enable Third Stream to

Thermal Network Bullet Camera User Manual

reboot the system and enable the third stream.

• The main stream is usually for recording and live view with good bandwidth,

and the sub-stream can be used for live view when the bandwidth is limited.

• To enable the third stream, go to System>Maintenance>System Service>

Software and check the checkbox of Enable Third Stream to reboot the system and enable the third stream.

3. You can customize the following parameters for the selected stream type.

Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video & Audio. Resolution: Select the resolution of the video output. Bitrate Type: Select the bitrate type to constant or variable. Video Quality: When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

Set the frame rate. The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Max. Bitrate: Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to the higher video quality, but the better bandwidth is required.

Note: The maximum limit of the max. bitrate value varies according to different

camera platforms. For certain cameras, the maximum limit is 8192 Kbps or 12288 Kbps. Video Encoding: If the Stream Type is set to main stream, H.264 and H.265 are selectable, and if the stream type is set to sub stream or third stream, H.264, MJPEG, and H.265 are

Thermal Network Bullet Camera User Manual

selectable. H.265 is a new encoding technology. Compared with H.264, it reduces the transmission bitrate under the same resolution, frame rate and image quality.

Note: Selectable video encoding types may vary according to different camera

modes.

H.264+ and H.265+:

• H.264+: If you set the main stream as the stream type, and H.264 as the video

encoding, you can see H.264+ available. H.264+ is an improved compression coding technology based on H.264. By enabling H.264+, users can estimate the HDD consumption by its maximum average bitrate. Compared to H.264, H.264+ reduces storage by up to 50% with the same maximum bitrate in most scenes.

• H.265+: If you set the main stream as the stream type, and H.265 as the video

encoding, you can see H.265+ available. H.265+ is an improved compression coding technology based on H.265. By enabling H.265+, users can estimate the HDD consumption by its maximum average bitrate. Compared to H.265, H.265+ reduces storage by up to 50% with the same maximum bitrate in most

scenes. You need to reboot the camera if you want to turn on or turn off the H.264+/H.265+. If you switch from H.264+ to H.265+ directly, and vice versa, a reboot is not required by the system.

Notes:

• Upgrade your video player to the latest version if live view or playback does

not work properly due to compatibility.

• The bitrate type must be variable if you want to use H.264+ or H.265+.

• With H.264+/H.265+ enabled, the parameters such as profile, I frame interval,

video quality, and SVC are greyed out if the bitrate type is variable.

• With H.264+/H.265+ enabled, some functions are not supported. For those

functions, corresponding interfaces will be hidden.

• H.264+/H.265+ can spontaneously adjust the bitrate distribution according the

requirements of the actual scene in order to realize the set maximum average

Thermal Network Bullet Camera User Manual

bitrate in the long term. The camera needs at least 3 days to adapt to a fixed

monitoring scene.

Max. Average Bitrate:

When you set a maximum bitrate, its corresponding recommended maximum average bitrate will be shown in the Max. Average Bitrate box. You can also set the maximum average bitrate manually from 32 Kbps to the value of the set maximum bitrate.

Profile:

Basic profile, Main Profile, and High Profile for coding are selectable.

I Frame Interval:

Set I Frame Interval from 1 to 400.

SVC:

Scalable Video Coding is an extension of the H.264/AVC standard. Select OFF/ON to disable/enable the SVC function. Select Auto and the device will automatically extract frames from the original video when the network bandwidth is insufficient.

Smoothing:

It refers to the smoothness of the stream. The higher value of the smoothing is, the better fluency of the stream will be, though, the video quality may not be so satisfactory. The lower value of the smoothing is, the higher quality of the stream will be, though it may appear not fluent.

4. Click Save to save the settings.

Note:

The video parameters vary according to different camera models. Refer to the actual display page for camera functions.

7.2 Configuring Audio Settings

Steps:

1. Enter the Audio Settings interface: Configuration > Video/Audio > Audio.

Thermal Network Bullet Camera User Manual

Figure 7-2 Audio Settings

2. Configure the following settings.

Note: Audio settings vary according to different camera models.

Audio Encoding: G.722.1, G.711 ulaw, G.711alaw, G.726, MP2L2 and PCM are selectable. For MP2L2, the Sampling Rate and Audio Stream Bitrate are configurable. For PCM, the Sampling Rate can be set. Audio Input: MicIn and LineIn are selectable for the connected microphone and pickup respectively.

Input Volume: 0-100 adjustable. Environmental Noise Filter: Set it as OFF or ON. When the function is enabled,

the noise in the environment can be filtered to some extent.

3. Click Save to save the settings.

7.3 Configuring ROI Encoding

Purpose:

ROI (Region of Interest) encoding helps to discriminate the ROI and background information in video compression, which means, the technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

Note: ROI function varies according to different camera models.

Thermal Network Bullet Camera User Manual

Figure 7-3 Region of Interest Settings

Steps:

1. Enter the ROI settings interface: Configuration > Video/Audio > ROI.

2. Select the Stream Type for ROI encoding.

3. Check the checkbox of Enable under Fixed Region item.

4. Set Fixed Region for ROI. (1) Select the Region No. from the drop-down list. (2) Check the Enable checkbox to enable ROI function for the chosen region. (3) Click Drawing. Click and drag the mouse on the view screen to draw a red

rectangle as the ROI region. You can click Clear to cancel former drawing. Click Stop Drawing when you finish.

(4) Select the ROI level.

Thermal Network Bullet Camera User Manual

(5) Enter a region name for the chosen region. (6) Click Save the save the settings of ROI settings for chosen fixed region. (7) Repeat steps (1) to (6) to setup other fixed regions.

5. Set Dynamic Region for ROI. (1) Check the checkbox to enable Face Tracking.

Note: To enable face tracking function, the face detection function should be

supported and enabled. (2) Select the ROI level.

6. Click Save to save the settings.

Note: ROI level means the image quality enhancing level. The larger the value is, the

better the image quality would be.

Network Camera User Manual

Chapter 8 Image Settings

Purpose:

Follow the instructions in this chapter to configure the image parameters, including display settings, OSD settings, privacy mask, and picture overlay.

8.1 Configuring Display Settings

Purpose:

Configure the image adjustment, exposure settings, day/night switch, backlight settings, white balance, image enhancement, video adjustment, and other parameters in display settings.

Note: The display parameters vary according to the different camera models. Please

refer to the actual interface for details.

Steps:

1. Enter the Display Settings interface, Configuration > Image > Display Settings.

Figure 8-1 Display Settings of Day/Night Auto-Switch

2. Set the image parameters of the camera.

Note: In order to guarantee the image quality in different illumination, it provides two

sets of parameters for users to configure.

• Image Adjustment

Brightness describes bright of the image, which ranges from 1~100, and the

Thermal Network Bullet Camera User Manual

default value is 50. Contrast describes the contrast of the image, which ranges from 1~100, and

the default value is 50. FFC (Flat Field Correction) improves the quality in digital imaging. It can

remove artifacts from 2-D images that are caused by variations in the pixel-to-pixel sensitivity of the detector or by distortions in the optical path. Schedule, Temperature, and OFF are selectable.

 Schedule: You can select the correction interval among 10, 20, 30,

40, 50, 60, 120, 180, and 240minutes.

 Temperature: Camera adjusts the image according to the

temperature.

Manual Background Correction: Fully cover the lens with an object (lens cover is recommended) and click the Manual Background Correction button, and then the camera adjusts the image according to the current environment. Manual Shutter Correction: Click the Manual Shutter Correction button and then the camera adjusts the image according to the temperature of the camera itself.

• Image Enhancement

Digital Noise Reduction: DNR reduces the noise in the video stream. OFF, Normal and Expert are selectable. Set the DNR level from 0 to 100 in Normal Mode. Set the DNR level from both space DNR level [0-100] and time DNR level [0-100] in Expert Mode. Palettes: The palettes allow you to select the desired colors. white hot, black hot, fusion 1, rainbow, fusion 2, ironbow 1, ironbow 2, sepia, color 1, color 2, ice fire, rain, red hot, and green hot are selectable. DDE: The DDE (Digital Detail Enhancement) can adjust the details of the image. And you can set it to OFF or Normal mode. And DDE Level can be adjusted from 1 to 100 when in normal mode.

• Video Adjustment

Thermal Network Bullet Camera User Manual

Mirror: It mirrors the image so you can see it inversed. Left/Right, Up/Down, Center, and OFF are selectable. Video Standard: 50 Hz and 60 Hz are selectable. Choose according to the different video standards; normally 50 Hz for PAL standard and 60 Hz for NTSC standard.

Capture Mode: It’s the selectable video input mode to meet the different

demands of field of view and resolution. Digital Zoom: Select digital zoom as OFF, 2X, or 4X to display live view in original size, 2X size digital zoomed, or 4X size digital zoomed.

• Other

Local Output: Turn on or off the local output of device.

8.2 Configuring OSD Settings

Purpose:

You can customize the camera name, time/date format, display mode, and OSD size displayed on the live view.

Figure 8-2 OSD Settings

Thermal Network Bullet Camera User Manual

Steps:

1. Enter the OSD Settings interface: Configuration > Image > OSD Settings.

2. Check the corresponding checkbox to select the display of camera name, date or

week if required.

3. Edit the camera name in the text field of Camera Name.

4. Select from the drop-down list to set the time format and date format.

5. Select from the drop-down list to set the time format, date format, display mode,

OSD size and OSD color.

6. Configure the text overlay settings.

(1) Check the checkbox in front of the textbox to enable the on-screen display. (2) Input the characters in the textbox.

Note: Up to 8 text overlays are configurable.

7. Adjust the position and alignment of text frames.

Left align, right align and custom are selectable. If you select custom, you can use the mouse to click and drag text frames in the live view window to adjust their positions.

Note: The alignment adjustment is only applicable to Text Overlay items.

8. Click Save to save the settings.

8.3 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded.

Steps:

1. Enter the Privacy Mask Settings interface: Configuration > Image > Privacy

Mask.

2. Check the checkbox of Enable Privacy Mask to enable this function.

3. Click Draw Area.

Thermal Network Bullet Camera User Manual

Figure 8-3 Privacy Mask Settings

4. Click and drag the mouse in the live video window to draw the mask area.

Note: You are allowed to draw up to 4 areas on the same image.

5. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas

you set without saving them.

6. Click Save to save the settings.

8.4 Configuring Picture Overlay

Purpose:

Picture overlay enables you to overlay a picture on the image. This function enables a certain enterprise or users to overlay their logo on the image.

Steps:

1. Enter the Picture Overlay Settings interface, Configuration > Image > Picture

Overlay.

Thermal Network Bullet Camera User Manual

Figure 8-4 Picture Overlay

2. Click Browse to select a picture.

3. Click Upload to upload it.

4. Check Enable Picture Overlay checkbox to enable the function.

5. Set X Coordinate and Y Coordinate values adjust the picture position on the

image. Adjust Picture Width and Picture Height to the desired size.

6. Click Save to save settings.

Note: The picture must be in RGB24 bmp format and the maximum picture size is

128*128.

8.5 Configuring DPC (Defective Pixel Correction)

Purpose:

DPC (Defective Pixel Correction) refers to the function that the camera can correct the defective pixels on the LCD which are not performing as expected.

Note: This function is only available to certain camera models.

Steps:

1. Enter the DPC Settings interface: Configuration > Image > DPC

Thermal Network Bullet Camera User Manual

Figure 8-5 Defective Pixel Correction

2. Select the mode. The following takes manual mode as an example.

3. Click on the image to select the defective pixel. The cursor on the image will

move to the clicked position. You can click to slightly adjust the cursor position.

4. Click to start correction.

5. Click to cancel the correction, or click to save.

8.6 Configuring VCA Rule Display

Purpose:

The VCA rule display refers to the function that you can customize the displayed overlay information of the VCA rule which includes the font size and line and frame color.

Thermal Network Bullet Camera User Manual

Note: This function is only available to certain camera models.

Steps:

1. Enter the VCA Rule Display Settings interface: Configuration > Image >

VCA Rule Display

2. Select the desired font size and the line and frame color for the normal,

pre-alarm and alarm.

3. Click Save.

Figure 8-6 VCA Rule Display

Network Camera User Manual

Chapter 9 Event Settings

This section explains how to configure the network camera to respond to alarm events, including basic event and smart event.

9.1 Basic Events

You can configure the basic events by following the instructions in this section, including motion detection, video tampering, alarm input, alarm output, and exception, etc. These events can trigger the linkage methods, such as Notify Surveillance Center, Send Email, Trigger Alarm Output, etc.

Note: Check the checkbox of Notify Surveillance Center if you want the alarm

information to be pushed to PC or mobile client software as soon as the alarm is triggered.

9.1.1 Configuring Motion Detection

Purpose:

Motion detection detects the moving objects in the configured surveillance area, and a series of actions can be taken when the alarm is triggered. In order to detect the moving objects accurately and reduce the false alarm rate, normal configuration and expert configuration are selectable for different motion detection environment.

 Normal Configuration

Normal configuration adopts the same set of motion detection parameters in the daytime and at night.

Tasks 1: Set the Motion Detection Area Steps:

1. Enter the motion detection settings interface: Configuration > Event > Basic Event > Motion Detection.

2. Check the checkbox of Enable Motion Detection.

Thermal Network Bullet Camera User Manual

3. Check the checkbox of Enable Dynamic Analysis for Motion if you want to mark the detected objects with green rectangles.

Note: Select Disable for rules if you don’t want the detected objected displayed

with the green rectangles. Select disable rules from Configuration > Local Configuration > Live View Parameters-rules.

Figure 9-1 Enable Motion Detection

4. Click Draw Area. Click and drag the mouse on the live video to draw a motion detection area. Click Stop Drawing to finish drawing one area.

5. (Optional) Click Clear All to clear all of the areas.

6. (Optional) Move the slider to set the sensitivity of the detection.

Task 2: Set the Arming Schedule for Motion Detection

Thermal Network Bullet Camera User Manual

Figure 9-2 Arming Schedule

Steps:

1. Click Arming Schedule to edit the arming schedule.

2. Click on the time bar and drag the mouse to select the time period.

Figure 9-3 Arming Schedule

Note: Click on the selected time period, you can adjust the time period to the

desired time by either moving the time bar or input the exact time period.

3. (Optional) Click Delete to delete the current arming schedule, or click Save to save the settings.

Thermal Network Bullet Camera User Manual

4. Move the mouse to the end of each day, a copy dialogue box pops up, and you can copy the current settings to other days.

5. Click Save to save the settings.

Note: The time of each period can’t be overlapped. Up to 8 periods can be configured

for each day.

Task 3: Set the Linkage Method for Motion Detection

Check the checkbox to select the linkage method. Audible Warning, Send Email, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Channel and Trigger Alarm Output are selectable. You can specify the linkage method when an event occurs.

Figure 9-4 Linkage Method

Note: The linkage methods vary according to the different camera models.

 Audible Warning

Trigger the audible warning locally. And it only supported by the device that have the audio output.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event occurs.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

Note: To send the Email when an event occurs, please refer to 6.2.3to complete

Email setup in advance.

Thermal Network Bullet Camera User Manual

 Upload to FTP/Memory Card/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

Notes:

● Set the FTP address and the remote FTP server first. Refer to 6.2.2for

detailed information.

● Go to Configuration > Storage > Schedule Settings> Capture > Capture

Parameters page, enable the event-triggered snapshot, and set the capture

interval and capture number.

● The captured image can also be uploaded to the available SD card or network

disk.

 Trigger Channel

The video will be recorded when the motion is detected. You have to set the recording schedule to realize this function. Please refer to 10.1for detailed information.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

Note: To trigger an alarm output when an event occurs, please refer to Section

9.1.4 Configuring Alarm Output to set the related parameters.

 Expert Configuration

Expert mode is mainly used to configure the sensitivity and proportion of object on each area for different day/night switch.

Thermal Network Bullet Camera User Manual

Figure 9-5 Expert Mode of Motion Detection

 Day/Night Switch OFF

Steps:

1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported.

2. Select OFF for Switch Day and Night Settings.

3. Select the area by clicking the area No.

4. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area.

5. Set the arming schedule and linkage method as in the normal configuration mode.

6. Click Save to save the settings.

 Day/Night Auto-Switch

Steps:

1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported.

2. Select Auto-Switch for Switch Day and Night Settings.

3. Select the area by clicking the area No.

4. Slide the cursor to adjust the sensitivity and proportion of object on the area for

Thermal Network Bullet Camera User Manual

the selected area in the daytime.

5. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area at night.

6. Set the arming schedule and linkage method as in the normal configuration mode.

7. Click Save to save the settings.

 Day/Night Scheduled-Switch

Steps:

1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported.

2. Select Scheduled-Switch for Switch Day and Night Settings.

Figure 9-6 Day/Night Scheduled-Switch

3. Select the start time and the end time for the switch timing.

4. Select the area by clicking the area No..

5. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime.

6. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area at night.

7. Set the arming schedule and linkage method as in the normal configuration mode.

8. Click Save to save the settings.

9.1.2 Configuring Video Tampering Alarm

Purpose:

You can configure the camera to trigger the alarm when the lens is covered and take certain alarm response actions.

Steps:

Thermal Network Bullet Camera User Manual

1. Enter the video tampering Settings interface, Configuration > Event > Basic Event > Video Tampering.

Figure 9-7 Video Tampering Alarm

2. Check Enable Video Tampering checkbox to enable the video tampering detection.

3. Set the video tampering area. Refer to Task 1: Set the Motion Detection Area in Section 9.1.1.

4. Click Edit to edit the arming schedule for video tampering. The arming schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Task 2: Set the Arming Schedule for Motion Detection in Section 9.1.1.

5. Check the checkbox to select the linkage method taken for the video tampering. Audible warning, notify surveillance center, send email and trigger alarm output

Thermal Network Bullet Camera User Manual

are selectable. Please refer to Task 3: Set the Linkage Method for Motion Detection in Section 9.1.1.

6. Click Save to save the settings.

9.1.3 Configuring Alarm Input

Steps:

1. Enter the Alarm Input Settings interface: Configuration > Event > Basic Event > Alarm Input.

2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed). Edit the name to set a name for the alarm input (optional).

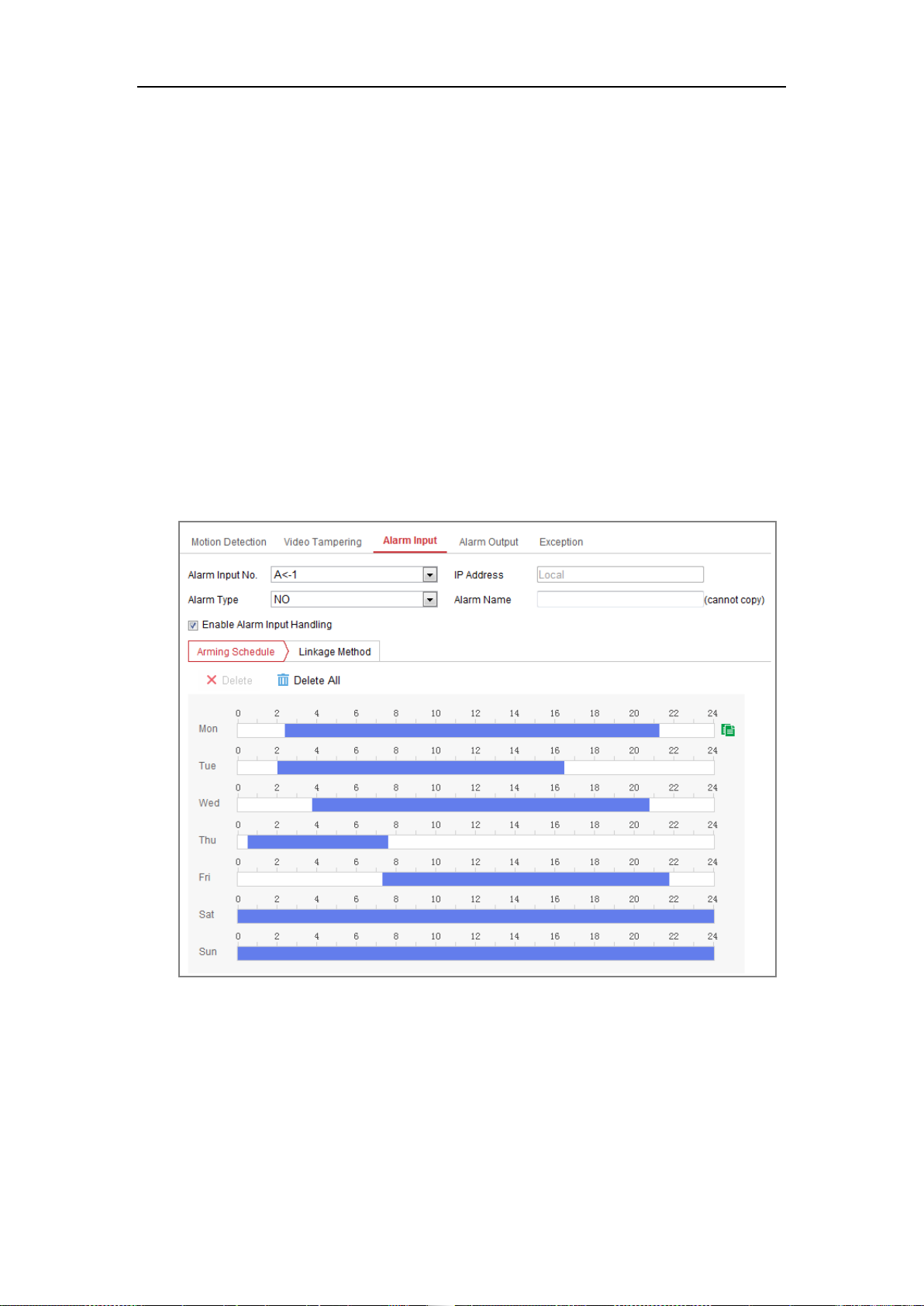

Figure 9-8 Alarm Input Settings

3. Click Arming Schedule to set the arming schedule for the alarm input. Refer to Task 2: Set the Arming Schedule for Motion Detection in Section 9.1.1.

4. Click Linkage Method and check the checkbox to select the linkage method taken for the alarm input. Refer to Task 3: Set the Linkage Method for Motion

Thermal Network Bullet Camera User Manual

Detection in Section 9.1.1.

5. You can copy your settings to other alarm inputs.

6. Click Save to save the settings.

9.1.4 Configuring Alarm Output

Figure 9-9 Alarm Output Settings

Steps:

1. Enter the Alarm Output Settings interface: Configuration> Event > Basic Event > Alarm Output.

2. Select one alarm output channel in the Alarm Output drop-down list. You can also set a name for the alarm output (optional).

3. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The delay time refers to the time duration that the alarm output remains in effect after alarm occurs.

4. Click Arming Schedule to enter the Edit Schedule Time interface. The time schedule configuration is the same as the settings of the arming schedule for

Thermal Network Bullet Camera User Manual

motion detection Refer to Task 2: Set the Arming Schedule for Motion Detection in Section 9.1.1.

5. You can copy the settings to other alarm outputs.

6. Click Save to save the settings.

9.1.5 Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras.

Steps:

1. Enter the Exception Settings interface: Configuration > Event > Basic Event > Exception.

2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Task 3: Set the Linkage Method for Motion Detection in 9.1.1for detailed steps.

Figure 9-10 Exception Settings

3. Click Save to save the settings.

9.2 Smart Events

You can configure the smart events by following the instructions in this section, including audio exception detection, scene change detection, dynamic fire source detection, and fire source detection shield, etc.

9.2.1 Configuring Audio Exception Detection

Purpose:

Thermal Network Bullet Camera User Manual

Audio exception detection function detects the abnormal sounds in the surveillance scene, such as the sudden increase/decrease of the sound intensity, and some certain actions can be taken when the alarm is triggered.

Note: Audio exception detection function varies according to different camera

models.

Steps:

1. Enter the Audio Exception Detection settings interface, Configuration > Event > Smart Event > Audio Exception Detection.

Figure 9-11 Audio Exception Detection

2. Check the checkbox of Audio Loss Exception to enable the audio loss detection function.

3. Check the checkbox of Sudden Increase of Sound Intensity Detection to detect the sound steep rise in the surveillance scene. You can set the detection sensitivity and threshold for sound steep rise.

4. Check the checkbox of Sudden Decrease of Sound Intensity Detection to detect the sound steep drop in the surveillance scene. You can set the detection sensitivity and threshold for sound steep drop.

Notes:

 Sensitivity: Range [1-100], the smaller the value is, the more severe the

Thermal Network Bullet Camera User Manual

change should be to trigger the detection.

 Sound Intensity Threshold: Range [1-100], it can filter the sound in the

environment, the louder the environment sound, the higher the value should be. You can adjust it according to the real environment.

 You can view the real-time volume of the sound on the interface.

5. Click Arming Schedule to set the arming schedule. Refer to Task 2 Set the Arming Schedule for Motion Detection in Section 9.1.1 for detailed steps.

6. Click Linkage Method and select the linkage methods for audio exception, including Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Channel for recording and Trigger Alarm Output.

7. Click Save to save the settings.

9.2.2 Configuring Scene Change Detection

Purpose:

Scene change detection function detects the change of surveillance environment affected by the external factors, such as the intentional rotation of the camera. Some certain actions can be taken when the alarm is triggered.

Note: Scene change detection function varies according to different camera models.

Steps:

1. Enter the Scene Change Detection settings interface, Configuration > Event > Smart Event > Scene Change Detection.

Thermal Network Bullet Camera User Manual

Figure 9-12 Scene Change Detection

2. Check the checkbox of Enable to enable the function.

3. Click-and-drag the slider to set the detection sensitivity. The sensitivity value ranges from 1 to 100, and the higher the value is, the more easily the change of scene can trigger the alarm.

4. Click Arming Schedule to set the arming schedule. Refer to Task 2 Set the Arming Schedule for Motion Detection in Section 9.1.1 for detailed steps.

5. Click Linkage Method to select the linkage methods for scene change, including Notify Surveillance Center, Send Email, Upload to FTP/Memory Card/NAS, Trigger Channel and Trigger Alarm Output.

6. Click Save to save the settings.

9.2.3 Configuring Dynamic Fire Source Detection

Purpose:

When you enable this function and fire source is detected, the alarm actions will be triggered.

Steps:

1. Enter the Dynamic Fire Source Detection setting interface: Configuration >

Thermal Network Bullet Camera User Manual

Event > Smart Event > Dynamic Fire Source Detection

2. Check the checkbox of Enable Dynamic Fire Source Detection to enable the function.

Figure 9-13 Configuring Dynamic Fire Source Detection

3. Check the checkbox of Display Fire Source Frame on Stream to display a red frame around the fire source on stream when fire occurs. (Optional)

4. You can drag the slider to adjust the sensitivity degree of dynamic fire source detection from 1 to 10. The bigger the number is, the more sensitive the detecting would be.

5. Check the checkbox to select the linkage method taken for the alarm input. Please refer to Task 3: Set the Alarm Actions for Motion Detection in Section 9.1.1. In the field of Other Linkage, you can check the checkbox to enable the alarm output (The alarm output number varies depending on device ability).

6. Click Save to save the settings.

9.2.4 Configuring Fire Source Detection Shield

Purpose:

Fire Source Shield enables you to shield certain areas from being detected in fire

Thermal Network Bullet Camera User Manual

source detection.

Steps:

1. Enter Configuration > Event > Smart Event > Fire Source Detection Shield.

2. Check the checkbox to enable the fire and smoke detection.

3. Click Draw Area; click and drag the mouse in the live video window to draw the

area.

Figure 9-14 Fire Source Detection Shield

4. You can drag the corners of the red rectangle area to change its shape and size.

5. Click Stop Drawing to finish drawing or click Clear All to clear all of the areas

you set without saving them.

6. Set the value of Active Zoom Ratio on your demand, and then the shield will only

appear when the zoom ratio is greater than the predefined value.

7. Click Add to save the fire source detection shield, and it will be listed in the Fire

Source Detection Shield List area; you can select a region and click Delete to

Thermal Network Bullet Camera User Manual

delete it from the list; you can also define the color of the regions.

8. Check the checkbox of Enable Fire Source Detection Shield to enable this

function.

Note: You are allowed to draw up to 24 areas on the same image.

9.3 VCA Configuration

9.3.1 Configuring Overlay & Capture

Purpose:

You can enable to display the VCA information on stream or target information on alarm picture and set the snapshot quality and resolution.

Steps:

1. Enter Configuration > VCA > Overlay & Capture.

2. Check the desired checkbox of display settings and select the snapshot quality and

resolution.

Figure 9-15 Overlay & Capture

Display information includes the display on picture and display on stream.

Display VCA info. on Stream: The green frames will be displayed on the target if in a live view or playback. Display Target info. on Alarm Picture: There will be a frame on the target on

Hikvision DS-2TD2136-7, DS-2TD2136T-10, DS-2TD2136T-15, DS-2TD2166-7, DS-2TD2166T-15 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Chapter 1 System Requirement

Chapter 2 Network Connection

2.1 Setting the Network Camera over the LAN

2.1.1 Wiring over the LAN

2.1.2 Activating the Camera

2.2 Setting the Network Camera over the WAN

2.2.1 Static IP Connection

2.2.2 Dynamic IP Connection

3.1 Accessing by Web Browsers

3.2 Accessing by Client Software

Chapter 4 Live View

4.1 Live View Page

4.2 Starting Live View

4.3 Recording and Capturing Pictures Manually

4.4 Operating PTZ Control

4.4.1 PTZ Control Panel

4.4.2 Setting/Calling a Preset

4.4.3 Setting/Calling a Patrol

5.1 Configuring Local Parameters

5.2 Configure System Settings

5.2.1 Configuring Basic Information

5.2.2 Configuring Time Settings

5.2.3 Configuring RS485 Settings

5.2.4 Configuring DST Settings

5.2.5 Viewing License

5.3 Maintenance

5.3.1 Upgrade & Maintenance

5.3.2 Log

5.3.3 System Service

5.3.4 VCA Resource Type

5.4 Security Settings

5.4.1 Authentication

5.4.2 IP Address Filter

5.4.3 Security Service

5.5 User Management

5.5.1 User Management

5.5.2 Online Users

Chapter 6 Network Settings

6.1 Configuring Basic Settings

6.1.1 Configuring TCP/IP Settings

6.1.2 Configuring DDNS Settings

6.1.3 Configuring PPPoE Settings

6.1.4 Configuring Port Settings

6.1.5 Configure NAT (Network Address Translation) Settings

6.2 Configure Advanced Settings

6.2.1 Configuring SNMP Settings

6.2.2 Configuring FTP Settings

6.2.3 Configuring Email Settings

6.2.4 Configuring HTTPS Settings

6.2.5 Configuring QoS Settings

6.2.6 Configuring 802.1X Settings

Chapter 7 Video/Audio Settings

7.1 Configuring Video Settings

7.2 Configuring Audio Settings

7.3 Configuring ROI Encoding

Chapter 8 Image Settings

8.1 Configuring Display Settings

8.2 Configuring OSD Settings

8.3 Configuring Privacy Mask

8.4 Configuring Picture Overlay

8.5 Configuring DPC (Defective Pixel Correction)

8.6 Configuring VCA Rule Display

Chapter 9 Event Settings

9.1 Basic Events

9.1.1 Configuring Motion Detection

9.1.2 Configuring Video Tampering Alarm

9.1.3 Configuring Alarm Input

9.1.4 Configuring Alarm Output

9.1.5 Handling Exception

9.2 Smart Events

9.2.1 Configuring Audio Exception Detection

9.2.2 Configuring Scene Change Detection

9.2.3 Configuring Dynamic Fire Source Detection

9.2.4 Configuring Fire Source Detection Shield

9.3 VCA Configuration

9.3.1 Configuring Overlay & Capture
