Hikvision DS-2DY9250IAX-A, DS-2DY9250X-A Quick Start Guide

Download

Network Positioning System

Quick Start Guide

UD07214B

Network Positioning System·Quick Start Guide

Quick Start Guide

Any and all information, including, among others, wordings, pictures, graphs are the properties of Hangzhou Hikvision Digital Technology Co., Ltd. or its subsidiaries (hereinafter referred to be “Hikvision”). This user manual (hereinafter referred to be “the Manual”) cannot be reproduced, changed, translated, or distributed, partially or wholly, by any means, without the prior written permission of Hikvision. Unless otherwise stipulated, Hikvision does not make any warranties, guarantees or representations, express or implied, regarding to the Manual.

About this Manual

This Manual is applicable to Network Positioning System.

The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons. Please find the latest version in the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and logos are the properties of Hikvision in various jurisdictions. Other trademarks and logos mentioned below are the properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, FITNESS FOR A PARTICULAR PURPOSE, AND NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR AGENTS BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA OR DOCUMENTATION, IN CONNECTION WITH THE USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS, THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES FOR

Network Positioning System·Quick Start Guide

ABNORMAL OPERATION, PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER ATTACK, HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS.

0505001070911

Network Positioning System·Quick Start Guide

Regulatory Information

FCC Information

Please take attention that changes or modification not expressly approved by the party

responsible for compliance could void the user’s authority to operate the equipment. FCC compliance: This equipment has been tested and found to comply with the limits

for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2015/35/EU, the EMC

Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of

For more information see: www.recyclethis.info.

your supplier or to a designated collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

equivalent new equipment, or dispose of it at designated collection points.

2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to

Warnings Follow

these safeguards to prevent serious injury or death.

Cautions Follow these precautions to prevent potential injury or material damage.

Network Positioning System·Quick Start Guide

Safety Instruction

These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precaution measure is divided into Warnings and Cautions:

Warnings: Neglecting any of the warnings may cause serious injury or death. Cautions: Neglecting any of the cautions may cause injury or equipment damage.

Warnings

 Adopt the power adapter which can meet the safety extra low voltage (SELV)

standard. The power consumption cannot be less than the required value.

 Do not connect several devices to one power adapter as an adapter overload may

cause over-heating and can be a fire hazard.

 When the product is installed on a wall or ceiling, the device should be firmly fixed.

 To reduce the risk of fire or electrical shock, do not expose the indoor used product

to rain or moisture.

 This installation should be made by a qualified service person and should conform to

all the local codes.

 Install blackouts equipment into the power supply circuit for convenient supply

interruption.

 If the product does not work properly, contact your dealer or the nearest service

center. Never attempt to disassemble the product yourself. (We shall not assume any responsibility for problems caused by unauthorized repair or maintenance.)

Cautions

 If the network positioning system fails to synchronize local time with that of the

network, you need to set up network positioning system time manually. Visit the network positioning system (via web browser or client software) and enter system settings interface for time settings.

 Make sure the power supply voltage is correct before using the product.  Do not drop the product or subject it to physical shock. Do not install the product on

vibratory surface or places.

 Do not expose it to high electromagnetic radiating environment.  Do not aim the lens at the strong light such as sun or incandescent lamp. The strong

light can cause fatal damage to the product.

Network Positioning System·Quick Start Guide

 The sensor may be burned out by a laser beam, so when any laser equipment is

being used, make sure that the surface of the sensor not be exposed to the laser beam.

 For working temperature, refer to the specification manual for details.  To avoid heat accumulation, good ventilation is required for a proper operating

environment.

 While shipping, the product should be packed in its original packing.  Use the provided glove when open up the product cover. Do not touch the product

cover with fingers directly, because the acidic sweat of the fingers may erode the surface coating of the product cover.

 Use a soft and dry cloth when clean inside and outside surfaces of the product cover.

Do not use alkaline detergents.

 Improper use or replacement of the battery may result in hazard of explosion. Use

the manufacturer recommended battery type.

Network Positioning System·Quick Start Guide

Table of Contents

1 Overview ...................................................................................................... 7

1.1 Introduction ........................................................................................................ 7

1.1.1 Overview of DY5xxx Series Network Positioning System ............................. 7

1.1.2 Overview of DY7xxx Series Network Positioning System ............................. 8

1.1.3 Overview of DY9xxx Series Network Positioning System ............................. 9

1.2 Cable Descriptions ............................................................................................ 10

1.3 Alarm Input/Output .......................................................................................... 11

2 Installation ................................................................................................. 12

2.1 Installing DY9xxx Network Positioning System ...................................................... 12

2.1.1 Installing DY9xxx Series Laser Network Positioning System (Type III) ............. 12

2.1.2 Installing DY9xxx Series IR Network Positioning System (Type II) .................... 14

2.1.3 Installing DY9xxx Series Network Positioning System (Type I) ..........................17

2.2 Installing DY7xxx Network Positioning System .......................................................17

2.3 Installing DY5xxx Network Positioning System .......................................................17

3 Setting the Positioning System over the LAN .............................................. 18

3.1 Wiring .................................................................................................................... 18

3.2 Activating the Positioning System .......................................................................... 18

3.2.1 Activation via Web Browser ............................................................................ 19

3.2.2 Activation via SADP Software .......................................................................... 20

3.3 Modifying the IP Address ....................................................................................... 21

4 Accessing via Web browser ........................................................................ 23

5 Operating via Hik-Connect App .................................................................. 25

5.1 Enable Hik-Connect Service on Positioning System ............................................... 25

5.1.1 Enable Hik-Connect Service via SADP Software .............................................. 25

5.1.2 Enable Hik-Connect Service via Web Browser ................................................. 26

5.2 Hik-Connect Setup ................................................................................................. 26

5.3 Adding Positioning System to Hik-Connect ............................................................. 27

5.4 Initializing the Memory Card ................................................................................. 28

Shield

(auxiliary

light side)

Shield

(Camera side)

Wiper

Main body

Base

306

212

165

Unit: mm

167

132

4-Φ9

Unit: mm

Network Positioning System·Quick Start Guide

1 Overview

1.1 Introduction

The network positioning system has three series:

 DY5xxx Series  DY7xxx Series  DY9xxx Series

1.1.1 Overview of DY5xxx Series Network Positioning System

Figure 1-1 Dimensions of DY5xxx Series Network Positioning System (Type I)

Figure 1-2 Bottom View of DY5xxx Series Network Positioning System (Type I)

306

212

165

Unit: mm

Shock-absorbing pad

Unit: mm

134

4-Φ9

140

175

Unit: mm

396

188

377.5

181

165

218

Network Positioning System·Quick Start Guide

Figure 1-3 Dimensions of DY5xxx Series Mobile Network Positioning System (Type II)

Figure 1-4 Dimensions of Shock-absorbing Pad for DY5xxx Series Mobile Network

Positioning System (Type II)

1.1.2 Overview of DY7xxx Series Network Positioning System

Figure 1-5 Dimensions of DY7xxx Series IR Network Positioning System (Type I)

Unit: mm

396

188

377.5

181

165

218

Unit: mm

390

180

491

Unit: mm

390

460

180

491

Network Positioning System·Quick Start Guide

Figure 1-6 Dimensions of DY7xxx Series Network Positioning System (Type II)

1.1.3 Overview of DY9xxx Series Network Positioning System

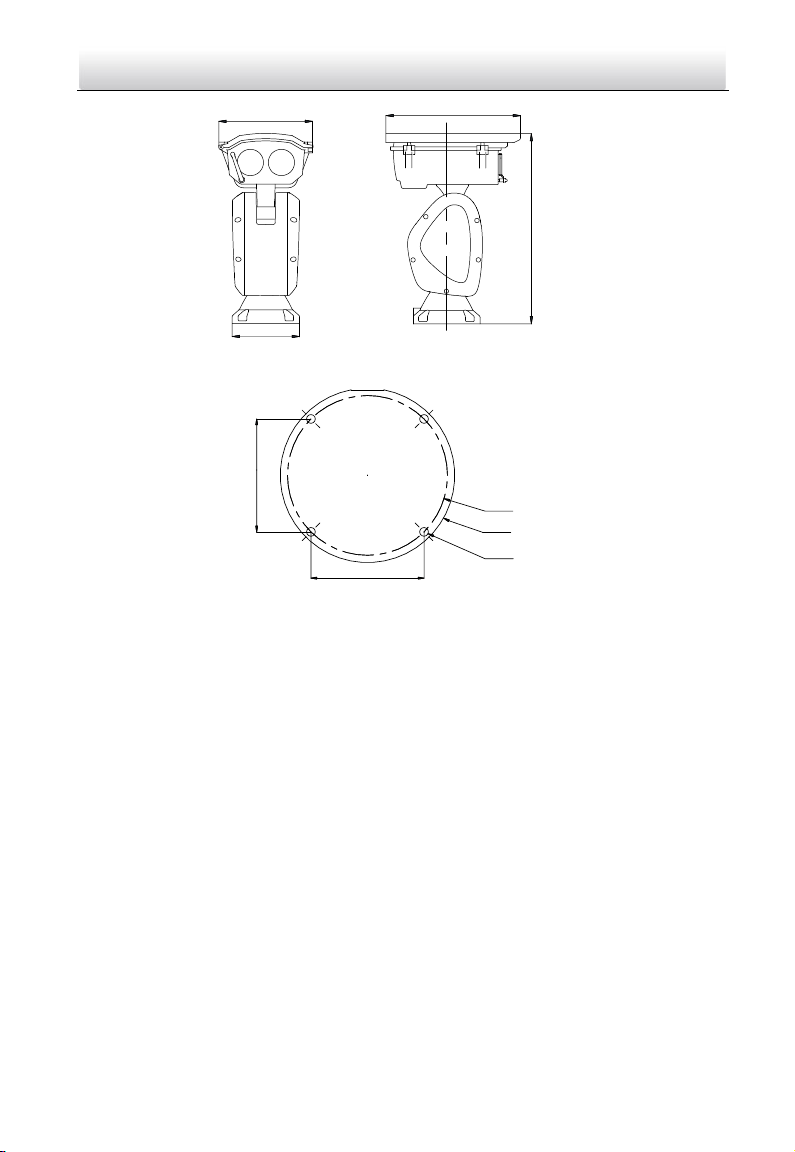

Figure 1-7 Dimensions of DY9xxx Series Network Positioning System (Type I)

Figure 1-8 Dimensions of DY9xxx Series IR Network Positioning System (Type II)

251

Unit: mm

180

360

508

Unit:mm

116.7

Φ165

Φ180

4-Φ9

Network Positioning System·Quick Start Guide

Figure 1-9 Dimensions of DY9xxx Series Laser Network Positioning System (Type III)

Figure 1-10 Bottom View of DY9xxx Series Network Positioning System

1.2 Cable Descriptions

Cables of network positioning system are shown in Figure 1-11. The cables are distinguished by different colors. Refer to the labels attached on the cables for identification.

Notes:

 The cables vary depending on different positioning system models.  Make sure the positioning system is power-off before you connect the cables.

Network Cable

Audio Cable

Alarm Cable

Video Cable

RS-485 Cable

Power Cord

JQC-

3FG

Relay

30VDC

GND OUT

L N

～

220V AC

Relay Output

(10A 250VAC )

Diagram (left)

Diagram (right)

OUT(n)

DC Load

Relay Output

Positioning System

OUT(n)

Positioning System

Network Positioning System·Quick Start Guide

Figure 1-11 Cables

1.3 Alarm Input/Output

Network positioning system can be connected with alarm input (0 to 5 VDC) and alarm output as shown in Figure 1-12. The alarm provides the relay output (no voltage), and the external power supply is required when it connects to the alarm device.

Figure 1-12 Alarm Output Connection

 For DC power supply (left diagram), the input voltage must be no more than 30 VDC,

1A.

 For AC power supply, the external relay must be used (right diagram) to prevent

damages to the positioning system and avoid risk of electric shock.

Note:

Alarm input/output function varies depending on different positioning system models.

Network Positioning System·Quick Start Guide

2 Installation

Before you start:

Check the package contents and make sure that the device in the package is in good condition and all the assembly parts are included.

Notes:

 Do not power the positioning system up until the installation is finished. To ensure

safety of personnel and equipment, all the installation steps should be done with power supply off.

 The positioning system is much heavier than the normal camera, and it strongly

demands for load-bearing and stability of the upholder. It’s highly recommended to install the system to the upholder directly.

 If you need to install the positioning system to the bracket, refer to bottom view of

the positioning system as shown in section 1.1 Introduction to select the bracket. The load-bearing and anti-shake capabilities must be fully taken into consideration.

2.1 Installing DY9xxx Network Positioning System

2.1.1 Installing DY9xxx Series Laser Network Positioning System (Type III)

Steps:

1. Fix the positioning system.

1) Fix the positioning system onto the bracket pedestal with the supplied M8*30

screws as shown in Figure 2-1.

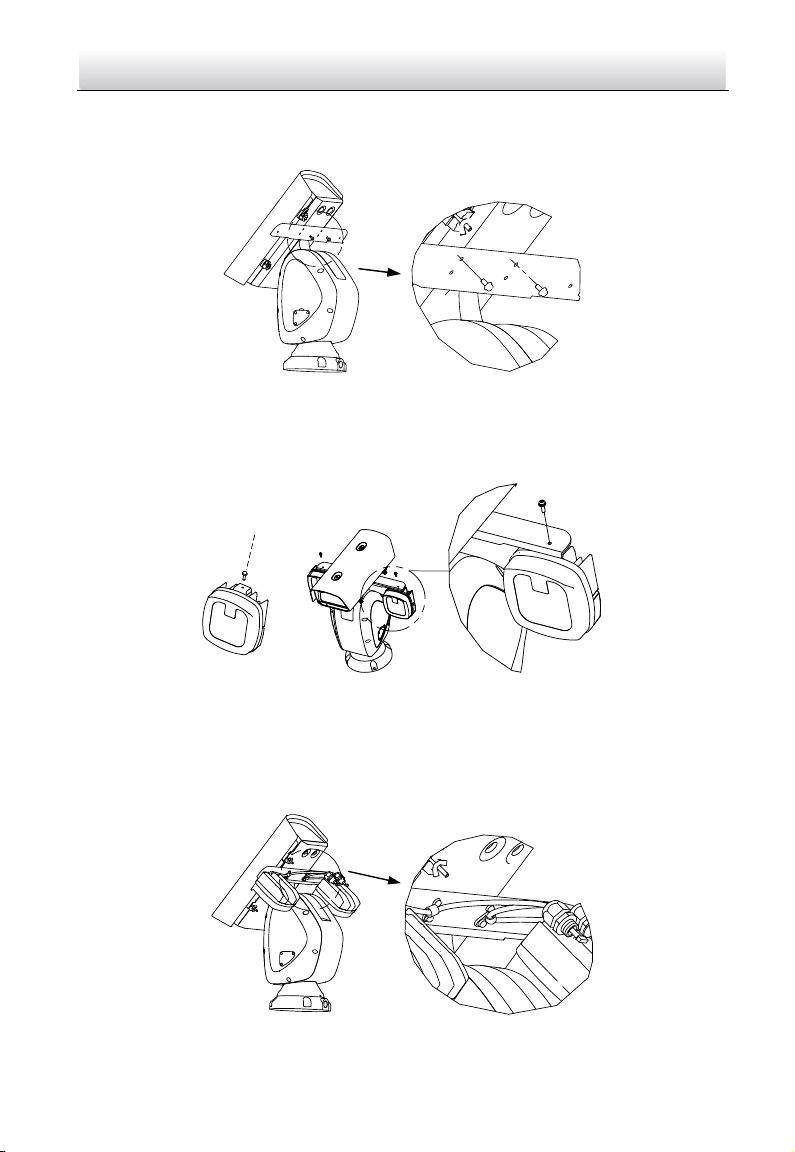

Figure 2-1 Fix the Position System

Note:

The thickness of the pedestal steel plate should be more than 5 mm.

2) Connect the corresponding cables.

2. Adjust the laser.

1) Observe the location of laser spot in the image. Adjust the zoom ratio of the lens

to a large value, the laser supplementary lighting system will adjust the light

Inner Hexagon Screw

Memory Card

Network Positioning System·Quick Start Guide

according to the zoom ratio, and then you can see the laser spot on the live view image.

If the spot location is the same as shown in figure A, you can skip the step of adjusting the laser; if not, you need to adjust the laser.

Figure 2-2 Laser Spot Location

Note:

You can zoom in/out to adjust the size of the laser spot. The spot location shown in figure A is the optimum location.

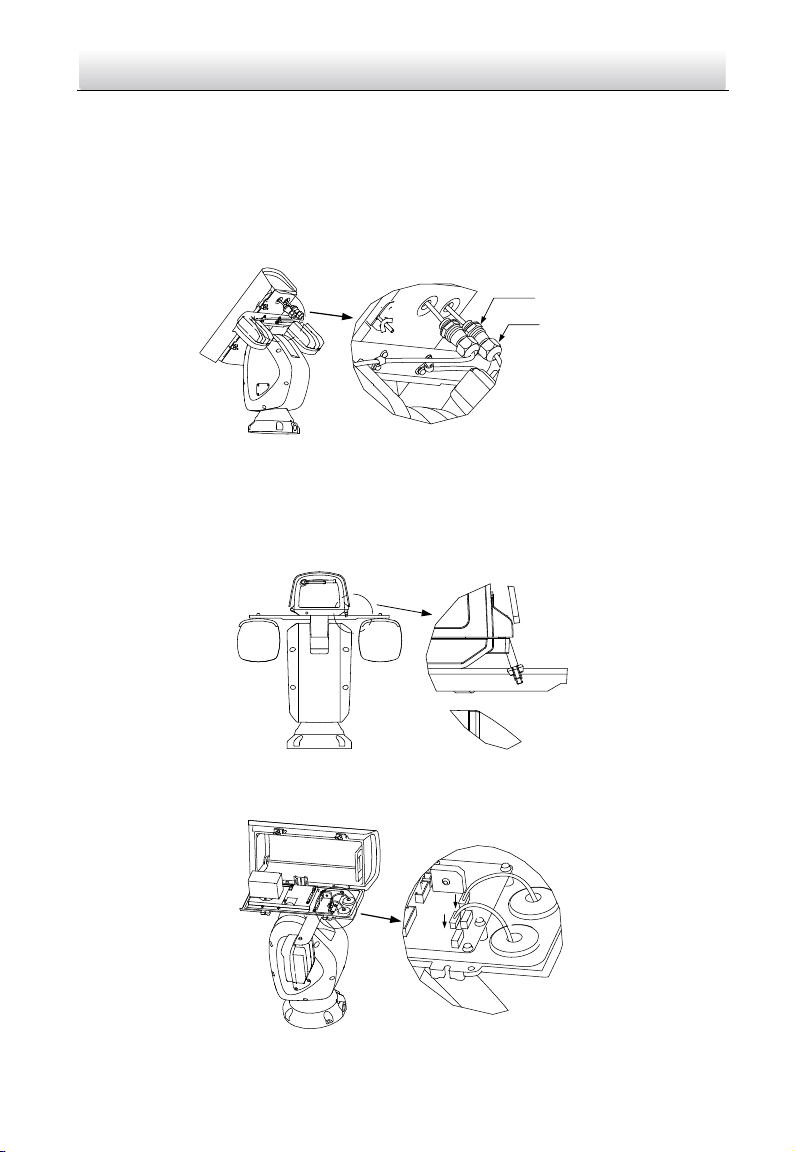

2) Loosen the inner hexagon screws with the wrench and open the lid of housing.

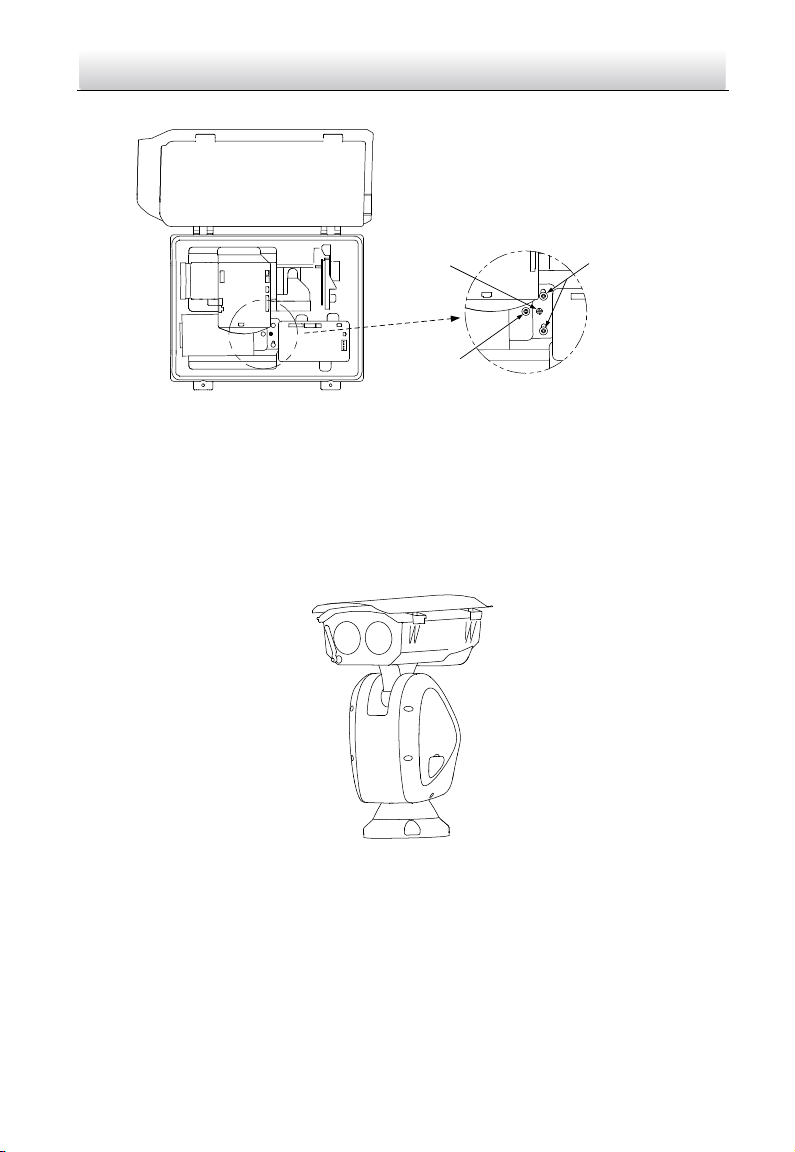

Figure 2-3 Open the Lid of Housing

3) Insert the memory card into the memory card slot.

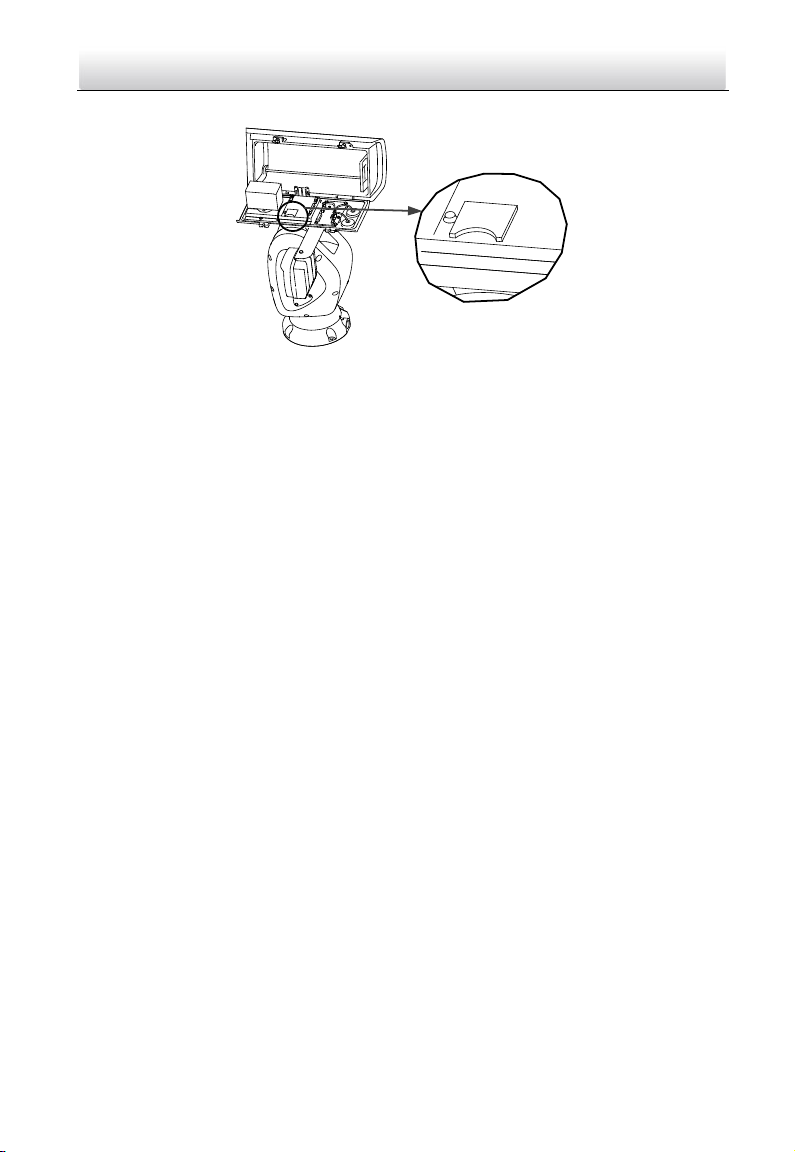

Figure 2-4 Insert the Memory Card

Tilting Adjustment

Screw

Eccentric Wheel

Panning Fastening

Screw

Network Positioning System·Quick Start Guide

4) Slightly adjust the control screws for the laser according to the actual situation.

Figure 2-5 Adjust the Laser

Notes:

 Panning Adjustment: Loosen the two panning fastening screws, rotate the

eccentric wheel to adjust the laser spot in the horizontal direction, and fasten the screws after adjusting.

 Tilt Adjustment: Tighten or loosen the tilting adjustment screw to adjust the

position of the laser spot in the vertical direction.

3. Restore the housing and tighten the screws for waterproof.

Figure 2-6 Restore the Housing

4. Connect the corresponding cables and turn the power on; the system will do the

self-test automatically.

2.1.2 Installing DY9xxx Series IR Network Positioning System (Type II)

Steps:

1. Install the IR module.

Network Positioning System·Quick Start Guide

1) Align the screw holes on the IR bracket with the screw holes on the housing as

shown in Figure 2-7. Insert and tighten the two M4*10 screws to secure the bracket.

Figure 2-7 Secure the IR Bracket

2) Loosen and remove the screws on the top of IR module. Align the screw holes on

the IR module with the screw holes on the IR bracket, and secure the IR module to the IR bracket with the screws.

Figure 2-8 Secure the IR Module

3) Align the buckles to the screw holes on the IR bracket and secure them with two

M4*10 screws.

Note:

The buckles are fixed with the cable by default.

Figure 2-9 Secure the Cables to IR Bracket

Locking Plug

Water-proof Cable Nut

Network Positioning System·Quick Start Guide

2. Route the cables of IR modules.

1) Pull out the two original plugs from the housing.

2) Loosen the nuts on the water-proof cable plugs.

3) Route the IR module cables through the cable holes on the housing respectively.

4) Rotate the locking plug clockwise and tightly to the housing.

5) Insert the cables to the housing as much as possible, and fasten the water-proof

cable nuts with a wrench.

Figure 2-10 Route the Cables

3. Connect the cables of IR modules.

1) Loosen the toggles from the bolts on the downside of the housing and pull the

bolts outward from the housing.

2) Open the lid.

Figure 2-11 Open the Housing

3) Connect the cables to the connectors on the housing respectively.

Figure 2-12 Connect the Cables

Network Positioning System·Quick Start Guide

4. Insert the memory card into the memory card slot as shown in Figure 2-13.

Figure 2-13 Install the Memory Card

5. Restore the housing and tighten the screws for waterproof.

6. Fix the positioning system. Refer to Step 1 Fix the positioning system. in section

2.1.1 Installing DY9xxx Series Laser Network Positioning System (Type III).

7. Connect the corresponding cables and turn the power on; the system will do the

self-test automatically.

2.1.3 Installing DY9xxx Series Network Positioning System (Type I)

Installation for DY9xxx Series Network Positioning System (Type I) is similar to the installation for DY9xxx Series IR Network Positioning System (Type II). Refer to section

2.1.2 Installing DY9xxx Series IR Network Positioning System (Type II).

2.2 Installing DY7xxx Network Positioning System

There are two types of DY7xxx series network positioning system: DY7xxx Series IR Network Positioning System (Type I) and DY7xxx Series Network Positioning System (Type II)

Installation for DY7xxx series network positioning system is similar to the installation for DY9xxx Series Laser Network Positioning System (Type III). Refer to section 2.1.1

Installing DY9xxx Series Laser Network Positioning System (Type III).

2.3 Installing DY5xxx Network Positioning System

Make sure that there is enough space to install the position system. Refer to section

1.1.1 Overview of DY5xxx Series Network Positioning System for the dimensions.

Network Cable

Network Positioning System

Computer

Network Cable

Network Positioning System Computer

Network Positioning System·Quick Start Guide

3 Setting the Positioning System over the

LAN

Notes:

 You shall acknowledge that the use of the product with Internet access might be

under network security risks. For avoidance of any network attacks and information leakage, strengthen your own protection. If the product does not work properly, contact with your dealer or the nearest service center.

 To ensure the network security of the network positioning system, we recommend

you to have the positioning system assessed and maintained termly. You can contact us if you need such service.

3.1 Wiring

Connect the network positioning system to network according to Figure 3-1 and Figure 3-2.

Figure 3-1 Connecting Directly

Figure 3-2 Connecting via a Switch or a Router

3.2 Activating the Positioning System

Purpose:

You are required to activate the positioning system first by setting a strong password for it before you can use the positioning system.

Network Positioning System·Quick Start Guide

Activation via web browser, activation via SADP software, and activation via client software are supported. We will take activation via web browser and activation via SADP software as examples to introduce the positioning system activation.

Note:

For the details of activation via client software, refer to the user manual of the network positioning system.

3.2.1 Activation via Web Browser

Steps:

1. Power on the positioning system. Connect the positioning system to your computer

or the switch/router which your computer connects to.

2. Input the IP address into the address bar of the web browser, and enter the

activation interface.

Notes:

 The default IP address of the positioning system is 192.168.1.64.  The computer and the positioning system should belong to the same subnet.  For the positioning system enables the DHCP by default, you need to use the SADP

software to search the IP address.

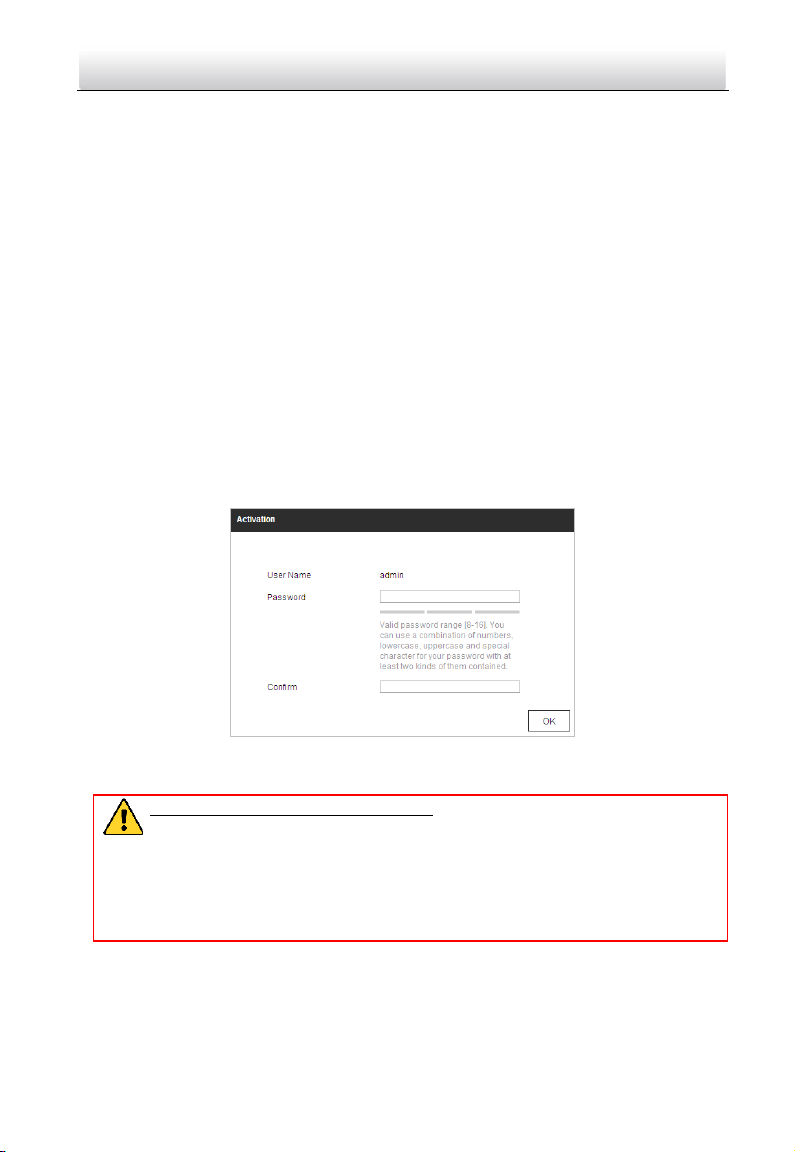

Figure 3-3 Activation Interface (Web)

3. Create a password and input the password into the password field.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including upper case letters, lower case letters, numbers, and special characters) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

4. Confirm the password.

5. Click OK to activate the positioning system and enter the live view interface.

Select inactive device.

Input and confirm password.

Network Positioning System·Quick Start Guide

3.2.2 Activation via SADP Software

SADP software is used for detecting the online device, activating the device, and resetting the password.

Get the SADP software from the supplied disk or the official website, and install the SADP software according to the prompts.

Follow the steps to activate the positioning system. Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select an inactive device.

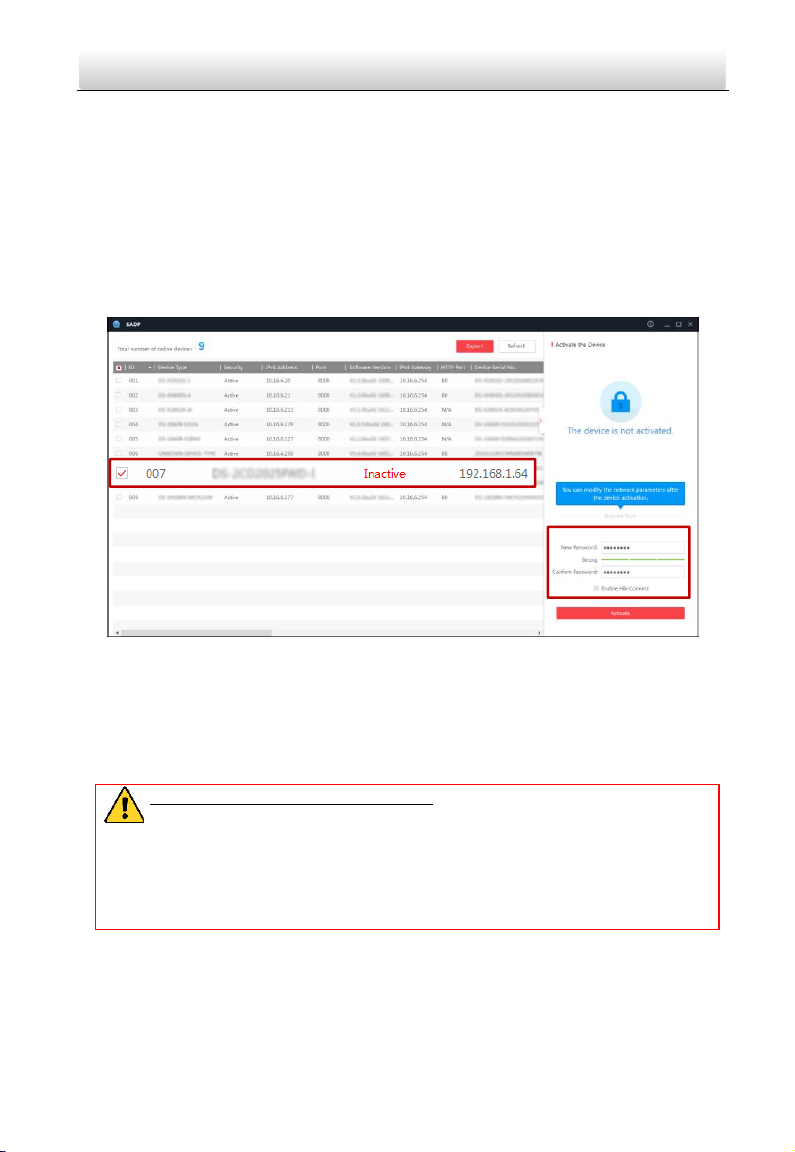

Figure 3-4 SADP Interface

Note:

The SADP software supports activating the positioning system in batch. Refer to the user manual of SADP software for details.

3. Create a password and input the password in the password field, and confirm the

password.

Note:

You can enable the Hik-Connect service for the device during activation. Refer to section 5.1 Enable Hik-Connect Service on Positioning System.

Hik-Connect service is not supported by certain positioning system models.

4. Click Activate to save the password.

Network Positioning System·Quick Start Guide

Note:

You can check whether the activation is completed on the popup window. If activation failed, make sure that the password meets the requirement and try again.

3.3 Modifying the IP Address

Purpose:

To view and configure the network positioning system via LAN (Local Area Network), you need to connect the positioning system in the same subnet with your PC. Then, install the SADP software or client software to search and change the IP address of network positioning system. We will take modifying the IP address via SADP software as an example to introduce the IP address modification.

Note:

For IP address modification via client software, refer to the user manual of client software.

Steps:

1. Run the SADP software.

2. Select an active device.

3. Change the device IP address to the same subnet with your computer by either

modifying the IP address manually or checking the Enable DHCP checkbox.

Figure 3-5 Modify the IP Address

Network Positioning System·Quick Start Guide

Note:

You can enable the Hik-Connect service for the device during activation. Refer to section 5.1 Enable Hik-Connect Service on Positioning System.

Hik-Connect service is not supported by certain positioning system models.

4. Input the admin password and click Modify to activate your IP address modification.

The batch IP address modification is supported by SADP. Refer to the user manual of SADP for details.

Network Positioning System·Quick Start Guide

4 Accessing via Web browser

System Requirement:

Operating System: Microsoft Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 7.0 and above version, Apple Safari 5.02 and above

version, Mozilla Firefox 5 and above version and Google Chrome 8 and above version

Steps:

1. Open the web browser.

2. In the browser address bar, input the IP address of the network positioning system,

and enter the login interface.

Note:

The default IP address is 192.168.1.64. You are recommended to change the IP address to the same subnet with your computer.

3. Input the user name and password.

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The device IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

4. Click Login.

Figure 4-1 Login Interface

5. Install the plug-in before viewing the live video and managing the network

positioning system. Follow the installation prompts to install the plug-in.

Note:

You may have to close the web browser to finish the installation of the plug-in.

Network Positioning System·Quick Start Guide

Figure 4-2 Download Plug-in

6. Reopen the web browser after the installation of the plug-in and repeat above

step 2 to step 4 to login.

Note:

For detailed instructions of further configuration, refer to the user manual of network positioning system.

Network Positioning System·Quick Start Guide

5 Operating via Hik-Connect App

Purpose:

Hik-Connect is an application for mobile devices. With the App, you can view live image of the positioning system, receive alarm notification and so on.

Note:

Hik-Connect service is not supported by certain positioning system models.

5.1 Enable Hik-Connect Service on Positioning System

Purpose:

Hik-Connect service should be enabled on your positioning system before using the service.

You can enable the service through SADP software or web browser.

5.1.1 Enable Hik-Connect Service via SADP Software

Steps:

1. Check the Enable Hik-Connect checkbox on:

1) "Activate the Device" page during positioning system activation, refer to

section 3.2.2 Activation via SADP Software.

2) Or "Modify Network Parameters" page during modifying IP address, refer to

section 3.3 Modifying the IP Address.

2. Create a verification code or change the verification code.

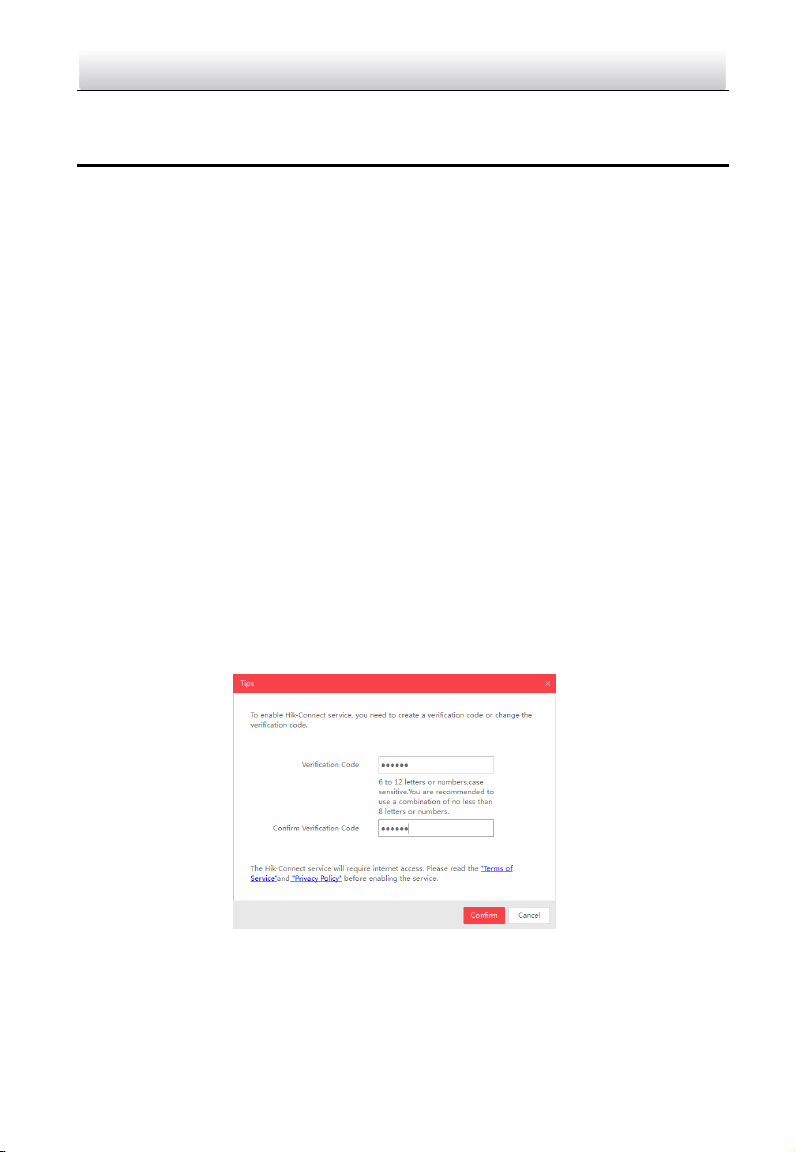

Figure 5-1 Verification Code Setting (SADP)

Note:

The verification code is required when you add the positioning system to Hik-Connect app.

Network Positioning System·Quick Start Guide

3. Click and read "Terms of Service" and "Privacy Policy".

4. Confirm the settings.

5.1.2 Enable Hik-Connect Service via Web Browser

Before you start:

You need to activate the positioning system before enabling the service. Refer to section 3.2 Activating the Positioning System.

Steps:

1. Access the positioning system via web browser. Refer to Chapter 4 Accessing via

Web browser.

2. Enter platform access configuration interface:

Configuration > Network > Advanced Settings > Platform Access

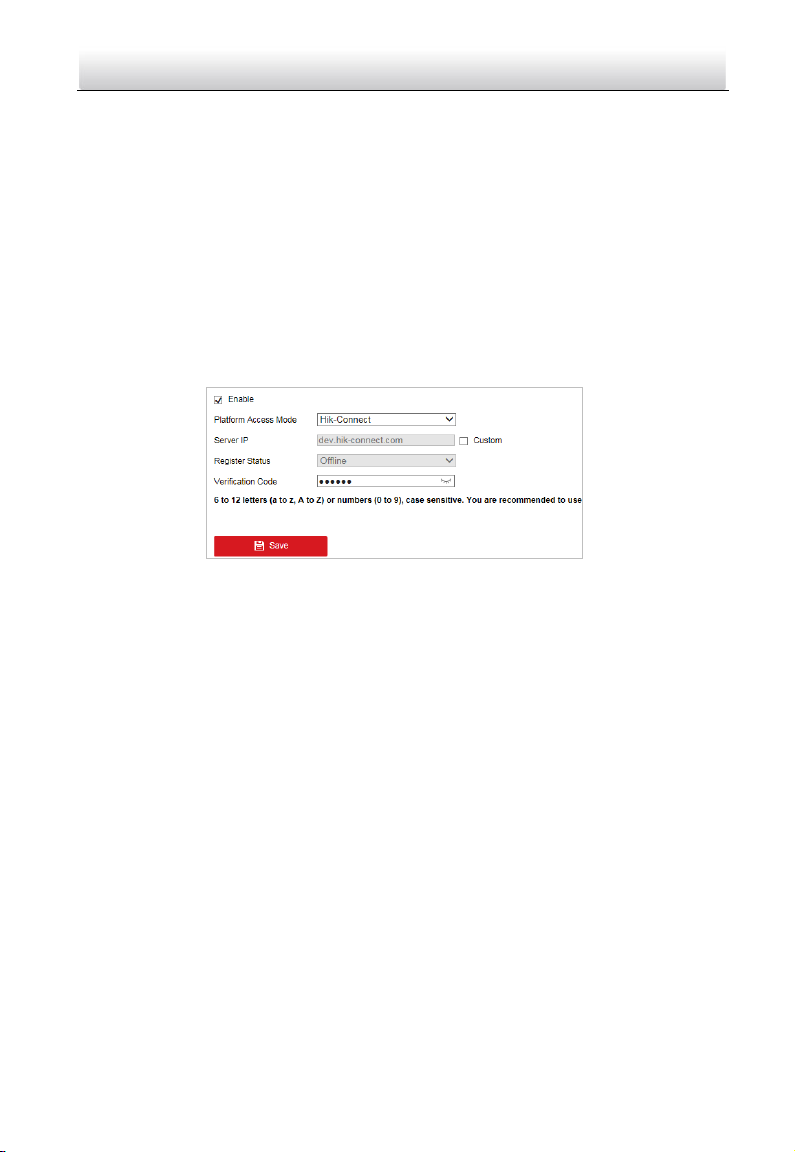

Figure 5-2 Platform Access Configuration (Web)

3. Select Platform Access Mode as Hik-Connect.

4. Check the Enable checkbox.

5. Click and read "Terms of Service" and "Privacy Policy" in pop-up window.

6. Create a verification code or change the verification code for the positioning

system.

Note:

The verification code is required when you add the positioning system to Hik-Connect app.

7. Save the settings.

5.2 Hik-Connect Setup

Steps:

1. Download and install the Hik-Connect app by searching “Hik-Connect” in App

Store or Google PlayTM.

2. Launch the app and register for a Hik-Connect user account.

3. Log in Hik-Connect app after registration.

Network Positioning System·Quick Start Guide

5.3 Adding Positioning System to Hik-Connect

Before you start:

You need to enable the Hik-Connect service on positioning system before adding it to your Hik-Connect account. Refer to section 5.1 Enable Hik-Connect Service on

Positioning System. Steps:

1. Use a network cable to connect the positioning system with a router if the

positioning system does not support Wi-Fi.

Figure 5-3 Connect a Router

Note:

After the positioning system connects to the network, wait one minute before any operation on the positioning system using Hik-Connect app.

2. In the Hik-Connect app, tap “+” on the upper-right corner and then scan the QR

code of the positioning system to add the positioning system. You can find the QR code on the positioning system or on the cover of the quick

start guide of the positioning system in the package.

Figure 5-4 Scan QR Code

Note:

If the QR code is missing or too blur to be recognized, you can also add the positioning system by tapping the icon and inputting the positioning system 's serial number.

3. Input the verification code of your positioning system.

Notes:

 The required verification code is the code you create or change when you

enabling Hik-Connect service on positioning system.

 If you forget the verification code, you can check the current verification code

on Platform Access configuration page via web browser.

Network Positioning System·Quick Start Guide

4. Follow the prompts to set the network connection and add the positioning system

to your Hik-Connect account.

Note:

For detailed information, refer to the user manual of the Hik-Connect app.

5.4 Initializing the Memory Card

Check the memory card status by tapping on the Storage Status in the Device Settings interface.

If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recording any event triggered video in the positioning system such as motion detection.

Hikvision DS-2DY9250IAX-A, DS-2DY9250X-A Quick Start Guide

Specifications and Main Features

Frequently Asked Questions

User Manual
