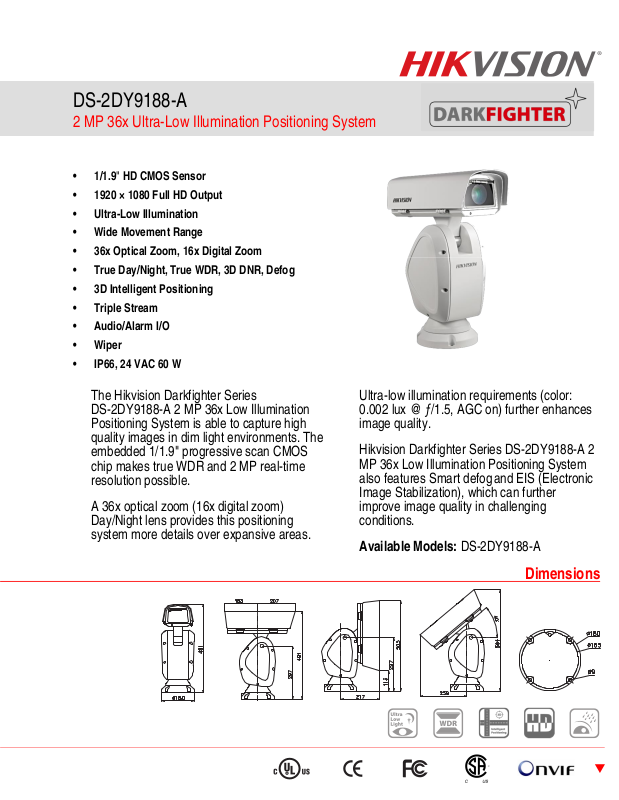

Hikvision DS-2DY9188-A Specsheet

DS-2DY9188-A

2 MP 36x Ultra-Low Illumination Positioning System

• 1/1.9" HD CMOS Sensor

• 1920 × 1080 Full HD Output

• Ultra-Low Illumination

• Wide Movement Range

• 36x Optical Zoom, 16x Digital Zoom

• True Day/Night, True WDR, 3D DNR, Defog

• 3D Intelligent Positioning

• Triple Stream

• Audio/Alarm I/O

• Wiper

• IP66, 24 VAC 60 W

The Hikvision Darkfighter Series
DS-2DY9188-A 2 MP 36x Low Illumination
Positioning System is able to capture high
quality images in dim light environments. The
embedded 1/1.9" progressive scan CMOS
chip makes true WDR and 2 MP real-time
resolution possible.

A 36x optical zoom (16x digital zoom)
Day/Night lens provides this positioning
system more details over expansive areas.

Dimensions

Ultra-low illumination requirements (color:

0.002 lux @ ƒ/1.5, AGC on) further enhances
image quality.

Hikvision Darkfighter Series DS-2DY9188-A 2
MP 36x Low Illumination Positioning System
also features Smart defog and EIS (Electronic
Image Stabilization), which can further
improve image quality in challenging
conditions.

Available Models: DS-2DY9188-A



Specifications

Camera Module

Image Sensor

1/1.9"

progressive scan

CMOS

Max. Image Resolution

1920 x

1080

Min

imum Illumination

Color: 0.

002 lux @ ƒ/

1.5, AGC

on;

B/W: 0.

0002 lux @ ƒ/1.5, AGC

on

Day/Night ICR

Focus Mode

Auto/semiautomatic/

manual

Shutter

Speed

50

Hz: 1/1 to

1/30,000s; 60

Hz: 1/1

to

1/30,000s

S/

N Ratio

>52 dB

Digital Zoom

16x

White Balance

Auto/

manual

/ATW/

indo

or/outdoor/daylight lamp/sodium

lamp

AGC Auto/

manual

Lens

Focal Length

5.7 mm to

205.2 mm

, 36x

Angle of View

58.7° to

2.0° (wide-tele)

Min.

Working Distance

10 mm to

1500 mm (

wide-tele)

Aperture Range

ƒ/1.5 to

ƒ/

3.4


50 Hz: 25 fps (1920 × 1080), 25

fps (1280 × 960), 25

fps (1280 × 720)

60 Hz: 30 fps (1920 × 1080), 30

fps (1280 × 960), 30

fps (1280 × 720)

50 Hz: 25 fps (704 × 576), 25

fps (352 × 288), 25

fps (176 × 144)

60 Hz: 30 fps (704 × 480), 30

fps (352 × 240), 30

fps (176 × 120)

50 Hz: 25

fps (1920 × 1080), 25

fps (1280 × 960), 25

fps (1280

×

720), 25

fps (704 × 576), 25

fps (352

×

288), 25

fps (176 × 144)

60 Hz: 30

fps (1920 × 1080), 30

fps (1280 × 960), 30

fps (1280

×

720), 30

fps (704 × 480), 30

fps (352

×

240), 30

fps (176

×

120)

Image Compression

H.264(

baseline, main, high profile

)/MJPEG/MPEG4

Audio Compression

G722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

SVC Support

ed

Protocols

IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NTP,RTSP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE

Standard

s ONVIF, PSIA, CGI, Genetec

Others

Defog, EIS,

privacy mask

, 3D DNR, BLC,

true WDR

Smart Features

Smart Detection

Face de

tection, intrusion detection, line crossing detection, audio exception detection, region entrance detection,

region exiting detect

ion

ROI Encoding

24 areas with adjustable levels

Pan and Tilt

Movement

Range

Pan: 360

°

endless,

tilt

: +40°

to -90°

Movement Speed

Pan: 0.1°

to

100°/s,

tilt

: 0.1° to

40°/s

Number of Preset

s 256

Patrols

8 patrols, up to 32 presets per patrol

Pattern

s 4 patterns, with the recording time not less than 10 minutes per pattern

Power

-

off Memory

Support

ed

Park Support

ed

Proportional Zoom

Support

ed

PTZ Position Display

On/

Off

System Integration

Menu English

3D Positioning

Support

ed

Preset Freezing

Support

ed

Scheduled Task

Support

ed

Alarm I/O

7 alarm inputs, 2 alarm

outputs, alarm linkage

Alarm Action

Preset/patrol/pattern/SD card recording/aux output/

e-map on client

Audio I/O

1/1

Ethernet

10Base

-T/100Base

-

TX, RJ

-

45 connector

CVBS Output

1.0 V[p

-

p]/75 Ω, NTSC (or PAL) composite, BNC

RS-485 Half duplex, HIKVISION, Pelco

-

P, Pelco

-

D, self

-

adaptive

Onboard Storage

Built-in

micro

SD/SDXC card slot, up to 128

GB, E

dge recording

Simultaneous Live View

s Up to 20

User/Host Level

Up to 32 users,

3 levels: administrator, operator

, and user

General

Power

24 VAC, max

imum 60 W

Working Temp

.

/Humidity

-40° C to 65° C, humidity 90% or less

Protection Level

s IP66 standard, TVS 6,000

V lightning protection, surge protection

, and voltage transient protection

Dimensions

7.09"

x 19.33

" x 15.35

" (

180 mm ×

491 mm ×

390 mm)

Weight

(approximate

) 33.07 lbs (15 kg)

WBPT

Wall Mount

DS-2DY9188-A

Main Stream

Sub Stream

Third Stream

Accessories
