Hikvision DS-2DP0818Z-D, DS-2DP1636-D, DS-2DP1636Z-D User Manual

Download

User Manual of PanoVu Series Network Camera

PanoVu Series Network Camera

User Manual

UD04532B

User Manual of PanoVu Series Network Camera

User Manual

Co., Ltd.

Any and all information, including, among others,

wordings, pictures, graphs are the properties of Hangzhou

Hikvision Digital Technology Co., Ltd. or its subsidiaries

(hereinafter referred to be “Hikvision”). This user manual

(hereinafter referred to be “the Manual”) cannot be

reproduced, changed, translated, or distributed, partially

or wholly, by any means, without the prior written

permission of Hikvision. Unless otherwise stipulated,

Hikvision does not make any warranties, guarantees or

representations, express or implied, regarding to the

Manual.

About this Manual

This Manual is applicable to PanoVu Series Network

Camera.

The Manual includes instructions for using and managing

the product. Pictures, charts, images and all other

information hereinafter are for description and

explanation only. The information contained in the Manual

is subject to change, without notice, due to firmware

updates or other reasons. Please find the latest version in

the company website (http://overseas.hikvision.com/en/).

Please use this user manual under the guidance of

professionals.

Trademarks Acknowledgement

and other Hikvision’s trademarks and

logos are the properties of Hikvision in various jurisdictions.

Other trademarks and logos mentioned below are the

properties of their respective owners.

Legal Disclaimer

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE

LAW, THE PRODUCT DESCRIBED, WITH ITS HARDWARE,

SOFTWARE AND FIRMWARE, IS PROVIDED “AS IS”, WITH

ALL FAULTS AND ERRORS, AND HIKVISION MAKES NO

WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WITHOUT

LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY,

FITNESS FOR A PARTICULAR PURPOSE, AND

NON-INFRINGEMENT OF THIRD PARTY. IN NO EVENT WILL

HIKVISION, ITS DIRECTORS, OFFICERS, EMPLOYEES, OR

AGENTS BE LIABLE TO YOU FOR ANY SPECIAL,

CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,

INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF

BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF

DATA OR DOCUMENTATION, IN CONNECTION WITH THE

USE OF THIS PRODUCT, EVEN IF HIKVISION HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

REGARDING TO THE PRODUCT WITH INTERNET ACCESS,

THE USE OF PRODUCT SHALL BE WHOLLY AT YOUR OWN

RISKS. HIKVISION SHALL NOT TAKE ANY RESPONSIBILITES

FOR ABNORMAL OPERATION, PRIVACY LEAKAGE OR

OTHER DAMAGES RESULTING FROM CYBER ATTACK,

HACKER ATTACK, VIRUS INSPECTION, OR OTHER INTERNET

SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE

TIMELY TECHNICAL SUPPORT IF REQUIRED.

SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE

CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION

BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT

YOUR USE CONFORMS THE APPLICABLE LAW. HIKVISION

SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT

IS USED WITH ILLEGITIMATE PURPOSES.

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL

AND THE APPLICABLE LAW, THE LATER PREVAILS.

Regulatory Information

FCC Information

Please take attention that changes or modification not

expressly approved by the party responsible for

compliance could void the user’s authority to operate the

equipment.

FCC compliance: This equipment has been tested and found

to comply with the limits for a Class A digital device,

pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful

interference when the equipment is operated in a

commercial environment. This equipment generates, uses,

and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may

cause harmful interference to radio communications.

Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be

required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,

including interference that may cause undesired operation.

EU Conformity Statement

This product and - if applicable - the supplied

accessories too are marked with "CE" and

comply therefore with the applicable

harmonized European standards listed under

Warnings

Follow these safeguards

to prevent serious injury or

death.

Cautions

Follow these precautions to

prevent potential injury or

material damage.

the EMC Directive 2014/30/EU, the RoHS

Directive 2011/65/EU

2012/19/EU (WEEE directive): Products

marked with this symbol cannot be

disposed of as unsorted municipal waste

in the European Union. For proper

recycling, return this product to your

local supplier upon the purchase of

equivalent new equipment, or dispose of it at designated

collection points. For more information see:

www.recyclethis.info.

2006/66/EC (battery directive): This

product contains a battery that cannot

be disposed of as unsorted municipal

waste in the European Union. See the

product documentation for specific

battery information. The battery is marked with this

symbol, which may include lettering to indicate cadmium

(Cd), lead (Pb), or mercury (Hg). For proper recycling,

return the battery to your supplier or to a designated

collection point. For more information see:

www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Safety Instruction

These instructions are intended to ensure that the user can

use the product correctly to avoid danger or property loss.

The precaution measure is divided into ‘Warnings’ and

‘Cautions’:

Warnings: Serious injury or death may be caused if any of

these warnings are neglected.

Cautions: Injury or equipment damage may be caused if

any of these cautions are neglected.

User Manual of PanoVu Series Network Camera

Warnings:

 Please adopt the power adapter which can meet the

safety extra low voltage (SELV) standard. The power

consumption cannot be less than the required value.

 Do not connect several devices to one power adapter

as an adapter overload may cause over-heating and

can be a fire hazard.

 When the product is installed on a wall or ceiling, the

device should be firmly fixed.

 To reduce the risk of fire or electrical shock, do not

expose the indoor used product to rain or moisture.

 This installation should be made by a qualified service

person and should conform to all the local codes.

 Please install blackouts equipment into the power

supply circuit for convenient supply interruption.

 If the product does not work properly, please contact

your dealer or the nearest service center. Never

attempt to disassemble the product yourself. (We shall

not assume any responsibility for problems caused by

unauthorized repair or maintenance.)

 Please do not look directly into the laser light within 6

meters because laser is hazardous to humans.

Cautions:

 Make sure the power supply voltage is correct before

using the product.

 Do not drop the product or subject it to physical shock.

Do not install the product on vibratory surface or

places.

 Do not expose it to high electromagnetic radiating

environment.

 Do not aim the lens at the strong light such as sun or

incandescent lamp. The strong light can cause fatal

damage to the product.

 The sensor may be burned out by a laser beam, so

when any laser equipment is being used, make sure

that the surface of the sensor not be exposed to the

laser beam.

 For working temperature, please refer to the

specification manual for details.

 To avoid heat accumulation, good ventilation is

required for a proper operating environment.

 While shipping, the product should be packed in its

original packing.

User Manual of PanoVu Series Network Camera

iii

 Please use the provided glove when open up the

product cover. Do not touch the product cover with

fingers directly, because the acidic sweat of the fingers

may erode the surface coating of the product cover.

 Please use a soft and dry cloth when clean inside and

outside surfaces of the product cover. Do not use

alkaline detergents.

 Improper use or replacement of the battery may result

in hazard of explosion. Please use the manufacturer

recommended battery type.

User Manual of PanoVu Series Network Camera

Table of Contents

ABOUT THIS DOCUMENT ....................................................................................................................................................... 1

OVERVIEW OF CONTENTS ................................................................................................................................................................. 1

NOTICE ......................................................................................................................................................................................... 1

CHAPTER 1 ACTIVATING AND ACCESSING TO THE CAMERA .............................................................................................. 2

1.1 SYSTEM REQUIREMENT ........................................................................................................................................................ 2

1.2 ACTIVATING THE CAMERA ..................................................................................................................................................... 2

1.2.1 Setting the Camera over the LAN .............................................................................................................................. 2

1.2.2 Activating the Camera ............................................................................................................................................... 3

1.3 SETTING THE CAMERA OVER THE WAN (OPTIONAL) .................................................................................................................. 7

1.3.1 Static IP Connection ................................................................................................................................................... 7

1.3.2 Dynamic IP Connection .............................................................................................................................................. 8

1.4 ACCESSING TO THE CAMERA ................................................................................................................................................. 9

1.4.1 Accessing by Web Browsers ....................................................................................................................................... 9

1.4.2 Accessing by Client Software ................................................................................................................................... 10

1.5 POWER-UP ACTION ........................................................................................................................................................... 11

CHAPTER 2 SETTING LOCAL PARAMETERS AND NETWORK ............................................................................................. 12

2.1 CONFIGURING LOCAL PARAMETERS ...................................................................................................................................... 12

2.2 CONFIGURING NETWORK SETTINGS ...................................................................................................................................... 13

2.2.1 Basic Settings ........................................................................................................................................................... 13

2.2.2 Advanced Settings ................................................................................................................................................... 17

CHAPTER 3 LIVE VIEW .................................................................................................................................................... 25

3.1 INSTALL THE PLUG-IN ......................................................................................................................................................... 25

3.2 LIVE VIEW PAGE ............................................................................................................................................................... 25

3.2.1 Descriptions of the live view page: .......................................................................................................................... 25

3.2.2 Live View Operation ................................................................................................................................................. 26

3.3 CONFIGURING IMAGE SETTINGS........................................................................................................................................... 30

3.3.1 Configuring Display Settings .................................................................................................................................... 30

3.3.2 Configuring OSD Settings ......................................................................................................................................... 35

3.3.3 Configuring Text Overlay Settings ............................................................................................................................ 37

3.4 CONFIGURING VIDEO AND AUDIO SETTINGS ........................................................................................................................... 37

3.4.1 Configuring Video Settings ...................................................................................................................................... 37

3.4.2 Configuring Audio Settings ...................................................................................................................................... 39

3.4.3 Configuring ROI Settings .......................................................................................................................................... 39

CHAPTER 4 PTZ CONTROL ............................................................................................................................................... 41

4.1 OPERATING PTZ CONTROL ................................................................................................................................................. 41

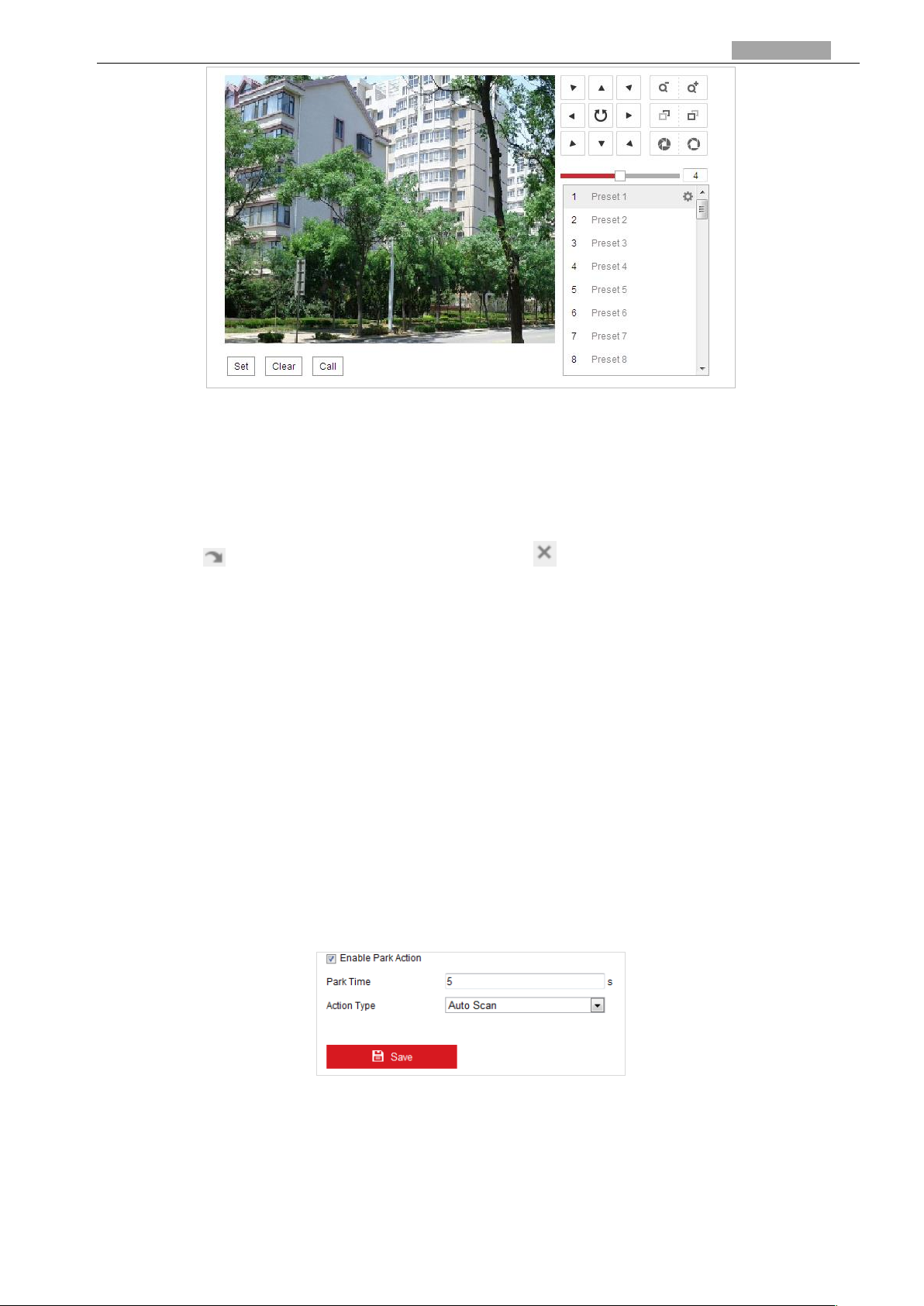

4.1.1 Setting/Calling a Preset ........................................................................................................................................... 41

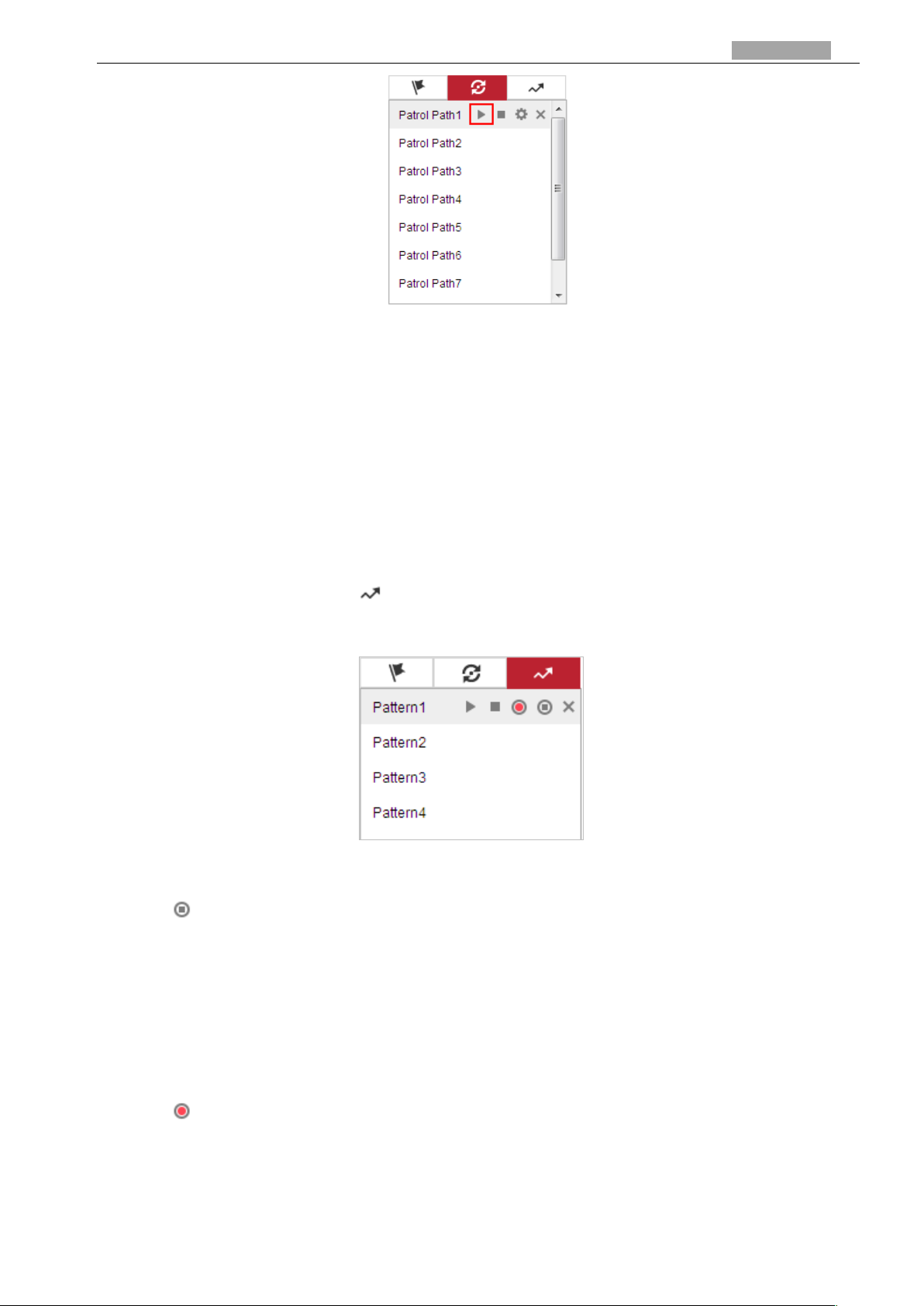

4.1.2 Setting/Calling a Patrol............................................................................................................................................ 43

4.1.3 Setting/Calling a Pattern ......................................................................................................................................... 44

4.2 PTZ CONFIGURATION ........................................................................................................................................................ 45

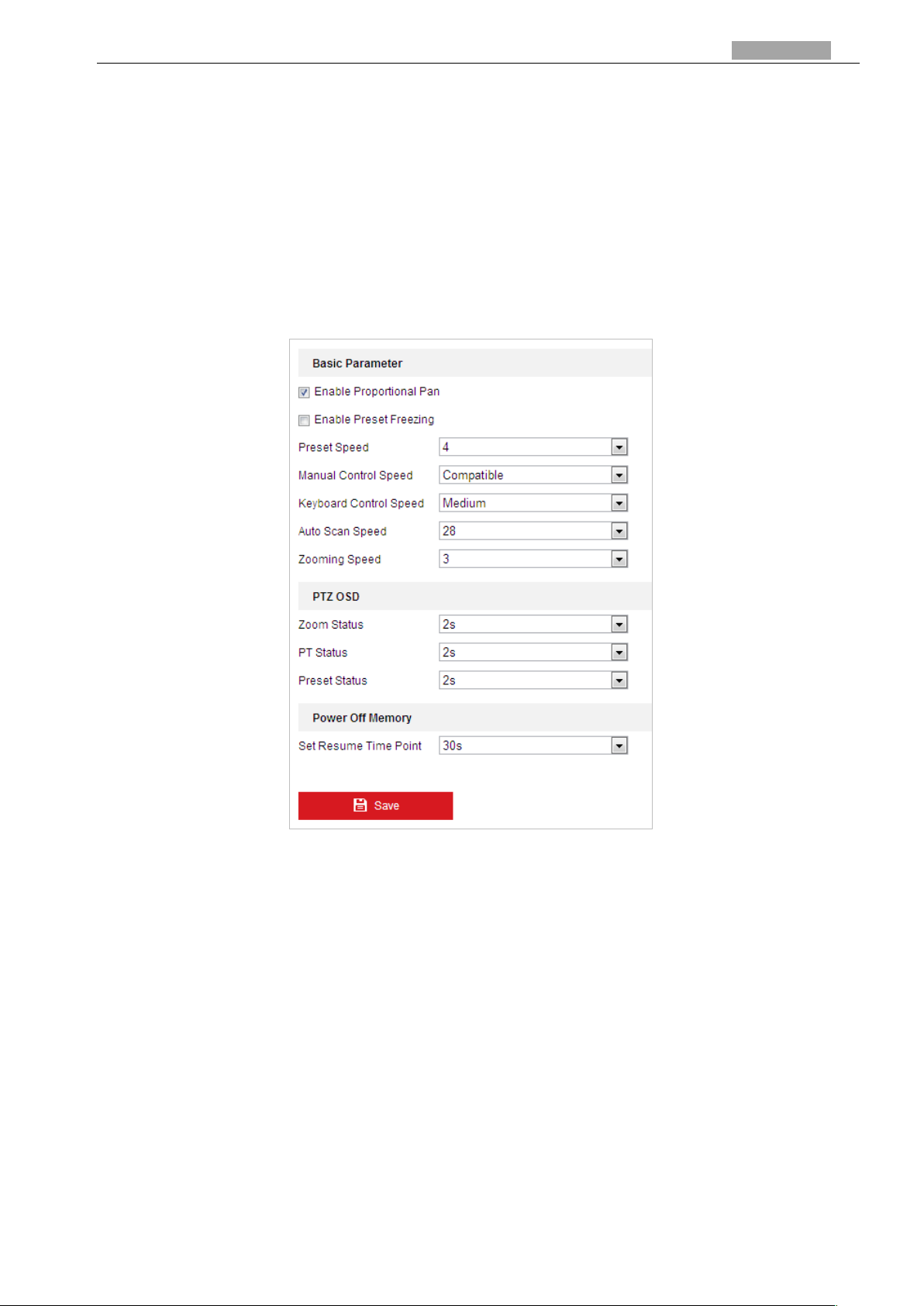

4.2.1 Configuring Basic PTZ Parameters ........................................................................................................................... 45

4.2.2 Configuring PTZ Limits ............................................................................................................................................. 46

User Manual of PanoVu Series Network Camera

4.2.3 Configuring Initial Position ...................................................................................................................................... 47

4.2.4 Configuring Park Action ........................................................................................................................................... 48

4.2.5 Configuring Privacy Mask ........................................................................................................................................ 49

4.2.6 Configuring Scheduled Tasks .................................................................................................................................... 50

4.2.7 Clearing PTZ Configurations .................................................................................................................................... 52

4.2.8 Configuring PTZ Control Priority .............................................................................................................................. 52

4.2.9 Configuring Panorama Tracking .............................................................................................................................. 53

4.2.10 Configuring Eagle Vision Focus............................................................................................................................ 54

CHAPTER 5 STORAGE AND PLAYBACK ............................................................................................................................. 56

5.1 STORAGE SETTINGS ........................................................................................................................................................... 56

5.1.1 Configuring Net HDD (Optional) .............................................................................................................................. 56

5.1.2 HDD Management ................................................................................................................................................... 57

5.1.3 Configuring Record Schedule ................................................................................................................................... 58

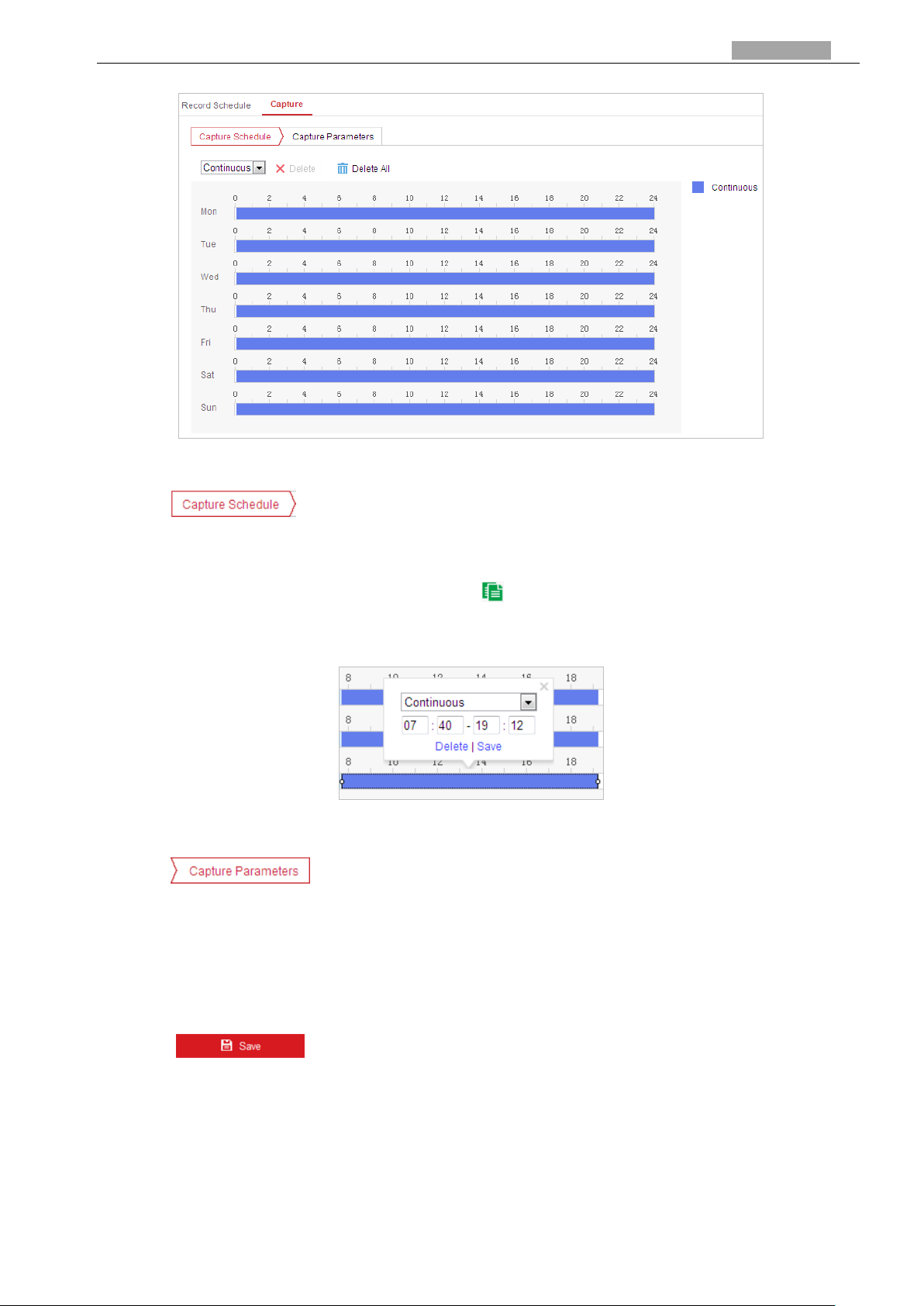

5.1.4 Configuring Capture Schedule ................................................................................................................................. 60

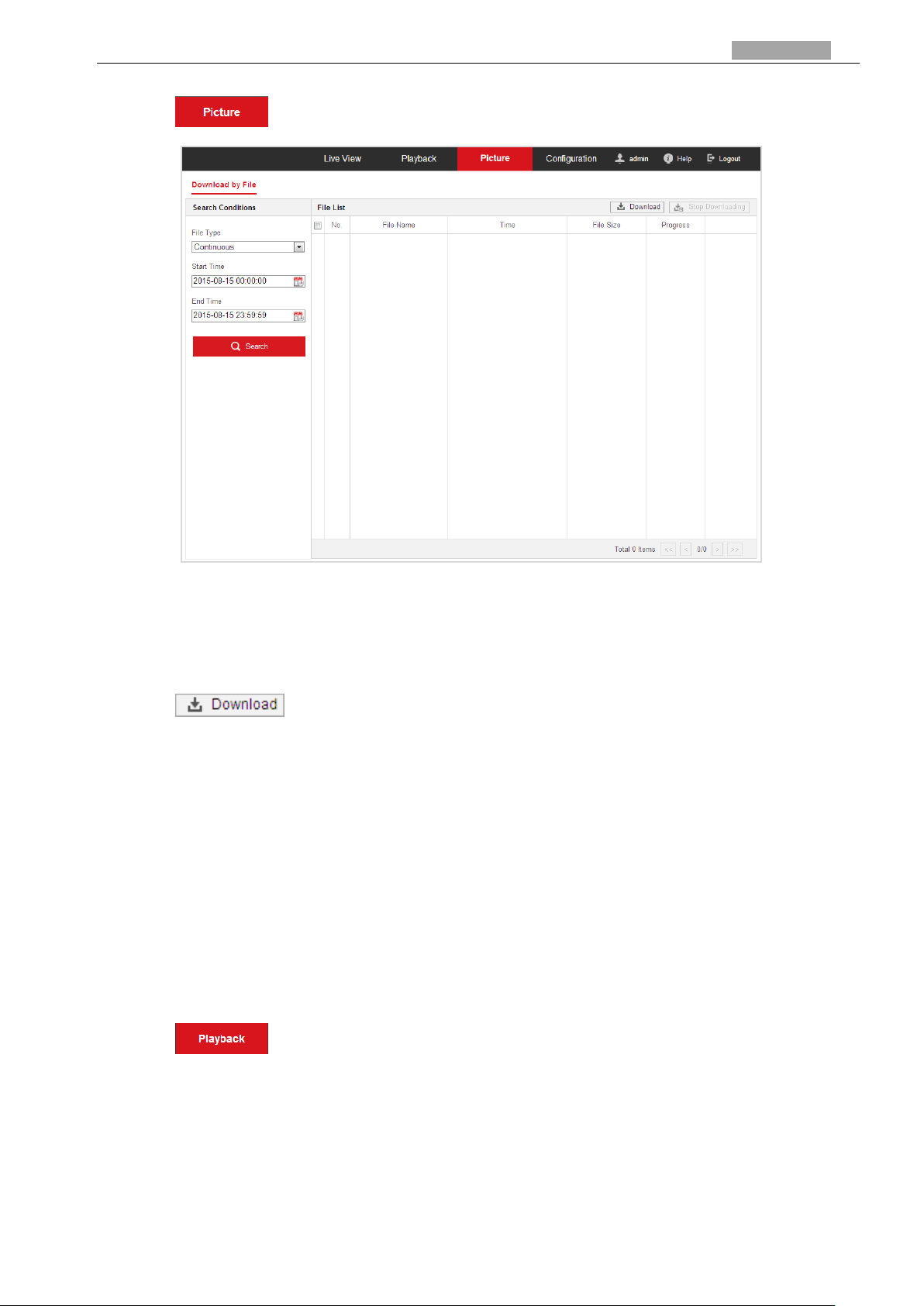

5.2 PICTURE.......................................................................................................................................................................... 61

5.3 PLAYBACK ....................................................................................................................................................................... 62

5.3.1 Play Back Video Files ............................................................................................................................................... 62

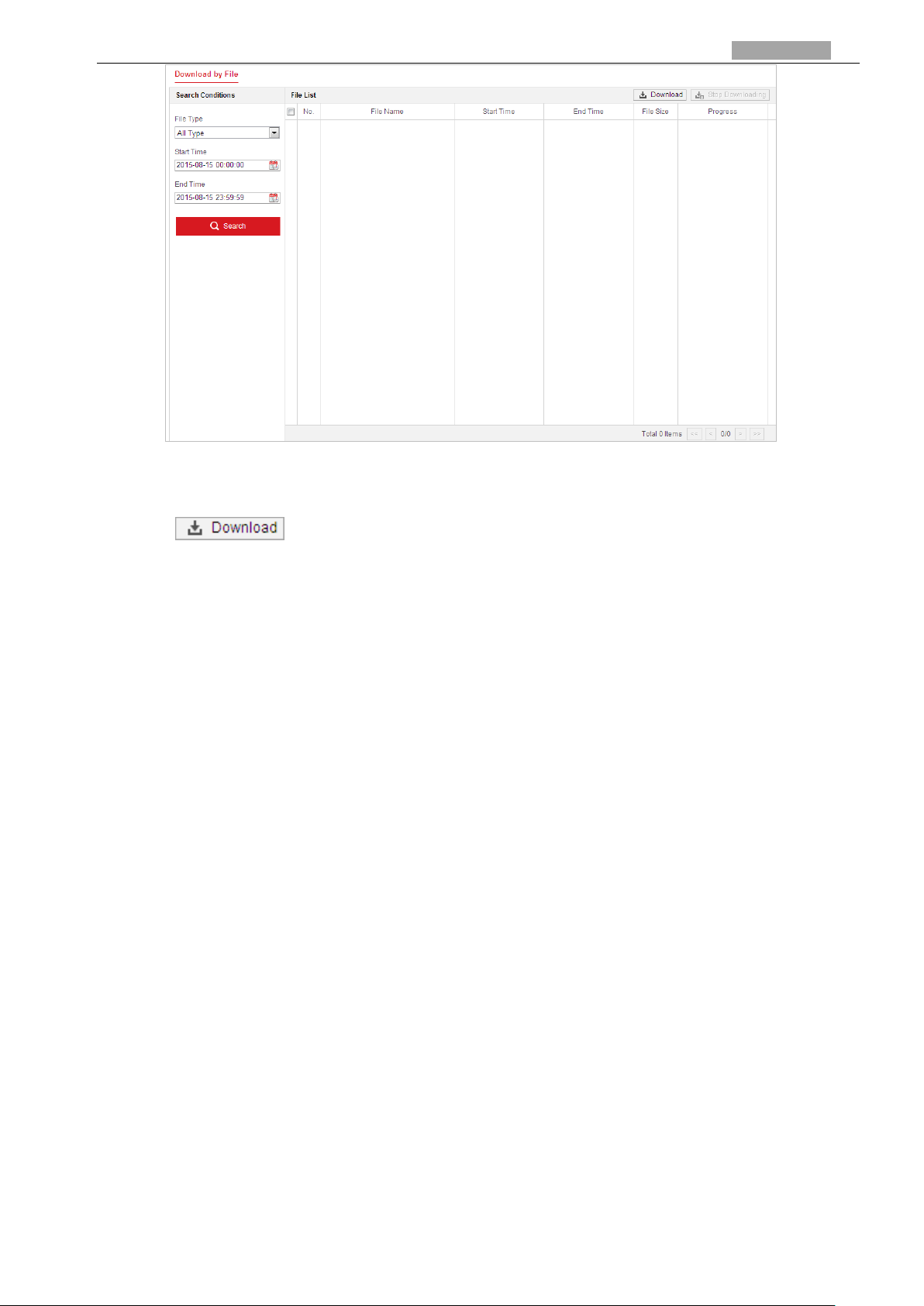

5.3.2 Downloading Video Files ......................................................................................................................................... 64

CHAPTER 6 ALARM AND EVENTS .................................................................................................................................... 66

6.1 BASIC EVENT CONFIGURATION ............................................................................................................................................ 66

6.1.1 Configuring Motion Detection ................................................................................................................................. 66

6.1.2 Configuring Video Tampering Alarm ....................................................................................................................... 70

6.1.3 Configuring Video Loss Alarm ................................................................................................................................. 71

6.1.4 Configuring Alarm Input .......................................................................................................................................... 72

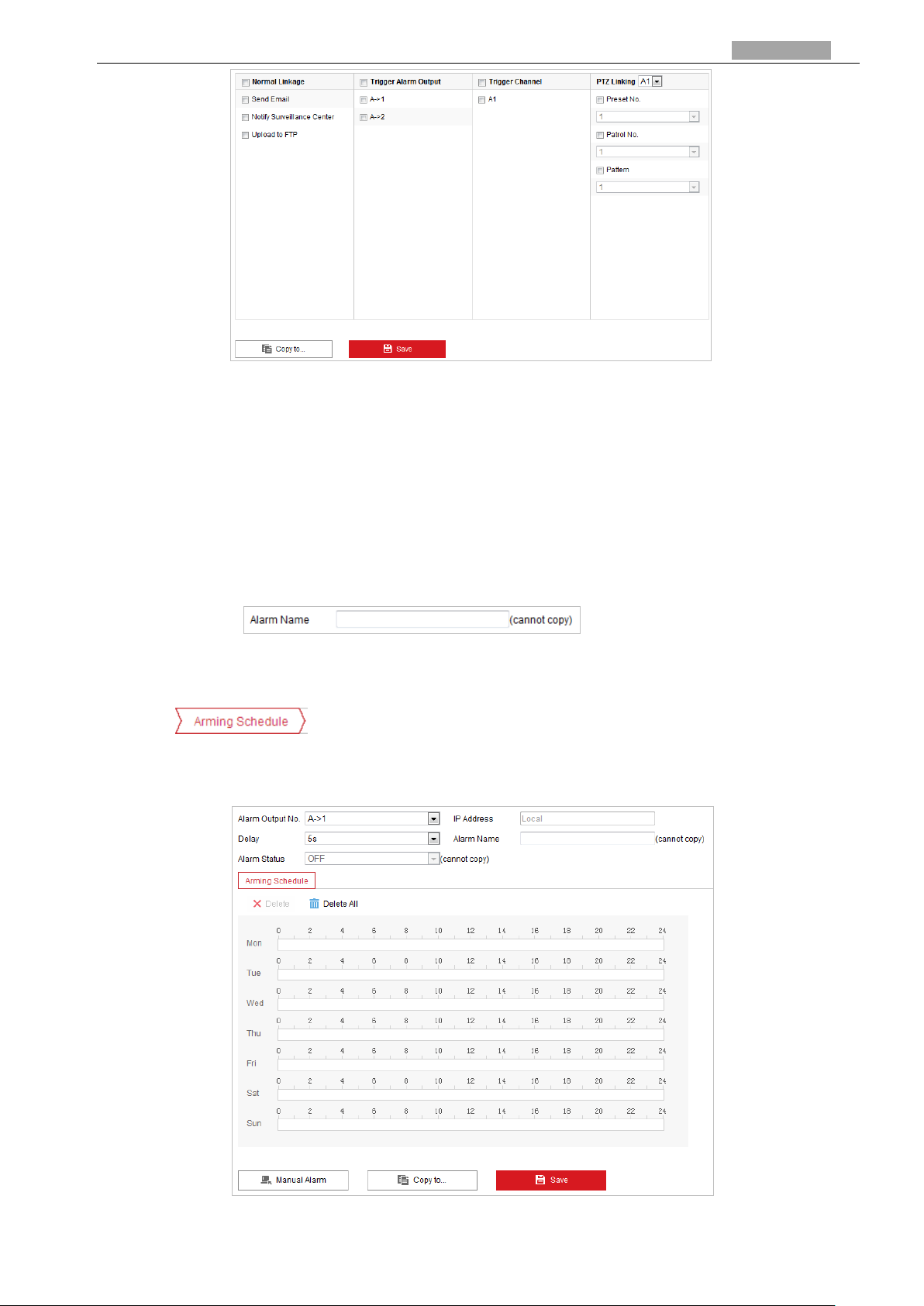

6.1.5 Configuring Alarm Output ....................................................................................................................................... 73

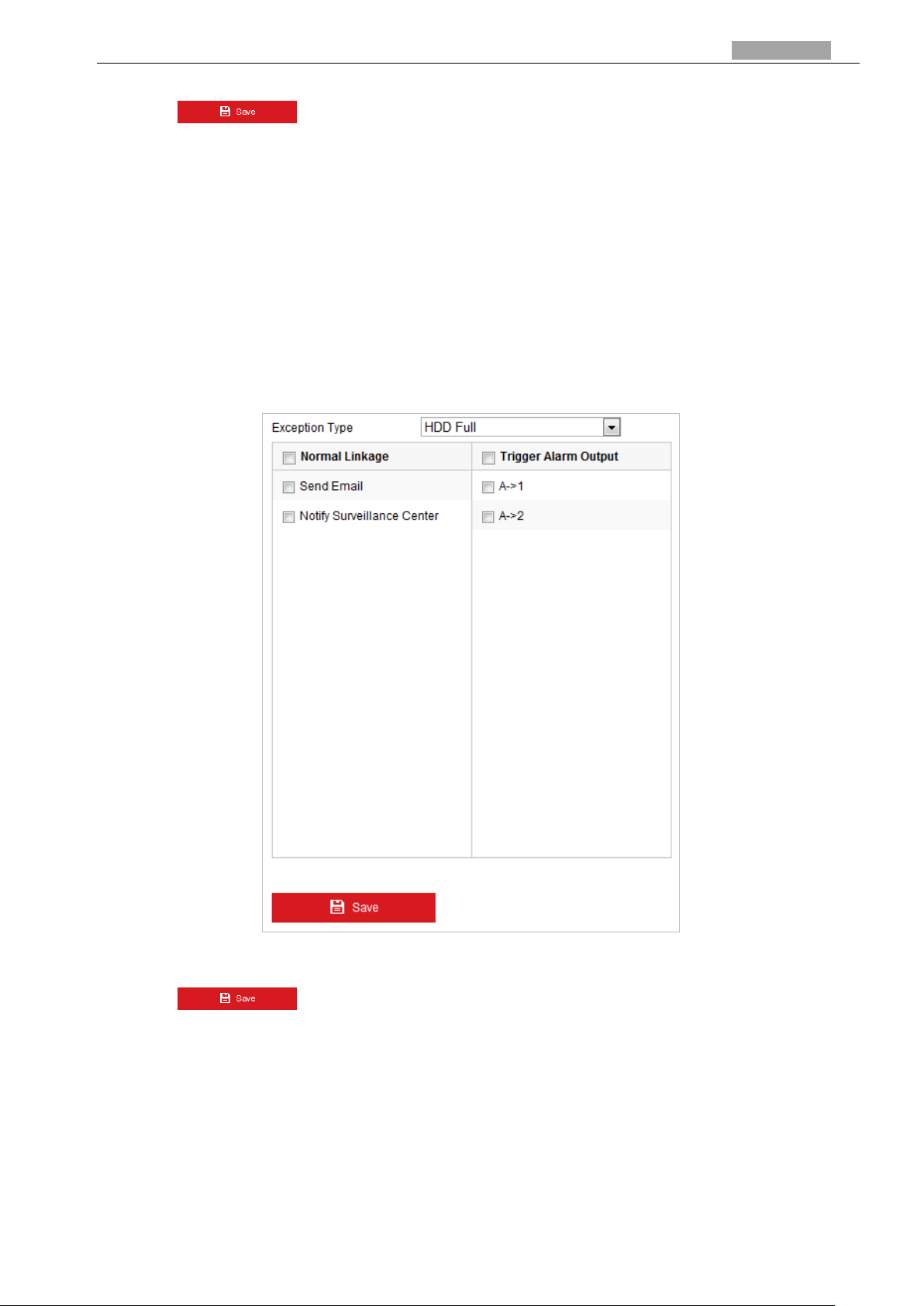

6.1.6 Handling Exception .................................................................................................................................................. 74

6.2 SMART EVENT CONFIGURATION ........................................................................................................................................... 74

6.2.1 Detecting Audio Exception ....................................................................................................................................... 74

6.3 VCA CONFIGURATION ....................................................................................................................................................... 76

6.3.1 VCA Configuration description ................................................................................................................................. 76

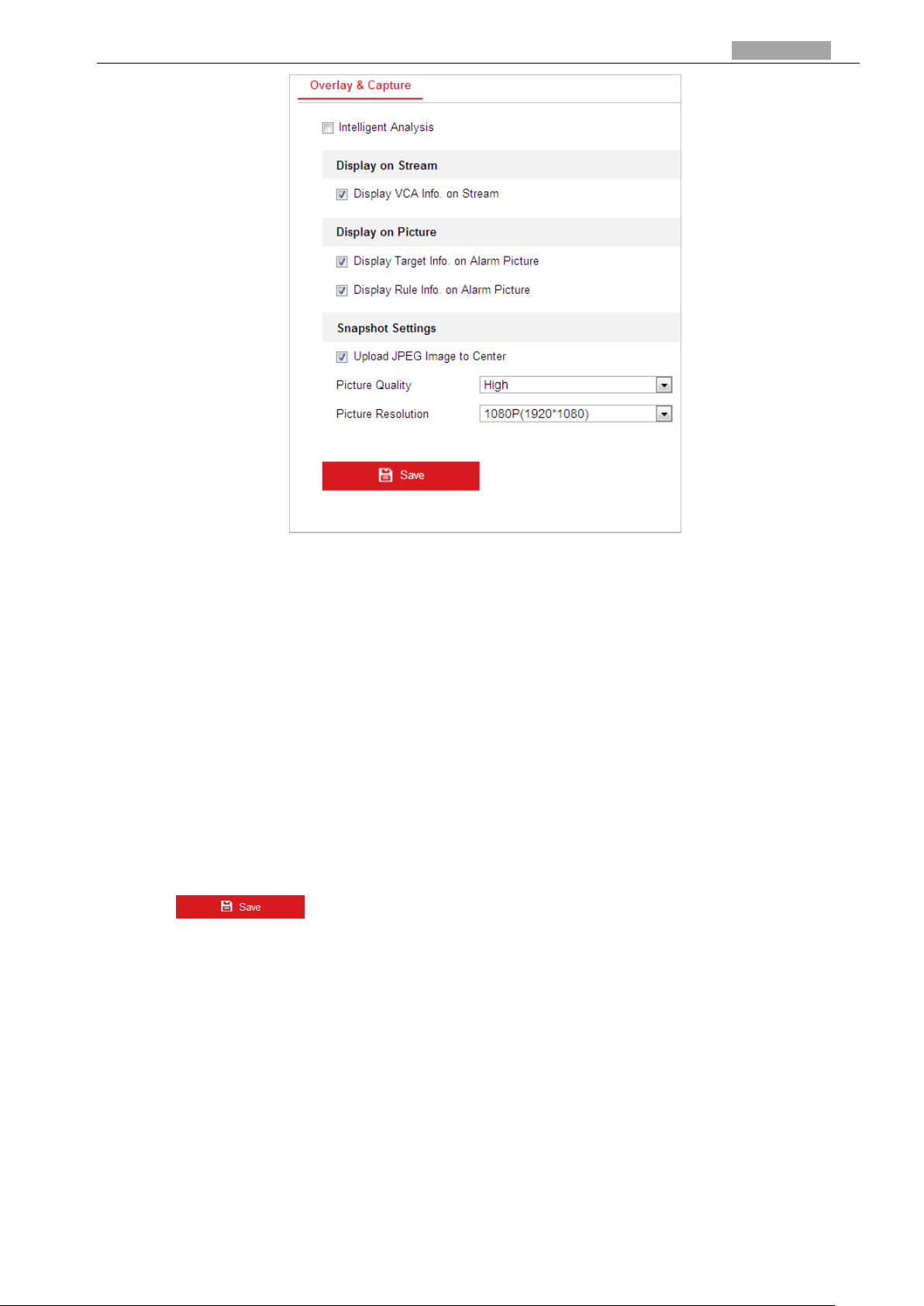

6.3.2 Configuring VCA Information (Overlay & Capture) .................................................................................................. 78

6.3.3 Zooming Ratio ......................................................................................................................................................... 79

6.3.4 Advanced Configuration .......................................................................................................................................... 80

6.3.5 Scene Configuration ................................................................................................................................................. 82

6.3.6 Scene Auto-switch.................................................................................................................................................... 85

6.3.7 Face Capture ............................................................................................................................................................ 86

6.3.8 Shield Region ........................................................................................................................................................... 86

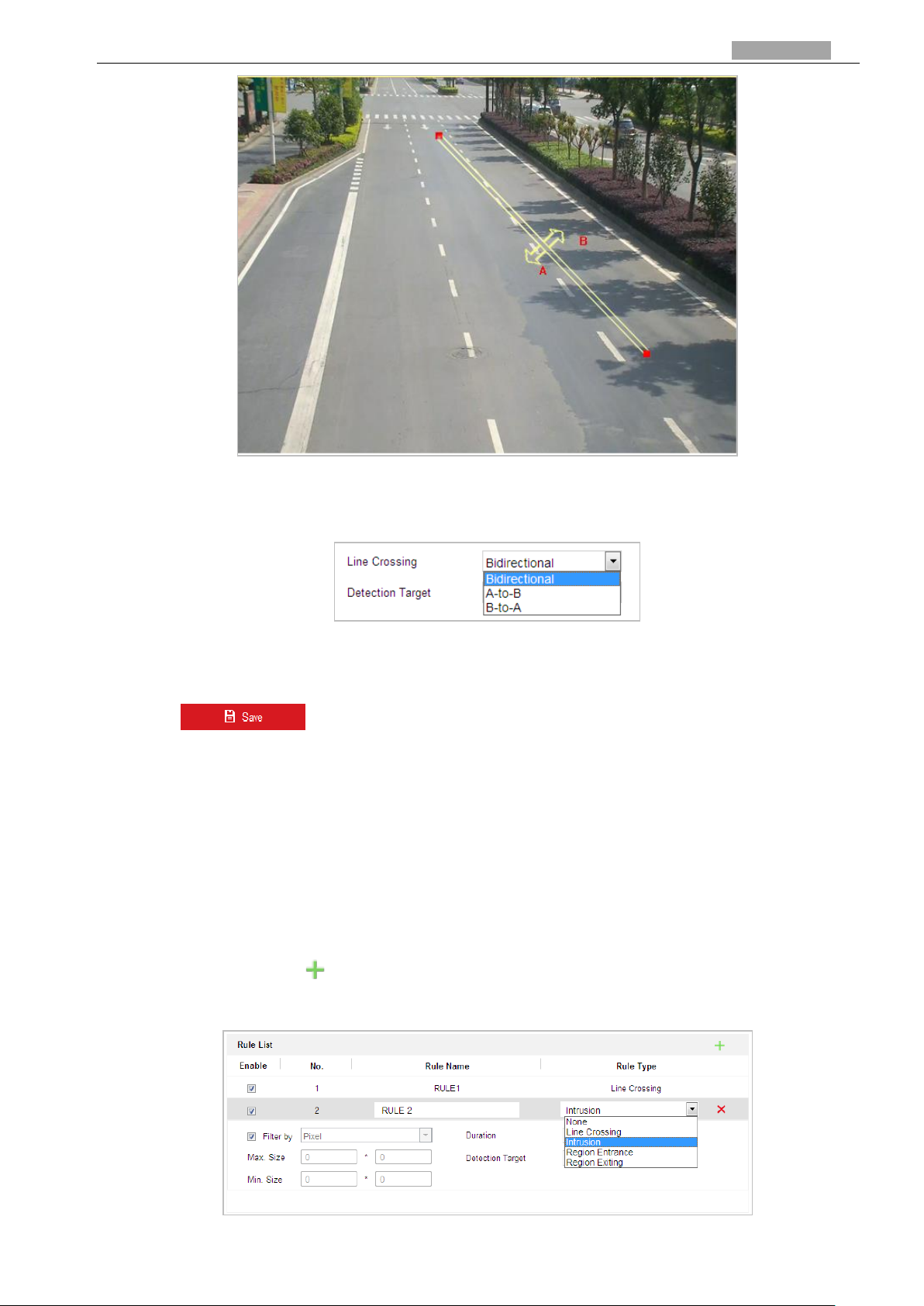

6.3.9 Rule Configuration Demonstration .......................................................................................................................... 88

CHAPTER 7 MAINTENANCE ............................................................................................................................................. 93

7.1 SYSTEM SETTING .............................................................................................................................................................. 93

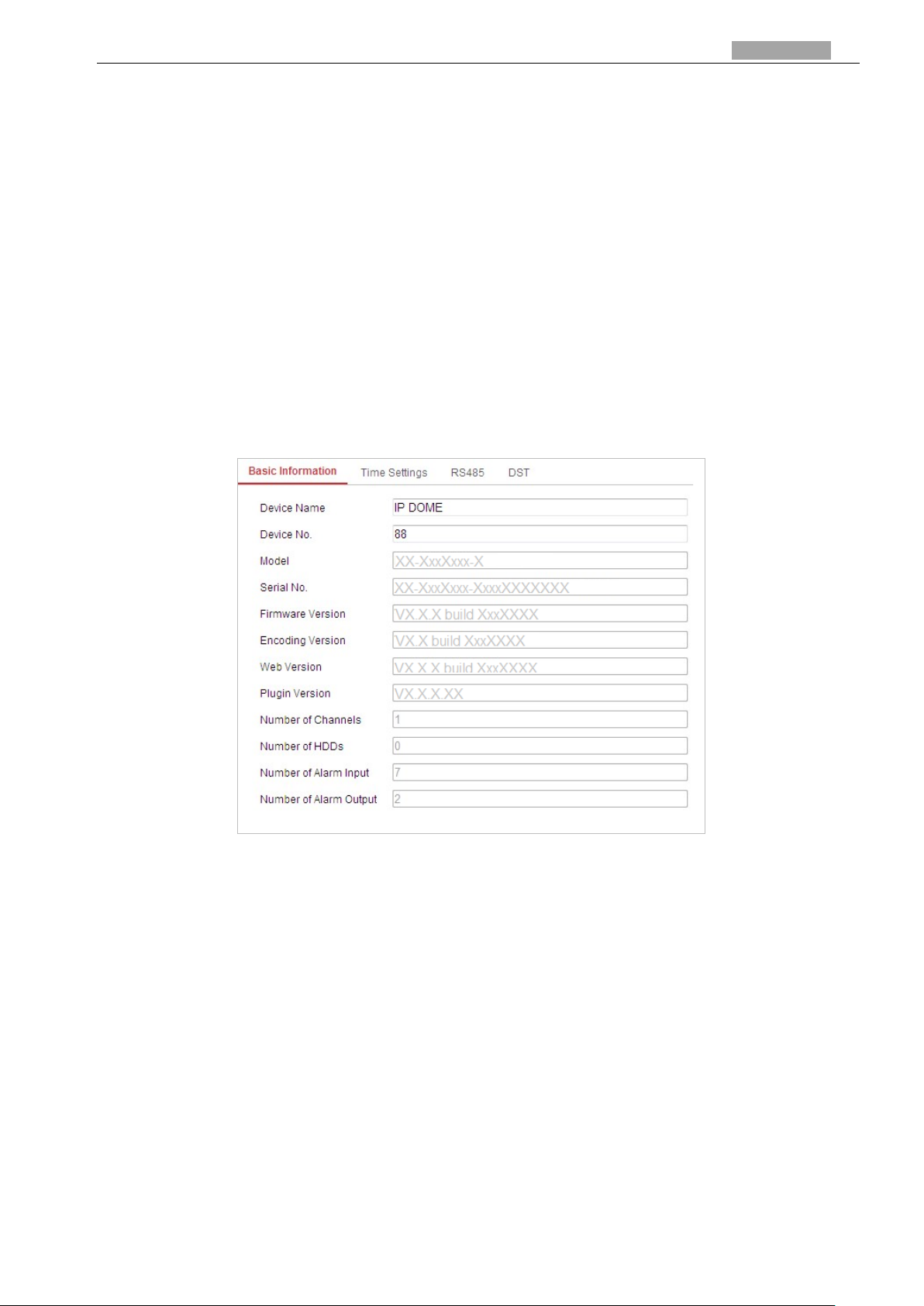

7.1.1 Viewing Basic Information....................................................................................................................................... 93

7.1.2 Time Settings ........................................................................................................................................................... 93

7.1.3 Configuring RS-485 .................................................................................................................................................. 95

7.1.4 Configuring DST (Daylight Saving Time) .................................................................................................................. 96

7.2 MAINTENANCE ................................................................................................................................................................. 96

User Manual of PanoVu Series Network Camera

7.2.1 Upgrade & Maintenance ......................................................................................................................................... 96

7.2.2 Log Searching .......................................................................................................................................................... 98

7.2.3 System Service ......................................................................................................................................................... 99

7.3 SECURITY ........................................................................................................................................................................ 99

7.3.1 Configuring Authentication ..................................................................................................................................... 99

7.3.2 Configuring IP Address Filter ................................................................................................................................... 99

7.3.3 Configuring Security Service Settings .................................................................................................................... 101

7.4 USER MANAGEMENT ...................................................................................................................................................... 101

APPENDIX .......................................................................................................................................................................... 104

APPENDIX 1 SADP SOFTWARE INTRODUCTION ................................................................................................................................. 104

APPENDIX 2 STATICS, INTERFERENCE LIGHTNING AND SURGE PROTECTION ............................................................................................. 106

APPENDIX 3 WATERPROOF ............................................................................................................................................................ 109

APPENDIX 4 BUBBLE MAINTENANCE ............................................................................................................................................... 110

APPENDIX 5 RS-485 BUS CONNECTION .......................................................................................................................................... 111

APPENDIX 6 24VAC WIRE GAUGE & TRANSMISSION DISTANCE ........................................................................................................... 113

APPENDIX 7 12VDC WIRE GAUGE & TRANSMISSION DISTANCE .......................................................................................................... 114

APPENDIX 8 TABLE OF WIRE GAUGE STANDARDS ............................................................................................................................... 115

APPENDIX 9 ALARM IN/OUT CONNECTIONS ..................................................................................................................................... 116

APPENDIX 10 CAMERA FUNCTION DESCRIPTION ............................................................................................................................... 117

User Manual of PanoVu Series Network Camera

About This Document

This document introduces PanoVu series network camera, including 360° panoramic + PTZ camera, 180° panoramic + PTZ camera, and 360° panoramic camera. It covers how to activate and access to the camera, and operate the camera in the network environment.

Overview of Contents

This document contains the following chapters, sections and appendixes:

Chapter1 Activating and Accessing to the Camera provides procedures for setting network

environment, activating and accessing the camera by web browsers and client software, and introduces the power-up action.

Chapter2 Setting Local Parameters and Network suggests the basic settings, including viewing device

local information, configuring saving paths of files, network settings, and other settings.

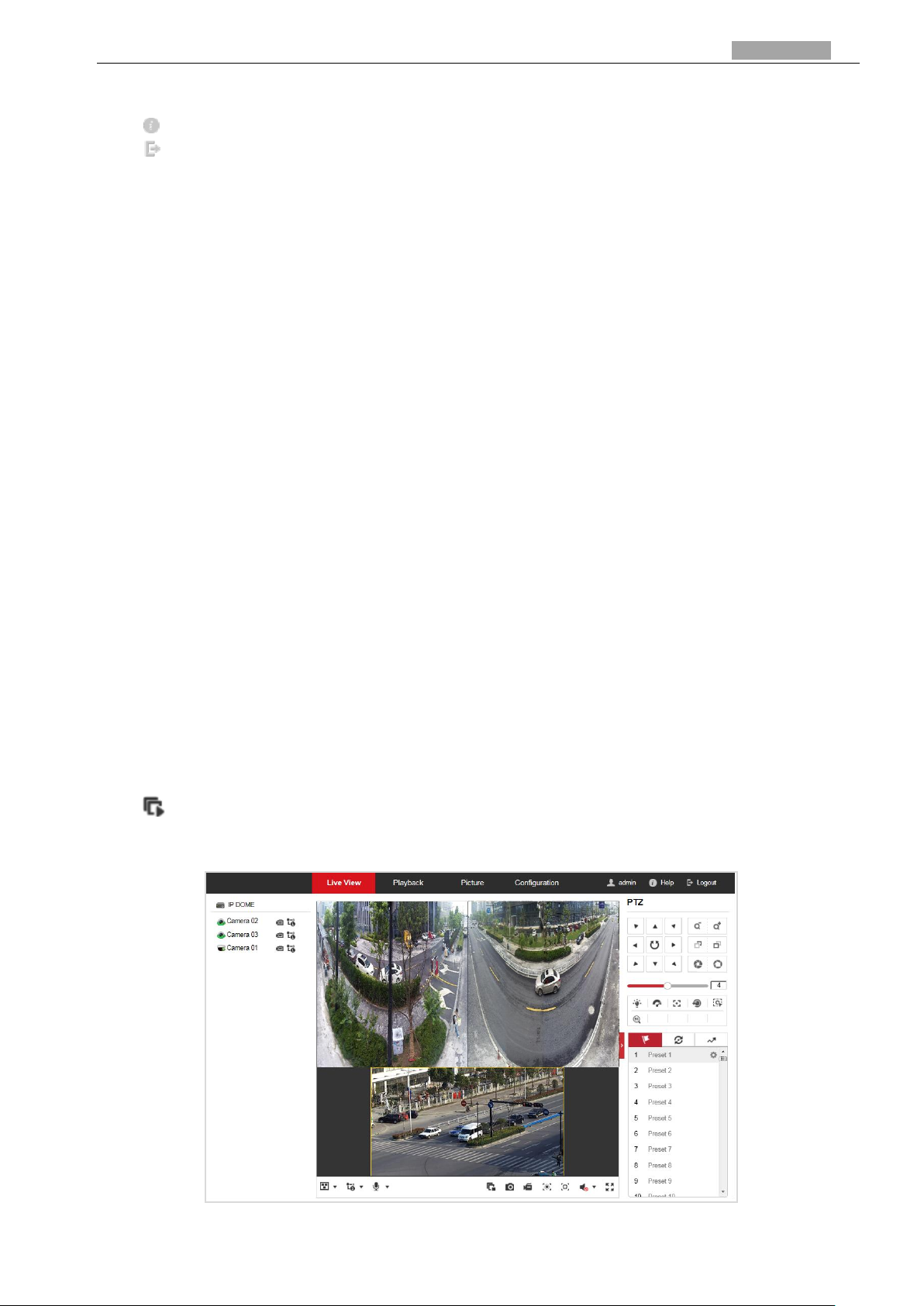

Chapter3 Live View describes how to view video and configure the available settings for the camera via

web browser.

Chapter4 PTZ Control describes the PTZ function of camera, including preset, patrol, and pattern. It

also suggests the PTZ configurations, such as PTZ limits, initial position, and park actions, etc..

Chapter5 Storage and Playback introduces how to set the storage, set the recording schedule and

capture schedule to trigger the recording and capture by events, and how to view the pictures and play back the saved video files.

Chapter6 Alarm and Events explains how to configure the camera to respond to alarm events, and

make the events to trigger alarm actions.

Chapter7 Maintenance describes how to set the system settings, security settings and user

management, including time settings, RS-485 settings, and DST settings, etc.

Appendix describes the SADP software, surge protection and details, attention of waterproof

measurements and bubble maintenance, RS-485 bus connection details, wire gauge standards and transmission distance, and alarm in/out connections, etc.

Notice

The Camera 1 is the PTZ channel, and the Camera 2 and Camera 3 are the panoramic view channels. All PTZ functions, including privacy mask, and ROI function are only supported by Camera 1.

User Manual of PanoVu Series Network Camera

Network Cable

Chapter 1 Activating and Accessing to the

Camera

1.1 System Requirement

System requirements of web browser accessing are as follows: Operating System: Microsoft Windows XP SP1 and above version/Vista/Win7/Server 2003/Server 2008 32bits

CPU: Intel Pentium IV 3.0 GHz or higher RAM: 1G or higher Display: 1024 × 768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.02 and above version, Mozilla

Firefox 5 and above version and Google Chrome 18 and above versions.

1.2 Activating the Camera

1.2.1 Setting the Camera over the LAN

Purpose:

To view and configure the camera via the LAN, you need to connect the camera in the same subnet with your computer, and install the SADP or client software to search and change the IP address of the camera.

Note:

For the detailed introduction of SADP, refer to Appendix 1. The following figures show the two ways of cable connection of a camera and a computer:

Purpose:

 To test the camera, you can directly connect the camera to the computer with a network cable as

shown in Figure 1-1.

 Refer to Figure 1-2 to set the camera over the LAN via a switch or a router.

Figure 1-1 Connecting Directly

User Manual of PanoVu Series Network Camera

Network Camera

Network Cable

Switch or Router

Network Cable

Figure 1-2 Connecting via an Switch or a Router

1.2.2 Activating the Camera

Purpose:

You are required to activate the camera first before you can use the camera. Activation via web browser, activation via SADP, and activation via client software are supported. In the following sections, activation via web browser and activation via SADP will be taken as examples. You may refer to the user manual of the camera for details of activation via client software.

 Activation via Web Browser

Steps:

1. Power on the camera, and connect the camera to the network.

2. Input the IP address into the address bar of the web browser, and click Enter to enter the

activation interface.

Note:

The default IP address of the camera is 192.168.1.64.

3. Create a password and input the password into the password field.

Figure 1-3 Activation Interface (Web Browser)

User Manual of PanoVu Series Network Camera

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong

password of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product. And we recommend you reset your password regularly, especially in the high security system, resetting the password monthly or weekly can better protect your product.

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong

4. Confirm the password.

5. Click OK to activate the camera and enter the live view interface.

 Activation via SADP Software

SADP software is used for detecting the online device, activating the device, and resetting the password. Get the SADP software from the supplied disk or the official website, and install the SADP software according to the prompts. Follow the steps to activate the camera. Steps:

1. Run the SADP software to search the online devices.

2. Check the device status from the device list, and select an inactive device.

Figure 1-4 SADP Interface

3. Create a password and input the password in the password field, and confirm the password.

4. Click OK to save the password.

User Manual of PanoVu Series Network Camera

You can check whether the activation is completed on the popup window. If activation failed, make sure that the password meets the requirement and then try again.

5. Change the device IP address to the same subnet with your computer by either modifying the IP

address manually or checking the Enable DHCP checkbox.

Figure 1-5 Modify the IP Address

6. Input the password and click Save to activate your IP address modification.

 Activation via Client Software

The client software is versatile video management software for multiple kinds of devices. Get the client software from the supplied disk or the official website, and install the software according to the prompts. Follow the steps to activate the camera.

Steps:

1. Run the client software and the control panel of the software pops up, as shown in the figure

below.

Figure 1-6 Control Panel

User Manual of PanoVu Series Network Camera

STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong

2. Click Device Management to enter the Device Management interface, as shown in the figure

below.

Figure 1-7 Device Management Interface

3. Check the device status from the device list, and select an inactive device.

4. Click Activate to pop up the Activation interface.

5. Create a password and input the password in the password field, and confirm the password.

6. Click OK to start activation.

7. Click Modify Netinfo to pop up the Network Parameter Modification interface, as shown in the

figure below.

Figure 1-8 Activation Interface

User Manual of PanoVu Series Network Camera

Figure 1-9 Modifying the Network Parameters

8. Change the device IP address to the same subnet with your computer by either modifying the IP

address manually or checking the Enable DHCP checkbox.

9. Input the password to activate your IP address modification.

1.3 Setting the Camera over the WAN (Optional)

Purpose:

This section explains how to connect the camera to the WAN with a static IP or a dynamic IP.

1.3.1 Static IP Connection

Before you start:

Apply a static IP from an ISP (Internet Service Provider). With the static IP address, you can connect the camera via a router or connect it to the WAN directly.

 Connecting the camera via a router

Steps:

1. Connect the camera to the router.

2. Assign a LAN IP address, the subnet mask and the gateway. Refer to Section 1.2 Activating the

Camera for detailed IP address configuration of the camera.

3. Save the static IP in the router.

4. Set port mapping, E.g., 80, 8000 and 554 ports. The steps for port mapping vary depending on

different routers. Call the router manufacturer for assistance with port mapping.

Note:

Refer to Appendix 2 for detailed information about port mapping.

5. Visit the camera through a web browser or the client software over the internet.

User Manual of PanoVu Series Network Camera

Speed Dome

Network Cable

Router with Static IP

Network Cable

Internet

Speed Dome

Network Cable

Internet

Figure 1-10 Accessing the Camera through Router with Static IP

 Connecting the camera with static IP directly

You can also save the static IP in the camera and directly connect it to the internet without using a router. Refer to Section 1.2 Activating the Camera for detailed IP address configuration of the camera.

1.3.2 Dynamic IP Connection

Before you start:

Apply a dynamic IP from an ISP. With the dynamic IP address, you can connect the camera to a modem or a router.

 Connecting the camera via a router

Steps:

1. Connect the camera to the router.

2. In the camera, assign a LAN IP address, the subnet mask and the gateway. Refer to Section 1.2

3. In the router, set the PPPoE user name, password and confirm the password.

4. Set port mapping. E.g. 80, 8000 and 554 ports. The steps for port mapping vary depending on

Figure 1-11 Accessing the Camera with Static IP Directly

Activating the Camera for detailed LAN configuration.

 For your privacy and to better protect your system against security risks, we strongly recommend

the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

different routers. Call the router manufacturer for assistance with port mapping.

Note:

Refer to Appendix 2 for detailed information about port mapping.

User Manual of PanoVu Series Network Camera

5. Apply a domain name from a domain name provider.

6. Configure the DDNS settings in the setting interface of the router.

7. Visit the camera via the applied domain name.

 Connecting the camera via a modem

Purpose:

This camera supports the PPPoE auto dial-up function. The camera gets a public IP address by ADSL dial-up after the camera is connected to a modem. You need to configure the PPPoE parameters of the camera. Refer to Section 2.2.1 Basic Settings - Configuring PPPoE Settings for detailed configuration.

Figure 1-12 Accessing the Camera with Dynamic IP

Note:

The obtained IP address is dynamically assigned via PPPoE, so the IP address always changes after rebooting the camera. To solve the inconvenience of the dynamic IP, you need to get a domain name from the DDNS provider (E.g. DynDns.com). Follow the steps below for normal domain name resolution and private domain name resolution to solve the problem.

 Normal Domain Name Resolution

Figure 1-13 Normal Domain Name Resolution

Steps:

1. Apply a domain name from a domain name provider.

2. Configure the DDNS settings in the DDNS Settings interface of the camera. Refer to Section 2.2.1

Basic Settings - Configuring DDNS Settings for detailed configuration.

3. Visit the camera via the applied domain name.

1.4 Accessing to the Camera

1.4.1 Accessing by Web Browsers

Steps:

1. Open the web browser.

User Manual of PanoVu Series Network Camera

2. In the address field, input the IP address of the camera, e.g., 192.168.1.64 and click Enter to enter

the login interface.

3. If you activate the camera for the first time using, refer to the Section 1.2 Activating the Camera.

4. Select English as the interface language on the top-right of login interface.

5. Input the user name and password and click .

The admin user should configure the device accounts and user/operator permissions properly. Delete the unnecessary accounts and user/operator permissions.

Note:

The device IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator).

Figure 1-14 Login Interface

1.4.2 Accessing by Client Software

The product CD contains the client software. You can view the live video and manage the camera with the client software. Follow the installation prompts to install the client software and. The configuration interface and live view interface of client software are shown below.

Figure 1-15 iVMS-4200 Control Panel

User Manual of PanoVu Series Network Camera

Model XX-XXXXXX-X

Address 0

Communi cation 0000,0,0,0

Software Version Vx.x.x

Camera Version Vx.xx

Language English

Figure 1-16 iVMS-4200 Live View Interface

Notes:

 If you use third party VMS software, contact technical support of our branch for camera firmware.  For detailed information about client software of our company, refer to the user manual of the

software. This manual mainly introduces accessing to the camera by web browser.

1.5 Power-up Action

After the power is applied, the camera will perform self-test actions. It begins with lens actions and then pan and tilt movement. After the power-up self-test actions, the information shown in Figure 1-17 will be displayed on screen for 40 seconds. The system information displayed on the screen includes the camera model, address, protocol, version and other information. The COMMUNICATION refers to the baud rate, parity, data bit and stop bit of the camera. e.g., “2400, N, 8, 1” indicates the camera is configured with the baud rate of 2400, no parity, 8 data bits and 1 stop bit.

Figure 1-17 Power-up Information

User Manual of PanoVu Series Network Camera

Chapter 2 Setting Local Parameters and

Network

2.1 Configuring Local Parameters

Note:

The local configuration refers to the parameters of the live view and other operations using the web browser.

Steps:

1. Enter the Local configuration interface:

Configuration > Local

Figure 2-1 Local Configuration Interface

2. Configure the following settings:

 Live View Parameters: Set the protocol type, play performance, rules, and image format.

 Protocol: TCP, UDP, MULTICAST and HTTP are selectable.

TCP: Ensures complete delivery of streaming data and better video quality, yet the real-time transmission will be affected.

UDP: Provides real-time audio and video streams. MULTICAST: It’s recommended to select the protocol type to Multicast when using the Multicast

function. For other information about Multicast, refer to Section 2.2.1 Basic Settings Configuring TCP/IP Settings.

HTTP: Allows the same quality as of TCP without setting specific ports for streaming under some network environments.

 Play Performance: Set the live view performance to Shortest Delay or Auto.  Rules: You can enable or disable the rules of dynamic analysis for events here.  Image Format: The captured pictures can be saved in different format. JPEG and BMP are

available.

 Record File Settings: Set the saving path of the video files.

 Record File Size: Select the packed size of manually recorded and downloaded video files. The

size can be set to 256M, 512M or 1G.

User Manual of PanoVu Series Network Camera

 Save record files to: Set the saving path for the manually recorded video files.

 Save downloaded files to: Set the saving path for the downloaded video files in

interface.

 Picture and Clip Settings: Set the saving paths of the captured pictures and clipped video files.

 Save snapshots in live view to: Set the saving path of the manually captured pictures in

interface.

 Save snapshots when playback to: Set the saving path of the captured pictures in

interface.

 Save clips to: Set the saving path of the clipped video files in interface.

Note:

You can click to change the directory for saving video files, clips and pictures.

3. Click to save the settings.

2.2 Configuring Network Settings

2.2.1 Basic Settings

Configuring TCP/IP Settings

Purpose:

TCP/IP settings must be properly configured before you operate the camera over network. IPv4 and IPv6 are both supported.

Steps:

1. Enter TCP/IP settings interface:

Configuration > Network > Basic Settings > TCP/IP

User Manual of PanoVu Series Network Camera

Figure 2-2 TCP/IP Settings

2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6

Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address.

3. (Optional) Check the Enable Multicast Discovery checkbox, and then the online network camera

can be automatically detected by client software via private multicast protocol in the LAN.

4. Configure the DNS server. Input the preferred DNS server, and alternate DNS server.

5. Click to save the above settings.

Notes:

 The valid value range of MTU is 1280 ~ 1500.  The Multicast sends a stream to the multicast group address and allows multiple clients to acquire

the stream at the same time by requesting a copy from the multicast group address. Before utilizing this function, you have to enable the Multicast function of your router.

 Reboot the device before the settings take effect.

Configuring DDNS Settings

Purpose:

If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access.

Before you start:

Registration on the DDNS server is required before configuring the DDNS settings of the camera.

 For your privacy and to better protect your system against security risks, we strongly recommend

the use of strong passwords for all functions and network devices. The password should be

User Manual of PanoVu Series Network Camera

something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Enter the DDNS settings interface:

Configuration > Network > Basic Settings > DDNS

Figure 2-3 DDNS Settings

2. Check the Enable DDNS checkbox to enable this feature.

3. Select DDNS Type. Two DDNS types are selectable: DynDNS and NO-IP.

 DynDNS:

Steps:

(1) Input Server Address of DynDNS (e.g. members.dyndns.org). (2) In the Domain text field, input the domain name obtained from the DynDNS website. (3) Input the Port of DynDNS server. (4) Input the User Name and Password registered on the DynDNS website.

(5) Click to save the settings.

Figure 2-4 DynDNS Settings

 NO-IP:

Steps:

(1) Input Server Address of NO-IP. (2) In the Domain text field, input the domain name obtained from the NO-IP website. (3) Input the Port of NO-IP server. (4) Input the User Name and Password registered on the NO-IP website.

(5) Click to save the settings.

User Manual of PanoVu Series Network Camera

Configuring PPPoE Settings

Purpose:

If you have no router but only a modem, you can use Point-to-Point Protocol over Ethernet (PPPoE) function.

Steps:

1. Enter the PPPoE settings interface:

Configuration > Network > Basic Settings > PPPoE

Figure 2-5 PPPoE Settings

2. Check the Enable PPPoE checkbox to enable this feature.

3. Input User Name, Password, and Confirm password for PPPoE access.

Note:

The User Name and Password should be assigned by your ISP.

 For your privacy and to better protect your system against security risks, we strongly recommend

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

4. Click to save and exit the interface.

Configuring Port Settings

Purpose:

If there is a router and you want to access the camera through Wide Area Network (WAN), you need to forward the 3 ports for the camera.

Steps:

1. Enter the Port settings interface:

Configuration > Network > Basic Settings > Port

Figure 2-6 Port Settings

User Manual of PanoVu Series Network Camera

2. Set the HTTP port, RTSP port, HTTPS port and port of the camera.

HTTP Port: The default port number is 80. RTSP Port: The default port number is 554. HTTPS Port: The default port number is 443. Server Port: The default port number is 8000.

3. Click to save the settings.

Configuring NAT (Network Address Translation) Settings

Purpose: Universal Plug and Play (UPnP™) is a networking architecture that provides compatibility among networking equipment, software and other hardware devices. The UPnP protocol allows devices to connect seamlessly and to simplify the implementation of networks in the house and corporate environments. With the function enabled, you don’t need to configure the port mapping for each port, and the camera is connected to the Wide Area Network via the router.

Steps:

1. Enter the NAT settings interface by

Configuration > Network > Basic Settings > NAT

2. Check the checkbox to enable the UPnP™ function.

3. Set the port mapping mode:

To port mapping with the default port numbers:

Choose

To port mapping with the customized port numbers:

Choose

And you can customize the value of the port No. by yourself.

Figure 2-7 Configure the Port No.

4. Click to save the settings.

2.2.2 Advanced Settings

Configuring SNMP Settings

Purpose:

You can use SNMP to get camera status and parameters related information.

User Manual of PanoVu Series Network Camera

Before you start: Before setting the SNMP, use the SNMP software and manage to receive the camera information via SNMP port. By setting the Trap Address, the camera can send the alarm event and exception messages to the surveillance center.

Note:

The SNMP version you select should be the same as that of the SNMP software.

Steps:

1. Enter the SNMP settings interface:

Configuration > Network > Advanced Settings > SNMP

Figure 2-8 SNMP Settings

2. Check the corresponding version checkbox (Enable SNMP v1, Enable SNMP v2c, Enable SNMP v3) to

enable the feature.

3. Configure the SNMP settings.

Note:

The configuration of the SNMP software should be the same as the settings you configure here.

4. Click to save and finish the settings.

User Manual of PanoVu Series Network Camera

Configuring FTP Settings

Purpose:

You can set a FTP server and configure the following parameters for uploading captured pictures. Steps:

1. Enter the FTP settings interface:

Configuration > Network > Advanced Settings > FTP

Figure 2-9 FTP Settings

2. Configure the FTP settings, including server address, port, user name, password, directory, and

upload type.

 For your privacy and to better protect your system against security risks, we strongly recommend

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

The server address supports both the domain name and IP address formats.

 Setting the directory in FTP server for saving files:

In the Directory Structure field, you can select the root directory, parent directory and child directory.

 Root directory: The files will be saved in the root of FTP server.  Parent directory: The files will be saved in a folder in FTP server. The name of folder can be

defined as shown in following Figure 2-10.

Figure 2-10 Parent Directory

 Child directory: It is a sub-folder which can be created in the parent directory. The files will

be saved in a sub-folder in FTP server. The name of folder can be defined as shown in following Figure 2-11.

User Manual of PanoVu Series Network Camera

Figure 2-11 Child Directory

 Upload type: To enable uploading the captured picture to the FTP server.

3. Click to save the settings.

Note:

If you want to upload the captured pictures to FTP server, you also have to enable the continuous snapshot or event-triggered snapshot in Snapshot interface. For detailed information, refer to the Section 5.1.4 Configuring Capture Schedule.

Configuring Email Settings

Purpose:

The system can be configured to send an Email notification to all designated receivers if an alarm event is detected, e.g., motion detection event, video loss, video tampering, etc.

Before you start:

Configure the DNS Server settings under Configuration > Network > Basic Settings > TCP/IP before using the Email function.

Steps:

1. Enter the Email settings interface:

Configuration> Network > Advanced Settings > Email

2. Configure the following settings:

Sender: The name of the email sender. Sender’s Address: The email address of the sender. SMTP Server: The SMTP Server IP address or host name (e.g., smtp.263xmail.com).

Figure 2-12 Email Settings

User Manual of PanoVu Series Network Camera

SMTP Port: The SMTP port. The default TCP/IP port for SMTP is 25. E-mail Encryption: Email encryption can be selected among None and SSL. When SSL is selected,

you can check the Enable STARTTLS checkbox to encrypt the email with STARTTLS and the SMTP port No. is 25. You can uncheck the Enable STARTTLS checkbox to encrypt the email with SSL and the SMTP should be set as 465.

Note:

STARTTLS protocol must be supported by the email server for email encryption with STARTTLS. When it is not supported by the email server and the Enable STARTTLS checkbox is checked, the email will not be encrypted. Authentication (optional): If your email server requires authentication, check this checkbox to use authentication to log in to this server and input the login user name and password.

 For your privacy and to better protect your system against security risks, we strongly recommend

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Receiver: Inoput the receiver to which the email is sent. Receiver’s Address: The email address of user to be notified.

Note:

You can click to check whether the setting is invalid after the required parameters are

configured.

3. Click to save the settings.

Configuring HTTPS Settings

Purpose:

HTTPS provides authentication of the web site and associated web server that one is communicating with, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https.

Example:

If you set the port number as 443 and the IP address is 192.168.1.64, you may access the device by inputting https://192.168.1.64:443 via the web browser.

Steps:

1. Enter the HTTPS settings interface.

Configuration > Network > Advanced Settings > HTTPS

2. Create the self-signed certificate or authorized certificate.

User Manual of PanoVu Series Network Camera

Figure 2-13 Create Certificate

OPTION 1: Create the self-signed certificate

1) Select Create Self-signed Certificate.

2) Click Create to create the following dialog box.

Figure 2-14 Create Self-signed Certificate

3) Input the country, host name/IP, validity and other information.

4) Click OK to save the settings.

OPTION 2: Start the installation when signed certificate is available.

1) Select Signed certificate is available, Start the installation directly.

2) Click Browse to upload the available certificate.

3) Click Install button to install the certificate.

4) Click OK to save the settings.

OPTION 3: Create certificate request first and continue the installation.

1) Select Create certificate request first and continue the installation.

2) Click Create to create the certificate request, and fulfill the required information.

3) Download the certificate request and submit it to the trusted certificate authority for signature.

4) After receiving the signed valid certificate, import the certificate to the device.

5) Click OK to save the settings.

3. There will be the certificate information after you successfully create and install the certificate.

Figure 2-15 Installed Certificate Property

User Manual of PanoVu Series Network Camera

Network Camera

Network Switch

Internet

RADIUS Server

Authenticator

Authentication Server

Note:

You can click configure the HTTPS port No. on your demand; refer to Section 2.2.1 Basic Settings Configuring Port Settings for details.

4. Check the Enable HTTPS checkbox and click Save.

Configuring QoS Settings

Purpose:

QoS (Quality of Service) can help solve the network delay and network congestion by configuring the priority of data sending.

Steps:

1. Enter the QoS settings interface:

Configuration > Network >Advanced Settings > QoS

Figure 2-16 QoS Settings

2. Configure the QoS settings, including video/audio DSCP, event/alarm DSCP and Management DSCP.

The valid DSCP value ranges from 0 to 63. The DSCP value is bigger, the priority is higher.

3. Click to save the settings.

Notes:

 Make sure that you enable the QoS function of your network device (such as a router).  Reboot the device before the settings take effect.

Configuring 802.1X Settings

Purpose:

The camera supports IEEE 802.1X standard. IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN. When devices connect to this network with IEEE 802.1X standard, the authentication is needed. If the authentication fails, the devices don’t connect to the network. The protected LAN with 802.1X standard is shown as follows:

Figure 2-17 Protected LAN

User Manual of PanoVu Series Network Camera

 Before connecting the network camera to the protected LAN, apply a digital certificate from a

Certificate Authority.

 The network camera requests access to the protected LAN via the authenticator (a switch).  The switch forwards the identity and password to the authentication server (RADIUS server).  The switch forwards the certificate of authentication server to the network camera.  If all the information is validated, the switch allows the network access to the protected

network.

 For your privacy and to better protect your system against security risks, we strongly recommend

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

Steps:

1. Connect the network camera to your PC directly with a network cable.

2. Enter the 802.1X settings interface:

Configuration > Network > Advanced Settings > 802.1X

Figure 2-18 802.1X Settings

3. Check the Enable IEEE 802.1X checkbox to enable it.

4. Configure the 802.1X settings, including user name and password.

Note:

The EAP-MD5 version must be identical with that of the router or the switch.

5. Click to finish the settings.

Note:

The camera reboots when you save the settings.

6. After the configuration, connect the camera to the protected network.

User Manual of PanoVu Series Network Camera

Menu Bar

Live View Parameters

Live View Window

Toolbar

Show or hide PTZ

control panel

PTZ Control

Preset/Patrol/Pattern

Chapter 3 Live View

3.1 Install the Plug-in

Install the plug-in before viewing the live video and operating the camera. Follow the installation prompts to install the plug-in.

Figure 3-1 Download and Install Plug-in

Notes:

 You may have to close the web browser to install the plug-in. Reopen the web browser and log

in again after installing the plug-in.

 To select the plug-in type, you can click on live view interface. For detailed information,

refer to Section 3.2.2 Live View Operation.

3.2 Live View Page

3.2.1 Descriptions of the live view page:

Figure 3-2 Live View Page

User Manual of PanoVu Series Network Camera

Menu Bar: Click each tab to enter Live View, Playback, Picture, and Configuration page respectively. Click to display the help file of the camera. Click to logout the system.

Live View Window: Display the live video. Toolbar:

Operations on the live view page, e.g., live view, capture, record, audio on/off, regional exposure, regional focus, etc.

PTZ Control:

Panning, tilting, focusing and zooming actions of the camera. The lighter, wiper, one-touch focus and lens initialization control.

Preset/patrol/pattern: Set and call the preset/patrol/pattern for the camera. Live View Parameters:

Configure the window division, image size, stream type, plug-in type, and two-way audio of the live video.

3.2.2 Live View Operation

Purpose:

The live video page allows you to view live video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the camera to enter the live view page, or you can click Live View on the menu bar of the main page to enter the live view page.

Starting Live View

Click on the toolbar to start the live view of all channels of the network camera. Live view

page of panoramic + PTZ camera and panoramic camera are different as shown below.

Figure 3-3 Start Live View (Panoramic + PTZ Camera)

User Manual of PanoVu Series Network Camera

Live View

Click to start all live views and the icon turns into . Click the icon

again to stop all live views.

Full-screen

Double-click on the live video to switch the current live view into

full-screen or return to normal mode from the full-screen.

Record/Capture

Click to manual capture the picture.

Click to start manual recording and the icon turns into . Click the

icon again to stop recording.

Note: Before perform manual recording and manual capture, configure the

saving path of files referring to Section 2.1 Local Configuration Interface.

Window Division

For 360° panoramic + PTZ camera, click to select from

and display live video in triple-row/double-row/1×1

window size.

For 180° panoramic + PTZ camera, click to select from and

display live video in double-row/1×1 window size.

Note:

When you select 1×1 window size, it plays live view of camera 1 only.

For panoramic camera, click to select from , and

display live video in 1×1/2×2/3×3/4×4 division mode.

Stream Type

/ /

Click to select from and display live video with the

main/sub/third stream. The main stream is with a relatively high resolution

and needs much bandwidth. The sub-stream is with a low resolution and

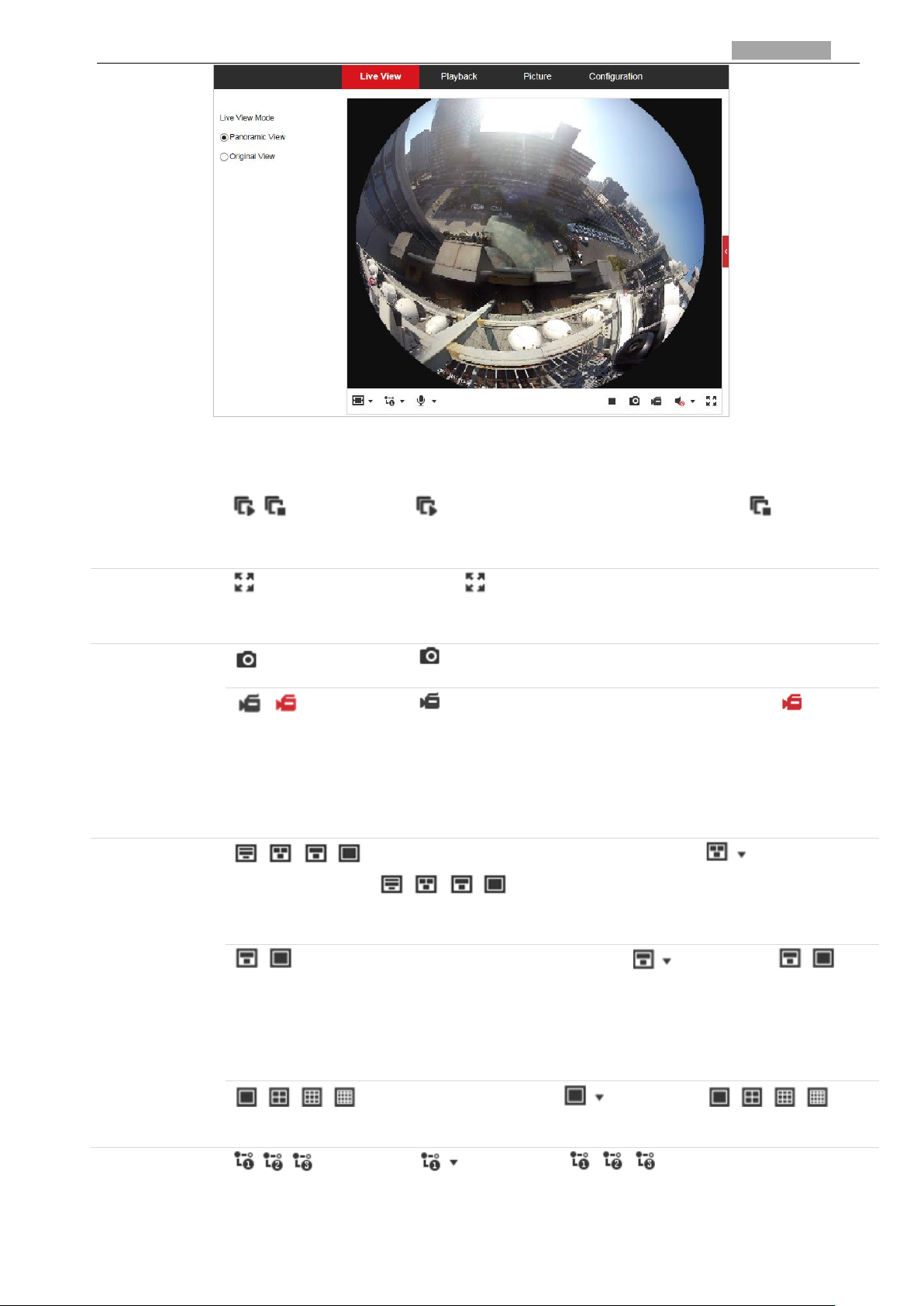

Figure 3-4 Start Live View (Panoramic Camera)

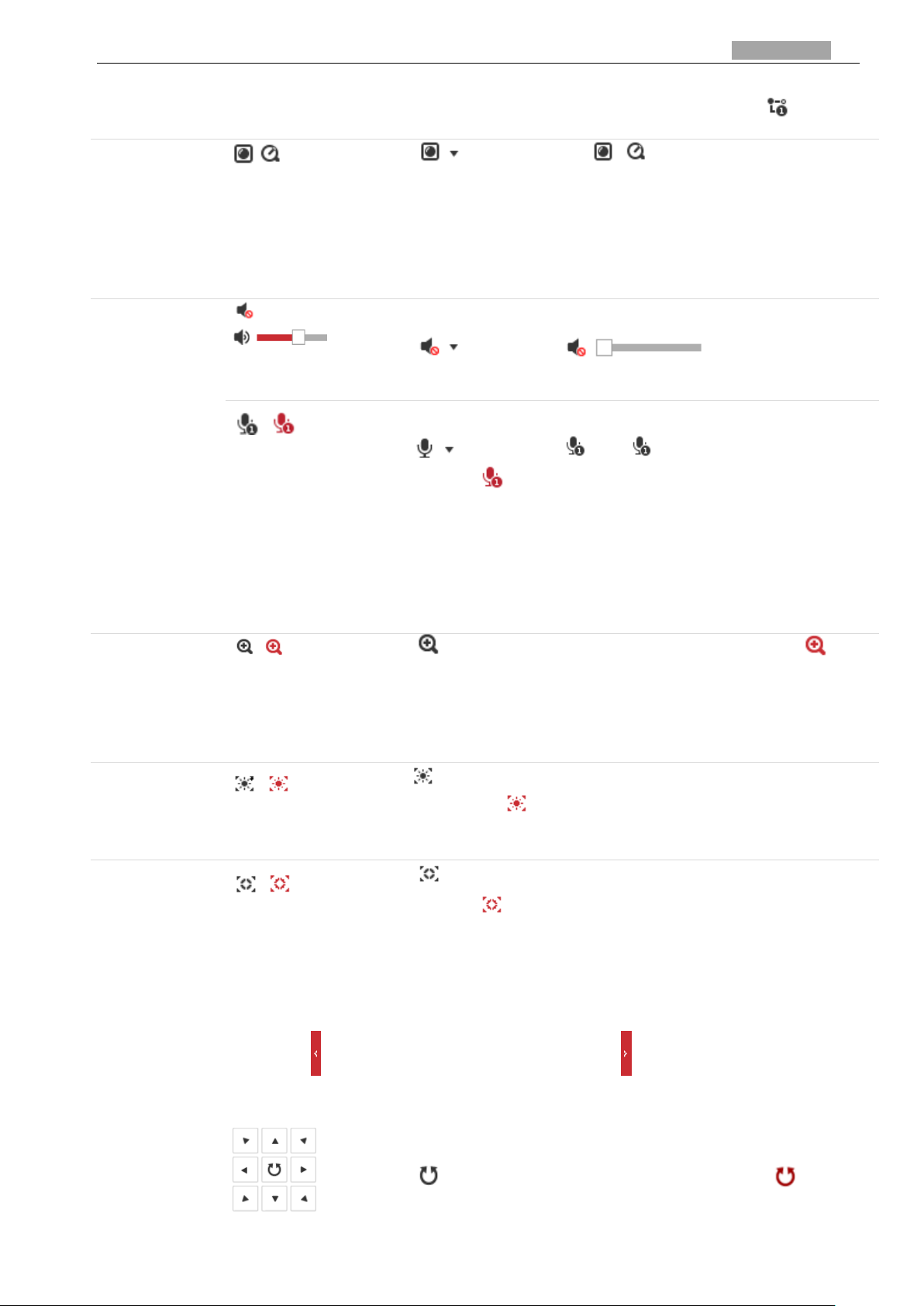

Descriptions of Icons on Toolbar and Live View Interface are listed below:

User Manual of PanoVu Series Network Camera

needs less bandwidth. The resolution of third stream is between that of main

stream and sub stream. The default setting of stream type is .

Plug-in Switch

Click to select between and play the live video via player

Webcomponents or Quick Time. The live video is played via webcomponents

by default, and other types of players are supported for the browser, such as

MJPEG, and VLC. You are required to download and install the player to play

the live video.

Audio

Volume

Click to display the . Drag the slider to adjust

the volume.

Two-way Audio

Click and it displays . Click to enable two-way audio and the

icon turns into . Click the icon again to stop two-way audio.

Note:

Before enabling the two-way audio or recording with audio functions, set the

Stream Type to Video & Audio referring to Section 3.4.1 Configuring Video

Settings.

Digital Zoom

Click to enable digital zoom function and the icon turns into . Then

drag the mouse towards low right direction to draw a rectangle on the image

as the desired zoom. After viewing it you can click any place of the picture to

get back to normal picture.

Regional

Exposure

Click on the toolbar to enter the regional exposure operation mode and

the icon turns into . Then drag the mouse to draw a rectangle on the

image as the desired exposure region.

Regional Focus

Click on the toolbar to enter the regional focus operation mode and the

icon turns into . Then drag the mouse to draw a rectangle on the image

as the desired focus region.

PTZ Control

Hold the direction buttons to control the pan/tilt movements.

Click and the camera keeps panning, the icon turns into . Click the

icon again to stop the camera.

PTZ Control Panel

On the live view page, click to show the PTZ control panel or click to hide it.

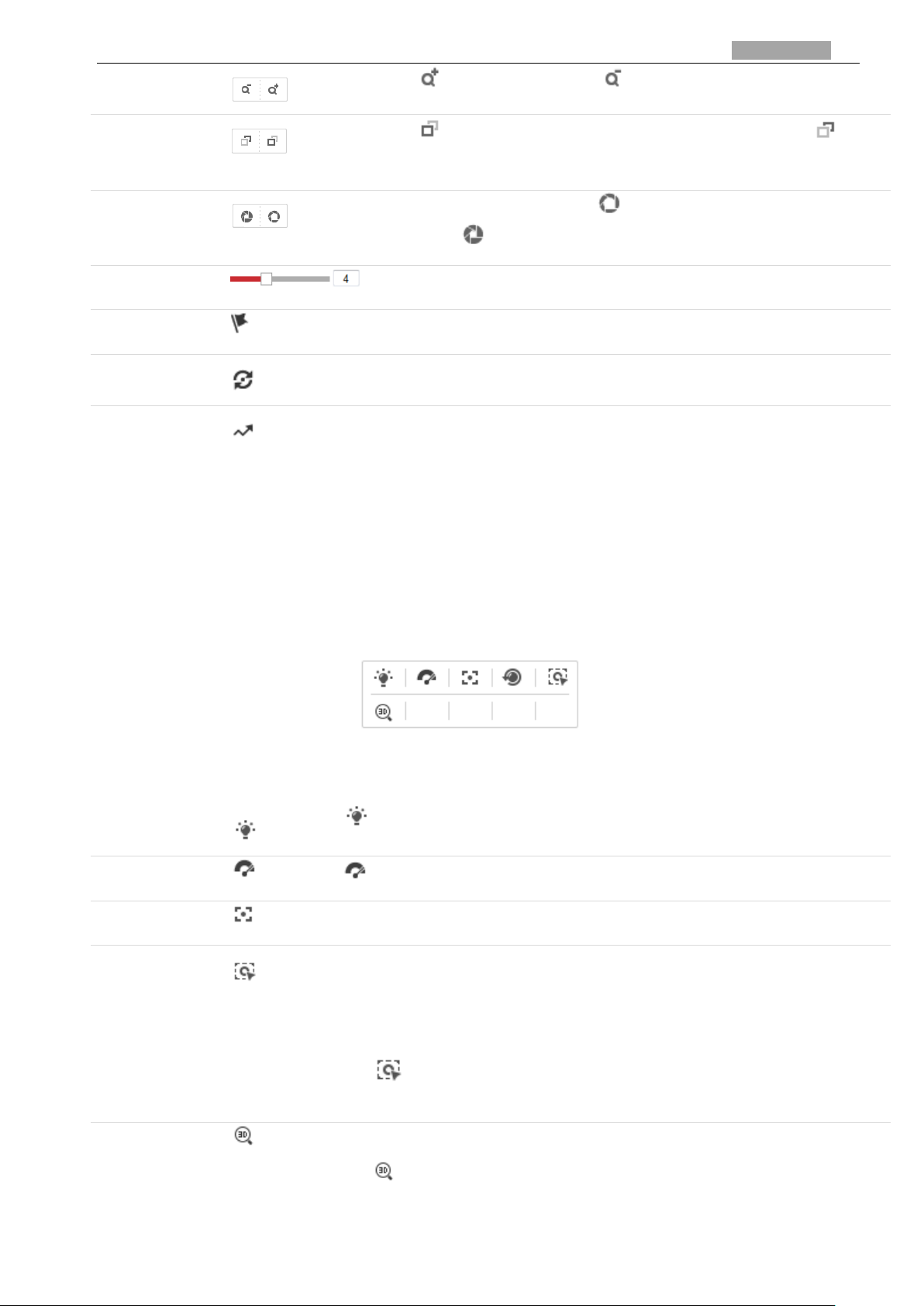

Descriptions of Icons on PTZ Control Panel are listed below:

User Manual of PanoVu Series Network Camera

Zoom

Click , the lens zooms in, click , and the lens zooms out.

Focus

Click , the lens focus far and the items far away gets clear. Click , the

lens focus near and the items nearby gets clear.

Iris When the image is too dark, click to open the iris. When the image is too

bright, click to close the iris.

Adjust Speed

Adjust speed of pan/tilt movements.

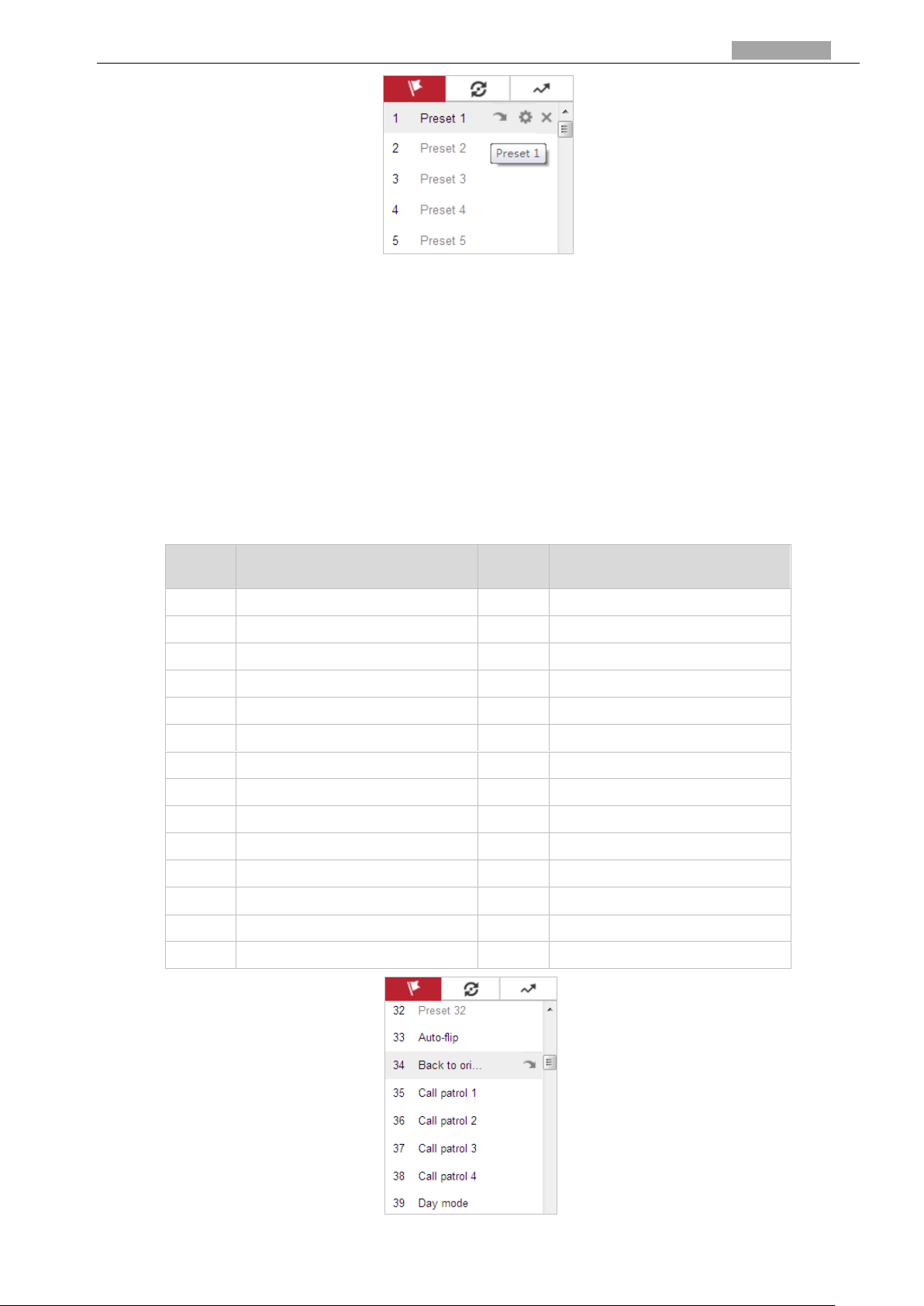

Preset

Refer to 4.1.1 for detailed information of setting preset.

Patrol

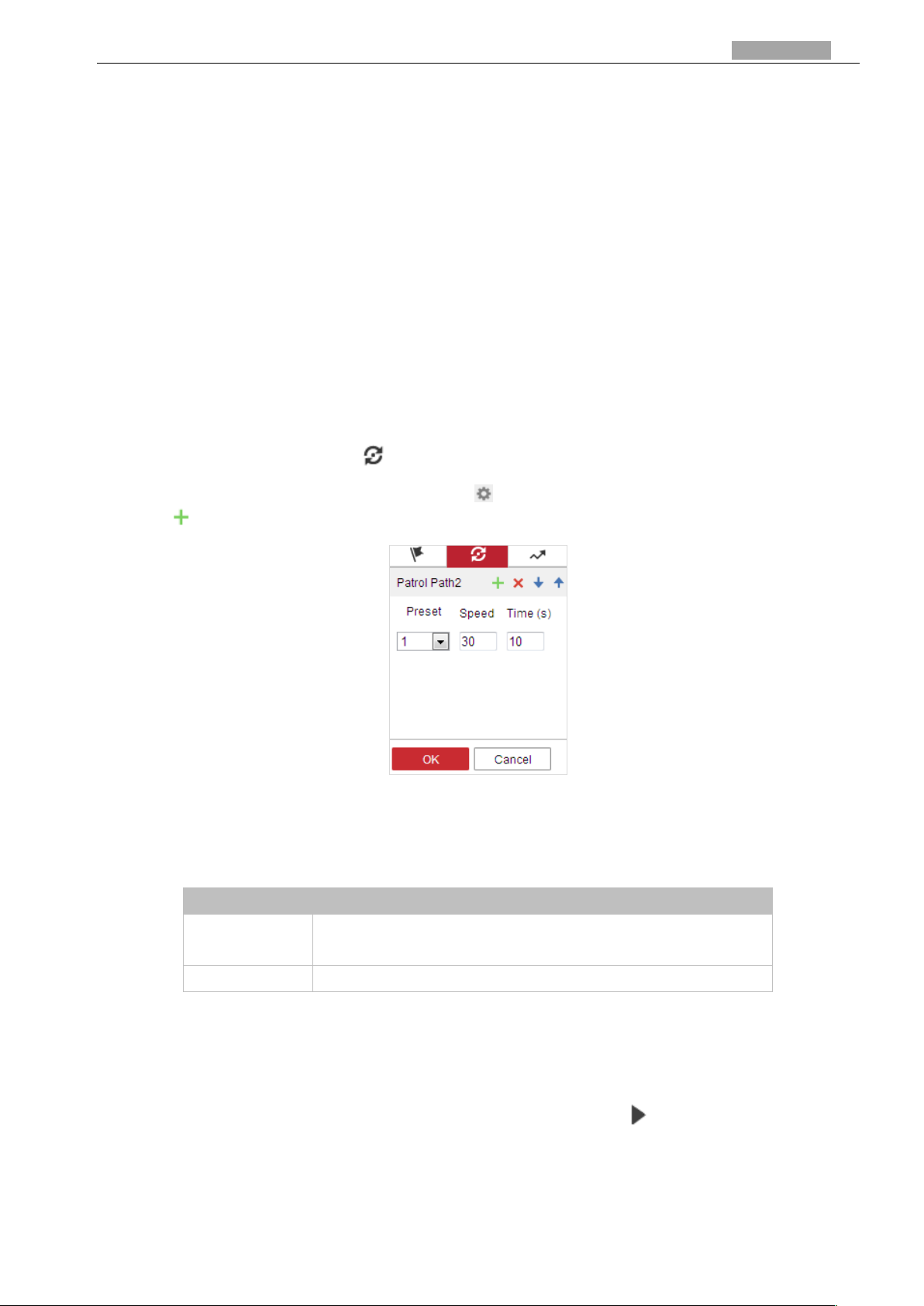

Refer to 4.1.2 for detailed information of setting patrol.

Pattern

Refer to 4.1.3 for detailed information of setting pattern.

Light Supplement

Click to enable/disable the light supplement of the camera. This function is reserved.

Wiper

Click to move the wiper once.

Auxiliary Focus

The auxiliary focus function is reserved.

Manual Tracking

Before you start:

Enter the Smart Tracking settings interface and enable smart tracking first.

Configuration > PTZ > Smart Tracking

Steps:

1. Click on the toolbar of live view interface.

2. Click a moving object in the live video. The camera will track the object automatically.

3D Positioning

Steps:

1. Click on the toolbar of live view interface.

2. Operate the 3D positioning function:  Left click a position of the live video. The corresponding position will be moved to the

Note:

PTZ functions, including PTZ control, preset, patrol, and pattern are only supported by camera 1.

Auxiliary Functions

The auxiliary functions include light, wiper, auxiliary focus, lens initialization, manual tracking, 3D positioning, one-touch patrol, and one-touch park. The Auxiliary functions panel is shown in the figure below:

Figure 3-5 Auxiliary Functions

Descriptions of Icons on PTZ Control Panel are listed below:

User Manual of PanoVu Series Network Camera

center of the live video.

 Hold down the left mouse button and drag the mouse to the lower right on the live

video. The corresponding position will be moved to the center of the live video and

zoomed in.

 Hold down the left mouse button and drag the mouse to the upper left on the live

video. The corresponding position will be moved to the center of the live video and

zoomed out.

Note:

When you perform 3D positioning on Camera 2 or Camera 3, the Camera 1 will

move to the corresponding position.

3.3 Configuring Image Settings

3.3.1 Configuring Display Settings

Purpose:

You can set the image quality of the camera, including brightness, contrast, saturation, sharpness, etc.

Notes:

 The parameters in Display Settings interface vary depending on different camera models.  You can double click the live view to enter full screen mode and double click it again to exit.

Steps:

1. Enter the Display Settings interface:

Configuration > Image> Display Settings

2. Select channel No. of the camera.

3. You can select the Mounting Scenario from the dropdown list with different predefined image

parameters.

4. Set the image parameters of the camera.

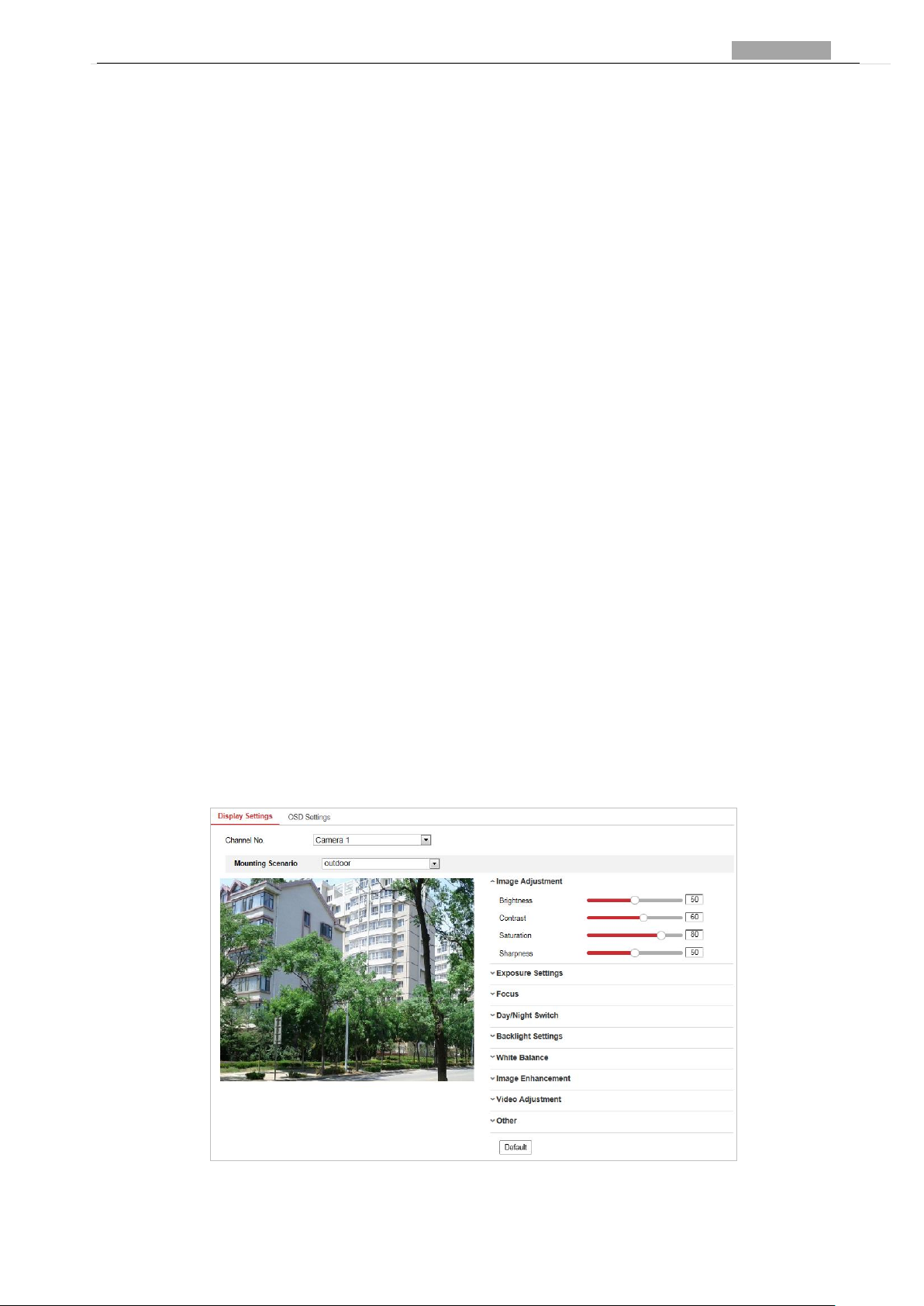

Figure 3-6 Display Settings

User Manual of PanoVu Series Network Camera

Image Adjustment

 Brightness

This feature is used to adjust brightness of the image. The value ranges from 0 to 100.

 Contrast

This feature enhances the difference in color and light between parts of an image. The value ranges from 0 to 100.

 Saturation

This feature is used to adjust color saturation of the image. The value ranges from 0 to 100.

 Sharpness

Sharpness function enhances the detail of the image by sharpening the edges in the image. The value ranges from 0 to 100.

Exposure Settings

 Exposure Mode

The Exposure Mode can be set to Auto, Iris Priority, Shutter Priority, and Manual.

 Auto:

The iris, shutter and gain values will be adjusted automatically according to the brightness of the environment.

 Iris Priority:

The value of iris needs to be adjusted manually. The shutter and gain values will be adjusted automatically according to the brightness of the environment.

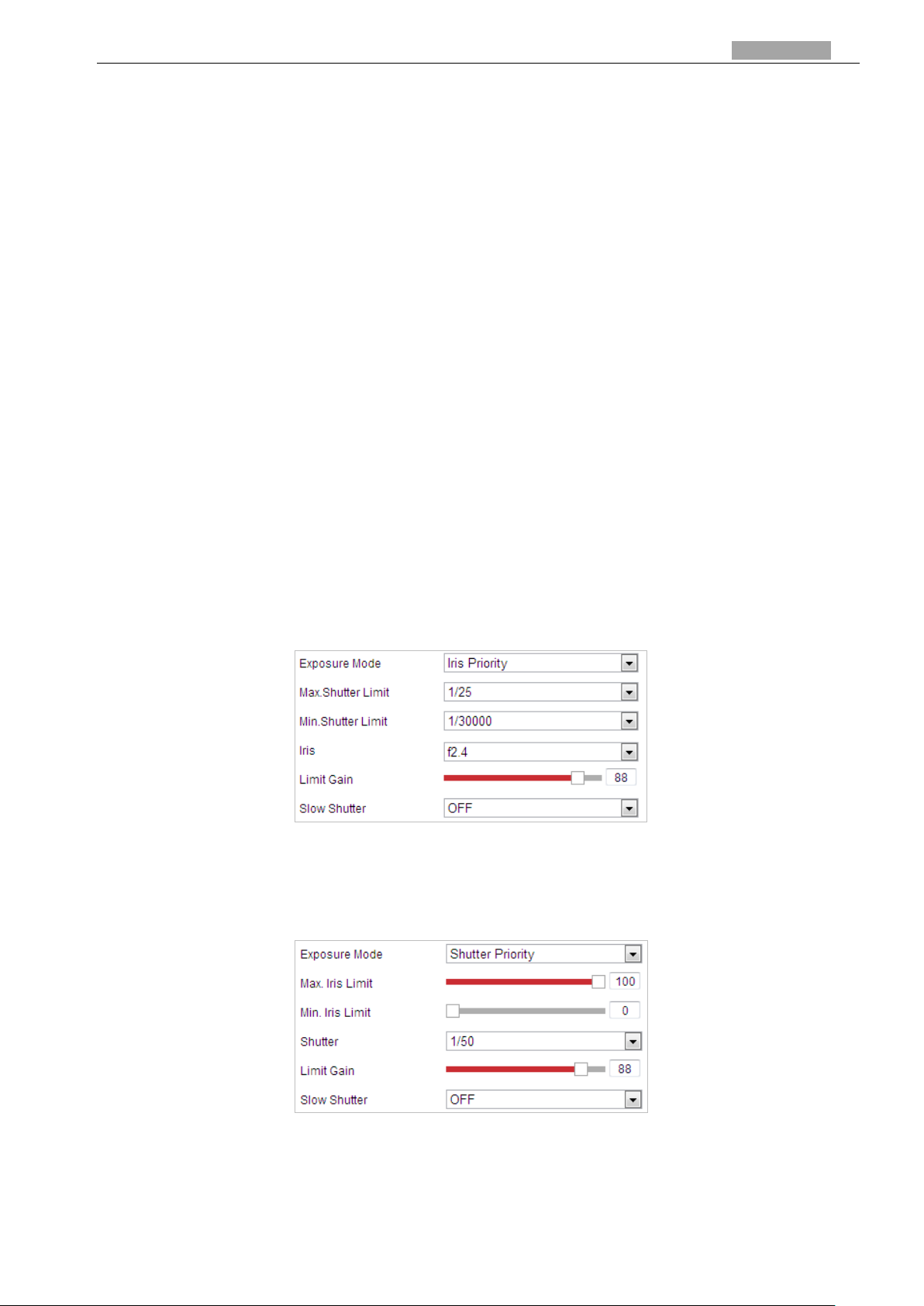

Figure 3-7 Manual Iris

 Shutter Priority:

The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment.

Figure 3-8 Manual Shutter

 Manual:

In Manual mode, you can adjust the values of Gain, Shutter, Iris manually.

Note:

This function varies depending on different camera models.

User Manual of PanoVu Series Network Camera

 Limit Gain

This feature is used to adjust gain of the image. The value ranges from 0 to 100.

 Slow Shutter

This function can be used in underexposure condition. It lengthens the shutter time to ensure full exposure. Select slow shutter level from the dropdown list

Figure 3-9 Slow Shutter

Focus Settings

 Focus Mode

The Focus Mode can be set to Auto, Manual, Semi-auto.

 Auto:

The camera focuses automatically at any time according to objects in the scene.

 Semi-auto:

The camera focuses automatically only once after panning, tilting and zooming.

 Manual:

In Manual mode, you need to use on the control panel to focus manually.

 Min. Focus Distance

This function is used to limit the minimum focus distance.

Note:

Focus settings applies only to Camera 1.

Day/Night Switch

 Day/Night Switch

The Day/Night Switch mode can be set to Auto, Day, Night, and Scheduled-Switch.

 Auto:

In Auto mode, the day mode and night mode can switch automatically according to the light condition of environment. The switching sensitivity can be set to Low, Normal, High.

Figure 3-10 Auto Mode Sensitivity

 Day:

In Day mode, the camera displays color image. It is used for normal lighting conditions.

 Night:

In Night mode, the image is black and white. Night mode can increase the sensitivity in low light conditions.

 Scheduled-Switch

In Scheduled-Switch mode, you can set the time schedule for day mode as shown in Figure 3-11. The rest time out of the schedule is for night mode.

User Manual of PanoVu Series Network Camera

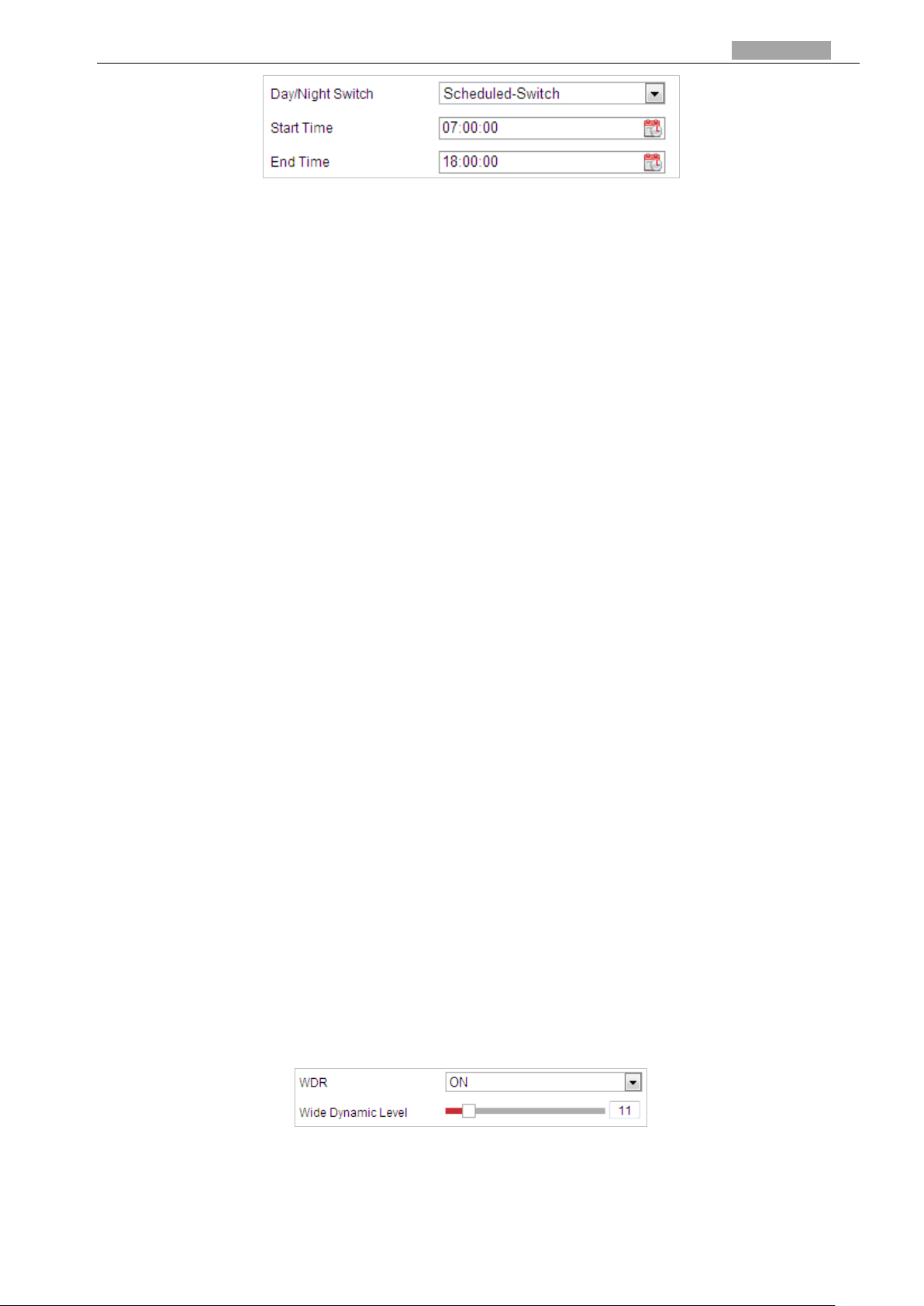

Figure 3-11 Day Night Schedule

 Smart Supplement Light

If the light supplement is on and the image center is overexposure, you can enable this function.

 IR Light Mode

IR light mode can be set to Auto and Manual.

 Auto: The brightness of the infrared light will be adjusted automatically. IR Light

Sensitivity value ranges from 0 to 100. Trigger Mode can be set to Camera or Photosensitive.

 Manual: you need to adjust the brightness value of infrared light manually. Brightness

Limit value ranges from 0 to 100.

Notes:

 The IR related functions are supported by the IR camera only.  For detailed parameters configuration of IR light, you can enter the OSD menu by calling the

special preset 95.

 When the IR Light Mode is auto, the day/night mode is adjusted automatically according to

the IR Light Mode. Manually setting the day/night mode is invalid.

 When the IR Light Mode is manual and the Brightness Limit is 0, you can set the day/night

mode manually.

 When the IR Light Mode is manual and the Brightness Limit is not 0, the night mode is set as

the default mode. Manually setting the day/night mode is invalid.

Backlight Settings

 BLC (Back Light Compensation)

If there’s a bright backlight, the subject in front of the backlight appears silhouetted or dark. Enabling BLC (back light compensation) function can correct the exposure of the subject. But the backlight environment is washed out to white.

 WDR (Wide Dynamic Range)

The wide dynamic range (WDR) function helps the camera provide clear images even under back light circumstances. When there are both very bright and very dark areas simultaneously in the field of view, WDR balances the brightness level of the whole image and provide clear images with details. You can enable or disable the WDR function as shown in Figure 3-12. The wide dynamic level ranges from 0 to 100.

Figure 3-12 WDR

Note:

This function varies depending on different camera models.

 HLC

User Manual of PanoVu Series Network Camera

HLC (High Light Compensation) makes the camera identify and suppress the strong light sources that usually flare across a scene. This makes it possible to see the detail of the image that would normally be hidden.

White Balance

The White Balance mode can be set to Auto, MWB, Outdoor, Indoor, Fluorescent Lamp, Sodium Lamp and Auto-Tracking.

 Auto

In Auto mode, the camera retains color balance automatically according to the current color temperature.

 MWB

In MWB (Manual White Balance) mode, you can adjust the color temperature manually to meet your own demand as shown in Figure 3-13.

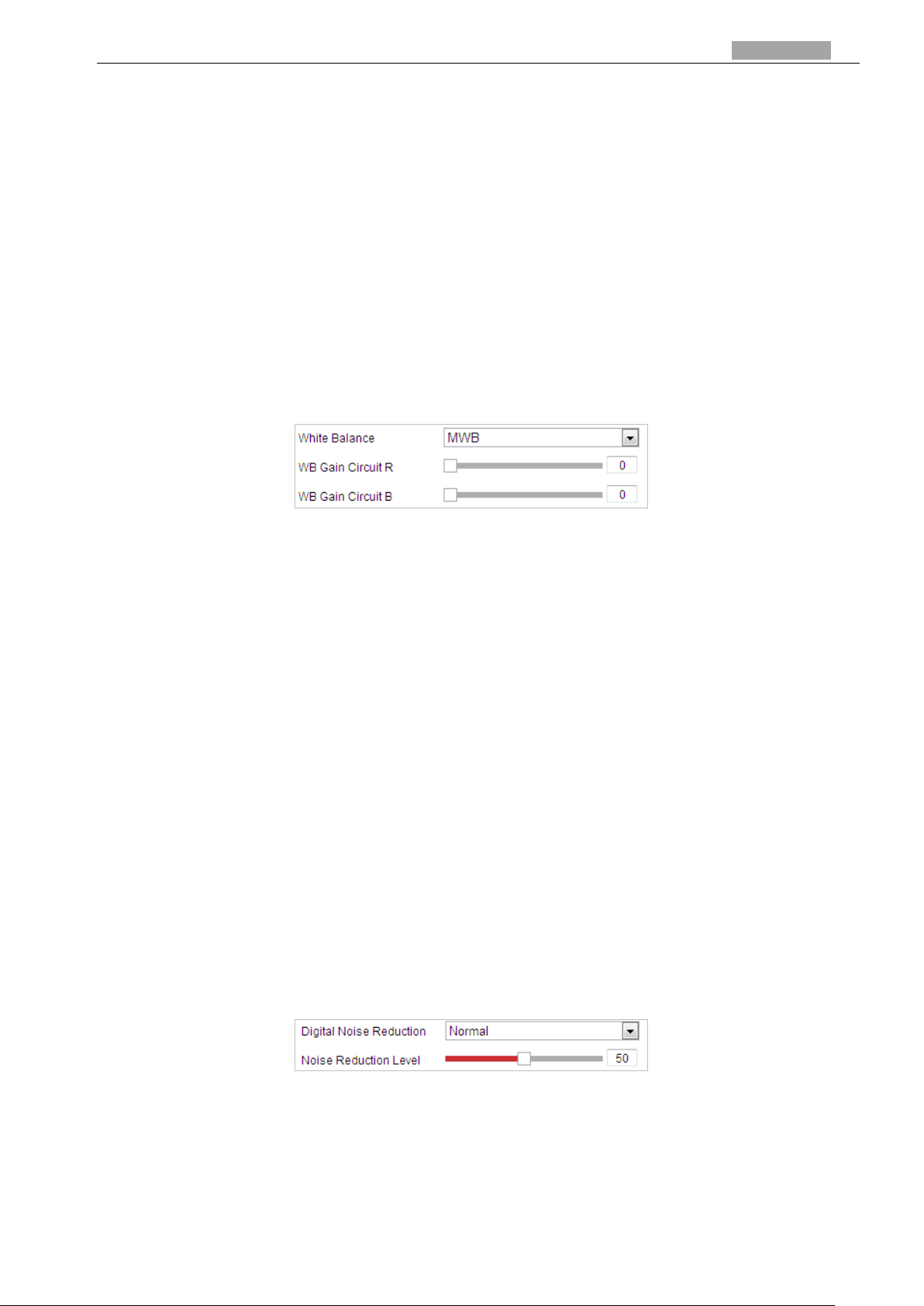

Figure 3-13 Manual White Balance

 Outdoor

You can select this mode when the camera is installed in outdoor environment.

 Indoor

You can select this mode when the camera is installed in indoor environment.

 Fluorescent Lamp

You can select this mode when there are fluorescent lamps installed near the camera.

 Sodium Lamp

You can select this mode when there are sodium lamps installed near the camera.

 Auto-Tracking

In Auto-Tracking mode, white balance is continuously being adjusted in real-time according to the color temperature of the scene illumination.

Image Enhancement

 Digital Noise Reduction

The digital noise reduce function processes the noise in the video signal. You can set Digital Noise Reduction function to Normal and adjust the Noise Reduction Level as shown in Figure 3-14. The level ranges from 0 to 100.

Figure 3-14 Normal Mode

If you are a professional technician, you can set it to Expert Mode then adjust Space DNR Level and Time DNR Level.

User Manual of PanoVu Series Network Camera

Figure 3-15 Expert Mode

 Defog Mode

When there is fog in the image, you can enable this function to get clear image.

 EIS (Electronic Image Stabilization)

The live view image would be trembled and dim when the camera is shocked slightly in some monitoring conditions. And the electronic image stabilization (EIS) function is used to overcome this problem to ensure a steady and clear image.

Video Adjustment

 Mirror

If you turn the MIRROR function on, the image will be flipped. It is like the image in the mirror. The flip direction can be set to OFF, or CENTER.

 Video Standard

You can set the Video Standard to 50 Hz (PAL) or 60 Hz (NTSC) according to the video system in your country.

 Capture Mode:

The Capture Mode can be selected from the list.

Other

 Lens Initialization

The lens operates the movements for initialization when you check the Lens Initialization checkbox.

 Zoom Limit

You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list.

Note:

Lens Initialization and Zoom Limit functions are supported by Camera 1 only.

 Exposure Synchronization

Select ON from the dropdown list to enable exposure synchronization function for Camera 2 or Camera 3.

3.3.2 Configuring OSD Settings

Purpose:

The camera supports following on screen displays:

Zoom: Identifies the amount of magnification. Direction: Displays panning and tilting direction, with the format of PXXX TXXX. The XXX following

P indicates the degrees in pan direction, while the XXX following T indicates the degrees in tilt position. Time: Supports for time display.

User Manual of PanoVu Series Network Camera

Preset Title: Identifies preset being called. Camera Name: Identifies the name of camera.

You can customize the on screen display of time.

Steps:

1. Enter the OSD settings interface:

Configuration > Image > OSD Settings

Figure 3-16 OSD Settings

2. Check the corresponding checkbox to select the display of camera name, date or week if

required.

3. Edit the camera name in the text field of Camera Name.

4. Select from the dropdown list to set the time format, date format and display mode.

5. You can use the mouse to drag the text frame IPdome in the live view window to adjust the

OSD position.

Figure 3-17 Adjust OSD Location

6. The font color can also be customized, select the Custom in the drop down list and select the

font color on your demand.

User Manual of PanoVu Series Network Camera

7. Click to activate above settings.

3.3.3 Configuring Text Overlay Settings

Purpose:

You can customize the text overlay.

Steps:

1. Enter the Text Overlay settings interface:

Configuration > Image > OSD Settings

2. Check the checkbox in front of textbox to enable the on-screen display.

3. Input the characters in the textbox.

4. Use the mouse to drag the red text frame Text in the live view window to adjust the text

overlay position.

5. Click .

Note:

There are up to 8 text overlays configurable.

Figure 3-18 Text Overlay Settings

3.4 Configuring Video and Audio Settings

3.4.1 Configuring Video Settings

Steps:

1. Enter the Video settings interface:

Configuration > Video/Audio > Video

User Manual of PanoVu Series Network Camera

Figure 3-19 Configure Video Settings

2. Select the Stream Type of the camera to Main Stream (Normal), Sub-Stream or Third Stream.

Note:

The main stream is usually for recording and live viewing with good bandwidth, and the sub-stream can be used for live viewing when the bandwidth is limited. Refer to the Section 2.1 Configuring Local Parameters for switching the stream type for live viewing.

3. You can customize the following parameters for the selected stream:

Video Type: Select the stream type to video stream, or video & audio composite stream. The audio signal will be recorded only when the Video Type is Video&Audio. Resolution: Select the resolution of the video output. Bitrate Type: Select the bitrate type to constant or variable. Video Quality: When bitrate type is selected as Variable, 6 levels of video quality are selectable.

Frame Rate:

The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout. Max. Bitrate: Set the max. bitrate. The higher value corresponds to the higher video quality, and the higher bandwidth is required as well. Video Encoding: Select the Video Encoding standard for the each camera. Profile: You can set the profile level to High Profile, Main Profile or Basic Profile.

I Frame Interval:

User Manual of PanoVu Series Network Camera

Set the I-Frame interval from 1 to 400.

SVC:

SVC is a video encoding technology. It extracts frames from the original video and sends these frames to a video recorder which also supports SVC function when the network bandwidth is insufficient.

Smoothing:

Drag to adjust the value of video smoothing on your demand.

Resolution Mode:

Resolution of the panoramic view channels are different in different resulotion mode (including main stream, sub-stream and third stream). Select the resulotion mode from the dropdown list on your demand.

Notes:

 The function is only supported by Camera 2 and Camera 3.  Reboot the device before it takes effect when the resolution mode is switched.  Redraw the rule area if the resolution mode is switched.

4. Click to save the settings.

3.4.2 Configuring Audio Settings

Steps:

1. Enter the Audio settings interface

Configuration > Video/Audio > Audio

2. Configure the following settings.

Audio Encoding: G.722.1, G.711ulaw, G.711alaw, MP2L2, PCM and G.726 selectable. Audio Stream Bitrate: When the Audio Encoding is selected as MP2L2, you can configure the

Audio Stream Bitrate in the dropdown list. The greater the value is, the better the audio quality will be. Sampling Rate: When the Audio Encoding is selected as MP2L2 or PCM, you can configure the Sampling Rate in the dropdown list. The greater the value is, the better the audio quality will be.

Audio Input: When an intercom is connected to the camera, you need to set this option to LineIn. When a microphone is connected to the camera, you need to set this option to MicIn. Input Volume: Slid the bar to turn up/down the volume. The value ranges from 0 to 100. Environmental Noise Filter: When the monitoring environment is very noisy, you can enable

this function to reduce part of the noise.

3. Click to save the settings.

3.4.3 Configuring ROI Settings

Before you start:

ROI (Region of Interest) encoding is used to enhance the quality of images which are specified in advance. Enter the ROI settings interface:

User Manual of PanoVu Series Network Camera

Configuration >Video/Audio > ROI

Figure 3-20 Region of Interest

Stream Type:

You can set the ROI function for main stream, sub-stream and third stream. Select a stream type and then configure the ROI settings.

 Fixed Region: The fixed region encoding is the ROI encoding for the manually configured area.

And you can choose the Image Quality Enhancing level for ROI encoding, and you can also name the ROI area.

Steps:

1. Select a Region No..

2. Check the Enable checkbox under Fixed Region.

3. Select the region from the dropdown list for ROI settings. There are four fixed regions

selectable.

4. Click , and then drag the mouse to draw the region of interest on the live video.

5. Adjust the ROI level from 1 to 6. The higher the value, the better image quality in the red

frame.

6. Enter a Region Name and click Save to save the settings.

 Dynamic Region: The device can automatically calculate the region with motion. Set the Image

Quality Enhancing level for ROI encoding.

Steps:

1. Check the Face Tracking checkbox.

When the face detection is triggered, the image quality of the face will be increased.

2. Respectively set the ROI level. The higher the value, the better image quality in the red

frame.

3. Click Save to save the settings.

User Manual of PanoVu Series Network Camera

Chapter 4 PTZ Control

4.1 Operating PTZ Control

Purpose:

In the live view interface, you can use the PTZ control buttons to control panning, tilting and zooming. Refer to Section 3.2.2 Live View Operation for detailed information.

4.1.1 Setting/Calling a Preset

Purpose:

A preset is a predefined image position. For the defined preset, you can click the calling button to quickly view the desired image position.

 Setting a Preset:

Steps:

1. In the PTZ control panel, select a preset number from the preset list.

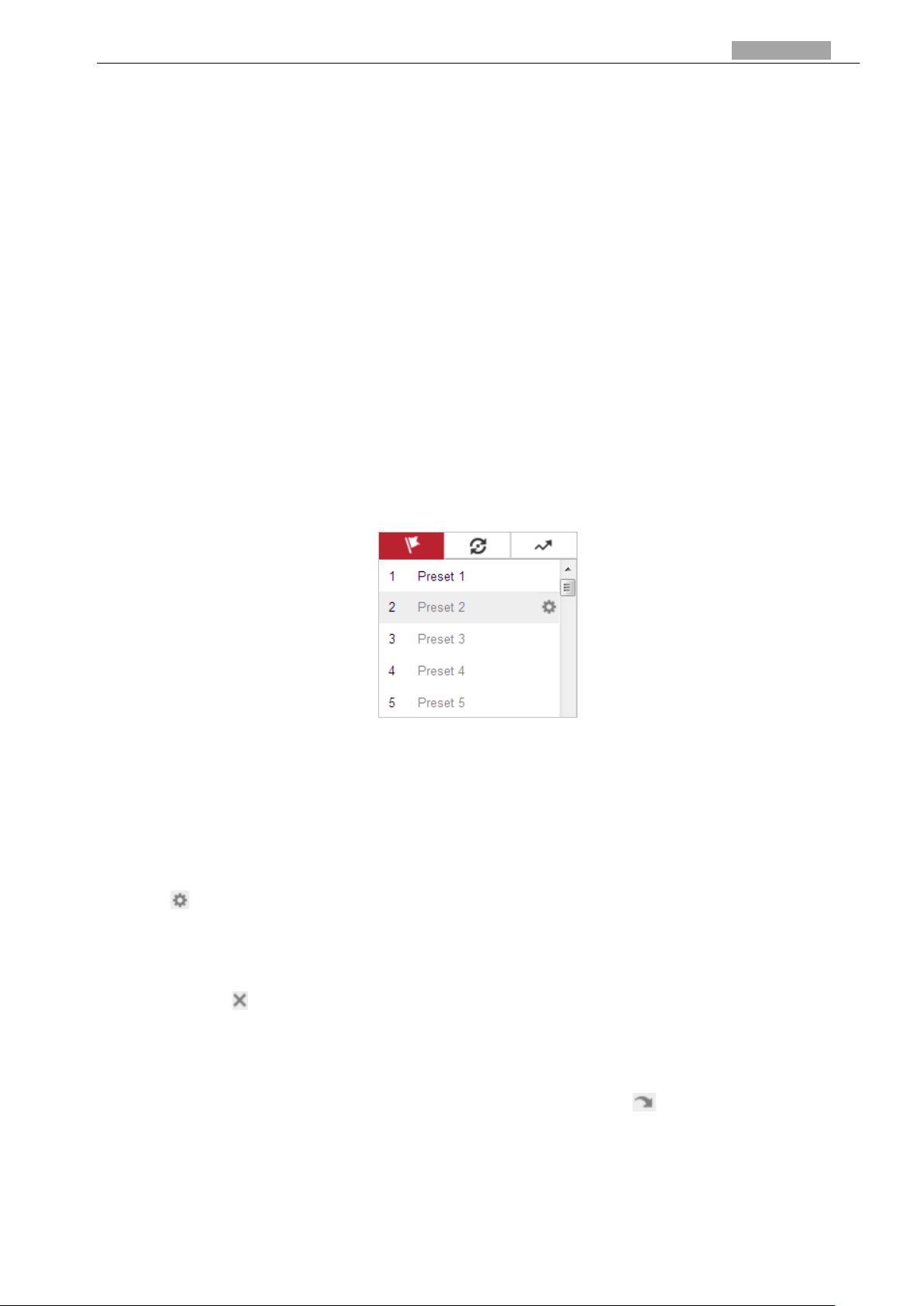

Figure 4-1 Setting a Preset

2. Use the PTZ control buttons to move the lens to the desired position.

 Pan the camera to the right or left.  Tilt the camera up or down.  Zoom in or out.  Refocus the lens.

3. Click to finish the setting of the current preset.

4. Edit a preset name by double clicking on the default name such as preset 1. (The pre-defined

presets are named already and not configurable. Refer to the user manual for detailed function description.)

5. You can click to delete the preset.

Note:

You can configure up to 300 presets.

 Calling a Preset:

In the PTZ control panel, select a defined preset from the list and click to call the preset.

User Manual of PanoVu Series Network Camera

Preset

Function

Preset

Function

Auto flip

Start to set limit stops

Back to initial position

Set limit stops manually

Call patrol 1

Remote reboot

Call patrol 2

Call OSD menu

Call patrol 3

Stop a scan

Call patrol 4

Start random scan

Day mode (IR cut filter in)

Start frame scan

Night mode (IR cut filter out)

Start auto scan

Call pattern 1

100

Start tilt scan

Call pattern 2

101

Start panorama scan

Call pattern 3

102

Call patrol 5

Call pattern 4

103

Call patrol 6

One-touch patrol

104

Call patrol 7

Wiper

105

Call patrol 8

Figure 4-2 Calling a Preset

For convenient preset selection, refer to the following steps to navigate to the preset you want.

Steps:

1. Select any preset from the list.

2. Click the preset number you need on the keyboard.

Note:

The following presets are predefined with special commands. You can only call them but not configure them. For instance, preset 99 is the “Start auto scan”. If you call the preset 99, the camera starts auto scan function.

Table 4-1 Special Presets

Figure 4-3 Special Preset

User Manual of PanoVu Series Network Camera

Name

Description

Patrol Time

It is the duration staying on one patrol point. The camera moves to another patrol point after the patrol time.

Patrol Speed

It is the speed of moving from one preset to another.

Note:

You may need to use the OSD (On Screen Display) menu when controlling the camera remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

4.1.2 Setting/Calling a Patrol

Purpose:

A patrol is a memorized series of preset function. It can be configured and called on the patrol settings interface. There are up to 8 patrols for customizing. A patrol can be configured with 32 presets.

Before you start:

Make sure that the presets you want to add into a patrol have been defined.

 Setting a Patrol:

Steps:

1. In the PTZ control panel, click to enter the patrol settings interface.

2. Select a patrol number from the list and click .

3. Click to enter the adding interface of preset, as shown in Figure 4-4.

Figure 4-4 Adding Presets

4. Configure the preset number, patrol time and patrol speed. Table 4-2 Patrol Time and Patrol Speed

5. Click OK to save a preset into the patrol.

6. Repeat the steps from 3 to 5 to add more presets.

7. Click OK to save all the patrol settings.

 Calling a Patrol:

In the PTZ control panel, select a defined patrol from the list and click to call the patrol, as

shown in Figure 4-5.

User Manual of PanoVu Series Network Camera

Figure 4-5 Calling a Patrol

4.1.3 Setting/Calling a Pattern

Purpose:

A pattern is a memorized series of pan, tilt, zoom, and preset functions. It can be called on the pattern settings interface. There are up to 4 patterns for customizing.

 Setting a Pattern:

Steps:

1. In the PTZ control panel, click to enter the pattern settings interface.

2. Select a pattern number from the list as shown in Figure 4-6.

Figure 4-6 Patterns Settings Interface

3. Click to enable recording the panning, tilting and zooming actions.

4. Use the PTZ control buttons to move the lens to the desired position after the information of

Program Pattern Remaining Memory (%) is displayed on the screen.

 Pan the camera to the right or left.  Tilt the camera up or down.  Zoom in or out.  Refocus the lens.

5. Click to save all the pattern settings.

Notes:

 These 4 patterns can be operated separately and with no priority level.  When configuring and calling the pattern, proportional pan is valid; the limit stops and auto

flip will be invalid; and the 3D positioning operation is not supported.

User Manual of PanoVu Series Network Camera

4.2 PTZ Configuration

4.2.1 Configuring Basic PTZ Parameters

Purpose:

You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset speed, etc.

1. Enter the Basic PTZ parameter configuration interface:

Configuration > PTZ > Basic Settings

Figure 4-7 Basic PTZ Configuration Interface

2. Configure the following settings:

 Basic Parameters: Enable/disable proportional pan and preset freezing, set the preset speed,

manual control speed, keyboard control speed, auto scan speed, and zooming speed.

 Proportional Pan: If you enable this function, the pan/tilt speeds change according to the

amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be slower for keeping the image from moving too fast on the live view image.

 Preset Freezing: This function enables the live view to switch directly from one scene

defined by a preset to another, without showing the middle areas between these two, to ensure the surveillance efficiency. It can also reduce the use of bandwidth in a digital network system.

Note:

Preset freezing function is invalid when you calling a pattern.

 Preset Speed: You can set the speed of a defined preset from 1 to 8.  Manual Control Speed: The manual control speed can be set as Compatible, Pedestrian,

Non-motor Vehicle, Motor Vehicle or Auto.

User Manual of PanoVu Series Network Camera

 Compatible: The control speed is same as the Keyboard Control Speed.  Pedestrian: Choose the Pedestrian when you monitor the pedestrians.  Non-motor Vehicle: Choose the Non-motor Vehicle when you monitor the non-motor

vehicles.

 Motor Vehicle: Choose the Motor Vehicle when you monitor the motor vehicles.  Auto: You are recommended to set it to be auto when the application scene of the

camera is complicated.

 Keyboard Control Speed: Define the speed of PTZ control by a keyboard as Low, Medium or

High.

 Auto Scan Speed: The scan speed can be set from level 1 to 40.  Zooming Speed: The zoom speed is adjustable from level 1 to 3.

 PTZ OSD: Set the on-screen display duration of the PTZ status.

 Zoom Status: Set the OSD duration of zooming status as 2 seconds, 5 seconds, 10 seconds,

Always Close or Always Open.

 PT Status: Set the azimuth angle display duration while panning and tilting as 2 seconds, 5

seconds, 10 seconds, Always Close or Always Open.

 Preset Status: Set the preset name display duration while calling the preset as 2 seconds, 5

seconds, 10 seconds, Always Close or Always Open.

 Power-off Memory: The camera can resume its previous PTZ status or actions after it restarted

from a power-off. You can set the time point of which the camera resumes its PTZ status. You can set it to resume the status of 30 seconds, 60 seconds, 300 seconds or 600 seconds before power-off.

3. Click to save the settings.

4.2.2 Configuring PTZ Limits

Purpose:

The camera can be programmed to move within the configurable PTZ limits (left/right, up/down).

Steps:

1. Enter the Limit configuration interface:

Configuration > PTZ > Limit

User Manual of PanoVu Series Network Camera

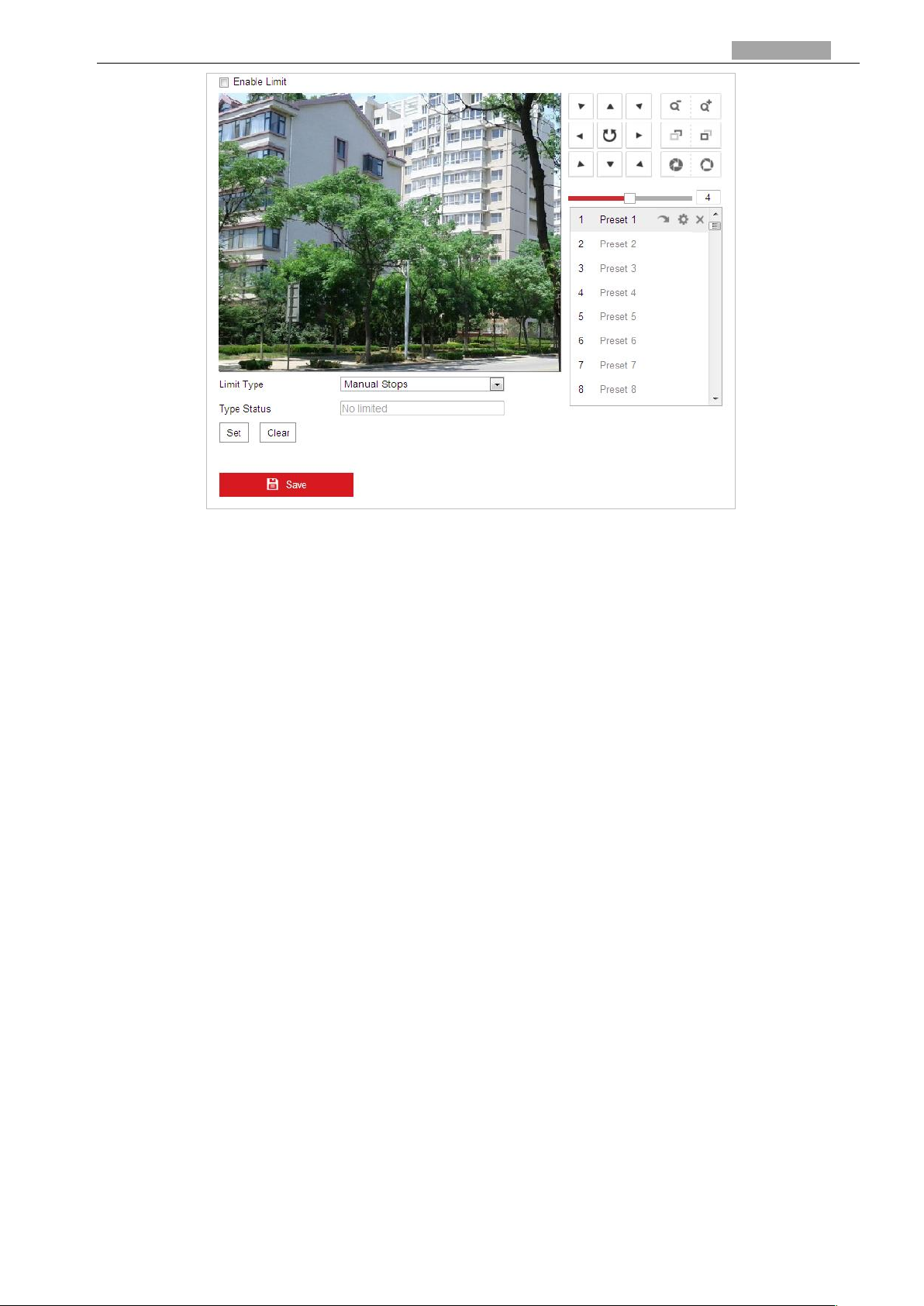

Figure 4-8 Configure the PTZ Limit

2. Click the Enable Limit checkbox and choose the limit type as manual stops or scan stops.

 Manual Stops:

When manual limit stops are set, you can operate the PTZ control panel manually only in the limited surveillance area.

 Scan Stops:

When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama scan is performed only in the limited surveillance area.

Note:

Manual Stops of Limit Type is prior to Scan Stops. When you set these two limit types at the same time, Manual Stops is valid and Scan Stops is invalid.

3. Click the PTZ control buttons to find the left/right/up/down limit stops; you can also call the

defined presets and set them as the limits of the camera.

4. Click Set to save the limits or click Clear to clear the limits.

4.2.3 Configuring Initial Position

Purpose:

The initial position is the origin of PTZ coordinates. It can be the factory default initial position. You can also customize the initial position according to your own demand.

 Customize an Initial Position:

Steps:

1. Enter the Initial Position configuration interface:

Configuration > PTZ > Initial Position

User Manual of PanoVu Series Network Camera

Figure 4-9 PTZ Configuration

2. Click the PTZ control buttons to find a position as the initial position of the camera; you can

also call a defined preset and set it as the initial position of the camera.

3. Click Set to save the position.

 Call/delete an Initial Position:

You can click to call the initial position. You can click to delete the initial position and

restore the factory default initial position.

4.2.4 Configuring Park Action

Purpose:

This feature allows the camera to start a predefined park action (scan, preset, pattern and etc.) automatically after a period of inactivity (park time). The park action function only takes effect in Camera 1.

Note:

Scheduled Tasks function is prior to Park Action function. When these two functions are set at the same time, only the Scheduled Tasks function takes effect.

Steps:

1. Enter the Park Action settings interface:

Configuration > PTZ > Park Action

Figure 4-10 Set the Park Action

2. Check the Enable Park Action checkbox.

3. Set the Park Time as the inactivity time of the camera before it starts the park actions.

4. Choose Action Type from the dropdown list.

User Manual of PanoVu Series Network Camera

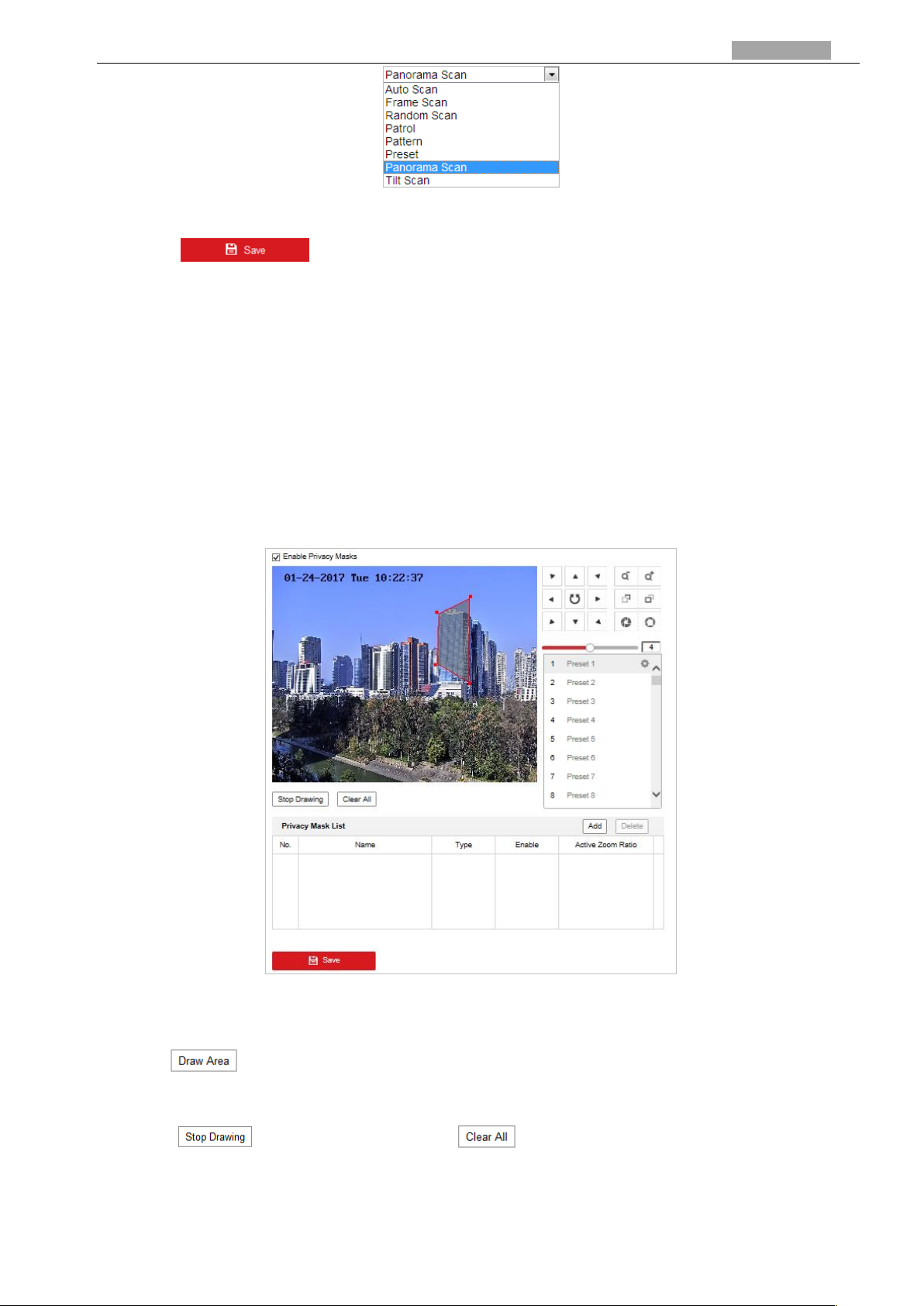

Figure 4-11 Action Types

5. Click to save the settings.

4.2.5 Configuring Privacy Mask

Purpose:

Privacy mask enables you to cover certain areas on the live video to prevent certain spots in the surveillance area from being live viewed and recorded. The privacy mask function only takes effect in Camera 1.

Steps:

1. Enter the Privacy Mask settings interface:

Configuration > PTZ > Privacy Mask

Figure 4-12 Draw the Privacy Mask

2. Click the PTZ control buttons to find the area you want to set the privacy mask.

3. Click ; drag the mouse in the live video window to draw the area.

You can drag the corners of the red rectangle area to draw a polygon mask.

4. Click to finish drawing or click to clear all of the areas you set without

saving them.

User Manual of PanoVu Series Network Camera

5. Click to save the privacy mask, and it will be listed in the Privacy Mask List area; set the

value of Active Zoom Ratio on your demand, and then the mask will only appear when the zoom ratio is greater than the predefined value.

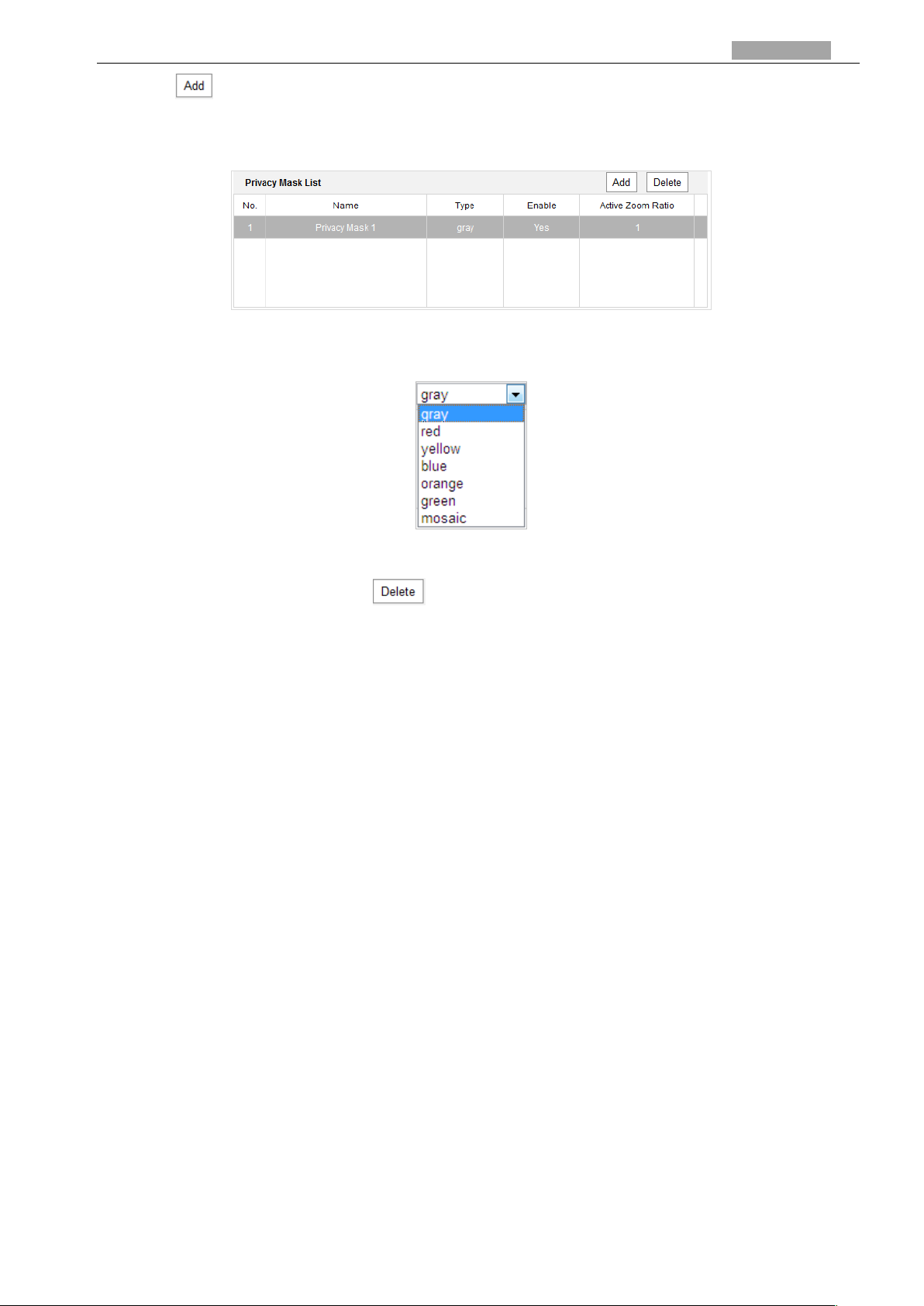

Figure 4-13 Privacy Mask List

6. you can also define the color of the masks.

Figure 4-14 Define Mask Color

7. You can select a mask and click to delete it from the list.

8. Check the Enable Privacy Mask checkbox to enable this function.

Note:

You are allowed to draw up to 24 areas on the same image.

4.2.6 Configuring Scheduled Tasks

Purpose:

You can configure the network camera to perform a certain action automatically in a user-defined time period.

Steps:

1. Enter the Scheduled Task settings interface:

Configuration> PTZ > Scheduled Tasks

User Manual of PanoVu Series Network Camera

Figure 4-15 Configure Scheduled Tasks

2. Check the Enable Scheduled Task checkbox.

3. Set the Park Time. You can set the park time (a period of inactivity) before the camera starts the

scheduled tasks.

4. Select the task type from the dropdown list. You can choose scan, preset, pattern and etc.

Figure 4-16 Task Types

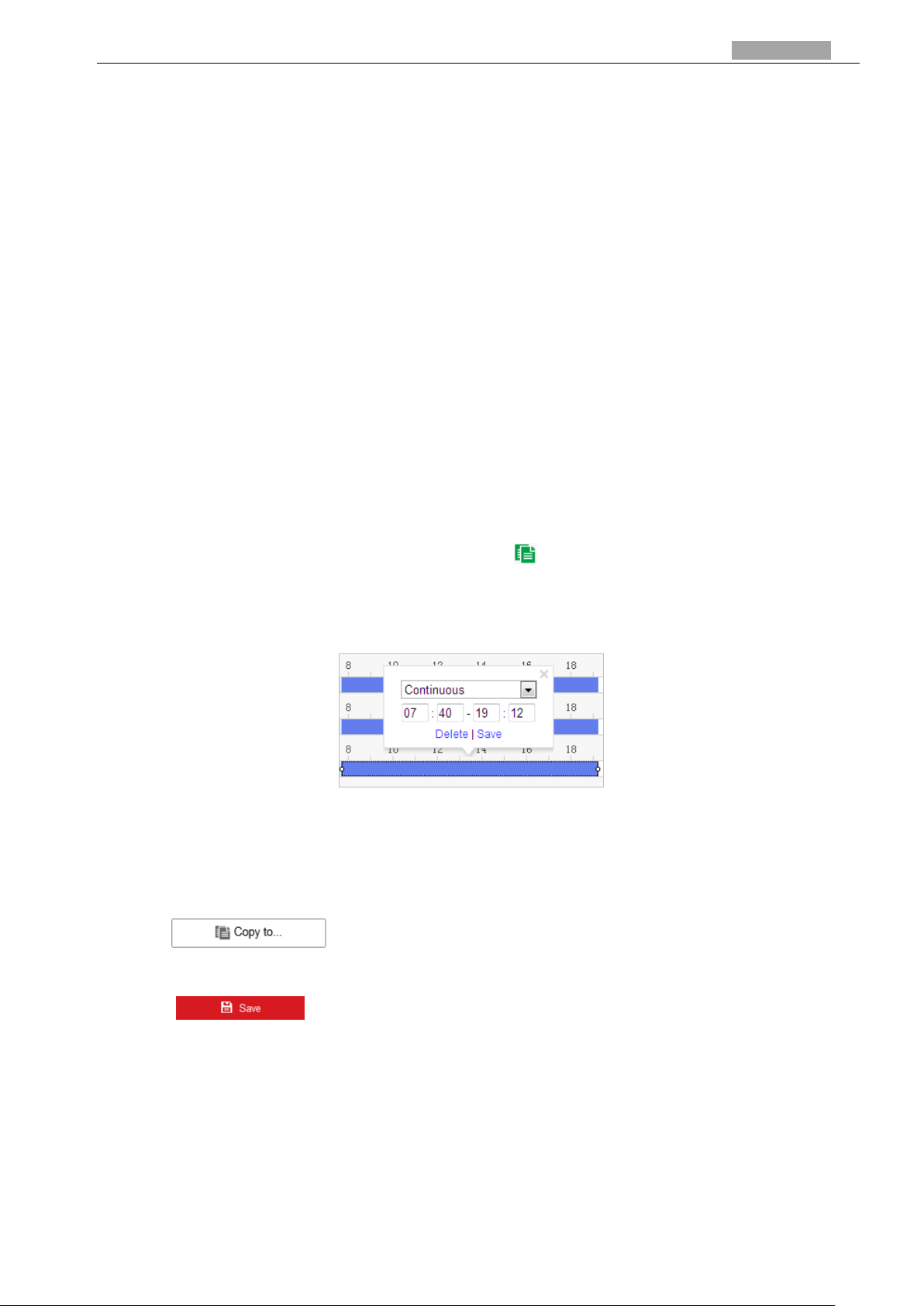

5. Select the timeline of a certain day, and drag the left button of the mouse to set the recording

schedule (the start time and end time of the recording task).

6. After you set the scheduled task, you can click and copy the task to other days (optional).

Figure 4-17 Edit the Schedule and Task Type

User Manual of PanoVu Series Network Camera

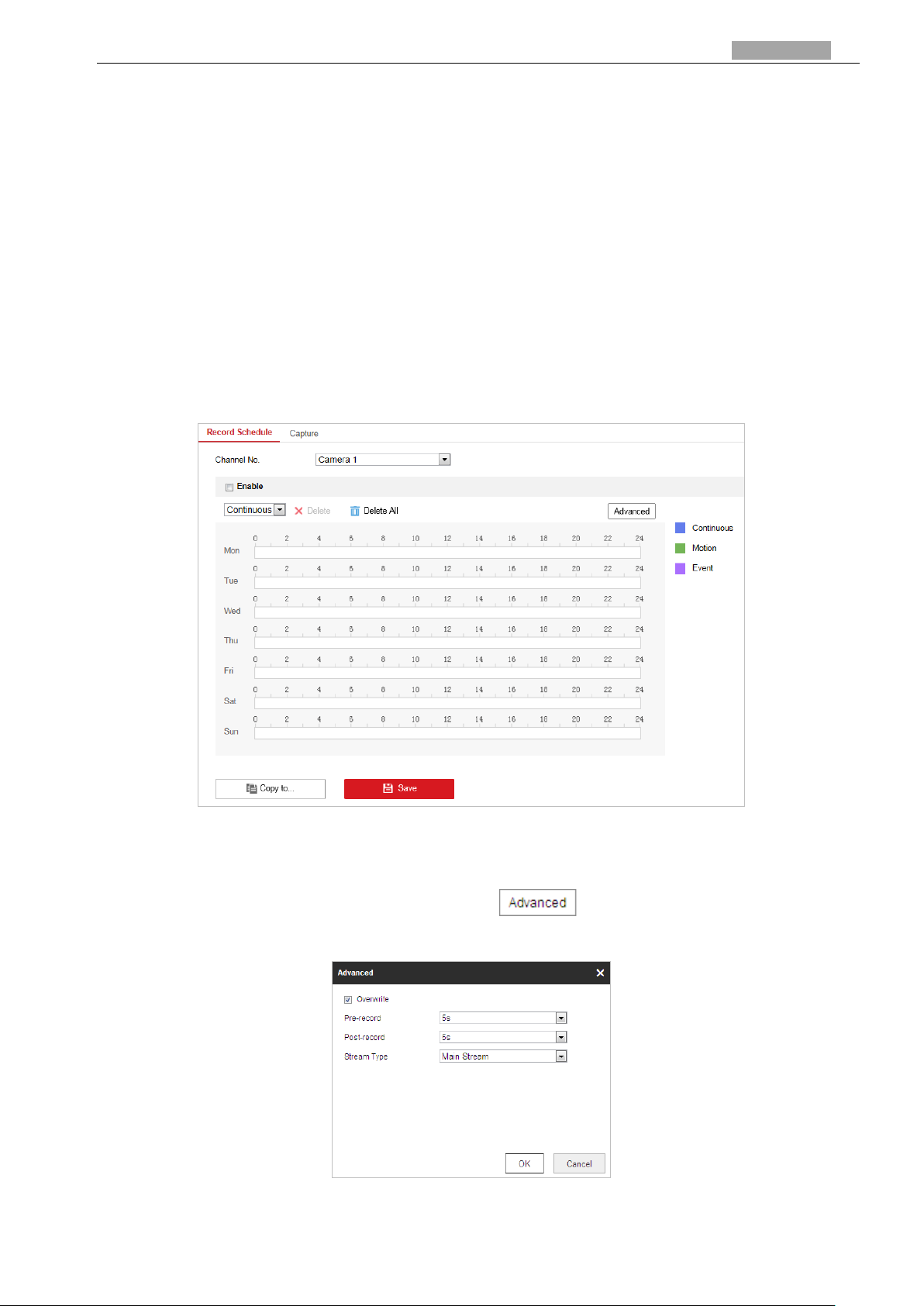

7. After setting the record schedule, you can click a record segment to display the segment record

settings interface to edit the segment record parameters. (Optional)

Figure 4-18 Segment Record Settings

Note：

The time of each task cannot be overlapped. Up to 10 tasks can be configured for each day.

8. Click to save the settings.

4.2.7 Clearing PTZ Configurations

Purpose:

You can clear PTZ configurations in this interface, including all presets, patrols, patterns, privacy masks, PTZ limits, scheduled tasks and park actions.

Steps:

1. Enter the Clearing Configuration interface:

Configuration > PTZ > Clear Config

2. Check the checkbox of the items you want to clear.

3. Click to clear the settings.

4.2.8 Configuring PTZ Control Priority

Steps:

1. Get to the configuration interface:

Configuration > PTZ > Prioritize PTZ.

 The camera can be controlled by network and RS-485 signals. You can set the control

priority of these two signals.

 The operation of Operator is prior to that of User. When the Operator is controlling the

camera, the User cannot control it. When the Operator finishes, the User can control the camera after the Delay time. The Delay time can be set in Priority PTZ interface as shown follows.

Figure 4-19 PTZ Priority

2. Click to activate the settings.

User Manual of PanoVu Series Network Camera

4.2.9 Configuring Panorama Tracking

Purpose:

The camera tracks the moving objects automatically after you configure this function. It keeps the target appear in the center of the image by automatically adjusting its focal length and position.

You can click in the live view interface to manually track the target.

Steps:

1. Enter the Panorama Tracking settings interface:

Configuration > PTZ > Panorama Tracking

Figure 4-20 Configure Smart Tracking

2. Check the Enable Tracking checkbox to enable panorama tracking function.

3. Perform the calibration.

Auto Calibration:

(1) Select Auto from the calibration mode. (2) Move and zoom in/out the PTZ view to make sure the PTZ view and the panoramic view is

almost the same.

(3) Click Save to save the calibration settings. (4) The calibration is completed when note shows up as: Calibration Succeeded.

Manual Calibration:

(1) Select Manual Calibrating from the calibration list. (2) Drag the crosses of the panoramic view “ ” and move them to the scene evenly.

User Manual of PanoVu Series Network Camera

(3) Select a calibration site and adjust the PTZ view by controlling PTZ and zooming in/ out to

ensure the cross in the center of the PTZ view is almost the same with the site of the calibration site of panoramic view.

(4) Click to save the setting of calibration No. 1. (5) Select calibration site No. 2 to No. 6, and repeat the step above to add the manual

calibration sites.

(6) Click Calibrate to perform the calibration, and click to switch the scene and add

calibration sites. In manual calibration mode, for each device, you shall add at least 4 calibration sites.

4. Set the tracking duration. The camera stops tracking when the duration time is up. The

duration ranges from 0 to 60 seconds.

5. Click to set the current zoom ratio as the tracking zoom ratio.

6. You can select Add, Delete, and Clear All to edit the calibration sites. The coordinates and PTZ

positions of selected calibration sites will appear in the list below. In auto calibration mode,

click Calibration to refresh the PTZ position; and in manual calibration mode, click to

refresh the PTZ position.

Figure 4-21 Calibration Parameters

Notes:

 In auto calibration mode, the more similar is the PTZ view and the panoramic view, the

panorama tracking gets more accurate.

 The more distant manual calibration sites are to each other, the panorama tracking gets more

accurate.

4.2.10 Configuring Eagle Vision Focus

Purpose:

After this function is enabled, perform calibration and the focus can be quicker than quick focus.

Steps:

1. Enter the Eagle Vision Focus settings interface:

Configuration > PTZ > Eagle Vision Focus

User Manual of PanoVu Series Network Camera

Figure 4-22 Eagle Vision Focus

2. Check the Enable checkbox to enable the Eagle Vision Focus function.

3. Drag the red line on the live view image to the calibration position. You can drag the ends of

the red line to adjust the length of the line.

4. Click Start Calibration. There is the notice Calibrating on the live view image and the camera

lens performs auto focus.

5. After calibration, there is the notice Calibration succeeded on the live view image.

6. Click Save to save the settings.

User Manual of PanoVu Series Network Camera

Chapter 5 Storage and Playback

In this and the following chapters, operation of the camera by the web browser will be taken as an example.

5.1 Storage Settings

Before you start:

To configure record settings, make sure that you have the network storage device within the network or the memory card has been inserted in the corresponding card slot. Refer to the quick start guide for the location of the memory card slot.

5.1.1 Configuring Net HDD (Optional)

Before you start:

The network disk should be available within the network and properly configured to store the recorded files, log files, etc.

Steps:

Add Net HDD

1. Enter the NAS (Network-Attached Storage) settings interface:

Configuration > Storage > Storage Management > Net HDD

Figure 5-1 Select Net HDD Type

2. Enter the IP address and the file path of the network disk.

3. Select the mounting type. NFS and SMB/CIFS are selectable. You can set the user name and

password to guarantee the security if SMB/CIFS is selected.

Note:

Refer to the NAS User Manual for creating the file path.

 For your privacy and to better protect your system against security risks, we strongly

recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (Using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers, and special characters.) in order to increase the security of your product.

 Proper configuration of all passwords and other security settings is the responsibility of the

installer and/or end-user.

4. Click to save the settings.

User Manual of PanoVu Series Network Camera

5.1.2 HDD Management

If the memory card is inserted in the device or NAS (Network-Attached Storage) is added, enter HDD Management interface to configure the storage status.

Steps:

1. Enter the HDD settings interface

Configuration > Storage > Storage Management > HDD Management, You can view the capacity, free space, status, type and property of the disk.

Figure 5-2 Storage Management Interface

2. If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk and

click Format to start initializing the disk.

When the initialization completed, the status of disk will become Normal.

Figure 5-3 View Disk Status

Define the Quota for Record and Pictures

Steps:

1. Input the quota percentage for picture and for record.

2. Click Save and refresh the browser page to activate the settings.

Figure 5-4 Quota Settings

Note:

Up to 8 NAS disks can be connected to the camera.

User Manual of PanoVu Series Network Camera

5.1.3 Configuring Record Schedule

Before you start:

Make sure a local memory card is inserted in the camera or the network storage is added to the camera.

Purpose:

There are two kinds of recording for the cameras: manual recording and scheduled recording. In this section, you can follow the instructions to configure the scheduled recording. By default, the record files of scheduled recording are stored in the memory card (if supported) or in the network disk.

Steps:

1. Enter the Record Schedule settings interface:

Configuration > Storage > Schedule Settings > Record Schedule

Figure 5-5 Record Schedule Interface

2. Check the Enable checkbox to enable scheduled recording.

3. To set the advanced settings of the camera, click to enter the advanced settings

interface.

Figure 5-6 Record Parameters

User Manual of PanoVu Series Network Camera

 Pre-record: The time you set to start recording before the scheduled time or the event. For

example, if an alarm triggers recording at 10:00, and the pre-record time is set as 5 seconds, the camera starts to record at 9:59:55. The Pre-record time can be configured as No Pre-record, 5 s, 10 s, 15 s, 20 s, 25 s, 30 s or not limited.

Note:

The pre-record time changes according to the video bitrate.

 Post-record: The time you set to stop recording after the scheduled time or the event. For

example, if an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the camera records until 11:00:05. The Post-record time can be configured as 5 s, 10 s, 30 s, 1 min, 2 min, 5 min or 10 min.

Note:

The Pre-record and Post-record parameters vary depending on different camera models.

 Stream Type: You can select the stream type for recording; Main stream, sub stream and

third stream are selectable. If you select the sub stream, you can record for a longer time with the same storage capacity.

4. Click OK to save the advanced setting.

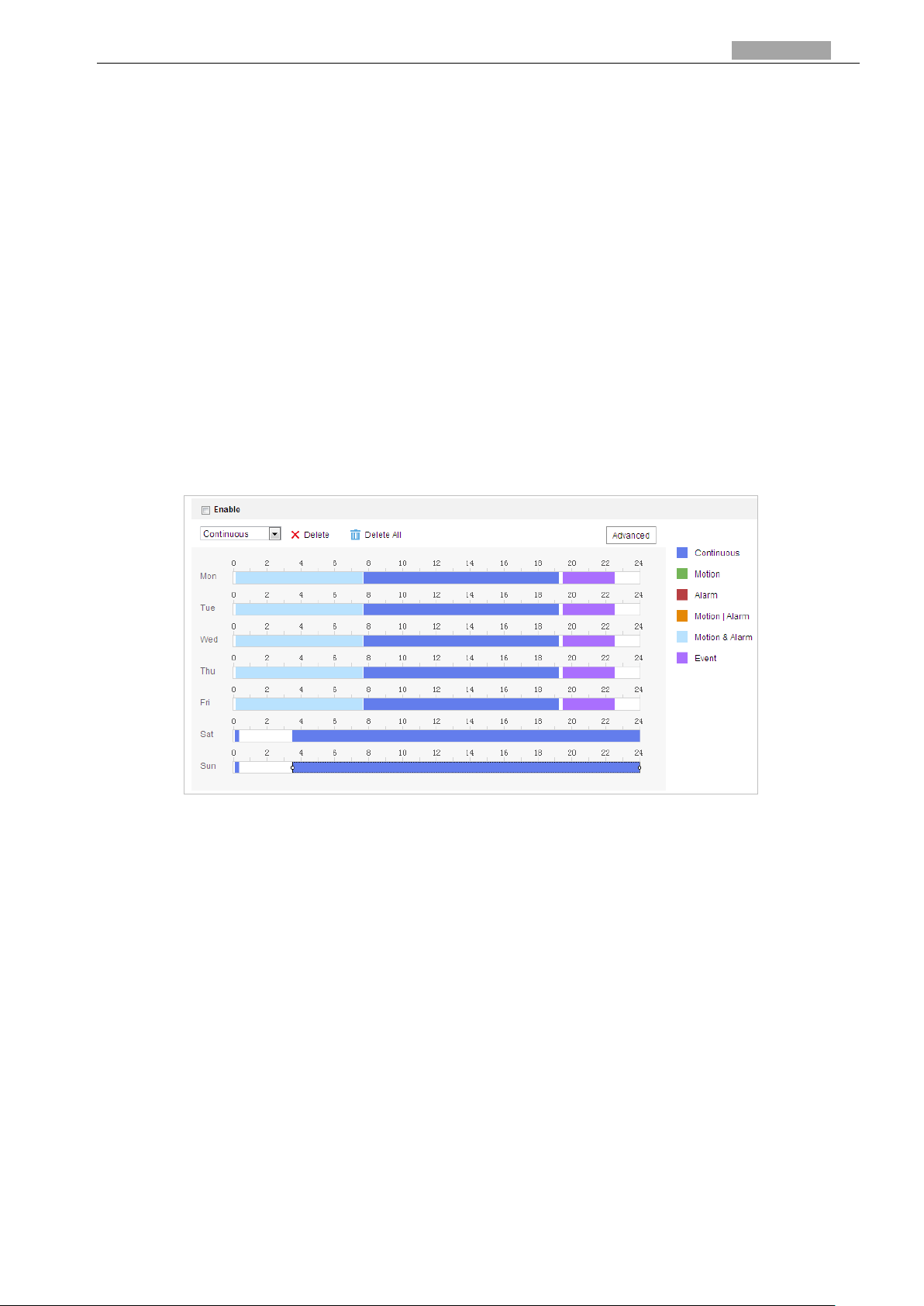

Figure 5-7 Record Schedule

5. Set the record schedule:

(1) Select a Record Type. The record type can be Continuous, Motion, Alarm, Motion | Alarm,

Motion & Alarm, and Events.

 Continuous

If you select Continuous, the video will be recorded automatically according to the time of the schedule.

 Record Triggered by Motion Detection

If you select Motion, the video will be recorded when the motion is detected. Besides configuring the recording schedule, you have to set the motion detection area and check the Trigger Channel checkbox in the Linkage Method of Motion Detection settings interface. For detailed information, refer to the Step 1 in the Section 6.1.1

Configuring Motion Detection.

 Record Triggered by Alarm

If you select Alarm, the video will be recorded when the alarm is triggered via the

external alarm input channels.

User Manual of PanoVu Series Network Camera

Besides configuring the recording schedule, you have to set the Alarm Type and check the Trigger Channel checkbox in the Linkage Method of Alarm Input Settings interface. For detailed information, refer to Section 6.1.4 Configuring Alarm Input.

 Record Triggered by Motion | Alarm

If you select Motion | Alarm, the video will be recorded when the external alarm is triggered or the motion is detected. Besides configuring the recording schedule, you have to configure the settings on the

Motion Detection and Alarm Input settings interfaces. Refer to Section 6.1.1 and Section

6.1.4 for detailed information.

 Record Triggered by Motion & Alarm

If you select Motion & Alarm, the video will be recorded when the motion and alarm are triggered at the same time. Besides configuring the recording schedule, you have to configure the settings on the

Motion Detection and Alarm Input settings interfaces. Refer to Section 6.1.1 and Section

6.1.4 for detailed information.

 Record Triggered by Events

If you select Events, the video will be recorded when any event is detected.

(2) Select the timeline of a certain day, and drag the left button of the mouse to set the

recording schedule (the start time and end time of the recording task).

(3) After you set the scheduled task, you can click and copy the task to other days

(optional).

(4) After setting the record schedule, you can click a record segment to display the segment

record settings interface to edit the segment record parameters. (optional)

Figure 5-8 Segment Record Settings

Note:

The time of each segment cannot be overlapped. Up to 8 segments can be configured for each day.

6. Click to copy the schedule settings to other channels if the schedule

settings are the same.

7. Click to save the settings.

5.1.4 Configuring Capture Schedule

Purpose:

You can configure the scheduled snapshot and event-triggered snapshot. The captured picture can be stored in the local storage or network storage.

Steps:

1. Enter the Capture settings interface:

User Manual of PanoVu Series Network Camera

Configuration > Storage > Storage Settings > Capture

Figure 5-9 Snapshot Settings

2. Click to enter the Capture interface.

3. Select the timeline of a certain day, and drag the left button of the mouse to set the capture

schedule (the start time and end time of the recording task).

4. After you set the scheduled task, you can click and copy the task to other days (optional).

5. After setting the capture schedule, you can click a capture segment to display the segment

capture settings interface to edit the segment capture parameters. (optional)

Figure 5-10 Segment Snapshot Settings

6. Click to enter the Capture Parameters interface.

7. Check the Enable Timing Snapshot checkbox to enable continuous snapshot, and configure

the schedule of timing snapshot. Check the Enable Event-triggered Snapshot checkbox to enable event-triggered snapshot.

8. Select the format, resolution, quality of the snapshot.

9. Set the time interval between two snapshots.

10. Click to save the settings.

5.2 Picture

Purpose:

This section explains how to view the captured picture files stored in the network disks and download the captured pictures.

User Manual of PanoVu Series Network Camera

Steps:

1. Click on the menu bar to enter picture interface.

Figure 5-11 Picture Interface

2. Select the file type of capturing the pictures from the list as timing, alarm, motion, etc.

3. Set the start time and end time. Click Search. The corresponding picture files will be listed.

4. Check the checkbox in front of the files that you need to download.

5. Click to download the files.

5.3 Playback

Purpose:

This section explains how to view the remotely recorded video files stored in the memory card or network disks.

5.3.1 Play Back Video Files

Steps:

1. Click on the menu bar to enter playback interface.

User Manual of PanoVu Series Network Camera

Playback

Click to start playback and the icon turns into . Click the icon again to

stop playback.

Stop All Playback

Click to stop all channels’s playback at once.

Figure 5-12 Playback Interface

2. Select the date and click .

Figure 5-13 Search Video

3. Click to play the video files found on this date.

The toolbar on the bottom of Playback interface can be used to control playing process.

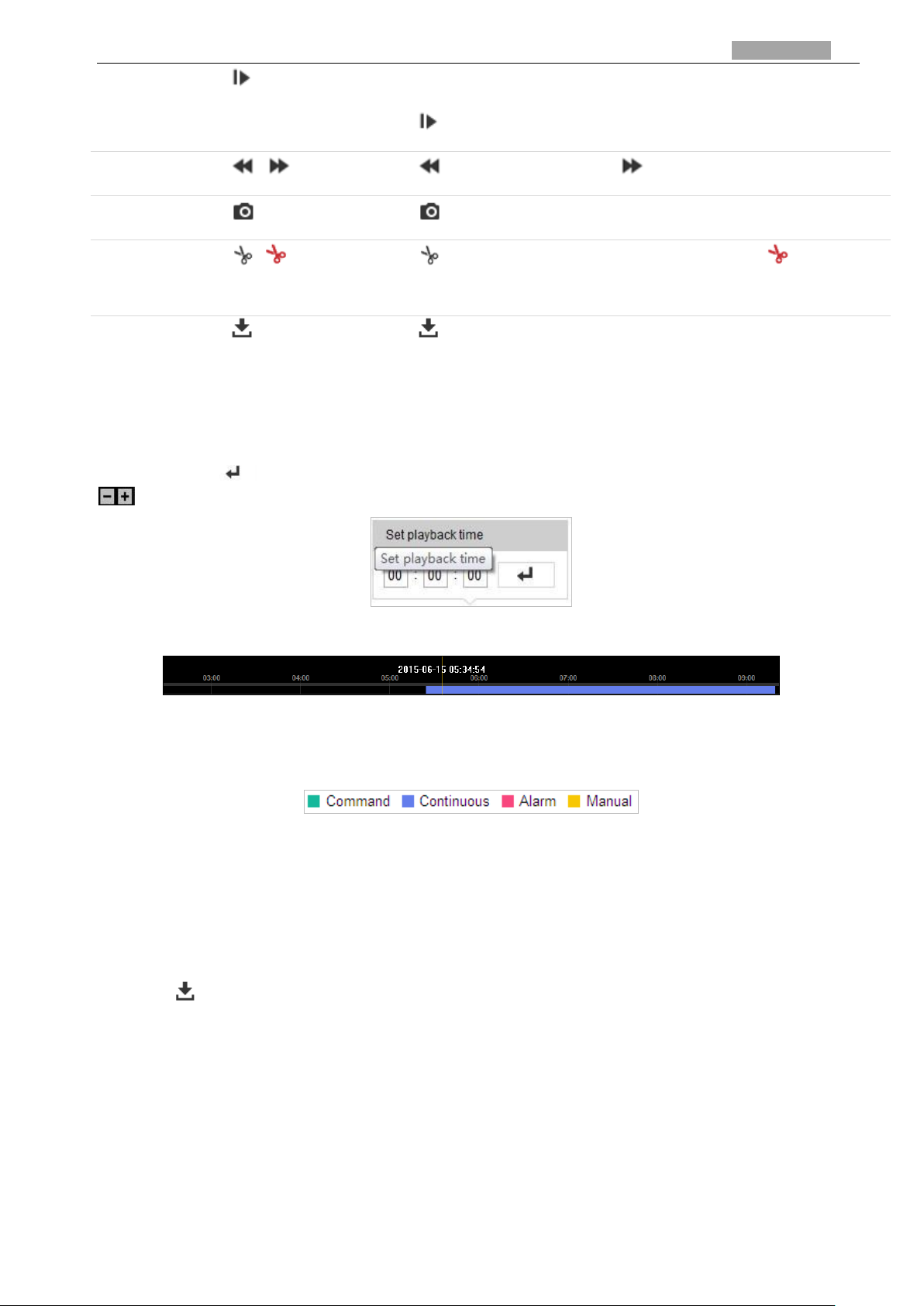

Figure 5-14 Playback Toolbar

Descriptions of Icons on PTZ Control Panel are listed below:

User Manual of PanoVu Series Network Camera

Single Frame

Click to start playback by frame.

Playing Speed

Click to slow forward and click to fast forward.

Capture a picture

Click to manually capture the picture.

Clip

Click to start clipping video file and the icon turns into . Click the

icon again to stop clipping.

Download

Click to download the video file.

Note:

You can choose the file paths locally for downloaded playback video files and pictures in Local Configuration interface. Refer to Section 2.1 Local Configuration Interface for details. Drag the progress bar with the mouse to locate the exact playback point. You can also input the time and click to locate the playback point in the Set playback time field. You can also click

to zoom out/in the progress bar.

Figure 5-15 Set Playback Time

Figure 5-16 Progress Bar

The different colors of the video on the progress bar stand for the different video types as shown in Figure 5-17.

Figure 5-17 Video Types

5.3.2 Downloading Video Files

Steps:

1. Click on the playback interface. The pop-up menu is shown in Figure 5-18.

2. Set the start time and end time. Click Search. The corresponding video files will be listed.

User Manual of PanoVu Series Network Camera

Figure 5-18 Video Downloading interface

3. Check the checkbox in front of the video files that you need to download.

4. Click to download the video files.

User Manual of PanoVu Series Network Camera

Chapter 6 Alarm and Events

Purpose:

This section explains how to configure the camera to respond to alarm events, including motion detection, video tampering, video loss, alarm input, alarm output, exception, and audio exception detection. These events can trigger the alarm actions, such as Send Email, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, etc. For example, when an external alarm is triggered, the camera sends a notification to an e-mail address.

6.1 Basic Event Configuration

6.1.1 Configuring Motion Detection

Purpose:

Motion detection is a feature which can trigger alarm actions and actions of recording videos when the motion occurred in the surveillance scene.

Steps:

1. Enter the motion detection setting interface:

Configuration > Event > Basic Event > Motion Detection

2. Select the camera Channel No. from the dropdown list.

Note:

The Camera 1 is the PTZ channel, and the Camera 2 and Camera 3 are the panoramic view channels.

3. Check the Enable Motion Detection checkbox to enable this function.

You can check the Enable Dynamic Analysis for Motion checkbox if you want the detected object get marked with rectangle in the live view.

4. Select the configuration mode as Normal or Expert and set the corresponding motion

detection parameters.

 Normal

Steps:

(1) Click . Drag the mouse on the live video image to draw a motion detection area.

(2) Click to finish drawing.

Notes:

 You can draw up to 8 motion detection areas on the same image.  You can click to clear all of the areas.

(3) Move the slider to set the sensitivity of the

detection.

User Manual of PanoVu Series Network Camera

 Expert

Figure 6-1 Motion Detection Settings-Normal

Figure 6-2 Motion Detection Settings-Expert

Steps:

(1) Set the Scheduled Image Settings, there are OFF, Auto-Switch and Scheduled-Switch

selectable. If the switch mode is enabled, you can configure the detection rule for the day

and night separately.

OFF: Disable the day and night switch.

User Manual of PanoVu Series Network Camera

Auto-Switch: Switch the day and night mode according to the illumination automatically.

Scheduled-Switch: Switch to the day mode at 6:00 a.m., and switch to the night mode at

18:00 p.m.

(2) Select Area to configure in the dropdown list. (3) Set the values of Sensitivity and Percentage.

Sensitivity: The greater the value is, the easier the alarm will be triggered.

Percentage: When the size proportion of the moving object exceeds the predefined value,

the alarm will be triggered. The less the value is, the easier the alarm will be triggered.

5. Set the Arming Schedule for Motion Detection. (1) Click tab to enter the arming schedule setting interface.

Figure 6-3 Arming Schedule

(2) Select the timeline of a certain day, and drag the mouse to set the arming schedule (the

start time and end time of the arming task).

(3) After you set the scheduled task, you can click and copy the task to other days

(optional).

Figure 6-4 Arming Time Schedule

User Manual of PanoVu Series Network Camera

(4) After setting the arming schedule, you can click a segment to display the segment arming

settings interface to edit the segment record parameters (optional).

Figure 6-5 Segment Arming Settings

(5) Click to save the settings.

Note:

The time of each period cannot be overlapped. Up to 8 periods can be configured for each day.

6. Set the Alarm Actions for Motion Detection.

Click tab to enter the Linkage Method interface.

You can specify the linkage method when an event occurs. The following contents are about how to configure the different types of linkage method.

Figure 6-6 Linkage Method

Check the checkbox to select the linkage method. Send Email, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording are selectable.

 Send Email

Send an email with alarm information to a user or users when an event occurs.

Note:

 To send the Email when an event occurs, you need to refer to Section 2.2.2 Advanced

Settings - Configuring Email Settings to set the Email parameters.

 Notify Surveillance Center

Send an exception or alarm signal to remote management software when an event occurs.

 Upload to FTP/Memory Card/NAS

Capture the image when an alarm is triggered and upload the picture to a FTP server.

User Manual of PanoVu Series Network Camera

Note:

You need a FTP server and set FTP parameters first. Refer to Section 2.2.2 Advanced Settings - Configuring FTP Settings for setting FTP parameters.

 Trigger Channel

Record a video when an event occurs.

Note:

You have to set the recording schedule to realize this function. Refer to Section 5.1 Storage Settings for settings the recording schedule.

 Trigger Alarm Output

Trigger one or more external alarm outputs when an event occurs.

Note:

To trigger an alarm output when an event occurs, refer to Section 6.1.5 Configuring Alarm Output to set the alarm output parameters.

6.1.2 Configuring Video Tampering Alarm

Purpose:

You can configure the camera to trigger the alarm actions when the lens is covered.

Steps:

1. Enter the video tampering settings interface:

Configuration > Event > Basic Event > Video Tampering

Figure 6-7 Tampering Alarm

2. Check the Enable checkbox to enable the tampering detection.

3. Set the tampering area. Refer to Step 4 in Section 6.1.1 Configuring Motion Detection.

User Manual of PanoVu Series Network Camera

4. Click tab to enter the arming schedule setting interface. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 5 in Section 6.1.1 Configuring Motion Detection.

5. Click tab to select the linkage method taken for the video loss alarm. Send

Email, Notify Surveillance Center, and Trigger Alarm Output are selectable. Refer to Step 6 in Section 6.1.1 Configuring Motion Detection.

6. Click to save the settings.

6.1.3 Configuring Video Loss Alarm

Steps:

1. Enter the Video Loss setting interface:

Configuration > Event > Basic Event > Video Loss

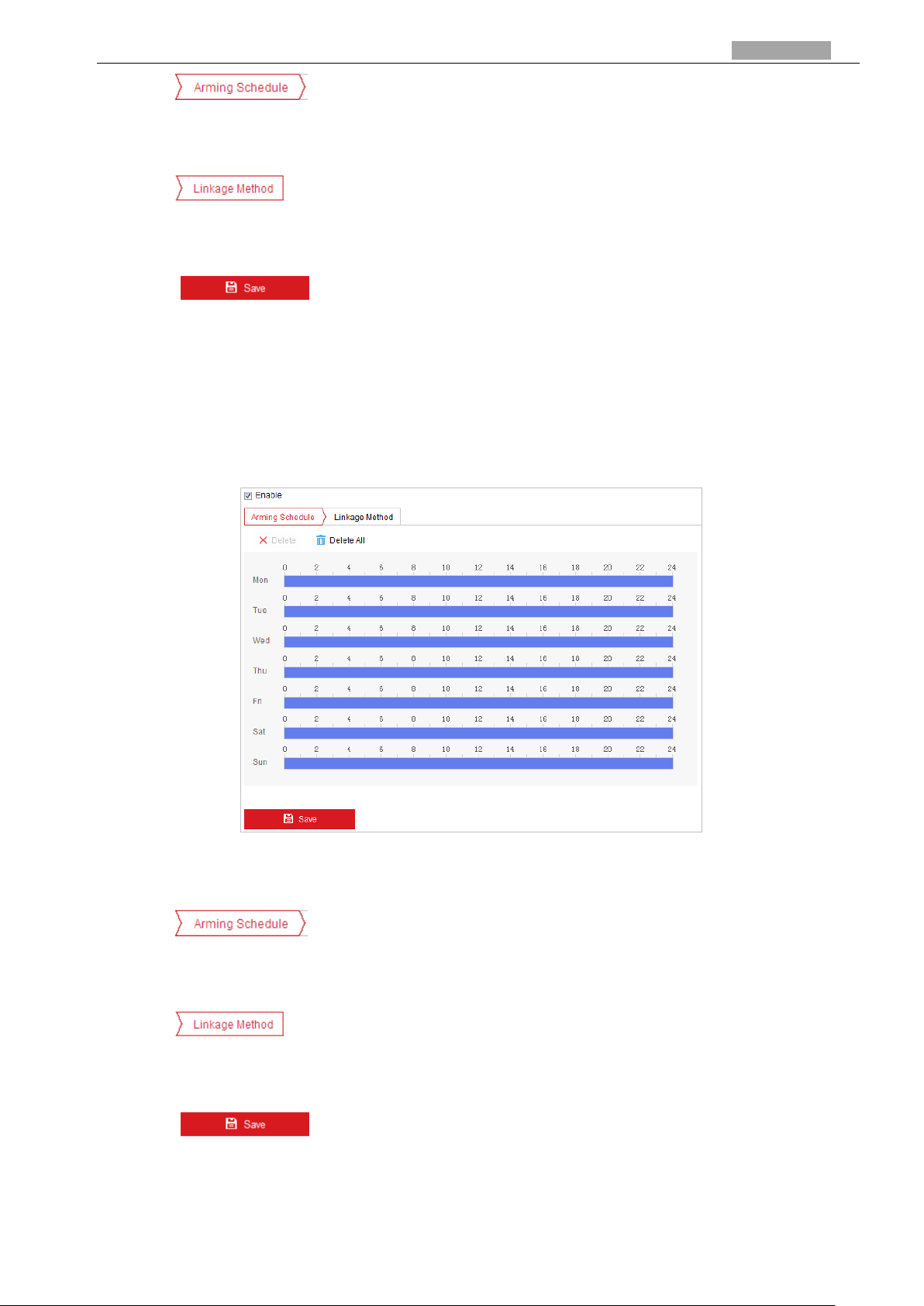

Figure 6-8 Video Loss

2. Check the Enable checkbox to enable the video loss detection.

3. Click tab to enter the arming schedule setting interface. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 5 in Section 6.1.1 Configuring Motion Detection.

4. Click tab to select the linkage method taken for the video loss alarm. Send

Email, Notify Surveillance Center, and Trigger Alarm Output are selectable. Refer to Step 6 in Section 6.1.1 Configuring Motion Detection.

5. Click to save the settings.

User Manual of PanoVu Series Network Camera

6.1.4 Configuring Alarm Input

Steps:

1. Enter the Alarm Input settings interface:

Configuration > Event > Basic Event > Alarm Input

2. Choose the Alarm Input No. and the Alarm Type. The alarm type can be NO (Normally Open)

and NC (Normally Closed).

3. Edit the name in to set a name for the alarm

input (optional).

Figure 6-9 Alarm Input Settings

4. Click tab to enter the arming schedule setting interface. The arming

schedule configuration is the same as the setting of the arming schedule for motion detection. Refer to Step 5 in Section 6.1.1 Configuring Motion Detection.

5. Click tab to select the linkage method taken for the video loss alarm. Send

Email, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Trigger Alarm Output and Trigger Recording are selectable. Refer to Step 6 in Section 6.1.1 Configuring Motion Detection.

6. You can also choose the PTZ linking for the alarm input. Check the relative checkbox and

select the No. to enable Preset Calling, Patrol Calling or Pattern Calling.

7. You can copy your settings to other alarm inputs.

8. Click to save the settings.

User Manual of PanoVu Series Network Camera

Figure 6-10 Linkage Method

6.1.5 Configuring Alarm Output

Steps:

1. Enter the Alarm Output settings interface:

Configuration> Event > Basic Event > Alarm Output

2. Select one alarm output channel in the Alarm Output dropdown list.

3. Set a name in for the alarm output (optional).

4. The Delay time can be set to 5sec, 10sec, 30sec, 1min, 2min, 5min, 10min or Manual. The delay

time refers to the time duration that the alarm output remains in effect after alarm occurs.

5. Click tab to enter the arming schedule setting interface. The time schedule

configuration is the same as the settings of the arming schedule for motion detection. Refer to Step 5 in Section 6.1.1 Configuring Motion Detection.

Figure 6-11 Alarm Output Settings

User Manual of PanoVu Series Network Camera

6. You can copy the settings to other alarm outputs.

7. Click to save the settings.

6.1.6 Handling Exception

The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras.

Steps:

1. Enter the Exception settings interface:

Configuration > Event > Basic Event > Exception

2. Check the checkbox to set the actions taken for the Exception alarm. Refer to Step 6 in Section

6.1.1 Configuring Motion Detection.

Figure 6-12 Exception Settings

3. Click to save the settings.

6.2 Smart Event Configuration

6.2.1 Detecting Audio Exception

Purpose:

When you enable this function and audio exception occurs, the alarm actions will be triggered.

User Manual of PanoVu Series Network Camera

Steps:

1. Enter the audio exception detection interface:

Configuration > Event > Smart Event > Audio Exception Detection

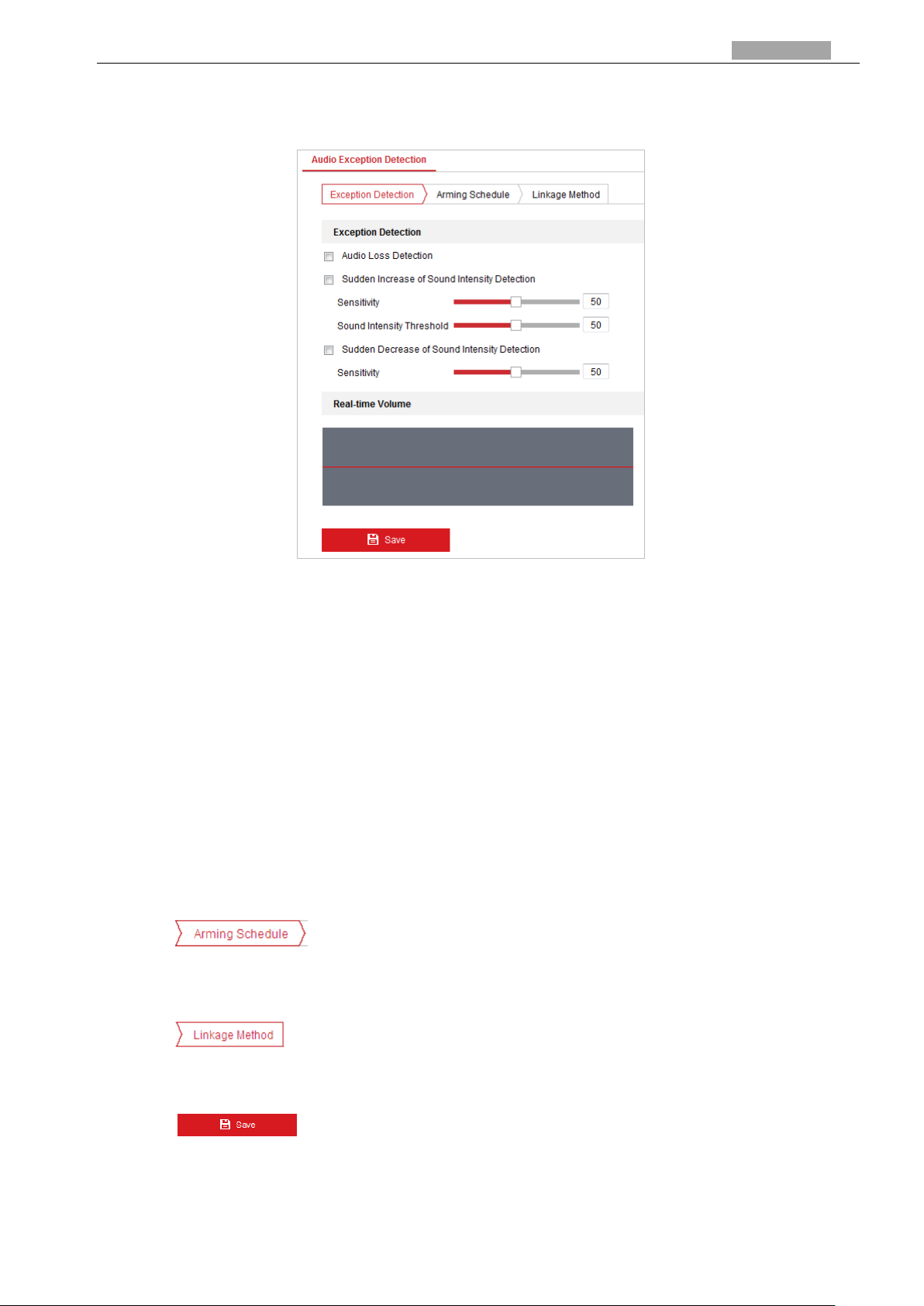

Figure 6-13 Audio Exception Detection

2. Check the Audio Loss Detection checkbox to enable the audio input exception detection.

3. Check the Sudden Increase of Sound Intensity Detection checkbox to enable the sudden rise

detection.

 Sensitivity: Range [1-100], the smaller the value the more severe the sound change will

trigger the detection.

 Sound Intensity Threshold: Range [1-100], it can filter the sound in the environment, the

louder the environment sound, the higher the value should be. You can adjust it according to the actual environment.

4. Check the Sudden Decrease of Sound Intensity Detection checkbox to enable the sudden

drop detection. Sensitivity: Range [1-100], the smaller the value the more severe the sound change will trigger the detection.

5. Click tab to enter the arming schedule setting interface. The time schedule

configuration is the same as the settings of the arming schedule for motion detection. Refer to Step 5 in Section 6.1.1 Configuring Motion Detection.

6. Click tab to select the linkage method taken for the video loss alarm. Send

Email, Notify Surveillance Center, Trigger Alarm Output, and Trigger Recording are selectable. Refer to Step 3 in Section 6.1.1 Configuring Motion Detection.

7. Click to save the settings.

User Manual of PanoVu Series Network Camera

6.3 VCA Configuration

6.3.1 VCA Configuration description

Purpose:

You can do intelligent analysis such as behavior analysis and face capture, etc. with the camera. Multiple rules can be configured for different requirements. The three VCA resource types are only available for Camera 1.

Note:

VCA function varies depending on different camera models.

Before you start:

Enter the VCA Resource Type configuration interface:

Configuration > VCA

Select Camera 1 from the dropdown list and click VCA Info: Behavior Analysis, Face Capture, and Behavior Analysis & Face Capture are selectable as the VCA type for Camera 1. Select Camera 2 or Camera 3 from the dropdown list: only Overlay & Capture, Shield Region, Rule, and Advanced Configuration are configurable.

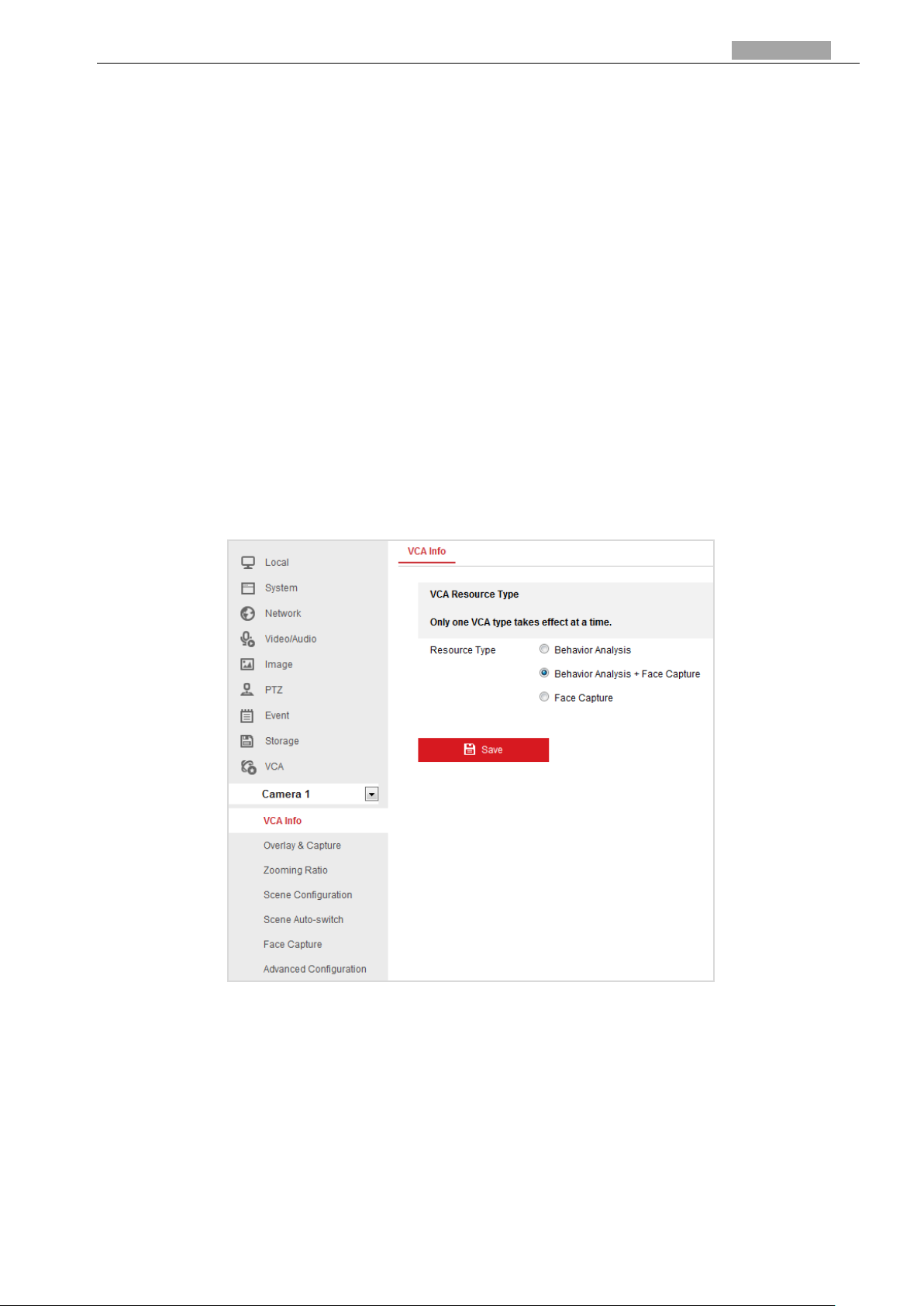

Figure 6-14 VCA Configuration (Camera 1)

User Manual of PanoVu Series Network Camera

Select Behavior Analysis as VCA Resource.

Set Overlay & Capture.

Set Zoom Ratio.

Set parameters in VCA > Advanced

Configuration.

Set scene parameters and rules in VCA > Scene

Configuration.

Set Arming Schedule, Alarm Linkage and Scene

Auto-switch (optional) of the scene.

Save the settings.

Figure 6-15 VCA Configuration (Camera 2 and Camera 3)

The setting of VCA configuration can be divided into three modes.

 Behavior Analysis Configuration

For the configuration of behavior analysis, refer to the flowchart below.

Figure 6-16 Flowchart of Configuring Behavior Analysis

 Behavior Analysis & Face Capture Configuration

For the configuration of behavior analysis & face capture, refer to the flowchart below.

User Manual of PanoVu Series Network Camera

Select Behavior Analysis + Face Capture as VCA

Resource.

Set Overlay & Capture.

Set Zoom Ratio.

Set parameters in VCA > Advanced

Configuration.

Set scene parameters and rules in VCA > Scene

Configuration.

Set Arming Schedule, Alarm Linkage and Scene

Auto-switch (optional) of the scene.

Save the settings.

Set face capture parameters in VCA > Face

Capture.

Select Behavior Analysis + Face Capture as VCA

Resource.

Set Overlay & Capture.

Set Shield Region.

Set parameters in VCA > Advanced

Configuration.

Set rules in VCA > Rule.

Save the settings.

Set face capture parameters in VCA > Face

Capture.

Figure 6-17 Flowchart of Configuring Behavior Analysis & Face Capture

 Face Capture Configuration

For the configuration of face capture, refer to the flowchart below.

6.3.2 Configuring VCA Information (Overlay & Capture)

Steps:

1. Enter the VCA configuration interface:

Configuration > VCA > Overlay & Capture

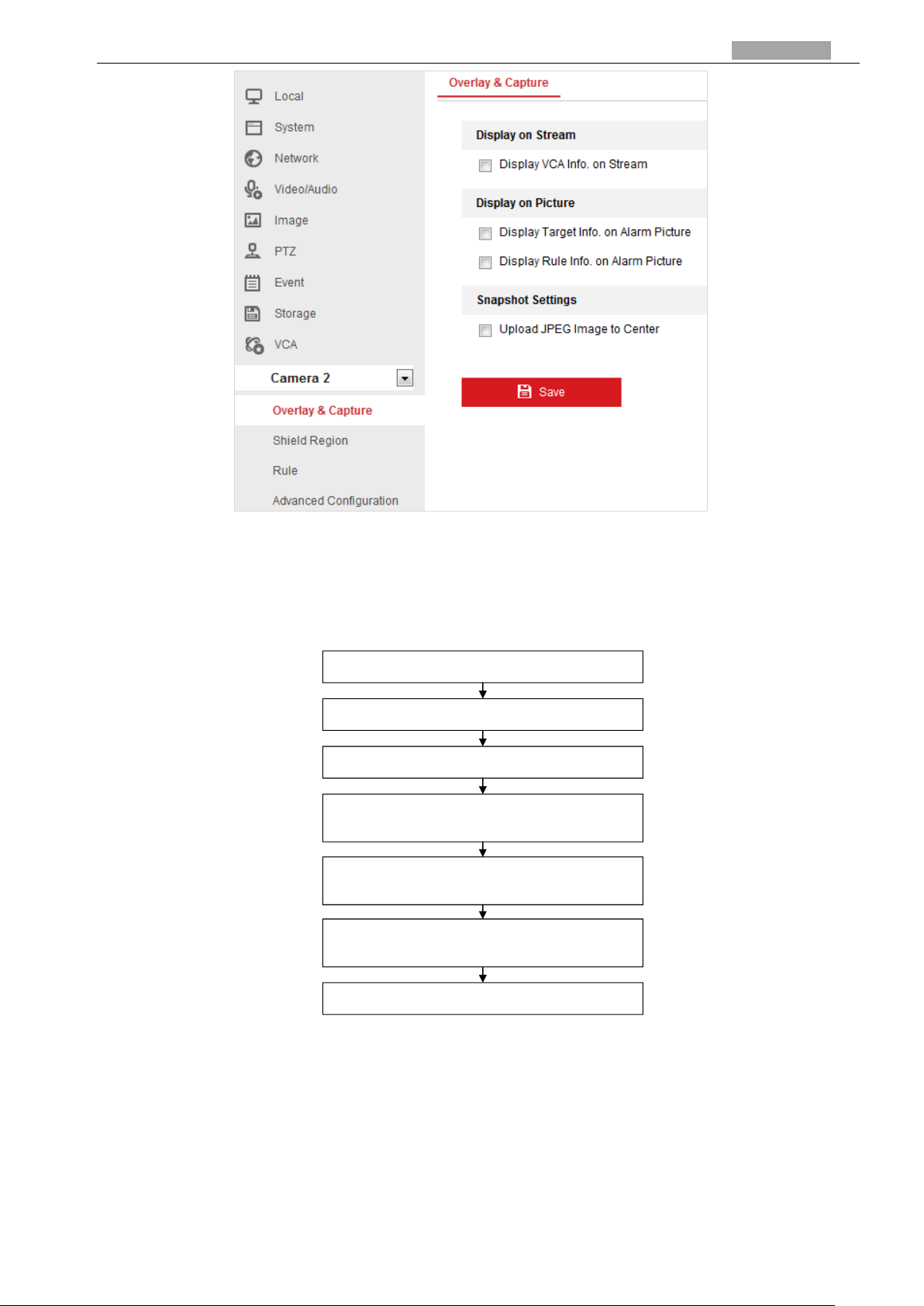

Figure 6-18 Flowchart of Configuring Face Capture

User Manual of PanoVu Series Network Camera

Figure 6-19 Overlay & Capture

2. Check the check box to enable the Intelligent Analysis. And you can check the current version

for the selected VCA analysis module.

3. Set the display information:

 If you select to display the target info and rule info on the alarm picture are supported; you

can enable the functions by checking the corresponding checkbox on your demand.

 And if you check the checkbox of display target info and rule on stream, the information

will be added to the video stream, and the overlay will be displayed if you get live view or play back by the VS Player.

4. Set the Snapshot:

 You can check the checkbox to upload JPEG image to surveillance center when VCA alarm

occurs.

 You can also set the quality and resolution of the picture separately.

5. Click to save the settings.

6.3.3 Zooming Ratio

Steps:

1. Enter the Zooming Ratio settings interface:

Configuration > VCA > Zooming Ratio

2. Configure the Zoom Ratio parameters: Set the appropriate tracking zooming ratio with the PTZ

control panel.

User Manual of PanoVu Series Network Camera

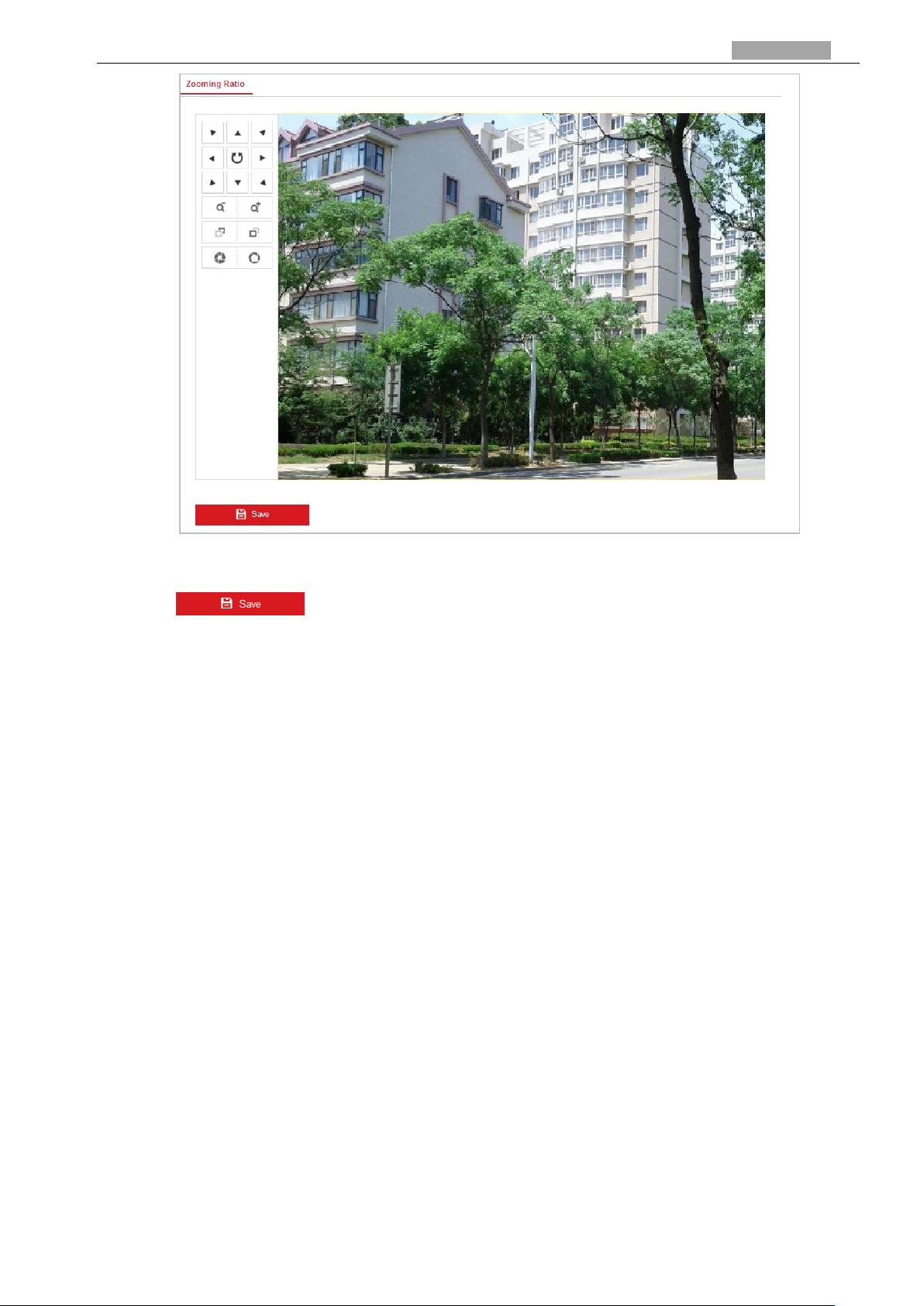

Figure 6-20 Zoom Ratio

3. Click to save the settings.

6.3.4 Advanced Configuration

Purpose:

All the parameters for both behavior analysis and face capture are collected in the advanced configuration page. You can configure these parameters for different VCA types on your demand.

Steps:

1. Enter the Advanced Configuration interface:

Configuration > VCA > Advanced Configuration

User Manual of PanoVu Series Network Camera

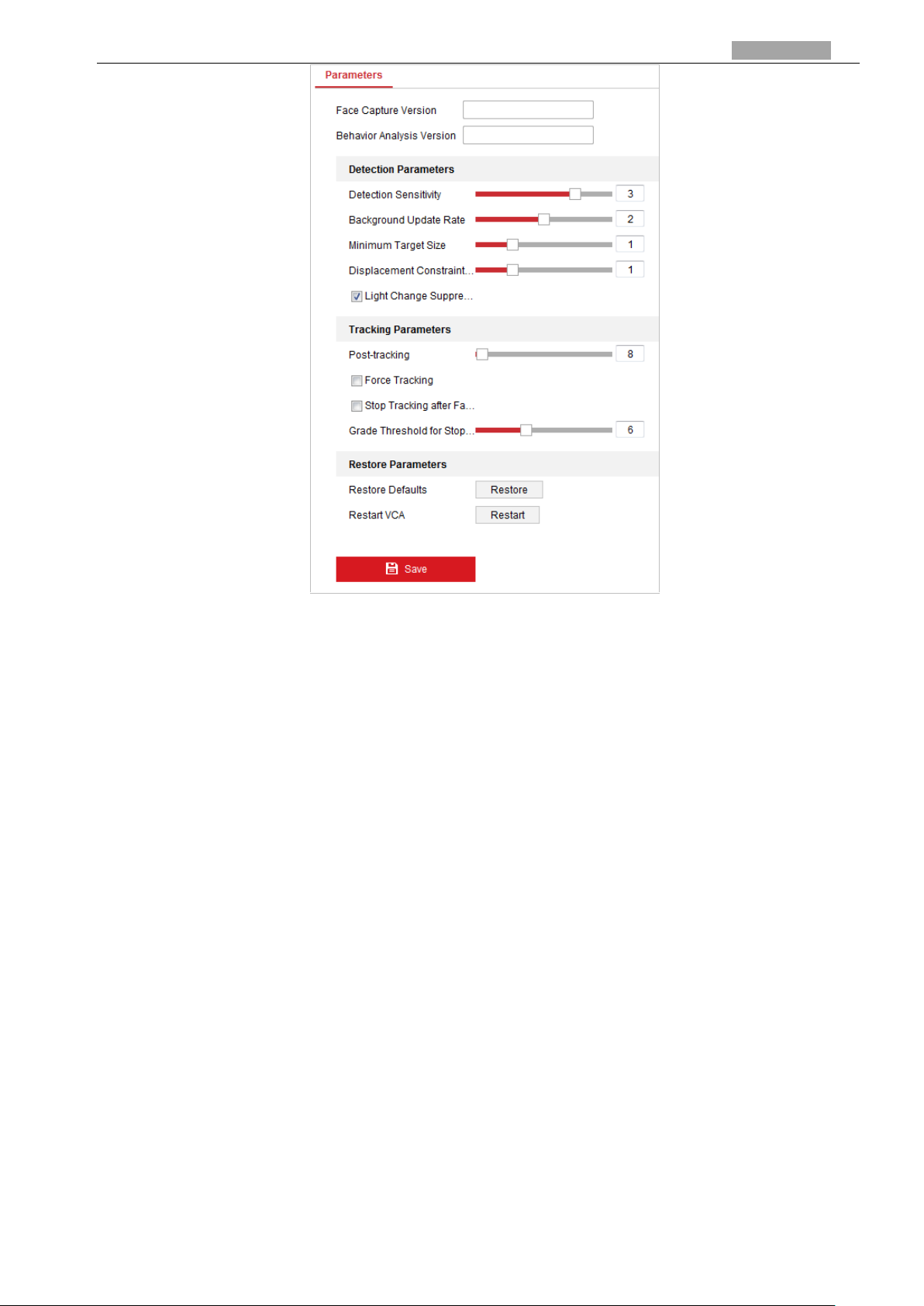

Figure 6-21 Advanced Configuration

2. Adjust the Detection Parameters. (When VCA resource is selected as Behavior

Analysis/Behavior Analysis + Face Capture.)

Detection Sensitivity: Range [0-4], the higher the sensitivity is, the easier the target will be detected. Background Update Rate: Range [0-4], if a detected target remains in the monitoring scene for a certain time, the system will count the target as the background automatically. The greater the value is, the faster the target will be counted as the background. Minimum Target Size: Range [0-4], The system will filter out the object smaller than the minimum target size. Displacement Constraint for Target Generation: Range [0-4], the higher the value is, the slower the target is generated, and the higher accuracy the analysis will get. Light Change Suppression: Check the checkbox to suppress the impact caused by the illumination change.

3. Adjust the Tracking Parameters. (When VCA resource is selected as Behavior Analysis/Behavior

Analysis + Face Capture.)

Post-tracking: Range [2-600], you can configure the tracking duration after the target is still. Force Tracking: Check the checkbox to enable the function to prevent the object to be blocked.

After the function being enabled, the camera will continue locating and tracking the blocked target. Grade Threshold for Stopping Tracking: Range [1-15], the higher the value is, the network camera stops tracking under higher condition. Stop Tracking after Face Detected: You can set the tracking stopping threshold. The higher the value is the, the easier the tracking can be stopped. Restore Default: Click Restore to restore the parameters to the default.

User Manual of PanoVu Series Network Camera

Restart VCA: Click Restart to restart the VCA function.

4. Adjust the Capture Parameters. (When VCA resource is selected as Face Capture.)

Generation Speed: Range [1-5], the speed for generating the target frame (green) when the person enters the detection region. If you increase this parameter, the target will generate faster and also the false detection rate will rise. In general, it is recommended to use the default value. Capture Times: Range [1-10], the times for capturing the person who passes through the detection region. If the person passes very fast, the capture times may be less than the set parameter. Sensitivity: Range [1-5], the sensitivity for face detection. Larger value means higher sensitivity, more faces will be detected and also false detection rate will rise. In general, it is recommended to use the default value. Decrease the value if the false detection rate is high.

Capture Interval: Range [1-255], the interval between two capture actions. Capture Sensitivity: Range [0-20], the threshold for judging whether to do face capture.

5. Click to save the settings.

6.3.5 Scene Configuration

Purpose:

The network camera supports patrol tracking for multiple scenes. At most 10 scenes can be supported by the network camera. At most 8 rules can be configured for a single scene. You can configure the rules for the scene on your demand.

Steps:

1. Enter the Scene Configuration interface:

Go to Configuration > VCA > Scene Configuration.

2. Create a scene. (Optional)

 Create a Scene:

1) Add New Scene: Click New Scene to create a new scene.

2) Control the PTZ to get the required scene.

3) Set the scene parameters.

4) Click to save the settings.

5) After saving the scene position, you can click Call to call the scene position.

3. Select a scene to enter the scene VCA configuration interface.

4. You can configure the scene parameters, rule, arming schedule and alarm linkage.

Scene Parameters

Steps:

1. Enter Scene Parameters settings interface (here we take Scene 1 as an example):

Configuration > VCA > Scene Configuration > Scene 1 > Scene Parameters

User Manual of PanoVu Series Network Camera

Figure 6-22 Scene Parameters Interface

2. Set the scene parameters.

Scene Name: Enter a custom scene name. Duration: Set the dwell time of the scene when doing patrol tracking. The intelligent analysis

will be enabled during the period. If the alarm is triggered, the network camera will start to stack automatically.

Enable Track: Check the checkbox to enable the tracking function for the scene. Tracking Duration: Set the duration of the tracking. If the value is selected as 0, the tracking

duration will not be limited. Limited Tracking: You can check the checkbox to enable/disable the function. If the function is enabled, you can set the limited position for the tracking.

Note:

After saving the scene position and auto-tracking limits, you can click Call to view the saved position or limits.

3. Click to save the settings.

Rule

Purpose：

At most 8 rules can be configured for a single scene. Follow the steps below to configure the rule for the scene.

Steps:

1. Enter the Rule setting interface:

Configuration > VCA > Scene Configuration > Scene 1 > Rule

2. Create new rule: Click to add a new rule.

3. Select rule type: Click the dropdown list to select the rule type. Line Crossing, Intrusion, Region

Entrance, and Region Exiting are selectable.

Figure 6-23 Rule List

User Manual of PanoVu Series Network Camera

4. Configure the rule area: Click Draw Line or Draw Area on the tool bar of the live view panel.

Click the mouse on the live view panel. Right click the mouse to finish drawing. For details, refer to Section 6.3.9 Rule Configuration Demonstration.

5. Configure the filtering size: The filtering function is reserved. You can set the minimum and

maximum size of the object needs to be filtered in Section 6.3.4 Advanced Configuration.

6. Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

7. Click to save the settings.

Note:

Create multiple rules: You can create more rules by repeating the above steps.

Arming Schedule

Steps:

11. Enter the Arming Schedule settings interface:

Configuration > VCA > Scene Configuration > Scene > Arming Schedule

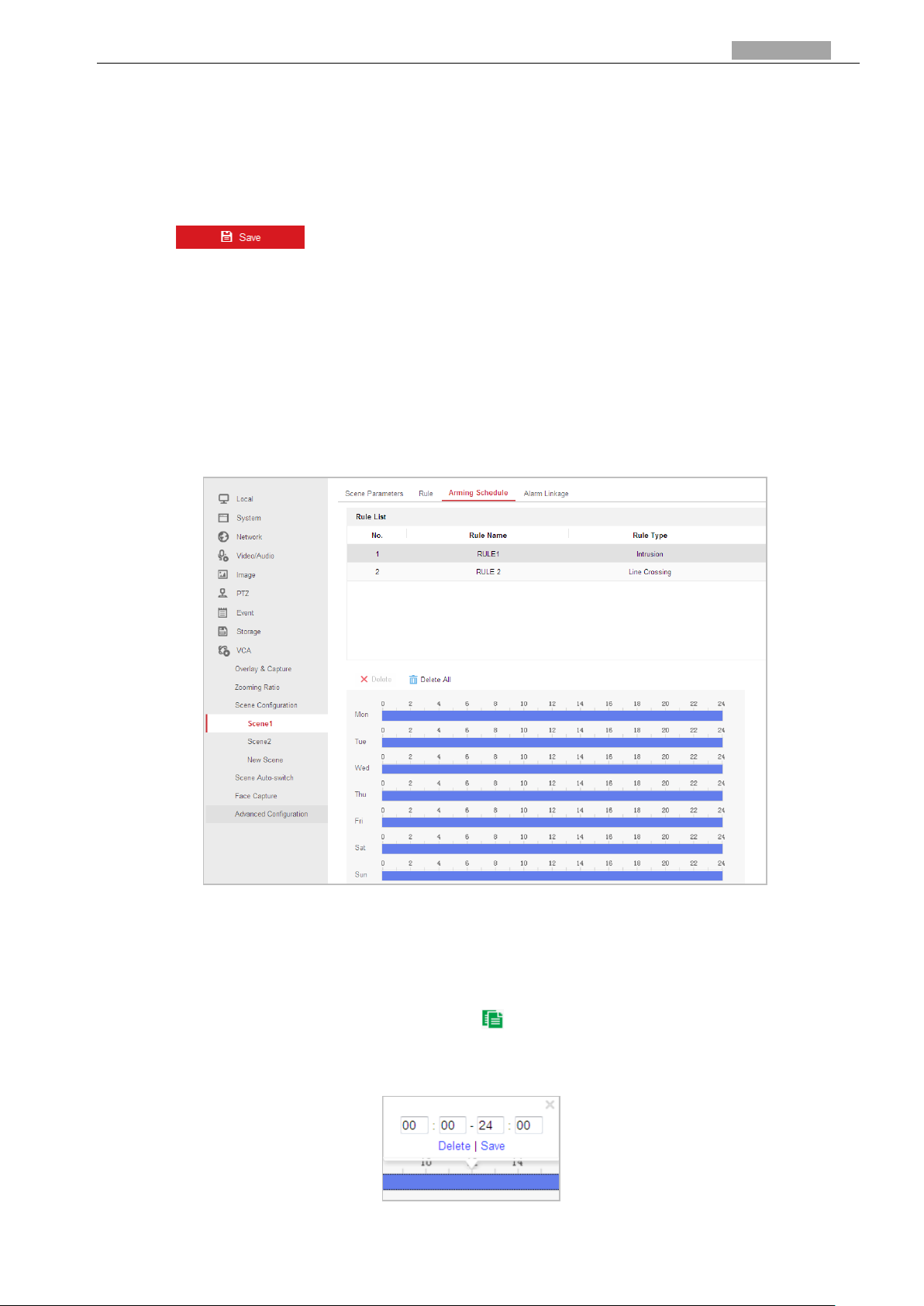

Figure 6-24 VCA Arming Schedule Interface

12. The saved rules will be listed in the rule list. Click to select a rule to set the arming schedule.

13. Select the timeline of a certain day, and drag the left button of the mouse to set the arming

schedule (the start time and end time of the recording task).

14. After you set the scheduled task, you can click and copy the task to other days (optional).

15. After setting the arming schedule, you can click an arming segment to display the segment

arming settings interface to edit the segment arming parameters. (optional)

Figure 6-25 Segment Arming Settings

User Manual of PanoVu Series Network Camera

16. Click to save the settings.

Note:

You can select to copy the settings to whole week or are specific days of the week. At most 8 segments can be configured.

Alarm Linkage

Steps:

1. Enter the Alarm Linkage settings interface:

Configuration > VCA > Scene Configuration > Scene > Alarm Linkage

Figure 6-26 Alarm Linkage Interface

2. Select a rule from the rule list.

3. Check the checkbox of corresponding linkage actions to enable it.

4. Click to save the settings.

6.3.6 Scene Auto-switch

Purpose:

You can set the sequence for the scene when doing patrol tracking (at least one scene is required to enable scene auto-switch).

Steps:

1. Enter the Scene Auto-switch interface:

Configuration > VCA > Scene Auto-switch.

Figure 6-27 Scene Auto-switch Interface

User Manual of PanoVu Series Network Camera

2. Select scene name from the dropdown list and input the dwell time.

3. You can click and to move up and down the scene of the patrol sequence list.

Note:

If the sequence is selected as 0, this scene will not be configured for patrol tracking.

5. Click to save the settings.

6.3.7 Face Capture

Steps:

1. Select Face Capture/Behavior Analysis & Face Capture as VCA resource.

1) Go to System > System Settings > VCA Resource.

2) Select the Face Capture/Behavior Analysis & Face Capture as the intelligent resource.

3) Click to save the settings.

2. Enter the Face Capture interface:

Configuration > VCA > Face Capture

3. Configure Face Capture parameters:

Check the check box to enable the function of face capture.

Figure 6-28 Face Capture

Capture Interval: Range [1-255], the interval between two capture actions. Capture Times: Range [1-10], the times for capturing the person who passes through the

detection region. If the person passes very fast, the capture times may be less than the set parameter. Sensitivity: Range [1-5], the sensitivity for face detection. Larger value means higher sensitivity, more faces will be detected and also false detection rate will rise. In general, it is recommended to use the default value. Decrease the value if the false detection rate is high. Capture Sensitivity: Range [0-20], the threshold for judging whether to do face capture.

4. Click to save the settings.

6.3.8 Shield Region

Steps:

1. Get the Behavior Analysis interface:

User Manual of PanoVu Series Network Camera

Go to VCA Configuration.> VCA Resource. Select the Face Capture as the intelligent resource. Click Save to save the settings.

2. Configure the VCA Info: For details, see 6.2 VCA Information.

3. Configure the Shield Region:

The system will shield the meaningless region to reduce the environment impact and to improve the detection accuracy.

Note:

At most 4 regions can be configured.

Steps:

1) Rotate the network camera to the required scene by control the PTZ key board.

2) Click on the tool bar of the live view panel. Click the mouse to draw a region on

the live view panel. Right click the mouse to finish.

Figure 6-29 Shield Region

3) Click to save the settings.

4. Configure Rule Parameters:

You can set the detection area for the scene. The system will only detect and analyze objects in the configured area.

Steps:

1) Enable Rule: Check the checkbox to enable the Face Capture rule.

Figure 6-30 Draw Area

User Manual of PanoVu Series Network Camera

2) Draw the Detection Area: Click on the tool bar of the live view panel. Click the

mouse to draw an area on the live view panel. Right click the mouse to finish. Click Save to save the settings.

3) Draw the Minimum Pupil Distance: Click on the tool bar of the live view panel. Drag

the mouse to draw a pupil distance on the live view panel. The system will filter the objects with a pupil distance which is less than the configured value.

4) Click to save the settings.

6.3.9 Rule Configuration Demonstration

This section provides detailed configuration steps for each rule.

Line Crossing

Purpose:

This function can be used for detecting people, vehicles and objects traversing a set virtual plane. The traversing direction can be set as bidirectional, from left to right or from right to left. The alarm will be triggered if the rule is broken.

Steps:

1. Create new rule: Click add a new rule.

2. Select rule type: Click the dropdown list and select Line Crossing as the rule type.

Figure 6-31 Select Rule Type

3. Configure the rule area:

Click on the tool bar of the live view panel. Adjust the position and length of the line on

the live view panel.

User Manual of PanoVu Series Network Camera

Figure 6-32 Draw Line

4. Click the dropdown list in the rule list to select the crossing direction.

Figure 6-33 Select Crossing Direction

5. Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

6. Click to save the settings.

Intrusion

Purpose:

This function can be used for detecting whether there are people, vehicles and objects intrude into the pre-defined region longer than the set duration. The alarm will be triggered if the rule is broken.

Steps:

1. Create new rule: Click add a new rule.

2. Select rule type: Click the dropdown list and select Intrusion as the rule type.

Figure 6-34 Select Rule Type

User Manual of PanoVu Series Network Camera

3. Configure the rule area:

Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right

click the mouse to finish drawing.

Figure 6-35 Draw Area

4. Set the duration from 1to 100.

5. Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

6. Click to save the settings.

Region Entrance

Purpose:

This function can be used for detecting people, vehicles and objects entering the pre-defined region. The alarm will be triggered if the rule is broken.

Steps:

1. Create new rule: Click to add a new rule.

2. Select rule type: Click the dropdown list and select Region Entrance as the rule type.

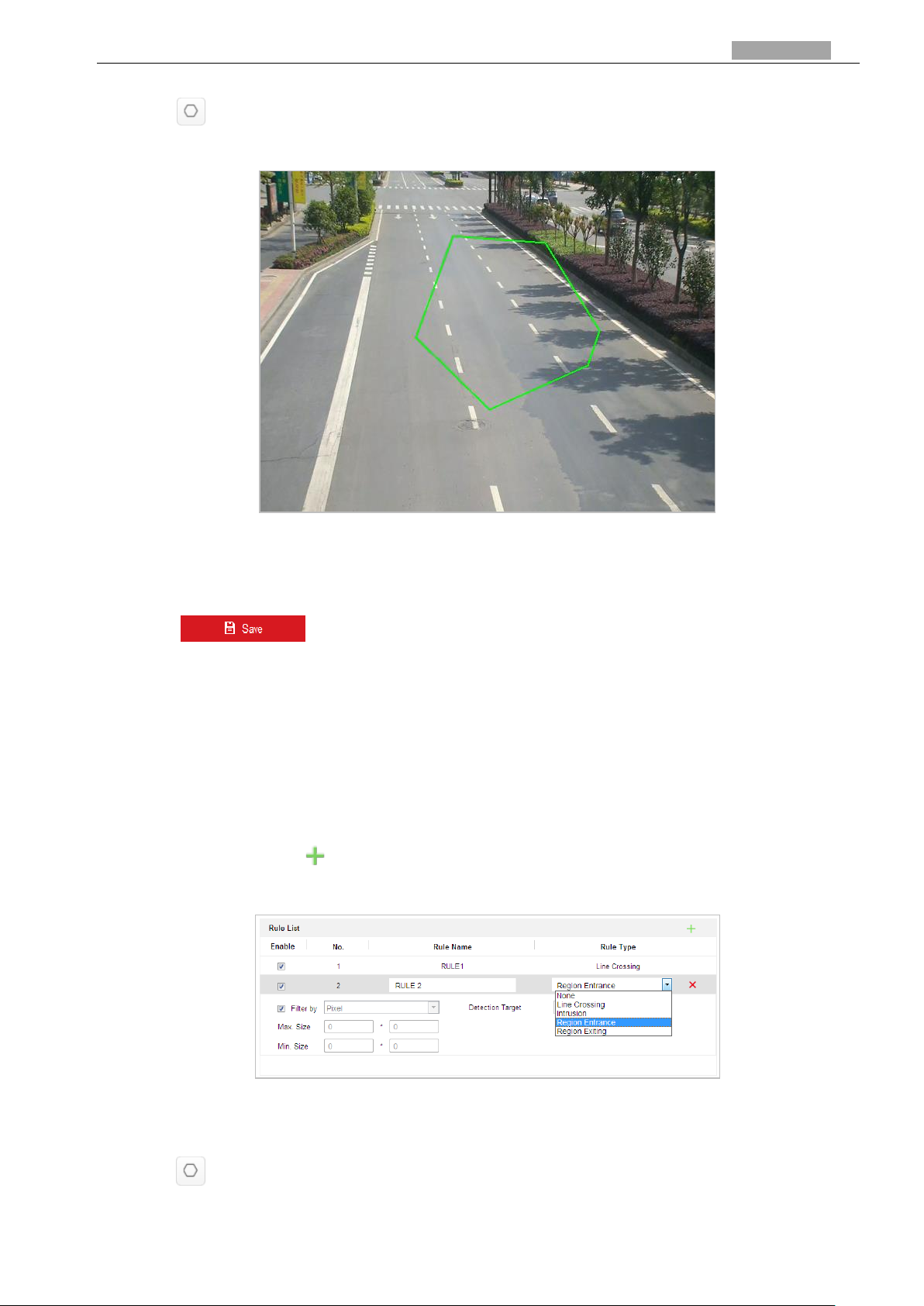

Figure 6-36 Select Rule Type

3. Configure the rule area:

Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right

click the mouse to finish drawing.

User Manual of PanoVu Series Network Camera

Figure 6-37 Draw Area

4. Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

5. Click to save the settings.

Region Exiting

Purpose:

This function can be used for detecting people, vehicles and objects exiting the pre-defined region. The alarm will be triggered if the rule is broken.

Steps:

1. Create new rule: Click to add a new rule.

2. Select rule type: Click the dropdown list and select Region Exiting as the rule type.

Figure 6-38 Select Rule Type

3. Configure the rule area:

Click on the tool bar of the live view panel. Click the mouse on the live view panel. Right

click the mouse to finish drawing.

User Manual of PanoVu Series Network Camera

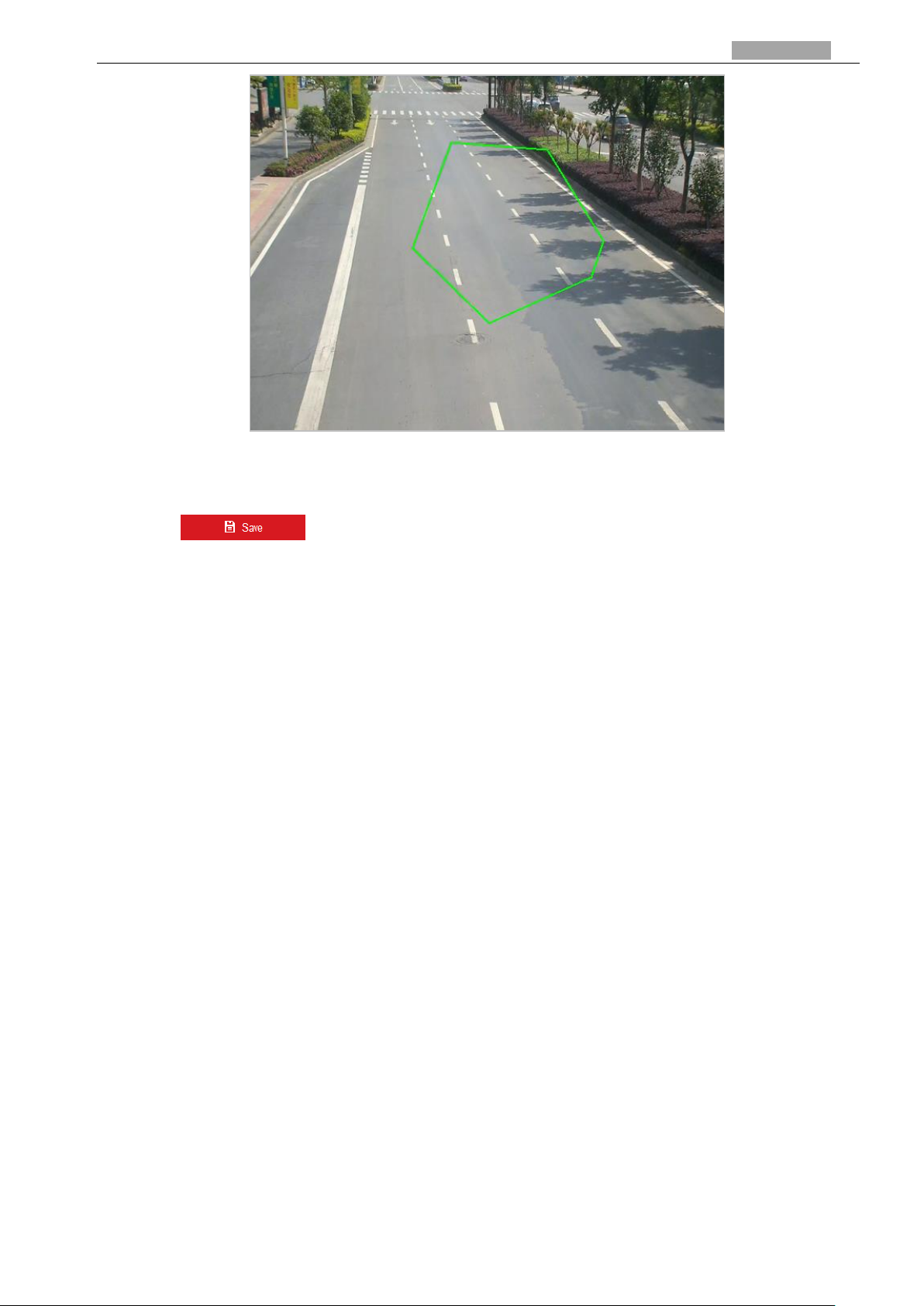

Figure 6-39 Draw Area

4. Enable rules: Check the Enable checkbox of each rule in the rule list to enable the rule.

5. Click to save the settings.

User Manual of PanoVu Series Network Camera

Chapter 7 Maintenance

7.1 System Setting

7.1.1 Viewing Basic Information

Enter the Basic Information interface: Configuration > System > System Settings > Basic Information

In the Basic Information interface, you can edit the Device Name and Device No.

Other information of the camera, such as Model, Serial No., Firmware Version, Encoding Version, Web Version, Plugin Version, Number of Channels, Number of HDDs, Number of Alarm Input and Number of Alarm Output are displayed. The information cannot be changed in this menu. It is the reference for maintenance or modification in future.

Figure 7-1 Device Information

7.1.2 Time Settings

Purpose:

You can follow the instructions in this section to configure the time which can be displayed on the video. There are Time Zone, Time Synchronization, Daylight Saving Time (DST) functions for setting the time. Time Synchronization consists of auto mode by Network Time Protocol (NTP) server and manual mode. To enter the Time settings interface:

Configuration > System > System Settings > Time Settings
