Hikvision DS-2CE56D8T-IT3Z, DS-2CE76D3T-ITMFB-2-8mm, DS-2CE76D3T-ITMFB-3-6mm, DS-2CE76D3T-ITMFB-6mm User Manual

Type

Model

Type I Camera

DS-2CE16D8T-(A)IT3Z(E)

Type II Camera

DS-2CE56D8T-IT3Z(E)

TURBO HD
D8T Series

Bullet & Turret Camera

User Manual

UD05333B-A

User Manual

Thank you for purchasing our product. If there are any
questions, or requests, do not hesitate to contact the
dealer.
This manual applies to the models below:

This manual may contain technical incorrect places or
printing errors, and the content is subject to change
without notice. The updates will be added to the new
version of this manual. We will readily improve or
update the products or procedures described in the
manual.

0100001070426

Regulatory Information

FCC Information

Please take attention that changes or modification not
expressly approved by the party responsible for

compliance could void the user’s authority to operate

the equipment.
FCC compliance: This equipment has been tested and
found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in
which case the user will be required to correct the
interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received,
including interference that may cause undesired
operation.

EU Conformity Statement

This product and - if applicable - the
supplied accessories too are marked with
"CE" and comply therefore with the

standards listed under the Low Voltage Directive
2014/35/EU, the EMC Directive 2014/30/EU.

equipment, or dispose of it at designated collection
points. For more information see: www.recyclethis.info.
2006/66/EC (battery directive): This product contains a

include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery
to your supplier or to a designated collection point. For
more information see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A)
standards requirements.

applicable harmonized European

2012/19/EU (WEEE directive): Products
marked with this symbol cannot be
disposed of as unsorted municipal waste in
the European Union. For proper recycling,
return this product to your local supplier
upon the purchase of equivalent new

battery that cannot be disposed of as
unsorted municipal waste in the European
Union. See the product documentation for
specific battery information. The battery is
marked with this symbol, which may

Warnings Follow
these safeguards to
prevent serious injury
or death.

Cautions Follow these
precautions to prevent
potential injury or
material damage.

Safety Instruction

These instructions are intended to ensure that user can
use the product correctly to avoid danger or property
loss.

The precaution measure is divided into “Warnings” and
“Cautions”.

Warnings: Serious injury or death may occur if any of
the warnings are neglected.
Cautions: Injury or equipment damage may occur if any
of the cautions are neglected.

Warnings

 In the use of the device, you must be in strict

compliance with the electrical safety regulations of
the nation and region.

 Input voltage should meet both the SELV (Safety Extra

Low Voltage) and the Limited Power Source with 12
VDC according to the IEC60950-1 standard. Refer to
technical specifications for detailed information.

 Do not connect multiple devices to one power

adapter to avoid over-heating or a fire hazard caused
by overload.

 Make sure that the plug is firmly connected to the

power socket.

 Make sure that the device is firmly fixed if wall

mounting or ceiling mounting is adopted.

 If smoke, odor or noise rise from the device, turn off

the power at once and unplug the power cord, and
then contact the service center.

 Never attempt to disassemble the camera by

unprofessional personal.

Cautions

 Do not drop the camera or subject it to physical

shock.

 Do not touch senor modules with fingers.
 If cleaning is necessary, use clean cloth with a bit of

ethanol and wipe it gently.

 Do not aim the camera at the sun or extra bright

places.

 The sensor may be burned out by a laser beam, so

when any laser equipment is in using, make sure that
the surface of sensor will not be exposed to the laser
beam.

 Do not expose the device to high electromagnetic

radiation or extremely hot, cold, dusty or damp
environment.

 To avoid heat accumulation, good ventilation is

required for the operating environment.

 Keep the camera away from liquid while in use for

non-water-proof device.

 While in delivery, the camera shall be packed in its

original packing, or packing of the same texture.

Photoresistor

Model I Cables

Video Cable

Power Cord
24 VAC/12 VDC

Video Cable

Power Cord
12 VDC

Model II Cables

Main Body

Lens

Bracket

Cables

Auxiliary Video
Output

Menu Button

DIP Switch

Camera

Clip Plate

Enclosure

Video Cable

12 VDC
Power Cord

Mounting

Base

1 Introduction

1.1 Product Features

The camera is applicable for both indoor and outdoor
conditions, and the application scenarios include road,
warehouse, underground parking lot, bar, etc..
The main features are as follows:

 High performance CMOS sensor
 Low illumination, 0.005 Lux @ (F1.8, AGC ON), 0 Lux

with IR

 IR cut filter with auto switch
 OSD menu with configurable parameters
 Auto white balance
 Internal synchronization
 SMART IR mode
 PoC (with -E)
 3-axis adjustment

1.2 Overview

Before you start:

The cables of device vary according to different models.
The cables of each type are shown in the figures below,
refer to the actual sample.
You can debug the camera by connecting an auxiliary
HD TVI cable to the auxiliary video output.

1.2.1 Overview of Type I Camera

Figure 1-1 Overview of Type I Camera

1.2.2 Overview of Type II Camera

Figure 1-2 Overview of Type II Camera

2 Installation

Before you start:

 Make sure that the device in the package is in good

condition and all the assembly parts are included.

 Make sure that all the related equipment is power-off

during the installation.

 Check the specification of the products for the

installation environment.

 Check whether the power supply is matched with

your power output to avoid the damage.

 Make sure the wall is strong enough to withstand

three times the weight of the camera and the
bracket.

 If the wall is cement, insert expansion bolts before

installing the camera. If the wall is wooden, use
self-tapping screws to secure the camera.

 If the product does not function properly, contact

your dealer or the nearest service center. Do NOT
disassemble the camera for repair or maintenance by
yourself.

2.1 Installation of Type I Camera

2.1.1 Ceiling/Wall Mounting without Junction Box

Before you start:

Both wall mounting and ceiling mounting are suitable
for the bullet camera. Ceiling mounting will be taken as
an example in this section. And you can take steps of
ceiling mounting as a reference for wall mounting.

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes and the cable hole (optional) in

the ceiling according to the drill template.

Figure 2-1 Drill Template

Note:

Drill the cable hole, when adopting ceiling outlet to
route the cable.

3. Route the cables through the cable hole, or the side

opening.

4. Fix the camera to the ceiling with supplied screws.

Figure 2-2 Fix the Camera to the Ceiling

Note:

 The supplied screw package contains self-tapping

screws, and expansion bolts.

0° to 90°

0° to 360°

0° to 360°

1

2

3

 For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws
are required.

5. Connect the corresponding power cord, and video

cable.

6. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If
not, adjust the surveillance angle.

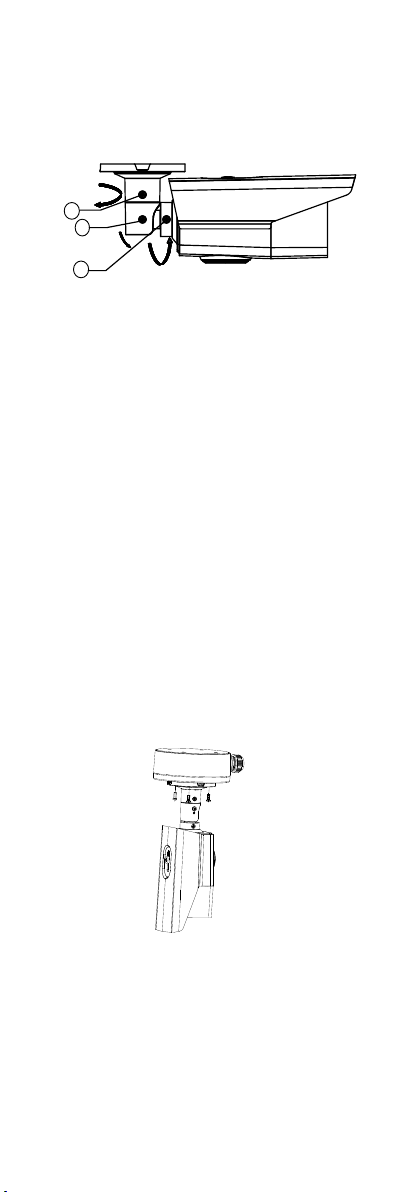

Figure 2-3 3-axis Adjustment

1) Loosen the No.1 adjusting screw to adjust the

pan position [0° to 360°]. Tighten the No.1
adjusting screw.

2) Loosen the No.2 adjusting screw to adjust the

tilting position [0° to 90°]. Tighten the No. 2
adjusting screw.

3) Loosen the No.3 adjusting screw to adjust the

rotation position [0° to 360°]. Tighten the No.3
adjusting screw.

2.1.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the junction box’s drill template on the

ceiling/wall.

2. Drill screw holes and the cable hole (optional) in the

ceiling/wall according to the holes of the drill
template.

Note:

Drill the cable hole, when adopting ceiling outlet to
route the cable.

3. Take apart the junction box, and align the screw

holes of the bullet camera with those on the
junction box’s cover.

4. Fix the camera on the junction box’s cover.

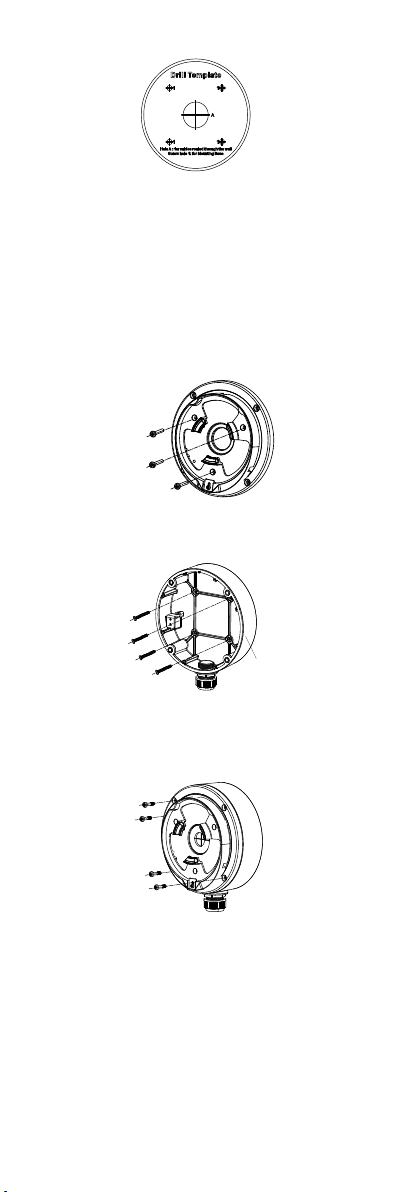

Figure 2-4 Fix the Camera with the Gang Box

5. Attach the junction box’s body to the ceiling/wall by

aligning the screw holes of the junction box.

6. Secure the junction box’s body with supplied screws

on the ceiling/wall.

Screw

Junction

Box Body

Clip Plate

Figure 2-5 Fix the Camera to the Ceiling

7. Route the cables through the cable hole, or the side

opening of the junction box.

8. Combine the junction box cover with its body.

Figure 2-6 Fix the Junction Box Cover back to its Body

9. Refer to step 6 of 2.1.1 Ceiling/Wall Mounting

without Junction Box to complete the installation.

2.2 Installation of Type II Camera

2.2.1 Ceiling/Wall Mounting without Junction Box

Steps:

1. Paste the drill template (supplied) to the place

where you want to install the camera.

2. Drill the screw holes according to the drill template

and the cable hole (optional) in the ceiling/wall.

Note:

Drill the cable hole, when adopting the ceiling outlet
to route the cable.

3. Loosen screws to remove the clip plate, and take out

the main body.

Figure 2-7 Drill Template

Figure 2-8 Remove the Clip Plate

4. Fix the mounting base on the ceiling with supplied

screws.

Pan Position
[0° to 360°]

Tilt Position
[0° to 75°]

Rotation Position
[0° to 360°]

Figure 2-9 Fix the Mounting Base on the Ceiling

Note:

 The supplied screw package contains self-tapping

screws, and expansion bolts.

 For cement wall, expansion bolts are required to fix

the camera. For wooden wall, self-tapping screws
are required.

5. Route the cables through the cable hole, or the side

opening.

6. Install the main body to the mounting base and

insert the clip plate.

7. Tighten the screws with the screw driver.

Figure 2-10 Install the Turret Camera

8. Connect the corresponding cables, such as power

cord, and video cable.

9. Power on the camera to check whether the image

on the monitor is gotten from the optimum angle. If
not, adjust the camera according to the figure below
to get an optimum angle.

Figure 2-11 3-axis Adjustment

1). Hold the camera body and rotate the enclosure
to adjust the pan position [0° to 360°].

2). Move the camera body up and down to adjust
the tilt position [0° to 75°].

3). Rotate the camera body to adjust the rotation
position [0° to 360°].

2.2.2 Ceiling/Wall Mounting with Junction Box

Before you start:

You need to purchase a junction box separately.

Steps:

1. Paste the junction box’s drill template on the

ceiling/wall.

2. Drill screw holes and the cable hole (optional) in the

ceiling/wall according to the holes of the drill
template.

Junction

Box Body

Figure 2-12 Drill Template of the Junction Box

Note:

Drill the cable hole, when adopting the ceiling outlet
to route the cable.

3. Refer to step 3 of 2.2.1 Ceiling/Wall Mounting

without Junction Box to take out the camera’s main

body.

4. Take apart the junction box, and align the screw

holes of the camera with those on the junction
box’s cover.

5. Fix the camera’s mounting base on the junction

box’s cover with three PM4 × 10 screws.

Figure 2-13 Secure Screws on Junction Box’s Cover

6. Secure the junction box’s body on the ceiling/wall

with four PA4 × 25 screws.

Figure 2-14 Secure the Junction Box’s Body on Wall

/Ceiling

7. Combine the junction box cover with its body by

tightening four screws on junction box’s cover.

Figure 2-15 Fix the Junction Box

8. Repeat steps 5 to 9 of 2.2.1 Ceiling/Wall Mounting

without Junction Box to complete the installation.

Camera

TVI DVR

Monitor

AE

WB

BRIGHTNESS

MAIN MENU

FORMAT

LANGUAGE

DAY NIGHT

VIDEO

SETTINGS

FUNC

RESET

SAVE & EXIT

PRIVACY

EXPOSURE MODE

AGC

SENSE UP

MODE

RETURN

MODE

RETURN

CONTRAST

SHARPNESS

COLOR GAIN

3D DNR

MIRROR

RETURN

MOTION

CAM ID

RETURN

FOCUS

3 Menu Description

Purpose:

Call the menu by clicking button on the PTZ Control
interface, or call preset No.95.

Steps:

1. Connect the camera with the TVI DVR, and the

monitor shown as the Figure 3-1.

2. Power on the analog camera, TVI DVR, and the

monitor to view the image on the monitor.

3. Click PTZ Control to enter the PTZ Control interface.

4. Call the camera menu by clicking button, or call

preset No. 95.

Figure 3-1 Connection

5. Click the direction arrow to control the camera.

1) Click up/down direction button to select the

2) Click Iris + to confirm the selection.

3) Click left/right direction button to adjust the

3.1 FORMAT

PAL (Phase Alternating Lines)

PAL is a color encoding system for analog television
used in broadcast television systems in most countries.

NTSC: (National Television System Committee)

NTSC is the analog television system that is used in
most of North America, parts of South America,
Myanmar, South Korea, etc.

3.2 LANGUAGE

Supports English, and Chinese.

Figure 3-2 Main Menu Overview

item.

value of the selected item.

EXPOSURE

BRIGHTNESS
EXPOSURE MODE
AGC
SENSE UP
RETURN

5
GLOBAL
MIDDLE
0

3.3 FOCUS

Move the cursor to FOCUS, and press the Iris+ to enter
the submenu. Click FOCUS+, FOCUS-, ZOOM+, and

ZOOM- to adjust the focus.

3.4 MAIN MENU

3.4.1 AE (AUTO EXPOSURE)

Auto Exposure describes the brightness-related
parameters, which can be adjusted by BRIGHTNESS,
EXPOSURE MODE, AGC, and SENSE UP.

Figure 3-3 AE

BRIGHTNESS

Brightness refers to the brightness of the image.
You can set the brightness value from 1 to 10 to darken
or brighten the image. The higher the value, the
brighter the image is.

EXPOSURE MODE You can set the EXPOSURE MODE as GLOBAL, BLC, and

WDR.

 GLOBAL

GLOBAL refers to the normal exposure mode which
adjusts lighting distribution, variations, and
non-standard processing.

 BLC (Backlight Compensation)

BLC (Backlight Compensation) compensates light to the
object in the front to make it clear, but this may cause
the over-exposure of the background where the light is
strong.
When BLC is selected as the exposure mode, the BLC
level can be adjusted from 0 to 8.

 WDR (Wide Dynamic Range)

The wide dynamic range helps the camera provide clear
images even under backlight circumstances. WDR
balances the brightness level of the whole image and
provides clear images with details.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light
conditions. The GAIN level can be set as HIGH, MIDDLE,
or LOW. Select OFF to disable the GAIN function.

Note:

The noise will be amplified when the GAIN is on.

SENSE UP

Sense up increases the exposure on a signal frame,
which makes a camera more sensitive to light so it can
produce images even in low lux conditions. You can set
the SENS-UP as OFF or AUTO according to different light
conditions.
The SENS-UP function will atomically adjust itself to x2,
x4, x6, x8, x10, x12, x14, and x16 according to the
different light conditions.

3.4.2 WB (White Balance)

White balance, the white rendition function of the
camera, is to adjust the color temperature according to

WB
MODE

R GAIN
B GAIN

RETURN

MWB
5
5

DAY NIGHT
MODE

INFRARED
SMART IR
RETURN

AUTO
ON
4

VIDEO SETTING
CONTRAST

SHARPNESS
COLOR GAIN
3D DNR
MIRROR

RETURN

5
5
5
5
DEFAULT

the environment. It can remove unrealistic color casts in
the image. You can set WB mode as ATW, or MWB.

ATW (Aoto Tracking White Balance)

Under ATW mode, white balance is being adjusted
automatically according to the color temperature of the
scene illumination.

MWB (Manual White Balance)

You can set the R GAIN/B GAIN value from 1 to 255 to
adjust the shades of red/blue color of the image.

Figure 3-4 MWB MODE

3.4.3 DAY NIGHT Color, BW (Black White), and AUTO are selectable for

DAY and NIGHT switches.

COLOR

The image is colored in day mode all the time.

B/W

The image is black and white all the time, and the IR
LED turns on in the low-light conditions.

AUTO You can turn on/off the INFRARED and set the value of

SMART IR in this menu.

Figure 3-5 DAY NIGHT

 INFRARED

You can turn on/off the IR LED to meet the
requirements of different circumstances.

 SMART IR

The Smart IR function is used to adjust the light to its
most suitable intensity, and prevent the image from
over exposure. The SMART IR value can be adjusted
from 1 to 8. The higher the value the more obvious
effects are.

3.4.4 VIDEO SETTING

Move the cursor to VIDEO SETTING and click Iris+ to
enter the submenu. CONTRAST, SHARPNESS, COLOR
GAIN, 3D DNR, and MIRROR are adjustable.

Figure 3-6 VIDEO SETTING

PRIVACY
MODE

AREA 0
AREA 1
AREA 2
AREA 3
COLOR
TRANSPARENCY
RETURN

ON






RED
OFF

MOTION
MODE

AREA 0
AREA 1
AREA 2
AREA 3
SENSITIVITY
COLOR
TRANSPARENCY
RETURN

OFF






50
RED
OFF

CONTRAST

This feature enhances the difference in color and light
between parts of an image. You can set the CONTRAST
value from 1 to 10.

SHARPNESS

Sharpness determines the amount of detail an imaging
system can reproduce. You can set the SHARPNESS
value from 1 to 10.

COLOR GAIN

Adjust this feature to change the saturation of the color.
The value ranges from 1 to 10.

3D DNR (Digital Noise Reduction)

The 3D DNR function can decrease the noise effect,
especially when capturing moving images in low light
conditions and delivering more accurate and sharp
image quality. You can set the DNR value from 1 to 10.

MIRROR
DEFAULT, H, V, and HV are selectable for mirror.

DEFAULT: The mirror function is disabled.
H: The image flips 180° horizontally.
V: The image flips 180° vertically.
HV: The image flips 180° both horizontally and

vertically.

3.4.5 FUNC (Functions)

In the FUNC sub-menu, you can set the privacy mask,
the motion detection, and camera ID of the camera.

PRIVACY

The privacy mask allows you to cover certain areas
which you don’t want to be viewed or recorded. Up to 4
privacy areas are configurable.

Figure 3-7 PRIVACY

Select a PRIVACY area. Set the DISPLAY status as ON.
Click up/down/left/down button to define the position
and size of the area.

MOTION

In the user-defined motion detection surveillance area,
the moving object can be detected and the alarm will
be triggered. Up to 4 motion detection areas can be
configured.

Select a MOTION area. Set the DISPLAY status as ON.
Click the up/down/left/right button to define the

Figure 3-8 MOTION

CAM ID SETTING
MODE

CAM ID
X POSITION
Y POSITION
RETURN

ON



75
36
16

position and size of the area. Set the SENSITIVITY from
0 to 100.

CAMERA ID

Edit the camera ID on this section.

Figure 3-9 CAM ID SETTING

Set the MODE as on. Click up/don left/right button to choose
the camera ID and the position.

3.4.6 RESET

Reset all the settings to the default.

3.4.7 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save
the setting and exit the menu.
