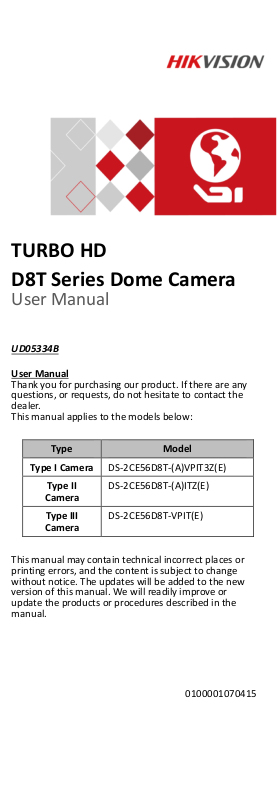

TURBO HD
D8T Series Dome Camera
User Manual
UD05334B
User Manual
Thank you for purchasing our product. If there are any questions, or requests, do not hesitate to contact the dealer.
This manual applies to the models below:
Type |
Model |
Type I Camera |
DS-2CE56D8T-(A)VPIT3Z(E) |
|
|
Type II |
DS-2CE56D8T-(A)ITZ(E) |
Camera |
|
|
|
Type III |
DS-2CE56D8T-VPIT(E) |
Camera |
|
|
|
This manual may contain technical incorrect places or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.
0100001070415
Regulatory Information
FCC Information
Please take attention that changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
1.This device may not cause harmful interference.
2.This device must accept any interference received, including interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU.
2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new
equipment, or dispose of it at designated collection points. For more information see: www.recyclethis.info. 2006/66/EC (battery directive): This product contains a
battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may
include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info.
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.
Safety Instruction
These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss.
The precaution measure is divided into “Warnings” and “Cautions”.
Warnings: Serious injury or death may occur if any of the warnings are neglected.
Cautions: Injury or equipment damage may occur if any of the cautions are neglected.
|
|
Warnings Follow |
Cautions Follow these |
these safeguards to |
precautions to prevent |
prevent serious injury |
potential injury or |
or death. |
material damage. |
|
|
Warnings
In the use of the device, you must be in strict compliance with the electrical safety regulations of the nation and region.
Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard. Refer to technical specifications for detailed information.
Do not connect multiple devices to one power adapter to avoid over-heating or a fire hazard caused by overload.
Make sure that the plug is firmly connected to the power socket.
Make sure that the device is firmly fixed if wall mounting or ceiling mounting is adopted.
If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cord, and then contact the service center.
Never attempt to disassemble the camera by unprofessional personal.
Cautions
Do not drop the camera or subject it to physical shock.
Do not touch senor modules with fingers.
If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
Do not aim the camera at the sun or extra bright places.
The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.
Do not expose the device to high electromagnetic radiation or extremely hot, cold, dusty or damp environment.
To avoid heat accumulation, good ventilation is required for the operating environment.
Keep the camera away from liquid while in use for non-water-proof device.
While in delivery, the camera shall be packed in its original packing, or packing of the same texture..
The camera is applicable for both indoor and outdoor conditions, and the application scenarios include road, warehouse, underground parking lot, bar, etc.
The main features are as follows:
High performance CMOS sensor
Low illumination, 0.005 Lux @ (F 1.8, AGC ON), 0 Lux with IR
IR cut filter with auto switch
OSD menu with configurable parameters
Auto white balance
internal synchronization
SMART IR mode
PoC (with-E)
3-axis adjustment
Note:
Type II camera is applicable to indoor conditions only.
Before you start:
The cables of device vary according to different models. The cables of each type are shown in the figures below, refer to the actual sample.
You can debug the camera by connecting an auxiliary HD TVI cable to the auxiliary video output.
Lens |
Cables |
Power Cord |
|
24 VAC/12 VDC |
|||
|
|||
|
|
||
Auxiliary |
Video Cable |
||
Model I Cables |
|||
Video Output |
|||
|
|||
Menu Button |
|
||
|
|
Power Cord |
|
|
|
12 VDC |
|
|
|
Video Cable |
|
Bubble |
Back Box |
Model II Cables |
|
|
|||
Figure 1-1 Overview of Type I Camera |
|||
1.2.2 Overview of Type II Camera |
|||
Lens |
Cables |
Power Cord |
|
|
|
||
|
|
24 VAC/12 VDC |
|
|
Base Plate |
Video Cable |
|
|
Model I Cables |
||
|
Auxiliary |
||
|
|
||
Menu Button |
Video Output |
Power Cord 12 VDC |
|
|
|
||
|
|
Video Cable |
|
|
|
Model II Cables |
|
Bubble |
Back Box |
|
Figure 1-2 Overview of Type II Camera
|
Power Cord |
|
Mounting |
12 VDC |
|
Video Cable TVI |
||
Base |
||
|
||
Tilt Adjusting |
IR LED |
|
Screw |
||
Photoresistor |
||
|
Black Liner |
|
Bubble |
|
|
|
Safty Rope |
Figure 1-3 Overview of Type III Camera
Before you start:
Make sure that the device in the package is in good condition and all the assembly parts are included.
Make sure that all the related equipment is power-off during the installation.
Check the specification of the products for the installation environment.
Check whether the power supply is matched with your power output to avoid the damage.
Make sure the wall is strong enough to withstand three times the weight of the camera and the bracket.
If the wall is cement, insert expansion bolts before installing the camera. If the wall is wooden, use self-tapping screws to secure the camera.
If the product does not function properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.
Before you start:
Both wall mounting and ceiling mounting are suitable for the dome camera. Ceiling mounting will be taken as an example in this section. And you can take steps of ceiling mounting as a reference for wall mounting.
Steps:
1.Paste the drill template to the celling.
2.Drill screw holes and the cable hole (optional) on the ceiling according to the supplied drill template.
Note:
Drill the cable hole when adopting the ceiling outlet to route the cable.
Type I Camera |
|
Type II Camera |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
