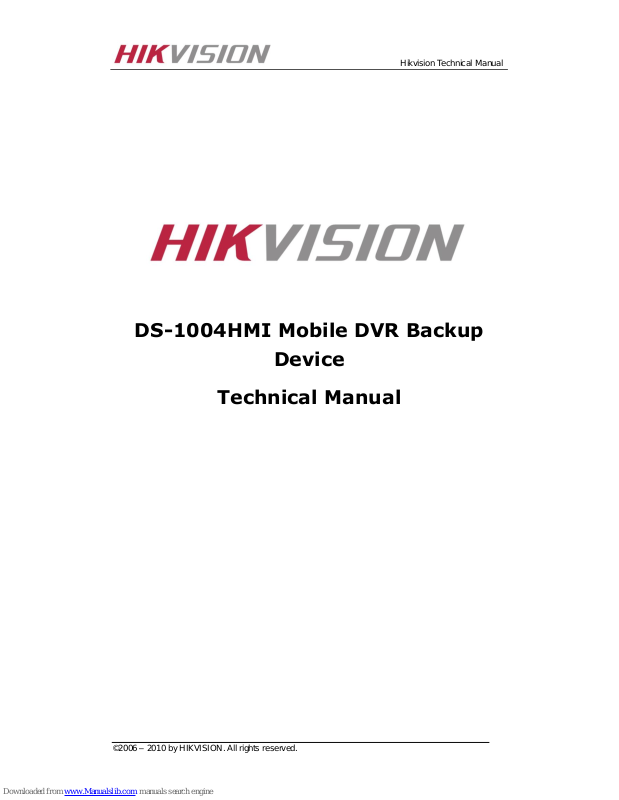

DS-1004HMI Mobile DVR Backup
Device
Technical Manual
Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
Notices
The information in this documentation is subject to change without notice and does
not represent any commitment on behalf of HIKVISION. HIKVISION disclaims any
liability whatsoever for incorrect data that may appear in this documentation. The
product(s) described in this documentation are furnished subject to a license and
may only be used in accordance with the terms and conditions of such license.
Copyright © 2006-2010 by HIKVISION. All rights reserved.
This documentation is issued in strict confidence and is to be used only for
the purposes for which it is supplied. It may not be reproduced in whole or in
part, in any form, or by any means or be used for any other purpose without prior
written consent of HIKVISION and then only on the condition that this notice is
included in any such reproduction. No information as to the contents or subject
matter of this documentation, or any part thereof, or arising directly or indirectly
therefrom, shall be given orally or in writing or shall be communicated in any
manner whatsoever to any third party being an individual, firm, or company or any
employee thereof without the prior written consent of HIKVISION. Use of this
product is subject to acceptance of the HIKVISION agreement required to use this
product. HIKVISION reserves the right to make changes to its products as
circumstances may warrant, without notice.
This documentation is provided “as-is,” without warranty of any kind.
Please send any comments regarding the documentation to:
overseabusiness@hikvision.com
Find out more about HIKVISION at www.hikvision.com
Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
Contents
1. Overview
2. Model Description
3. Hardware Interface
4. Specifications
Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
1. Overview
DS-1004HMI backup device is designed especially for mobile DVR of
pluggable hard drivers. It is used for backup the recorded video files from
mobile DVR hard drivers. It is simple and convenient to use.
You can plug the hard drivers of mobile DVR into DS-1004HMI, after you
connect DS-1004HMI to PC via USB or eSATA, you can copy the video files
directly or using export software, then save or playback the video files in
computer.
It is an optional peripheral device for Hikvision DS-81xxHMI,
DS-8008HMI/HMFI, DS-8012HMI/HMFI and DS-8600HMFI-GA series
car mobile DVR.
DS-1004HMI Front Panel
Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
2. Model Description
DS-1004HMI: support 2 SATA HDD and 1 e-SATA interface, support USB
2.0 interface.
Note: The default DVR package is without HDD.
A factory recommended HDD should be used for this device.
Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
3. Hardware Interface
1. USB Interface
2. USB Status Indicator
3. POWER Status Indicator
4. eSATA Interface
5. DC IN Interface
Hikvision Technical Manual
©2006 – 2010 by HIKVISION. All rights reserved.
4. Specifications
Model
DS-1004HMI
HDD interface
2, support 2.5” SATA HDD
External interface
1 e-SATA interface
1 USB2.0 interface
Power supply
DC +12V
Power consumption
2W (without HDD)
Working temperature
-10°C~+55°C
Working humidity
10%~90%
Size
146mm(W)*79mm(H)*203mm(D)
Weight
≤1.5Kg (without HDD)
