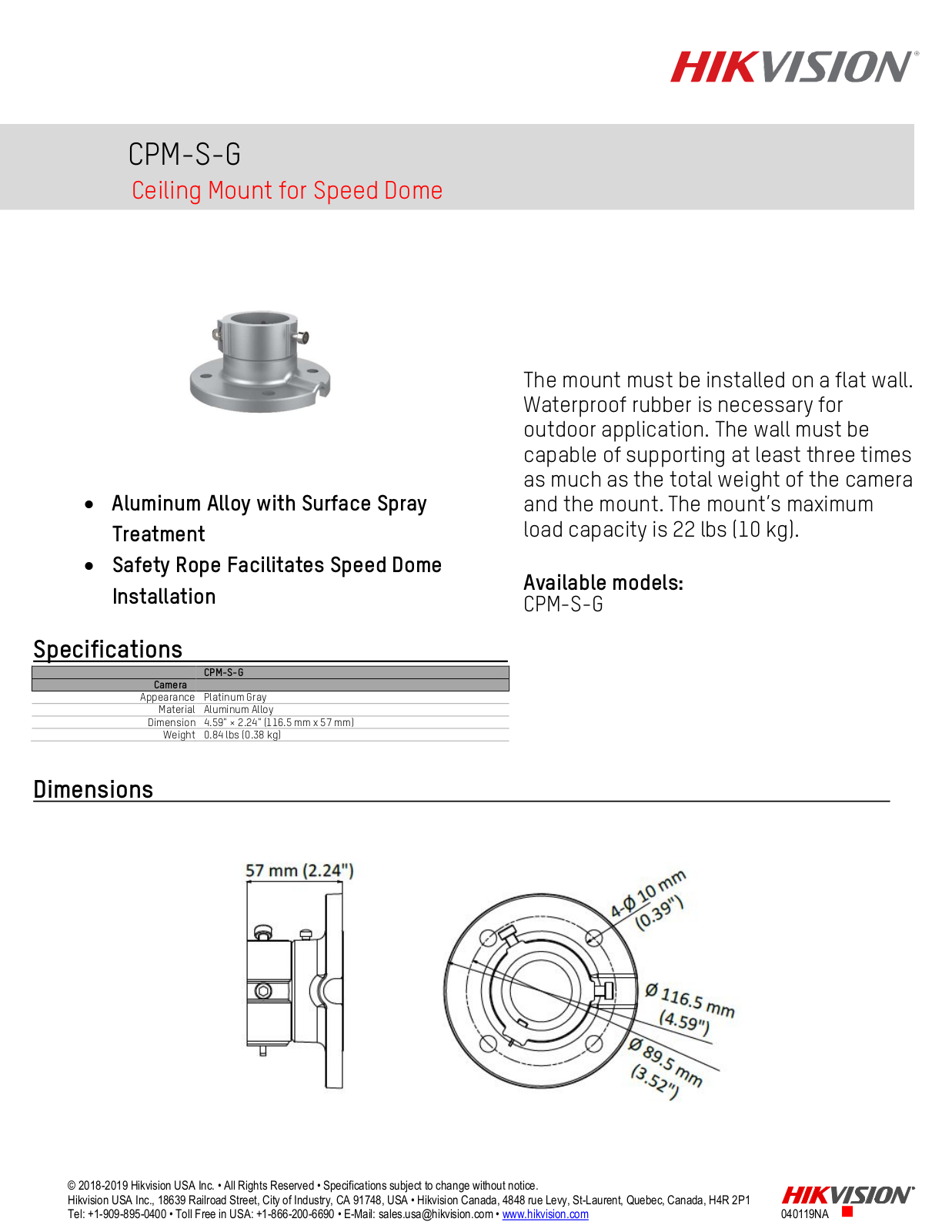

4.59" × 2.24" (116.5 mm x 57 mm)
CPM-S-G
Ceiling Mount for Speed Dome
• Aluminum Alloy with Surface Spray
Treatment
• Safety Rope Facilitates Speed Dome
Installation
The mount must be installed on a flat wall.
Waterproof rubber is necessary for
outdoor application. The wall must be
capable of supporting at least three times
as much as the total weight of the camera
and the mount.
load capacity is 22 lbs (10 kg).
Available models:
CPM-S-G
The mount’s maximum
Specifications
Dimensions
