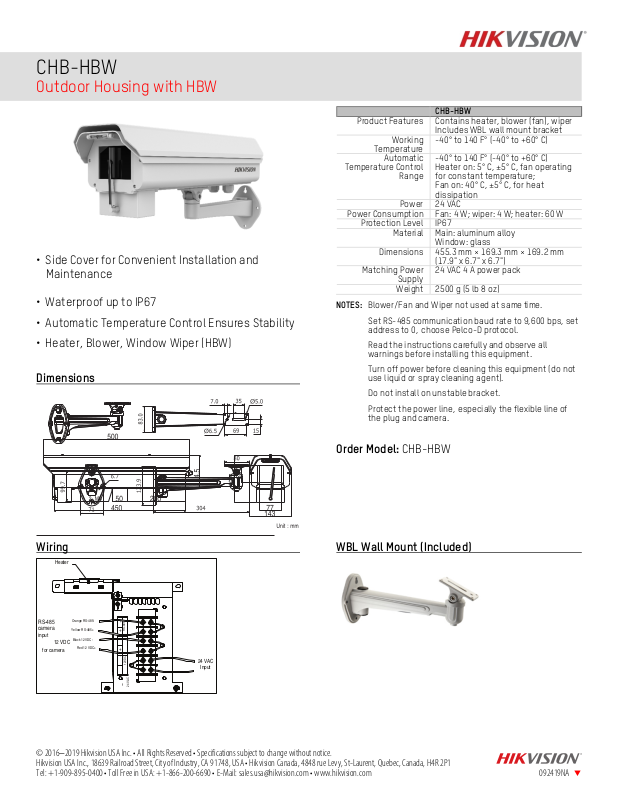

Hikvision CHB-HBW Specsheet

CHB-HBW
Product Features
Contains heater, blower (fan), wiper
Includes WBL wall mount bracket
Working
Temperature
-40° to 140 F
° (-40° to +60° C
)
Automatic
-40° to 140 F
° (-40° to +60° C
)
dissipation
Power
24 VAC
Power Consumption
Fan: 4 W; wiper: 4 W; heater: 60 W
Protection Level
IP67
Material
Main: aluminum alloy
Window: glass
Dimensions
455.3 mm × 169.3 mm × 169.2 mm
(17.9
" x 6.7" x 6.7")
Matching Power
Supply
24 VAC 4 A power pack
Weight
2500 g
(5 lb 8 oz
)
NOTES:
Blower/Fan and Wiper not used at same
time.
+
+
Heater
RS-485 camera
input
12 VDC
for camera
Orange RS-485-
Yellow RS-485+
Black 12 VDC-
Red 12 VDC+
24 VAC
Input
-
-
~
~
24 VAC IN
RS-485
12VDC
CHB-HBW
Outdoor Housing with HBW
• Side Cover for Convenient Installation and Maintenance
• Waterproof up to IP67
Temperature Control
Range
Heater on: 5° C, ±5° C, fan operating for constant temperature; Fan on: 40° C, ±5° C, for heat
• Automatic Temperature Control Ensures Stability
• Heater, Blower, Window Wiper (HBW)
Dimensions
Order Model: CHB-HBW
Set RS-485 communication baud rate to 9,600 bps, set address to 0, choose Pelco-D protocol.
Read the instructions carefully and observe all warnings before installing this equipment.
Turn off power before cleaning this equipment (do not use liquid or spray cleaning agent).
Do not install on unstable bracket.
Protect the power line, especially the flexible line of the plug and camera.
Wiring WBL Wall Mount (Included)
© 20162019 Hikvision USA Inc. • All Rights Reserved • Specifications subject to change without notice. Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St-Laurent, Quebec, Canada, H4R 2P1 Tel: +1-909-895-0400 • Toll Free in USA: +1-866-200-6690 • E-Mail: sales.usa@hikvision.com • www.hikvision.com 092419NA
