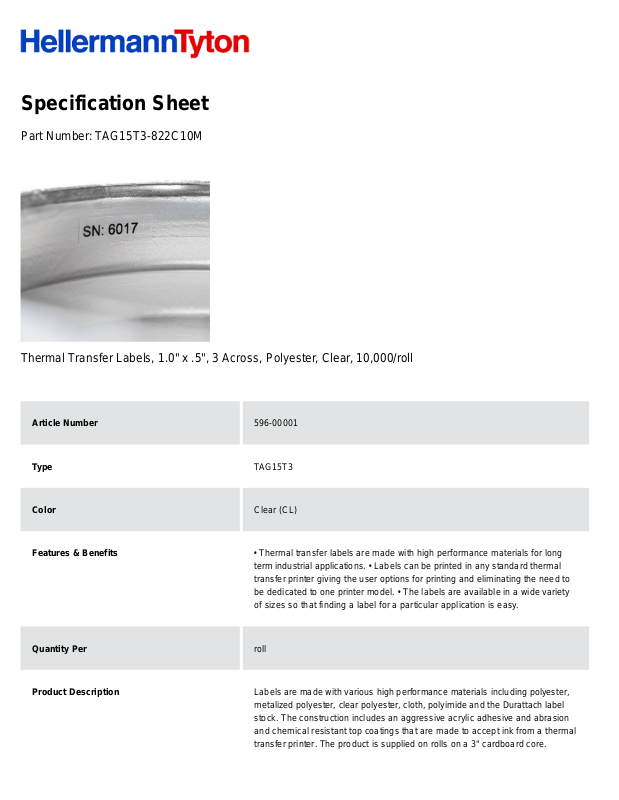

Specification Sheet
Part Number:
TAG15T3-822C10M
Thermal Transfer Labels, 1.0" x .5", 3 Across, Polyester, Clear, 10,000/roll
Article Number
596-00001
Type
TAG15T3
Color
Clear (CL)
Features & Benefits
• Thermal transfer labels are made with high performance materials for long
term industrial applications. • Labels can be printed in any standard thermal
transfer printer giving the user options for printing and eliminating the need to
be dedicated to one printer model. • The labels are available in a wide variety
of sizes so that finding a label for a particular application is easy.
Quantity Per
roll
Product Description
Labels are made with various high performance materials including polyester,
metalized polyester, clear polyester, cloth, polyimide and the Durattach label
stock. The construction includes an aggressive acrylic adhesive and abrasion
and chemical resistant top coatings that are made to accept ink from a thermal
transfer printer. The product is supplied on rolls on a 3" cardboard core.
Short Description
Thermal Transfer Labels, 1.0" x .5", 3 Across, Polyester, Clear, 10,000/roll
Global Part Name
TAG15T3-822C-CL
Width W (Imperial)
1.0
Width W (Metric)
25.4
Thickness T (Metric)
64.0
Height H (Imperial)
0.5
Height H (Metric)
12.7
Width of Liner (Metric)
85.09
Width of Liner (imperial)
3.35
Material
Type 822C, Clear Polyester (CL)
Material Shortcut
822C
Adhesive
Acrylic
Halogen free
No
Adhesive Operating Temperature
-40°F to +302°F (-40°C to +150°C)
Operating Temperature (Metric)
-40°F to +302°F (-40°C to +150°C)
Reach Complaint(Article 33)
Yes
ROHS Complaint
Yes
Certification/Specification WEB
UL-Recognized
UL Recognized (US)
Yes
Package Quantity(Imperial)
10000
Package Quantity (Metric)
10000
Customs Number
-
Labels per Column
1
Labels per Row
3
Weight (Metric)
0.521
Weight (Imperial)
1.14
