Page 1
SW2011
Drawing
01.2
Revision level
State
Design Release
Part
-
Revision Record
SEE ECN#
T50SVC
SEE CHART FOR TIE
DRAWING AND MATERIAL
012883
Changed
AAC
Date
11/10/14
Approved
KAC
Date
11/10/14
FOR CABLE
15-18mm
~~;,
~~~~~===~,,
;,
-
~---,==~=======--------)
,,.&!!!!!!~
<..._ <..._
CABLE TIE
ROTATABLE
360
OC15-18
SEE CHART FOR CLIP
DRAWING AND MATERIAL
=========-------
L
Material
SEE CHART
T50SVCOC15-18
millimeters
Units:
Dimension without
tolerances details to:
.XXX =
.XX =
.X =
None =
Dimension Formatted mm/[in]
=
L.. t
+
.013
+
.13
+
.3
+
.8
0.5
TYPE
The copyright of this
drawing is reserved by
Hellermann
issued on condition that it is
not reproduced, copied, or
disclosed to a third party,
either wholly or in part,
without the consent of
Hellermann
DIAMETER
Tyton
Tyton
BUNDLE
2 to 35
. It is
.
DRAWING
14-0606-001-CSU
Drawn
Approved
AAC
KAC
Hellermann
North America
CABLE TIE
11/10/14
11/10/14
ton
T
y
MATERIAL
PA66HS
Article/Type-No
Title
T50SVCOC15-18

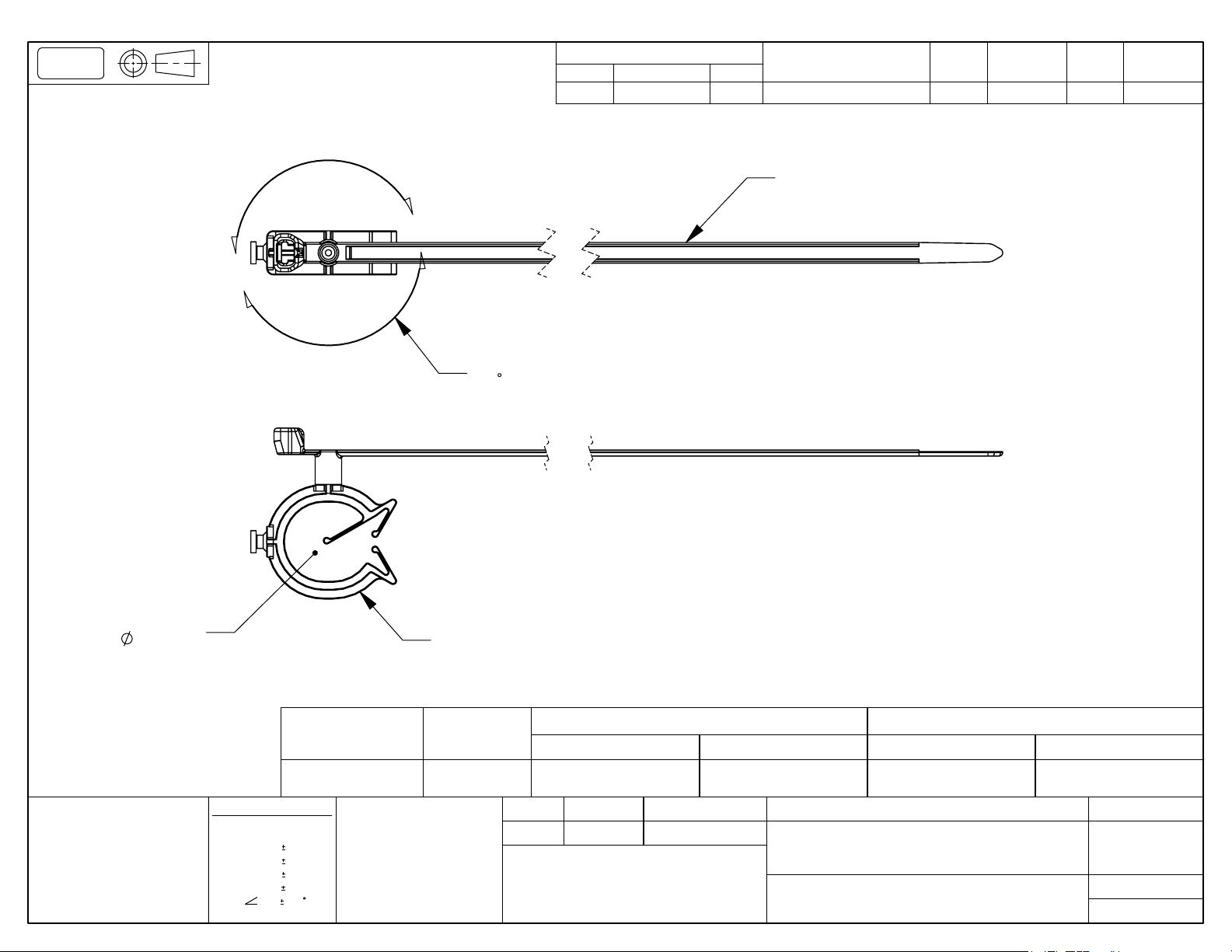

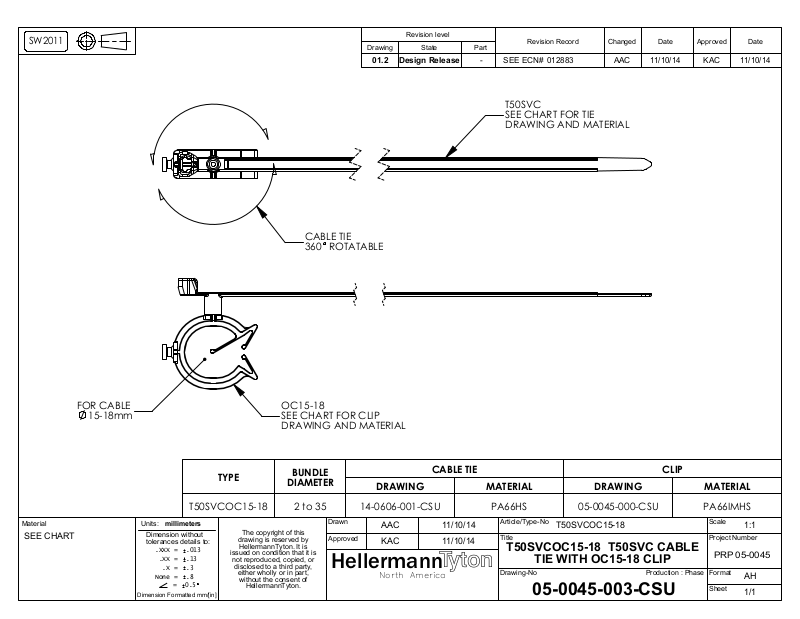

DRAWING
05-0045-000-CSU
T50SVCOC15-18 T50SVC CABLE
TIE WITH OC15-18 CLIP
Drawing-No
Production
05-0045-003-CSU
CLIP
: Phase
MATERIAL
PA66IMHS
Scale
Project Number
PRP
05-0045
Format
Sheet
1:1
AH
1/1
