SW2011
Drawing
01.1

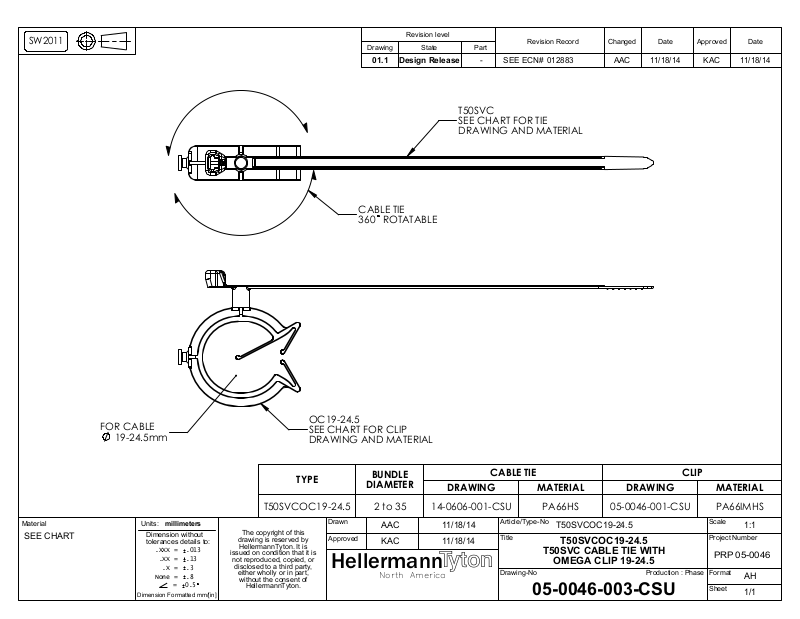

CABLE TIE
360
ROTATABLE
Revision level
State
Design Release
Part
-
Revision Record
SEE ECN#
012883
T50SVC
SEE CHART FOR TIE
DRAWING AND MATERIAL
Changed
AAC
Date
11/18/14
Approved
KAC
Date
11/18/14
Material
SEE CHART
FOR CABLE
19-24.5mm
Units:
Dimension without
tolerances details to:
Dimension Formatted mm/[in]
millimeters
.XXX =
.XX =
.X =
None =
L.. t •
=
.013
.13
.3
+
.8
0.5
OC19-24.5
SEE CHART FOR CLIP
DRAWING AND MATERIAL
TYPE
T50SVCOC19-24.5
The copyright of this
drawing is reserved by
Hellermann
issued on condition that it is
not reproduced, copied, or
disclosed to a third party,
either wholly or in part,
without the consent of
Hellermann
Tyton
Tyton
. It is
.
BUNDLE
DIAMETER
2 to 35
Drawn
Approved
AAC
KAC
Hellermann
North America
CABLE TIE
DRAWING
14-0606-001-CSU
11/18/14
11/18/14
ton
T
y
Article/Type-No
Title
Drawing-No
MATERIAL
PA66HS
DRAWING
05-0046-001-CSU
T50SVCOC19-24.5
T50SVCOC19-24.5
T50SVC CABLE TIE WITH
OMEGA CLIP 19-24.5
Production
05-0046-003-CSU
CLIP
: Phase
MATERIAL
PA66IMHS
Scale
Project Number
Format
Sheet
PRP
1:1
05-0046
AH
1/1
